Appl. Sci. 2017, 7(7), 741; doi:10.3390/app7070741

Application of Bender Elements Technique in Testing of Anthropogenic Soil—Recycled Concrete Aggregate and Its Mixture with Rubber Chips

1
Water Centre-Laboratory, Faculty of Civil and Environmental Engineering, Warsaw University of Life Sciences, 02-787 Warsaw, Poland
2
Department of Geotechnical Engineering, Faculty of Civil and Environmental Engineering, Warsaw University of Life Sciences, 02-787 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Academic Editor: Jorge de Brito
Received: 30 May 2017 / Revised: 10 July 2017 / Accepted: 17 July 2017 / Published: 21 July 2017
(This article belongs to the Section Materials)
View Full-Text   |   Download PDF [4926 KB, uploaded 21 July 2017]   |

Abstract

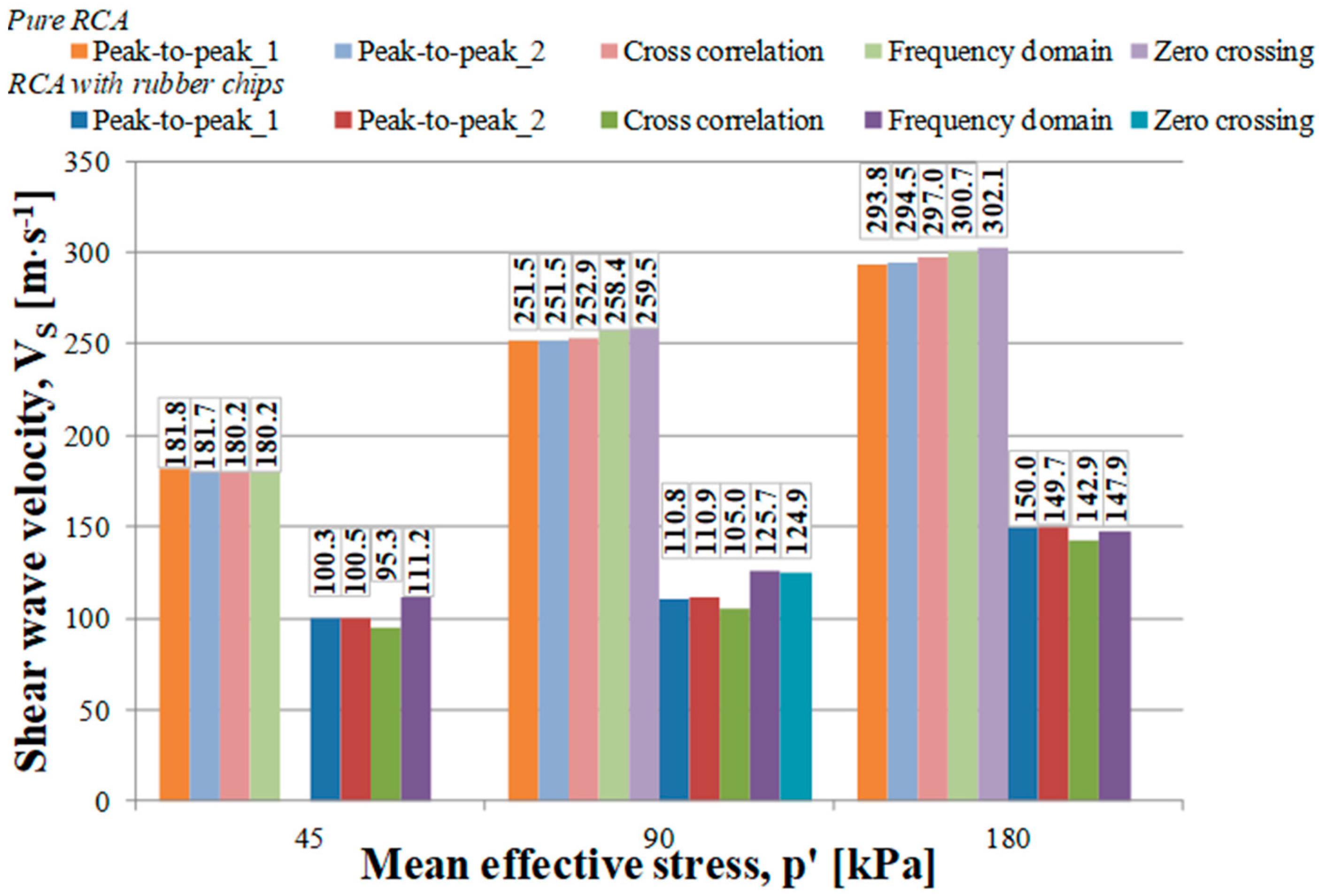

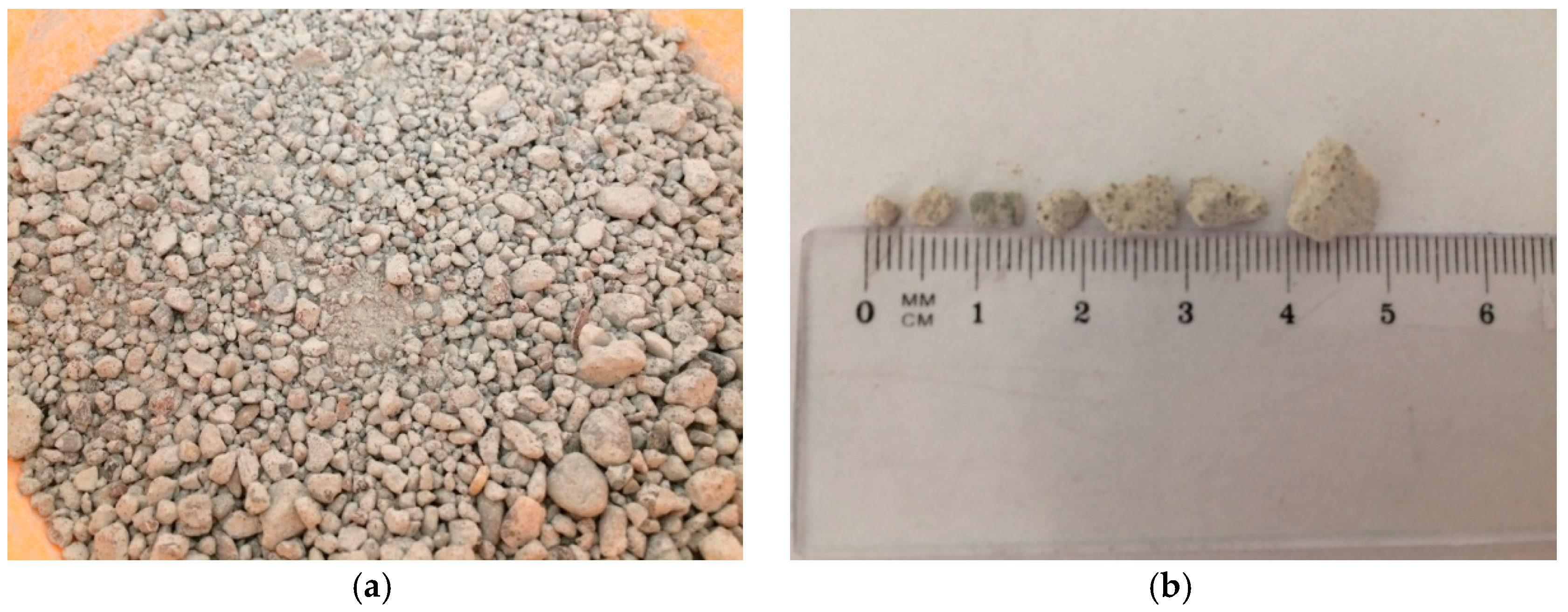

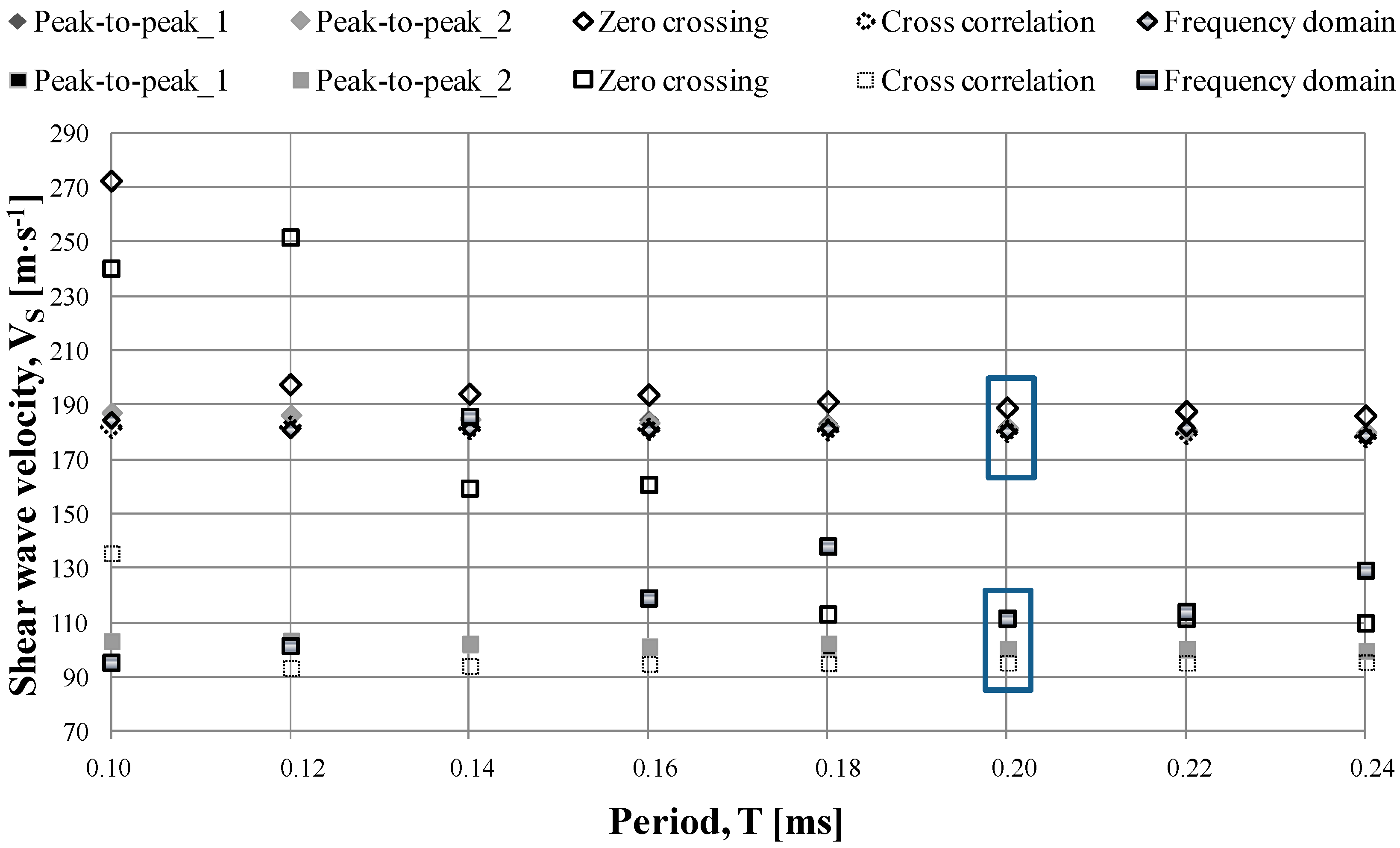

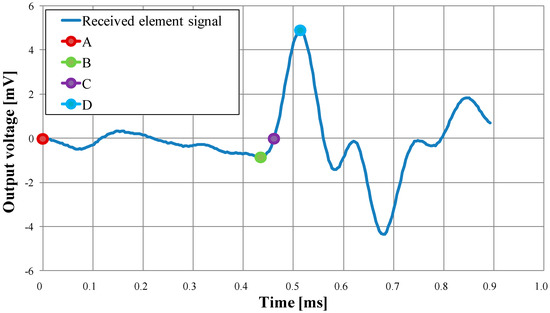

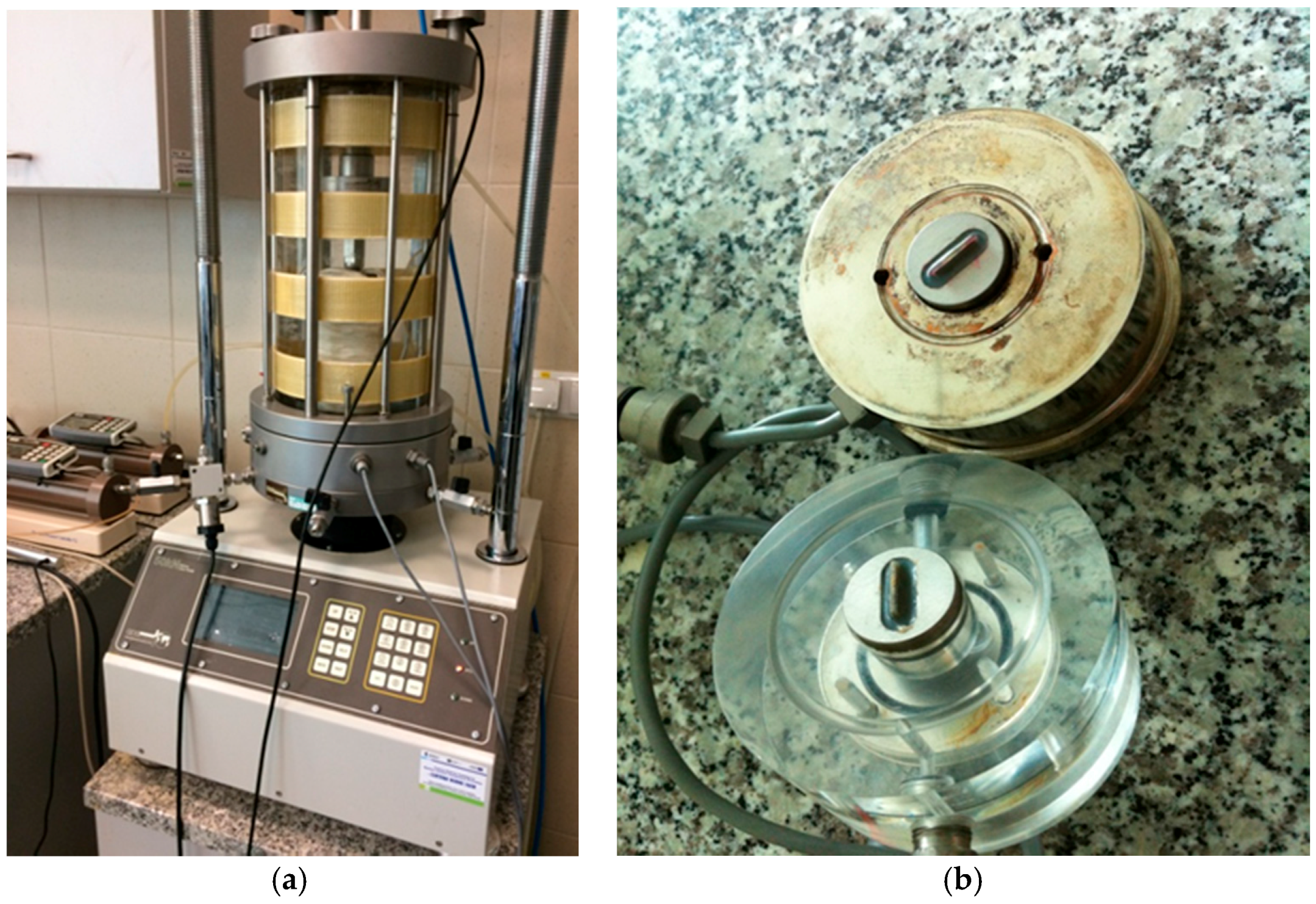

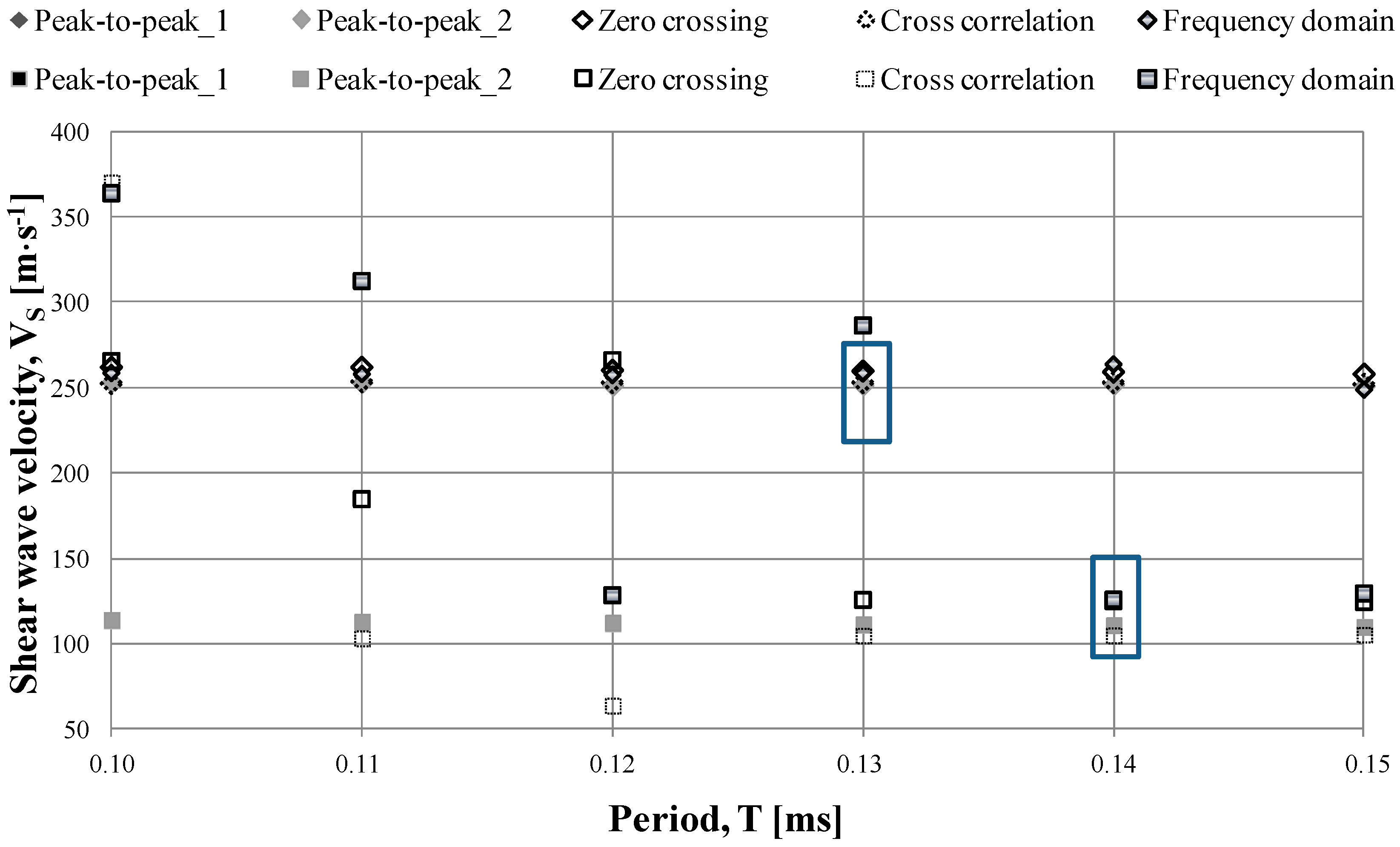

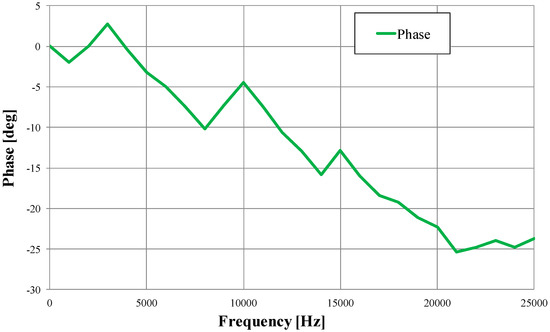

This paper discusses the application of piezoceramic bender elements (BEs) for measurement of shear wave velocity in the time and frequency domain in a triaxial cell under different isotropic confinement. Different interpretation methods were used in the tests and their results were finally compared with each other. Two types of anthropogenic material were tested: pure Recycled Concrete Aggregate (RCA) and RCA-rubber chips mixtures (15% of rubber addition). Presented study is an attempt to describe dynamic properties, in terms of shear wave velocity (VS), of the aforementioned anthropogenic material using the technique commonly applied for natural soil. Although some research is currently being carried out, in order to evaluate physical, chemical and mechanical properties of RCA and rubber-soil mixtures, still little is known of their dynamic properties. Hence, this work will provide the experimental results of shear wave velocity of RCA and its modified version. The results show that tires chips significantly decrease the VS values of modified RCA. They help to reduce the near field effect, but the received parameters are more incoherent. The VS values were found to be influenced by interpretation technique, mean effective stress and wave’s propagation period. The maximum VS values were obtained mostly from the frequency domain method, although time domain analysis gives the results that are more coherent. View Full-Text
Keywords: anthropogenic soil dynamics; bender elements tests; shear wave velocity; recycled concrete aggregate; rubber chips anthropogenic soil dynamics; bender elements tests; shear wave velocity; recycled concrete aggregate; rubber chips
