Appl. Sci. 2017, 7(6), 571; doi:10.3390/app7060571

Studies on Seismic Performance of Precast Concrete Columns with Grouted Splice Sleeve

Research Institute of Structural Engineering and Disaster Reduction, Tongji University, Shanghai 200092, China
*
Author to whom correspondence should be addressed.
Academic Editor: Jorge de Brito
Received: 29 March 2017 / Revised: 7 May 2017 / Accepted: 29 May 2017 / Published: 2 June 2017
View Full-Text   |   Download PDF [5963 KB, uploaded 2 June 2017]   |

Abstract

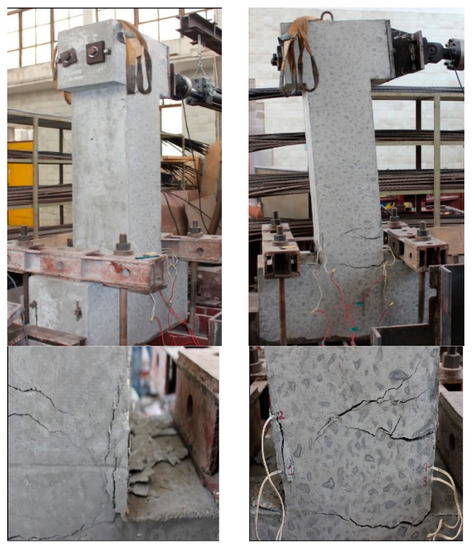

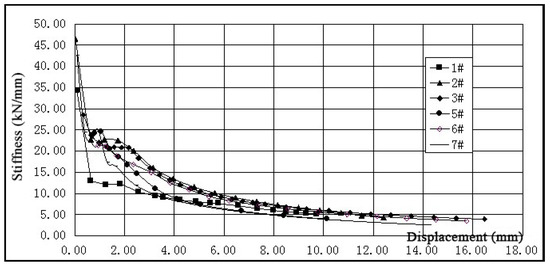

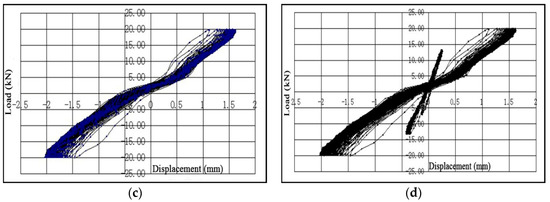

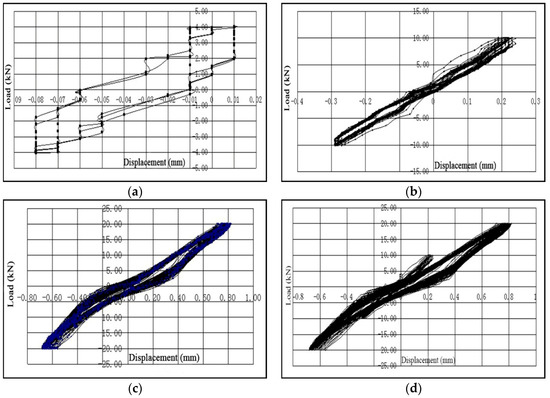

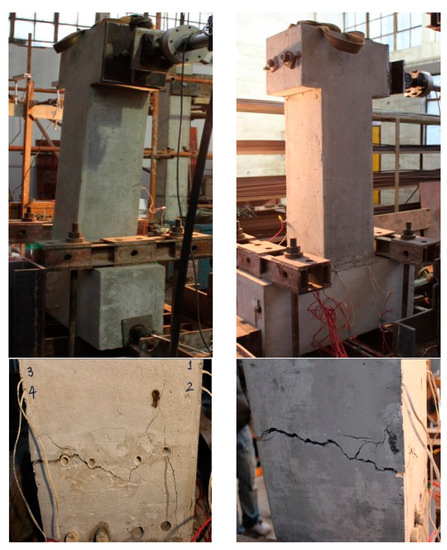

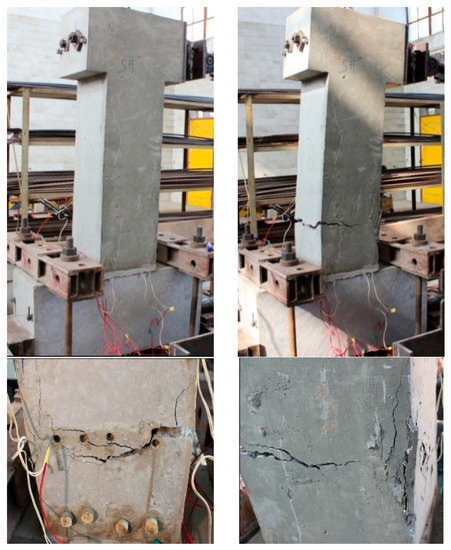

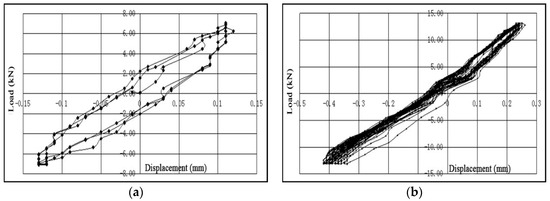

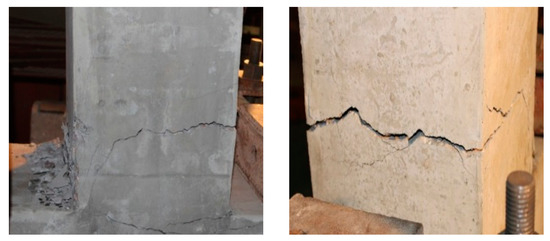

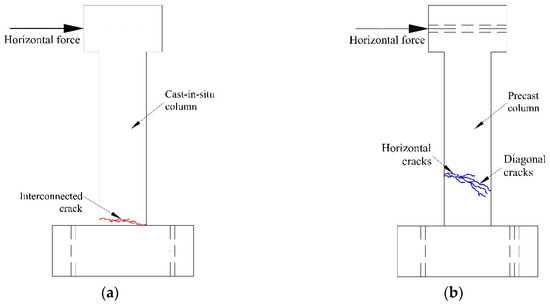

In order to validate the seismic performance of precast concrete members with steel sleeve connections, pseudo-static tests on four prefabricated columns with vertical grouted splice sleeve connections and on a control group of two cast-in-situ columns have been conducted. The test results indicated that the failure modes of the prefabricated columns and of the cast-in-situ columns are basically identical but differences exist in their crack distribution. The cast-in-situ columns mainly crack horizontally at the bottom of the column, whereas the prefabricated columns have horizontal cracks above the sleeves, and then form diagonal cracks downwards and develop many wider cracks within the range of height of 300 mm at the bottom of the column. The hysteresis curves of the prefabricated columns are plump, which demonstrates that prefabricated columns have satisfactory energy-dissipating capacity. Moreover, the stiffness degradation of the prefabricated specimens is slower than that of the cast-in-situ specimens. The ultimate displacement angle of the prefabricated columns is up to 1/104–1/54, which satisfies the requirements of the inter-story drift ratio during major earthquakes. Finally, some recommendations on practical seismic design pertinent to the precast concrete members with grouted splice sleeves are proposed. View Full-Text
Keywords: construction industrialization; zero-carbon building; precast concrete column; grouted splice sleeve; pseudo-static test; low cyclic repeated loading test construction industrialization; zero-carbon building; precast concrete column; grouted splice sleeve; pseudo-static test; low cyclic repeated loading test
