Appl. Sci. 2017, 7(5), 465; doi:10.3390/app7050465

Control of Corner Separation with Plasma Actuation in a High-Speed Compressor Cascade

1,2
,
2,3,4,* , 2,3,4
,
1
and
1
1
College of Aeronautical and Aerospace Engineering, Science and Technology on Plasma Dynamics Laboratory, Airforce Engineering University, Xi’an 710038, China
2
School of Energy and Power Engineering, National Key Laboratory of Science and Technology on Aero-Engine Aero-Thermodynamics, Beihang University, Beijing 100191, China
3
National Key Laboratory of Science & Technology on Aero-Engine Aero-Thermodynamics, Beihang University, Beijing 100191, China
4
Collaborative Innovation Center of Advanced Aero-Engine, Beihang University, Beijing 100191, China
*
Author to whom correspondence should be addressed.
Academic Editors: Antonio Ficarella and Maria Grazia De Giorgi
Received: 31 March 2017 / Revised: 25 April 2017 / Accepted: 25 April 2017 / Published: 29 April 2017
(This article belongs to the Special Issue Active Flow Control Technologies for Energy and Propulsive Systems)
View Full-Text   |   Download PDF [4264 KB, uploaded 29 April 2017]   |

Abstract

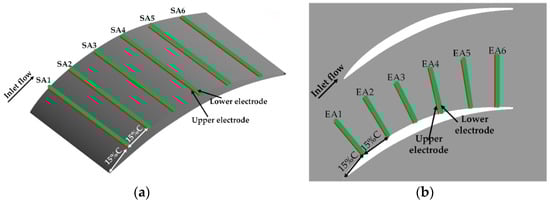

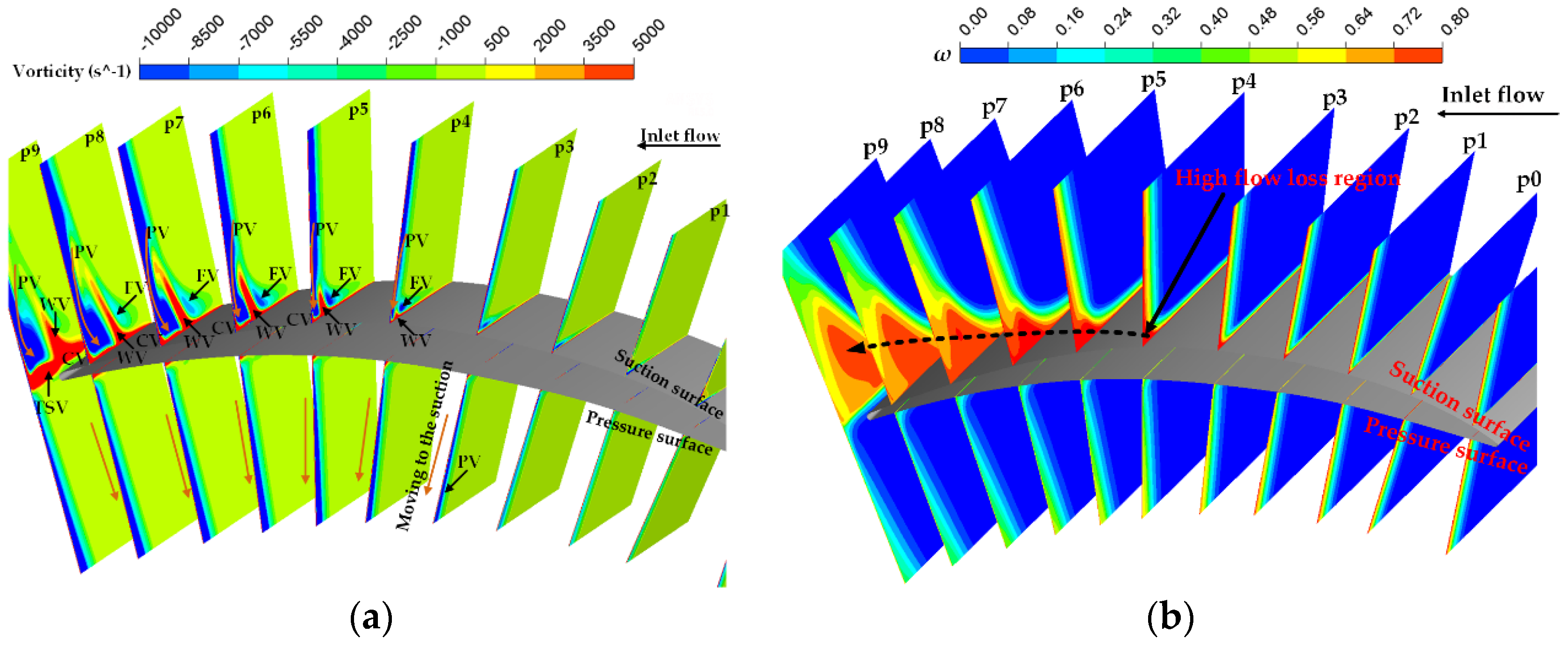

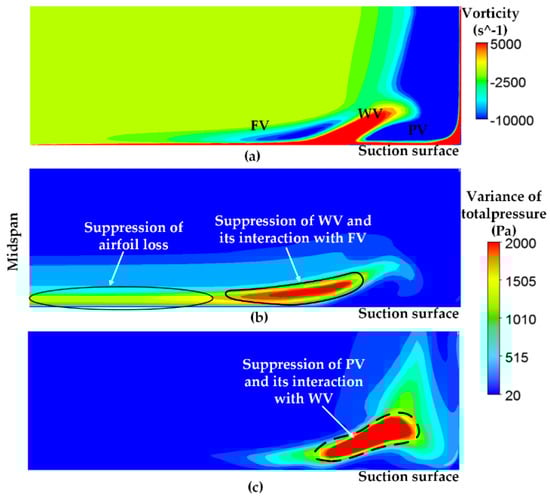

The performances of modern highly loaded compressors are limited by the corner separations. Plasma actuation is a typical active flow control methodology, which has been proven to be capable of controlling the corner separations in low-speed compressor cascades. The main purpose of this paper is to uncover the flow control law and the mechanism of high-speed compressor cascade corner separation control with plasma actuations. The control effects of the suction surface as well as the endwall plasma actuations in suppressing the high-speed compressor cascade flow separations are investigated with numerical methods. The main flow structures within the high-speed compressor cascade corner separation and the development of the corresponding flow loss are investigated firstly. Next, the performances of plasma actuations in suppressing the high-speed compressor cascade corner separation are studied. At last, the mechanisms behind the control effects of the suction surface and the endwall plasma actuations are discussed. Both the suction surface and the endwall plasma actuations can improve the high-speed compressor cascade static pressure rise coefficient, while reducing the corresponding total pressure loss and blockage coefficients. The suction surface plasma actuation can suppress not only the high-speed compressor cascade corner separation vortex but also the airfoil separation, so, compared to the endwall plasma actuation, the suction surface plasma actuation is more efficient in reducing the total pressure loss of the high-speed compressor cascade. However, through suppressing the development of the passage vortex, the endwall plasma actuation is more efficient in reducing the flow blockage and improving the static pressure rise of the high-speed compressor cascade. View Full-Text
Keywords: plasma actuation; active flow control; compressor; corner separation plasma actuation; active flow control; compressor; corner separation
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Zhang, H.; Yu, X.; Liu, B.; Wu, Y.; Li, Y. Control of Corner Separation with Plasma Actuation in a High-Speed Compressor Cascade. Appl. Sci. 2017, 7, 465.
