Appl. Sci. 2017, 7(4), 332; doi:10.3390/app7040332

An Independent Internal Cooling System for Promoting Heat Dissipation during Dry Cutting with Numerical and Experimental Verification

1
School of Aerospace Engineering, Xiamen University, Xiamen 361005, Fujian, China
2
School of Mechanical and Electrical Engineering, Henan University of Technology, Zhengzhou 450007, Henan, China
*
Author to whom correspondence should be addressed.
Academic Editor: Yulong Ding
Received: 26 December 2016 / Revised: 6 March 2017 / Accepted: 23 March 2017 / Published: 28 March 2017
View Full-Text   |   Download PDF [14007 KB, uploaded 28 March 2017]   |

Abstract

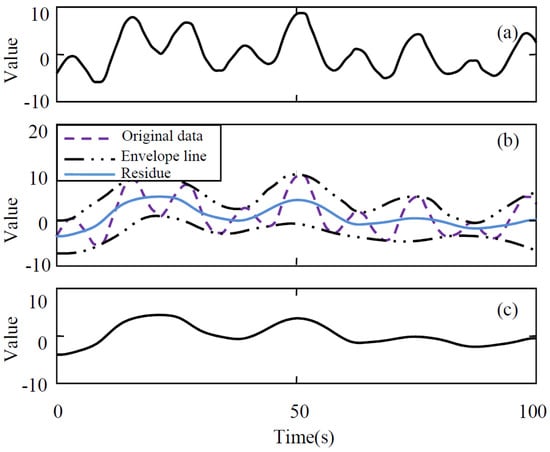

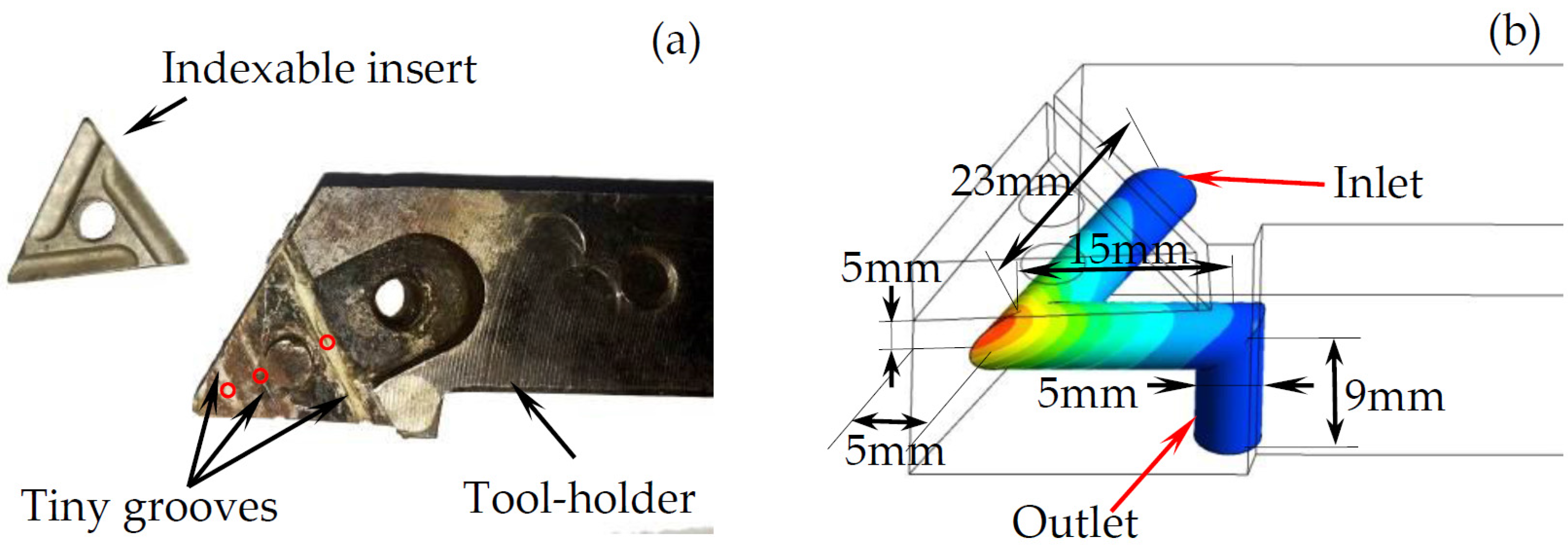

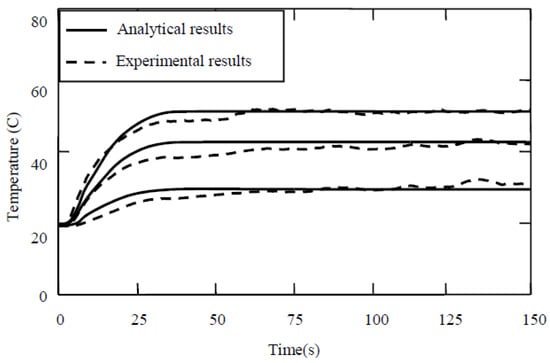

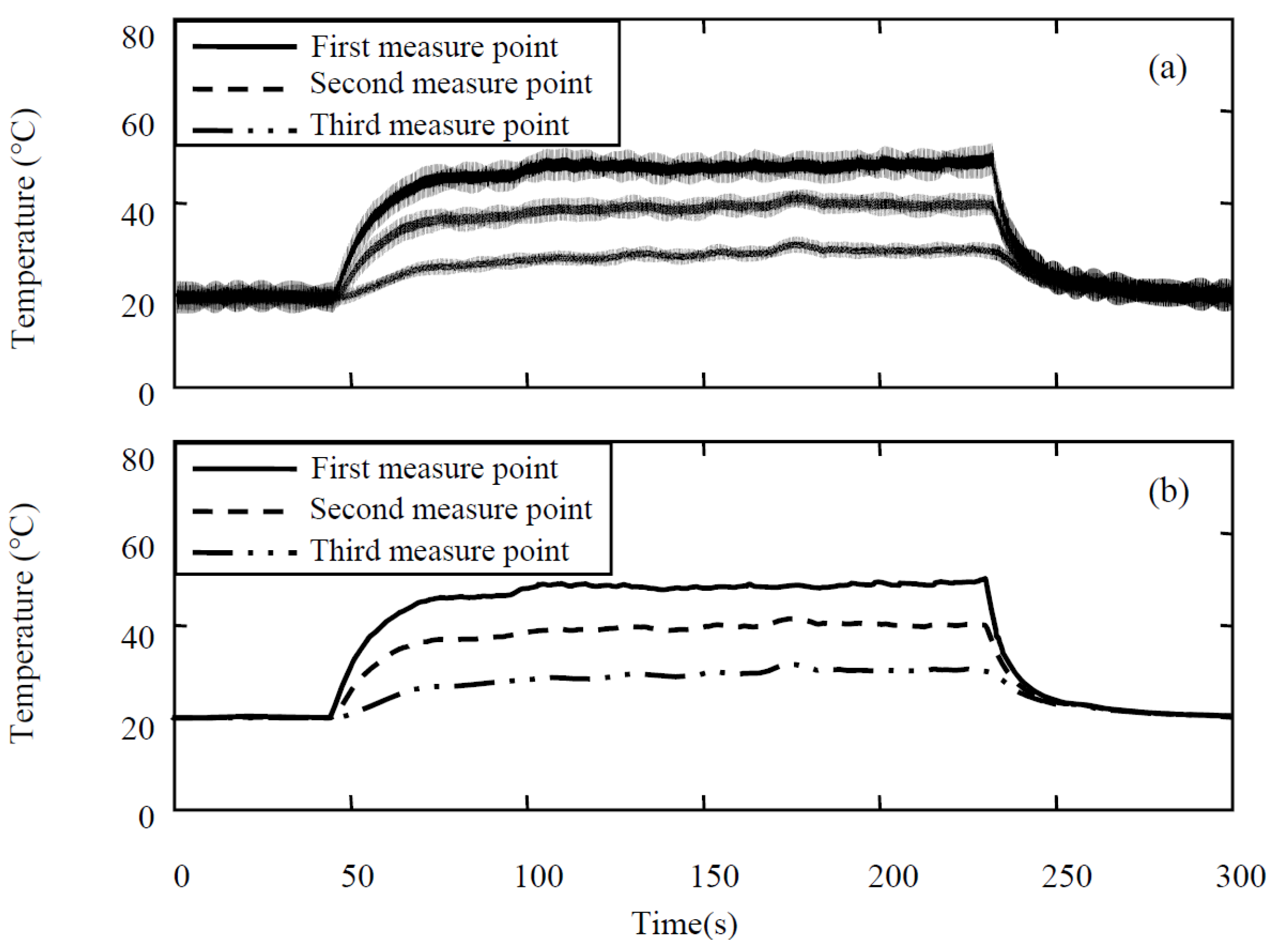

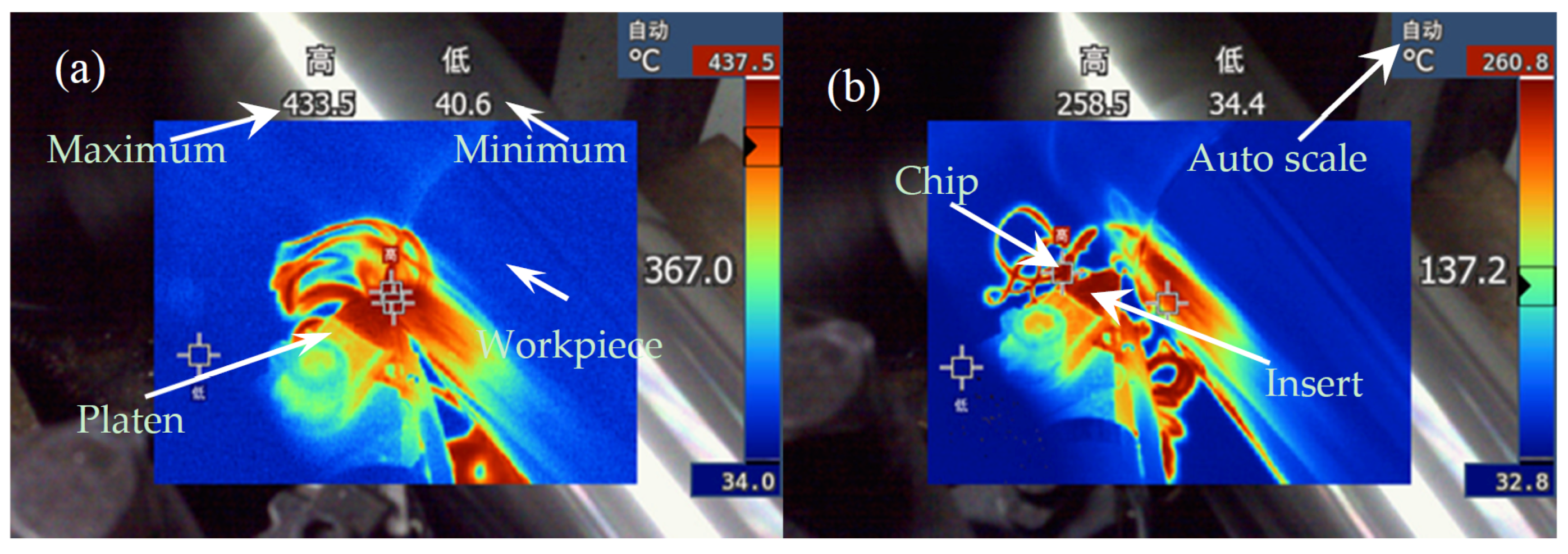

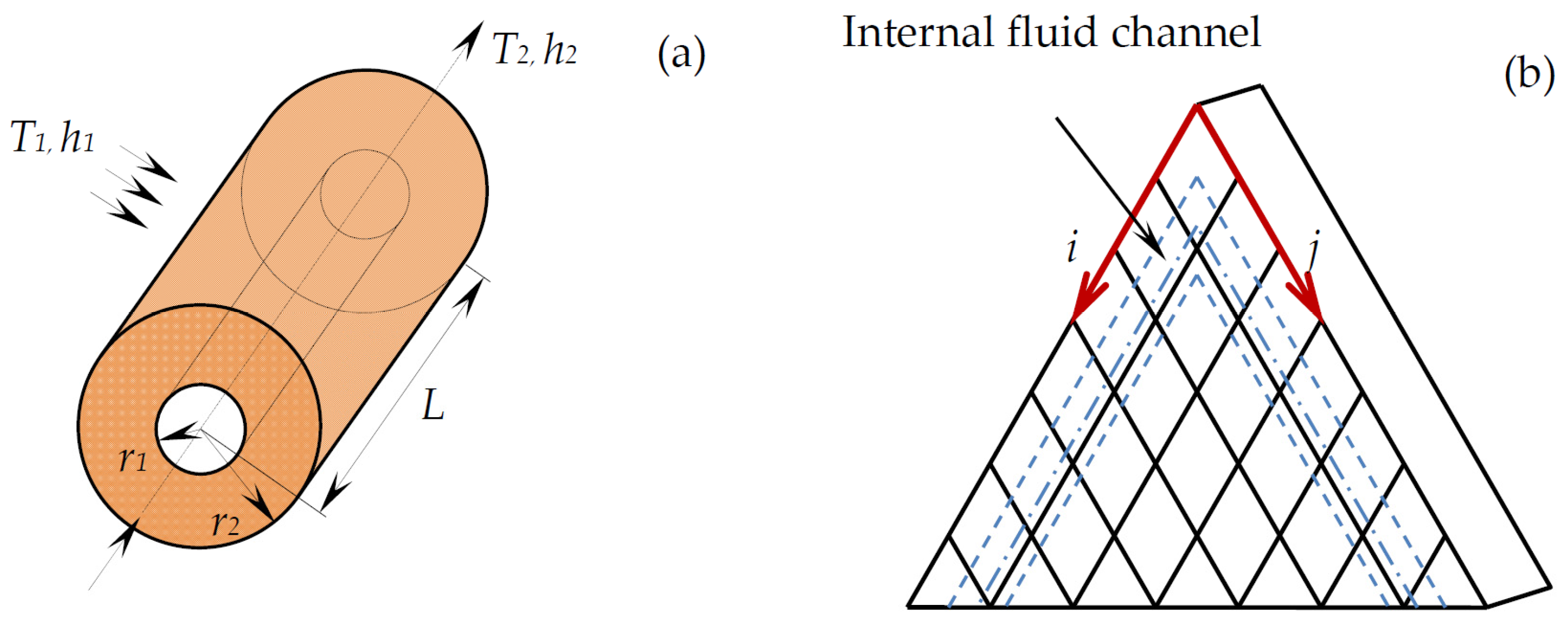

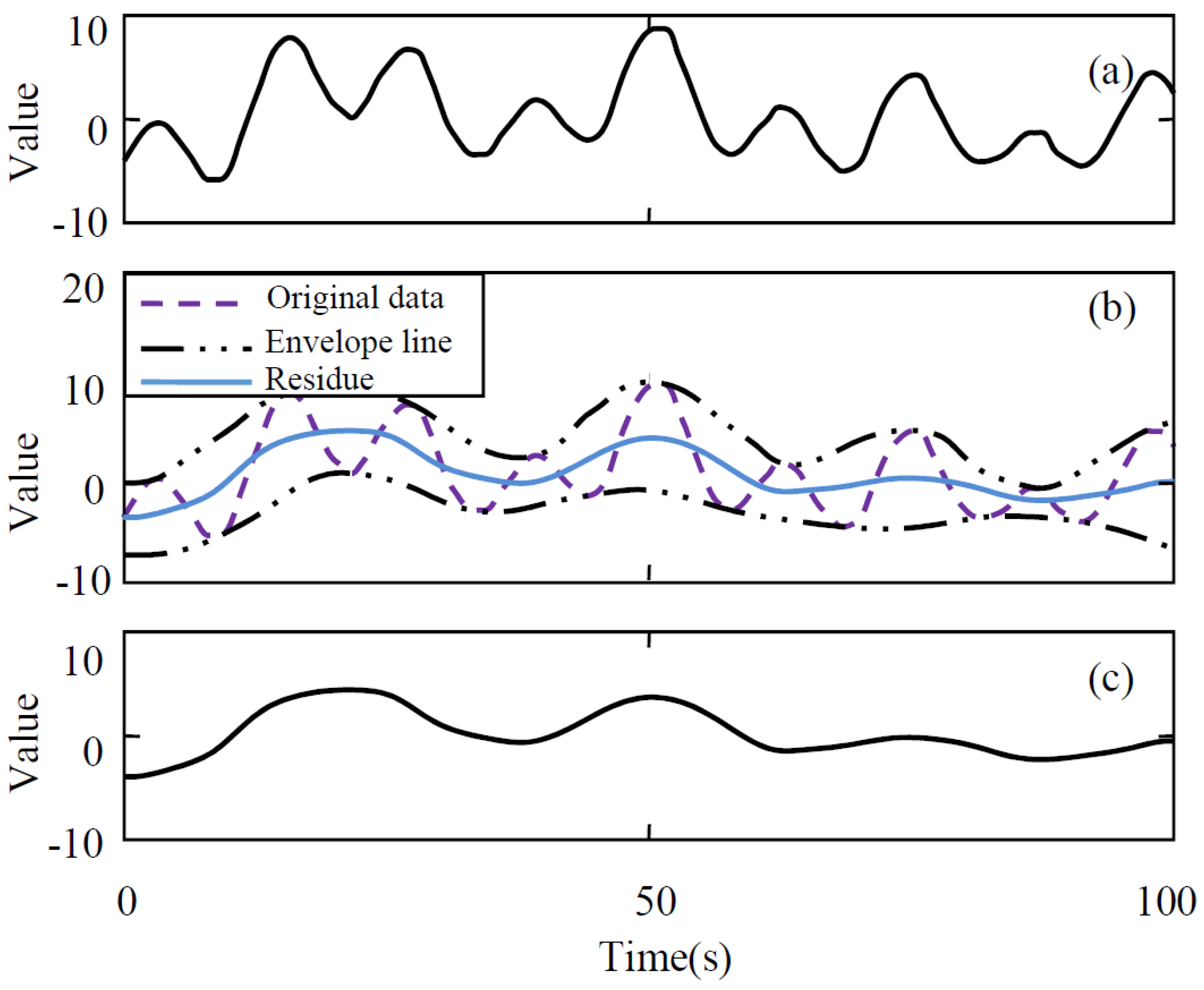

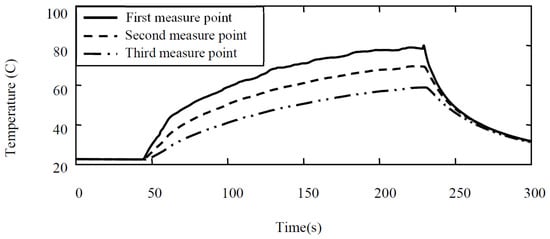

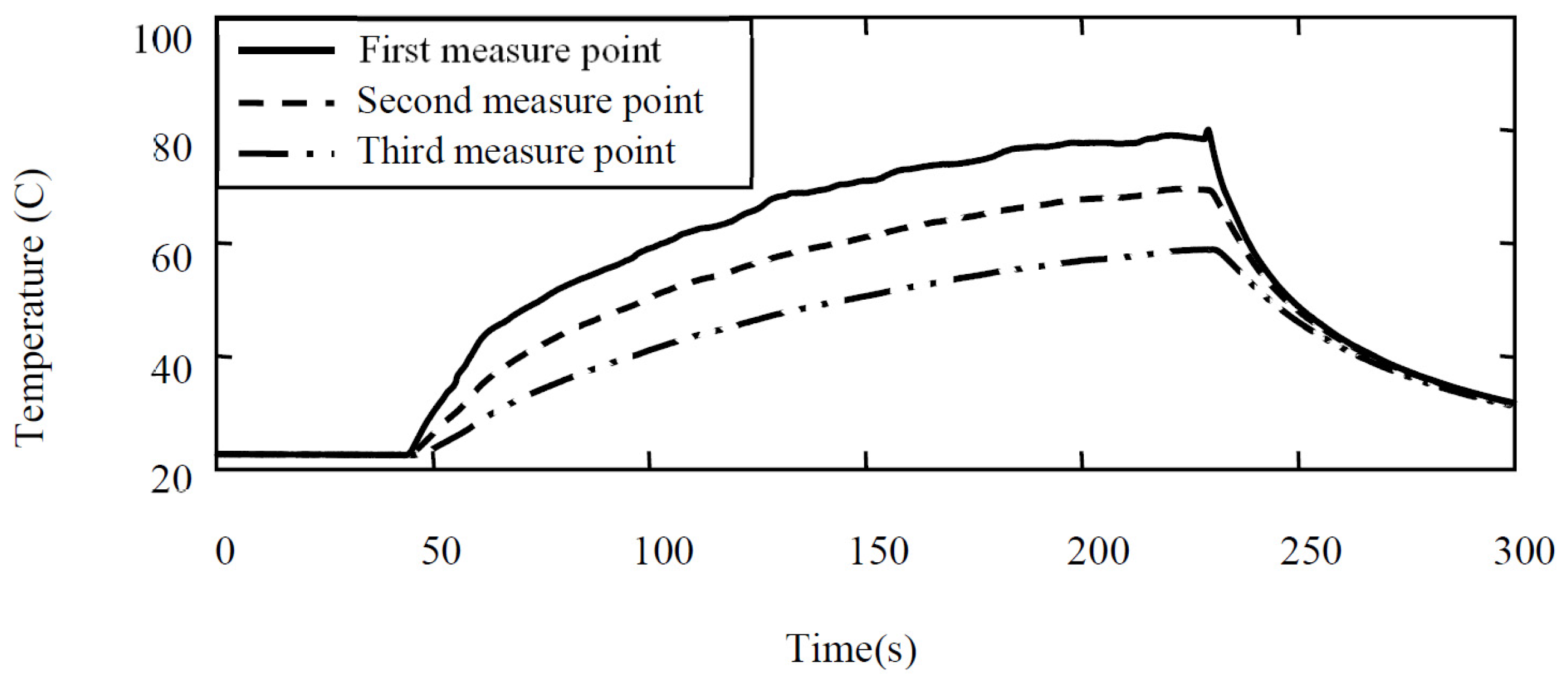

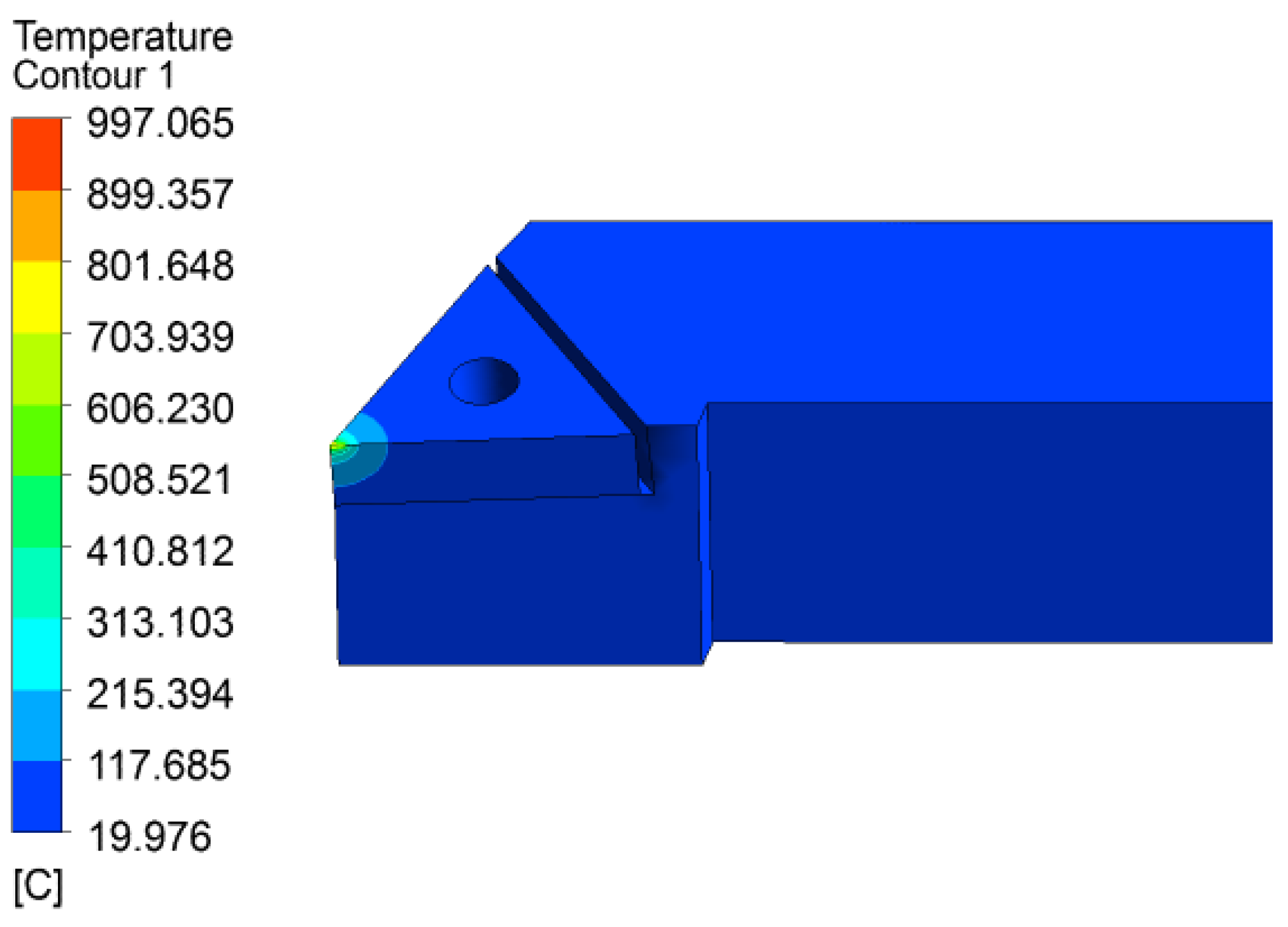

The cooling system has emerged as an effective way to alleviate the excessive heat generation during dry cutting processes. In this paper, we investigated a novel type of internal cooling system, independent of additional mechanical accessories, as a promising cooling alternative. The proposed system is devised as connected internal fluid channels of a-“V” shape created according to the geometric shape of the tool-holder. Enabling quantitative evaluation of the effectiveness of the proposed system, a new numerical approach is established. Within the approach, heat transfer equations are deduced according to thermodynamics; parameters of the equations are specified via analytical modeling. As a result, cutting temperatures can be estimated with high precision according to the outlet temperature. Moreover, a cutting experiment was carried out to verify the effectiveness of the proposed numerical approach. Tool-chip interface temperatures were measured using an infrared thermal imager. Smooth measurements with suppressed noises are derived based on a new adaptive mean filter originated by empirical mode decomposition (EMD). The experimental results demonstrate the proposed system can reduce the temperature substantially (almost 30% at the measuring point) and the results are highly consistent with those of numerical simulation. The proposed cooling system is a prospective enhancement for development of smart cutting tools. View Full-Text

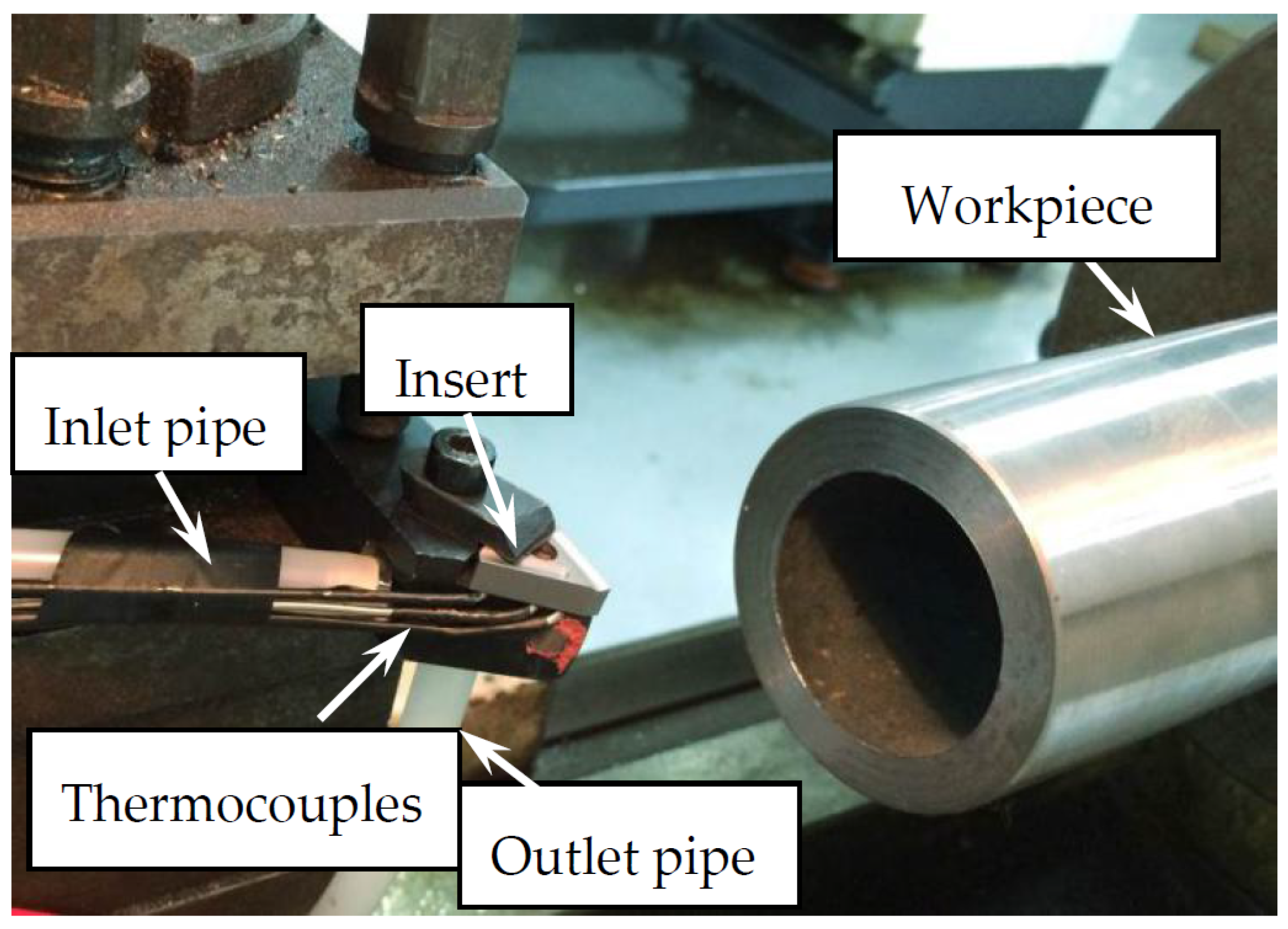

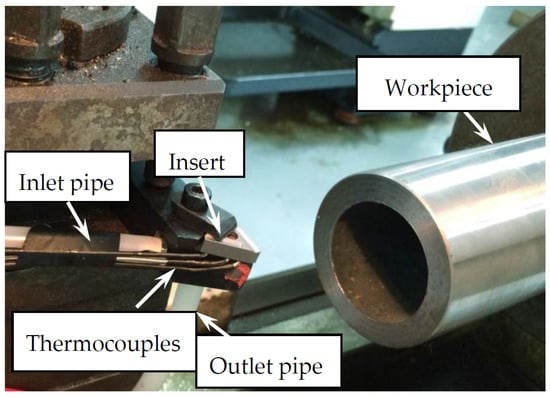

Keywords: indirect cooling systems (ICS); internal fluid channel; dry cutting; enhanced heat transfer indirect cooling systems (ICS); internal fluid channel; dry cutting; enhanced heat transfer
