Next Article in Journal
Magnetohydrodynamic Nanoliquid Thin Film Sprayed on a Stretching Cylinder with Heat Transfer
Next Article in Special Issue
On the Visualization of Gas Metal Arc Welding Plasma and the Relationship Between Arc Length and Voltage
Previous Article in Journal
Self-Fitting Algorithm for Digital Hearing Aid Based on Interactive Evolutionary Computation and Expert System
Previous Article in Special Issue
The Effect of EN Ratio and Current on Microstructural and Mechanical Properties of Weld Joined by AC-GMAW on Square Groove Butt Joints
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Appl. Sci. 2017, 7(3), 275; doi:10.3390/app7030275

A Comparative Study of Additively Manufactured Thin Wall and Block Structure with Al-6.3%Cu Alloy Using Cold Metal Transfer Process

1
School of Mechanical Engineering and Automation, Beihang University, Beijing 100191, China
2
MIIT Key Laboratory of Aeronautics Intelligent Manufacturing, Beijing 100191, China
3
Welding Engineering and Laser Processing Centre, Cranfield University, Cranfield MK43 0AL, UK
*
Author to whom correspondence should be addressed.
Academic Editor: Hai-Lung Tsai
Received: 31 December 2016 / Accepted: 1 March 2017 / Published: 10 March 2017
(This article belongs to the Special Issue Gas Metal Arc Welding)
View Full-Text   |   Download PDF [17980 KB, uploaded 14 March 2017]   |

Abstract

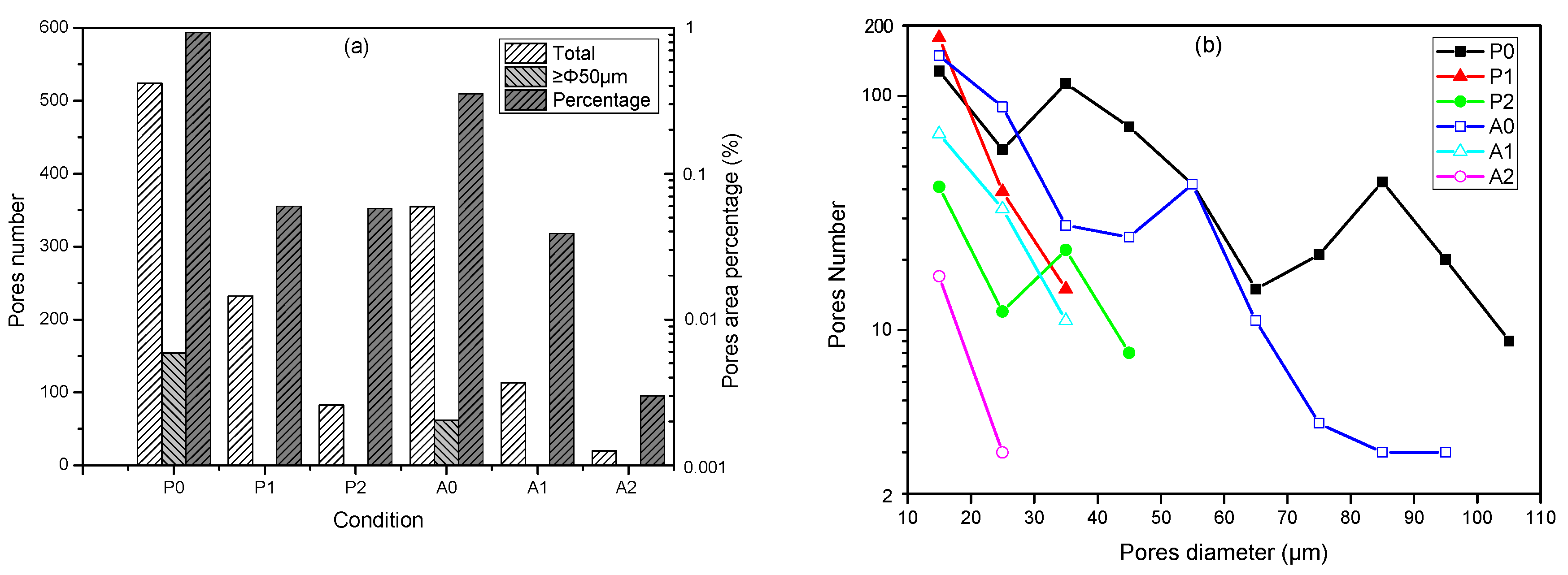

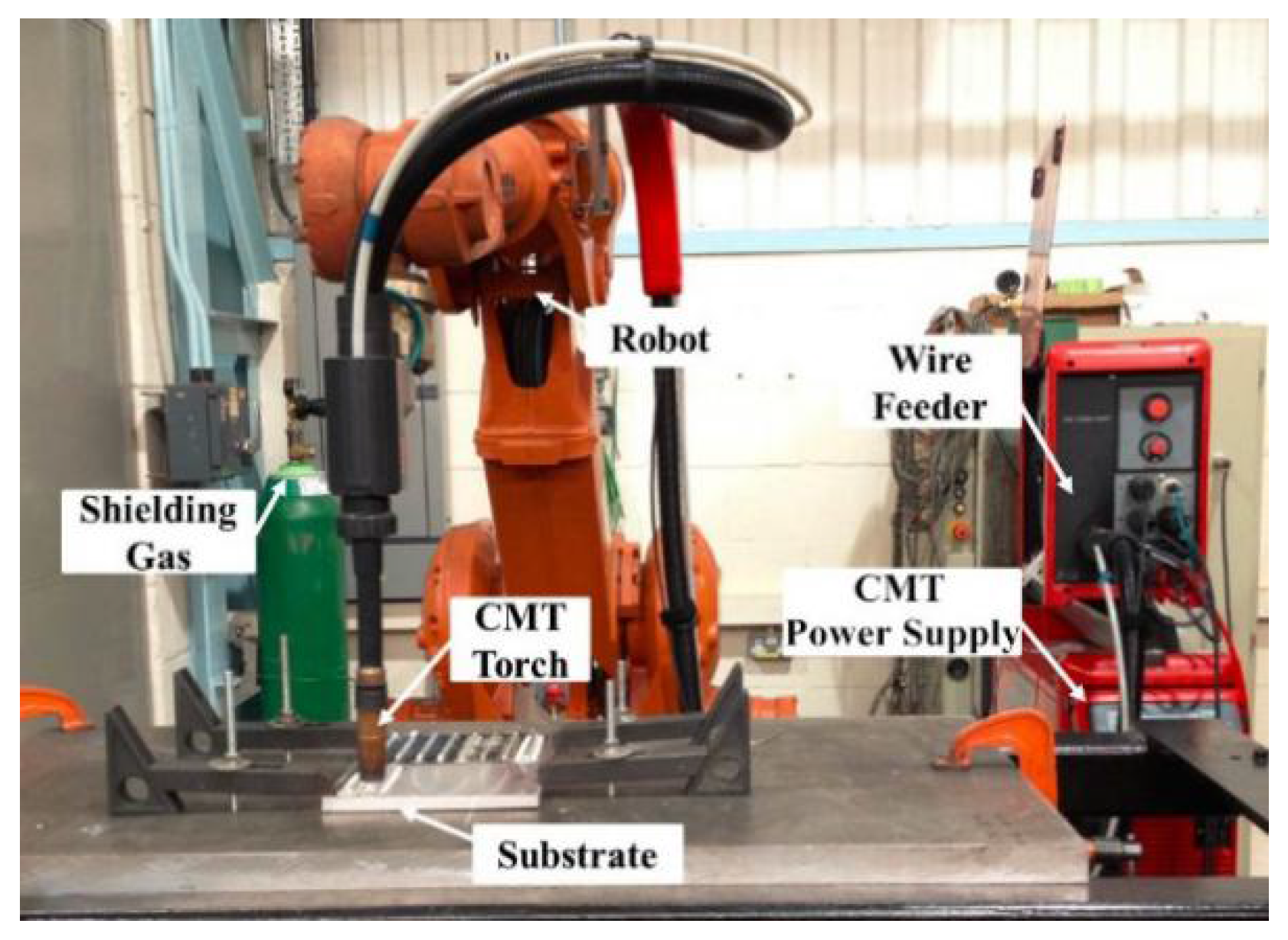

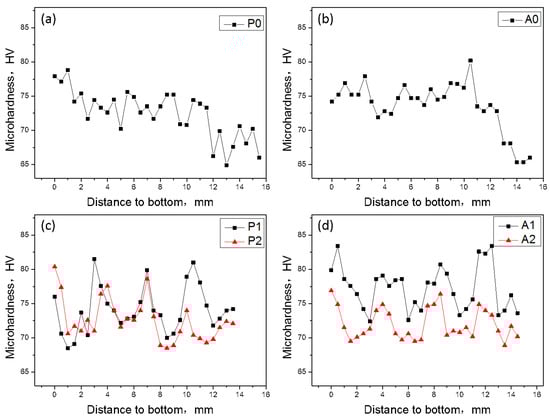

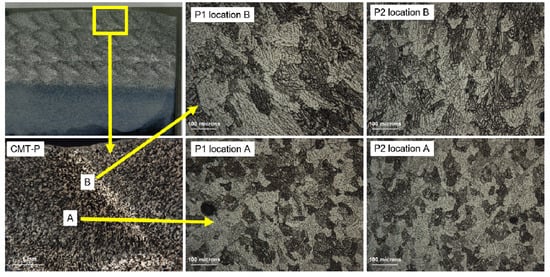

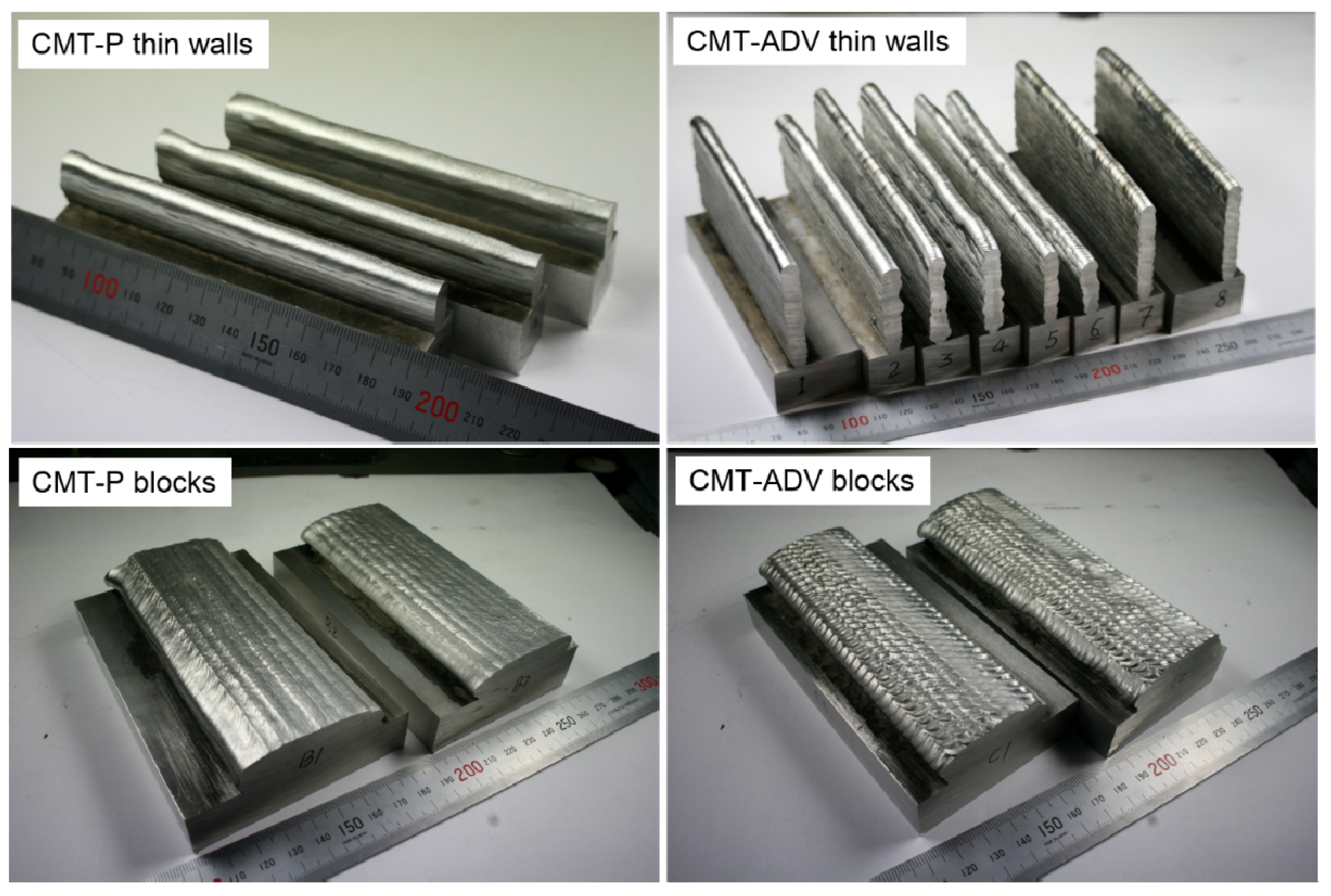

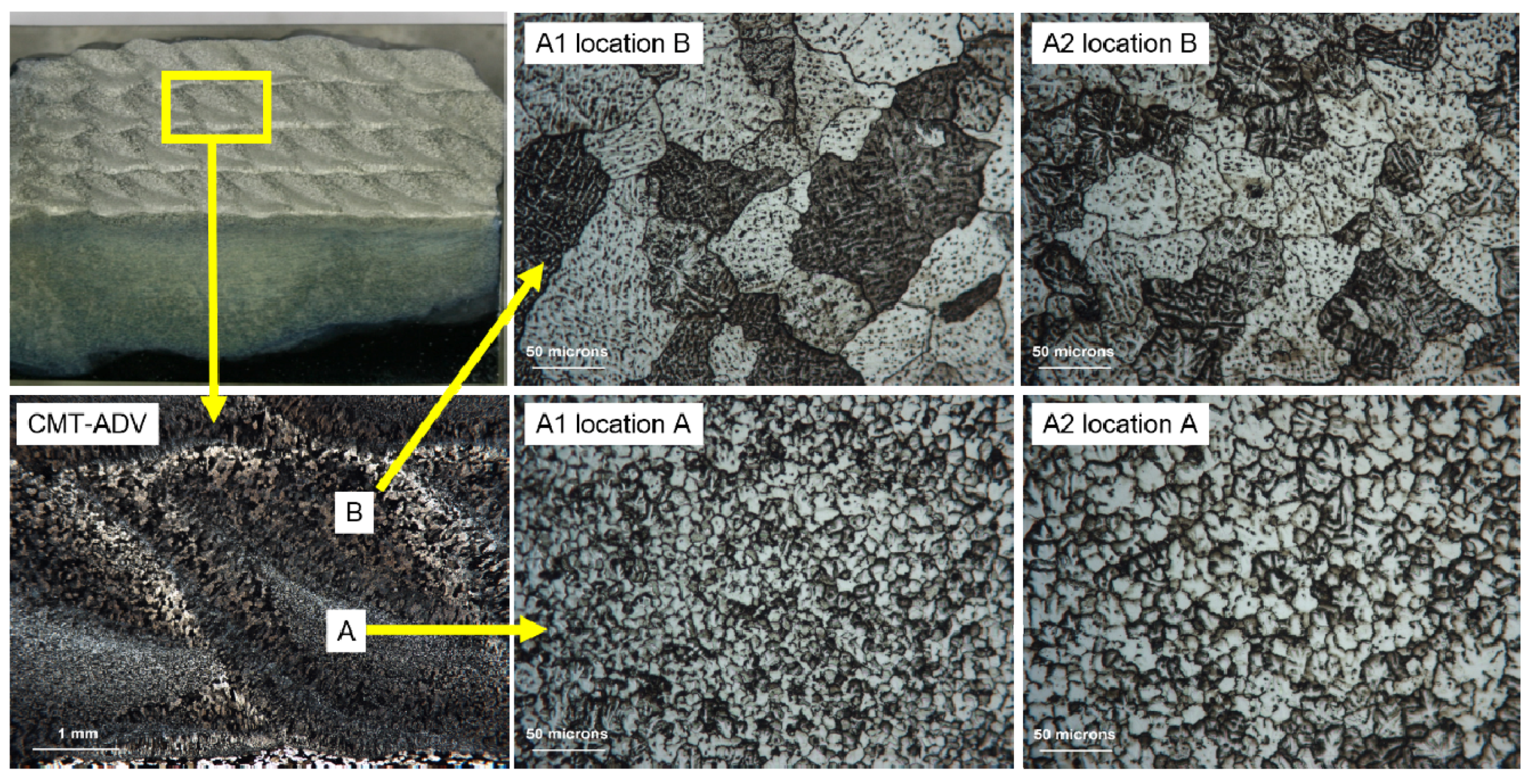

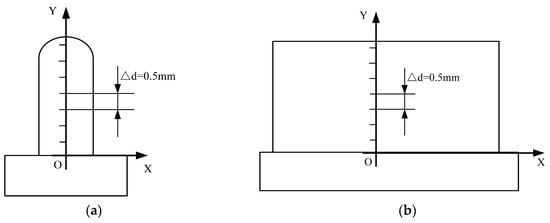

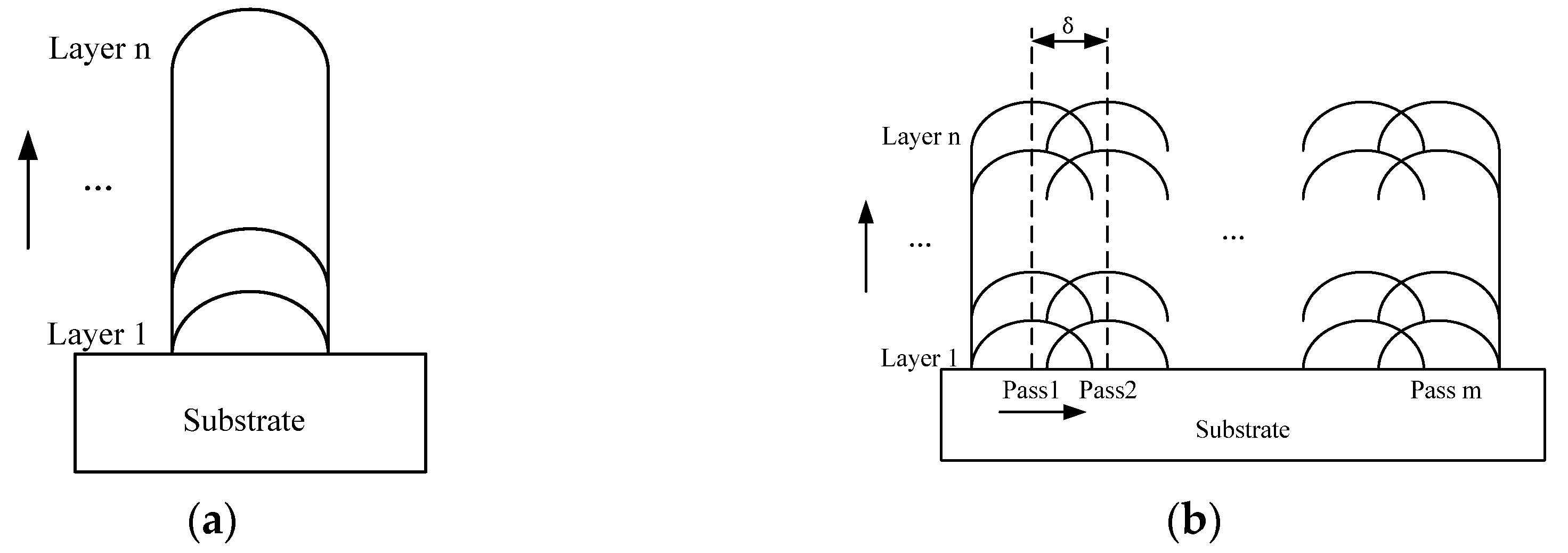

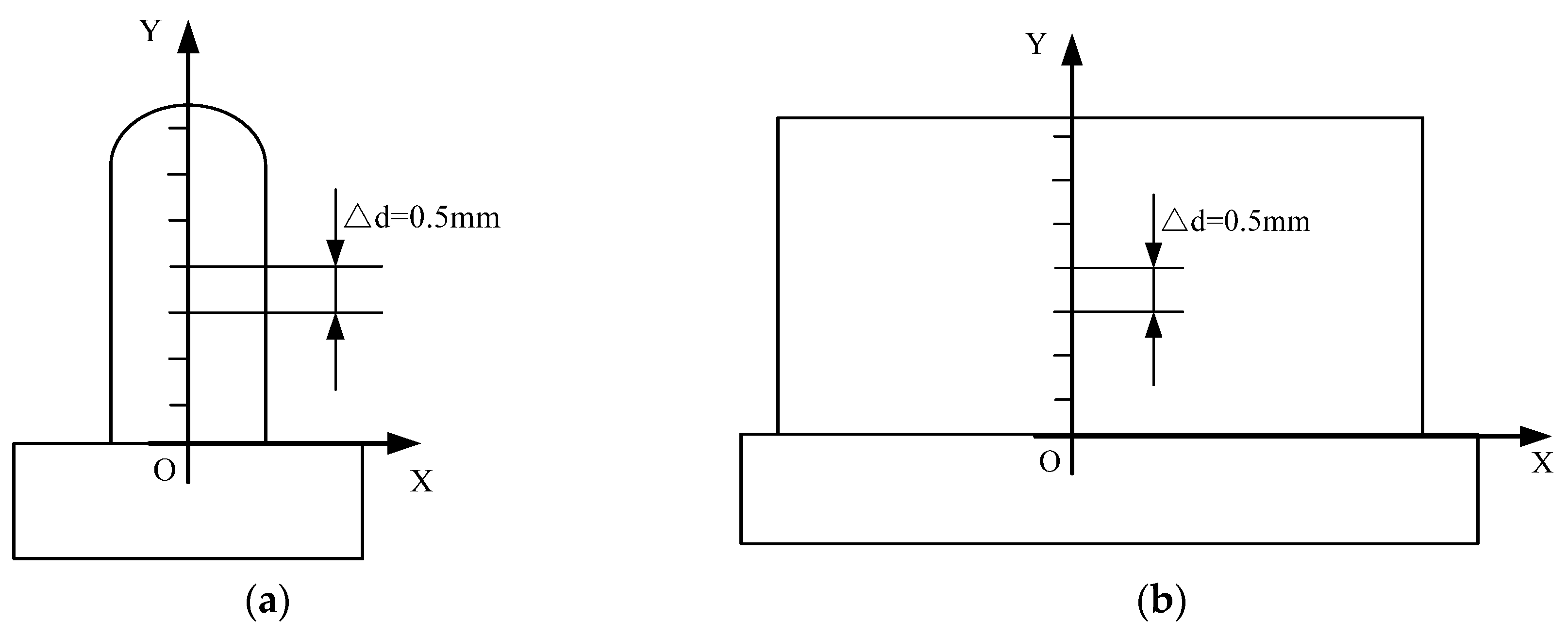

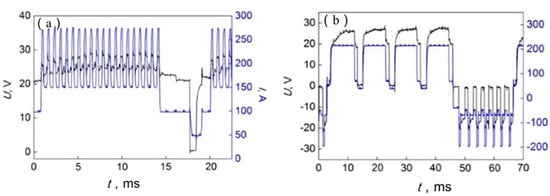

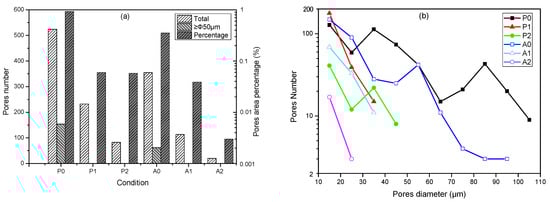

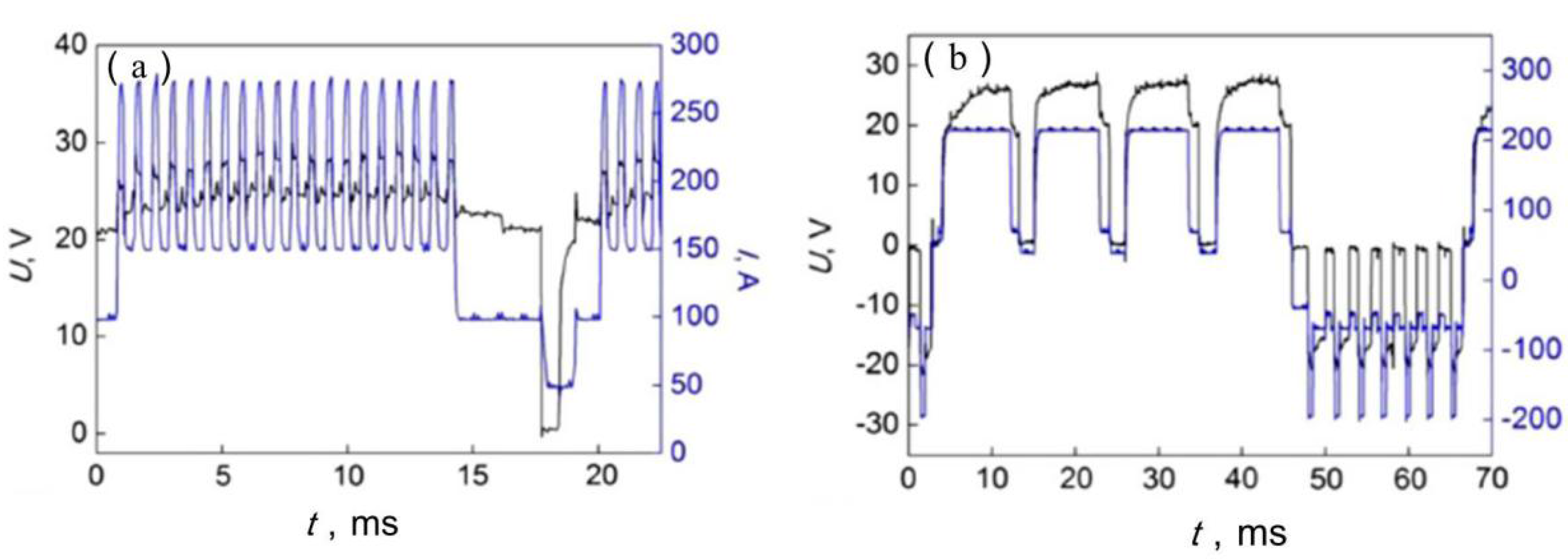

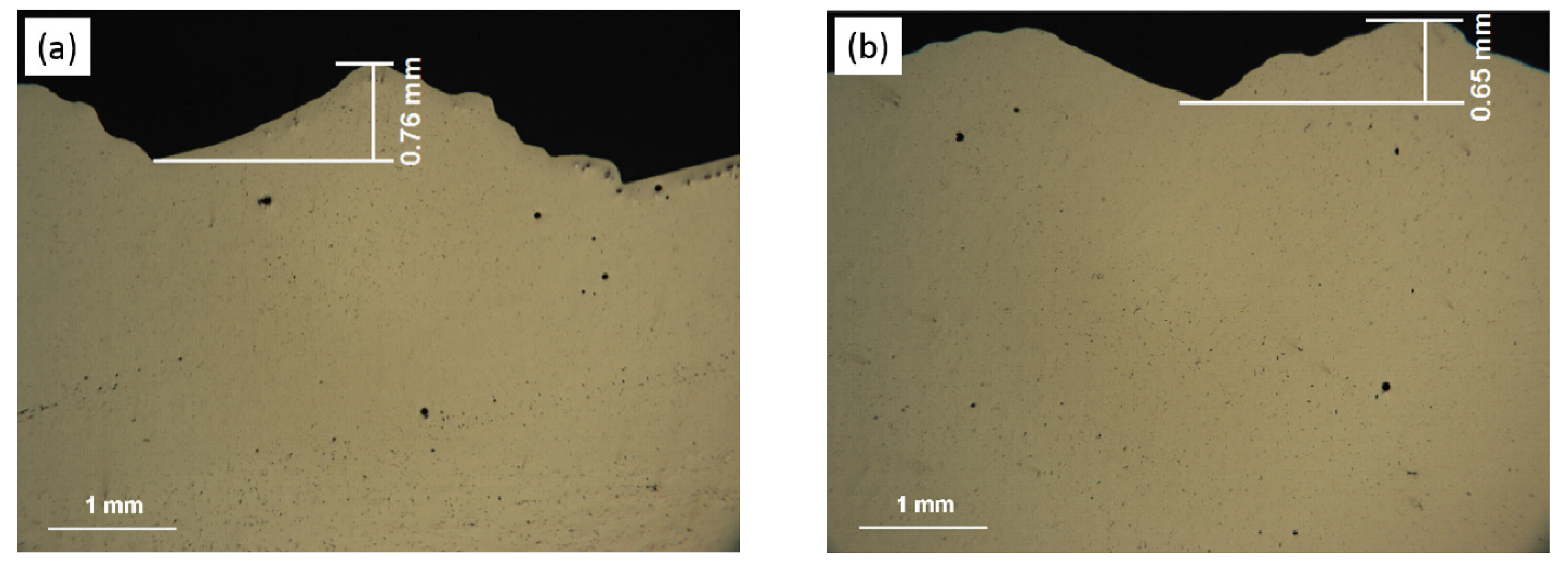

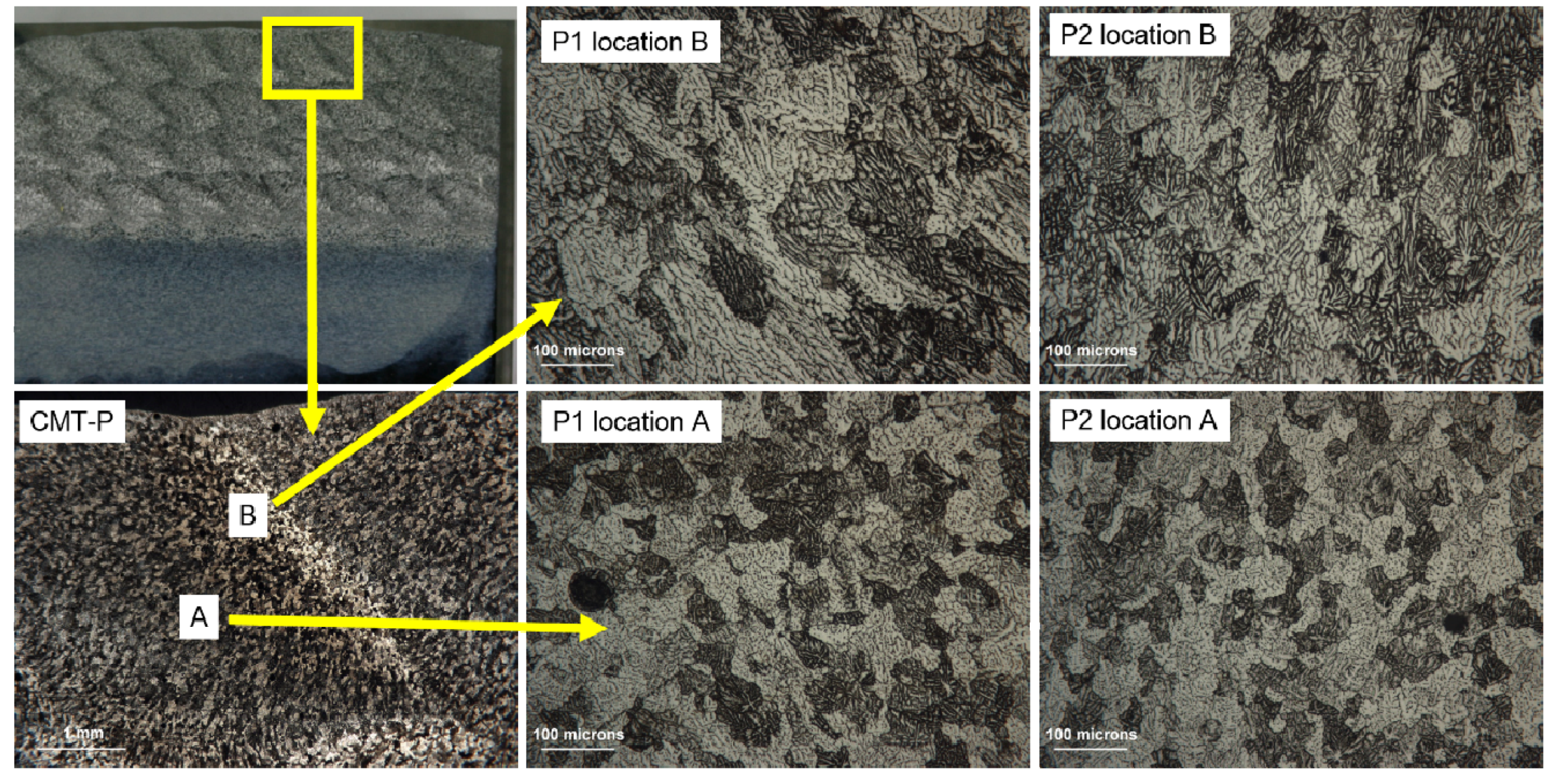

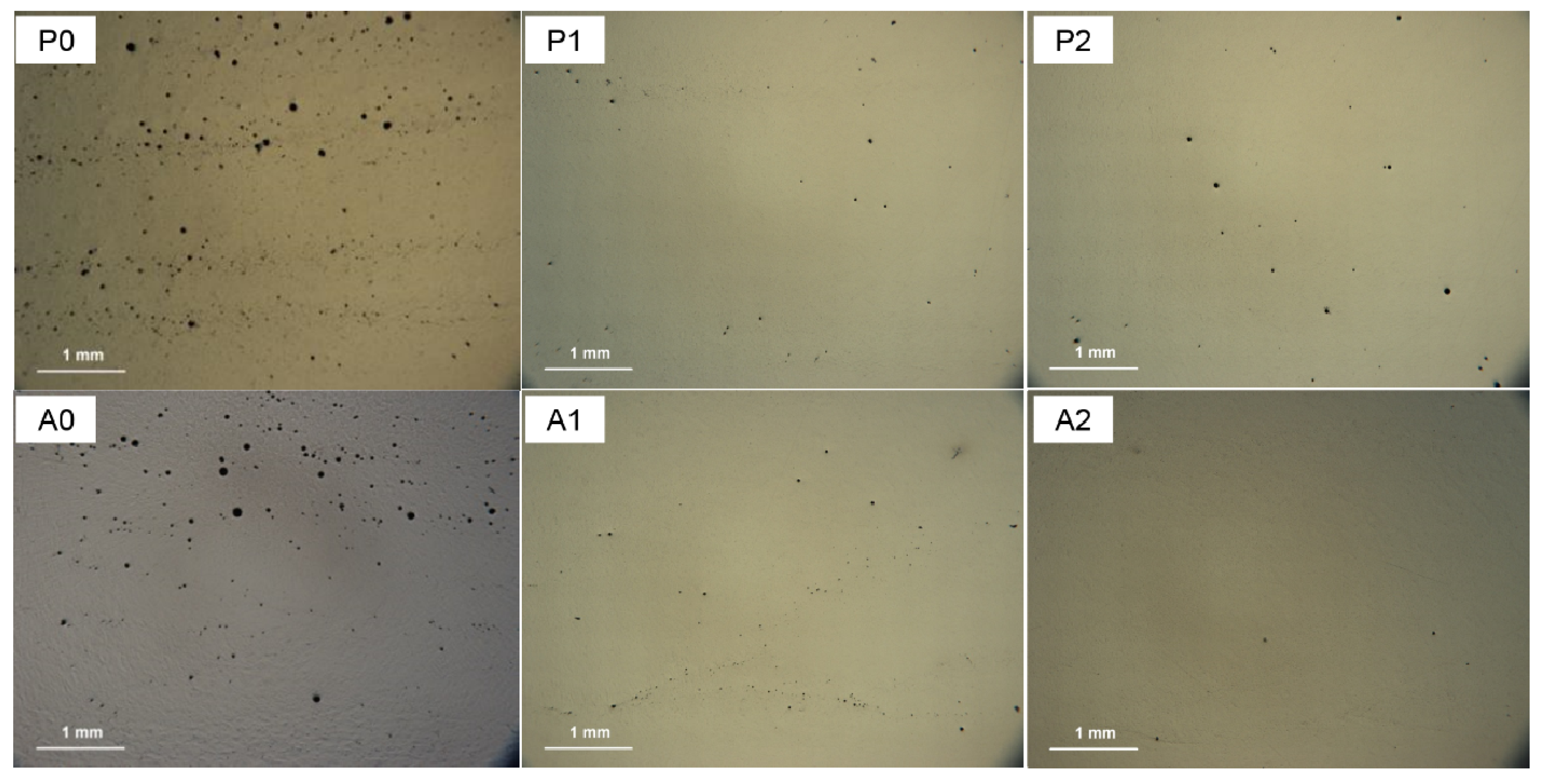

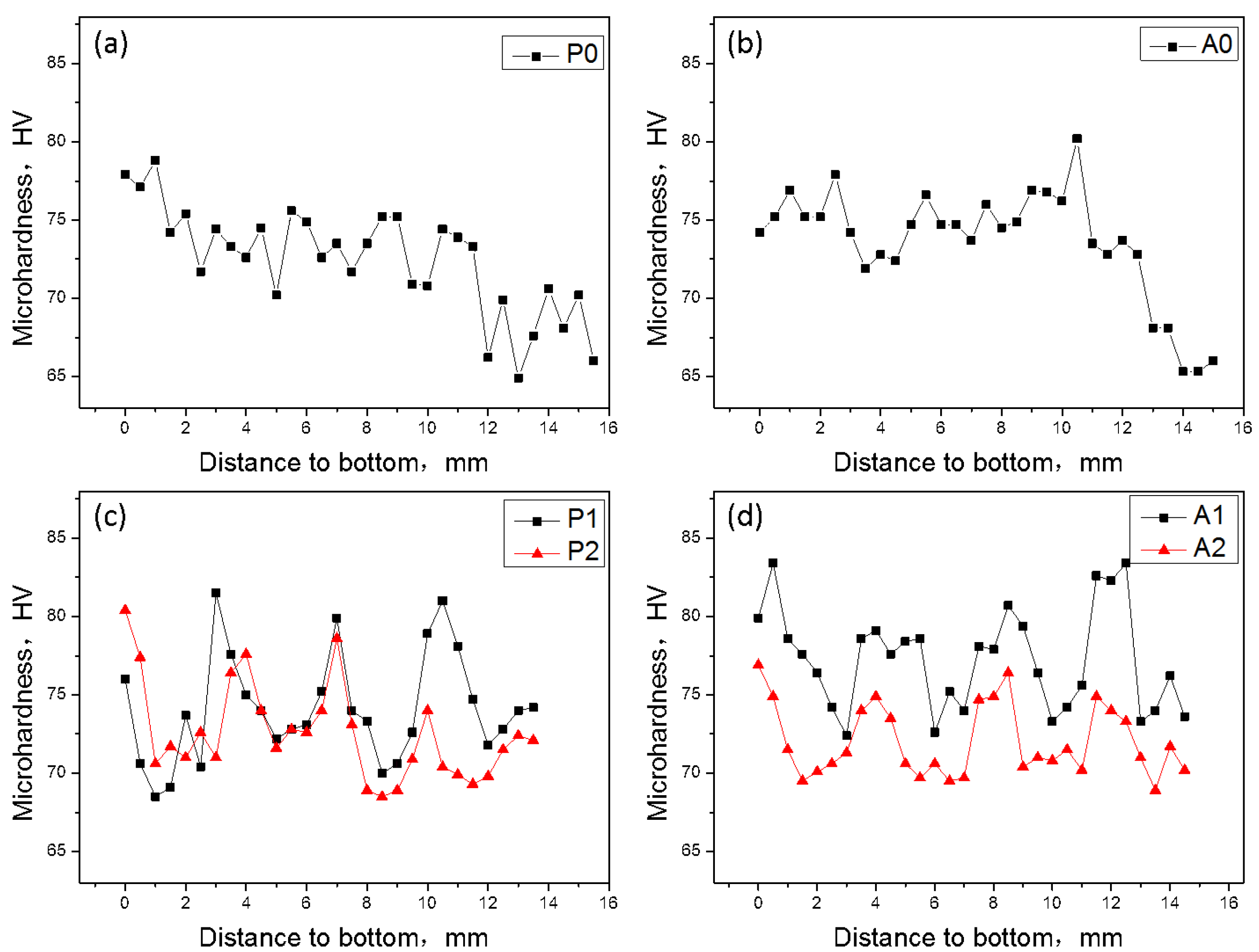

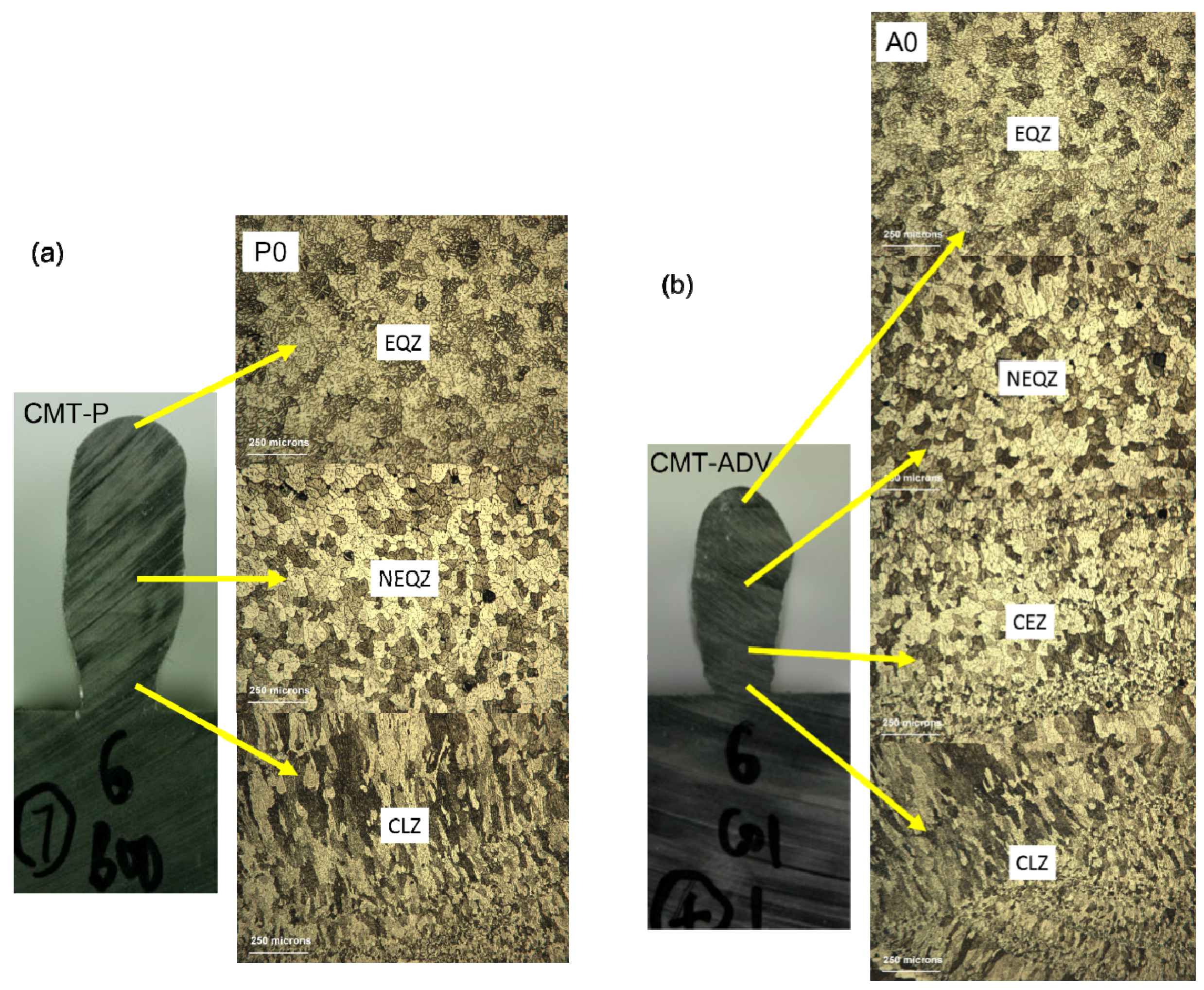

In order to build a better understanding of the relationship between depositing mode and porosity, microstructure, and properties in wire + arc additive manufacturing (WAAM) 2319-Al components, several Al-6.3%Cu deposits were produced by WAAM technique with cold metal transfer (CMT) variants, pulsed CMT (CMT-P) and advanced CMT (CMT-ADV). Thin walls and blocks were selected as the depositing paths to make WAAM samples. Porosity, microstructure and micro hardness of these WAAM samples were investigated. Compared with CMT-P and thin wall mode, CMT-ADV and block process can effectively reduce the pores in WAAM aluminum alloy. The microstructure varied with different depositing paths and CMT variants. The micro hardness value of thin wall samples was around 75 HV from the bottom to the middle, and gradually decreased toward the top. Meanwhile, the micro hardness value ranged around 72–77 HV, and varied periodically in block samples. The variation in micro hardness is consistent with standard microstructure characteristics. View Full-Text
Keywords: wire + arc additive manufacturing; aluminum alloy; cold metal transfer; depositing path; porosity; microstructure; micro hardness wire + arc additive manufacturing; aluminum alloy; cold metal transfer; depositing path; porosity; microstructure; micro hardness
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Cong, B.; Qi, Z.; Qi, B.; Sun, H.; Zhao, G.; Ding, J. A Comparative Study of Additively Manufactured Thin Wall and Block Structure with Al-6.3%Cu Alloy Using Cold Metal Transfer Process. Appl. Sci. 2017, 7, 275.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Appl. Sci. EISSN 2076-3417 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
