Appl. Sci. 2017, 7(1), 20; doi:10.3390/app7010020

Resistivity and Its Anisotropy Characterization of 3D-Printed Acrylonitrile Butadiene Styrene Copolymer (ABS)/Carbon Black (CB) Composites

Faculty of Biomedical Engineering, Fourth Military Medical University, 169 West Changle Road, Xi’an 710032, China
These authors contributed equally to this work.
*
Authors to whom correspondence should be addressed.
Academic Editor: Peter Van Puyvelde
Received: 17 October 2016 / Revised: 14 December 2016 / Accepted: 19 December 2016 / Published: 4 January 2017
(This article belongs to the Section Materials)
View Full-Text   |   Download PDF [2193 KB, uploaded 4 January 2017]   |

Abstract

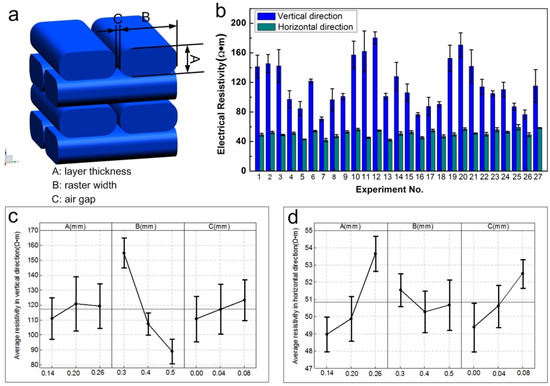

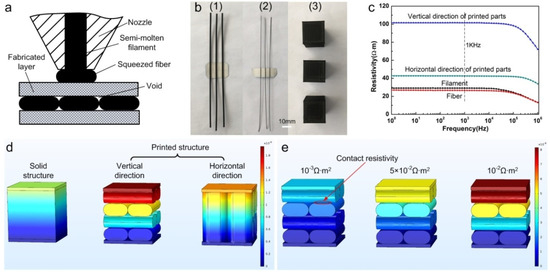

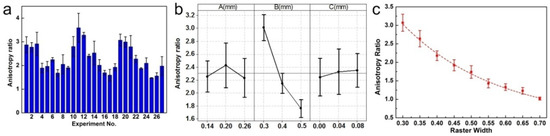

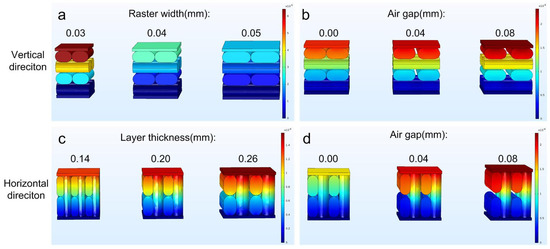

The rapid printing of 3D parts with desired electrical properties enables numerous applications. Fused deposition modeling (FDM) using conductive thermoplastic composites has been a valuable approach for such fabrication. The parts produced by FDM possess various controllable structural features, but the effects of the structural features on the electrical properties remain to be determined. This study investigated the effects of these features on the electrical resistivity and resistivity anisotropy of 3D-printed ABS/CB composites. The effects of the process parameters of FDM, including the layer thickness, raster width, and air gap, on the resistivity in both the vertical and horizontal directions for cubic samples were studied because the internal structure of the printed parts depended on those process parameters. The resistivities of printed parts in different parameter combinations were measured by an impedance analyzer and finite element models were created to investigate the relationship between the resistivity and the internal structure. The results indicated that the parameters remarkably affected the resistivity due to the influence of voids and the bonding condition between adjacent fibers. The resistivity in the vertical direction ranged from 70.40 ± 2.88 Ω·m to 180.33 ± 8.21 Ω·m, and the resistivity in the horizontal direction ranged from 41.91 ± 2.29 Ω·m to 58.35 ± 0.61 Ω·m at the frequency of 1 kHz. Moreover, by adjusting the resistivities in different directions, the resistivity anisotropy of the printed parts can be manipulated from 1.01 to 3.59. This research may serve as a reference to fabricate parts with sophisticated geometry with desired electrical resistivity and resistivity anisotropy. View Full-Text
Keywords: 3D printing; acrylonitrile butadiene styrene copolymer (ABS)/carbon black (CB) composites; resistivity; anisotropy 3D printing; acrylonitrile butadiene styrene copolymer (ABS)/carbon black (CB) composites; resistivity; anisotropy
