Appl. Sci. 2016, 6(7), 203; doi:10.3390/app6070203

Study of the Tool Geometry Influence in Indentation for the Analysis and Validation of the New Modular Upper Bound Technique

Civil, Material and Manufacturing Engineering Department, University of Malaga, Malaga 29071, Spain
*
Author to whom correspondence should be addressed.
Academic Editor: Chien-Hung Liu
Received: 23 May 2016 / Revised: 9 June 2016 / Accepted: 24 June 2016 / Published: 12 July 2016
View Full-Text   |   Download PDF [10639 KB, uploaded 12 July 2016]   |

Abstract

Focusing on incremental bulk metal forming processes, the indentation process is gaining interest as a fundamental part of these kinds of processes. This paper presents the analysis of the pressure obtained in indentation under the influence of different punch geometries. To this end, an innovative Upper Bound Theorem (UBT) based solution is introduced. This new solution can be easily applied to estimate the necessary force that guarantees plastic deformation by an indentation process. In this work, we propose an accurate analytical approach to analyse indentation under different punches. The new Modular Upper Bound (MUB) method presents a simpler and faster application. Additionally, its complexity is not considerably increased by the addition of more Triangular Rigid Zones. In addition, a two-dimensional indentation model is designed and implemented using the Finite Element Method (FEM). The comparison of the two methods applied to the indentation process analysed—the new Modular Upper Bound technique and the Finite Element Method—reveal close similarities, the new Modular Upper Bound being more computationally efficient. View Full-Text
Keywords: incremental forming; indentation; Finite Element Method (FEM); Modular Upper Bound (MUB); Upper Bound Element Technique (UBET); punch geometry; plastic deformation incremental forming; indentation; Finite Element Method (FEM); Modular Upper Bound (MUB); Upper Bound Element Technique (UBET); punch geometry; plastic deformation
Figures

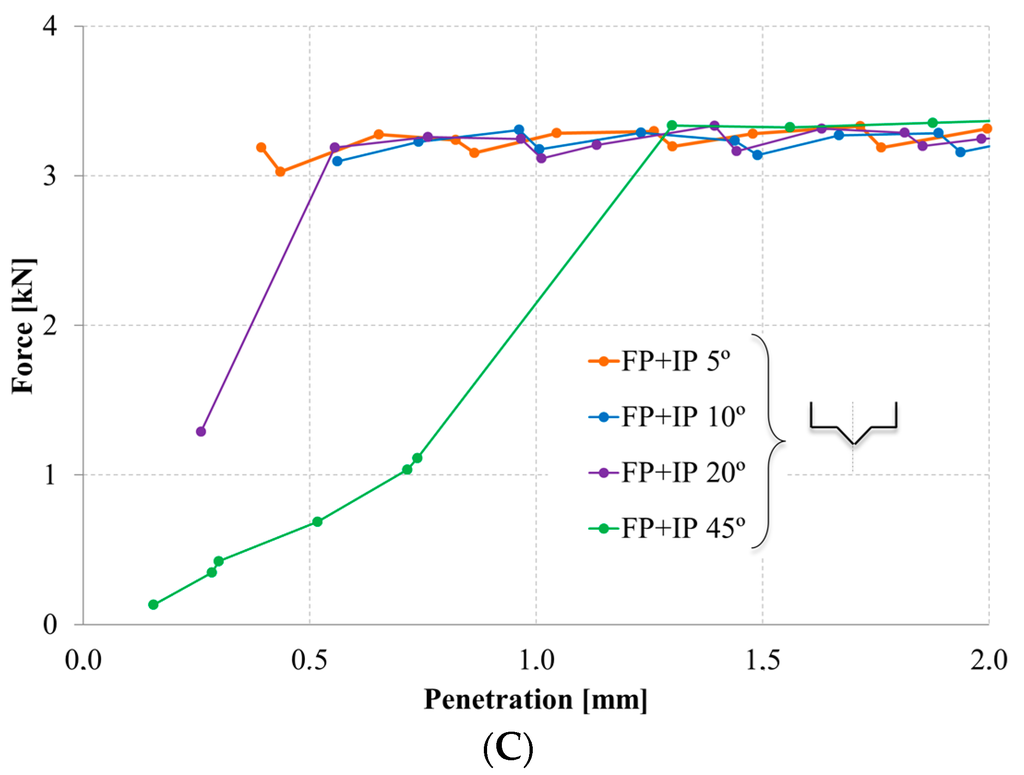

Figure 1
