Design of a Stability Augmentation System for an Unmanned Helicopter Based on Adaptive Control Techniques
Shouzhao Sheng * and Chenwu Sun
College of Automation Engineering, Nanjing University of Aeronautics and Astronautics, 29 YuDao St., Nanjing 210016, China
*
Author to whom correspondence should be addressed; Tel.: +86-25-8489-2305.
Academic Editor: Dimitrios G. Aggelis
Received: 26 July 2015 / Accepted: 8 September 2015 / Published: 11 September 2015

Abstract

: The task of control of unmanned helicopters is rather complicated in the presence of parametric uncertainties and measurement noises. This paper presents an adaptive model feedback control algorithm for an unmanned helicopter stability augmentation system. The proposed algorithm can achieve a guaranteed model reference tracking performance and speed up the convergence rates of adjustable parameters, even when the plant parameters vary rapidly. Moreover, the model feedback strategy in the algorithm further contributes to the improvement in the control quality of the stability augmentation system in the case of low signal to noise ratios, mainly because the model feedback path is noise free. The effectiveness and superiority of the proposed algorithm are demonstrated through a series of tests.
Keywords:
adaptive control; model feedback; stability augmentation; measurement noise; unmanned helicopter

1. Introduction

It is essential that the flight control system of an unmanned helicopter (UH) should be endowed with well-suited automatic capabilities to carry out flight missions. However, the flight performance of an UH is intimately dependent on the stability and control characteristics of the UH [1,2]. Unlike some mechanical systems with desirable structural properties, UH is normally an inherently unstable system without stability augmentation control strategy. Furthermore, some of the aerodynamic parameters vary with flight environments or system conditions, with the result that it is very difficult to design the stability augmentation system for an UH using the conventional control methods [3].

UH is also a complicated nonlinear dynamic system described by nonlinear differential equations. However, for simplicity in the design of controllers for an UH, the linearized models are normally derived from nonlinear differential equations if the UH operates around an operating point. Many linear control techniques for application to UH flight control systems have been proposed in literature, among which single-input, single-output (SISO) feedback control methods are by far the most common choices with few dependencies on dynamic models. In [4], a SISO PD control law is adopted and further optimized for both hovering and forward flight of the CMU-R50 UH. In [5], a SISO PID control law is implemented for automatic hovering of the Ursa Major 3 UH. The above SISO methods have the advantages of conceptual and computational simplicity. However they may decrease the stability and control qualities of UHs without considering parametric uncertainties and cross-couplings among axes.

Therefore, in order to improve the flight performance, a lot of research effort has been devoted to the design of advanced stability augmentation systems. Previous research reported in the literature includes gain scheduling [6], linear-quadratic regulation (LQR) or linear-quadratic Gaussian (LQG) approach [7], decentralized decoupled model predictive approach [8] and intelligent control methods like neural network [9] and fuzzy logic approach [10], etc. Several flight control systems using H control methods, which can provide the robust stability and performance for the systems subject to uncertainties and disturbances, have been designed for mini UHs. In [11], a H loop shaping technique is utilized for the stability augmentation system of Bell-205 helicopter. Mixed-norm optimization and weighted H mixed sensitivity optimization methods are respectively designed to improve the stability and maneuverability characteristics of UHs [12,13]. Although these methods have achieved acceptable flight performance, they still rely heavily on the plant model. More importantly, the above-mentioned methods fail to consider the adverse effects of parametric uncertainties and measurement noises on the flying qualities. Some existing adaptive techniques can accommodate the parametric uncertainties more effectively without considering measurement noises [14,15,16,17,18]. A novel modified model reference adaptive control (MRAC) strategy is developed with added noise [19]. However, this method only reduces the noise disturbance using a low-pass filter. Usually in practical use, those existing adaptive control methods can hardly minimize the adverse effect of measurement noises on the flying qualities. The NASA Marshall Space Flight Center has developed an adaptive augmenting control (AAC) algorithm for launch vehicles by adapting a well tuned classical control algorithm to unexpected environments or variations in vehicle dynamics. The AAC algorithm has been successfully tested in a relevant environment. However it needs to be further evaluated by the flight tests [20].

The essential parameter regulation schemes can reduce the complexity of a high performance control system design problem in the presence of parametric uncertainties and measurement noises. On this basis, this study aims to develop an adaptive model feedback control algorithm for a prototype unmanned helicopter stability augmentation system. The proposed adaptive algorithm can achieve a guaranteed model reference tracking performance and speed up the convergence rates of adjustable parameters, even when the plant parameters vary rapidly. Moreover, the model feedback control strategy in the algorithm can further improve the control quality of the stability augmentation system because the model feedback path is noise free. The experimental setups and the actual flight test results using the proposed algorithm are shown and the results are discussed.

This paper describes the control problem for the prototype UH stability augmentation system in Section 2. The adaptive model feedback control algorithm for the prototype UH stability augmentation system is presented in Section 3, and Section 4 provides the improvement of the algorithm. The flight test results are shown in Section 5. Finally, conclusions are drawn in Section 6.

2. The Control Problem for the Prototype UH Stability Augmentation System

The prototype UH, with net weight 180 Kg and height 1.9 m, is a vertical takeoff and landing aircraft which includes two coaxial rotors and a fuselage with toroidal portion, as shown in Figure 1. A duct is formed through the fuselage. A propeller assembly is mounted to the top portion of the fuselage with a main rotor, 4.4 m in diameter, above the fuselage. A ducted rotor assembly in fuselage is used to compensate the propeller antitorque as well as providing some fraction of lift. The coaxial rotors, main and ducted, rotate at 800 rpm in the opposite directions with the main rotor providing about 70% of lift, drag, and pitch and roll movements of UH and the ducted rotor providing about 30% of lift and yaw movement.

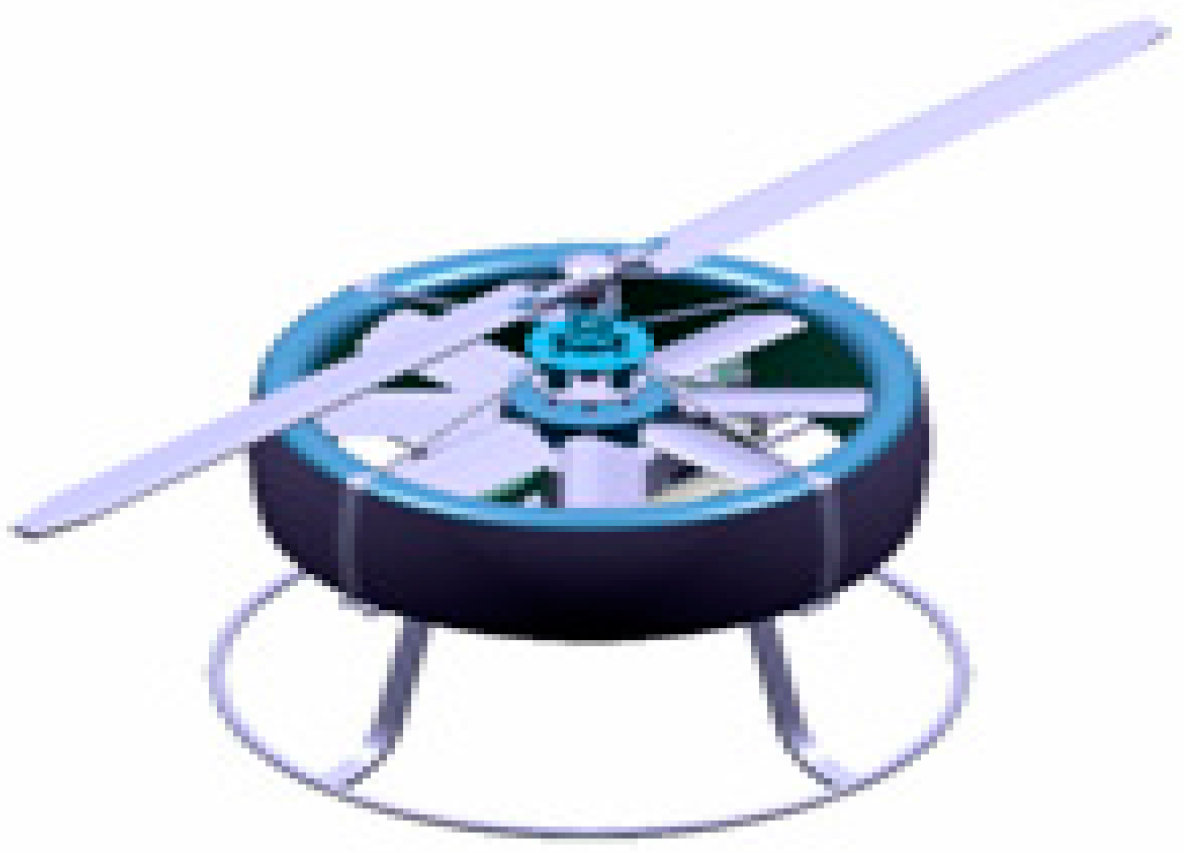

Figure 1. The prototype unmanned helicopter.
Figure 1. The prototype unmanned helicopter.
Applsci 05 00575 g001 1024

The stability augmentation system design for the prototype UH is a challenging task because the UH dynamics are highly nonlinear and subject to parametric uncertainties. In addition, the plant parameters change with the flight environments (e.g., the aerodynamic constants) or the system conditions (e.g., lift curve slopes). The adaptive control strategy is adopted to solve the above problems in this study.

By assuming that the fuselage is a rigid body and the main rotor speed is constant, we can describe the nonlinear kinematic equations associated with the six degrees of freedom (6-DOF) as an equivalent block in the following manner:

X ˙ = f ( X , U , Θ )
where X = [ u , v , w , θ , ϕ , ψ , q , p , r ] Τ and U = [ δ e , δ a , δ r , δ c ] Τ represent the state vector and the control vector, respectively; Θ represents the unsteady aerodynamic parameters set, which is difficult and expensive to measure and is, therefore, not available in most cases. Of the state variables in X , U , here u , v , w are forward velocity, lateral velocity and vertical velocity, respectively; θ , ϕ , ψ are pitch angle, roll angle and yaw angle, respectively; q , p , r are pitch rate, roll rate and yaw rate, respectively; δ e , δ a , δ r , δ c are pitch cyclic, roll cyclic, ducted rotor collective and main rotor collective, respectively.

One common method to solve the control problem for the nonlinear system in Equation (1) is through linearization. The linearized model about a trim condition of the nonlinear dynamics is then represented as

X ˙ = A X + B U
where X = X X e = [ u , v , w , θ , ϕ , ψ , q , p , r ] Τ and U = U U e = [ δ e , δ a , δ r , δ c ] Τ are the increments at a specified trim condition; A and B are the system matrix and the control-input matrix, respectively. Accordingly, X e and U e are respectively the trim state and the trim input with respect to hovering, lifting or forward flight, which must satisfy the equation
f ( X e , U e , Θ ) = 0

Note that X e and U e , obtained by solving Equation (3), are unknown as well. Therefore, we define

X 0 = X e + E x , U 0 = U e + E u
X 0 and U 0 can also be regarded as the estimates of X e and U e , respectively. Equation (2) can then be rewritten as:
X ˙ = A X + B U + Ε
where X = X X 0 , U = U U 0 and Ε = A E x + B E u . Ε is equivalent to an unknown input disturbance at the trim condition.

To avoid repetition, the present study is only focused on the stability augmentation system of the longitudinal axis to demonstrate the proposed adaptive algorithm, which, without loss of generality, can apply to other axes. Thus, referring to Equation (5), the linearized model of the longitudinal axis can be denoted by:

q ˙ = M u q ˙ u + M v q ˙ v + M w q ˙ w + M θ q ˙ θ + M ϕ q ˙ ϕ + M ψ q ˙ ψ + M q q ˙ q + M p q ˙ p + M r q ˙ r + M δ e q ˙ δ e + M δ a q ˙ δ a + M δ r q ˙ δ r + M δ c q ˙ δ c + M t q ˙
where M u q ˙ , M v q ˙ , M w q ˙ , M θ q ˙ , M ϕ q ˙ , M ψ q ˙ , M q q ˙ , M p q ˙ , M r q ˙ , M δ e q ˙ , M δ a q ˙ , M δ r q ˙ and M δ c q ˙ represent the unknown time-varying aerodynamic parameters; M t q ˙ is the corresponding component of the vector Ε .

Given the corresponding wind tunnel test data, the effect of θ , ϕ , ψ and δ r on q is negligible and can therefore be ignored, the linearized model of longitudinal axis can then be simplified as follows:

q ˙ = M u q ˙ u + M v q ˙ v + M w q ˙ w + M q q ˙ q + M p q ˙ p + M r q ˙ r + M δ e q ˙ δ e + M δ a q ˙ δ a + M δ c q ˙ δ c + M t q ˙

Overall, the complexity of the stability augmentation system design originates mainly from the parametric uncertainties together with measurement noises.

3. Design of the Stability Augmentation System Based on an Adaptive Model Feedback Control Algorithm

3.1. Theorem 1

Consider the plant of the form of Equation (7), with M q q ˙ < 0 and M δ e q ˙ > 0 . Assume that

δ e = k u q ˙ u + k v q ˙ v + k w q ˙ w + k p q ˙ p + k r q ˙ r + k δ a q ˙ δ a + k δ c q ˙ δ c + k t q ˙ + k q m q ˙ q m + k δ e m q ˙ δ e m
where
k q m q ˙ = ( k q m q ˙ m k q q ˙ ) / k δ e q ˙ ,    k δ e m q ˙ = k δ e m q ˙ m / k δ e q ˙
and where k u q ˙ , k v q ˙ , k w q ˙ , k q q ˙ , k p q ˙ , k r q ˙ , k δ e q ˙ , k δ a q ˙ , k δ c q ˙ and k t q ˙ are adjustable parameters; q m is the output of the ideal decoupled model given by:
q ˙ m = k q m q ˙ m q m + k δ e m q ˙ m δ e m
k q m q ˙ m and k δ e m q ˙ m denote the model parameters determined according to ADS-33, δ e m the manipulated input. Thus, q asymptotically converge to q m as the adaptive laws are given by:
{ k ˙ q q ˙ = ρ q ( κ + e ) q   and   k q q ˙ < 0 , k ˙ δ e q ˙ = ρ δ e ( κ + e ) δ e i , k ˙ χ q ˙ = ρ χ ( κ + e ) χ , k ˙ t q ˙ = ρ t ( κ + e ) ,
where ρ q , ρ δ e , ρ χ and ρ t are greater than zero; χ represents u , v , w , p , r , δ a and δ c , respectively; the tracking error is defined as:
e = q m q
the time-varying parameter κ should satisfy the following constraint:
sgn ( κ ) = sgn ( e ˙ k q q ˙ e )
the generalized input is denoted by:
δ e i = k q m q ˙ q m + k δ e m q ˙ δ e m

3.2. Proof

Substituting Equation (14) into Equation (8) yields

δ e = k u q ˙ u + k v q ˙ v + k w q ˙ w + k p q ˙ p + k r q ˙ r + k δ a q ˙ δ a + k δ c q ˙ δ c + k t q ˙ + δ e i

Again the generalized plant shown in Equation (16) is derived by substituting Equation (15) into Equation (7).

q ˙ = M q q ˙ q + M δ e q ˙ δ e i + M ^ u q ˙ u + M ^ v q ˙ v + M ^ w q ˙ w + M ^ p q ˙ p + M ^ r q ˙ r + M ^ δ a q ˙ δ a + M ^ δ c q ˙ δ c + M ^ t q ˙
where M ^ q ˙ = M q ˙ + M δ e q ˙ k q ˙ .

Similarly, we have

q ˙ m = k q q ˙ q m + k δ e q ˙ δ e i
Then, substituting Equations (16) and (17) into Equation (12) yields:
e ˙ = k q q ˙ e + b q q + b δ e i δ e i + b u u + b v v + b w w + b p p + b r r + b δ a δ a + b δ c δ c + b t
where
{ b q = k q q ˙ M q q ˙ , b δ e i = k δ e q ˙ M δ e q ˙ , b = M δ e q ˙ k q ˙ M q ˙ ,

Furthermore, the adaptive laws are chosen so that certain stability conditions based on Lyapunov theory are satisfied. Consider the Lyapunov function candidate

V = e 2 + λ q b q 2 + λ δ e i b δ e i 2 + λ u b u 2 + λ v b v 2 + λ w b w 2 + λ p b p 2 + λ r b r 2 + λ δ a b δ a 2 + λ δ c b δ c 2 + λ t b t 2
where λ q , λ δ e i , λ u , λ v , λ w , λ p , λ r , λ δ a , λ δ c and λ t are greater than zero. We can therefore conclude that V ˙ is negative definite as
{ k q q ˙ < 0 , λ χ b ˙ χ = κ χ e χ , λ t b ˙ t = κ e ,
in which χ represents q , δ e i , u , v , w , p , r , δ a and δ c , respectively. From Equations (19) and (21), we can easily deduce the adaptive laws given by Equation (11).

3.3. Remarks

i. The direct addition of an external feedback term like a q to δ e is necessary without any modification of the adaptive laws if M q q ˙ cannot satisfy M q q ˙ < 0 at a certain flight condition, where a is used to guarantee the stability of the plant, that is, M q q ˙ + M δ e q ˙ a < 0 in this case.

ii. In consideration of the adverse effect of measurement noises, the variance of the noise component of δ e can be reduced while using the proposed adaptive algorithm, mainly because the model feedback path is noise free, which can result in the improvement in the control quality of the stability augmentation system, especially in the case of low signal to noise ratios (SNR).

iii. Compared to the model reference adaptive control (MRAC) method, the additional time-varying parameter κ in the proposed algorithm can contribute to the convergence rates of adjustable parameters when the plant parameters vary rapidly.

4. The Improvement and Application of the Adaptive Laws

The adaptive laws are difficult to apply in practice because q ˙ is non-measurable in most cases. According to linear system theory, Equation (18) can be rewritten as follows:

e ˙ f = k q q ˙ e f + b q q f + b δ e i δ e i f + b u u f + b v v f + b w w f + b p p f + b r r f + b δ a δ a f + b δ c δ c f + b t t f
where e f , q f , δ e i f , u f , v f , w f , p f , r f , δ a f , δ c f and t f are respectively served as the outputs of an arbitrarily chosen filter G f ( s ) in response to e , q , δ e i , u , v , w , p , r , δ a , δ c and 1 ( t ) . The adaptive laws, derived by using the similar Lyapunov function described in Equation (20), are rewritten as:
{ k ˙ q q ˙ = ρ q ( κ f + e f ) q f   and   k q q ˙ < 0 , k ˙ δ e q ˙ = ρ δ e ( κ f + e f ) δ e i f , k ˙ χ q ˙ = ρ χ ( κ f + e f ) χ f , k ˙ t q ˙ = ρ t ( κ f + e f ) ,
where κ f satisfies the following constraint:
sgn ( κ f ) = sgn ( e ˙ f k q q ˙ e f )

The improved adaptive laws are therefore subject to a certain form of the filter. Assume that the filter transfer function is given by:

G f ( s ) = 1 T s + 1 ,
where T is the time constant. In this case, Equation (24) can be written as:
sgn ( κ f ) = sgn { 1 T ( e e f ) k q q ˙ e f }
which indicates that κ f is available. Figure 2 shows the schematic diagram of the adaptive stability augmentation system with model feedback. Note that the proper choice of κ f can speed up the convergence of adjustable parameters.

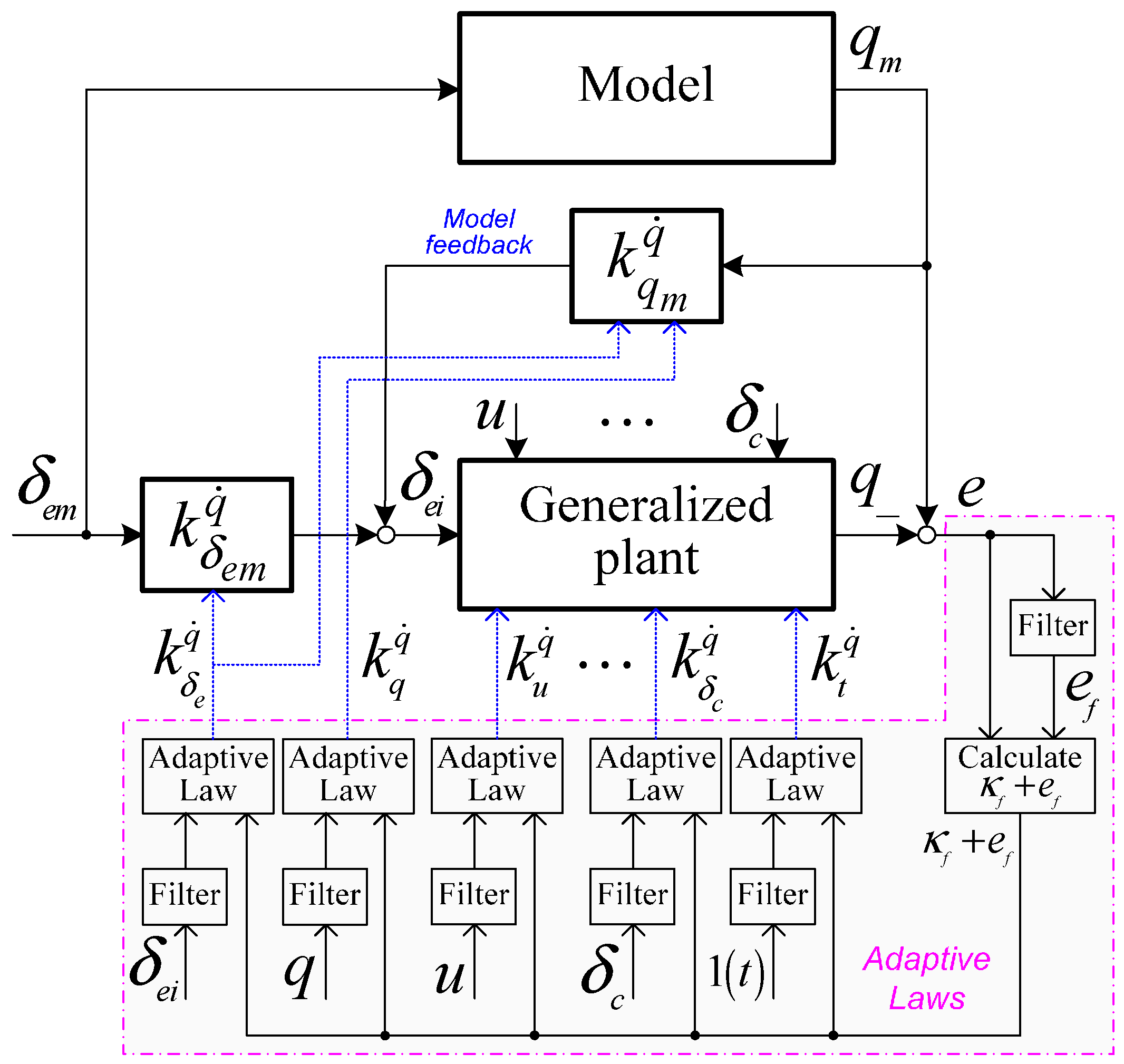

Figure 2. The schematic diagram of the adaptive stability augmentation system.
Figure 2. The schematic diagram of the adaptive stability augmentation system.
Applsci 05 00575 g002 1024

Note that k q m q ˙ and k δ e m q ˙ are completely dominant over other adjustable parameters in Equation (8), however the noise component of q m can be ignored on the basis of the assumption that the manipulated input δ e m is noise free. For δ e , the adaptive model feedback strategy can therefore lead to a marked loss in noises.

5. Flight Tests

In this section, the performance of the proposed algorithm is demonstrated for the stability augmentation system of the longitudinal axis. All pre-chosen parameters are given as follows:

(1)

The model parameters: k q m q ˙ m = 1.5 and k δ e m q ˙ m = 2.25 ;

(2)

The initial values of adjustable parameters: k u q ˙ ( 0 ) , k v q ˙ ( 0 ) , k w q ˙ ( 0 ) , k q q ˙ ( 0 ) , k r q ˙ ( 0 ) , k δ a q ˙ ( 0 ) , k δ c q ˙ ( 0 ) and k t q ˙ ( 0 ) are assumed to equal zero, and k p q ˙ ( 0 ) = 0 , k δ e q ˙ ( 0 ) = 1.0 ;

(3)

The time constant of the filter: T = 0.02 ;

(4)

The parameters of the adaptive control laws: ρ = 50 ; κ f = 2.0 [ 1 T ( e e f ) k q q ˙ e f ] ; a = 0.2 .

The proposed algorithm is first implemented in a numerical simulation based on the nonlinear helicopter model. It is then applied to the prototype UH to evaluate the flight performance of the stability augmentation system.

5.1. Task 1: Numerical Simulation

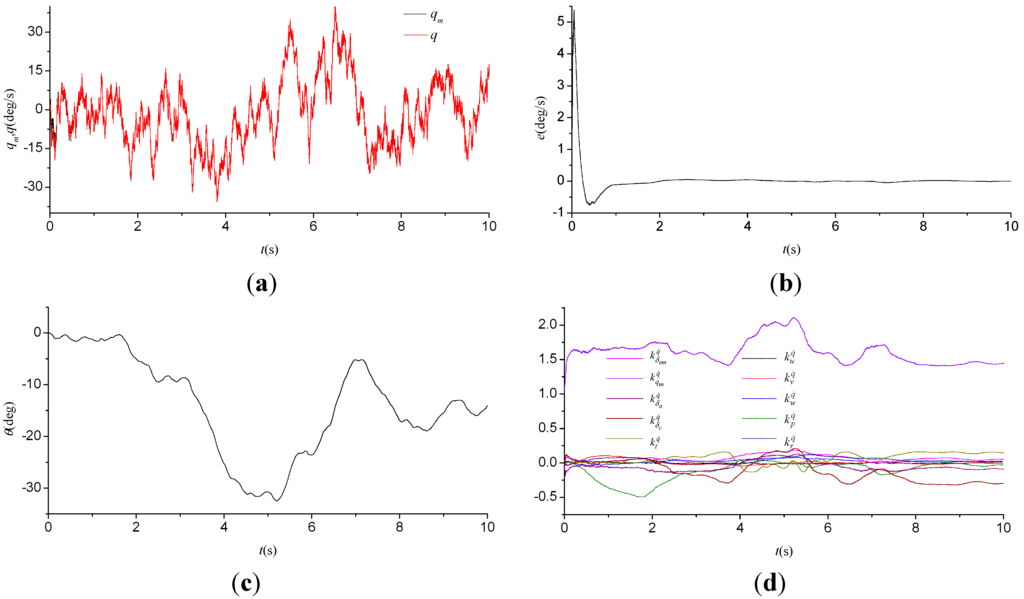

Figure 3. Numerical simulation results of the proposed algorithm. (a) q m and q ; (b) e ; (c) θ ; (d) Adjustable parameters.
Figure 3. Numerical simulation results of the proposed algorithm. (a) q m and q ; (b) e ; (c) θ ; (d) Adjustable parameters.
Applsci 05 00575 g003 1024

The numerical simulation test, shown in Figure 3, is conducted using the nonlinear dynamics model of the prototype unmanned helicopter, together with a simplified closed-form trim calculation. The manipulated input signal is generated from a joystick device. Various moderately aggressive maneuvers are conducted during the simulation to evaluate the performance of the proposed algorithm at different operate points of the flight envelope. A comparison is made between the output of the plant and that of the model, as shown in Figure 3a,b, which demonstrates that the tracking error can rapidly approach zero in 0.9 s and remain in a bounded range. We can therefore conclude that the proposed adaptive algorithm achieves a guaranteed model reference tracking performance and has a good convergence property. The tracking error remains in a bounded range even though the adjustable parameters vary rapidly during the test. However the conventional MRAC approach is not applicable to the case where the variations of the plant parameters are significant.

5.2. Task 2: Flight Tests

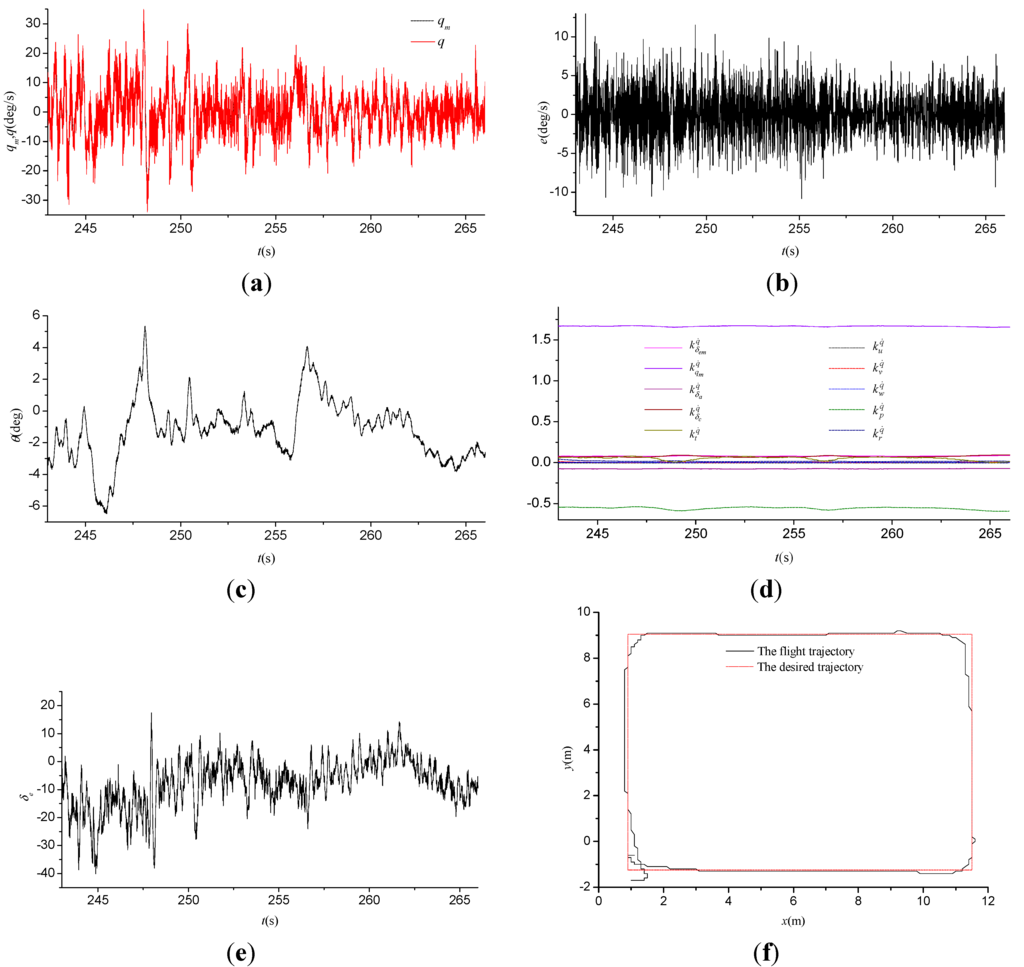

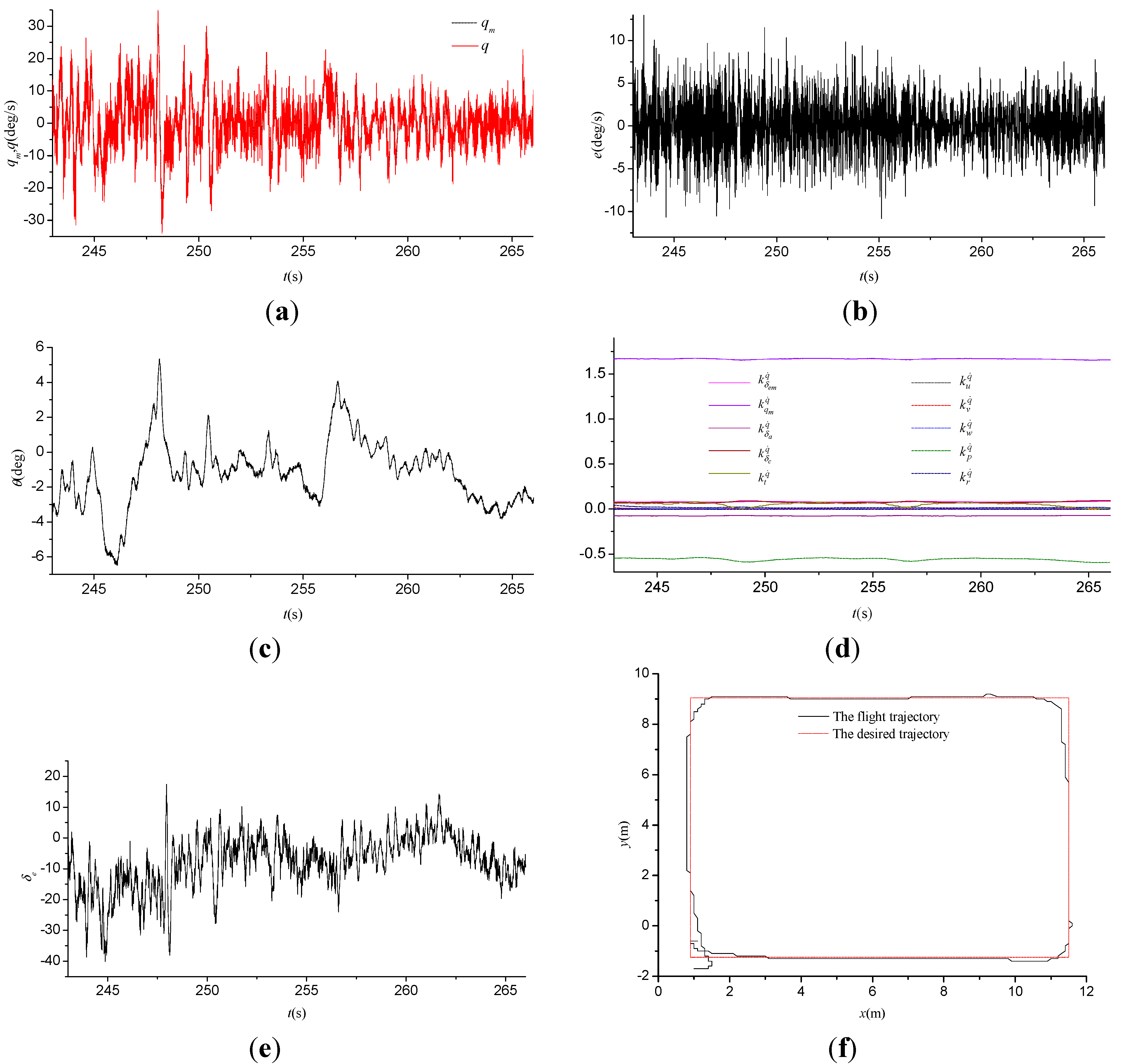

Figure 4. Flight test results of the proposed algorithm. (a) q m and q ; (b) e ; (c) θ ; (d) Adjustable parameters; (e) δ e ; (f) The ground track view of trajectory.
Figure 4. Flight test results of the proposed algorithm. (a) q m and q ; (b) e ; (c) θ ; (d) Adjustable parameters; (e) δ e ; (f) The ground track view of trajectory.
Applsci 05 00575 g004 1024

The flight tests are conducted to compare the performance of the proposed algorithm with that of the conventional PID while those two approaches applies to the prototype unmanned helicopter stability augmentation system, respectively. For a fair comparison, the attitude and position controllers remain unchanged. Our control software system, which runs on a DSP-based hardware platform with a control period of 10 ms, can provide reliable support for high precision timer and synchronization operations. The sensors (including an AHRS unit and a DGPS unit) are used to provide the information related to the flight status, such as the angles, angular rates, velocity and position. During flight, Wi-Fi and serial-based data links provide a link to the ground station computer that allows monitoring the real-time flight information and uploading remote control commands such as way points. Testing of the proposed adaptive algorithm begins with hover, followed by simple way-point navigation due to the limitations of the test conditions such as flight safety. In consideration of measurement noises of the sensors, the results from these flight tests are provided in Figure 4 and Figure 5.

The performance of the adaptive stability augmentation system is first evaluated at low speeds where a square pattern is flown, as shown in Figure 4. The noisy tracking error, shown in Figure 4b, is also within an acceptable range. Moreover, the model feedback strategy in the proposed algorithm contributes to the restricted variation of the control signal δ e shown in Figure 4e, which explicitly improves the external command position tracking performance, and implicitly demonstrates the improvement in the control quality of the stability augmentation system.

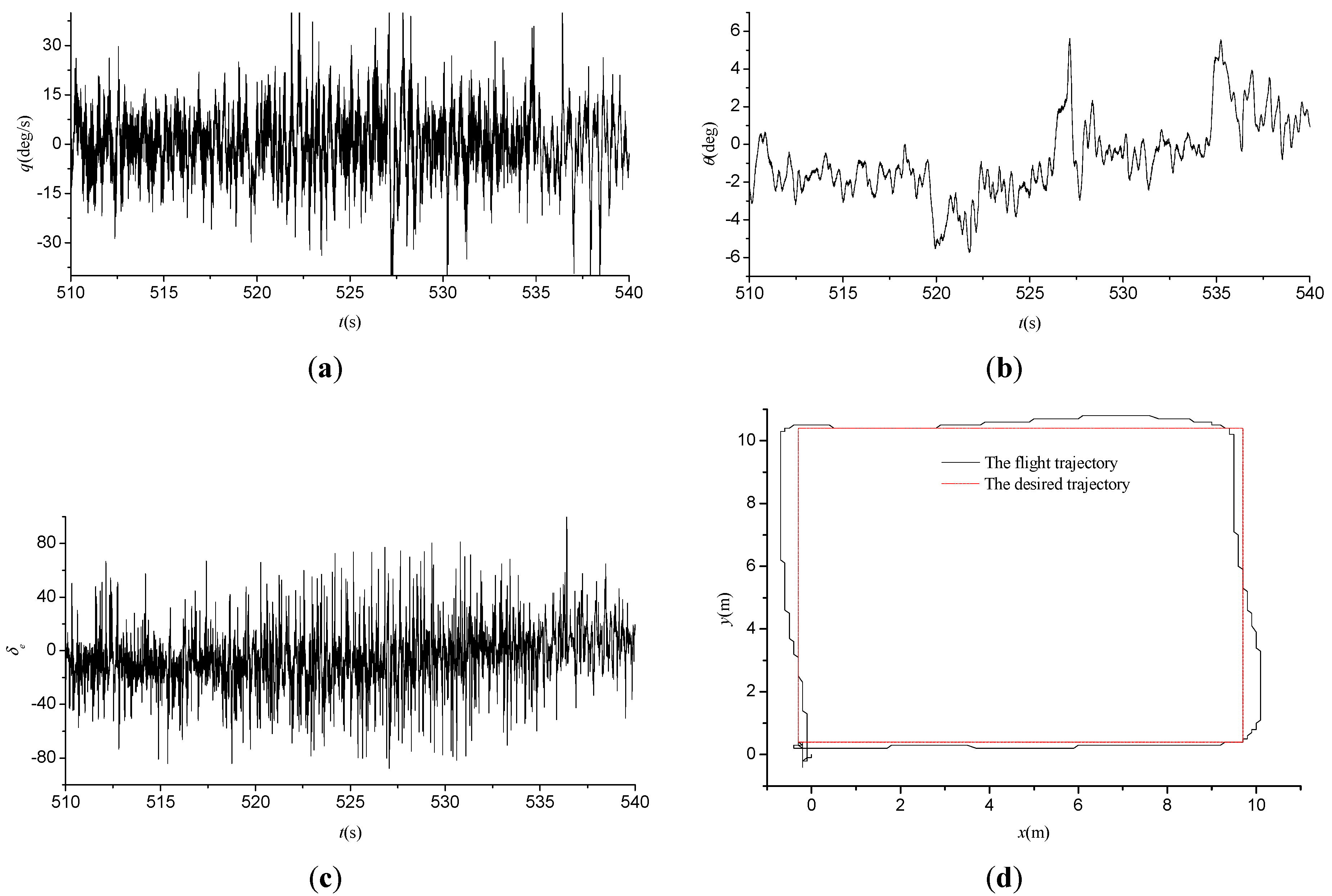

Figure 5. Flight test results of the PID controller. (a) q ; (b) θ ; (c) δ e ; (d) The ground track view of trajectory.
Figure 5. Flight test results of the PID controller. (a) q ; (b) θ ; (c) δ e ; (d) The ground track view of trajectory.
Applsci 05 00575 g005 1024

By comparison with the above-mentioned results, the flight test results of the conventional PID controller implemented through the widely used Pixhawk autopilot module, shown in Figure 5, appear to deteriorate. For instance, the variation of the control signal δ e , together with the external command position tracking errors, increases when the prototype UH is commanded to perform the same flight mission.

Based on the flight test results, we can conclude that the proposed adaptive model feedback control algorithm is able to adapt to rapidly changing flight conditions and effectively enhance the performance of the prototype UH stability augmentation system in the presence of parametric uncertainties and measurement noises, which results in the improvement in flying qualities. More significantly, most existing designs would require accurate models at each point, while the proposed design does not.

6. Conclusions

This paper presents the adaptive model feedback control algorithm for the prototype UH stability augmentation system in the presence of parametric uncertainties and measurement noises. The proposed adaptive algorithm is able to achieve a guaranteed model reference tracking performance and speed up the convergence rates of adjustable parameters, even when the plant parameters vary rapidly. Moreover, the model feedback strategy in the proposed algorithm further contributes to the improvement in the control quality of the stability augmentation system in the case of low SNR. The flight test results have shown that the proposed algorithm can considerably improve the flying qualities of the prototype UH.

Acknowledgments

This study was supported in part by National Natural Science Foundation of China (NSFC) (Under Grant No. 61374188), Aeronautical Science Foundation of China (Under Grant No. 2013ZC52033), Natural Science Foundation of Jiangsu Province of China (Under Grant No. BK20141412).

Author Contributions

All authors discussed the contents of the manuscript. Shouzhao Sheng contributed to the research idea and the framework of this study. Chenwu Sun performed the experimental work.

Conflicts of Interest

The authors declare no conflict of interest.
