Saline Sediments as a Suitable Source for Halophilic Inoculums to Degrade Azo Dyes in Synthetic and Real Textile Wastewaters by Microbial Electrochemical Systems

by
Sirine Saadaoui
1,2,3,
Benjamin Erable
3,*,
Nesrine Saidi
1,
Luc Etcheverry
3,
Mohamed Neifar
1,
Ahmed Salaheddine Masmoudi
1,
Rim Driouech
1,
Ameur Cherif
1 and
Habib Chouchane
1
1
ISBST, BVBGR-LR11ES31, Biotechpole Sidi Thabet, University of Manouba, Ariana 2020, Tunisia
2
Faculté des Sciences de Tunis, Université de Tunis El Manar, Tunis 1068, Tunisia
3
Laboratoire de Génie Chimique, Université de Toulouse, CNRS, INPT, UPS, 31062 Toulouse, France
*
Author to whom correspondence should be addressed.
Appl. Sci. 2023, 13(9), 5581; https://doi.org/10.3390/app13095581
Submission received: 3 April 2023 / Revised: 24 April 2023 / Accepted: 25 April 2023 / Published: 30 April 2023
(This article belongs to the Special Issue Extremophiles and Their Peptides, Proteins and Enzymes)
Browse Figures
Review Reports Versions Notes

Abstract

:
The treatment of textile wastewater (TWW) loaded with recalcitrant azo dyes in bioelectrochemical systems (BES) rather than in physicochemical processes is a low-cost and environmentally friendly process. The main objective of this study is to investigate the potential of different saline sediments collected from extreme Tunisian environments for the formation of bioanodes capable ofsimultaneous azo dyes degradation and electric current generation in synthetic (STWW) and real textile wastewaters (RTWW) characterized by a varied composition of azo dyes and a high salinity. The obtained bioanodes and anolytes were studied comparatively by electrochemical, microscopic, analytical, and molecular tools.Based on the UV–visible spectra analysis, the breakdown of the azo bond was confirmed. With RTWW, the BES achieved a chemical oxygen demand (COD) abatement rate of 85%with a current density of 2.5 A/m2. Microbial community analysis indicated that a diverse community of bacteria was active for effluent treatment coupled with energy production. At the phylum level, the electrodes were primarily colonized by proteobacteria and firmicutes, which are the two phyla most involved in bioremediation. The analysis of the microbial community also showed the abundance of Marinobacter hydrocarbonoclasticus and Marinobacter sp. species characterized by their high metabolic capacity, tolerance to extremophilic conditions, and role in hydrocarbon degradation.

1. Introduction

Water pollution caused by the discharge of textile wastewater (TWW) is considered a serious environmental problem. TWW contains various dyes, salts at high ionic strength of about 5 to 6% NaCl and 5% of Na2SO4, and other chemicals, such as various acids, alkalis, sulfur, naphthol, surfactant-dispersing agents, formaldehyde-based dye fixing agents, and heavy metals [1,2]. World production of industrial synthetic dyes is estimated at more than 700,000 tons annually and about 10% left as residue are discharged into water bodies. Azo dyes constitute the largest class of synthetic dyes and represent 70 to 90% of the total synthetic dye tuff market due to their color shades and low cost [3,4,5,6].
The discharge of TWW has major environmental consequences such as eutrophication, oxygen depletion, and loss of soil productivity. In addition, most chemical dyes have various drawbacks that seriously affect human health. Indeed, azo dyes enter the body through ingestion and cause cancer and DNA diseases [7,8].Some of the chemicals in TWW including dyes are recalcitrant in nature because of their stability in front of the washing processes and therefore required treatment by appropriate and effective methods prior to their release into the environment. Physical methods such as coagulation, flocculation, and filtration, chemical oxidation by oxidizing agents such as O3 and H2O2, advanced oxidation techniques such as photocatalytic oxidation and fenton, and biological methods using microorganisms such as fungi, algae, and bacteria [9,10,11] are the main treatment strategies explored to date. Nevertheless, physicochemical methods are not widely adopted because of their secondary pollution generation, large time demand, and high energy consumption [12,13]. Compared to conventional physical and chemical methods used for TWW treatment, microbial remediation is a suitable alternative that has the advantages of low operating costs (excluding aeration in aerobic bioprocesses) [14]. Unfortunately, microorganisms involved in the degradation of environmental contaminants generated by TWW have the shortcomings of a slow process [15].
The last few decades have seen the emergence of new bioelectrochemical systems (BES) aimed at reducing environmental impacts of hazardous and recalcitrant molecules such as dyes contained in TWW.Wu et al. [16] were the first to have successfully developed a BES for the continuous removal of Victoria blue R (VBR) dye applied in the textile industry and the simultaneous generation of electric current. The degradation rate of the dye was of 98.7% for artificial wastewater and 99.8% for real wastewater containing VBR. Naik et al. [17] also demonstrated that BES are a very effective method for removal of dyes, TDS (Total Dissolved Solid), TSS (Total suspended solids), COD (chemical oxygen demand), sulfates, and chlorides from sugar wastewater. Similarly, Hou et al. [18] reported the degradation of Congo red using glucose as co-substrate and found 97% removal efficiency for 300 ppm of dye. Sun et al. [19] generated electricity from the co-oxidation of simple substrates and azo dye in a single chamber microbial fuel cell (MFC). They found that glucose compared to acetate was the best co-substrate for ABRX3 decolorization. Recently, complete decolorization of the azo dye methyl orange using an electrochemical approach was recently reported in the study by Sarfo et al. [20], as well as an 83% reduction rate of total organic carbon using a simple Cu sheet as a working electrode.
Despite several exploratory or applied works that have been carried out on the decolorization of azo dyes by BES, no specific research has focused on the degradation of Tubantin blue (TB) and Bezaktiv Red (BR), which are plentiful in TWW due to their intensive use by textile industries. Both azo dyes with other organic and inorganic compounds in TWW constitute a peculiar reservoir of chemical energy that theoretically could be converted into electrical energy in BES. Already in this perspective, a previous study by Askri et al. [21] demonstrated the possibility of enriching powerful exo-electrogenic microorganisms on bioanodes capable of removing COD by 91 ± 3% and producing a current density of 12.5 ± 0.2 A/m2 from the hypersaline sediments of Chott El Djerid (SCD) and real TWW.
Subsequently, the novel objective of this study was to design microbial bioanodes capable of treating (i) synthetic textile wastewater (STWW) and (ii) real textile wastewater (RTWW) containing the two azo dyes TB and/or BR using an electromicrobial process involving electroactive halophilic bacteria already adapted in hypersaline sediments of extreme Tunisian environments. The contribution of electromicrobial bioremediation was systematically compared to a conventional microbial bioremediation control. The addition of an organic co-substrate that can serve as an electron donor and initiate microbial growth was investigated. The fate of azo dyes was tested at initial concentrations of 300 and 1000 ppm, individually and in combination.
After the enhanced degradation of azo dyes in both STWW and RTWW has been proven by electrochemical (Chronoamperometry (CA), Cyclic voltammetry (CV)) and spectroscopic (UV-VIS, FTIR) tools, the contributions of anodic bacteria enriched with SCD or SSM are studied by scanning electron microscopy (SEM) imaging of biofilm organization on carbon felt electrodes and by comparative metagenomic analyses of the different biofilms and inocula.

2. Materials and Methods

2.1. Collection of Dyes, Real Textile Wastewater (RTWW), and Hypersaline Sediments

Tubantin Blue BRR H.C (TB) and Bezaktiv Red S-Matrix 150 (CHT group inTübingen, Germany) (BR), used as ingredients for STWW, were collected from the Global Washing textile industry Gitex group located in Korba, Nabeul, Tunisia [36°34′24.636″ N and 10°51′31.463″ E]. RTWW wascollected from the same industry. RTWW is discharged just after the tanning process into a pond. The effluent was collected from this pond and then stored in drums at +4 °C until experiments were started.
The hypersaline sediments used as sources of halophilic inoculums were sampled from the sediment of Chott El Djerid (SCD) [33°59′965″ N and 08°25′332″ E] and the sediment of Sebkhat El Melah (SSM) [33°23′4.192″ N and 10°57′51.468″ E], both located in the south of Tunisia. All samples were conserved in closed plastic bags and bottles at +4 °C until experiments were started.

2.2. Bioelectrochemical System Setup Construction and Electrochemical Data Processing

All electrochemical experiments were performed in a 750 mL reactor containing 80% of STWW or RTWW and 20% of SCD or SSM. After a homogenization step by mechanical mixing, pure nitrogen gas was bubbled through the anolyte for 30 min to remove soluble oxygen.
A conventional 3-electrode device (working electrode, counter electrode, and reference electrode) was used with a MGP multichannel potentiostat (Biologic SAS, Seyssinet-Pariset, France) equipped with EC lab software. The working electrode made of porous carbon felt of 6 cm2 projected surface area was connected to a titanium rod (1 mm diameter and 15 cm long) and polarized at −0.1 V/SCE, a platinum grid was used as the counter electrode, and a saturated calomel reference electrode (+0.24 V/SHE) was located between the counter and the working electrode [21,22].
STWW was composed of 80% of enrichment medium containing the following (g/L): 0.5 K2HPO4, 1.0 NH4Cl2, 2.0 MgCl2, 0.1CaCl2, NaCl (165 or 15 g), 20% of SCD or SSM, and an azo dye at two different concentrations of 300 and 1000 ppm for STWW. Acetate and glucose at a concentration of 2000 ppm and 500 ppm were used as co-substrates to determine their effect on dye removal and current generation. For the RTWW experiments, reactors were inoculated with 80% of RTWW and 20% of SCD or SSM. The initial pH in all experiments was adjusted to 7.2 with 3M NaOH.
For the electrochemical analysis of forming bioanodes, chronoamperometry (CA) and cyclic voltammetry (CV) were used. For the CA, the working electrodes were polarized at −0.1 V/ECS.The CV was performedin situafter the CA was stopped between−0.6 and +0.3 V/SCE at a scan rate of 1 mV/S at the beginning and at the end of each experiment.

2.3. Monitoring of Decolorization, Quantification of COD, and Measurement of Azo Dye Biodegradation

Samples were collected from the anolyte every 48 h and were centrifuged at 12,000 rpm for 5 min.The decolorization rate was monitored by measuring the decrease in absorbance of the anolyte free of suspensions with a UV-VIS spectrophotometer (Jenway 7315, Antylia Scientific, Villepinte, France) at the wavelengths of 556 nm for TB and 520 nm for BR.
A sample of 1mL was taken every 48 h from each anolyte, diluted at 1/6, and filtered through the syringe of the chloride elimination LCW925 kit(Hach, Loveland, CO, USA). The COD removal efficiencywas determined using the LCK 514 kit (100–2000 mg/O2)(Hach, Loveland, CO, USA).
Dye biodegradation was monitored by Fourier Transform Infrared spectroscopy FTIR (Perkin Elmer model). Samples from anolyte were taken at the beginning and at the end of the experiment. FTIR analyses were conductedin the mid IR region of 400–4000 cm−1.

2.4. Microscopic Characterization of Biofilms

The biofilm morphologies on the surface of the bioanode were examined by SEM-FEG scanning electron microscope (SEM). Before SEM observation, bioanodes were treated as described by [23]. Bioanodes were fixed in phosphate buffer (400 mM, pH = 7.4) with 4% glutaraldehyde. They were rinsed in phosphate buffer containing saccharose (0.4 M) and dehydrated by immersion in increasing concentrations of acetone (50, 70, and 100%), then in acetone and hexamethyldisilane (HMDS) (50:50%), and in 100% HMDS. The last batch of HMDS was dried until complete evaporation.

2.5. Bacterial Community Analyses

Genomic DNA extractions were performed from different sediments using a NucleoSpin® kit and from different biofilms using DNeasyPowerBiofilm Kit (Qiagen, Hilden, Germany). The purity [absorbance ratio (A260/A280)] and DNA concentration measurements (ng/μL) were checked by Nanodrop TM 2000 spectrophotometer(ThermoFisher Scientific, Waltham, USA) [21].Then, Illumina Miseq 16S rRNA sequencing was performed in order to analyze the composition of the bacterial communities in sediment samples and in different biofilms. The 16S rRNA gene V4 variable region PCR primers 515/806 were used in single-step 30 cycles PCR using the HotStarTaq Plus Master Mix Kit (Qiagen, Hilden, Germany). Sequencing was performed at MR DNA (https://www.mrdnalab.com/www.mrdnalab.com; accessed on 23 April 2023; Shallowater, TX, USA).

3. Results and Discussion

3.1. Decolorization of Tubantin Blue (TB)

Decolorization of TB and current generation in STWW were tested at two initial dye concentrations 300 (STWW1) and 1000 ppm (STWW2) using a concentration of 2000 ppm as a co-substrate and two different sources of halophilic inoculums—SCD and SSM. As shown in (Figure 1A(a)), halophilic inoculum from SCD was able to generate in short time a maximum current density of 12 A/m2 under salinity of 165 g/L with a decolorization rate of 84% achieved in 12 days for STWW1 (Figure 1B(a)). However, when increasing the concentration of TB from 300 to 1000 ppm (STWW2), the decolorization decreased from 84 to 55%, suggesting that the decolorization rate in STWW1 was more important than in STWW2 (Figure 1B(b)). Consequently, increasing the initial concentration of the dye resulted in a weak decolorization, which may be caused by a greater accumulation of the dye.
These results indicate that decolorization performance and electrochemical yield are affected by high dye concentration. Sun et al. [19] also observed a decrease in decolorization rate starting from 800 ppm of azo dye. They attributed this decrease toa bacterial inhibition growth caused by dye toxicity. Recently, Qiu et al. [24] used a halotolerant microflora to treat a complex textile effluent composed of five azo dyes. This microflora was able to tolerate a salt concentration ranging from 0 to 80g/L. In comparison with the above-mentioned study, it was found that despite the use of twice the salt concentration, the rate of decolorization was approximately similar, suggesting a high tolerance to the extreme condition.The authors confirmed the advantage of using the extreme halophilic consortia over the moderately halophilic microflora. The effect of the initial dye concentration was also investigated. Indeed, at concentrations maintained between 200–600 mg/L, the decolorization rates exceeded 70% (very close to the rates obtained with STWW 1 in our study). On the other hand, increasing this concentration resulted in a significant decrease in the discoloration rates caused mainly by bacterial toxicity.
For experiments using SSM as source of halophilic inoculum, 70% decolorization rate was obtained in 12 days and low maximal current density of 0.1 A/m2was recorded when the reactor was fed with STWW1 (Figure 1A(c),B(c)). These findings demonstrated that SSD inoculum may harbor more tenacious and electroactive community than SSM inoculum towards STWW1 experiments.
Considering the visual aspects of the two sediments, the SCD appeared more heterogeneous than the SSM with a mixed local hydration, and three different colors (black, brown, and beige). On the other hand, the SSM appears more homogeneous with only one color, and without hydrated zones. Additionally, the sediment chemical analysis showed that the SCD naturally contained more concentrated mineral elements (Table 1). Indeed, the concentrations of calcium, magnesium, potassium, and iron expressed in mg/kg of dried materials in SCD were higher than those of SSM. The difference in azo dye decolorization and anodic electrical production performances of the two sediments could probably be related to their specific difference inminerals composition. In fact, particular mineral composition of SCD leads to more favorable environment for the development of azo dye-degrading microorganisms.
When glucose was used as co-substrate with a concentration of 500 ppm under salinity of 165g/L, SCD as inoculum, and 300 ppm of TB, the decolorization rate was 78% after 16 days and current density varied from 3 to 3.7 A/m2. Experiments performed with acetate under the same conditions showed a very weak rate of decolorization (21%) and current production of 0.7 A/m2 (Figure 2A,B). These results show that the decolorization rate when acetate is used as a co-substrate was about four times lower compared to its analogue (glucose); acetate may acts as an inhibitor of TB decolorization. According to the literature, acetate appears to be the less efficient electron donor for the bioelectrochemical treatment of azo dyes. In fact, acetate seems to be a poor co-substrate with minimal decolorization rate. This can be attributed to the fact that acetate and other volatile fatty acids are normally poor electron donors, whereas glucose is a more efficient electron donor for the reduction inazo dyes [18,25,26]. The negative effect of acetate on the anoxic decolorization could be attributed to a catabolic repression. As reported by Sandhya et al. [27], acetate probably inhibited cyclic AMP-dependent genes, including those coded for azoreductases.
In order to detect electroactive redox systems that may be related to the formation of a biofilm or microbial cells on the surface of the working electrode, cyclic voltammetries (CVs) at the beginning and at the end of each experiment were established. In all cases, the initial CVs showed the absence of any electrochemical reaction on the conductive surface of the carbon felt electrode as shown by the voltammograms’ trend in the potential range from −0.1 to 0.3 V/SCE (Figure 3). However, a reduction current was observed from −0.1 to −0.6 V/SCE, which probably corresponds to the electrochemical reduction in the soluble oxygen residue trapped into felt porosity, and not totally removed when initially purging with N2 gas (Figure 3A). Further non-turnover CV cycles were performed at the end of the experiments. A high-capacitive current, and two redox systems at −0.1 and −0.2 V/SCE, were clearly identified, suggesting the establishment of a microbial electroactive biofilm on the surface of the carbon felt (Figure 3A,B).

3.2. Decolorization of Bezaktiv Red (BR)

Both sediments SCD and SSM were also tested as microbial inoculum in order to form electro-active microbial bioanode under two different concentrations of BR in synthetic wastewaters named STWW1 (300 ppm) and STWW2 (1000 ppm).
A decolorization rate of 55% was recorded in 5 days when STWW1 was treated by SCD as inoculum. During this period, no current density was recorded in front of a total absence of decolorization in the controlled reactor (Figure 4A(a)). Addition of glucose as a co-substrate allowed a significant acceleration in the decolorization of BR (99%) during day 7, with current production of 3.6 A/m2 stable for 4 days (Figure 4A(a),B(a)). However, we obtained a lower decolorization rate (less than 55%) when used STWW2 and current production less than 0.1 A/m2 was recorded (Figure 4A(d),B(d)). These findings indicated that increased dye concentration from 300 (STWW1) to 1000 ppm (STWW2) could decrease the performance of the BES. For experiment conductedwith SSM as source of halophilic microorganisms, STWW1, and glucose as co-substrate, the decolorization rate was 70%, with a decrease in efficiency of about 30% compared to results obtained with SCD. In these conditions current generation was very weak (less than 0.05A/m2), as shown in Figure 4A(b),B(b). Additionally, Figure 4A(c),B(c) summarizes the results of the experiment performed with STWW1 at a salinity of 15 g/L and using SCD as the inoculum source. A current generation of 1A/m2 was obtained with an almost complete decolorization (98%). These findings confirmed that BR complete decolorization may require the presence of an electron donor co-substrate.
For TB and BR decolorization, we found that decolorization rate and current production were hindered as soon as the dye concentration was increased. In fact, the decolorization rate decreased from 84 to 69% and from 99 to 55% when concentrations of TB and BR were increased from 300 to 1000 ppm in synthetic wastewaters. Nevertheless, it is interesting to note that with STWW2, the amount of dye material lost during the bioelectrochemical treatment process was two times higher than that observed with STWW1 (99 vs. 55%). In addition, with STWW2, a dramatic inhibition of current generation was noticed. Based on the mechanisms of azo dye degradation involving competition between electron transfer to the electrode or to the N=N bound, more azo dye concentration theoretically leads to low anodic current production. Here, 1000 ppm concentration of BR generated less electron transfer to the anode and consequently decreased current density. Similarly, Thung et al. [28] reported that an increase in the initial concentration of orange Ao7 from 50 to 75 ppm lead to a decrease in decolorization rate from 80.6 to 75.0%. Miran et al. [29] also obtained decolorization rates of 91, 86, 81, 73, and 67% at initial dye concentrations of 100, 250, 500, 750, and 1000 ppm, respectively. Recently, Shahi et al. [6] also noticed that concentrations of reactive orange above 500 ppm are considered as inhibitive concentrations for decolorization and electricity generation.

3.3. Monitoring of Decolorization of TB and BR in RTWW: COD and FTIR Analyses

It should be mentioned that there are few attempts to treat RTWW with BES; most studies have focused on STWW [30]. In this study, we have evaluated the BES using STWW and then validated with RTWW containing naturally the same dyes used in STWW treatment experiments with a concentration that varies from 300 to 500 depending on the tanning process. The RTWW containing TB and BR among other constituents (0.7 mg/L anionic detergents, 9× 103 mg/L chlorides, 777 mg/L sulfates, and 102 mg/L suspended matters) was fed into the BES with SCD or SSM inoculums. Attempts to form a bioanode were conducted by chronoamperometry at −0.1 V/SCE. Constant electrode polarization was maintained for 30 days and 15 days, respectively, when SCD and SSM were used as inoculum. A maximal current production of 2.0 and 0.8 A/m2 were obtained, respectively (Figure 5(a)).
As shown in Figure 5C,D, initial CVs clearly show the absence of an electroactive biofilm; reduction currents were recorded from −0.2V, which corresponds to the electrochemical reduction in some compounds present in the reaction medium to be treated; during this phase, the biofilm has not yet reached its maturity. Final CVs were performed at the end of each experiment; remarkable differences in the general appearance of the CVs were identified compared to their initial states, confirming the activity of biofilms; the oxidation plateau was maintained in the range of −0.2 to +0.3 V with maximum peaks of 4 and 2A for SCD and SSM, respectively. The CVs results clearly demonstrated the formation of a biocatalyst biofilm on the conducting surface for a polarization period that exceeded 15 days.
It is noteworthy that TB and BR decolorization rates obtained in the case of RTWW treatment are comparable to those observed when using glucose as co-substrate with STWW experiments. Based on thesedata, it is apparently unnecessary to add an additional co-substrate to initiate the cometabolism reaction with RTWW. In fact, carbohydrates and other complex organic materials present in RTWW could be used by the microbial community to increase the electrochemical process. It is estimated that the concentration of carbohydrates in textile effluent could reach up to 22.000 ± 0.151 mg/L [31]. In fact, the water evacuated during the tanning process carries a significant chemical load that comes from the sizing products—mainly starches and their derivatives, carboxymethyl cellulose, and galactomannans. In addition, various additives are present in the dye formulations. Since these substances are not absorbed or fixed by the fibers, they are discharged into the wastewater with considerable COD load. Such additives are buffer systems composed of acetate, thickeners composed of carboxymethyl cellulose, and dispersants composed of ethylene oxide copolymers and detergents [32]. Based on these data, the treatment of real textile wastewaters in a BES may not require the addition of a co-substrate to enhance the co-metabolism reaction. This could significantly reduce the treatment cost by avoiding the mobilization and addition of co-substrates.
Table 2 shows different decolorization and COD removal rates obtained after treatment of RTWW when SCD or SSM sediments were used as inoculum. A COD removal rate of 85 vs. 30% in control reactor, respectively), and decolorization rates of 88% for TB and 84% for BRwere reached when used SCD sediment. The COD removal rate in the control reactor was 67%. However, a low COD removal rate was obtained when used SSM as inoculum (46 vs. 30% in control reactor, respectively), the decolorization rates of TB and BR were 72 and 81%, respectively. Results obtained with RTWW confirm the efficiency of microbial community naturally hosted in the SCD inoculum. Previous studies have shown that the decolorization efficiency of dyes in bioelectrochemical systems was better than that in biological anaerobic reactors [33,34]. Comparing to conventional biological treatment processes, BES could improve the efficiency of the degradation of several pollutants such as volatile organic compounds and azo dyes [6,35]. In fact, these systems have the particularity of coupling microbial metabolisms and electrochemical oxidation–reduction reactions into a single integrated unit [36].
The comparison of COD removal rates between the bioelectrochemical reactor and the biological control showed a significant treatment improvement of 18% for the SCD and 37% for the SSM (Figure 5B). According to the literature, biological treatment of textile effluents loaded with azo dyes shows in most studies poor to moderate COD removals ranging from 37 to 63% [37,38,39]. In fact, the slow microbial process, the incomplete degradation of azo dyes, and the toxicity towards the purifying microorganisms are the three main limitations of conventional biological treatment that significantly limit the COD treatment efficiency [40].
With bioelectrochemical treatment processes, much higher COD abatement rates have been reported. Here, we have demonstrated that the abatement rate can rise significantly to 85%, and other recent work in the literature reports abatements as high as 90% [21,41,42].
Recent studies have confirmed that the capacity of electroactive bacteria (EAB) for extracellular electron transfer (EET) perfectly meets the requirements of the extracellular reduction pathway of azo dyes. Thus, EABs with high EET capacity should also be efficient azo dye reductants due to the role of extracellular cytochrome C (OmcB, OmcC, and OmcE), which are identified as key outer membrane proteins for extracellular dye reduction [43,44]. Compared to the intracellular decolorization common to the conventional biological reactor, extracellular decolorization can be completely catalyzed by these outer membrane proteins directly, thus protecting bacteria from toxin effects by keeping azo dyes and their decolorized products out of the cells, resulting in superior decolorization rates with EAB.
The combination of these two approaches necessarily involves a combination of different reduction pathways: extracellular (by EAB) and intracellular (by bacteria in the anolyte). Indeed, having a polarized electrode for bioelectrocatalyst biofilm formation seems to be an efficient way to boost the degradation of organic matter within an effluent, but also to escape the bacterial toxicity caused by the classical intracellular reduction pathway.
To gain insights into azo dyes degradation by the BES, FTIR was used to reveal possible transformations in their structures. The FTIR spectrum (Figure 6) of the two control azo dyes (control group-TB (a) and control group-BR (b)) revealed that peaks around 3400 cm−1 corresponds to -NH2 of aniline; however, the presence of weak bands at 2900 and 2850 cm−1 indicated -CH stretching. The peak at 1610 cm−1 represents the stretching vibration of the C=C group on the benzene ring, and the peak at the region from 1400 to 1600 cm−1 represents the absorption band of the azo doublebond of TB and BR. The band observed at 1350 cm−1 is the characteristic -CN absorption peak of N atoms linked to the benzene ring. The peak at 1100 cm−1 for the BR and 1150 for the TB represents the asymmetric stretching vibrations of sulfonates. The peak at 450–1000 cm−1 represents the out-of-plane bending vibration absorption peak of the benzene ring. Compared with the FTIR spectrum of treated STWW-TB-SCD, TSWW-BR-SCD, RTWW-SCD, STWW-TB-SSM, and RTWW-SSM (Figure 6(c–g)), it is observed that the absorption peak of azo vibrations of wave number at 1400–1600 cm−1 was significantly altered, which argued that the double bond -N=N- of TB and BR was depleted [24,45]. Indeed, the degradation of azo dyes starts with the breaking of the azo double bond in the functional chromatic group of azo dyes. Similarly, the two peaks at 1100 and 1150 cm−1 had completely disappeared, suggesting the cleavage of the sulfonic groups. However, the peak around 3450 cm−1 remained unchanged, which could be explained by new degradation products containing -NH2 group that were produced after dye degradation.

3.4. Microscopy Analysis of Biofilms Morphology

The adhesion of microorganism cells on the anodic materials was studied by scanning electron microscopy (SEM) after the treatment process (STWW, Figure 7A,B; RTWW, Figure 7C). A diverse community of microorganisms with different structures and morphological forms were detected on the conductive surface, such as coccus and bacillus. It is important to mention that biofilms obtained when used SCD as inoculum are more colonized than those obtained with SSM inoculum. For micrographs obtained from STWW1 (TB) reactors (Figure 7A), the colonization seems heterogeneous, and the cells are hardly distinguishable, suggesting the presence of very cohesive extracellular polymeric substance (EPS). While for those obtained from STWW2 (BR) reactors (Figure 7B), a thick, fairly homogeneous, and very dense mat of microbial cells was observed. It also seems that above this basal layer there are more isolated clusters, which are about 10µm in size and are more anarchic. Biofilms from STWW2 (BR) reactors seem to be more concentrated in EPS because the microbial cells are difficult to differentiate. Micrographs of biofilms from reactors fed with RTWW (Figure 7C) showed a very homogeneous aspect and colonized the entire surface of the carbon fibers. Its thickness is also very regular on the surface. The composition of the biofilm is quite heterogeneous with cells of highly variable size and morphology, and the presence of EPS with non-repeatable patterns. Overall, the SEM images suggest synergistic interactions between different microbial consortia for power generation coupled with textile effluent treatment.

3.5. Microbial Community Composition

At the end of the electrochemical experiments, different bioanodes named STWW/TB/SSM, STWW/BR/SCD, STWW/TB/SCD, STWW/BR/SSM, RTWW/SCD, and RTWW/SSM were removed from the reactors and subjected to a metagenomic study to probe the variation of bacterial communities within biofilms as a function of the nature of the inoculums (SSM or SCD) and the wastewater (STWW or RTWW). The composition and abundance distribution of each biofilm at the taxonomic levels of phylum and species are shown in Figure 8A,B.
At the phylum level, biofilms were mainly colonized by two phyla: Proteobacteria (from 87 to 31%) and Firmicutes (from 60 to 31%). Proteobacteria were enriched in the pattern of abundance 87% (RTWW/SSM) > 68% (STWW/TB/SCD) > 62% (STWW/TB/SSM) > 54% (STWW/BR/SCD) > 33% (RTWW/SCD) > 31% (STWW/BR/SSM). However, Firmicutes were enriched in a different pattern of abundance: 60% (RTWW/SCD) > 50% (RTWW/SSM) > 43% (STWW/BR/SSM) = 43% (STWW/BR/SCD) > 36% (STWW/TB/SSM) > 31% (STWW/TB/SCD). Additionally, the phylum of Eucyarchaeota was also enriched in Biofilms STWW/BR/SSM and STWW/BR/SCD collected from reactors, which contained STWW/BR with relative abundances of 24 and 22%, respectively.
At the species level, biofilms formed in synthetic wastewater contained BR with SSM as inoculum source (STWW/BR/SSM), the most abundant bacteria were Marinobacter hydrocarbonoclasticus (27%), Halanaerobaculum tunisiense (24%), Haloferax mucosum (20%), Halanaerobacter lacunarum (13%), Halanaerobiumlacurosei (6%), Acetohalobiumar abaticum (4%), and Orenia marismortui (1.5%). However, biofilms formed in reactors contained synthetic wastewater containing TB treated with the same sediment (STWW/TB/SSM) were mainly colonized by Caenispirillum sp. (15%), Halanaerobacter lacunarum (13.6%), Desulfovibrio sp. (10%), Chromohalobacter thailandensis (15.5%), Achromobacter xylosoxidans (11 %), Azospirillum oryzae (6%), Halanaerobium lacurosei (7%), Novispirillum spp. (5%), Desulfotomaculum sp. (3%), Orenia salina (3%), and Halanaerobaculum tunisiense (2%).
Biofilms formed in synthetic wastewater contained TB inoculated with SCD as a source of biocatalyst microorganisms (STWW/TB/SCD) were colonized mainly by the species of Marinobacter sp. (71%), Clostrodium sp. (13.6%), Caldinitratiruptor clostridiales bacterium (5%), and Desulfotolaculum sp. (4%).While in the case of the synthetic wastewater contained BR treated with the same sediment (STWW/BR/SCD), the biofilms were mainly colonized by Marinobacter hydrocarboclasticus (50%), Orenia salina (14%), Sporohalobacter sp. (12%), Acetohalobium arabaticum (6%), Halothiobacillus hydrothermalis (5%),and Halanaerobaculum tunisiense (4%).
These findings clearly revealed an important diversity in the microbial community that colonized the different biofilms. It is important to note that wastewater treated with SCD demonstrated the highest degradation potential and electric current densities; this could be attributed to the microbial community that hosts this sediment mainly being colonized by the genus of Marinobacter. This genus has been described as extremely halotolerant with great potential in bioremediation [46]. Marinobacter hydrocarbonoclasticus has previously been shown to degrade a wide range of n-alkanes [47]and hydrocarbons [46,48]. Recent genetic studies have shown that its broad metabolic capacity indicates that it should rather be considered as a multipurpose bacterium [49]. Furthermore, the electrogenicity of this strain is increasingly proven. It was described as a major species in a halothermotolerant biofilm designed by Askri et al. [21]. In the same sense Rousseau et al. [50] showed that in biofilm colonized mainly by Marinobacter spp. (present strongly in SCD), a very high electron transfer rate was obtained. These data suggest that the Marinobacter genus is probably a promising candidate for the design of halotolerant bioanodes.
Regarding experiments carried out with real wastewater and SCD as a source of inoculum, the biofilms were mainly colonized by Orenia spp. (45%), Caenispirillum bisanense (10.5%), Clostridium sp. (10%), Desulfovibrio sp. (7%), Caenispirillum sp. (3%), Idiomarina seosinensis (6%), and Marinobacter sp. (5%). Inthose treated with SSM, biofilms were colonized by Orenia marismortui (25%), Desulfovibrio sp.(18%), Caenispirillum sp.(16%), Orenia spp. (15%), Idiomarina seonensis (10%), Marinobacter sp. (4%), and Halocella cellulosityca (4%). Comparing with the bacterial diversity of the communities detected in the biofilms formed in the STWW we notice that the species belonging to Orenia, Idiomarina, and Desulfovibrio genus are only present in the enriched biofilms of the RTWW. According to previous literature, these microorganisms are considered as sulfate-reducing bacteria, and this ability has led them to be used for the remediation of contaminated soils. Additionally, microbial communities belonging to the genus Desulfovibrio are well known for theirpotential to efficiently process azo dyes [51,52]; it is also interesting to note that Desulfovibrio possesses an abundance of membrane-bound multiheme cytochromes that are involved in direct extracellular electron transfer [29].

4. Conclusions

In this study, the design of microbial bioanodes, from saline sediments, capable of treating synthetic and real textile wastewater containing azo dyes under different operating conditions were successfully demonstrated. RTWW was used as a substrate to validate the efficiency of the electromicrobial process. A maximum current density of 2.5A/m2 and a COD abatement rate of 85% was determined when SCD was used as a source of microorganism. The analysis of the microbial population clearly showed the presence of a mixed microbial community essentially formed by electroactive halotolerant bacteria able to tolerate the conditions of saline wastewaters. These results could lead to possible applications of these bioanodes for bioremediation and energy recovering from textile wastewater containing recalcitrant azo dyes.

Author Contributions

Conceptualization H.C., B.E., S.S. and A.C.; methodology, H.C., B.E., S.S., N.S.; A.S.M., M.N. and R.D. software, L.E., H.C. and S.S.; validation, H.C. and B.E.; writing—original draft preparation, S.S.; writing—review and editing, H.C., B.E. and S.S.; supervision, H.C. and B.E.; project administration, H.C. and B.E. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the “PHC Utique 2020”program (project code: 44194QA) of the French Ministry of Foreign Affairs and Ministry of higher education, research and innovation and the Tunisian Ministryof higher education and scientific research in the CMCU project number 20G1115.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Selvaraj, V.; Swarna Karthika, T.; Mansiya, C.; Alagar, M. An over Review on Recently Developed Techniques, Mechanisms and Intermediate Involved in the Advanced Azo Dye Degradation for Industrial Applications. J. Mol. Struct. 2021, 1224, 129195. [Google Scholar] [CrossRef]
  2. Askri, R.; Erable, B.; Etcheverry, L.; Saadaoui, S.; Neifar, M.; Cherif, A.; Chouchane, H. Allochthonous and Autochthonous Halothermotolerant Bioanodes From Hypersaline Sediment and Textile Wastewater: A Promising Microbial Electrochemical Process for Energy Recovery Coupled with Real Textile Wastewater Treatment. Front. Bioeng. Biotechnol. 2020, 8, 609446. [Google Scholar] [CrossRef] [PubMed]
  3. Sen, S.; Raut, S.; Raut, S. Mycoremediation of Anthraquinone Dyes from Textile Industries: A Mini-Review. BioTechnologia 2023, 104, 85–91. [Google Scholar] [CrossRef] [PubMed]
  4. Khan, S.; Malik, A. Toxicity Evaluation of Textile Effluents and Role of Native Soil Bacterium in Biodegradation of a Textile Dye. Environ. Sci. Pollut. Res. 2018, 25, 4446–4458. [Google Scholar] [CrossRef] [PubMed]
  5. Deng, D.; Lamssali, M.; Aryal, N.; Ofori-Boadu, A.; Jha, M.K.; Samuel, R.E. Textiles Wastewater Treatment Technology: A Review. Water Environ. Res. 2020, 92, 1805–1810. [Google Scholar] [CrossRef]
  6. Shahi, A.; Rai, B.N.; Singh, R.S. Biodegradation of Reactive Orange 16 Dye in Microbial Fuel Cell: An Innovative Way to Minimize Waste Along with Electricity Production. Appl. Biochem. Biotechnol. 2020, 192, 196–210. [Google Scholar] [CrossRef]
  7. Gita, S.; Hussan, A.; Choudhury, T.G. Impact of Textile Dyes Waste on Aquatic Environments and Its Treatment. Environ. Ecol. 2017, 3, 2349–2353. [Google Scholar]
  8. Sevastre, A.-S.; Baloi, C.; Alexandru, O.; Tataranu, L.G.; Popescu, O.S.; Dricu, A. The Effect of Azo-Dyes on Glioblastoma Cells in Vitro. Saudi J. Biol. Sci. 2023, 30, 103599. [Google Scholar] [CrossRef]
  9. Holkar, C.R.; Jadhav, A.J.; Pinjari, D.V.; Mahamuni, N.M.; Pandit, A.B. A Critical Review on Textile Wastewater Treatments: Possible Approaches. J. Environ. Manag. 2016, 182, 351–366. [Google Scholar] [CrossRef]
  10. Chouchane, H.; Mahjoubi, M.; Ettoumi, B.; Neifar, M.; Cherif, A. A Novel Thermally Stable Heteropolysaccharide-Based Bioflocculant from Hydrocarbonoclastic Strain Kocuria Rosea BU22S and Its Application in Dye Removal. Environ. Technol. 2018, 39, 859–872. [Google Scholar] [CrossRef]
  11. Jiang, M.; Ye, K.; Deng, J.; Lin, J.; Ye, W.; Zhao, S.; Van der Bruggen, B. Conventional Ultrafiltration as Effective Strategy for Dye/Salt Fractionation in Textile Wastewater Treatment. Environ. Sci. Technol. 2018, 52, 10698–10708. [Google Scholar] [CrossRef] [PubMed]
  12. Martorell, M.M.; Pajot, H.F.; Ahmed, P.M.; de Figueroa, L.I.C. Biodecoloration of Reactive Black 5 by the Methylotrophic Yeast Candida Boidinii MM 4035. J. Environ. Sci. 2017, 53, 78–87. [Google Scholar] [CrossRef] [PubMed]
  13. GracePavithra, K.; Jaikumar, V.; Kumar, P.S.; SundarRajan, P. A Review on Cleaner Strategies for Chromium Industrial Wastewater: Present Research and Future Perspective. J. Clean. Prod. 2019, 228, 580–593. [Google Scholar] [CrossRef]
  14. Hayat, H.; Mahmood, Q.; Pervez, A.; Bhatti, Z.A.; Baig, S.A. Comparative Decolorization of Dyes in Textile Wastewater Using Biological and Chemical Treatment. Sep. Purif. Technol. 2015, 154, 149–153. [Google Scholar] [CrossRef]
  15. Long, X.; Pan, Q.; Wang, C.; Wang, H.; Li, H.; Li, X. Microbial Fuel Cell-Photoelectrocatalytic Cell Combined System for the Removal of Azo Dye Wastewater. Bioresour. Technol. 2017, 244, 182–191. [Google Scholar] [CrossRef]
  16. Wu, L.-C.; Chen, C.-Y.; Lin, T.-K.; Su, Y.-Y.; Chung, Y.-C. Highly Efficient Removal of Victoria Blue R and Bioelectricity Generation from Textile Wastewater Using a Novel Combined Dual Microbial Fuel Cell System. Chemosphere 2020, 258, 127326. [Google Scholar] [CrossRef]
  17. Naik, S.; Jujjavarappu, S.E. Simultaneous Bioelectricity Generation from Cost-Effective MFC and Water Treatment Using Various Wastewater Samples. Environ. Sci. Pollut. Res. 2020, 27, 27383–27393. [Google Scholar] [CrossRef]
  18. Hou, B.; Lu, J.; Wang, H.; Li, Y.; Liu, P.; Liu, Y.; Chen, J. Performance of Microbial Fuel Cells Based on the Operational Parameters of Biocathode during Simultaneous Congo Red Decolorization and Electricity Generation. Bioelectrochemistry 2019, 128, 291–297. [Google Scholar] [CrossRef]
  19. Sun, J.; Hu, Y.; Bi, Z.; Cao, Y. Simultaneous Decolorization of Azo Dye and Bioelectricity Generation Using a Microfiltration Membrane Air-Cathode Single-Chamber Microbial Fuel Cell. Bioresour. Technol. 2009, 100, 3185–3192. [Google Scholar] [CrossRef]
  20. Sarfo, D.K.; Kaur, A.; Marshall, D.L.; O’Mullane, A.P. Electrochemical Degradation and Mineralisation of Organic Dyes in Aqueous Nitrate Solutions. Chemosphere 2023, 316, 137821. [Google Scholar] [CrossRef]
  21. Askri, R.; Erable, B.; Neifar, M.; Etcheverry, L.; Masmoudi, A.S.; Cherif, A.; Chouchane, H. Understanding the Cumulative Effects of Salinity, Temperature and Inoculation Size for the Design of Optimal Halothermotolerant Bioanodes from Hypersaline Sediments. Bioelectrochemistry 2019, 129, 179–188. [Google Scholar] [CrossRef] [PubMed]
  22. Blanchet, E.; Erable, B.; De Solan, M.-L.; Bergel, A. Two-Dimensional Carbon Cloth and Three-Dimensional Carbon Felt Perform Similarly to Form Bioanode Fed with Food Waste. Electrochem. Commun. 2016, 66, 38–41. [Google Scholar] [CrossRef]
  23. Blanchet, E.; Desmond, E.; Erable, B.; Bridier, A.; Bouchez, T.; Bergel, A. Comparison of Synthetic Medium and Wastewater Used as Dilution Medium to Design Scalable Microbial Anodes: Application to Food Waste Treatment. Bioresour. Technol. 2015, 185, 106–115. [Google Scholar] [CrossRef] [PubMed]
  24. Qiu, H.; Shen, F.; Yin, A.; Liu, J.; Wu, B.; Li, Y.; Xiao, Y.; Hai, J.; Xu, B. Biodegradation and Detoxification of Azo Dyes by Halophilic/Halotolerant Microflora Isolated From the Salt Fields of Tibet Autonomous Region China. Front. Microbiol. 2022, 13, 877151. [Google Scholar] [CrossRef] [PubMed]
  25. Cao, Y.; Hu, Y.; Sun, J.; Hou, B. Explore Various Co-Substrates for Simultaneous Electricity Generation and Congo Red Degradation in Air-Cathode Single-Chamber Microbial Fuel Cell. Bioelectrochemistry 2010, 79, 71–76. [Google Scholar] [CrossRef] [PubMed]
  26. dos Santos, A.B.; Traverse, J.; Cervantes, F.J.; van Lier, J.B. Enhancing the Electron Transfer Capacity and Subsequent Color Removal in Bioreactors by Applying Thermophilic Anaerobic Treatment and Redox Mediators. Biotechnol. Bioeng. 2005, 89, 42–52. [Google Scholar] [CrossRef]
  27. Sandhya, S. Biodegradation of Azo Dyes Under Anaerobic Condition: Role of Azoreductase. In Biodegradation of Azo Dyes; Atacag Erkurt, H., Ed.; The Handbook of Environmental Chemistry; Springer: Berlin/Heidelberg, Germany, 2010; Volume 9, pp. 39–57. [Google Scholar] [CrossRef]
  28. Thung, W.-E.; Ong, S.-A.; Ho, L.-N.; Wong, Y.-S.; Ridwan, F.; Oon, Y.-L.; Oon, Y.-S.; Lehl, H.K. A Highly Efficient Single Chambered Up-Flow Membrane-Less Microbial Fuel Cell for Treatment of Azo Dye Acid Orange 7-Containing Wastewater. Bioresour. Technol. 2015, 197, 284–288. [Google Scholar] [CrossRef]
  29. Miran, W.; Jang, J.; Nawaz, M.; Shahzad, A.; Lee, D.S. Sulfate-Reducing Mixed Communities with the Ability to Generate Bioelectricity and Degrade Textile Diazo Dye in Microbial Fuel Cells. J. Hazard. Mater. 2018, 352, 70–79. [Google Scholar] [CrossRef]
  30. Solanki, K.; Subramanian, S.; Basu, S. Microbial Fuel Cells for Azo Dye Treatment with Electricity Generation: A Review. Bioresour. Technol. 2013, 131, 564–571. [Google Scholar] [CrossRef]
  31. Lin, C.-Y.; Nguyen, M.-L.T.; Lay, C.-H. Starch-Containing Textile Wastewater Treatment for Biogas and Microalgae Biomass Production. J. Clean. Prod. 2017, 168, 331–337. [Google Scholar] [CrossRef]
  32. European Commission. Reference Document on Best Available Techniques. Textile Industry; European Commission: Brussels, Belgium, 2003. [Google Scholar]
  33. Ahmad, M.; Yousaf, M.; Nasir, A.; Bhatti, I.A.; Mahmood, A.; Fang, X.; Jian, X.; Kalantar-Zadeh, K.; Mahmood, N. Porous Eleocharis@MnPE Layered Hybrid for Synergistic Adsorption and Catalytic Biodegradation of Toxic Azo Dyes from Industrial Wastewater. Environ. Sci. Technol. 2019, 53, 2161–2170. [Google Scholar] [CrossRef] [PubMed]
  34. Galai, S.; Pérez de los Ríos, A.; Hernández-Fernández, F.J.; Kacem, S.H.; Ramírez, F.M.; Quesada-Medina, J. Microbial Fuel Cell Application for Azoic Dye Decolorization with Simultaneous Bioenergy Production Using Stenotrophomonas Sp. Chem. Eng. Technol. 2015, 38, 1511–1518. [Google Scholar] [CrossRef]
  35. Tahir, K.; Miran, W.; Nawaz, M.; Jang, J.; Shahzad, A.; Moztahida, M.; Kim, B.; Azam, M.; Jeong, S.E.; Jeon, C.O.; et al. Investigating the Role of Anodic Potential in the Biodegradation of Carbamazepine in Bioelectrochemical Systems. Sci. Total. Environ. 2019, 688, 56–64. [Google Scholar] [CrossRef] [PubMed]
  36. Sun, L.; Mo, Y.; Zhang, L. A Mini Review on Bio-Electrochemical Systems for the Treatment of Azo Dye Wastewater: State-of-the-Art and Future Prospects. Chemosphere 2022, 294, 133801. [Google Scholar] [CrossRef] [PubMed]
  37. Yuzer, B.; Selcuk, H. Recovery of Biologically Treated Textile Wastewater by Ozonation and Subsequent Bipolar Membrane Electrodialysis Process. Membranes 2021, 11, 900. [Google Scholar] [CrossRef] [PubMed]
  38. Krishnaswamy, V.G. Combined Treatment of Synthetic Textile Effluent Using Mixed Azo Dye by Phyto and Phycoremediation. Int. J. Phytoremediation 2021, 23, 924–936. [Google Scholar] [CrossRef]
  39. Teoh, T.P.; Ong, S.A.; Ho, L.N.; Wong, Y.S.; Lutpi, N.A.; Oon, Y.L.; Tan, S.M.; Ong, Y.P.; Yap, K.L. Insights into the decolorization of mono and diazo dyes in single and binary dyes containing wastewater and electricity generation in up-flow constructed wetland coupled microbial fuel cell. Environ. Sci. Pollut. Res. Int. 2023, 30, 17546–17563. [Google Scholar] [CrossRef] [PubMed]
  40. Ihsanullah, I.; Jamal, A.; Ilyas, M.; Zubair, M.; Khan, G.; Atieh, M.A. Bioremediation of Dyes: Current Status and Prospects. J. Water Process. Eng. 2020, 38, 101680. [Google Scholar] [CrossRef]
  41. Logroño, W.; Pérez, M.; Urquizo, G.; Kadier, A.; Echeverría, M.; Recalde, C.; Rákhely, G. Single Chamber Microbial Fuel Cell (SCMFC) with a Cathodic Microalgal Biofilm: A Preliminary Assessment of the Generation of Bioelectricity and Biodegradation of Real Dye Textile Wastewater. Chemosphere 2017, 176, 378–388. [Google Scholar] [CrossRef]
  42. Huang, T.; Liu, L.; Tao, J.; Zhou, L.; Zhang, S. Microbial Fuel Cells Coupling with the Three-Dimensional Electro-Fenton Technique Enhances the Degradation of Methyl Orange in the Wastewater. Environ. Sci. Pollut. Res. 2018, 25, 17989–18000. [Google Scholar] [CrossRef]
  43. Liu, S.; Song, H.; Wei, S.; Liu, Q.; Li, X.; Qian, X. Effect of Direct Electrical Stimulation on Decolorization and Degradation of Azo Dye Reactive Brilliant Red X-3B in Biofilm-Electrode Reactors. Biochem. Eng. J. 2015, 93, 294–302. [Google Scholar] [CrossRef]
  44. Cui, M.-H.; Liu, W.-Z.; Tang, Z.-E.; Cui, D. Recent Advancements in Azo Dye Decolorization in Bio-Electrochemical Systems (BESs): Insights into Decolorization Mechanism and Practical Application. Water Res. 2021, 203, 117512. [Google Scholar] [CrossRef] [PubMed]
  45. Chen, Y.; Feng, L.; Li, H.; Wang, Y.; Chen, G.; Zhang, Q. Biodegradation and Detoxification of Direct Black G Textile Dye by a Newly Isolated Thermophilic Microflora. Bioresour. Technol. 2018, 250, 650–657. [Google Scholar] [CrossRef] [PubMed]
  46. Fathepure, B.Z. Recent Studies in Microbial Degradation of Petroleum Hydrocarbons in Hypersaline Environments. Front. Microbiol. 2014, 5, 173. [Google Scholar] [CrossRef]
  47. Klein, B.; Grossi, V.; Bouriat, P.; Goulas, P.; Grimaud, R. Cytoplasmic Wax Ester Accumulation during Biofilm-Driven Substrate Assimilation at the Alkane–Water Interface by Marinobacter Hydrocarbonoclasticus SP17. Res. Microbiol. 2008, 159, 137–144. [Google Scholar] [CrossRef] [PubMed]
  48. Cui, Z.; Gao, W.; Xu, G.; Luan, X.; Li, Q.; Yin, X.; Huang, D.; Zheng, L. Marinobacter Aromaticivorans Sp. Nov., a Polycyclic Aromatic Hydrocarbon-Degrading Bacterium Isolated from Sea Sediment. Int. J. Syst. Evol. Microbiol. 2016, 66, 353–359. [Google Scholar] [CrossRef]
  49. Mounier, J.; Camus, A.; Mitteau, I.; Vaysse, P.-J.; Goulas, P.; Grimaud, R.; Sivadon, P. The Marine Bacterium Marinobacter Hydrocarbonoclasticus SP17 Degrades a Wide Range of Lipids and Hydrocarbons through the Formation of Oleolytic Biofilms with Distinct Gene Expression Profiles. FEMS Microbiol. Ecol. 2014, 90, 816–831. [Google Scholar] [CrossRef]
  50. Rousseau, R.; Santaella, C.; Bonnafous, A.; Achouak, W.; Godon, J.-J.; Delia, M.-L.; Bergel, A. Halotolerant Bioanodes: The Applied Potential Modulates the Electrochemical Characteristics, the Biofilm Structure and the Ratio of the Two Dominant Genera. Bioelectrochemistry 2016, 112, 24–32. [Google Scholar] [CrossRef]
  51. Yoo, E.S.; Libra, J.; Adrian, L. Mechanism of Decolorization of Azo Dyes in Anaerobic Mixed Culture. J. Environ. Eng. 2001, 127, 844–849. [Google Scholar] [CrossRef]
  52. Diniz, P.E.; Lopes, A.T.; Lino, A.R.; Serralheiro, M.L. Anaerobic Reduction of a Sulfonated Azo Dye, Congo Red, by Sulfate-Reducing Bacteria. Appl. Biochem. Biotechnol. 2002, 97, 147–164. [Google Scholar] [CrossRef]
Applsci 13 05581 g001 550

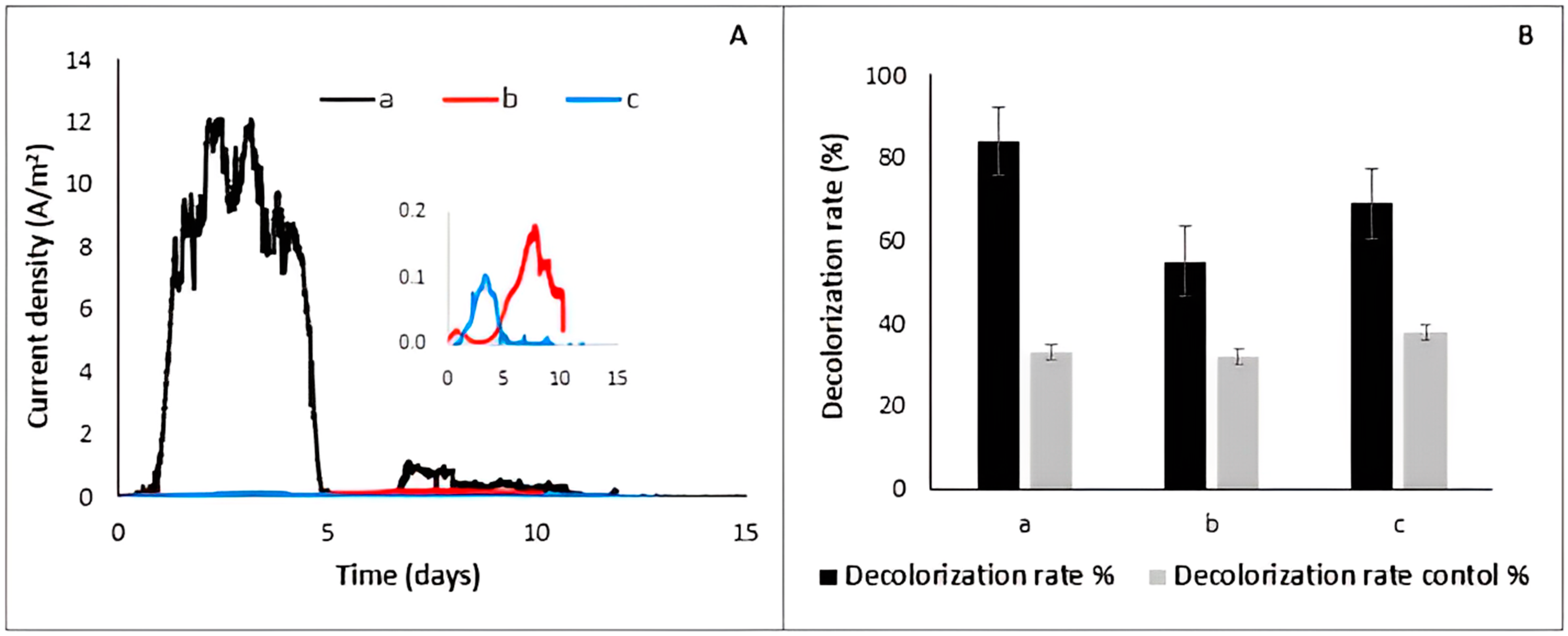

Figure 1. (A) Evolution of the anodic current recorded on the 6 cm2carbon felt working electrode polarized at −0.1 V/SCE; and (B) decolorization rate achieved by bioremediation or bioelectroremediation of STWW. (a) Reactor fed with 300 ppm TB,SCD as source of halophilic microorganisms; (b) Reactor fed with 1000 ppm TB, SCD as source of halophilic microorganisms; (c) Reactor fed with 300 ppm TB, SSM as source of halophilic microorganisms. All experiments have been performed at a salinity of 165 g/L.
Figure 1. (A) Evolution of the anodic current recorded on the 6 cm2carbon felt working electrode polarized at −0.1 V/SCE; and (B) decolorization rate achieved by bioremediation or bioelectroremediation of STWW. (a) Reactor fed with 300 ppm TB,SCD as source of halophilic microorganisms; (b) Reactor fed with 1000 ppm TB, SCD as source of halophilic microorganisms; (c) Reactor fed with 300 ppm TB, SSM as source of halophilic microorganisms. All experiments have been performed at a salinity of 165 g/L.
Applsci 13 05581 g001
Applsci 13 05581 g002 550

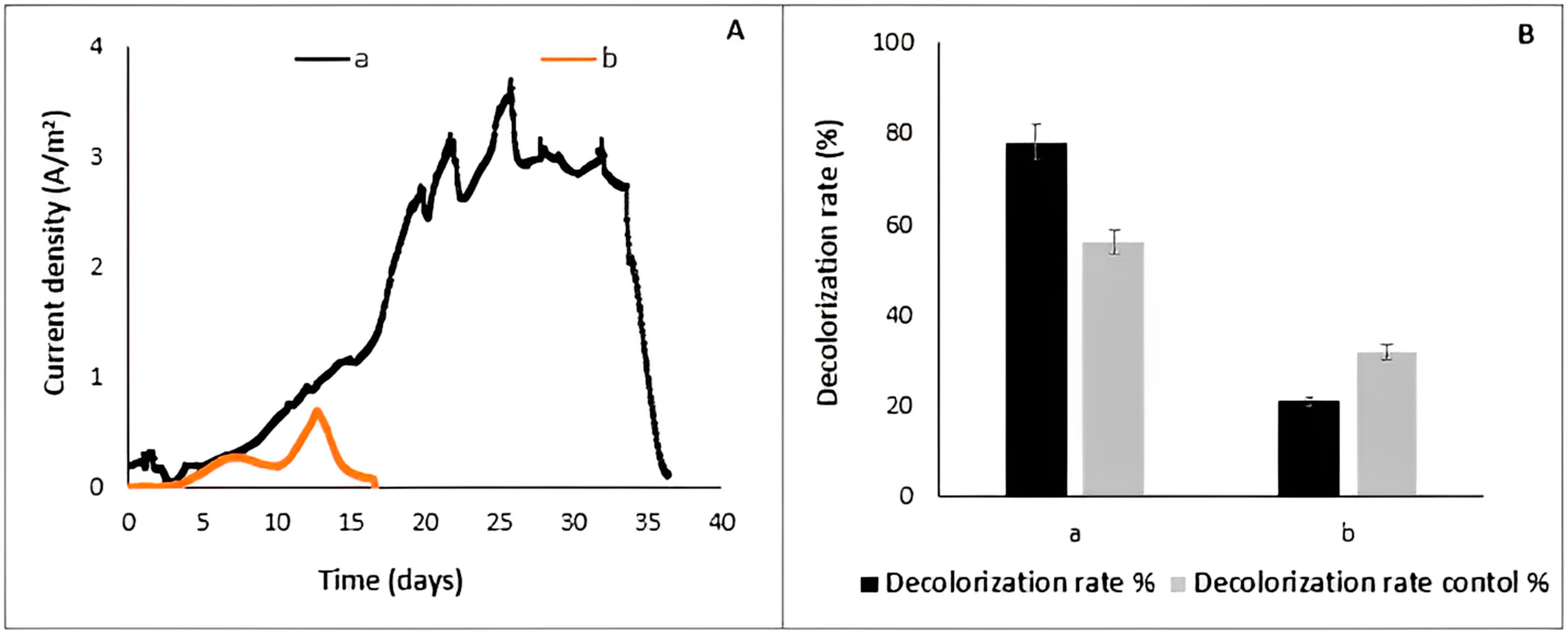

Figure 2. (A) Evolution of the anodic current recorded on the 6 cm2 carbon felt working electrode polarized at −0.1 V/SCE; and (B) decolorization rate achieved by bioremediation or bioelectroremediation of STWW. (a) Reactor fed with 300 ppm TB, SCD as source of halophilic microorganisms, glucose as co-substrate; (b) Reactor fed with 300ppm TB, SCD as source of halophilic microorganisms, acetate as co-substrate.
Figure 2. (A) Evolution of the anodic current recorded on the 6 cm2 carbon felt working electrode polarized at −0.1 V/SCE; and (B) decolorization rate achieved by bioremediation or bioelectroremediation of STWW. (a) Reactor fed with 300 ppm TB, SCD as source of halophilic microorganisms, glucose as co-substrate; (b) Reactor fed with 300ppm TB, SCD as source of halophilic microorganisms, acetate as co-substrate.
Applsci 13 05581 g002
Applsci 13 05581 g003 550

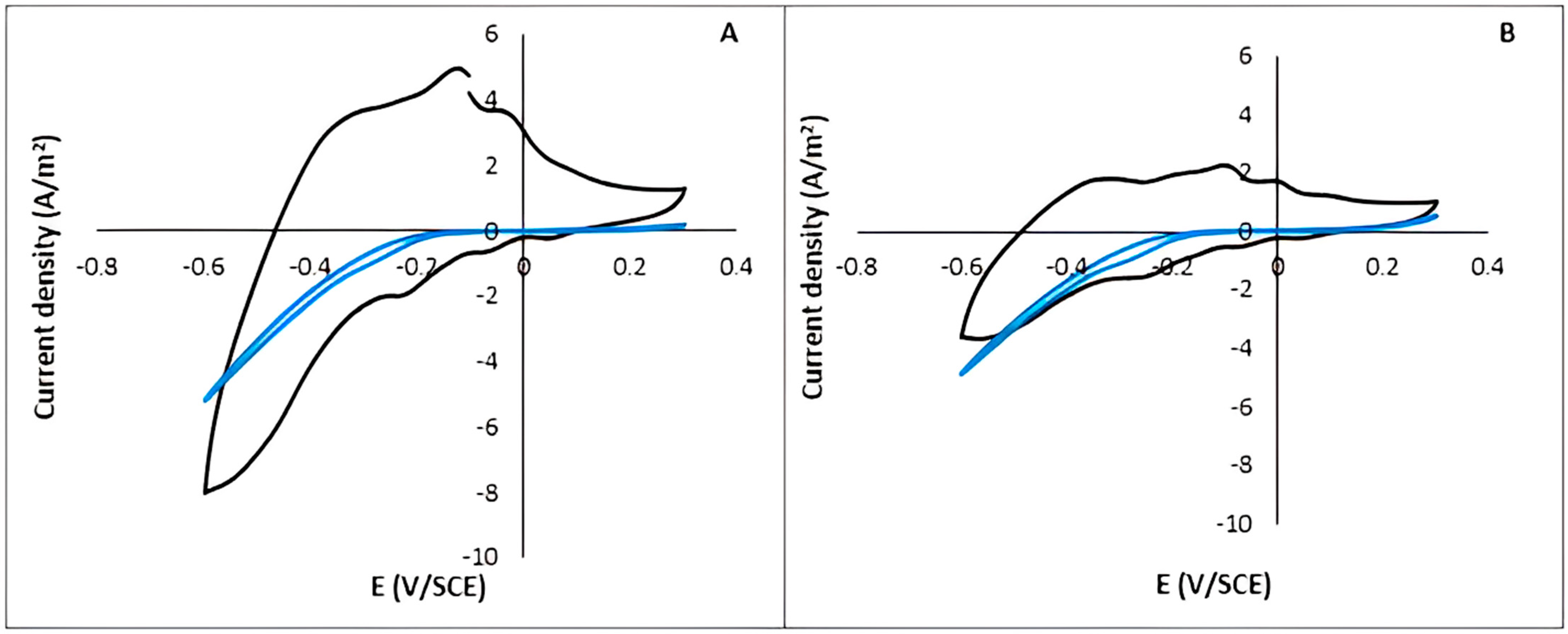

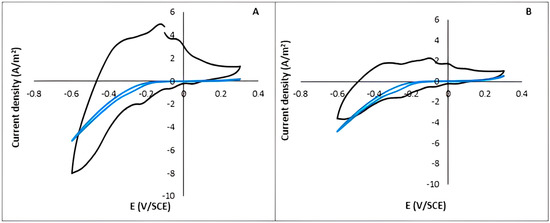

Figure 3. Cyclic voltammetries performed on porous carbon felt electrode immersed in reactor contained 300 ppm of TB. (A) SCD as inoculum and glucose as co-substrate. (B) SSM as inoculum and glucose as co-substrate. CVi (−), CVf (−).
Figure 3. Cyclic voltammetries performed on porous carbon felt electrode immersed in reactor contained 300 ppm of TB. (A) SCD as inoculum and glucose as co-substrate. (B) SSM as inoculum and glucose as co-substrate. CVi (−), CVf (−).
Applsci 13 05581 g003
Applsci 13 05581 g004 550

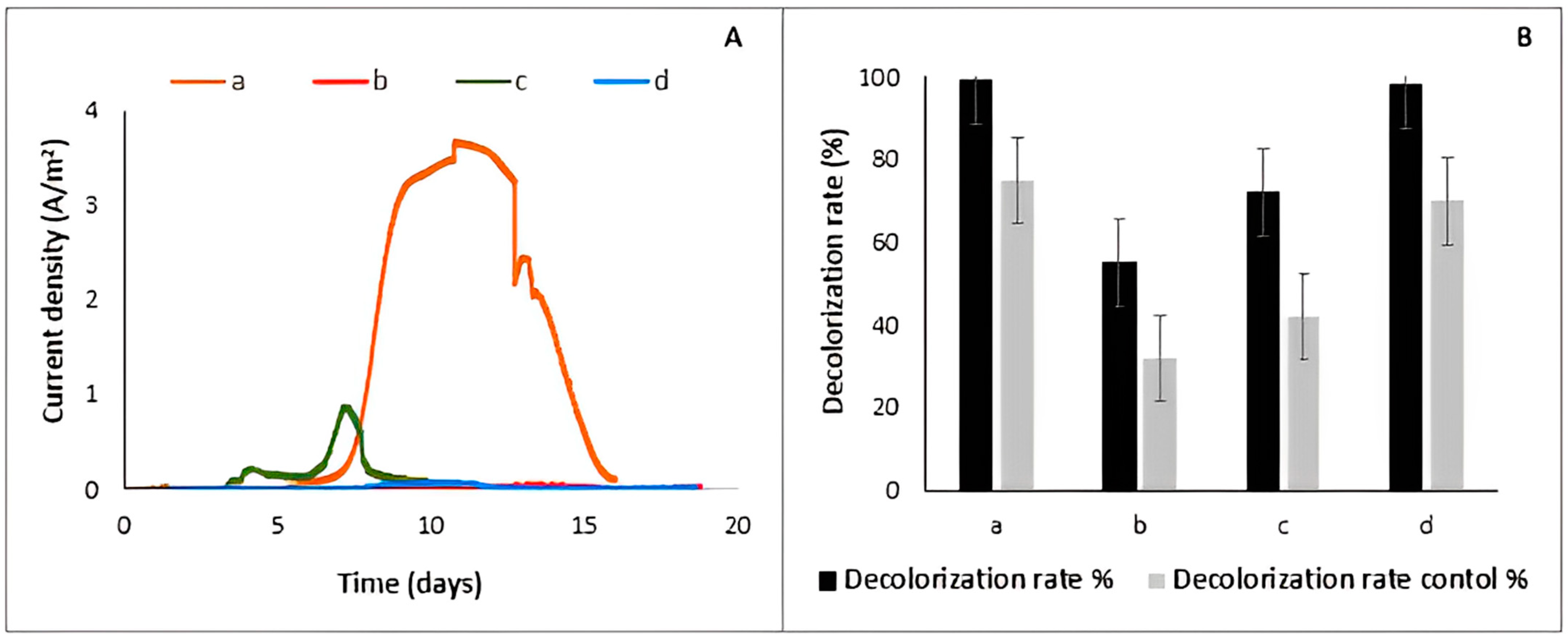

Figure 4. (A) Evolution of the anodic current recorded on the 6 cm2 carbon felt working electrode polarized at −0.1 V/SCE; and (B) decolorization rate achieved by bioremediation or bioelectroremediation of STWW. (a) Reactor fed with 300 ppm BR, SCD as source of halophilic microorganisms; (b) Reactor fed with 1000 ppm BR, SCD as source of halophilic microorganisms; (c) Reactor fed with 300 ppm BR, SSM as source of halophilic microorganisms. All experiments have been performed at a salinity of 165 g/L substrate. (d) Reactor fed with 300 ppm BR, SCD as source of halophilic microorganisms at a salinity of 15g/L.
Figure 4. (A) Evolution of the anodic current recorded on the 6 cm2 carbon felt working electrode polarized at −0.1 V/SCE; and (B) decolorization rate achieved by bioremediation or bioelectroremediation of STWW. (a) Reactor fed with 300 ppm BR, SCD as source of halophilic microorganisms; (b) Reactor fed with 1000 ppm BR, SCD as source of halophilic microorganisms; (c) Reactor fed with 300 ppm BR, SSM as source of halophilic microorganisms. All experiments have been performed at a salinity of 165 g/L substrate. (d) Reactor fed with 300 ppm BR, SCD as source of halophilic microorganisms at a salinity of 15g/L.
Applsci 13 05581 g004
Applsci 13 05581 g005 550

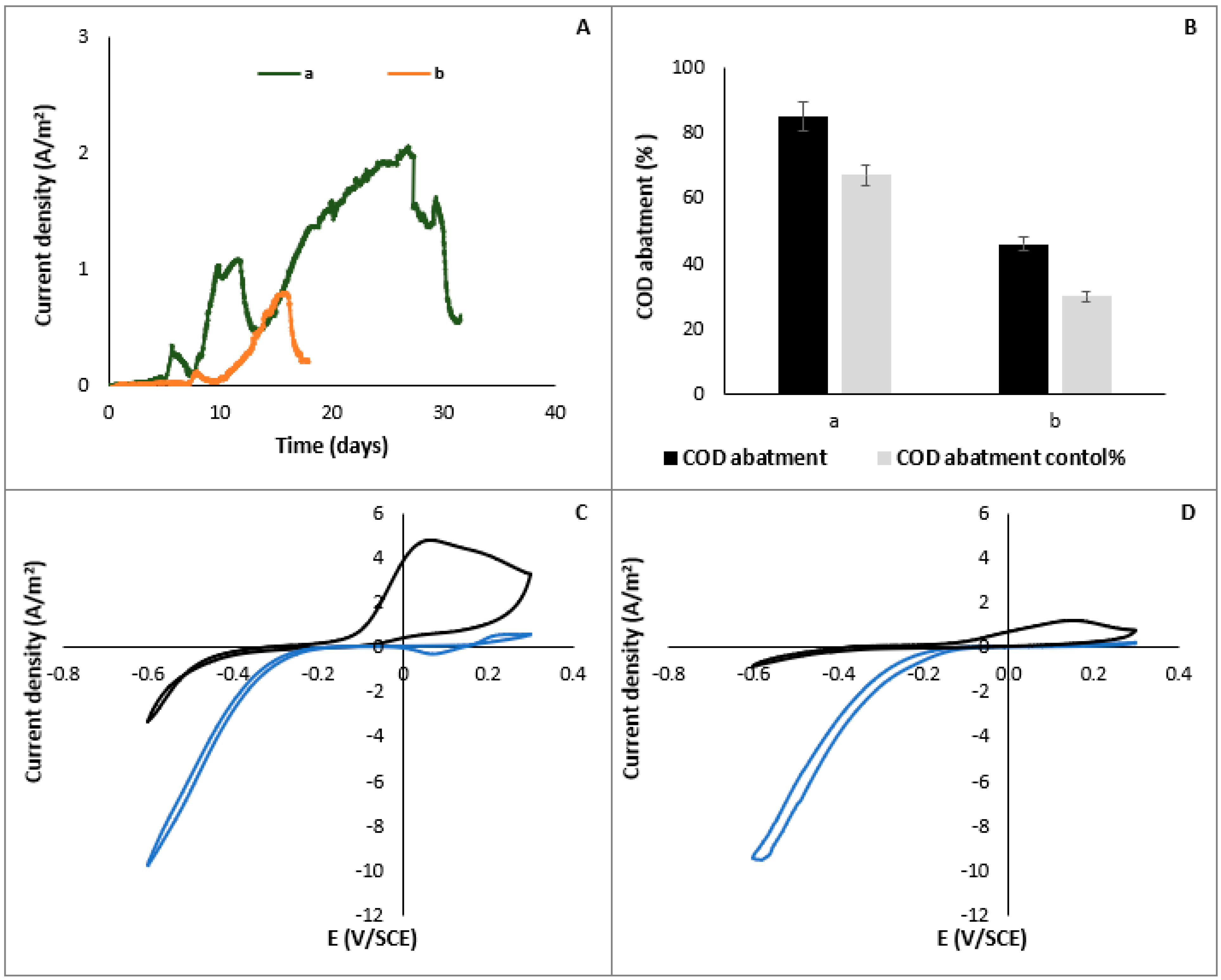

Figure 5. (A) Evolution of the anodic current recorded on the 6 cm2 carbon felt working electrode polarized at −0.1 V/SCE in reactor contained RTWW and SCD (a) or SSM as inoculums (b). (B) Decolorization rate achieved by bioremediation or bioelectroremediation. (C) Related cyclic voltammetry CVi, SCD (−), CVf, SCD (−); (D) related cyclic voltammetry CVi, SSM (−)and CVf, SSM (−).
Figure 5. (A) Evolution of the anodic current recorded on the 6 cm2 carbon felt working electrode polarized at −0.1 V/SCE in reactor contained RTWW and SCD (a) or SSM as inoculums (b). (B) Decolorization rate achieved by bioremediation or bioelectroremediation. (C) Related cyclic voltammetry CVi, SCD (−), CVf, SCD (−); (D) related cyclic voltammetry CVi, SSM (−)and CVf, SSM (−).
Applsci 13 05581 g005
Applsci 13 05581 g006 550

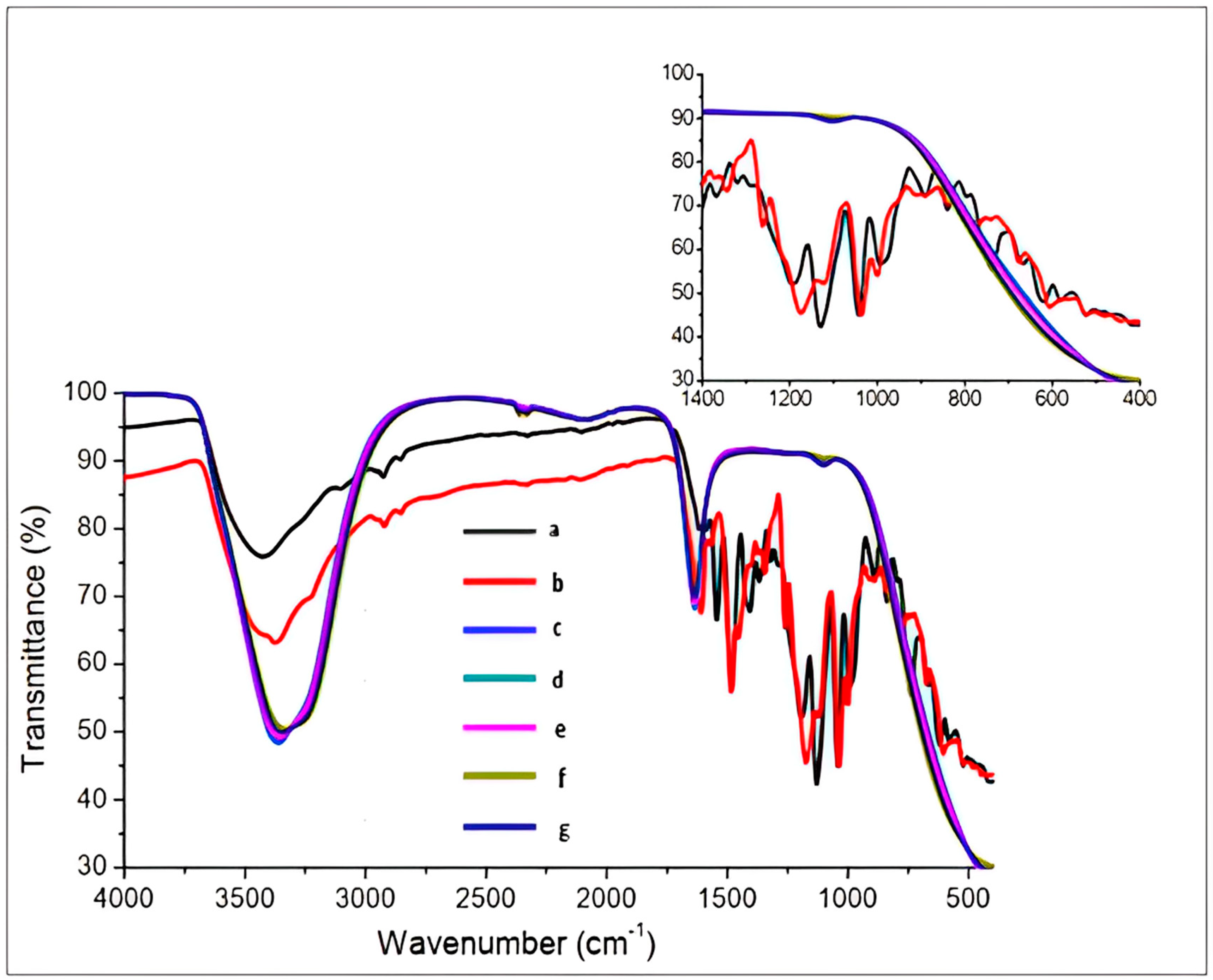

Figure 6. FTIR spectrum analysis of azo dyes TB and BR and their degradation products in STWW and RTWW: (a) control group-TB, (b) control group-BR, (c) STWW-TB-SCD, (d) TSWW-BR-SCD, (e) RTWW-SCD, (f) STWW-TB-SSM, (g) RTWW-SSM.
Figure 6. FTIR spectrum analysis of azo dyes TB and BR and their degradation products in STWW and RTWW: (a) control group-TB, (b) control group-BR, (c) STWW-TB-SCD, (d) TSWW-BR-SCD, (e) RTWW-SCD, (f) STWW-TB-SSM, (g) RTWW-SSM.
Applsci 13 05581 g006
Applsci 13 05581 g007 550
Figure 7. SEM micrographs of carbon felt anode under different magnifications used in BES for textile wastewater treatment and power generation:(A) STWW1 (TB); (B) STWW2 (BR); (C) RTWW.
Figure 7. SEM micrographs of carbon felt anode under different magnifications used in BES for textile wastewater treatment and power generation:(A) STWW1 (TB); (B) STWW2 (BR); (C) RTWW.
Applsci 13 05581 g007
Applsci 13 05581 g008 550

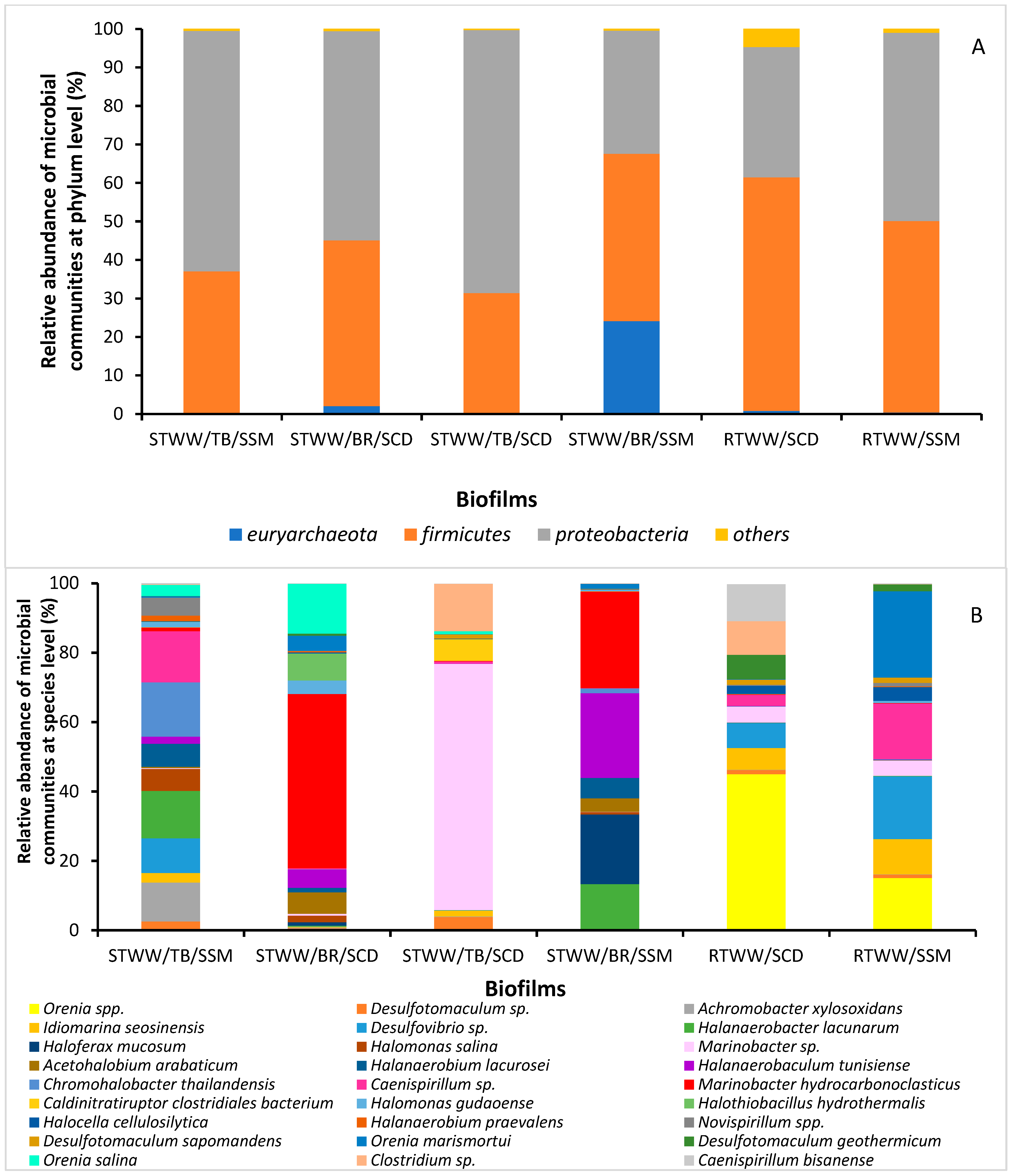

Figure 8. Microbial distribution at (A) phylum level and (B) species level of biofilms STWW/TB/SSM, STWW/BR/SCD, STWW/TB/SCD, STWW/BR/SSM, RTWW/SCD, and RTWW/SSM.
Figure 8. Microbial distribution at (A) phylum level and (B) species level of biofilms STWW/TB/SSM, STWW/BR/SCD, STWW/TB/SCD, STWW/BR/SSM, RTWW/SCD, and RTWW/SSM.
Applsci 13 05581 g008
Table
Table 1. Composition of mineral elements in the two SCD and SSM sediments.
Table 1. Composition of mineral elements in the two SCD and SSM sediments.
Sediments
Composition (g/kg DM)SCDSSM
Calcium 196.3130.0
Magnesium 9.56.3
Potassium 3.21.8
Sodium 35.254.8
Iron 4.52.1
DM: dried materials.
Table
Table 2. COD removal efficiency of TDWW from different reactors SCD and SSM used as inoculums.
Table 2. COD removal efficiency of TDWW from different reactors SCD and SSM used as inoculums.
Inoculum
SCDSSM
Input COD (mg/L)654950
Output COD (mg/L)98514
COD output control (mg/L)211682
COD removal rate (%)8546
COD removal rate control (%)6730
Removal rate of TB (%)8872
Removal rate of BR (%)8481
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Saadaoui, S.; Erable, B.; Saidi, N.; Etcheverry, L.; Neifar, M.; Masmoudi, A.S.; Driouech, R.; Cherif, A.; Chouchane, H. Saline Sediments as a Suitable Source for Halophilic Inoculums to Degrade Azo Dyes in Synthetic and Real Textile Wastewaters by Microbial Electrochemical Systems. Appl. Sci. 2023, 13, 5581. https://doi.org/10.3390/app13095581

AMA Style

Saadaoui S, Erable B, Saidi N, Etcheverry L, Neifar M, Masmoudi AS, Driouech R, Cherif A, Chouchane H. Saline Sediments as a Suitable Source for Halophilic Inoculums to Degrade Azo Dyes in Synthetic and Real Textile Wastewaters by Microbial Electrochemical Systems. Applied Sciences. 2023; 13(9):5581. https://doi.org/10.3390/app13095581

Chicago/Turabian Style

Saadaoui, Sirine, Benjamin Erable, Nesrine Saidi, Luc Etcheverry, Mohamed Neifar, Ahmed Salaheddine Masmoudi, Rim Driouech, Ameur Cherif, and Habib Chouchane. 2023. "Saline Sediments as a Suitable Source for Halophilic Inoculums to Degrade Azo Dyes in Synthetic and Real Textile Wastewaters by Microbial Electrochemical Systems" Applied Sciences 13, no. 9: 5581. https://doi.org/10.3390/app13095581

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
