A Miniature Flapping Mechanism Using an Origami-Based Spherical Six-Bar Pattern

Abstract

In this paper, we suggest a novel transmission for the DC motor-based flapping-wing micro aerial vehicles (FWMAVs). Most DC motor-based FWMAVs employ linkage structures, such as a crank-rocker or a crank-slider, which are designed to transmit the motor’s rotating motion to the wing’s flapping motion. These transmitting linkages have shown successful performance; however, they entail the possibility of mechanical wear originating from the friction between relative moving components and require an onerous assembly process owing to several tiny components. To reduce the assembly process and wear problems, we present a geometrically constrained and origami-based spherical six-bar linkage. The origami-based fabrication method reduces the number of the relative moving components by replacing rigid links and pin joints with facets and folding joints, which shortens the assembly process and reduces friction between components. The constrained spherical six-bar linkage enables us to change the motor’s rotating motion to the linear reciprocating motion. Due to the property that every axis passes through a single central point, the motor’s rotating motion is filtered at the spherical linkage and does not transfer to the flapping wing. Only linear motion, therefore, is passed to the flapping wing. To show the feasibility of the idea, a prototype is fabricated and analyzed by measuring the flapping angle, the wing rotation angle and the thrust.

1. Introduction

Flapping-wing micro air vehicles (FWMAVs) have been widely studied due to their agility and maneuverability in the air. These properties can be applied to the areas of reconnaissance for military and exploration missions for disaster areas. For example, they can easily approach tiny cracks at disaster areas or enemy camps without being recognized.

To enable successful working of FWMAVs, researchers have employed a variety of actuators such as DC motors [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19], piezoelectric actuators [20,21,22,23], electromagnetic actuators [24,25,26,27,28], and electrostatic actuators [6,29].

Among these actuators, in this paper, we suggest a novel transmission mechanism to reduce the assembly process and wear problems for the DC motor-based FWMAVs. In the case of DC motor-based FWMAVs, most of them use linkage structures to transmit the motor’s rotating motion to the wing’s flapping motion. These transmitting linkages have involve the possibility of mechanical wear originating from the friction between relative moving components and requires an onerous assembly process owing to several tiny components. Types of the transmissions used for the DC motor-based FWMAVs are given in

Table 1. Transmission mechanisms used for DC motor-based flapping-wing micro air vehicles (FWMAVs).

Mechanism Types	Possibility of Mechanical Wear	Difficulty of Assembly	Transmission Efficiency
Scotch-yoke [15]	Yes	Dexterity is required	High (rotating in one direction)
Crank-rocker [2,4,5,12]	Yes	Dexterity is required	High (rotating in one direction)
Crank-slider [1,8,9,11,16]	Yes	Dexterity is required	High (rotating in one direction)
String-based [3,7,13,17,18,19]	No	Dexterity is required	High (rotating in one direction)
Proposed mechanism	No	Easy	High (rotating in one direction)
Direct drive [10,14]	No	Easy	Low (vibrate back and forth)

.

Previously, a variety of transmission mechanisms have been employed. Galinski et al. used a spatial mechanism based on the double Scotch yoke [15]. They proposed to use spherical type of double Scotch yoke to overcome drawbacks of the planar Scotch yoke. Oppenheimer et al. and Sahai et al. employed four-bar linkages to change the motor’s rotating motion to the flapping motion [5,12]. Karasek et al. and Wagter et al. also made flapping mechanisms using crank-rocker four-bar linkages [2,4]. Takahashi et al. and Lau et al. made flapping mechanisms using crank-sliders [1,9]. The sliders enabled the mechanism to have reciprocating motion of the wings. Ristroph et al. and Gaissert et al. applied crank-shaft mechanisms [8,11]. The crank-shaft mechanisms converted motors’ rotating movement into an oscillating movement of the wings. Roshanbin et al. proposed a flapping robot, COLIBRI, by combining four-bar linkage and a slider-crank mechanism [16].

To reduce the mass and complexity of the transmission structures, some researchers suggested a string-based flapping mechanism or direct-driven mechanisms [7]. Keennon et al. and Gong et al. used string-based flapping mechanisms [3,13]. KUbeetle [17,18,19] mixed four-bar linkages and a string-based pulley mechanism. The string-based transmission enabled the prevention of mechanical wear and fracture of moving parts. The direct-driven mechanisms enabled the extreme reduction in the mechanical structures for transmission [10,14]. The direct-driven mechanisms achieved a high lift-to-weight ratio by resonating the system.

In this paper, we suggest a novel transmission mechanism to reduce the assembly process and wear problems for the DC motor-based FWMAVs. To make this possible, two design approaches have been utilized: origami-based fabrication and geometrically constrained spherical six-bar linkage. The origami-based fabrication method reduces the number of relative moving components by replacing rigid links and pin joints with facets and folding joints, which shortens the assembly process and reduces wear problems [30,31]. The geometrically constrained spherical six-bar linkage enables the change in the motor’s rotating motion to the linear reciprocating motion. Due to the property that every axis passes through a single central point, the constrained spherical six-bar linkage filters the rotating motion of the DC motor and passes only linear motion to the flapping wings. Using the proposed design approaches, a novel flapping mechanism is made as shown in Figure 1.

This paper is organized as follows: The design section describes the concept of the flapping mechanism and the working process of the origami-based constrained spherical six-bar. To precisely investigate the mechanism and to select the proper geometric parameters, a three-dimensional kinematic model has been made. Furthermore, an experiment has been conducted to check the feasibility of the developed flapping mechanism by measuring the flapping frequency, angle, wing rotation angle and thrust.

2. Design

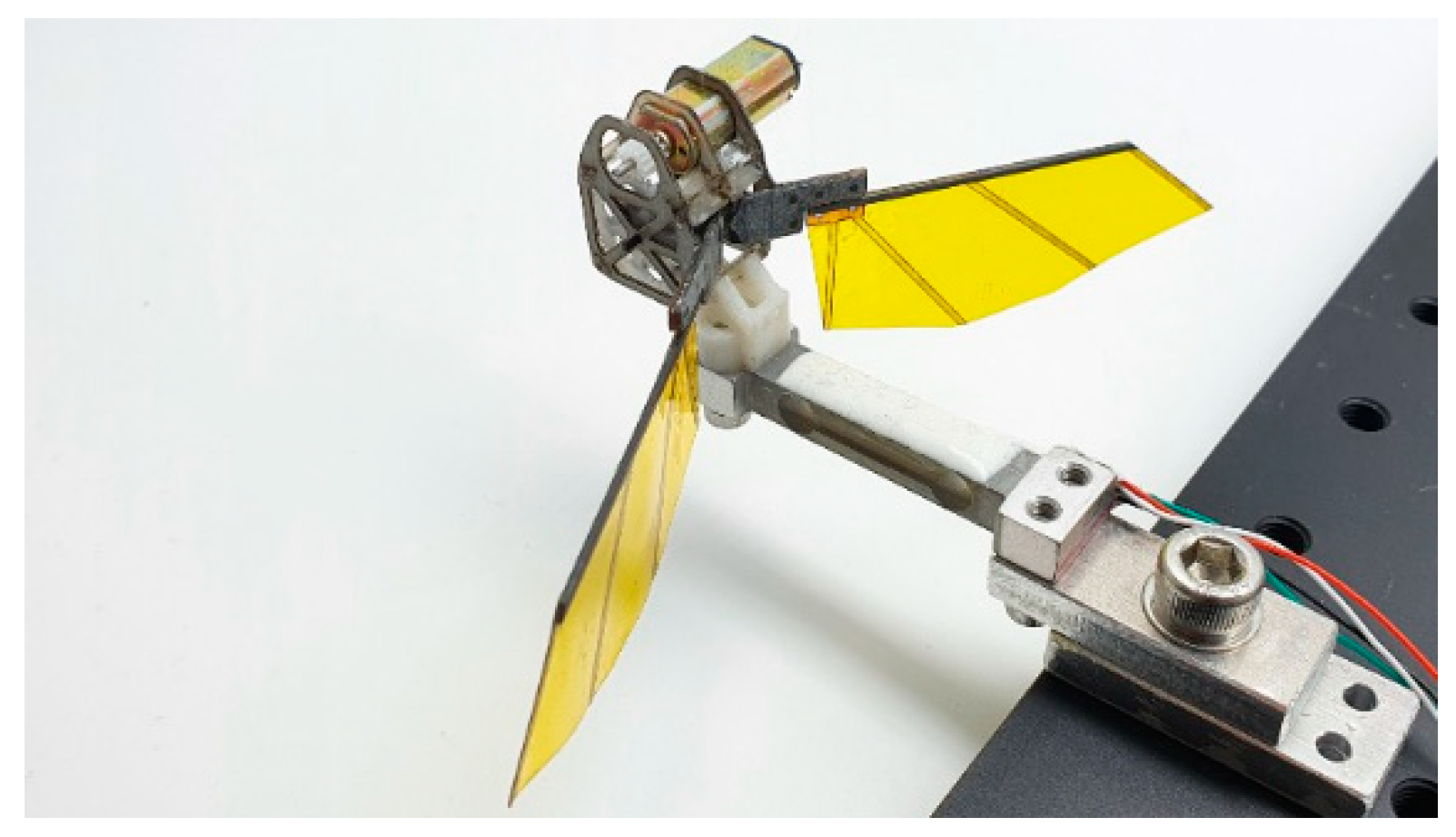

The overall design is shown in Figure 1. A DC motor is located at the top of the mechanism and the shaft is connected to the spur gear. The spur gear plays a role as a crank. The connecting rod connects the crank and the spherical six-bar linkage. The spherical six-bar linkage transmits the motor’s motion to the flapping wing.

2.1. Flapping Mechanism

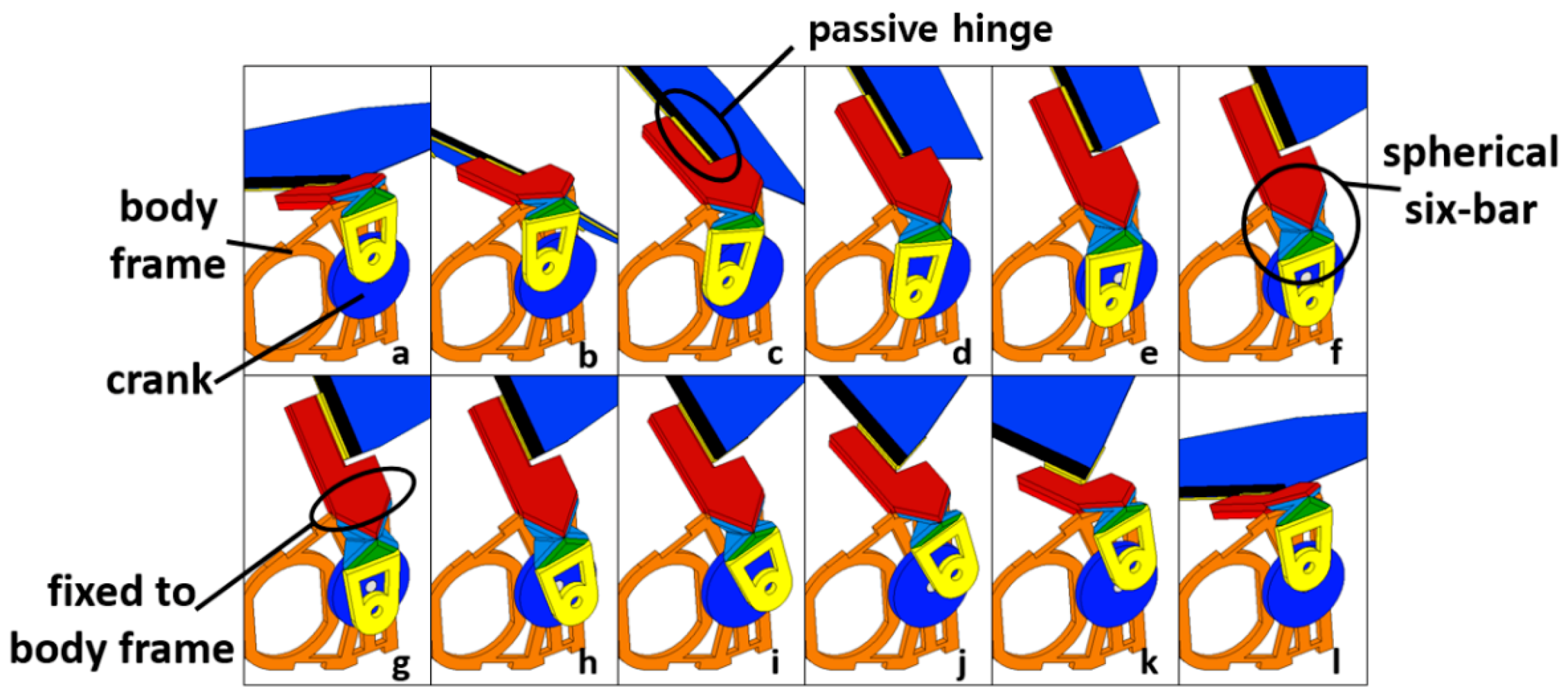

One important point is that only linear motion should be transmitted to generate the flapping motion of the wings. To make this possible, one end of the spherical six-bar linkage is fixed at the body frame as shown in Figure 2g. This constraint filters the rotating motion of the motor and transmits the linearly reciprocating motion only, which is shown in Video S1. By using this working principle, a successful flapping motion can be achieved without mechanical parts that cause friction problems.

To generate the thrust in the end, a wing rotating motion is necessarily required. To achieve the wing rotating motion, passive hinges are employed as shown in Figure 2c. The passive joints are positioned between the output of the transmission and the wings. The passive hinges are parallel to the spanwise direction and have a joint-stop to prevent excessive rotation. Overall, the system has three degrees of freedom—flapping actuation and two passive hinges for wing rotation.

Flapping motion is achieved by the constrained spherical six-bar linkage shown in Figure 3, which is the key enabling technology of the proposed mechanism. Generally, the spherical six-bar linkage has complex structures due to many joints, links, and axes. The spherical six-bar linkage shown in Figure 2 is designed using an origami-based pattern and fabricated through a layer-based method: smart composite microstructures (SCM). This process provides lightweight structures by replacing pin joints with flexures and finally enables us to achieve spherical six-bar linkage by folding a paper just three times.

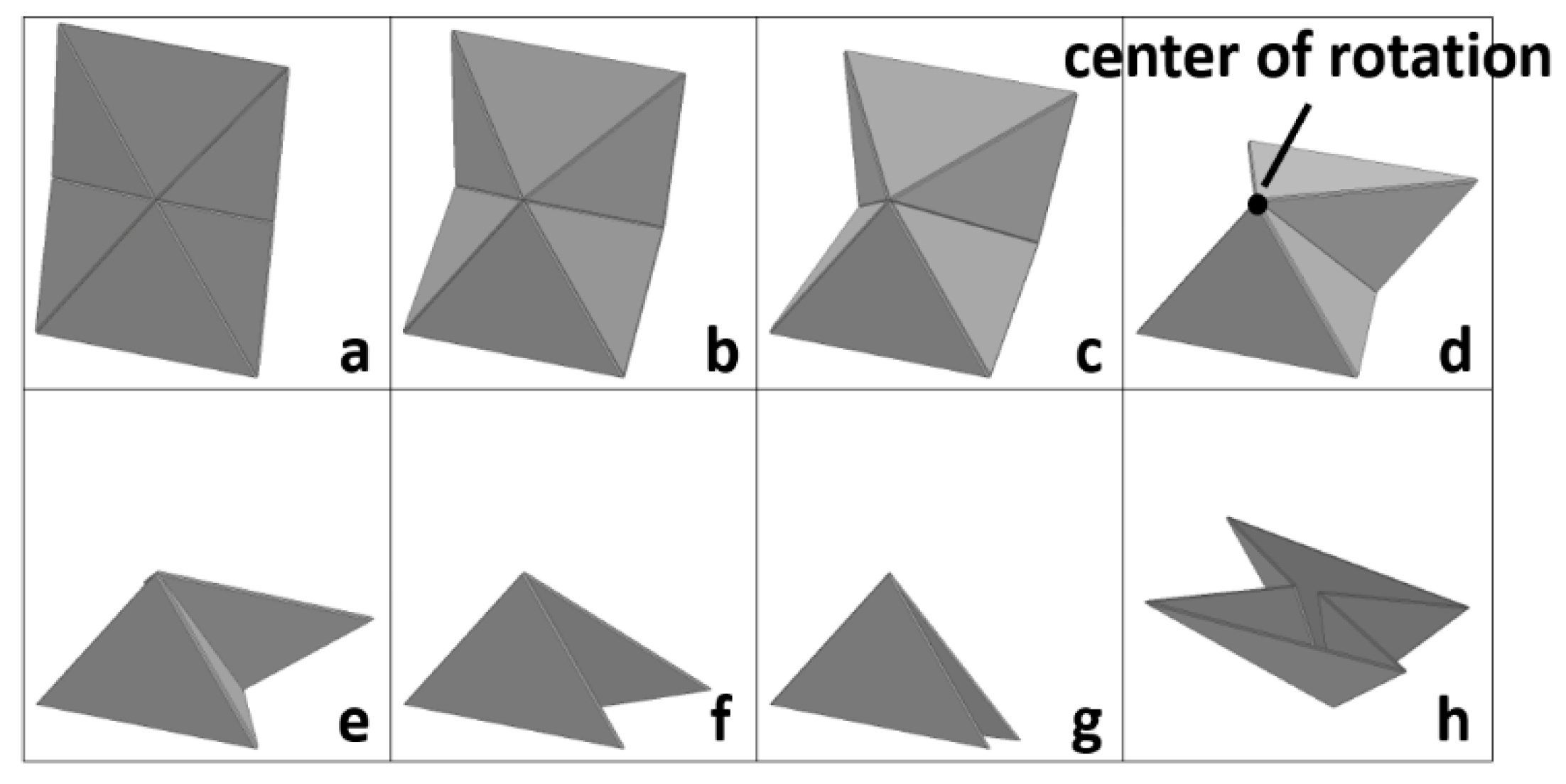

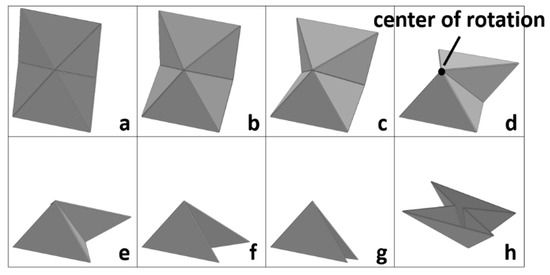

Figure 3 shows the pattern for the origami-based spherical six-bar linkage. All axes of the flexures pass through a single point and rotate around the point. The spherical six-bar array is installed between the wing and the crank as shown in Figure 2. The spherical linkage acts as a mechanical filter, which transmits only linear motion to the wings. This is possible since one end of the linkage is constrained. The motor and the cranks make the rotating motion. When this rotating motion passes through the spherical linkage, the horizontal motion is absorbed by the spherical linkage but the vertical motion is transmitted to the wing.

Depending on how we choose to constrain the direction of the axis, the direction of the output motion can be differed. In our case, we need a flapping motion vertical to the motor’s axis. Therefore, the axis constrained has been determined as a direction perpendicular to the span wise direction, which is equal to the direction of the motor’s axis. Figure 2 shows how the constrained spherical six-bar works.

2.2. Fabrication

The proposed mechanism has been designed to have wingspan of 125 mm, which is referred to as the size of a beetle [32,33]. The beetle has appropriate size and mass, considering our fabrication capacity—the machining resolution is about 500 μm and this resolution is not enough to make micro-scale flappers. The body has the size of 20 mm × 10 mm × 10 mm and the whole mechanism weighs 5.7 g. Its planar design is shown in Figure 4B, which consist of twenty joints and eighteen links. To manufacture and assemble these tiny and complex kinematic structures using conventional pins and links needs much effort and the structure tends to be heavy because of the increased number of components.

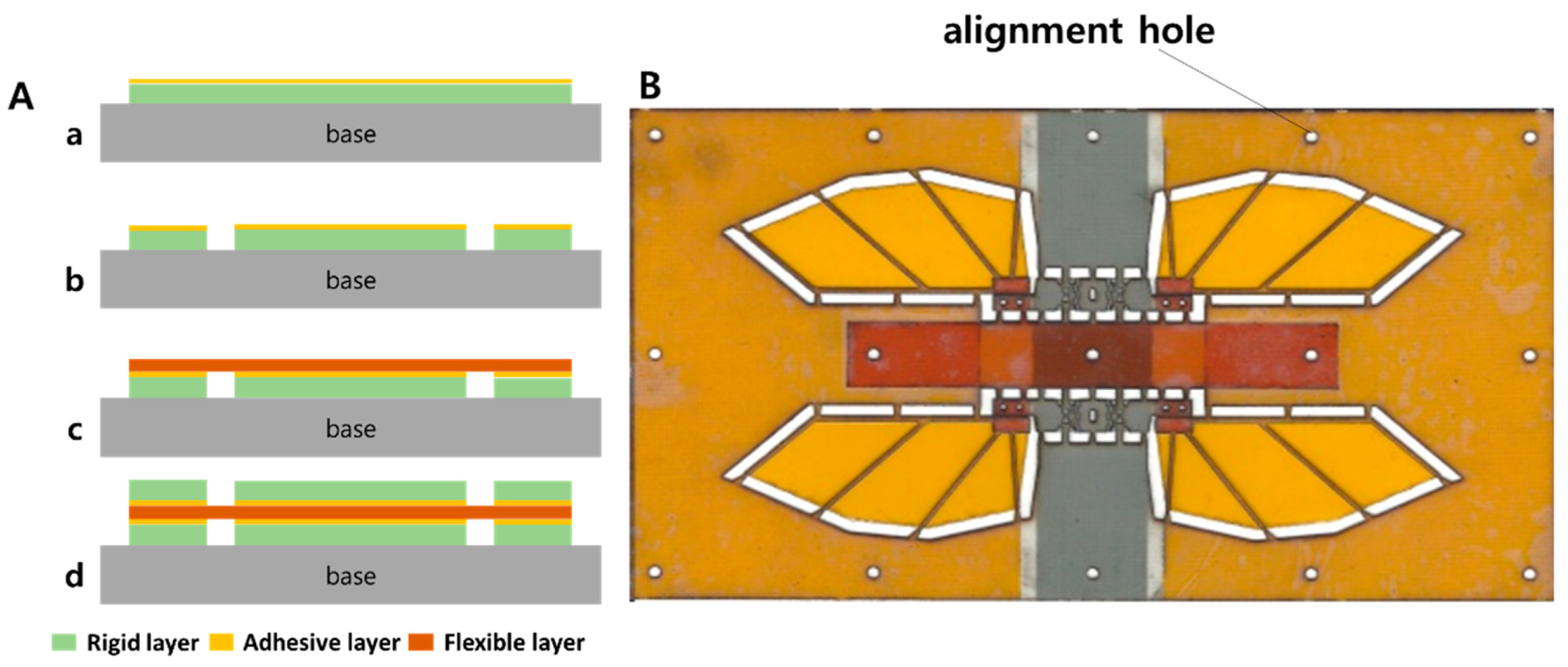

To avoid these issues, the SCM process is applied [30]. The SCM process replaces the conventional pin joints and links with the flexure joints and composite links. In Figure 4, the whole fabrication process is shown and described. For the proposed mechanism, a glass fiber board (200 μm thickness) is used as the rigid links and the rip-stop fabric (200 μm thickness) is employed as the flexure joints. The flapping wings are also designed to be manufactured through the SCM process with the body frame. The wing has the size of 50 mm × 20 mm and includes glass fiber supporters to prevent unwanted bending induced by air resistance during flapping, which is shown in Figure 4B. For the wing membrane, 25 μm polyimide film has been applied. Due to the SCM process, the whole mechanism weighs 5.7 g and the mass budget is shown in

Table 2. Mass Budget.

Components	Quantity (ea.)	Mass (g)	Ratio to Overall Mass (%)
Flapping wing	2	0.12	4.21
Motor	1	3.9	68.42
Transmission	2	0.24	8.42
Body frame	1	1.08	18.95
Total	-	5.7	100.0

.

3. Mechanism Analysis

Kinematic modeling is done to determine lengths of links and accordingly get the desired performance—stable flapping posture and high thrust. To achieve the desired performance, two conditions must be satisfied. First, the flapping angle output should be symmetric to prevent pitch torque. Second, in order to maintain the angle of attack (AoA) and gain sufficient momentum, the upstroke and downstroke speed need to be as equal as possible. If the above two conditions are satisfied, the relation between the input crank angle and the output flapping angle has an ideal cosine curve as shown in Figure 5. In Figure 5, an optimized case and an arbitrary case are given. To satisfy the two required conditions, the flapping mechanism needs to be designed so that the flapping angle curve passes through the point a, b, c and d. To investigate the geometrical requirement to fulfill the conditions, kinematic modeling and analysis have been done.

3.1. Kinematic Modeling

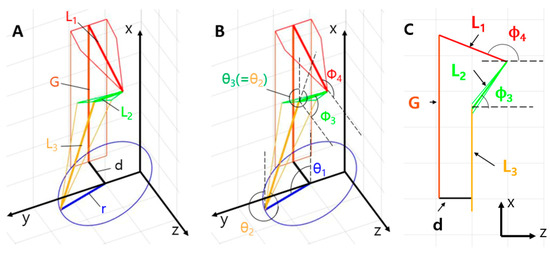

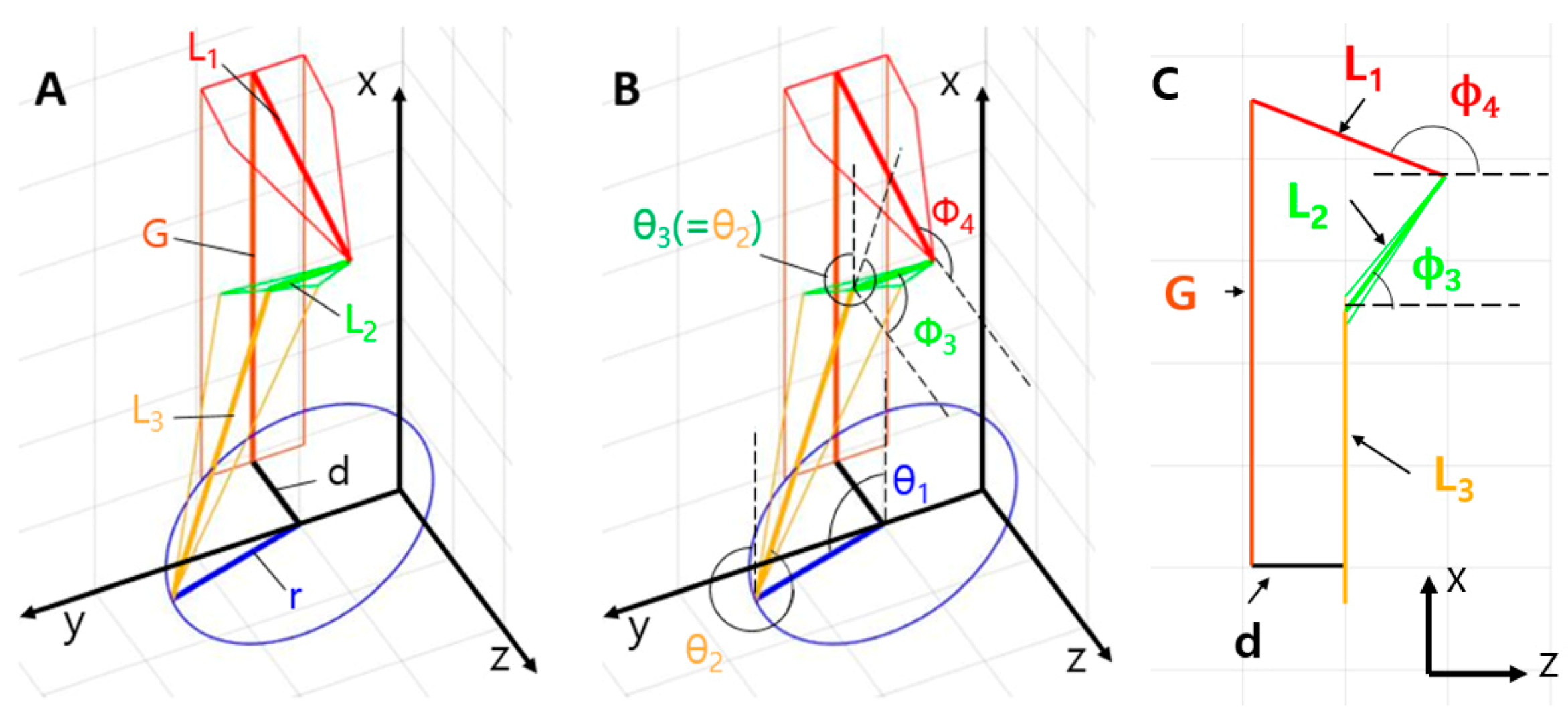

For three-dimensional analysis, the spherical coordinate system is employed as shown in Figure 6. Based on the coordinate, a vector loop formula is derived as follows:

$$\stackrel{\rightharpoonup }{r}+\stackrel{\rightharpoonup }{L_3}+\stackrel{\rightharpoonup }{L_2}+\stackrel{\rightharpoonup }{L_1}=\stackrel{\rightharpoonup }{G}$$

(1)

$$r\left[\begin{array}{c}\cos {\theta }_1\\ \sin {\theta }_1\\ 0\end{array}\right]+L_3\left[\begin{array}{c}\cos {\theta }_2\\ \sin {\theta }_2\\ 0\end{array}\right]+L_2\left[\begin{array}{c}\sin {\varphi }_3\cos {\theta }_2\\ \sin {\varphi }_3\sin {\theta }_2\\ \cos {\varphi }_3\end{array}\right]+L_1\left[\begin{array}{c}\sin {\varphi }_4\\ 0\\ \cos {\varphi }_4\end{array}\right]=\left[\begin{array}{c}G\\ 0\\ -d\end{array}\right]$$

(2)

where r, L₁, L₂ and L₃ are the length of the crank, the output link, the connecting rod, and the spherical bar, respectively. The angle parameters such as θ₁, ϕ₄, θ₂, and ϕ₃ are indicated in Figure 6.

For the first condition, the transmission needs to be designed for the wings to have a symmetric flapping angle, ±40°, from the neutral position. When applied to this kinematic modeling, the highest and lowest values of ϕ₄ based on the neutral point (ϕ₄ =180°) are generated as 180° + 40° and 180° − 40°, respectively.

$$r\left[\begin{array}{c}1\\ 0\\ 0\end{array}\right]+L_3\left[\begin{array}{c}1\\ 0\\ 0\end{array}\right]+L_2\left[\begin{array}{c}\sin {\varphi }_3\\ 0\\ \cos {\varphi }_3\end{array}\right]+L_1\left[\begin{array}{c}\sin \left(180°+40°\right)\\ 0\\ \cos \left(180°+40°\right)\end{array}\right]=\left[\begin{array}{c}G\\ 0\\ -d\end{array}\right]$$

(3)

$$\left[\begin{array}{c}-1\\ 0\\ 0\end{array}\right]+L_3\left[\begin{array}{c}1\\ 0\\ 0\end{array}\right]+L_2\left[\begin{array}{c}\sin {\varphi }_3\\ 0\\ \cos {\varphi }_3\end{array}\right]+L_1\left[\begin{array}{c}\sin \left(180°-40°\right)\\ 0\\ \cos \left(180°-40°\right)\end{array}\right]=\left[\begin{array}{c}G\\ 0\\ -d\end{array}\right]$$

(4)

Based on the Equations (3) and (4), the relation between L₂ and L₃ is given as follows:

$$L_2{}^2={\left(G-L_3\right)}^2+{\left(\frac{r}{\tan 40°}-d\right)}^2$$

(5)

The secondary condition is to make the neutral of the crank and the neutral of the wing equal. In order to get the thrust during a wing-beat cycle, the key is to maintain the angle of attack (AoA) of the wing. Theoretically, when the equal shape and speed of the wings are given, 45° is the proper AoA for the maximum thrust [34].

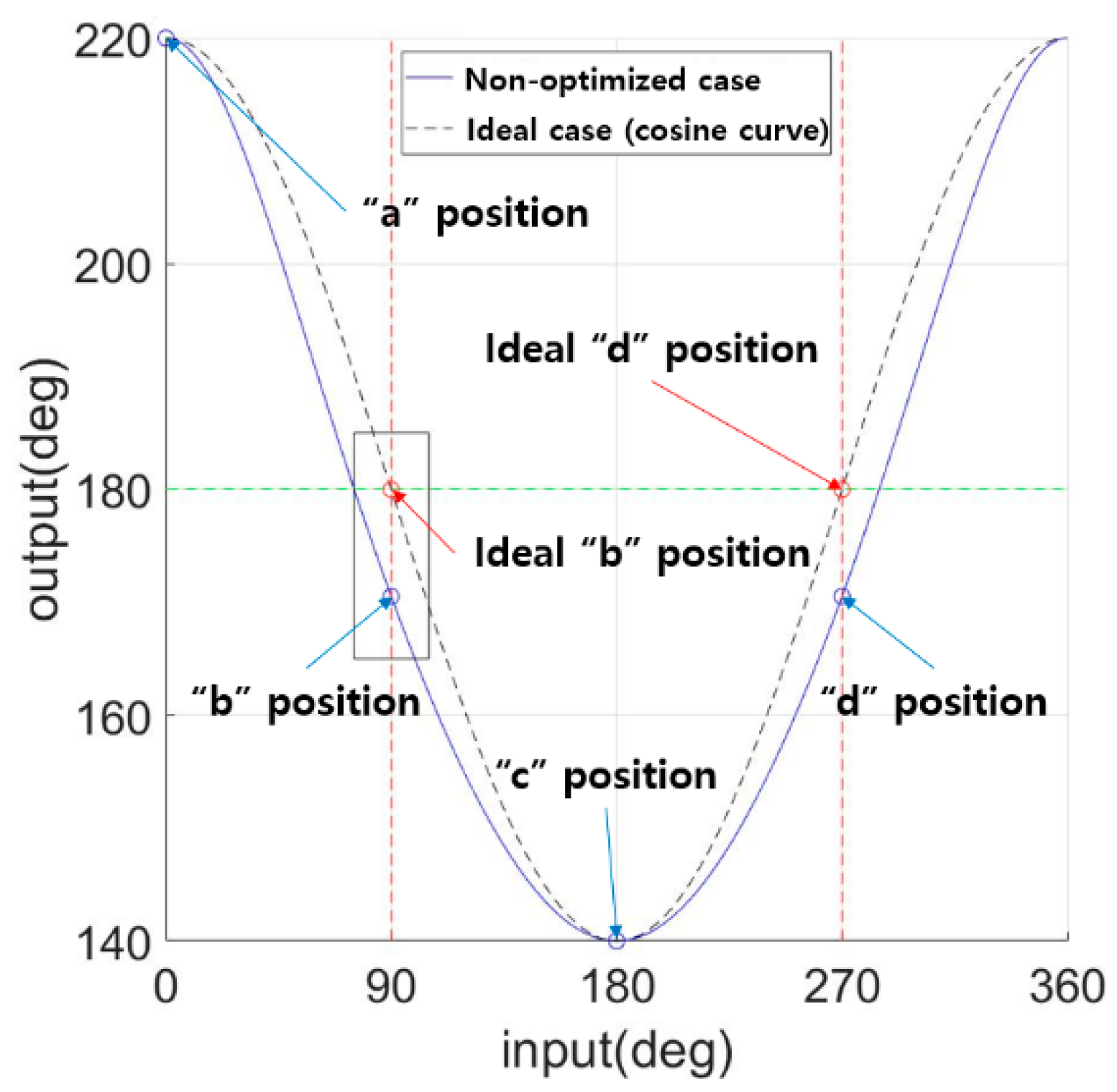

In order to maintain the AoA, the wing angular velocities of upstroke and downstroke need to be as symmetrical and constant as possible. This condition is indicated in Figure 6, which shows the relation between the flapping angle and the crank angle. When the curve corresponds to the ideal cosine curve, the condition is satisfied. In Figure 6, the output flapping angle is π when the crank input angle is π/2 and 3π/2. That is, it is preferable that the path length is the same as the path length between the highest point and the neutral point (from the point a and b) and the path length between the neutral point and the lowest point (from the point b to c).

$$r\left[\begin{array}{c}0\\ 1\\ 0\end{array}\right]+L_3\left[\begin{array}{c}\cos {\theta }_{2b}\\ \sin {\theta }_{2b}\\ 0\end{array}\right]+L_2\left[\begin{array}{c}\sin {\varphi }_{3b}\cos {\theta }_{2b}\\ \sin {\varphi }_{3b}\sin {\theta }_{2b}\\ \cos {\varphi }_{3b}\end{array}\right]+L_1\left[\begin{array}{c}0\\ 0\\ -1\end{array}\right]=\left[\begin{array}{c}G\\ 0\\ -d\end{array}\right]$$

(6)

$$r\left[\begin{array}{c}0\\ -1\\ 0\end{array}\right]+L_3\left[\begin{array}{c}\cos {\theta }_{2d}\\ \sin {\theta }_{2d}\\ 0\end{array}\right]+L_2\left[\begin{array}{c}\sin {\varphi }_{3d}\cos {\theta }_{2d}\\ \sin {\varphi }_{3d}\sin {\theta }_{2d}\\ \cos {\varphi }_{3d}\end{array}\right]+L_1\left[\begin{array}{c}0\\ 0\\ -1\end{array}\right]=\left[\begin{array}{c}G\\ 0\\ -d\end{array}\right]$$

(7)

where ${\varphi }_{3b}={\varphi }_{3d}$, ${\theta }_{2b}+{\theta }_{2d}=2\pi$. ${\theta }_{2b}$ and ${\theta }_{2d}$ are when ${\theta }_2$ is in point b and d, respectively, as shown in Figure 6.

Based on the Equations (6) or (7), the relation between L₂ and L₃ is given as follows:

$${\left(L_3+L_2\sin {\varphi }_{3b or 3d}\right)}^2=G^2+r^2$$

(8)

$$L_2\cos {\varphi }_{3b or 3d} -L_1=-d$$

(9)

The term, $\cos {\varphi }_{3b or 3d}$, is eliminated from the Equations (8) and (9). In result, following equation is given:

$$L_2=\sqrt{{\left(\sqrt{G^2+r^2}-L_3\right)}^2+{\left(L_1-d\right)}^2}$$

(10)

By using the two conditions—Equations (5) and (10)—optimized geometrical values can be determined.

3.2. Parameter Selection

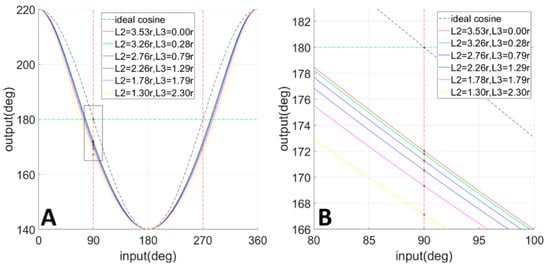

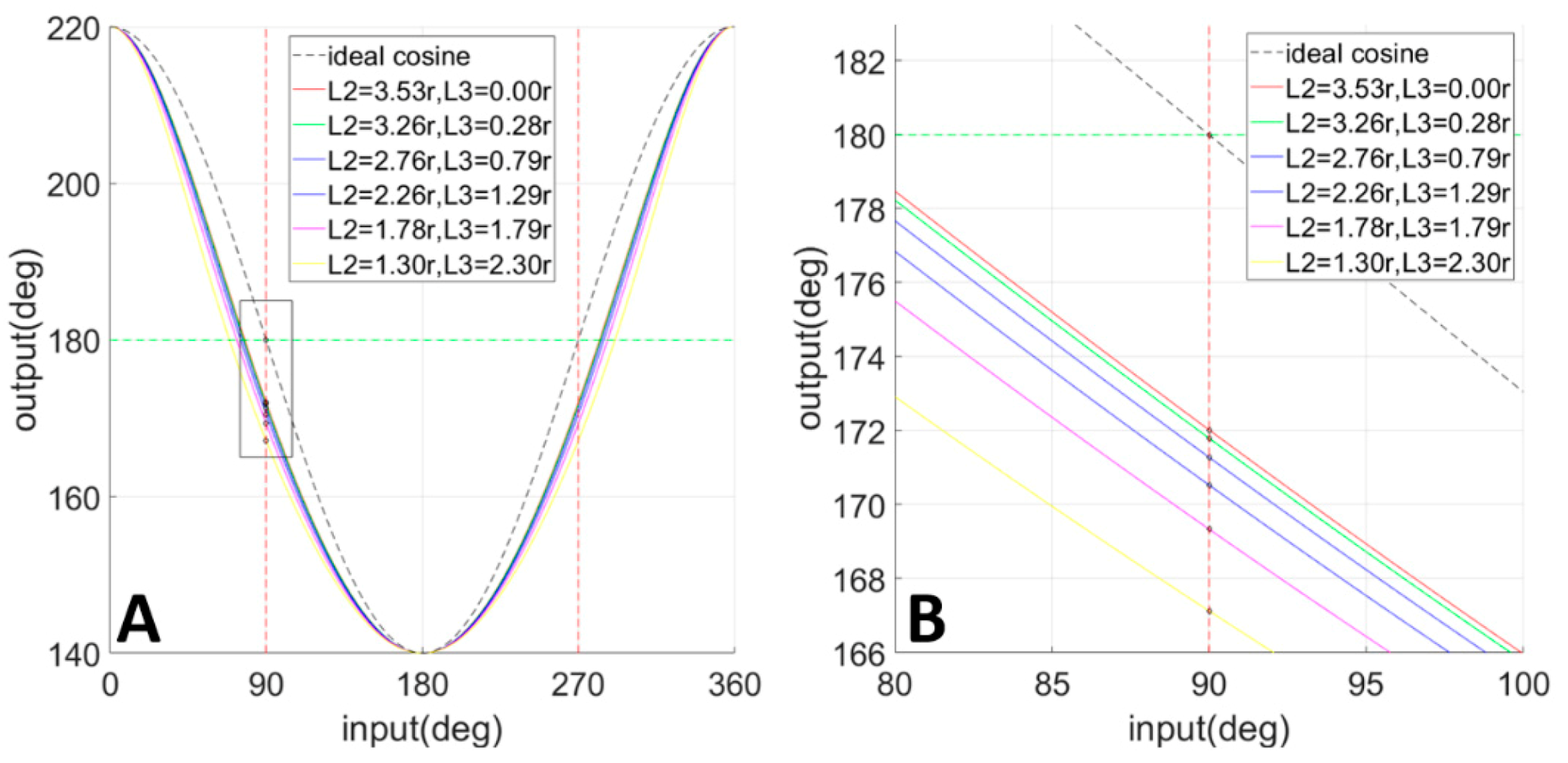

Considering the whole size of the flapping mechanism, L₁, G, d and r are initially determined as 10.11 mm, 22.75 mm, 4.5 mm, and 6.5 mm, respectively. Figure 7a shows the change in the output flapping angle according to the length ratio of L₂ and L₃ to the crank length r.

In Figure 7b, as L₂ increases and L₃ decreases, the curve becomes similar to the ideal cosine. The case when L₂ is 3.53 r and L₃ is 0.00 r is the closest one. However, it is difficult to make a certain link length zero because of realistic problems such as material thickness, or inter-part interference. Therefore, L₂ and L₃ are determined as 8.38 mm (=1.30 r) and 14.72 mm (=2.30 r), respectively, which correspond to the yellow line in Figure 7.

4. Experimental Results

To check whether the proposed transmission and the flapping mechanism properly works or not, experimental tests have been done. By using the high-speed camera, the flapping angle, frequency, and wing rotation angle are observed. In addition, the thrust is measured using a load cell to investigate the performance of the flapping mechanism.

4.1. Flapping Mechanism

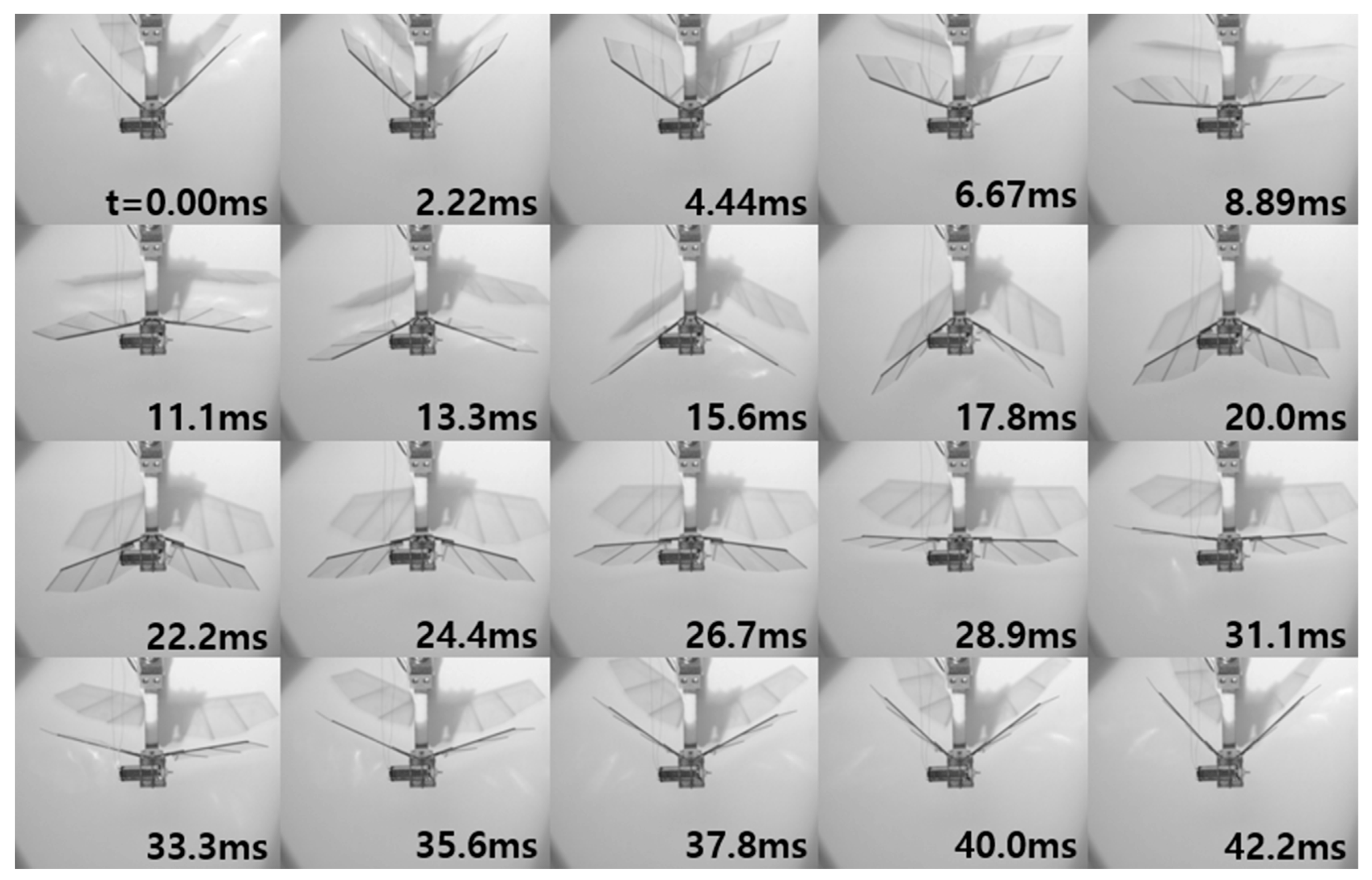

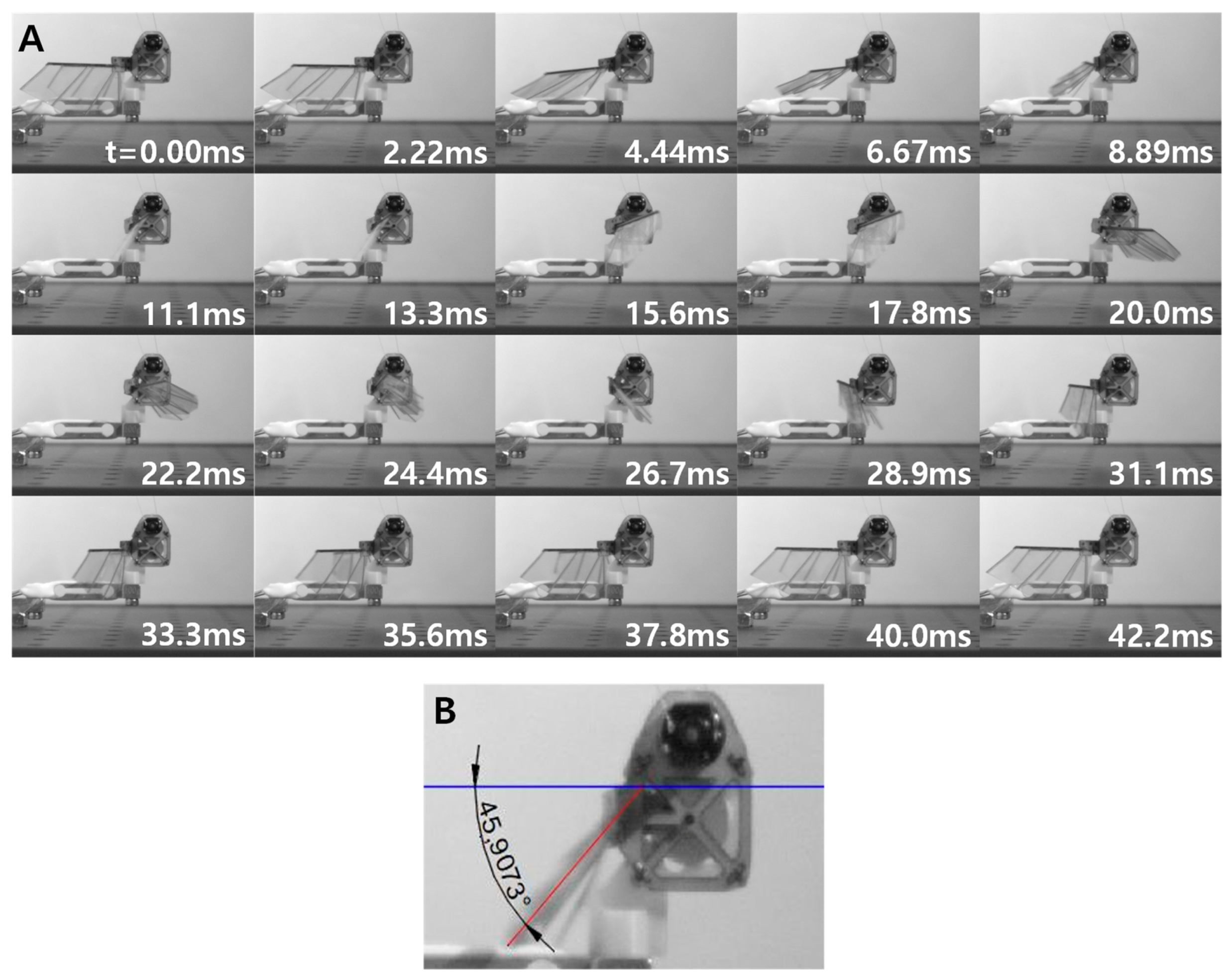

Figure 8 and Figure 9 show the snapshots during flapping. The snapshots are taken by a high-speed camera with the frame rate of 900. To investigate the flapping angle and the wing rotation angle, the mechanism is filmed from the top and side. To operate the flapping mechanism, 3.8 V and 580 mA are given to the DC motor. Based on the Figure 8 and Figure 9 the mechanism operates with the flapping frequency of 23 Hz.

The flapping angle is shown in Figure 8. For the right wing, the flapping angles are measured as +42° and −37° with respect to the neutral point; 50° and −36.5° are measured in case of the left wing. This result is confirmed through Figure 10. Figure 10 shows the flapping angles depending on the crank angle. The left wing has flapping angle range of 86.5° (141.5°~228°) and the right wing has 77° (144°~223°). There exists a 10° difference between two wings. The difference may occur due to the problems coming from fabrication and assembly issues.

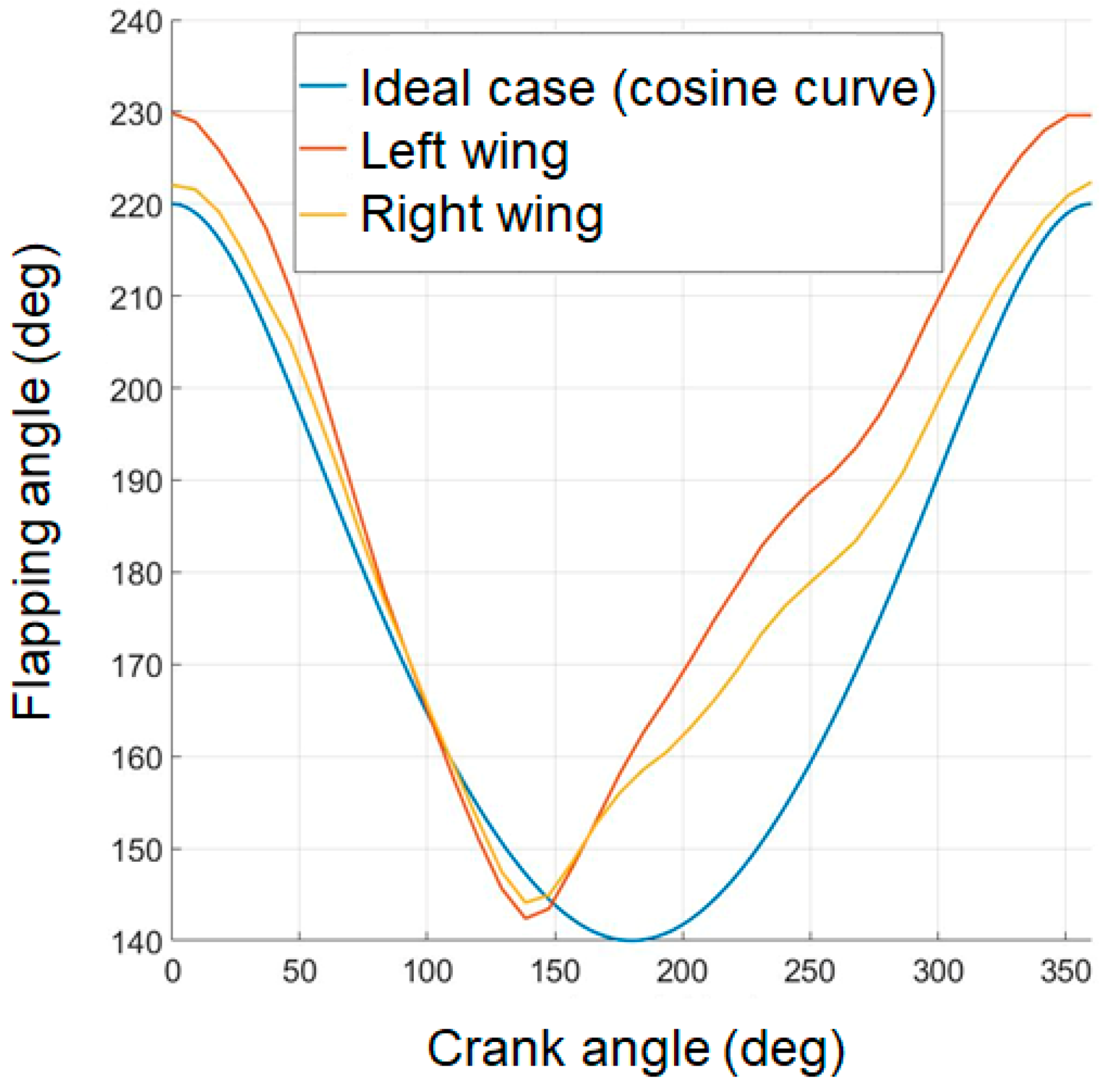

As previously said, in terms of overall trend, is it preferable that the relation between the flapping angle and the crank angle is close to the ideal cosine curve. However, Figure 10 shows the substantial difference between the experimental results and the ideal cosine curve. Especially for the upstroke, the gap between the experiment and the cosine curve tends to increase. In addition, the upstroke requires much time, compared to the downstroke. This can be explained by fabrication tolerance. This tolerance induces the flexures to make delay when they transmit the motion. During the upstroke, therefore, the motor’s motion is transmitted with delay. However, in case of the downstroke, the facets structurally help to transmit the motor’s motion and accordingly the delay does not occur.

4.2. Thrust

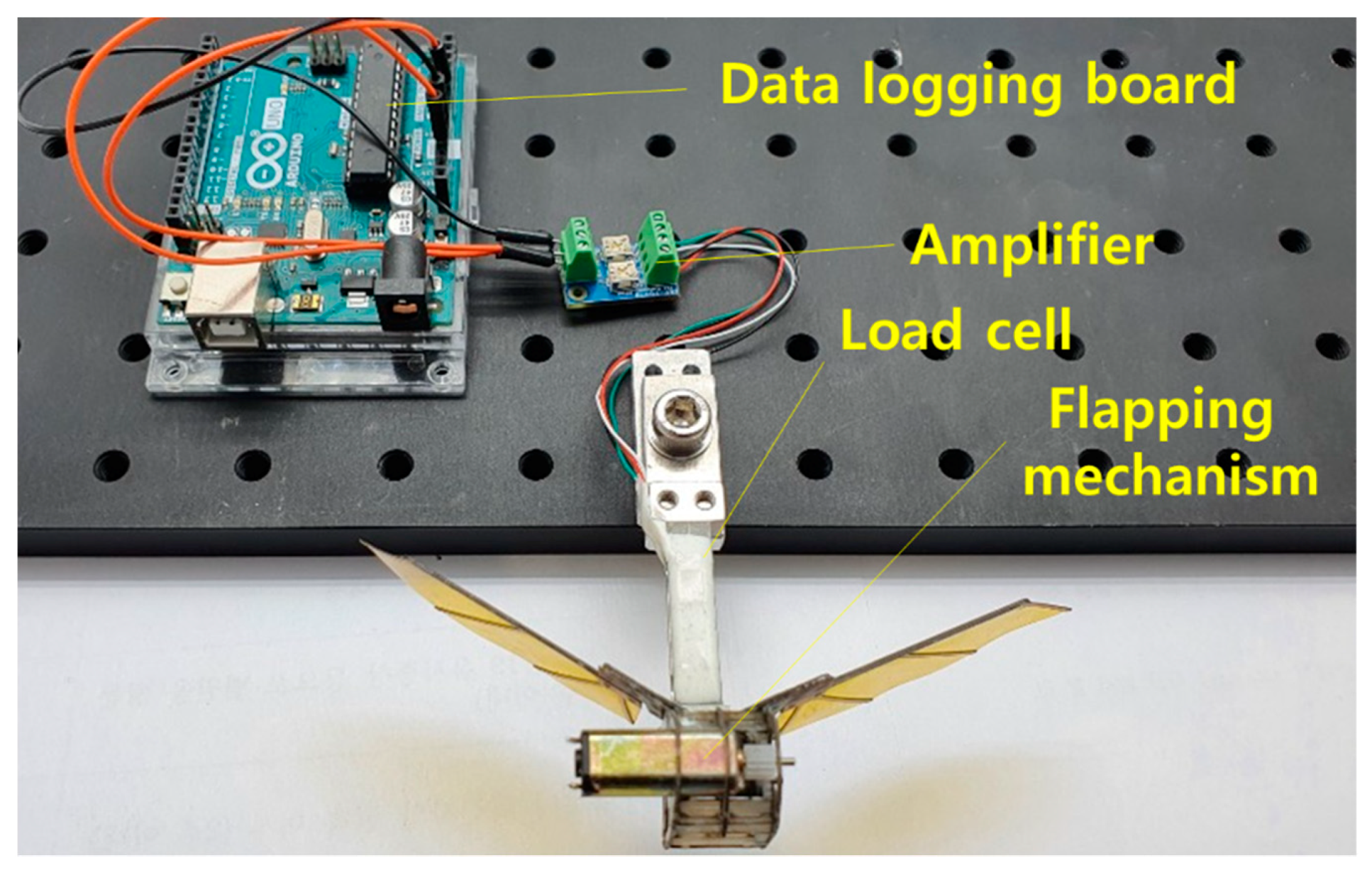

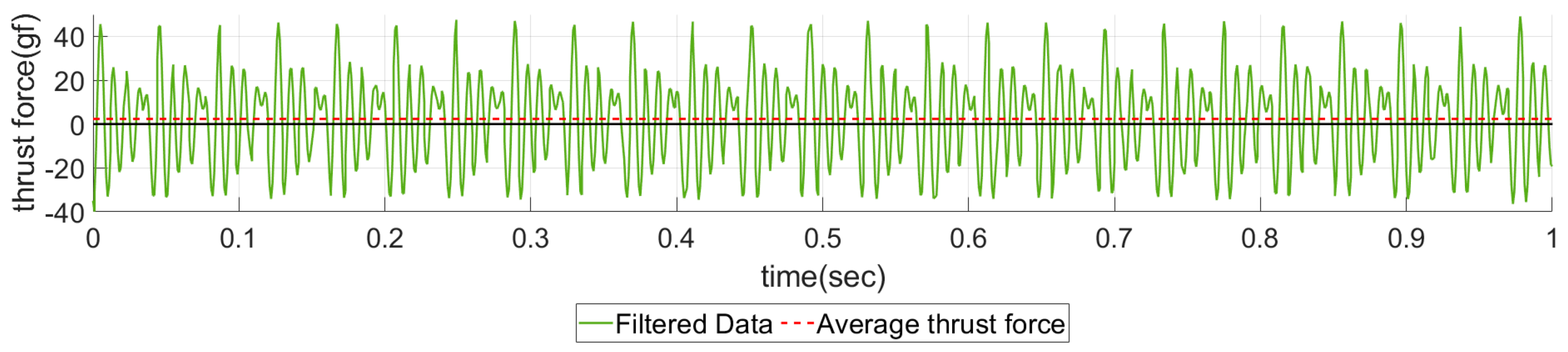

To check whether the proposed transmission properly generates the thrust or not, force measurement has been done. The data are collected through a load cell shown in Figure 11, sampled with the rate of 1000 Hz and filtered with the cut-off frequency of 100 Hz. The filtered data and the averaged data are given in Figure 12. The average thrust is measured as 2.34 gf (=22.9 mN) at the flapping frequency of 23 Hz.

The thrust is successfully generated since the wing rotation angle is observed as we intended, which is shown in Figure 11B. For the wing rotation, a passive hinge has been applied to get an additional degree of freedom. The stoppers, however, have been added to prevent the excessive wing rotation. As a result, an angle of attack (AoA) of about 45° has been observed as shown in Figure 11B. This AoA maintains during both the upstroke and downstroke. Consequently, the thrust can be generated.

5. Conclusions

In this paper, we proposed a novel transmission to reduce the assembly process and wear problems for DC motor-based FWMAVs. To make this possible, a geometrically constrained and origami-based spherical six-bar linkage has been suggested. The origami-based fabrication method reduces the relative moving parts such as pin joints and sliders, which resolves mechanical wear problems and assembly issues. The constrained spherical six-bar linkage passes only necessary motions by filtering the DC motor’s rotating movement. Therefore, the linearly reciprocating movement is transferred and the flapping motion is successfully made. To demonstrate the feasibility of the proposed concept, flapping tests have been done to investigate the flapping angle, the wing rotation angle, and the vertical thrust. As a result, the suggested mechanism has shown a flapping angle of about 80°, a 45° wing rotation angle, 23 Hz of flapping frequency, and 2.34 gf (=22.9 mN) of the vertical thrust. Although the thrust is not enough to take off, we confirmed that the constrained spherical six-bar linkage successfully works as a transmission for the DC motor-based FWMAVs.
