Taking Advantage of Promiscuity of Cold-Active Enzymes

by
Sondavid K. Nandanwar
1,
Shweta Bharat Borkar
2,
Jun Hyuck Lee
3,4 and
Hak Jun Kim
2,*
1
Department of Marine Convergence Design Program, Pukyong National University, Busan 48513, Korea
2
Department of Chemistry, Pukyong National University, Busan 48513, Korea
3
Research Unit of Cryogenic Novel Material, Korea Polar Research Institute, Incheon 21990, Korea
4
Department of Polar Sciences, University of Science and Technology, Incheon 21990, Korea
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(22), 8128; https://doi.org/10.3390/app10228128
Submission received: 24 October 2020 / Revised: 12 November 2020 / Accepted: 15 November 2020 / Published: 17 November 2020
(This article belongs to the Special Issue Cold-Active Proteins and Enzymes)
Browse Figures
Versions Notes

Abstract

:
Cold-active enzymes increase their catalytic efficiency at low-temperature, introducing structural flexibility at or near the active sites. Inevitably, this feat seems to be accompanied by lower thermal stability. These characteristics have made cold-active enzymes into attractive targets for the industrial applications, since they could reduce the energy cost in the reaction, attenuate side-reactions, and simply be inactivated. In addition, the increased structural flexibility could result in broad substrate specificity for various non-native substrates, which is called substrate promiscuity. In this perspective, we deal with a less addressed aspect of cold-active enzymes, substrate promiscuity, which has enormous potential for semi-synthesis or enzymatic modification of fine chemicals and drugs. Further structural and directed-evolutional studies on substrate promiscuity of cold-active enzymes will provide a new workhorse in white biotechnology.

Cold-active enzymes have drawn a lot of interest from academia and industry by virtue of their unique properties [1,2,3,4,5]. Since the description of thermolability of partially purified malic dehydrogenase from psychrophilic Vibrio marinus [6], a great number of cold-active enzymes from psychrophiles have been characterized [3]. Previous reviews have dealt with the structural and catalytic features of cold-active enzymes in depth along with their biotechnological and industrial applications [1,2,3,4,5]. Therefore, in this perspective, we will not simply cover the similar topics to the previous reviews, but address the different aspect of cold-active enzymes. In general, cold-active enzymes increase their catalytic rate (kcat) by modulating their thermodynamic activation parameters: reduction of activation enthalpy (ΔH‡) and increase of activation entropy (ΔS‡) penalty [2,3,7]. To achieve the feat, the enzymes have evolved to have more conformational flexibility at low temperature, compared to mesophilic orthologs, mostly at the expense of thermal stability. The evolutionary changes are encrypted on the primary sequence of these enzymes, including, but not limited to, higher number of glycine residues, reduced frequency of proline and arginine residues, increase of lysine, reduction of hydrophobic core, increased surface hydrophobicity, and reduction of hydrogen bonds, etc. [2,8,9,10]. Higher catalytic activity at low and moderate temperature with low thermolability have made cold-active enzymes into attractive targets for industrial applications such as production of food, additives in detergents, and synthesis of fine chemicals and pharmaceuticals. They have a few advantages over mesophilic orthologs in that they could reduce the energy cost and chemical side-reactions, and they could be easily inactivated by heat, since they operate at low temperature and perish easily at higher temperature [2,8,9,10]. Some cold-active enzymes currently being used in biotechnological and industrial applications are briefly listed in Table 1 [5].
In the context of industrial applications of cold-active enzymes, the features mentioned above have been well exploited. However, less investigated has been the broadening of the substrate specificity of cold-active enzymes due to their intrinsic characteristics, which may lead to increased enzyme promiscuity, compared to mesophilic orthologs [2,3,11,12,13,14,15]. Notably, enzymes with broad substrate specificity frequently have large active site to embrace substrates of varying sizes and shapes [16,17,18]. Especially, it is likely that the hydrophobic substrate binding sites could promote binding of the non-native substrates by hydrophobic effects. The increased exposure of hydrophobic residues in cold-active enzymes may stimulate substrate promiscuity [19,20,21]. The broader substrate specificity of cold-active enzymes, another intriguing property, could expand their application to the molecular design or semi-synthesis for fine chemicals and drugs. In this article, we focus on promiscuity of cold-active enzymes with a few recent reports for the possible application in organic synthesis. Note that we mainly refer to the cold-active enzymes as a cold-adapted enzymes from psychrophilic microorganisms.
Mesophilic and/or thermophilic enzymes showing broad substrate specificity have been well reviewed [18,22,23,24]. A partial list of mesophilic/thermophilic promiscuous enzymes along with psychrophilic orthologs are listed in Table 2. The critical features of enzymes to show promiscuity are the presence of an highly mobile active site loop [25], highly reactive active sites [23], active site embedded with cofactors [23], and highly hydrophobic substrate [26]. Some of these are similar to natural characteristics of cold-active enzymes. Hence, cold-actives enzymes could be promiscuous furthermore or fortuitously, compared to their mesophilic orthologs. In addition, it is probable that the substrate promiscuity of cold-active enzymes could be escalated or arisen by thermal fluctuation compared to mesophilic orthologs, without losing their advantages mentioned above. This may occur by chance due to the experimental conditions, which are different from natural environment. In the condition of in vivo and low temperature, cold-active enzymes should have strict substrate specificity. However, cold-active enzymes examined at room temperature may undergo an increased thermal fluctuation at the flexible loop regions near the active site and it may result in an unregulated substrate binding of xenobiotic compounds. This unexpected property of cold-active enzymes could be useful for enzyme-mediated semi-synthesis of fine chemicals and drugs. However, we should consider that the structural flexibility of the active sites is very similar between cold-active and mesophilic enzymes, meaning that substrate promiscuity applies to a very limited number of cold-active enzymes, since the active site residues are highly conserved [27,28,29]. Through comparative computational studies of cold- and warm-active enzymes, Åqvist and his coworkers supposed that structural flexibility of cold-active enzymes generally located at surface loops of the protein may confer higher reaction rates at low temperature [7,27,28,29]. Except for Candida antarctica Lipase B [24,30], to date, only a handful of reports on enzyme promiscuity and possible application of cold-active enzymes have been investigated [14,15,31,32].
The cold-active lipase B (CALB) from psychrophilic Candida Antarctica is one of the most studied cold-active enzymes with broad substrate specificity [4]. CALB has a structure similar to α/β hydrolases containing both α-helices and β-strand. The catalytic triad of Ser, His, and Asp/Glu is embedded near the surface within a catalytic pocket [88]. CALB has open, large, and medium substrate-binding pockets, which imparts structural flexibility and broad substrate specificity [89]. The flexible structure of CALB allows the efficient catalysis of various industrially important reactions. CALB catalyzes the epoxidation of α,β-unsaturated aldehydes with hydrogen peroxide to give α,β-epoxy aldehydes (Figure 1A) [90]. Aldol addition of ethanethiol to α,β-unsaturated hexanal gives diastereomeric addition products 2-methyl-3-(ethylthio)pentanal by CALB mutant (Ser105Ala) (Figure 1B) [91]. CALB also efficiently catalyzes aldol addition reaction between tricyclic diketone to give bis-product within 4 h (Figure 1C) [92]. Under polar and nonpolar solvents, CALB catalyzes different reactions [93]. For example, CALB catalyzes the amidation reaction between α,β-unsaturated ester and amine to give α,β-unsaturated amide under a polar solvent, whereas Michael addition is favored under a non-polar solvent to give β-amino ester (Figure 1D) [93]. The Baeyer–Villiger oxidation reaction of α-alkyl cyclic ketone to give ethyl 5-acetoxypentanoate can also be catalyzed by CALB (Figure 1E) [94]. These results imply that CALB could accommodate various substrates, which could be useful for the catalysis of industrially important reactions.
Similar to other acylaminoacyl peptidases (AAPs), the cold-active AAP (SpAAP) from psychrophilic bacterium Sporosacrina psychrophila possesses promiscuous ester hydrolysis activity [85,95]. The SpAAP exhibited hydrolytic activity on native N-acylated amino acids p-nitroanilide substrates, and on several promiscuous p-nitrophenyl esters of fatty acids of different chain length (C4-C18). Similar characteristics in the primary sequence were found in the primary sequence SpAAP with a lack of disulfide bonds, which probably confers structural flexibility for broader substrate specificity [95]. Contrary to hyperthermophilic AAP from Aeropyrum pernix (ApAAP) [84,96,97], SpAAP had a lower Km and kcat for N-acyl amino acids, but, interestingly, higher Km and kcat for short-chain fatty acids esters. This discrepancy was supported by finding that the diameter of a tunnel in the β-propeller domain to the active site is wider in SpAAP than in mesophilic and thermophilic orthologs [98].
The cold-active acetyl xylan esterase (PbAcE) from psychrophilic soil microbe Paenibacillus sp. had a broad substrate specificity (Figure 2A) [32]. Structural analysis of PbAcE suggested that flexible subunit movements and different active site loop conformations might allow PbAcE to have these characteristics different from other mesophilic and thermophilic homologs. PbAcE forms hexamer in solution and each monomer has α/β hydrolase fold with conserved catalytic triad residues of Ser185, Asp274, and His303. Activity assay data showed that PbAcE has typical properties of cold-active enzymes with strong low-temperature activity and broad substrate specificity. PbAcE has moderate and strong deacetylation activity for glucose penta-acetate and xylan acetate as well as reversible acetylation activity for xylan. In addition, PbAcE exhibited strong deacetylation activity for lipids and tertiary alcohol esters. These results proposed that PbAcE can accommodate various substrates and it could be useful for deacetylation biocatalyst of other xenobiotic ligands. For example, acetyl group of beta-lactam antibiotics such as cefotaxime, 7-Aminocephalosporic acid (7-ACA), and cephalosporin C were successfully removed by PbAcE (Figure 2B). The enzymatic modification of antibiotics is of significant importance to overcome the antibiotic resistance issue by increasing the chemical diversity. Furthermore, the possibility of commercial application of PbAcE was assessed by ensuring that the activity was maintained more than 80% even after immobilization followed by repetitive use of 18 times.
Le et al. reported that the recombinant HaSGNH1-type lipase from Halocynthiibacter arcticus catalyzed the synthesis of biodiesel and flavor compounds [31]. HaSGNH1 had a sandwich structure containing five central parallel β-sheets between two layers of four α-helices per layer. The catalytic triad of S18, D171, and H174 was embedded near the surface within a catalytic pocket. The solvent-exposed substrate-binding pocket offered the substrate flexibility to HaSGNH1. The substrate-binding pocket encircled with five amino acids, Asn83, Met86, Arg87, Phe131, and Ile173, regulated the entry of substrates via noncovalent interactions. HaSGNH1 was applied for the hydrolysis of tert-butyl esters, carbohydrate esters, and p-nitrophenyl esters. HaSGNH1 specifically hydrolyzed butyl esters such as p-nitrophenyl butyrate, 1-naphthyl acetate, tert-butyl acetate, and glyceryl tributyrate. To improve the catalytic activity of HaSGNH1 six mutants, Asn83Leu (1), Met86Glu (2), Met86Arg (3), Arg87Leu (4), Phe131Ala (5), and Ile173Phe (6) were generated using site-directed mutagenesis. Only four showed 120% enhanced hydrolysis of p-nitrophenyl butyrate than wild-type HaSGNH1. Two showed higher activity towards carbohydrate acetates, while three showed for larger substrates like p-nitrophenyl hexanoate. The bulky phenyl side chain of six preferred bindings to short-chain fatty esters like p-nitrophenyl acetate. The immobilized HaSGNH1-CELA was applied for the synthesis of petroleum, food, and cosmetic products (butyl and oleic esters) in a nonpolar solvent. The successful synthesis of butyl acetate, butyl butyrate, and oleic acid butyl ester was confirmed by gas chromatography analysis.
Another example is Cytochrome P450 monooxygenases (CYPs). CYPs are heme-containing enzymes that catalyze the hydroxylation of a wide variety of substrate molecules [99]. Bacterial steroid hydroxylase CYPs are particularly useful for effectively introducing hydroxyl groups to a wide range of steroids in the pharmaceutical industry. Thus, these CYPs have received increasing attention in recent years for industrial applications. Kim et al. (2017) reported a newly identified CYP steroid hydroxylase (BaCYP106A2) from the bacterium Bacillus sp. PAMC 23377 isolated from Kara Sea of the Arctic Ocean, and its crystal structure was determined at a resolution of 2.7 Å. Furthermore, structural comparisons with other CYPs showed that the α8–α9 loop region of BaCYP106A2 was intrinsically mobile and might be important for broad substrate specificity. The hydroxylase activity of BaCYP106A2 was examined with two different kinds of steroid substrates, 4-androstenedione and nandrolone, and the reaction was analyzed with HPLC and LC-MS [99]. CYPs oxidized 4-androstenedione and nandrolone to 15β-hydroxyandrostenedione and 15β-hydroxynandrolone, respectively. Unlike the mesophilic CYP orthologs from Bacillus meagterium [100], BaCYP106A2 seemed to mainly monohydroxylate steroid substrates with high conversion yields (Figure 3). The specific modification of pharmaceutically important compounds by the cold-active CYP sheds light on drug development and production.
In conclusion, structural flexibility of cold-active enzymes could enhance or give rise to enzyme promiscuity. Consequently, cold-active enzymes have merits for the enzymatic modification and semi-synthesis of fine chemicals and medicines by virtue of their broad substrate specificity on top of their existing merits as industrial catalysts. To take advantage of the under-utilized facet of cold-active enzymes, structure-based protein engineering and directed evolution should be employed in the near future to develop enzymes with improved substrate promiscuity for various chemical reactions.

Author Contributions

Conceptualization, S.K.N., J.H.L. and H.J.K.; software, S.B.B. and J.H.L.; validation, S.B.B., and J.H.L.; investigation, S.K.N. and S.B.B.; resources, S.K.N., J.H.L. and H.J.K.; writing—original draft preparation, S.K.N., J.H.L. and H.J.K.; writing—review and editing, H.J.K.; visualization, S.B.B.; supervision, H.J.K.; project administration, J.H.L.; funding acquisition, H.J.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was a part of the project titled “Development of potential antibiotic compounds using polar organism resources (15250103, KOPRI Grant PM20030)”, funded by the Ministry of Oceans and Fisheries, Korea.

Conflicts of Interest

No conflicts of interest.

References

  1. Siddiqui, K.S. Some like it hot, some like it cold: Temperature dependent biotechnological applications and improvements in extremophilic enzymes. Biotechnol. Adv. 2015, 33, 1912–1922. [Google Scholar] [CrossRef]
  2. Smal, S.A.O.; Leiros, H.K.S.; Os, V.; Willassen, N.P. Cold adapted enzymes. Biotechnol. Annu. Rev. 2000, 6, 1–57. [Google Scholar] [CrossRef]
  3. Santiago, M.; Ramírez-Sarmiento, C.A.; Zamora, R.A.; Parra, L.P. Discovery, molecular mechanisms, and industrial applications of cold-active enzymes. Front. Microbiol. 2016, 7, 1408. [Google Scholar] [CrossRef]
  4. Bruno, S.; Coppola, D.; Di Prisco, G.; Giordano, D.; Verde, C. Enzymes from marine polar regions and their biotechnological applications. Mar. Drugs 2019, 17, 544. [Google Scholar] [CrossRef] [Green Version]
  5. Mangiagalli, M.; Brocca, S.; Orlando, M.; Lotti, M. The “cold revolution”. Present and future applications of cold-active enzymes and ice-binding proteins. New Biotechnol. 2020, 55, 5–11. [Google Scholar] [CrossRef]
  6. Langridge, P.; Morita, R.Y. Thermolability of Malic Dehydrogenase from the Obligate Psychrophile Vibrio marinus1. J. Bacteriol. 1966, 92, 418–423. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Sočan, J.; Purg, M.; Åqvist, J. Computer simulations explain the anomalous temperature optimum in a cold-adapted enzyme. Nat. Commun. 2020, 11, 2644. [Google Scholar] [CrossRef] [PubMed]
  8. D’Amico, S.; Gerday, C.; Feller, G. Temperature adaptation of proteins: Engineering mesophilic-like activity and stability in a cold-adapted α-amylase. J. Mol. Biol. 2003, 332, 981–988. [Google Scholar] [CrossRef] [PubMed]
  9. Olufsen, M.; Smalås, A.O.; Moe, E.; Brandsdal, B.O. Increased flexibility as a strategy for cold adaptation: A comparative molecular dynamics study of cold- and warm-active uracil DNA glycosylase. J. Biol. Chem. 2005, 280, 18042–18048. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Bjelic, S.; Brandsdal, B.O.; Åqvist, J. Cold adaptation of enzyme reaction rates. Biochemistry 2008, 47, 10049–10057. [Google Scholar] [CrossRef]
  11. Joseph, B.; Ramteke, P.W.; Thomas, G.; Shrivastava, N. Standard Review Cold-active microbial Lipases: A versatile tool for industrial applications. Biotechnol. Mol. Biol. Rev. 2007, 2, 39–48. [Google Scholar]
  12. Nobeli, I.; Favia, A.D.; Thornton, J.M. Protein promiscuity and its implications for biotechnology. Nat. Biotechnol. 2009, 27, 157–167. [Google Scholar] [CrossRef] [PubMed]
  13. Georlette, D.; Blaise, V.; Collins, T.; D’Amico, S.; Gratia, E.; Hoyoux, A.; Marx, J.C.; Sonan, G.; Feller, G.; Gerday, C. Some like it cold: Biocatalysis at low temperatures. FEMS Microbiol. Rev. 2004, 28, 25–42. [Google Scholar] [CrossRef] [Green Version]
  14. Tsigos, I.; Velonia, K.; Smonou, I.; Bouriotis, V. Purification and characterization of an alcohol dehydrogenase from the Antarctic psychrophile Moraxella sp. TAE123. Eur. J. Biochem. 1998, 254, 356–362. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Davail, S.; Feller, G.; Narinx, E.; Gerday, C. Cold adaptation of proteins. J. Biol. Chem. 1994, 269, 17448–17453. [Google Scholar] [PubMed]
  16. Van Loo, B.; Jonas, S.; Babtie, A.C.; Benjdia, A.; Berteau, O.; Hyvönen, M.; Hollfelder, F. An efficient, multiply promiscuous hydrolase in the alkaline phosphatase superfamily. Proc. Natl. Acad. Sci. USA 2010, 107, 2740–2745. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Chen, R.; Gao, B.; Liu, X.; Ruan, F.; Zhang, Y.; Lou, J.; Feng, K.; Wunsch, C.; Li, S.M.; Dai, J.; et al. Molecular insights into the enzyme promiscuity of an aromatic prenyltransferase. Nat. Chem. Biol. 2017, 13, 226–234. [Google Scholar] [CrossRef]
  18. Copley, S.D. Shining a light on enzyme promiscuity. Curr. Opin. Struct. Biol. 2017, 47, 167–175. [Google Scholar] [CrossRef]
  19. Perritt, S.; Roberts, M. Flexural-slip structures in the Bushveld Complex, South Africa? J. Struct. Geol. 2007, 29, 1422–1429. [Google Scholar] [CrossRef]
  20. Van Petegem, F.; Collins, T.; Meuwis, M.A.; Gerday, C.; Feller, G.; Van Beeumen, J. The structure of a cold-adapted family 8 xylanase at 1.3 Å resolution. Structural adaptations to cold and investigation of the active site. J. Biol. Chem. 2003, 278, 7531–7539. [Google Scholar] [CrossRef] [Green Version]
  21. Zhao, Y.; Wakamatsu, T.; Doi, K.; Sakuraba, H.; Ohshima, T. A psychrophilic leucine dehydrogenase from Sporosarcina psychrophila: Purification, characterization, gene sequencing and crystal structure analysis. J. Mol. Catal. B Enzym. 2012, 83, 65–72. [Google Scholar] [CrossRef]
  22. Arora, B.; Mukherjee, J.; Gupta, M.N. Enzyme promiscuity: Using the dark side of enzyme specificity in white biotechnology. Sustain. Chem. Process. 2014, 2, 25. [Google Scholar] [CrossRef] [Green Version]
  23. Kapoor, M.; Gupta, M.N. Lipase promiscuity and its biochemical applications. Process. Biochem. 2012, 47, 555–569. [Google Scholar] [CrossRef]
  24. Wu, Q.; Liu, B.; Lin, X. Enzymatic Promiscuity for Organic Synthesis and Cascade Process. Curr. Org. Chem. 2010, 14, 1966–1988. [Google Scholar] [CrossRef]
  25. Bertuletti, S.; Ferrandi, E.E.; Marzorati, S.; Vanoni, M.; Riva, S.; Monti, D. Insights into the Substrate Promiscuity of Novel Hydroxysteroid Dehydrogenases. Adv. Synth. Catal. 2020, 362, 2474–2485. [Google Scholar] [CrossRef]
  26. Panja, A.S.; Bandopadhyay, B.; Maiti, S. Protein thermostability is owing to their preferences to non-polar smaller volume amino acids, variations in residual physico-chemical properties and more salt-bridges. PLoS ONE 2015, 10, e0131495. [Google Scholar] [CrossRef]
  27. Isaksen, G.V.; Åqvist, J.; Brandsdal, B.O. Protein Surface Softness Is the Origin of Enzyme Cold-Adaptation of Trypsin. PLoS Comput. Biol. 2014, 10, e1003813. [Google Scholar] [CrossRef] [Green Version]
  28. Isaksen, G.V.; Åqvist, J.; Brandsdal, B.O. Enzyme surface rigidity tunes the temperature dependence of catalytic rates. Proc. Natl. Acad. Sci. USA 2016, 113, 7822–7827. [Google Scholar] [CrossRef] [Green Version]
  29. Stefansson, B.; Helgadóttir, L.; Olafsdottir, S.; Gudmundsdottir, Á.; Bjarnason, J.B. Characterization of cold-adapted Atlantic cod (Gadus morhua) trypsin I—Kinetic parameters, autolysis and thermal stability. Comp. Biochem. Physiol. B Biochem. Mol. Biol. 2010, 155, 186–194. [Google Scholar] [CrossRef]
  30. Kundys, A.; Białecka-Florjańczyk, E.; Fabiszewska, A.; Małajowicz, J. Candida antarctica Lipase B as Catalyst for Cyclic Esters Synthesis, Their Polymerization and Degradation of Aliphatic Polyesters. J. Polym. Environ. 2018, 26, 396–407. [Google Scholar] [CrossRef]
  31. Le, L.T.H.L.; Yoo, W.; Jeon, S.; Lee, C.; Kim, K.K.; Lee, J.H.; Kim, T.D. Biodiesel and flavor compound production using a novel promiscuous cold-adapted SGNH-type lipase (HaSGNH1) from the psychrophilic bacterium Halocynthiibacter arcticus. Biotechnol. Biofuels 2020, 13, 55. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Park, S.H.; Yoo, W.; Lee, C.W.; Jeong, C.S.; Shin, S.C.; Kim, H.W.; Park, H.; Kim, K.K.; Kim, T.D.; Lee, J.H. Crystal structure and functional characterization of a cold-active acetyl xylan esterase (PbAcE) from psychrophilic soil microbe Paenibacillus sp. PLoS ONE 2018, 13, e0206260. [Google Scholar] [CrossRef] [PubMed]
  33. Yu, X.; Pérez, B.; Zhang, Z.; Gao, R.; Guo, Z. Mining catalytic promiscuity from: Thermophilic archaea: An acyl-peptide releasing enzyme from Sulfolobus tokodaii (ST0779) for nitroaldol reactions. Green Chem. 2016, 18, 2753–2761. [Google Scholar] [CrossRef]
  34. Bouchaâla, E.; BouAli, M.; Ali, Y.B.; Miled, N.; Gargouri, Y.; Fendri, A. Biochemical Characterization and Molecular Modeling of Pancreatic Lipase from a Cartilaginous Fish, the Common Stingray (Dasyatis pastinaca). Appl. Biochem. Biotechnol. 2015, 176, 151–169. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, L.; Li, F.; Wang, C.; Zheng, L.; Wang, Z.; Zhao, R.; Wang, L. Lipase-mediated amidation of anilines with 1,3-diketones via C–C bond cleavage. Catalysts 2017, 7, 115. [Google Scholar] [CrossRef] [Green Version]
  36. Zhang, Y.; Ji, F.; Wang, J.; Pu, Z.; Jiang, B.; Bao, Y. Purification and characterization of a novel organic solvent-tolerant and cold-adapted lipase from Psychrobacter sp. ZY124. Extremophiles 2018, 22, 287–300. [Google Scholar] [CrossRef]
  37. Malekabadi, S.; Badoei-dalfard, A.; Karami, Z. Biochemical characterization of a novel cold-active, halophilic and organic solvent-tolerant lipase from B. licheniformis KM12 with potential application for biodiesel production. Int. J. Biol. Macromol. 2018, 109, 389–398. [Google Scholar] [CrossRef]
  38. Adachi, D.; Hama, S.; Nakashima, K.; Bogaki, T.; Ogino, C.; Kondo, A. Production of biodiesel from plant oil hydrolysates using an Aspergillus oryzae whole-cell biocatalyst highly expressing Candida antarctica lipase B. Bioresour. Technol. 2013, 135, 410–416. [Google Scholar] [CrossRef]
  39. Bae, S.Y.; Ryu, B.H.; Jang, E.; Kim, S.; Kim, T.D. Characterization and immobilization of a novel SGNH hydrolase (Est24) from Sinorhizobium meliloti. Appl. Microbiol. Biotechnol. 2013, 97, 1637–1647. [Google Scholar] [CrossRef]
  40. Dua, A.; Gupta, R. Functional characterization of hormone sensitive-like lipase from Bacillus halodurans: Synthesis and recovery of pNP-laurate with high yields. Extremophiles 2017, 21, 871–889. [Google Scholar] [CrossRef]
  41. Kim, B.; Yoo, W.; Huong Luu Le, L.T.; Kim, K.K.; Kim, H.-W.; Lee, J.H.; Kim, Y.-O.; Kim, T.D. Characterization and mutation anaylsis of a cold-active bacterial hormone-sensitive lipase from Salinisphaera sp. P7-4. Arch. Biochem. Biophys. 2019, 663, 132–142. [Google Scholar] [CrossRef] [PubMed]
  42. Fernández De Las Heras, L.; Van Der Geize, R.; Drzyzga, O.; Perera, J.; María Navarro Llorens, J. Molecular characterization of three 3-ketosteroid-Δ1-dehydrogenase isoenzymes of Rhodococcus ruber strain Chol-4. J. Steroid Biochem. Mol. Biol. 2012, 132, 271–281. [Google Scholar] [CrossRef] [PubMed]
  43. Capyk, J.K.; Casabon, I.; Gruninger, R.; Strynadka, N.C.; Eltis, L.D. Activity of 3-ketosteroid 9α-hydroxylase (KshAB) indicates cholesterol side chain and ring degradation occur simultaneously in Mycobacterium tuberculosis. J. Biol. Chem. 2011, 286, 40717–40724. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Kudalkar, G.P.; Tiwari, V.K.; Lee, J.D.; Berkowitz, D.B. A Hammett Study of Clostridium acetobutylicum Alcohol Dehydrogenase (CaADH): An Enzyme with Remarkable Substrate Promiscuity and Utility for Organic Synthesis. Synlett 2020, 31, 237–247. [Google Scholar] [CrossRef]
  45. Petratos, K.; Gessmann, R.; Daskalakis, V.; Papadovasilaki, M.; Papanikolau, Y.; Tsigos, I.; Bouriotis, V.; Bouriotis, V. Structure and Dynamics of a Thermostable Alcohol Dehydrogenase from the Antarctic Psychrophile Moraxella sp. TAE123. ACS Omega 2020, 5, 14523–14534. [Google Scholar] [CrossRef] [PubMed]
  46. Fernandes, P.; Aldeborgh, H.; Carlucci, L.; Walsh, L.; Wasserman, J.; Zhou, E.; Lefurgy, S.T.; Mundorff, E.C. Alteration of substrate specificity of alanine dehydrogenase. Protein Eng. Des. Sel. 2015, 28, 29–35. [Google Scholar] [CrossRef] [Green Version]
  47. Noda-García, L.; Juárez-Vázquez, A.L.; Ávila-Arcos, M.C.; Verduzco-Castro, E.A.; Montero-Morán, G.; Gaytán, P.; Carrillo-Tripp, M.; Barona-Gómez, F. Insights into the evolution of enzyme substrate promiscuity after the discovery of (βα)8 isomerase evolutionary intermediates from a diverse metagenome. BMC Evol. Biol. 2015, 15, 107. [Google Scholar] [CrossRef] [Green Version]
  48. Sharma, P.; Guptasarma, P. Endoglucanase activity at a second site in Pyrococcus furiosus triosephosphate isomerase—Promiscuity or compensation for a metabolic handicap? FEBS Open Bio 2017, 7, 1126–1143. [Google Scholar] [CrossRef]
  49. Sy, L.; Cs, K.; Wc, S.T.; Ll, F. Expression and Thermostability study of Triose Phosphate Isomerase (TIM) from Pseudomonas π9, a Psychrophilic Bacterium. Health Environ. J. 2014, 5, 65–82. [Google Scholar]
  50. Zadło-Dobrowolska, A.; Schmidt, N.G.; Kroutil, W. Promiscuous activity of C-acyltransferase from Pseudomonas protegens: Synthesis of acetanilides in aqueous buffer. Chem. Commun. 2018, 54, 3387–3390. [Google Scholar] [CrossRef] [Green Version]
  51. Eudes, A.; Pereira, J.H.; Yogiswara, S.; Wang, G.; Teixeira Benites, V.; Baidoo, E.E.K.; Lee, T.S.; Adams, P.D.; Keasling, J.D.; Loqué, D. Exploiting the substrate promiscuity of Hydroxycinnamoyl-CoA:Shikimate Hydroxycinnamoyl Transferase to reduce lignin. Plant Cell Physiol. 2016, 57, 568–579. [Google Scholar] [CrossRef] [PubMed]
  52. Griswold, K.E.; Aiyappan, N.S.; Iverson, B.L.; Georgiou, G. The Evolution of Catalytic Efficiency and Substrate Promiscuity in Human Theta Class 1-1 Glutathione Transferase. J. Mol. Biol. 2006, 364, 400–410. [Google Scholar] [CrossRef] [Green Version]
  53. Hou, Y.; Qiao, C.; Wang, Y.; Wang, Y.; Ren, X.; Wei, Q.; Wang, Q. Cold-adapted glutathione S-transferases from Antarctic psychrophilic bacterium Halomonas sp. ANT108: Heterologous expression, characterization, and oxidative resistance. Mar. Drugs 2019, 17, 147. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Green, K.D.; Fosso, M.Y.; Mayhoub, A.S.; Garneau-Tsodikova, S. Investigating the promiscuity of the chloramphenicol nitroreductase from Haemophilus influenzae towards the reduction of 4-nitrobenzene derivatives. Bioorg. Med. Chem. Lett. 2019, 29, 1127–1132. [Google Scholar] [CrossRef] [PubMed]
  55. Freund, G.S.; O’Brien, T.E.; Vinson, L.; Carlin, D.A.; Yao, A.; Mak, W.S.; Tagkopoulos, I.; Facciotti, M.T.; Tantillo, D.J.; Siegel, J.B. Elucidating Substrate Promiscuity within the FabI Enzyme Family. ACS Chem. Biol. 2017, 12, 2465–2473. [Google Scholar] [CrossRef]
  56. Chen, L.; Yu, H.; Yang, S.; Qian, Y.; Xie, J. Study on the Mechanism of Cold Tolerance of the Strain Shewanella putrefaciens WS13 Through Fatty Acid Metabolism. Nanosci. Nanotechnol. Lett. 2019, 11, 1718–1723. [Google Scholar] [CrossRef]
  57. Dommaraju, S.R.; Dogovski, C.; Czabotar, P.E.; Hor, L.; Smith, B.J.; Perugini, M.A. Catalytic mechanism and cofactor preference of dihydrodipicolinate reductase from methicillin-resistant Staphylococcus aureus. Arch. Biochem. Biophys. 2011, 512, 167–174. [Google Scholar] [CrossRef]
  58. Lee, C.W.; Park, S.H.; Lee, S.G.; Park, H.H.; Kim, H.J.; Park, H.; Park, H.; Lee, J.H. Crystal structure of dihydrodipicolinate reductase (PaDHDPR) from Paenisporosarcina sp. TG-14: Structural basis for NADPH preference as a cofactor. Sci. Rep. 2018, 8, 7936. [Google Scholar] [CrossRef]
  59. Jia, M.; Mishra, S.K.; Tufts, S.; Jernigan, R.L.; Peters, R.J. Combinatorial biosynthesis and the basis for substrate promiscuity in class I diterpene synthases. Metab. Eng. 2019, 55, 44–58. [Google Scholar] [CrossRef]
  60. Berg, T.O.; Gurung, M.K.; Altermark, B.; Smalås, A.O.; Ræder, I.L.U. Characterization of the N-acetylneuraminic acid synthase (NeuB) from the psychrophilic fish pathogen Moritella viscosa. Carbohydr. Res. 2015, 402, 133–145. [Google Scholar] [CrossRef]
  61. Sun, W.; Ji, W.; Li, N.; Tong, P.; Cheng, J.; He, Y.; Chen, Y.; Chen, X.; Wu, J.; Ouyang, P.; et al. Construction and expression of a polycistronic plasmid encoding N-acetylglucosamine 2-epimerase and N-acetylneuraminic acid lyase simultaneously for production of N-acetylneuraminic acid. Bioresour. Technol. 2013, 130, 23–29. [Google Scholar] [CrossRef] [PubMed]
  62. Czech, L.; Wilcken, S.; Czech, O.; Linne, U.; Brauner, J.; Smits, S.H.J.; Galinski, E.A.; Bremer, E. Exploiting Substrate Promiscuity of Ectoine Hydroxylase for Regio- and Stereoselective Modification of Homoectoine. Front. Microbiol. 2019, 10, 2745. [Google Scholar] [CrossRef] [PubMed]
  63. Widderich, N.; Höppner, A.; Pittelkow, M.; Heider, J.; Smits, S.H.J.; Bremer, E. Biochemical properties of ectoine hydroxylases from extremophiles and their wider taxonomic distribution among microorganisms. PLoS ONE 2014, 9, e93809. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Wang, Y.; Zhang, C.; An, S.; Fang, X.; Yu, D. Engineering substrate promiscuity in 2,4-dichlorophenol hydroxylase by: In silico design. RSC Adv. 2018, 8, 21184–21190. [Google Scholar] [CrossRef] [Green Version]
  65. Arora, P.K.; Bae, H. Bacterial degradation of chlorophenols and their derivatives. Microb. Cell Fact. 2014, 13, 31. [Google Scholar] [CrossRef] [Green Version]
  66. Ronau, J.A.; Paul, L.N.; Fuchs, J.E.; Corn, I.R.; Wagner, K.T.; Liedl, K.R.; Abu-Omar, M.M.; Das, C. An additional substrate binding site in a bacterial phenylalanine hydroxylase. Eur. Biophys. J. 2013, 42, 691–708. [Google Scholar] [CrossRef] [Green Version]
  67. Leiros, H.K.S.; Pey, A.L.; Innselset, M.; Moe, E.; Leiros, I.; Steen, I.H.; Martinez, A. Structure of phenylalanine hydroxylase from Colwellia psychrerythraea 34H, a monomeric cold active enzyme with local flexibility around the active site and high overall stability. J. Biol. Chem. 2007, 282, 21973–21986. [Google Scholar] [CrossRef] [Green Version]
  68. Yan, X.; Wang, J.; Sun, Y.; Zhu, J.; Wu, S. Facilitating the evolution of esterase activity from a promiscuous enzyme (Mhg) with catalytic functions of amide hydrolysis and carboxylic acid perhydrolysis by engineering the substrate entrance tunnel. Appl. Environ. Microbiol. 2016, 82, 6748–6756. [Google Scholar] [CrossRef] [Green Version]
  69. Hashim, N.H.F.; Mahadi, N.M.; Illias, R.M.; Feroz, S.R.; Abu Bakar, F.D.; Murad, A.M.A. Biochemical and structural characterization of a novel cold-active esterase-like protein from the psychrophilic yeast Glaciozyma antarctica. Extremophiles 2018, 22, 607–616. [Google Scholar] [CrossRef]
  70. Watanabe, S.; Fukumori, F.; Watanabe, Y. Substrate and metabolic promiscuities of d-altronate dehydratase family proteins involved in non-phosphorylative d-arabinose, sugar acid, l-galactose and l-fucose pathways from bacteria. Mol. Microbiol. 2019, 112, 147–165. [Google Scholar] [CrossRef]
  71. Staley, J.T.; Boyd, W.L. L-serine dehydratase (deaminase) of psychrophiles and mesophiles from polar and temperate habitats. Can. J. Microbiol. 1967, 13, 1333–1342. [Google Scholar] [CrossRef] [PubMed]
  72. Sharma, G.; Jayasinghe-Arachchige, V.M.; Hu, Q.; Schenk, G.; Prabhakar, R. Effect of Chemically Distinct Substrates on the Mechanism and Reactivity of a Highly Promiscuous Metallohydrolase. ACS Catal. 2020, 10, 3684–3696. [Google Scholar] [CrossRef]
  73. Suzumoto, Y.; Dym, O.; Roviello, G.N.; Worek, F.; Sussman, J.L.; Manco, G. Structural and functional characterization of new ssopox variant points to the dimer interface as a driver for the increase in promiscuous paraoxonase activity. Int. J. Mol. Sci. 2020, 21, 1683. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Meier, M.M.; Rajendran, C.; Malisi, C.; Fox, N.G.; Xu, C.; Schlee, S.; Barondeau, D.P.; Ho, B.; Sterner, R.; Raushel, F.M. Molecular Engineering of Organophosphate Hydrolysis Activity from a Weak Promiscuous Lactonase Template. J. Am. Chem. Soc. 2013, 135, 11670–11677. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Tao, W.; Xu, Q.; Huang, H.; Li, S. Efficient production of peracetic acid in aqueous solution with cephalosporin-deacetylating acetyl xylan esterase from Bacillus subtilis. Process. Biochem. 2015, 50, 2121–2127. [Google Scholar] [CrossRef]
  76. Lee, C.W.; Yoo, W.; Park, S.H.; Le, L.T.H.L.; Jeong, C.S.; Ryu, B.H.; Shin, S.C.; Kim, H.W.; Park, H.; Kim, K.K.; et al. Structural and functional characterization of a novel cold-active S-formylglutathione hydrolase (SfSFGH) homolog from Shewanella frigidimarina, a psychrophilic bacterium. Microb. Cell Fact. 2019, 18, 140. [Google Scholar] [CrossRef] [Green Version]
  77. Asoodeh, A.; Ghanbari, T. Characterization of an extracellular thermophilic alkaline esterase produced by Bacillus subtilis DR8806. J. Mol. Catal. B Enzym. 2013, 85–86, 49–55. [Google Scholar] [CrossRef]
  78. Hu, Y.; Liu, Y.; Li, J.; Feng, Y.; Lu, N.; Zhu, B.; Xue, S. Structural and functional analysis of a low-temperature-active alkaline esterase from South China Sea marine sediment microbial metagenomic library. J. Ind. Microbiol. Biotechnol. 2015, 42, 1449–1461. [Google Scholar] [CrossRef]
  79. Rémy, B.; Plener, L.; Poirier, L.; Elias, M.; Daudé, D.; Chabrière, E. Harnessing hyperthermostable lactonase from Sulfolobus solfataricus for biotechnological applications. Sci. Rep. 2016, 6, 37780. [Google Scholar] [CrossRef] [Green Version]
  80. See-Too, W.S.; Convey, P.; Pearce, D.A.; Chan, K.G. Characterization of a novel N-acylhomoserine lactonase, AidP, from Antarctic Planococcus sp. Microb. Cell Fact. 2018, 17, 179. [Google Scholar] [CrossRef] [Green Version]
  81. Huston, A.L.; Haeggström, J.Z.; Feller, G. Cold adaptation of enzymes: Structural, kinetic and microcalorimetric characterizations of an aminopeptidase from the Arctic psychrophile Colwellia psychrerythraea and of human leukotriene A4 hydrolase. Biochim. Biophys. Acta—Proteins Proteom. 2008, 1784, 1865–1872. [Google Scholar] [CrossRef] [PubMed]
  82. Biaggio, R.T.; da Silva, R.R.; da Rosa, N.G.; Leite, R.S.R.; Arantes, E.C.; de Freitas Cabral, T.P.; Juliano, M.A.; Juliano, L.; Cabral, H. Purification and biochemical characterization of an extracellular serine peptidase from Aspergillus terreus. Prep. Biochem. Biotechnol. 2016, 46, 298–304. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Pereira, J.Q.; Ambrosini, A.; Passaglia, L.M.P.; Brandelli, A. A new cold-adapted serine peptidase from Antarctic Lysobacter sp. A03: Insights about enzyme activity at low temperatures. Int. J. Biol. Macromol. 2017, 103, 854–862. [Google Scholar] [CrossRef] [PubMed]
  84. Kiss, A.L.; Hornung, B.; Rádi, K.; Gengeliczki, Z.; Sztáray, B.; Juhász, T.; Szeltner, Z.; Harmat, V.; Polgár, L. The Acylaminoacyl Peptidase from Aeropyrum pernix K1 Thought to Be an Exopeptidase Displays Endopeptidase Activity. J. Mol. Biol. 2007, 368, 509–520. [Google Scholar] [CrossRef]
  85. Brunialti, E.A.S.; Gatti-Lafranconi, P.; Lotti, M. Promiscuity, stability and cold adaptation of a newly isolated acylaminoacyl peptidase. Biochimie 2011, 93, 1543–1554. [Google Scholar] [CrossRef] [PubMed]
  86. Wang, J.; Kang, L.; Liu, Z.; Yuan, S. Gene cloning, heterologous expression and characterization of a Coprinopsis cinerea endo-β-1,3(4)-glucanase. Fungal Biol. 2017, 121, 61–68. [Google Scholar] [CrossRef]
  87. Xue, X.; Wang, R.; Tu, T.; Shi, P.; Ma, R.; Luo, H.; Yao, B.; Su, X. The N-terminal GH10 domain of a multimodular protein from Caldicellulosiruptor bescii is a versatile xylanase/β-glucanase that can degrade crystalline cellulose. Appl. Environ. Microbiol. 2015, 81, 3823–3833. [Google Scholar] [CrossRef] [Green Version]
  88. Uppenberg, J.; Hansen, M.T.; Patkar, S.; Jones, T.A. The sequence, crystal structure determination and refinement of two crystal forms of lipase B from Candida antarctica. Structure 1994, 2, 293–308. [Google Scholar] [CrossRef] [Green Version]
  89. Martinelle, M.; Holmquist, M.; Hult, K. On the interfacial activation of Candida antarctica lipase A and B as compared with Humicola lanuginosa lipase. Biochim. Biophys. Acta (BBA)/Lipids Lipid Metab. 1995, 1258, 272–276. [Google Scholar] [CrossRef]
  90. Svedendahl, M.; Carlqvist, P.; Branneby, C.; Allnér, O.; Frise, A.; Hult, K.; Berglund, P.; Brinck, T. Direct epoxidation in Candida antarctica lipase B studied by experiment and theory. ChemBioChem 2008, 9, 2443–2451. [Google Scholar] [CrossRef]
  91. Branneby, C.; Carlqvist, P.; Hult, K.; Brinck, T.; Berglund, P. Aldol additions with mutant lipase: Analysis by experiments and theoretical calculations. J. Mol. Catal. B Enzym. 2004, 31, 123–128. [Google Scholar] [CrossRef]
  92. Majumder, A.B.; Ramesh, N.G.; Gupta, M.N. A lipase catalyzed condensation reaction with a tricyclic diketone: Yet another example of biocatalytic promiscuity. Tetrahedron Lett. 2009, 50, 5190–5193. [Google Scholar] [CrossRef]
  93. Priego, J.; Ortíz-Nava, C.; Carrillo-Morales, M.; López-Munguía, A.; Escalante, J.; Castillo, E. Solvent engineering: An effective tool to direct chemoselectivity in a lipase-catalyzed Michael addition. Tetrahedron 2009, 65, 536–539. [Google Scholar] [CrossRef]
  94. Rios, M.Y.; Salazar, E.; Olivo, H.F. Chemo-enzymatic Baeyer-Villiger oxidation of cyclopentanone and substituted cyclopentanones. J. Mol. Catal. B Enzym. 2008, 54, 61–66. [Google Scholar] [CrossRef]
  95. Papaleo, E.; Parravicini, F.; Grandori, R.; De Gioia, L.; Brocca, S. Structural investigation of the cold-adapted acylaminoacyl peptidase from Sporosarcina psychrophila by atomistic simulations and biophysical methods. Biochim. Biophys. Acta—Proteins Proteom. 2014, 1844, 2203–2213. [Google Scholar] [CrossRef] [PubMed]
  96. Wang, Q.; Yang, G.; Liu, Y.; Feng, Y. Discrimination of esterase and peptidase activities of acylaminoacyl peptidase from hyperthermophilic Aeropyrum pernix K1 by a single mutation. J. Biol. Chem. 2006, 281, 18618–18625. [Google Scholar] [CrossRef] [Green Version]
  97. Gao, R.; Feng, Y.; Ishikawa, K.; Ishida, H.; Ando, S.; Kosugi, Y.; Cao, S. Cloning, purification and properties of a hyperthermophilic esterase from archaeon Aeropyrum pernix K1. J. Mol. Catal. B Enzym. 2003, 24–25, 1–8. [Google Scholar] [CrossRef]
  98. Brocca, S.; Ferrari, C.; Barbiroli, A.; Pesce, A.; Lotti, M.; Nardini, M. A bacterial acyl aminoacyl peptidase couples flexibility and stability as a result of cold adaptation. FEBS J. 2016, 283, 4310–4324. [Google Scholar] [CrossRef]
  99. Kim, K.-H.; Lee, C.W.; Dangi, B.; Park, S.-H.; Park, H.; Oh, T.-J.; Lee, J.H. Crystal Structure and Functional Characterization of a Cytochrome P450 (BaCYP106A2) from Bacillus sp. PAMC 23377. J. Microbiol. Biotechnol. 2017, 27, 1472–1482. [Google Scholar] [CrossRef]
  100. Kiss, F.M.; Schmitz, D.; Zapp, J.; Dier, T.K.F.; Volmer, D.A.; Bernhardt, R. Comparison of CYP106A1 and CYP106A2 from Bacillus megaterium—Identification of a novel 11-oxidase activity. Appl. Microbiol. Biotechnol. 2015, 99, 8495–8514. [Google Scholar] [CrossRef]
Applsci 10 08128 g001 550

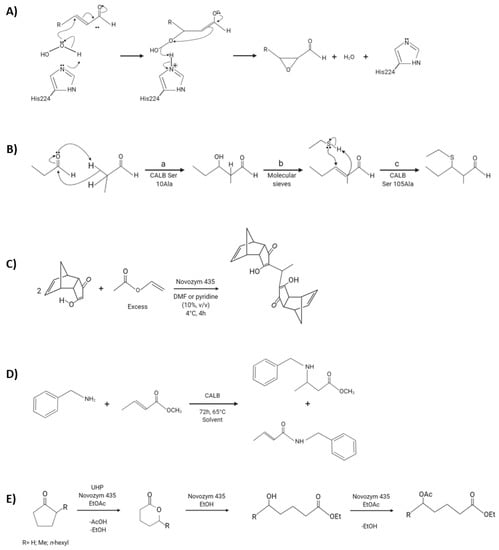

Figure 1. Reactions catalyzed by Candida antarctica lipase B. (A) Epoxidation of α,β-unsaturated aldehydes with hydrogen peroxide, (B) aldol condensation (a and b) and Michael addition (c), (C) formation of bis-product, (D) formation of Michael addition and aminolysis product, and (E) Baeyer–Villiger oxidation reaction.
Figure 1. Reactions catalyzed by Candida antarctica lipase B. (A) Epoxidation of α,β-unsaturated aldehydes with hydrogen peroxide, (B) aldol condensation (a and b) and Michael addition (c), (C) formation of bis-product, (D) formation of Michael addition and aminolysis product, and (E) Baeyer–Villiger oxidation reaction.
Applsci 10 08128 g001
Applsci 10 08128 g002 550

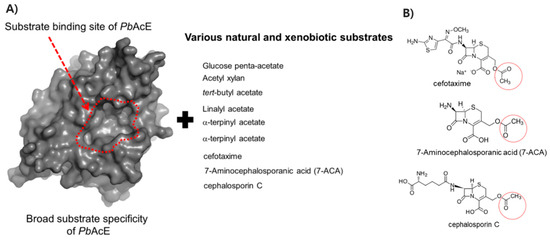

Figure 2. Broad substrate specificity of cold-active acetyl xylan esterase (PbAcE) from Paenibacillus sp. (A) Relatively larger substrate binding site of PbAcE. PbAcE is displayed space-filled and its substrate-binding site is dotted in red. The substrates modified by PbAcE are listed on the right. (B) Deacetylation activity against cephalosporin antibiotics. Acetyl group is circled in red.
Figure 2. Broad substrate specificity of cold-active acetyl xylan esterase (PbAcE) from Paenibacillus sp. (A) Relatively larger substrate binding site of PbAcE. PbAcE is displayed space-filled and its substrate-binding site is dotted in red. The substrates modified by PbAcE are listed on the right. (B) Deacetylation activity against cephalosporin antibiotics. Acetyl group is circled in red.
Applsci 10 08128 g002
Applsci 10 08128 g003 550
Figure 3. Hydroxylation of 4-androstenedione (left) and nandrolone (right) by Cytochrome P450 monooxygenases from Bacillus sp. PAMC 23377.
Figure 3. Hydroxylation of 4-androstenedione (left) and nandrolone (right) by Cytochrome P450 monooxygenases from Bacillus sp. PAMC 23377.
Applsci 10 08128 g003
Table
Table 1. List of commercially available cold-active enzymes currently used in biotechnological and industrial applications.
Table 1. List of commercially available cold-active enzymes currently used in biotechnological and industrial applications.
EnzymeSource OrganismsFunction
Alkaline phosphatase (AP)Alteromonas undina P2Removal of 3′ and 5′ phosphate groups
Antarctic bacterium TAB 5
Pandalus borealis
LipaseCandida antarcticaResolution of chiral compounds and transesterification production of biodiesel
Uracil-DNA N-GlycosylaseGadus morhuaElimination of carryover polymerase chain reaction (PCR) products by hydrolyzing N-glycoside bond between uracil base and sugar skeleton, cutting uracil from dU-containing DNA.
Marine bacterium BMTU 3346
Psychrophilic marine bacterium
NucleaseShewanella sp. strain Ac10Cleavage of phosphodiester bonds in DNA to yield oligonucleotides with 5′-phosphate and 3′-hydroxyl termini.
Pandalus borealis
ProteaseArctic marine microbialHydrolyzation of a variety of peptide bonds
Table
Table 2. Partial list of mesophilic/thermophilic and cold-active enzymes showing substrate promiscuity.
Table 2. Partial list of mesophilic/thermophilic and cold-active enzymes showing substrate promiscuity.
Mesophilic or ThermophilesPsychrophiles
Enzyme Class AbbreviationSource OrganismsSubstrateProductAbbreviationSource OrganismsSubstrateProduct
LipasePPLPorcine pancreas [33]Aldehyde b
Nitromethane b		β-nitroalcohols b (ee%–85%)SPLDasyatis pastinaca [34]Triacylglycerols aGlycerol a Acetic acid a
ANLAspergillus Niger [35]Anilines b
1,3-Diketones b		Acetanilide bZC12Psychrobacter sp. ZY124 [36]Fatty acid esters a
p-nitrophenyl esters b		(S)-1-phenylethanol (ee%–92%) p-nitrophenol b Carboxylic acid b
KM12Bacillus Licheniformis [37]Fatty acid esters a
Long chain p-nitrophenyl
Esters b		Glycerol a Fatty acid a
p-nitrophenol b Carboxylic acid b
r-CALBAspergillus oryzae [38]Fatty esters aGlycerol a Fatty acid aCALBCandida Antarctica [35]Aldehyde b
Nitromethane b Anilines b
1,3-Diketones b		β-nitroalcohols b (ee%–90%)
Acetanilide b
SGNHSinorhizobium meliloti [39]p-nitrophenyl acetate b Butyrate b Valerate b α- and β-naphthyl
acetate b (R)- and (S)-methyl-3-hydroxy-2-methylpropionate b		p-nitrophenol b Acetic acid b Butyric acid b Valeric acid b β-naphthanol b (R)- and (S)-3-hydroxy-2-methylpropionate b Methanol bSGNHHalocynthiibacter arcticus [31]Fatty acid esters a
tert-butyl acetate b
Glucose pentaacetate b
p-nitrophenyl esters b		Glycerol a Fatty acid a
tert-butyl alcohol b Acetic acid b Glucose b p-nitrophenol b Carboxylic acid b
HSLBacillus halodurans [40]p-nitrophenyl palmitate a
Unsaturated fatty acyl esters a		p-nitrophenol a Palmitic acid a Unsaturated fatty acid a Glycerol aSHLSalinisphaera sp. P7-4 [41]Fatty acid esters a
p-nitrophenyl esters b
Glyceryl tributyrate b
4-methylumbelliferyl (4 MU)-acetate b
7-aminocephalosporanic acid b
Glucose pentaacetate b
(R,S)-naproxol acetate		Glycerol a
Fatty acid a
p-nitrophenol b
Carboxylic acid b
Glycerol a
tert-butyric acid b 4-Methylumbelliferone b
Deacetylated aminocephalosporanic acid b
Acetic acid b Glucose b
(R)-naproxol (ee%–8.3%)
DehydrogenaseDm7α-HSDHDeinococcus marmoris [25]Steroids a
α-ketoesters b		Keto-steroids a α-hydroxyester bKstDsRhodococcus ruber [42]4-androstene-3,17-dione a
9α-hydroxy-4-androstene-3,17-dione a		1,4-androstadiene-3,17-dione a 9-α-hydroxy-1,4-androstadiene-3,17-dione a
Ngi1_7αHSDHMetagenome [25]
Ec7α-HSDHEscherichia coli [25]
Ca7α-HSDHClostridium absonum [25]
Hh7α-HSDHHalomonas halodenitrificans [25]
Ca7β-HSDHClostridium absonum [25]
Cae7β-HSDHCollinsella aerofaciens [25]KshABMycobacterium tuberculosis [43]1,4-androstadiene-3,17-dione a 3-hydroxy-9,10-seconandrost-1,3,5(10)-trien-9,17-dione a
Hh7β-HSDHHalomonas halodenitrificans [25]
Bsp7β-HSDHBrucella sp. [25]
Rs7β-HSDHRhodobacter sphaeroides
Csp12α-HSDHClostridium sp. [25]
Sc7β-HSDHStanieria cyanosphaera [25]
CaADHClostridium acetobutylicum [44]MoADHMoraxella sp. TAE123 [45] Carboxylic aicd
MtADHMycobacterium tuberculosis [46]N/A
IsomerasePriAActinobacteria [47]N’-[(5′-phosphoribosyl) formimino]
-5-aminoimidazole-4-carboxamide
Ribonucleotide a
Phosphoribosyl anthranilate b		N’-[(5′-phosphoribulosyl) formimino]-5-aminoimidazole-4-carboxamide ribonucleotide a 1-[(2-carboxyphenyl)amino]-1-deoxyribulose 5-phosphate bN/A
TIMPyrococcus furiosus [48]Cellobioside–resorufin aResorufin aTIMPseudomonas sp. [49]glyceraldehyde-3-phosphate a Triose phosphate aDihydroxyacetone phosphate a
TransferasePpATaseCHPseudomonas protegens [50]2,4- diacetylphloroglucinol a
Aniline derivatives b		1,3,5-trihydroxy-Phloroglucinol a N-acetanilide derivative bN/A
HCTSwitchgrass Arabidopsis [51]Lignin bp-Coumaroyl conjugatesN/A
hGSTT1-1Human [52]Glutathione a
7-amino-4-chloromethyl coumarinb 		rHsGSTHalomonas sp. ANT108 [53]Glutathione a Chlorodinitrobenzene aGlutathione-Chlorodinitrobenzene a conjugate
ReductaseCNRHaemophilus influenzae [54]Chloramphenicol a
4-nitrobenzene derivatives b		Reduced chloramphenicol a
Aniline derivatives b		N/A
FabIPlasmodim falciparum [55]Crotonyl Coenzyme A a,
trans-2-pentenal b
3-pentene-2-one b		Saturated Crotonyl Coenzyme A a 2-pentanal b
pentane-2-one b		Fab A, Fab B, Fab D, Fab F, Fab G, Fab H and Fab ZShewanella putrefaciens WS13 [56]Fatty acid metabolism
DHDPRMRSA [57]Dihydrodipicolinate a
NADPH a		Tetrahydrodipicolinate aPaDHDPRPaenisporosarcina sp. TG-14 [58]Dihydrodipicolinate a
NADPH a		Tetrahydrodipicolinate a
SynthasesDTSsKitasatospora griseola, Streptomyces cyslabdanicus, Salinispora arenicola, Bradyrhizobium japonicum, Erwinia tracheiphila [59]Terpentedienyl diphosphate a
copalyl diphosphate (CPP) a
ent-CPP a
(E,E,E)-geranylgeranyl diphosphate b
(Z,Z,Z)-nerylneryl diphosphate b
(E,E)-farnesyl diphosphate b
(E,E,E,E)-geranylfarnesyl diphosphate b
syn-CPP b
7-endo-CPP b, ent-7-endo-CPP b
8α-hydroxy-CPP b
8β-hydroxy-ent-CPP b
9α-hydroxy-CPP b
kolavenyl diphosphate (KPP) b
ent-KPP b
halimadienyl diphosphate (HPP) b
syn-HPP b
syn-halima-5(10) b
13E-dienyl diphosphate b
mutildienyl diphosphate b		 N/A
NalEscherichia coli K12 [60]N-acetylglucosamine (GlcNAc) a
Pyruvate a		 MvNeuBMoritella viscosa [61]N-acetylneuraminic acid a Phosphoenolpyruvate b
HydroxylaseEctDPseudomonas stutzeri [62]Ectoine a
Homoectoine b		 EctDSphingopyxis alaskensis [63]L-aspartate-β-semialdehyde a
TfdB-JLURhodococcus opacus 1G
Rhodococcus erythropolis Pseudomonas sp. NCIB934 [64,65]		2,4-dichlorophenoxyacetic acid a
Chlorophenol b
Dichlorophenol b
Trichlorophenol derivatives b		 N/A
cPAHChromobacterium violaceum [66]Phenylalanine a PAHColwellia psychrerythraea [67]Phenylalanine a
HydrolasesMhgPseudomonas fluorescens [68]γ-lactamase a
Perhydrolase a
Esters b		 HsGSTGlaciozyma antarctica [69]Dienelactone a
p-nitrophenyl esters b
DehydrataseDaDHTHerbaspirillum huttiense [70]D- altronate a
L-fuconate b
D-Arabinonate bL-xylonate b
D-idonate b
L-gluconate b		Pyruvate b L-Lactate b Glycolate b Glycerate bLsDHTPseudomonas aeruginosa [71]L-serine a
EsteraseEaGPEEnterobacter aerogenes [72]Diesters glycerol-3-Phosphoethanolamine a
4-nitrophenyl phosphate (NPP) b
Bis(4-nitrophenyl) phosphate (BNPP) b
Diethyl-nitrophenylphosphate (paraoxon) b		Glycerol a Ethanolamine Phosphoric acid a Carboxylic acid a Diethyl phosphate b p-nitrophenol bN/A
PLLSaccharolobus solfataricus [73]Paraoxon a
chemical warfare nerve agents b		Diethyl phosphate a p-nitrophenol aN/A
PLLDeinococcus radiodurans [74]Phosphotriesters a
Organophosphates b		Phosphoric acid a Alcohols a N/A
AXEBacillus subtilis [75]Glycerol triacetate b
Ethyl acetate b		Glycerol b Acetic acid b
Ethanol b		PbAcEPaenibacillus sp. R4 [32]Acetyl xylan a
p-nitrophenyl esters b
α-β-naphthyl esters b
carbohydrate esters b
tertiary alcohol esters b
lipids b, and antibiotics b		Xylanol a Acetic acid a
p-nitrophenol b Carboxylic acid b α-β-naphthanol b Carbohydrate b tert- alcohol b Fatty acid b Glycerol b
N/A SfSFGHShewanella frigidimarina [76]p-nitrophenyl esters b
glucose pentaacetate b		p-nitrophenol b Carboxylic acid b Glucose b Acetic acid b
EstBacillus subtilis DR8806 [77]p-nitrophenyl acetate ap-nitrophenol a Acetic acid aEst12Butyrivibrio proteoclasticus [78]Carbohydrate esters a
short- and middle-chain
p-nitrophenol esters b		Carbohydrate a Carboxylic acid a p-nitrophenol b
LactonaseSsoPoxSulfolobus solfataricus [79]Acyl-homoserine lactones a
Paraoxon b		Acyl-homoserine a Lactones a Diethyl phosphate b p-nitrophenol bAidPPlanococcus sp.[80]Acyl-homoserine lactonesaAcyl-homoserine a Lactones a
PeptidaseST1737Sulfolobus tokodaii [33]Aldehyde b
Nitromethane b		β-nitroalcohols (ee%–85%)ColAPColwellia psychrerythraea [81]l-alanine-4-nitroanilide hydrochloride aAlanine a p-nitroaniline a
ST0779Sulfolobus tokodaii [33]Aldehyde b
Nitromethane b		β-nitroalcohols (ee%–94%)N/A
SAtAspergillus terreus [82]Azocasein aLeucine a Glycine a p-nitroaniline a Benzyl alcohol aLsPcLysobacter sp. [83]Azocasein a
Gelatin and feather b		Leucine a Glycine a p-nitroaniline a Benzyl alcohol a Alanine b Arginine b Aspartic acid b Proline b Hydroxy Proline b
ApAAPAeropyrum pernix [84]Abz-GFEPF(NO2)RA b
Abz-GFRPF(NO2)RA b
Abz-SAVLQSGF(NO2)A b Abz-EALFQGPF(NO2)A b Ac-Phe-Nap b Gly-Phe-Nap b
Ac-Phe-Nan b 		SpAAPSporosarcina psychrophila [85]N-acetyl-L-leucine-p-nitroanilide a
Butyl-p-nitrophenyl esters b		N-acetyl-L-leucine a p-nitroaniline a Butyric acid b p-nitrophenol
GlucanaseENG16ACoprinopsis cinerea [86]β-glucan a Laminarin aShort chain carbohydratesGaEbGGlaciozyma antarctica PI12 [87]Laminarin a
Lichenin b
glucan polysaccharides b		Short chain carbohydrates
a—Natural substrate. b—Promiscuous substrate.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Nandanwar, S.K.; Borkar, S.B.; Lee, J.H.; Kim, H.J. Taking Advantage of Promiscuity of Cold-Active Enzymes. Appl. Sci. 2020, 10, 8128. https://doi.org/10.3390/app10228128

AMA Style

Nandanwar SK, Borkar SB, Lee JH, Kim HJ. Taking Advantage of Promiscuity of Cold-Active Enzymes. Applied Sciences. 2020; 10(22):8128. https://doi.org/10.3390/app10228128

Chicago/Turabian Style

Nandanwar, Sondavid K., Shweta Bharat Borkar, Jun Hyuck Lee, and Hak Jun Kim. 2020. "Taking Advantage of Promiscuity of Cold-Active Enzymes" Applied Sciences 10, no. 22: 8128. https://doi.org/10.3390/app10228128

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
