Direct Growth of Antimonene on C-Plane Sapphire by Molecular Beam Epitaxy

Featured Application

Two-dimensional (2D) featured antimonene has been directly grown on sapphire substrates by molecular beam epitaxy. The van der Waals epitaxy growth can be promoted through temperature control in the growth window. The competing mechanism between 2D and three-dimensional (3D) growths and the effects of adsorption and cracking of the source molecules are discussed.

Abstract

Monolayer antimony (antimonene) has been reported for its excellent properties, such as tuneable band gap, stability in the air, and high mobility. However, growing high quality, especially large-area antimonene, remains challenging. In this study, we report the direct growth of antimonene on c-plane sapphire substrate while using molecular beam epitaxy (MBE). We explore the effect of growth temperature on antimonene formation and present a growth phase diagram of antimony. The effect of antimony sources (Sb₂ or Sb₄) and a competing mechanism between the two-dimensional (2D) and three-dimensional (3D) growth processes and the effects of adsorption and cracking of the source molecules are also discussed. This work offers a new method for growing antimonene and it provides ideas for promoting van der Waals epitaxy.

1. Introduction

Nowadays, two-dimensional (2D) materials are popular in materials science research as a rising star after Geim put forward the concept of graphene [1]. People have put great amount of efforts to make large area graphene for practical applications. There have been some successes in growing large area and high-quality graphene films by ultrafast growth techniques [2,3]. However, because of limitations, such as the zero band gap, the broad application of graphene is still challenging. Transition-metal dichalcogenides [4], such as MoS₂, WS₂, MoSe₂, and WTe₂, have drawn people’s attention for their non-zero band gaps, but the electron mobility is not efficiently high. Novel 2D materials of group V elements, such as black phosphorus [5,6,7], arsenene [8,9], antimonene [8,9], and bismuthene [10], are gradually theoretically proposed and experimentally realized. Although black phosphorus has a tuneable band gap from 0.3 eV to 2.0 eV and a high carrier mobility, it is not stable in the air.

Haibo Zeng [8] et al. first predicted antimonene, as the monolayer format of antimony. It is a stable semiconductor with a tuneable band gap and high electrical mobility. Later more antimonene characteristics were predicted [11], such as the effect of interfacial distance [12], heterostructures [13], doping [14], thermal conductivity [15], optical properties [16,17], and so on. It has a wide indirect band gap and its band edge can be tuned by applying strain [8]. It can endure higher strain due to its van der Waals feature [18,19,20]. At the same time, antimonene growth has been attempted in a number of works [21,22,23] through molecular beam epitaxy (MBE) or other growth methods. Until now, beside β-antimonene, scientists have successfully grown honeycomb antimonene [24] and α-antimonene [25] structures. As for the substrate choice, GaAs(111) [26], Ge(111) [27], c-plane sapphire [28], Ag(111), and h-BN [24,29] have either been proposed or tried. However, experimental evidence is still insufficient in this area. For example, although antimonene has been made [30], the size is only in the nanometer level. Commonly available characterization methods, such as X-ray diffraction (XRD) and Raman spectra, cannot provide strong enough evidences. A distinctive Raman shift of antimonene is yet to be confirmed [25,28,31].

Based on this background, we decided to grow antimonene on c-plane sapphire substrates. There are several reasons that we choose c-plane sapphire. Firstly, it is a stable, high-melting-point insulator, which does not contribute to the electrical characterization of the antimonene. Besides, it has a hexagonal structure that is similar to that of antimonene, and it can offer a 13.4% biaxial strain, according to theoretical calculation [8]. More importantly, van der Waals epitaxy has more opportunities to be achieved because of the absence of dangling bonds on the surface. During the growth study, we found that growth temperature played an important role in modulating the surface energy, therefore, to affect several key processes,, such as adsorption, cracking of the source molecules, and the antimonene nucleation. Moreover, we have used high resolution XRD not only to obtain the antimonene quality, but also to reveal the competition between 2D antimonene and three-dimensional (3D) antimony growth processes. In addition, choices of Sb₂ or Sb₄ molecules could affect the electrical properties of the grown samples. These results not only provide a potential method to grow antimonene on more commonly available substrates, but also critical parameters that can promote the 2D growths.

2. Materials and Methods

Antimonene was grown on c-plane sapphire substrate in an ultrahigh vacuum (UHV) chamber by molecular beam epitaxy (Veeco, GENxplor). The background pressure was 10⁻¹⁰ torr, the antimony beam equivalent pressure (BEP) was maintained between 5.67 × 10⁻⁸ torr to 6.75 × 10⁻⁸ torr (measured by a Beam Flux Monitor, BFM). Before the growth, we performed a substrate surface preparation in a thermal annealing furnace that was filled with oxygen. Annealing was performed at 1200 °C for 8 h, which would yield a clear terraced surface. We use 0.5° offcut angle c-plane sapphire that has about 40 nm wide terraces after annealing. While using an antimony (Sb) cracker cell, the forms of antimony molecules (Sb₂ or Sb₄) can be controlled through changing the cracking zone temperature.

The electrical properties were measured on a Hall effect measurement system (Lakeshore, 8404) using van der Pauw method. The samples were cleaved to a square shape (1 cm × 1 cm) and four indium electrodes were made on the corners. The DC mode was used in this experiment.

For the XRD measurements, a Bruker D8 high resolution XRD system was used. The radiation wavelength is 0.15406 nm (Cu K_α1). Continuous scan mode was used and the step sizes are 0.05° for wide two-theta (20°–50°) scan and 0.006° for fine scans (23°–24.5°, 28–29.5°), and the integration time is 1 s. A HORIBA HR800 Raman measurement system was used and the 10 mW laser wavelength is 488nm with a spot size around 2 μm. The measurement range is 50 cm⁻¹–8000 cm⁻¹, and the spectral resolution is 1 cm⁻¹. Before each test, we used a silicon wafer to calibrate the Raman shift to exactly 521.7 cm⁻¹ to ensure the accuracy of the following test results.

3. Results

We have grown several groups of samples while using different growth conditions.

Table 1. Sample list with the growth parameters and properties. Sb₄ molecules were used in the growth of group A samples and Sb₂ molecules were used in the growth of group B samples. “\” means no data were obtained.

Sample No.	Growth Temperature (°C)	Growth Time (min)	Crystalline/Amorphous	Electrical Performance	Effective Thickness (nm)
A-1	150	10	amorphous	insulating	57.81 ± 4.38
B-1	150	10	crystal	conducting	≈15
A-2	200	30	crystal	conducting	32.01 ± 2.08
A-3	225	30	crystal	\	32.11 ± 9.40
A-4	250	30	crystal	\	10.48 ± 3.73
A-5	265	30	crystal	\	1.33 ± 0.37
A-6	270	30	\	\	0
A-7	280	30	\	\	0

summarizes the growth details. The Group A samples were grown, while the Sb cracking temperature was set at 700 °C so the evaporated beam was composed with mostly Sb₄ molecules. Group B samples were done with the Sb cracking temperature set at 1000 °C, so Sb₂ molecules were the primary source molecules in the evaporated beam (higher than 90%). The electrical properties are only measured on the continuous films in our study, because most samples tend to form island structures, so the electrical performance (insulating or conducting) is hard to obtain. Similarly, it is difficult to have good XRD signals for the samples that are either too thin or no growth was done. In the following analysis, we have only used the results that are reliable and reproducible.

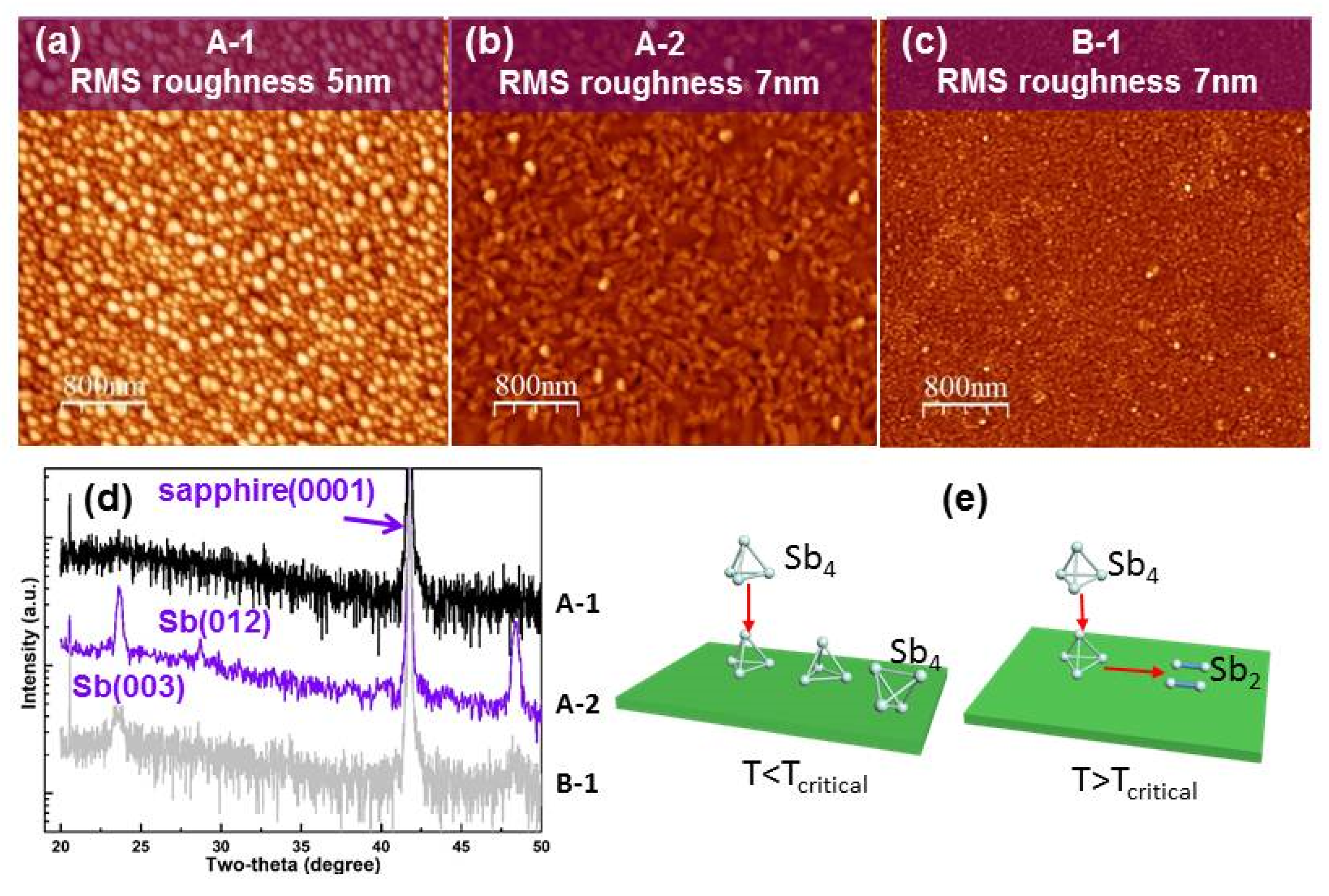

At the beginning, we tried to understand whether there is a difference between Sb₂ and Sb₄ in the growth. Figure 1a–c show the surface morphology. The antimony film of B-1 is a good conductor (more accurately, semimetal) according to the Hall measurement results (

Table 2. Electrical properties of sample A-1, A-2, and B-1 resistances are measured from two orthogonal directions of a square-shaped sample.

Sample No.	Carrier Type	Rsheet (Ω/□)	Thickness (nm)	Carrier Concentration (1/cm3)	μ (cm²/V·s)	Resistances (Ω) R∥/R⊥
A-1	\	\	57.81 ± 4.38	\	\	Insulating
A-2	p	75.04	32.01 ± 2.08	2.23 × 1020	74.62	21.85/12.23
B-1	p	147.1	≈15	4.39 × 1020	64.44	39.81/26.08

), but for A-1, it is an insulator. Another sample using Sb₄ molecules (A-2) were grown under 200 °C, and the electrical data can be seen in Table 2. It is obvious that sample A-2 is a semimetal with a carrier concentration in the 10²⁰/cm³ level. The higher growth temperature for A-2 sample seems to introduce Sb₂ molecules. Hence, we believe that there is a critical temperature (T_critical) that is between 150 °C and 200 °C, when T_growth < T_critical, samples using Sb₄ molecules are insulating and, on the other hand, conductive when T_growth > T_critical.

The growth by Sb₄ or Sb₂ molecules might have different kinetic mechanisms, so the difference in electrical properties indicates the transformation of Sb₄ to Sb₂ on the sapphire surface above the critical temperature might introduce a different arrangement of the Sb₂ molecules for the following nucleation. Most Sb₄ molecules exist in a tetrahedral structure [32,33]. They are flattened into a planar structure when arriving the substrate surface. After that, they gradually change to a rectangle or distorted rectangle structure and, finally, they split into two Sb₂ molecules, i.e., Sb₄ ⇌ 2Sb₂ (Figure 1e). When the growth temperature is below T_critical, the surface energy cannot break the chemical bond of Sb₄, so they will deposit as the tetrahedral form. Hence, it tends to grow more randomly, which can be proven by the XRD spectrum (Figure 1d). For A-1, it is amorphous, but, for B-1, it has a clear Sb (003) peak, which indicates the crystal structure. As for A-2, it has a stronger Sb (003) peak and other Sb peaks, which indicates it is polycrystalline feature.

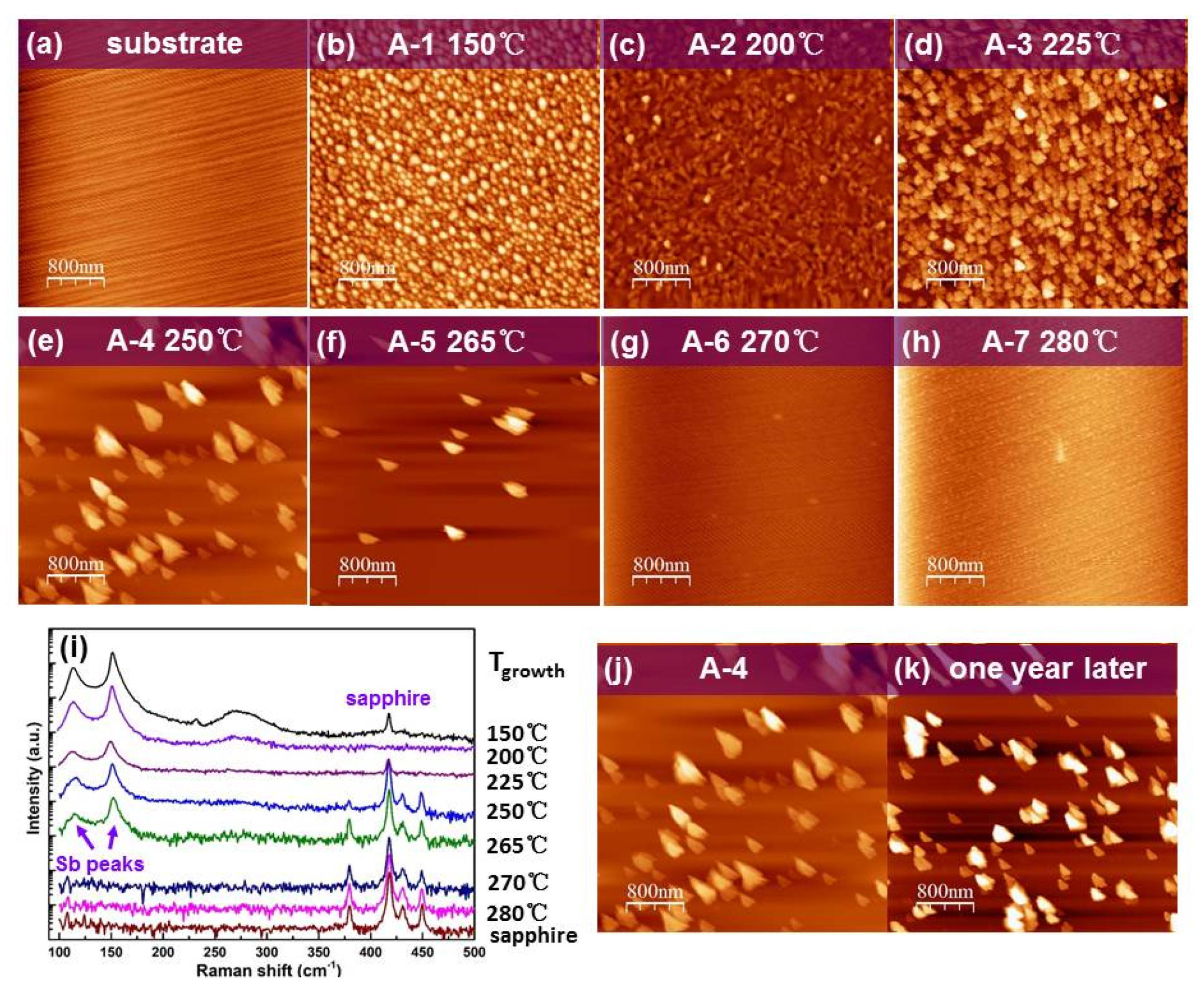

From Figure 1d, we can see when we use Sb₄ molecules, the Sb (012) peak can be observed, and, from literature, we know that the Sb (012) peak may be a feature of antimonene [28,31]. Accordingly, we chose Sb₄ molecules to grow more antimonene samples. We tried to grow several samples with different growth temperatures, as shown in Figure 2b–h. Figure 2a is the sapphire substrate that is used in this study. Before each growth, we undertook pretreatment on the c-plane sapphire substrate, so that terraces were formed on the surface. After annealing, Sb₄ molecules were used to grow antimonene at different growth temperatures in the MBE chamber. Table 2 shows the details. From A-1 and A-2, we can see that the antimony covers the entire sapphire surface. However, when the growth temperature rises, the surface energy is getting higher, so the grown antimony will change to a triangular prism structure and cannot cover the entire surface. When the growth temperature rises to 265 °C, fewer antimony structure can be seen, but when the growth temperature rises to 270 °C, it is hard to find the grown antimony by atomic force microscope(AFM) scan. Hence, we are convinced that 270 °C is too high for antimony molecules to stick and nucleate. A similar trend is observed by Raman spectroscopy measurements. Raman data (Figure 2i) show that Raman peaks can be seen at 110 cm⁻¹ and 150 cm⁻¹, which indicate the antimony structure [28]. Besides, under 265 °C, we can still see antimony Raman peaks and triangle column structure, but under 270 °C, it shows no antimony. Accordingly, the highest nucleation temperature on an annealed sapphire substrate in our study is between 265 °C and 270 °C, which is similar to the value that was reported by Dura et al. [34,35].

In addition, we studied the stability of the grown samples. As we can see in Figure 2j,k, the AFM images on the same sample show that similar surface morphology is observed one year later, which means no apparent change occurred. Hence, we believe the antimonene samples are stable in the air for at least one year [18].

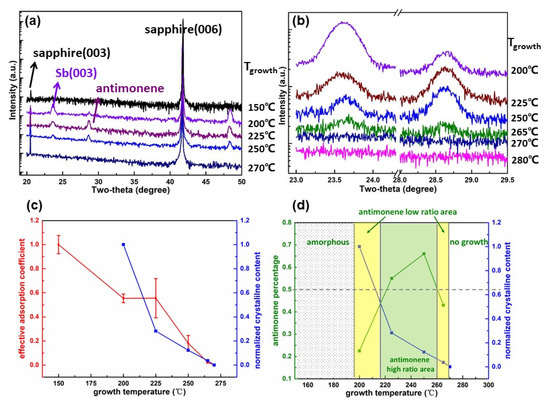

Figure 3a shows the XRD data that were measured from group A samples. It can be seen that, when the growth temperature is between 200 °C–250 °C, the grown antimony has preferentially crystalized signals such as Sb (003) peak at 23.7°and Sb (012) peak at 28.7°. Figure 3b shows the zoomed-in diffractogram in that region. We can calculate the integrated area of each peak and easily obtain the ratio of Sb (012)/Sb (003) as a function of the growth temperature. Since Sb (012) peak is the indicator of antimonene formation, this ratio can be used to find the preferred growth condition for antimonene. We define a term to represent the total crystalline content, which is calculated as the sum of the integrated areas of antimony (003) and (012) peaks, based on Figure 3b. As shown in Figure 3c,d (the blue curves), when growth temperature increases, the total crystalline content on the sapphire surface decreases in the growth window until zero. It is worth mentioning that all of the XRD scans are symmetric scans on the sapphire (0001) so only the crystal planes that are parallel to the surface can be measured. This means the total crystalline content is underestimated and the detected signals indicate the coherence of the crystals that are likely to have been epitaxially grown on the substrate. We also introduce an effective adsorption coefficient to describe the adsorption process of Sb₄ molecules on c-plane sapphire, as shown in Figure 3c (the red curve). The effective adsorption coefficient is calculated while using the ratio of the effective thickness at all growth temperatures (Table 1) and the effective thickness of 150 °C. We assume that, under 150 °C, the effective adsorption coefficient is 1, because of the low vapor pressure and high sticking coefficient of Sb at this temperature [36]. Calculation details can be found in the Supplementary Materials.

We tried to fit the Sb (003) peak and Sb (012) peak using a multi-order Gauss function to further determine the antimonene percentage more quantitatively in the grown samples. Subsequently, we calculated the integrated area of each peak and got the ratio of Sb (012)/[Sb (003) + Sb (012)] to estimate the antimonene percentage in the crystalline contents. Based on this calculation, we draw the phase diagram of antimonene formation and crystalline content as a function of the growth temperature on c-plane sapphire, as shown in Figure 3d. We can see that, when the growth temperature is between 220 °C–260 °C, there is a clear trend showing the antimonene content increases, which exceeds 50 percent. However, during the same temperature region, the total crystalline content decreases, which indicates that the reduction of effective adsorption limits the yield of crystal growth. This competing mechanism makes the preferential growth of antimonene very difficult. When the growth temperature is either between 200 °C–220 °C or 260 °C–270 °C, the antimonene content becomes lower than 50 percent. When it is below 200 °C, the deposited antimony on sapphire is amorphous and, when it is higher than 270 °C, no growth is observed, which is mainly due to the low sticking coefficient. This phase diagram provides a competing mechanism during the antimony deposition on sapphire. Unfortunately, the growth window is quite small and it cannot yield pure antimonene. We think a possible growth process is that Sb₄ molecules need to be adsorbed first and then cracked to Sb₂ on the surface since antimonene is a 2D growth mechanism and antimony is a 3D growth mechanism. Subsequently, the Sb₂ molecules need enough surface energy to rearrange and grow in 2D. A mixture of 3D and 2D formats of antimony growth occurs since both Sb₄ and Sb₂ molecules are present on the surface and the formation energies of 3D antimony and 2D antimonene are close. Within the growth window, 2D growth can be promoted by a higher surface temperature, which makes us believe that enough surface energy is the key to enhance van der Waals epitaxy over a typical 3D growth.

One of the characters of antimonene is that it can be grown on a substrate by van der Waals epitaxy, but the energy of van der Waals force is at least one order of magnitude smaller than that of a chemical bond, which makes antimonene growth more challenging. In addition to surface energy, which can be tuned by controlling growth temperature, there are some other methods that may improve the probability of van der Waals epitaxy. For example, we can try to enlarge the distance between antimonene and substrate by depositing larger radius atoms (such as bismuth) as surfactant. In addition, the substrate surface can be passivated by using hydrogen atoms. Graphene or h-BN also can be used to be inserted between the grown antimonene and the substrate, since they are more compatible with materials through van der Waals force, which was experimentally proven. Besides, methods such as how to regulate the formation energy of antimonene and antimony to choose the optimized growth conditions are also useful and prospective, but they need further exploration.

4. Conclusions

In conclusion, we have shown that large-area antimonene can be grown on c-plane sapphire and it can be characterized by XRD and Raman spectra. The growth window is small in terms of growth temperature, which is 200 °C–265 °C. Below 200 °C, the deposited antimony is amorphous andthere is no growth higher than 270 °C. We further refined the growth window for antimonene, which is 220 °C–260 °C and discussed the competing mechanism between 2D and 3D growths. Besides, we discussed the nucleation temperature of antimony growth and the critical temperature to explain the electrical characteristics. This work provides a potential method to grow large area antimonene on sapphire, which is important for further characterizations of thermal, optical, and electrical properties.
