Article

Graphene Quantum Dots Doped PVDF(TBT)/PVP(TBT) Fiber Film with Enhanced Photocatalytic Performance

by
Fubao Zhang
1,
Chen Yang
1,
Xiao-Xiong Wang
1,
Ru Li
1,
Zhong Wan
2,
Xianming Wang
2,
Yong Wan
1,*,
Yun-Ze Long
1,* and
Zhongyu Cai
3,4,5,6,*
1
College of Physics Science, Qingdao University, Qingdao 266071, China
2
State Key Laboratory of Marine Coatings, Marine Chemical Research Institute Co., Ltd., Qingdao 266071, China
3
Research Institute for Frontier Science, Beihang University, Beijing 100191, China
4
Beijing Advanced Innovation Center for Biomedical Engineering, Beihang University, Beijing 100191, China
5
School of Space and Environment, Beihang University, Beijing 100191, China
6
Department of Chemistry, University of Pittsburgh, Pittsburgh, PA 15260, USA
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2020, 10(2), 596; https://doi.org/10.3390/app10020596
Submission received: 21 November 2019 / Revised: 8 January 2020 / Accepted: 9 January 2020 / Published: 14 January 2020
(This article belongs to the Special Issue Advances in Semiconductor Photocatalysis)
Browse Figures
Versions Notes

Abstract

:
We report the fabrication of polyvinylidene fluoride (tetrabutyl titanate)/polyvinyl pyrrolidone ((tetrabutyl titanate))-graphene quantum dots [PVDF(TBT)/PVP(TBT)-GQDs] film photocatalyst with enhanced photocatalytic performance. The polyvinylidene fluoride (tetrabutyl titanate)/polyvinyl pyrrolidone ((tetrabutyl titanate)) [PVDF(TBT)/PVP(TBT)] film was first prepared with a dual-electrospinning method and then followed by attaching graphene quantum dots (GQDs) to the surface of the composite film through a hydrothermal method. Later, part of the PVP in the composite film was dissolved by a hydrothermal method. As a result, a PVDF(TBT)/PVP(TBT)-GQDs film photocatalyst with a larger specific surface area was achieved. The photocatalytic degradation behavior of the PVDF(TBT)/PVP(TBT)-GQDs film photocatalyst was examined by using Rhodamine B as the target contaminant. The PVDF(TBT)/PVP(TBT)-GQDs photocatalyst showed a higher photocatalytic efficiency than PVDF(TBT)-H2O, PVDF(TBT)/PVP(TBT)-H2O, and PVDF(TBT)-GQDs, respectively. The enhanced photocatalytic efficiency can be attributed to the broader optical response range of the PVDF(TBT)/PVP(TBT)-GQDs photocatalyst, which makes it useful as an effective photocatalyst under white light irradiation.

1. Introduction

In 1972, Fujishima and Honda first discovered that titanium dioxide (TiO2) had photocatalytic properties [1]. TiO2 photocatalysts have been extensively investigated in the fields of water splitting to produce hydrogen [2,3,4,5,6], organic dye decomposition [7,8,9], sewage purification [10], and air filtration [11] due to its non-toxicity, low cost, high activity, and high efficiency [2,3,4,5,12]. Furthermore, TiO2 has a relatively broad bandgap, which is about 3.2 eV. This causes the pure TiO2 photocatalyst to only absorb light within the ultraviolet region. However, ultraviolet light only accounts for 5% of the sunlight. The low-usage of sunlight and the low separation rate of photoexcited electron-hole pairs significantly lower its photocatalytic efficiency and hinder the application of TiO2 photocatalysts in practice [13,14,15,16]. In addition to TiO2, there are many other types of common photocatalysts including ZnO, WO3, Bi2O3, Fe2O3, CdS, CuS, PbS, ZnS, SnO2, and SrTiO3 [12]. However, some of these materials are expensive, and most of these materials are susceptible to chemical or photochemical corrosion, which dramatically limits their use for practical photocatalysis.
To overcome these shortcomings of TiO2 photocatalysts, scientists have made a variety of achievements on TiO2 photocatalysts to improve their catalytic performance. These methods include increasing its specific surface area [17], semiconductor composite, noble metal deposition [18], and metal/nonmetal ion doping [19,20,21,22]. However, some precursors of heterojunction semiconductors such as transition metal ions may cause environmental pollution. Recently, carbon quantum dots (CQDs) as green photocatalysts or photocatalyst promoters have been widely investigated [23,24,25]. CQDs have strong absorption in a broad spectral range and have excellent photobleaching stability, low cytotoxicity, and up-conversion luminescence properties [26,27,28,29]. Graphene quantum dots (GQDs) have higher crystallinity than conventional CQDs. The high degree of crystallinity allows GQDs to show excellent electron transport ability, thereby extending the carrier lifetime [30,31,32,33]. However, compared to solar cells [34,35,36], biosensing [37,38], and bioimaging [39,40,41], there are fewer studies on GQDs as photocatalysts, which is getting more and more attention from researchers.
Electrospinning is an excellent technique for preparing polymeric materials, which can be used to produce fiber films of tens to hundreds of nanometers in diameter. The fiber film fabricated with electrospinning generally has a large specific surface area and can be used to immobilize a large amount of the photocatalyst to improve photocatalytic performance [42]. Among various polymers, polyvinylidene fluoride (PVDF) [43,44,45] is one of the most commonly used photocatalyst supports due to its good mechanical strength, chemical, and thermal stabilities [46,47]. In addition, PVDF is also readily available and relatively inexpensive, which facilitates its wide use in various applications [45,48]. As a synthetic water-soluble polymer compound, polyvinyl pyrrolidone (PVP) [49,50] shows the general properties of water-soluble polymer compounds and excellent biocompatibility, and does not irritate skin, mucous membranes, eyes, etc.
In this study, we mixed PVDF and water-soluble PVP with tetrabutyl titanate (TBT) and then electrospun it into a nanofiber film, polyvinylidene fluoride (tetrabutyl titanate)/polyvinyl pyrrolidone ((tetrabutyl titanate)) [PVDF(TBT)/PVP(TBT)]. PVP in the hybrid nanofiber film can be dissolved by deionized water to form pores [51,52]. Then, GQDs are deposited onto the PVDF(TBT)/PVP(TBT) film through a hydrothermal reaction of the film with anhydrous glucose. The resulting polyvinylidene fluoride (tetrabutyl titanate)/polyvinyl pyrrolidone ((tetrabutyl titanate))-graphene quantum dots [PVDF(TBT)/PVP(TBT)-GQDs] film photocatalyst was shown to have higher photodegradation performance to Rhodamine B compared to other similar photocatalysts.

2. Experimental Section

2.1. Materials

Acetone and polyvinylidene fluoride (PVDF, Mw ≈ 550,000) were purchased from Sanaifu New Material Technology Co., Ltd. (Shanghai, China). Polyvinyl pyrrolidone (PVP, Mw ≈ 1,300,000) and Rhodamine B (RhB) were purchased from Aladdin Chemical Co., Ltd. (Shanghai, China). Ethanol (99.7%), N,N-dimethylformamide (DMF), tetrabutyl titanate (TBT), sulfuric acid (mass fraction of 95% to 98%), and anhydrous glucose were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Deionized water was manufactured using an UPK-I-10T series Ultrapure water machine (Sichuan, China). All of the chemical reagents were used as received without further purification.

2.2. Preparation of PVDF(TBT)/PVP(TBT) Nanofibrous Films

4.0 g of polyvinylidene fluoride (PVDF) was weighed and poured into a beaker, and 10 g of N,N-dimethylformamide (DMF), 10 g of acetone, and 2 mL of tetrabutyl titanate (TBT) were sequentially added to the beaker. The beaker was sealed and placed on a magnetic stirrer, and stirred in a water bath at a temperature of 40 °C for 1 h to obtain a homogeneous PVDF(TBT) solution. Two grams of polyvinyl pyrrolidone (PVP) was weighed into a beaker, and 13.38 g of absolute ethyl alcohol and 2 mL of TBT was sequentially added to the beaker. The beaker was sealed and placed on a magnetic stirrer for 2 h to obtain a homogeneous PVP(TBT) solution. In the preparation of the PVDF(TBT)/PVP(TBT) fiber film, as shown in Scheme 1A, the PVDF(TBT) solution was first electrospun uniformly on the surface of the roller. After 1 h, the PVDF(TBT) and PVP(TBT) solutions were uniformly electrospun on the roller as shown in Scheme 1B. The parameters of the PVDF(TBT) and PVP(TBT) solutions during electrospinning to prepare the films are as follows: voltages of 15 kV and 18 kV, advancing speed of 25 μL/min and 18 μL/min, respectively, and the distance between the syringe and the roller was 15 cm. After electrospinning for 12 h, the PVDF(TBT)/PVP(TBT) film was removed from the roller. The peeled film was placed in a drying oven and dried at 60 °C for 6 h. After lowering the temperature in the drying oven to room temperature, the PVDF(TBT)/PVP(TBT) film was taken out and cut into 2 cm × 2 cm.

2.3. Preparation of Graphene Quantum Dots

CQDs refer to carbon nanomaterials with a particle size of 1 nm to 100 nm. CQDs look like small dots and are generally spherical. GQDs not only possess the superior properties of graphene, but also have excellent performance of quantum dots [34]. We used a hydrothermal method to prepare the GQDs [53]. First, 1.5 g of anhydrous glucose and 10 mL of deionized water was added to a small beaker and stirred with a magnetic stirrer for 10 min. Thereafter, 12 mL of concentrated sulfuric acid was added dropwise to a small beaker and stirring was continued for 15 min. The solution in a small beaker was poured into the stainless-steel autoclave and sealed. The stainless-steel autoclave was placed in a drying oven and maintained at 200 °C for 3 h. After 3 h, the drying oven was turned off and the drying oven was naturally cooled down to room temperature. The stainless-steel autoclave was removed and filtered to obtain a quantum dot solution.

2.4. Fabrication of PVDF(TBT)/PVP(TBT)-GQDs Composite Film

A total of 1.5 g of anhydrous glucose was placed in a small beaker, then 10 mL of deionized water was added to the small beaker and stirred for 15 min. After the solution became clear, 12 mL of concentrated sulfuric acid was dropped into the small beaker and stirring was continued for 15 min. The solution in the beaker was naturally cooled down to room temperature and then poured into the stainless-steel autoclave. Next, a 2 cm × 2 cm section of PVDF(TBT)/PVP(TBT) film was put in the stainless-steel autoclave. The sealed stainless-steel autoclave was placed in a constant temperature drying oven, and the temperature of the drying oven was raised to 200 °C and held for 3 h. After 3 h, the drying oven was closed and the temperature in the drying oven allowed to naturally cool down to room temperature. The stainless-steel autoclave was opened and the PVDF(TBT)/PVP(TBT) film was taken out. The resultant PVDF(TBT)/PVP(TBT) film was rinsed to neutral with deionized water and allowed to air dry. The residue in the stainless-steel autoclave was filtered to obtain a solution of quantum dots.
The synthesis process of the PVDF(TBT)/PVP(TBT)-GQDs composite is shown in Scheme 2. We first used two electrospinning machines to produce the PVDF(TBT)/PVP(TBT) film (Scheme 1B). The prepared PVDF(TBT)/PVP(TBT) film was placed in a drying oven and dried at 60 °C for 6 h. The dried film was cut into squares of 2 cm × 2 cm. The stirred glucose solution was added to the reaction kettle, and a 2 cm × 2 cm film was also placed in the stainless-steel autoclave. The stainless-steel autoclave was sealed, placed in a drying oven, and dried at 200 °C for 3 h. The film was removed from the stainless-steel autoclave and rinsed with deionized water until neutral. The rinsed film was naturally dried to obtain PVDF(TBT)/PVP(TBT)-GQDs film.

2.5. Characterization

The microstructure of the resulting fiber film was measured with a scanning electron microscope (SEM, JSM-6390, JEOL, Tokyo, Japan). The morphology and size of the GQDs were observed using a transmission electron microscopy (TEM, H-7650, Hitachi, Tokyo, Japan). The absorbance of the reaction solution can be characterized by an ultraviolet-visible spectrophotometer (UV–Vis 3100, Mapada, Shanghai, China). Among them, the scanning wavelength range was 200 nm to 800 nm, and the resolution was 1 nm. The absorption spectrum of the prepared photocatalyst was analyzed using a T9 type UV–Visible spectrophotometer (DRS, T9, Persee, Beijing, China) with a scanning wavelength range of 200 nm to 800 nm. An X-ray diffractometer (XRD, Rigaku Smart Lab (3 kW), Hitachi, Japan.) was used to confirm the substance elements in the sample. The Brunauer–Emmett–Teller (BET, Autosorb iQ3, Quantachrome, Shanghai, China) measures the specific surface area of a photocatalyst by N2 adsorption–desorption. The fluorescence characteristics of GQDs were measured using a fluorescence spectrometer (PL, F-4600, Hitachi, Tokyo, Japan). X-ray photoelectron spectroscopy (XPS, EscaLab 250Xi, Thermo Fisher Scientific, Waltham, MA, USA) was measured at a 01 emission angle using a monochromatic Al Ka source (Ephoton = 1486.6 eV), 10 mA filament current, and 14.7 keV filament voltage source energy calibration.

2.6. Photocatalytic Activity

A PVDF(TBT)/PVP(TBT)-GQDs photocatalyst was placed on a photochemical reactor for the Rhodamine B (RhB) degradation experiments. In specific, RhB was selected as a model sample in the photocatalytic experiment. The various catalysts prepared were placed in an 80 mL quartz tube containing 40 mL of a 15 mg/L RhB solution. The quartz tubes were numbered and put into the photochemical reactor (XPA-7(G8) multi-tube stirring photochemical reactor, Xujiang electromechanical company, Nanjing, China). To improve the accuracy of the test, a blank test without a photocatalyst was used as a reference. The photochemical reactor was equipped with an 800 W xenon lamp as a light source. In the experiment, the photocatalyst and RhB solution in the quartz cuvette were first stirred in the dark for 30 min to achieve the adsorption–desorption equilibrium. Then, 4 mL of the reaction solution was taken out of the quartz cuvette every 30 min. The reaction solution was centrifuged to remove the photocatalyst. The absorbance of the reaction solution was measured with a UV–Vis spectrophotometer. The measured solution in the quartz cuvette was put back into the photochemical reactor. After 30 min, the photochemical reactor was closed and the reaction solution was taken out for measurement. The above operation was repeated six times.

3. Results and Discussion

3.1. Synthesis of GQDs

Figure 1 shows the photoluminescence spectrum of GQDs in the wavelength range of 375 nm to 600 nm. As shown in Figure 1, the fluorescence peak position of the sample was about 430 nm (yellow dotted line in the figure), and as the excitation wavelength increased, the emission intensity first increased and then decreased. It can be seen that the emission intensity was the strongest under the excitation of light with a wavelength of 360 nm, and the emission intensity under excitation of light with a wavelength of 310 nm was weak. GQDs emit bright blue fluorescence when exposed to 365 nm ultraviolet light.
From Figure 2A, we can see the luminescence image of the GQDs under UV light at 365 nm. Additionally, from the TEM image of GQDs (Figure 2B,C), the statistical analysis of the TEM images gave rise to a particle size distribution of the GQDs (as shown in Figure 2D). From Figure 2D, we can observe that the size distribution of the GQDs ranged from 1.8 to 3.0 nm.

3.2. Synthesis of PVDF(TBT)/PVP(TBT)-GQDs

We hydrothermally processed the PVDF(TBT)/PVP(TBT) film to form the PVDF(TBT)/PVP(TBT)-GQDs photocatalyst. The surface morphology of the prepared photocatalyst was observed by SEM. Figure 3A shows an SEM image of the pure PVDF(TBT) fiber created by electrospinning. As can be seen, the PVDF(TBT) fiber diameter was a few micrometers and the fiber surface was relatively smooth. Furthermore, the orientation of the PVDF(TBT) fibers was random and the fibers were interwoven to form a non-woven fiber film. Figure 3B,C are SEM images of the PVDF(TBT)/PVP(TBT) photocatalyst at different magnifications. From Figure 3B, we can clearly see that some fibers were intertwined. The higher magnification SEM image demonstrates the entanglement between the fibers (Figure 3C). As shown in Figure 3A, there was no entanglement when electrospinning the PVDF(TBT) film. Therefore, when performing electrospinning to produce the PVDF(TBT)/PVP(TBT) nanofiber (Scheme 1B), the two intertwined fibers produced must be PVDF(TBT) and PVP(TBT) fibers. Therefore, in the PVDF(TBT) and PVDF(TBT)/PVP(TBT) films, dissolving PVP fibers creates a gap at the original positions of PVP, thereby increasing the specific surface area of the film. Among them, PVDF(TBT)-H2O and PVDF(TBT)/PVP(TBT)-H2O achieved the effect of dissolving PVP by immersing the film in deionized water. PVDF(TBT)-GQDs and PVDF(TBT)/PVP(TBT)-GQDs dissolve PVP during the hydrothermal preparation of quantum dots. Comparing Figure 3D and Figure 3A, we found that there were some small particles on the surface of the PVDF(TBT) fiber in Figure 3D. Since the PVDF(TBT)-GQDs films were hydrothermally prepared based on PVDF(TBT) films, it can be concluded that the small particles in Figure 3D are GQDs. Figure 3E,F are SEM images of the PVDF(TBT)/PVP(TBT)-H2O and PVDF(TBT)/PVP(TBT)-GQDs, respectively. PVDF(TBT)/PVP(TBT)-H2O was prepared by immersing the PVDF(TBT)/PVP(TBT) film in deionized water for 12 h and dried in air. As can be seen from Figure 3E, the PVP fibers in the PVDF(TBT)/PVP(TBT)-H2O film dissolved because the PVDF(TBT)/PVP(TBT)-H2O film had been soaked in deionized water. Dissolved PVP can increase the specific surface area of the fiber film and thereby improve its photocatalytic performance. Similarly, as shown in Figure 3F, PVP fibers in PVDF(TBT)/PVP(TBT)-GQDs were also dissolved. In the hydrothermal preparation of GQDs, PVP in the PVDF(TBT)/PVP(TBT)-GQDs fiber film is in contact with water, resulting in partial PVP dissolution.
Figure 4 shows the x-ray diffraction (XRD) pattern of the PVDF(TBT)/PVP(TBT)-GQDs photocatalyst. The XRD pattern shows that the peaks of the PVDF(TBT)/PVP(TBT)-GQDs photocatalyst we prepared are in agreement with the TiO2 standard cards (PDF#21-1272 is a standard card of TiO2 [54]. The characteristic diffraction peaks at 25.198, 36.867, 37.756, 38.467, 48.057, 53.857, 55.047, 62.448, 62.626, 68.782, 70.314, 74.815, 75.061, and 76.005 correspond to the (101), (103), (004), (112), (200), (105), (211), (213), (204), (116), (220), (107), (215), and (301) planes of TiO2, indicating the existence of anatase TiO2. Figure 4 shows that the TiO2 was successfully attached to the PVDF(TBT)/PVP(TBT)-GQDs photocatalysts, which can significantly improve the photocatalytic performance of the PVDF(TBT)/PVP(TBT)-GQDs photocatalyst.
The photocatalyst was also examined with x-ray photoelectron spectroscopy (XPS). Among them, in the XPS measurement, we used C1s (284.8 eV) for energy calibration. Figure 5A is a full-scan XPS spectrum of the PVDF(TBT)/PVP(TBT)-GQDs photocatalyst. As shown in Figure 5A, the peak at 284.7 eV can be assigned to C1s while the peak at 530.7 eV can be assigned to O1s [55]. In addition, there was a weak N1s peak at 397.7 eV and a weak F1s peak at 689.7 eV. This indicates that the prepared GQDs contained not only C and O elements, but also a small amount of N elements, which is in agreement with Zhu et.al [56]. Figure 5B is a C1s high-resolution XPS spectrum of the PVDF(TBT)/PVP(TBT)-GQDs photocatalyst [53,57,58,59,60]. Multimodal fitting of the XPS spectrum can obtain three peaks, located at 284.7 eV (red), 285.7 eV (pink), and 288.1 eV (blue), respectively. These three peak positions correspond to C=C (red), C–C/C–H (pink), and C–O (blue). Among them, the ratio of the C=C bond was the highest among all functional groups, indicating that the C=C bond is the most important functional group among the resultant GQDs. The low C–O content indicates that the prepared GQDs have a low oxygen content.
To further study the functional groups contained in the PVDF(TBT)/PVP(TBT)-GQDs photocatalysts, the infrared spectra of photocatalysts was also performed. Figure 6 shows the infrared spectrum of the PVDF(TBT)/PVP(TBT)-GQDs photocatalyst. As can be seen in Figure 6, the vibration peaks of C=C, C–H, C–C, and C–O of the GQDs corresponded to 1617.41 cm−1, 1401.09 cm−1, 1180.41 cm−1, and 1068.91 cm−1, respectively. As can be seen from Figure 5 and Figure 6, the functional groups measured with the infrared spectrum matched well with the XPS spectra.

3.3. Photocatalytic Activity

An 800 W xenon lamp was used to simulate the solar radiation source. The photocatalytic performance of the prepared photocatalyst was examined by decomposition of the RhB solution. In this study, PVDF(TBT)-H2O, PVDF(TBT)-GQDs, PVDF(TBT)/PVP(TBT)-H2O, and PVDF(TBT)/PVP(TBT)-GQDs films with a size of 2 cm × 2 cm were placed in a quartz tube containing 50 mL of RhB solution. The initial concentration of RhB solution was 15 mg/L. Meanwhile, a blank control group was also set. The results of the RhB degradation experiments showed that the degradation rates of the PVDF(TBT)-H2O, PVDF(TBT)/PVP(TBT)-H2O, PVDF(TBT)-GQDs, and PVDF(TBT)/PVP(TBT)-GQDs photocatalysts were 9.66%, 12.08%, 47.71%, and 97.16% after 210 min. The reaction rate of the PVDF(TBT)-H2O, PVDF(TBT)/PVP(TBT)-H2O, PVDF(TBT)-GQDs, and PVDF(TBT)/PVP(TBT)-GQDs photocatalysts to the RhB solution was 0.0069 mg/L·min, 0.0086 mg/L·min, 0.0340 mg/L·min and 0.0649 mg/L·min, respectively. Among them, PVDF(TBT)/PVP(TBT)-GQDs (0.0649 mg/L·min) and PVDF(TBT)-GQDs (0.0340 mg/L·min) showed an 8 and 3.9 times higher photocatalytic efficiency than the other photocatalysts (PVDF(TBT)-H2O, PVDF(TBT)/PVP(TBT)-H2O), respectively. In particular, the PVDF(TBT)/PVP(TBT)-GQDs photocatalyst only took 210 min to degrade 97.16% of the RhB solution, as shown in Figure 7.
Figure 8 shows the UV–Visible absorption spectra of the photocatalysts PVDF(TBT)-H2O, PVDF(TBT)-GQDs, PVDF(TBT)/PVP(TBT)-H2O, and PVDF(TBT)/PVP(TBT)-GQDs. The absorption edges of PVDF(TBT)-H2O and PVDF(TBT)/PVP(TBT)-H2O were around ~370 nm, which are the absorption of TiO2. After graphene doping, the absorption edges were extended to over 800 nm, which fell into the near infrared range. The absorption results are in good agreement with the photocatalytic performance. Both the PVDF(TBT)-GQDs and PVDF(TBT)/PVP(TBT)-GQDs photocatalyst maintained a high light absorption efficiency underlying irradiation from 200 nm to 800 nm. In particular, for PVDF(TBT)/PVP(TBT)-GQDs, the lowest absorption rate of the entire process reached 60%. In contrast, the two photocatalysts, PVDF(TBT)-H2O and PVDF(TBT)/PVP(TBT)-H2O, have specific light absorption in the 200–350 nm wavelength range, but the light absorption efficiency is negligible in the 350–800 nm wavelength range. Therefore, PVDF(TBT)-GQDs and PVDF(TBT)/PVP(TBT)-GQDs photocatalysts with attached GQDs can maintain high light absorption efficiency under sunlight. This is one of the reasons why the PVDF(TBT)-GQDs and PVDF(TBT)/PVP(TBT)-GQDs photocatalyst showed higher degradation rates.
The Brunauer–Emmett–Teller (BET) measurement results showed that the specific surface areas of the PVDF(TBT)-H2O, PVDF(TBT)/PVP(TBT)-H2O, PVDF(TBT)-GQDs, and PVDF(TBT)/PVP(TBT)-GQDs photocatalyst were 4.346 m/g, 6.429 m/g, 12.941 m/g, and 16.037 m/g, respectively. Obviously, the PVDF(TBT)/PVP(TBT) film showed a larger specific surface area than that of the PVDF(TBT) film. In addition, the adhesion of GQDs can effectively increase the specific surface area of the photocatalyst. Increasing the specific surface area increases the interaction between the photocatalyst and the RhB solution, improving the photocatalytic efficiency of the photocatalyst. Moreover, the introduction of GQDs can effectively extend the lifetime of photogenerated carriers, thus improving the photocatalytic efficiency of the photocatalyst [12]. On one hand, the dissolution of PVP during the hydrothermal reaction, leads to an increase in the specific surface area of the PVDF(TBT)/PVP(TBT)-GQDs photocatalyst. On the other hand, the hydrothermal method can effectively attach GQDs onto the PVDF(TBT)/PVP(TBT) film, which further improves the photocatalytic efficiency of PVDF(TBT)/PVP(TBT)-GQDs. Among other photocatalysts (PVDF(TBT)-GQDs, PVDF(TBT)/PVP(TBT)-H2O, and PVDF(TBT)-H2O), the PVDF(TBT)-GQDs photocatalysts with attached GQDs showed higher photocatalytic efficiency. For the PVDF(TBT)/PVP(TBT)-H2O and PVDF(TBT)-H2O photocatalysts, their photocatalytic efficiency was lower under the xenon lamp. It should be noted that the PVDF(TBT)/PVP(TBT)-GQDs photocatalyst was broken to pieces after the photocatalytic experiment, which does not facilitate the recovery and reuse of the photocatalyst, although it shows good photocatalytic efficiency.

4. Conclusions

In summary, we successfully synthesized PVDF(TBT)/PVP(TBT)-GQDs, PVDF(TBT)/PVP(TBT)-H2O, PVDF(TBT)-GQDs, and PVDF(TBT)-H2O photocatalysts by combining both electrospinning and hydrothermal methods. First, a PVDF(TBT)/PVP(TBT) film was prepared via electrospinning, and then PVP was dissolved to prepare a porous photocatalyst with a large specific surface area. Meanwhile, the GQDs were attached to the photocatalyst. The PVDF(TBT)/PVP(TBT)-GQDs photocatalyst showed the best photocatalytic efficiency. The PVDF(TBT)/PVP(TBT)-GQDs photocatalyst can degrade a 97.16% RhB solution within 210 min, under 800 W xenon lamp irradiation. Our laboratory is currently conducting research to increase the strength of PVDF(TBT)/PVP(TBT)-GQDs photocatalysts in order to improve the recycling performance of the photocatalysts.

Author Contributions

Y.W., Y.-Z.L. and Z.C. conceived and designed the experiments; F.Z. performed the experiments; Z.C., F.Z., C.Y., X.-X.W., R.L., Z.W., and X.W. analyzed the data; Y.-L. and Y.W. supervised and contributed reagents and analysis tools; F.Z. wrote the manuscript; Z.C. supervised and revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (51,673,103), the National Natural Science Foundation of China (Grant Nos. 51673103, 51703102 and 51973100), the joint French-Singaporean MERLION program (Grant No. R279,000,334,133), and the Taishan Scholars Program of Shandong Province.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fujishima, A.; Honda, K. Electrochemical photolysis of water at a semiconductor electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  2. Rao, K.V.S.; Rachel, A.; Subrahmanyam, M.; Boule, P. Immobilization of TiO2 on pumice stone for the photocatalytic degradation of dyes and dye industry pollutants. Appl. Catal. B Environ. 2003, 46, 77–85. [Google Scholar]
  3. Hu, L.; Flanders, P.M.; Miller, P.L.; Strathmann, T.J. Oxidation of sulfamethoxazole and related antimicrobial agents by TiO2 photocatalysis. Water Res. 2007, 41, 2612–2626. [Google Scholar] [CrossRef] [PubMed]
  4. Park, H.; Park, Y.; Kim, W.; Choi, W. Surface modification of TiO2 photocatalyst for environmental applications. J. Photochem. Photobiol. C 2013, 15, 1–20. [Google Scholar] [CrossRef]
  5. Dong, H.; Zeng, G.; Tang, L.; Fan, C.; Zhang, C.; He, X.; He, Y. An overview on limitations of TiO2-based particles for photocatalytic degradation of organic pollutants and the corresponding countermeasures. Water Res. 2015, 79, 128–146. [Google Scholar] [CrossRef] [PubMed]
  6. Ni, M.; Leung, M.K.H.; Leung, D.Y.C.; Sumathy, K. A review and recent developments in photocatalytic water-splitting using for hydrogen production. Renew. Sustain. Energy Rev. 2007, 11, 401–425. [Google Scholar] [CrossRef]
  7. Wu, T.; Liu, G.; Zhao, J. Photoassisted Degradation of Dye Polltants. V. Self-Photosensitized Oxidative Transformation of Rhodamine B Under Visible Light Irradiation in Aqueous TiO2 Dispersions. J. Phys. Chem. B 1998, 102, 5845–5851. [Google Scholar] [CrossRef]
  8. Arabatzis, I.M.; Stergiopoulos, T.; Bernard, M.C.; Labou, D.; Neophytides, S.G.; Falaras, P. Silver-modified titanium dioxide thin films for efficient photodegradation of methyl orange. Appl. Catal. B Environ. 2003, 42, 187–201. [Google Scholar] [CrossRef]
  9. Zhang, X.; Jia, H.P.; Du, A.J.; Fu, W.; Sun, D.D.; Leckie, J.O. Combination of one-dimensional TiO2 nanowire photocatalytic oxidation with microfiltration for water treatment. Water Res. 2009, 43, 1179–1186. [Google Scholar] [CrossRef]
  10. Hur, J.S.; Koh, Y. Bactericidal activity and water purification of immobilized TiO2 photocatalyst in bean sprout cultivation. Biotechnol. Lett. 2002, 24, 23–25. [Google Scholar] [CrossRef]
  11. Ao, C.H.; Lee, S.C. Indoor air purification by photocatalyst TiO2 immobilized on an activated carbon filter installed in an air cleaner. Chem. Eng. Sci. 2005, 60, 103–109. [Google Scholar] [CrossRef]
  12. Zhang, F.; Wang, H.; Liu, H.; Liu, C.; Wan, Y.; Long, Y.; Cai, Z. Recent Advances and Applications of Semiconductor Photocatalytic Technology. Appl. Sci. 2019, 9, 2489. [Google Scholar] [CrossRef] [Green Version]
  13. El-Bahy, Z.M.; Ismail, A.A.; Mohamed, R.M. Enhancement of titania by doping rare earth for photodegradation of organic dye (Direct Blue). J. Hazard. Mater. 2009, 166, 138–143. [Google Scholar] [CrossRef] [PubMed]
  14. Viveroescoto, J.L.; Chiang, Y.D.; Wu, K.C.; Yamauchi, Y. Recent progress in mesoporous titania materials: Adjusting morphology for innovative applications. Sci. Technol. Adv. Mater. 2012, 13, 013003. [Google Scholar] [CrossRef]
  15. Zhou, R.; Zhang, Q.; Uchaker, E.; Lan, J.; Yin, M.; Cao, G. Mesoporous TiO2 beads for high efficiency CdS/CdSe quantum dot co-sensitized solar cells. J. Mater. Chem. A 2014, 2, 2517–2525. [Google Scholar] [CrossRef]
  16. Zhang, Z.; Shao, C.; Zhang, L.; Li, X.; Liu, Y. Electrospun nanofibers of V-doped TiO2 with high photocatalytic activity. J. Colloid Interface Sci. 2010, 351, 57–62. [Google Scholar]
  17. Cai, Z.; Teng, J.; Xiong, Z.; Li, Y.; Li, Q.; Lu, X.; Zhao, X.S. Fabrication of TiO2 Binary Inverse Opals without Overlayers via the Sandwich-Vacuum Infiltration of Precursor. Langmuir 2011, 27, 5157–5164. [Google Scholar] [CrossRef]
  18. Cai, Z.; Xiong, Z.; Lu, X.; Teng, J. In situ gold-loaded titania photonic crystals with enhanced photocatalytic activity. J. Mater. Chem. A 2014, 2, 545–553. [Google Scholar] [CrossRef]
  19. Bian, Z.; Tachikawa, T.; Zhang, P.; Fujitsuka, M.; Majima, T. Au/TiO2 superstructure-based plasmonic photocatalysts exhibiting efficient charge separation and unprecedented activity. J. Am. Chem. Soc. 2014, 136, 458–465. [Google Scholar]
  20. Zhang, H.; Quan, X.; Chen, S.; Zhao, H. Fabrication and characterization of silica/titania nanotubes composite membrane with photocatalytic capability. Environ. Sci. Technol. 2006, 40, 6104–6109. [Google Scholar]
  21. Geng, W.; Da, C.; Hao, Z.; Zhang, J.Z.; Li, J. Tunable Photocurrent Spectrum in Well-Oriented Zinc Oxide Nanorod Arrays with Enhanced Photocatalytic Activity. J. Phys. Chem. C 2008, 112, 8850–8855. [Google Scholar]
  22. Yang, Y.; Wen, J.; Wei, J.; Xiong, R.; Shi, J.; Pan, C. Polypyrrole-Decorated Ag-TiO2 Nanofibers Exhibiting Enhanced Photocatalytic Activity under Visible-Light Illumination. ACS Appl. Mater. Interfaces 2013, 5, 6201–6207. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, R.; Huang, H.; Li, H. Metal Nanoparticle/Carbon Quantum Dot Composite as a Photocatalyst for High-Efficiency Cyclohexane Oxidation. ACS Catal. 2014, 4, 328–336. [Google Scholar] [CrossRef]
  24. Guo, Y.; Yao, P.; Zhu, D. A novel method for the development of a carbon quantum dot/carbon nitride hybrid photocatalyst that responds to infrared light irradiation. J. Mater. Chem. A 2015, 3, 13189–13192. [Google Scholar] [CrossRef]
  25. Miao, R.; Luo, Z.; Zhong, W. Mesoporous TiO2 modified with carbon quantum dots as a high-performance visible light photocatalyst. Appl. Catal. B Environ. 2016, 189, 26–38. [Google Scholar] [CrossRef] [Green Version]
  26. Li, C.; Xin, W.; Meziani, M.J.; Fushen, L.; Haifang, W.; Luo, P.G.; Yi, L.; Harruff, B.A.; Monica, V.L.; Davoy, M. Carbon dots for multiphoton bioimaging. J. Am. Chem. Soc. 2007, 129, 11318–11319. [Google Scholar]
  27. Zhao, Q.L.; Zhang, Z.L.; Huang, B.H.; Peng, J.; Zhang, M.; Pang, D.W. Facile preparation of low cytotoxicity fluorescent carbon nanocrystals by electrooxidation of graphite. Chem. Commun. 2008, 41, 5116–5118. [Google Scholar] [CrossRef]
  28. Li, C.; Sushant, S.; Parambath, A.; Bunker, C.E.; Juan, X.; Fernando, K.A.S.; Ping, W.; Guliants, E.A.; Tackett, K.N.; Ya-Ping, S. Carbon nanoparticles as visible-light photocatalysts for efficient CO2 conversion and beyond. J. Am. Chem. Soc. 2011, 133, 4754–4757. [Google Scholar]
  29. Yu, H.; Zhao, Y.; Zhou, C.; Shang, L.; Peng, Y.; Cao, Y.; Wu, L.Z.; Tung, C.H.; Zhang, T. Carbon quantum dots/TiO2 composites for efficient photocatalytic hydrogen evolution. J. Mater. Chem. A 2014, 2, 3344–3351. [Google Scholar] [CrossRef]
  30. Song, P.; Zhang, X.; Sun, M.; Cui, X.; Lin, Y. Graphene oxide modified TiO2 nanotube arrays: Enhanced visible light photoelectrochemical properties. Nanoscale 2012, 4, 1800–1804. [Google Scholar] [CrossRef]
  31. Zhu, S.; Zhang, J.; Liu, X.; Li, B.; Wang, X.; Tang, S.; Meng, Q.; Li, Y.; Shi, C.; Hu, R. Graphene Quantum Dots with Controllable Surface Oxidation, Tunable Fluorescence and up-Conversion Emission. RSC Adv. 2012, 2, 2717–2720. [Google Scholar] [CrossRef]
  32. Li, M.; Ni, N.; Kan, B.; Wan, X.; Zhang, L.; Zhang, Q.; Chen, Y.Z. Graphene quantum dots as the hole transport layer material for high-performance organic solar cells. Phys. Chem. Chem. Phys. 2013, 15, 18973–18978. [Google Scholar]
  33. Jin, S.H.; Kim, D.H.; Jun, G.H.; Hong, S.H.; Jeon, S. Tuning the photoluminescence of graphene quantum dots through the charge transfer effect of functional groups. ACS Nano 2013, 7, 1239–1245. [Google Scholar]
  34. Zhang, Z.; Jing, Z.; Nan, C.; Qu, L. Graphene Quantum Dots: An Emerging Material for Energy-Related Applications and beyond. Energy Environ. Sci. 2012, 5, 8869–8890. [Google Scholar] [CrossRef]
  35. Yang, H.B.; Dong, Y.Q.; Wang, X.; Khoo, S.Y.; Liu, B. Cesium carbonate functionalized graphene quantum dots as stable electron-selective layer for improvement of inverted polymer solar cells. ACS Appl. Mater. Interfaces 2014, 6, 1092–1099. [Google Scholar] [CrossRef]
  36. Wang, Z.; Zeng, H.; Sun, L. Graphene quantum dots: Versatile photoluminescence for energy, biomedical, and environmental applications. J. Mater. Chem. C 2015, 3, 1157–1165. [Google Scholar] [CrossRef]
  37. Israa, A.O.; Honglei, G.; Aguilar, Z.P.; Shouwu, G.; Melconian, A.K.; Al-Kazaz, A.K.A.; Fanke, M.; Nianqiang, W. Detection of the ovarian cancer biomarker CA-125 using chemiluminescence resonance energy transfer to graphene quantum dots. Chem. Commun. 2014, 50, 1344–1346. [Google Scholar]
  38. Zhou, Y.; Qu, Z.B.; Zeng, Y.; Zhou, T.; Shi, G. A novel composite of graphene quantum dots and molecularly imprinted polymer for fluorescent detection of paranitrophenol. Biosens. Bioelectron. 2014, 52, 317–323. [Google Scholar] [CrossRef]
  39. Mo, Z.; Bai, L.; Shang, W.; Xie, W.; Hong, M.; Fu, Y.; Fang, D.; Hui, S.; Fan, L.; Mei, H. Facile Synthesis of Water-Soluble, Highly Fluorescent Graphene Quantum Dots as a Robust Biological Label for Stem Cells. J. Mater. Chem. 2012, 22, 7461–7467. [Google Scholar]
  40. Sun, H.; Wu, L.; Gao, N.; Ren, J.; Qu, X. Improvement of photoluminescence of graphene quantum dots with a biocompatible photochemical reduction pathway and its bioimaging application. ACS Appl. Mater. Interfaces 2013, 5, 1174–1179. [Google Scholar] [CrossRef]
  41. Qu, D.; Sun, Z.; Zheng, M.; Li, J.; Zheng, Y.; Zheng, G.; Xie, Z. Three Colors Emission from S,N Co-doped Graphene Quantum Dots for Visible Light H2 Production and Bioimaging. Adv. Opt. Mater. 2015, 3, 360–367. [Google Scholar]
  42. Reitzenstein, N.H.V.; Bi, X.; Yu, Y.; Hristovski, K.; Westerhoff, P. Morphology, structure, and properties of metal oxide/polymer nanocomposite electrospun mats. J. Appl. Polym. Sci. 2016, 133, 43811–43819. [Google Scholar]
  43. Choi, S.S.; Lee, Y.S.; Joo, C.W. Electrospun PVDF nanofiber web as polymer electrolyte or separator. Electrochim. Acta 2004, 50, 339–343. [Google Scholar] [CrossRef]
  44. Liao, Y.; Wang, R.; Tian, M. Fabrication of polyvinylidene fluoride (PVDF) nanofiber membranes by electro-spinning for direct contact membrane distillation. J. Membr. Sci. 2013, 425, 30–39. [Google Scholar] [CrossRef]
  45. He, T.; Zhou, Z.; Xu, W. Preparation and photocatalysis of TiO2–fluoropolymer electrospun fiber nanocomposites. Polymer 2009, 50, 3031–3036. [Google Scholar] [CrossRef]
  46. Lemal, D.M. Perspective on fluorocarbon chemistry. J. Org. Chem. 2004, 35, 1–11. [Google Scholar] [CrossRef]
  47. Lee, A.; Elam, J.W.; Darling, S.B. Membrane materials for water purification: Design, development, and application. Environ. Sci. Water Res. Technol. 2016, 2, 17–42. [Google Scholar] [CrossRef]
  48. Singh, S.; Mahalingam, H.; Singh, P.K. Polymer-supported titanium dioxide photocatalysts for environmental remediation: A review. Appl. Catal. A Gen. 2013, 462, 178–195. [Google Scholar] [CrossRef]
  49. Lu, X.; Zhao, Y.; Wang, C. Fabrication of CdS nanorods in PVP fiber matrices by electrospinning. Macromol. Rapid Commun. 2005, 26, 1325–1329. [Google Scholar] [CrossRef]
  50. Bai, J.; Li, Y.; Li, M. Electrospinning method for the preparation of silver chloride nanoparticles in PVP nanofiber. Appl. Surf. Sci. 2008, 254, 4520–4523. [Google Scholar] [CrossRef]
  51. Nasir, M.; Matsumoto, H.; Minagawa, M.; Tanioka, A.; Danno, T.; Horibe, H. Preparation of Porous PVDF Nanofiber from PVDF/PVP Blend by Electrospray Deposition. Polym. J. 2007, 39, 1060–1064. [Google Scholar] [CrossRef] [Green Version]
  52. Jing, N.; Miao, Y.; Hu, Y.; Xu, Z. Tailoring the morphologies of PVDF nanofibers by interfacial diffusion during coaxial electrospinning. Mater. Des. 2016, 109, 264–269. [Google Scholar]
  53. Yang, P.; Zhou, L.; Zhang, S. Facile synthesis and photoluminescence mechanism of graphene quantum dots. J. Appl. Phys. 2014, 116, 244306. [Google Scholar] [CrossRef]
  54. Wilson, G.J.; Will, G.D.; Frost, R.L. Efficient microwave hydrothermal preparation of nanocrystalline anatase TiO2 colloids. J. Mater. Chem. 2002, 12, 1787–1791. [Google Scholar] [CrossRef]
  55. Zhang, S.; Holmes, T.; Lockshin, C. Spontaneous assembly of a self-complementary oligopeptide to form a stable macroscopic membrane. Proc. Natl. Acad. Sci. USA 1993, 90, 3334–3338. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Zhu, S.; Zhang, J.; Tang, S. Surface chemistry routes to modulate the photoluminescence of graphene quanttma dots: From fluorescence mechanism to up-conversion bioimaging applications. Adv. Funct. Mater. 2012, 22, 4732–4740. [Google Scholar] [CrossRef]
  57. Barone, V.; Hod, O.; Scuseria, G.E. Electronic structure and stability of semiconducting graphene nanoribbons. Nano Lett. 2006, 6, 2748–2754. [Google Scholar] [CrossRef]
  58. Gu, W.; Zhang, W.; Li, X. Graphene sheets from worm-like exfoliated graphite. J. Mater. Chem. 2009, 19, 3367–3369. [Google Scholar] [CrossRef]
  59. Seyed-Talebi, S.M.; Beheshtian, J.; Neek-Amal, M. Doping effect on the adsorption of NH3 molecule onto graphene quantum dot: From the physisorption to the chemisorption. J. Appl. Phys. 2013, 114, 124307–124313. [Google Scholar] [CrossRef]
  60. Kim, S.; Hwang, S.W.; Kim, M.K. Anomalous behaviors of visible luminescence from graphene quantum dots: Interplay between size and shape. ACS Nano 2012, 6, 8203–8208. [Google Scholar] [CrossRef]
Applsci 10 00596 sch001 550

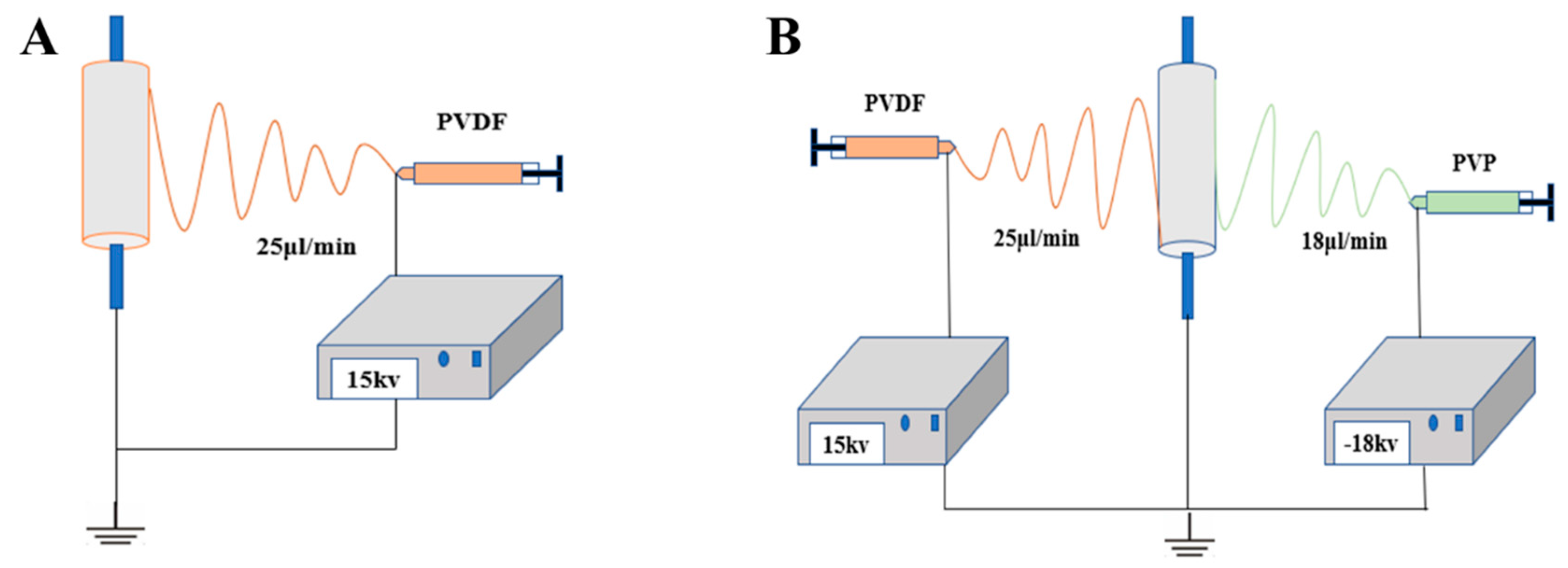

Scheme 1. Schematic illustration of electrospinning: (A) PVDF(TBT) and (B) PVDF(TBT)/PVP(TBT) film spinning.
Scheme 1. Schematic illustration of electrospinning: (A) PVDF(TBT) and (B) PVDF(TBT)/PVP(TBT) film spinning.
Applsci 10 00596 sch001
Applsci 10 00596 sch002 550

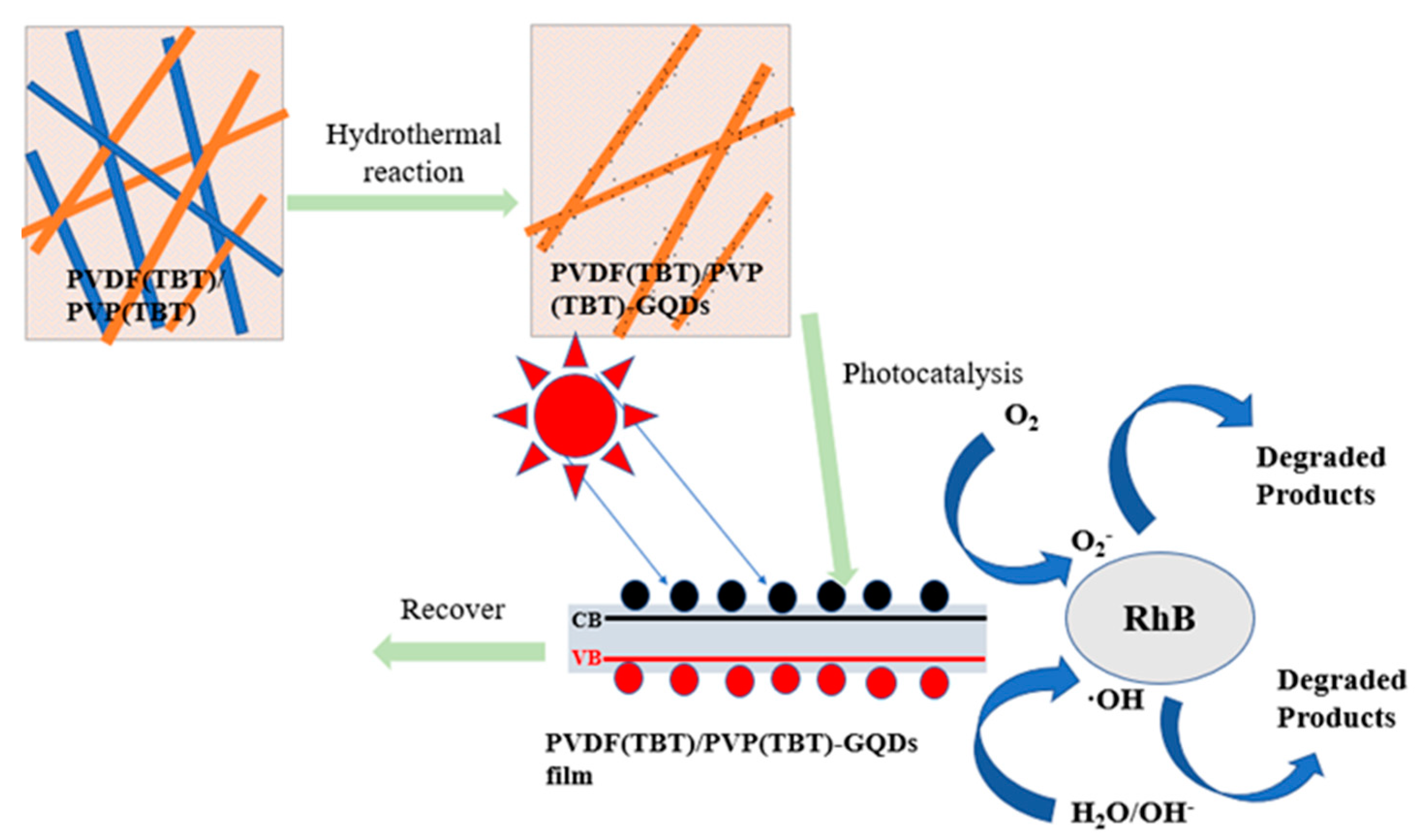

Scheme 2. Synthesis process diagram of PVDF(TBT)/PVP(TBT)-GQDs film and photocatalytic reaction mechanism. Here the orange lines denote PVDF (TBT) fibers, blue lines denote PVP (TBT) fibers, and the black dots represent GQDs.
Scheme 2. Synthesis process diagram of PVDF(TBT)/PVP(TBT)-GQDs film and photocatalytic reaction mechanism. Here the orange lines denote PVDF (TBT) fibers, blue lines denote PVP (TBT) fibers, and the black dots represent GQDs.
Applsci 10 00596 sch002
Applsci 10 00596 g001 550

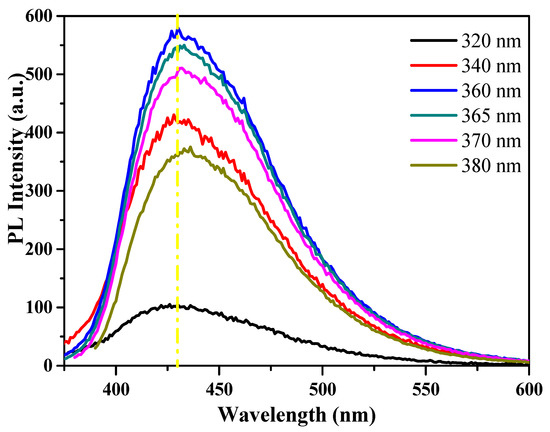

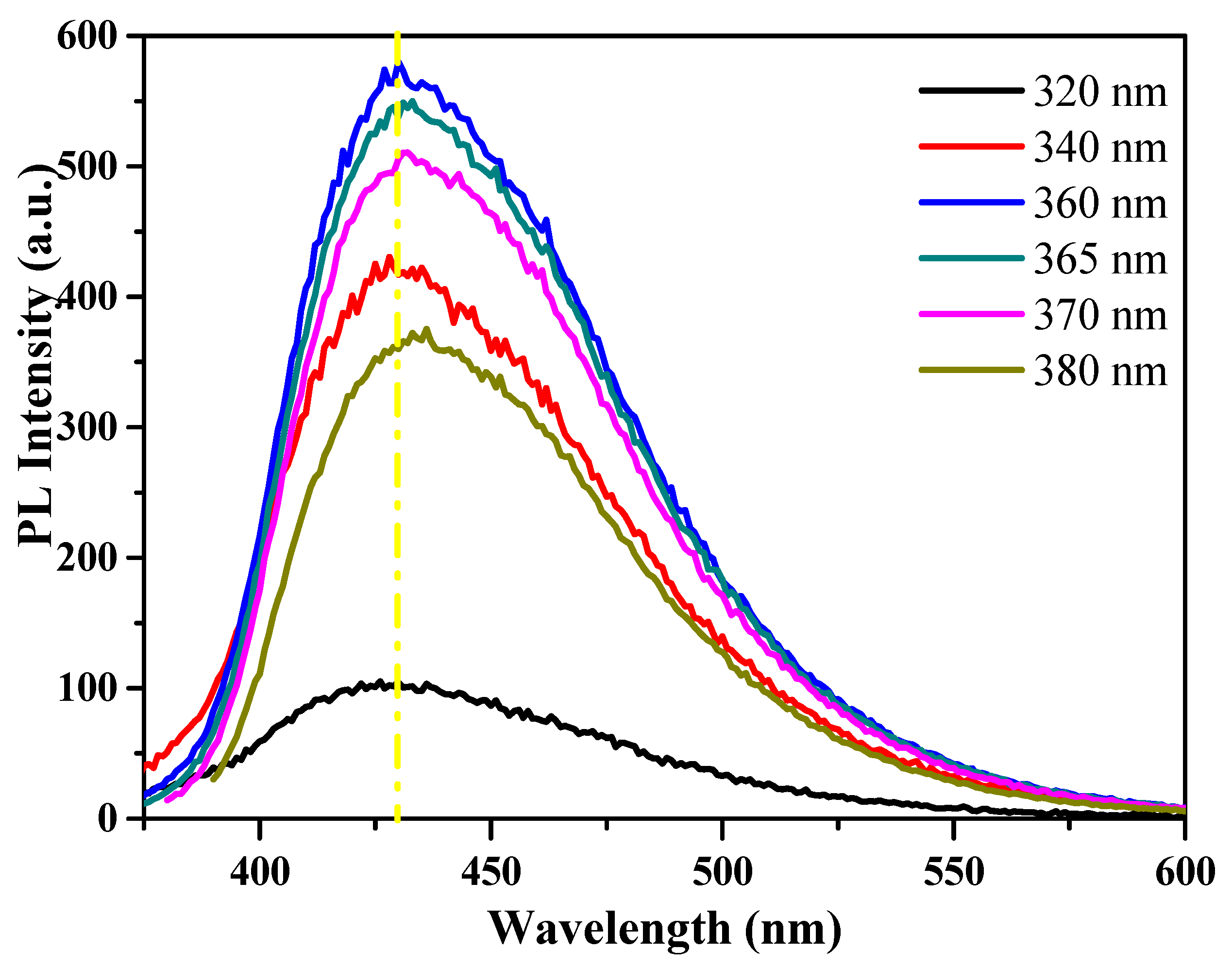

Figure 1. Photoluminescence spectroscopy of graphene quantum dots excited by the light of different wavelengths.
Figure 1. Photoluminescence spectroscopy of graphene quantum dots excited by the light of different wavelengths.
Applsci 10 00596 g001
Applsci 10 00596 g002 550

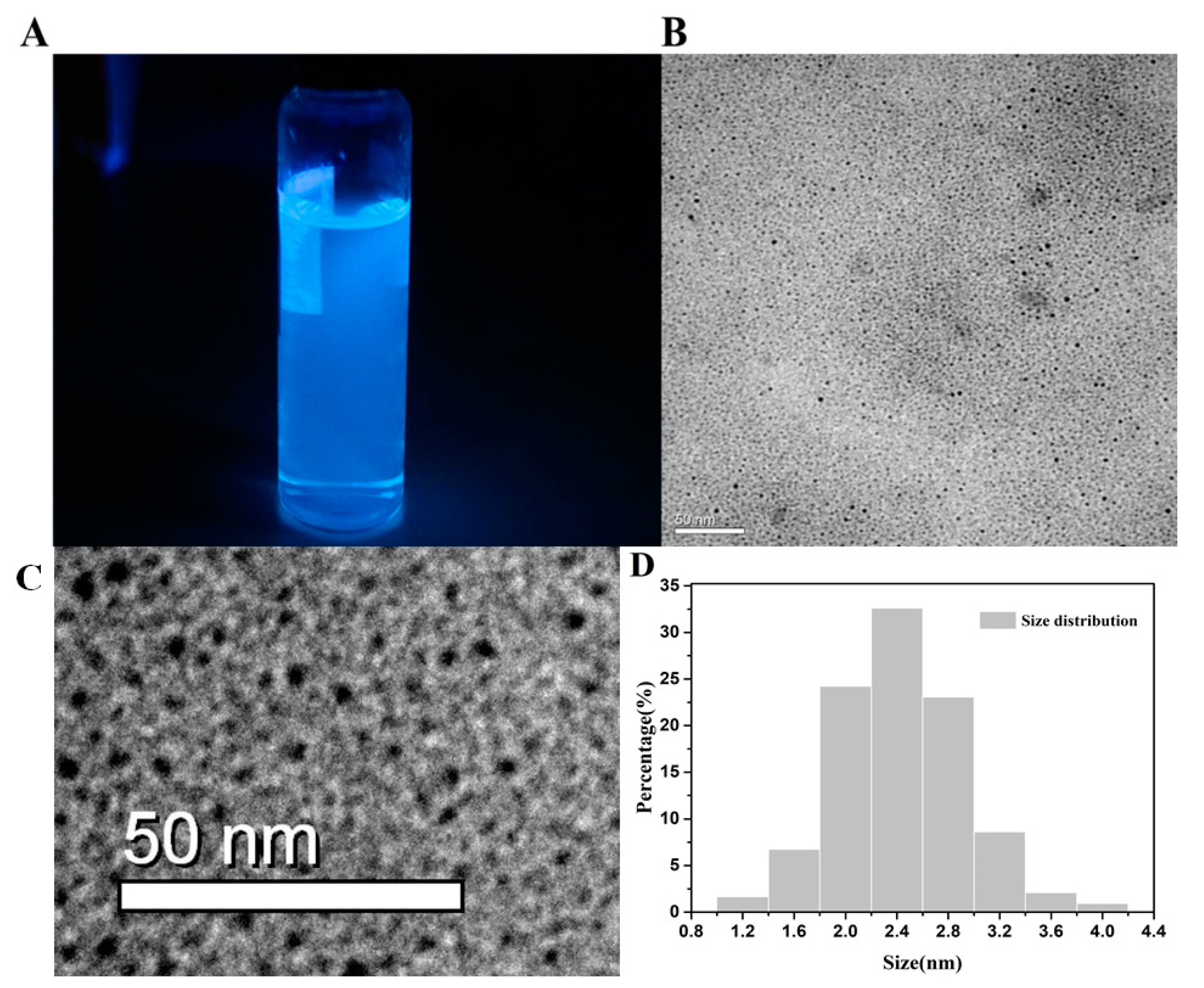

Figure 2. (A) Photograph of the GQDs under 365 nm ultraviolet light; (B,C) are TEM images of GQDs at low and high magnifications; and (D) the size distribution chart of the GQDs.
Figure 2. (A) Photograph of the GQDs under 365 nm ultraviolet light; (B,C) are TEM images of GQDs at low and high magnifications; and (D) the size distribution chart of the GQDs.
Applsci 10 00596 g002
Applsci 10 00596 g003 550

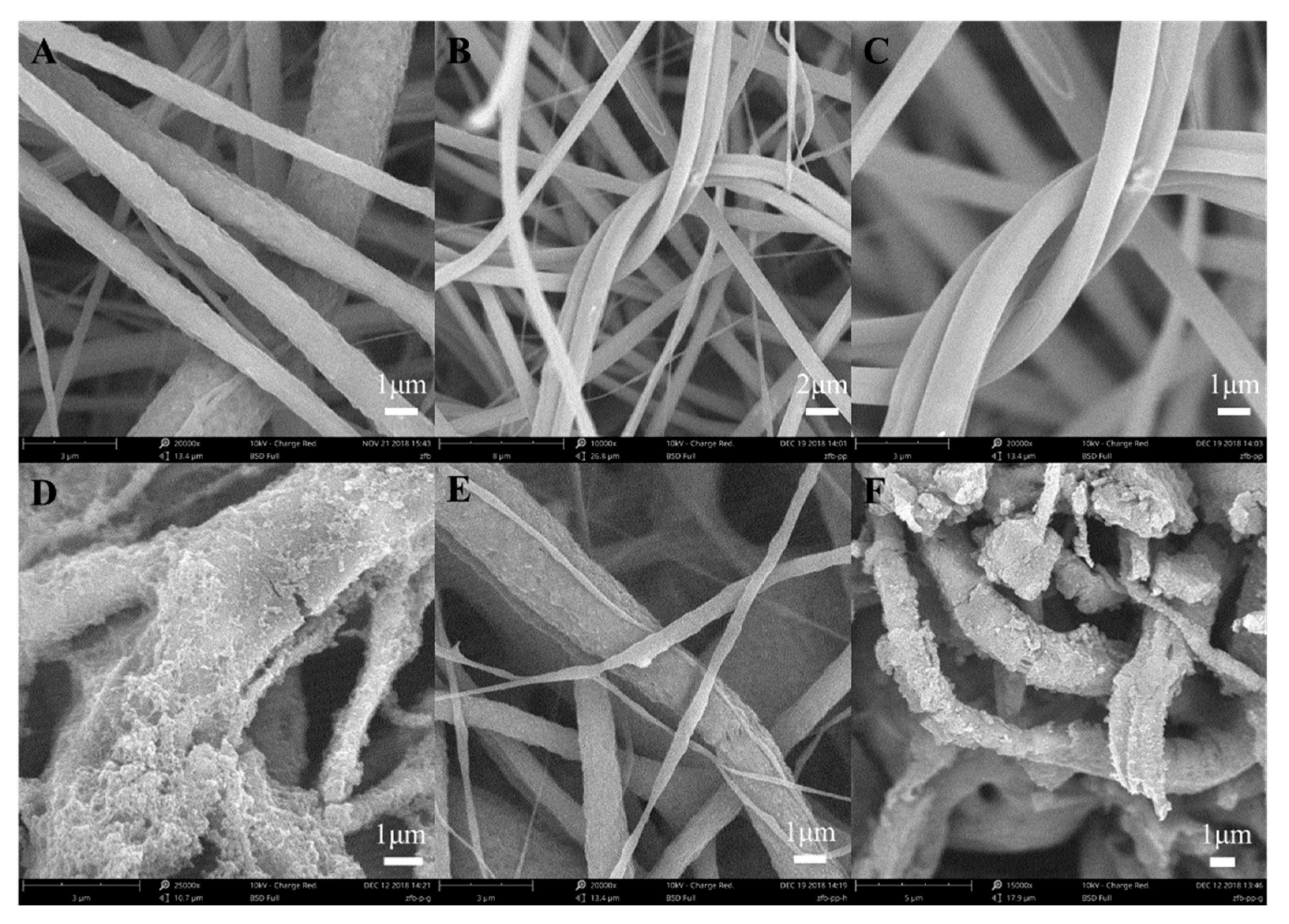

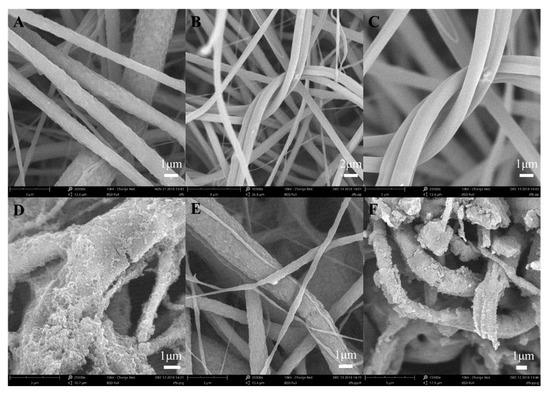

Figure 3. SEM images of (A) single electrospinning PVDF(TBT) nanofiber; (B) PVDF(TBT)/PVP(TBT) nanofiber; (C) PVDF(TBT)/PVP(TBT) nanofiber; (D) PVDF (TBT)-GQDs nanofiber; (E) PVDF(TBT)/PVP(TBT)-H2O nanofiber, and (F) PVDF(TBT)/PVP(TBT)-GQDs nanofiber.
Figure 3. SEM images of (A) single electrospinning PVDF(TBT) nanofiber; (B) PVDF(TBT)/PVP(TBT) nanofiber; (C) PVDF(TBT)/PVP(TBT) nanofiber; (D) PVDF (TBT)-GQDs nanofiber; (E) PVDF(TBT)/PVP(TBT)-H2O nanofiber, and (F) PVDF(TBT)/PVP(TBT)-GQDs nanofiber.
Applsci 10 00596 g003
Applsci 10 00596 g004 550

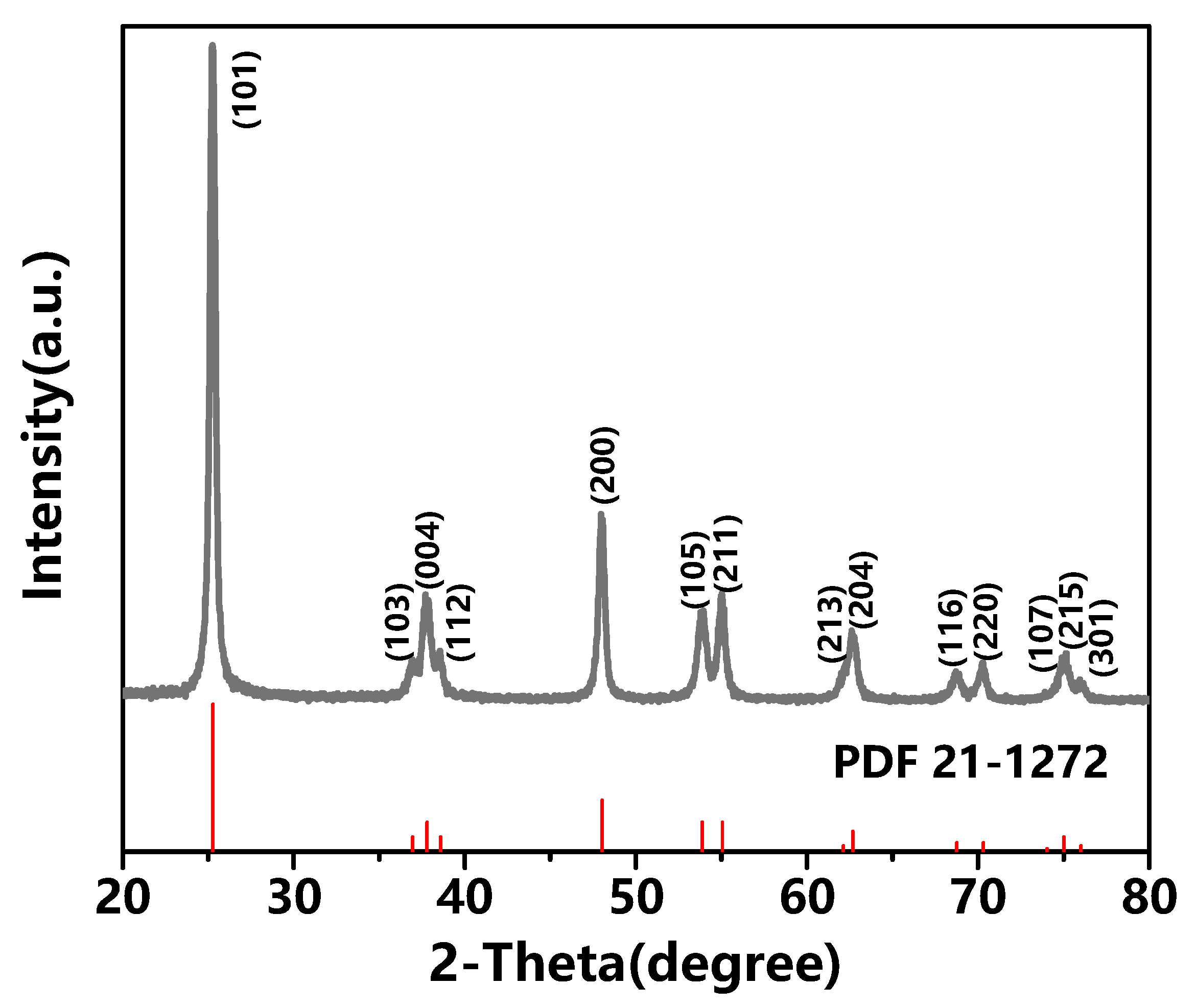

Figure 4. XRD pattern of PVDF(TBT)/PVP(TBT)-GQDs photocatalyst.
Figure 4. XRD pattern of PVDF(TBT)/PVP(TBT)-GQDs photocatalyst.
Applsci 10 00596 g004
Applsci 10 00596 g005 550

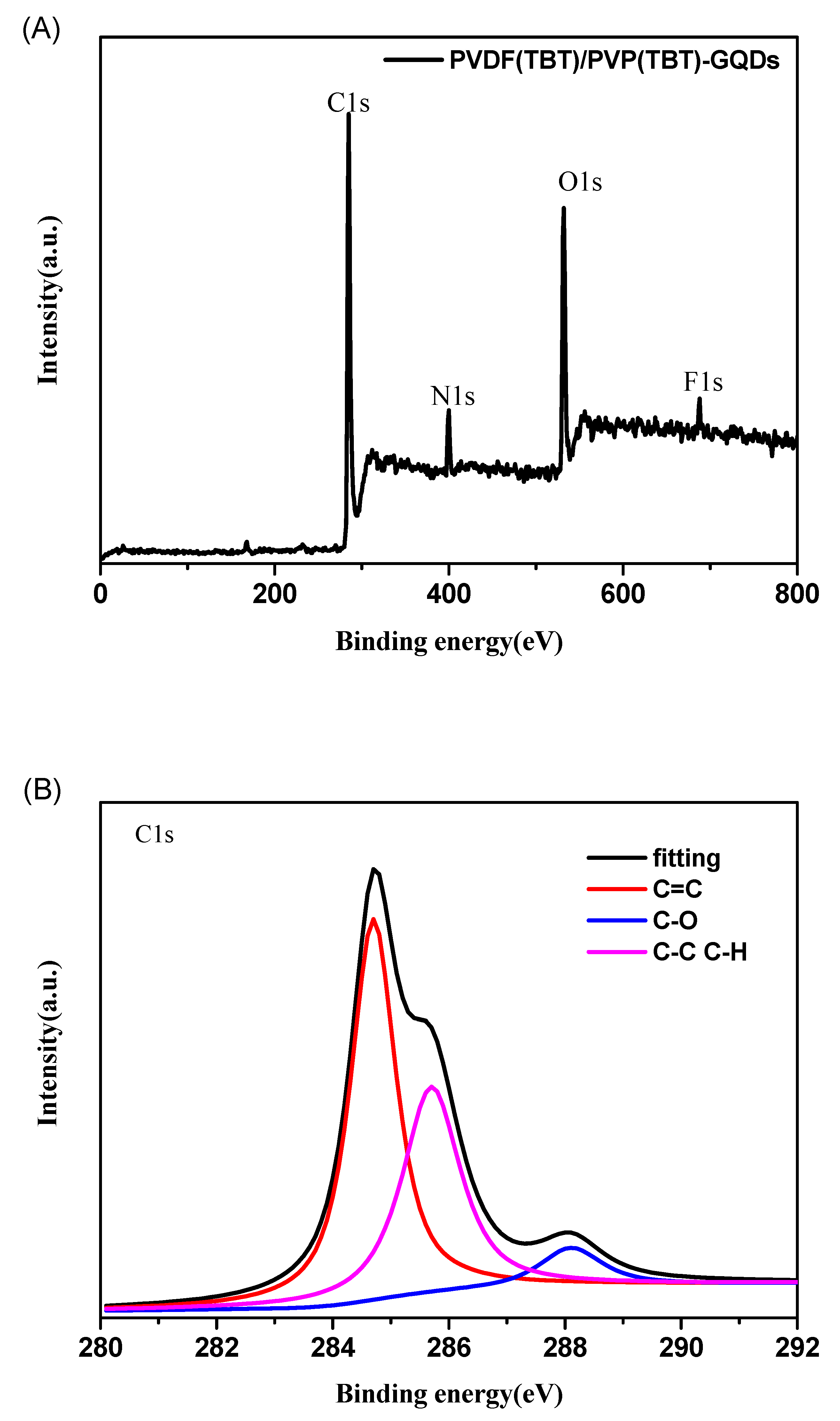

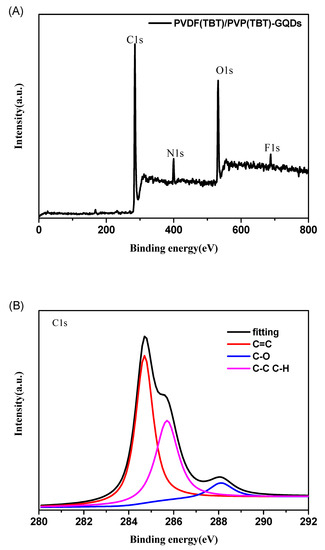

Figure 5. (A) The XPS full spectrum of PVDF(TBT)/PVP(TBT)-GQDs (B) The C1s XPS spectrum of PVDF(TBT)/PVP(TBT)-GQDs.
Figure 5. (A) The XPS full spectrum of PVDF(TBT)/PVP(TBT)-GQDs (B) The C1s XPS spectrum of PVDF(TBT)/PVP(TBT)-GQDs.
Applsci 10 00596 g005
Applsci 10 00596 g006 550

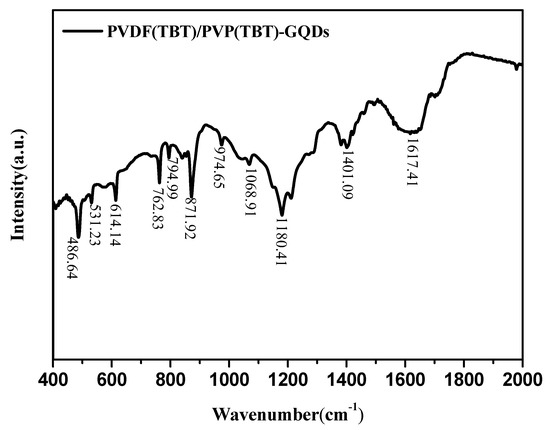

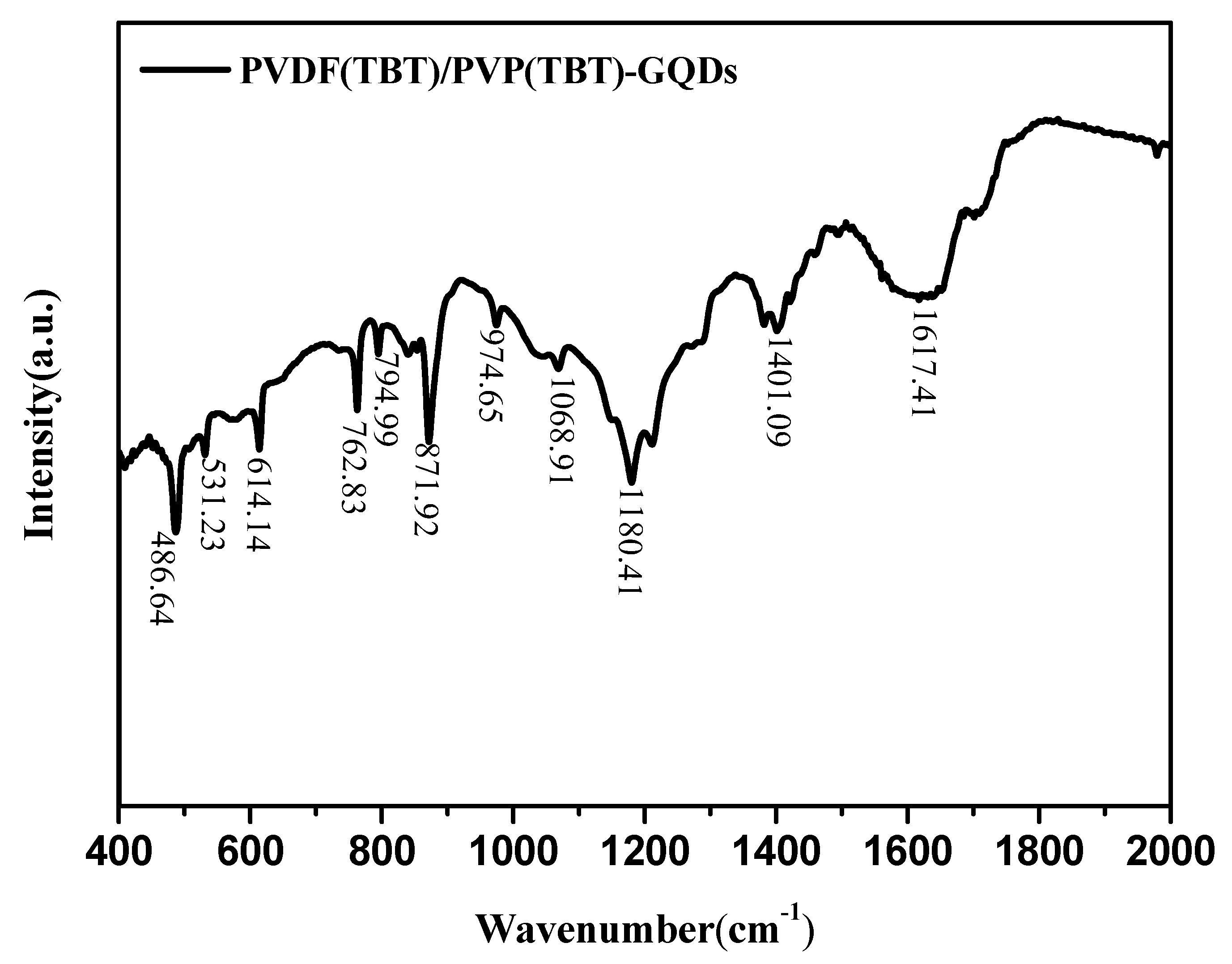

Figure 6. The infrared spectra of PVDF(TBT)/PVP(TBT)-GQDs.
Figure 6. The infrared spectra of PVDF(TBT)/PVP(TBT)-GQDs.
Applsci 10 00596 g006
Applsci 10 00596 g007 550

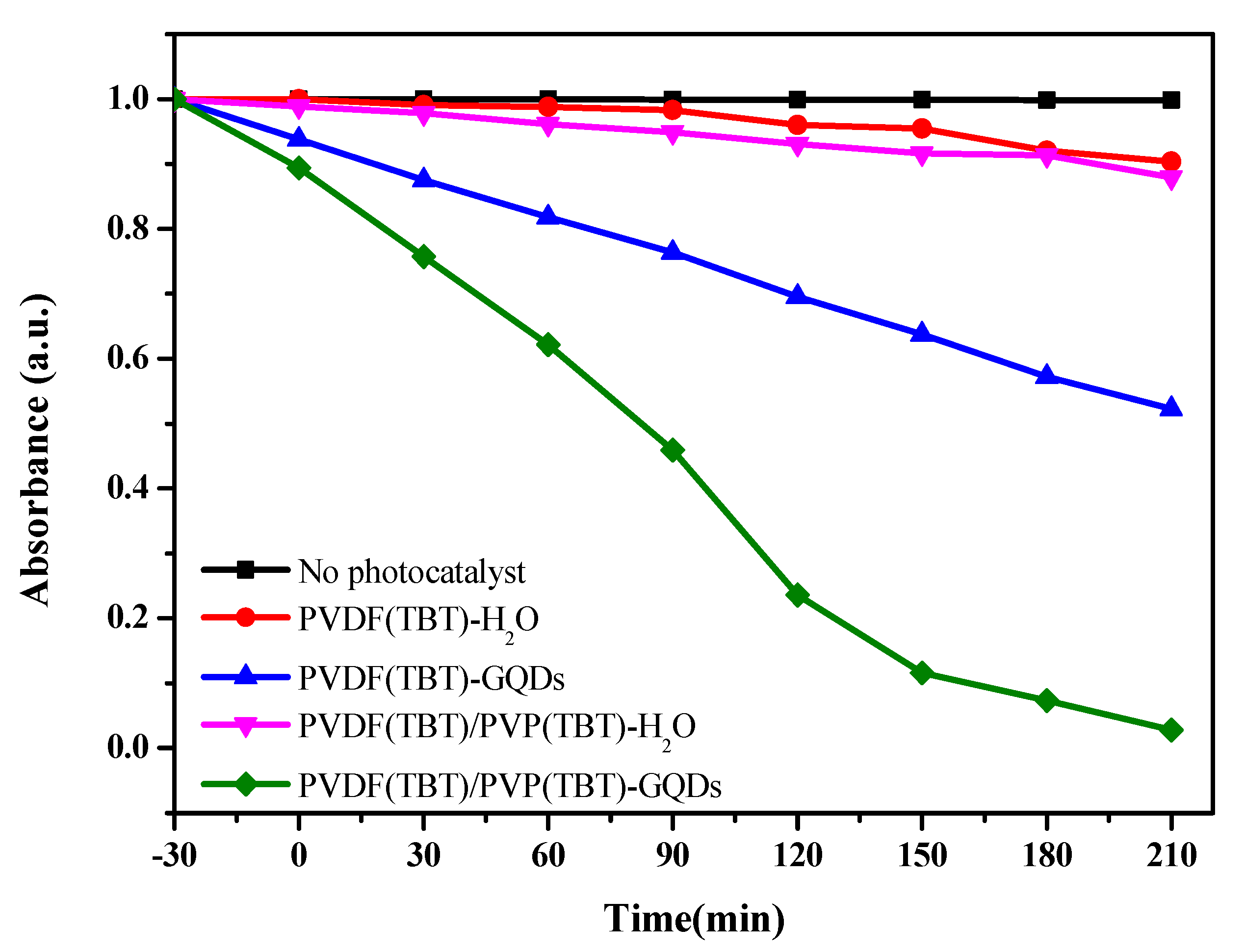

Figure 7. Degradation rate of RhB by the photocatalyst prepared without the photocatalyst, PVDF(TBT)-H2O, PVDF(TBT)-GQDs, PVDF(TBT)/PVP(TBT)-H2O, and PVDF(TBT)/PVP(TBT)-GQDs.
Figure 7. Degradation rate of RhB by the photocatalyst prepared without the photocatalyst, PVDF(TBT)-H2O, PVDF(TBT)-GQDs, PVDF(TBT)/PVP(TBT)-H2O, and PVDF(TBT)/PVP(TBT)-GQDs.
Applsci 10 00596 g007
Applsci 10 00596 g008 550

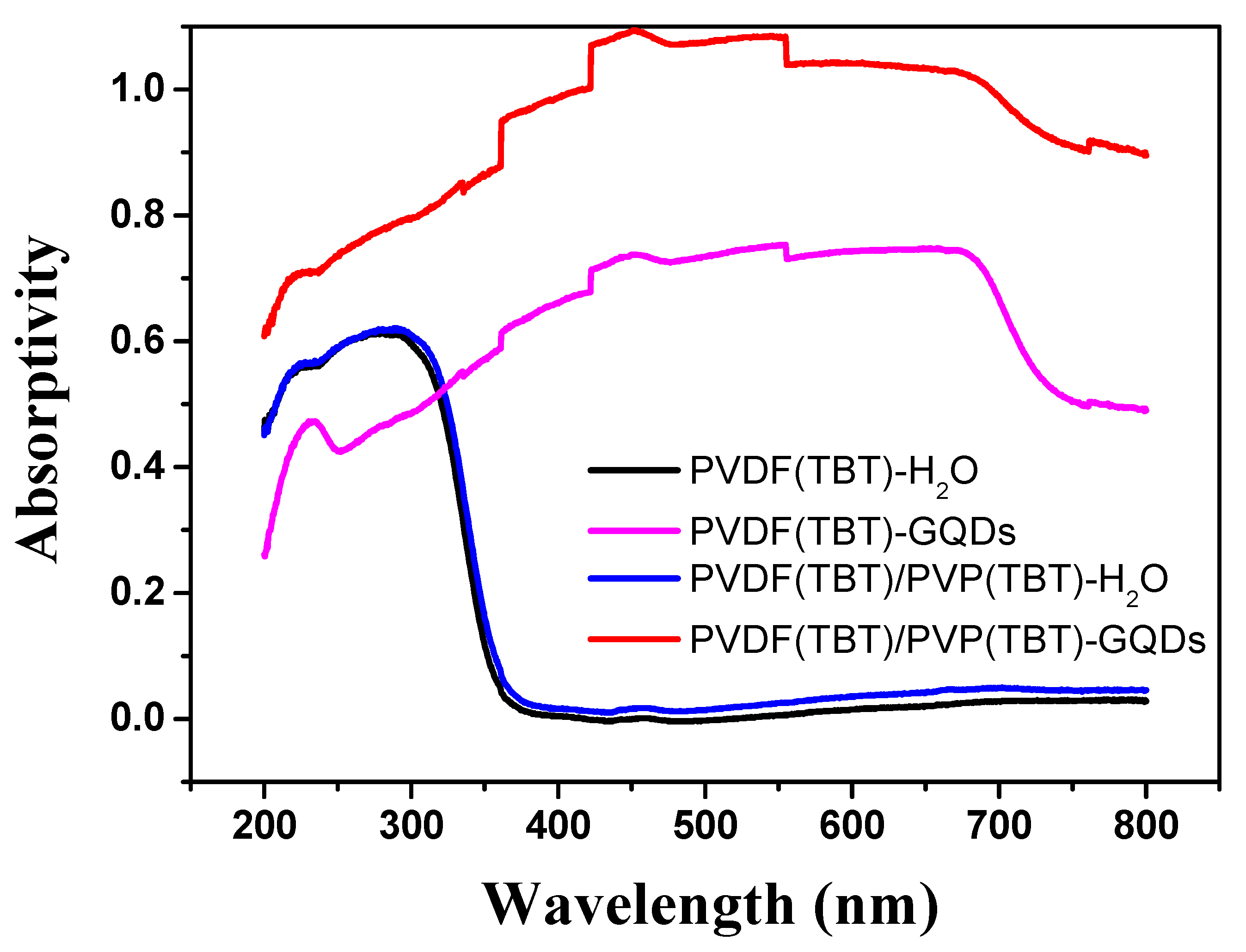

Figure 8. UV–Visible absorption spectra of the PVDF(TBT)-H2O, PVDF(TBT)-GQDs, PVDF(TBT)/PVP(TBT)-H2O, and PVDF(TBT)/PVP(TBT)-GQDs photocatalyst.
Figure 8. UV–Visible absorption spectra of the PVDF(TBT)-H2O, PVDF(TBT)-GQDs, PVDF(TBT)/PVP(TBT)-H2O, and PVDF(TBT)/PVP(TBT)-GQDs photocatalyst.
Applsci 10 00596 g008
