Genesis of the Eastern Adamello Plutons (Northern Italy): Inferences for the Alpine Geodynamics

by
Alessio Relvini
1,*,
Silvana Martin
1,
Bruna B. Carvalho
1,
Giacomo Prosser
2,
Luca Toffolo
1,
Patrizia Macera
3 and
Omar Bartoli
1
1
Dipartimento di Geoscienze, Università di Padova, Via Gradenigo 6, 35131 Padova, Italy
2
Dipartimento di Scienze della Terra, Università della Basilicata, Macchia Romana 1, 85100 Potenza, Italy
3
Dipartimento di Scienze della Terra, Università di Pisa, Via S. Maria, 53, 56126 Pisa, Italy
*
Author to whom correspondence should be addressed.
Geosciences 2022, 12(1), 13; https://doi.org/10.3390/geosciences12010013
Submission received: 15 October 2021 / Revised: 17 December 2021 / Accepted: 21 December 2021 / Published: 28 December 2021
(This article belongs to the Special Issue Magmatic Feedbacks on Tectonics)
Browse Figures
Versions Notes

Abstract

:
The Corno Alto–Monte Ospedale magmatic complex crops out at the eastern border of the Adamello batholith, west of the South Giudicarie Fault (NE Italy). This complex includes tonalites, trondhjemites, granodiorites, granites and diorites exhibiting an unfoliated structure suggesting passive intrusion under extensional-to-transtensional conditions. Major, minor elements, REE and isotopic analyses and geochemical and thermodynamic modelling have been performed to reconstruct the genesis of this complex. Geochemical analyses unravel a marked heterogeneity with a lack of intermediate terms. Samples from different crust sections were considered as possible contaminants of a parental melt, with the European crust of the Serre basement delivering the best fit. The results of the thermodynamic modelling show that crustal melts were produced in the lower crust. Results of the geochemical modelling display how Corno Alto felsic rocks are not reproduced by fractional crystallization nor by partial melting alone: their compositions are intermediate between anatectic melts and melts produced by fractional crystallization. The tectonic scenario which favored the intrusion of this complex was characterized by extensional faults, active in the Southalpine domain during Eocene. This extensional scenario is related to the subduction of the Alpine Tethys in the Eastern Alps starting at Late Cretaceous time.

Graphical Abstract

1. Introduction

Adamello is the largest alpine batholith of Tertiary age (670 km2 and 3 km of vertical relief) emplaced under extensional-to-transpressional regimes in the Central Southern Alps, after the Europe-Adria collision (Figure 1) [1,2,3]. Its magmatic activity started about 43 Ma ago (Re di Castello and Corno Alto U-Pb zircon age) and reached its peak during the Late Eocene with a progressive age decrease to 33 Ma towards NE, and a final cooling down to 29 Ma (NE Presanella; Rb-Sr age on Bt and Ms) [4,5,6,7,8]. The oldest plutons are aligned at the southern and southeastern margin of the batholith, close to the South Giudicarie and Val Trompia faults [7].
The Adamello magmatism was continuously sustained over a 10 Ma-long period with major pulses at 43–42, 38–36 and 34–33 Ma [5,7]. The first pulse (43–42 Ma) partially overlaps the time span recorded for the emplacement of magmatic products in the Southern-Southeastern Alps [9,10,11,12,13,14]. The age of the later magmatic pulses is also consistent with emplacement of dykes and intrusive bodies in the Austroalpine and along the Periadriatic Lineament of Oligocene age [3,15].
The Adamello batholith shows a bimodal association of felsic and mafic lithotypes. The former lithotypes are largely more abundant than the latter and consist of plutonic units made up of prevailing tonalite, granodiorite and trondhjemite, while the latter consist of mafic apophyses as well as numerous mafic dykes, surrounding the major plutonic units (Figure 2). While a mantle origin is inferred for the mafic lithotypes, three main hypotheses have been suggested for the genesis of the felsic plutons: (1) fractional crystallization from a picritic basalt [16,17]; (2) magma mixing between mafic and felsic magmas coming from distinct sources, i.e., mantle and lower crust, respectively [18,19,20]; (3) Assimilation Fractional Crystallization (AFC) of a mantle-derived magma, e.g., either a high-Al basalt or a picritic basalt with crustal material [21,22,23,24,25,26].
A key area to investigate the origin of felsic rocks from Adamello is the Corno Alto pluton, located on the eastern edge of the batholith, west of the South Giudicarie Fault. It is a composite pluton, comprising trondhjemite, tonalite, granodiorite with granitic portions. Mafic apophyses are present at the border of the main plutons and leucocratic dykes intrude in both the Southalpine basement and the earlier magmatic bodies. Corno Alto rocks are mainly massive, without a clear magmatic foliation. Recent geochronological data highlight that Corno Alto pluton is the oldest in the Adamello framework [7]. In this contribution, the geological setting of Corno Alto, its origin and evolution starting from the intrusion of earlier mafic apophyses and dykes are investigated, also considering the intrusive relationships with the adjacent Central/Western Adamello (ADA) and Re di Castello tonalite plutons (RDC).
We present new geological and geochemical data, on the mafic and felsic rocks of the Corno Alto pluton to investigate its sources and magmatic evolution. Geochemical modeling was also conducted to evaluate both the crystallization of possible parental magmas and the partial melting of Southern Alps upper and lower crust. Finally, we discuss the role of the Giudicarie Fault System in the intrusion forming process.

2. Materials and Methods

2.1. Geological Survey

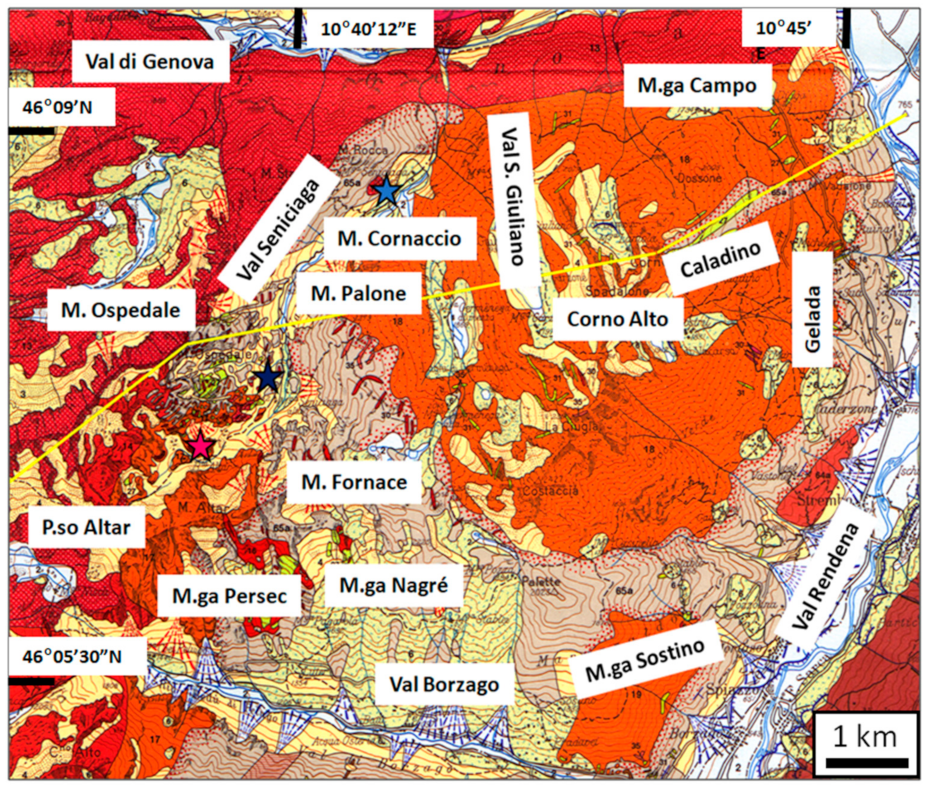

Geological maps at 1:10,000 scale of the Corno Alto pluton were obtained during mapping of the Tione di Trento and Malé 1:50,000 sheets of the Geological map of Italy (CARG project) [27,28]. A SW–NE trending cross section of the Adamello batholith traced orthogonal to the magmatic contacts from Bazena to Pinzolo illustrates intrusion relationships between plutons, Southalpine basement and sedimentary cover (Figure 2).

2.2. Petrography, Mineral Chemistry and Geochemistry

A total of 150 samples were collected from different lithologies of the Corno Alto and Monte Ospedale area for the CARG project (sampling sites and related acronyms are reported in Table 1 and Table S1, and in Figures S1–S4). Among them, 26 samples have been analyzed and are reported in Table 1. (see Supplementary Material for further information).

2.3. Modelling

In order to understand the origin of the rocks from the Corno Alto–Monte Ospedale area characterized by a large variation in composition, we have performed geochemical modelling of the fractional crystallization and partial melting using two approaches described below.
Fractional crystallization and evolution of an initial mafic magma was simulated on four possible parental magmas selected from the literature: samples JM157 [31], U237 [16] and our own samples MK6–Monte Ospedale diorite; A3355–Malga Persec diorite. We used the software Rhyolite-Melts v 1.2.0 (ETH Zürich, Zürich, Switzerland) which is optimal for mafic and alkalic melts [32,33]. Simulations were made considering the Quartz–Fayalite–Magnetite (QFM) buffer, at constant pressure of 4 kbar, and 4 wt.% H2O. The choice of 4 kbar was based on the results of Al-in Hbl geobarometer in Hbl-bearing rocks from the Monte Ospedale diorite. Results of the model can be found in supplementary material (Tables S5–S8). 4 wt.% of H2O was chosenas this is the minimum amount of H2O that stabilizes amphibole in the model.
Thermodynamic calculations were performed using Perple_X software (a software generating equilibrium phase diagrams using Gibbs energy minimization procedures) [34], with the internally consistent data set of Holland and Powell [35], in a ten-component MnO–Na2O–CaO–K2O–FeO–MgO–Al2O3–SiO2–H2O–TiO2 (MnNCKFMASHT) system for samples derived from European intermediate crust (ELC1; [36]) and from Adria upper crust (CMP; [37]) and in the eleven component MnO–Na2O–CaO–K2O–FeO–MgO–Al2O3–SiO2–H2O–TiO2–O (MnNCKFMASHTO) system for rocks derived from European lower crust (ELC2; [36]) and Adriatic crusts (ALC4; [38]), respectively. The following a-x relations were selected for ELC1 and CMP: melt, Grt, Opx, Ms, Bt, Crd and Mag from White et al. [39,40], Ilm from White et al. [41], Pl and Kfs from Holland and Powell [42]. The following a–x relations were instead selected for ELC2 and ALC4: Grt and Opx from White et al. [39,40], Pl from Holland and Powell [42], melt, Cpx and amphibole from Green et al. [43]. Pure phases included Qz, Rt, Ky, Sil and aqueous fluid. All mineral abbreviations after Whitney and Evans [30]. The results of the model can be found in Section 4.2.

3. Geological Setting

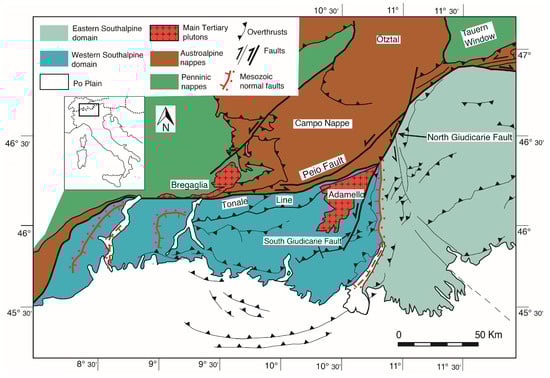

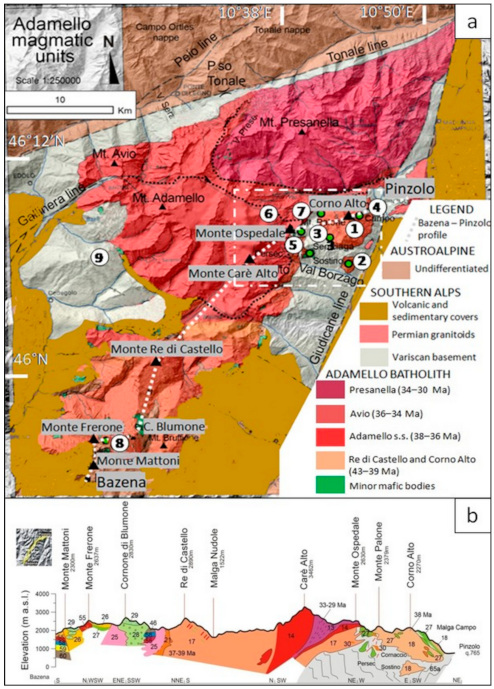

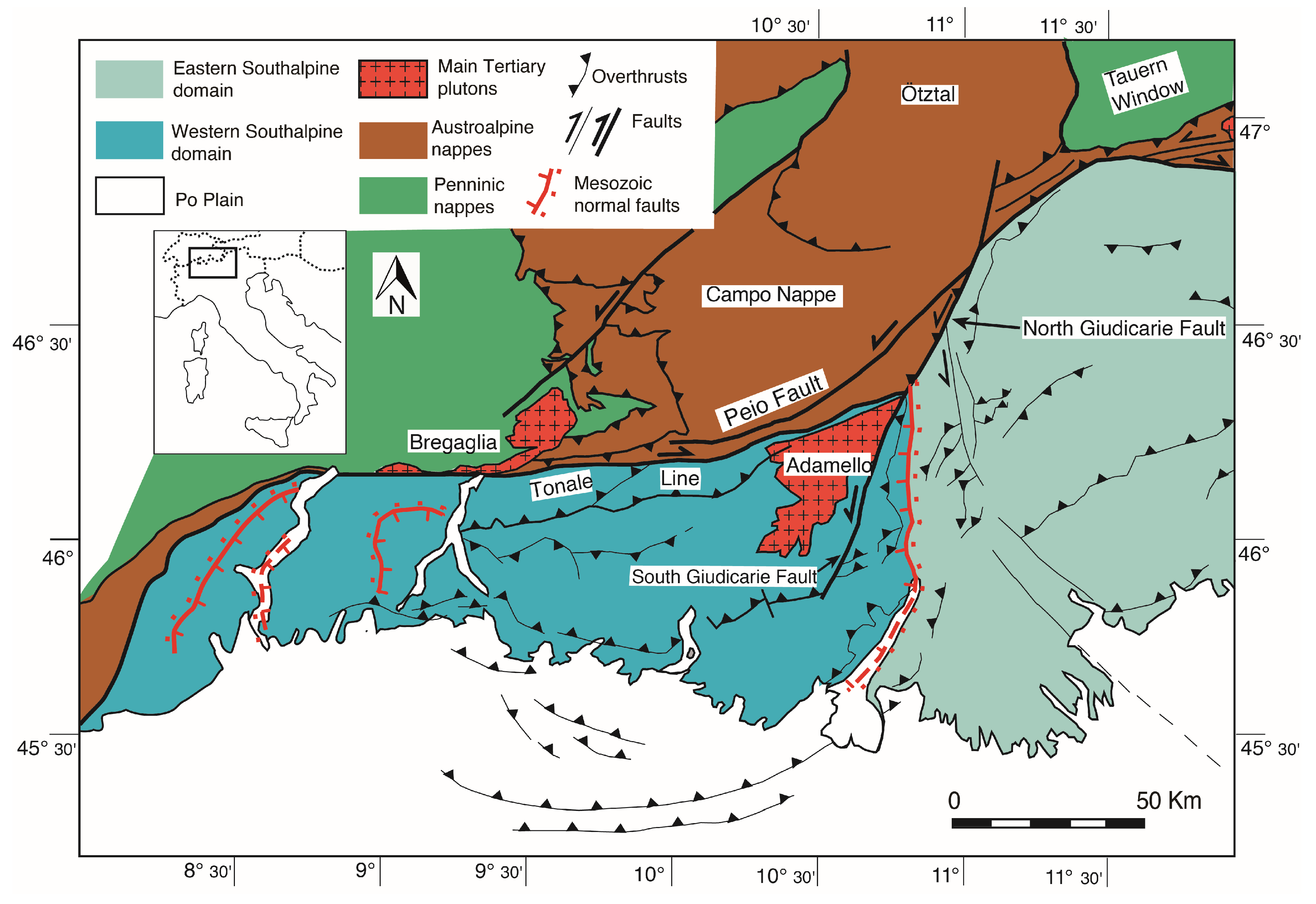

The Adamello batholith is emplaced within the corner formed by the South Giudicarie Fault and the Periadriatic Lineament (Figure 2a). It shows a northeastward elongation in contrast with other Periadriatic intrusions that are aligned along the E-striking Periadriatic Lineament (Figure 1). Only Presanella and Avio plutons, forming the northern edge of the batholith, follow the general trend of the Periadriatic Lineament. The whole Adamello batholith is generally assumed as part of the “Magmatic Periadriatic System” [44,45] whose magma is fed by a source region located at the base of the crust and was emplaced parallel to the axis of the Alpine chain, mainly during Oligocene [3,46]. Differently from the “Magmatic Periadriatic System”, the Re di Castello and Corno Alto plutons, were emplaced along a NE–SW Giudicarie trend during Eocene, in a time interval spanning from 43.47 ± 0.16 to 39.1 ± 0.3 Ma (U/Pb ages on zircon by Schaltegger et al. [7]). These plutons show no relations with the Periadriatic Lineament, as they are aligned along a SW–NE trend nearly parallel to the Giudicarie Fault System. This latter structure is divided into a northern segment (North Giudicarie Fault), representing the major NE-striking bend of the Periadriatic Lineament, and the South Giudicarie Fault, forming a NE-striking steeply dipping fault zone, representing the most important transverse zone in the nearly E-striking Southalpine thrust and fold belt [47,48].
The South Giudicarie Fault derives from multiple reactivations of a pre-existing fault system present since Permian times as en-échelon grabens [49]. Subsequently, during the Late Triassic to Cretaceous times, a N-striking normal fault system reactivated the same weakness zone. Normal faults were responsible for intense subsidence, connected to the opening of the Lombardian basin in the Western Southalpine Domain (Figure 1), which is separated from the Trento Platform, in the Eastern Southalpine Domain by the N-striking Ballino line [50,51]. Further extensional activity during the Late Cretaceous time has been reported along this fault system [52,53].
During Eocene wide areas of the Southern Alps were affected by intermediate to mafic magmatism. In the central southern Alps, this is indicated by the presence of basaltic, Qz-andesitic, dacitic and rhyodacitic dykes emplaced during the Lutetian–Bartonian time interval (U/Pb zircon ages of 42.1 ± 1 and 39 ± 1 Ma), along E- to NE-trending normal faults [11]. Moreover, several mafic dykes and apophyses intruded bothSouthalpine basement and Permo–Triassic sedimentary cover in Val Rendena, E of the present-day South Giudicarie Fault [13]. Evidence of coeval volcanism is outlined by the presence of volcaniclastic rocks with a basaltic composition in Early to Middle-Eocene deep-sea sediments exposed along a Giudicarie trend, from Val di Non to the north to Lake Garda to the south [13].Emplacement of Cenozoic intrusive rocks is also observed along the North Giudicarie Fault, as indicated by tonalites and gabbros of Eocene to Oligocene age, sliced along the fault zone [54,55].

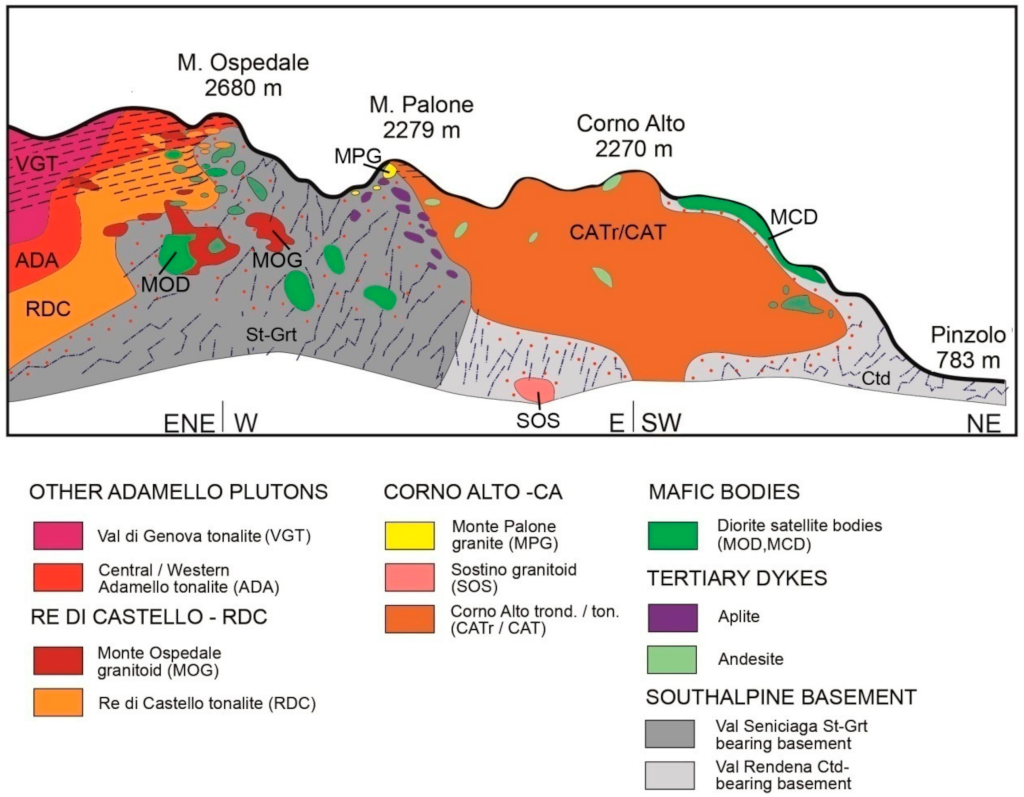

The Corno Alto massif consists of a trondhjemite-to-tonalite main pluton (CaTr/CAT; Figure 3 and Figure 4), the granite dyke set of Monte Palone (MPG), Malga Sostino granitoid (SOS), the diorite bodies of Malga Campo (MCD), the gabbro and diorite bodies of Malga Persec (MPD), the Monte Ospedale diorite apophyses (MOD) and late granite dykes (MOG) intruded in the Southalpine basement [29,56,57,58]. The basement is a pelitic-psammitic sequence, mostly consisting of paragneiss, St ± Grt ± micaschists, Qz-rich schists and orthogneisses with Variscan metamorphism and intruded by Permian granitoids (Figure 4) [59,60,61,62,63,64,65].

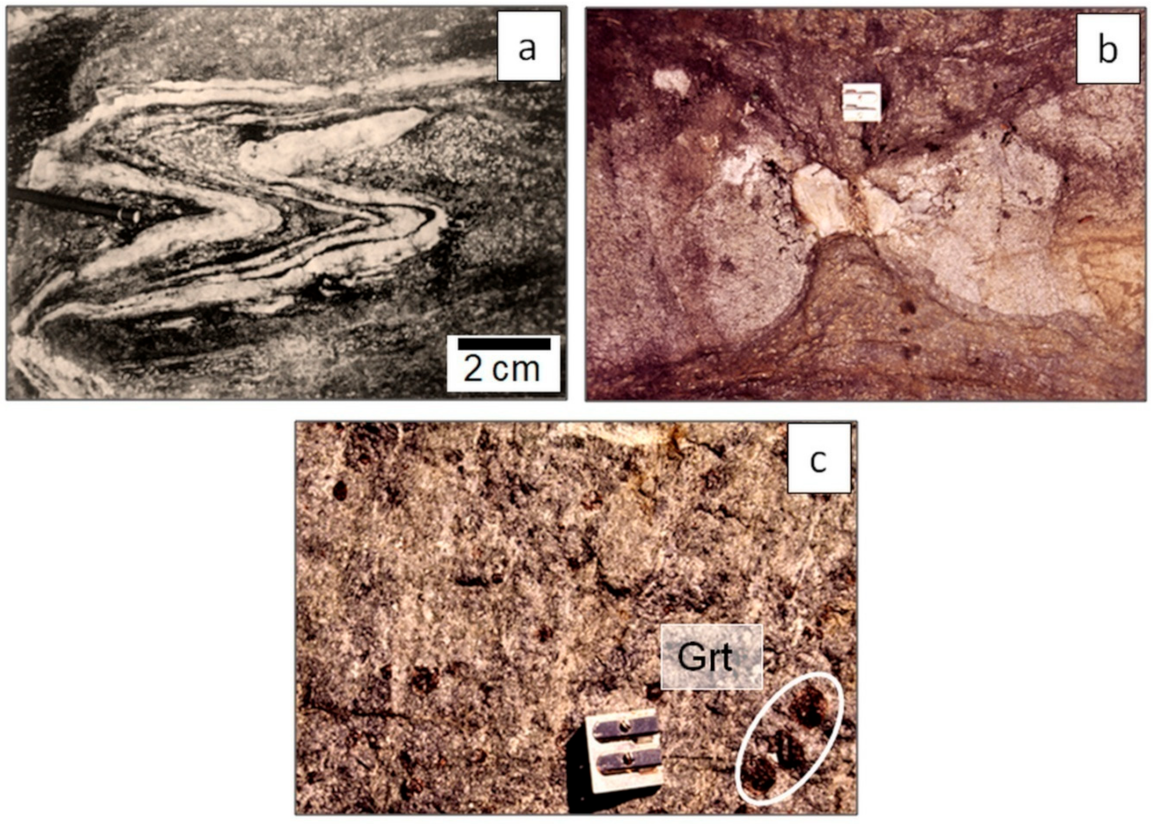

Variscan basement rocks in Val Seniciaga and Val Borzago record St and Grt in the micaschists indicating transition to ametamorphic grade higher than the one recorded in Val Rendena ([62,65]) (Figure 4). The paragneisses show segregation of Qz in the core of folds and lenses (Figure 5a); layers of Pl (oligoclase, An27) and boudinage along S2 (Figure 5b). The regional schistosity (S2) is NE-SW striking in Val Borzago changing to NNE- SSW in Val Seniciaga (Figure S5) [61,62,66]. The intrusion of Corno Alto granitoids, ADA tonalites and of the mafic bodies produced contact metamorphism and parageneses including Bt, Grt, And, Crd, Sil, Kfs and Sp (Figure 5c). And is observed near the diorite dykes of M.ga Campo. Sil, And, Pl (An30) and Crd occur around the gabbro-diorite intrusions of Val Borzago where a temperature of 650–670 °C and a shallow depth of 4–8 km was estimated [65]. At the contact with M. Ospedale diorite, mineral assemblages containing Bt ± And ± Kfs and Grt − And − Sil ± Crd ± Kfs ± Sp are also observed [61,62]. These field observations highlight how part of the basement, in contact with Corno Alto, was partially melted, producing migmatite-like structure when CAT/CATr intruded.

3.1. Corno Alto Main Body and Felsic Apophyses (CAT, CATr, MPG, SOS)

The Corno Alto pluton is a 20 km2 sized, rounded, bowl-shaped body located between Val Rendena to the east and Val Borzago to the south, from an altitude of 700 m up to 2427 m (Figure 3 and Figure 4). The schistosity of the wall rocks dips towards the internal part of the pluton becoming subvertical approaching the intrusive contact. Schists were thermally fractured and permeated by melts in a stoping-like process [67]. The pluton includes a granitic core and multiple rims though no sharp limits were recognized in the field by Trener [57] and Salomon [68]. The core, corresponding to the area surrounding Corno Alto peak, is characterized by coarse, hetero-granular rocks, showing no magmatic anisotropy, with Pl (45–50%), Qz (40–35%), Kfs (7–10%), Bt (>3%) Ms (<1%) and Ap, Op, Zrc as accessories (Figure 6a,b). This was defined as a granite by Bianchi and Dal Piaz [69] and successively as a trondhjemite (CATr) on the basis of the chemical composition [8]. The nucleus gradually changes into a tonalite (CAT) as observed towards the Val di Genova [69,70,71]; near Val di Genova, CAT show evidence of tectonically induced sub-solidus recrystallization [71] (Figure 6c). A granitoid with porphyric structure crops out in the northwestern side of the massif at M. Cornaccio and on the eastern side, in Val Rendena [71,72]. Here, this granitoid contains dismembered fragments of the diorite dykes of M.ga Campo (MCD) (Figure 6d). Other satellite bodies around the main pluton are the apophyses of M.ga Sostino (SOS) and M. Fornace (Figure 3). At M. Palone, a 150 m thick foliated fine-grained dyke (MPG) is cut by numerous late centimeter-thick aplite dykes. MPG outcrops are sporadic and discontinuous; the granitic dyke embed numerous flattened xenoliths of Variscan basement, generally showing a preferential orientation. The peripheral magmatic body of M.ga Sostino (SOS) consists of granodioritic rocks, resembling CAT in both texture and mineralogy. Recent zircon dating of Corno Alto granitoids yield 43.5–43.2 Ma ages [7]; cooling ages vary from 41–42 Ma (Rb-Sr on Ms) to 33–35 Ma (Rb-Sr on Bt) [1,21,73]. An emplacement pressure of 3.5–4 kbar for the Corno Alto pluton has been proposed based on apatite fission track data in the hypothesis of a “normal” geothermal gradient of 30 °C/km and furtherestimates of the stratigraphic thickness of the overlying Paleozoic and Mesozoic sequence [63,71].

3.2. Malga Campo–Caladino Mafic Bodies (MCD)

Mafic bodies crop out on the eastern–northeastern border of the Corno Alto pluton (Figure 3 and Figure 4). The main body is a 100 m-wide dyke, with a ENE-WSW orientation, within a basement slice located south of M.ga Campo. Other minor MCD bodies display a similar E-W to NE-SW orientation. The bodies near Gelada are dismembered by successive CAT intrusions; (Figure 3 and Figure S7). The diorite dyke of M.ga Campo includes Hbl clusters characterized by a preferred orientation parallel to the dyke margin. MCD mineralogical content comprises: Pl (35–45%), Hbl (40–30%) Bt (10–15%), Qz (10–5%) Ep (<5%) Tit (<2%) and secondary Chl. Often, these diorites show fluidal texture with preferred orientation of Pl and Hbl [74]. The enclaves are composed of dominant green Hbl and Pl (zoned labradorite to andesine), Qz, Bt with Mag, Ilm and Tit as accessory and Ep as secondary minerals. Pl phenocrysts are subhedral and zoned (core An60 and rim An30), often displaying oscillatory zoning (Figure 6a). Hbl occurs as phenocrysts, often twinned, patchy and poikilitic (including Pl), usually with corroded borders (Figure 6d). Though no absolute ages are available for MCD, on the base of crosscutting relations, the latter seems to predate CAT/CATr intrusion [71] (Figure S7).

3.3. Val Borzago Mafic Bodies (MPD)

Close to P.so Altar, in the upper Val Borzago, within St-Grt-bearing schists, other mafic bodies occur at M.ga Persec and M.ga Nagrè (names after Figure 3).They were dismembered by the intrusion of Re di Castello (RDC) tonalite and M. Ospedale (MOG) granitoids. Two different rocktypes were observed in the field near M.ga Persec (MPD): a coarse grained granular gabbroid rock, composed of large euhedral Hbl crystals and interstitial Pl, defined as Hbl-gabbro by Bellieni et al. [75], and a fine-grained mafic rock, composed of Hbl, Bt and minor Pl with Mag, Ilm and sphene as accessory minerals. MPD mineralogy is made up of Pl (35–45%), Hbl (45–35%) Bt (15–10%), and Qz (5–10%). Hbl is usually zoned, going from Tschermakite core to Mg-Hbl rim with outer thin rims of actinolitic Hbl [75] (Figure S8). Qz-Bt aggregates seem to postdate crystallization of euhedral Hblwhile minor anhedral Qzappears as an interstitial phase.

3.4. Monte Ospedale Mafic Bodies (MOD, MSB)

M. Ospedale diorites and mafic dykes (MOD) intruded within the Variscan basement of the upper Val Seniciaga between M. Ospedale and M. Cornaccio ridges, following a NE-SW trend (Figure 3). The northeasternmost mafic body of this series crops out between M.ga Seniciaga bassa and M. Cornaccio (MSB, size 0.1 km2, Figure 3). The main MOD body (0.3 km2) crops out along the southern slope of M. Ospedale (Figure S6). This bodyconsists of layers of dominant Hbl interbedded with layers of dominant Pl, showing granular coarse-grained texture exhibiting an isotropic magmatic fabric. Minor MOD and MSB outcrops consist of fine (<1 mm) to coarse-grained crystal (>5 mm). The mineralogical composition includes: Pl (30–50%), Hbl (40–20%) Bt (20–30%), Qz (5–10%), Tit + Ilm (<5%). Pl is either homogeneous or zoned (An80–90 cores and An30–40 rims). Other mafic bodies crop out along the ridge between M. Ospedale and Baito Altar in the upper Val Seniciaga and at P.so Altar, where diorite is wrapped by RDC tonalite. All the M. Ospedale mafic bodies (MOD) have been heavily dismembered by successive intrusions of RDC and ADA and finally by MOG (Figure S6). The contact rocks show centimeter-sized Grt, And, Sil and Sp (Figure 7d). Between M. Cornaccio and Val Seniciaga, another mafic body appears (MSB), dismembered by CAT [61,62].

3.5. M. Ospedale Felsic Bodies (RDC, ADA, MOG)

In the upper Val Seniciaga, from P.so Altar to M. Ospedale, RDC tonalite is the dominant lithotype. This is a medium-to-fine grained leuco-tonalite, with abundant elongated microdiorite enclaves. Mineral and grainsize variations are very frequently associated withthe repeated alternation of leucocratic and melanocratic lithotypes [69]. The basement shows thermal overprint with mineral associations such as Sil + And or Grt + Crd + Kfs resulting from contact metamorphism during the emplacement of ADA tonalite. In the lower Val Seniciaga, ADA tonalite includes Amp-rich layers and enclaves of RDC tonalite (Figure 4). ADA is a medium to coarse-grained tonalite exhibiting a massive texture. MOG crosscut all the aforementioned lithologies and consist of Qz-rich, fine to coarse-grained granitoids showing a fluidal texture, with rare Bt and lacking Hbl. No absolute ages are available for both MPD and MOD, even if intrusive relationships between MOD, MPD, RDC and ADA tonalites suggest a chronologic order of emplacement in which gabbroic rocks (MPD) and diorites (MOD) are the oldest rocks. The amphibole compositions of MOD, MPD and MCD diorites change from Tschermakite to Mg-Hbl (Table S9, Figure S8). Barometric calculations on amphiboles of the RDC and ADA tonalites in the M. Ospedale area, wrapping diorite bodies, delivered pressure estimates between 3.5 and 5 kbar [76] (Tables S10 and S11).

4. Results

Based on whole-rock and isotopic compositions, a geochemical modelling allowed the detection the parental melt for Corno Alto–M. Ospedale rocks and the quantitative reconstruction of a differentiation path for such a melt, constraining magmatic petrogenesis. Afterwards, we tested potential contamination by modelling crustal anatexis to identify the type of the involved crustal melt.

4.1. Whole-Rock Geochemistry

Corno Alto-M. Ospedale rocks encompass a wide compositional range; a single lithotype (e.g., MOD) may show rather variable chemical compositions. A ternary diagram of normative albite (Ab) anorthite (An) orthoclase (Or) shows that all felsic rocks display more Ab-rich compositions (Figure 8). CATr samples occupy a borderline field between pure trondhjemite field (An<30) and tonalite (An>30); one CATr sample is classified as granite (sample A77-9). MPG (samples GZ181, GZ182) are set on the trondhjemite–granite border. CAT samples also place close to the tonalite–trondhjemite border but with an An wt.% slightly higher than CATr. SOS samples show a wide range of compositions from tonalite (samples A78-31 and A77-10) to granodiorite (AO4). These results are also corroborated by PCA statistical analysis of the Corno Alto felsic rocks showing how CAT and CATr plot into different clusters whereas SOS samples are more scattered, inferring more heterogeneous compositions (Figure S9).

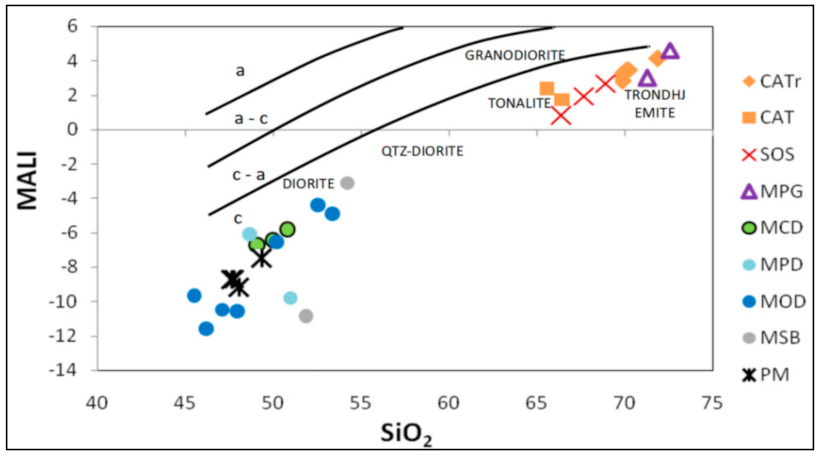

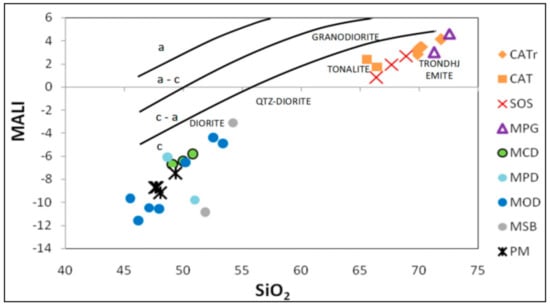

An efficient classification method for feldspathic igneous rocks is the MALI vs. SiO2 diagram (Figure 9; Frost and Frost, 2008 [78]). All Corno Alto-M. Ospedale rocks plot in the lowest calcic field close to the calcic–calc-alkalic boundary (some samples fall onto the boundary). Mafic samples plot left of the diorite field whilst CAT, CATr and SOS granitoids fall in the tonalite field or between tonalite and trondhjemite fields (as seen for Ab-An-Or diagram; Figure 8).

4.1.1. Major and Minor Elements

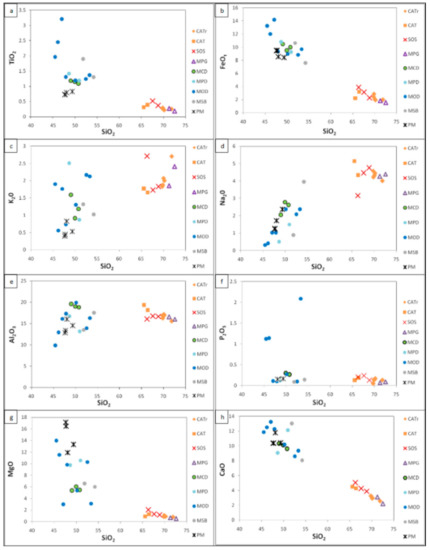

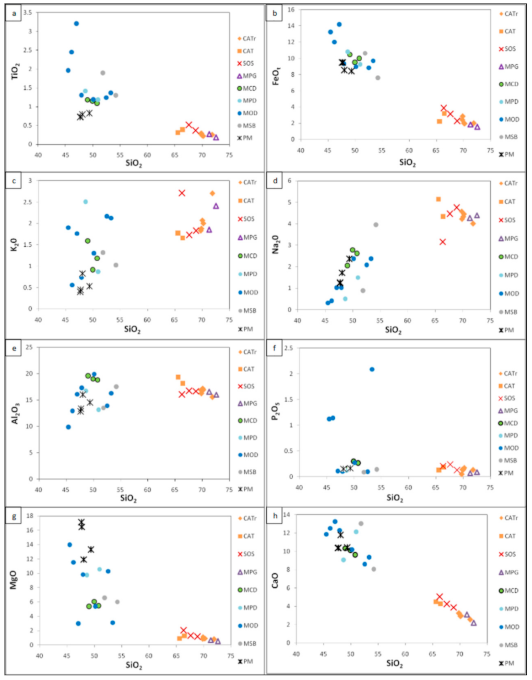

Major and minor elements compositions for both mafic and felsic samples (Table 2) are plotted against SiO2 contents in the Harker diagrams (Figure 10). Supplementary Material reports the chemical and isotopic compositions and the Harker diagrams of the Re di Castello and M. Marser mafic rocks for comparison with Corno Alto-M. Ospedale samples (Tables S2–S4; Figure S10). The studied samples show a marked compositional heterogeneity, with SiO2 ranging from 44 to 72 wt.%. The mafic samples cover a wide compositional span from 44.4 (sample VF164, MOD) to 53.6 (sample MK9, MOD) SiO2 wt.%, whereas felsic rocks show a narrower interval of SiO2 values between 65.03 (sample GZ184, CAT) and 72.05 (GZ182, MPG) wt.%. A peculiar lack of intermediate terms is observed as no Corno Alto-M. Ospedale samples plot in the range between 55 and 65 SiO2 wt.% (Daly Gap; [79]). RDC tonalite samples fill the Daly Gap shown by Corno Alto–M. Ospedale samples (Figure S10). Al2O3 contents are always >12 wt.%, excluding sample VF164. CAT and MCD display Al2O3 peaks with contents above 19%, while MOD exhibits rather variable Al2O3 contents. Al2O3 depicts a bell-shaped trend as it increases as SiO2 decreases for diorites while an opposite tendency is displayed by felsic rocks (Figure 10). Ferromagnesian oxides (MgO, FeOtot) TiO2, CaO and MnO have an overall negative correlation with SiO2, whilst Na2O and K2O exhibit a positive correlation with SiO2; P2O5 contents are roughly constant as SiO2 increases, yet samples VF109, VF164 and MK9 (MOD) show high P2O5 contents (P2O5 > 1 wt.%, up to 2.09 for MK9).

4.1.2. Trace Elements

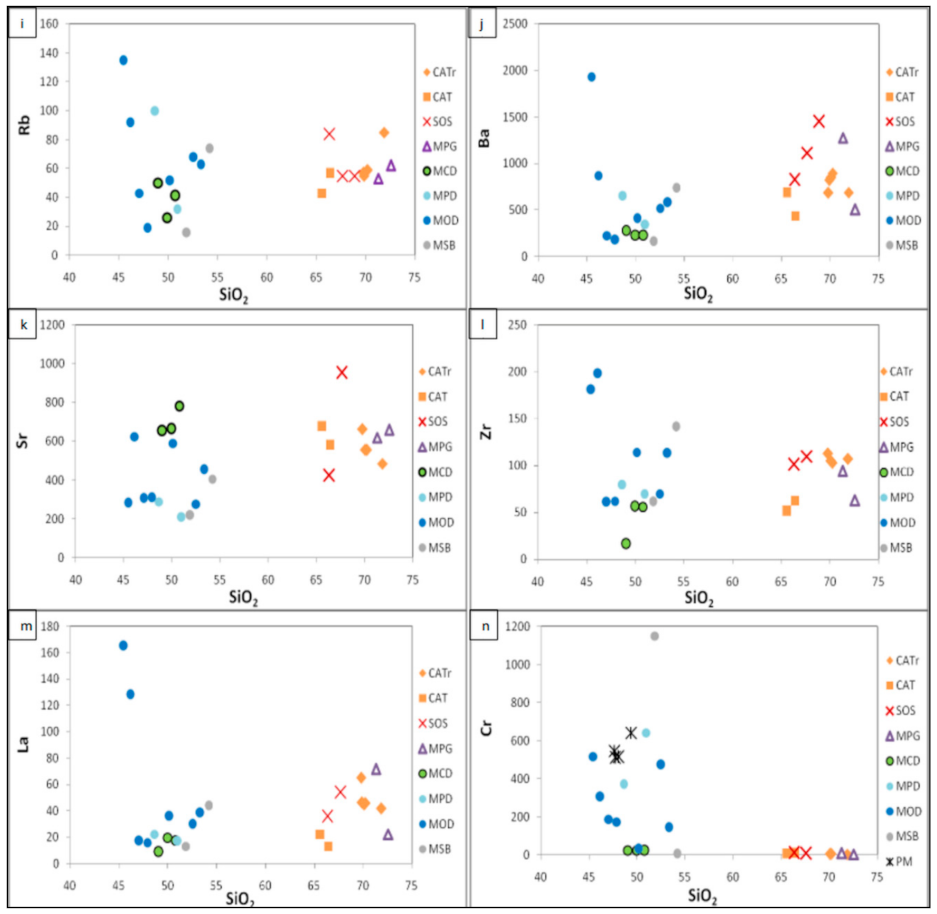

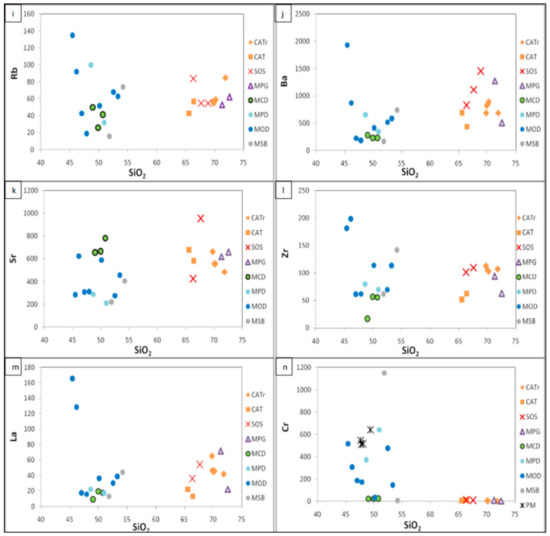

Elements such as Rb, Ba and Sr display similar trends with roughly increasing contents as SiO2 increases (Table 3 and Table S3). Despite their mafic composition, MCD exhibit high Sr contents (654 to 783 ppm), matching felsic rock. On the other hand, Rb and Ba contents for MCD are low (26 to 50 and 234 to 282 ppm, respectively), whereas some MOD and MSB samples appear to be enriched in these elements (up to 100 and 741 ppm). Mafic samples (VF109, VF164) show anomalously high compositions in Rb and Ba (VF164 has 135 ppm of Rb and 1934 ppm of Ba). These contents are even higher than felsic samples ones. Similar high La and Zr contents are displayed by the same samples. Excluding MCD samples (lower Zr) both mafic and felsic samples fall in the same range of Zr contents (between 50 and 150 ppm). La contents display a slight positive correlation with SiO2. Cr has higher contents for diorites (up to 641 ppm, sampleA3355). It decreases abruptly from PM samples (~600 ppm) to MCD (<30 ppm). PM samples are the parental melts suggested for Re di Castello pluton petrogenesis. Interestingly, MCD samples have similar Cr as felsic rocks, despite their lower SiO2 (47–48 vs. 65–72 wt.%). One MSB sample has an extremely high Cr content of 1150 ppm. Primitive-mantle normalized patterns (Spider diagram) display an overall negative slope, due to an enrichment in less compatible elements: the concentrations of Rb, Ba, Th, U are >30 times those of primitive mantle. The enrichment factor decreases to <10 for HREEs (Figure S13).

4.1.3. Isotope Geochemistry

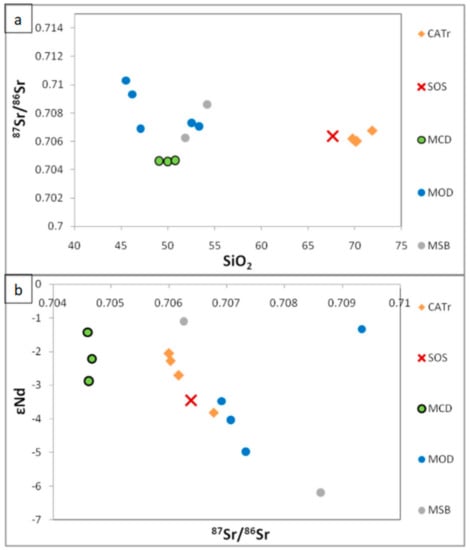

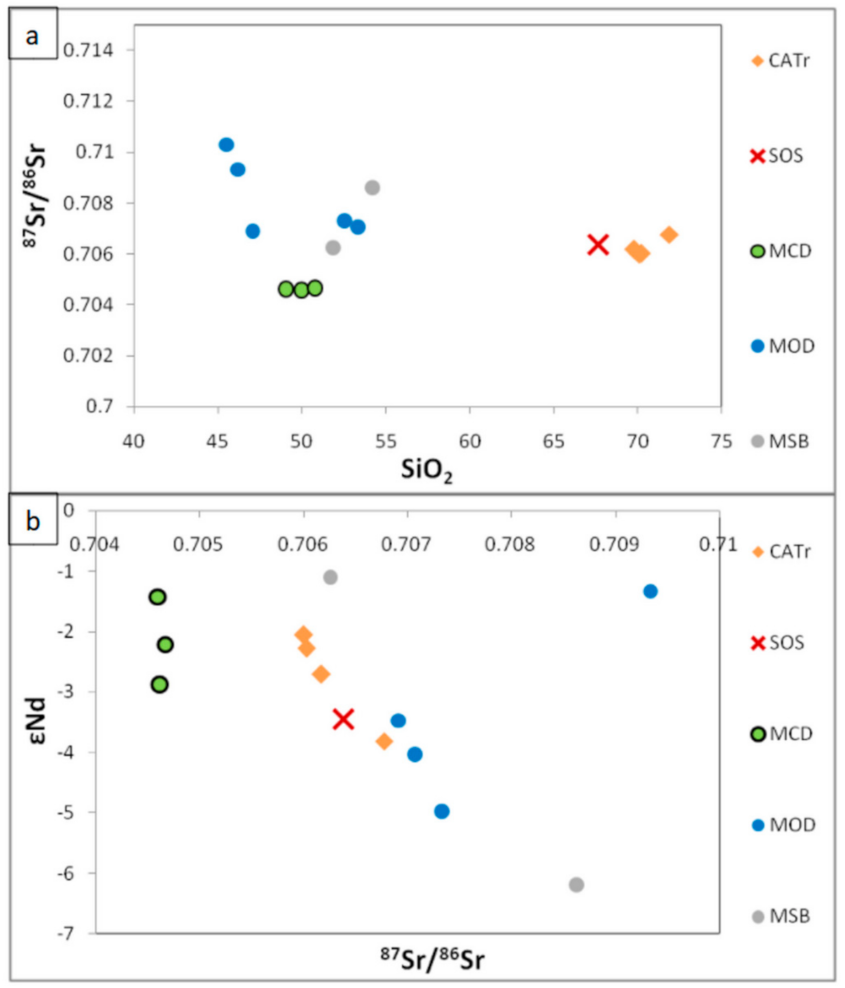

In the plot SiO2 versus 87Sr/86Sr (Figure 11a), a first recognizable feature is the isotopic similarity between MCD and the mafic parental magmas from the literature (87Sr/86Sr < 0.705) (Table 4 and Table S4). Such Sr isotopic compositions underline a lithospheric mantle affinity for MCD [61]. In contrast, the other mafic lithologies from Corno Alto, which include MOD (except for two samples), MSB and MDP, have more radiogenic values than MCD that are similar to the most differentiated units (SOS, CAT and CATr) within the interval between 0.7054 and 0.7082. A little amount of crustal contamination (assuming a crust with 87Sr/86Sr > 0.735) may have affected the trondhjemites, granites and granodiorites, according to Del Moro et al. [8]. The diagram Sr isotopic ratio vs. εNd (Figure 11b) shows that among the considered rock suites, only the Southern Re di Castello gabbro reveal mantle affinity with εNd > 0 and low 87Sr/86Sr (Figure S11b). Additionally, MPD and MCD show εNd ≈ 0 or slightly negative and low to medium 87Sr/86Sr values thus displaying little amounts of crustal assimilation. CATr, CAT, SOS and MOD lie in the εNd < 0—high 87Sr/86Sr sector, emphasizing crustal assimilation (Figure 11b).

4.2. Modelling

As pointed by the geochemistry, the Corno Alto pluton shows a wide range of compositions, thus, to understand the possible process that contributed to such variation we conducted a geochemical modelling of fractional crystallization of possible parental mafic magmas and partial melting of crustal lithologies. The results can be found in Figure 12 and Tables S5–S8.

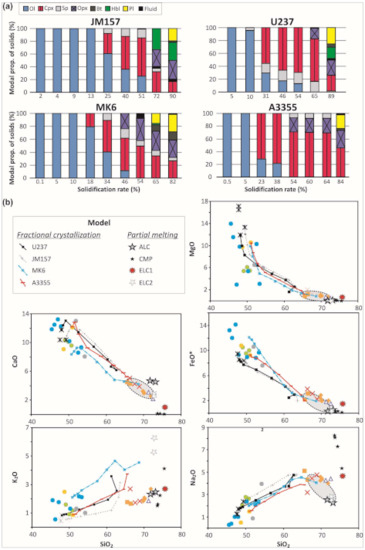

In the first approach, we evaluated the effect of fractional crystallization and evolution of an initial mafic magma. The model was run using the software Rhyolite-Melts v 1.2.0 (details in Section 2) and all starting compositions were at Quartz–Fayalite–Magnetite (QFM) buffer, constant pressure of 4 kbar, and contained 4 wt.% H2O. The crystallization was then evaluated at increments of 50 °C until complete cooling. The solid assemblages and the evolution of fractionated melt compositions at each step are presented in Figure 12a,b, respectively.
The four selected parental magmas start the crystallization of Ol at temperatures between 1190 and 1260 °C. Ol is the only phase present until 10–13% solidification, and is followed by the crystallization of Sp and Cpx between 10 and 50% solidification. Opx appears at different steps depending on the sample, as early as at 46% in MK6 and 54% in A3355, and later than >65% in JM157 and U237 (Figure 12a). Hydrous phases such as Hbl and Bt crystallize only after >65% crystallization. In particular, for sample JM157, Hbl is a significant phase reaching proportions between 28 and 32 modal%. Similarly, in U237, the amount of Hbl in the final steps of crystallization may reach 17 modal%. In contrast, MK6 contains only a few percent Hbl (2.5 modal%), and A3355 does not crystallize amphibole. Pl appears as early as at 65% of crystallization (MK6), but usually at >84% solidification. Simulations ended at temperatures between 820–850 °C.
In Figure 12b the evolution of the parental magmas usually started at <50 wt.% SiO2 and the fractional crystallization produced melt compositions with SiO2 between 61.3 to 68.6 wt.% which are generally below the most fractionated rocks from Corno Alto (MPG, CAT, SOS and, especially, CATr) that reach up to 72 wt.% SiO2. Models for JM157 and U237 produced the less evolved end members, conversely model MK6 and A3355 reached slightly higher SiO2 contents. In the case of MgO, FeOtot and Na2O the general trends overlap some of the natural samples from SOS and CAT, in particular, model MK6 seems to the best representative. On the other hand, the CaO trend is only partially reproduced by the models, because although the melts evolve in the right direction and overlap with SOS and CAT, the lowest values, for unit CATr, are not reproduced. The poorest correlation of the models is observed for K2O as they completely fail to reproduce its behavior, since the evolved compositions have much higher contents (>3 wt.%) than the natural samples.
As described above, a simple fractional crystallization of a mafic parental magma fails to reproduce the most differentiated rocks from Corno Alto. This suggests that other processes may be involved in their formation. To investigate the possible involvement of crustal melts in the genesis of Corno Alto pluton, we modeled crustal anatexis. Both African and European lower and upper crust sections, involved in the Europe–Adria collision, were considered as possible crustal sources (Table 5). A possible contribution to Adamello rock genesis from the European lower Continental Crust (ELC) was first advised by von Blanckenburg and Davies [80]. European lower crust samples from Massif Central [81], Pannonian Basin [82], Eifel Volcanics [83], Calabria Serre Basement [36] and Adriatic lower crust rocks from the Ivrea Body [38] have all been taken into consideration for thermodynamic modelling. Moreover, the Southalpine upper crust is represented in the Adamello area by the Edolo Schists and Massiccio delle Tre Valli Bresciane phyllites (TVB) [24,37,64] has also been taken into account. Four samples were selected for Perple_X processing [34] according to a paleogeographic criterium: in particular, at the time of Corno Alto intrusion (43 Ma), the Serre basement has been considered as a portion of the Sardinia–Corse promontory of European affinity [84,85,86,87]. The selected samples are described below.
ELC1 is a Grt-Crd-bearing granulite from the Serre basement, Calabria, South Italy, displaying metamorphic peak P-T estimates of 760–810 °C and 6.5–7 kbar (LCCC, [36,88]).
ELC2 is a layered granulite-facies metagabbro from the Serre basement, Calabria yielding P-T peak conditions of 780–820 °C and 7–8 kbar (LCCC, [36,88]).
ALC4 is an Ivrea metagabbro, Northern Italy whose calculated metamorphic peak condition is 800–850 °C and 8.3 kbar [38,89].
CMPis a white mica-bearing phyllites with high Qz contents, from the Central Southalpine basement of the “Massiccio delle Tre Valli Bresciane (TVB)” [37]. Final equilibrium at intermediate crust P-T conditions have been suggested for this basement [64].
For each composition, a P-T pseudosection has been calculated (Figure S12). The compositions of anatectic melts produced at variable P-T conditions are reported in Table 6. Nine major element compositions of melts were calculated, at different P-T conditions, according to available geothermobarometric data. The melt amounts range from 5 to 12 vol.% for different P-T conditions (Table 6). These degrees of partial melting are consistent with the degree of crustal assimilation suggested by geochemical constraints [8]. In these calculations, we assume that crustal melts were produced at deeper levels (6.5 to 10 kbar) with respect to the emplacement depths suggested for the Corno Alto granitoids.
The melt composition calculated from ELC1 sample (Serre metapelite) is a silica-rich melt, poor in ferromagnesian oxides but rich in Na2O and Al2O3. Two melts were calculated from ELC2 sample (Serre section metagabbro). Both melts are silica-rich and show the highest contents of K2O among calculated melts, moderate CaO, low Na2O and negligible amounts of FeOtot and MgO (Table 6). Two melts were obtained from ALC4 melting (Ivrea metagabbro). They were computed at the same T (900 °C), but at different pressures (8 and 10 kbar). Computed ALC4 melt compositions partially resemble those obtained from the melting of ELC2 metagabbro even if the former display higher Al2O3, CaO contents while a conspicuous K2O reduction is predicted in ALC4 melts (Table 6). K2O content of ALC4 melts are less than the half of ELC2 ones. Four melts were computed considering the average composition of the phyllites from Massiccio Tre Valli Bresciane (TVB) as protolith. The P-T conditions selected for melt production are typical of intermediate–upper crustal levels. These melts are characterized by the lowest CaO contents and the highest Na2O values and show the largest variations in terms of K2O and Na2O concentrations.

5. Discussion

5.1. Petrogenesis of the Corno Alto Pluton

Harker diagrams display a typical trend of calc-alkaline series (Figure 11) [61]: MgO, FeOtot, CaO, TiO2 and MnO decrease as SiO2 increases owing to the early crystallization of mafic minerals. For instance, MgO and TiO2 decrease exponentially due the crystallization of early phases such as Mg-Hbl, while alkali oxides (Na2O and K2O) increase as result of the preferential segregation of alkali-rich phases, as SiO2 increases. High SiO2contents (>72 wt.%) are displayed by MPG, since M. Palone and M. Cornaccio are felsic differentiations of the main Corno Alto trondhjemitic body. On the other hand, SOS and CAT are slightly less evolved compared to the main CATr (65–68 vs. 69–71 SiO2 wt.%), also displaying higher average compositions for CaO, MgO and FeOtot (up to 5.01, 2 and 3.83 wt.%, respectively). These samples could represent a medium-to-late crystallization stage with segregation of Bt, Ms and andesine Pl. Comparing SOS with CATr, the former shows values SiO2, MgO, FeOtot, CaO and alkali values ranging from granodiorite (sample AO4) to trondhjemite (sample A77-10). Al2O3 values show a bell-shaped trend with the mafic flank of the curve being steeper than the felsic one. This is due to the higher modal abundances of Al-rich phases segregating at intermediate silica content. Samples showing P2O5 peaks also have high La contents, owing to higher modal proportions of Ap.
The trace element compositions of Corno Alto samples do not show a clear enrichment in incompatible elements in the most differentiate rocks. For instance, Ba is generally higher in felsic lithotypes; felsic and some mafic rocks (MCD and MOD) show similar Sr contents, ranging between 400 and 800 ppm. Some MOD, MPD and MSB samples have rather high Rb contents (Table 3), comparable with Corno Alto rocks ones (from 50 to 100 ppm). A similar scenario is depicted for Zr. Cr is the only compatible trace analyzed: it describes an exponential curve alike Mg and Ti owing to the early crystallization of Cr-rich phases. Sample VF102 (MSB), having an extremely high Cr content of 1150 ppm, could be considered as either a likely parental melt or a cumulate. Two MOD samples (VF109 and VF164) exhibit exceptionally high contents of all incompatible traces and REEs (Table 3). These samples are very fine-grained rocks, showing no phenocrysts.Thus, they have been interpreted as late magmatic mafic dykes retaining high concentrations of incompatible elements. MCD are mildly rich in Sr and Ba (mobile trace elements) whereas MOD, MPD and sample MK4 (MSB) display high contents for Ba, Rb, Zr and La (both mobile and immobile traces). To produce an enrichment in immobile traces, we must assume circulation of both melts and fluids in the same system [61]. Hence, metasomatism by means of slab-deriving melts and fluids affected the mantle source that generated the parental melts [16,90]).
Primitive mantle-normalized trace and REE patterns confirm what stated above (Figure S13). MOD, MPD and MSB samples are mildly to highly enriched in Ba, Rb, Sr, U, Th and La (mobile and immobile traces) with enrichment factors up to 100. On the other hand, MCD samples show a clear enrichment in mobile traces such as U (enrichment factor > 150) and Sr (mobile traces). An evident Nb trough characterize the patterns of all rocktypes suggesting a crustal contribution to their petrogenesis. The latter can be ascribed to both subduction-related metasomatism and assimilation of crustal material.
Southern Re di Castello and M. Marser rocks have been taken into consideration for comparison purposes. It is worth noting how the absence of the Daly Gap for Southern Re di Castello rocks may suggest the occurrence of other magmatic processes or a contribution from sources different than the ones involved in the Corno Alto-M. Ospedale petrogenesis (Figure S10). Furthermore, M. Ospedale and M. Marser mafic rocks both exhibit high Al2O3 and FeOtot and 87Sr/86Sr maybe suggesting similar sources and/or petrogenetic processes (Table S2, Figure S11).
Samples A3355 (MPD) and MK6 (MOD) have been selected for fractional crystallization modelling due to their geochemical features: among MPD and MOD samples, A3355 and MK6 display the highest Cr (641 and 473 ppm), high MgO (10.31 and 10.11 wt.%) and relatively low 87Sr/86Sr values (0.70656 and 0.70683). These features partially match the ones suggested by Ulmer et al. for the Southern Re di Castello parental melt (PM sample U237, Table 2 and Table 3, [16]).
Perple_X computed melt compositions are in agreement with hydrate minerals breakdown reactions, for the P-T conditions fixed for the modeling of each melt [91,92,93,94].
Despite thermodynamic modelling may suffer from some pitfalls [95], the obtained constraints may help to shed light on the genesis of this pluton. As described in the previous section, although there are compositional similarities among felsic CornoAlto–M. Ospedale rocks and computed melts obtained by fractional crystallization and partial melting, these processes do not seem to be mutually exclusive. Instead, the results presented here show that they may have played a role together. The most evolved samples of Corno Alto usually have compositions that are intermediate between melts produced by crustal anatexis and the melts produced after fractional crystallization (Figure 12b). This feature suggests that SOS, CAT and CATr could have been produced by the interaction of crustal and mantle derived magmas. Such idea is also reinforced by the lack of intermediate components between the mafic and felsic end-members (SiO2 between 55–65 wt.%). In particular, melts from ELC1 (Serre metapelite) seems to represent the most probable felsic end-members that have played a role in the genesis of these rocks. A possible inconsistence of the fractional crystallization model consists of the prediction of a considerable crystallization of Ol, Cpx and Opx, which have not been observed in the mafic rocks from Corno Alto; instead, the most common mafic mineral is Hbl. It is possible that Ol-websterite cumulates are present in the unexposed roots of this pluton, as documented by the Ol + Sp clots of M. Mattoni (Southern Re di Castello) [90].

5.2. Geodynamic Setting during the Late Cretaceous-Eocene

The interpretation of the Adamello magmatism and, in particular, the emplacement of the earlier southern and eastern plutons of Re di Castello and Corno Alto during Eocene time in the Alpine scenario, needs a brief revision of the geodynamic models proposed for the evolution of the Eastern and Southern Alps.
During Early Cretaceous times, a south dipping slab was plunging beneath the eastern Southern Alps as indicated by the climax of Eo-Alpine high-pressure metamorphism in the Eastern Alps at about 90–100 Ma [96]; this is consistent with the onset of intra-Austroalpine SE-dipping subduction and collision [97,98]. Extrusion processes of high-P rocks taking places during 90–85 Ma, relate to rapid exhumation and erosion of the high-P Austroalpine units [98,99].
Oceanic subduction of the Alpine Tethys started probably in the Turonian, as testified by the accretion of ophiolitic material at the northern edge of the Adriatic microplate at about 90 Ma [100]. Eclogites embedded in the tectonic units of the Tauern Window give evidence of subduction metamorphism during Late Cretaceous–Eocene times [101,102,103].
The south-directed subduction of the Alpine Tethys to a depth of 70–80 km was followed by the collision between the Adriatic microplate and the European plate during Eocene, resulting in the formation of an orogenic wedge in which the Adria-derived Austroalpine units and the Europe-derived Penninic units were transported northwards [104,105,106,107]. Indications for S-directed subduction are provided by high-P metamorphism in the Tauern Window and in the Lower Austroalpine at 45–37 Ma [108,109]. This event is contemporaneous with high-P metamorphism in the Bunderschiefer of the Engandine Window, attributed to the subduction of the Valais oceanic crust and European sediments at 43–40 Ma, followed by rapid decompression/exhumation during the Late Eocene/Oligocene (36–33 Ma) [110,111]. Following this S-directed subduction, during Miocene the southern alpine crust east of the Giudicarie Fault System, started to indent the Eastern Alps, resulting in a 65 km N–S shortening north of the Periadriatic Lineament [112]. This changed fundamentally the configuration of the mantle slab beneath the Eastern Alps, with the formation of a NE-dipping Adriatic slab [113].

5.3. Late Cretaceous–Middle Eocene Tectonics in the Southern Alps

Quiescence/extensional tectonics which facilitated the Corno Alto intrusion is difficult to reconcile with the tectonic setting of the central Southern Alps during Late Cretaceous–Middle Eocene time [2,114,115]. West of Adamello, contractional structures involving the basement and the sedimentary cover were active during Campanian–Maastrichtian (80–68 Ma) and were reactivated during Paleocene–Middle Eocene times (56–43 Ma; [116]). These structures, linked to the ongoing Alpine subduction and collision active northward are sealed eastwards by the oldest plutons of the Adamello batholith [1,106,117,118,119]. Contractional tectonics is recorded in the Southalpine foredeep by 2000 m-thick terrigenous turbidites of Cenomanian to Campanian age, testifying the erosion of metamorphic rocks exposed in both Southalpine and Austroalpine units [115,120,121,122]. Turbidites were followed by hemipelagic sedimentation up to the Early/Middle Eocene, related to a waning stage of the contractional deformation [123,124]. Cretaceous to Middle Eocene thrusts are subsequently cut by normal faults intruded by andesitic dykes during the final stages of their activity at 42–39 Ma [11]. Faults are oriented E–W, WSW–ENE and NE–SW, partly reactivating former thrust contacts and displaying a maximum throw of about 200 m [11].
The Adamello batholith is bordered to the east by the South Giudicarie Fault zone (Figure 2 and Figure 13), which shows extensional/transtensional activity along N- and NE-trending faults during the Late Cretaceous (Figure 13a) [52,53]. The same faults represented the eastern boundary for the deposition of the Late Cretaceous flysch, which was channeled along a NE-trending through allowing the transport of coarse-grained clastic deposits sourced from the Austroalpine nappes located northwards [51,114,124]. The tectonic control on the sedimentation exerted by the NE-trending faults continued also during the Paleocene–Middle Eocene, as testified by the presence of deep-sea deposits of this age on top of the Late Cretaceous flysch (Sarca di Campiglio Member; [28]). Similar indications are provided by the presence of a NE-trending horst, controlling the deposition of Eocene platform carbonates, located between the Garda Lake and the Adige Valley and by two NNW–NNE and NNE–SSW trending grabens in the Lessini area, located East of the Adige Valley (Figure 13a) [125,126]. Eocene horst and graben structures display a width of about 10 km and the bounding faults are characterized by a maximum throw of some hundreds of meters.

5.4. Relation between Tectonics and Magmatism during Eocene–Oligocene

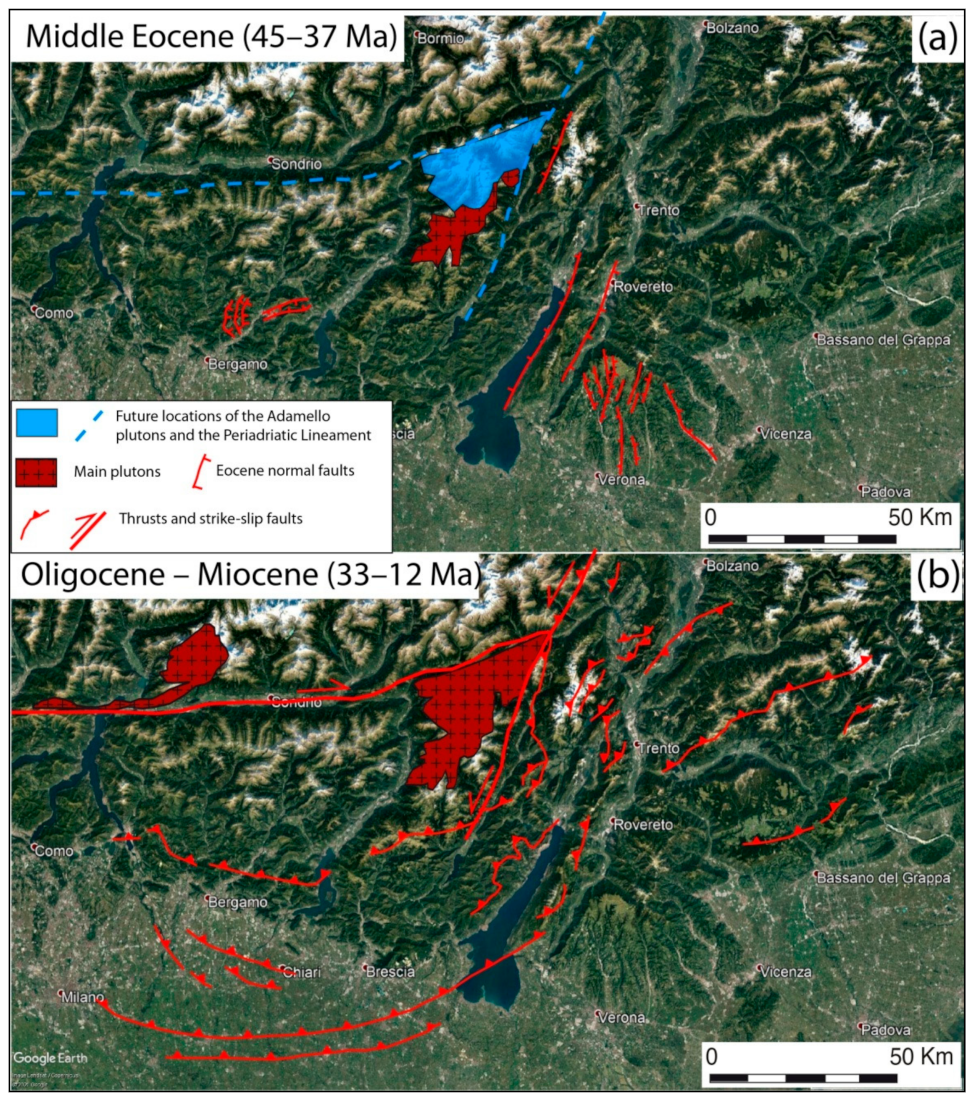

Intrusion of the Adamello batholith occurred in two phases during the tectonic evolution of the Southalpine/Austroalpine realm: the first took place during the period of extension which characterized the Southern Alps during the Middle Eocene (Figure 13a); the second, during the Late Eocene–Oligocene, when contraction and transpression localized along the Periadriatic Lineament (Figure 13b) [3,122,123,127]; The first phase took place during Lutetian/Bartonian times when Re di Castello and Corno Alto plutons were emplaced along the South Giudicarie Fault. Calc-alkaline dykes emplaced during the same time interval along normal faults in the Central Southern Alps [11]. Mafic dykes and apophyses intruded East of the present-day South Giudicarie Fault [13] and were accompanied by coeval volcaniclastic rocks exposed East of the Giudicarie Fault System, [13,128]. Basaltic volcanism since the Paleocene–Lower Eocene time is also well known in the Adige Valley and in the Lessini area [126,129,130,131]. In both cases, volcanism appears to be controlled by NNE- or NNW-trending normal faults of Eocene age (Figure 13a).
During the second phase, an extensive orogenic magmatism affected the Alpine chain, slightly postdating the final stages of Europe–Adria continental collision, accomplished at ~35–32 Ma [132]. Products of the alpine magmatism are mainly exposed in the vicinity of the Periadriatic Lineament. This magmatism comprises plutons, mafic-to-felsic dykes and volcanoclastic sequences. Plutonic bodies such as Traversella, Biella, Bergell and Riesenferner are made up of diorite-tonalite-granodiorite rock associations with calc-alkaline (CA) to high-K calc- (HKCA) to shoshonitic compositions [133,134,135], mostly emplaced in a narrow timespan (33–29 Ma); the sole Traversella started intruding at 42 Ma [136]. Bergell and Riesenferner are in contact with the Periadriatic Lineament and alsoexhibit pervasive magmatic foliations often parallel to subparallel to the Periadriatic Lineament, calling for a syntectonic intrusion of these bodies [3]. A Periadriatic Lineament-parallel striking foliation has also been observed in the northernmost plutons of the Adamello batholith (the Avio and Presanella plutons), emplaced between 35 and 31 Ma [7,21]. This foliation is continuous throughout both units, witnessing a 4 Ma-long tectonic activity along the Periadriatic Lineament. A similar tectono-magmatic relation is shown by sheeted tonalite bodies (“lamellae”) cropping out along the North Giudicarie Fault between Dimaro and Rumo, showing late Eocene to Oligocene age Rb/Sr and U/Pb ages [54,55]. Oligocene magmatism also includes a series of dykes occurring from the Western to the Eastern Alps, mainly consisting of calc-alkaline to shoshonitic rocks ranging from basalts and basaltic andesites to andesites, with some ultrapotassic lamproites outcropping within the Sesia–Lanzo Zone [137,138,139]. Most of the Oligocene dykes crop out inside a 20 km wide belt extending along the Periadriatic Lineament, suggesting that the latter acted as a feeder channel during this magmatic event [3,46]. Volcanism of Oligocene age is documented by the presence of a considerable number of andesitic clasts in flysch deposits from the Helvetic–Dauphinois of the External Western and Central Alps [140]. U/Pb zircon ages of 30–34 Ma has been observed for Haute Savoie and Taveyanne area samples, whereas U/Pb zircon age determinations for Glarus area (Northern Central Alps) has yielded two distinct clusters of Late Eocene/Early Oligocene (41–33 Ma) and Oligocene (33–29 Ma) age, respectively [140].

5.5. Emplacement of the Corno Alto Pluton

The intrusion depth of MOD is suggested at 10–15 km (3.5–5 kbar), as indicated by Al-in-Hbl barometry performed on ADA and RDC tonalites wrapping MOD outcrops. The emplacement of the Corno Alto granitoid at relatively shallow crustal levels is indicated by apatite fission track data in the hypothesis of a “normal” geothermal [63]. The depth of intrusion of the northeastern Adamello bodies was estimated at about 2.5 kbar in the Sil zone of the thermal aureole [59,65]). The magmatic roots of the southern and eastern Adamello plutons are not exposed. Absence of a magmatic anisotropy or solid-state foliation in both mafic and felsic lithotypes of the Corno Alto-M. Ospedale area suggests passive intrusion of the granitoid magma [141]. This is confirmed by the presence of thermal fractures filled by crystal-rich melts in the wall rocks, indicating the activation of the stoping process, with collapse and partial melting of basement blocks into peripheral magma [67]. These and other similar structures were described in the surroundings of the coeval Re di Castello mafic bodies and tonalite by Brack [142] and John and Blundy [143] (References [144,145,146,147,148] are cited in the Supplementary Material). Moreover, ductile structures (S/C composite foliation, boudinage, Figure 5b) visible in the basement surrounding the Corno Alto granite are interpreted as pre-intrusive and therefore unrelated to magma emplacement [73,117]. Widespread evidence of passive intrusion, coupled with the overall orientation of the Re di Castello and Corno Alto plutons, indicates that both mafic rocks and granitoids emplaced in a NE-trending extensional/transtensional fault zone, parallel to the normal faults active during Eocene in the eastern Southern Alps between Garda Lake and Adige Valley.

6. Conclusions

The diorite, tonalite and trondhjemite rocks exposed in the Corno Alto-M. Ospedale area intruded west of the South Giudicarie Fault, within St-Grt bearing schists of Val Borzago and Val Seniciaga and Ctd-bearing schists of Val Rendena at a depth of about 10–15 km. This is consistent with contact mineral assemblages including Sil, And, Crd, Grt and Sp, and the local partial melting observed in the Corno Alto area. Successive exhumation did not expose the mafic roots, but only the upper magmatic reservoirs. The intrusion took place during Eocene along N- and NE-trending faults, bordering the “future Adamello area” to the east, when the central and eastern Southern Alps were affected by extensional tectonics, which followed the Eo-Alpine contractional tectonics in the Austroalpine units of the Eastern Alps and in the Southern Alps.
Magmatic rocks of the Corno Alto-M. Ospedale area are calc-alkaline, hence typical of late-orogenic magmatism. They are comparable with melts obtained by fractional crystallization of mantle-derived magmas and partial melting of crustal lithologies. The most evolved rocksof Corno Alto have compositions that are intermediate between the model melts produced by crustal anatexis and fractional crystallization. A simple fractional crystallization of mafic parental magmas fails to reproduce the most differentiated rocks of the Corno Alto.These features suggest that both partial melting of crustal rocks and fractional crystallization of mafic magmas may have played a role in the formation of the felsic rocks from Corno Alto.Accordingly, Sr and εNd show that only the Southern Re di Castello gabbro reveals mantle affinity (εNd > 0), while rocks of the Corno Alto-M. Ospedale area display εNd ≤ 0 and medium 87Sr/86Sr values indicating crust assimilation.
The results of the fractional crystallization with starting compositions buffered by QFM at P of 4 kbar, with 4% H2O for four selected parental magmas produced Ol, Opx and Hbl for all samples and late Bt at late stage of crystallization. Some oxides, such as MgO, FeO and Na2O, have trendssimilar to samples from Sostino (SOS) and Corno Alto Tonalite (CAT).
An attempt to model the crustal anatexis considered that the Adamello intruded the Southalpine crust and possibly the Alpine collisional wedge where both African and European units were represented. Samples from African and European lower and upper crust sections were considered as possible crustal contaminants. The calculated pseudosections obtained from different samples show that crustal melts were produced at deeper levels (6.5 to 10 kbar) with respect to the emplacement conditions.According to our thermodynamic model the most likely crustal contaminant is consistent with the European Lower Crust of the Serre Basement, Calabria (sample ELC1).
The intrusion of the eastern plutons of the Adamello batholith during Eocene is clearly correlated with the S-dipping Alpine subduction during Cretaceous time. In particular, the Eo-Alpine high-pressure event in the Eastern Alps, possibly connected with the S-directed subduction of a Tethyan oceanic remnant, is consistent with contamination of the Adriatic mantle since the Cretaceous time. The climax of the Eo-Alpine tectonics corresponded with collision in the Eastern Alps and S-directed thrusting in the Southern Alps. Later subduction of the Piedmont-Ligurian and Valais oceanic crust during Cretaceous-Eocene led to a period of tectonic quiescence/extension in the Southern Alps, which favored the evolution of the mantle-derived melts and their emplacement into extensional faults reactivating pre-existing discontinuities in the Adriatic crust. Final Alpine collision during Late Eocene–Oligocene times formed the Periadriatic lineament and favored the syn-tectonic emplacement of the central and northern Adamello tonalites under a contractional/transpressive tectonic regime.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/geosciences12010013/s1. Figure S1: Satellite view of the Adamello batholith with main peaks and valleys, comprising the main plutons and sample location. Figure S2: view of the Corno Alto massif with main peaks and valleys and sample location. Figure S3: SW view of the M. Ospedale area with main peaks and valleys and sample location. Figure S4: Satellite view of the Southern Re di Castello area with main peaks and valleys and sample location. Figure S5: (a) Stereoplot of the average Val Seniciaga basement foliation. (b) Basement foliation data: dip direction and dip. Figure S6: Panoramic view of Monte Ospedale. Figure S7: MCD (grey enclaves) dismembered by successive CAT intrusion on the rim of a minor MCD body near M.ga Campo. Figure S8: PCA analysis of Corno Alto-M. Ospedale mafic rocks amphiboles with classification diagram. Figure S9: PCA analysis of Corno Alto felsic samples. Figure S10: Harker diagrams for Corno Alto-M. Ospedale and Southern Re di Castello—M. Marser samples (a–h) Major element. (i–n) Trace elements and REE. Figure S11: (a) SiO2 vs. 87Sr/86Sr diagram for Corno Alto-M. Ospedale and Southern Re di Castello—M. Marser samples. (b) 87Sr/86Sr vs. εNd diagram for Corno Alto-M. Ospedale and Southern Re di Castello—M. Marser samples. Figure S12: Perple_X P-T pseudosections of ALC4 and CMP samples. Figure S13: Trace element patterns of average rock compositions from the study area normalized to the primitive mantle. Table S1: Location, description, mineralogy and geographic coordinates for Corno Alto–M. Ospedale, Re di Castello and M. Marser samples. Table S2: Major element compositions of Corno Alto–M. Ospedale, Re di Castello and M. Marser samples. Table S3: Trace elements and REE compositions of Corno Alto–M. Ospedale, Re di Castello, M. Marser samples. Table S4: Sr-Nd initial isotopic compositions for time of intrusion of the Corno Alto–M. Ospedale, Re di Castello and M. Marser samples. Table S5: Results of fractional crystallization modelling for sample 237 (Ulmer et al., 1985 [16]. Table S6: Results of fractional crystallization modelling for sample MK6 (MOD). Table S7: Results of fractional crystallization modelling for sample JM157 (Blundy and Sparks, 1992 [31]). Table S8: Results of fractional crystallization modelling for sample A3355 (MPD). Table S9: Mineral compositions of the Corno Alto-M. Ospedale mafic rockamphiboles. Table S10: Mineral compositions of ADA and RDC amphiboles for barometric calculations. Table S11: Molar % An-Ab-Or content of ADA and RDC Plagioclase and calculated P estimates for Amph-Pl pairs.

Author Contributions

A.R., S.M. conceptualized the study; S.M. and P.M. performed whole-rock and isotopic analyses and described the analytical procedure; A.R., S.M. and G.P. wrote down the geological setting and the petrography of the samples; O.B., B.B.C. performed geochemical and thermodynamic modelling, supervised the review of the geochemical data and suggested a petrogenetic model; L.T., A.R. performed PCA statistical analysis. A.R., S.M. and G.P. discussed and developed the proposed geodynamic scenario. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

We thanks Veronica Tornielli, Massimiliano Zattin and Lucia Giorio for sharing information, data, expertise and suggestions, matured during numerous days of field campaign in the studying area and contained in their unpublished Master theses. We owe a special mention to the memory of our late colleague Francesco Bazzolo, whose master thesis has been crucial to understanding the geological setting of the area. Special acknowledgments are also due to Samuele Agostini and Paolo Di Giuseppe of I.G.G.-C.N.R. (Istituto Geoscienze e Georisorse, C.N.R., Pisa, Italy) for the initial Sr-Nd isotopic data.We are also grateful to Nicola Michelon for refining the drawing of the geological section.

Conflicts of Interest

The authors declare no conflict of interest.
