Fed-Batch Production of Bacterial Ghosts Using Dielectric Spectroscopy for Dynamic Process Control

1
Research Center Pharmaceutical Engineering (RCPE) GmbH, Inffeldgasse 13, Graz A-8010, Austria
2
Research Division Biochemical Engineering, Institute of Chemical Engineering, Vienna University of Technology, Gumpendorfer Strasse 1A 166/4, Vienna A-1060, Austria
3
Biotech Innovation Research Development and Consulting (BIRD–C) GmbH & Co KG, Dr.-Bohr-Gasse 2-8, Vienna A-1030, Austria
4
Center of Molecular Biology, University of Vienna, Dr.-Bohr-Gasse 9, Vienna A-1030, Austria
*
Author to whom correspondence should be addressed.
Academic Editor: Willy Verstraete
Received: 3 February 2016 / Revised: 11 March 2016 / Accepted: 18 March 2016 / Published: 24 March 2016
View Full-Text   |   Download PDF [2120 KB, uploaded 24 March 2016]   |

Abstract

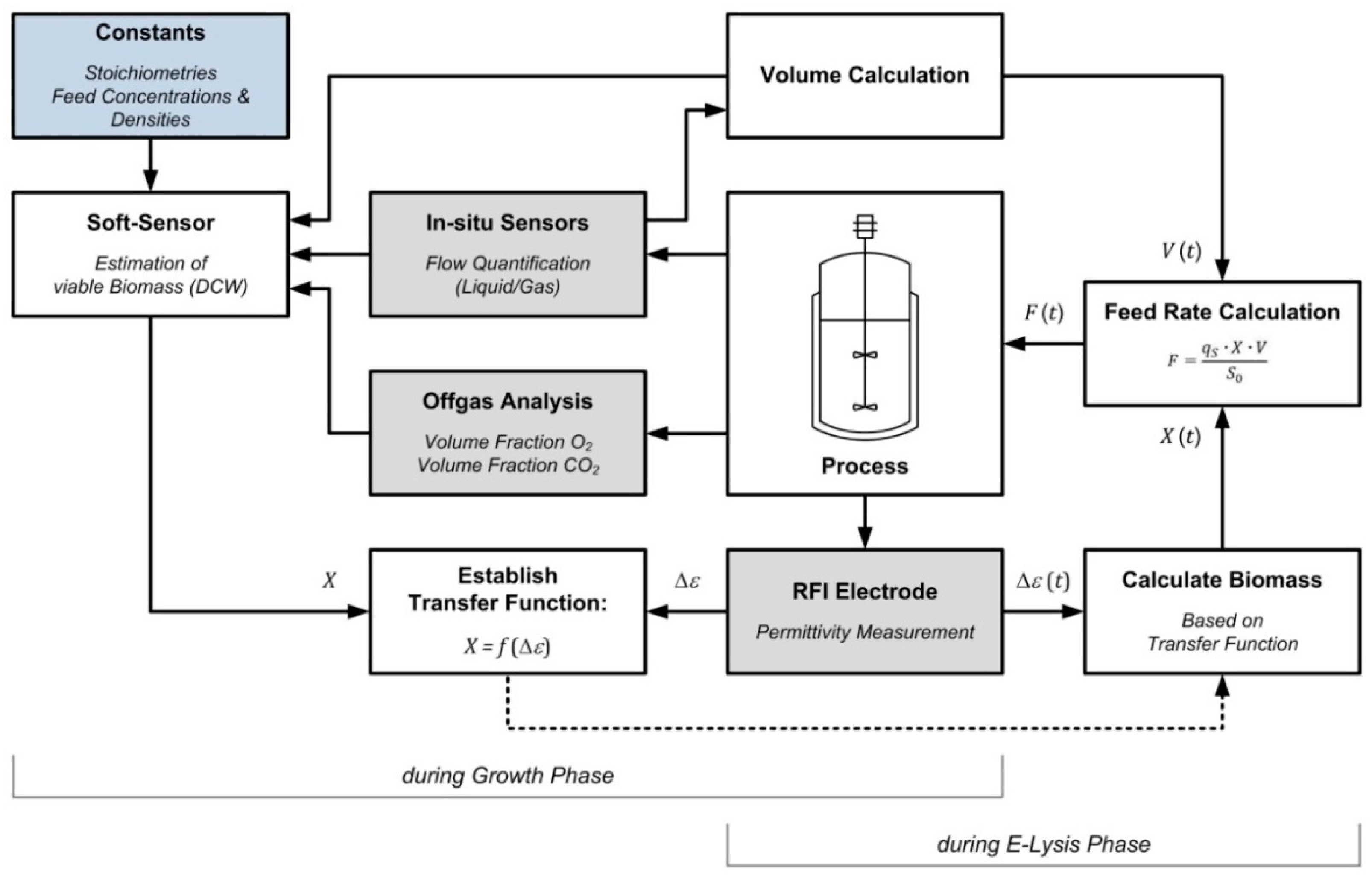

The Bacterial Ghost (BG) platform technology evolved from a microbiological expression system incorporating the ϕX174 lysis gene E. E-lysis generates empty but structurally intact cell envelopes (BGs) from Gram-negative bacteria which have been suggested as candidate vaccines, immunotherapeutic agents or drug delivery vehicles. E-lysis is a highly dynamic and complex biological process that puts exceptional demands towards process understanding and control. The development of a both economic and robust fed-batch production process for BGs required a toolset capable of dealing with rapidly changing concentrations of viable biomass during the E-lysis phase. This challenge was addressed using a transfer function combining dielectric spectroscopy and soft-sensor based biomass estimation for monitoring the rapid decline of viable biomass during the E-lysis phase. The transfer function was implemented to a feed-controller, which followed the permittivity signal closely and was capable of maintaining a constant specific substrate uptake rate during lysis phase. With the described toolset, we were able to increase the yield of BG production processes by a factor of 8–10 when compared to currently used batch procedures reaching lysis efficiencies >98%. This provides elevated potentials for commercial application of the Bacterial Ghost platform technology. View Full-Text
Keywords: E-lysis; bacterial ghosts; process analytical technology (PAT); online biomass monitoring; dielectric spectroscopy; control strategy E-lysis; bacterial ghosts; process analytical technology (PAT); online biomass monitoring; dielectric spectroscopy; control strategy
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
