Phylogenetic Analysis of Mitogenomic Data Sets Resolves the Relationship of Seven Macropostrongyloides Species from Australian Macropodid and Vombatid Marsupials

Abstract

Nematodes of the genus Macropostrongyloides inhabit the large intestines or stomachs of macropodid (kangaroos and wallabies) and vombatid (wombats) marsupials. This study established the relationships of seven species of Macropostrongyloides using mitochondrial (mt) protein amino acid sequence data sets. Phylogenetic analyses revealed that species of Macropostrongyloides (M. lasiorhini, M. baylisi, M. yamagutii, M. spearei, M. mawsonae and M. woodi) from the large intestines of their hosts formed a monophyletic assemblage with strong nodal support to the exclusion of M. dissimilis from the stomach of the swamp wallaby. Furthermore, the mitochondrial protein-coding genes provided greater insights into the diversity and phylogeny of the genus Macropostrongyloides; such data sets could potentially be used to elucidate the relationships among other parasitic nematodes of Australian marsupials.

1. Introduction

The genus Macropostrongyloides is the largest group of nematodes of the subfamily Phascolostrongylinae, occurring predominantly within the large intestines of macropodid (kangaroos and wallabies) and vombatid (wombats) marsupials [1]. Yamaguti [2] erected the genus Macropostrongyloides to distinguish one species, previously placed in the genus Macropostrongylus and now known as Macropostrongyloides lasiorhini from the colon of wombats. Macropostrongyloides was differentiated from other strongyloid genera by the presence of four prominent tooth-like projections which arise from the wall of the buccal capsule and protrude beyond the mouth opening [1]. Subsequently, other species found to possess four tooth-like structures within the buccal capsules were transferred to the genus Macropostrongyloides. This resulted in the transfer of Macropostrongylus baylisi, from a wide range of macropodid species [3], and Cyclostrongylus dissimilis, from the stomachs of swamp wallabies (Wallabia bicolor) to the genus Macropostrongyloides [4]. Subsequently, a fourth species, Macropostrongyloides yamagutii, characterised by the presence of denticles and teeth surrounding the mouth opening, was described from the large intestine of the western grey kangaroo (Macropus fuliginosus) [1].

Early morphological [1] and electrophoretic data [5] suggested that Macropostrongyloides baylisi was a species complex comprising genetically distinct populations in different hosts. These findings were supported by a recent study of the first and second internal transcribed spacers (ITS-1 and ITS-2, respectively) of nuclear ribosomal DNA, which identified four genotypes within M. baylisi [6]. Subsequently, these genotypes were found to be morphologically distinct and therefore described as three new species, namely, M. mawsonae from the eastern grey kangaroo (Macropus giganteus), M. woodi from the red kangaroo (Osphranter rufus), and M. spearei from the eastern wallaroo (Osphranter robustus robustus) and the euro (Osphranter robustus erubescens). Consequently, M. baylisi was re-described and its primary host was redefined as the northern wallaroo (Osphranter robustus woodwardi) [7]. Although the ITS-1 and ITS-2 sequence data provided genetic differentiation within and between species of Macropostrongyloides, the relationships of most species remain unresolved due to limited nodal support in the phylogenetic trees constructed [6].

The use of mitochondrial (mt) genome sequence data can be advantageous for investigating nematode systematics [8,9]. The amino acid sequences derived from mt protein-coding genes have been shown to provide strong nodal support in phylogenetic analyses of strongylid nematodes that could not be achieved using short ribosomal DNA sequences [10]. Previously, a study of the genera Hypodontus and Macropicola, intestinal parasites of macropodid marsupials belonging to the same subfamily as Macropostrongyloides, demonstrated that the amino acid sequence data could be used effectively to validate pre-existing phylogenetic hypotheses [11]. Therefore, in the present study, we utilised data sets from mitochondrial protein-coding genes to explore the genetic relationship(s) of seven representatives of the genus Macropostrongyloides, and discuss the implications of these findings in relation to their taxonomy, phylogeography and evolution.

2. Results

2.1. Characteristics of the mt Genomes

The mt genomes (~13.7 bp) representing the seven species of Macropostrongyloides encoded 12 protein genes, including cytochrome c oxidase subunits (cox1–3), nicotinamide dehydrogenase subunits (nad1–6, 4L), cytochrome b (cob) and adenosine triphosphatase subunit (atp6), two ribosomal subunits (large (rrnL) and small (rrnS)), 22 transfer RNA (tRNA) genes and two non-coding regions (Supplementary Figure S1; Table S1), consistent with strongylid nematodes studied to date [8]. Identical to the H. macropi reference genome (GenBank: NC023098), the lengths of the protein-coding genes from large to small were in order: cox1 > nad5 > nad4 > cob > nad1 > nad2 > cox3 > cox2 > atp6 > nad6 > nad3 > nad4L. The size of the gene annotations was comparable to those of Hypodontus. The nucleotide composition of mt genes was A+T-biased. For all seven Macropostrongyloides species, the cox1 gene was the largest (1572 nt, 524 amino acids) and nad4L (234 nt, 78 amino acids) was the smallest gene (Supplementary Table S2). The most common initiation codons were ATA and ATT. For all seven Macropostrongyloides species, 10 genes had complete termination codons (TAA and TAG) and two genes (nad5 of all species except M. spearei and M. woodi and cox3) had incomplete stop codons that contained only the T of the first codon position consistent with H. macropi (Supplementary Table S3). Overall, three of the most commonly used codons were phenylalanine (TTT; 12–12.8%), leucine (UAA, TTA; 7.1–10.4%) and isoleucine (ATT; 6.1–7.7%) (Supplementary Table S4). A summary of the raw data generated from the next-generation sequencing of mt genomes of Macropostrongyloides species is provided in Supplementary Table S5.

2.2. Comparative Analyses of mt Genomes of Macropostrongyloides Species

The pairwise comparisons of nucleotide and amino acid sequences of the concatenated 12 protein-coding genes of Macropostrongyloides species are shown in

Table 1. Pairwise differences (%) in nucleotide (top) and amino acid (bottom) sequences of the 12 concatenated mt protein-coding genes of seven Macropostrongyloides species.

	M. baylisi	M. mawsonae	M. spearei	M. woodi	M. dissimilis	M. lasiorhini	M. yamagutii
M. baylisi	-	12.1	11.4	13.7	15.7	14.0	13.7
M. mawsonae	5.2	-	11.8	13.2	14.7	13.3	12.6
M. spearei	4.5	4.3	-	13.7	15.4	13.8	13.4
M. woodi	6.3	5.7	5.8	-	15.3	13.5	14.2
M. dissimilis	8.7	7.9	8.5	7.9	-	14.6	15.5
M. lasiorhini	7.1	6.3	6.5	5.8	7.6	-	13.9
M. yamagutii	6.7	5.7	6.4	6.3	8.9	7.0	-

. At the nucleotide level, sequence variation ranging from 11.6% (M. woodi versus M. baylisi) to 15.70% (M. dissimilis versus M. baylisi). A lower level of variation was detected in the amino acid sequences ranging from 4.28% (M. spearei versus M. mawsonae) to 8.74% (M. dissimilis versus M. baylisi). Pairwise comparison revealed that the sequences of M. spearei and M. mawsonae were the most similar at the amino acid level (4.28%), whereas M. spearei and M. baylisi were the most similar at the nucleotide sequence level (11.6%). Macropostrongyloides dissimilis and M. baylisi shared the least similarity in both amino acid (8.74%) and nucleotide (15.7%) sequences (Table 1). Pairwise comparisons of the amino acid sequence of each protein-coding gene revealed that nad2 and nad5 were the most variable (9.71–19.64% and 5.96–14.04%, respectively), whereas cox2 and cox1 were the least variable (0–3.9% and 0.38–3.9%, respectively). Sliding window analyses of the concatenated protein-coding genes revealed average nucleotide diversity values ranging from 0.102 (nad4L) to 0.158 (nad6), with it being higher across nad6 (0.158), nad5 (1.53) and nad2 (1.51) genes (Figure 1).

2.3. Phylogenetic Analyses

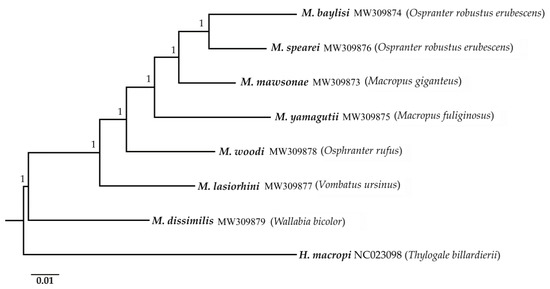

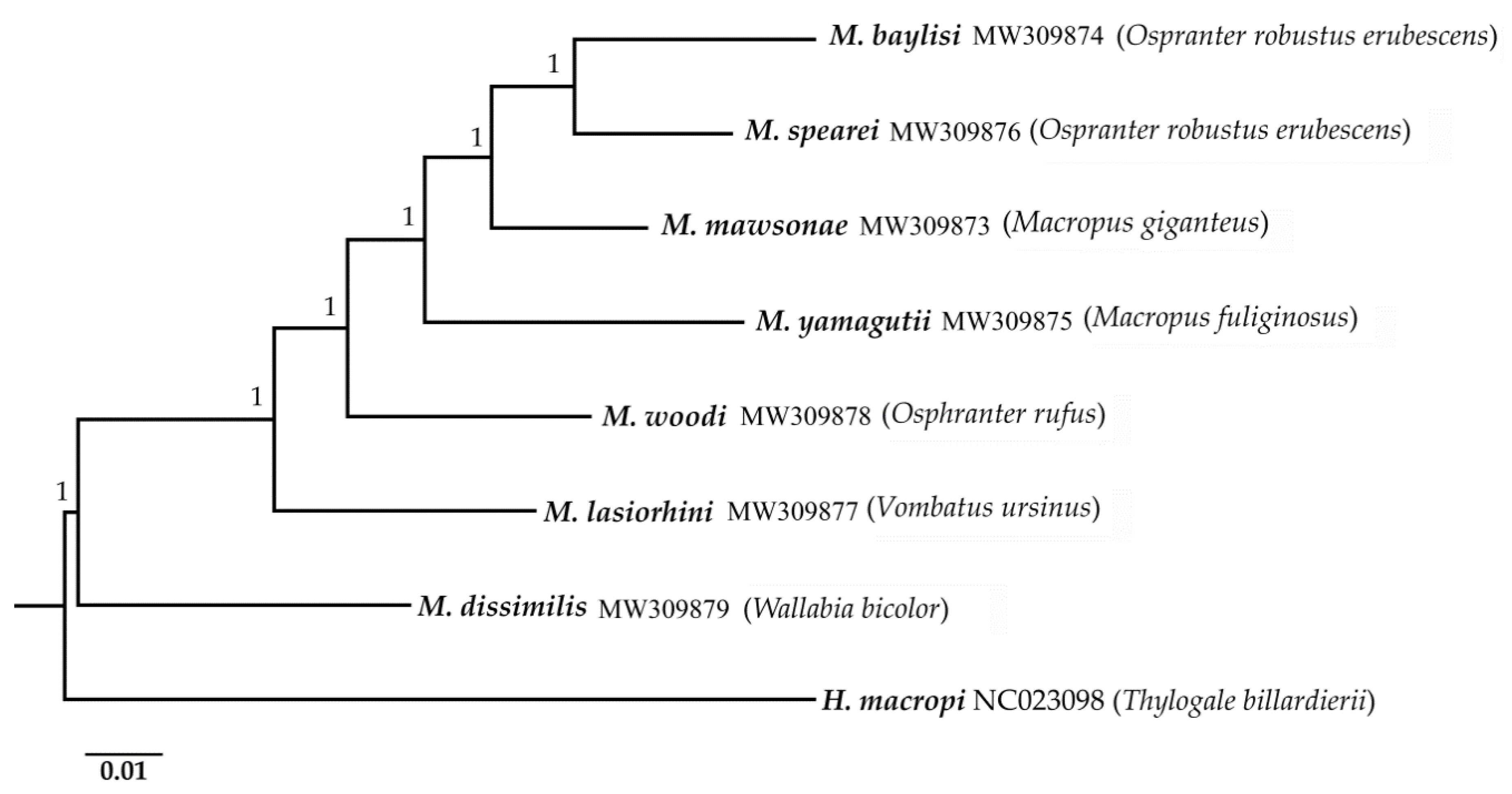

The Bayesian inference analyses revealed that M. dissimilis from the stomach of the swamp wallaby (W. bicolor) was the sister species to the remaining congeners, all of which inhabit the large intestine of their hosts (posterior probability [pp] = 1.00). Macropostrongyloides lasiorhini from the wombat was the sister species to the remaining species from kangaroos (pp = 1.00). Among the kangaroo-inhabiting species, M. baylisi and M. spearei from euros/wallaroos (O. robustus) were the most closely related species (pp = 1.00) (Figure 2).

3. Discussion

The phylogenetic tree inferred from the mt amino acid sequence data revealed that M. baylisi and M. spearei were closely related. However, the close association between these two species was not detected in the study based on ITS-1 and ITS-2 sequences [6]. The genetic similarly between M. baylisi and M. spearei correlates with their hosts, which are the same species of wallaroo (Osphranter robustus) but different sub-species. Macropostrongyloides spearei is found throughout the distribution of the eastern wallaroo (O. r. robustus) along the east coast of Australia and the euro (O. r. erubescens), which has a geographic distribution extending almost across the entire Australian mainland (Figure 3A). Macropostrongyloides baylisi primarily occurs in the northern wallaroo (O. r. woodwardi), distributed in the northern parts of the Northern Territory and Western Australia (Figure 3A); however, no specimen was available herein from this sub-species of host for DNA extraction. The specimen of M. baylisi included in this study was from a euro located at Cloncurry, Queensland. Prevalence data show that both M. baylisi and M. spearei are capable of infecting other host species which occur in sympatry with their primary hosts [6,7]. Co-evolution may have played a role in the speciation of M. baylisi and M. spearei in the two host sub-species. However, since there are no clear geographic barriers between the distribution of northern wallaroo and the euro, the species pair may have arisen from a host-switch, a mechanism that has been observed in the many of the strongyloid nematodes infecting Australian macropodid marsupials [12].

The phylogenetic tree inferred from the mt amino acid sequences also found a close association between M. mawsonae from the eastern grey kangaroo (Macropus giganteus) and M. yamagutii from the western grey kangaroo (M. fuliginosus), consistent with the findings of a previous study on M. baylisi using allozyme electrophoresis [5]. As with M. baylisi and M. spearei, the relationship between M. mawsonae and M. yamagutii is related to the distribution of their hosts. The eastern and western grey kangaroos are closely related species that evolved during the middle to late Pleistocene in the southeastern and southwestern parts of Australia, respectively [13]. The former species occupies grassland and open forests in high rainfall zone whereas the latter species occurs predominantly in semi-arid zones. However, the habitat of these two macropodid hosts overlaps in western Victoria, allowing their parasites to transfer between the hosts [14]. Macropostrongyloides yamagutii occurs commonly throughout the distribution of the western grey kangaroo. However, the distribution of M. mawsonae is concentrated in Victoria and southern New South Wales and is rarely encountered from eastern grey kangaroos in Queensland [6,7].

Phylogenetic analyses of the mt amino acid sequences show that M. lasiorhini from the common wombat (Vombatus ursinus) formed a sister species relationship to Macropostrongyloides from the large intestines of macropodid hosts. Macropostrongyloides is currently the only strongyloid genus with species occurring in both macropodid and vombatid marsupials. The position of M. lasiorhini in the phylogenetic tree was close to M. woodi from O. rufus. Current records show that M. lasiorhini occurs in the common wombat and the southern hairy-nosed wombat (Lasiorhinus latifrons) [1]. However, the geographic distribution of these hosts do not overlap (Figure 3B) and a previous molecular study (ITS-1 and ITS-2 data) suggests that M. lasiorhini from these two wombat hosts are genetically distinct [6].

The distant relationship between M. dissimilis and its congeners is strongly supported by the current mt and previous nuclear ITS-1 and ITS-2 data [6]. In addition to being the only species in the genus that occurs in the stomach of the host, M. dissimilis possesses some distinctive morphological features indicating that this species may have been incorrectly assigned to the genus Macropostrongyloides; therefore, future taxonomic revision is required. The predilection site within the stomach of M. dissimilis is unique not only to the genus Macropostrongyloides but also the subfamily Phascolostrongylinae. Two other species within the Phascolostrongylinae that inhabit the stomach of their hosts are Paramacropostrongylus iugalis and Pamacropostrongylus typicus from grey kangaroos [1]. The majority of strongyloid nematodes of macropodid marsupials that occur in the stomach of their hosts are grouped in the subfamily Cloacininae [15]. An unpublished study of the ITS sequence data found that M. dissimilis, P. typicus and P. iugalis were closely related, suggesting that the relationship among these taxa is influenced by the predilection sites within their hosts [16]. The predilection sites within the hosts have been found to be a key influence in the evolution within the nematode order Strongylida [17]. Furthermore, the anatomy of the gastrointestinal tract of the host is one of the key drivers of speciation in strongyloid nematodes of Australian marsupials [18]. The intestinal-dwelling species (i.e., subfamily Phascolostrongylinae) were hypothesised to be the earlier strongyloids to parasitise macropods. Subsequently, the evolution of large complex forestomachs in the Macropodidae led to the extensive radiation of the subfamily Cloacininae. Stomach-inhabiting phascolostrongyline species such as M. dissimilis, P. iugalis and P. typicus exhibit both apomorphic and plesiomorphic morphological characters, suggesting that these species are a link in the evolution of the Phascolostrongylinae and the Cloacininae [18]. However, this hypothesis requires further testing. Future studies on the mt sequences of P. iugalis and P. typicus in relation to M. dissimilis and the cloacinine species may provide greater insights into their evolution.

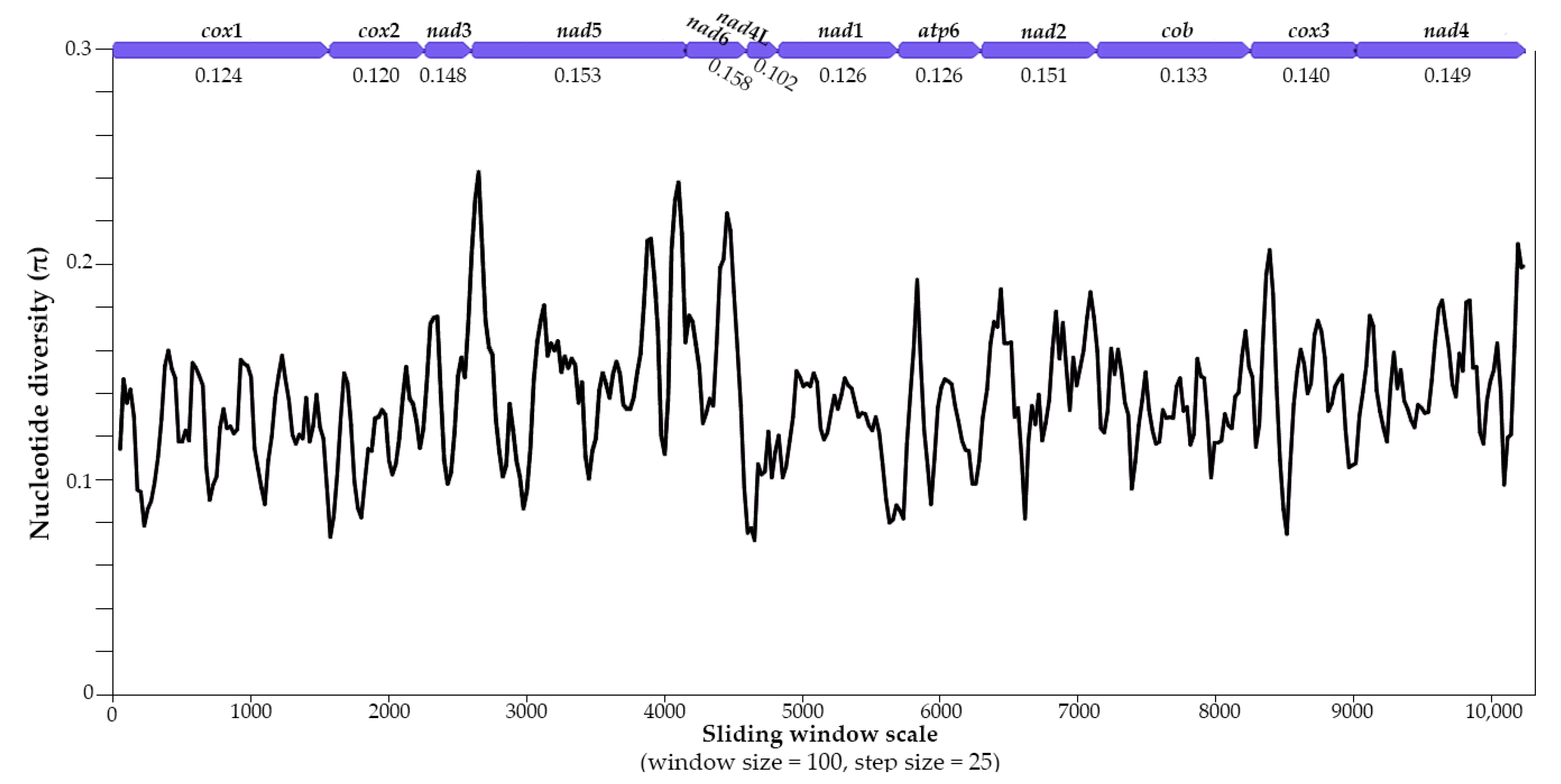

The sliding window analyses identified genes within the mt genomes of Macropostrongyloides that exhibited higher levels of nucleotide diversity than others, including nad2, nad5 and nad6, consistent with the mt genomes of Hypodontus and Macropicola [11]. Such regions could be targeted as potential molecular markers for future phylogenetic studies instead of sequencing the entire mt genome, which can be costly when examining a large number of samples. Although the present study yielded strong support (at the amino acid level) for the relationships within the genus Macropostrongyloides, data sets were obtained for a single specimen for each of the seven species. Future work might need to critically assess whether nucleotide variability in protein genes within individual species of Macropostrongyloides alters encoded amino acid sequences; the present hypothesis is that most, if not all, nucleotide alterations will be ‘silent’ (synonymous).

In conclusion, analyses of amino acid sequences derived from mt protein-coding genes provided greater insights into the relationships within the genus Macropostrongyloides. However, not all species of Macropostrongyloides could be included in the current study due to the unavailability of specimens suitable for molecular analyses. The species not included were M. dendrolagi from the tree kangaroo, Dendrolagus dorianus [19], and M. eppingensis from the northern hairy-nosed wombat, Lasiorhinus kreftti [20]. Future studies utilising mt amino acid sequence data could be very useful for understanding the phylogenetic relationships among strongyloid nematodes of Australian marsupials that have hitherto been heavily reliant on ITS sequence data.

4. Materials and Methods

4.1. Sample Collection and Morphological Identification

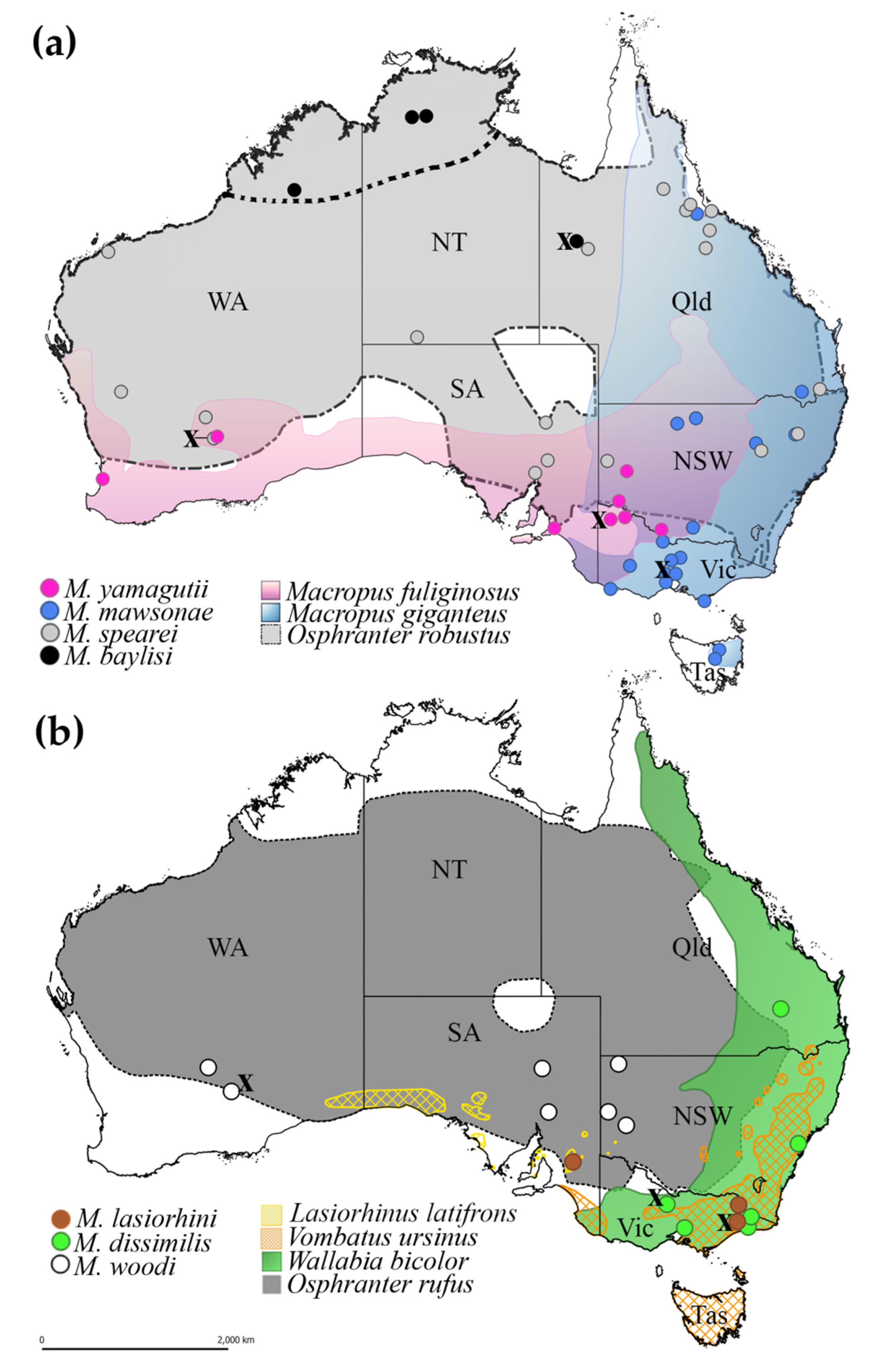

Adult specimens of M. baylisi, M. spearei, M. mawsonae, M. woodi, M. yamagutii, M. lasiorhini and M. dissimilis were acquired from the frozen parasite collection at the Melbourne Veterinary School, The University of Melbourne. The nematodes were collected from road-killed or culled macropodid and vombatid hosts (cf. [21]) from various localities across Australia (

Table 2. Details of specimens of the seven Macropostrongyloides species included in this study.

Nematode	Host Species (Scientific Name)	Predilection Site	Collection Locality	Coordinates	Voucher No.	GenBank Accession No.
M. mawsonae	Eastern grey kangaroo (Macropus giganteus)	colon	Heathcote, Vic	36°92′ S, 144°43′ E	W449	MW309873
M. baylisi	Euro (Osphranter robustus erubescens)	colon	70 km west of Cloncurry, Qld	20°46′ S, 139°53′ E	21V1	MW309874
M. yamagutii	Western grey kangaroo (Macropus fuliginosus)	colon	Hattah Lakes National Park, Vic	34°45′ S, 142°20′ E	DD4	MW309875
M. woodi	Red kangaroo (Osphranter rufus)	colon	Kalgoorlie, WA	30°44′ S, 121°28′ E	23Q1	MW309876
M. lasiorhini	Common wombat (Vombatus ursinus)	colon	Gippsland, Vic	37°30′ S, 147°51′ E	41R1	MW309877
M. spearei	Euro (Osphranter robustus erubescens)	colon	Kalgoorlie, WA	30°44′ S, 121°28′ E	23M1	MW309878
M. dissimilis	Swamp wallaby (Wallabia bicolor)	stomach	Kamarooka, Vic	36°28′ S, 144°22′ E	10W9	MW309879

Abbreviations: Qld = Queensland, Vic = Victoria, WA = Western Australia.

). The nematodes were stored at −80 °C or in 70% ethanol until required for DNA extraction. Individual nematodes were thawed and cut into three segments. The anterior and posterior extremities of each specimen were cleared in lactophenol for morphological identification and retained as voucher specimens, which were deposited in the South Australian Museum, Adelaide (SAM49067-49073). The mid-section of each nematode was washed three times in saline prior to DNA extraction, and the ITS-1 and ITS-2 sequences were defined for each specimen using an established method [6].

4.2. DNA Isolation and Sequencing of a Full Complement of mt Protein-Coding Genes

Total genomic DNAs were isolated from individual nematodes using the QIAamp DNA Micro Kit (Qiagen, Hilden, Germany) according to the manufacturer’s protocol. The quality and quantity of each DNA sample were determined using the 2200 TapeStation (Agilent, Santa Clara, CA, USA). TruSeq DNA libraries were prepared as per the manufacturer’s recommendations (Illumina, San Diego, CA, USA) and included: (i) end-repair and A-tailing of the 3′ ends, (ii) ligation of the adaptors, (iii) enrichment of the libraries and purification of the enriched library using Ampure Beads (Beckman Coulter, Brea, CA, USA). The libraries were assessed for quality using the 2200 TapeStation, pooled and sequenced on the Illumina MiSeq platform using the 300 cycle v3 reagent kit (2 × 150 paired-end reads).

For each nematode, raw DNA sequence data in the FASTQ format [22] were filtered for quality (Phred cut-off: 30) and trimmed using the program trimmomatic v.0.38 [23]. Individual mt protein-coding gene sequences were de novo assembled from at least 0.55 million filtered reads (50–150 bp) using the program Spades v. 3.13.0 [24] (employing default parameters) and annotated employing an established pipeline [10]. In brief, each protein-coding mt gene was identified by local alignment comparison (six reading frames) using amino acid sequences inferred from corresponding genes in the mt genome of a reference species H. macropi (GenBank accession no. NC0230998 [11]).

Sequence regions that were ambiguously aligned with the reference genome were verified by PCR amplification (specific primers were designed in Primer3) [25] and Sanger sequencing. For each sample, the nucleotide sequences were deposited in the GenBank database under BioProject no. PRJNA679672 and accession nos. MW309873–MW309879.

4.3. Sequence Comparisons and Sliding Window Analysis

The mt DNA sequences were aligned with published sequences of H. macropi using MUSCLE [26] and CLUSTAL W [27] in the MEGA software [28] followed by manual adjustments. Each of the 12 protein-coding genes was conceptually translated to amino acid sequences using the Invertebrate Mitochondrial Code. Nucleotide and amino acid sequence differences were calculated separately by pairwise comparison. Nucleotide diversity of aligned, concatenated sequences was determined by sliding window analysis (100 bp window, 25 bp step) using DnaSP v.6 [29]. The arrow icons indicating the genes boundaries were generated using the Geneious Prime 2020.2.4 software (http://www.geneious.com/) and overlaid on to the plot (Figure 1). Nucleotide diversity was plotted against the midpoint positions of each window, with the average nucleotide diversity calculated for each protein-coding gene.

4.4. Phylogenetic Analyses

For the phylogenetic analyses, amino acid sequences of the 12 protein-coding genes of Macropostrongyloides species and H. macropi (GenBank NC0230998) were concatenated and aligned (Mendeley Data doi: 10.17632/nnnm5cgcf3.1). The most suitable substitution model and partitioning schemes for the alignment were determined using PartitionFinder for amino acids [30]. The boundaries of each gene were specified, model selection was set to the Akaike information criterion and the greedy algorithm was used with branch lengths estimated as “unlinked” to search for the best-fit scheme. Bayesian inference (BI) analysis was performed in MrBayes v.3.2.7 [31]. Based on the best partitioning scheme determined by Partition Finder, the alignment was divided into seven subsets comprising Subset 1 (cox1), Subset 2 (cox2, cox 3, nad4L), Subset 3 (nad3, cob, atp6), Subset 4 (nad5, nad 6) Subset 5 (nad1), Subset 6 (nad1) and Subset 7 (nad4). The analysis was conducted using the Markov Chain Monte Carlo with four simultaneous tree building chains (three heated and one cold). Posterior probability was calculated for two million generations and sampled every 1000 generations. The standard deviation of split frequencies was <0.01 and the Potential Scale Reduction Factor value approached one. The consensus tree was generated from the final 75% of trees produced. The condensed tree was visualised in FigTree v. 1.4.2 [32].
