Genomic Analyses of Globodera pallida, A Quarantine Agricultural Pathogen in Idaho

by
Sulochana K. Wasala
1,*,
Dana K. Howe
1,
Louise-Marie Dandurand
2,
Inga A. Zasada
3 and
Dee R. Denver
1
1
Department of Integrative Biology, Oregon State University, Corvallis, OR 97331, USA
2
Department of Entomology, Plant Pathology and Nematology, University of Idaho, Moscow, ID 83844, USA
3
USDA-ARS Horticultural Crops Research Laboratory, Corvallis, OR 97331, USA
*
Author to whom correspondence should be addressed.
Pathogens 2021, 10(3), 363; https://doi.org/10.3390/pathogens10030363
Submission received: 12 February 2021 / Revised: 3 March 2021 / Accepted: 8 March 2021 / Published: 18 March 2021
Browse Figures
Versions Notes

Abstract

:
Globodera pallida is among the most significant plant-parasitic nematodes worldwide, causing major damage to potato production. Since it was discovered in Idaho in 2006, eradication efforts have aimed to contain and eradicate G. pallida through phytosanitary action and soil fumigation. In this study, we investigated genome-wide patterns of G. pallida genetic variation across Idaho fields to evaluate whether the infestation resulted from a single or multiple introduction(s) and to investigate potential evolutionary responses since the time of infestation. A total of 53 G. pallida samples (~1,042,000 individuals) were collected and analyzed, representing five different fields in Idaho, a greenhouse population, and a field in Scotland that was used for external comparison. According to genome-wide allele frequency and fixation index (Fst) analyses, most of the genetic variation was shared among the G. pallida populations in Idaho fields pre-fumigation, indicating that the infestation likely resulted from a single introduction. Temporal patterns of genome-wide polymorphisms involving (1) pre-fumigation field samples collected in 2007 and 2014 and (2) pre- and post-fumigation samples revealed nucleotide variants (SNPs, single-nucleotide polymorphisms) with significantly differentiated allele frequencies indicating genetic differentiation. This study provides insights into the genetic origins and adaptive potential of G. pallida invading new environments.

1. Introduction

As major agricultural pathogens, plant-parasitic nematodes cause numerous diseases in plants and are responsible for more than US$100 billion in annual agriculture loss worldwide [1,2]. Among the top three most significant plant-parasitic nematodes are the potato cyst nematodes Globodera pallida and Globodera rostochiensis [3]. Although these nematodes have a narrow host range that includes potato, tomato, and some solanaceous weeds, they can reduce potato yield by 80% [4,5]. Potato cyst nematodes are widely distributed in Europe; however, they are not widespread in North America [6]. Both species are considered quarantine pests in the U.S. Globodera pallida was first discovered in Idaho in April 2006 [7]. While infesting less than 1% of potato acreage in the state, the discovery of G. pallida in Idaho caused several countries to ban all fresh U.S. potato imports, though these markets have since been reopened [6,8]. Since the discovery of G. pallida in Idaho, containment and eradication of infested fields has been ongoing [6].
Globodera pallida initially evolved in South America, then was introduced into Europe, and from there spread to North America [9,10]. A spatial point pattern analysis suggests that the arrival and spread of G. pallida in Idaho resulted from a single introduction [11]. However, genetic evidence is lacking to evaluate whether G. pallida populations in Idaho stemmed from a single introduction or resulted from many. Knowledge on this is important from a regulatory perspective because population-level genetic variation is a key determinant of the strength of evolutionary adaptability; several introductions could lead to high within-species genetic diversity, which would increase the likelihood and pace of adaptation to the nematodes’ new environment.
Globodera pallida is a sedentary endo-parasite that undergoes sexual reproduction. Second-stage juveniles invade plant roots and establish feeding sites. As development continues, fertilized females enlarge to form cysts containing 200 to 600 eggs. Eggs require hatching factors, which are specific chemical cues released from host roots that induce hatching. In the absence of the host, eggs can remain dormant in the soil for many years [12]. Planting resistant crop varieties has historically been one of the most effective control measures for potato cyst nematodes; however, there are currently no russet potato varieties with resistance to G. pallida [13]. Crop rotation (with non-host crops) offers another control strategy; however, since some encysted eggs remain viable in soil for decades, even in the absence of a host crop, this strategy does not completely eradicate the nematode. Although no longer available for use in Idaho, the fumigant nematicide methyl bromide was initially used to eradicate G. pallida. Since G. pallida was discovered in Idaho in 2006, eradication efforts have aimed to contain and eradicate it through phytosanitary action and soil fumigation [6]. The effectiveness of eradication strategies depends on nematodes’ ability to adapt with changes in the environment and continue to survive. Therefore, knowledge on the potential for adaptation by nematodes to novel and changing environmental conditions is essential for crafting adaptive control strategies.
Studies of the genetic structure of populations provides important insights into the origins of invasive populations and their potential for adaptation to local and changing environmental conditions. Populations are generally thought to adaptively evolve through one of two main routes: wait for the appearance of a rare novel mutation which will sweep through the population if advantageous, or alternatively, through standing (i.e., pre-existing) genetic variation [14]. A third route would be migration which leads to new allele gains that will sweep through the population if advantageous [15]. Genome-wide next-generation sequencing of DNA pooled from multiple individuals is a highly effective way of locating genomic variation between wild populations [16]. Genome-wide studies facilitate the identification of candidate genomic regions harboring genes or genetic elements responsible for local adaptation by offering the ability to evaluate patterns of variation across different genomic regions [17]. Once a putative adaptive genetic variation related to the application of management practices is identified, alternative management strategies might be developed to specifically focus on eliminating the source of adaptive genetic variation.
There are two main strategies aimed at identifying regions of the genome that may be responsible for local adaptation, particularly for non-model organisms [18,19]. The first strategy detects “outlier” loci (loci with unusually high genetic differentiation among populations) using the classic F-statistic/fixation (Fst) index (differentiation outlier method). The second strategy tests the association between allele frequencies and environmental variables (genetic–environmental association method).
Fst is a widely used pairwise measure of population-level genetic differentiation and structure [20]. It is frequently estimated from DNA polymorphism data, such as single-nucleotide polymorphisms (SNPs). Fst values range from zero to one; a zero value implies that the two populations under investigation are interbreeding freely and completely share genetic diversity, while a value of one implies complete isolation and an absence of shared genetic diversity. Local adaptation leads to strong genetic differentiation between populations, but only at specific genetic loci. Thus, loci with very high Fst values compared to the rest of the genome are commonly identified to be under local adaptation and are referred to as outliers [18]. Genetic–environment association methods seek to identify alleles whose frequencies have strong correlations with environmental variable(s), which suggests the loci are involved in local adaptation [19]. Here, researchers hypothesize which environmental variable(s) are important in generating genetic variation that leads to local adaptation of wild populations.
In this study, a whole genome sequencing approach coupled with analysis strategies mentioned above were applied to Idaho G. pallida field populations to: (1) evaluate the genetic variation of G. pallida across fields to determine if the infestation was a result of a single or multiple introduction(s), and (2) explore temporal patterns of genome-wide polymorphisms to evaluate the adaptive potential of G. pallida populations in Idaho since the time of infestation.

2. Results

2.1. Sequence Yield and Read Mapping

To compare patterns of genome-wide genetic variation among G. pallida populations from Idaho fields, the whole genomes from 53 cyst samples were sequenced; a population maintained in the greenhouse and a population from Scotland were also analyzed for comparative purposes. The yield of Illumina reads passing quality control measures varied from ~25 to 50 million reads for 52/53 samples (Supplementary Table S1). One sample, BIN25-7-d, had an unusually small number of quality reads numbering less than 3 million and was discarded. A total of 2.08 × 109 quality filtered reads from the 53 samples were mapped to the G. pallida reference genome. All reads that did not match G. pallida were discarded. Although the quality filtered read yield did not dramatically vary among pre- and post-fumigation samples, the number of mapped reads to the G. pallida reference genome was low (<1.5 × 106) in some of the post-fumigation samples (Supplementary Table S1). This observation was anticipated due to the visibly poor quality of encysted eggs from the post-fumigation samples, and only data from G. pallida cysts collected within one year post- fumigation (BIN25-1, BIN54-1, BIN258-1) were considered in subsequent analyses.

2.2. Effect of Coverage Threshold on Number of SNPs

We identified SNP sites in our population-genomic data to assess genome-wide patterns of nucleotide variation among G. pallida populations. Each survey (Table 1) conducted to investigate G. pallida genetic differentiation across time and space was repeated with multiple minimum coverage thresholds (10X to 70X) to find the optimum minimum coverage threshold per survey. The total number of SNPs per survey decreased with increasing minimum coverage threshold (Table 2; Supplementary Figure S1). As expected, more stringent minimum coverage thresholds resulted in smaller numbers of observed SNPs. The minimum coverage applied to a particular survey was determined on a case-by-case basis, aiming to optimize the number of variable sites available for analysis while also maintaining high thresholds to avoid issues associated with low coverage; our parameters usually resulted in 100–300 SNPs available for surveys (Table 2). The optimum minimum coverage for surveys I and V-A was 30X and resulted in 198 and 255 SNPs, respectively. For surveys V-B and V-C, the optimum minimum coverage was 60X and resulted in 249 and 242 SNPs, respectively. It was 20X, 40X, and 70X for surveys II, III, and IV and resulted in 125, 100, and 302 SNPs, respectively. These SNPs were used to calculate SNP-specific Fst values.

2.3. Genetic Differentiation Among G. pallida Field Populations in Idaho

To assess large-scale patterns of spatial genetic differentiation among nematode populations in different Idaho fields, average Fst was estimated for surveys I and II (Table 1). All the results presented here were obtained utilizing four biological replicates per field population. For survey I, in which comparison was made among pre-fumigation nematode populations collected in 2007 (BIN25, BIN26, BIN54, and BON64), a low Fst average of 0.009 was obtained. To distinguish any population among these four fields with highly differentiated genomic regions, Fst was calculated for every SNP site, and all possible pairwise population comparisons had low Fst values, ranging from 0.0 to 0.13 (Figure 1). Next, SNP-specific allele frequencies were calculated and compared between these four fields to distinguish genomic regions with unusual genetic differentiation in any of these populations. For this analysis, 252 SNPs were obtained. When the Cochran–Mantel–Haenszel (CMH) test was implemented to assess significance of SNP-specific allele frequency differentiation among populations, no statistically significant differences were observed based on the standard genome-wide significance threshold of 5 × 10−8 [21].
When a field where infestation was more recently detected in 2014 (BIN258) was included in the analysis with the four 2007 fields (BIN25, BIN26, BIN54, and BON64 in 2007), an average Fst of 0.013 was obtained (survey II). The genome-wide SNP-specific Fst values calculated through pairwise population comparisons with BIN258 ranged from 0.0 to 0.175 (Figure 2a). For the SNP-specific allele frequency analysis, 62 SNPs were examined. Based on our CMH test results applied to SNP-specific allele frequencies, we found a total of twelve SNP sites with p-values that exceeded the standard genome-wide significance threshold (p < 5 × 10−8). Accordingly, we identified these twelve SNPs as significantly differentiated SNPs in BIN258 field population compared to the four field populations detected in 2007 (BIN25, BIN26, BIN54, and BON64). The twelve SNP outliers (SNPs with significantly differentiated allele frequencies) were located on two scaffolds of G. pallida genome: HG821129 and HG821413. The annotation results revealed genes (coding regions) associated with one of the SNP outliers. The single SNP outlier detected on scaffold HG821413 was associated with CLAVATA3/ESR (CLE-1) gene and identified as a non-synonymous mutation (amino acid replacement in the polypeptide). SNP outliers in the HG821129 scaffold (11/12 total) were placed in an intergenic region (non-coding) (Supplementary Table S2).

2.4. Comparisons with Greenhouse and Scotland G. pallida Populations

A G. pallida population maintained in a greenhouse at the University of Idaho, established from cysts collected from the BIN25 field population, was also included in the analysis for comparative purposes (survey III). Fst analysis comparing samples obtained from field and greenhouse G. pallida populations had a low average Fst of 0.009. All genome-wide SNP-specific Fst values calculated through pairwise population comparisons with the greenhouse population were less than 0.05 (Figure 2b). For the SNP-specific allele frequency analysis, we investigated 29 SNPs and found no SNP-specific allele frequencies that were significantly differentiated between field and greenhouse G. pallida populations in Idaho (CMH statistical test, genome-wide significance threshold: 5 × 10−8).
In order to provide an external context for our analyses, which were limited to Idaho field samples, a G. pallida population obtained from Scotland was used as an outside point of reference. When the Scotland population (Luff) was included in the analysis with the 2007 Idaho field populations (BIN25, BIN26, BIN54, and BON64), an average Fst of 0.05 was obtained (survey IV). This was the largest average Fst obtained compared to analyses including BIN258 (survey II: BIN25, BIN26, BIN54, BON64, BIN258) or greenhouse (survey III: BIN25, BIN26, BIN54, BON64, GH). In the analysis where Fst was calculated for every SNP, the between population pairwise comparisons involving the Scotland G. pallida population had a genome-wide Fst distribution that reached up to 0.3 (Figure 2c). The relatively high Fst values indicated greater differentiation between the Idaho populations and the Scotland population (threshold Fst for significant genetic differentiation = 0.25). The SNP-specific allele frequency analysis supported this observation with statistical evidence. From a total of 8296 SNPs, 1855 SNPs had p-values that exceeded the genome-wide significance threshold (p < 5 × 10−8, CMH test), indicating significant genetic differentiation between Idaho and Scotland G. pallida populations. These 1855 SNP sites were located on 257 scaffolds of G. pallida genome.

2.5. Patterns of Genome Wide Polymorphisms before and after Fumigation

To assess temporal changes in genetic differentiation associated with fumigation, pre- and post-fumigation samples were evaluated from three G. pallida field populations: BIN25, BIN54, BIN258 (surveys V-A,B,C). All the results presented here were obtained utilizing four biological replicates per field and from two time points (24 total samples; 3 fields × 4 replicates × 2 time points). Genome-wide SNP-specific Fst values calculated for pre- and post-fumigation sample comparisons provided evidence for significant genetic change in some regions in the genome over time. In order to provide an analytical context for pre–post comparisons, we used Fst values resulting from pre–pre comparisons and post–post comparisons as references from each field. All genome-wide SNP-specific Fst values resulted from comparison between BIN25 pre-fumigation samples (25-0 vs. 25-0) were less than 0.17. This included all possible pairwise comparisons between the four replicates of BIN25-0 (pre-fumigation). Similarly, comparisons between all BIN25 post-fumigation samples (25-1 vs. 25-1) had genome-wide SNP-specific Fst values less than 0.12. However, the comparisons between BIN25 pre- and post-fumigation samples (25-0 vs. 25-1) had SNP-specific Fst values that reached up to 0.35, indicating high genetic differentiation between pre- and post-fumigation samples obtained from this field based on our threshold Fst of 0.25 (Supplementary Figure S2). Next, SNP-specific allele frequencies were calculated and compared between pre- and post-fumigation samples from BIN25 field. The SNP-specific allele frequency analysis supported the result from the Fst analysis with statistical evidence. When the CMH test was implemented to assess the significance of SNP-specific allele frequency differentiation between BIN25 samples across time (pre- and post-fumigation), we found 73 sites (out of 956) with p-values that exceeded the standard genome-wide significance threshold (p < 5 × 10−8). These 73 SNP outliers (SNPs with significantly differentiated allele frequencies) were located on twelve scaffolds in the G. pallida genome resource (Figure 3a). The annotation results of these twelve scaffolds revealed five of them to have a total of 23 SNP outliers on protein coding genes. Some of these 23 SNP outliers were associated with ATP synthesis and protein folding functions, while others were associated with uncharacterized proteins. The SNP outlier on the ATP synthase gene was identified as a synonymous (silent) mutation. The rest of the genes resulted in both synonymous and non-synonymous mutations due to SNP outliers (Supplementary Table S2).
The comparisons between BIN54 pre-fumigation samples (54-0 vs. 54-0) had genome-wide SNP-specific Fst values that were less than 0.03. Similarly, comparisons between BIN54 post-fumigation samples (54-1 vs. 54-1) had genome-wide SNP-specific Fst values less than 0.02. But comparisons between BIN54 pre- and post-fumigation samples (54-0 vs. 54-1) had SNP-specific Fst values as high as 0.24, which was closer to our threshold Fst value of 0.25 (Supplementary Figure S2). When SNP-specific allele frequency analysis was performed to detect any genetic differentiation between pre- and post-fumigation samples obtained from this field, we found 22 (out of 329) significantly differentiated SNPs throughout the genome (p < 5 × 10−8, CMH test). These 22 SNP outliers were located on twelve scaffolds in the G. pallida genome (Figure 3b). Annotation results of these twelve scaffolds revealed one of them to have a SNP outlier on a protein coding gene that codes for Fido domain-containing protein. This SNP outlier was identified as a non-synonymous mutation leading to a change in the resulting polypeptide (Supplementary Table S2).
All genome-wide SNP-specific Fst values resulting from comparison between BIN258 pre-fumigation samples (258-0 vs. 258-0) were less than 0.03. Similarly, comparisons between BIN258 post-fumigation samples (258-1 vs. 258-1) had genome-wide SNP-specific Fst values less than 0.07. The comparisons between BIN258 pre- and post-fumigation samples (258-0 vs. 258-1) had SNP-specific Fst values that reached up to 0.16 (Supplementary Figure S2). To detect any genetic differentiation between pre- and post-fumigation samples obtained from this field, SNP-specific allele frequency analysis was performed and 12 SNP sites (out of 71) were detected with p-values that exceeded the standard genome-wide significance threshold (p < 5 × 10−8, CMH test). These twelve SNP outliers were located on four scaffolds in the G. pallida genome (Figure 3c). Annotation results of these four scaffolds revealed three of them to have outlier SNPs in protein coding genes. One SNP outlier was associated with protein folding function, while the other two were associated with uncharacterized proteins. While two of the SNP outliers on genes were identified as synonymous mutations, one resulted in a non-synonymous mutation that altered the resulting amino-acid (Supplementary Table S2). According to the SNP-specific allele frequency distribution patterns between pre- and post- fumigation samples, these polymorphisms (SNP outliers) were likely differentiated as a result of fumigation.

3. Discussion

Understanding the genetic structure of parasite populations and the process of genome evolution and adaptation is essential for crafting effective control strategies [22]. Accordingly, this study focused on a whole genome sequencing approach followed by population genetic analyses of a recent G. pallida infestation in Idaho. The first goal was to evaluate the genetic variation of G. pallida across Idaho fields to assess if the infestation was a result of single or multiple introduction(s). This is important from a regulatory perspective since several introductions could lead to high within-species genetic diversity, which would increase the likelihood and pace of adaptation to the nematodes’ new environment. Our assessment of population genetic structure using the Fst index revealed patterns of genetic interrelatedness among G. pallida populations obtained from the Idaho fields. First considering the four fields, BIN25, BIN26, BIN54, and BON64, all 16 cyst samples from these four fields were collected in 2007 before fumigation began; therefore, any genetic effect that might occur from fumigation can be disregarded. The average Fst for these four Idaho fields was estimated to be 0.009, which is very low. Wright suggested the following qualitative guidelines for the interpretation of Fst: the range 0.0 to 0.05 indicates little genetic differentiation, the range 0.05 to 0.15 indicates moderate genetic differentiation, the range 0.15 to 0.25 indicates great genetic differentiation, and values above 0.25 indicate very great genetic differentiation [23]. Based on these guidelines, the average Fst of 0.009 obtained for the four Idaho fields indicates close genetic relationships among the nematodes in these fields.
However, Wright’s Fst guidelines are general recommendations; Fst is a relative rather than an absolute measure of genetic differentiation, and the value depends on the choice of populations or heterozygosity within populations. For example, Fst values can be as low as 0.006 within one species, while that of another species can be as high as 0.714 [24]. For closely related mammalian species, typical values are of the order of 0.05 (5%) to 0.20 (20%), with average Fst between human populations being 0.15 (15%) [25]. The animal-parasitic nematodes Baylisascaris schroederi had Fst values ranging from 0.01 to 0.02 among different populations [26]. Therefore, to provide an external analytical context for our results, we compared the G. pallida field populations in Idaho with a G. pallida population obtained from Scotland and a population maintained in a greenhouse at the University of Idaho. When the Scotland population was added to the analysis with the Idaho fields (BIN25, BIN26, BIN54, BON64, and Luff), the average Fst notably increased to 0.05. This is a 10-fold increase in relative terms and moderate genetic differentiation according to Wright’s general guidelines [23] between Idaho and Scotland populations. This result is consistent with a study done in Europe, where G. pallida populations obtained from the same area in France had Fst values less than 0.1, while populations obtained from different European countries had Fst values that showed a 10-fold increase and reached up to 0.45 [10]. Further, previous reports involving the plant parasite G. rostochiensis had Fst values ranging from 0.02 to 0.40 among different populations [27]. When the greenhouse population was added to the analysis with the Idaho fields (BIN25, BIN26, BIN54, BON64, and GH), the average Fst remained the same (0.009). This low Fst value supports the finding that the G. pallida populations in Idaho fields and greenhouse are genetically similar in both relative and Wright’s terms. In fact, the greenhouse population was originally collected from the infested field BIN25 and maintained on susceptible potato (Solanum tuberosum) “Désirée” or “Russet Burbank”. The relative Fst values confirmed close genetic relationships among the nematodes in Idaho fields.
Our analysis on SNP-specific allele frequencies performed to detect any genomic regions with strong genetic differentiation among populations further supported the Fst results. We found no statistically significant differences in SNP-specific allele frequencies among pre-fumigation G. pallida populations obtained from these four different Idaho fields. Further, we found no statistically significant differences in allele frequencies among Idaho field and greenhouse populations. However, analysis between Idaho and Scottish populations revealed 1855 SNP sites with significantly differentiated allele frequencies (p < 5 x 10−8), indicating greater genetic differentiation between the Idaho and Scotland populations. Moreover, we obtained consistent results for all biological replicates for all above analyses according to the CMH statistical test. Based on these results, we demonstrated that most of the genetic variation was shared among G. pallida populations from Idaho fields, indicating that the infestation likely resulted from a single introduction. It is common for plant-parasitic nematodes to gain entry to new areas through agricultural commodities (plant material or agricultural equipment contaminated with infested soil). After establishment and integration are achieved, mainly through local nematode reproduction, nematodes easily spread to nearby fields [11,28]. Therefore, G. pallida seems to have spread from field to field in Idaho depending on the introduction. Our results are consistent with a recent spatial pattern analysis of the G. pallida infestation in Idaho, which revealed that nearby infested fields contributed to the infestation of new fields through a contagion effect scenario [11].
Next, we compared fields where infestation was originally detected (in 2007) to a field where G. pallida was more recently detected in 2014 (BIN258). The cysts collected from BIN258 prior to fumigation were used for this analysis (similar to the four fields mentioned above). These five fields (BIN25, BIN26, BIN54, BON64, and BIN258) had a low average Fst of 0.013, indicating very little genetic differentiation between them, similar to the results of the previous analysis. This suggests that BIN258 likely stemmed from the original infestation. However, SNP-specific allele frequencies analysis revealed twelve SNP sites with strong genetic differentiation in BIN258 compared to other Idaho fields (p < 5 × 10−8). Of the twelve outlier SNP sites observed in the analysis involving BIN258, eleven were found to be on non-coding regions of the genome. One outlier was associated with a CLE gene that is expressed in nematode parasitic stages, suggesting a role for their encoded proteins in plant parasitism [29]. This SNP outlier caused a non-synonymous mutation resulting in an amino acid change in the polypeptide, which might affect the protein function. The infestation in the BIN258 field was detected eight years after the initial G. pallida detection in Idaho. During this time period, the field had not undergone methyl bromide fumigation but was planted with potato. Thus, approximately seven generations are estimated to have occurred between 2007 and the sample collection at BIN258, assuming one generation per year/season based on the observation that cyst nematodes are monocyclic [30]. The detection of genomic loci with significantly differentiated allele frequencies in the BIN258 suggests that this Idaho field population has undergone local evolutionary adaptation, perhaps through mechanisms involving CLE genes, in the absence of eradication measures. Supporting our observations, experimental evolution studies on G. pallida and the model nematode Caenorhabditis elegans suggest that rapid and strong adaptation can happen in fewer than ten generations [31,32]. Further, Eoche-Bosy et al. have shown the feasibility of genome scan approaches to detect adaptation coming from short generation times [32].
Our next goal was to investigate patterns of genome-wide polymorphisms to evaluate the adaptive potential of G. pallida to soil fumigants. For this, 24 G. pallida samples were collected from three of the fields at two different time-points: (1) pre-fumigation and (2) the year immediately following fumigation (post-fumigation). This approach allowed us to look at potential genetic changes immediately surrounding fumigation treatments. If this genetic change is significant, it’s likely due to the survival of treatment resistant nematodes in post-fumigation populations, indicating potential for adaptation. Our analyses revealed higher genome-wide Fst values between pre- and post-fumigation sample comparisons for the three fields evaluated (BIN25, BIN54, and BIN258), as compared to values between pre-fumigation comparisons and post-fumigation comparisons. This method provided the benefit of having a relative Fst value to detect any genetic differentiation due to treatments, rather than having to rely on general Fst guidelines. In certain regions of the genome, the SNP-specific Fst values of pre–post comparisons relative to pre–pre and post–post comparisons, had a 10-fold difference and provided evidence for significant genetic change post-fumigation. Strong genetic differentiation like this due to contrasting habitats (non-fumigated vs fumigated) can be indicative of local adaptation that helps an organism to survive in a particular environment. To confirm local adaptation, one has to eliminate alternative explanations such as genetic drift. The Fst, determined by genetic drift under selective neutrality, will affect all loci across the genome in a similar and predictable fashion [33], and this is not what we observed. Adaptation due to selection is a locus-specific force that can cause systematic deviations in Fst values for a selected loci [33], and this is consistent with our SNP-specific Fst results.
To further support this observation, genome-wide SNP-specific allele frequencies were calculated and compared between pre- and post-fumigation samples. When statistical testing was applied to detect any statistically significant changes in SNP allele frequencies under more conservative thresholds (p < 5 × 10−8), 107 outlier SNP sites were found between pre- and post- fumigation samples across all three fields. This further supports the existence of genomic regions with strong genetic differentiation among pre- and post-fumigation populations. Strong outlier “signals” like these are taken to be indicative of local adaptation relative to background “noise” caused by migration, drift, or any other demographic changes that affect the whole genome equally [15,34]. Accordingly, we further analyzed these outlier SNPs to identify any genes associated with them. Among the 107 total outliers, 27 SNPs were located in protein coding genes associated with ATP synthase, protein folding, and potential parasitic functions (InterPro-EMBL-EBI). Among these 27 outliers in coding sequence, five SNP sites resulted in non-synonymous mutations that might affect the protein function. Understanding the potential functional effects associated with genes in which the outliers were detected requires further experimentation. Nonetheless, revealing the adaptive potential of invasive G. pallida provides important implications for its eradication, i.e., the eradication strategies could now focus on eliminating the source of adaptive genetic variation.
In conclusion, the patterns of genetic variation of G. pallida across Idaho fields suggest the infestation resulted from a single introduction, which acted as a point source for subsequent spread. G. pallida populations detected years after the initial detection indicate potential for local evolutionary adaptation in the absence of control measures. Temporal patterns of genome-wide polymorphisms involving pre- and post-fumigation samples revealed putative incipient adaptive alleles in G. pallida that might be caused by soil fumigants or other unknown stressors. Our genome-wide approach thus offered strong genetic insights into the origins of the Idaho G. pallida infestation and evidence of potential adaptive evolution in the decade following its initial introduction.

4. Materials and Methods

4.1. Globodera pallida Populations and Sampling

The experimental approach began with the collection of G. pallida cysts from infested fields in Idaho (Figure 4). G. pallida cyst samples used in this study were originally collected between 2006 and 2014 by USDA-APHIS (United States Department of Agriculture, Animal and Plant Health Inspection Service) from fields in southern Idaho according to guideline protocols and using an agreed upon sampling protocol outlined by USDA-APHIS (https://www.aphis.usda.gov/plant_health/plant_pest_info/nematode/downloads/potato_guidelines.pdf (accessed on 18 March 2021)). The sampling method used by USDA-APHIS involved collecting 22.42 kg of soil samples per hectare, with cysts extracted from soil using the Fenwick flotation method [35]. Cysts were then stored dry until requested for this study. The identity of the original infestation of G. pallida was confirmed by morphological and molecular methods [36]. For the purpose of this study, a total of 53 samples altogether consisting of 2605 G. pallida cysts (~400 individuals per cyst) were processed. This included cyst samples from five different G. pallida infested fields in Idaho that were located within a 10 km radius in Bingham (BIN) and Bonneville (BON) counties (Figure 5). Cysts were collected from fields prior to fumigation; four cyst populations were collected in 2007, and one population was detected and collected in 2014. For each field population, four pooled samples (replicates) were collected. Each replicate consisted of 50 cysts (total of 200 cysts; approximately 200 × 400 individuals per field). For three of these fields, cyst samples were collected at two different time-points: (1) pre-fumigation and (2) post-fumigation. For comparative purposes, we included in the analyses a greenhouse G. pallida population maintained on potato originally collected from an infested field (BIN25) in Idaho and a European population from Scotland (Luffness) (Table 3).

4.2. DNA Extraction, Library Preparation and Genome Sequencing

Samples consisting of 50 cysts (~20,000 individuals) were used for DNA extraction; fewer cysts (5 cysts; 2000 individuals) were used from the Scotland population due to limited availability. For DNA extraction, cysts of pooled samples were crushed for 2 min with a motorized micro pestle and processed with QIAampDNA Micro kit (Qiagen, Hilden, Germany) following the manufacturer’s protocol. Total genomic DNA was sheared for 50 s using a Diagenode Bioruptor Pico (Diagenode, Inc., Denville, NJ, USA) to obtain peak library fragment sizes of ~500 bp, and genomic libraries were prepared using the NEBNext_Ultra II DNA Library Prep Kit for Illumina (New England Biolabs, Ipswich, MA, USA) following the manufacturer’s instructions. Whole genome sequencing (pool-seq) was performed using Illumina HiSeq 3000 for 2 × 150 bp reads (paired-end) at the Center for Genome Research and Biocomputing, Oregon State University, Corvallis, OR. Raw reads are available from NCBI’s (National Center for Biotechnology Information) Sequence Read Archive (SRA) under BioProject number PRJNA679610.

4.3. Genome Assembly and Quality Control

After sequencing, raw reads were trimmed to remove adaptors and filtered for quality using bbduk-BBtools (base calls with Phred quality score <20 were excluded from read ends) (http://jgi.doe.gov/data-and-tools/bbtools (accessed on 18 March 2021)). Filtered reads were then mapped to the G. pallida reference genome (NCBI accession number GCA_00724045, Reference guided assembly) using BWA mem (Burrows-Wheeler Aligner, version 0.7.12-r1039) [37]. In order to remove possible sample contamination, a more conservative strategy was employed to only analyze the reads that matched the G. pallida reference genome, and all the reads that mapped ambiguously were removed using SAMtools (version 1.3) [38]. For the filtered reads (that matched the nematode genome), base calling accuracy was evaluated by the Phred quality score, which indicates the probability that a given base is called correctly by the sequencer. A Phred quality score of 20 was used as the threshold, which means that the base call accuracy was 99%. The calls that did not fulfill this requirement were discarded. Quality filtered reads were then used for variant (SNP) calling, allele frequency computation, and further genome-wide genetic analysis (Figure 4).

4.4. SNP Identification and Population Genomic Analyses

SNP calling and allele frequency computation (at every base in the reference genome) were performed for each replicate of every population using SAMtools (mpileup) [38]. Then, population genomic analyses were conducted comparatively between different fields and time points to: (1) identify any distinct genetic groups indicating several introductions of the nematode (spatial genetic differentiation) and (2) detect any significant genetic change over time, suggesting the potential for adaptation (temporal genetic differentiation). Four and three specific surveys were conducted to evaluate spatial and temporal genetic differentiation of Idaho G. pallida populations, respectively (Table 1). First, to assess broad patterns of spatial genetic differentiation among populations, average Fst was estimated (for surveys I to IV) using the formula:
F s t = ( H t − H s ) H t
where: Ht = total heterozygosity and Hs = average heterozygosity within each population.
Heterozygosity was calculated using major and minor allele frequencies of the populations being analyzed. The polymorphic sites where coverage was between 30X and 200X with a minimum minor allele frequency of 2% across all populations were considered here, and all sites failing to meet these criteria were discarded [39]. This first analysis was not applied to temporal surveys involving pre- and post-fumigation samples because in those surveys we were interested in finding genomic regions with potential adaptation rather than investigating differences in overall population structure (Figure 4).
Next, to distinguish any genomic regions with unusual genetic differentiation among populations, highly differentiated SNPs were identified. This analysis was applied to both spatial and temporal surveys (I to V-C) and involved a two-step procedure (Figure 4). First, genome-wide SNP-specific Fst values were calculated for all possible pairwise population comparisons. The pairwise Fst values were calculated using POPOOLATION2 software package [40] with a maximum coverage of 200X. A series of varying n-fold minimum coverage thresholds (10X–70X) were applied for each survey in order to determine the optimal minimum coverage for each particular survey (Table 2). The calculated Fst values were then compared to a Fst threshold of 0.25, which indicates a significant genetic differentiation [23]. The Fst values were also comparatively evaluated to identify any significant genetic differentiation between populations. For spatial surveys, G. pallida populations obtained from greenhouse and Scotland were used for this purpose. For temporal surveys involving pre- and post-fumigation populations, comparisons were made between pre–pre, post–post, and pre–post samples per field.
Second, genome-wide SNP-specific allele frequencies were calculated and compared between populations (both spatially and temporally). Here, SNPs were identified in each survey using identical filtering criteria, i.e., SNP sites where coverage was between 40X and 200X were considered, with a minimum minor allele frequency of 2% across all populations. All sites failing to meet these criteria were discarded. Since four independent measurements of the allele frequencies were obtained per population (biological replicates), Cochran–Mantel–Haenszel test statistics (CMH test) [41] were implemented using the POPOOLATION2 software package [40] to detect the significant and consistent changes in SNP allele frequencies between G. pallida populations. To identify highly differentiated SNPs, the Bonferroni-corrected significance threshold and more stringent standard genome-wide significance threshold of 5 × 10−8 [21] were used. Only the SNPs exceeding both thresholds were considered to be outliers.

4.5. SNP Outliers and Coding Regions of the Genome

The scaffolds with SNP outliers (SNPs with significantly differentiated allele frequencies) were further analyzed to identify coding regions which corresponded to significantly differentiated sites. The information in WormBase ParaSite database (Version:WBPS14 (WS271)) on annotated exons (coding regions/genes) of the G. pallida reference genome was used to convert the synchronized file of scaffolds into a gene-based file [40]. Once the coding regions corresponding to significantly differentiated sites were identified, the WormBase Blastx function was used to discover any amino acid change in the resulting polypeptide due to SNP outliers (UniProtKB-WormBase ParaSite).

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-0817/10/3/363/s1, Figure S1: Effect of minimum coverage thresholds on the number of single nucleotide polymorphisms (SNPs) in the comparison of two Globodera pallida field populations, Figure S2: Genome-wide Fst distribution of Globodera pallida populations obtained from three Idaho fields pre- and post-fumigation, Table S1: Whole genome sequencing yields for 53 Globodera pallida populations, Table S2: Genome annotation results (UniProtKB-WormBase Parasite) for the G. pallida scaffolds with significant outliers based on CMH test applied to allele frequency differences.

Author Contributions

Conceptualization, S.K.W., D.R.D., and I.A.Z.; methodology, S.K.W. and D.R.D.; software, S.K.W.; validation, S.K.W.; formal analysis, S.K.W.; investigation, S.K.W., D.K.H., L.-M.D., I.A.Z., and D.R.D.; resources, L.-M.D., I.A.Z., and D.R.D.; data curation, S.K.W. and D.K.H.; writing—original draft preparation, S.K.W.; writing—review and editing, S.K.W., D.K.H., L.-M.D., I.A.Z., and D.R.D.; visualization, S.K.W.; supervision, D.R.D. and I.A.Z.; project administration, D.R.D. and I.A.Z.; funding acquisition, L.-M.D., I.A.Z., and D.R.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by USDA National Institute of Food and Agriculture AFRI competitive grant number 2015-69004-23634.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data generated in this study are openly available in NCBI’s Sequence Read Archive (SRA) under the BioProject number PRJNA679610.

Acknowledgments

We thank Tina Gresham and her team at USDA-APHIS and Vivian Blok at James Hutton Institution for providing the cysts used in this study. Special thanks go to Cedar Hesse, Mark Phillips, and Molly Burke, for technical assistance with the project. For more information about this effort please visit www.globodera.org (accessed on 18 March 2021).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Abad, P.; Gouzy, J.; Aury, J.M.; Castagnone-Sereno, P.; Danchin, E.G.J.; Deleury, E.; Perfus-Barbeoch, L.; Anthouard, V.; Artiguenave, F.; Blok, V.C.; et al. Genome sequence of the metazoan plant-parasitic nematode Meloidogyne incognita. Nat. Biotechnol. 2008, 26, 909–915. [Google Scholar] [CrossRef] [Green Version]
  2. Bird, D.M.; Kaloshian, I. Are roots special? Nematodes have their say. Physiol. Mol. Plant Pathol. 2003, 62, 115–123. [Google Scholar] [CrossRef]
  3. Jones, J.T.; Haegeman, A.; Danchin, E.G.J.; Gaur, H.S.; Helder, J.; Jones, M.G.K.; Kikuchi, T.; Manzanilla-Lopez, R.; Palomares-Rius, J.E.; Wesemael, W.M.L.; et al. Top 10 plant-parasitic nematodes in molecular plant pathology. Mol. Plant Pathol. 2013, 14, 946–961. [Google Scholar] [CrossRef] [PubMed]
  4. Brodie, B.B.; Mai, W.F. Control of the golden nematode in the United-States. Annu. Rev. Phytopathol. 1989, 27, 443–461. [Google Scholar] [CrossRef]
  5. Contina, J.B.; Dandurand, L.M.; Knudsen, G.R. A predictive risk model analysis of the potato cyst nematode Globodera pallida in Idaho. Plant Dis. 2019, 103, 3117–3128. [Google Scholar] [CrossRef] [PubMed]
  6. Dandurand, L.M.; Zasada, I.A.; Wang, X.H.; Mimee, B.; De Jong, W.; Novy, R.; Whitworth, J.; Kuhl, J.C. Current status of potato cyst nematodes in North America. Annu. Rev. Phytopathol. 2019, 57, 117–133. [Google Scholar] [CrossRef]
  7. Hafez, S.L.; Sundararaj, P. First report of the pale cyst nematode, Globodera pallida, in the United States. Plant Dis. 2007, 91, 325. [Google Scholar] [CrossRef]
  8. Pale Cyst Nematode Quarantine and Regulations; Federal Information & News Dispatch, LLC.: Washington, DC, USA, 2009; Volume 74, p. 19374.
  9. Hockland, S.; Niere, B.; Grenier, E.; Blok, V.; Phillips, M.; Den Nijs, L.; Anthoine, G.; Pickup, J.; Viaene, N. An evaluation of the implications of virulence in non-European populations of Globodera pallida and G. rostochiensis for potato cultivation in Europe. Nematology 2012, 14, 1–13. [Google Scholar] [CrossRef]
  10. Plantard, O.; Picard, D.; Valette, S.; Scurrah, M.; Grenier, E.; Mugniery, D. Origin and genetic diversity of Western European populations of the potato cyst nematode (Globodera pallida) inferred from mitochondrial sequences and microsatellite loci. Mol. Ecol. 2008, 17, 2208–2218. [Google Scholar] [CrossRef]
  11. Contina, J.B.; Dandurand, L.M.; Knudsen, G.R. A spatial analysis of the potato cyst nematode Globodera pallida in Idaho. Phytopathology 2018, 108, 988–1001. [Google Scholar] [CrossRef] [Green Version]
  12. Duceppe, M.O.; Lafond-Lapalme, J.; Palomares-Rius, J.E.; Sabeh, M.; Blok, V.; Moffett, P.; Mimee, B. Analysis of survival and hatching transcriptomes from potato cyst nematodes, Globodera rostochiensis and G. pallida. Sci. Rep. 2017, 7, 13. [Google Scholar] [CrossRef] [Green Version]
  13. Whitworth, J.L.; Novy, R.G.; Zasada, I.A.; Wang, X.H.; Dandurand, L.M.; Kuhl, J.C. Resistance of potato breeding clones and cultivars to three species of potato cyst nematode. Plant Dis. 2018, 102, 2120–2128. [Google Scholar] [CrossRef] [Green Version]
  14. Stapley, J.; Reger, J.; Feulner, P.G.D.; Smadja, C.; Galindo, J.; Ekblom, R.; Bennison, C.; Ball, A.D.; Beckerman, A.P.; Slate, J. Adaptation genomics: The next generation. Trends Ecol. Evol. 2010, 25, 705–712. [Google Scholar] [CrossRef] [PubMed]
  15. Weigand, H.; Leese, F. Detecting signatures of positive selection in non-model species using genomic data. Zool. J. Linn. Soc. 2018, 184, 528–583. [Google Scholar] [CrossRef]
  16. Turner, T.L.; Bourne, E.C.; Von Wettberg, E.J.; Hu, T.T.; Nuzhdin, S.V. Population resequencing reveals local adaptation of Arabidopsis lyrata to serpentine soils. Nat. Genet. 2010, 42, 260–264. [Google Scholar] [CrossRef]
  17. Guo, B.C.; Li, Z.T.; Merila, J. Population genomic evidence for adaptive differentiation in the Baltic Sea herring. Mol. Ecol. 2016, 25, 2833–2852. [Google Scholar] [CrossRef]
  18. De Villemereuil, P.; Gaggiotti, O.E. A new Fst-based method to uncover local adaptation using environmental variables. Methods Ecol. Evol. 2015, 6, 1248–1258. [Google Scholar] [CrossRef] [Green Version]
  19. Hoban, S.; Kelley, J.L.; Lotterhos, K.E.; Antolin, M.F.; Bradburd, G.; Lowry, D.B.; Poss, M.L.; Reed, L.K.; Storfer, A.; Whitlock, M.C. Finding the genomic basis of local adaptation: Pitfalls, practical solutions, and future directions. Am. Nat. 2016, 188, 379–397. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Wright, S. The interpretation of population-structure by F-statistics with special regard to systems of mating. Evolution 1965, 19, 395–420. [Google Scholar] [CrossRef]
  21. Barsh, G.S.; Copenhaver, G.P.; Gibson, G.; Williams, S.M. Guidelines for Genome-Wide Association Studies. PLoS Genet. 2012, 8, 1002812. [Google Scholar] [CrossRef] [PubMed]
  22. Hupalo, D.N.; Bradic, M.; Carlton, J.M. The impact of genomics on population genetics of parasitic diseases. Curr. Opin. Microbiol. 2015, 23, 49–54. [Google Scholar] [CrossRef] [Green Version]
  23. Wright, S. Evolution and the Genetics of Populations, Volume 4: Variability Within and Among Natural Populations; University of Chicago Press: Chicago, IL, USA, 1978. [Google Scholar]
  24. Hartl, D.L.; Clark, A.G. Principles of Population Genetics, 4th ed.; Sinauer Associates: Sunderland, MA, USA, 2007. [Google Scholar]
  25. VonHoldt, B.M.; Cahill, J.A.; Fan, Z.X.; Gronau, I.; Robinson, J.; Pollinger, J.P.; Shapiro, B.; Wall, J.; Wayne, R.K. Whole-genome sequence analysis shows that two endemic species of North American wolf are admixtures of the coyote and gray wolf. Sci. Adv. 2016, 2. [Google Scholar] [CrossRef] [Green Version]
  26. Zhou, X.; Xie, Y.; Zhang, Z.H.; Wang, C.D.; Sun, Y.; Gu, X.B.; Wang, S.X.; Peng, X.R.; Yang, G.Y. Analysis of the genetic diversity of the nematode parasite Baylisascaris schroederi from wild giant pandas in different mountain ranges in China. Parasites Vectors 2013, 6. [Google Scholar] [CrossRef] [Green Version]
  27. Mimee, B.; Duceppe, M.O.; Veronneau, P.Y.; Lafond-Lapalme, J.; Jean, M.; Belzile, F.; Belair, G. A new method for studying population genetics of cyst nematodes based on Pool-Seq and genomewide allele frequency analysis. Mol. Ecol. Resour. 2015, 15, 1356–1365. [Google Scholar] [CrossRef]
  28. Ferris, H.; Jetter, K.M.; Zasada, I.A.; Chitambar, J.J.; Venette, R.C.; Klonsky, K.M.; Becker, J.O. Risk assessment of plant-parasitic nematodes. In Exotic Pests and Diseases: Biology and Economics for Biosecurity; Summer, D.A., Buck, F.H., Jr., Eds.; Iowa State University Press: Ames, IA, USA, 2003; pp. 99–119. [Google Scholar]
  29. Lu, S.W.; Chen, S.Y.; Wang, J.Y.; Yu, H.; Chronis, D.; Mitchum, M.G.; Wang, X.H. Structural and functional diversity of CLAVATA3/ESR (CLE)-like genes from the potato cyst nematode Globodera rostochiensis. Mol. Plant-Microbe Interact. 2009, 22, 1128–1142. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Lee, D.L. The Biology of Nematodes; Taylor & Francis: London, UK, 2002. [Google Scholar]
  31. Estes, S.; Phillips, P.C.; Denver, D.R. Fitness recovery and compensatory evolution in natural mutant lines of C. elegans. Evolution 2011, 65, 2335–2344. [Google Scholar] [CrossRef]
  32. Eoche-Bosy, D.; Gauthier, J.; Juhel, A.S.; Esquibet, M.; Fournet, S.; Grenier, E.; Montarry, J. Experimentally evolved populations of the potato cyst nematode Globodera pallida allow the targeting of genomic footprints of selection due to host adaptation. Plant Pathol. 2017, 66, 1022–1030. [Google Scholar] [CrossRef]
  33. Akey, J.M.; Zhang, G.; Zhang, K.; Jin, L.; Shriver, M.D. Interrogating a high-density SNP map for signatures of natural selection. Genome Res. 2002, 12, 1805–1814. [Google Scholar] [CrossRef] [Green Version]
  34. Beaumont, M.A. Adaptation and speciation: What can Fst tell us? Trends Ecol. Evol. 2005, 20, 435–440. [Google Scholar] [CrossRef] [PubMed]
  35. Fenwick, D.W. Methods for the recovery and counting of cysts of Heterodera schachtii from Soil. J. Helminthol. 1940, 18, 155–172. [Google Scholar] [CrossRef]
  36. Skantar, A.M.; Handoo, Z.A.; Carta, L.K.; Chitwood, D.J. Morphological and molecular identification of Globodera pallida associated with potato in Idaho. J. Nematol. 2007, 39, 133–144. [Google Scholar] [PubMed]
  37. Li, H.; Durbin, R. Fast and accurate short read alignment with Burrows-Wheeler transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R. 1000 genome project data processing subgroup. The Sequence Alignment/Map format and SAMtools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Phillips, M.A.; Rutledge, G.A.; Kezos, J.N.; Greenspan, Z.S.; Talbott, A.; Matty, S.; Arain, H.; Mueller, L.D.; Rose, M.R.; Shahrestani, P. Effects of evolutionary history on genome wide and phenotypic convergence in Drosophila populations. BMC Genom. 2018, 19, 743. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Kofler, R.; Pandey, R.V.; Schlotterer, C. PoPoolation2: Identifying differentiation between populations using sequencing of pooled DNA samples (Pool-Seq). Bioinformatics 2011, 27, 3435–3436. [Google Scholar] [CrossRef] [Green Version]
  41. Mantel, N. Chi-Square Tests with One Degree of Freedom; Extensions of the Mantel-Haenszel procedure. J. Am. Stat. Assoc. 1963, 58, 690–700. [Google Scholar] [CrossRef]
Pathogens 10 00363 g001 550

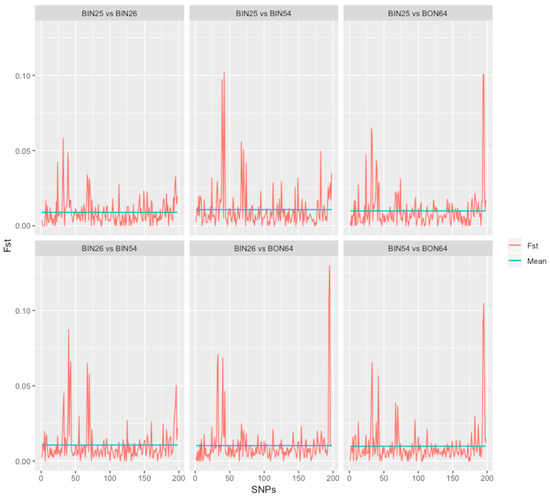

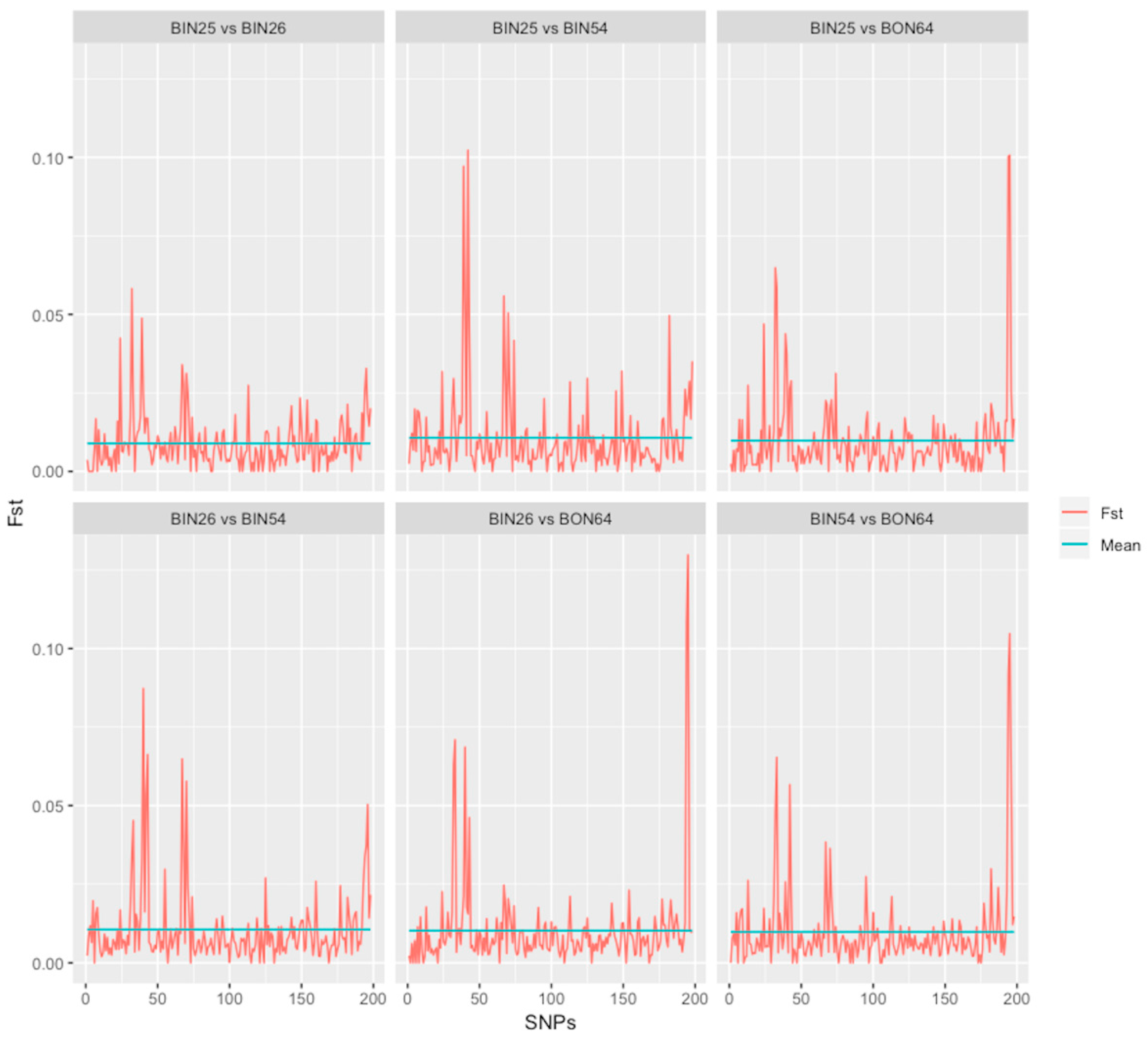

Figure 1. Genome-wide Fst distribution between Globodera pallida populations obtained from four Idaho fields pre-fumigation. BIN25, BIN26, BIN54, BON64 designate individual fields, Fst: fixation index. SNPs are arranged on the x axis by consecutive scaffold.
Figure 1. Genome-wide Fst distribution between Globodera pallida populations obtained from four Idaho fields pre-fumigation. BIN25, BIN26, BIN54, BON64 designate individual fields, Fst: fixation index. SNPs are arranged on the x axis by consecutive scaffold.
Pathogens 10 00363 g001
Pathogens 10 00363 g002 550

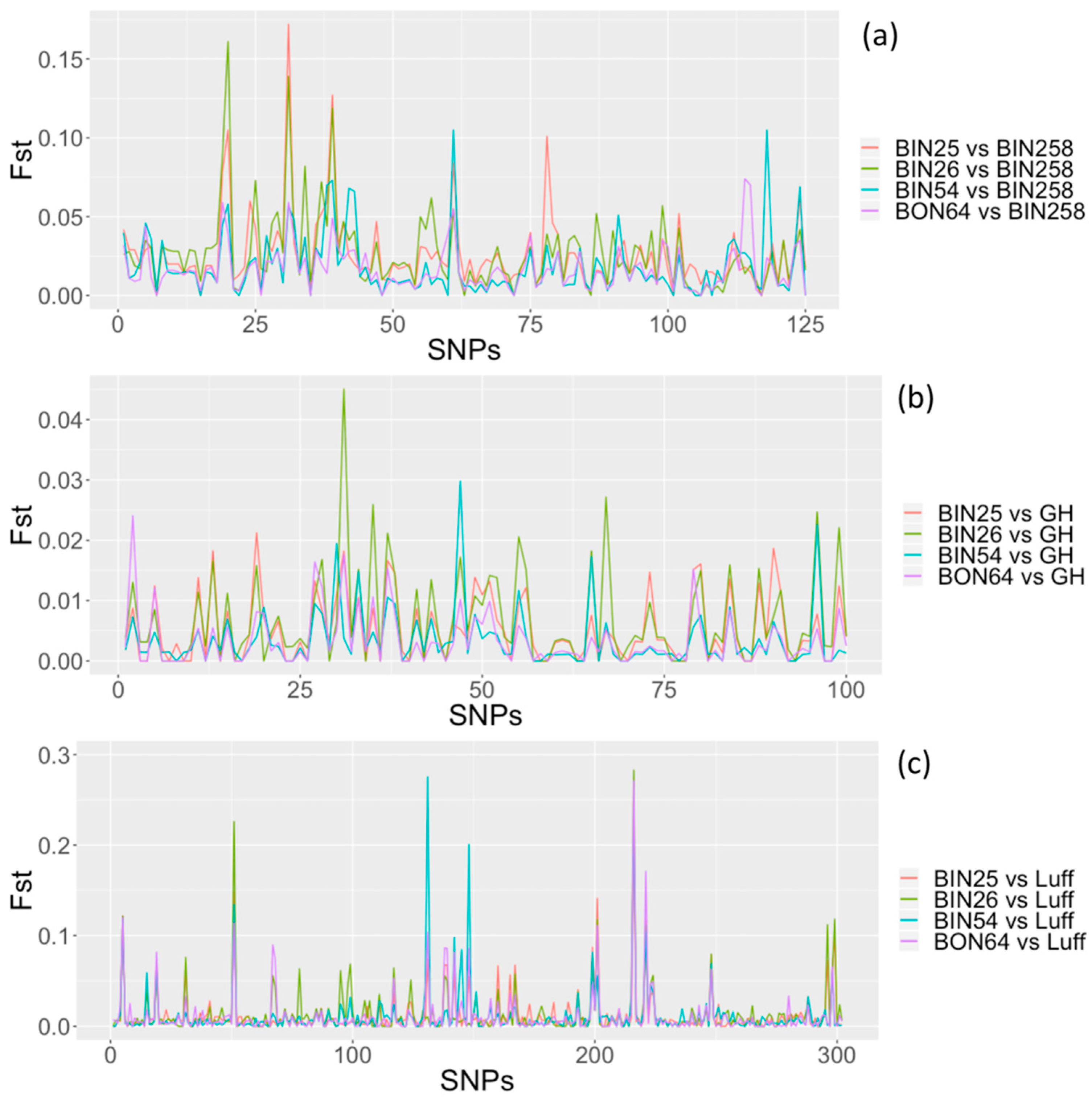

Figure 2. Genome-wide Fst comparisons of Globodera pallida populations. (a) Comparison of BIN258 to other Idaho field populations, (b) comparison of greenhouse population to Idaho field populations, and (c) comparison of Scotland population to Idaho field populations. BIN25, BIN26, BIN54, BON64: designate Idaho fields, GH: Greenhouse, Luff: Scotland G. pallida. Colors represent Fst distribution for all possible pairwise comparisons, Fst: fixation index. SNPs are arranged on the x axis by consecutive scaffold.
Figure 2. Genome-wide Fst comparisons of Globodera pallida populations. (a) Comparison of BIN258 to other Idaho field populations, (b) comparison of greenhouse population to Idaho field populations, and (c) comparison of Scotland population to Idaho field populations. BIN25, BIN26, BIN54, BON64: designate Idaho fields, GH: Greenhouse, Luff: Scotland G. pallida. Colors represent Fst distribution for all possible pairwise comparisons, Fst: fixation index. SNPs are arranged on the x axis by consecutive scaffold.
Pathogens 10 00363 g002
Pathogens 10 00363 g003 550

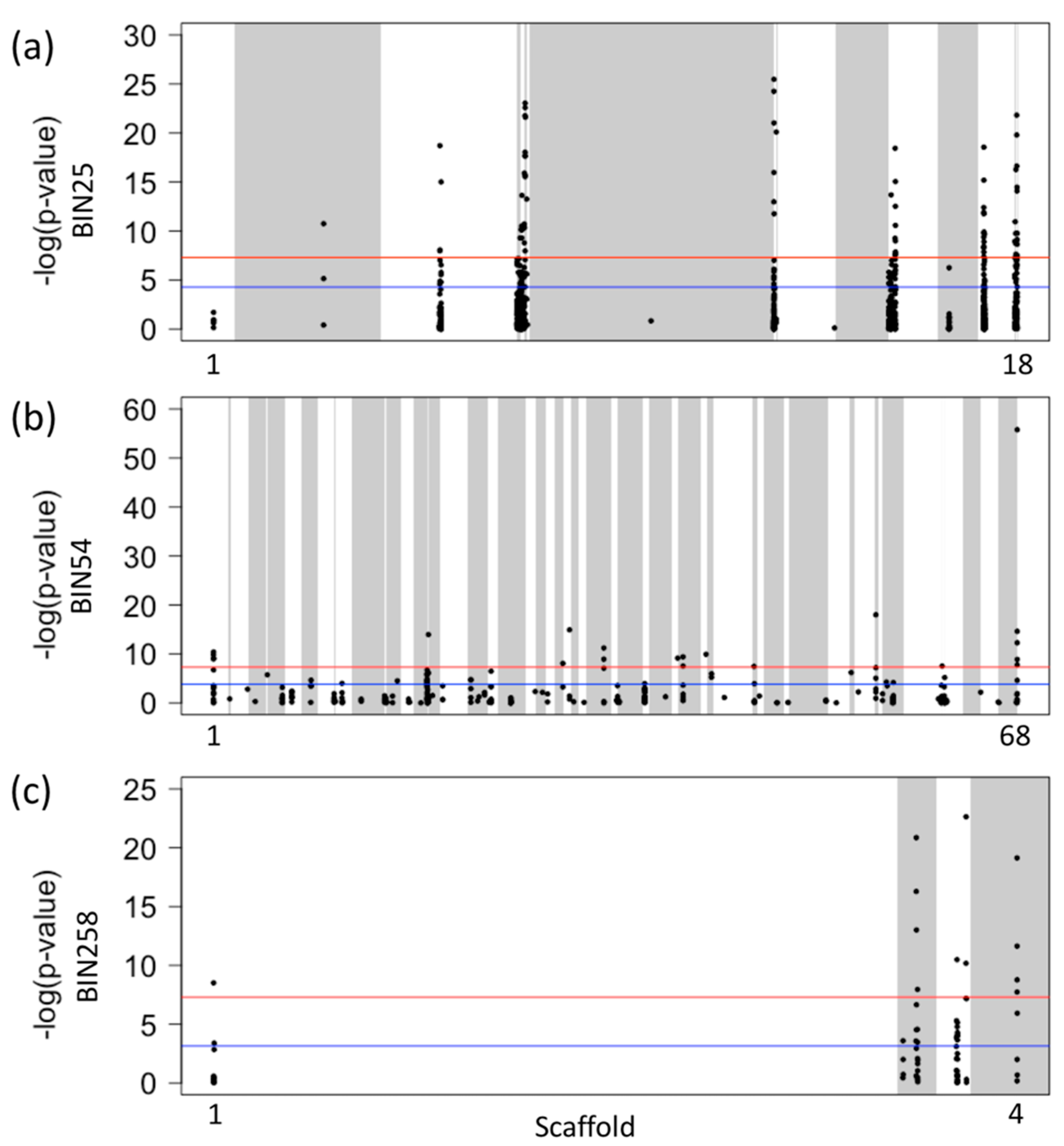

Figure 3. Evidence of significant allele (SNP) frequency change between pre- and post-fumigation samples across three Globodera pallida populations from Idaho. (a) BIN25, (b) BIN54, and (c) BIN258. The y axis indicates transformed p-values from the CMH statistical test. Bonferroni corrected significance threshold is shown in blue and standard genome-wide significance threshold is shown in red. The x axis indicates the genomic position; numbers indicate different scaffolds harboring SNPs. Shading of gray and white represent alternating scaffolds.
Figure 3. Evidence of significant allele (SNP) frequency change between pre- and post-fumigation samples across three Globodera pallida populations from Idaho. (a) BIN25, (b) BIN54, and (c) BIN258. The y axis indicates transformed p-values from the CMH statistical test. Bonferroni corrected significance threshold is shown in blue and standard genome-wide significance threshold is shown in red. The x axis indicates the genomic position; numbers indicate different scaffolds harboring SNPs. Shading of gray and white represent alternating scaffolds.
Pathogens 10 00363 g003
Pathogens 10 00363 g004 550

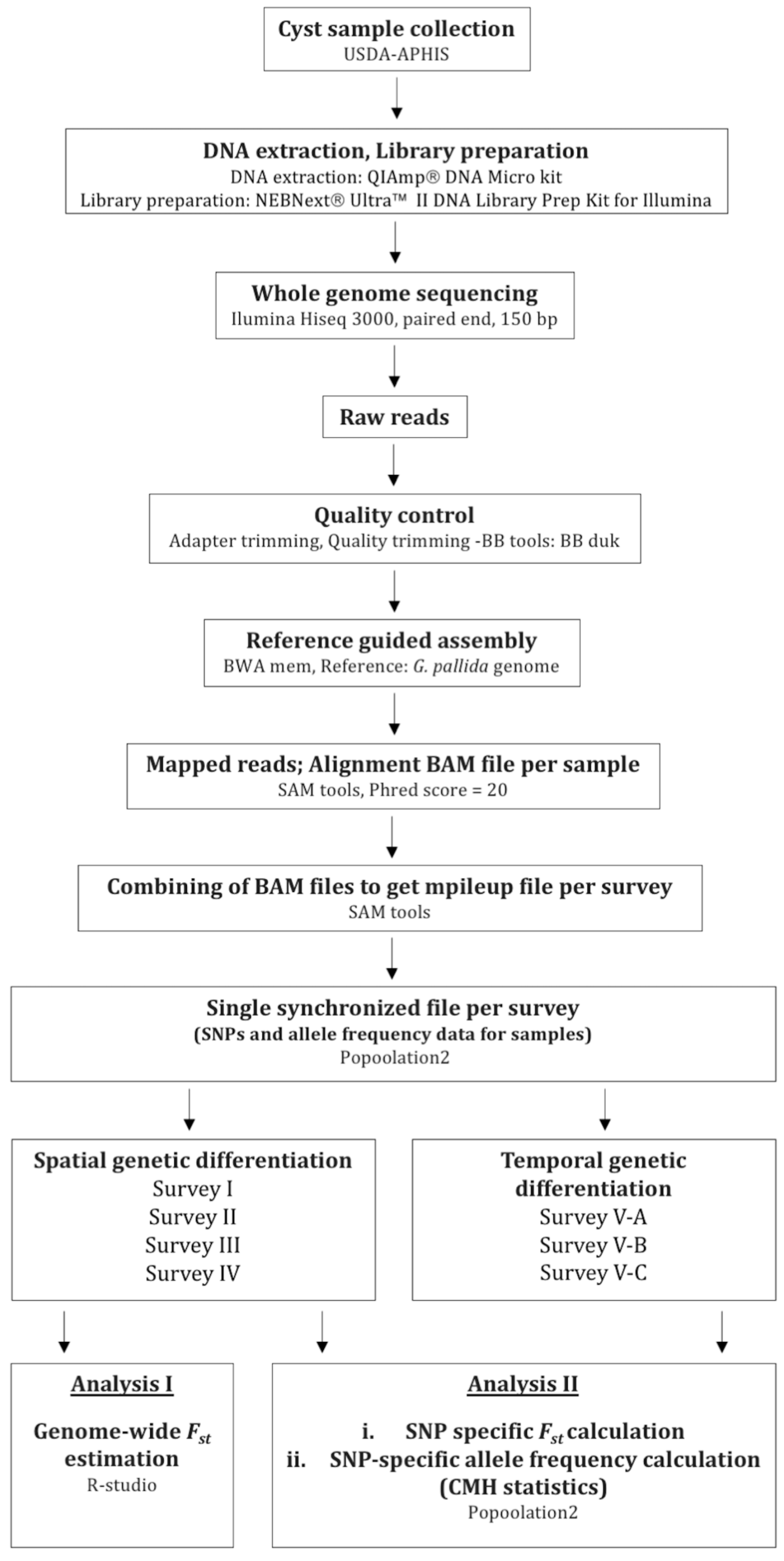

Figure 4. Workflow of data collection, bioinformatics and analysis methods. USDA-APHIS, United States Department of Agriculture, Animal and Plant Health Inspection Service; CMH, Cochran–Mantel–Haenszel test statistics.
Figure 4. Workflow of data collection, bioinformatics and analysis methods. USDA-APHIS, United States Department of Agriculture, Animal and Plant Health Inspection Service; CMH, Cochran–Mantel–Haenszel test statistics.
Pathogens 10 00363 g004
Pathogens 10 00363 g005 550

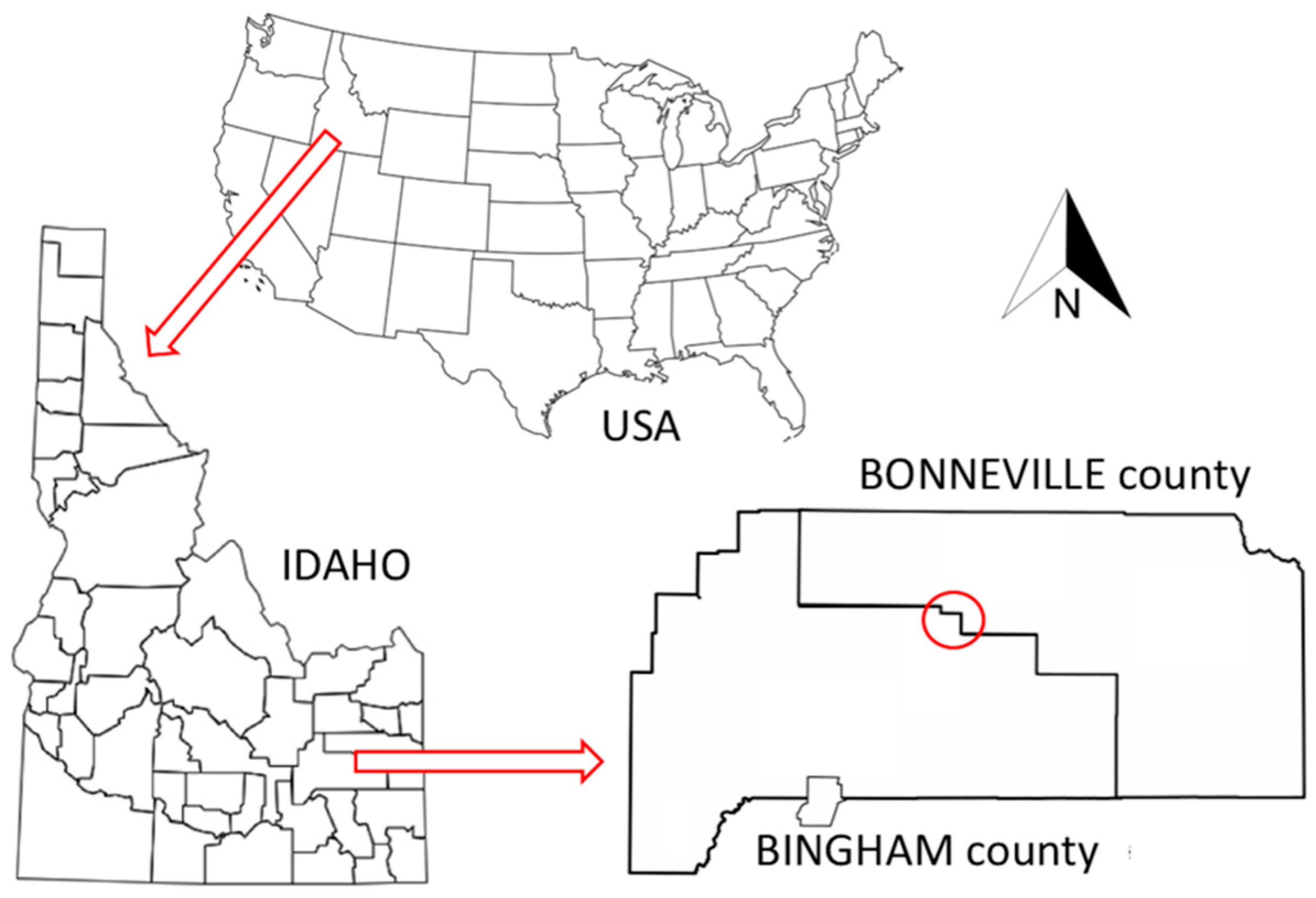

Figure 5. Location of fields in Idaho where Globodera pallida populations were collected.
Figure 5. Location of fields in Idaho where Globodera pallida populations were collected.
Pathogens 10 00363 g005
Table
Table 1. Specific Surveys Performed to Investigate Genetic Differentiation Among Globodera pallida Populations.
Table 1. Specific Surveys Performed to Investigate Genetic Differentiation Among Globodera pallida Populations.
CategorySpecific SurveyPopulations Analyzed
Spatial genetic
differentiation		Genetic differentiation among G. pallida populations from infested fields
prior to fumigation
(Survey I)		BIN25-0
BIN26-0
BIN54-0
BON64-0
Genetic differentiation among Idaho field
populations detected
in 2007 and 2014
(Survey II)		BIN25-0
BIN26-0
BIN54-0
BON64-0
BIN258-0
Genetic differentiation among field and
greenhouse-reared
Idaho populations
(Survey III)		BIN25-0
BIN26-0
BIN54-0
BON64-0
Greenhouse
Genetic differentiation among Idaho and Scottish G. pallida populations
(Survey IV)		BIN25-0
BIN26-0
BIN54-0
BON64-0
Luffness
Temporal genetic
differentiation		Patterns of genome-wide polymorphisms of pre- and post-fumigation populations
(Surveys V- A, B, C)		BIN25-0
BIN25-1
BIN54-0
BIN54-1
BIN258-0
BIN258-1
Populations are referred based on geographic origin and time collected; “-0” indicates pre-fumigation, and “-1” indicates post-fumigation. Each survey had four replicate samples per population.
Table
Table 2. Effect of Minimum Coverage Threshold on Number of Single Nucleotide Polymorphisms (SNPs).
Table 2. Effect of Minimum Coverage Threshold on Number of Single Nucleotide Polymorphisms (SNPs).
PopulationsNumber of Pairwise
Comparisons		Minimum CoverageNumber of SNPs
Survey I:
BIN25-0_BIN26-0_BIN54-0_BON64-0 (16)		12030198
201246
1050,508
Survey II:
BIN25-0_BIN26-0_BIN54-0_BON64-0_BIN258-0 (20)		190306
20125
1016,890
Survey III:
BIN25-0_BIN26-0_BIN54-0_BON64-0_GH (20)		19040100
303361
203361
Survey IV:
BIN25-0_BIN26-0_BIN54-0_BON64-0_Luff (5)		1570302
601313
101,240,364
Survey V-A:
BIN25-0 vs BIN25-1 (8)		2830255
201008
106076
Survey V-B:
BIN54-0 vs BIN54-1 (8)		2860249
50552
2018,729
Survey V-C:
BIN258-0 vs BIN258-1 (8)		2860242
50653
2017,941
1092,847
Each Globodera pallida population had four replicate samples and the number in parenthesis indicates the total number of samples due to replicates. Populations are referred based on geographic origin and time collected; “-0” indicates pre-fumigation, and “-1” indicates post-fumigation.
Table
Table 3. Globodera pallida Samples Collected from Infested Fields in Idaho for DNA Extraction.
Table 3. Globodera pallida Samples Collected from Infested Fields in Idaho for DNA Extraction.
Infected FieldTime PointDate of Cyst
Collection		Number of
Replicates
BIN25-0pre-fumigationMay 20074
BIN25-1post-fumigation-1Aug 20074
BIN25-3post-fumigation-3Jun 20084
BIN25-7post-fumigation-7Apr 20104
BIN25-10post-fumigation-10Oct 20124
BIN26-0pre-fumigationMay 20074
BIN54-0pre-fumigationApr 20074
BIN54-1post-fumigation-1Jul 20074
BIN54-11post-fumigation-11Oct 20124
BON64-0pre-fumigationMay 20074
BIN258-0pre-fumigationMay 20144
BIN258-1post-fumigation-1Aug 20154
GreenhouseControlJan 20174
LuffnessSample from Scotland-1
Each replicate consisted of 50 cysts (~20,000 individuals), except for the single sample from Scotland, which consisted of 5 cysts (~2000 individuals). “-0” indicates pre-fumigation, and “-1, 3, 7, 10, 11” indicates post-fumigation cycle.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wasala, S.K.; Howe, D.K.; Dandurand, L.-M.; Zasada, I.A.; Denver, D.R. Genomic Analyses of Globodera pallida, A Quarantine Agricultural Pathogen in Idaho. Pathogens 2021, 10, 363. https://doi.org/10.3390/pathogens10030363

AMA Style

Wasala SK, Howe DK, Dandurand L-M, Zasada IA, Denver DR. Genomic Analyses of Globodera pallida, A Quarantine Agricultural Pathogen in Idaho. Pathogens. 2021; 10(3):363. https://doi.org/10.3390/pathogens10030363

Chicago/Turabian Style

Wasala, Sulochana K., Dana K. Howe, Louise-Marie Dandurand, Inga A. Zasada, and Dee R. Denver. 2021. "Genomic Analyses of Globodera pallida, A Quarantine Agricultural Pathogen in Idaho" Pathogens 10, no. 3: 363. https://doi.org/10.3390/pathogens10030363

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
