Updating the Path to a Carbon-Neutral Built Environment—What Should a Single Builder Do
Abstract
:1. Introduction
2. Methodology
3. Results: Extended Feasibility Assessment Procedure for Residential Energy Supply Solutions
3.1. Recognizing the Basis for the Energy Supply Design
3.2. Extended Consideration of Opportunities and Risks for Life Cycle Economy in a Changing Operational Environment

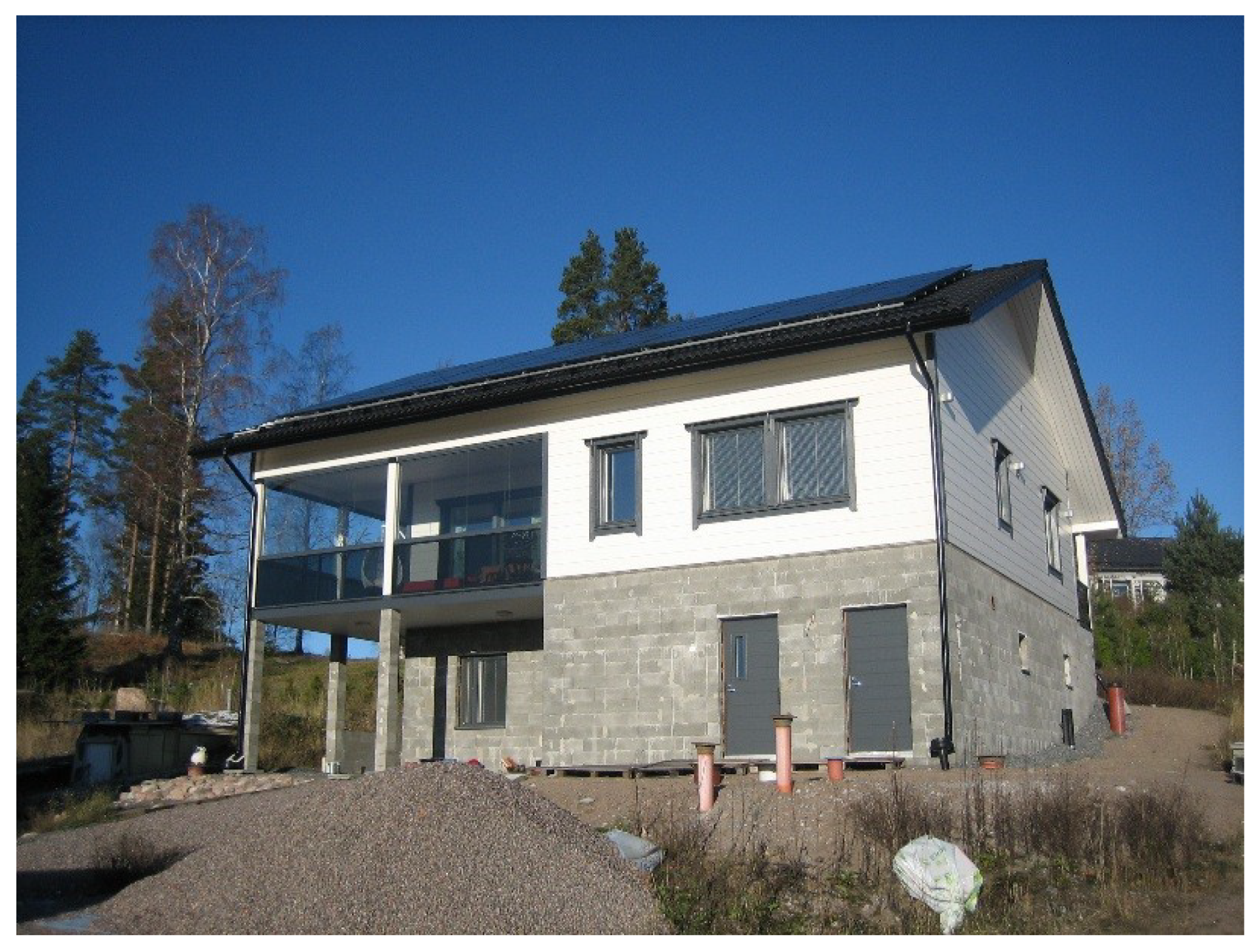

4. Verification of the Procedure at the Pilot Case
4.1. Recognizing Basis for the Energy Supply Design
4.2. Defining the Energy Demand of Spaces
4.3. Choosing Optional Energy Supply System Solutions for Comparison
4.4. Feasibility Assessment and Revising of Design Solutions

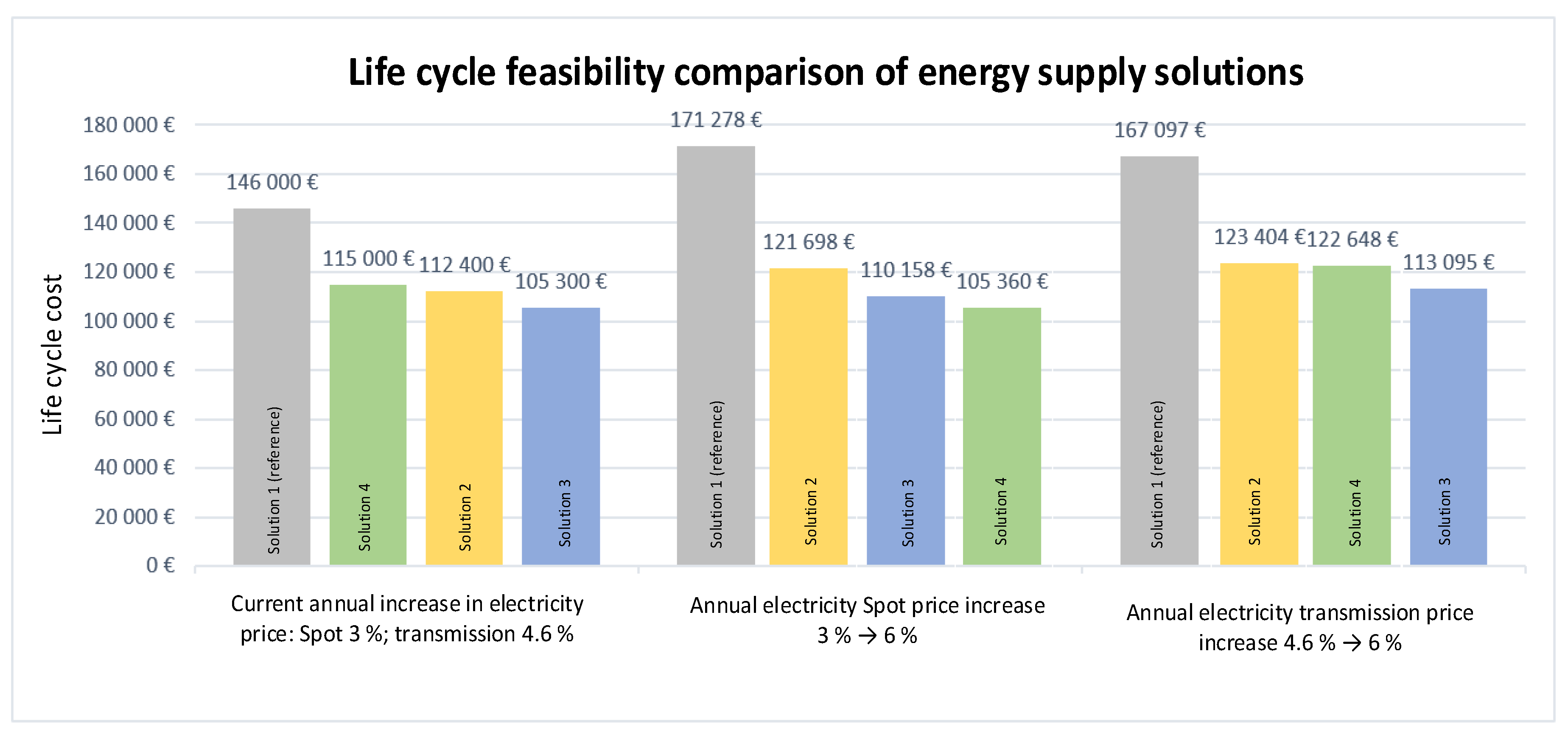

4.5. Comparison of the Alternative Energy Solutions
5. Discussion and Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Bloomberg. New Energy Outlook 2017. Available online: https://about.bnef.com/new-energy-outlook/ (accessed on 12 March 2018).
- IEA (International Energy Agency). World Energy Outlook. 2017. Available online: https://www.iea.org/weo2017/ (accessed on 12 March 2018).
- IEA. Renewables. 2017. Available online: https://www.iea.org/renewables/ (accessed on 15 March 2018).
- IRENA (International Renewable Energy Agency). Turning to Renewables: Climate-Safe Energy Solutions. Available online: http://irena.org/-/media/Files/IRENA/Agency/Publication/2017/Nov/IRENA_Turning_to_renewables_2017.pdf (accessed on 15 March 2018).
- WWF (World Wide Fund for Nature). Megatrends in the Global Energy Transition. WWF Germany and LichtBlick SE. 2015. Available online: https://energiewendebeschleunigen.de/Downloads/151201_Megatrends_der_Energiewende_EN.pdf (accessed on 7 May 2018).
- IEA (International Energy Agency). World Energy Investment. 2017. Available online: https://www.iea.org/publications/wei2017/ (accessed on 16 March 2018).
- IRENA. Electricity Storage and Renewables: Costs and Markets to 2030. Available online: http://www.irena.org/-/media/Files/IRENA/Agency/Publication/2017/Oct/IRENA_Electricity_Storage_Costs_2017.pdf (accessed on 20 March 2018).
- Niemelä, T. Cost-Optimal Renovation of Residential, Educational and Office Buildings in Finnish Climate toward Nearly Zero-Energy Buildings. Aalto University Publication Series DOCTORAL DISSERTATIONS 2018, 15/2018. Available online: https://aaltodoc.aalto.fi/handle/123456789/29635 (accessed on 9 February 2018).
- Schirone, L.; Pellitteri, F. Energy policies and sustainable management of energy sources. Sustainability 2017, 9, 2321. [Google Scholar] [CrossRef]
- TSE (Toulouse School of Economics). Negative Prices for Electricity. Available online: https://www.tse-fr.eu/negative-prices-electricity (accessed on 15 March 2018).
- Milstein, I.; Tishler, A. Can price volatility enhance market power? The case of renewable technologies in competitive electricity markets. Resour. Energy Econ. 2015, 41, 70–90. [Google Scholar] [CrossRef]
- EC (European Commission). Energy Storage: The Role of Electricity. Available online: https://ec.europa.eu/energy/sites/ener/files/documents/swd2017_61_document_travail_service_part1_v6.pdf (accessed on 31 February 2018).
- Koskinen, O.; Breyer, C. Energy storage in global and transcontinental energy scenarios: A critical review. Energy Procedia 2016, 99, 53–63. [Google Scholar] [CrossRef]
- IPCC. Special Report on Renewable Energy Sources and Climate Change Mitigation. Available online: http://www.ipcc-wg3.de/report/IPCC_SRREN_Ch08.pdf (accessed on 15 March 2018).
- ACEEE (American Council for an Energy-Efficient Economy). Some Utilities Are Rushing to Raise Fixed Charges. That Would Be Bad for the Economy and Your Utility Bill. Available online: http://aceee.org/blog/2014/12/some-utilities-are-rushing-raise-fixe (accessed on 20 March 2018).
- Pereira, R.; Figueiredo, J.; Melicio, R.; Mendes, V.M.F.; Martins, J.; Quadrado, J.C. Consumer Energy Management System with Integration of Smart Meters. Energy Rep. 2015, 1, 22–29. [Google Scholar] [CrossRef] [Green Version]
- Johnson, E.P.X.; Oliver, E. Renewable energy and wholesale electricity price variability. In IAEE Energy Forum; First Quarter. International Association for Energy Economics: Bergen, Norway, 2016. [Google Scholar]
- Brunekreeft, G.; Buchmann, M.; Meyer, R. New developments in electricity markets following large-scale integration of renewable energy. In The Routledge Companion to Network Industries; Routledge: Abington, UK, 2015. [Google Scholar]
- EC (European Commission). Digitizing the Energy Sector: An Opportunity for Europe. Available online: https://ec.europa.eu/digital-single-market/en/blog/digitising-energy-sector-opportunity-europe (accessed on 16 March 2018).
- Jenkins, D.P.; Patidar, S.; Simpson, S.A. Quantifying change in buildings in a future climate and their effect on energy systems. Buildings 2015, 5, 985–1002. [Google Scholar] [CrossRef]
- Crosbie, T.; Broderick, J.; Short, M.; Charlesworth, R.; Dawood, M. Demand response technology readiness levels for energy management in blocks of buildings. Buildings 2018, 8, 13. [Google Scholar] [CrossRef]
- Skytte, K.; Bergaentzlé, C.; Roselund Soysal, E.; Olsen, O.J. Design of grid tariffs in electricity systems with variable renewable energy and power to heat. In Proceedings of the 14th International Conference on the European Energy Market (EEM), Dresden, Germany, 6–9 June 2017; pp. 1–7. [Google Scholar]
- RIL (Finnish Association of Civil Engineers). RIL 265-2014, Uusiutuvien lähienergioiden käyttö rakennuksissa (In English: Utilization of Local Renewable Energies in Buildings); RIL: Tampere, Finland, 2014. [Google Scholar]
- Kastner, I.; Stern, P.C. Examining the Decision-making Processes behind Household Energy Investments: A review. Energy Res. Soc. Sci. 2015, 10, 72–89. [Google Scholar] [CrossRef]
- Georgiadou, M.C. Future-proofed energy design approaches for achieving low-energy homes: Enhancing the code for sustainable homes. Buildings 2014, 4, 488–519. [Google Scholar] [CrossRef]
- Akadiri, P.O.; Ezekiel, A.C.; Olomolaiye, P.O. Design of a sustainable building: A conceptual framework for implementing sustainability in the building sector. Buildings 2012, 2, 126–152. [Google Scholar] [CrossRef]
- Fleiß, E.; Hatzl, S.; Seebauer, S.; Posch, A. Money, not morale: The impact of desires and beliefs on private investment in photovoltaic citizen participation initiatives. J. Clean. Prod. 2017, 141, 920–927. [Google Scholar] [CrossRef]
- Mahamatra, K.; Gustavsson, L. An adopter-centric approach to analyze the diffusion patterns of innovative residential heating systems in Sweden. Energy Policy 2008, 36, 577–590. [Google Scholar] [CrossRef]
- Auvinen, K.; Lovio, R.; Jalas, M.; Juntunen, J.; Liuksiala, L.; Nissilä, H.; Mueller, J. FinSolar: Aurinkoenergian Markkinat Kasvuun Suomessa. Aalto University. Available online: https://aaltodoc.aalto.fi/bitstream/handle/123456789/20264/isbn9789526067674.pdf?sequence=1&isAllowed=y (accessed on 4 January 2018). (In Finnish).
- EC (European Commission). Climate Action. 2030 Climate & Energy Framework. Available online: https://ec.europa.eu/clima/policies/strategies/2030_en (accessed on 31 January 2017).
- EC (European Commission). 2050 Energy Strategy. Available online: https://ec.europa.eu/energy/en/topics/energy-strategy/2050-energy-strategy (accessed on 31 January 2017).
- MotE (Ministry of the Environment). C2. The National Building Code of Finland (on Humidity). Available online: https://www.edilex.fi/data/rakentamismaaraykset/c2.pdf (accessed on 26 July 2016).
- MotE (Ministry of the Environment). C4. The National Building Code of Finland (on Thermal Insulation). Available online: https://www.edilex.fi/data/rakentamismaaraykset/c4e.pdf (accessed on 11 July 2017).
- MotE (Ministry of the Environment). D1. The National Building Code of Finland (on Water and Sewerage Systems of Building). Available online: https://www.edilex.fi/data/rakentamismaaraykset/D1_2007.pdf (accessed on 11 July 2017).
- MotE (Ministry of the Environment). D2. The National Building Code of Finland (on Indoor Climate and Ventilation). Available online: http://www.finlex.fi/data/normit/37187-D2-2012_Suomi.pdf (accessed on 25 July 2016).
- MotE (Ministry of the Environment). D3. The National Building Code of Finland (on Energy Efficiency of Buildings). Available online: http://www.finlex.fi/data/normit/37188-D3-2012_Suomi.pdf (accessed on 25 July 2016).
- MotE (Ministry of the Environment). Energiakaivo, Maalämmön Hyödyntäminen Pientaloissa (In English: Energy Well, Utilization of Geothermal Heat in Small Houses). Available online: https://helda.helsinki.fi/bitstream/handle/10138/40953/YO_2013.pdf?sequence=4 (accessed on 5 November 2016).
- MotE (Ministry of the Environment). Ympäristöministeriön Asetus Rakennuksen Energiatodistuksesta (In English: The Decree on Energy Certification of Buildings). Available online: http://www.ym.fi/fi-FI/Maankaytto_ja_rakentaminen/Lainsaadanto_ja_ohjeet/Rakentamismaarayskokoelma/Energiatehokkuus (accessed on 3 May 2018).
- MotE (Ministry of the Environment). D5. The National Building Code of Finland (on Calculation of Energy Consumption and Heat Demand). Available online: http://www.finlex.fi/data/normit/29520-D5-190607-suomi.pdf (accessed on 26 July 2016).
- EC (European Commission). Background Report on EU-27 District Heating and Cooling Potentials, Barriers, Best Practice and Measures of Promotion. Scientific and Policy Report. Available online: https://ec.europa.eu/ (accessed on 13 October 2017).
- Hughes, L. Meeting residential space heating demand with wind-generated electricity. Renew. Energy 2010, 35, 1765–1772. [Google Scholar] [CrossRef]
- IEA. Tracking Progress: Energy Storage. Available online: https://www.iea.org/etp/tracking2017/energystorage/ (accessed on 15 March 2018).
- Karnouskos, S. Demand Side Management via Prosumer Interactions in a Smart City Energy Marketplace. In Proceedings of the 2nd IEEE PES International Conference and Exhibition on Innovative Smart Grid Technologies, Manchester, UK, 5–7 December 2012. [Google Scholar] [CrossRef]
- IAA (Indoor Air Association of Finland). Sisäilman Tekijät (In English: Indoor Air Components). Available online: http://www.sisailmayhdistys.fi/Terveelliset-tilat/Sisailmasto/Sisailman-tekijat (accessed on 10 November 2016).
- OfRH (Organization for Respiratory Health in Finland (Hengitysliitto)). Kuiva ja kostea ilma (In English: Dry and Humid Air). Available online: http://www.hengitysliitto.fi/fi/sisailma/hiukkasmaiset-ja-kaasumaiset-epapuhtaudet/kuiva-ja-kostea-ilma (accessed on 5 June 2016).
- RIL (Finnish Association of Civil Engineers). RIL 249-2009 Matalaenergiarakentaminen Asuinrakennukset (In English: Low-Energy Construction, Residential Buildings), 2nd ed.; Suomen Rakennusinsinöörien Liitto RIL ry.; Saarijärven Offset Oy: Saarijärvi, Finland, 2009; ISBN 978-951-758-517-0. [Google Scholar]
- Vinokurov, M.; Luoranen, M. Regional energy model based approach to identify new business opportunities while increasing energy efficiency. In Proceedings of the CIB World Building Congress, Tampere, Finland, 30 May–3 June 2016. [Google Scholar]
- EUR-Lex. Directive of the European Parliament and of the Council of 19 May 2010 on the Energy Performance of Buildings (Recast) EUVL 2016a, 153, 18.6.2010. Available online: http://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX%3A32010L0031 (accessed on 9 November 2016).
- EUR-Lex. 517/2012 EU, Regulation of the European Parliament and the Council on Fluorinated Greenhouse Gases. Available online: http://eur-lex.europa.eu/legal-content/EN/TXT/?uri=celex%3A32014R0517 (accessed on 11 December 2016).
- Finlex. Land Use and Building Act (132/1999, MRL). Available online: http://www.finlex.fi/fi/laki/ajantasa/1999/19990132 (accessed on 9 December 2016).
- Finlex. Land Use and Building Directive (895/1999). Available online: http://www.finlex.fi/fi/laki/ajantasa/1999/19990895 (accessed on 9 December 2016).
- FLEXe. The Final Report of the Research Project FLEXe (Flexible Energy System). Available online: http://flexefinalreport.fi/content/prosumers (accessed on 21 March 2018).
- Ijäs, S. District Heating Connection Obligation. Available online: http://www.kunnat.net/fi/tietopankit/tapahtumat/aineisto/2015/kuntamarkkinat/lakiklinikka/Documents/Ij%C3%A4s%20Susanna-Kaukol%C3%A4mp%C3%B6%C3%B6n%20liittymisvelvollisuus-KUMA%202015.pdf (accessed on 18 December 2016).
- Boomsma, T.K.; Meade, N.; Fleten, S.-E. Renewable energy investments under different support schemes: A Real Options Approach. Eur. J. Oper. Res. 2012, 220, 225–237. [Google Scholar] [CrossRef]
- Simola, A.; Kosonen, A.; Ahonen, T.; Ahola, J.; Korhonen, M.; Hannula, T. Optimal dimensioning of a solar PV plant with measured electrical load curves in Finland. Sol. Energy 2018, 170, 113–123. [Google Scholar] [CrossRef]
- Vimpari, J.; Junnila, S. Evaluating decentralized energy investments: Spatial value of on-site PV electricity. Renew. Sustain. Energy Rev. 2017, 70, 1217–1222. [Google Scholar] [CrossRef]
- Wei, C.; Li, Y. Design of Energy Consumption Monitoring and Energy-saving Management System of Intelligent Building Based on the Internet of Things. In Proceedings of the 2011 International Conference on Electronics, Communications and Control, Ningbo, China, 9–11 September 2011; pp. 3650–3652. [Google Scholar]
- GBC (Green Building Council) Finland. Rakennusten Elinkaarimittarit 2013 (In English: The Life Cycle Indicators of Buildings 2013). Available online: http://figbc.fi/wp-content/uploads/2013/01/Rakennusten_elinkaarimittarit_2013.pdf (accessed on 23 March 2018).
- GBC (Green Building Council) Finland. Life-Cycle Cost—The Long-Term Cost Efficiency Indicator. Available online: http://figbc.fi/en/building-performance-indicators/calculation-guide/life-cycle-cost-guide/ (accessed on 29 October 2017).
- Kniefel, J. Life-cycle carbon and cost analysis of energy efficiency measures in new commercial buildings. Energy Build. 2010, 42, 333–340. [Google Scholar] [CrossRef]
- VTT. Puurakenteiden Kosteustekninen Toiminta (In English: Hygroscopic Performance of Wooden Stucturs). Available online: https://www.vtt.fi/inf/pdf/tiedotteet/1999/T1991.pdf (accessed on 2 March 2018).
- Energiavirasto (Energy Authority). Hintatilastot (In English: Price Statistics). Available online: http://www.sahkonhinta.fi/summariesandgraphs (accessed on 2 March 2018).
- VTT. Tehokas ja ympäristöä säästävä tulisijalämmitys (In English: Efficient and Environment Friendly Fireplace Heating). Available online: http://www.vtt.fi/inf/julkaisut/muut/2008/VTT-R-10553-08.pdf (accessed on 2 March 2018).
- Rakennustieto. ROK Rakennusosien Kustannuksia 2014 (In English: Costs of the Building Components 2014); Rakennustieto: Helsinki, Finland, 2014; pp. 209–210. [Google Scholar]
- Rakennustieto. ROK Rakennusosien Kustannuksia 2017 (In English: Costs of the Building Components 2017); Rakennustieto: Helsinki, Finland, 2017. [Google Scholar]
- VTT. Maalämmön ja—Viilennyksen Hyödyntäminen Asuinkerrostalon Lämmityksessä ja Jäähdytyksessä (In English: Utilization of Ground Source Heat Pump in Heating and Cooling of the Residential Building). Available online: http://www.vtt.fi/inf/pdf/tiedotteet/2010/T2546.pdf (accessed on 5 March 2018).
- FinSolar. Aurinkosähköjärjestelmien Hintatasot ja Kannattavuus (In English: Price Levels and Viability of Solar Electricity Systems). Available online: http://www.finsolar.net/aurinkoenergian-hankintaohjeita/aurinkosahkon-hinnat-ja-kannattavuus/ (accessed on 6 March 2018).
- Imatran Seudun sähkö Oy (Local Energy Utility). Liittymismaksuhinnasto (In English: Connection Fee Pricelist). Available online: http://www.issoy.fi/sahkonsiirto/hinnastot/liittymismaksuhinnasto (accessed on 7 September 2017).
- NREL (National Renewable Energy Laboratory). Photovoltaic Degradation Rates—An Analytical Review. Available online: https://www.nrel.gov/docs/fy12osti/51664.pdf (accessed on 3 April 2018).
- Energiavirasto (Energy Authority). Sähköntuotannon Päästökerroin (In English: Emission Factor of Electricity Production). Available online: https://www.energiavirasto.fi/sahkontuotannon-paastokerroin (accessed on 2 March 2018).
- DoE (U.S. Department of Energy). Guide to Geothermal Heat Pumps. Available online: https://energy.gov/sites/prod/files/guide_to_geothermal_heat_pumps.pdf (accessed on 13 October 2016).
- Kahola, M. Kotitalouksien Aurinkosähkön Kannattavuus Suomessa—Mahdolliset Tukivaihtoehdot ja Niiden Kustannukset. Master’s Thesis, Pro gradu. Tampere University of Technology. TamPub, Tampere, Finland, 2015. [Google Scholar]
- Rakennustieto. Kiinteistön Tekniset Käyttöiät ja Kunnossapitojaksot (In English: Technical Service Lives and Maintenance Periods of Buildings). LVI 01-10424. 2008. Available online: https://www.rakennustieto.fi/kortistot/lvi/kortit/10424 (accessed on 1 March 2018).
- Energiatehokas Koti. Lämmitysjärjestelmien Elinkaari (In English: Technical Service Life of Heating Systems). Available online: http://www.energiatehokaskoti.fi/suunnittelu/talotekniikan_suunnittelu/lammitys/lammitysjarjestelmien_elinkaari (accessed on 6 February 2018).
1. Recognizing basis for the energy supply design | Builder’s personal performance targets: - Energy class - Indoor climate quality - Energy economy (Self-production, prosumer options, self-sufficiency, demand-response, energy saving) - Economy - Other preferences | Municipality-specific availability of energy supply and prosumer options - Available services -Regulatory constraints by municipal authority | ||
2. Choosing optional energy supply system solutions for comparison | ||||
Extended consideration of opportunities and risks for life cycle feasibility in changing operational environment | ||||
Costs | Investment driven design process | + Life cycle driven design process (extension to investment driven process) | ||
Investment & installation: - Chosen on-site energy supply equipment & related installation work accounting interest rate - Connection fees Utilization: - Prices for purchased energy and fuels using current prices with constant annual increase / decrease - Maintenance & replacement of the on-site energy supply equipment | Utilization: - Prices for purchase energy (Electricity & heat: generation and network) and fuels: Development of available energy pricing schemes, effect of increasing peak demand volatility on electricity Spot prices / capacity charges / peak power charges, increasing maintenance fees, development of fuel market price. - Costs development of replaceable electricity & heat supply equipment costs - GHG reduction oriented economic steering: Taxes, charges, emission trading or similar tradable permit schemes for households, other. Net emissions with potential LCC impact: Emissions of purchased energy and fuels used by the building / Abated emissions by selling excess self-produced energy to the grid / Emissions related with maintenance & replacement of the on-site energy supply equipment | |||
Revenues/savings | Investment & installation: - GHG emission reductions for marketing purposes: Manufacturing, transportation and installation of the on-site energy supply equipment Utilization: - Revenues for energy sales to the grid and demand response using current prices with constant annual increase / decrease - GHG emission reductions for marketing purposes | Investment & installation: - GHG reduction oriented economic steering: Subsidies Utilization: - Revenues for electricity & heat sales to the grid and demand response: Development of available pricing schemes, effect of increasing peak demand volatility on electricity Spot prices. - Business service models: Roof leasing for PV production, other. - Technological development of demand response solutions - GHG reduction oriented economic steering: Subsidies, feed-in tariff, tax credits, green certification, tradable permit schemes for households, other. Net emissions with potential LCC impact: Emissions of purchased energy and fuels used by the building / Abated emissions by selling excess self-produced energy to the grid / Emissions related with maintenance & replacement of the on-site energy supply equipment | ||
Net. (€ With energy to the grid and demand response related revenues accounted) Defining energy demand of spaces (heat & electricity) Temperature, humidity and air quality comfort: Heat / electricity demand- Building envelope (U-values, air tightness, hygroscopic performance) - Ventilation (Air filtration, heating, humidity removal; pressure difference control) - Heat recovery from ventilation (Recuperative or regenerative: Ventilation-to-ventilation / Heat pump: ventilation-to-central water heating) - Heat distribution system (Central water heating / air heating; low / high temperature; floor / radiator / roof heating) - Cooling (Air conditioning, ground source cooling, district cooling) Lighting comfort: Heat / Electricity demand - Lighting equipment (incl. daylighting) - Lighting control Domestic hot water: Heat / electricity demand - Water saving solutions - Water distribution solutions - Wastewater heat recovery Domestic appliances: Heat / Electricity demand Electric vehicles: Electricity demand | ||||
Proposing energy supply solutions (heat & electricity) Heat and electricity production technologies: renewable solar energy self-production (maximized annual / even production), heat pumps, fossil fuel / biofuel burners, fireplaces with or without heat retention, renewable / non-renewable from the grid, other. Smart prosumer and demand response solutions: - Smart metering allowing dynamic pricing of purchase and sales energy - Bi-directional heat and electric grid connections allowing sales of energy to the grid - Smart control devices allowing to shift energy demand to off-peak periods (controls: energy consumption, self-produced energy own use / sales, energy storage charging / discharging) - IoT solutions allowing control of devices energy use based on real time online energy price data - Heat and electricity storages reducing peak demand and / or maximizing use of self-produced energy (water tank, in-house battery, electric vehicles, other) Reservations for technologies to be applied in the future: Reservations of space, piping, electric / data wiring, other. | ||||
Estimating solution-specific purchase/sales energy balance → Purchase energy demand (for each energy source and fuels): → Energy to the grid: → Peak power: | ||||
3. Feasibility assessment and revising of design solutions | ||||
4. Selecting the optimal energy supply solution | ||||
Fields shaded white | = Conventional design process | Fields shaded green | = Extension to conventional design process |
Life Cycle | 30 a | Life Cycle Costs | |||
---|---|---|---|---|---|
Energy Balance | Energy Costs | ||||
Calculated energy demand (heat & electricity): | 22,400 kWh/a | Energy certificate | Electricity price (Spot, incl. Tax) | 0.04 €/kWh | Nordpool 2016 average [62] |
Heat provided with GS heat pump | 12,000 kWh/a | Energy certificate | Annual electricity price increase | 3% | Finnish 10 year average [62] |
Energy produced by fireplaces | 3000 kWh/a | Derived from the energy balance of solution 4 | Electricity transmission price (incl. Tax) | 0.06 €/kWh | 2016 average [62] |
Solution 4 (first year) | Annual electricity transmission price increase | 4.6% | Finnish 10 year average [16] | ||
Solar electricity production | 16,500 kWh/a | Measured | Firewood price | 0.06 €/kWh | [63] |
Solar electricity for own use | 2608 kWh/a | Measured | |||
Purchase electricity | 4850 kWh/a | Measured | Capital costs of equipment with installation included (VAT 0%) | ||
Electricity sale | 13,400 kWh/a | Measured | Ground source heat pump | 6023 € | [64,65] |
Solar electricity own use | 2600 kWh/a | Measured | Borehole | 24 €/m | [66] |
Solution 3 (first year) | PV panels | 1270 €/kWp | [67] | ||
Inverter | 80 €/kWp | [64,65] | |||
Solar electricity production | 4000 kWh/a | Scaled from measured | Fireplaces (baking oven) | 5900 €/pcs | [64,65] |
Solar electricity for own use | 2400 kWh/a | Scaled from measured | Fireplaces (stove) | 4200 €/pcs | [64,65] |
Purchase electricity | 5000 kWh/a | Scaled from measured | Central water heating system | 18.91 €/brm2 | [64,65] |
Electricity sale | 1500 kWh/a | Scaled from measured | Heat storage tank | 2280 €/pcs | [66] |
Solar electricity own use | 2400 kWh/a | Scaled from measured | Electric grid connection fee | 2350 € | [68] |
Annual reduction in PV production performance | 0.5% | [69] | VAT | 24% | Finnish VAT in 2018 |
Loan interest rate | 2% | Euribor 20 year average | |||
Maintenance costs of equipment: | |||||
GHG emissions | Sweeping chimneys | 62 €/a | (Average by local service providers) | ||
Energy source-specific GHG emission factors (gCO2ekv./kWh) | Replacement costs | Equals to capital costs | VAT 24% | ||
Electricity (Purchase) | 175.1 | Finnish grid average [70] | Technical service life of equipment (years): | ||
Electricity (Self-produced PV) | 0 | Renewable source | |||
Electricity sales to the grid (Abated emissions) | 175.1 | [70] | Ground source heat pump unit | 25 a | [23,71] |
Firewood | 0 | Renewable source, fuel production emissions not considered | Borehole | 100 a | [23] |
Other GHG emissions | PV panels | 30 a | [23] | ||
Inverter | 15 a | [72] | |||
Manufacturing of equipment | Not considered | Assumed equal for all examined solutions | Fireplaces/chimneys | 50 a | [64,65,73] |
Installation of equipment | Not considered | Assumed equal for all examined solutions | Central water heating system | 60 a | [64,65,73,74] |
Maintenance of equipment | Not considered | Assumed equal for all examined solutions | Heat storage tank | 30 a | [66,73,74] |
Emissions of fuel production chain | Not considered |
1. Recognizing basis for the energy supply design | Builder’s personal performance targets (Single family hillside log house): Energy class: Net annual zero energy, energy certificate class A. Indoor climate quality: High indoor climate quality with ventilation air filtration, cooling, low-emission furniture and materials (Class M1), vapor permeability of structures. Economy: Minimizing operational costs and ensuring resale value of the investment - Preparation for risks related to future energy pricing: Reduction of peak power demand and minimization of purchase energy demand with renewable energy self-production, energy efficient solutions and demand response solutions. - Preparation for potential opportunities / risks related to low-carbon oriented economic steering: Utilization of RE and low-carbon energy supply solutions and sales of RE to the grid. Other preferences: Reduction of GHG emissions, simple and safe structures, long service life, hygroscopic performance, air tightness, heat capacity. | Municipality-specific availability of energy supply and prosumer options: Available services: Electric grid available Sales of electricity to the grid available Prosumer options: No restrictions for ground source (GS) heat No restrictions for solar electricity and heat No restrictions for wind electricity | ||||
2. Choosing optional energy supply system solutions for comparison | Defining energy demand of spaces (heat & electricity): Temperature, humidity and air quality comfort: - Building envelope: Main floor wall: 275 mm laminated log with flax insulation between logs, U value 0.41 W/ (m2K). Basement floor wall: 400 mm insulated concrete block, U-value 0.17 W/ (m2K). Ground-supported floor: concrete with 200 mm XPS insulation, U-value 0.15 W/ (m2K). Wood framed roof: 500 mm wood fiber insulation with air barrier paper, U-value 0.08 W/ (m2K). Windows: directed South to promote passive solar heat gain at winter, U-value 0.8–0.82 W/ (m2K). Doors: U-value 0.6–0.75 W/ (m2K). Long eaves and large glazed balcony to prevent direct sunshine at summer reducing cooling demand, organic insulations and vapor permeable paints promoting hygroscopic performance of structure. - Ventilation: Fan assisted ventilation (inlet/outlet) with rotary heat exchanger (annual average heat recovery efficiency >70%), Pre-cooling or pre-heating supply air with GS heat pump. Electric reheat coil. - Heat distribution system: Central low-temperature water heating with floor distribution allowing operation of GS heat pump with higher efficiency. DHW circulation in toilets with motion sensor control reducing heat losses. Cooling: Air conditioning (AC) Lighting comfort: Energy efficient LED lighting. Motion and illuminance controlled outdoor and toilet lighting. Domestic appliances: Energy efficient appliances with minimum A+ energy class. → Calculated energy demand (heat & electricity): 22,400 kWh/a | |||||
Proposed energy supply solutions (heat & electricity): Demand response solutions (common to all proposed solutions): - Energy storage: Two level heat storage water tank (750 l) (lower part for heating and DHW pre-heating; upper part for DHW), 1-day storage period for DHW. Heat retention by structural mass of fireplaces, chimney and massive block structures of building. - Smart energy use control: Automation allowing scheduling energy use, such as GS heat pump, to periods with low Spot-electricity price and high self-production. Reservations for technologies to be applied in the future: Data wire from garage to technical space allowing smart charging of electricity storage and electric vehicle in the future. Electrical storage and electrical vehicle would allow increasing own use of self-produced cheap renewable electricity. Heat and electricity production technologies: | ||||||
Solution 1 (reference): Direct electric heating Three heat retention fireplaces | Solution 2: Solution 1 + Ground source heat pump (6 kW) | Solution 3: Solution 2 + Solar PV panels (5kWp) Prosumer’s bi-directional grid connection | Solution 4: Solution 2 + Solar PV panels (21.1 kWp) Prosumer’s bi-directional grid connection | |||
→ Purchase energy demand (Life cycle): | Electricity 581,500 kWh, Firewood 90,000 kWh | Electricity 224,000 kWh Firewood 90,000 kWh | Electricity 155,500 kWh, Firewood 90,000 kWh | Electricity 151,000 kWh, Firewood 90,000 kWh | ||
→ Energy to the grid (Life cycle): | Electricity 42,500 kWh | Electricity 392,000 kWh | ||||
3. Feasibility assessment of design solutions(30 years) | Investment & installation | Costs (VAT 24 %) | Heat distribution/storage system: 7300 € Fireplaces: 12,500 € Electric grid connection fee: 2900 € | Ground source heat pump system: 13,500 € Fireplaces: 12,500 € Heat distribution/storage system: 7300 € Electric grid connection fee: 2900 € | Ground source heat pump system: 13,500 € Solar PV panels: 8400 € Fireplaces: 12,500 € Heat distribution/storage system: 7300 € Electric grid connection fee: 2900 € | Ground source heat pump system: 13,500 € Solar PV system: 35,000 € Fireplaces: 12,500 € Heat distribution/storage system: 7300 € Electric grid connection fee: 2900 € |
Total (Interest 2 %): 28,000 € | Total (Interest 2 %): 44,500 € | Total (Interest 2 %): 54,700 € | Total (Interest 2 %): 87,700 € | |||
GHG emissions | Manufacturing / installation: Not considered | Manufacturing / installation: Not considered | Manufacturing / installation: Not considered | Manufacturing / installation: Not considered | ||
Utilization & maintenance | Costs (All taxes) | Maintenance/replacements: 1800 € Purchased electricity: 111,400 € Purchased firewood: 5600 € | Maintenance/replacements: 7300 € Purchased electricity: 55,000 € Purchased firewood: 5600 € | Maintenance/replacements: 9300 € Purchased electricity: 38,400 € Sold electricity: 2700 € Purchased firewood: 5600 € | Maintenance/replacements: 9300 € Purchased electricity: 37,200 € Sold electricity: 24,800 € Purchased firewood: 5600 € | |
Total: 118,800 € | Total: 67,900 € | Total: 50,600 € | Total: 27,300 € | |||
GHG emissions | Energy use emissions: 101,800 t (CO2e) Maintenance emissions: Not considered | Energy use emissions: 39,200 t (CO2e) Maintenance emissions: Not considered | Energy use emissions: 27,250 t (CO2e) Abated emissions by selling excess self-produced renewables: 7400 t (CO2e) Maintenance emissions: Not considered | Energy use emissions: 26,400 t (CO2e) Abated emissions by selling excess self-produced renewables: 68,700 t (CO2e) Maintenance emissions: Not considered | ||
Total: 101,800 t (CO2e) | Total: 39,200 t (CO2e) | Total: 19,850 t (CO2e) | Total: −42,300 t (CO2e) | |||
Net | Costs (All taxes) | 146,500 € | 112,400 € | 105,300 € | 115,000 € | |
GHG emissions | 101,800 t (CO2e) | 39,200 t (CO2e) | Net: 19,850 t (CO2e) | Net: −42,300 t (CO2e) |
