Effects of Multi-Directional Seismic Input on Non-Linear Static Analysis of Existing Reinforced Concrete Structures

Abstract

Recent studies have shown the importance of including the seismic input directionality in nonlinear analyses for an accurate prediction of the structural demand on frame structures. This paper proposes a new method that includes the multi-directionality of the input seismic forces in Nonlinear Static Analyses (NSAs). Conventionally, the pushover (PO) analyses apply monotonically increasing lateral loads in two directions that typically correspond with the building X and Y directions, that in the case of a rectangular plan are parallel to the building sides. Since in general the direction of the seismic input is a priori unknown, the effects of applying the PO load patterns along varying angles are studied in this paper. Two non-code-conforming reinforced concrete buildings are used as a case study. They have identical structural design but the first one is doubly symmetric while the second one has a significant plan asymmetry due to the translation of the center of mass. PO loads are applied to both structures at angles between 0° and 360° with 15° increments. The results of the NSAs are compared with those of multi-directional NHAs applied at the same angles. The structural demands show that the multi-directional NSAs are more conservative than the conventional NSAs, especially at the corners of the asymmetric- plan building where they can yield significantly higher demands. The base shear capacities in the X and Y directions decrease for intermediate angles due to the interaction between the responses in the X and Y directions that can be captured thanks to the columns’ fiber section discretization. On average the results of the multi-directional NSAs are closer to those of the NHAs, even though they are generally lower.

1. Introduction

The direction with which an earthquake hits a building strongly influences its structural response, particularly in the case of irregular structures. However, the epicenter–structure direction of future seismic events is unknown and will not most likely coincide with the structure’s main horizontal axes. In general, the seismic design of new buildings or the safety evaluation of existing buildings is carried out considering two horizontal components of seismic action. All seismic codes ([1,2,3,4], etc.) require, for a 3D model, a bi-directional horizontal ground motion.

Different procedures have been developed to account for the simultaneous application of the seismic components both in linear and in nonlinear analyses. In Response Spectrum Analysis (RSA), when two horizontal components are combined, their effects are typically multiplied by a factor lower than one since applying the two components fully and simultaneously would be unrealistic (in fact, it is highly unlikely that the two ground motion components reach their maximum simultaneously) and over-conservative. More specifically, Newmark and Rosenblueth [5] propose the Square-Root-of-the-Sum-of-the-Squares (SRSS) combination rule: if r indicates a generic Engineering Demand Parameter (EDP), r² is computed as the sum of the contributions of the k ground motion components r_k². This formulation is based on the principle of superimposition of effects and assumes that each component is a Gaussian stochastic process. Newmark [6] and Rosenblueth and Contreras [7] introduce the Percentage Rule, that evaluates r as the sum of 100% r_k plus a percentage λ of the responses r due to the other components. Newmark [6] and Rosenblueth and Contreras [7] indicate that λ should be 40% and 30%, respectively. More recently, Wilson et al. [8] observe that, unlike the SRSS combination, the Percentage Rules are strictly dependent on the reference system selected for the structure at hand and can underestimate the design forces in given members. Menun and Der Kiureghian [9] introduce the CQC3 directional combination rule for Response Spectrum Analysis (RSA). The CQC3 rule computes r as a function of the seismic orientation angle θ and identifies the angle providing the maximum linear response. The seismic orientation angle θ is typically defined as the angle between the seismic input and the X axis of the structure. The CQC3 rule can be considered the general case of the Percentage and SRSS Rules [10,11]. For further details, Wang et al. [12] provide an extensive state-of-the-art review of the above combination rules.

Cimellaro et al. [13] propose a new combination rule for Nonlinear Static Analyses (NSA). First, they carry out eigenvalue analyses on several highly irregular 3D reinforced concrete (RC) buildings. The 3D models are then loaded with monotonically increasing lateral load patterns proportional to the mode shapes and Φ_1Y, with the highest participation factors in the building’s horizontal X and Y directions, respectively. More specifically, for each model the applied load pattern is equal to

$$M\left({\Phi }_{1X}+\gamma {\Phi }_{1Y}\right)$$

(1)

where 0 < γ ≤ 1. This procedure, called Bidirectional Pushover Analysis (BPA) by the authors, is applied using different values of γ ranging from 0.2 to 1.0. They then compute the nonlinear base shear–roof displacement curve and the corresponding displacement demand in the X direction based on the N2 method proposed by Fajfar [14]. The basic idea is that the response in the X direction is affected by the lateral loads applied in the Y direction. Finally, the torsional effects are considered following Fajfar et al. [15]. Floor displacements and floor rotations obtained by the BPAs are compared with the corresponding median results obtained by Nonlinear History Analyses (NHAs) carried out considering bidirectional ground motions. The results of their study suggest a 100% + 60% rule for the BPAs in place of the Eurocode 8 [1] 100% + 30% rule. The 100% + 60% pattern corresponds to applying the seismic force at an angle equal to approximately 30°.

The above discussion points to the issue of the multi-directionality of seismic motion. In the case of irregular structures, the response varies considerably depending on the angle of incidence of the seismic input. Given that the input earthquake direction is generally unknown, the assessment of structural demand should consider multiple angles of incidence of the seismic input. The multi-directionality of the seismic input on 3-dimensional (3D) models has been extensively studied using RSAs, Linear History Analyses (LHAs) and more recently NHAs. For instance, [16,17,18] use RSAs and LHAs, while [19,20,21,22,23,24,25,26,27,28,29,30,31] and many others use NHAs. These studies show that the application of the seismic input along a single reference direction can severely underestimate the seismic demand on irregular structures. On the other hand, few studies analyze the effects of seismic multi-directionality on NSAs.

Cannizzaro et al. [32] study the behavior of a masonry building damaged during the 2009 L’Aquila (Italy) earthquake using 12 NSAs with load patterns applied along incidence angles that vary by 30° increments. Cannizzaro et al. [32] consider only the mass proportional load pattern and a unique participation factor Γ for all directions. Each of the 12 pushover (PO) curves is plotted as a function of the input angle and contributes to the construction of a so-called capacity dominium that provides a 3D representation of all the NSA curves obtained for different incident angles. Similarly, Chácara et al. [33] estimate the seismic vulnerability of unreinforced masonry buildings using multi-directional NSAs and the capacity dominium. Kalkbrenner et al. [34] carry out a series of sequential PO analyses on the 3D model of a highly irregular masonry building located in Chile using mass proportional horizontal load patterns rotated from 0° to 360° with 45° increments. The seismic demands obtained for the different loading directions are compared with those obtained from NHAs with the longitudinal and transversal components of the 27 February 2010 (Mw 8.8) earthquake recorded at the Santiago Central Station. Kalkbrenner et al. [34] report that the failure mechanisms found with the multi-directional PO analyses are in very good agreement with those from the NHAs and with the damage patterns observed in the structure after the actual earthquake.

Ghayoumian and Emami [35] study the response of three low-to-medium-rise code-conforming torsionally irregular building archetypes with mixed-moment-resistant frames and shear walls. They compare the seismic responses along non-principal directions with those along the principal directions parallel to the reference axes. NSAs are carried out for incident angles 0° ≤ θ ≤ 360° with 10° increments, using an adaptive PO procedure [36,37] with lateral load distributions that are updated to reflect the changes in the mode shapes as the structure response becomes increasingly nonlinear. The study concludes that the seismic demands may be at their maximum along non-principal directions.

The above studies do not specifically refer to existing RC framed buildings and do not present a systematic validation of NSAs and a comparison with NHAs. This study intends to extend this research to validation through multi-directional NSAs of two different existing RC buildings, designed for gravity loads only and thus not conforming to modern seismic design standards of safety and behavior. Each structure is subjected to mass proportional and triangular load patterns oriented along an incident angle θ that varies between 0° and 360° with 15° increments. The effectiveness of the multi-directional NSAs in the case of the two RC buildings is evaluated, analyzing the advantages and disadvantages with respect to NSAs carried out along the reference structural directions. The results obtained with the NSAs are compared with those of NHAs carried out using 20 pairs of ground motion records, oriented along the same incident angles used for the NSAs. This comparison helps assess whether the multi-directional NSA is capable of accounting for the effects of the multi-directionality of the seismic load. The research addresses three important issues still open in the application of multi-directional pushover analyses: (1) how to calculate the target point for multi-directional NSA; (2) how to evaluate the capacity and demand when the pushover load patterns are applied along incident angles different from the reference structural axes; (3) which load patterns should be used in case of multi-directional pushover analyses. Eurocode 8 specifies that at least two load patterns must be applied, one proportional to the masses and the other proportional to the first mode of the structure in the considered direction. The mass-proportional load pattern is still applicable for multi-directional analyses whereas the first-mode-proportional pattern loses meaning. The paper apples a triangular distribution, proportional to the forces obtained with a linear static analysis, consistent with the Eurocode 8 [1] provisions. The corresponding participation factor is readily computed.

2. Case Study Structures and Structural Models

2.1. Case Study Structures

The seismic input multi-directionality effects on the structural demands are assessed through the study of two RC framed buildings called Structure 1 (Str1) and Structure 2 (Str2), respectively. Str1 has the structural scheme of a typical gravity-load building designed in Italy in the 1970s. It has five storeys, each 3.2 m high, and plan dimensions 28.5 m × 15.5 m (Figure 1). The load-bearing beams (1–8, 9–16, 17–24 and 25–32), the external beams (1–8, 8–32, 1–25 and 25–32) and the stair beams (4–12 and 5–13) have 30 × 60 cm cross sections, while all other beams are flat with a 60 × 24 cm cross section. Following the dated practice of building design for gravity loads only, the column sections and reinforcements are progressively reduced along the building height, as indicated in

Table A1. Size and reinforcement of the columns’ cross sections.

COLUMNS
Story	n.	1-8-25-32	2-7-26-31	3-6-27-30	4-5-28-29	9-16-17-24	10-15-18-23	11-14-19-22	12-13-20-21
5	Size	30 × 50	30 × 50	30 × 50	30 × 50	30 × 50	30 × 50	30 × 50	30 × 50
	AsT	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14
	AsP	1ϕ14	1ϕ14	1ϕ14	1ϕ14	1ϕ14	1ϕ14	1ϕ14	1ϕ14
	AsB	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14
4	Size	30 × 55	30 × 50	30 × 50	30 × 55	30 × 55	30 × 50	30 × 50	30 × 55
	AsT	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14
	AsP	1ϕ14	1ϕ14	1ϕ14	1ϕ14	1ϕ14	1ϕ14	1ϕ14	1ϕ14
	AsB	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14
3	Size	30 × 55	30 × 55	30 × 55	30 × 55	30 × 55	30 × 55	30 × 55	30 × 55	AsT: top rebars
	AsT	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	AsP: intermediate rebars
	AsP	1ϕ14	1ϕ14	1ϕ14	1ϕ14	1ϕ14	1ϕ14	1ϕ14	1ϕ14	AsB: bottom rebars
	AsB	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14
2	Size	30 × 60	30 × 55	30 × 55	30 × 60	30 × 60	30 × 55	30 × 55	30 × 60
	AsT	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14
	AsP	1ϕ14	1ϕ14	1ϕ14	1ϕ14	1ϕ14	2ϕ14	2ϕ14	1ϕ14
	AsB	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14
1	Size	30 × 60	30 × 60	30 × 60	30 × 60	30 × 60	30 × 60	30 × 60	30 × 60
	AsT	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	3ϕ14	3ϕ14	2ϕ14
	AsP	1ϕ14	1ϕ14	1ϕ14	1ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14
	AsB	2ϕ14	2ϕ14	2ϕ14	2ϕ14	2ϕ14	3ϕ14	3ϕ14	2ϕ14

of Appendix A. The structural plan is similar to that studied by Bosco et al. [38,39]. However, the load-bearing beams are parallel to the X axis here (whereas they are parallel to the Y direction in the original plan) and the beams’ cross sections are modified accordingly.

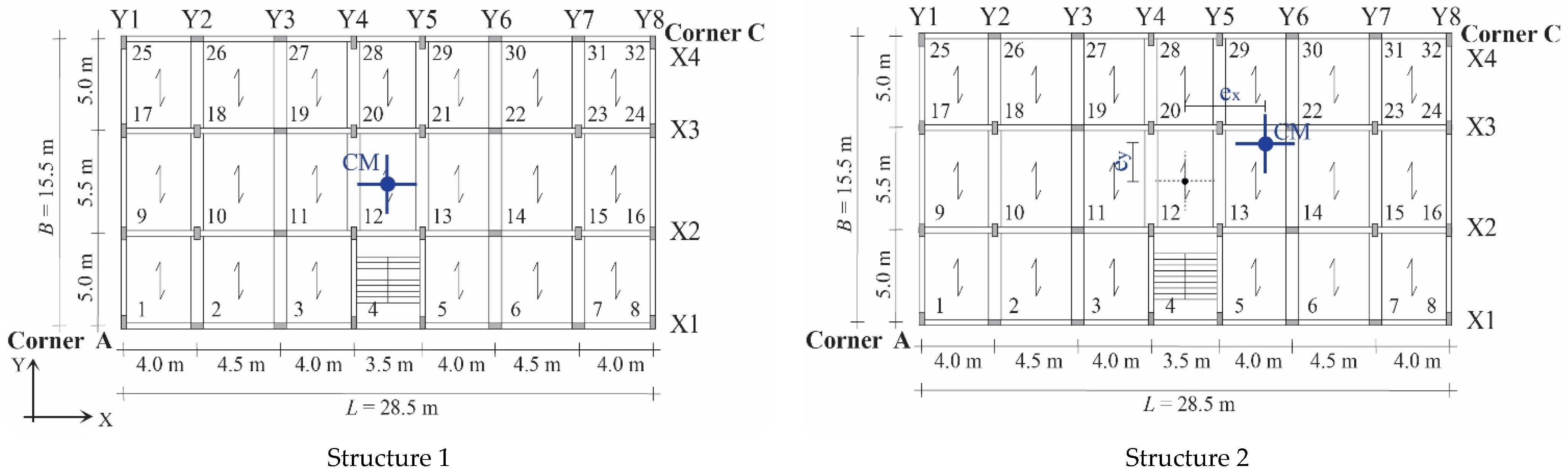

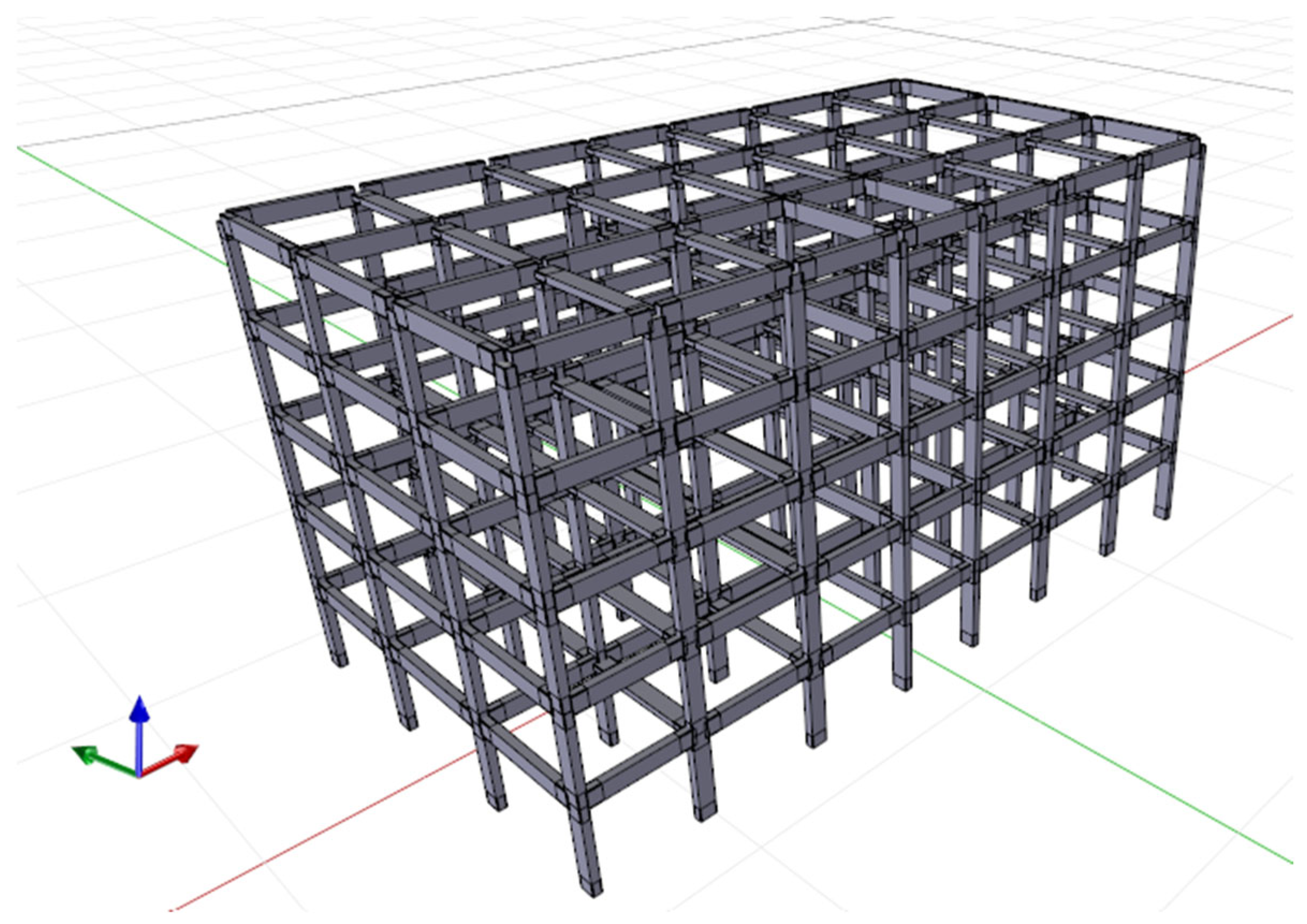

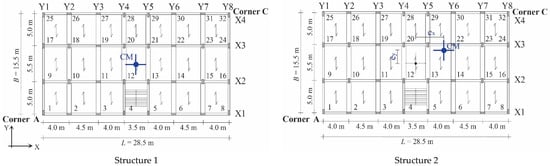

As indicated in Figure 1, Str2 is identical to Str1, except for the center of mass (CM) that in Str2 has eccentricities equal to e_x = 15% L and e_y = 15% B in the X and Y directions, respectively. This eccentricity introduces plan asymmetry because CM does not coincide with the stiffness center. Table A1 in Appendix A gives the cross-section sizes and the reinforcement for each column.

2.2. Structural Models

The two structures are modelled in the computational platform OpenSees [40] using the pre- and post-processor STKO [41]. Their graphical representation is shown in Figure 2. Beams and columns are modelled with Beam-with-Hinges elements [42] where the non-linearity is concentrated at the elements’ ends, while the behavior of the middle part is linear elastic. To account for cracking in the central linear elastic region the cross-section inertia is reduced to 50% and 75% that of the gross cross section for all beams and columns, respectively. NTC2018 [2] indicates in fact that the stiffness of the cracked elements can be reduced by up to 50% of that of the corresponding uncracked elements. Given that the columns are subjected to compression, the stiffness reduction is lower for the columns. The reduced values are in line with those given by the ACI Building Code [43] for elastic cracked sections. The end hinges’ lengths L_pl are computed from the following expression used in [1,2,44]

$$L_{pl}=0.1L_V+0.17h+0.24\frac{d_{bL}{f}_y\left(\mathrm{MPa}\right)}{\sqrt{f_c\left(\mathrm{MPa}\right)}}$$

(2)

where h is the section depth, d_bL is the (mean) diameter of the tension reinforcement and f_y and f_c are the steel yield stress and the concrete compression strength, respectively. For rectangular columns the plastic hinge length is taken as the average of the values computed with the two section sizes.

The plastic hinge regions are modelled with fiber sections [45], using for steel and concrete the uniaxial constitutive laws Steel01 and Concrete01 [46], respectively. Steel01 is assigned elastic modulus E_s = 210,000 MPa, yield strength f_y = 400 MPa and strain-hardening ratio b = 0.005. Concrete01 has compressive strength f_c = 28 MPa, strain at maximum strength ε_c0 = 2.5‰ and ultimate strain ε_cu = 3.5‰. The fiber section model accounts for the N-M-M interaction [47,48] that becomes important when the columns are subjected to biaxial bending as in the case of the present study.

A floor diaphragm constraint is applied to all floors. Since this constraint generates spurious compressive forces in the beam elements with fiber sections, the axial connection between one of the beam-ends and the structural node it is connected to is released following the approach by Barbagallo et al. [49]. The stairs are not included in the structural models and only their loads are considered. Gravity loads G_k and live loads Q_k are applied statically before carrying out all nonlinear analyses. The following values are evaluated based on the construction practices and Italian building code of the 1970s [50]: G_k = 5.6 kN/m² and Q_k = 2.0 kN/m² for the slabs, G_k = 4.2 kN/m² and Q_k = 4.0 kN/m² for the stairs and G_k = 7.0 kN/m for the infills. The dead loads of each beam and column are automatically added by the program. According to Eurocode 8 [1] and NTC2018 [2], the gravity loads in the seismic load combinations for residential buildings are G_k + 0.3Q_k.

2.3. Modal Analyses

Table 1. Modal periods (sec) and participation masses (%) of the first three modes of the two structural models after the application of the gravity loads.

Structure 1				Structure 2
T (s)	Mx(%)	My(%)	Rz(%)	T (s)	Mx(%)	My(%)	Rz(%)
1.50	0.00	76.19	0.00	1.61	1.0	67.7	8.2
1.07	0.02	0.00	78.78	1.10	41.1	6.7	31.6
0.99	81.44	0.00	0.02	0.89	39.3	39.8	39.0

shows the results of the modal analyses of the two models after application of the gravity loads. T (s), Mx(%), My(%) and Rz(%) are the period of vibration, the x-direction mass participation ratio, the y-direction mass participation ratio and the z-direction rotational mass ratio, respectively. The participating masses show that the first three modes of Str1 are uncoupled, with translational first and third modes while the second mode is torsional. In Str2, despite the high eccentricity of the mass, the first mode remains mostly translational in the X direction as the structure is quite stiff in this direction and quite flexible in the Y direction. Conversely, the second and third modes are strongly coupled. While Str1 is almost doubly symmetric, with a minor mass eccentricity due to the staircase gravity loads, Str2 has a high eccentricity of CM that generates a strong asymmetry of the building.

3. Ground Motion Record Selection

The selection of the ground motions for the NHAs is carried out considering the M_w-R bins providing the largest contribution to the seismic hazard for the probability of exceedance of 10% in 50 years for the reference site located on rock soil at L’Aquila (AQ-Italy)—42.350° latitude and 13.399° longitude, as indicated in the seismic hazard disaggregation [51] provided by Barani et al. [52]. The analysis of the seismic hazard disaggregation leads to a preselection of 55 pairs of ground motion records (each consisting of two orthogonal horizontal components). These records are selected from two databases, the European Strong-motion Database ESD [53] and the Engineering Strong-Motion database ESM [54] and are characterized by moment magnitude M_w ranging from 5.5 to 7.5, epicentral distance R from 0 to 50 km and soil class A.

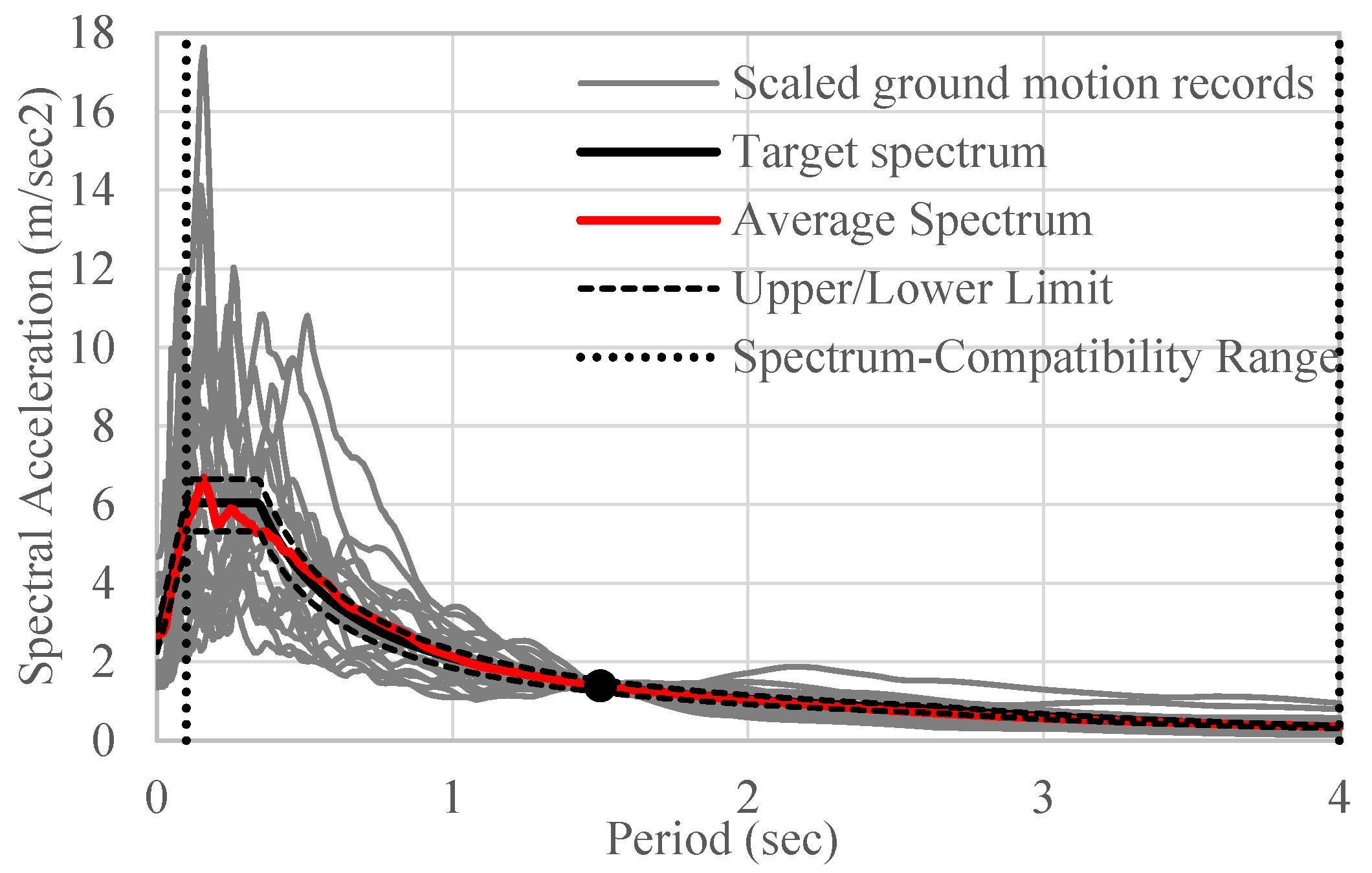

Given this earthquake scenario, a set of 20 pairs of ground motion records is selected according to the following spectrum-compatibility criterion [1]: in the 0.2T₁ − 2T₁ range of periods, no value of the average elastic spectrum should be less than 90% of the corresponding Uniform Hazard Spectrum (UHS). For this study, a 110% upper bound is added to the previous lower bound. Following Beyer and Bommer [55], for each record pair, a single response spectrum S_a(T_i) at given sample periods T_i is computed as the geometric mean of the two corresponding horizontal spectral components S_aX and S_aY, that is $S_a\left(T_i\right)=\sqrt{S_{aX}\left(T_i\right)\cdot S_{aY}\left(T_i\right)}$. For each ground motion record, the resulting response spectrum is then scaled to the spectral acceleration at T₁ of the UHS and both acceleration components are scaled by the same Scale Factor (SF). Since the first vibration periods of the two structures are similar, a single selection is used with T₁ = 1.5 s. Figure 3 compares the response spectra scaled to T₁ (grey lines), the average spectrum (red line), the UHS (black lines), the 90% and the 110% bounds and the spectrum-compatibility range considered for the ground motion selection.

Table A2. Seismological features of the 20 selected records.

n.	Database	Station ID	Earthquake Name	Date	Time (UTC)	Mw	Epicentral Distance (km)	Site Class	Scale Factor
1	ESD	ST20	Friuli	06/05/1976	20:00:13	6.5	23	A	1.2734
2	ESD	ST54	Tabas	16/09/1978	15:35:57	7.3	12	A	0.8692
3	ESD	ST98	Campano Lucano	23/11/1980	18:34:52	6.9	25	A	2.8740
4	ESD	ST161	Golbasi	05/05/1986	03:35:38	6	29	A	4.1699
5	ESD	ST2486	South Iceland	17/06/2000	15:40:41	6.5	5	A	0.4186
6	ESD	ST2487	South Iceland	17/06/2000	15:40:41	6.5	13	A	2.1493
7	ESD	ST2496	South Iceland (aftershock)	21/06/2000	00:51:48	6.4	14	A	1.3983
8	ESD	ST2486	South Iceland (aftershock)	21/06/2000	00:51:48	6.4	22	A	3.2431
9	ESD	ST2557	South Iceland (aftershock)	21/06/2000	00:51:48	6.4	15	A	1.6217
10	ESD	ST2563	South Iceland (aftershock)	21/06/2000	00:51:48	6.4	24	A	3.5147
11	ESD	ST2497	South Iceland (aftershock)	21/06/2000	00:51:48	6.4	20	A	2.1600
12	ESD	ST2558	South Iceland (aftershock)	21/06/2000	00:51:48	6.4	5	A	0.4782
13	ESD	ST539	Bingol	01/05/2003	00:27:04	6.3	14	A	1.0089
14	ESM	MZ19	Central Italy	30/10/2016	06:40:18	6.5	22.6	A	0.6537
15	ESM	ULA	Northwestern Balkan Peninsula	15/04/1979	06:19:41	6.9	19.7	A	0.7204
16	ESM	ATH4	Greece	07/09/1999	11:56:49	5.9	19.7	A	3.6782
17	ESM	CLO	Central Italy	26/10/2016	19:18:06	5.9	10.8	A	1.5432
18	ESM	CLO	Central Italy	30/10/2016	06:40:18	6.5	7.8	A	0.3685
19	ESM	MMO	Central Italy	26/10/2016	19:18:06	5.9	16.2	A	2.4060
20	ESM	T1213	Central Italy	30/10/2016	06:40:18	6.5	12	A	0.5742

in Appendix B gives the seismological features of the 20 selected ground motion records (Database, Code of the Station, Name, Earthquake Date, Time, Moment Magnitude M_w, Epicentral Distance R, Site Class and Scale Factor).

4. Analysis Results and Discussion

4.1. Multi-Directional Nonlinear Static Analyses

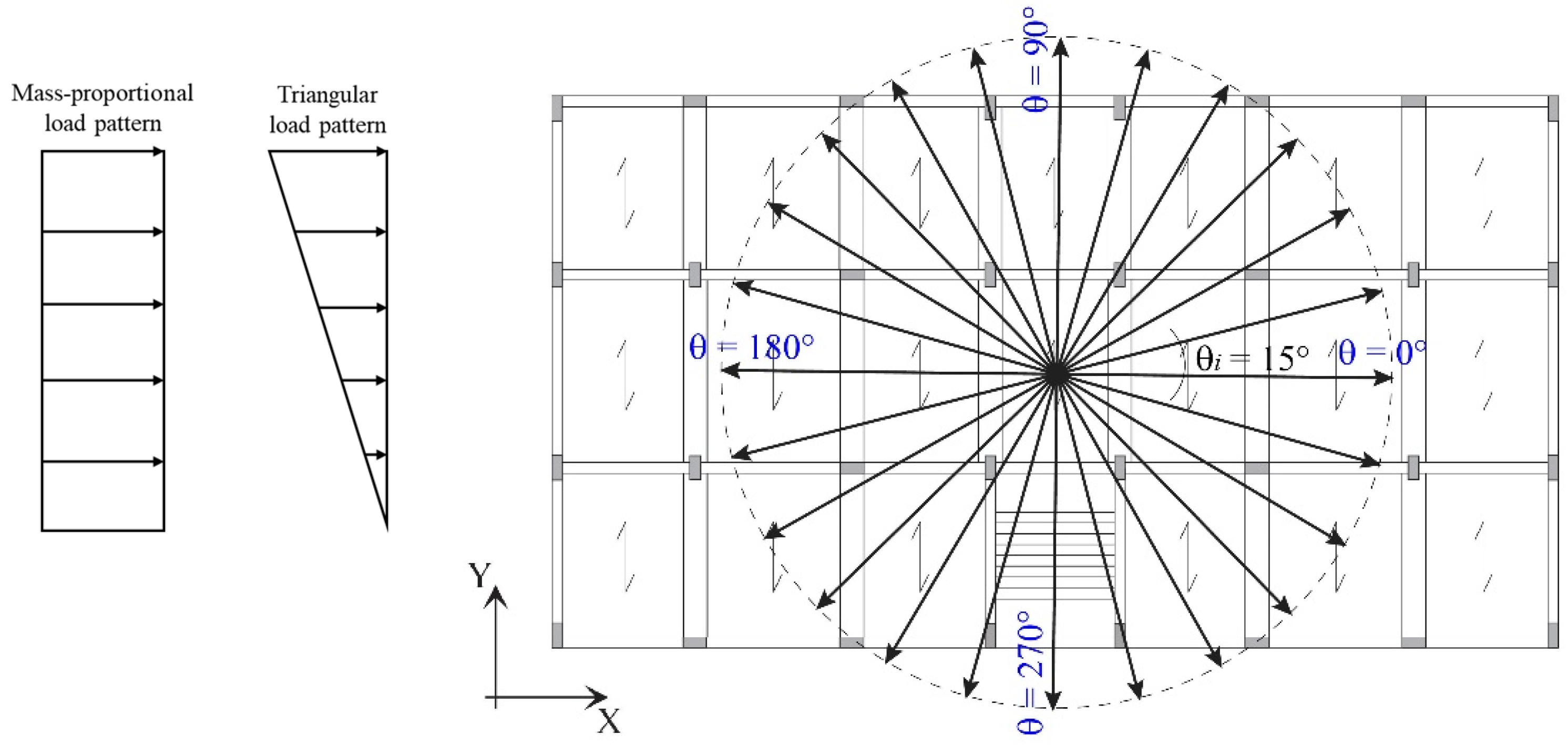

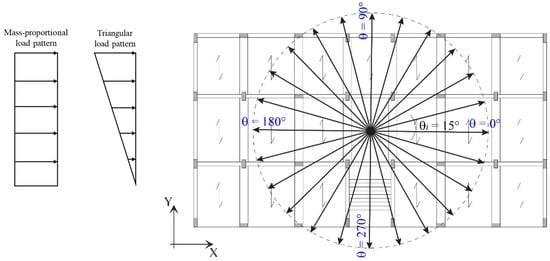

The case study structures are subjected to multi-directional NSAs. Load patterns are applied along incident angles 0° ≤ θ ≤ 360° that are rotated with increment Δθ = 15° (Figure 4). The conventional loading directions required by the current seismic codes [1,2] for the NSAs coincide with the incident angles θ = 0°, 90°, 180° and 270°.

For NSAs, Eurocode 8 [1] recommends the use of the “uniform” and “modal” loading patterns. The first consists of lateral forces proportional to the floor masses (representative of the first mode for a structure with a soft and possibly damaged bottom floor), while the second is proportional to the mass matrix multiplied by the first elastic mode shape in the loading direction (alternatively, a triangular approximation of the first mode shape is often used). The original N2 method was developed for regular buildings and prescribes application of a loading pattern in the building’s “principal” directions. However, it has become common practice to apply the original N2 method to buildings with increasing plan irregularity and/or asymmetry, neglecting the corrections to the method proposed in order to account for the higher mode effects both in plan and in height [15,56]. This work investigates the effects of applying the lateral load in directions different from the reference X and Y axes. In this case, the mass proportional loading still retains its meaning while the modal loading pattern is more difficult to define and justify. For this reason, the two case study structures are analyzed by applying along each θ direction a mass proportional load pattern and a triangular load pattern. Two capacity curves are obtained in the X and Y directions and each of them is transformed into the response of an equivalent single-degree-of-freedom (SDOF) system using the participation factor $\mathrm{\Gamma }=\frac{\Sigma m_i{\mathrm{\Phi }}_i}{\Sigma m_i{\mathrm{\Phi }}_i^2}$ where m_i is the mass of floor i and Φ_i is the applied load shape. It is worth recalling that in the N2 method derivation [14,57] the loading function is m_iΦ_i, while the response displacement shape is assumed to be proportional to Φ_i. For each incident angle θ, for a mass proportional load Γ = 1, while for a triangular load vector Φ_i Γ > 1. Each SDOF capacity curve is then bi-linearized using an equal energy approach and an ultimate displacement that corresponds to a 20% base shear drop with respect to the peak base shear [2,44]. For each incident angle θ, the structural demands are computed along the X and Y structural directions according to the original N2 method [14], superimposing the elastic spectrum (with 5% damping) of the considered site on the bi-linearized capacity curve. The application of the N2 method leads to different structural demands for each reference direction X and Y and for each incident angle θ.

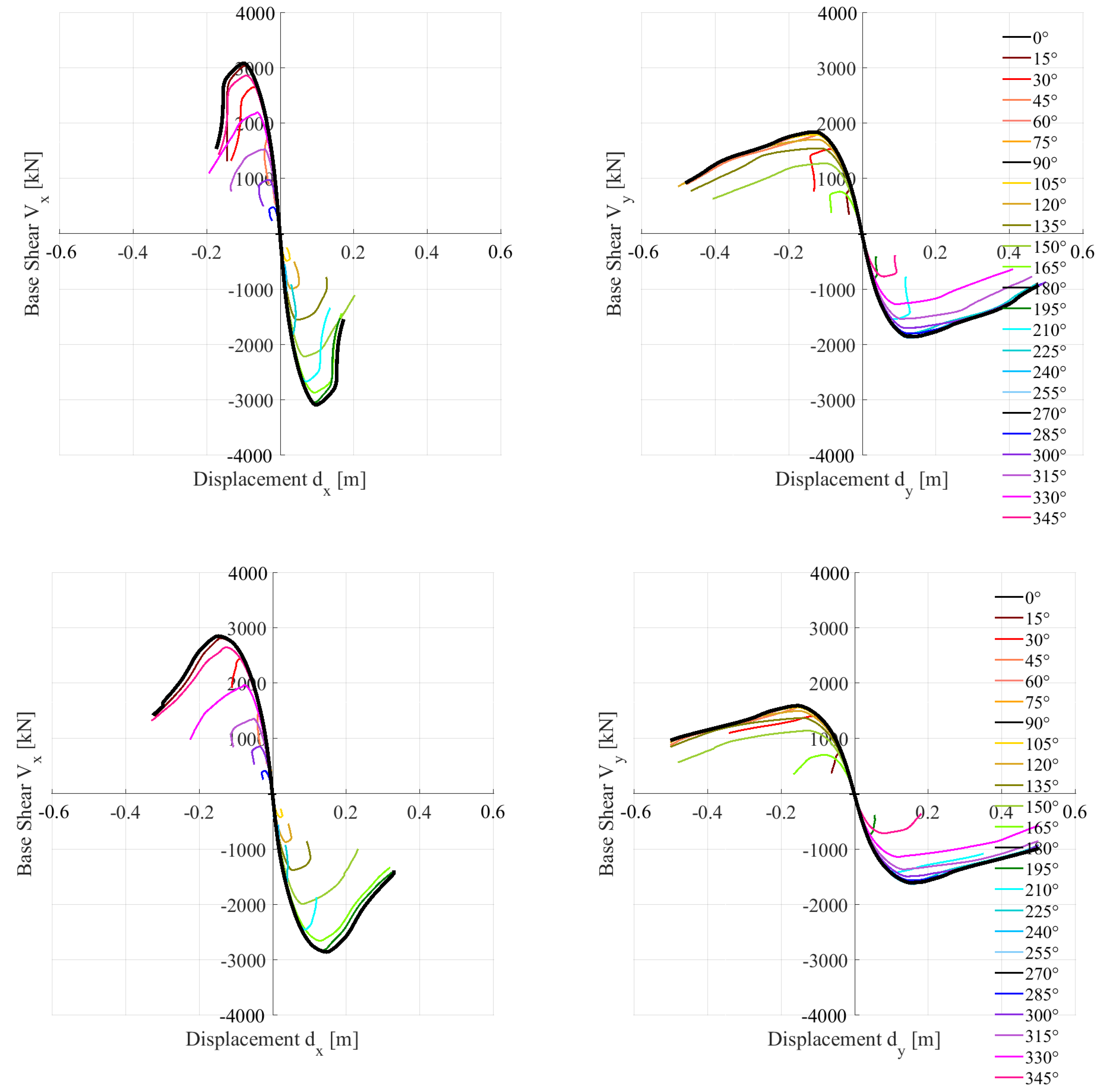

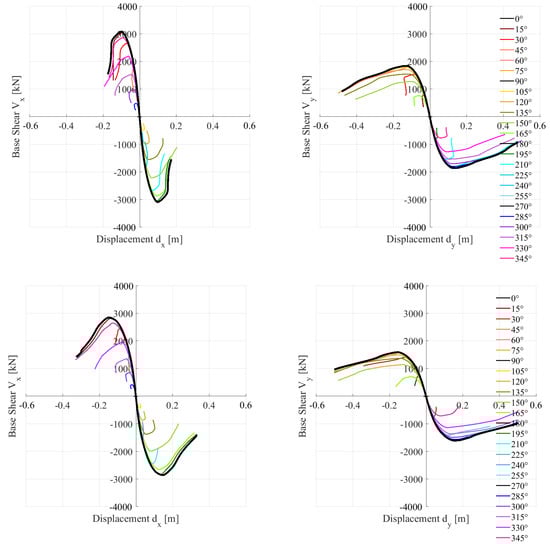

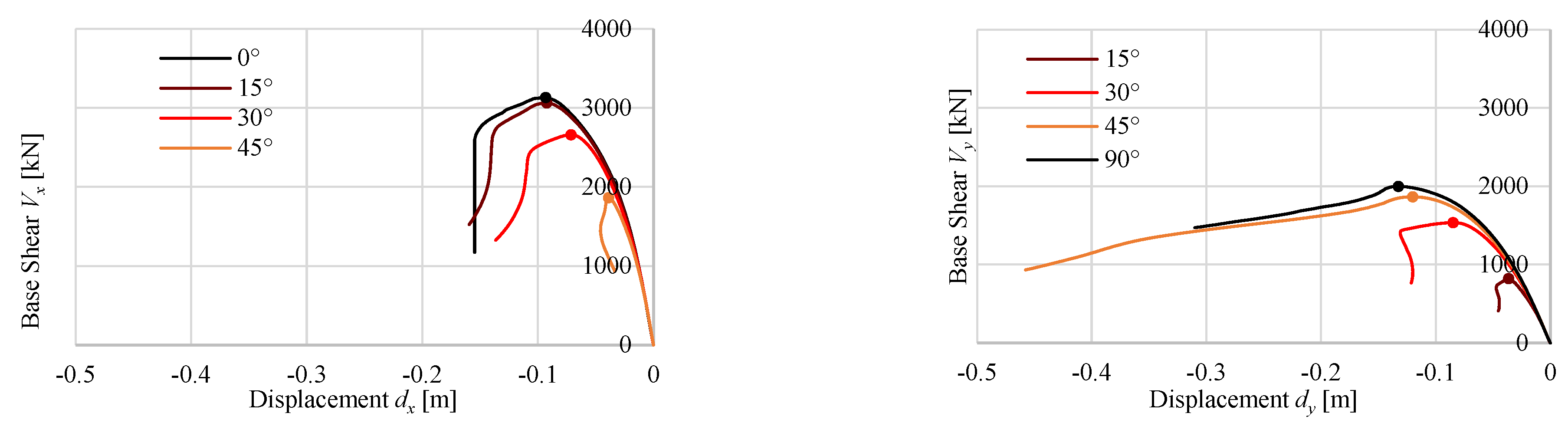

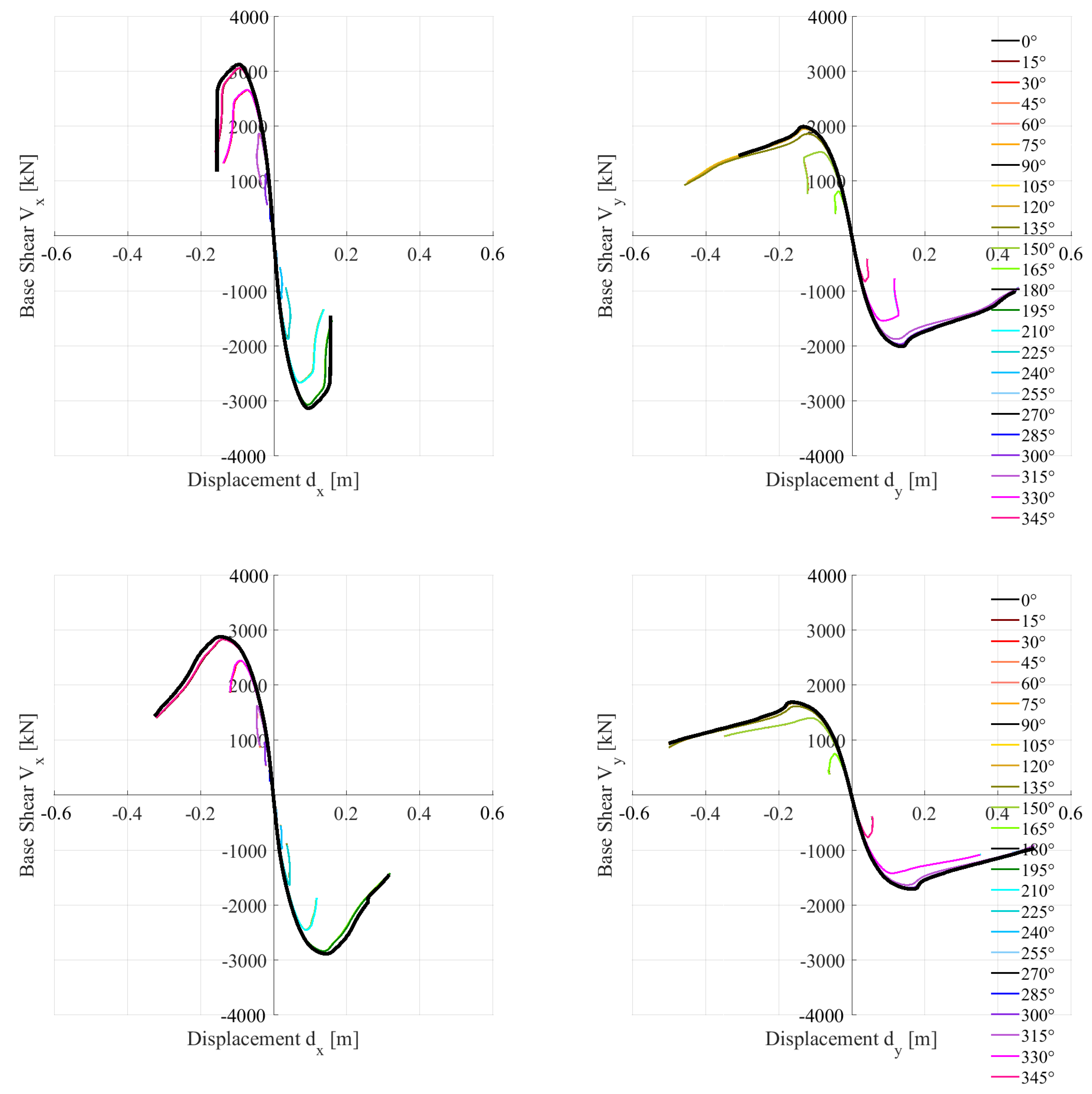

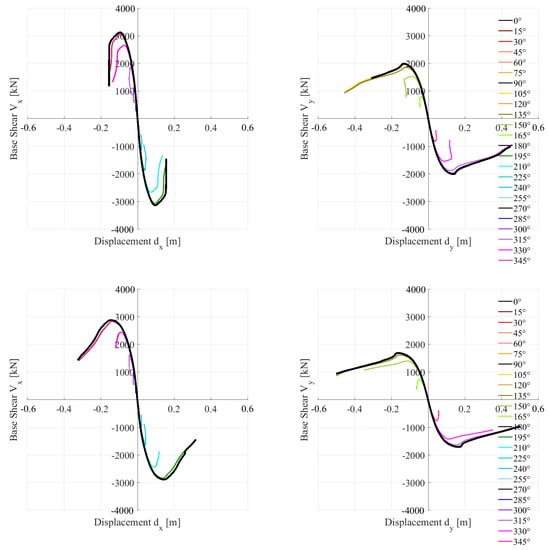

Figure 5 and Figure 6 show the capacity curves obtained from mass proportional and triangular load patterns applied to Str1 and Str2, respectively. The first and second rows refer to mass proportional and triangular load patterns, respectively, while the first and second columns refer to the X and Y directions, respectively. Each Figure shows the base shear vs top floor CM displacement for 0° ≤ θ ≤ 360. The solid black curves refer to θ = 0°, 90°, 180° and 270° (i.e., the classical loading directions), while the colored curves indicate the responses for intermediate values of θ. In general, the variability of these curves shows how much the structural capacity depends on the incident angle. More specifically, the biaxial effects are evident as the capacity curves for θ $\ne$ 0°, 90°, 180° and 270° have lower capacities than those for POs in the principal structural directions. These effects are captured because the fiber sections account for the biaxial bending nonlinear interaction. The curves for Str2 show a higher variability than those of Str1, because of its higher plan irregularity. For both structures, loading patterns and structural directions, the capacity curves for θ = 0°, 90°, 180° and 270° envelope the curves obtained for the other loading directions.

In order to investigate the structural behavior in the X and Y directions when the load pattern is applied along θ, as an example Figure 7 shows the capacity curves of Str1 in the X (left) and Y (right) directions for a mass proportional load pattern applied at incident angles θ = 15°, 30° and 45°. The figure shows that, at θ = 15°, when the base shear reaches its maximum value in the X direction, in the Y direction the curve is almost elastic and subsequently its descending branch begins for V_y values much smaller than the maximum base shear in the Y-direction for θ = 0°. Similarly, for θ = 30°, V_x and V_y reach simultaneously their maximum values but while d_x increases d_y decreases. For θ = 45°, V_x and V_y have similar maximum values, but the V_x curve quickly drops and unloads, while V_y shows a rather ductile response. Similar conclusions can be drawn for Str2.

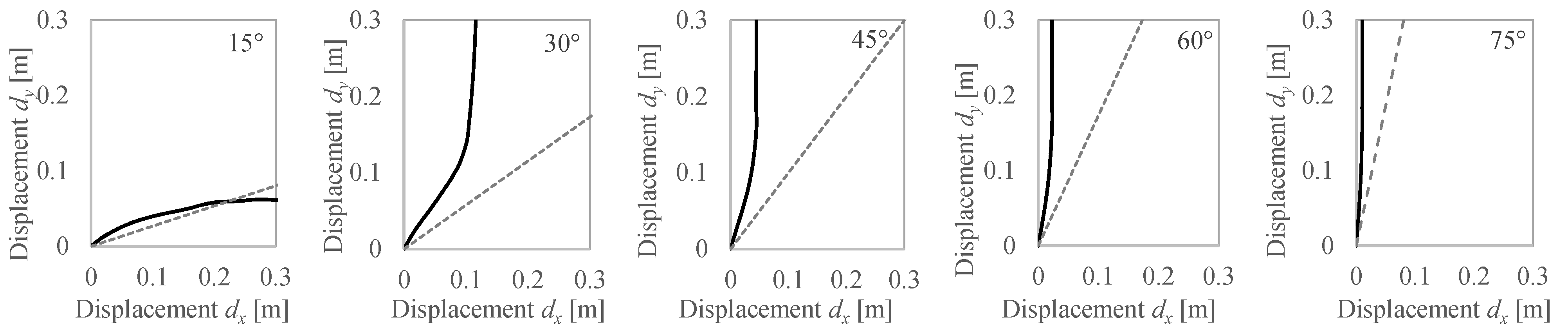

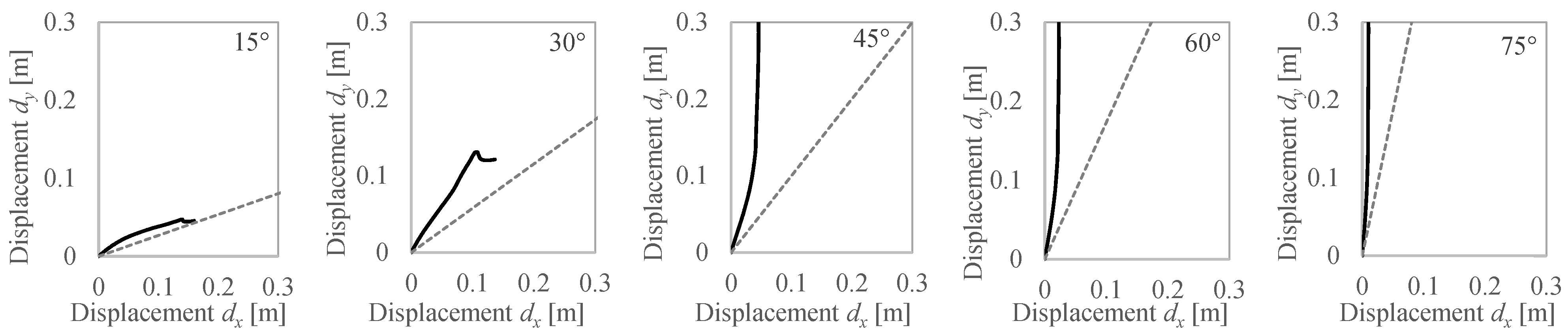

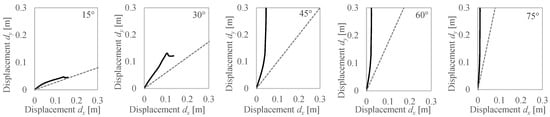

When the structure is pushed along a θ direction, the structure moves along a direction that is in general different from θ and can change continuously. Figure 8 and Figure 9, for example, show the displacement paths followed by Str1 under mass proportional and triangular load patterns, respectively. More specifically, each figure shows five plots, for load paths along θ = 0°, 15°, 30°, 45°, 60° and 75°, respectively. When θ >30° the response becomes increasingly nonlinear, and the structure moves along its weak Y direction. This behavior is due to the large difference in stiffness and strength in the X and Y directions. Very similar patterns are found for Str2.

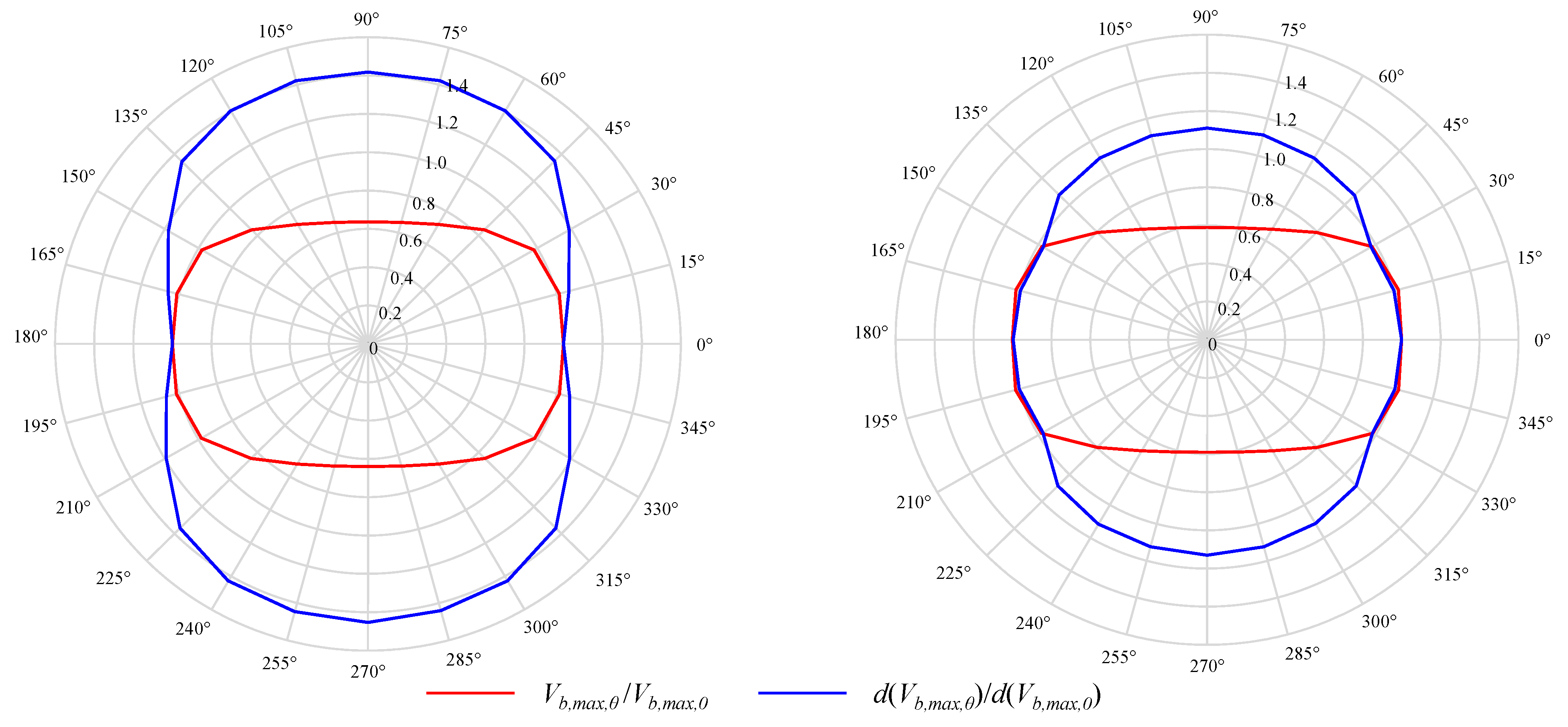

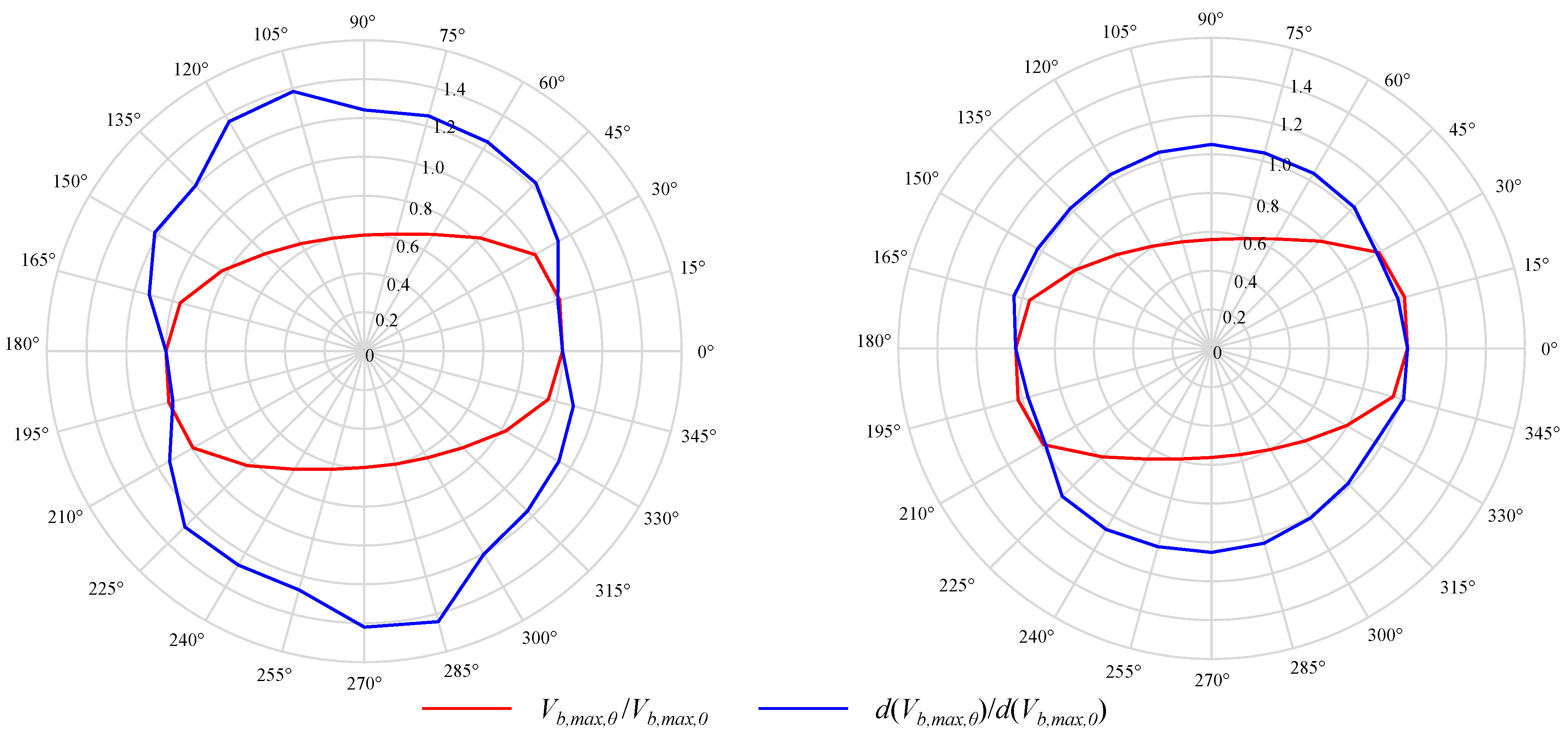

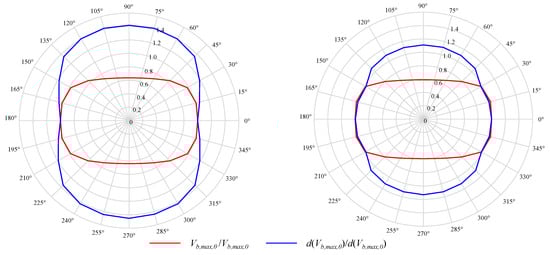

To visualize the structures’ capacity variation for different incident angles θ, Figure 10 and Figure 11 show in red the peak base shear V_b,max,θ in the loading direction θ normalized with respect to V_b,max,0, that is the maximum V_b for θ = 0°. The same figures show in blue the maximum displacements d(V_b,max,θ) corresponding to V_b,max,θ, normalized with respect to d(V_b,max,0). As previously discussed, the maximum displacement is not parallel to θ. It is computed as $\sqrt{d_x^2+d_y^2}$ corresponding to V_b,max,θ. Figure 10 refers to Str1, while Figure 11 refers to Str2. In both figures, the left plot refers to mass proportional and the right to triangular loads. Figure 10 shows that for Structure 1 the capacity in terms of base shear (V_b,max,θ) is maximum at 0° and minimum at 90°. Conversely, the displacement d(V_b,max,θ) is maximum at 90° and minimum at 0°. This behavior is coherent with the structural configuration, characterized by deep beams and columns oriented along 0°. Figure 11 shows that the structural behavior of Structure 2 is not symmetric. The minimum capacity V_b,max,θ occurs in fact at θ = 90°, 105° and θ = 270°, 285°.

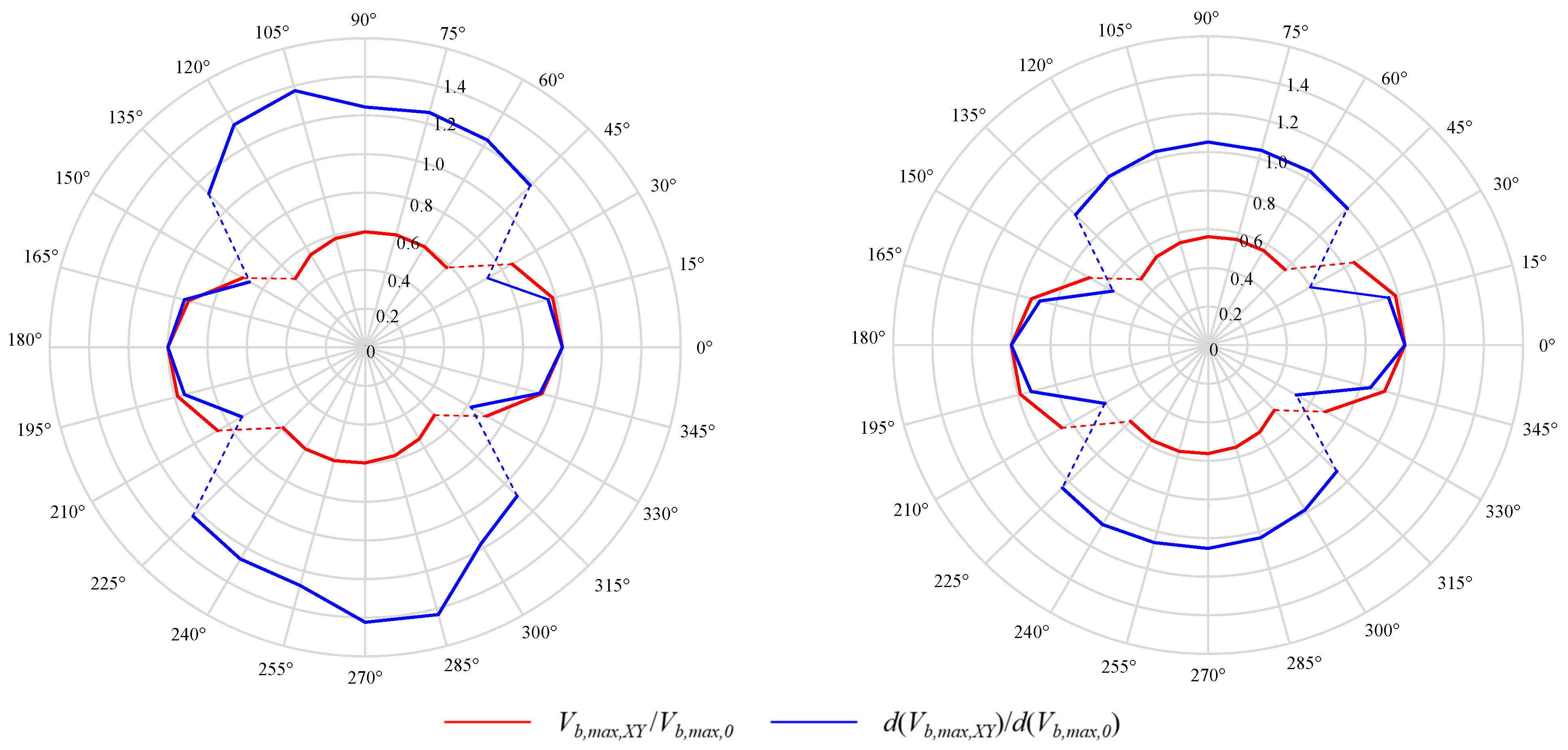

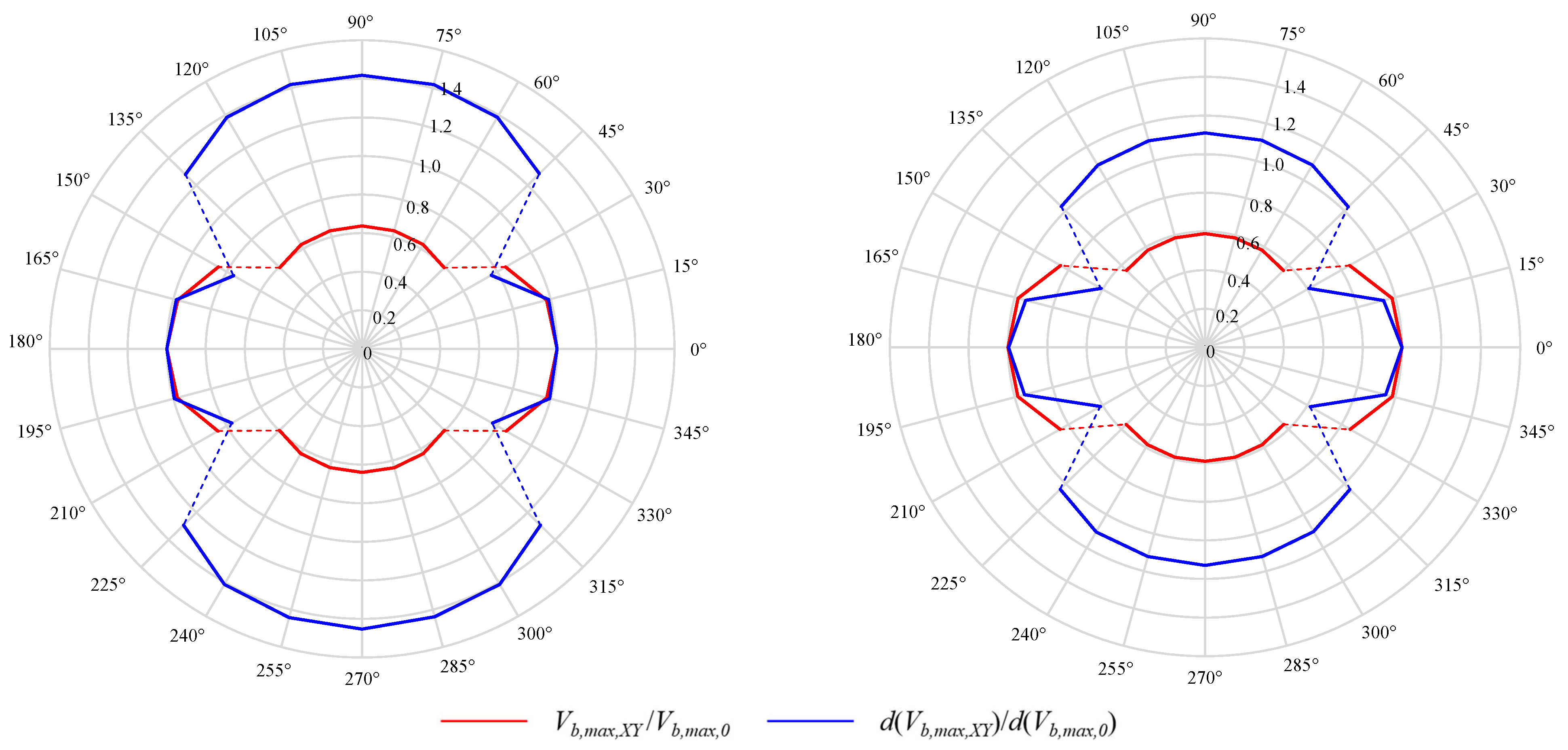

Figure 12 and Figure 13 show in red the peak base shear V_b,max,XY for loading at an angle θ normalized with respect to V_b,max,0. V_b,max,XY is defined looking at Figure 7: for a given angle θ, V_b,max,XY is either V_b,max,X or V_b,max,Y and refers to the curve that reaches the peak and then softens (displacement increases) as opposed to the other curve that unloads after the peak (displacement does not change or decreases). It basically represents the base shear capacity in the reference direction that reaches failure and then softens. For example, for the curves of Figure 7, for θ = 15° and 30° V_b,max,XY = V_b,max,X, while for θ = 45° V_b,max,XY = V_b,max,Y. In the Y direction (θ = 90°) V_b,max,XY/V_b,max,0 is about 0.6, indicating that the peak base shear in the Y direction is about 60% that of the X direction for both loading patterns. The blue lines show the displacement at V_b,max,XY in the same (X or Y) direction d(V_b,max,XY), normalized with respect to the displacement for θ = 0° d(V_b,max,0°). The red and blue curves are interrupted when V_b,max,XY switches from V_b,max,X to V_b,max,Y or vice versa.

Figure 12 and Figure 13 show the ratios V_b,max,XY/V_b,max,0° and d(V_b,max,XY)/d(V_b,max,0°) for mass proportional (left) and triangular (right) load patterns on Str1 and Str2, respectively. The two figures show that the ratios d(V_b,max,XY)/d(V_b,max,0°), are greater than one at θ = ±90° ± 180°, especially for the mass proportional load pattern, and lower than one at θ = ±30° ± 180°. This result indicates that the most and least flexible directions of the two structures are θ = ±90° ± 180° and θ = ±30° ± 180°, respectively. Conversely, the ratios V_b,max,XY/V_b,max,0° indicate that the weakest directions are θ = 30° and θ = 45°. For θ = 30°, failure takes place in the X direction with a peak base shear lower (15–20%) than for θ = 0°. For θ = 45°, failure takes place in the y direction with a peak base shear lower (10–15%) than for θ = 90°. The results are similar for mass and for triangular load patterns.

The demand in terms of Interstory Drift Ratio (IDR), that represents the demand on a single story, in considered next. As stated above, the results refer to the pushover in the direction (X or Y) that reaches a peak base shear and then softens with increasing displacements. When both displacements in X and Y increase, the curve with the maximum displacement is selected assuming that the structure reaches its limit state for ductile mechanisms with higher displacements. The structural demand for each θ angle is computed according to the N2 method [14] superimposing the given capacity curve (in the X or in the Y direction) with the target spectrum with T_R = 475 years, soil category A and coordinates 42.350° lat. 13.399° long. to find the target displacement. The IDRs are reported at the target displacement.

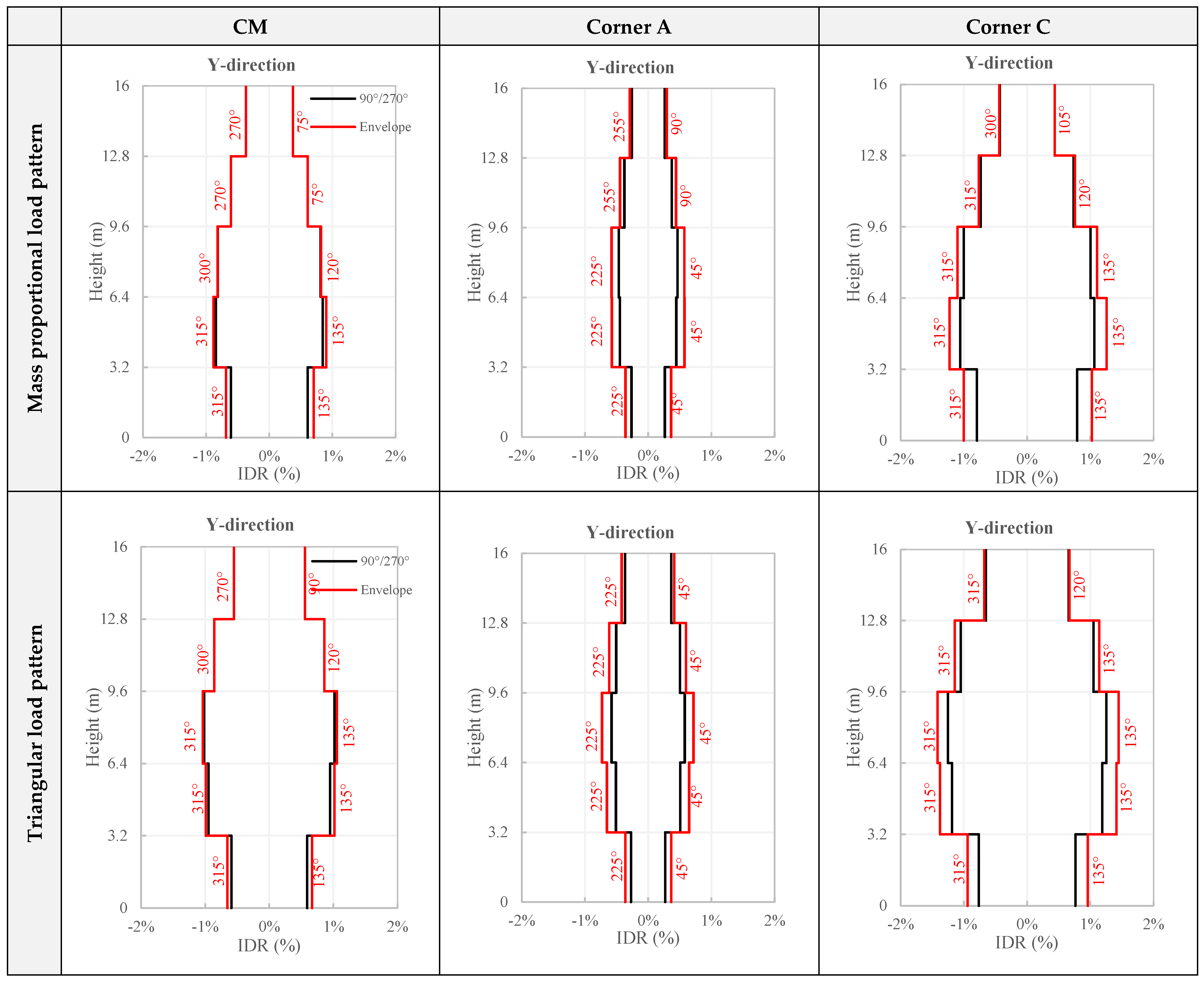

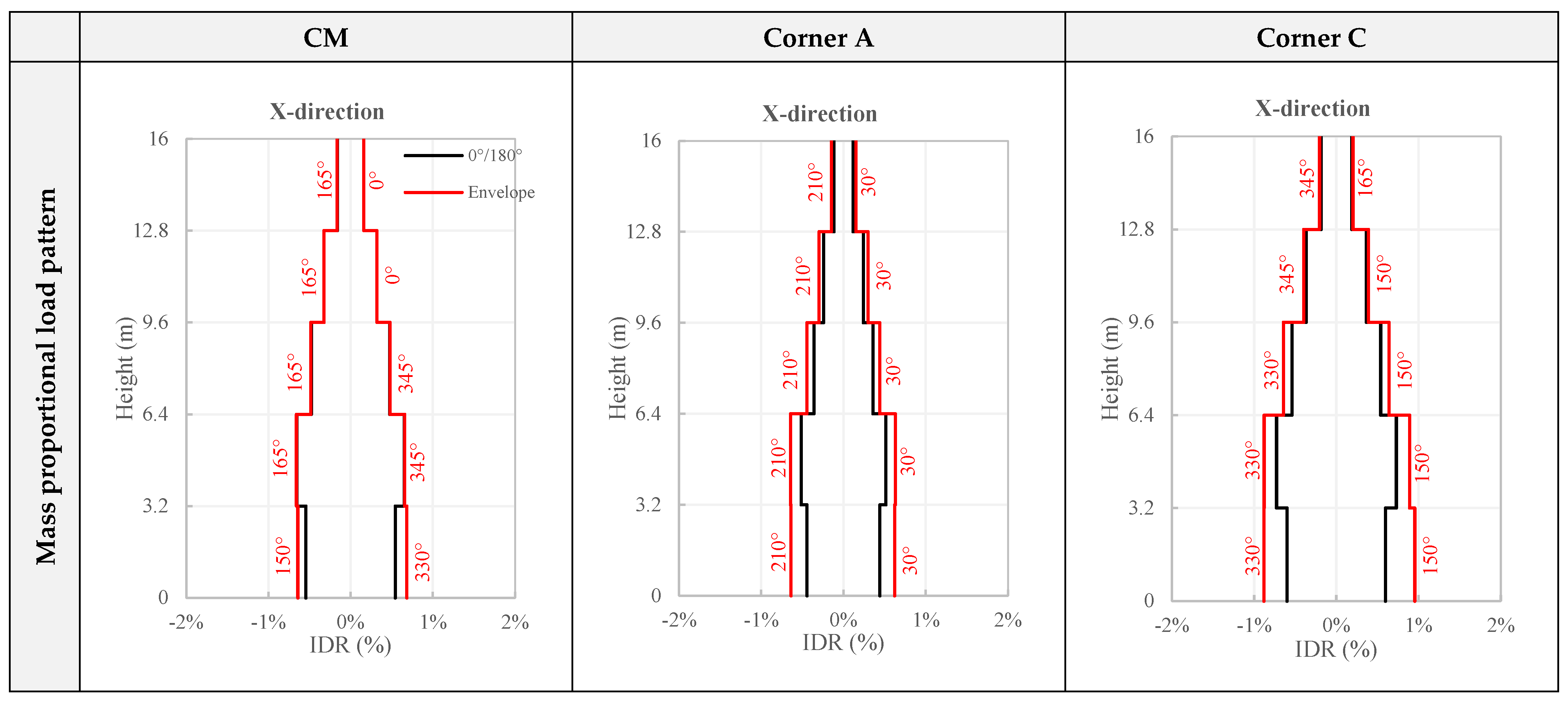

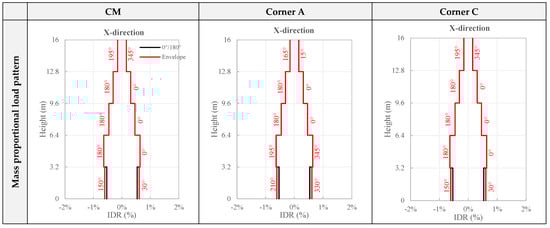

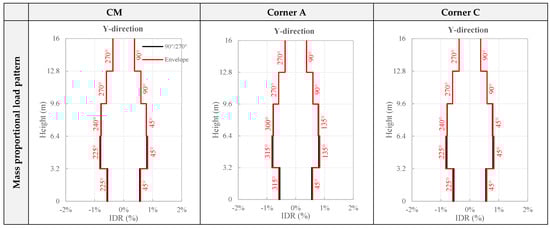

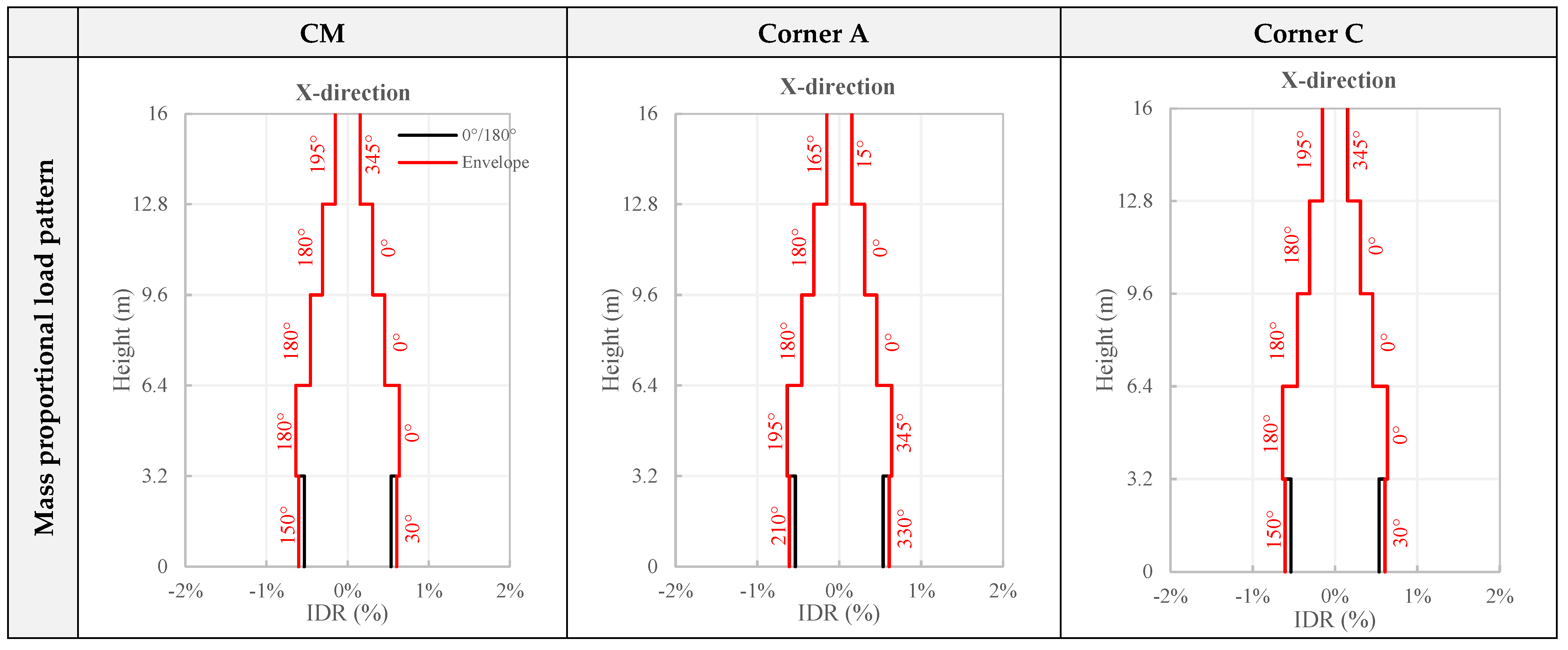

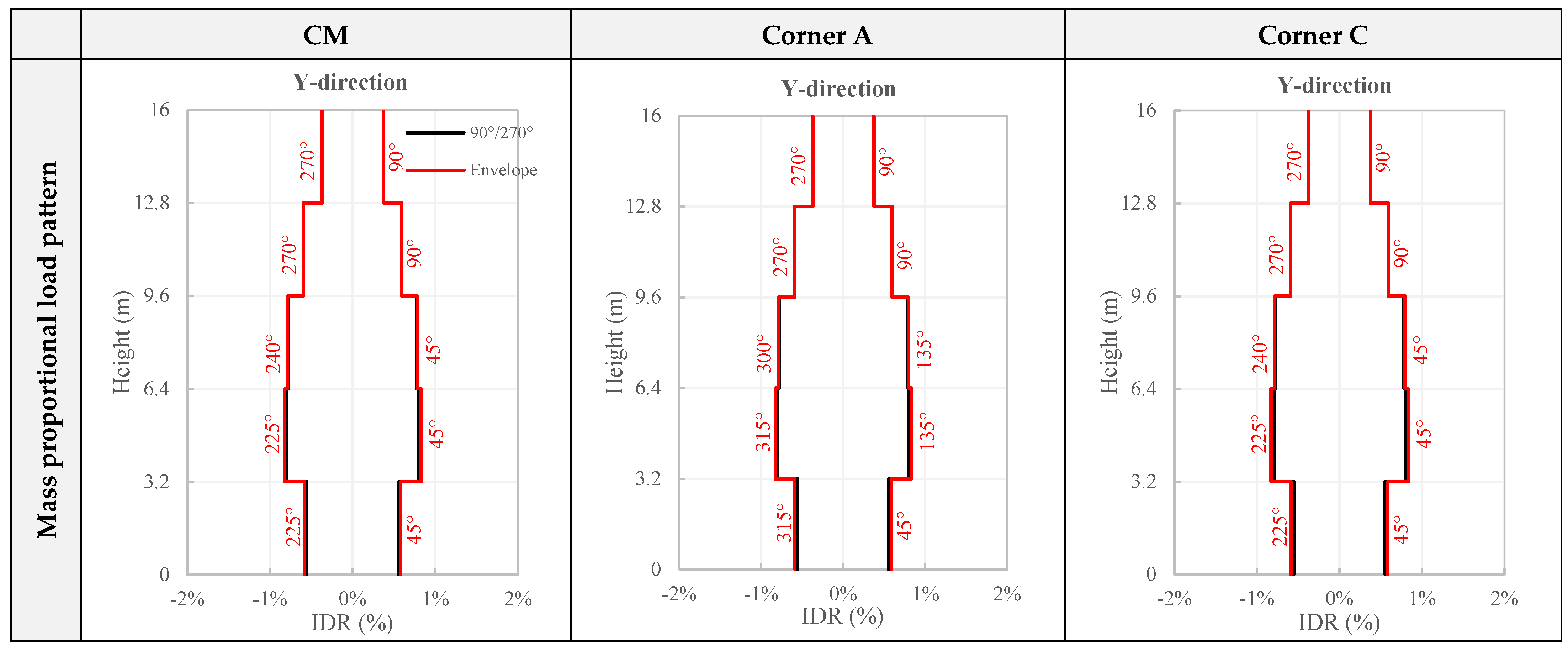

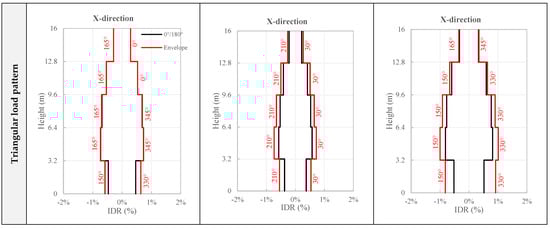

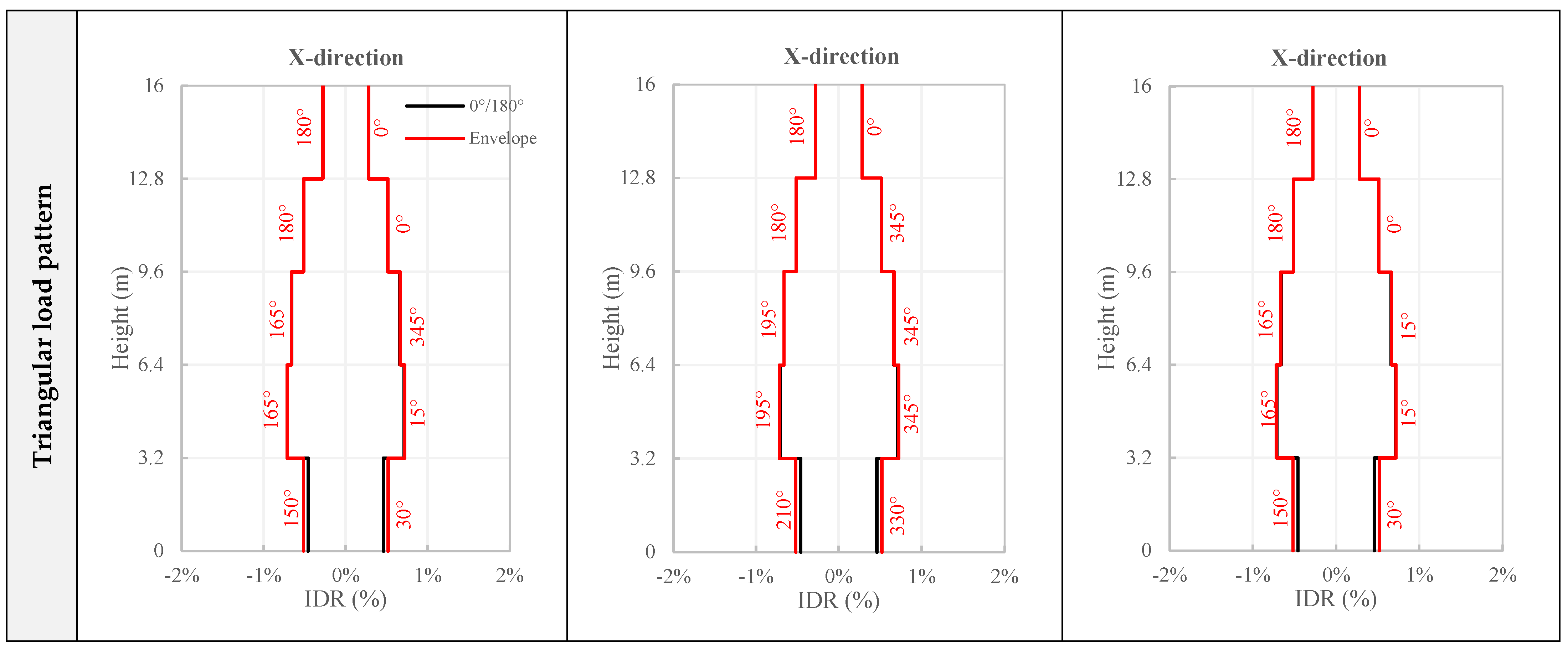

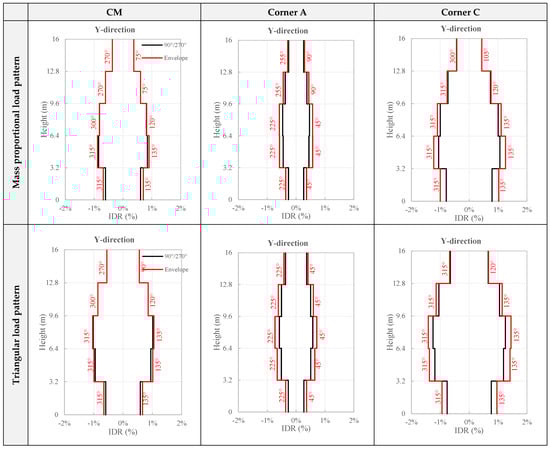

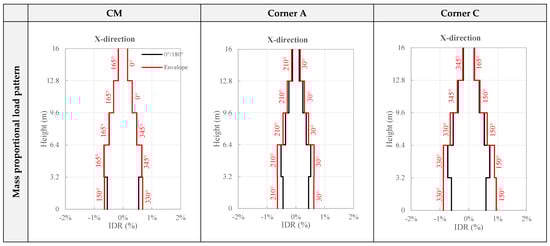

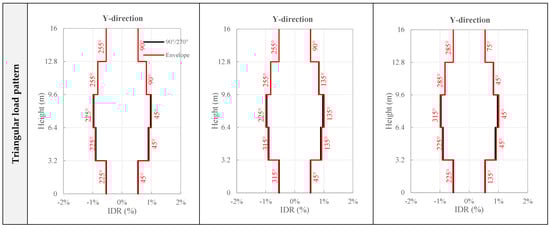

Figure 14 and Figure 15 show the IDRs in the X and Y directions, respectively, for the multi-directional NSAs on Str1. For both Str1 and Str2, for 0° ≤ θ ≤ 30°, 150° ≤ θ ≤ 210° and 330° ≤ θ < 0° the IDRs are in the X direction, for the other θ angles in the Y direction. Each figure shows the IDRs at CM (left), at Corner A (center) and at Corner C (right) with mass proportional (first row) and triangular (second row) load patterns. The above Corners are indicated in Figure 1. The black lines refer to the NSAs for θ = 0°, 90°, 180° and 270°. The red lines represent the demand envelopes for all incident angles with the indication of the angle with the highest demand. Figure 16 and Figure 17 show the same results for Str2.

For Str1, the IDRs indicate that at the ground floor the application of a multi-directional NSA leads to a higher demand compared to a conventional NSA along the X and Y directions. At the higher levels, however, the demand of a multi-directional NSA is very close to that of a conventional NSA. The reason for this behavior lies in the almost perfect double symmetry of Str1.

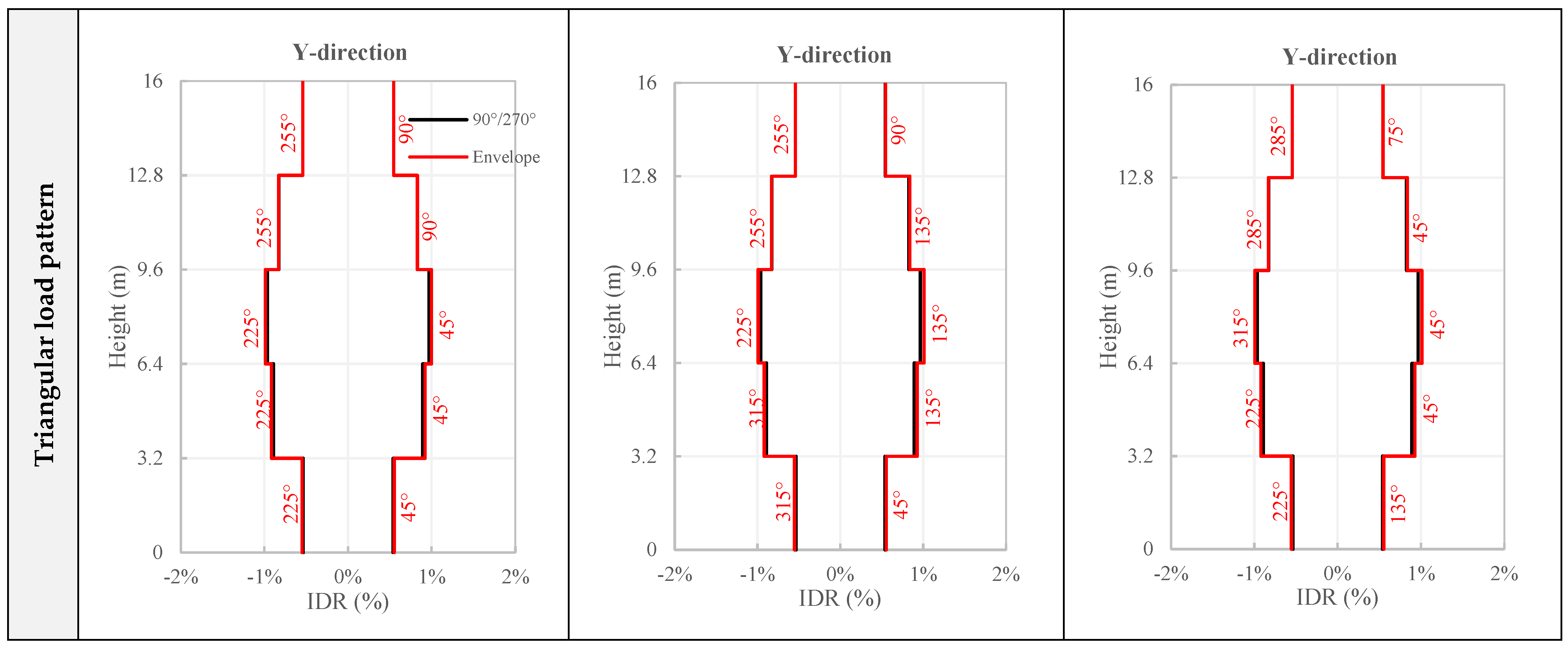

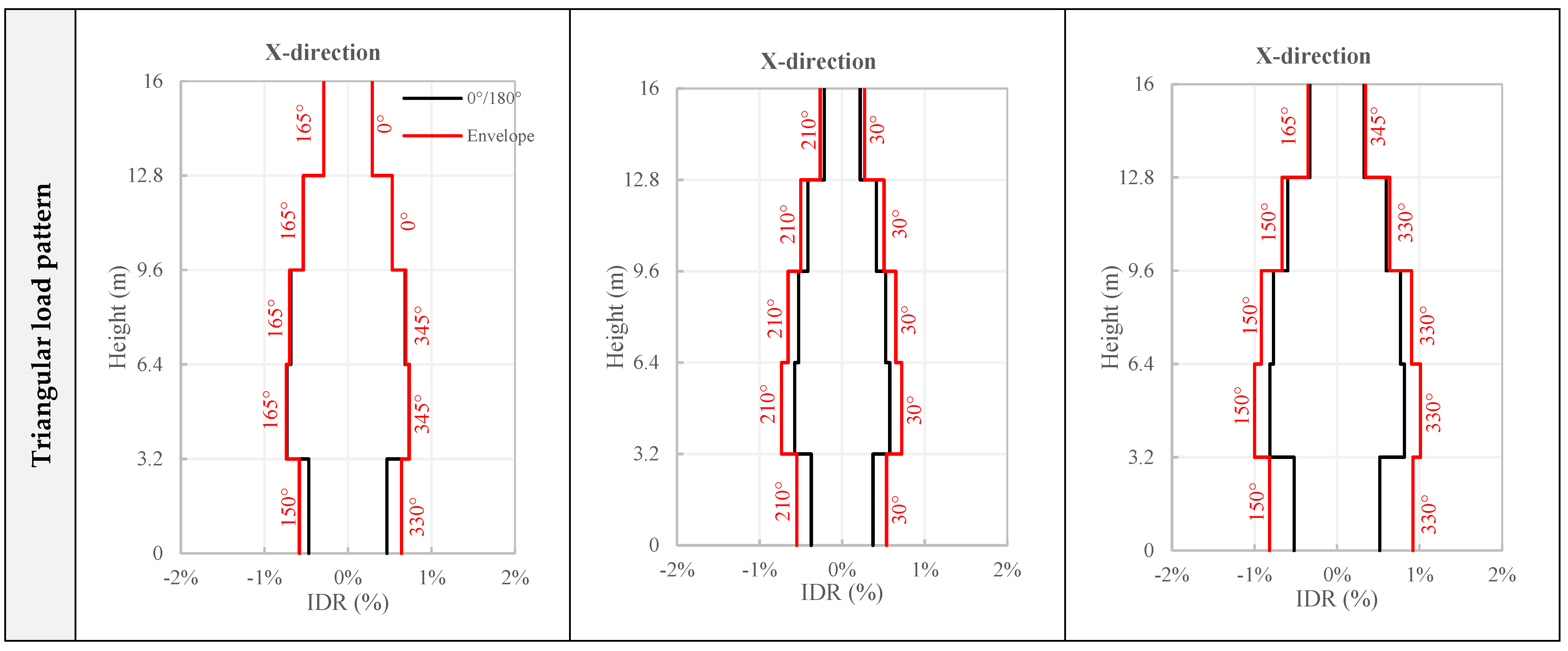

The multi-directional NSAs applied to Str2 (Figure 16 and Figure 17) yield seismic demands significantly higher than those of the conventional NSA, especially at Corners A and C. The most significant case is that of the IDRs in the Y direction at Corner C for the triangular load pattern, where the ground floor demand predicted by the multi-directional NSAs is about 30% higher than that predicted by the NSA along the Y direction. This is mostly due to the asymmetry of Str2.

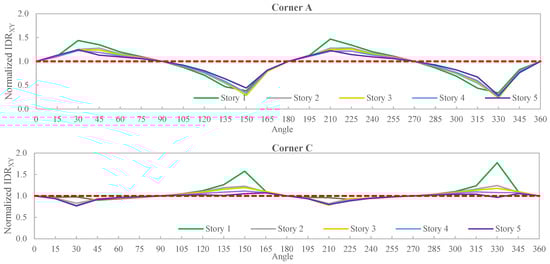

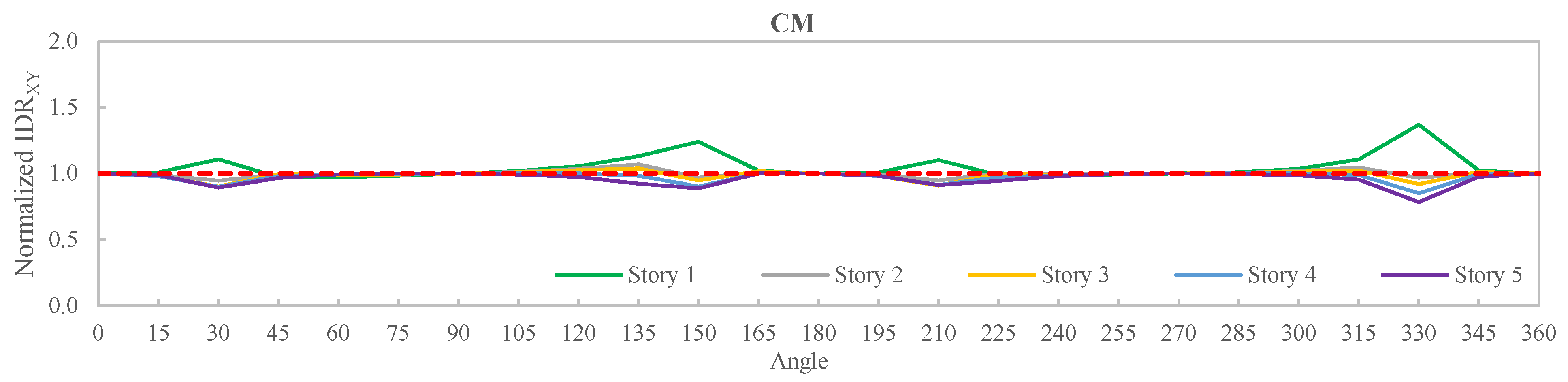

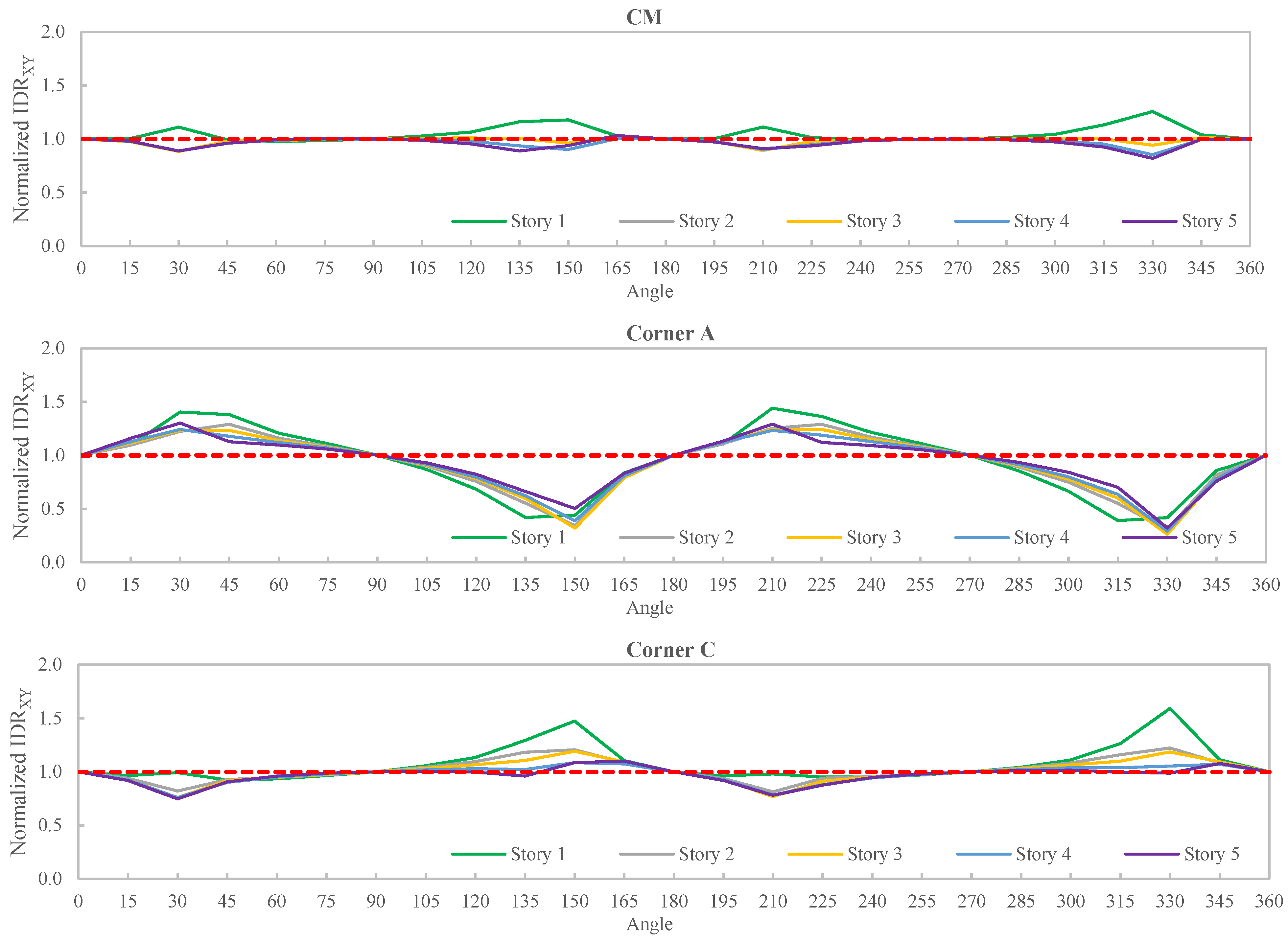

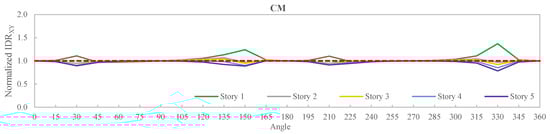

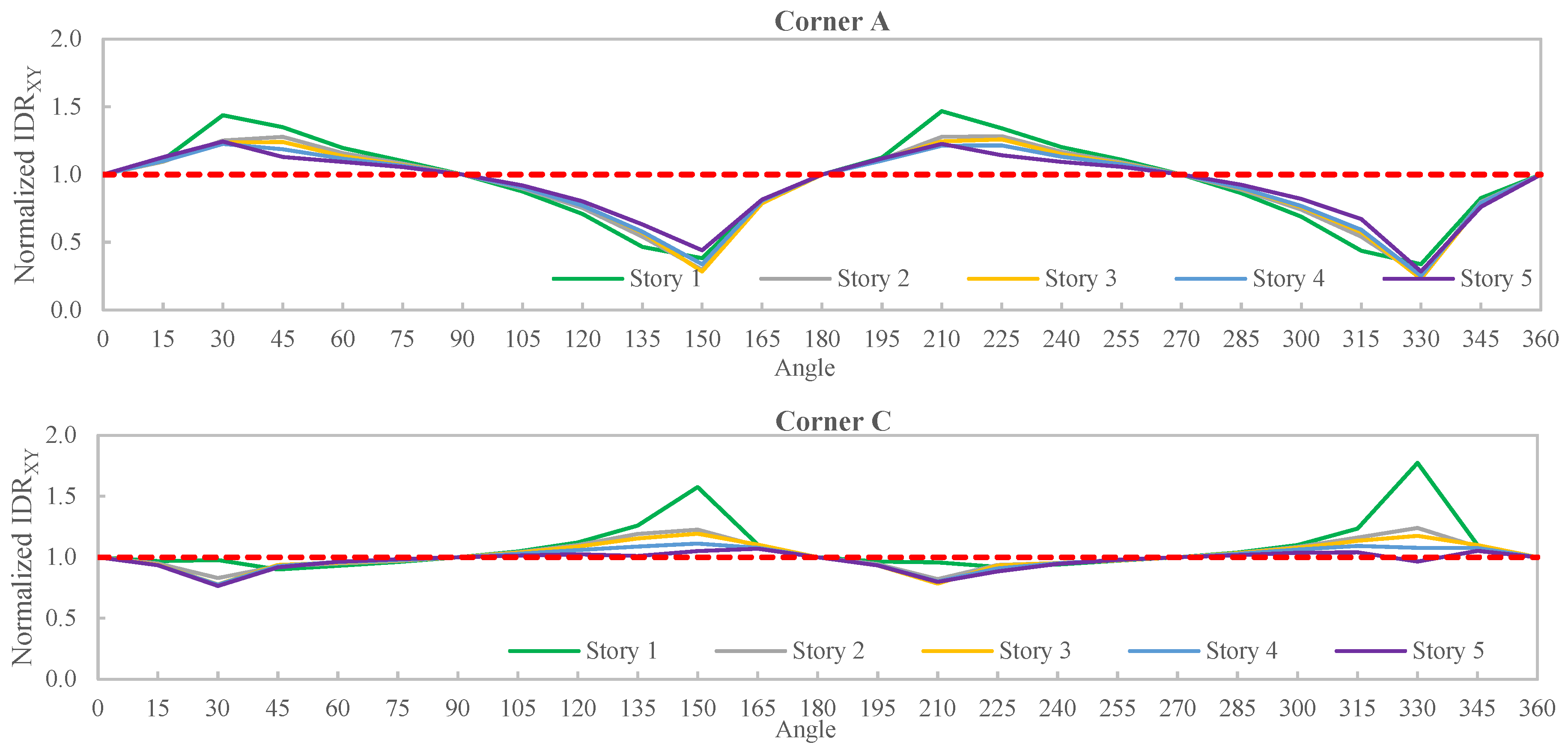

To better quantify the amplification of the seismic demand due to the application of the seismic load along θ on Str2, Figure 18 and Figure 19 show the ratios between the IDRs generated by multi-directional and conventional NSAs. For each θ, IDR_XY is the IDR in the loading direction (IDR_X or IDR_Y) where the peak base shear is reached followed by softening. IDR_XY is normalized with respect to the IDR obtained for NSA in the corresponding (X or Y) directions. More precisely, the IDRs for 330° ≤ θ ≤ 30°, 150° ≤ θ ≤ 210°, 45° ≤ θ ≤ 135° and 225° ≤ θ ≤ 315° are normalized with respect to the IDRs for θ = 0°, θ = 180°, θ = 90° and θ = 270°, respectively. The results in Figure 18 and Figure 19 refer to mass proportional and triangular load patterns, respectively. Each figure includes three plots, with the results for each structural level, at CM (top), Corner A (center) and Corner C (bottom), respectively. For mass proportional load patterns (Figure 18), the highest IDR_XY/IDR ratios are 1.44 and 1.59 and occur for θ = 210° at Corner A and for θ = 330° at Corner C, respectively. For triangular load patterns (Figure 19), significant amplifications occur for θ = 210° at Corner A (1.47) and for θ = 330° at Corner C (1.77).

4.2. Comparison between Multi-Directional Non-Linear Static and Non-Linear History Analyses

The IDRs of the multi-directional NSAs are compared here with the IDRs of the multi-directional NHAs. As indicated in Section 3, the NHAs were carried out using a set of 20 pairs of recorded ground motion records on Str1 and Str2. The structural models use 2% Rayleigh damping (at the first and third mode frequency) with full initial stiffness.

For each of the 20 ground motion pairs, the EW component of the ground motion is oriented along the same 24 θ angles used for the multi-directional NSAs. A total of 480 bidirectional NHAs were carried out for each structure.

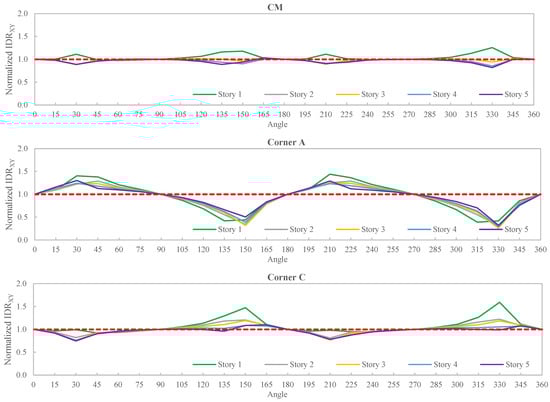

For each NHA the maximum |IDR| in the X and Y directions maxIDR over the time history are computed. For each angle θ, the average value of the 20 maxIDRs is found according to the current regulatory codes [1,2], also if other efficient approaches are used in literature [58]. Finally, the envelopes of the average values obtained for each incident angle are plotted. Figure 20, Figure 21 and Figure 22 show the envelopes of the multi-directional NSAs (red and blue lines for mass proportional and triangular load patterns, respectively) and of the NHAs (black lines) for Str1 at CM, Corner A and Corner C, respectively. Each figure shows the IDRs in the X and Y directions (left and right, respectively). The solid lines refer to the multi-directional NSAs and NHAs, while the corresponding dotted lines refer to the conventional nonlinear analysis (corresponding to θ = 0°, 90°, 180° and 270°). Similarly, Figure 23, Figure 24 and Figure 25 show the same results for Str2.

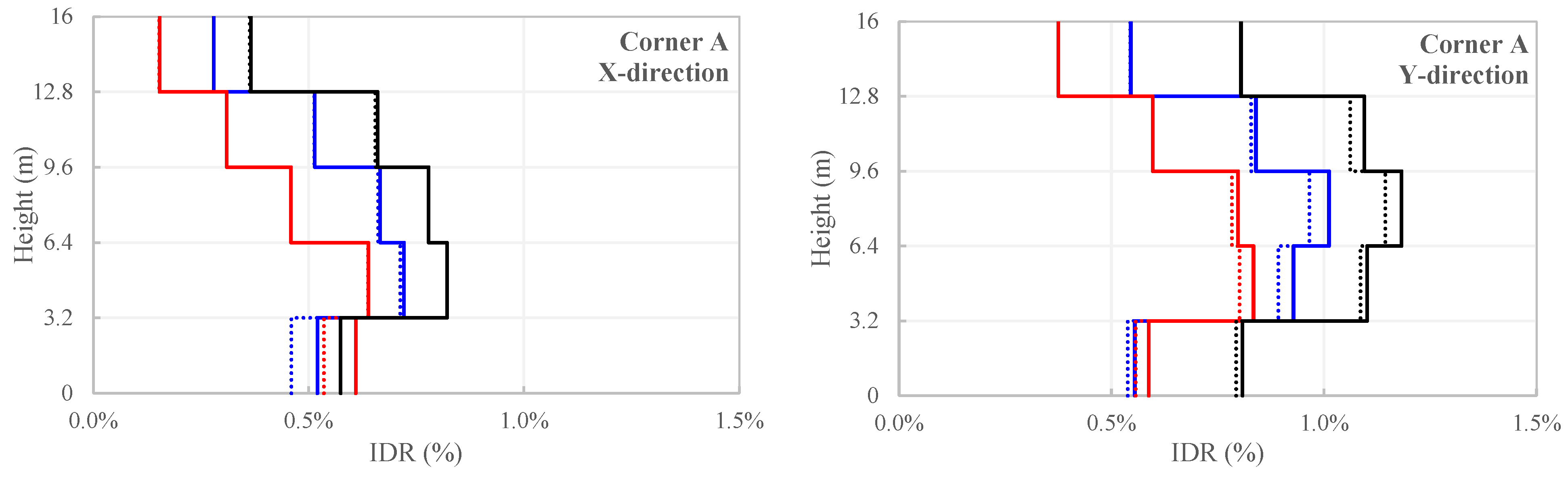

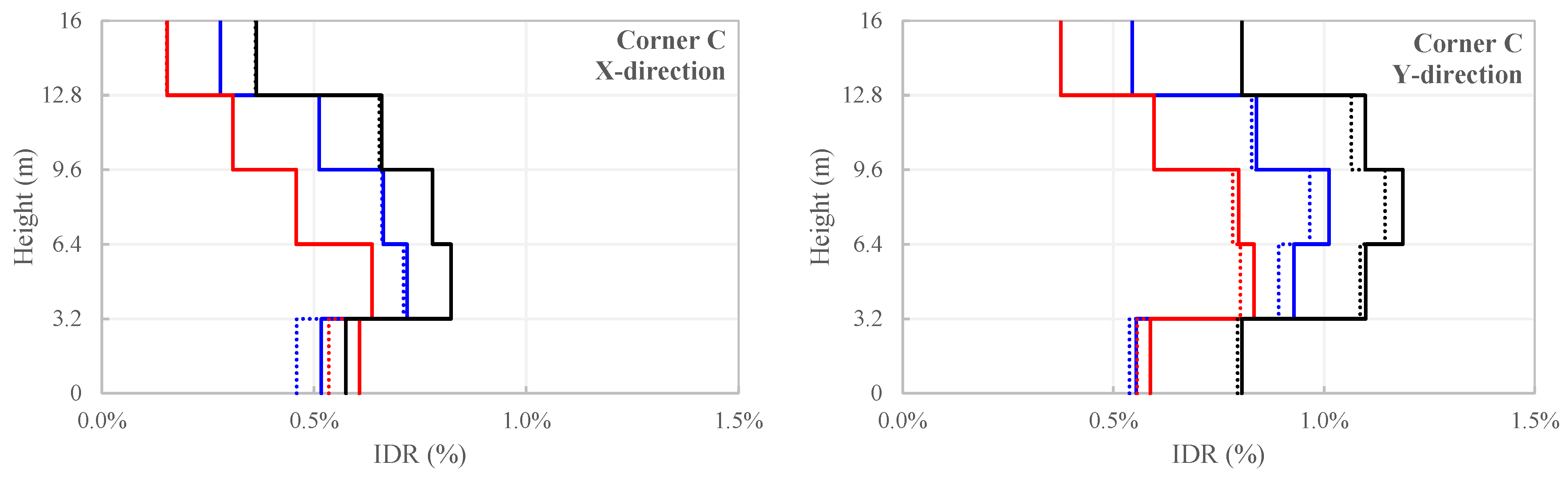

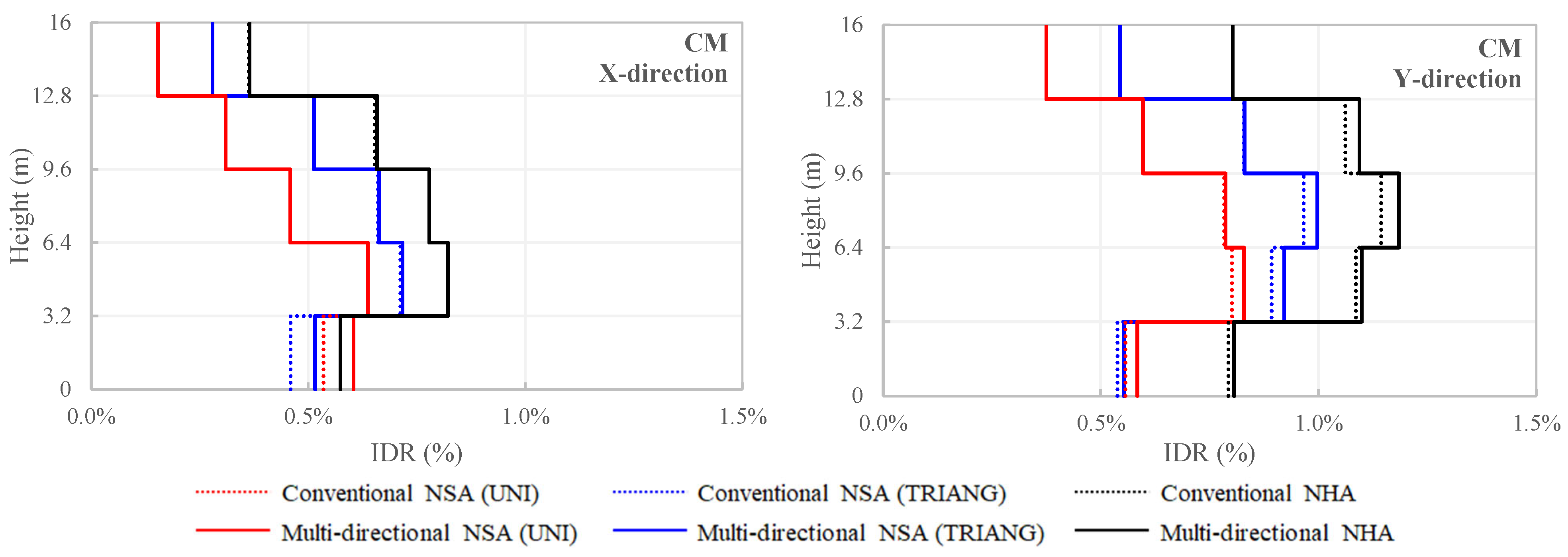

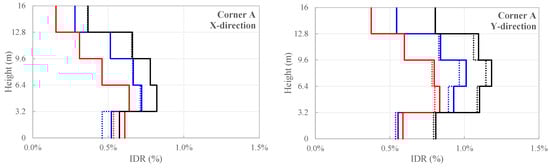

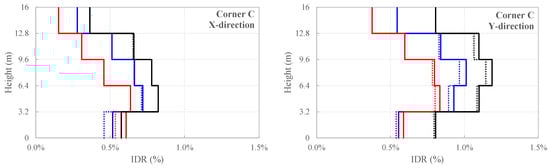

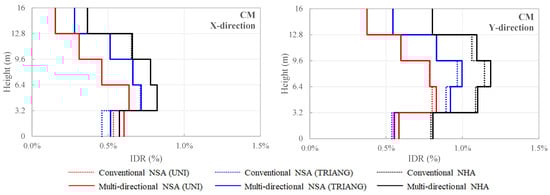

The results for Str1 indicate that at CM (Figure 20), Corner A (Figure 21) and Corner C (Figure 22) the multi-directional NSAs predict demands regularly lower than those predicted by the multi-directional NHAs, especially at the upper floors and for mass proportional loading patterns. The triangular load pattern leads to IDRs closer to those of the NHAs. Moreover, the application of the seismic inputs along the conventional 0°, 90°, 180° and 270° directions provide demands that are lower than the corresponding ones for multidirectional inputs (both static and dynamic), but the differences are not significant. As previously stated, this result is due to the double symmetry of the structural configuration. Moreover, for the NHAs the use of a significant number of records makes the results of a multi-directional analyses similar to those obtained along the reference directions. This is a general result that is due to the fact that the different record pairs have different principal directions; thus, as the number of records increases, the multi-directionality of the input is included in the input ground records [24,30].

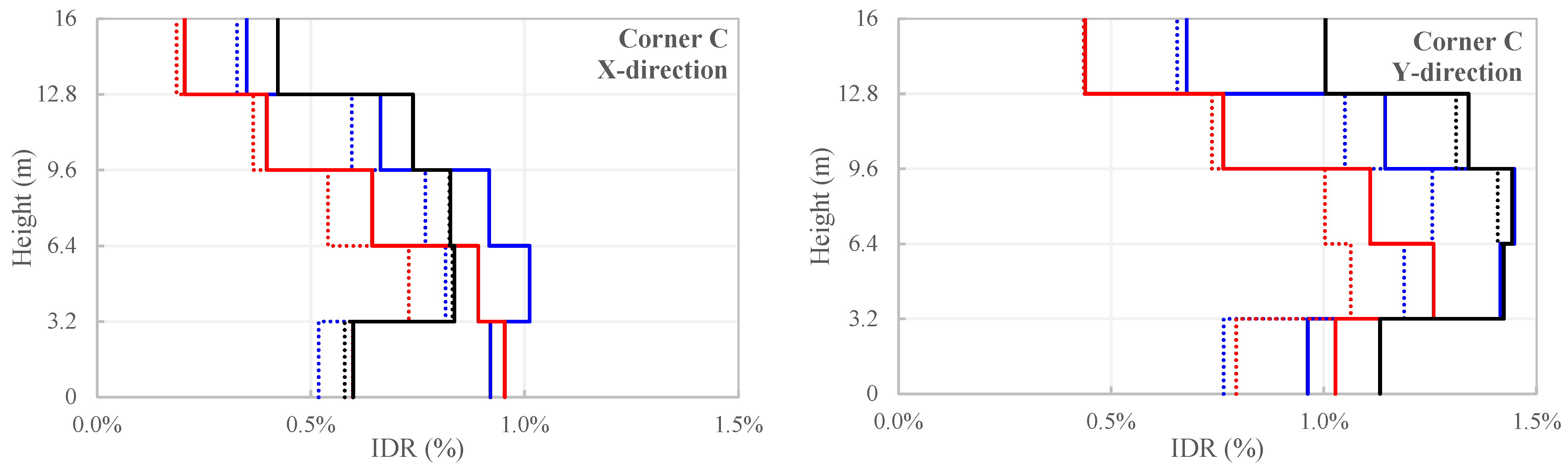

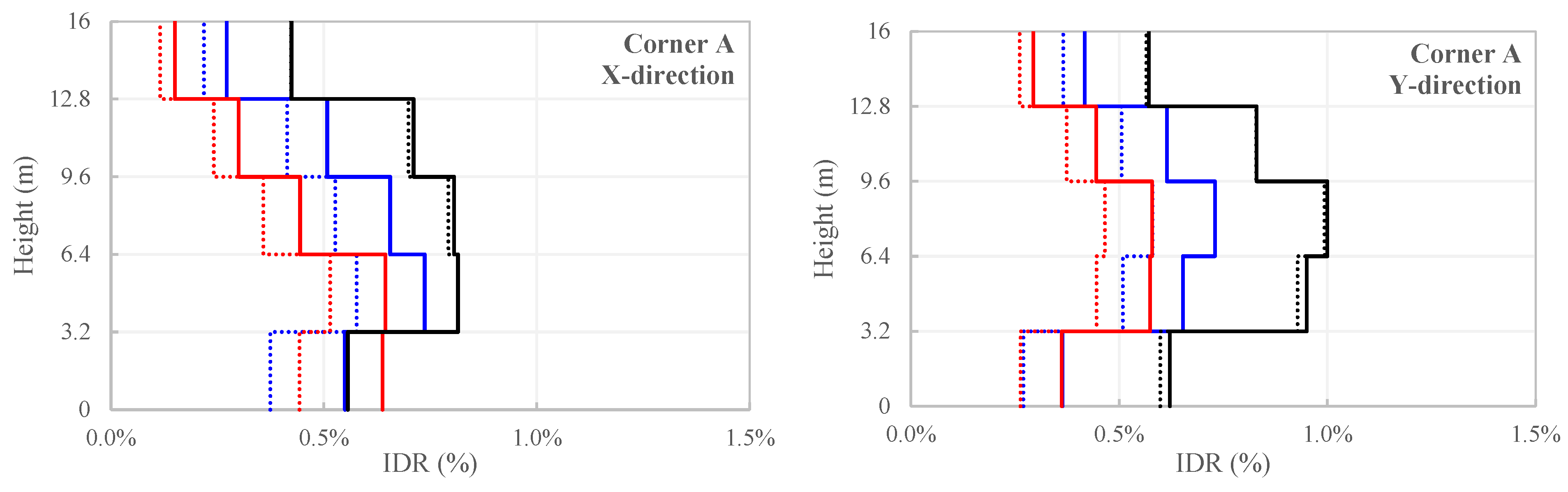

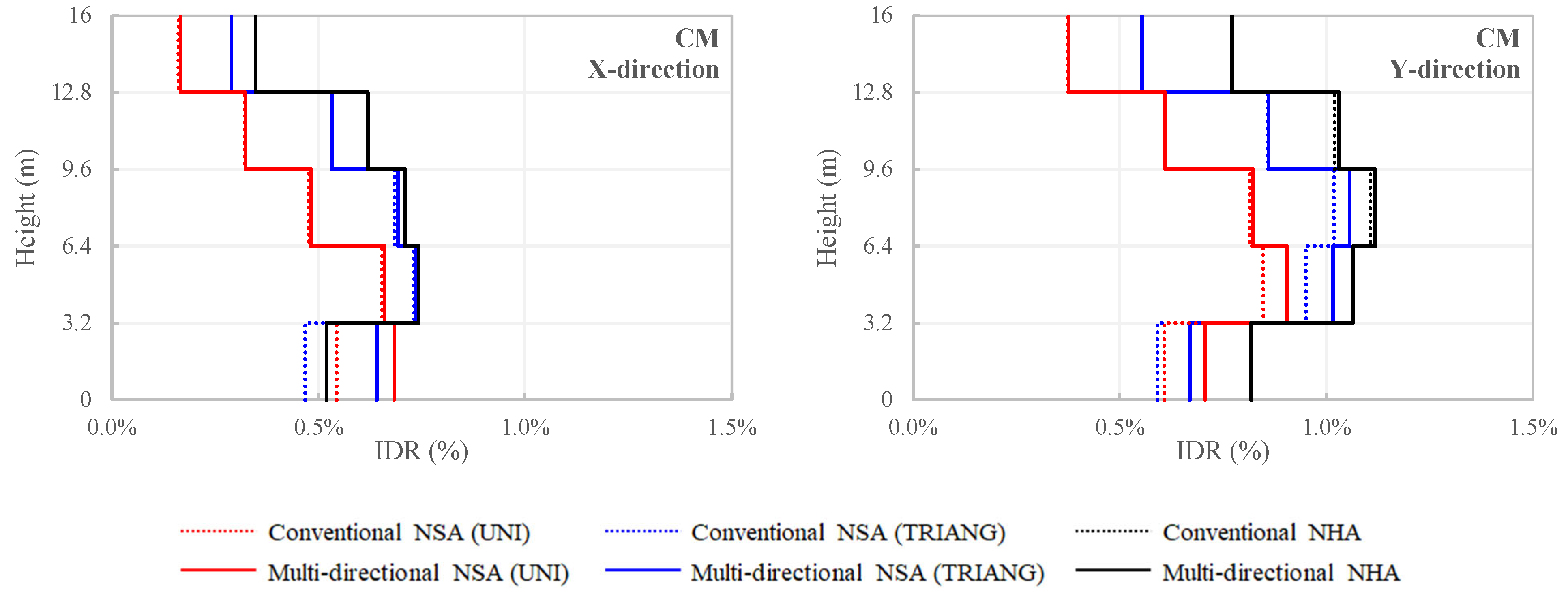

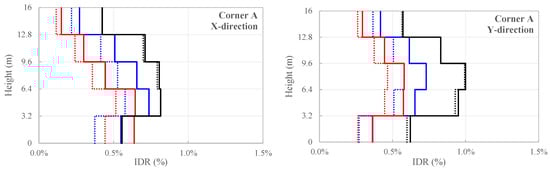

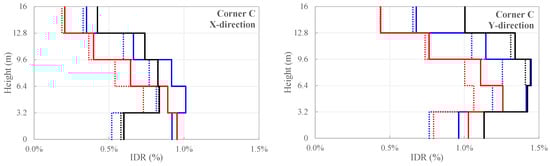

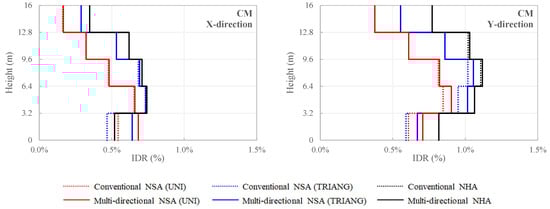

Figure 23, Figure 24 and Figure 25 show the same results for Str2. For this structure: (a) the demands at CM for the multi-directional NSAs with triangular loads are very close to those for the multi-directional NHAs; (b) the demands at Corner A indicate that the multi-directional NHAs are more conservative than the multi-directional NSAs; (c) at Corner C the demands for the multi-directional NSAs with triangular loads are closer to those of the NHAs than for Corner A. At the lower levels, the multi-directional NSAs in the X direction are more conservative than the NHA, indicating a different failure mechanism (at the ground level for the NSAs, at the second and/or third floors for the other analyses).

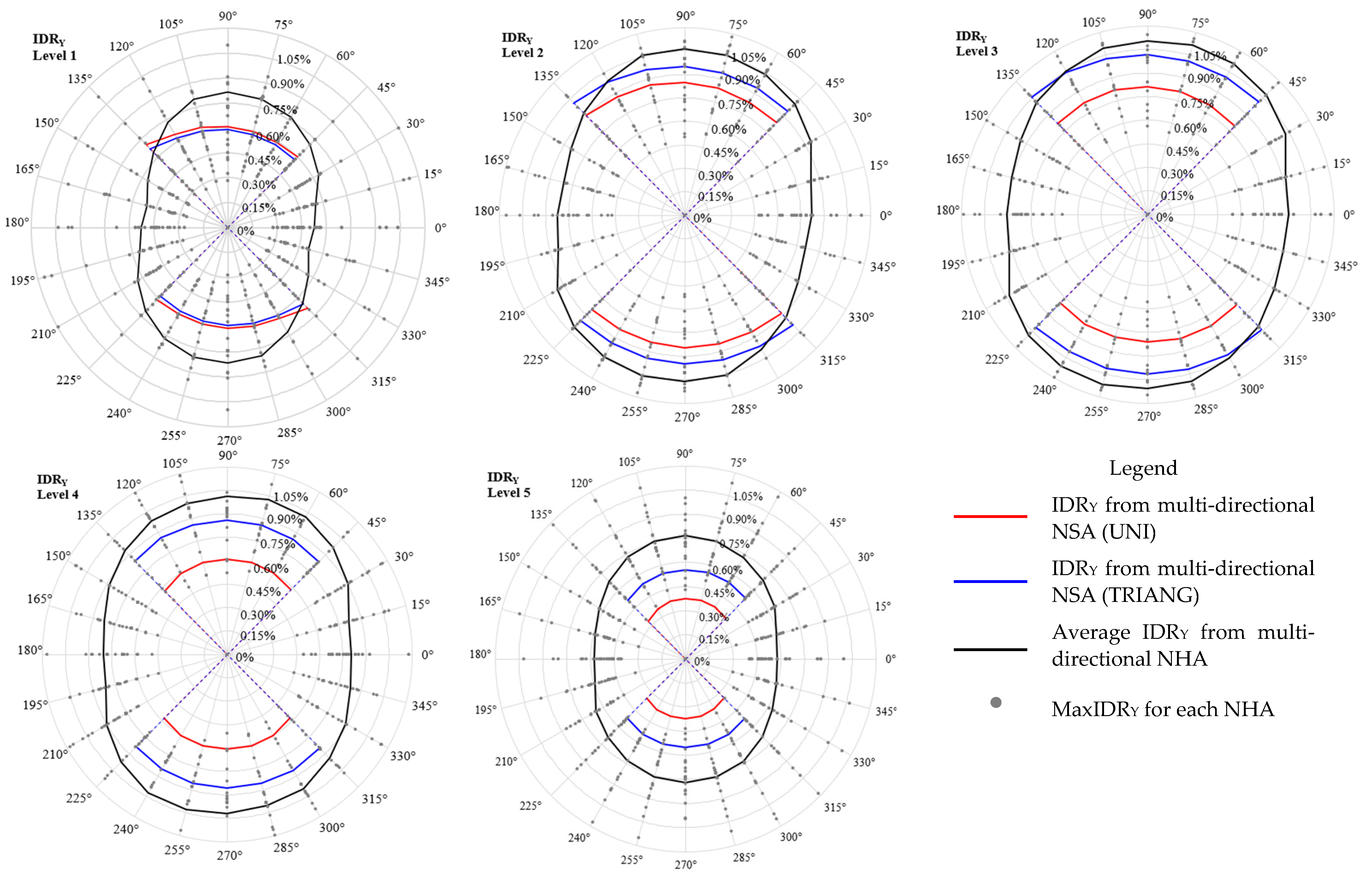

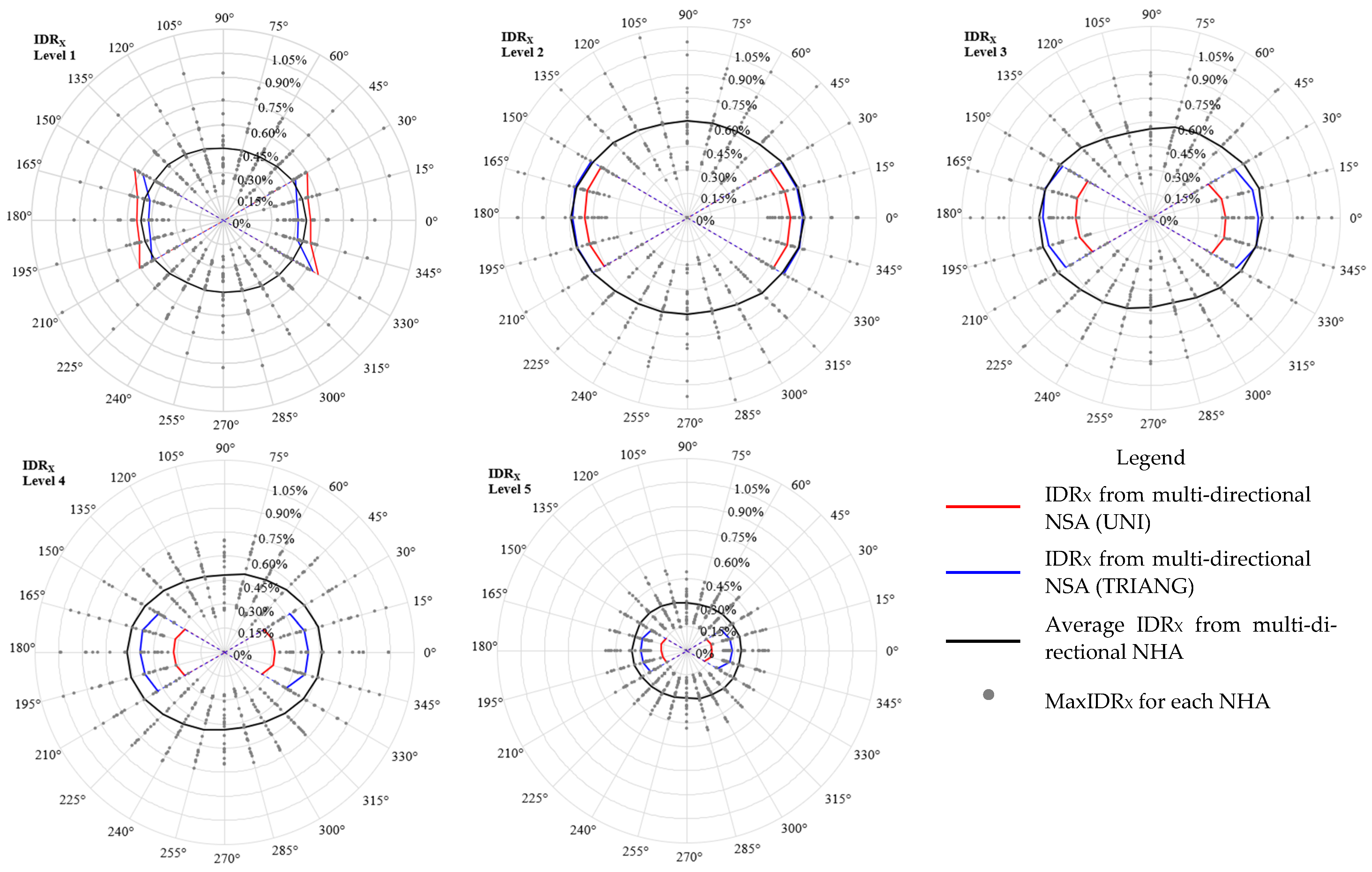

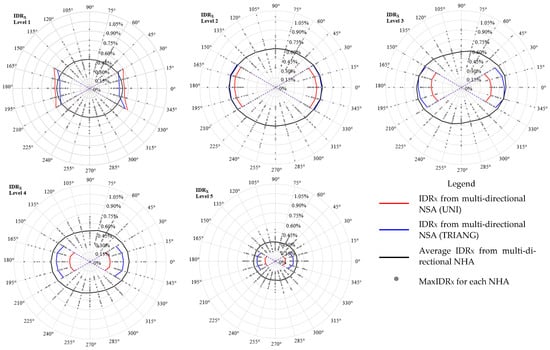

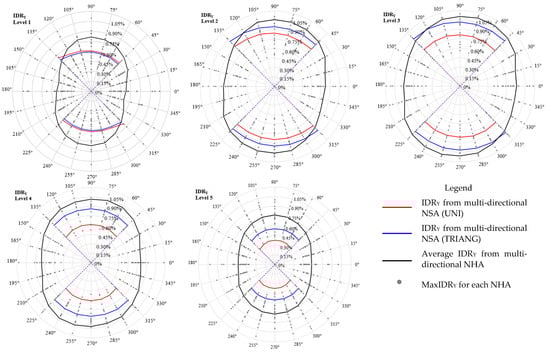

The complete results of CM of Str2 for all nonlinear analyses are shown in the polar plots of Figure 26 and Figure 27 for the X and Y directions, respectively. Each figure shows five polar graphs, one for each level. Each plot shows the IDRs of the multi-directional NHAs (in black) and of the multi-directional NSAs with mass proportional (UNI, in red) and triangular (TRIANG, in blue) load patterns. The grey dots represent the IDRs for the 20 selected ground motion records applied at a given angle θ, while the black line connects the points corresponding to the average values of the 20 maximum IDRs obtained for each direction. All plots show that the IDR_Y values are greater than the IDR_X values because of the larger structure flexibility in the Y direction. In the X direction (Figure 26), IDR_X for multi-directional NSAs with triangular load pattern are comparable with the corresponding results for NHAs, especially at the first three levels. In the Y direction (Figure 27), the differences between multi-directional NSAs and NHAs are greater than those in the X direction, especially at Levels 1, 4 and 5, where the NSAs can be significantly unconservative. It appears that, except for Level 1, the UNI (mass proportional) load pattern consistently underestimates the IDR demand. This result stresses the fact for multi-directional NSAs too it is important to consider at least two load patterns, where UNI leads to larger demands at the ground level and TRIANG leads to larger demands at the higher levels.

5. Summary and Conclusions

Several studies show the importance of considering the directionality of the input forces in seismic analyses of existing structures. For NHAs, the problem is solved when a large set of ground motions is used. In this case there is no need to rotate the ground motion inputs. This paper confirms this result. For NSAs, often used in design practice and research to avoid the large computational cost of NHAs, the problem is not well studied. This paper analyses the variability in structural demands for multi-directional NSAs and compares the results with those of NHAs.

Two case-study structures representative of Italian RC buildings of the 1970s are considered. Structure 1 is roughly doubly symmetric, while Structure 2 has significant asymmetry caused by the translation of CM by about 15% of the building plan dimensions. In both structures, the load-bearing and perimetral frames have deep beams while the other frames have flat beams. The following multi-directional nonlinear static procedure is proposed in order to account for the directionality of the seismic input:

• Step 1: A set of PO analyses are sequentially carried out by applying mass proportional and triangular load patterns at 24 different incident angles θ with 15° increments;
• Step 2: For each θ, the V_b-θ PO curves are obtained in the X and Y directions for CM and two corners;
• Step 3: For each θ, the PO curve (of the two computed at Step 2) that reaches a peak and then softens (and thus is assumed to have reached failure) is selected as the reference PO curve. When both PO curves reach the peak and then soften, the PO curve with the maximum displacement is assumed as the reference PO;
• Step 4: For each load pattern and θ, the structural demand in terms of IDR is computed using the N2 method. The IDR is in the direction of the reference PO curve selected in Step 3.

The procedure applied in this research presents the following innovative points:

• It clarifies the methodology that is applied to find the structural demand in multi-directional NSAs;
• It indicates two load patterns (mass proportional and triangular) that can be used to carry out multi-directional NSA and easily compute the relevant participation factors;
• It shows how the structural capacity and demand are affected by the interaction between the buildings’ responses in the X and Y directions for loading angles different from 0° and 90°;
• It validates the proposed approach through multi-directional NSAs on two buildings (one plan regular, the other plan asymmetric obtained by changing the position of the center of mass). The NSA results are compared with those of multi-directional NHAs.

The multi-directional NSAs clearly show that at angles different from the building’s X and Y directions the base shear capacity of the building along X and Y decreases due to the interaction between the X and Y responses. This behavior is captured thanks to the fiber section discretization of the columns that accounts for biaxial bending and axial load interaction.

The results of the multi-directional NSAs are compared with those of the multi-directional NHAs. For the NHAs a ground motion set of 20 pairs of spectrum-compatible ground motion records scaled to T₁ are selected. The 20 pairs are applied parallel to the same angles θ used in the NSAs. For a given θ, the maximum IDR in each direction for all 20 NHAs and their average values is computed.

The multi-directional NSAs on Structure 1 show results that are similar to those for the conventional NSAs (i.e., PO along the X and Y building directions). Conversely, the results of multi-directional NSAs on Structure 2 are significantly more conservative than those of conventional NSAs, especially at the building corners. For Structure 2, the ratio of the maximum IDR of multi-directional and conventional NSAs at Corner C for θ = 330° is equal to 1.77.

The comparison of the IDRs from multi-directional NSAs and NHAs shows the following results: (a) application of the input records in the NHAs does not lead to significant changes, as already shown in previous studies; (b) in most cases, the multi-directional NSAs are unconservative with respect to the results of the NHAs; (c) however, the multi-directional NSAs improves the prediction with respect to the conventional NSAs and the improvement is more significant for the asymmetric Structure 2; (d) as expected, the mass proportional pattern leads to higher IDR demands at the ground level, while at the upper levels the triangular load pattern leads to higher demands; (e) For the asymmetric Structure 2, the demands predicted by the NSAs on the building corners tends to be rather unconservative with respect to the NHAs.

In conclusion, this paper proposed a new Nonlinear Static Analysis procedure to account for the multi-directionality of the seismic input. The results show that the demands can be significantly higher than those for conventional NSAs where the building is pushed in the X and Y building directions. These results are more evident for the asymmetric case study structure. However, the results from NHAs are in general more conservative than for NSAs, even when the multi-directionality is accounted for.
