Effects of Infills in the Seismic Performance of an RC Factory Building in Pakistan

Abstract

Infilled reinforced concrete (IRC) frames are a very common construction typology, not only in developing countries such as Pakistan but also in southern Europe and Western countries, due to their ease of construction and less technical skills required for the construction. Their performance during past earthquakes has been in some cases satisfactory and in other cases inadequate. Significant effort has been made among researchers to improve such performance, but few have highlighted the influence of construction materials used in the infill walls. In some building codes, infills are still considered as non-structural elements, both in the design of new buildings and, sometimes, in the assessment of existing buildings. This is mainly due to some difficulties in modeling their mechanical behavior and also the large variety of typologies, which are difficult to categorize. Some building codes, for example, Eurocode, already address the influence of infill walls in design, but there is still a lack of homogeneity among different codes. For example, the Pakistan building code (PBC) does not address infills, despite being a common construction technique in the country. Past earthquake survey records show that construction materials and infill types significantly affect the seismic response of buildings, thus highlighting the importance of investigating such parameters. This is the object of this work, where a numerical model for infill walls is introduced, which aims at predicting their failure mode, as a function of some essential parameters, such as the friction coefficient between mortar and brick surface and mortar strength, usually disregarded in previous models. A comprehensive case study is presented of a three-story IRC frame located in the city of Mirpur, Pakistan, hit by an earthquake of magnitude 5.9 on 24 September 2019. The results obtained from the numerical model show good agreement with the damage patterns observed in situ, thus highlighting the importance of correctly modeling the infill walls when seismically designing or assessing Pakistani buildings that make use of this technology.

1. Introduction

Construction typology of infilled reinforced concrete (IRC) frame structure is not only common in Pakistan but across the globe [1,2]. The typology became more common in Pakistan, especially after the October 2005 Kashmir earthquake [1,3,4,5,6]. With the increasing demand for IRC frame structures in the country, several issues drew the attention of both researchers and practitioners, such as RC frame–infill interaction, brick types, and bricks and mortar properties [7]. Despite the spread of such construction typology in the Country, as of today, the Pakistan building code (PBC) has not developed any design and construction recommendations or guidelines [3,8]. This is actually the case of many building codes around the world, which still do not deal with the design and assessment of existing structures [9,10]. On the other hand, some more advanced building codes, e.g., Eurocode, already include consideration of infill walls in both the design and assessment of IRC frame structures. Nonetheless, infill walls are commonly considered non-structural elements, despite their strong influence on the seismic response of IRC frame structures [11,12]. Although extensive studies highlighted the topic in detail in the past 50 years, sound and reliable design and assessment methods, including the effects of infills, are still far from being fully developed [13,14].

The effects and contributions of infill walls to the overall seismic response of IRC frame structures may be either beneficial or detrimental [11], depending on various parameters, such as RC–infill walls interaction, relative strength and stiffness between infill walls and RC frame, and types of materials used for bricks, mortar and concrete [10]. Assessment of seismic performance of IRC frame structure requires proper modeling techniques and reliable analytical equations to correctly predict force-displacement parameters of infill walls [15]. Several existing IRC frame structures are nowadays vulnerable to seismic actions as a result of improper and poor understanding of such phenomena [16].

Some usually neglected parameters, such as the mortar–brick friction coefficient and mortar strength, and their effects on the seismic performance of infill walls, are not reported in the literature, despite their recognized strong influence [17]. Recent earthquakes proved that also newly built IRC frames designed with seismic detailing are as equally vulnerable as older ones, due to the detrimental interaction with infills [18]. IRC frame structures are not only vulnerable during natural seismic events, but also due to human-made hazardous events, such as blast and terrorism acts, which makes the topic of great importance to investigate in detail [19].

In case infill walls are uniformly distributed in the plane and elevation of the building, IRC frames are less vulnerable to seismic actions than the equivalent bare frames, because the infill walls have a distributed interaction with the surrounding RC frame [20]. Yet, brittle failures can occur in columns, beams, and joints due to local interaction. This undesired interaction should be taken into account in seismic assessment [21], also because it occurs during the deformation of the RC frame [18].

The infill walls can be modeled by different numerical techniques such as micro, meso, and macro modeling [22]. The former two require computational efforts and are commonly used for detailed studies, while the latter relies on one or more diagonal struts, requiring less computational effort and are commonly used in practical applications [23].

Usually, in Pakistan, the design and assessment practices of IRC frames only consider the estimated dead load of infill walls [8] while ignoring all other important parameters, including relative strength and stiffness between the RC frame and infill walls, types of bricks, and types of mortar, which are known to alter the seismic performance of IRC frame structures [1,24,25]. For this reason, infill walls made of fire burnt clay bricks are common across the northern part, including Punjab, Khyber Pakhtunkhwa, Pakistan-administrated Kashmir, Baluchistan, the capital territory Islamabad, and other seismic-prone regions of the country [26]. Instead, infill walls with cement–sand heavy blocks are used in the province of Sindh, including big cities such as Karachi and Hyderabad. Therefore, the only difference in the design and assessment in these two parts of the country is in the dead loads of infill walls: the density of fire burnt solid clay bricks is usually taken as 18.8 kN/m³ (120 lb/ft³), whereas the density of solid cement blocks is usually taken as 22.8 kN/m³ (145 lb/ft³). The large difference between the sizes and strength of fire burnt clay bricks and cement–sand blocks, which highly affects the overall seismic performance, is not considered [5,6]. The usual thickness of infill walls is either 229 mm (9 inches) or 114 mm (4.5 inches) [3,26]. Moreover, there are no variations in width or types of infill walls, neither related to the local seismicity nor to the occupancy/types of the building, i.e., hospital, school, industrial, or residential, which is not an appropriate strategy for the seismic safety of buildings [1,3].

2. Numerical Modeling

2.1. Proposed Numerical Model

Satisfactory advancements in modeling infill walls have been recently achieved in terms of simplified macro modeling, in which the infill panel is replaced by equivalent diagonal single or multiple struts [9,27]. The laying of bricks and the materials’ mechanical characteristics affect the ability of such models to predict the local response and the damage pattern [28]. In terms of the global response, it has been widely recognized that the modeling choices of infill walls affect the overall seismic performance of IRC frame structures and bring largely different outcomes [22,29].

Generally, seismic forces affect infill walls both in-plane and out-of-plane [30,31]. In-plane interaction has been the object of several experimental research studies, which concluded that infill panels behave as a monolithic resisting system until partially detached from the surrounding frame, wherein they start behaving as a compression strut. This claims for adequate modeling [32], which is the objective of the proposed model.

Despite several efforts for developing reliable models, those available in the literature usually neglect the influence of important parameters, such as the friction coefficient between the mortar and brick surface, cohesion between masonry bricks, and the strength of mortar. Considering the construction typology of IRC frame structure in Pakistan, the materials used and the common design practice is the objective of the proposed numerical model, which is a modified version of a previous model [33]. It considers a compression 2D diagonal strut representing the infill wall in the in-plane, with a simple yet effective constitutive law (Figure 1), which identifies different stages of the response: elastic, cracking, maximum force, failure, and residual force.

The relative stiffness between infill wall and column can be calculated by the dimensionless parameter proposed in [34]:

$${\lambda }_h=h_c{\left[\frac{E_m·t_w·\sin 2\theta }{4E_c·I_c·h_w}\right]}^{\frac{1}{4}}$$

(1)

where $h_c$ is the height of the RC frame to the centerline of the beam, $E_m$ and $E_c$ are the moduli of elasticity of masonry and concrete, respectively, $t_w$ and $h_w$ are the thickness and height of the infill wall, respectively, $I_c$ is the moment of inertia of the column, and $\theta$ is the angle of the diagonal panel strut.

Many authors, e.g., [22], proposed different formulations for the diagonal panel strut width $w_w$. For example, according to [35], it can be calculated as:

$$w_w=0.17d_w{\lambda }_h^{-0.4}$$

(2)

where $d_w$ is the inclined length of the diagonal strut.

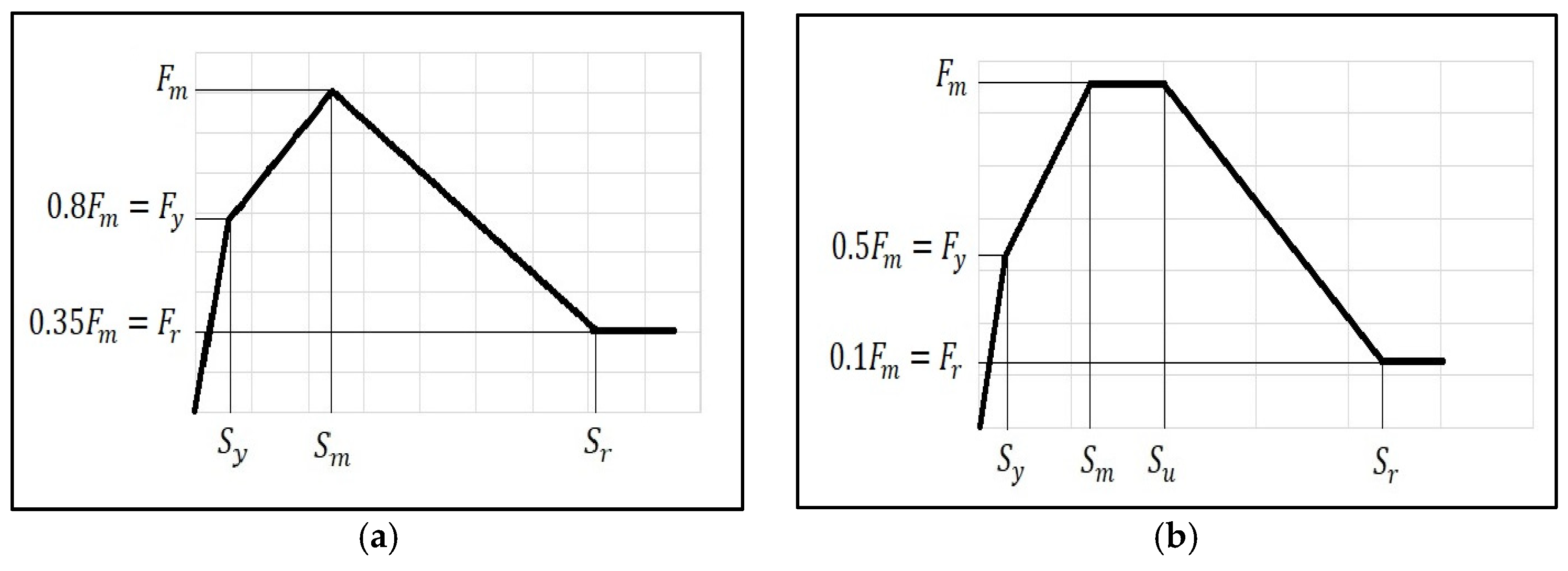

The four branches, i.e., cracking, maximum force, failure, and residual force, are shown in Figure 1, described sequentially by the following equations.

It is expedient to start from the maximum force and the corresponding displacement:

$$F_{w\theta }=f_w t_w w_w$$

(3)

$${\delta }_{w\theta }=\frac{f_w}{E_{w\theta }} d_w$$

(4)

where, $f_w$, $t_w$, and $w_w$ are the compression strength of the masonry wall, wall thickness, and strut width, respectively, and $E_{w\theta }$ is the elastic modulus along the diagonal direction at angle $\theta$, given by the following equation [36]:

$$E_{w\theta }={\left[\frac{{\cos }^4\theta }{E_{mh}}+\frac{{\sin }^4\theta }{E_{mv}}+{\cos }^2\theta {\sin }^2\theta \left(\frac{1}{G}-2\frac{v}{E_{mh}}\right)\right]}^{-1}$$

(5)

where $E_{mh}$ and $E_{mv}$ are the horizontal and vertical elastic moduli of masonry walls, respectively, $G$ is the masonry shear modulus, and $v$ is the Poisson ratio.

The cracking force of the infill and the corresponding displacement at the onset of the first branch of Figure 1 can be found as:

$$F_{e\theta }=\frac{F_{w\theta }}{2}$$

(6)

$${\delta }_{e\theta }=\frac{F_{e\theta }}{2K_{w\theta }}$$

(7)

where $K_{w\theta }$ is the diagonal strut axial stiffness, calculated as:

$$K_{w\theta }=\frac{E_{w\theta } t_w w_w}{d_w}{\cos }^2\theta$$

(8)

where $\theta$ is the strut angle.

The failure force and the corresponding displacement at the end of the third branch of Figure 1 can be found as:

$$F_{wu\theta }=\mu f_m t_w w_w$$

(9)

$${\delta }_{wu\theta }=0.005\frac{h_w}{cos\theta }$$

(10)

where, $\mu$, $f_m$, $t_w$, and $w_w$ are the mortar–brick friction coefficient, mortar compressive strength, wall thickness, and strut width, respectively, and $h_w$ is the infill wall height.

Finally, the last point of residual force is proposed as:

$$F_{u\theta }=\frac{F_{w\theta }}{10}$$

(11)

$${\delta }_{u\theta }=18 {\delta }_{w\theta }$$

(12)

Having calibrated the strut model, in the following section, it is validated by comparison with an experimental test.

2.2. Comparison to an Experimental Test

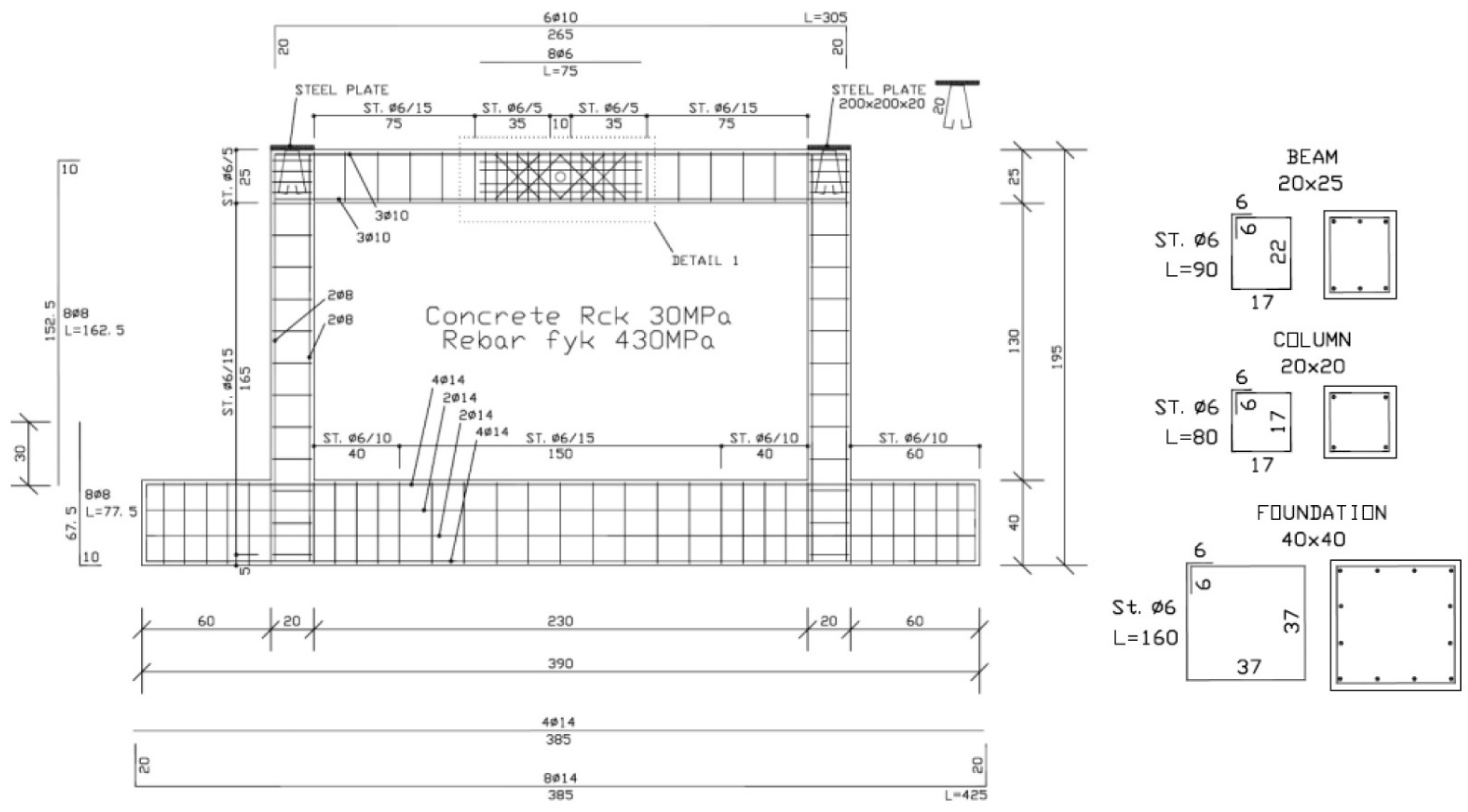

A single-bay single-story IRC frame tested in [7] is considered (Figure 2). A displacement-controlled test was performed under alternate horizontal force until collapse. Vertical loads were applied to each column, representing loads coming from upper stories. The effectiveness of the proposed numerical model was ascertained by comparing its prediction with the experimental results. The values of the main test parameters are listed in

Table 1. Main parameters of the test in [7].

Materials Properties	Values
Compressive strength of brick unit	5.1 MPa
Compressive strength of masonry	4.0 MPa
Compressive strength of mortar	11.7 MPa
Compressive strength of concrete	30 MPa
Yield strength of steel	430 MPa
Poisson ratio	0.14
Friction coefficient between mortar and brick surface	0.3
Tensile strength of masonry	0.35 MPa
Modulus of elasticity of masonry	4683 MPa
Length of infill	2300 mm
Height of infill	1300 mm
Thickness of infill	120 mm
Inclined length of strut	2654 mm
Inclined angle of strut	0.52 rad

.

The test is modeled by implementing the proposed model within the solver “SAP2000”, whose parameters are shown in

Table 2. Model parameters to model the test in [7].

Symbol	Definition	Equation	Value
${\lambda }_h$	Relative stiffness parameter	1	3.66
$w_w$	Strut width	2	269 mm
$F_{w\theta }$	Maximum force of infill	3	131.4 kN
${\delta }_{w\theta }$	Displacement at maximum force	4	2.4 mm
$E_{w\theta }$	Elastic modulus along diagonal	5	4.68 GPa
$F_{e\theta }$	Cracking load of infill	6	65.7 kN
${\delta }_{e\theta }$	Displacement at cracking force	7	0.8 mm
$K_{w\theta }$	Diagonal strut axial stiffness	8	40.6 kN/mm
$F_{wu\theta }$	Failure force	9	107.4 kN
${\delta }_{wu\theta }$	Displacement at failure force	10	7.5 mm
$F_{u\theta }$	Residual force	11	13.1 kN
${\delta }_{u\theta }$	Displacement at residual force	12	43.2 mm

, as computed from Equations (1)–(12) using the test parameters in Table 1. The results are compared with two other numerical models available in the literature, [33] and [37], calibrated on the same test data, whose force–displacement curves are shown in Figure 3.

In model [33], yielding, ultimate, and residual forces and their corresponding displacements depend on the maximum force, as a function of the diagonal compression strength of the infill masonry and the thickness and width of the infill strut, whereas in model [37], the maximum force is a function of the thickness, width of the infill strut, its angle, and the minimum of the ultimate stresses obtained from possible failure modes of the masonry infill wall, i.e., panel center crushing, corners crushing, bed joints sliding, and diagonal tensile failure. All these failure modes are function of compressive strength, shear resistance of infill masonry, sliding resistance of bed joints, and normal stress. None of the models considers mortar strength and mortar–brick friction coefficient as the proposed model does. The proposed model shows good agreement with the experimental results, with an accuracy comparable to model [33] and better than [37], as shown in Figure 4.

3. Case Study

3.1. The Earthquake of 24 September 2019

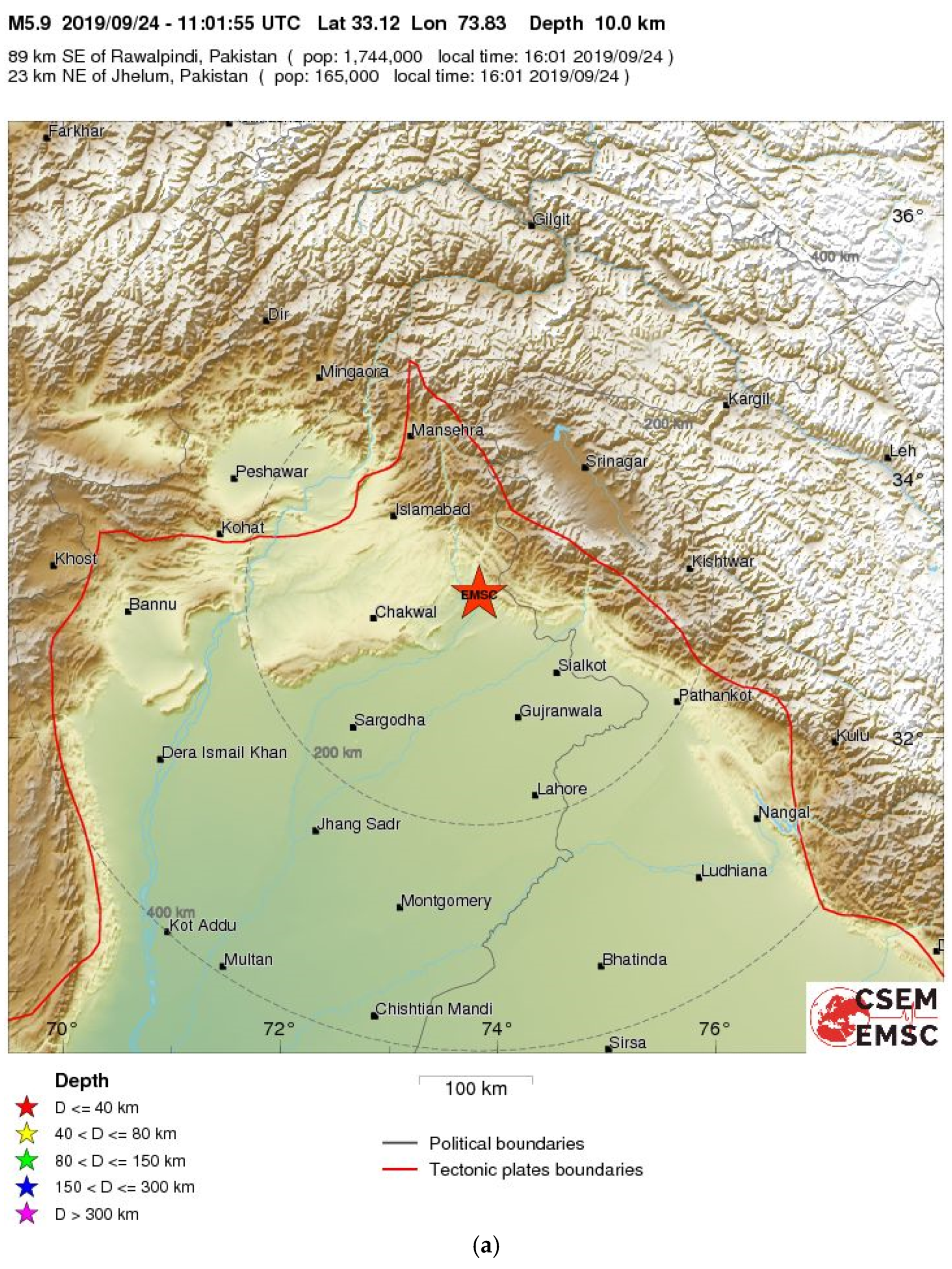

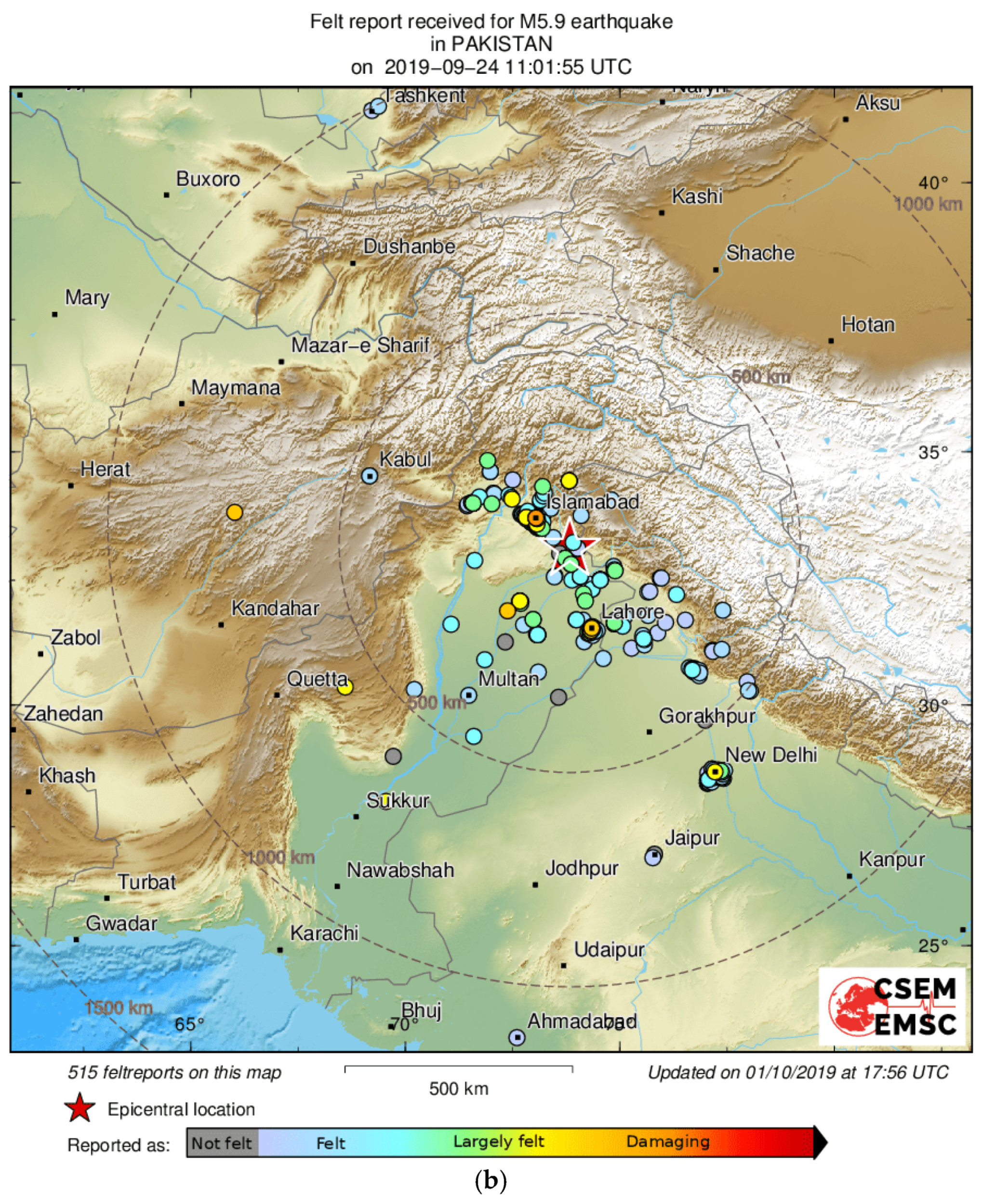

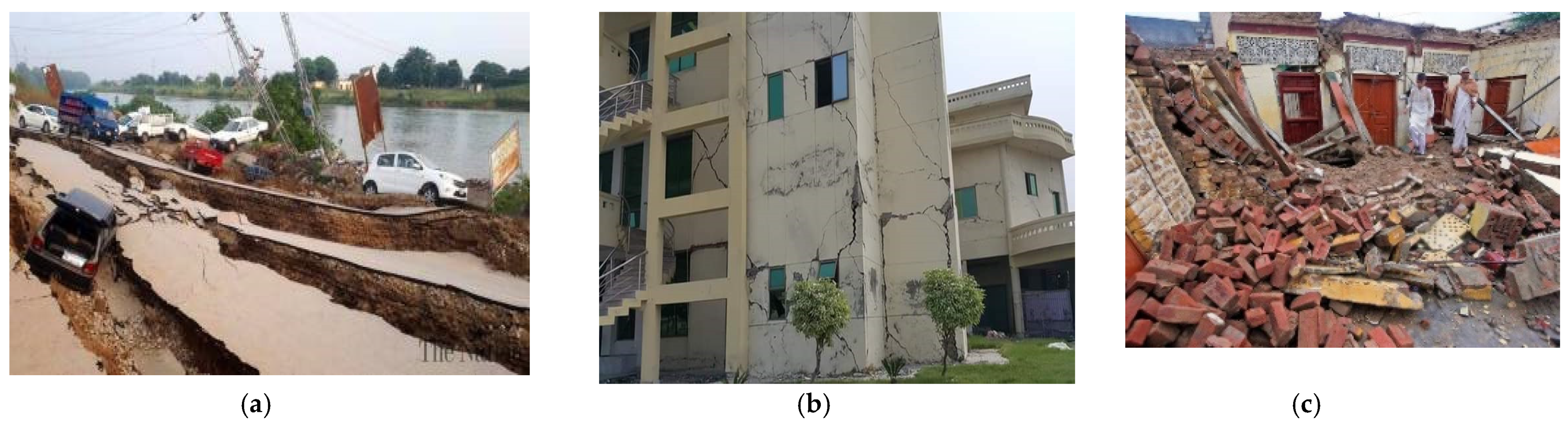

A 5.9 magnitude earthquake struck eastern Pakistan in 2019, with its epicenter close to the city of Mirpur, Pakistan-administered Kashmir, as shown in Figure 5 issued by the European Mediterranean seismology center (CSEM/EMSC). According to Pakistan’s meteorological department (PMD), the earthquake was 10 km (6 miles) deep, and the worst-hit city was Mirpur. According to the Pakistan Building Code (PBC), the earthquake lies in a moderate seismic intensity zone of 4 with maximum peak ground acceleration (PGA) in the range of 0.35 g [8]. The measured intensity of the earthquake was VII in the epicenter area, with a PGA of 0.387 g according to USGS (Figure 6).

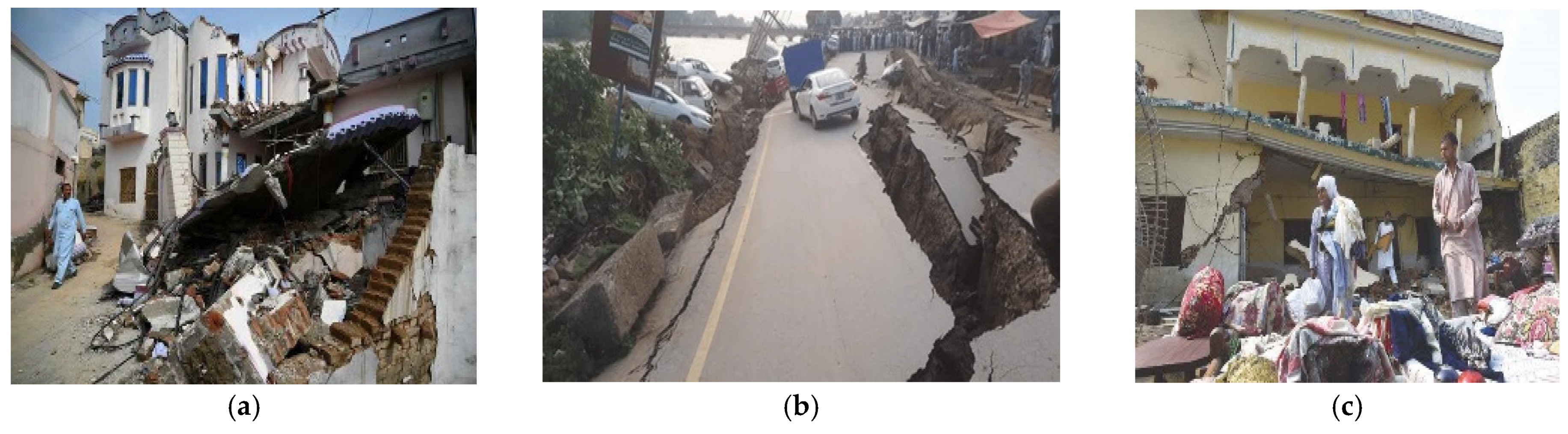

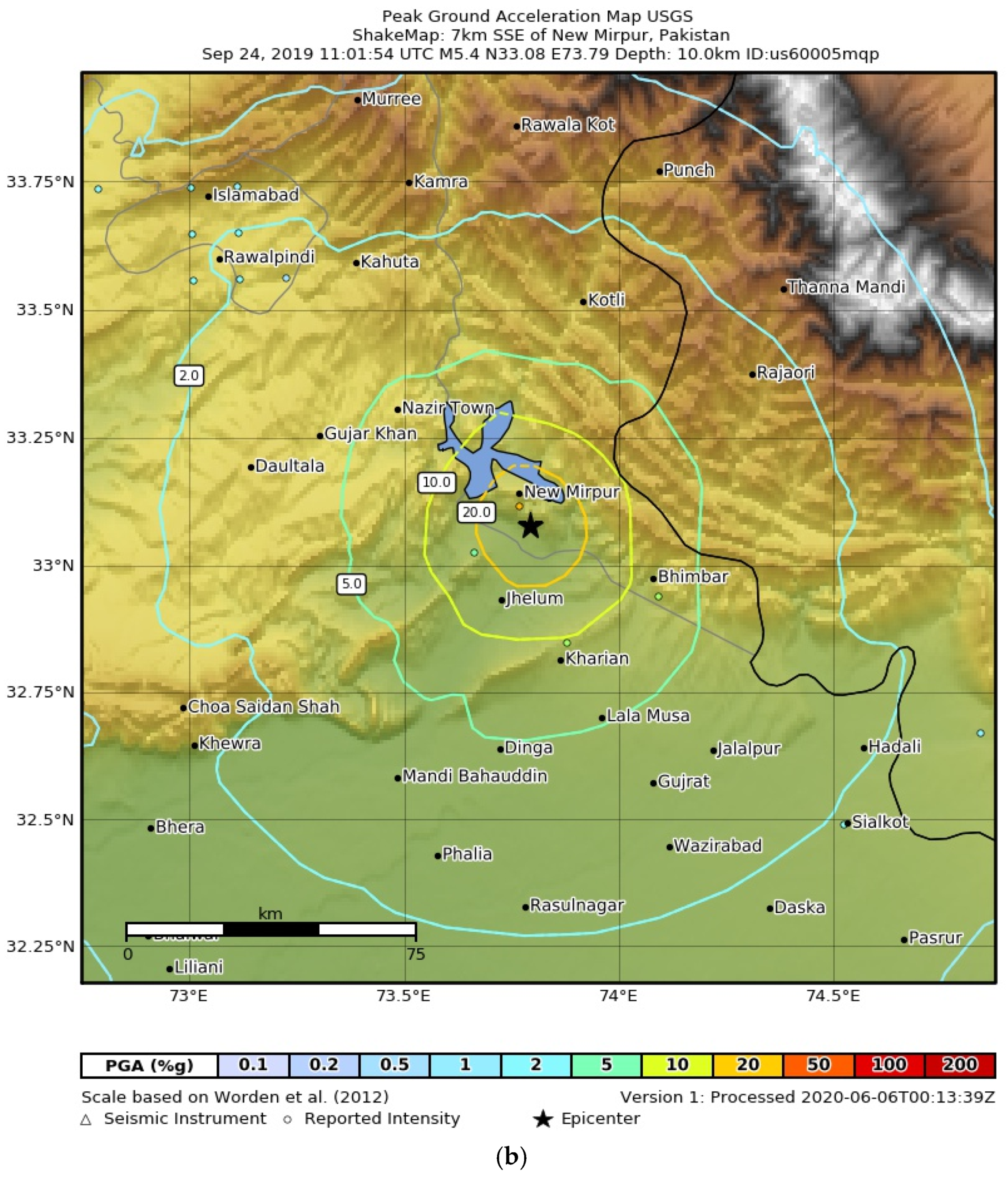

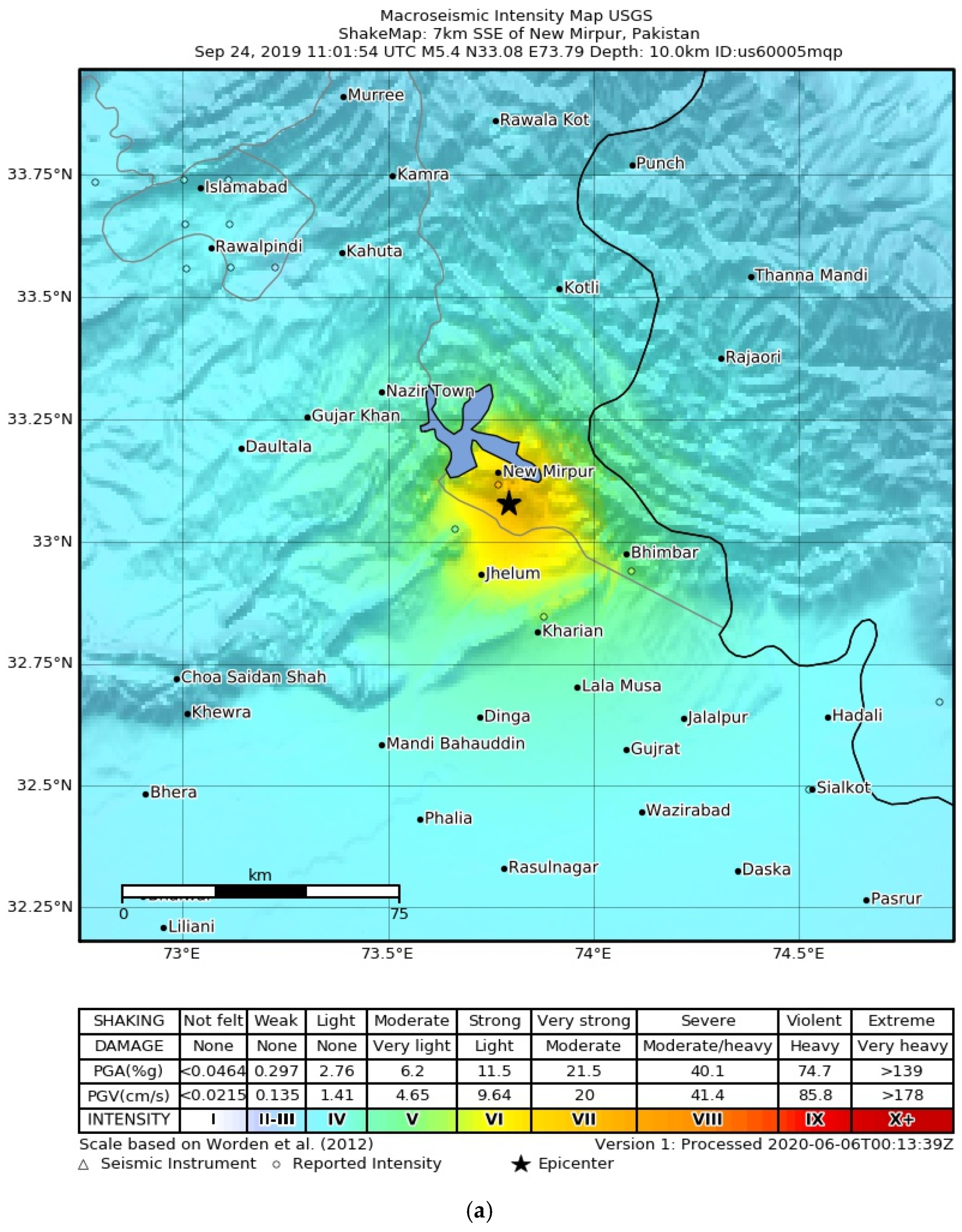

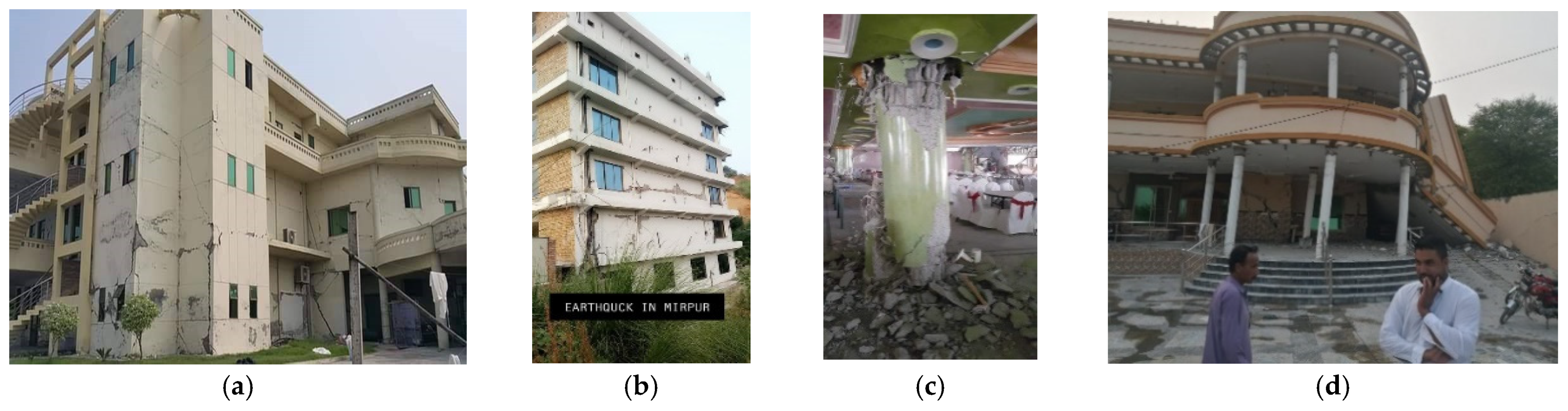

Moreover, according to the instrumental intensity map issued by the Space and Upper Atmosphere Research Commission (SUPARCO) of Pakistan, at least 34 people died, and more than 600 injuries were recorded. Many public and private buildings collapsed, as shown in Figure 7, Figure 8 and Figure 9.

3.2. Description of the Building

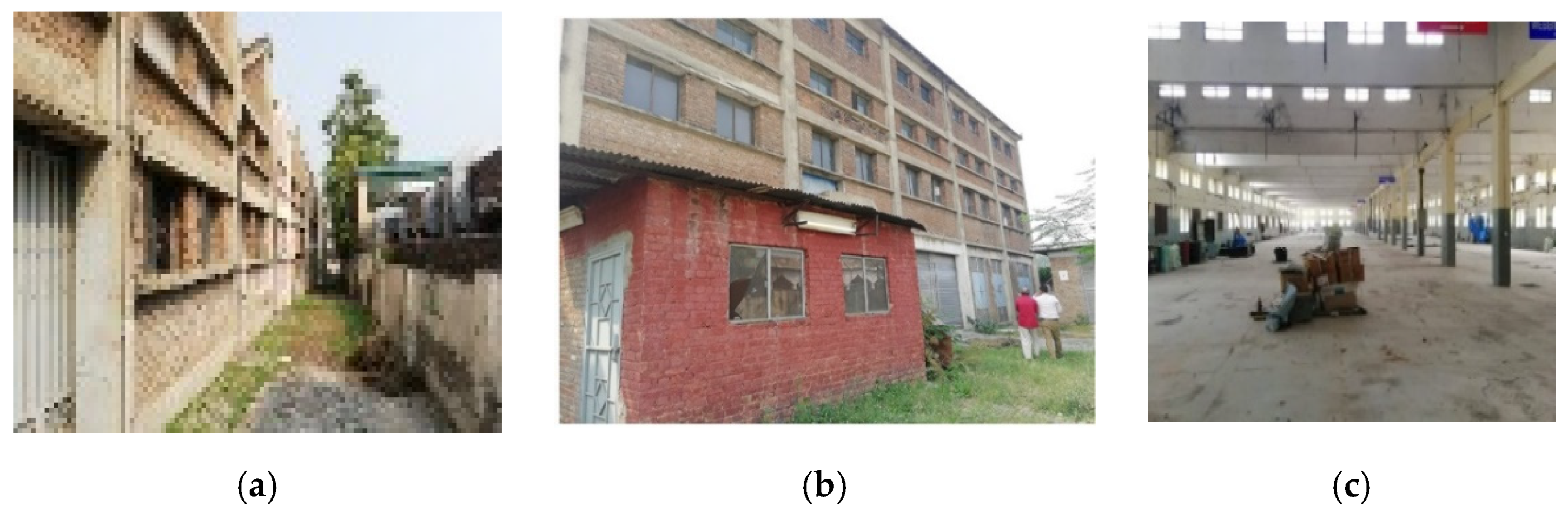

The selected case study considers an IRCF three-story factory building situated in Mirpur city, Pakistan, which was severely hit by the earthquake on 24 September 2019. The factory building is 17.7 km away from the epicenter. The model of the building and a satellite image are shown in Figure 10. According to the acquired information, the building was designed in 1986, when the code did not enforce any seismic provisions. As per common practice in the country, infill walls were considered as non-structural components. In the detailed site visits and survey reports of the building, some cracks were observed in the beams, columns, and their joints, whereas the infill walls were badly damaged, as shown in Figure 11, Figure 12 and Figure 13.

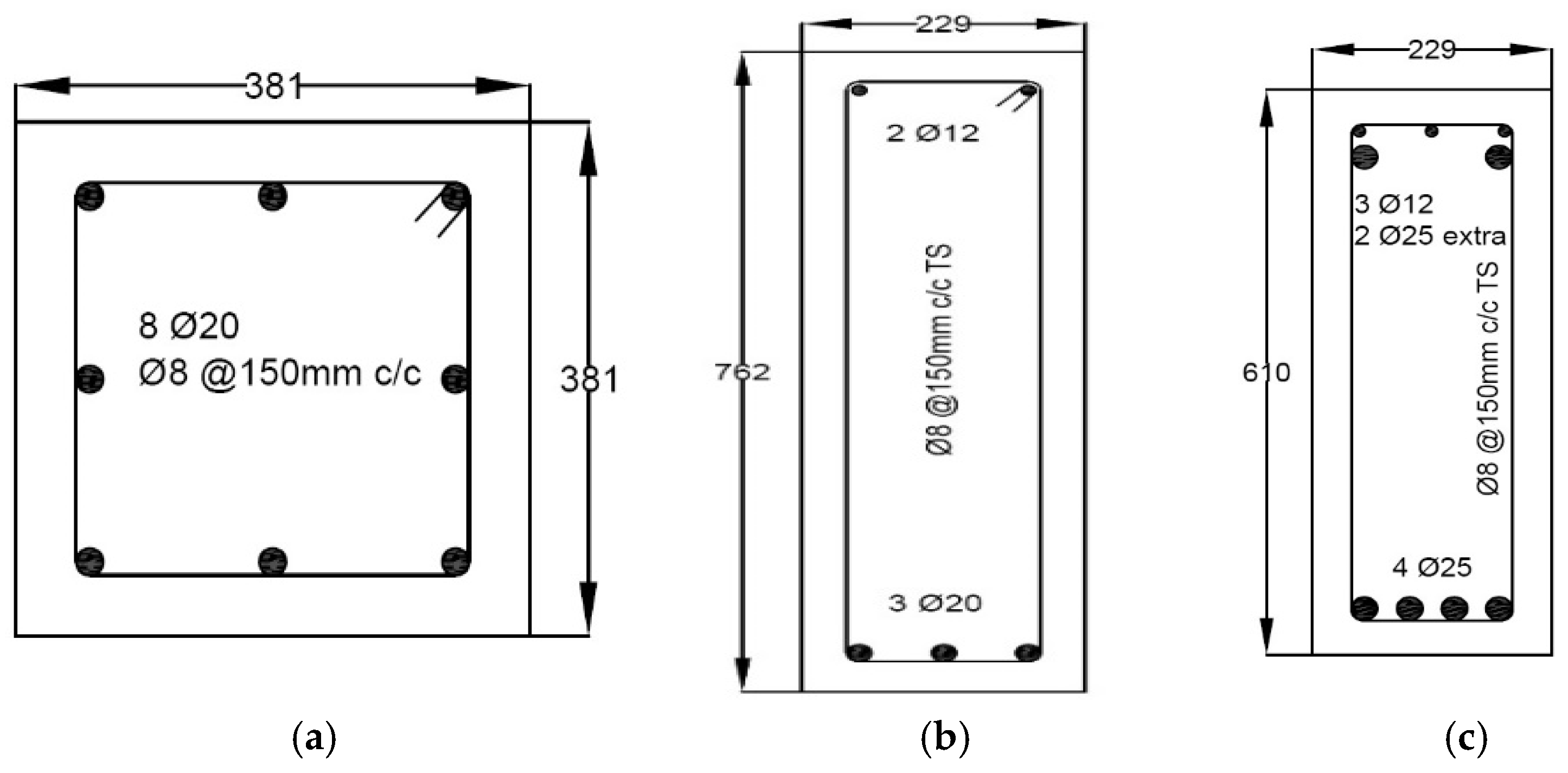

The overall plan dimensions of the building are $94.91 \mathrm{m}\times 24.38 \mathrm{m}$ and the typical inter-storey height is 3.66 m. It consists of three blocks, i.e., storage, manufacturing, and office at the back, center, and front, respectively. The infill walls are 228 mm (9 inches) thick made of solid fire burnt clay bricks. The geometry of beams and columns are rectangular with variable sizes depending on their location and ranging from 228 mm × 457 mm to 228 mm × 2438 mm and 305 mm × 305 mm to a maximum of 381 mm × 381 mm.

3.3. Numerical Models

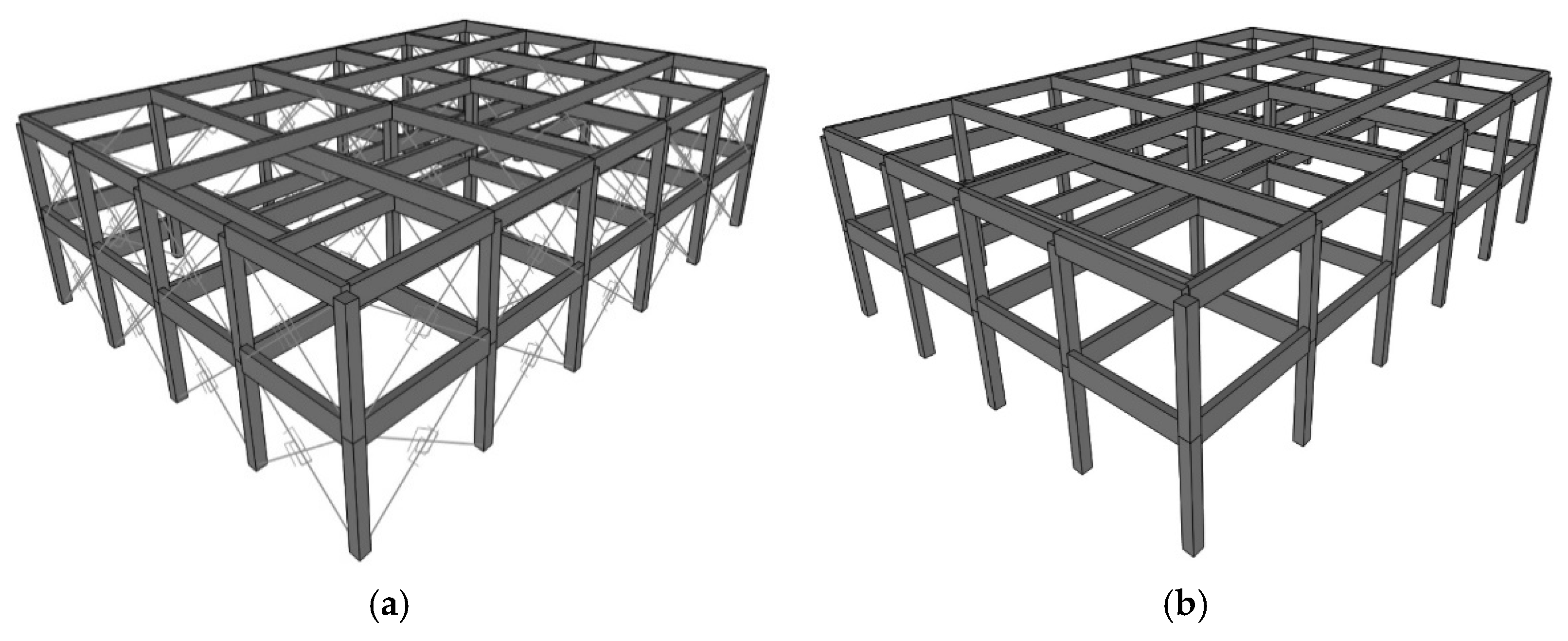

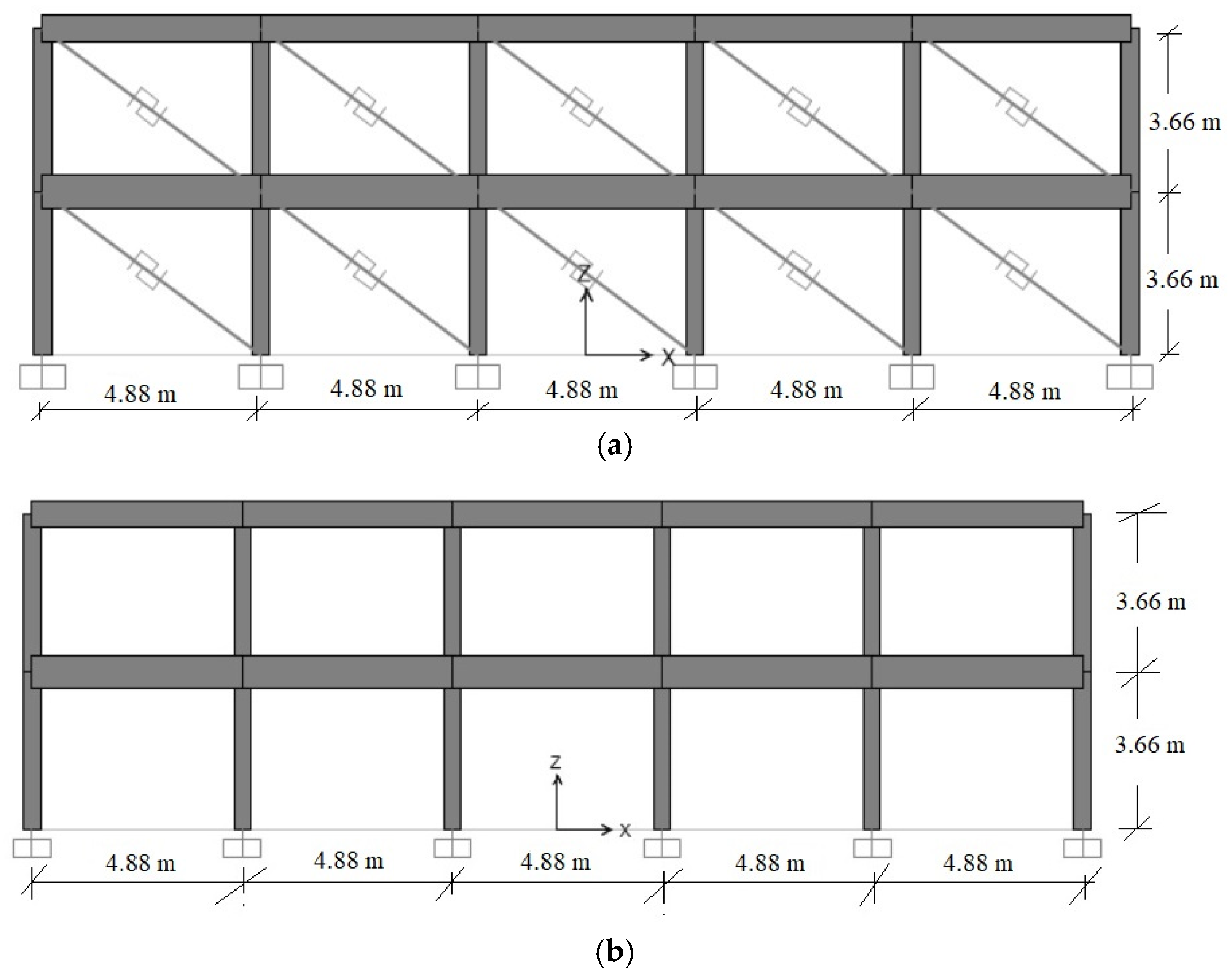

A 3D frame and a 2D frame are considered pertaining to the office block where maximum damages in the infill walls were observed. Nonlinear static pushover analysis was performed considering two configurations: bare frame (BF) as a reference, and infilled frame (IF). The foundation plan, the elevation of the selected frame having five equal bays of length 4.88 m, the equal inter-story height of 3.66 m, and the geometry of beams and columns are shown in Figure 14, Figure 15 and Figure 16.

The frame was modeled in SAP2000, where frame elements were used for beam-column elements, and nonlinear multilinear elastic links were used for the infills. Mander’s (1988) [38] model was used for confined and unconfined concrete within the cross-sections of the structural elements. From the available drawings and design specifications of the building, the characteristic values of the materials are shown in

Table 3. Model parameters.

Parameter	Value
Compressive strength of brick unit	8 MPa
Compressive strength of masonry	4.3 MPa
Compressive strength of mortar	5 MPa
Compressive strength of concrete	20 MPa
Yield strength of steel	400 MPa
Poisson ratio	0.14
Mortar-brick friction coefficient	0.3
Tensile strength of masonry	0.24 MPa
Modulus of elasticity of masonry	1370 MPa
Thickness of infill	228 mm

, which are commonly used properties in the country [1,3,26,39,40]. Other materials properties, such as the friction coefficient between the mortar and brick surface and Poisson ratio, are considered as 0.3 and 0.14, respectively [1,40]. The 3D and 2D models of IF and BF using SAP2000 are shown in Figure 17 and Figure 18, respectively.

3.4. Results and Comparison with Observed Damage

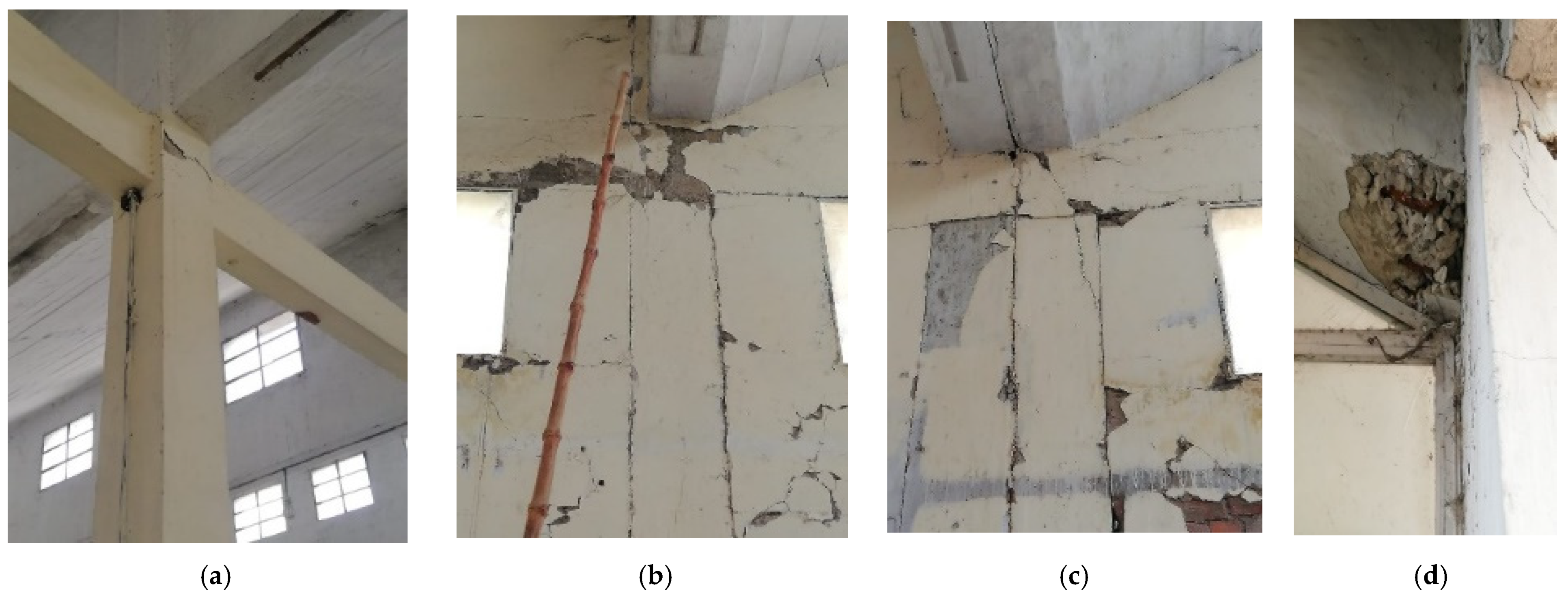

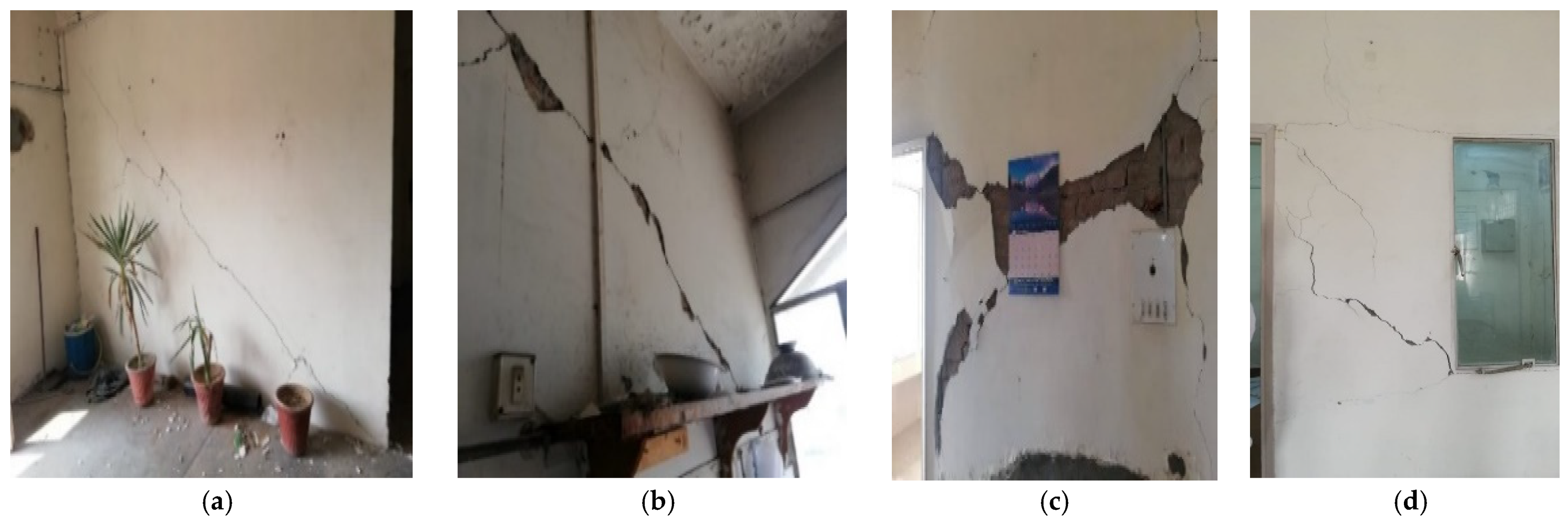

Detail surveys and site inspections of the building after the earthquake showed that the RC elements were not significantly damaged by the earthquake action. As shown in Figure 11, Figure 12 and Figure 13, some beams and columns were partially damaged; however, most of the damages were observed in the infill walls. In fact, they sustained a large portion of the horizontal forces and, consequently, significantly increased the stiffness and strength of the building, thus preventing the structural components from failing. In this case, the presence of the infills was beneficial to the overall performance of the structural elements. The BF model predicted much higher damage in the structural elements, while the IF model, thanks to the inclusion of the proposed struts, showed good agreement with the observed damage in the structure.

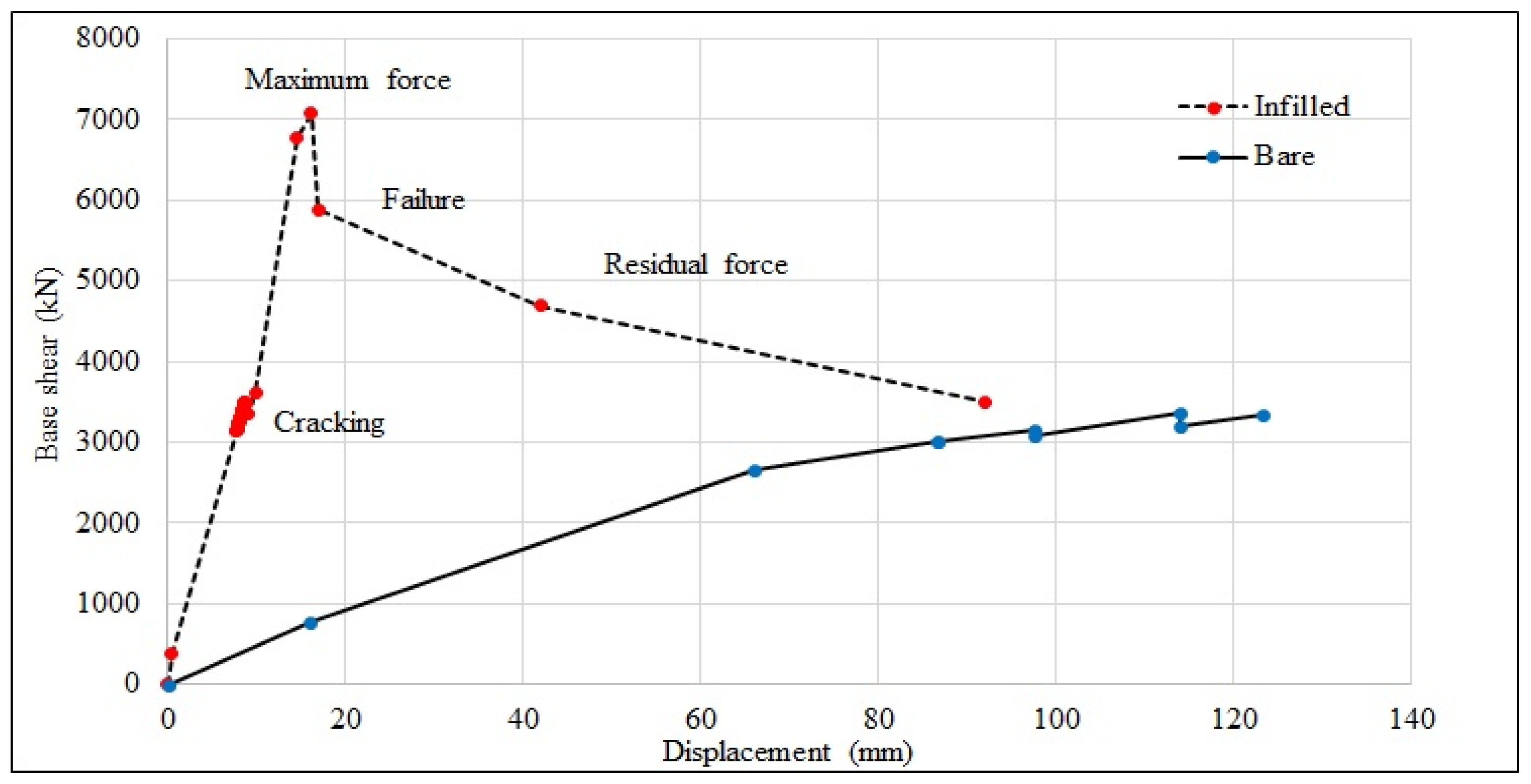

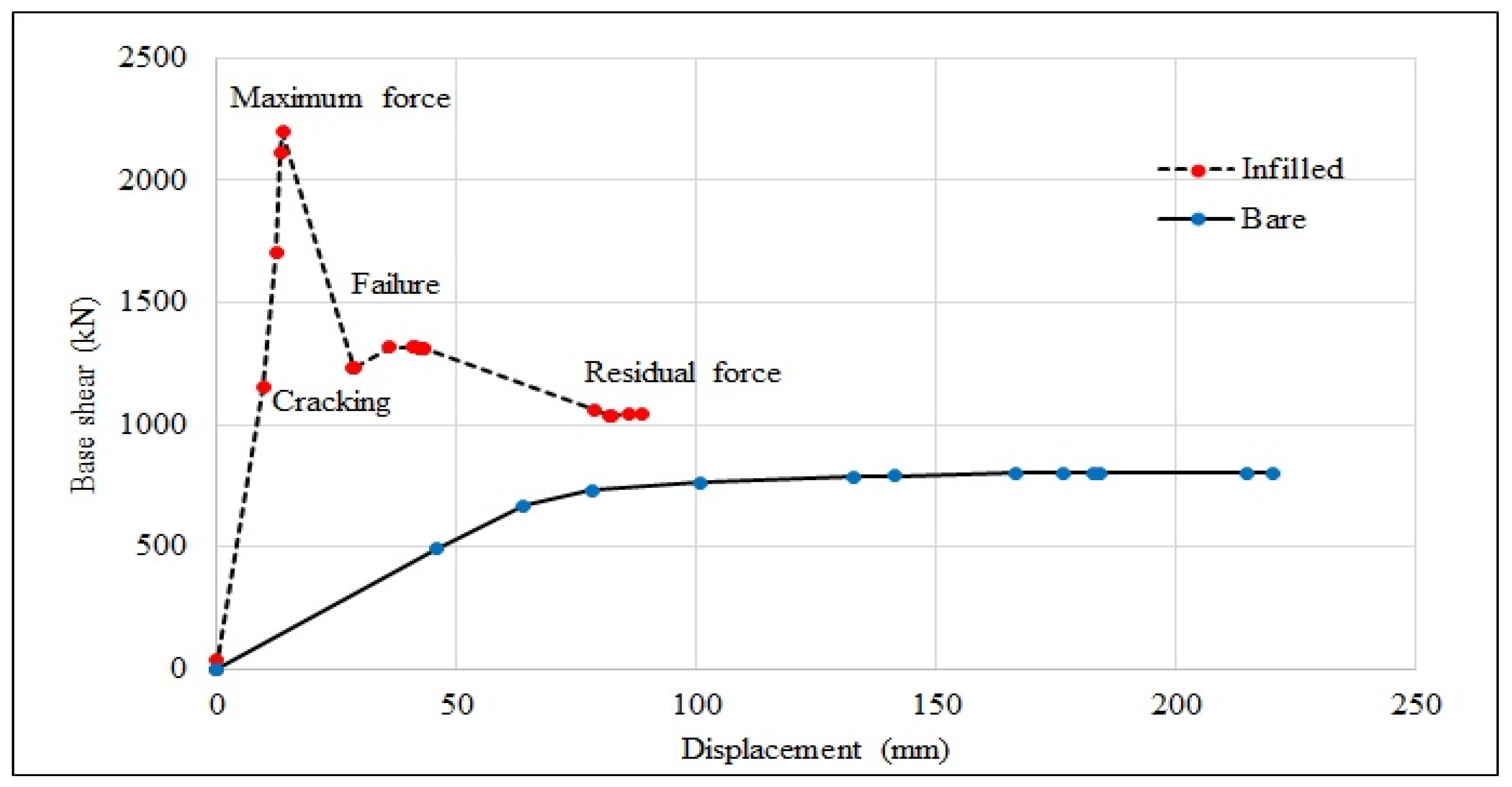

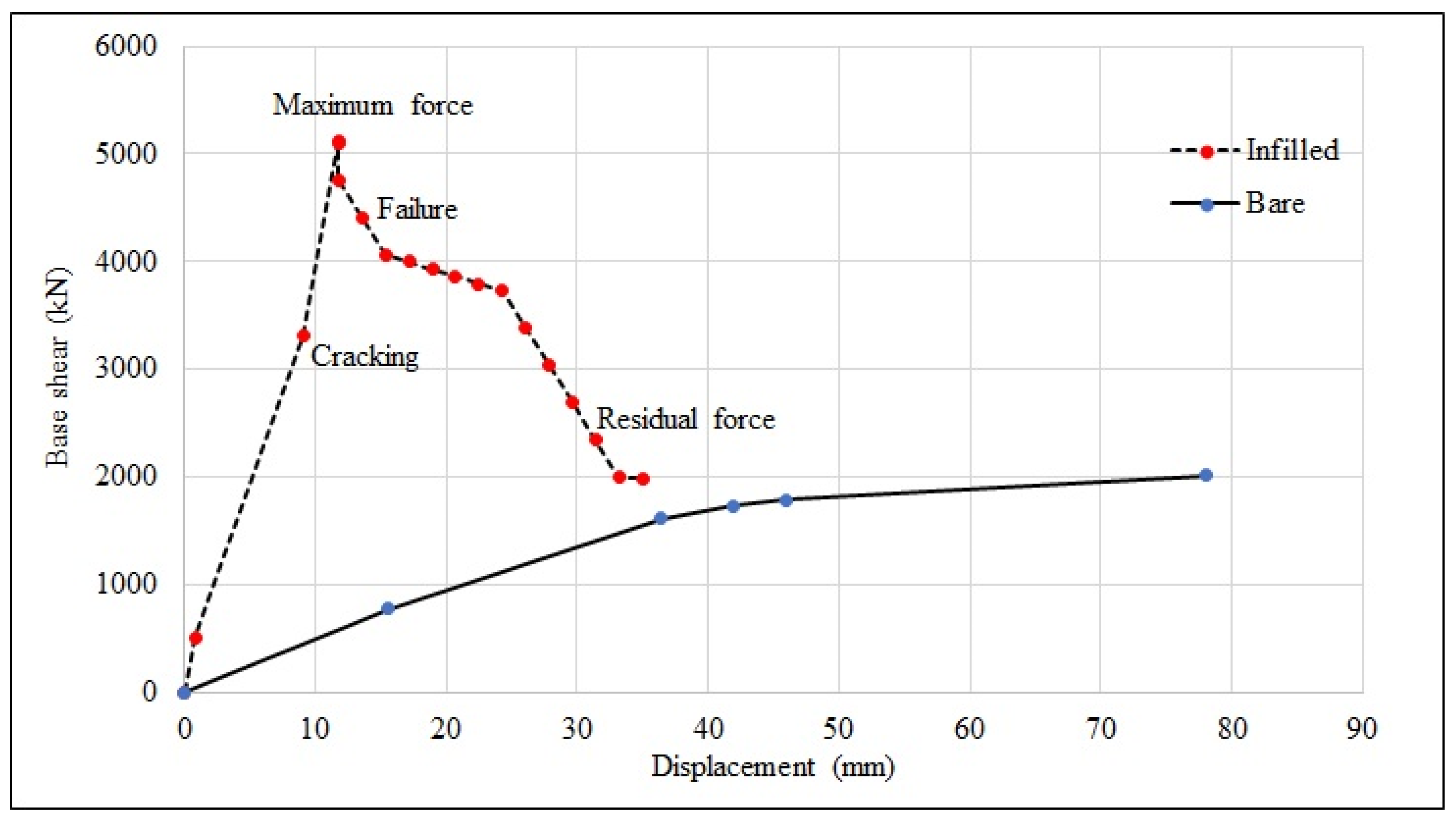

From the quantitative standpoint, the resulting capacity curves of IF and BF for 2D and 3D models can be appreciated in Figure 19, Figure 20 and Figure 21. It is noticed that in the case of 2D analysis, IF has an almost three-times greater strength than BF, whereas in the 3D model, the strength of IF increased to almost two times greater than the strength of BF, provided by the presence of the infills. Additionally, the initial stiffness increased 11 times in the case of the 2D frame, and 8 times in the case of 3D model, which resulted in a 70% and 68% decrease of the fundamental vibration period in the 2D and 3D model, respectively.

It was also observed that drift ratio, top story drift, and ductility of IF compared to BF of 2D and 3D models were decreased by 60%, 7%, 40%, 70%, 14%, and 29%, respectively. Using the ATC-40 capacity spectrum method, it was possible to ascertain that the presence of the infills in the case of the 2D frame allowed the IF performance to increase up to 130% with respect to BF and decrease by almost 80% in the case of the 3D model, which simply means that infill walls are not always beneficial for the seismic performance of the structure unless they are not regularly distributed along the elevation and plan of the building.

The IF model allowed to correctly detect the presence of the most relevant in-plane failure mechanisms in the infill walls, such as diagonal cracking, corner crushing, and bed sliding/shear failure (Figure 13). This was highlighted by the behavior of the strut elements, which was damaged in the same locations observed in the building. It was also confirmed that the infill walls stiffen the frame and thus reduce the damage in the reinforced concrete elements. Finally, as a last remark, it was confirmed that if the infill walls are made with bricks with a strength greater than the mortar strength, an additional friction-related energy dissipation develops during cyclic loading, thus reducing the overall response of the structure and avoiding brittle failures in the bricks. This important phenomenon, which has two-fold beneficial consequences, is naturally accounted for in the proposed model through the use of the basic parameters of mortar strength and mortar–brick friction coefficient.

4. Conclusions

The following conclusions can be drawn:

• The in situ damage observed in building and analysis results reveals that infill walls have significant effects on the seismic response of building, whereas the current design practice in the county does not consider infill walls during the designing and assessment of existing structures.
• In situ investigations on earthquake-struck buildings and detailed analysis results confirm well-known observations that infill walls have a strong influence on the seismic performance of buildings. Therefore, careful selection is needed when choosing materials and their properties in the design, assessment, and construction of IRC frame structures, especially in Pakistan, where this technique is widely diffused.
• The developed model shows good agreement with experimental results and improved accuracy with respect to other models available in the literature.
• The analysis results show that, for the selected case study, the seismic performance was correctly represented by including an appropriate model of the infills. The non-structural damage pattern throughout the building was correctly represented.
• Although the strength and stiffness of the studied IRC frame increase significantly, a less ductile failure is observed. Therefore, the effects of infill walls should be carefully accounted for in appropriate models, both in designing new structures and in assessing existing structures.
• The proposed model is simple to apply and requires less computational efforts with respect to more detailed models, thus helping practitioners and structural engineers to deal with IRC frame structures.
