Next Article in Journal
Minimization of the Thermal Impact in the Laser Welding of Dissimilar Stainless Steels
Previous Article in Journal
Primary Structure and Graphite Nodules in Thin-Walled High-Nickel Ductile Iron Castings
Article Menu
Issue 8 (August) cover image

Export Article

Open AccessArticle
Metals 2018, 8(8), 648; https://doi.org/10.3390/met8080648

Enhanced Formability and Accelerated Precipitation Behavior of 7075 Al Alloy Extruded Rod by High Temperature Aging

Department of Materials Science and Engineering, National Cheng Kung University, Tainan 701, Taiwan
*
Author to whom correspondence should be addressed.
Received: 30 July 2018 / Revised: 9 August 2018 / Accepted: 13 August 2018 / Published: 17 August 2018
Full-Text   |   PDF [8396 KB, uploaded 18 August 2018]   |

Abstract

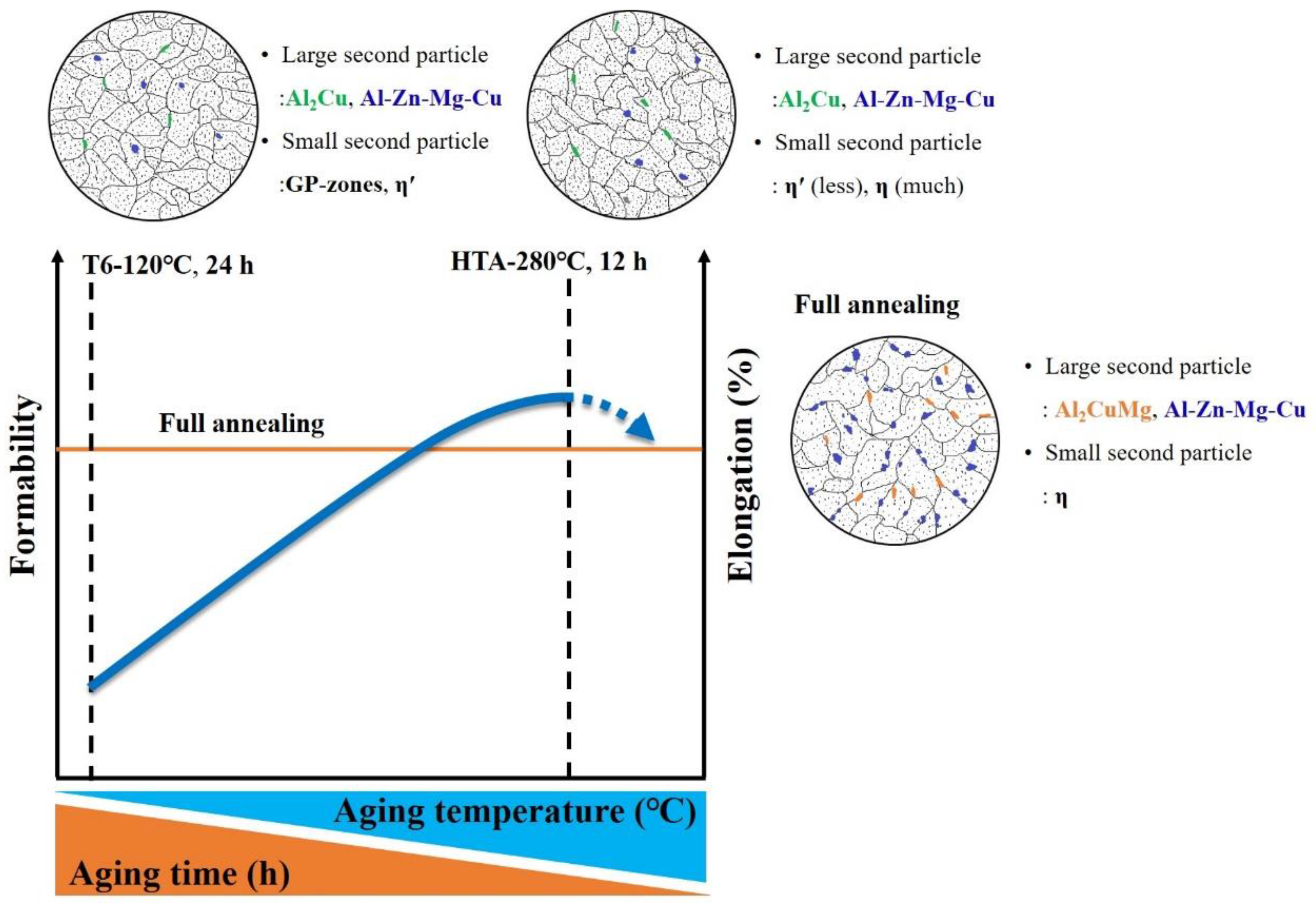

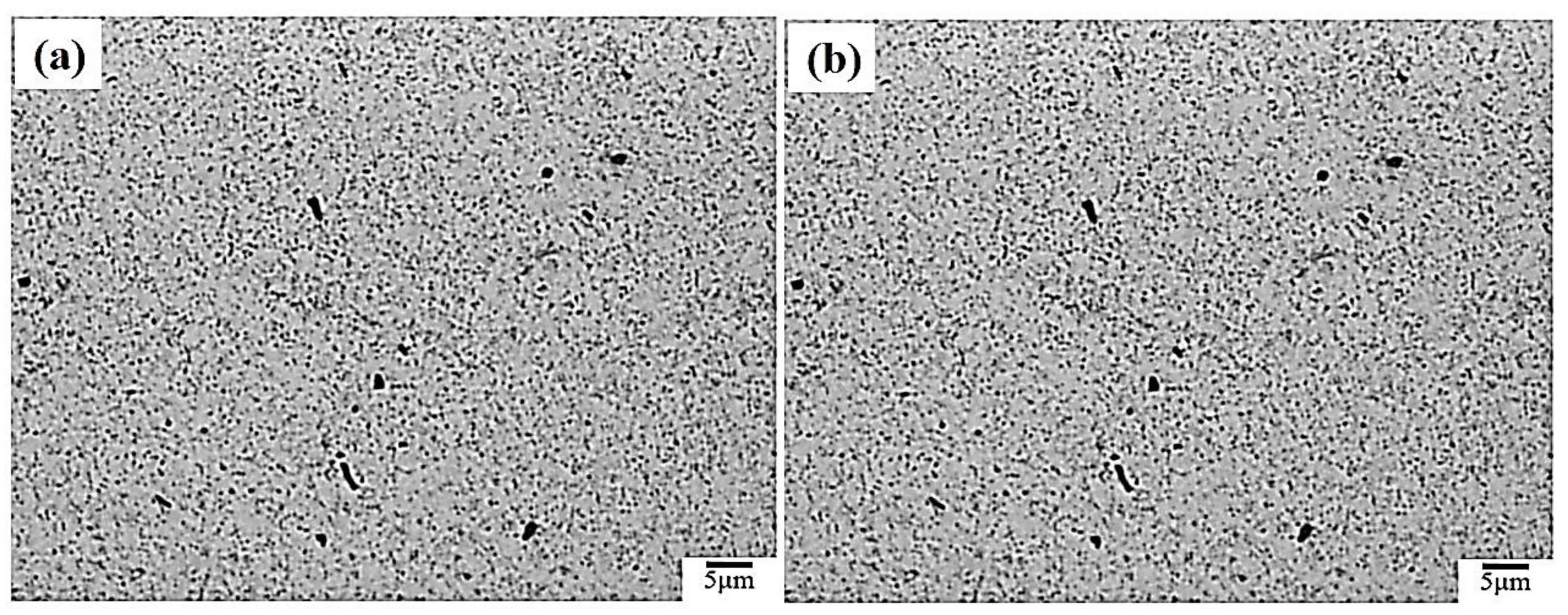

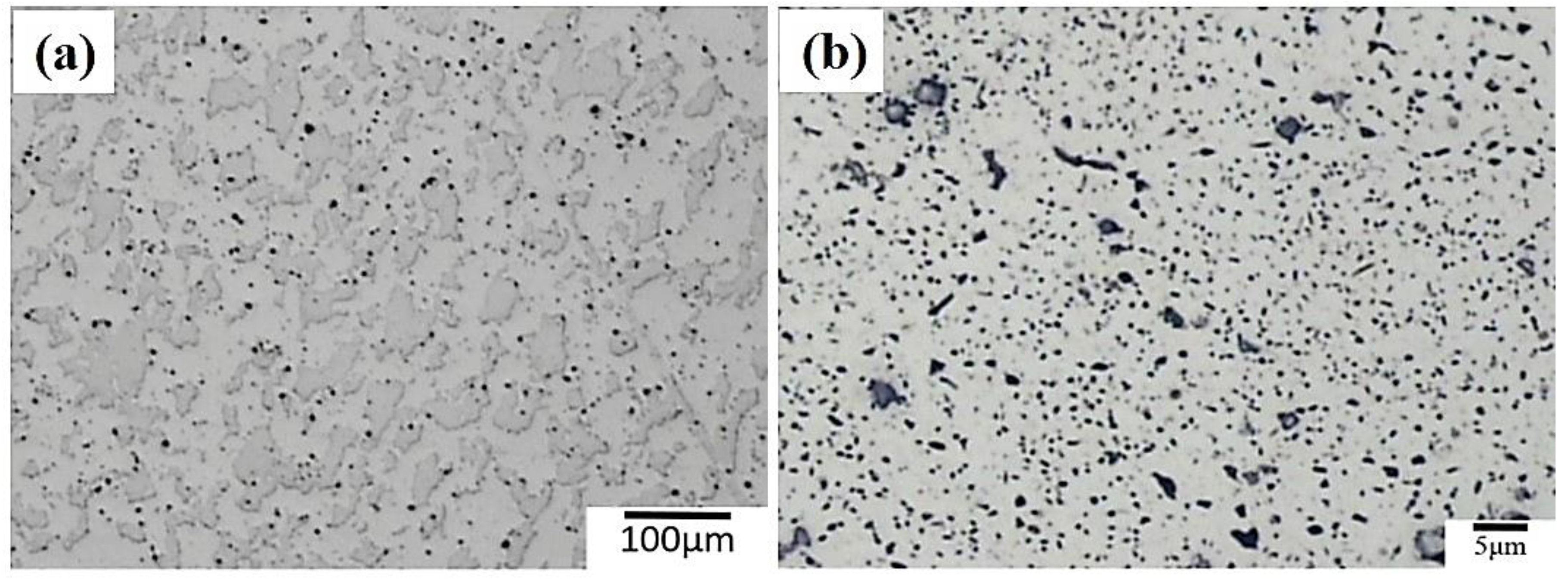

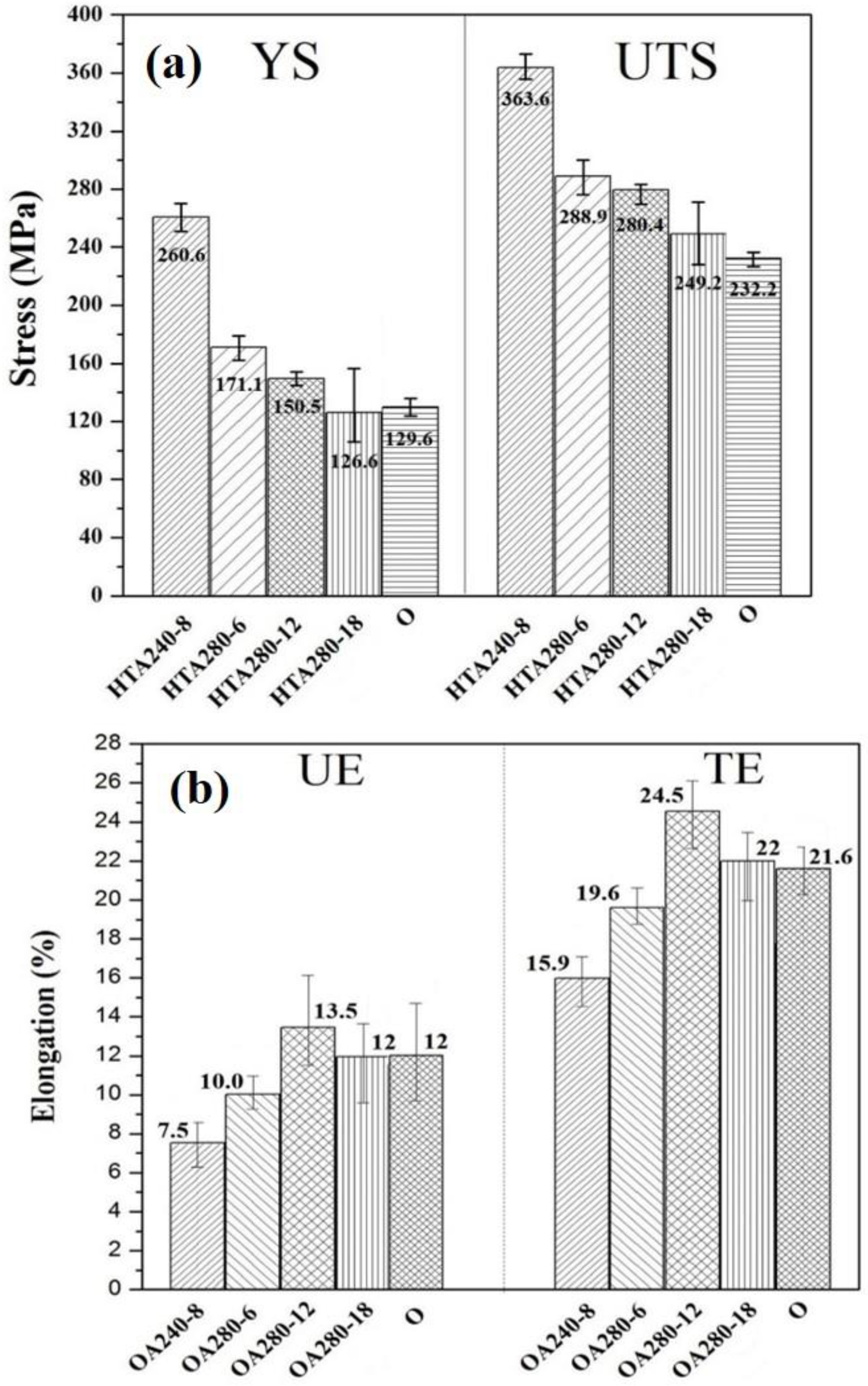

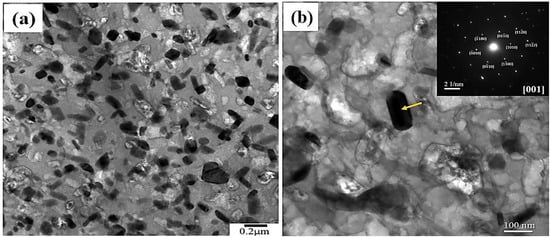

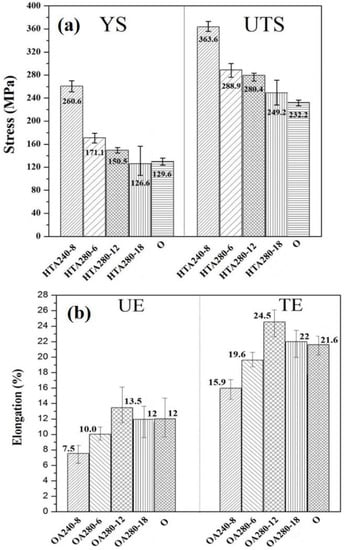

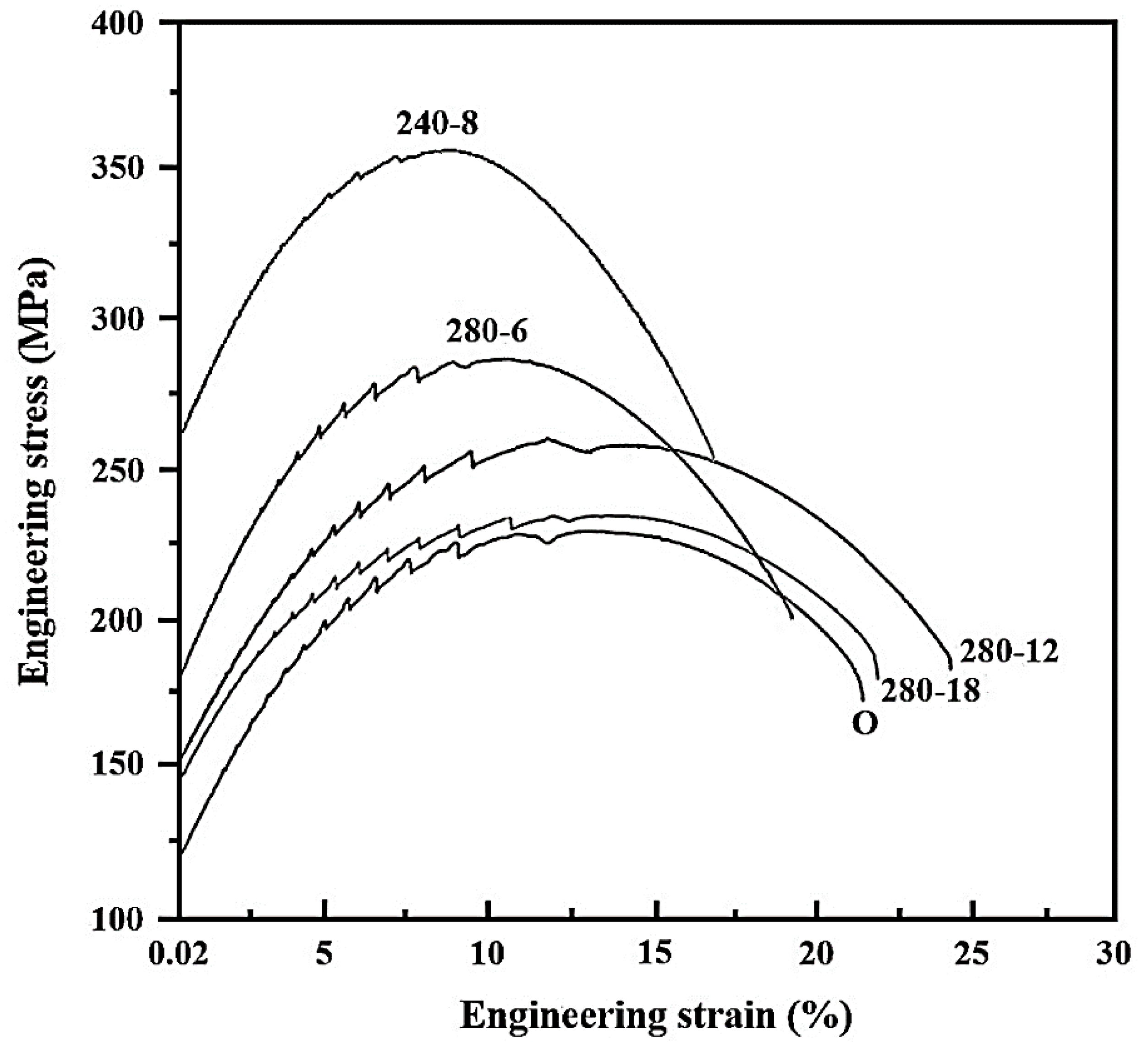

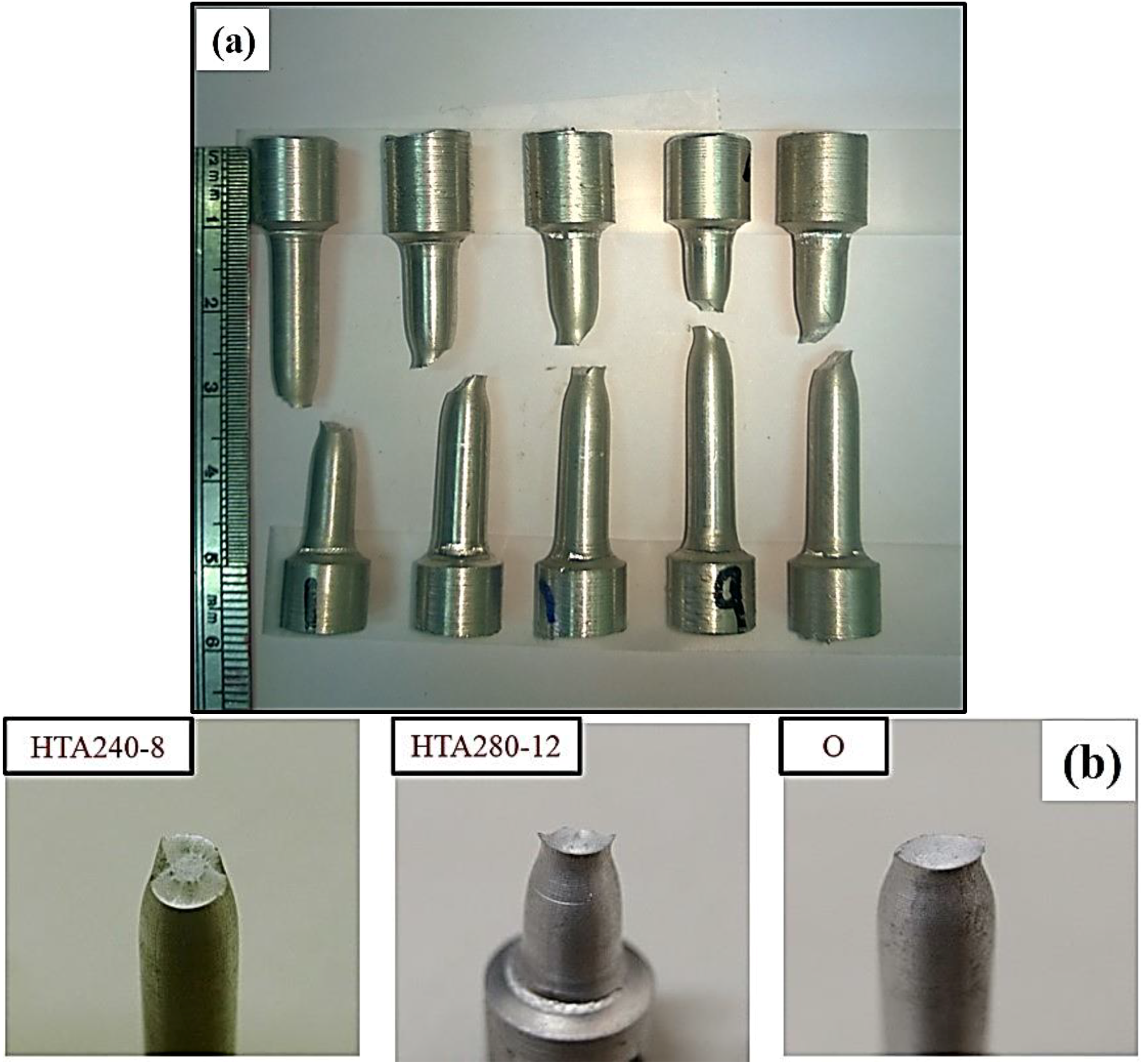

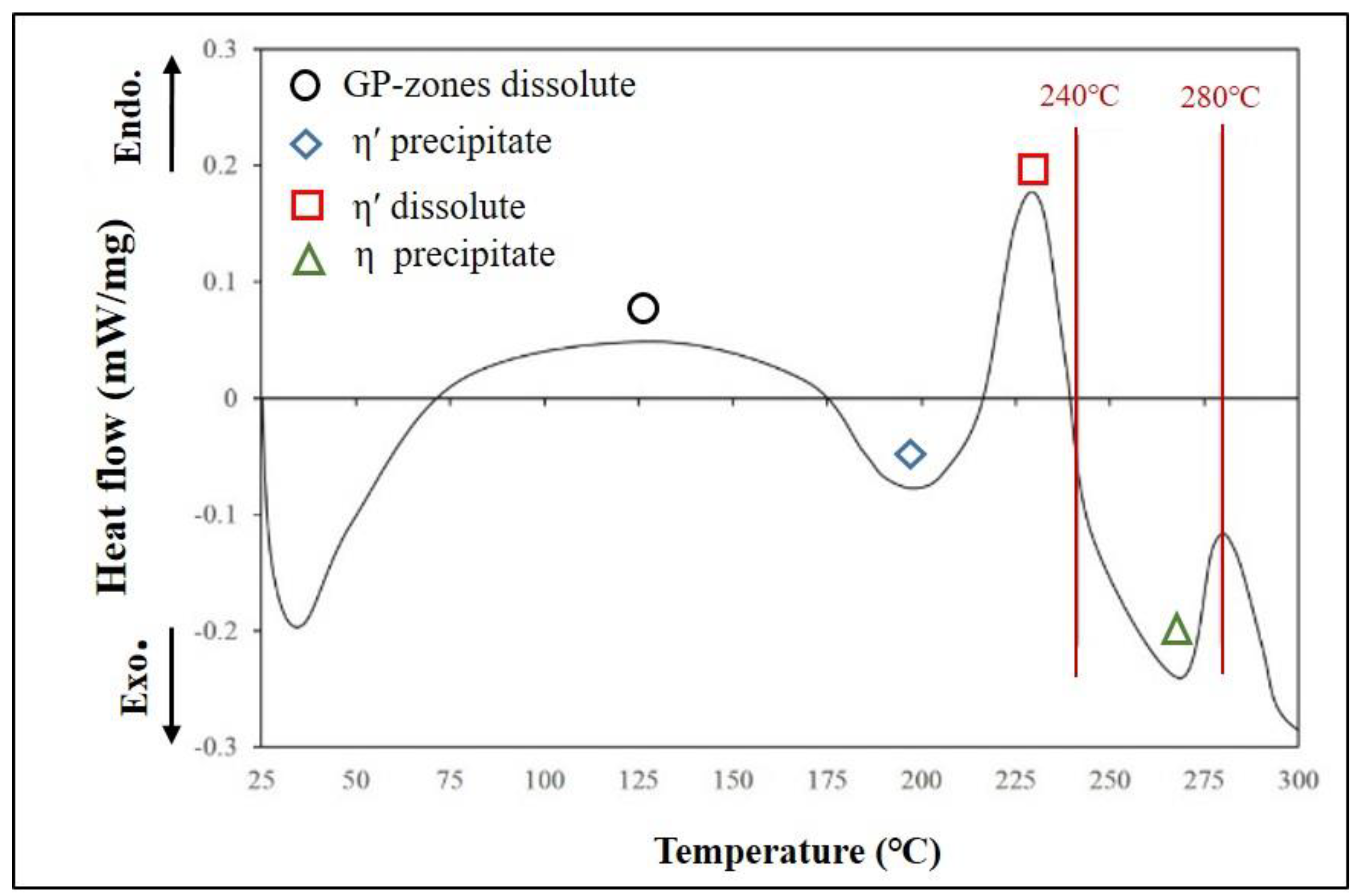

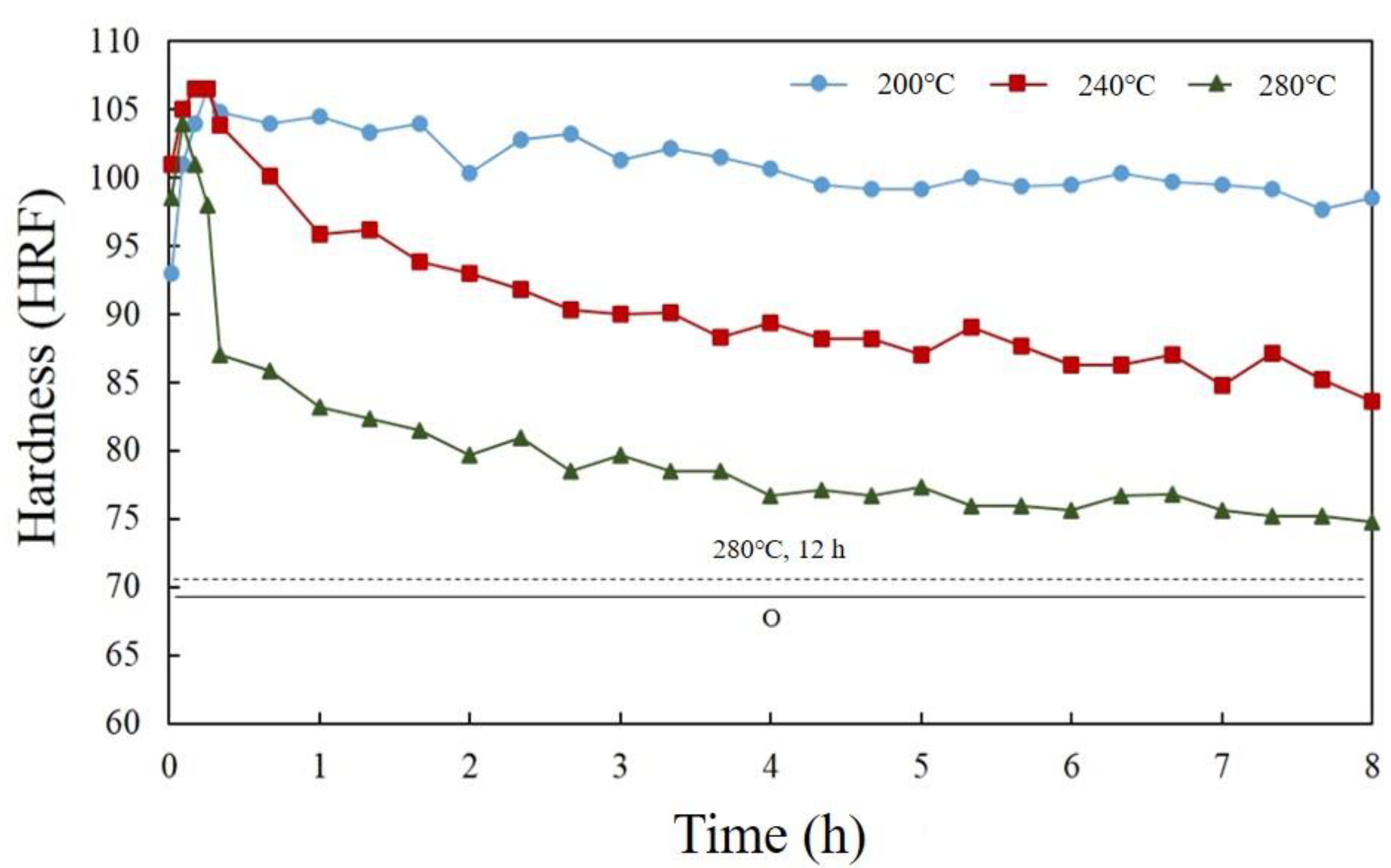

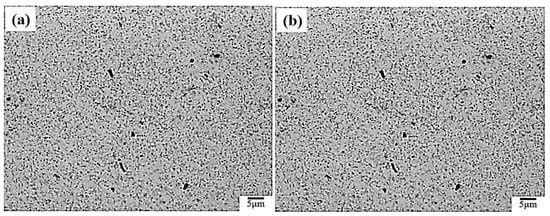

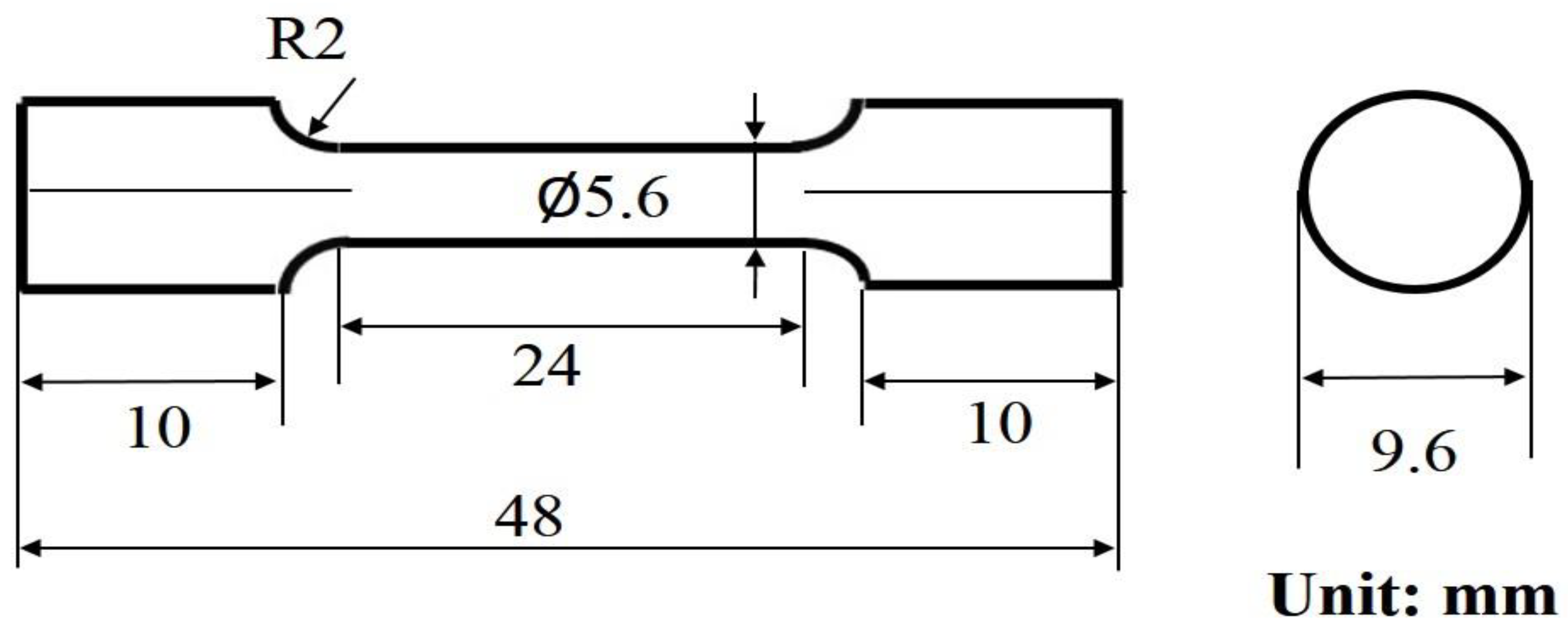

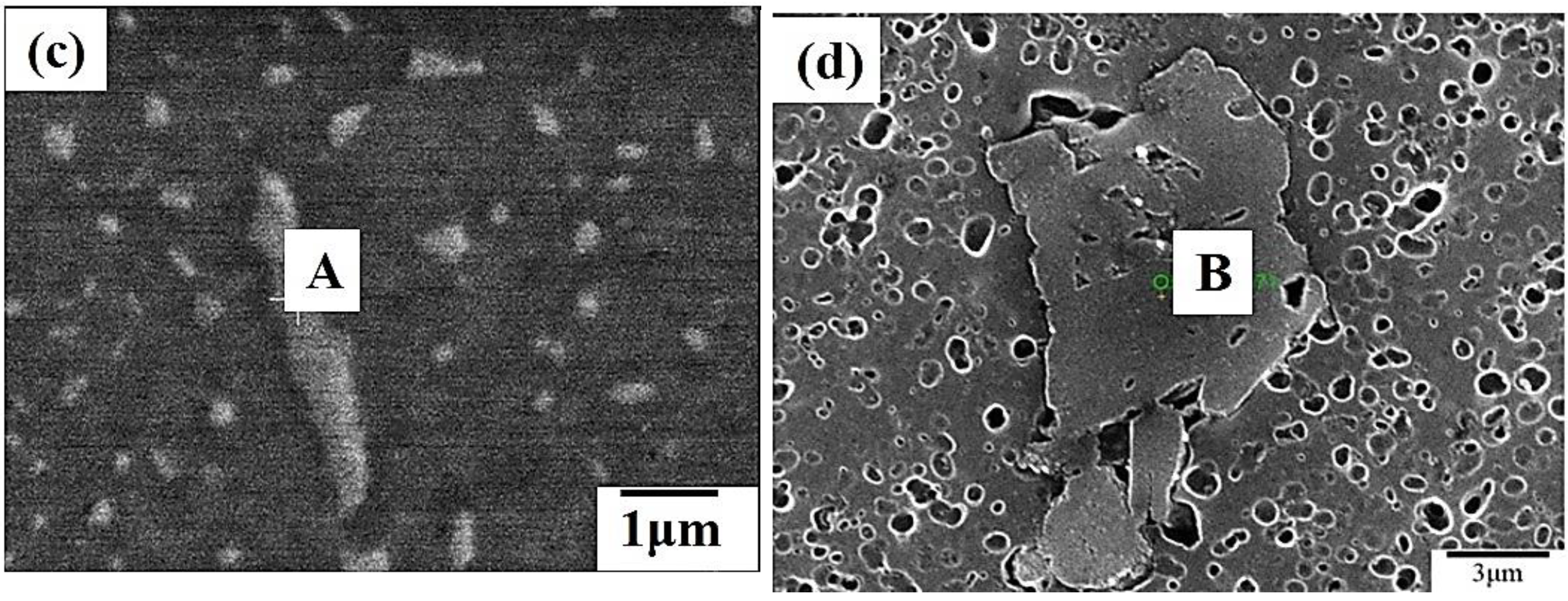

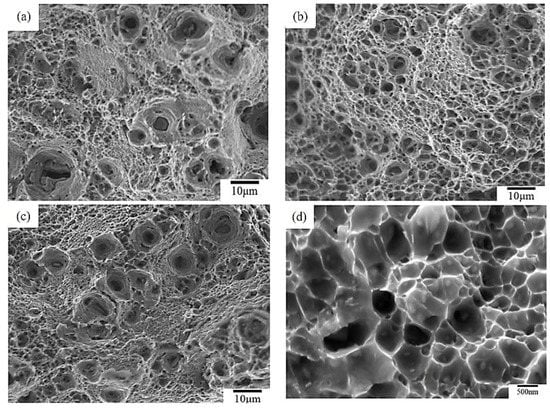

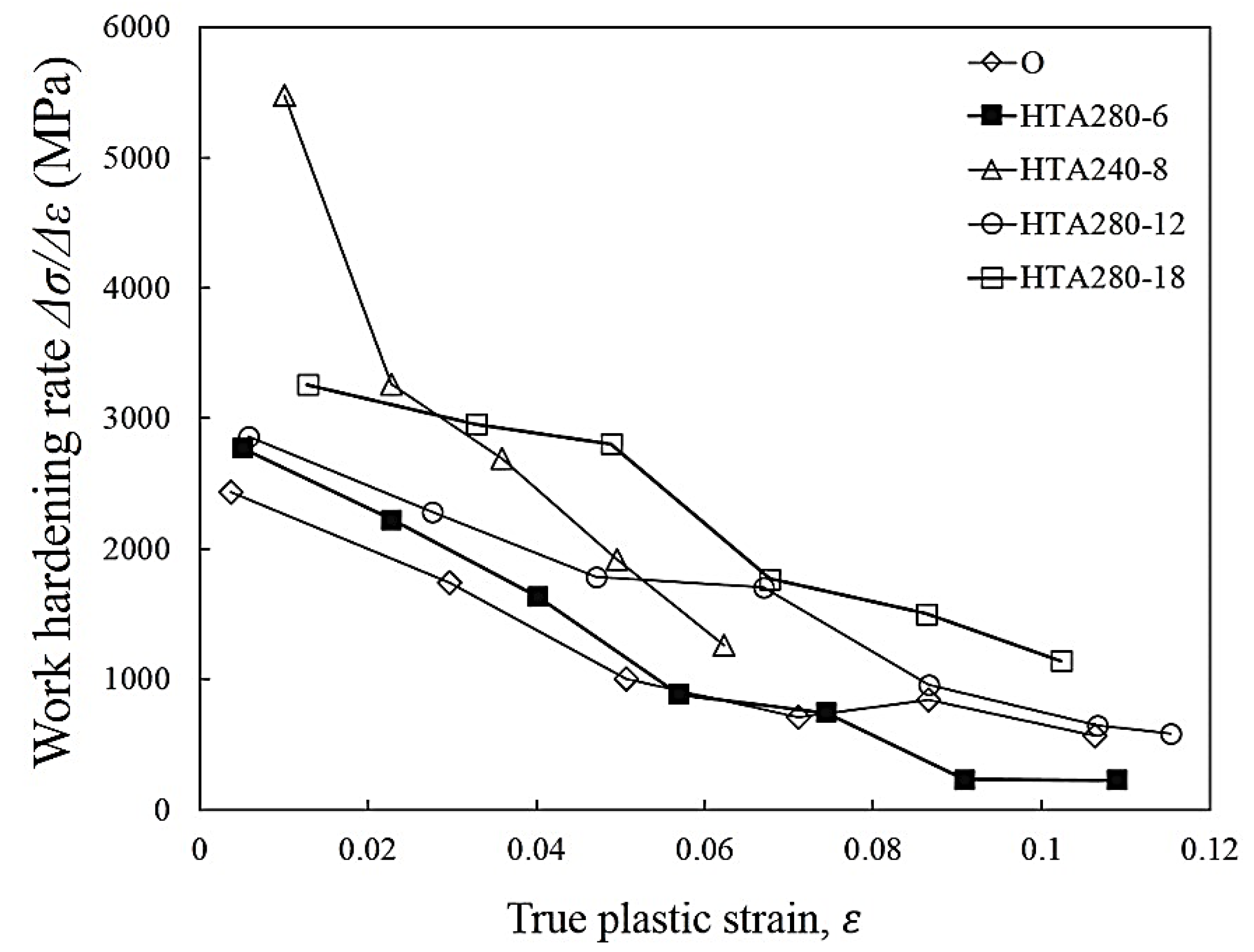

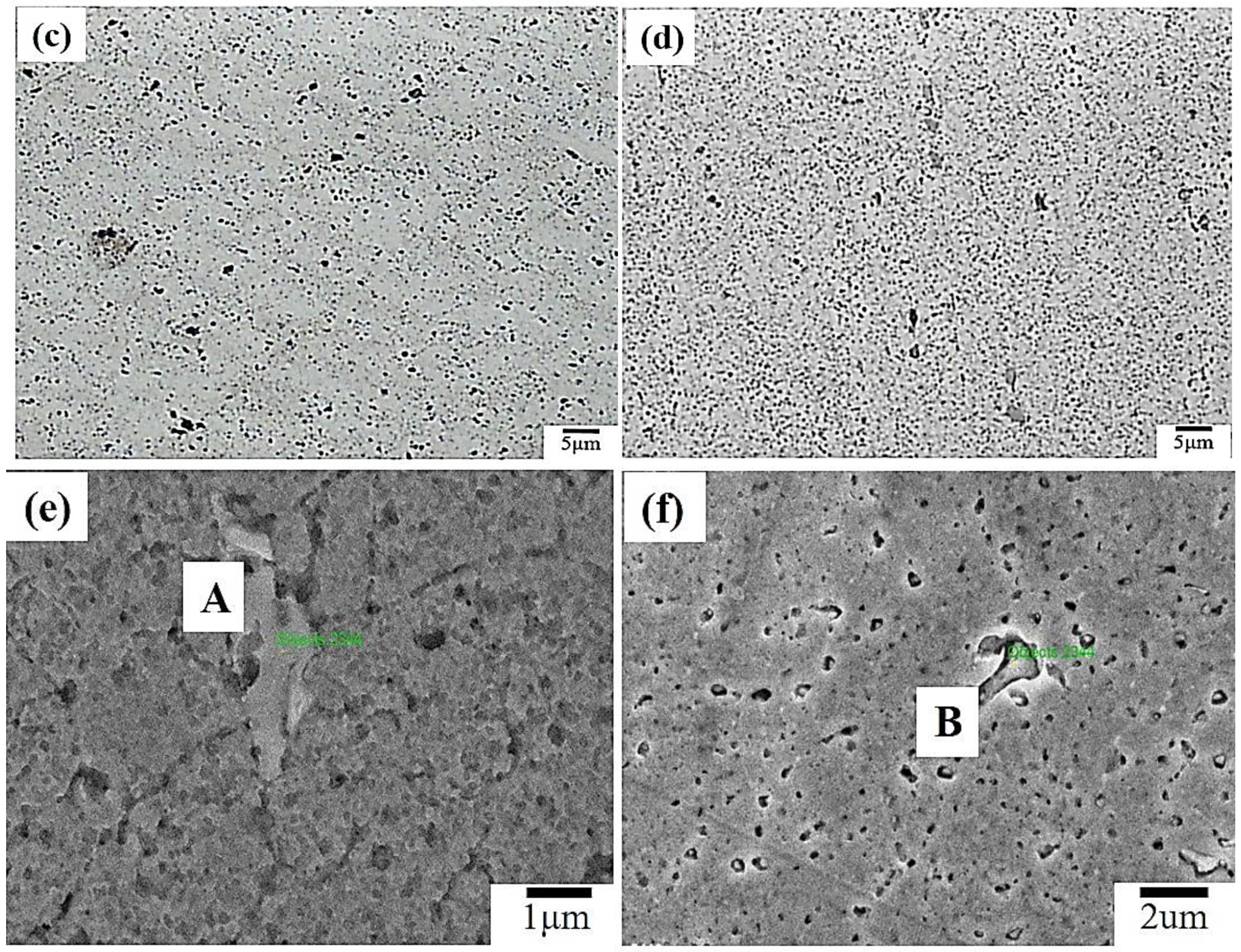

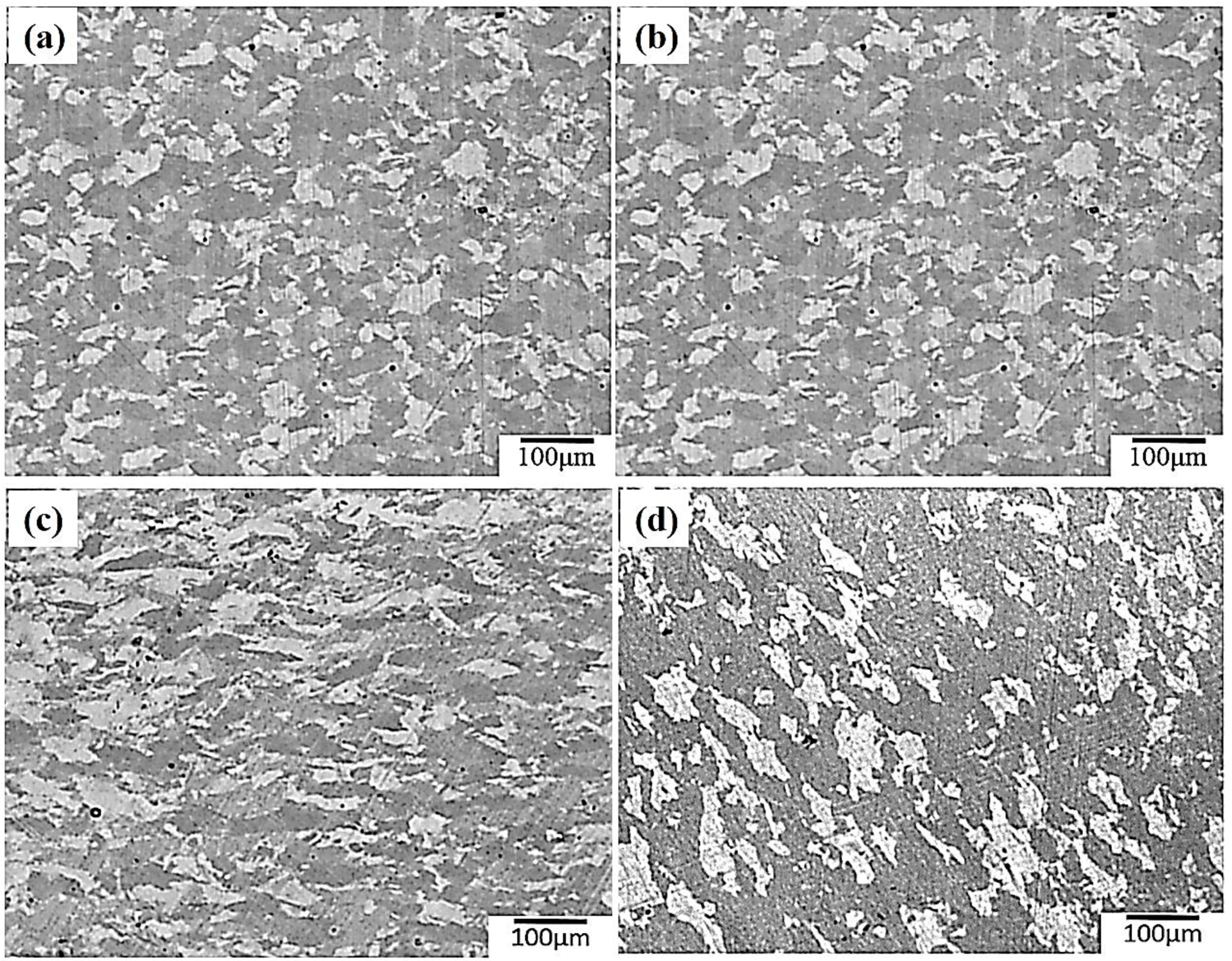

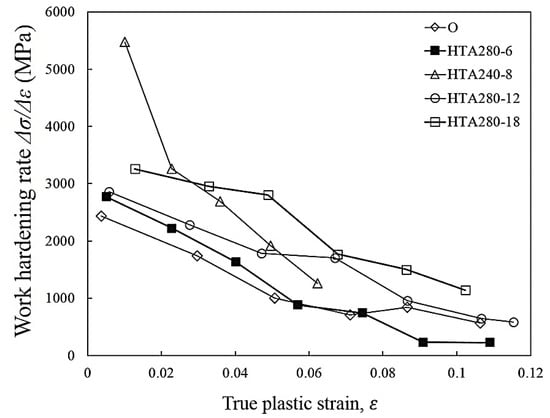

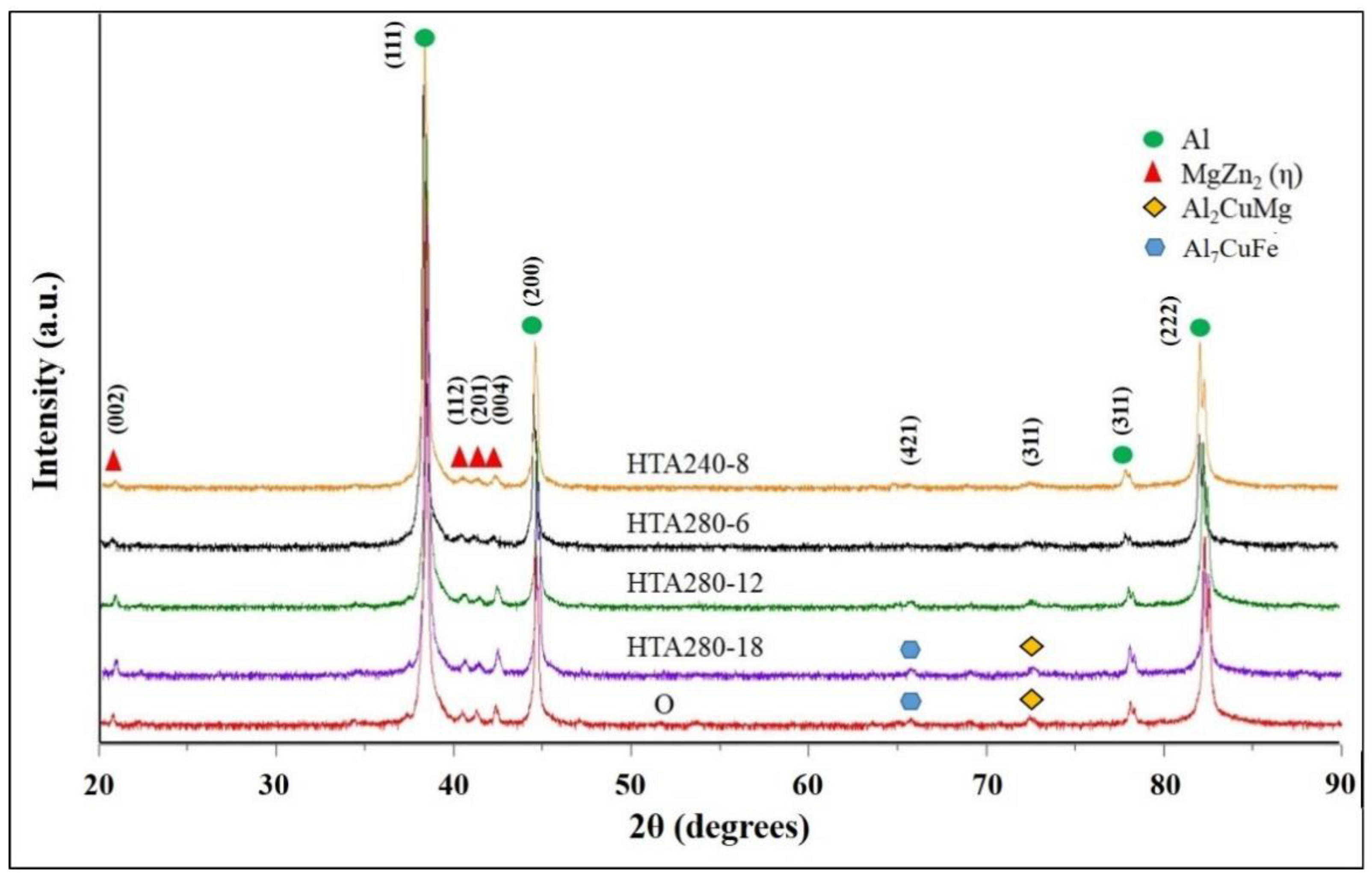

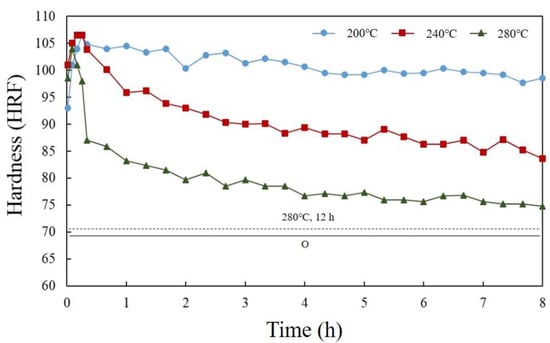

This study was conducted for high temperature aging (HTA) to simultaneously reduce current treatment time and increase the tensile ductility of 7075 aluminum alloy. Various high temperatures and different durations for artificial aging were compared. We investigated the microstructure and the tensile properties of 7075 aluminum alloy extruded rod after various HTAs, and compared them with the outcomes of full annealing (O). The total elongation (TE) of the specimen after solution heat treatment (490 °C, 1 h) and artificial aging (280 °C, 12 h) was about 25%. For full annealing, it is known as 21%. The reason for this was the formation of the η phase in the matrix, which had fewer large particles (Al-Cu phase). The hardening of HTA specimens is higher than that of O, indicating necking resistance during homogeneous plastic deformation. Thereby, HTA treatment increases the formability of 7075 aluminum alloy. View Full-Text
Keywords: 7075 aluminum alloy; high temperature aging (HTA); tensile ductility; formability 7075 aluminum alloy; high temperature aging (HTA); tensile ductility; formability
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Ku, M.-H.; Hung, F.-Y.; Lui, T.-S.; Lai, J.-J. Enhanced Formability and Accelerated Precipitation Behavior of 7075 Al Alloy Extruded Rod by High Temperature Aging. Metals 2018, 8, 648.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
