Temperature-Time Superposition Effect on Compressive Properties of AZ31B Magnesium Composite Foams

Abstract

Magnesium composite foams with 10 vol. % of hollow ceramic microspheres (CMs) were prepared by modified melt foaming method. Specimens with homogeneous pore structures were subjected to various heating temperature (150, 250, 320, 400, and 500 °C, respectively) and enduring times (1, 2, 4, 6, and 24 h, respectively). Evolution of microstructure and mechanical properties of the samples, before and after the heating processes were examined by applying X-ray diffraction technique (XRD), differential scanning calorimetry (DSC), scanning electron microscopy (SEM), and quasi-static uniaxial compression test. The results showed that as heating temperature and enduring time increasing, β-Mg₁₇Al₁₂ phases gradually dissolved, resulting in a solid-solution strengthening effect. Meanwhile, internal stress relaxation in the matrix leads to the decrease of yield strength and micro hardness of the specimens. When compared with the unheated foams, the treated specimens possessed lower micro-hardness, yield strength, and energy absorption capacity due to the dissolution of β-Mg₁₇Al₁₂ phases and the release of internal stress. However, higher strain hardening exponents for almost all of the treated composite foams were observed and the reasons were discussed. It is proposed that more factors should be taken into account when using heated composite foams in practical applications.

1. Introduction

In the last few decades, metal matrix syntactic foams (MMSF) with inherent properties of low density, high specific strength, and unique energy absorption capacity have received great attention [1,2,3]. In recent years, Al/Mg matrix syntactic foams are promising weight reduction materials, particularly attention for being used in automobile, aviation, and consumer products fields [4,5]. While, up to date, most of the investigations focused on aluminum or aluminum alloy matrices [6,7,8], only a few studies are available on Mg matrix syntactic foams, e.g., ZC63 magnesium-microballoon composite foams were fabricated by melt stir technique and the processing parameters on the distribution of fly ash microballoons were investigated. Meanwhile, the main interfacial phase between fly ash and ZC63 matrix was MgO, also eutectic and other intermatellic compounds, were found on the interface [6]. Besides, the compressive properties with different contents of fly ash microballoons were also studied [8]. The interaction behavior between AE44 magnesium alloy and SiC-Al₂O₃-SiO₂ ceramic foam was studied, and it was revealed that SiO₂ was predominantly reduced by Mg during the contact of magnesium-rich melt with the ceramics. The main reaction product was MgO with Si element dissolving into the melt [9]. In our previous research, closed-cell AZ31 magnesium composite foams with different percentages of hollow ceramic microspheres (CMs) were successfully prepared by modified melt foaming method and the effects of CMs on the porosity, pore size, and quasi-static compressive behaviors were characterized [10]. It was found that compression fracture mode of the foams changed from brittleness to ductility if the proper percentage of CMs was added.

It is reported that the behavior of magnesium composite foams under various environmental conditions is not yet studied [6]. In addition, from the engineering application perspective, it is significant to consider whether the composite foams can be reused when the foams were subjected to different heating conditions and further studies are needed. Therefore, this work aims to investigate the influence of different heating temperatures and enduring times on the evolution of microstructure and compressive properties of AZ31 magnesium composite foams. The variations of micro-hardness, compressive characterization, and strain hardening exponent under different heating conditions were investigated and the reasons were discussed.

2. Experimental Procedures

2.1. Specimens Fabrication

AZ31B magnesium alloys with the compositions that are shown in

Table 1. AZ31B chemical compositions (wt. %).

Mg	Al	Zn	Mn	Fe	Si	Cu	Ca	Total Imp.
Balance	3.1148	0.8109	0.3197	0.0002	0.0081	0.0003	0.0002	0.1

were used as base materials. Analytically pure grade Ca particles and CaCO₃ powders were used as thickening agent and foaming agents, respectively. CMs with the composition and parameter shown in

Table 2. Composition and parameter of ceramic microspheres (CMs).

Al2O3 (wt %)	SiO2 (wt %)	Stacking Desity (g/cm3)	Size Range (μm)	Wall Thickness (μm)
~10	~90	0.42	40–150	7.5 ± 0.8

were used as the compound material. A modified melt foaming method was applied and the detailed fabrication processes, as follows: (1) cutting magnesium ingot into sheets with of 10~15 mm by electro-discharging machine, (2) place the magnesium alloy sheets and CMs layer by layer in a mid steel crucible, (3) the layered composite materials with the steel crucible are heated together to a fixed temperature, (4) 0.2 wt. % Ca was added into the melt accompanied by a mechanical stirrer with stirring speed of 500 r/min for 8 min, (5) then 1.5 wt. % CaCO₃ powders were added with stirring speed of 1200 r/min for 40 s, and (6) the melt was held for 2 min and then cooled in air. In this work, 10 vol. % CMs were added into AZ31B magnesium alloys and the melting temperature was 680 °C CO₂ and SF₆ mixture gas was used to protect the melt from being ignited or oxidized during the whole procedure. Specimens that were used for microstructure observation and mechanical test were cut into cylindrical samples with diameter of 11 mm and height of 15 mm by electro-discharging machining.

The density and porosity were determined by Equation (1) [11,12]:

$$P_r=\left[V-\left(M/{\rho }_s\right)\right]/V\times 100\%$$

(1)

where $P_r$ is foam porosity, ${\rho }_s$ is matrix density, $M$ is foam weight (g), and $V$ is foam volume (mm³). Specimens with similar porosity of 67% (as shown in

Table 3. Thermal treatment parameters and physical properties of the foams.

Temperature (°C)	Time (h)	Porosity (%)	Pore Size (mm)	Specimens Size (mm)
150	1	67.40	1~2	Φ 10 × 15
	2	67.30
	4	67.20
	6	66.70
	24	67.22
250	1	66.56	1~2	Φ 10 × 15
	2	67.39
	4	66.90
	6	67.40
	24	67.53
320	1	67.41	1~2	Φ 10 × 15
	2	67.50
	4	67.25
	6	67.31
	24	67.19
400	1	67.30	1~2	Φ 10 × 15
	2	67.27
	4	66.90
	6	67.07
	24	67.10
500	1	67.20	1~2	Φ 10 × 15
	2	67.40
	4	67.28
	6	66.90
	24	67.20
As-received	-	67.36	1~2	Φ 10 × 15

) were used in this work and the pore sizes were determined by mean intercept length technique.

2.2. Thermal Treatment

Different heating temperatures of 150 °C, 250 °C, 320 °C, 400 °C, 500 °C and enduring times of 1 h, 2 h, 4 h, 6 h, 24 h were selected for thermal treatment. Graphite powders were used to cover all of the specimens to avoid being ignited and oxidized. Electrical resistance furnace was applied for all of the thermal treatments with detailed process parameters shown in Table 3. It should be noted that all of the specimens were quenched in room temperature water immediately when they were taken out of the furnace. For each parameter, three samples were treated.

2.3. Microstructure Observation

Samples that were used for microstructure observation were ground through successive grades, and finally to 3000 grit emery paper, then polished by using 0.5 μm polishing paste, and finally etched with 4 vol. % nitric acid alcohol. Olymups-BX41M optical microscope (OM, Olymups Corporation, Tokyo, Japan) and Zeiss MA15 scanning electron microscope (SEM, Carl Zeiss, Oberkochen, Germany) equipped with energy-dispersive spectra (EDS) were used for microstructure and pores morphology observation. SmartLab X-ray diffraction (XRD, Rigaku Corporation, Tokyo, Japan) using copper Kα radiation was applied for phase compositions calibration. SDT Q-600 differential scanning calorimeter (DSC, TA Instruments-water LLC, Newcastle, DE, USA) with heating rate of 10 °C/min was used to measure the phase change process.

2.4. Mechanical Property Test

The compressive properties were examined using SUNS Electron Universal Material Testing Machine (Shenzhen SUNS Technology Stock Co., Ltd., Shenzhen, China) with a maximum load of 100 kN and a displacement speed of 1.5 mm/min (with the corresponding initial strain rate of 0.002 s⁻¹) at room temperature. All of the results were recorded in a personal computer. For each parameter, three samples were compressed to ensure the reproducibility and the average data were used. The micro-hardness (HMV) was tested through a HMV-2Tmicroscopic hardness tester (Shimadzu Co., Kyoto, Japan) with the load of 10 g and loading time of 10 s, at least eight detections were applied and the average data were used in this work.

3. Results

3.1. Pore Structure and Morphology

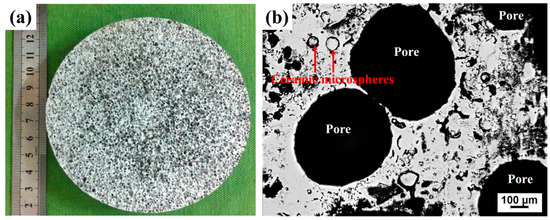

Figure 1a shows the macrograph of the composite foam with 10 vol. % CMs. It is clear seen that the pores are spherical and closed-cell and it is homogeneously distributed on the whole cross section homogeneously. The diameters of the pores mainly distribute in the narrow range of 1–2 mm, which are much smaller and homogeneous than other reported closed-cell metal foams. Figure 1b shows the representative morphology of CMs in the composite foams. It shows that CMs distribute independently in the cell wall and there is no sign of CMs cluster. Meanwhile, most of the CMs maintain their original appearance, despite a small part of them being broken and the fragments being easily observed. This is mainly due to the difference of thermal expansion coefficients between the CMs and the matrix, and the mechanical stirring process during the preparation procedures. It should also be noted that almost all of the CMs are penetrated by the magnesium matrix, meaning good bond strength between the CMs and the matrix.

3.2. Microstructure and Phase Composition

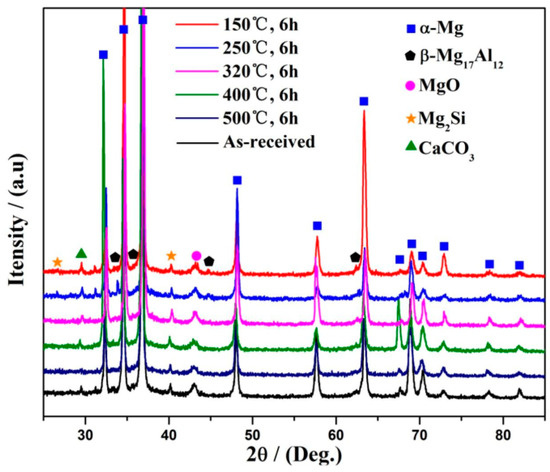

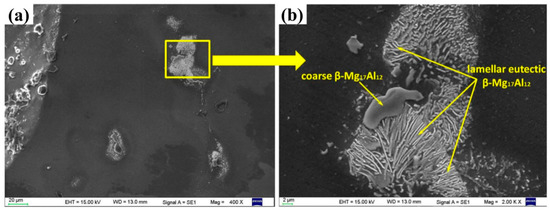

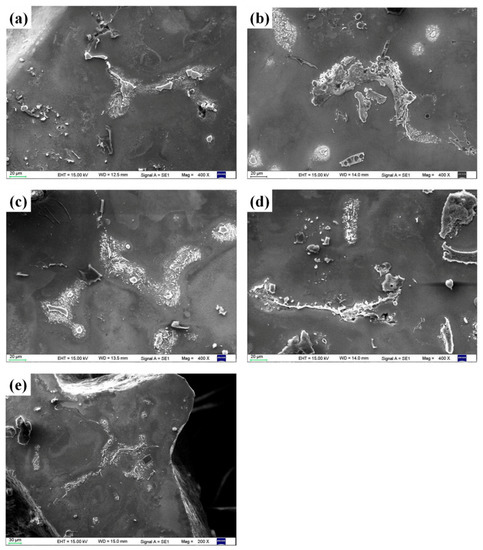

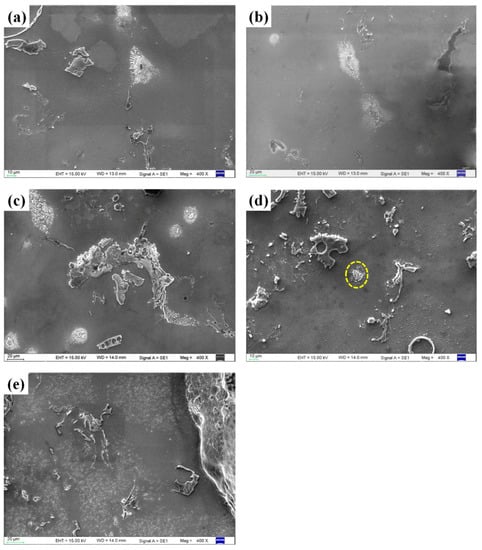

Figure 2 shows the phase composition evolution of the composite foams under different heating conditions. It is clear that there are presently mainly five kinds of phases in all of the foams, that is α-Mg, β-Mg₁₇Al₁₂, MgO, Mg₂Si, and CaCO₃. The appearance of Mg₂Si phase is due to the reaction between CMs and the matrix [8,9,10,13]. CaCO₃ is from the undecomposed foaming agent. It can be seen that with the heating temperature increasing the peak intensity of β-Mg₁₇Al₁₂ decreases gradually, meaning that the content decreases. Figure 3 shows the typical morphology of β-Mg₁₇Al₁₂ and it can be seen that β-Mg₁₇Al₁₂ mainly distribute along the grain boundaries (Figure 3a) with the typical morphologies of lamellar β-Mg₁₇Al₁₂ distributes around the bulk β-Mg₁₇Al₁₂ precipitates (Figure 3b) [14,15,16]. It should be underlined that no obvious β-Mg₁₇Al₁₂ phases were observed in traditional AZ31 magnesium foams [17,18,19], and the reasons will be discussed in Section 4. Figure 4 shows the evolution of β-Mg₁₇Al₁₂ at 320 °C, it presents that part of bulk β-Mg₁₇Al₁₂ dissolves as the holding time increasing. As for the lamellar precipitates, part of them also dissolves into the matrix, leading to the content decrease along the grain boundaries. Also, it should not be ignored that β-Mg₁₇Al₁₂ appears in the grain interior. Figure 5 shows the effect of heating temperature on the microstructure evolution of the foams. It can be seen that under lower temperatures (150 °C and 250 °C, Figure 5a,b) dissolution of the β-Mg₁₇Al₁₂ is not evident. While, increasing the temperature to 320 °C, lamellar precipitates start to dissolve (Figure 5c). Further increasing the temperature to 400 °C, the lamellar precipitates almost completely dissolve and the coarse precipitates begin to crack (Figure 5d), and it can be clearly seen that β-Mg₁₇Al₁₂ precipitates completely dissolve when the foams are heated at 500 °C (Figure 5e).

3.3. Micro-Hardness

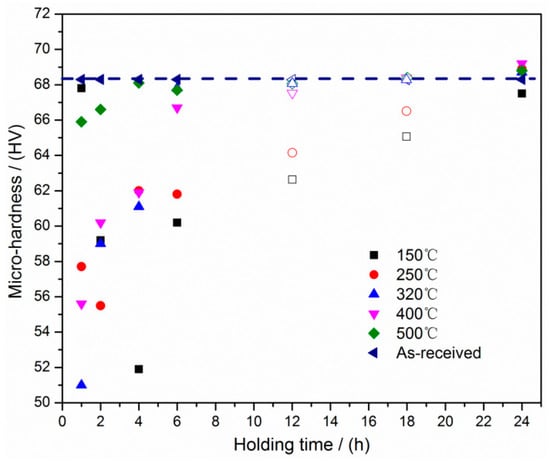

As shown in Figure 6, the thermal treatment can significantly influence the micro-hardness of the composite foams. It can be seen that thermal treatment lowers the micro-hardness of the foams when compared with the as-received foam. Typically, for the foams that are treated at 150 °C, the micro-hardness drops sharply after heating for 2 h and then decreases to the lowest level at 4 h. As for the foams that are heated at 250 °C, the lowest micro-hardness value presents at 2 h. While, for the foams heated at 320 °C to 500 °C, the hardness values increase gradually with extension of the holding time from 1 to 24 h. Meanwhile, it can be found that with the heating time increasing, the difference of micro-hardness values between the foams gradually become smaller. Specially, the micro-hardness values of the foams that are heated for 24 h are almost the same and are slightly higher than the as-received foams, except for the foams heated at 150 °C.

3.4. Compression Characteristics

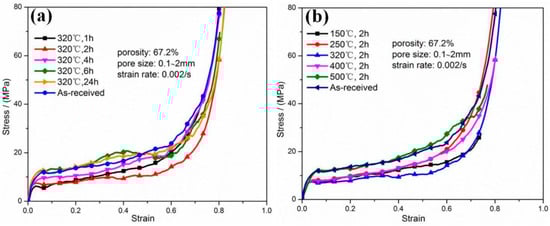

Representative compressive stress-strain curves of the foams under different heating conditions are shown in Figure 7. It can be seen that the thermal treatment process has no obvious influence on the whole tendency of the curves, and there are three typical deformation stages that can be also found elsewhere [10,11,12,17,20,21]: linear deformation stage, yielding plateau stage, and densification stage. It can be clearly seen from Figure 7 that for almost all of the specimens, the yielding plateau stages are smooth without big fluctuation or serrations. Two reasons are responsible for this phenomenon. One is the small pore size (as shown in Figure 1) of the foams due to the introduction of Mg₂Si (reaction product of CMs and magnesium melt) phases, which can also act as the nucleation particles of bubbles besides Ca granule [2,10]. Accordingly, the change of compression stress is very small when one layer of cells is crushed because the strength of each single cell is small [20]. Another is that the foam edge will flake away during crushing, which will decrease the support of samples, and thus will stop the stress from increasing when the specimens are compressed [21]. It also should be noted from Figure 7a that the yield stress and the plateau stress [17] of the foams heated at 320 °C gradually increase with time increasing, and the yield stresses of the foams treated for 6 h and 24 h are nearly equal to that of the unheated foam. Figure 7b reveals that heating temperature has an important effect on yield stress and plateau stress. With lower temperatures (150 °C, 250 °C, 320 °C, and 400 °C), both of the stresses change little. While, for the foams that were treated at 500 °C, the yield stress and plateau stress are significantly improved with the same holding time of 2 h. To clearly describe the variation, the yield stress of the foams treated under different conditions is measured and the results are shown in Figure 8. It can be seen that all of the yield stresses are lower than that of the as-received foams, except for the foams that were heated for 24 h. Meanwhile, yield stresses for the foams treated at 150 °C and 250 °C decrease to the lowest level with the endure time of 4 h and 2 h, respectively, just like the tendency of corresponding micro-hardness (Figure 6). While, for the foams that were treated at 320 °C, 400 °C, and 500 °C, yield stresses gradually increase with enduring time increasing. Without exception, the maximum yield stress for all of the foam can be obtained with a holding time of 24 h.

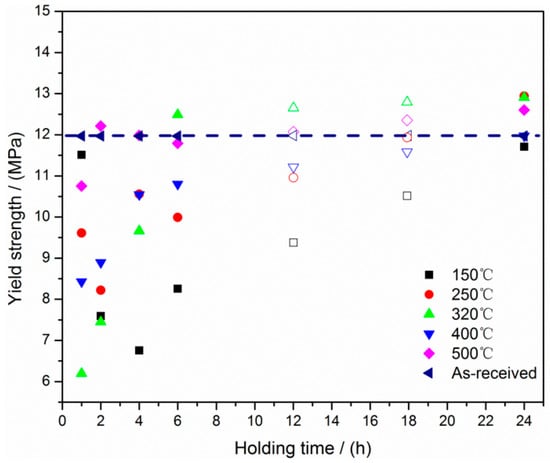

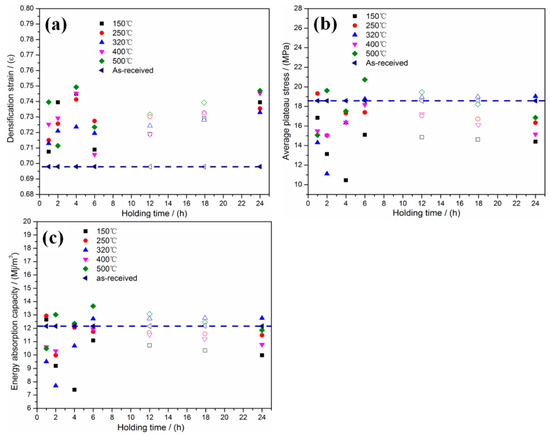

Figure 9a presents the densification strains of the foams treated under different conditions [6]. It is clear that thermal treatment enhances the densification strain of the foams. Mean plateau strength is a unique characteristic of metallic foams [17], and in this work, it is defined as the average stress with the strain from the yield strain to densification strain. Figure 9b shows the mean plateau strength of the foams treated with different temperatures and times. It can be seen that, to majority of the thermal treated foams, mean plateau strength are lower than that of the as-received foams (the dash line). As for the energy absorption capacities of the foams, it can be calculated according to Equation (2), and the results are shown in Figure 9c:

$$W={\int }_0^{\epsilon }\sigma d\epsilon$$

(2)

while $W$ is energy absorption capacity and $\sigma$ is the stress where the strain is $\epsilon$ [17]. It shows from Figure 9c that thermal treatment process lowers the energy absorption capacity and the variation tendency is consistent with the plateau strength, meaning that plateau strength is a main factor that dominates the energy absorption capacity of foams when the densification strains are similar. Thus, it is very significant to improve the plateau strength to obtain excellent energy absorption capacity for metal foams when a specific densification strain is given.

3.5. Strain Hardening Exponent

Strain hardening capability is important for the selection of metallic materials, which can be expressed by strain hardening exponent [22,23,24,25]. When compared to the flow stress and ultimate strength, the strain hardening exponent can reflect the strain hardening behavior of materials more directly [26]. It can be calculated by Equation (3) [27]:

$$\sigma =K{\epsilon }^n$$

(3)

where $\sigma$ is true stress, $K$ is strength coefficient, $\epsilon$ is true plastic strain, and $n$ is strain hardening exponent. The value of $K$ and $n$ can be obtained experimentally by plotting the true stress-true strain curves. In log-log scale, a linear relationship should exist between the true stress and the true strain. The exponent $n$ corresponds to the angular coefficient of the line [28]. The trend of ln($\sigma$) with ln($\epsilon$) and the value of $K$ and $n$ for the foams heated at 320 °C and 2 h (as representative) are shown in Figure 10a,b,

Table 4. The value of K and n of the foams heated at 320 °C.

Holding Time	As-Received	1 h	2 h	4 h	6 h	24 h
K	29.781	31.572	20.825	32.761	42.136	41.622
n	0.377	0.657	0.444	0.534	0.509	0.531

and

Table 5. The value of K and n of the foams held for 2 h.

Holding Temperature	As-Received	150 °C	250 °C	320 °C	400 °C	500 °C
K	29.781	28.048	29.780	20.825	31.049	40.548
n	0.377	0.543	0.544	0.444	0.588	0.558

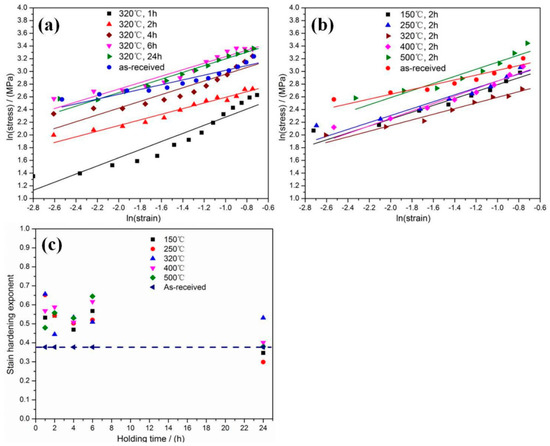

, meanwhile, Figure 10c shows the strain hardening exponent value of all the related foams. It can be clearly seen from Figure 10c that the strain hardening exponent value for most of the heated foams are higher than the as-received foam. When compared to other foams, the foams that were heated for 24 h possess the lowest strain hardening exponent value.

4. Discussion

Due to the unique structure and low thermal conductivity, cooling rates of magnesium composite foam vary in different places during the solidification process, resulting in internal casting stress. In addition, the different thermal conductivity and heat diffusivity between CMs and the matrix will also cause internal stress. Internal stress relaxation is governed by a thermal activated mechanism, which can be described by the Zener-Wert-Avrami relationship as the following equation shows [29,30,31]:

$${\sigma }_{T,t}^{IS}/{\sigma }_0^{IS}=exp\left[-{\left(At\right)}^m\right]$$

(4)

where ${\sigma }_0^{IS}$ is the internal stress of the as-received Mg composite foams, ${\sigma }_{T,t}^{IS}$ is the internal stress of the samples heated at the temperature of T for time t, and m is a constant relating to internal stress relaxation mechanism. A is a function depending on the material and heating temperature that is based on Equation (5):

$$A=Bexp\left(-\frac{\Delta H}{kT}\right)$$

(5)

where $B$ is material constant, k is the Boltzmann constant, $\Delta H$ is the activation enthalpy for actual stress relaxation. It can be seen from Equations (4) and (5) that the higher heating temperature (T) or longer holding time (t), the greater relaxation of internal stresses. It has been reported that residual stresses in WC and Co phases decrease with both heating temperature and annealing time increasing, and finally, the residual stresses decline to a very small value that became a stable state [29]. With regard to this work, it can be clearly seen that for the foams heated at 150 °C, the internal stress should be eliminated at 4 h, resulting in the lowest micro-hardness and yield strength. While, for the foams that were heated at 250 °C, the micro-hardness and yield strength decreased to the lowest value at 2 h. Moreover, it was shown from Figure 6 and Figure 8 that the foams heated at 320 °C, 400 °C, and 500 °C possess the lowest micro-hardness and yield strength when the holding time was 1 h. It was obviously indicated that the internal stress was released more efficiently at higher temperature, which was consistent with the reported literature [29,30,31]. While, it is reasonable to infer that the lowest value can be actually yielded with the holding time less than 1 h when the heating temperature is higher than 320 °C.

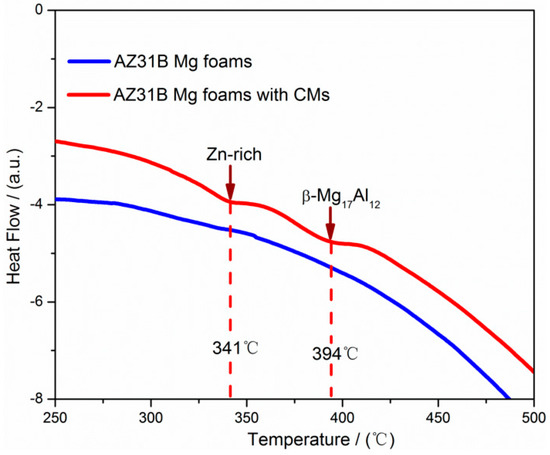

In consideration of β-Mg₁₇Al₁₂ phases, it has been known that the amounts of β-Mg₁₇Al₁₂ phase can be negligible in AZ31B magnesium alloy due to the low Al content [19]. However, in this work, β-Mg₁₇Al₁₂ is detected in AZ31B magnesium composite foams (as shown in Figure 4 and Figure 5). DSC detections were applied to reveal this differential and the result is shown in Figure 11. It can be seen from Figure 11 that Zn-rich and Mg₁₇Al₁₂ endothermic peaks are observed in the magnesium composite foams, while they are not detected in the foams without CMs. It is illustrated that the addition of CMs changes solidification behavior of the melt. Specially, for the foams with CMs, ceramic microspheres, eutectic phases, and other intermetallic compounds are pushed to grain boundaries by the primary magnesium phase during the solidification process. In addition, the thermal conductivity and the heat diffusivity of CMs are lower than that of Mg matrix, causing the melt temperatures around CMs are higher than the primary magnesium phase distance away from CMs [8]. All of this resulted that grain boundaries are the last freezing regions. Meanwhile, with the addition of CMs, the solutes in magnesium melt, such as Zn, Al, etc., are more easily segregated at the grain boundaries, resulting in the eutectic reaction and the appearance of Zn-rich and Mg₁₇Al₁₂ phases. It can be also revealed that the melting point of the Zn-rich and Mg₁₇Al₁₂ phases are about 341 °C and 394 °C (Figure 11), respectively. It has been known that the melting point of pure Zn is 419.5 °C and Mg₁₇Al₁₂ is 426 °C, which are higher than the measured values in this work. This is due to that Al, Ca, and other solutes infiltrate into the Zn-rich phase, leading to the decrease of the melting point. Also, it has been confirmed that the appearance of the Zn-rich phase will result in the melting point decrease of Mg₁₇Al₁₂ [15].

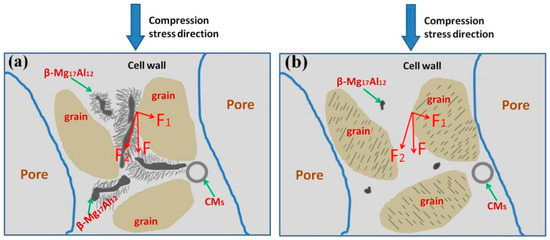

Up to now, the fracture mechanisms of Mg composites with ceramic microspheres are still unclear [8,32,33]. In this work, we mainly focus on the influence of β-Mg₁₇Al₁₂ on the fracture of AZ31 magnesium composite foams, and meanwhile found that the other phases (including CMs) are relatively thermal stable, as described above. It has been proved that the amount, distribution, and morphology of β-Mg₁₇Al₁₂ phase play an important role on crack formation and fracture in AZ series magnesium alloys [34]. In addition, it has been confirmed that Mg/Mg₁₇Al₁₂ interface often acted as crack initiation sources, owing to the incompatible crystal structure between Mg (h.c.p. structure) and Mg₁₇Al₁₂ (b.c.c. structure), leading to the deterioration of mechanical properties [14,35,36]. However, when alloys are subjected to some heat treatment, coarse β-Mg₁₇Al₁₂ precipitates distribute along the grain boundaries could be transformed to fine continuous precipitates that distributed in grains, resulting in the enhancement of mechanical properties [14]. In this work, crack initiation process can be sketched, as in Figure 12. For the as-received composite foams, discontinuous β-Mg₁₇Al₁₂ phases distribute along grain boundaries (Figure 12a). During the compression process, the normal stress (F₁) and shear stress (F₂) exist simultaneously for a single grain. Shear stress will impact the grain boundaries all the time due to the inconsistent orientations between the grains and the compression direction. With the compression stress (F) increasing, the shear stress (F₂) increases. Accordingly, the cracks will initiate at the interface of precipitate/grain and ultimately propagate, leading to the fracture of the foams. However, when the foams are heated at different conditions (for example 500 °C, 24 h), β-Mg₁₇Al₁₂ phases are dissolved and are transformed to lath-shaped continuous precipitates that distribute in grains (Figure 12b), and the occurrence probability of cracks significantly decrease, leading to the improved yield strength.

During thermal treatment process, Zn-rich and Mg₁₇Al₁₂ phases tend to dissolve, and Zn and Al solutes are gradually diffused into the Mg matrix. Diffusion efficiency of solutes can be expressed by the Arrhenius equation [37]:

$$D=D_{0}exp\left(-\frac{Q}{RT}\right)$$

(6)

where D is diffusion coefficient, D₀ is diffusion constant, Q is diffusion activation energy, T is thermodynamic temperature, and R is the mole gas constant. It can be seen from Equation (6) that the atom diffusion coefficient is larger at a higher temperature, leading to a more homogeneous distribution of solutes in the matrix, as well as more efficient of solution strengthening effect. That is why the micro-hardness and yield strength of the foams that were heated at 500 °C are higher than other foams with the same holding times. Under the present conditions, the combined effects of solution strengthening effect and the relief of internal stress are responsible for the evolution of micro-hardness and yield strength. Internal stress relief effect is more evident than the solution strengthening effect when the foams are heated at 320 °C, 400 °C, 500 °C for 1 h, 250 °C for 2 h, and 150 °C for 4 h, respectively, resulting in the decrease of yield strength and micro-hardness. While, with the holding time increasing, the solution strengthening effect dominates the mechanical properties, leading to the gradual increase of micro-hardness and yield strength (Figure 6 and Figure 8).

5. Conclusions

In this work, AZ31B magnesium composite foams with CMs are treated with different heating temperatures and enduring times. Meanwhile, the superposition effect on the microstructure and compressive properties of the foams are investigated, and the conclusions are as follows:

(1)

With the addition of CMs and Ca, obvious β-Mg₁₇Al₁₂ phases are detected in AZ31B magnesium composite foams, which is due to the changes of solidification behaviors of AZ31B melt that is caused by CMs and Ca.

(2)

With heating temperature and enduring time increasing, β-Mg₁₇Al₁₂ phases gradually dissolve into the matrix, resulting in solution strengthening effect. While the release of internal stress leads to the decrease of the compressive strength and the micro-hardness of the foams. Their combined effect is responsible for the evolution of mechanical properties under the experimental conditions.

(3)

When comparing with the unheated foams, almost all of the heated composite foams possess higher strain hardening exponents, while exhibiting lower micro-hardness, yield strength, and energy absorption capacity.

Furthermore, ore factors should be taken into account when the magnesium composite foams, which experienced different temperature-time superposition effect, are used in the practical application.
