Next Article in Journal
Influence of Powder Surface Contamination in the Ni-Based Superalloy Alloy718 Fabricated by Selective Laser Melting and Hot Isostatic Pressing
Next Article in Special Issue
Effect of Compression Process of MWCNT-Reinforced Al6061 Powder on Densification Characteristics and Its Mechanical Properties
Previous Article in Journal
High Field X-ray Diffraction Study for Ni46.4Mn38.8In12.8Co2.0 Metamagnetic Shape Memory Film
Article Menu
Issue 9 (September) cover image

Export Article

Open AccessFeature PaperArticle
Metals 2017, 7(9), 370; doi:10.3390/met7090370

Effects of Post-Sinter Processing on an Al–Zn–Mg–Cu Powder Metallurgy Alloy

1
Department of Mechanical Engineering, Dalhousie University, Halifax, NS B3H 4R2, Canada
2
Advanced Engineering, GKN Sinter Metals LLC, Auburn Hills, MI 48326, USA
*
Author to whom correspondence should be addressed.
Received: 16 August 2017 / Revised: 7 September 2017 / Accepted: 8 September 2017 / Published: 13 September 2017
(This article belongs to the Special Issue Advanced Mechanical Testing of Powder Metallurgy Alloys)
View Full-Text   |   Download PDF [6551 KB, uploaded 13 September 2017]   |

Abstract

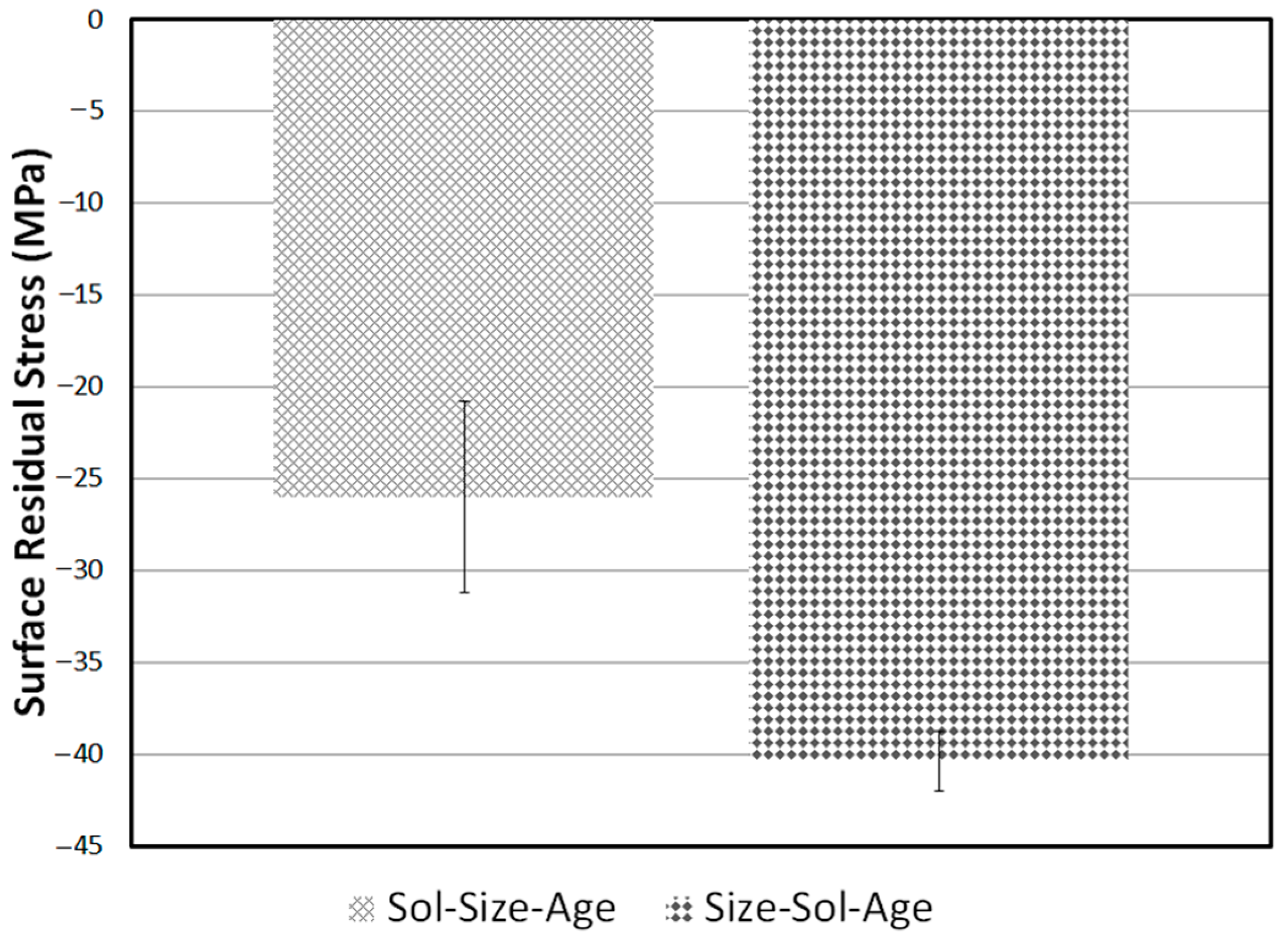

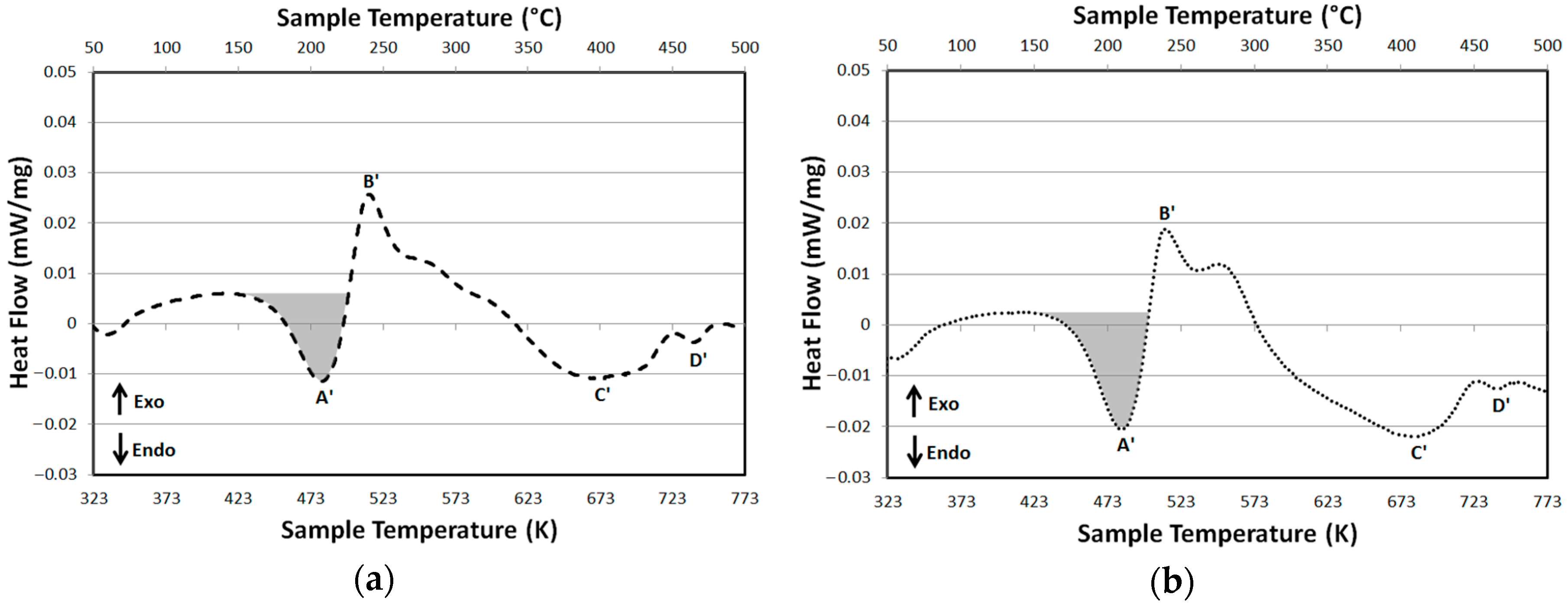

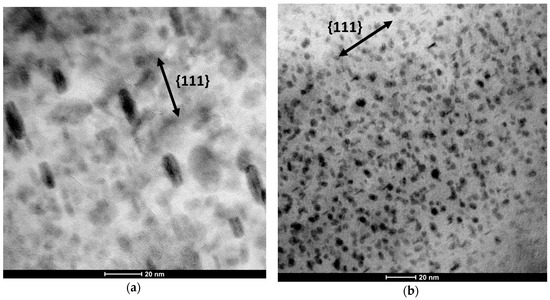

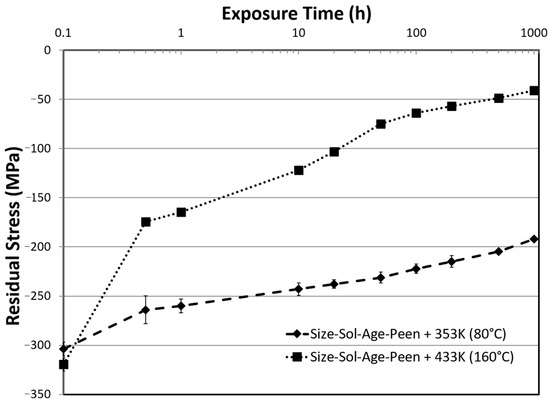

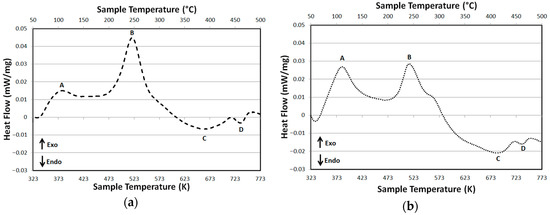

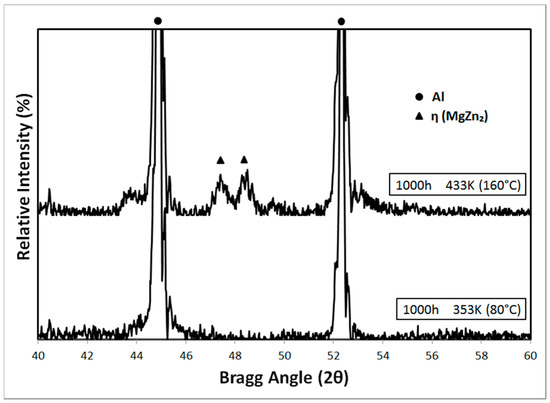

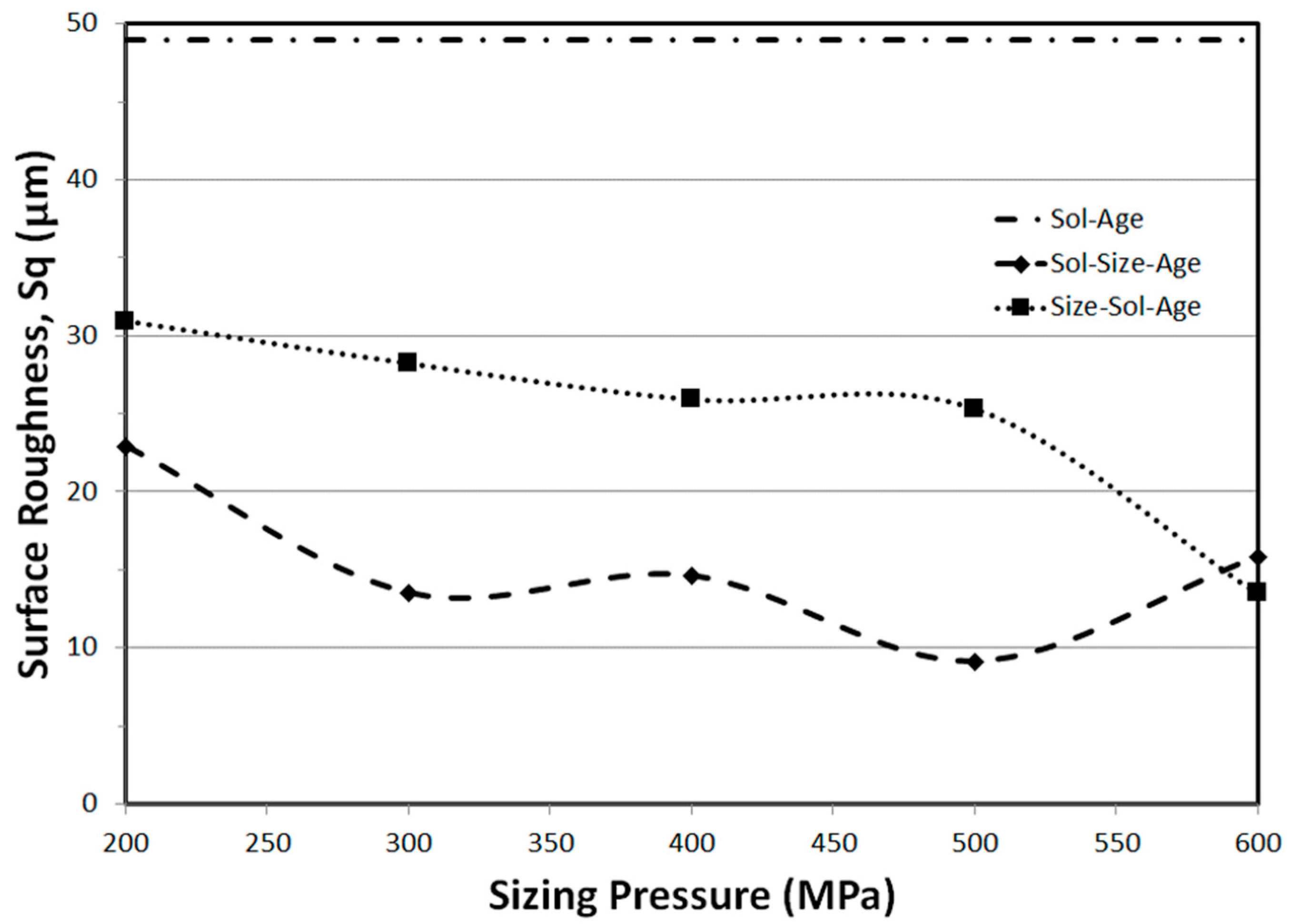

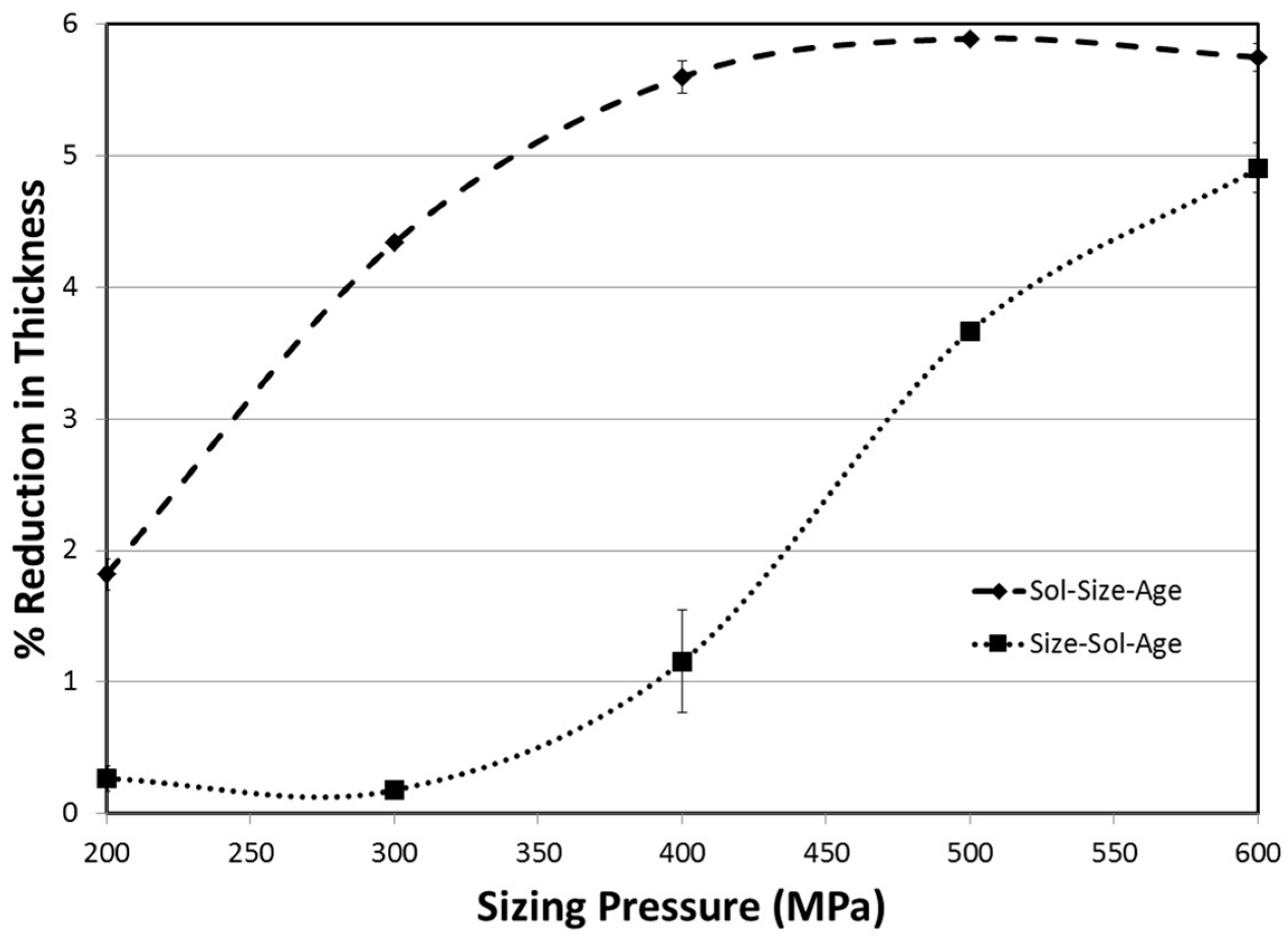

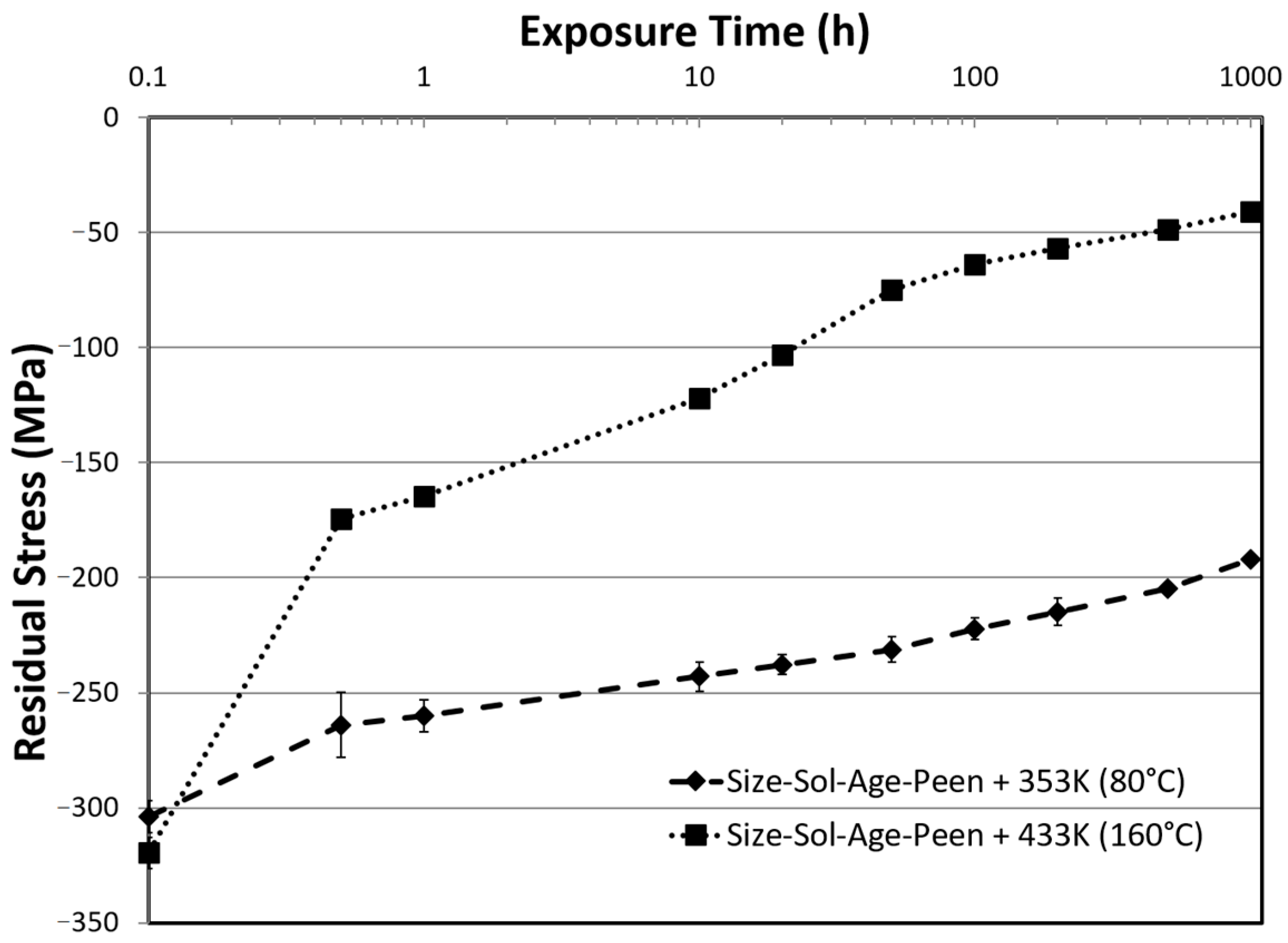

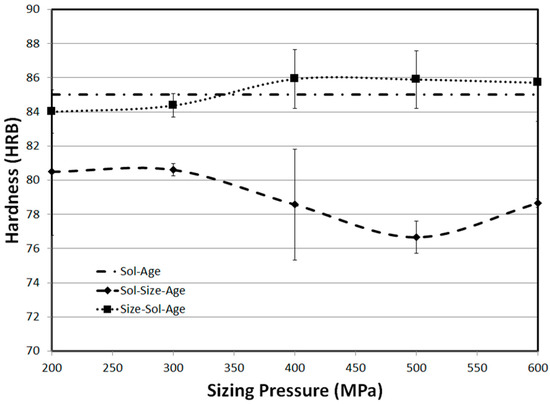

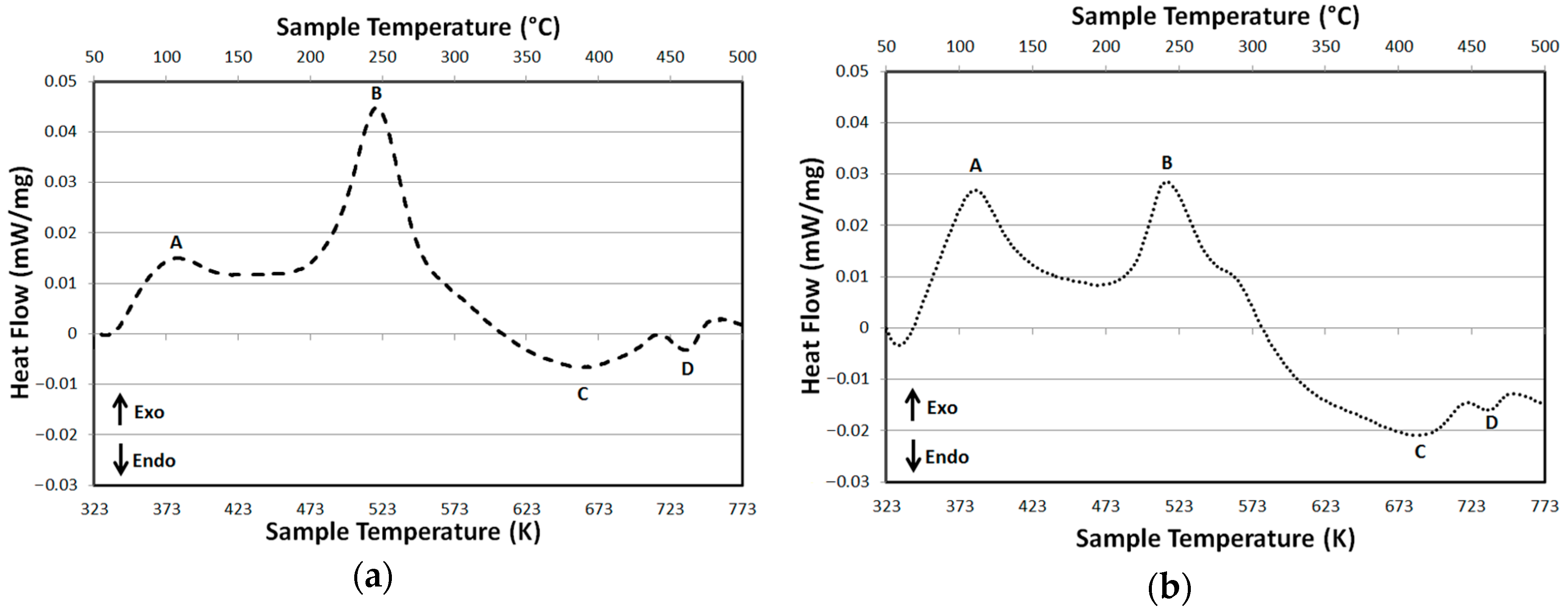

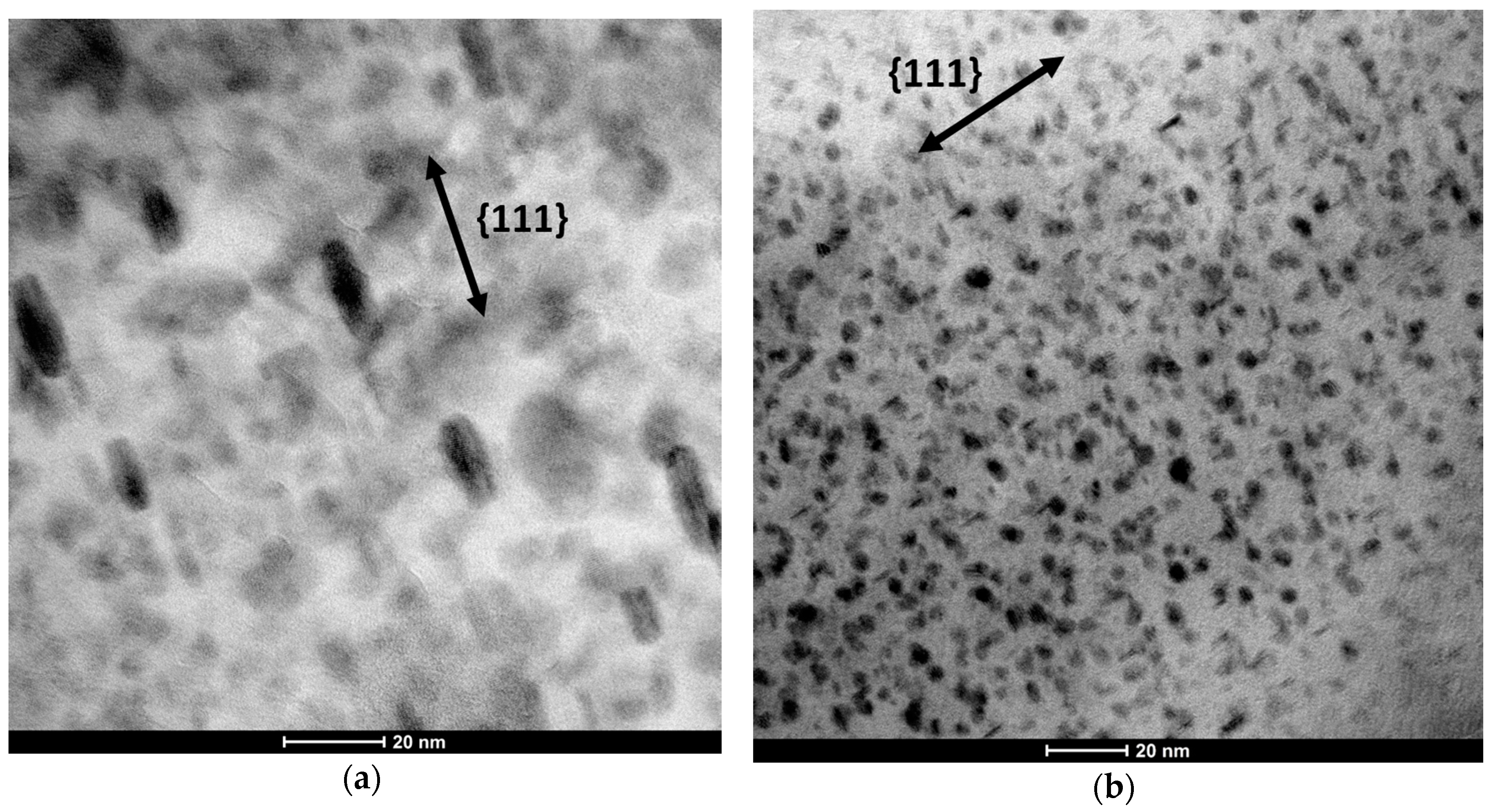

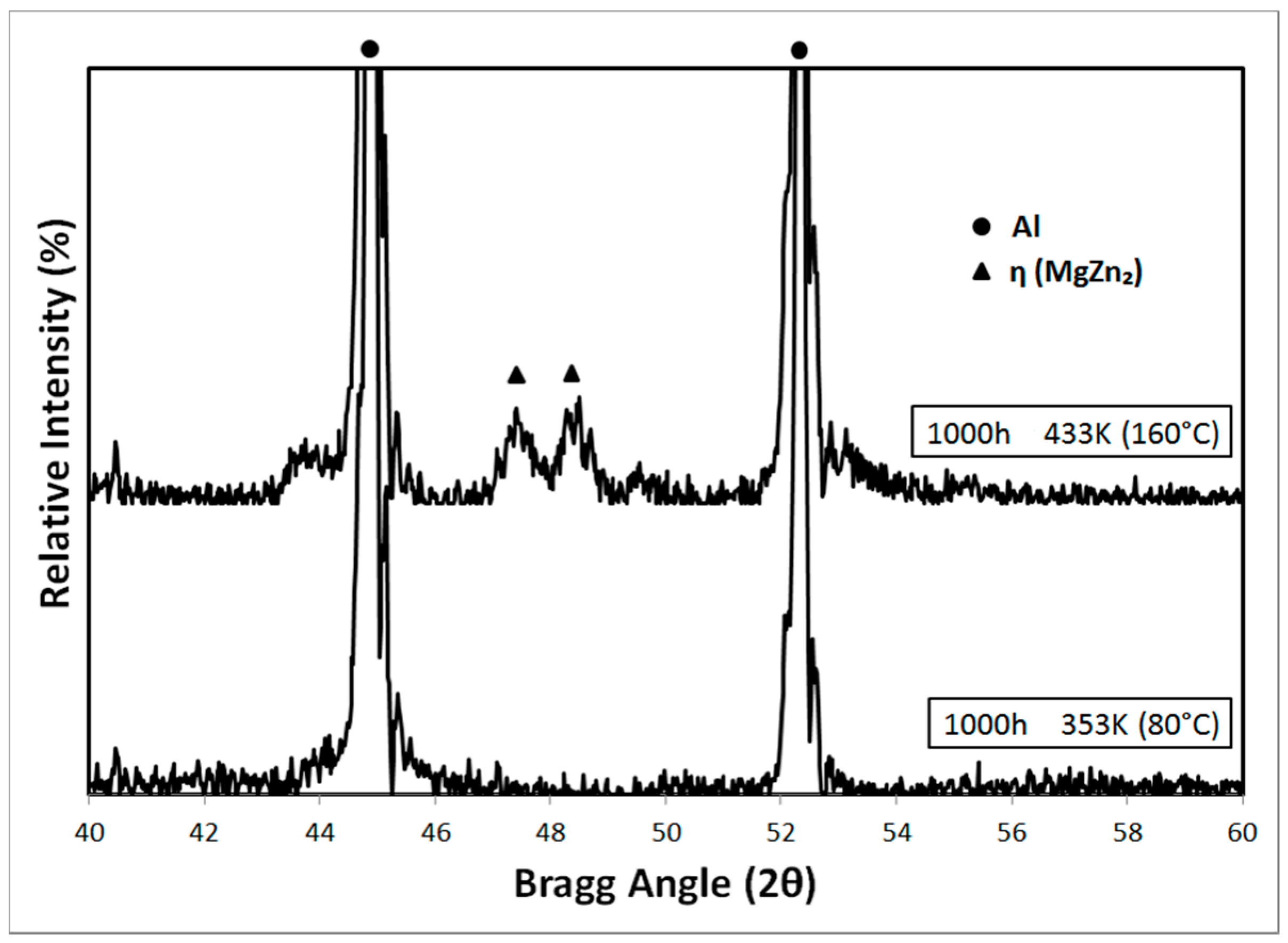

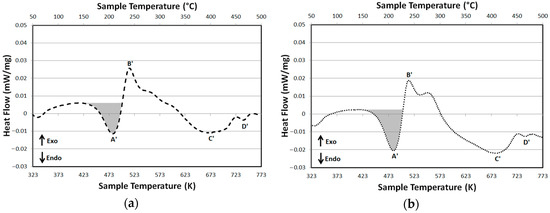

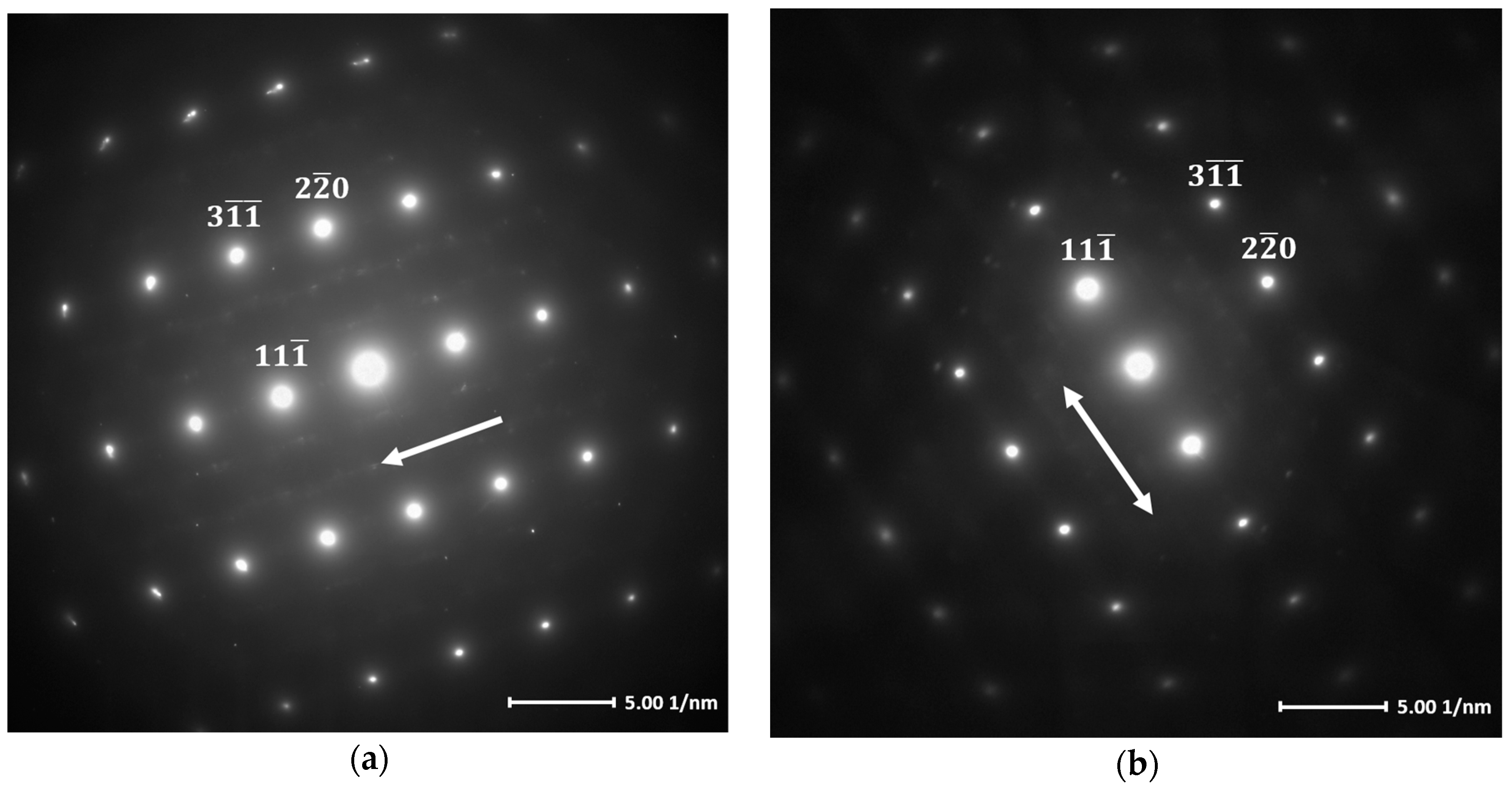

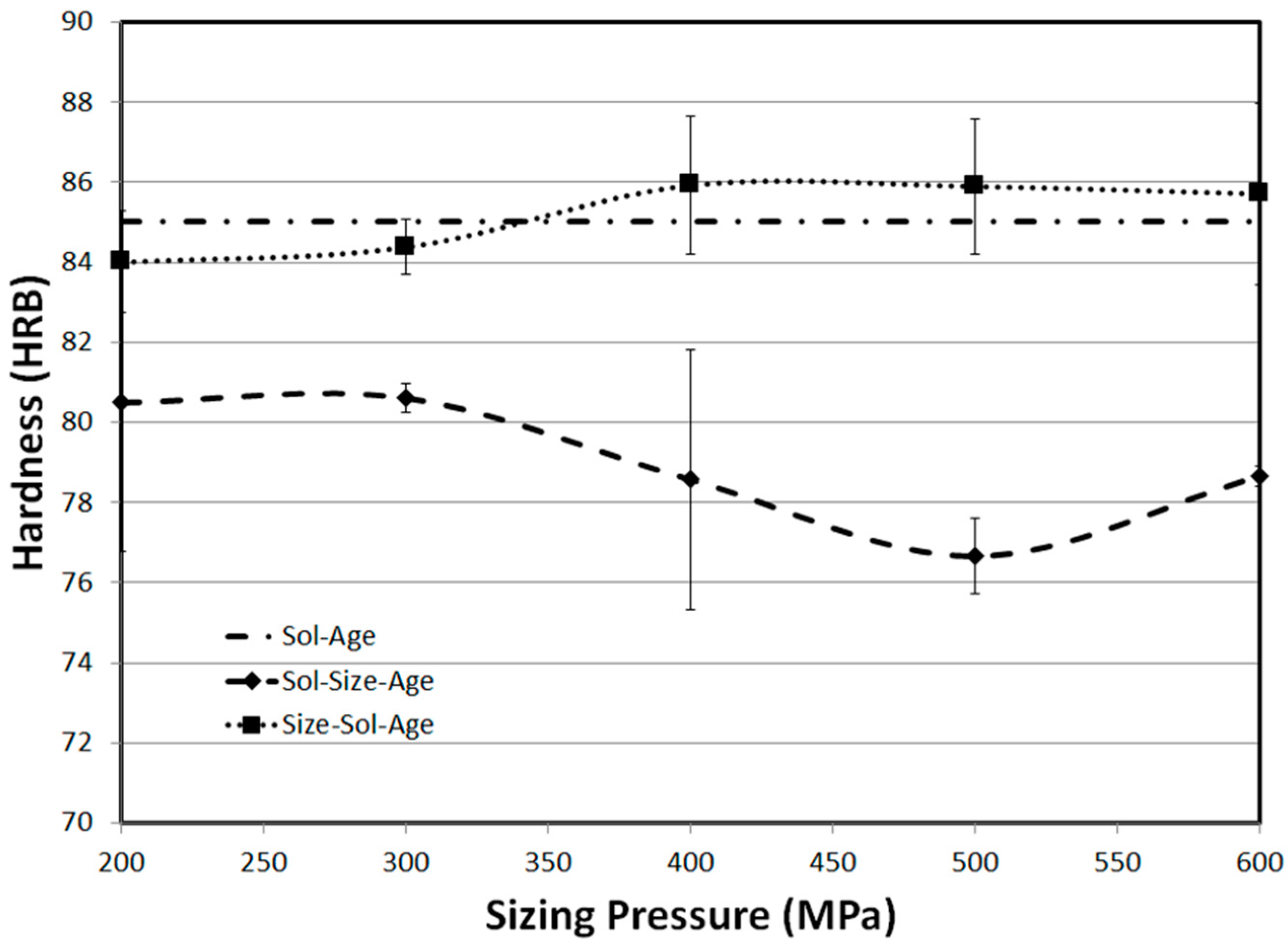

The objective of this work was to study the effects of several post-sinter processing operations (heat-treatment, sizing, shot peening) on a press-and-sinter 7xxx series aluminum powder metallurgy (PM) alloy. The characterization of the products was completed through a combination of non-contact surface profiling, hardness measurements, differential scanning calorimetry (DSC), transmission electron microscopy (TEM), X-ray diffraction (XRD), tensile, and three-point bend fatigue testing. It was determined that sizing in the as-quenched state imparted appreciable reductions in surface hardness (78 HRB) and fatigue strength (168 MPa) relative to counterpart specimens that were sized prior to solutionizing (85 HRB and 228 MPa). These declines in performance were ascribed to the annihilation of quenched in vacancies that subsequently altered the nature of precipitates within the finished product. The system responded well to shot peening, as this process increased fatigue strength to 294 MPa. However, thermal exposure at 353 K (80 °C) and 433 K (160 °C) then reduced fatigue performance to 260 MPa and 173 MPa, respectively, as a result of residual stress relaxation and in-situ over-aging. View Full-Text
Keywords: aluminum alloys; powder metallurgy; X-ray diffraction; fatigue; age hardening; residual stress; electron microscopy; thermomechanical processing; precipitation hardening aluminum alloys; powder metallurgy; X-ray diffraction; fatigue; age hardening; residual stress; electron microscopy; thermomechanical processing; precipitation hardening
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Harding, M.D.; Donaldson, I.W.; Hexemer Junior, R.L.; Bishop, D.P. Effects of Post-Sinter Processing on an Al–Zn–Mg–Cu Powder Metallurgy Alloy. Metals 2017, 7, 370.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
