Metals 2017, 7(8), 314; doi:10.3390/met7080314

Broadband Dual-Phase Plasmons through Metallization of Polymeric Heterojunctions

Institute of Information Photonics Technology and College of Applied Sciences, Beijing University of Technology, Beijing 100124, China
*
Author to whom correspondence should be addressed.
Received: 1 July 2017 / Revised: 1 August 2017 / Accepted: 12 August 2017 / Published: 16 August 2017
View Full-Text   |   Download PDF [7120 KB, uploaded 16 August 2017]   |

Abstract

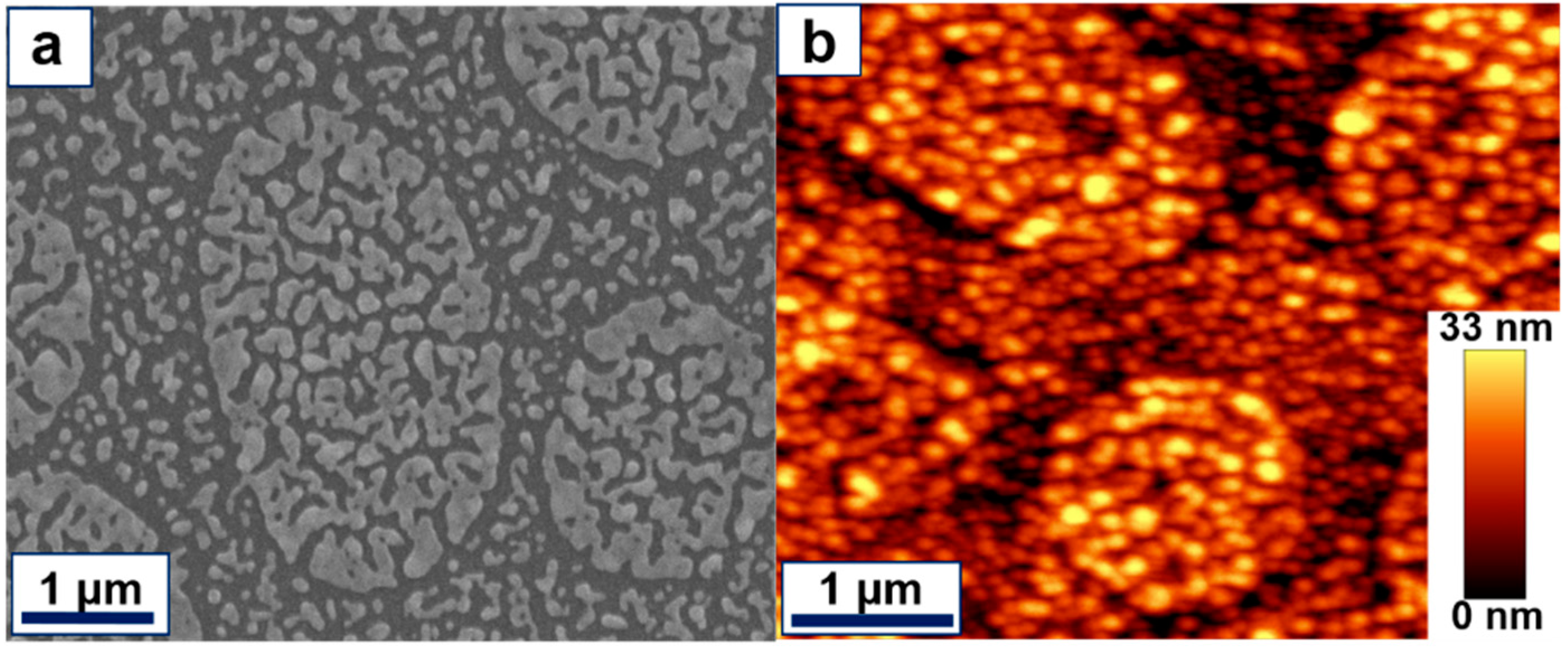

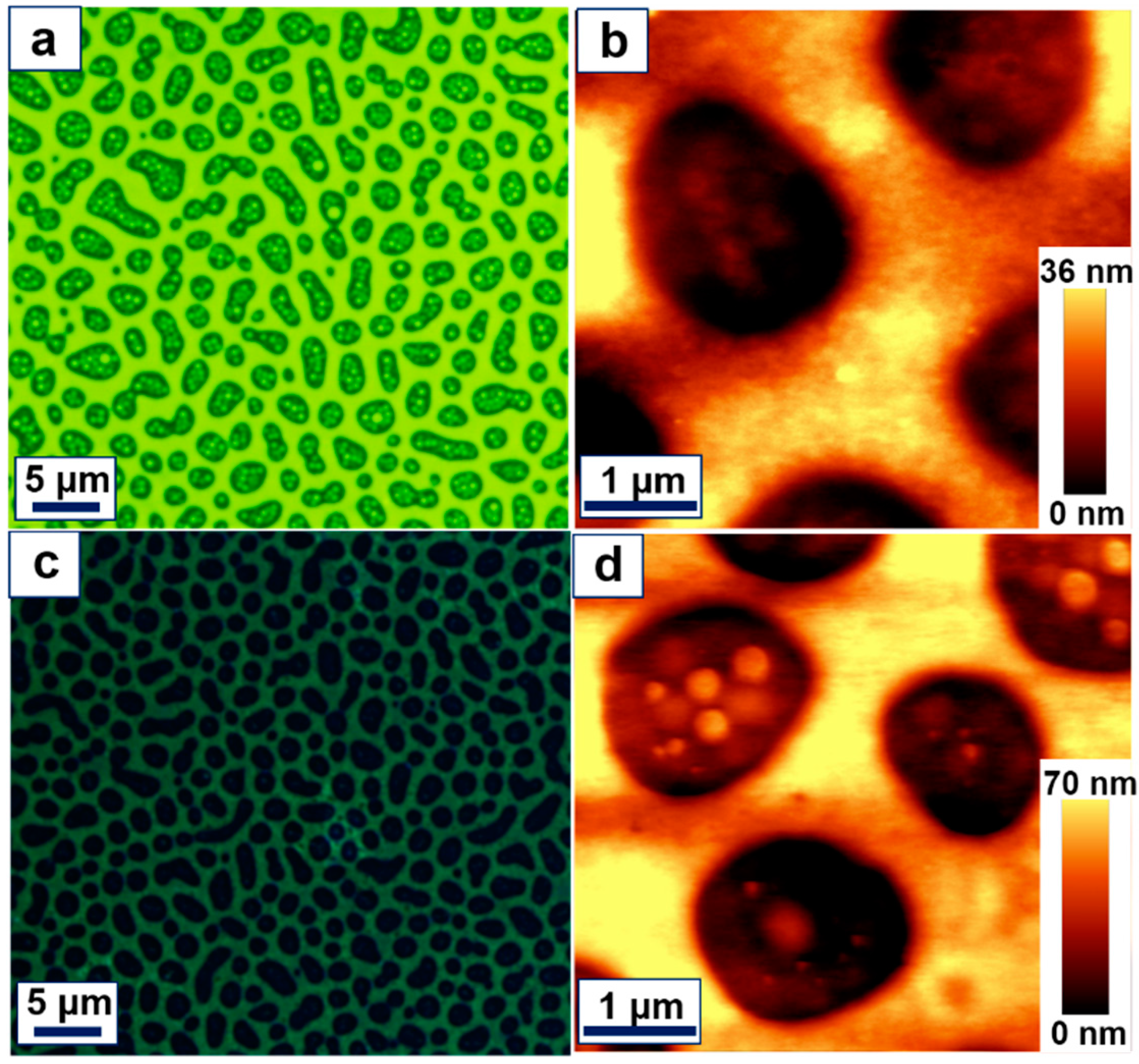

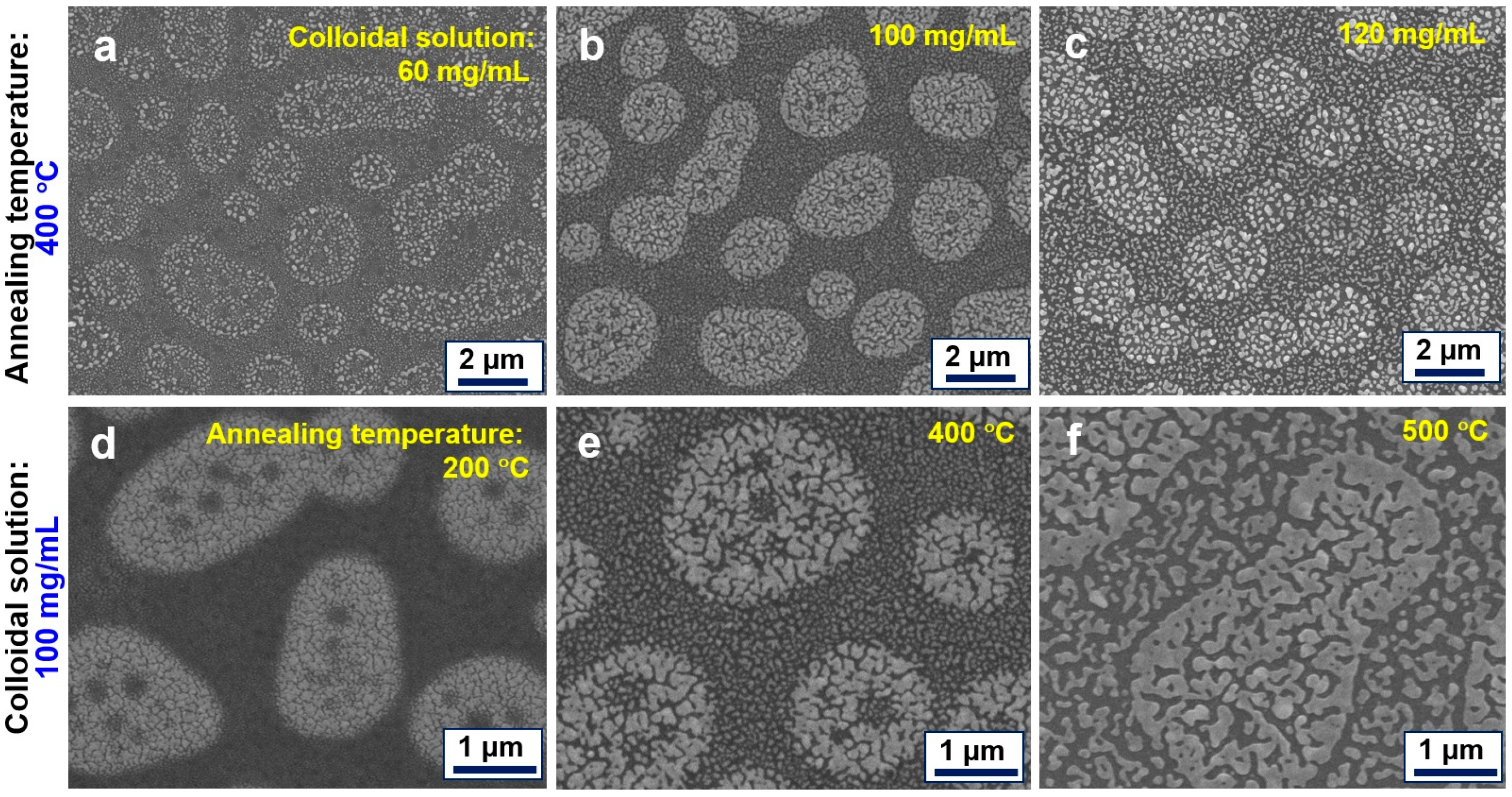

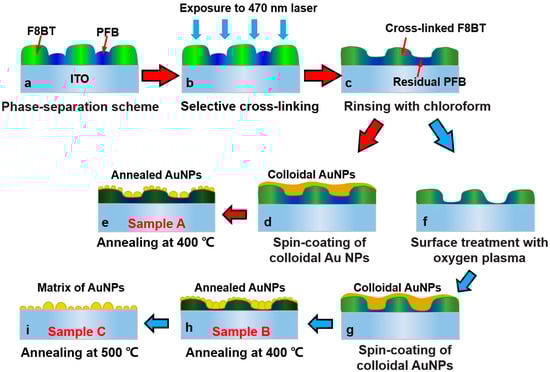

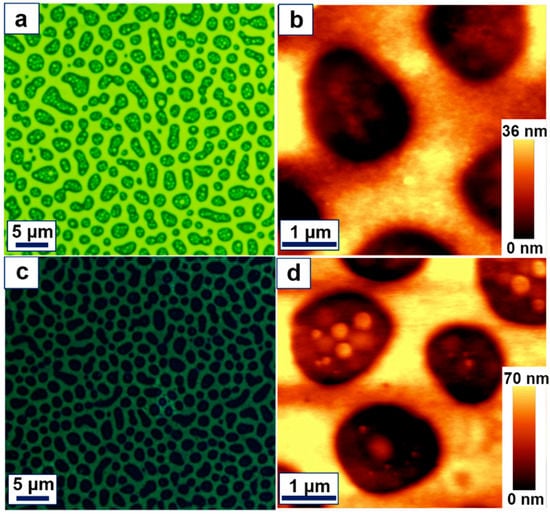

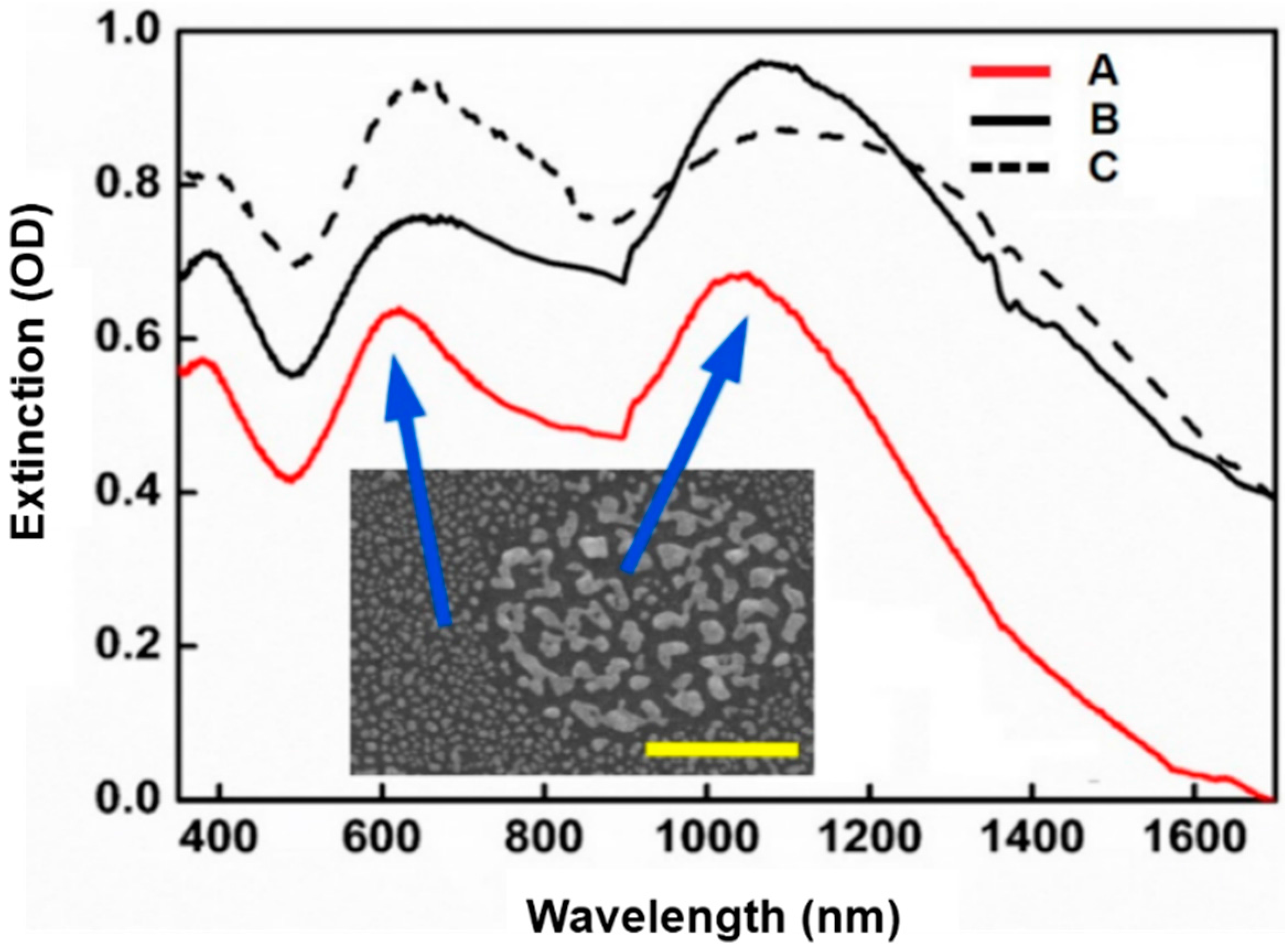

Large-area dual-phase plasmonic gold nanostructures were produced using the phase-separation pattern of a polymer blend film, where two typical light-emitting polymeric semiconductors of poly (9,9-dioctylfluorene-co-benzothiadiazole) (F8BT) and poly (9,9-dioctylfluorene-co-bis-N,N′-(4-butylphenyl)-bis-N,N′-phenyl-1,4 phenylenediamine) (PFB) have been employed to construct the heterojunction patterns. The laser-induced selective cross-linking of F8BT molecules and the subsequent rinsing process using the good solvent of chloroform for PFB supplies a stable template for a further metallization process. When colloidal gold nanoparticles were spin-coated onto the surface of the template, a majority of the gold nanoparticles were confined into the “holes” of originally PFB-rich phase, while a minor portion stays on the “ridges” of F8BT-rich phase. After the annealing process, larger gold nanoparticles were produced inside the holes and smaller ones on the ridges, which induced localized surface plasmon resonance in the near infrared and in the visible, respectively. The structural parameters of the gold plasmonic pattern can be tuned by different surface modification and annealing processes, which can tune the spectroscopic response in the spectral position and in the spectral intensity. The produced nanostructures with broadband plasmon resonance can be used as a template for random lasers with strong optical scattering at both the pump and emission wavelengths and for photovoltaic devices with strong absorption in the visible and near infrared. View Full-Text
Keywords: localized surface plasmon resonance; dual-phase plasmons; polymeric heterojunctions; laser-induced selective cross-linking localized surface plasmon resonance; dual-phase plasmons; polymeric heterojunctions; laser-induced selective cross-linking
Figures

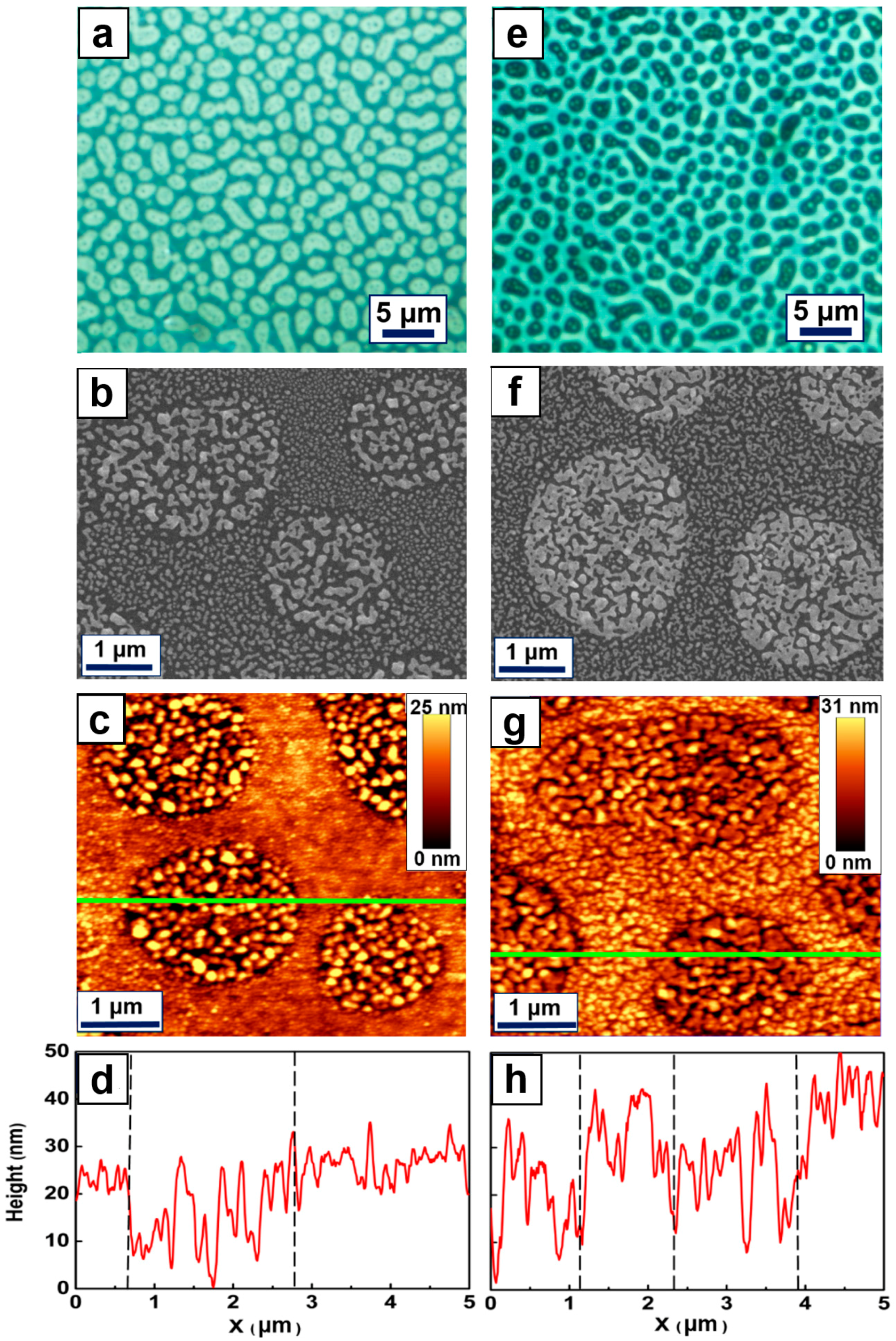

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
