Effects of Vacuum-Carburizing Conditions on Surface-Hardened Layer Properties of Transformation-Induced Plasticity-Aided Martensitic Steel
Previous Article in Journal
Hot Deformation Behavior of a Spray-Deposited Al-8.31Zn-2.07Mg-2.46Cu-0.12Zr Alloy
Article Menu
Issue 8 (August) cover image

Export Article

Open AccessArticle
Metals 2017, 7(8), 300; doi:10.3390/met7080300

X-ray Tomography Characterisation of Lattice Structures Processed by Selective Electron Beam Melting

1
Department of Material Science & Engineering, The University of Sheffield, Sir Robert Hadfield Building, Mappin St, S13 JD Sheffield, UK
2
Bundesanstalt für Material Forschung und Eprüfung (BAM), Unter den Eichen 87, 12205 Berlin, Germany
3
Henry Moseley X-ray Imaging Facility, School of Materials, The University of Manchester, M13 9PL Manchester, UK
*
Author to whom correspondence should be addressed.
Received: 13 June 2017 / Revised: 25 July 2017 / Accepted: 28 July 2017 / Published: 5 August 2017
View Full-Text   |   Download PDF [5036 KB, uploaded 5 August 2017]   |

Abstract

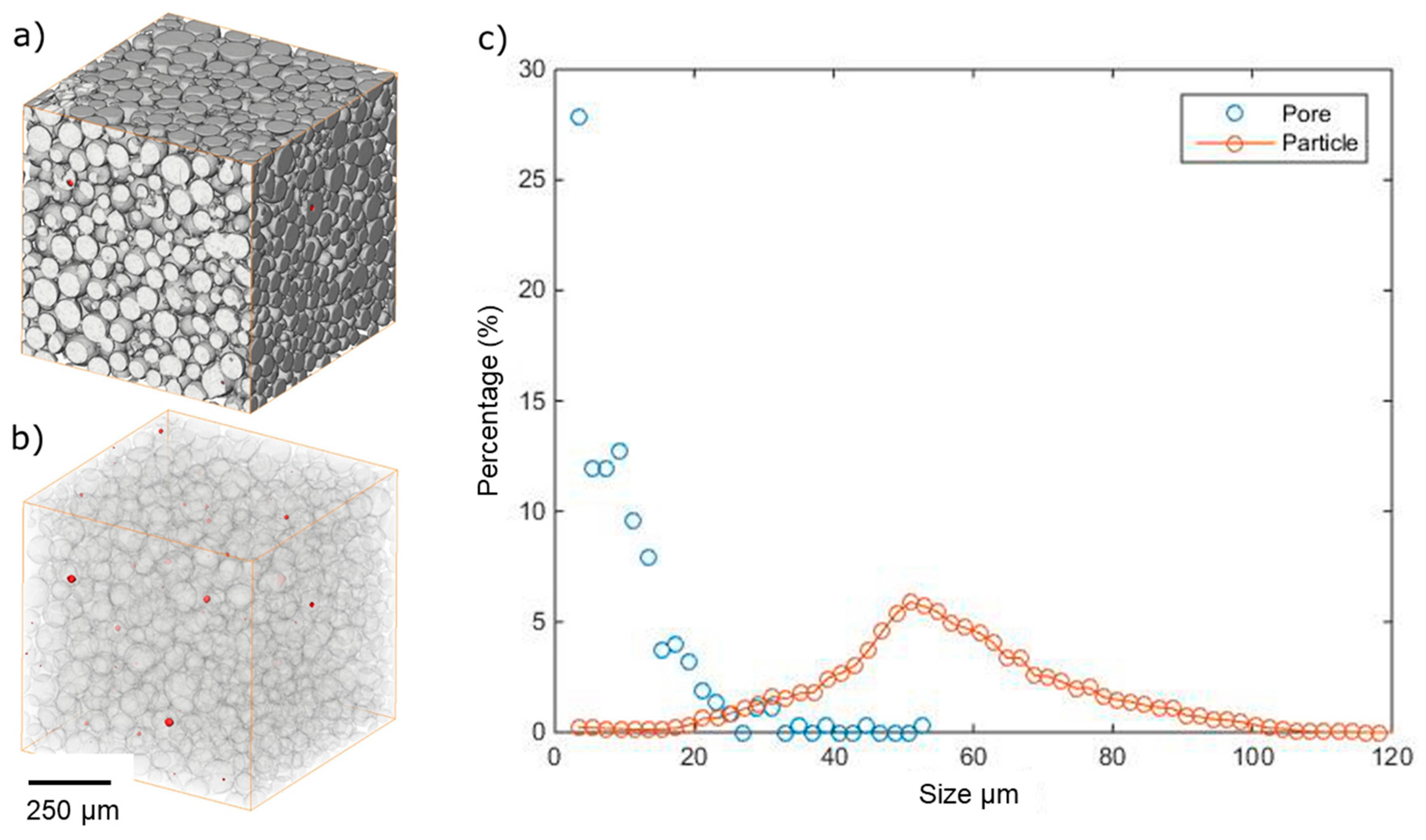

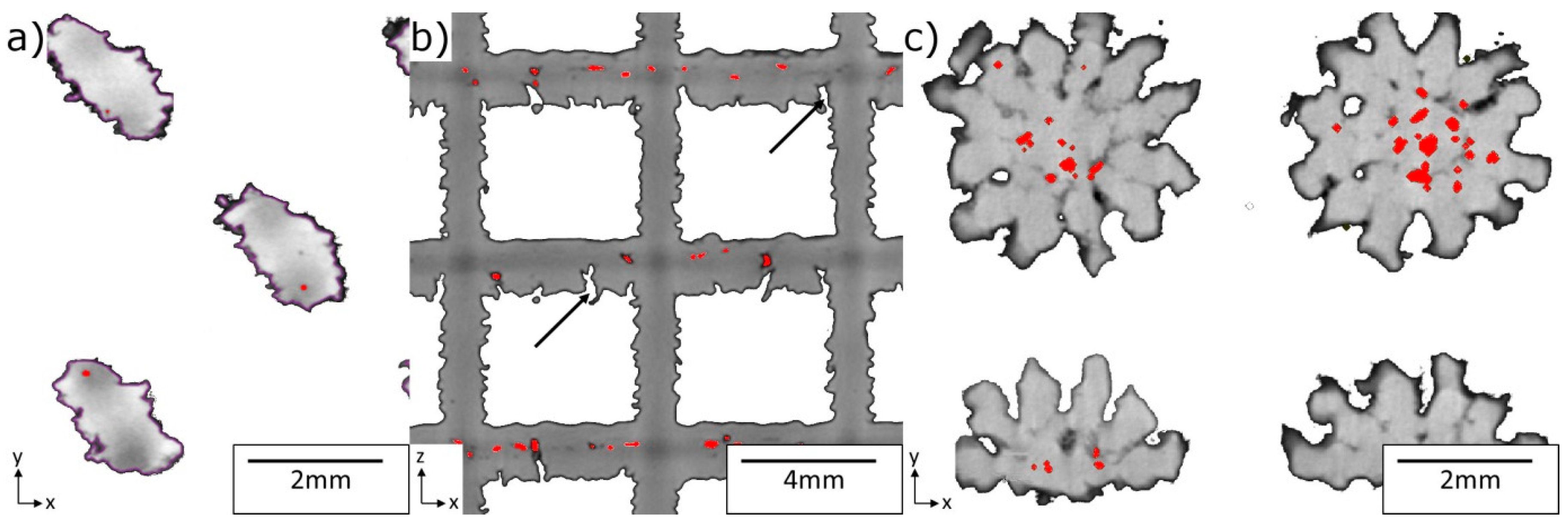

Metallic lattice structures intentionally contain open porosity; however, they can also contain unwanted closed porosity within the structural members. The entrained porosity and defects within three different geometries of Ti-6Al-4V lattices, fabricated by Selective Electron Beam Melting (SEBM), is assessed from X-ray computed tomography (CT) scans. The results suggest that horizontal struts that are built upon loose powder show particularly high (~20 × 10−3 vol %) levels of pores, as do nodes at which many (in our case 24) struts meet. On the other hand, for struts more closely aligned (0° to 54°) to the build direction, the fraction of porosity appears to be much lower (~0.17 × 10−3%) arising mainly from pores contained within the original atomised powder particles. View Full-Text
Keywords: cellular solids; additive manufacturing; computed tomography; titanium alloys cellular solids; additive manufacturing; computed tomography; titanium alloys
