Failure Assessment of Steel/CFRP Double Strap Joints
Abstract
:1. Introduction

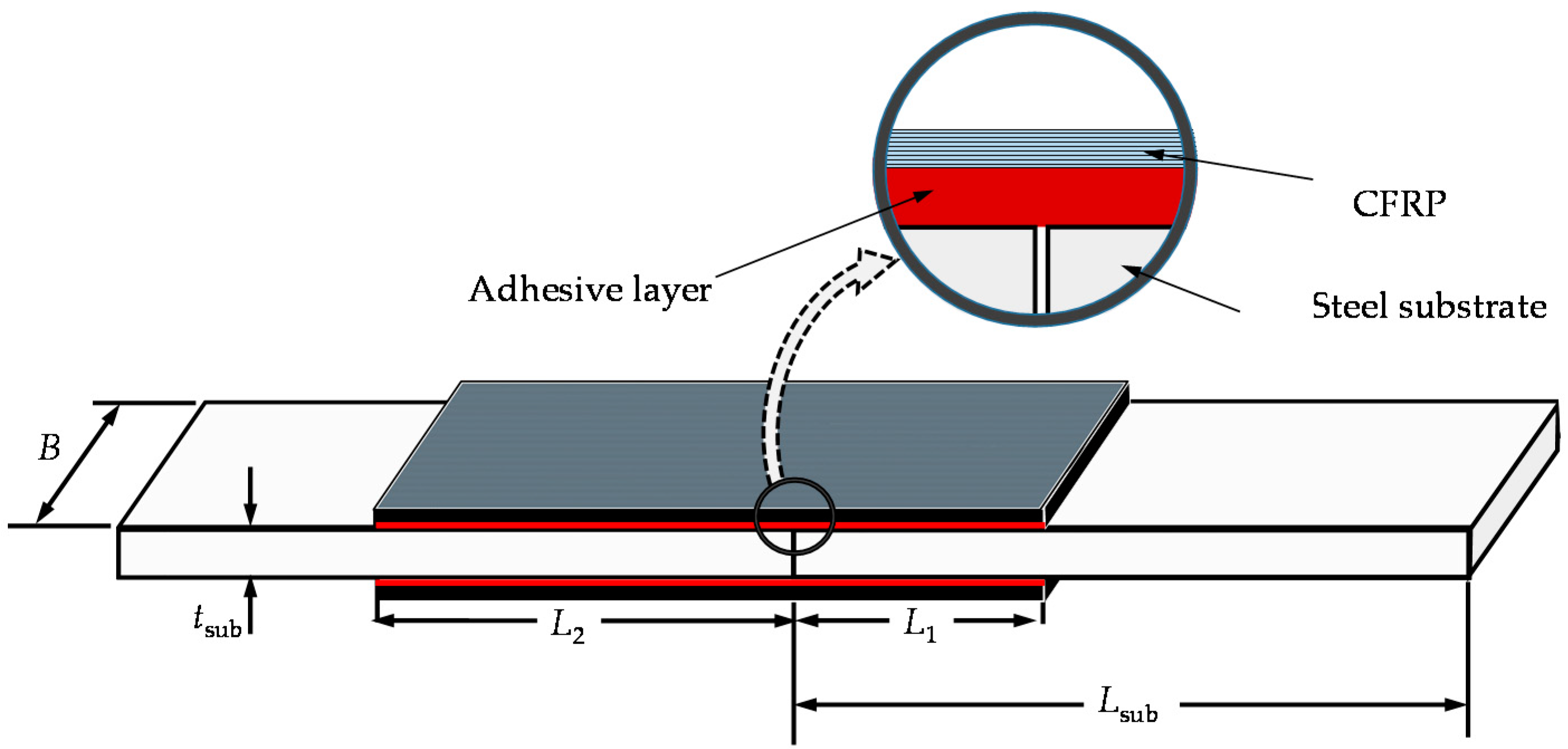

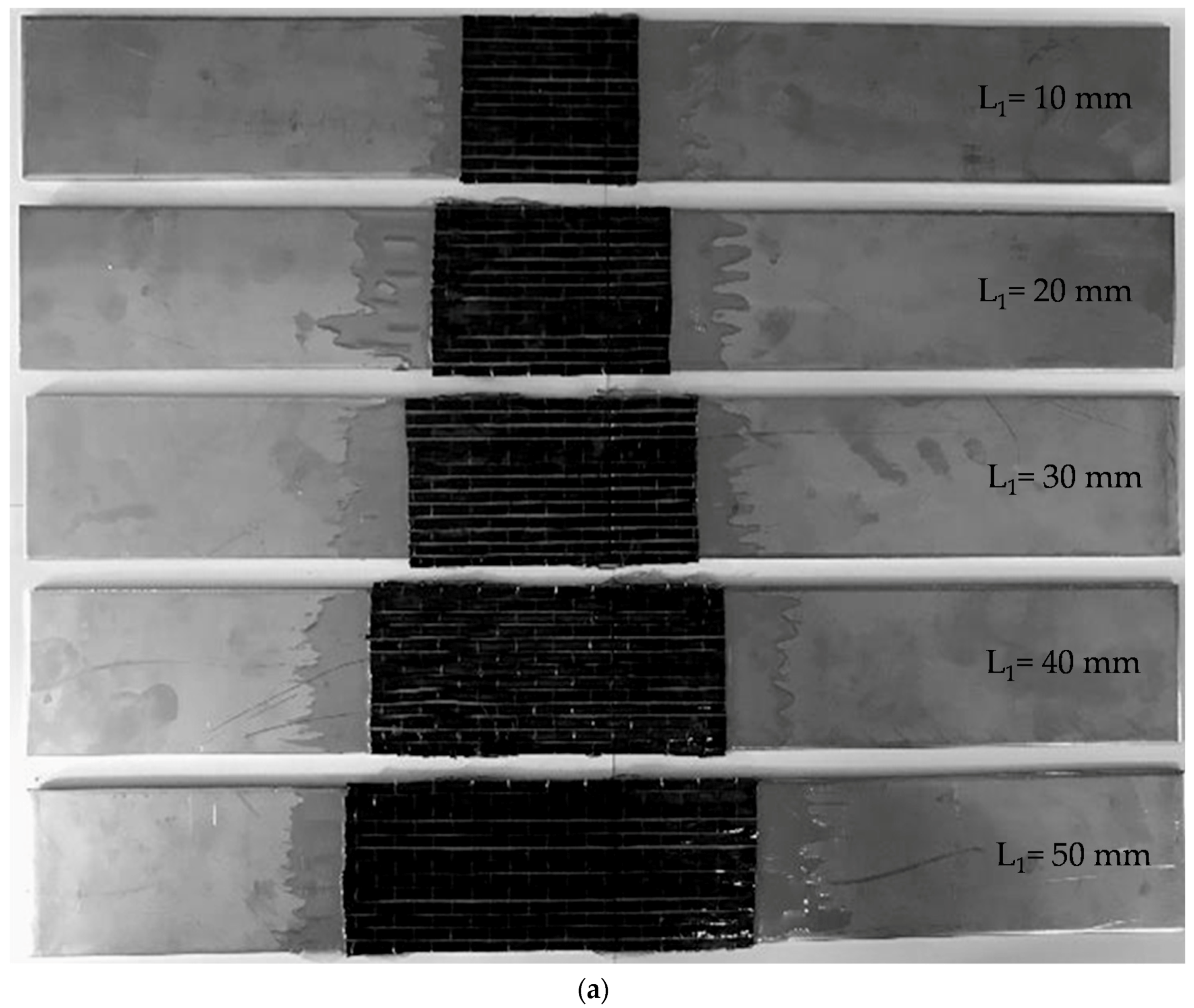

2. Experimental Testing

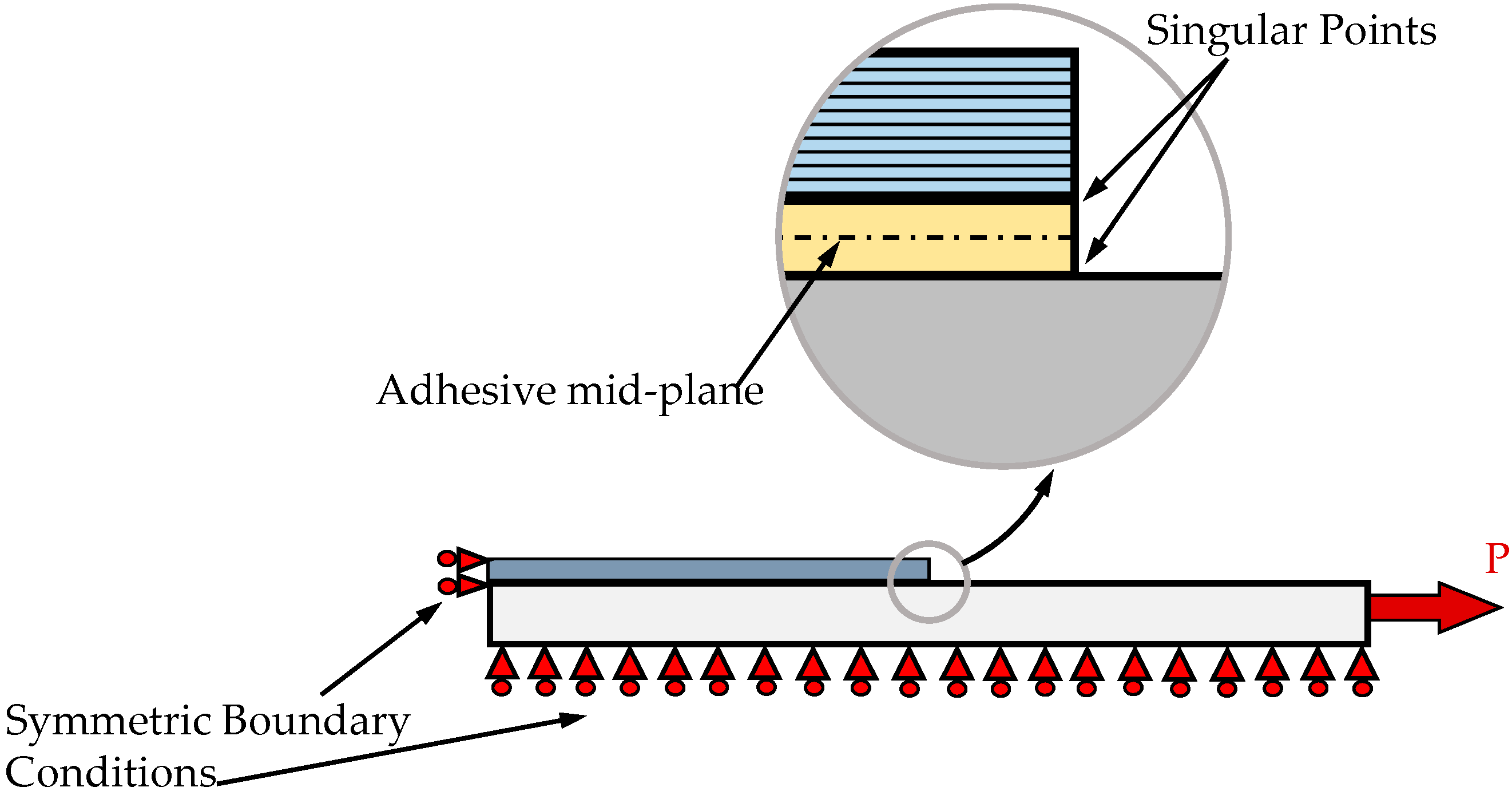

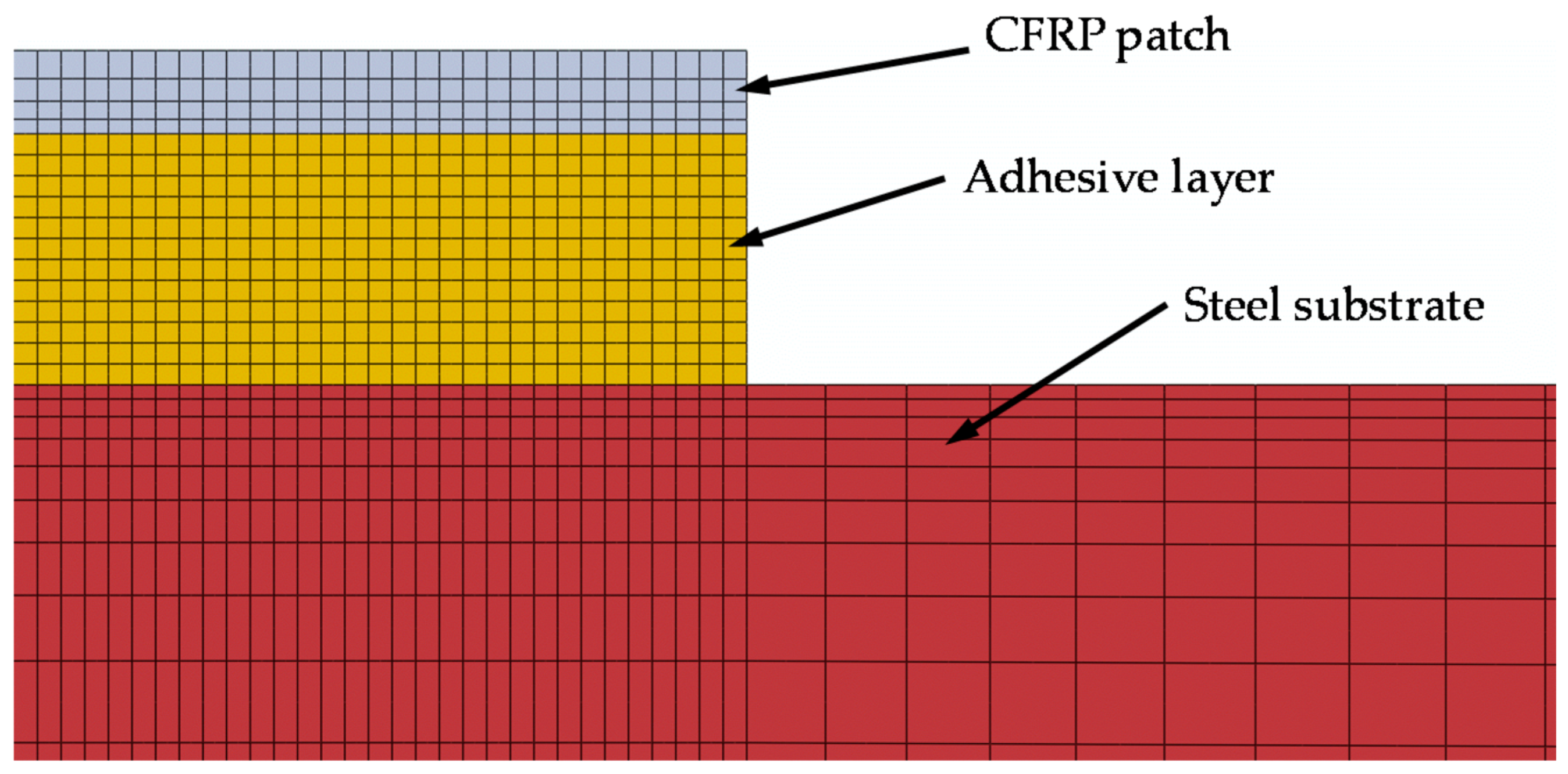

3. Finite Element Analysis
4. Failure Load Prediction

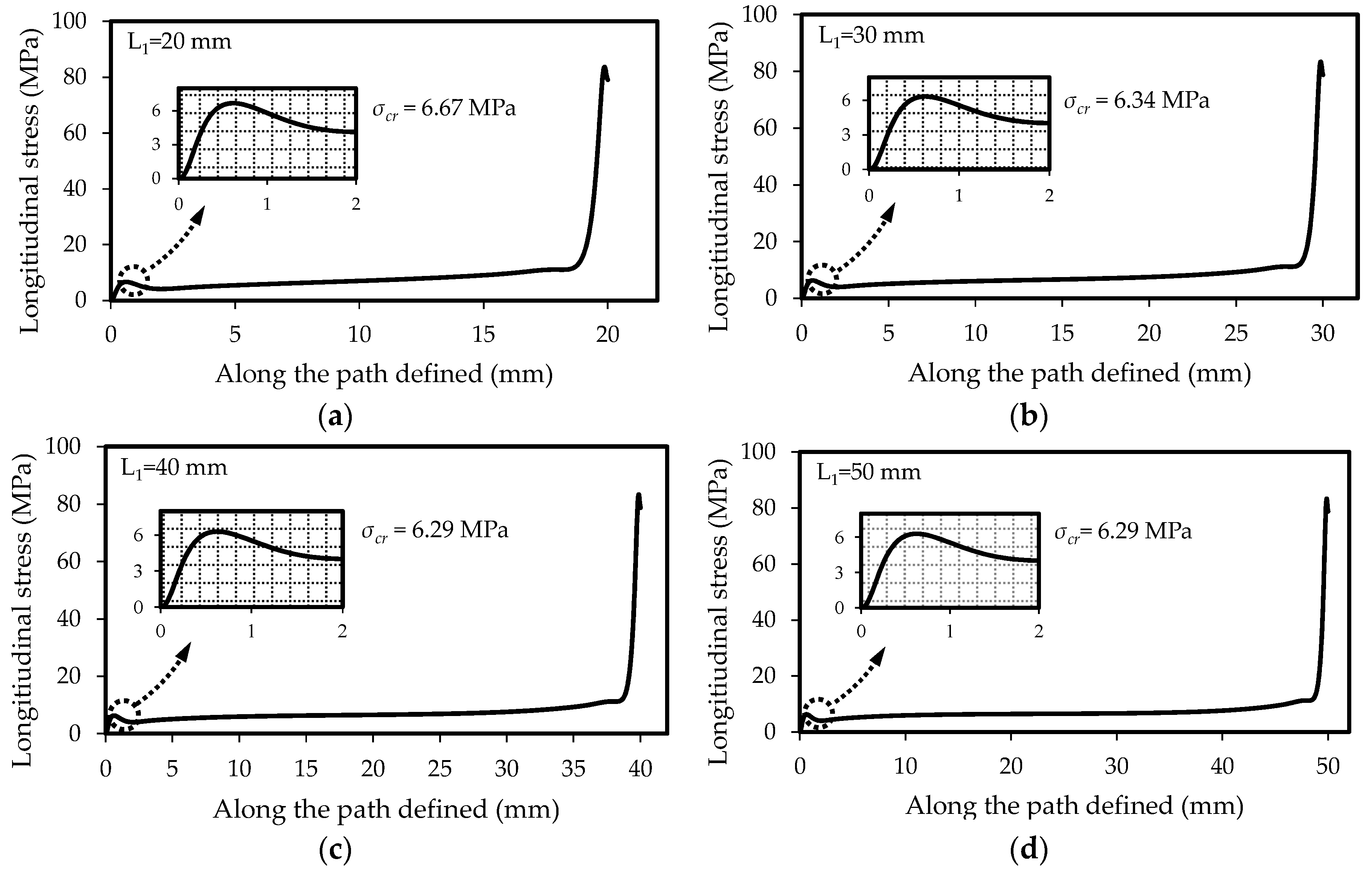

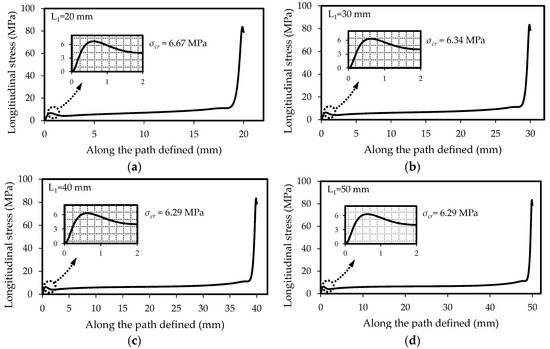

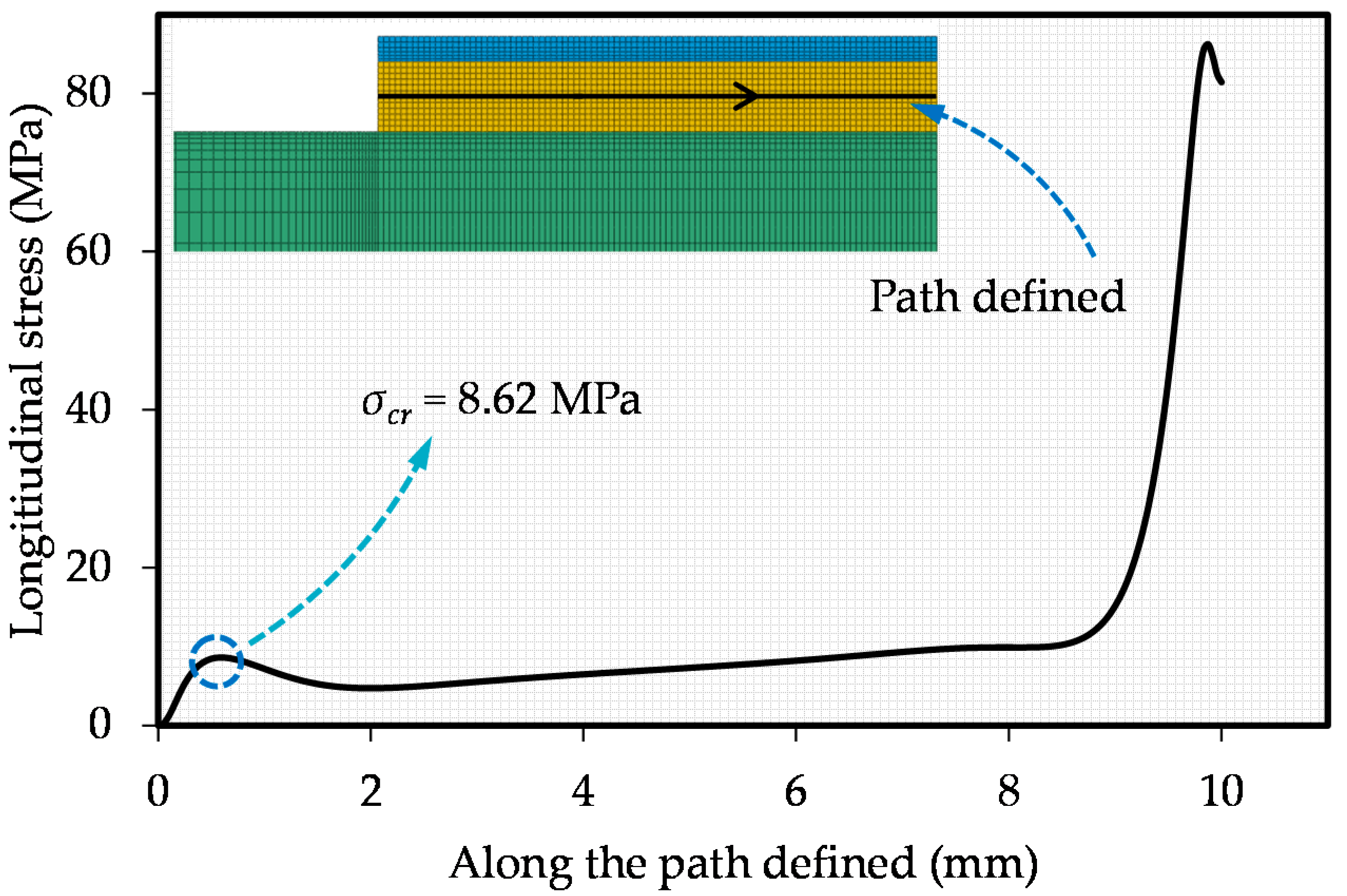

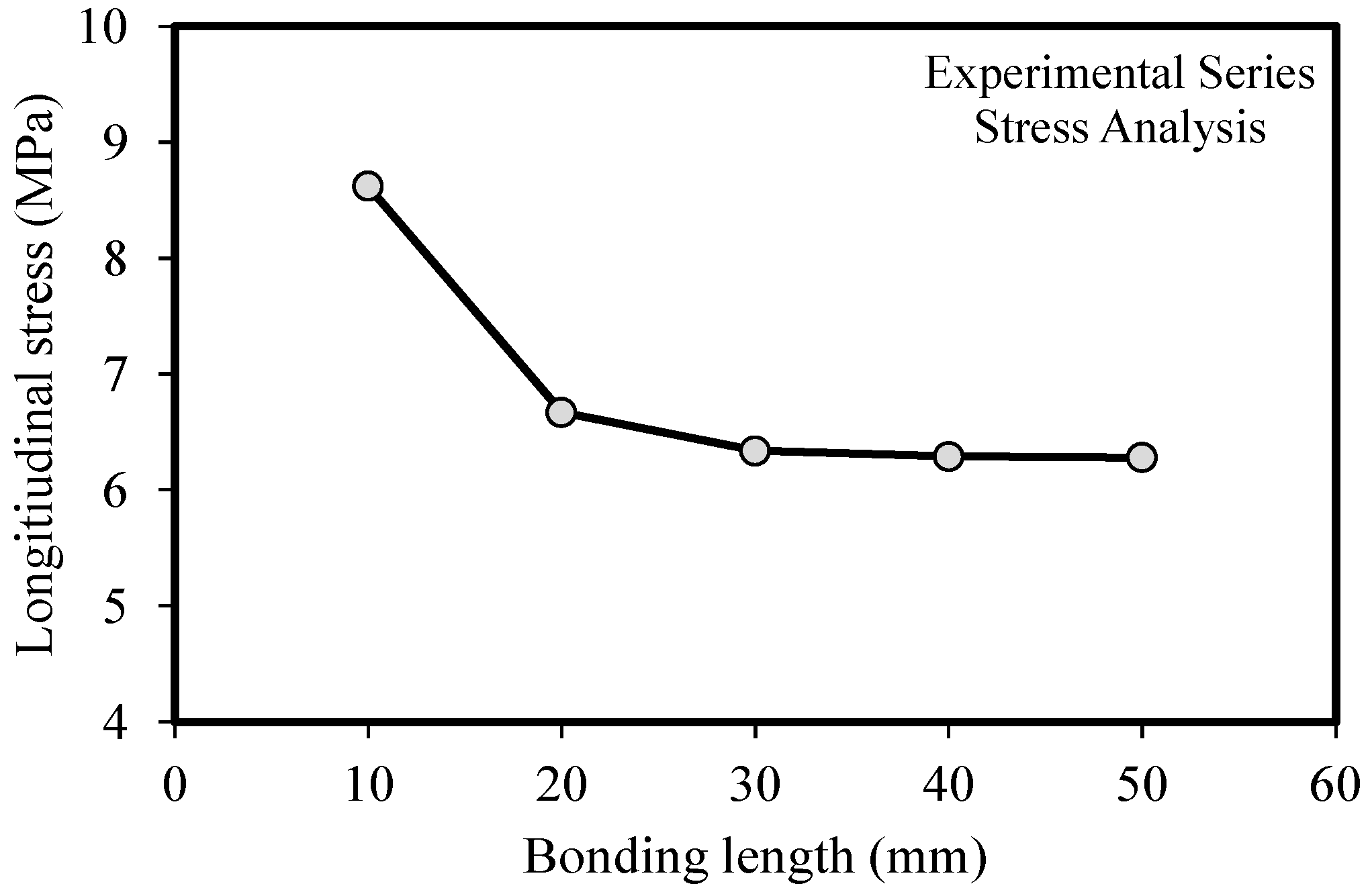

4.1. How to Calculate the Effective Bond Length by Applying the Point Stress (PS) Method

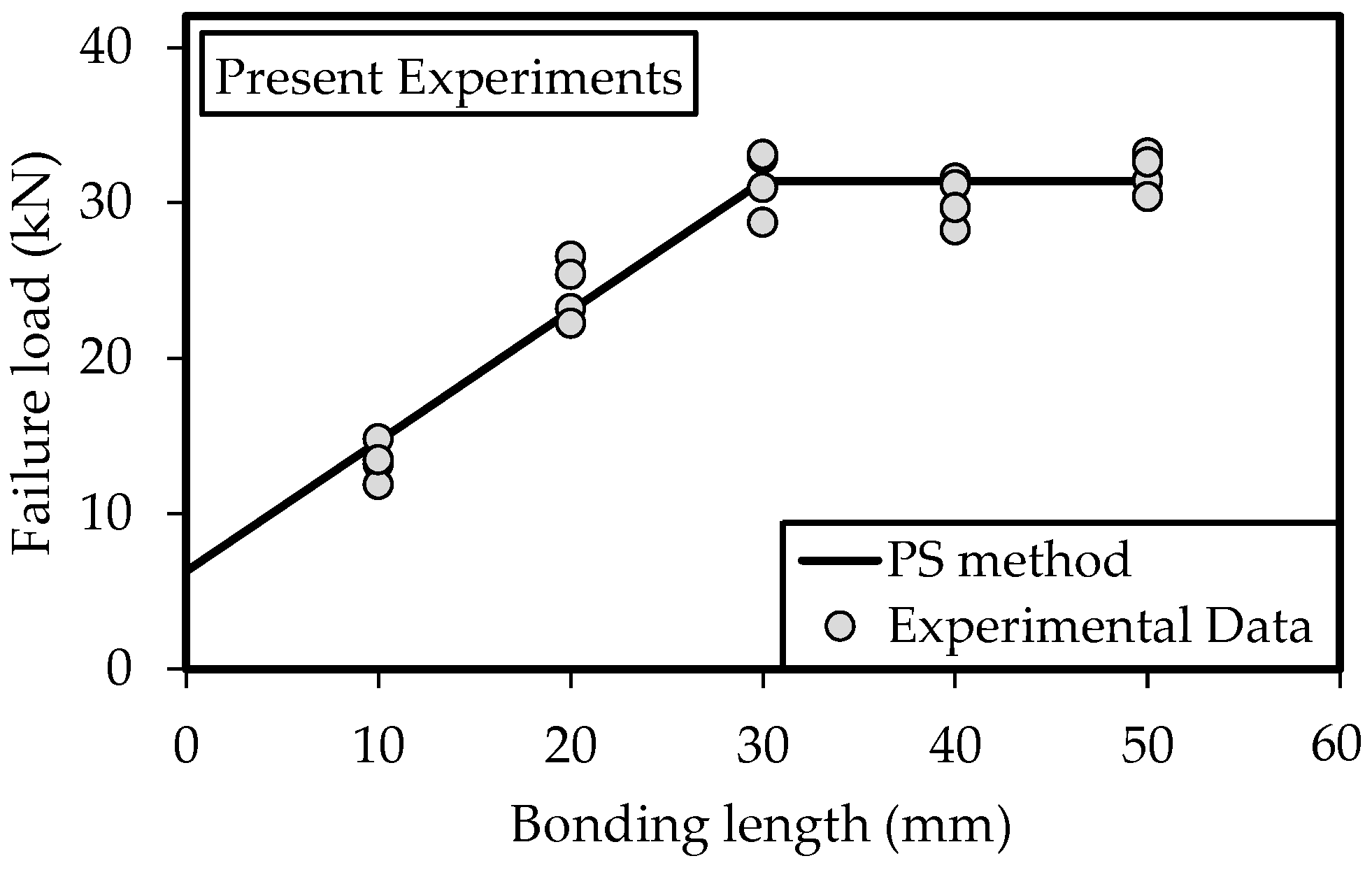

4.2. How to Obtain the Theoretical Failure Loads of the Double Strap Joint (DSJ) Specimens by Means of the PS Method

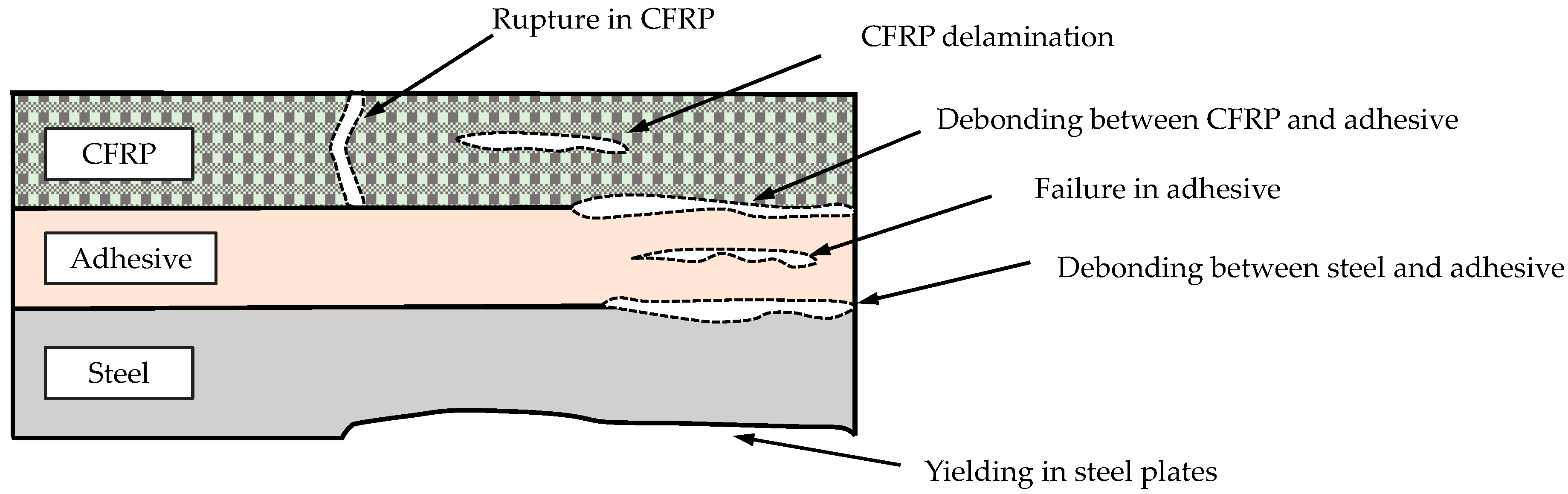

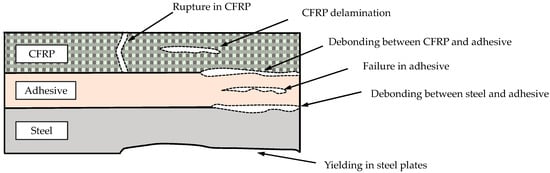

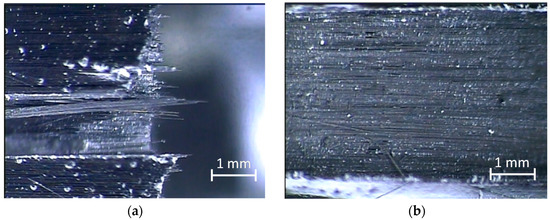

5. Failure Mechanisms in Steel/Carbon Fiber Reinforced Polymer (CFRP) DSJs
6. Assumptions, Limitations, and Advantages of the PS Method for DSJs
7. Conclusions
Author Contributions
Conflicts of Interest
References
- Ahmad, F.; Hong, J.W.; Choi, H.S.; Park, M.K. Hygro effects on the low-velocity impact behavior of unidirectional CFRP composite plates for aircraft applications. Compos. Struct. 2016, 135, 276–285. [Google Scholar] [CrossRef]
- Carpinteri, A.; Cornetti, P.; Pugno, N. Debonding in FRP Strengthened Beams: Stress Assessment Versus Fracture Mechanics Approach. In Proceedings of the 6th Conference on Fracture Mechanics of Concrete and Concrete Structures (FraMCoS), Catania, Italy, 17–22 June 2007; pp. 1053–1060. [Google Scholar]
- Colombi, P. Reinforcement delamination of metallic beams strengthened by FRP strips: Fracture mechanics based approach. Eng. Fract. Mech. 2006, 73, 1980–1995. [Google Scholar] [CrossRef]
- Lenwari, A.; Thepchatri, T.; Watanabe, E. Prediction of premature separation of bonded CFRP plates from strengthened steel beams using a fracture criterion. Struct. Eng. Mech. 2002, 14, 565–574. [Google Scholar] [CrossRef]
- Martiny, P.; Lani, F.; Kinloch, A.J.; Pardoen, T. A maximum stress at a distance criterion for the prediction of crack propagation in adhesively-bonded joints. Eng. Fract. Mech. 2013, 97, 105–135. [Google Scholar] [CrossRef]
- Tong, L. Strength of adhesively bonded single-lap and lap-shear joints. Int. J. Solids Struct. 1998, 35, 2601–2616. [Google Scholar] [CrossRef]
- De Morais, A.B.; Pereira, A.B.; Teixeira, J.P.; Cavaleiro, N.C. Strength of epoxy adhesive-bonded stainless-steel joints. Int. J. Adhes. Adhes. 2007, 27, 679–686. [Google Scholar] [CrossRef]
- Karachalios, E.F.; Adams, R.D.; da Silva, L.F.M. Single lap joints loaded in tension with high strength steel adherends. Int. J. Adhes. Adhes. 2013, 43, 81–95. [Google Scholar] [CrossRef]
- Khoramishad, H.; Razavi, S.M.J. Metallic fiber-reinforced adhesively bonded joints. Int. J. Adhes. Adhes. 2014, 55, 114–122. [Google Scholar] [CrossRef]
- Nemati Giv, A.; Ayatollahi, M.R.; Razavi, S.M.J.; Khoramishad, H. The Effect of orientations of metal macrofiber reinforcements on mechanical properties of adhesively bonded single lap joints. J. Adhes. 2017, 1–21. [Google Scholar] [CrossRef]
- Esmaeili, E.; Razavi, S.M.J.; Bayat, M.; Berto, F. Flexural behavior of metallic fiber-reinforced adhesively bonded single lap joints. J. Adhes. 2017, 1–20. [Google Scholar] [CrossRef]
- Hart-Smith, L.J. Adhesive-Bonded Single-Lap Joints; Langley Research Center: Hampton, VA, USA, 1973. [Google Scholar]
- Da Silva, L.F.; das Neves, P.J.; Adams, R.D.; Spelt, J.K. Analytical models of adhesively bonded joints—Part I: Literature survey. Int. J. Adhes. Adhes. 2009, 29, 319–330. [Google Scholar] [CrossRef]
- Da Silva, L.F.; das Neves, P.J.; Adams, R.D.; Wang, A.; Spelt, J.K. Analytical models of adhesively bonded joints—Part II: Comparative study. Int. J. Adhes. Adhes. 2009, 29, 331–341. [Google Scholar] [CrossRef]
- John, S.; Kinloch, A.; Matthews, F. Measuring and predicting the durability of bonded carbon fibre/epoxy composite joints. Composites 1991, 22, 121–127. [Google Scholar] [CrossRef]
- Adams, R.; Peppiatt, N. Stress analysis of adhesive bonded tubular lap joints. J. Adhes. 1977, 9, 1–18. [Google Scholar] [CrossRef]
- Lee, S.J.; Lee, D.G. Development of a failure model for the adhesively bonded tubular single lap joint. J. Adhes. 1992, 40, 1–14. [Google Scholar] [CrossRef]
- Chen, Z.; Adams, R.D.; da Silva, L.F.M. Prediction of crack initiation and propagation of adhesive lap joints using an energy failure criterion. Eng. Fract. Mech. 2011, 78, 990–1007. [Google Scholar] [CrossRef]
- Chalkley, P.; Rose, F. Stress analysis of double-strap bonded joints using a variational method. Int. J. Adhes. Adhes. 2001, 21, 241–247. [Google Scholar] [CrossRef]
- Bocciarelli, M.; Colombi, P.; Fava, G.; Poggi, C. Prediction of debonding strength of tensile steel/CFRP joints using fracture mechanics and stress based criteria. Eng. Fract. Mech. 2009, 76, 299–313. [Google Scholar] [CrossRef]
- Fawzia, S.; Al-Mahaidi, R.; Zhao, X.L. Experimental and finite element analysis of a double strap joint between steel plates and normal modulus CFRP. Compos. Struct. 2006, 75, 156–162. [Google Scholar] [CrossRef]
- Fawzia, S.; Zhao, X.L.; Al-Mahaidi, R. Bond—Slip models for double strap joints strengthened by CFRP. Compos. Struct. 2010, 92, 2137–2145. [Google Scholar] [CrossRef]
- Al-Shawaf, A. Modelling wet lay-up CFRP—Steel bond failures at extreme temperatures using stress-based approach. Int. J. Adhes. Adhes. 2011, 31, 416–428. [Google Scholar] [CrossRef]
- Nguyen, T.C.; Bai, Y.; Zhao, X.L.; Bambach, M.R.; Al-Mahaidi, R. Temperature Effect on Adhesively Bonded CFRP and Steel Double Strap Joints. Adv. FRP Compos. Civ. Eng. 2011, 877–880. [Google Scholar]
- Nguyen, T.C.; Bai, Y.; Zhao, X.L.; Al-Mahaidi, R. Mechanical characterization of steel/CFRP double strap joints at elevated temperatures. Compos. Struct. 2011, 93, 1604–1612. [Google Scholar] [CrossRef]
- Al-Zubaidy, H.A.; Zhao, X.L.; Al-Mahaidi, R. Dynamic bond strength between CFRP sheet and steel. Compos. Struct. 2012, 94, 3258–3270. [Google Scholar] [CrossRef]
- Nguyen, T.C.; Bai, Y.; Zhao, X.L.; Al-Mahaidi, R. Effects of ultraviolet radiation and associated elevated temperature on mechanical performance of steel/CFRP double strap joints. Compos. Struct. 2012, 94, 3563–3573. [Google Scholar] [CrossRef]
- Al-Zubaidy, H.A.; Al-Mahaidi, R.; Zhao, X.L. Finite element modelling of CFRP/steel double strap joints subjected to dynamic tensile loadings. Compos. Struct. 2013, 99, 48–61. [Google Scholar] [CrossRef]
- Nguyen, T.C.; Bai, Y.; Zhao, X.L.; Al-Mahaidi, R. Curing effects on steel/CFRP double strap joints under combined mechanical load, temperature and humidity. Constr. Build. Mater. 2013, 40, 899–907. [Google Scholar] [CrossRef]
- Al-Mosawe, A.; Al-Mahaidi, R.; Zhao, X.L. Effect of CFRP properties, on the bond characteristics between steel and CFRP laminate under quasi-static loading. Constr. Build. Mater. 2015, 98, 489–501. [Google Scholar] [CrossRef]
- Al-Mosawe, A.; Al-Mahaidi, R.; Zhao, X.L. Bond behaviour between CFRP laminates and steel members under different loading rates. Compos. Struct. 2016, 148, 236–251. [Google Scholar] [CrossRef]
- Majidi, H.R.; Razavi, S.M.J.; Ayatollahi, M.R. Failure load prediction of steel-CFRP double strap joints under quasi-static tensile loading. In Proceedings of the 5th International Conference on Composites: Characterization, Fabrication and Application (CCFA-5), Tehran, Iran, 20–21 December 2016. [Google Scholar]
- Zhao, X.L.; Zhang, L. State-of-the-art review on FRP strengthened steel structures. Eng. Struct. 2007, 29, 1808–1823. [Google Scholar] [CrossRef]
- Mohee, F.M.; Al-Mayah, A.; Plumtree, A. Anchors for CFRP plates: State-of-the-art review and future potential. Compos. B Eng. 2016, 90, 432–442. [Google Scholar] [CrossRef]
- ASTM E8/E8M-16a. Standard Test Methods for Tension Testing of Metallic Materials; ASTM International: West Conshohocken, PA, USA, 2016; Available online: www.astm.org (access on 6 July 2017).
- ASTM. Properties, Standard Test Method for Tensile Properties of Plastics; American Society for Testing and Materials: West Conshohocken, PA, USA, 1996. [Google Scholar]
- Sato, C.; Ikegami, K. Tensile strength of single lap joint and scarf joint between CFRP and carbon steel. J. Adhes. 1992, 39, 29–41. [Google Scholar] [CrossRef]
- Li, J.; Yan, Y.; Liang, Z.; Zhang, T. Experimental and Numerical Study of Adhesively Bonded CFRP Scarf-Lap Joints Subjected to Tensile Loads. J. Adhes. 2016, 92, 1–17. [Google Scholar] [CrossRef]
- Razavi, S.M.J.; Esmaeili, E.; Samari, M.; Razavi, S.M.R. Stress analysis on a non-flat zigzag interface bonded joint. J. Adhes. 2016, 1–19. [Google Scholar] [CrossRef]
- Ayatollahi, M.R.; Nemati Giv, A.; Razavi, S.M.J.; Khoramishad, H. Mechanical properties of adhesively single lap-bonded joints reinforced with multi-walled carbon nanotubes and silica nanoparticles. J. Adhes. 2016, 1–18. [Google Scholar] [CrossRef]
- Razavi, S.M.J.; Ayatollahi, M.R.; Esmaeili, E.; da Silva, L.F.M. Mixed mode fracture response of a metallic fiber-reinforced epoxy adhesive. Eur. J. Mech. A-Solids 2017, 65, 349–359. [Google Scholar] [CrossRef]
- Enghardt, S.; Richter, G.; Richter, E.; Reitemeier, B.; Walter, M.H. Experimental Investigations on the Influence of Adhesive Oxides on the Metal-Ceramic Bond. Metals 2015, 5, 119–130. [Google Scholar] [CrossRef]
- Razavi, S.M.J.; Berto, F.; Peron, M.; Torgersen, J. Parametric study of adhesive joints with non-flat sinusoid interfaces. Theor. Appl. Fract. Mech. 2017. [Google Scholar] [CrossRef]
- Al-Mosawe, A.; Al-Mahaidi, R.; Zhao, X.L. Experimental and Numerical Study on Strengthening of Steel Members Subjected to Impact Loading Using Ultrahigh Modulus CFRP. J. Compos. Constr. 2016, 20, 04016044. [Google Scholar] [CrossRef]
- Al-Mosawe, A.; Kalfat, R.; Al-Mahaidi, R. Strength of CFRP-steel double strap joints under impact loads using genetic programming. Compos. Struct. 2017, 160, 1205–1211. [Google Scholar] [CrossRef]
- Ghafoori, E.; Motavalli, M. Flexural and interfacial behavior of metallic beams strengthened by prestressed bonded plates. Compos. Struct. 2013, 101, 22–34. [Google Scholar] [CrossRef]
- Ghafoori, E. Interfacial stresses in beams strengthened with bonded prestressed plates. Eng. Struct. 2013, 46, 508–510. [Google Scholar] [CrossRef]
- Ghafoori, E.; Motavalli, M. Lateral-torsional buckling of steel I-beams retrofitted by bonded and un-bonded CFRP laminates with different pre-stress levels: Experimental and numerical study. Constr. Build. Mater. 2015, 76, 194–206. [Google Scholar] [CrossRef]
- Ghafoori, E.; Motavalli, M. Normal, high and ultra-high modulus CFRP laminates for bonded and un-bonded strengthening of steel beams. Mater. Des. 2015, 67, 232–243. [Google Scholar] [CrossRef]
- Ghafoori, E.; Motavalli, M.; Botsis, J.; Herwig, A.; Galli, M. Fatigue strengthening of damaged metallic beams using prestressed unbonded and bonded CFRP plates. Int. J. Fatigue 2012, 44, 303–315. [Google Scholar] [CrossRef]
- Ghafoori, E.; Motavalli, M.; Nussbaumer, A.; Herwig, A.; Prinz, G.S.; Fontana, M. Design criterion for fatigue strengthening of riveted beams in a 120-year-old railway metallic bridge using pre-stressed CFRP plates. Compos. B Eng. 2015, 68, 1–13. [Google Scholar] [CrossRef]
- Ghafoori, E.; Prinz, G.S.; Mayor, E.; Nussbaumer, A.; Motavalli, M.; Herwig, A.; Fontana, M. Finite element analysis for fatigue damage reduction in metallic riveted bridges using pre-stressed CFRP plates. Polymers 2014, 6, 1096–1118. [Google Scholar] [CrossRef]
Property | Steel Plates | Adhesive | CFRP Sheets * |
---|---|---|---|
Tensile modulus (GPa) | 203 | 2.1 | 200 |
Poisson’s ratio | 0.25 | 0.35 | 0.28 |
Ultimate strength (MPa) | 520 | 39 | 1900 |
Ultimate Strain (mm/mm) | 22 | 2.9 | 1.1 |

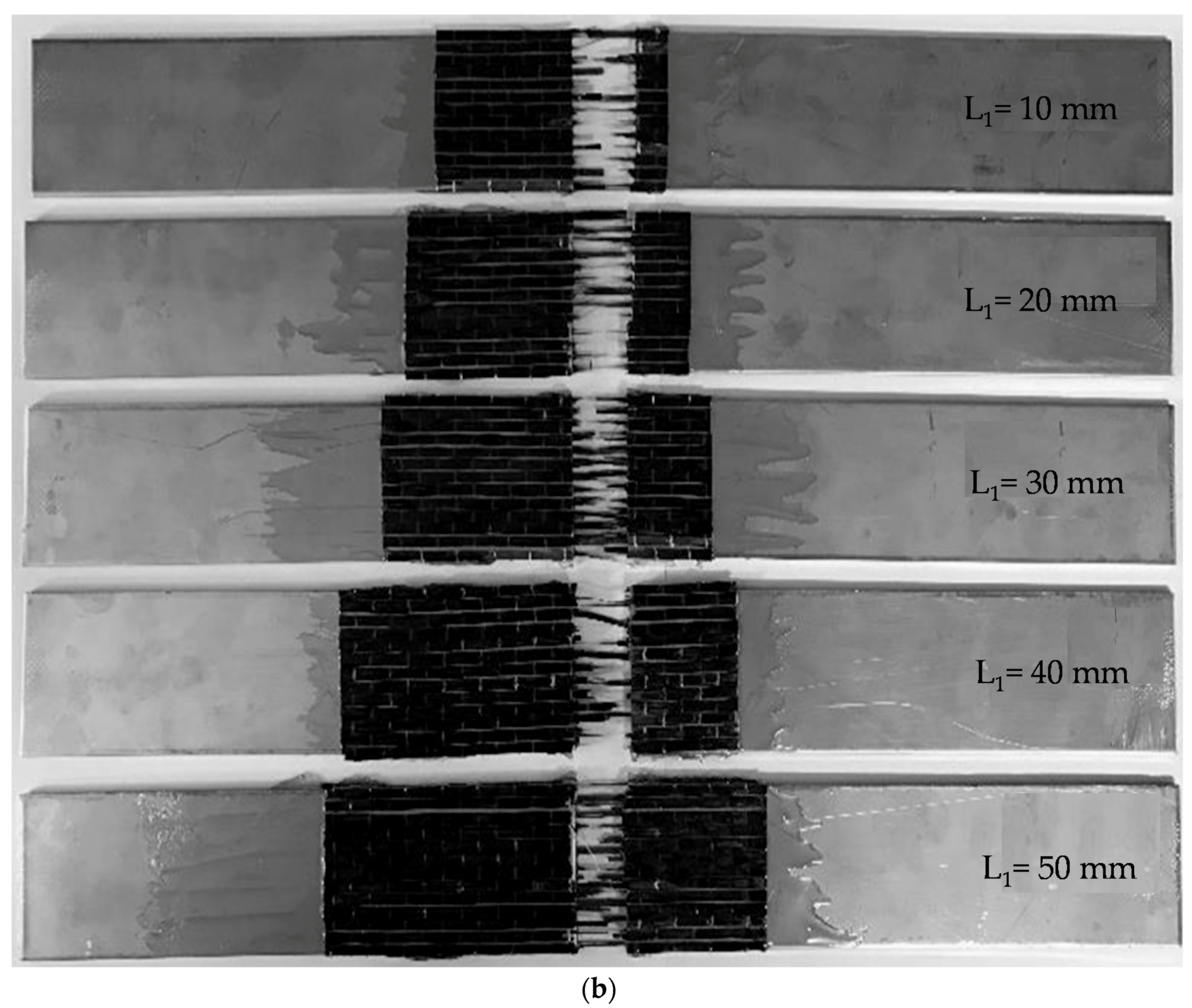

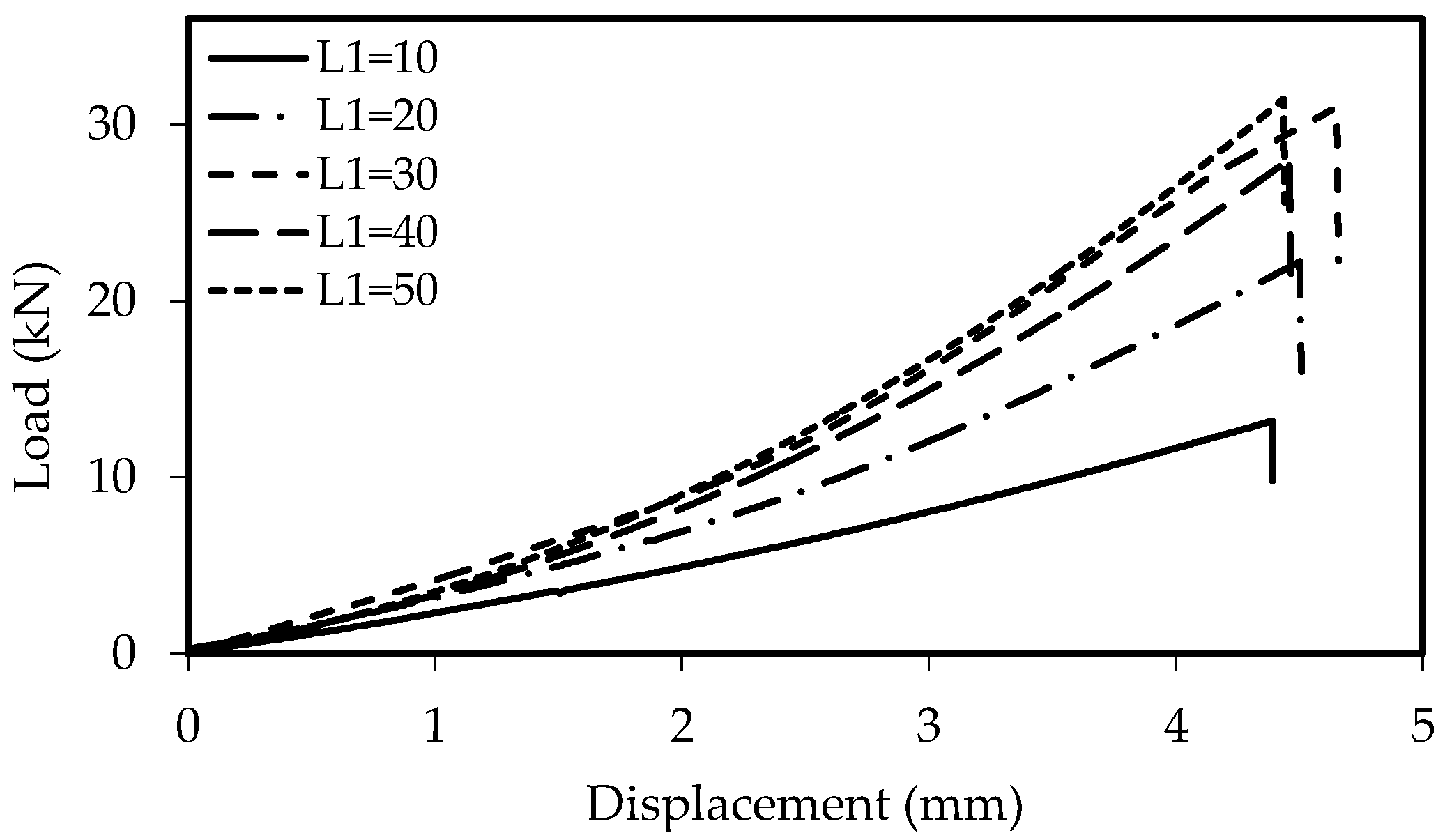

Bonding Length, L1 (mm) | Bonding Length, L2 (mm) | Experimental Failure Load Pexp (kN) |
---|---|---|
10 | 40 | 14.80 |
13.19 | ||
11.86 | ||
13.47 | ||
Average (Standard Deviation) = 13.33 (9%) | ||
20 | 50 | 23.21 |
26.57 | ||
22.24 | ||
25.42 | ||
Average (Standard Deviation) = 24.36 (8%) | ||
30 | 60 | 32.89 |
33.12 | ||
30.98 | ||
28.73 | ||
Average (Standard Deviation) = 31.43 (6%) | ||
40 | 70 | 31.58 |
28.25 | ||
31.15 | ||
29.70 | ||
Average (Standard Deviation) = 30.17 (5%) | ||
50 | 80 | 31.45 |
30.41 | ||
33.22 | ||
32.64 | ||
Average (Standard Deviation) = 31.93 (4%) |
Bonding Length, L1 | Bonding Length, L2 | Experimental Failure Load, PExp. (kN) | Theoretical Failure Load, PTheor. (kN) | PTheor./PExp. |
---|---|---|---|---|
10 | 40 | 13.33 | 14.67 | 1.10 |
20 | 50 | 24.36 | 23.05 | 0.95 |
30 | 60 | 31.43 | 31.43 | 1.00 |
40 | 70 | 30.17 | 31.43 | 1.04 |
50 | 80 | 31.93 | 31.43 | 0.98 |
Property | Steel Plates | Adhesive | CFRP Sheets |
---|---|---|---|
Tensile modulus (GPa) | 200 | 1.9 | 240 |
Equivalent tensile modulus for the joints series B (GPa) | - | - | 88.7 |
Poisson’s ratio | 0.25 | 0.21 | 0.28 |
Specimen Label | Bonding Length, L1 | Bonding Length, L2 | PExp.1 (kN) | PExp.2 (kN) | PExp.3 (kN) | PExp. (kN) (Standard Deviation) |
---|---|---|---|---|---|---|
A | 10 | 80 | 19.84 | - | - | 19.84 (-) |
A | 20 | 80 | 35.61 | 40.14 | - | 37.87 (8%) |
A | 30 | 80 | 46.16 | 44.27 | - | 45.22 (3%) |
A | 40 | 80 | 46.40 | 41.73 | - | 44.06 (7%) |
A | 50 | 80 | 45.97 | 48.91 | - | 47.44 (4%) |
A | 60 | 80 | 45.92 | 46.43 | - | 46.17 (1%) |
A | 70 | 100 | 43.99 | 48.67 | - | 46.33 (7%) |
A | 80 | 100 | 50.13 | 46.23 | - | 48.18 (6%) |
A | 90 | 115 | 46.97 | 44.68 | - | 45.82 (4%) |
A | 100 | 115 | 47.28 | 46.19 | - | 46.73 (2%) |
B | 10 | 80 | 29.61 | - | - | 29.61 (-) |
B | 20 | 80 | 51.22 | 54.91 | 56.47 | 54.20 (5%) |
B | 30 | 80 | 66.89 | 71.37 | 68.36 | 68.88 (3%) |
B | 40 | 80 | 80.38 | 84.23 | 84.03 | 82.88 (3%) |
B | 50 | 80 | 101.67 | 86.50 | 102.32 | 96.83 (9%) |
B | 60 | 80 | 104.06 | 93.36 | 106.63 | 101.35 (7%) |
B | 70 | 100 | 111.54 | 89.12 | 109.07 | 103.24 (12%) |
B | 80 | 100 | 93.95 | 91.13 | 107.12 | 97.40 (9%) |
B | 90 | 115 | 91.21 | 93.51 | 107.40 | 97.38 (9%) |
B | 100 | 115 | 96.75 | 91.80 | 109.12 | 99.22 (9%) |

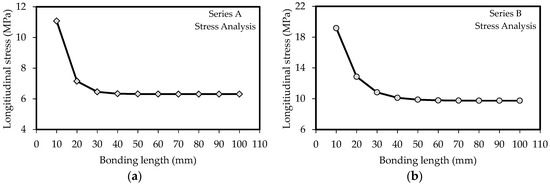

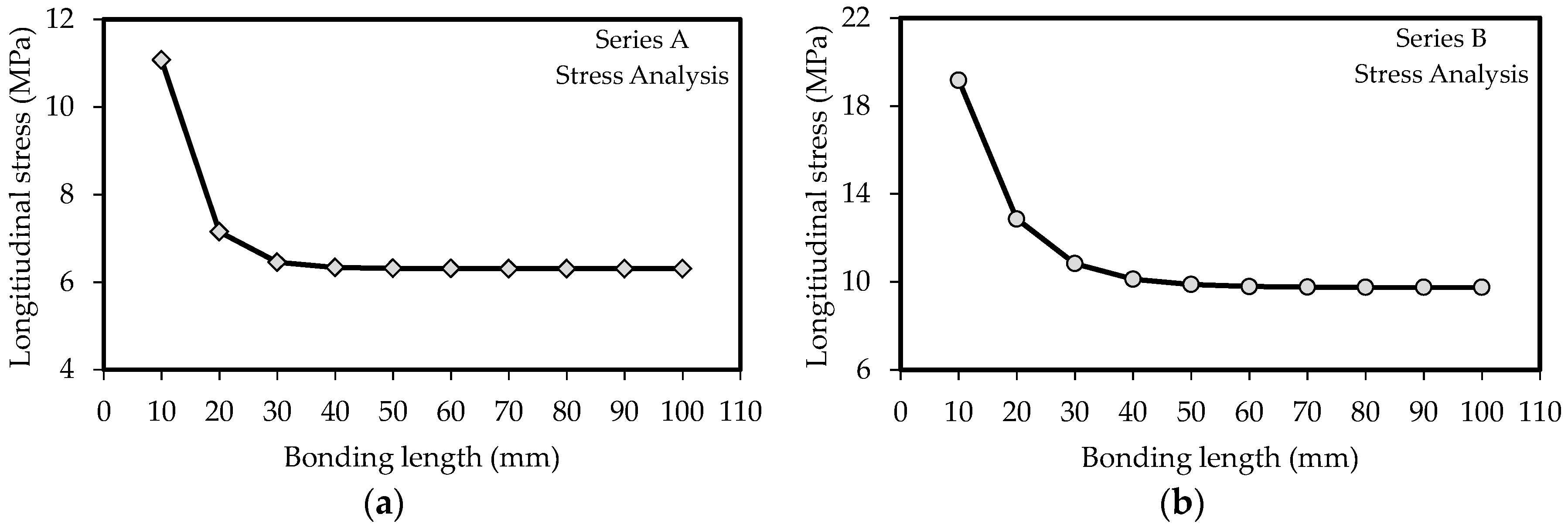

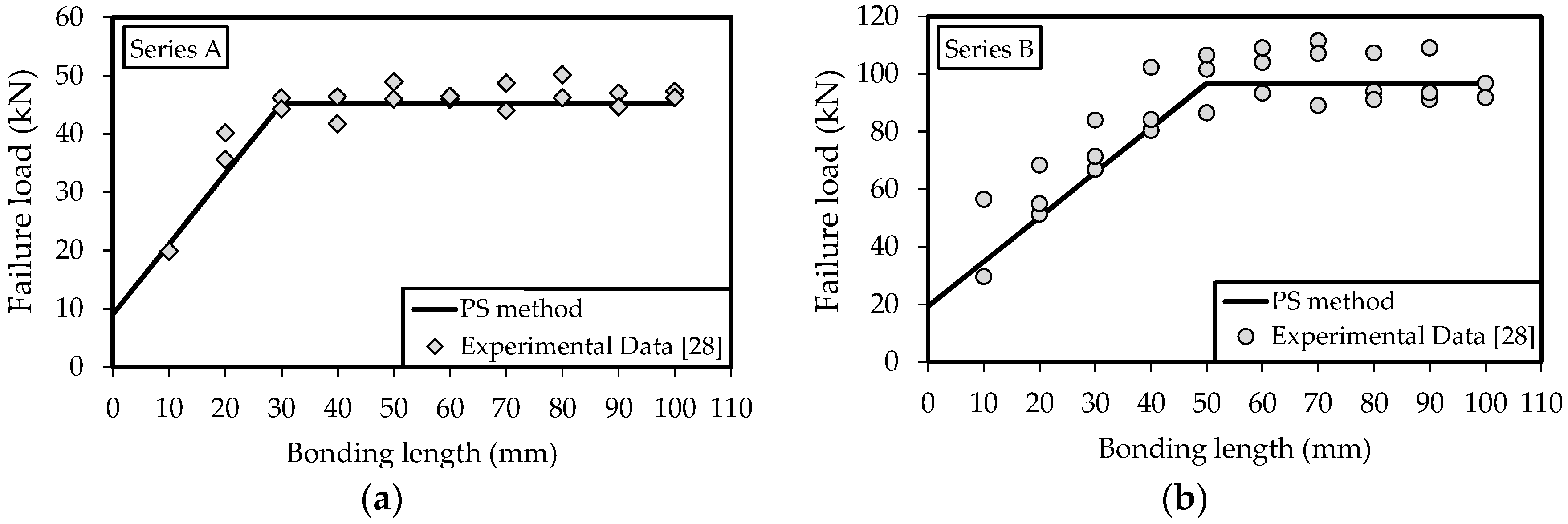

Specimen Label | Bonding Length, L1 | Bonding Length, L2 | Average of Experimental Failure Load, PExp. (kN) [28] | Theoretical Failure Load, PTheor. (kN) | PTheor./PExp. |
---|---|---|---|---|---|
A | 10 | 80 | 19.84 | 21.1 | 1.06 |
A | 20 | 80 | 37.87 | 33.16 | 0.88 |
A | 30 | 80 | 45.22 | 45.22 | 1 |
A | 40 | 80 | 44.06 | 45.22 | 1.03 |
A | 50 | 80 | 47.44 | 45.22 | 0.95 |
A | 60 | 80 | 46.17 | 45.22 | 0.98 |
A | 70 | 100 | 46.33 | 45.22 | 0.98 |
A | 80 | 100 | 48.18 | 45.22 | 0.94 |
A | 90 | 115 | 45.82 | 45.22 | 0.99 |
A | 100 | 115 | 46.73 | 45.22 | 0.97 |
B | 10 | 80 | 29.61 | 34.86 | 1.18 |
B | 20 | 80 | 54.20 | 50.35 | 0.93 |
B | 30 | 80 | 68.88 | 65.84 | 0.96 |
B | 40 | 80 | 82.88 | 81.34 | 0.98 |
B | 50 | 80 | 96.83 | 96.83 | 1 |
B | 60 | 80 | 101.35 | 96.83 | 0.96 |
B | 70 | 100 | 103.24 | 96.83 | 0.94 |
B | 80 | 100 | 97.40 | 96.83 | 0.99 |
B | 90 | 115 | 97.38 | 96.83 | 0.99 |
B | 100 | 115 | 99.22 | 96.83 | 0.98 |
