On the Short Surface Fatigue Crack Growth Behavior in a Fine-Grained WC-Co Cemented Carbide
Abstract
:1. Introduction
2. Materials and Methods
2.1. Material

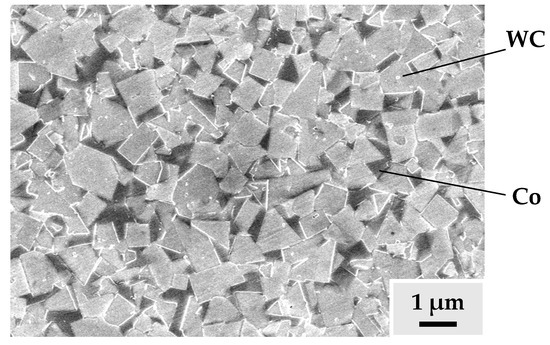

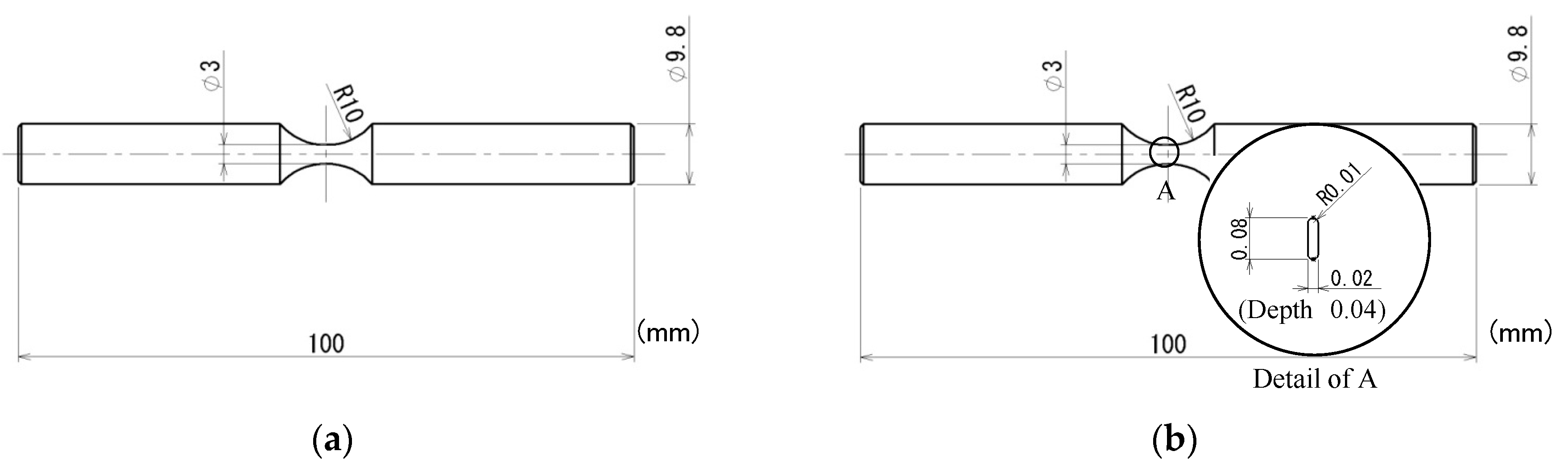

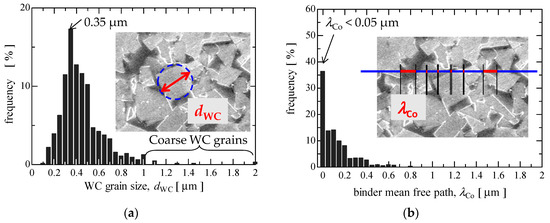

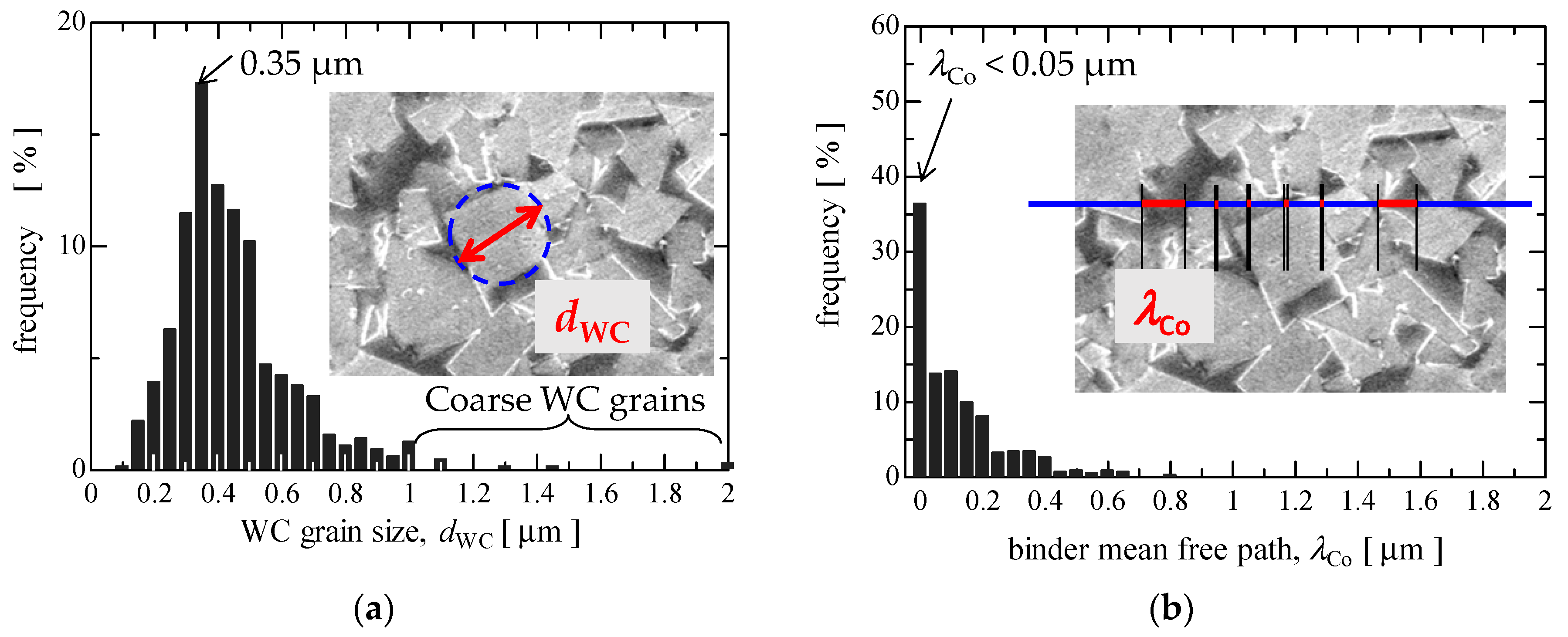

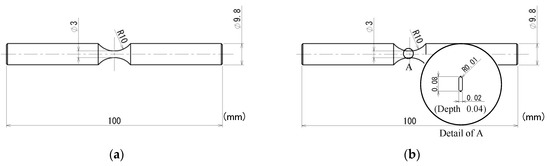

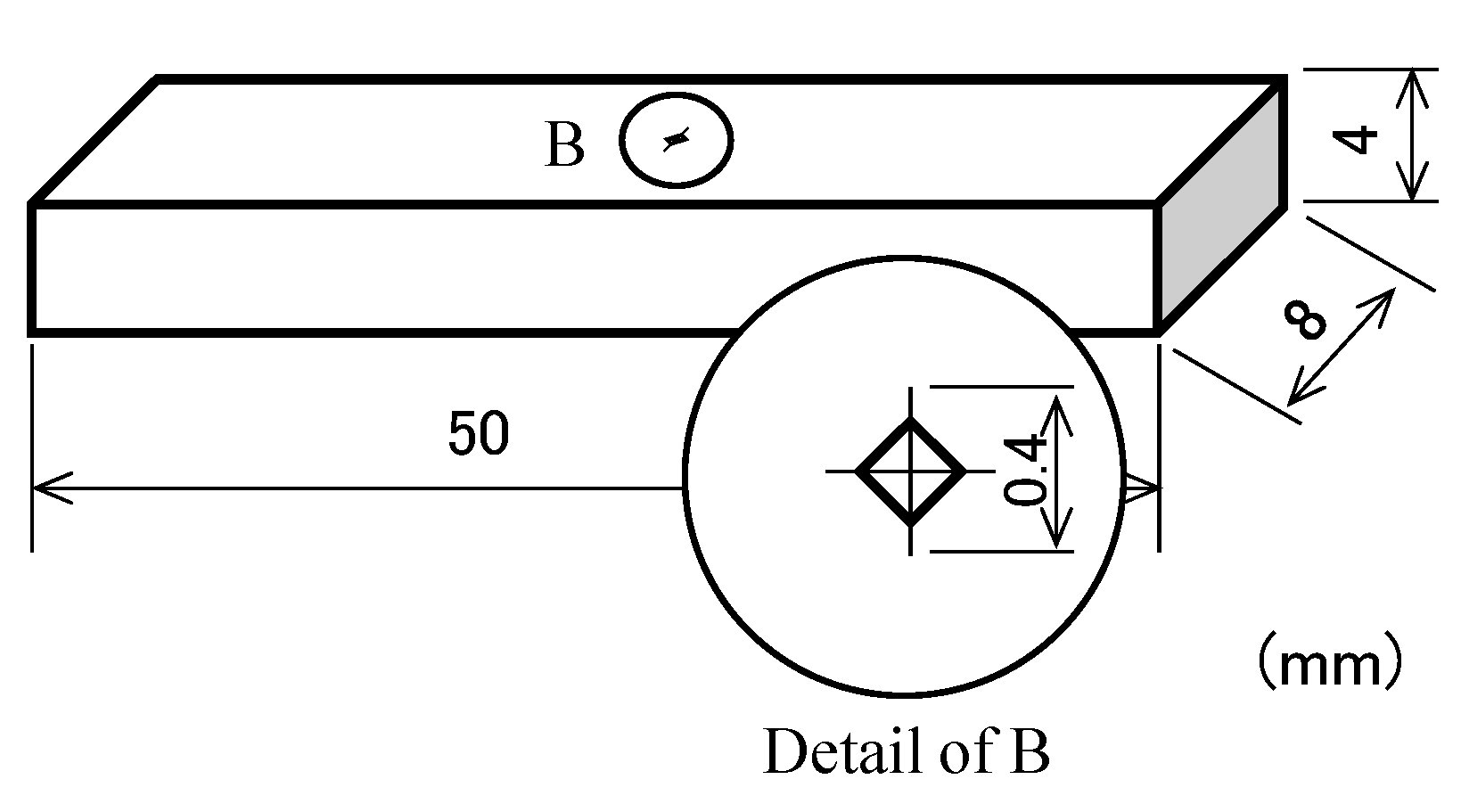

2.2. Specimens
2.3. Experimental Procedure for Fatigue Tests
2.3.1. Rotating Bending Fatigue Tests (R = −1)
2.3.2. Four-Point Bending Fatigue Tests (R = 0.1)
3. Results

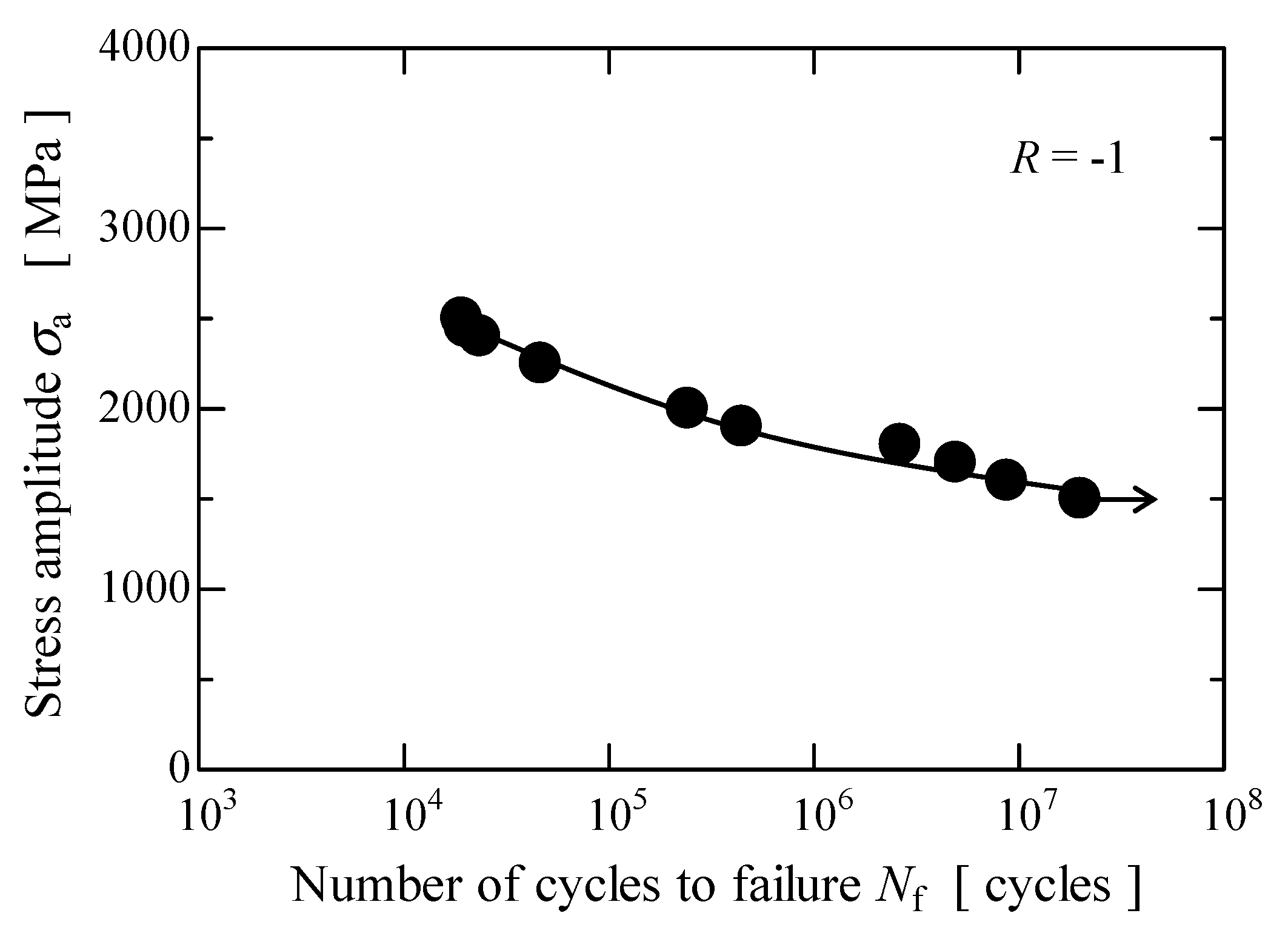

3.1. S-N Curve at R = −1

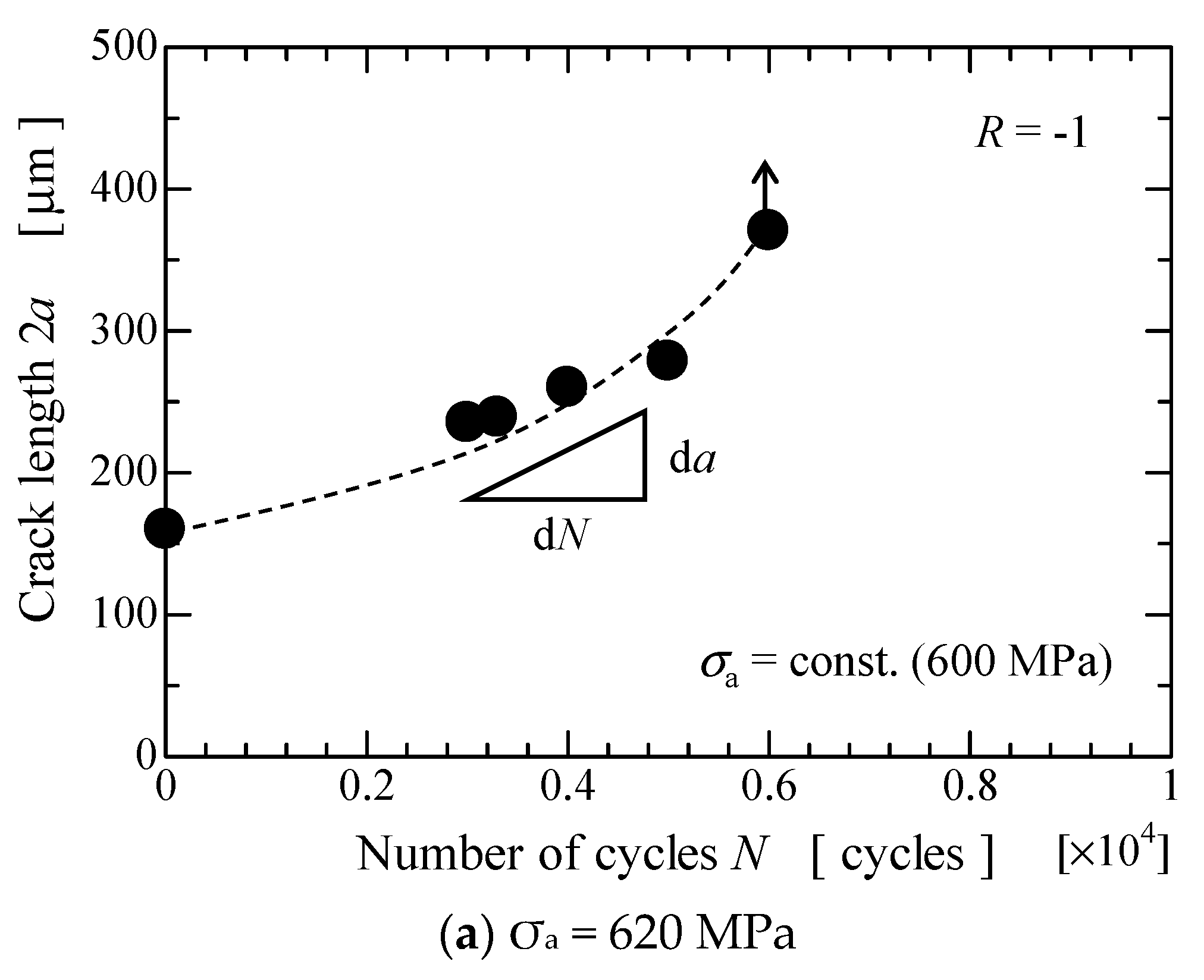

3.2. Fatigue Crack Growth (FCG) Behavior of Short Surface Cracks
3.3. Observation of the Crack Growth Path

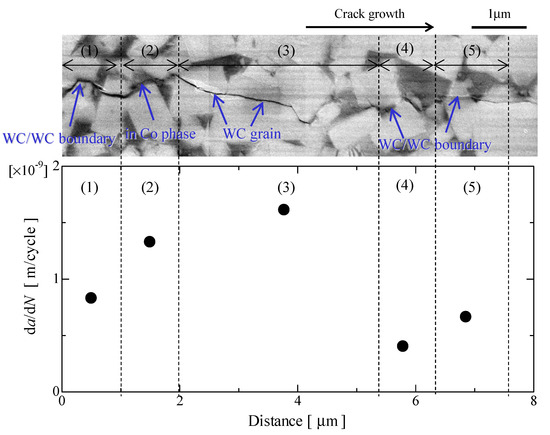

3.4. Effect of the Microstructure on the Rate of FCG
4. Discussion
4.1. Difference in the FCG Behavior Between Short Surface Cracks and Long Through-Thickness Cracks

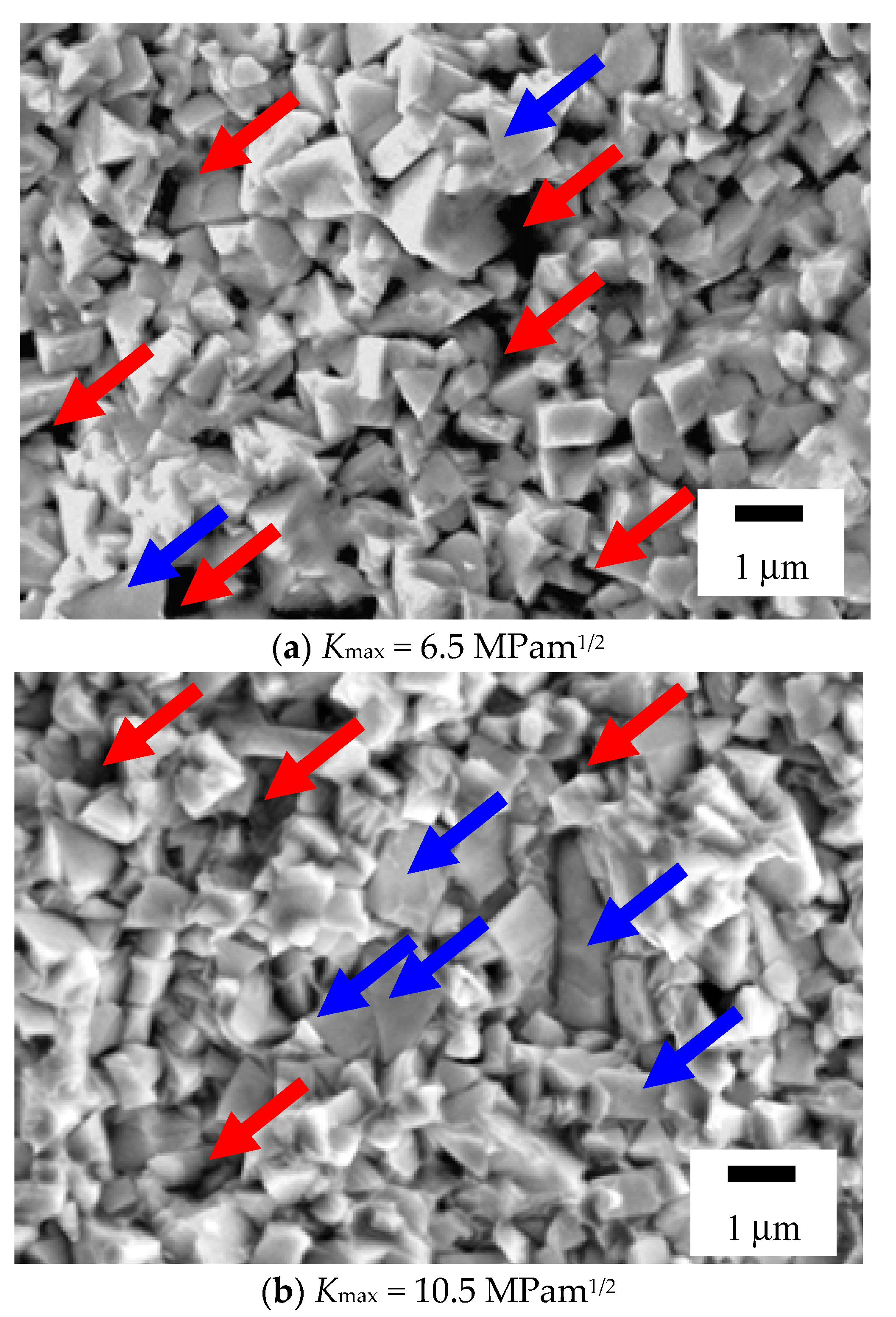

4.2. Effect of the Maximum Stress Intensity Factor, Kmax, on the Crack Growth Path
5. Conclusions

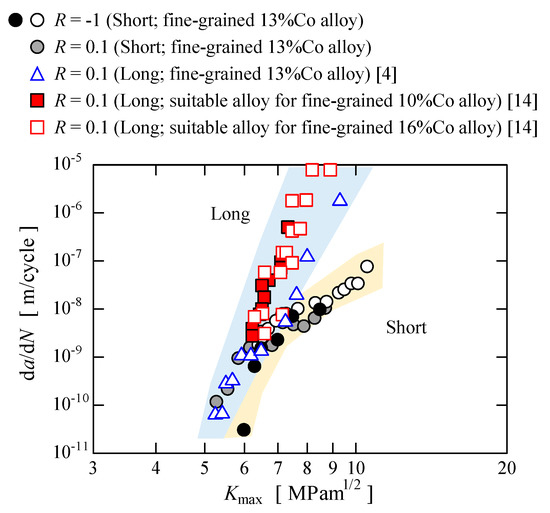

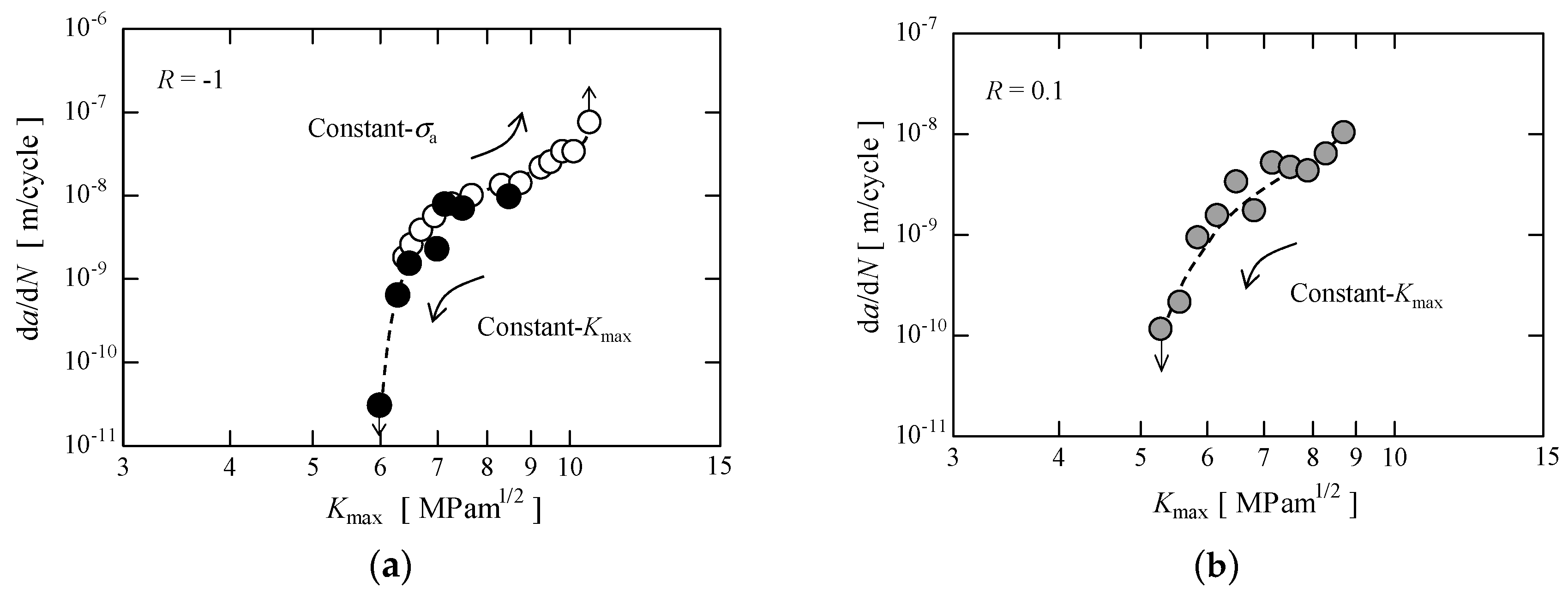

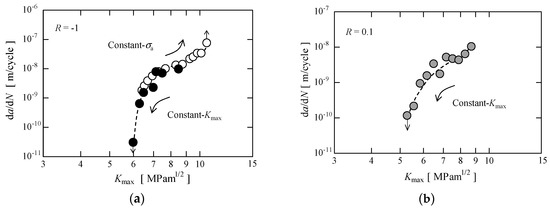

- There was little effect of the stress ratio on the da/dN-Kmax relation for short surface fatigue cracks.
- Short surface fatigue cracks have a longer region where fatigue crack growth is stable than long through-thickness fatigue cracks. In other words, long through-thickness fatigue cracks grow in a more brittle and unstable manner than short surface fatigue cracks. The FCG behavior of the short surface cracks is more susceptible to repeated stress than that of long through-thickness cracks. Thus, the FCG behaviors of both types of crack are clearly different.

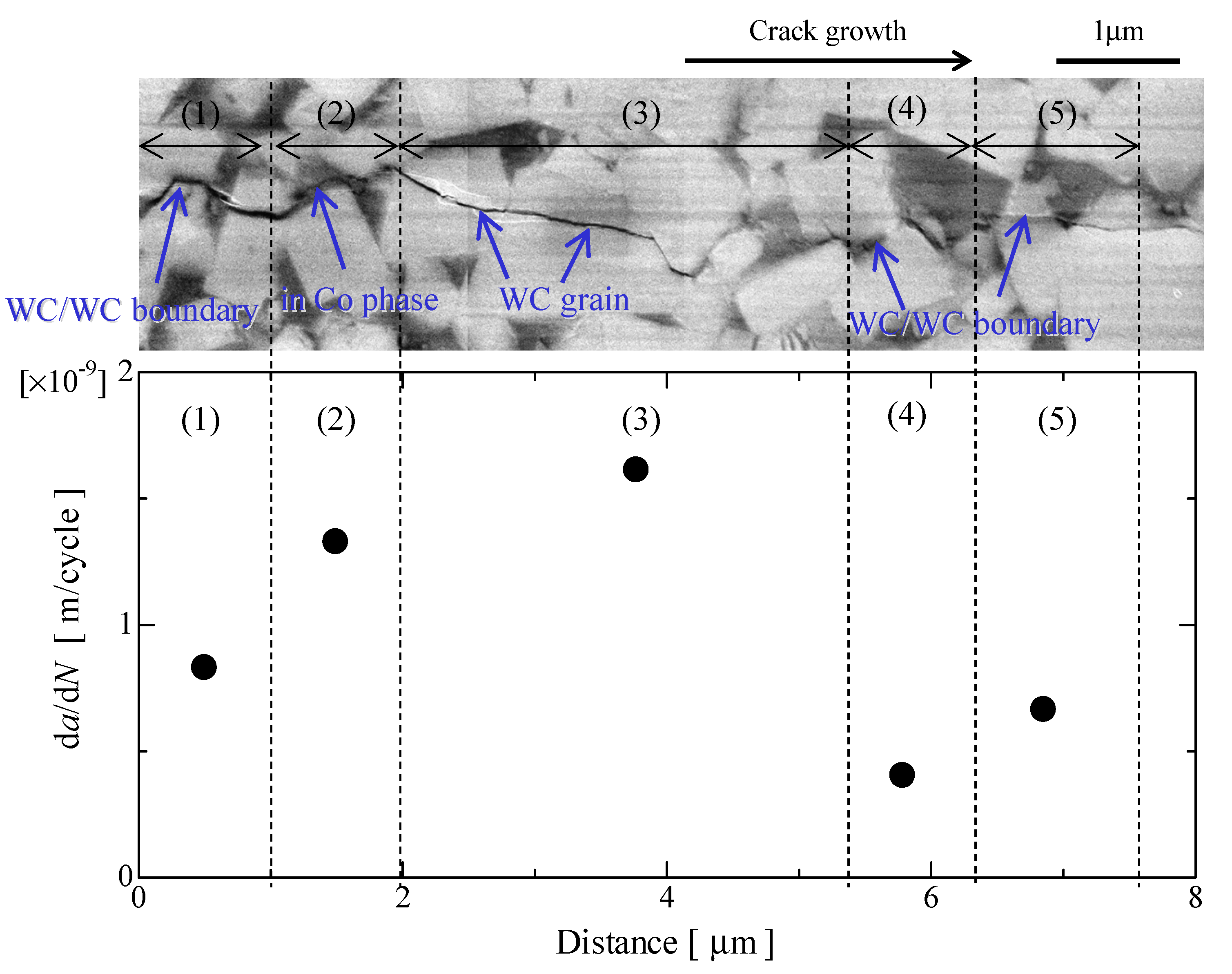

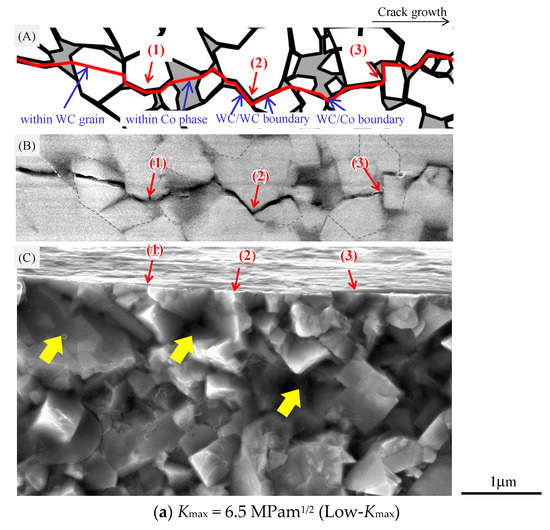

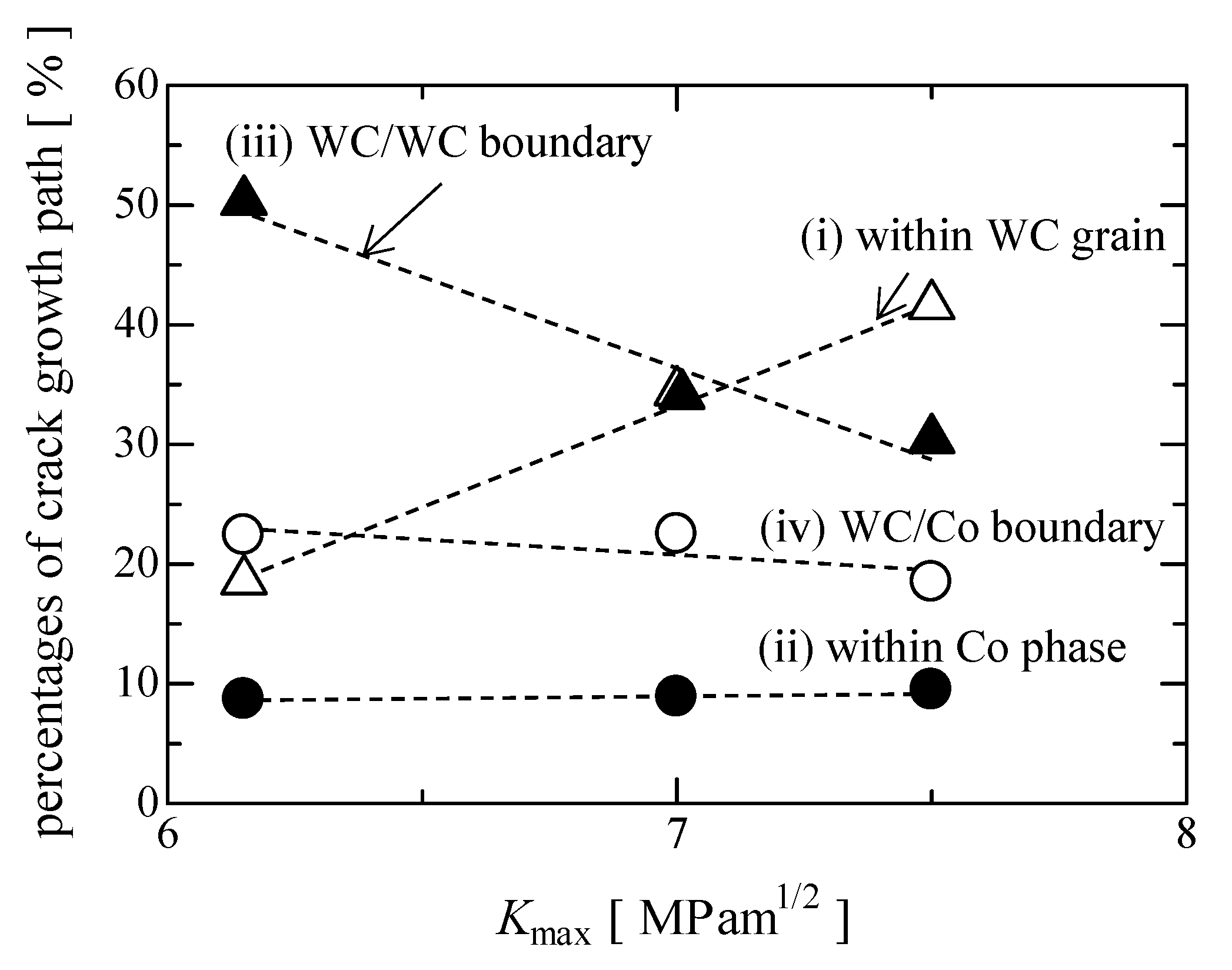

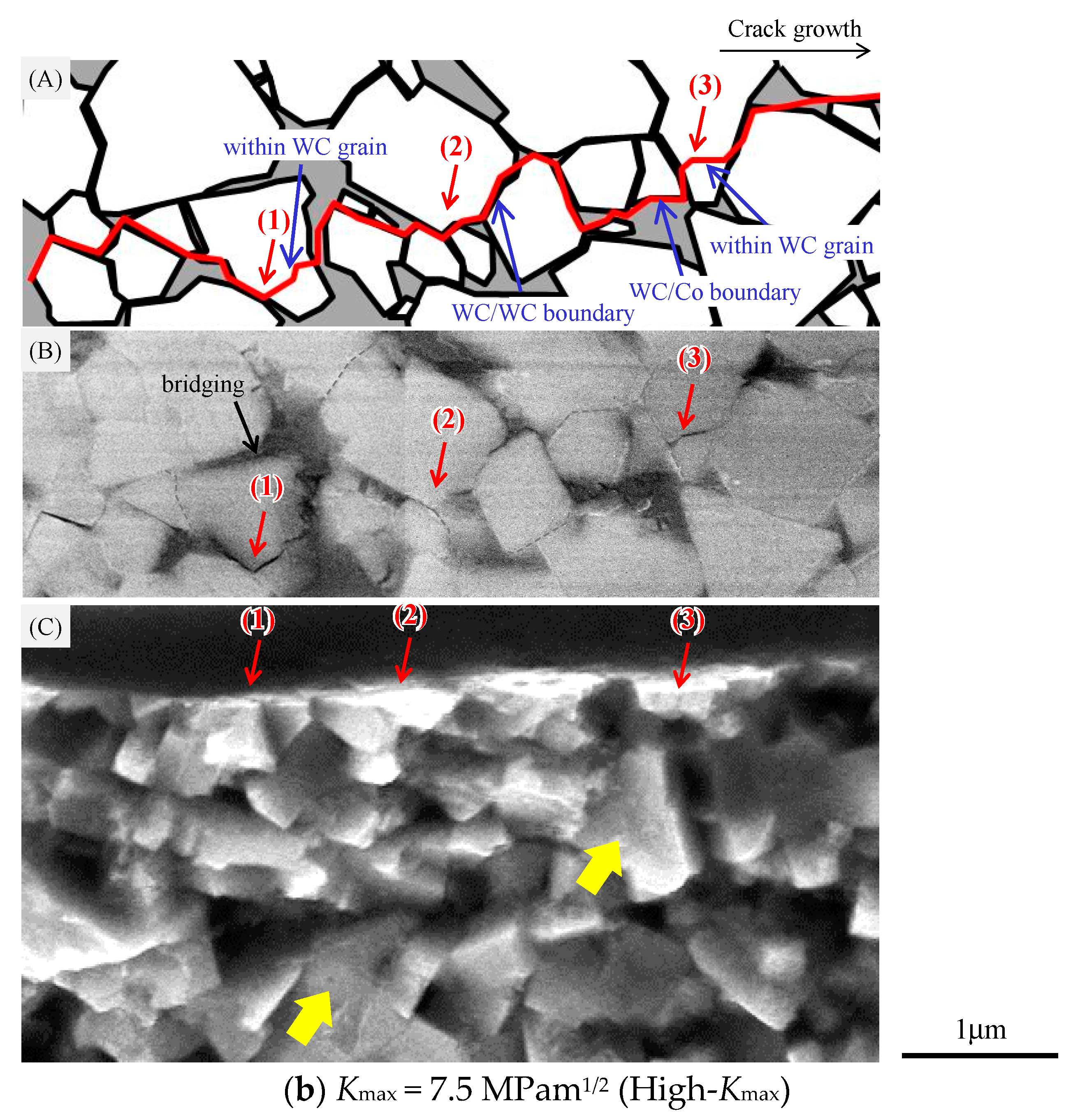

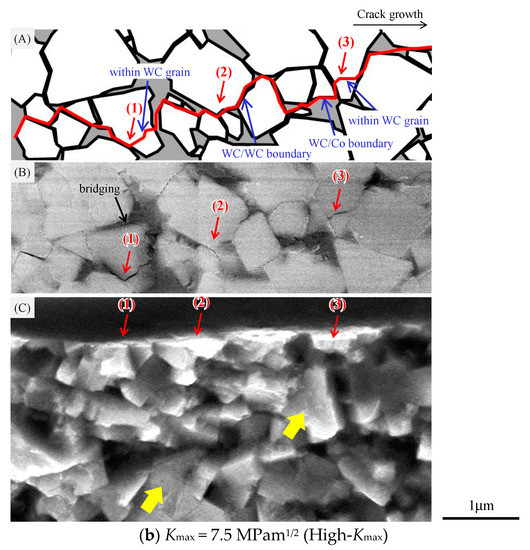

- The crack growth paths were classified into four types: (1) within WC grains, (2) within the Co phase, (3) along WC/WC boundaries, and (4) along WC/Co boundaries. The percentage of crack growth paths along WC/WC boundaries decreased from 50 to 30% when Kmax was increased from 6.0 MPam1/2 to 7.5 MPam1/2, while the percentage of transgranular cracks within the WC grains increased from 20% to 40%.

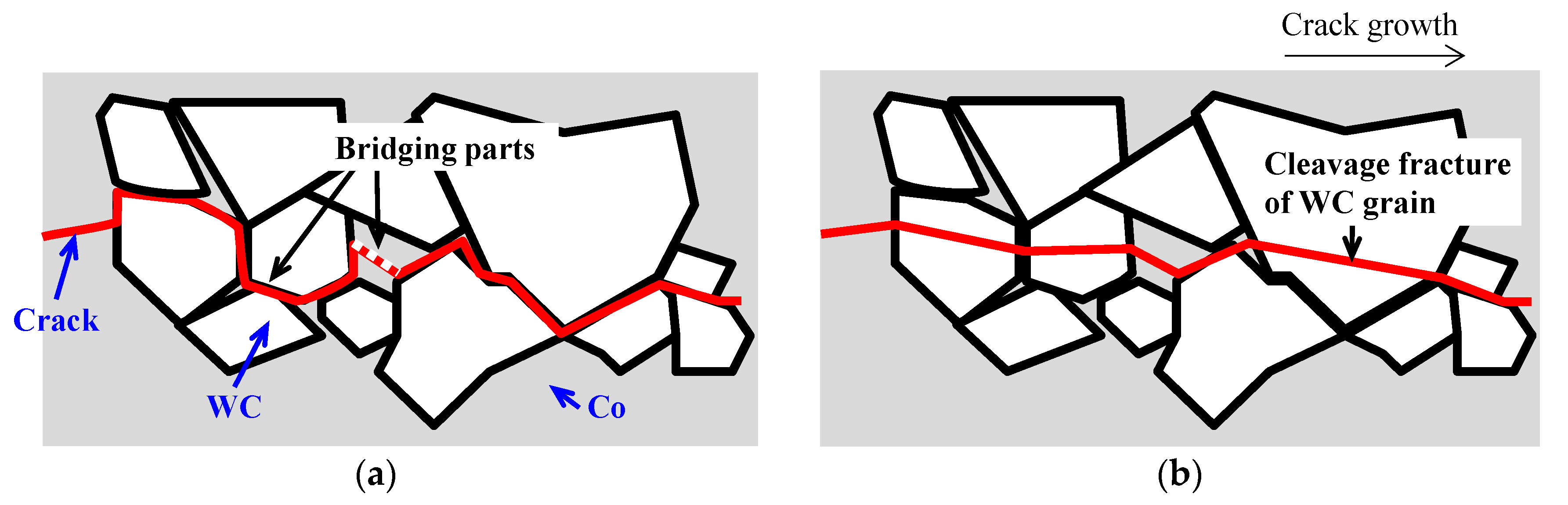

- At low values of Kmax, it is not easy for a crack to grow within WC grains (transgranular cracking). Instead, fatigue crack growth occurs discontinuously along weak WC/WC interfaces or along WC/Co boundaries. On the other hand, at high values of Kmax, cleavage fractures of WC grains are more common and the area in which cleavage fractures occur is wider than at low values of Kmax. Moreover, cracks tend to be straighter than those for a low Kmax. Thus, cracks grow more rapidly for a high Kmax because of the higher crack driving force and the fewer bridging parts.
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Ettmayer, P.; Kolaska, H.; Ortner, H.M. History of hardmetals. In Comprehensive Hard Materials, 1st ed.; Salin, V.K., Mari, D., Llanes, L., Eds.; Elsevier: Oxford, UK, 2014; Volume 1, pp. 3–27. [Google Scholar]
- Prakash, L. Fundamentals and general applications of hardmetals. In Comprehensive Hard Materials; Salin, V.K., Mari, D., Llanes, L., Eds.; Elsevier: Oxford, UK, 2014; Volume 1, pp. 29–90. [Google Scholar]
- Suzuki, H.; Hayashi, K. The recent development and a trend of WC based cemented carbides. Bull. Jpn. Inst. Met. 1985, 24, 270–279. [Google Scholar] [CrossRef]
- Mikado, H.; Ishihara, S.; Oguma, N.; Masuda, K.; Kitagawa, S.; Kawamura, S. Effect of stress ratio on fatigue lifetime and crack growth behavior of WC–Co cemented carbide. Trans. Nonferr. Met. Soc. China 2014, 24, s14–s19. [Google Scholar] [CrossRef]
- Llanes, L.; Anglada, M.; Torres, Y. Fatigue of cemented carbides. In Comprehensive Hard Materials; Salin, V.K., Mari, D., Llanes, L., Eds.; Elsevier: Oxford, UK, 2014; Volume 1, pp. 345–362. [Google Scholar]
- Miyake, K.; Fujiwara, Y.; Nishigaki, K. On the fatigue of WC-Co alloys. J. Jpn. Inst. Met. Mater. 1968, 32, 1128–1131. [Google Scholar] [CrossRef]
- Schleinkofer, U.; Sockel, H.G.; Gorting, K.; Heinrich, W. Fatigue of hard metals and cermets—New results and a better understanding. Int. J. Refract. Met. Hard Mater. 1997, 15, 103–112. [Google Scholar] [CrossRef]
- Sailer, T.; Herr, M.; Sockel, H.G.; Schulte, R.; Feld, H.; Prakash, L.J. Microstructure and mechanical properties of ultrafine-grained hardmetals. Int. J. Refract. Met. Hard Mater. 2001, 19, 553–559. [Google Scholar] [CrossRef]
- Sakagami, K.; Kouno, S.; Yamamoto, T. Bending fatigue characteristics of micrograin alloys. J. Jpn. Soc. Powder Powder Metall. 2003, 50, 396–399. [Google Scholar] [CrossRef]
- Sakagami, K.; Kouno, S.; Yamamoto, T. Bending fatigue characteristics of cemented carbides for cold forming tools. J. Jpn. Soc. Powder Powder Metall. 2007, 54, 260–263. [Google Scholar] [CrossRef]
- Nakajima, T.; Hosokawa, H.; Shimojima, K. Influence of cobalt content on the fatigue strength of WC-Co hardmetals. Mater. Sci. Forum 2007, 534–536, 1201–1204. [Google Scholar] [CrossRef]
- Fry, P.R.; Garret, G.G. Fatigue crack growth behaviour in tungsten carbide-cobalt hardmetals. J. Mater. Sci. 1988, 23, 2325–2338. [Google Scholar] [CrossRef]
- Torres, Y.; Anglada, M.; Llanes, L. Fatigue mechanics of WC-Co cemented carbides. Int. J. Refract. Met. Hard Mater. 2001, 19, 341–348. [Google Scholar] [CrossRef]
- Llanes, L.; Torres, Y.; Anglada, M. On the fatigue crack growth behavior of WC-Co cemented carbides: Kinetics description, microstructural effects and fatigue sensitivity. Acta Mater. 2002, 50, 2381–2393. [Google Scholar] [CrossRef]
- Boo, M.H.; Park, C.Y. Mechanisms of fatigue crack growth in WC-Co cemented carbides. Key Eng. Mater. 2005, 297–300, 1120–1125. [Google Scholar] [CrossRef]
- Sunouchi, T.; Cho, H.; Sakaue, K.; Ogawa, T.; Kobayashi, Y. Evaluation of fatigue crack growth characteristics of sintered and thermal-sprayed WC-Co materials. J. Soc. Mater. Sci. Jpn. 2009, 58, 1037–1043. [Google Scholar] [CrossRef]
- Mingard, K.P.; Jones, H.G.; Gee, M.G.; Roebuck, B.; Nunn, J.W. In situ observation of crack growth in a WC-Co hardmetal and characterisation of crack growth morphologies by EBSD. Int. J. Refract. Met. Hard Mater. 2013, 36, 136–142. [Google Scholar] [CrossRef]
- Gee, M.G.; Mingard, K.P.; Roebuck, B.; Nunn, J.W.; Jones, H.G. Examination of Fracture and Deformation Mechanisms in WC/Co Hardmetals; European Powder Metallurgy Association EuroPM11: Barcelona, Spain, 2011; pp. 201–208. [Google Scholar]
- Ishihara, S.; Goshima, T.; Adachi, K.; Yoshimoto, T. Effect of stress ratio on the short fatigue crack growth behavior in cemented carbides. Trans. Jpn. Soc. Mech. Eng. Ser. A 1998, 64, 2145–2151. [Google Scholar] [CrossRef]
- Ishihara, S.; Goshima, T.; Yoshimoto, Y.; Sabu, T.; McEvily, A.J. The influence of the stress ratio on fatigue crack growth in a cermet. J. Mater. Sci. 2000, 35, 5661–5665. [Google Scholar] [CrossRef]
- Mikado, H.; Ishihara, S.; Oguma, N.; Masuda, K.; Kawamura, S. Fatigue lifetime and crack growth behavior of WC-Co cemented carbide. Adv. Mater. Res. 2014, 891–892, 955–960. [Google Scholar] [CrossRef]
- Nose, T.; Fujii, T. Evaluation of fracture toughness for ceramic materials by a single-edge-precracked-beam method. J. Am. Ceram. Soc. 1988, 71, 328–333. [Google Scholar] [CrossRef]
- Murakami, Y.; Ishida, M. Analysis of stress intensity factors for surface crack of arbitrary shape and stress field at vicinity of surface. Trans. Jpn. Soc. Mech. Eng. Ser. A 1987, 51, 1050–1056. [Google Scholar] [CrossRef]
- Paris, P.; Erdogan, F. A critical analysis of crack propagation laws. Trans. ASME J. Basic Eng. 1963, 85, 528–534. [Google Scholar] [CrossRef]
- Ghidelli, M.; Sebastiani, M.; Collet, C.; Guillemet, R. Determination of the elastic moduli and residual stresses of freestanding Au-TiW bilayer thin films by nanoindentation. Mater. Des. 2016, 106, 436–445. [Google Scholar] [CrossRef]
Co | Cr | W and C |
---|---|---|
13.0 | 0.51 | Bal. |
Young’s Modulus (GPa) | Fracture Toughness (MPam1/2) | Bending Strength (MPa) | Vickers Hardness (HV) |
---|---|---|---|
550 | 12.1 (11.8–12.6) | 4100 (3800–4350) | 1480 (1410–1520) |

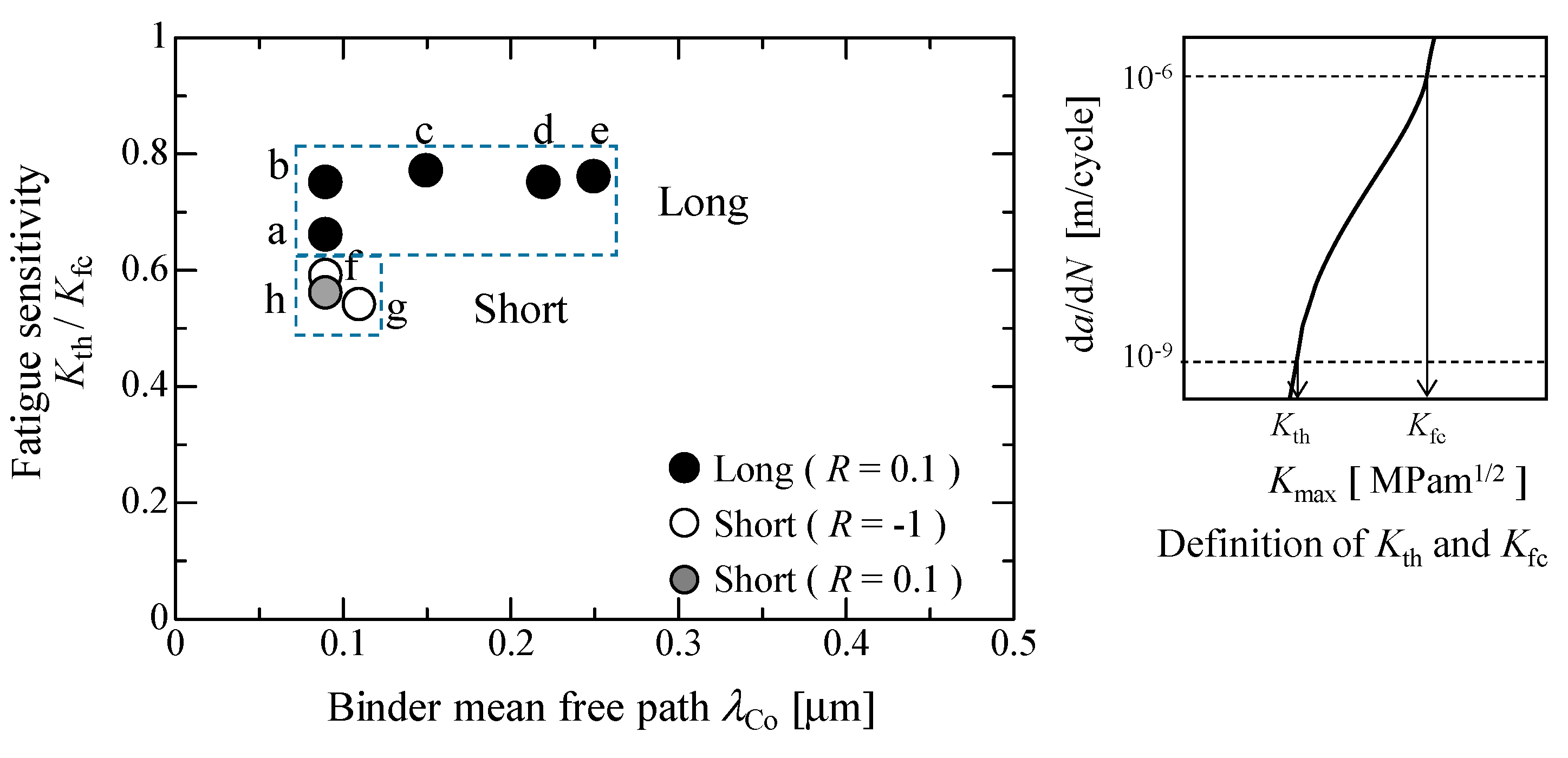

Symbols Shown in Figure 14 | Co% (wt %) | dWC (μm) | λCo (μm) | KIc (MPam1/2) | Crack Length | R (-) | Reference | |
---|---|---|---|---|---|---|---|---|
a | 13 | 0.45 | 0.09 | 12.4 | Long | 0.1 | Mikado et al. [4] | |
b | 6 | 1.0 | 0.093 | 8.2 | Long | 0.1 | Fry et al. [12] | |
c | 6 | 0.39 | 0.15 | 7.5 | Long | 0.1 | Llanes et al. [14] | |
d | 10 | 1.1 | 0.216 | 9.1 | Long | 0.1 | Fry et al. [12] | |
e | 10 | 0.50 | 0.25 | 9.2 | Long | 0.1 | Llanes et al. [14] | |
f | 13 | 0.45 | 0.09 | 12.4 | Short | −1 | This work | |
g | 18 | 0.45 | 0.11 | 13.7 | Short | −1 | Mikado et al. [24] | |
h | 13 | 0.45 | 0.09 | 12.4 | short | 0.1 | This work |
Kmax (MPam1/2) | rp (μm) |
---|---|
6.0 | 0.34 |
6.5 | 0.40 |
7.0 | 0.46 |
7.5 | 0.53 |
