Next Article in Journal
On the Short Surface Fatigue Crack Growth Behavior in a Fine-Grained WC-Co Cemented Carbide
Previous Article in Journal
Dissolution of Grain Boundary Carbides by the Effect of Solution Annealing Heat Treatment and Aging Treatment on Heat-Resistant Cast Steel HK30
Article Menu
Issue 7 (July) cover image

Export Article

Open AccessReview
Metals 2017, 7(7), 252; doi:10.3390/met7070252

Mg and Its Alloys for Biomedical Applications: Exploring Corrosion and Its Interplay with Mechanical Failure

Department of Mechanical and Industrial Engineering, Norwegian University of Science and Technology (NTNU Norway), 7491 Trondheim, Norway
*
Author to whom correspondence should be addressed.
Received: 6 June 2017 / Revised: 25 June 2017 / Accepted: 25 June 2017 / Published: 5 July 2017

Abstract

The future of biomaterial design will rely on temporary implant materials that degrade while tissues grow, releasing no toxic species during degradation and no residue after full regeneration of the targeted anatomic site. In this aspect, Mg and its alloys are receiving increasing attention because they allow both mechanical strength and biodegradability. Yet their use as biomedical implants is limited due to their poor corrosion resistance and the consequential mechanical integrity problems leading to corrosion assisted cracking. This review provides the reader with an overview of current biomaterials, their stringent mechanical and chemical requirements and the potential of Mg alloys to fulfil them. We provide insight into corrosion mechanisms of Mg and its alloys, the fundamentals and established models behind stress corrosion cracking and corrosion fatigue. We explain Mgs unique negative differential effect and approaches to describe it. Finally, we go into depth on corrosion improvements, reviewing literature on high purity Mg, on the effect of alloying elements and their tolerance levels, as well as research on surface treatments that allow to tune degradation kinetics. Bridging fundamentals aspects with current research activities in the field, this review intends to give a substantial overview for all interested readers; potential and current researchers and practitioners of the future not yet familiar with this promising material. View Full-Text
Keywords: Mg alloys; biocompatible; corrosion; crack growth; corrosion assisted cracking Mg alloys; biocompatible; corrosion; crack growth; corrosion assisted cracking

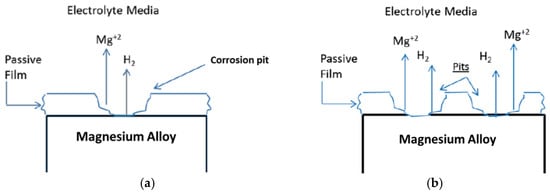

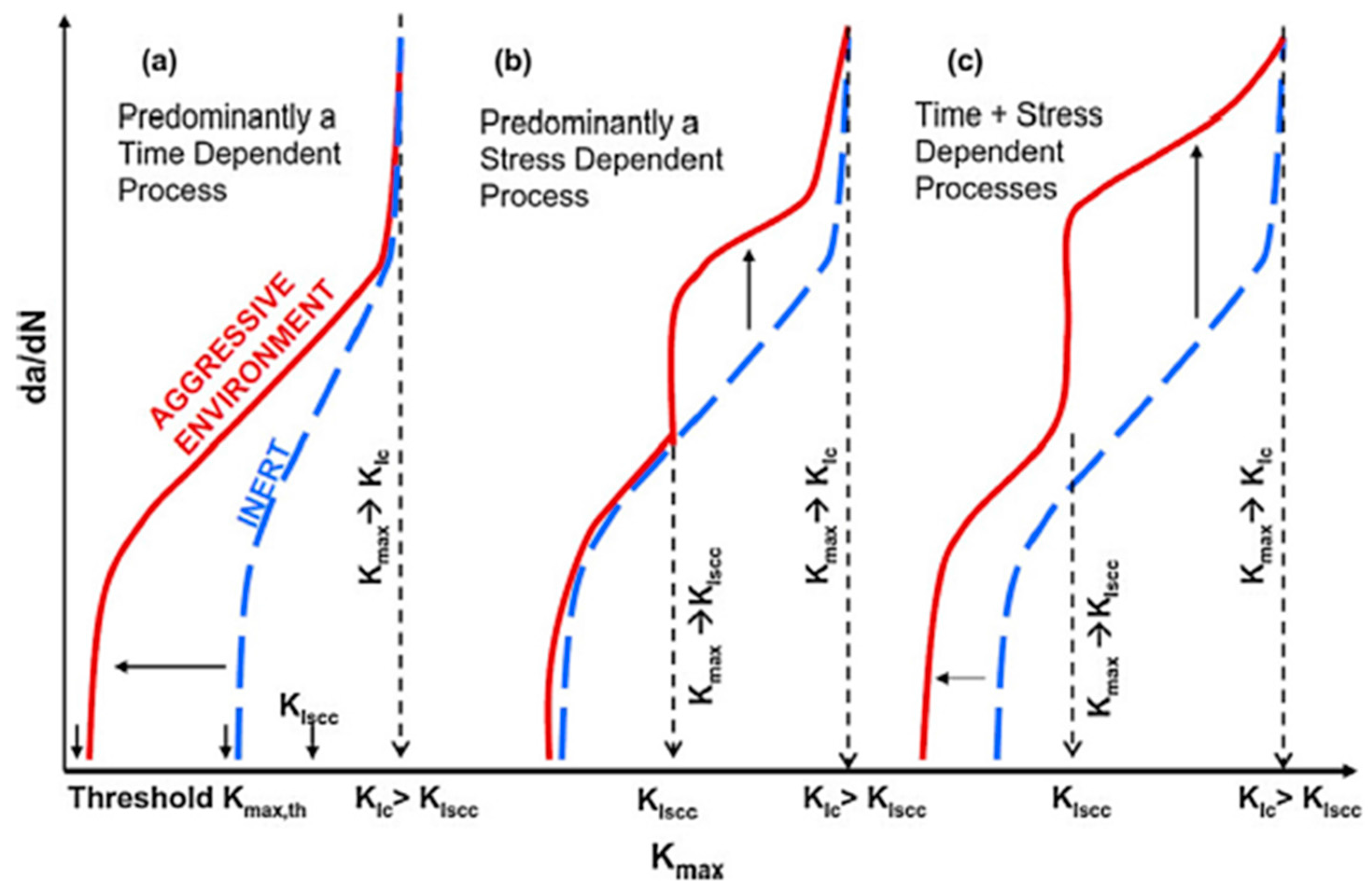

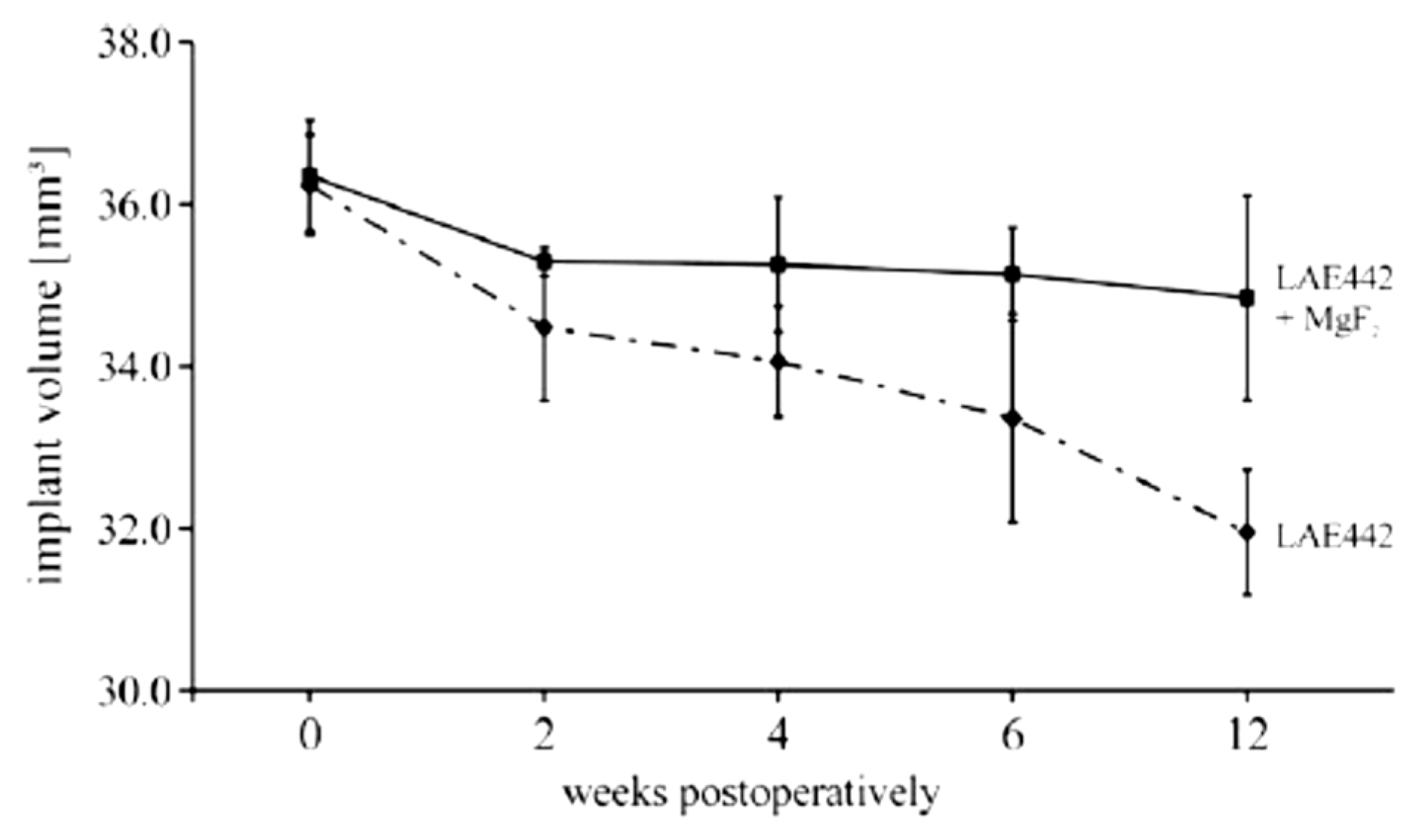

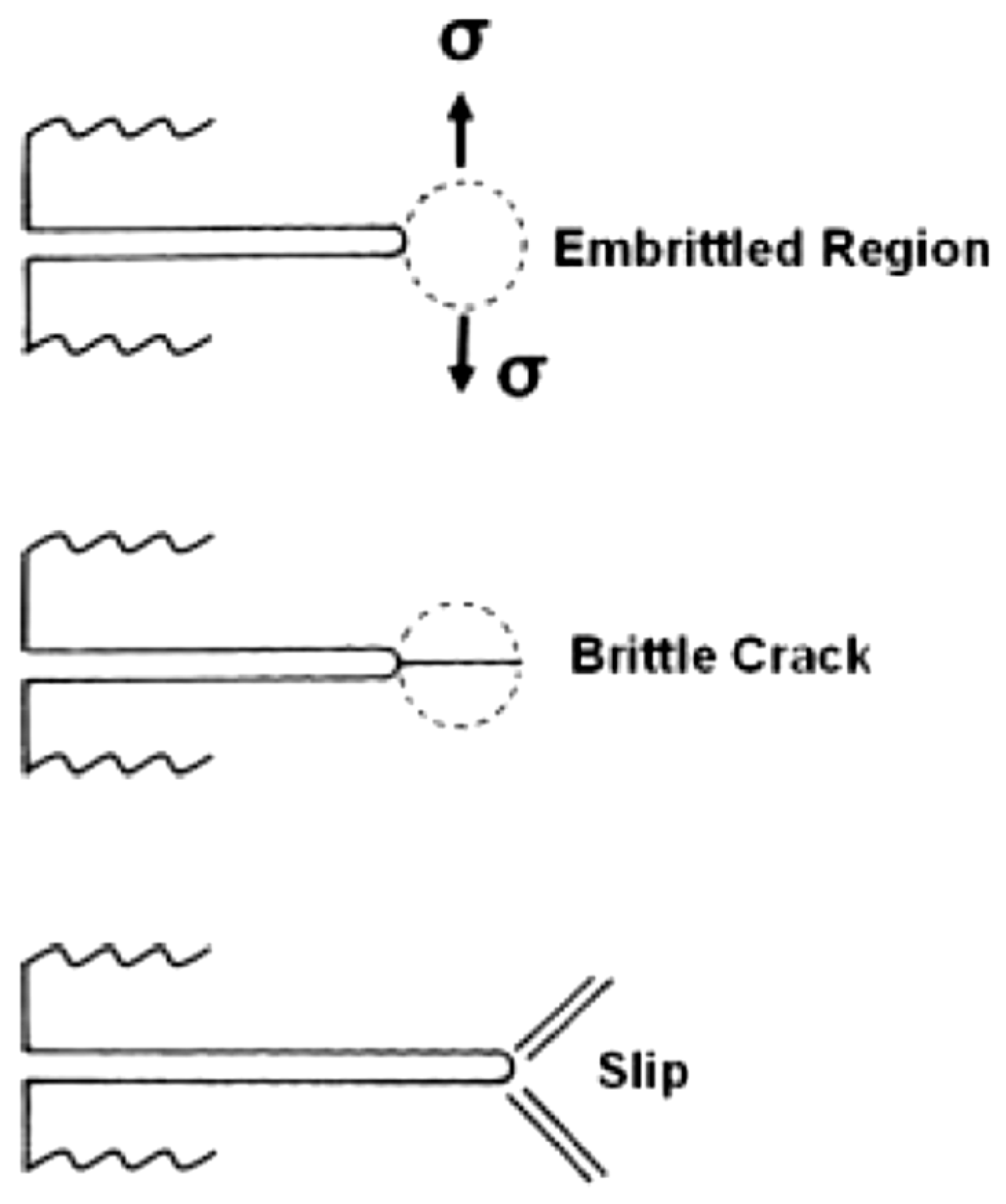

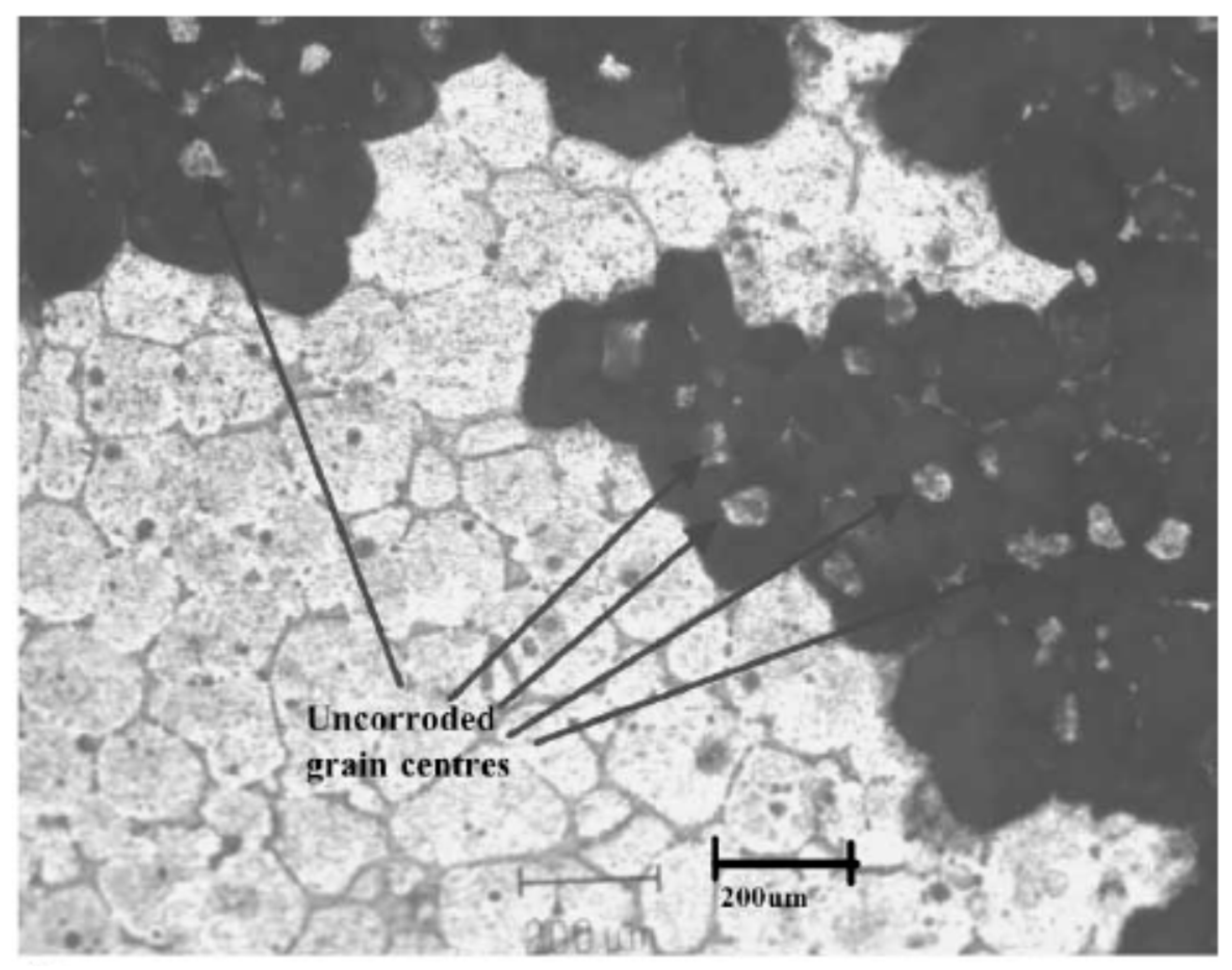

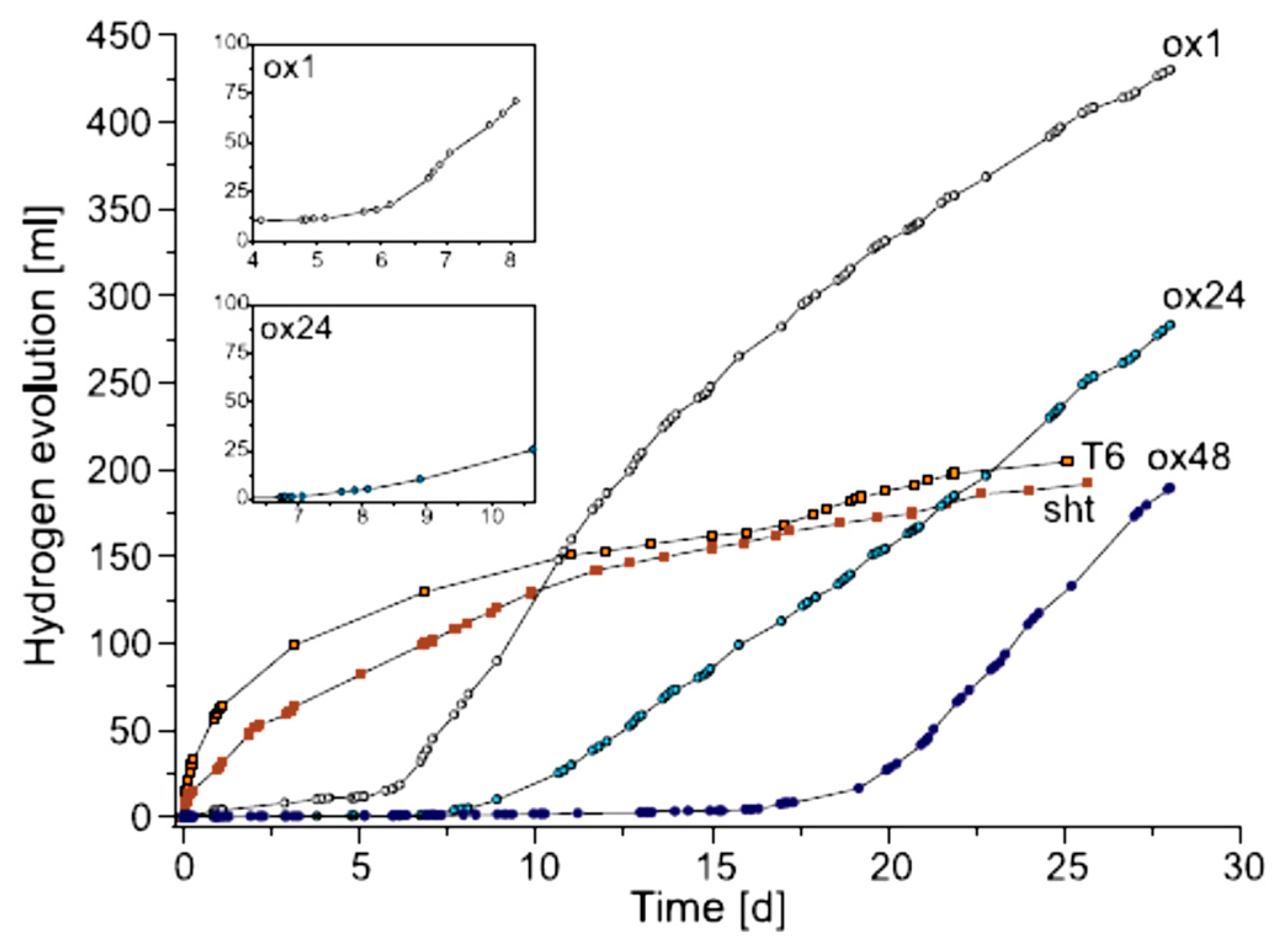

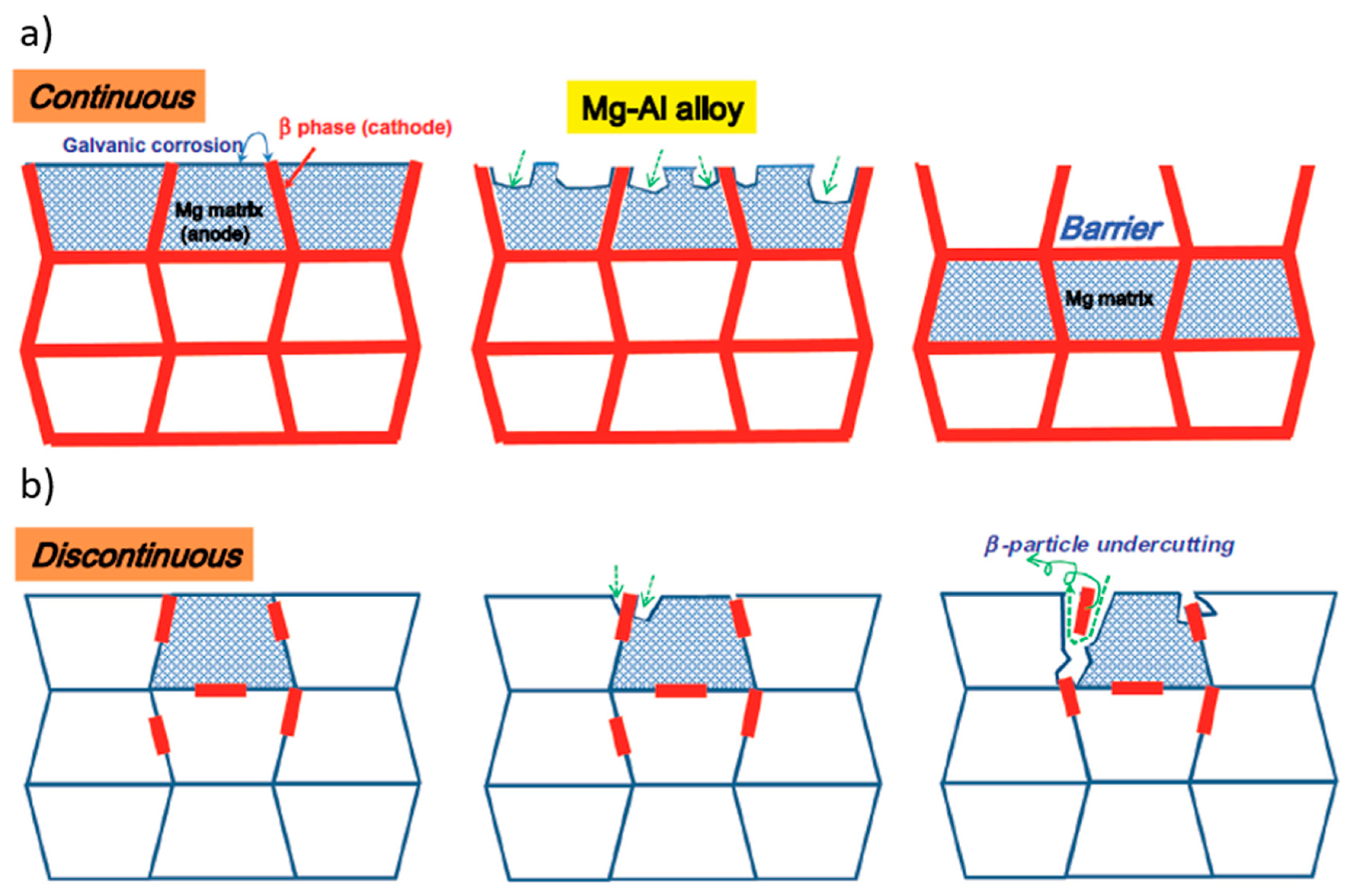

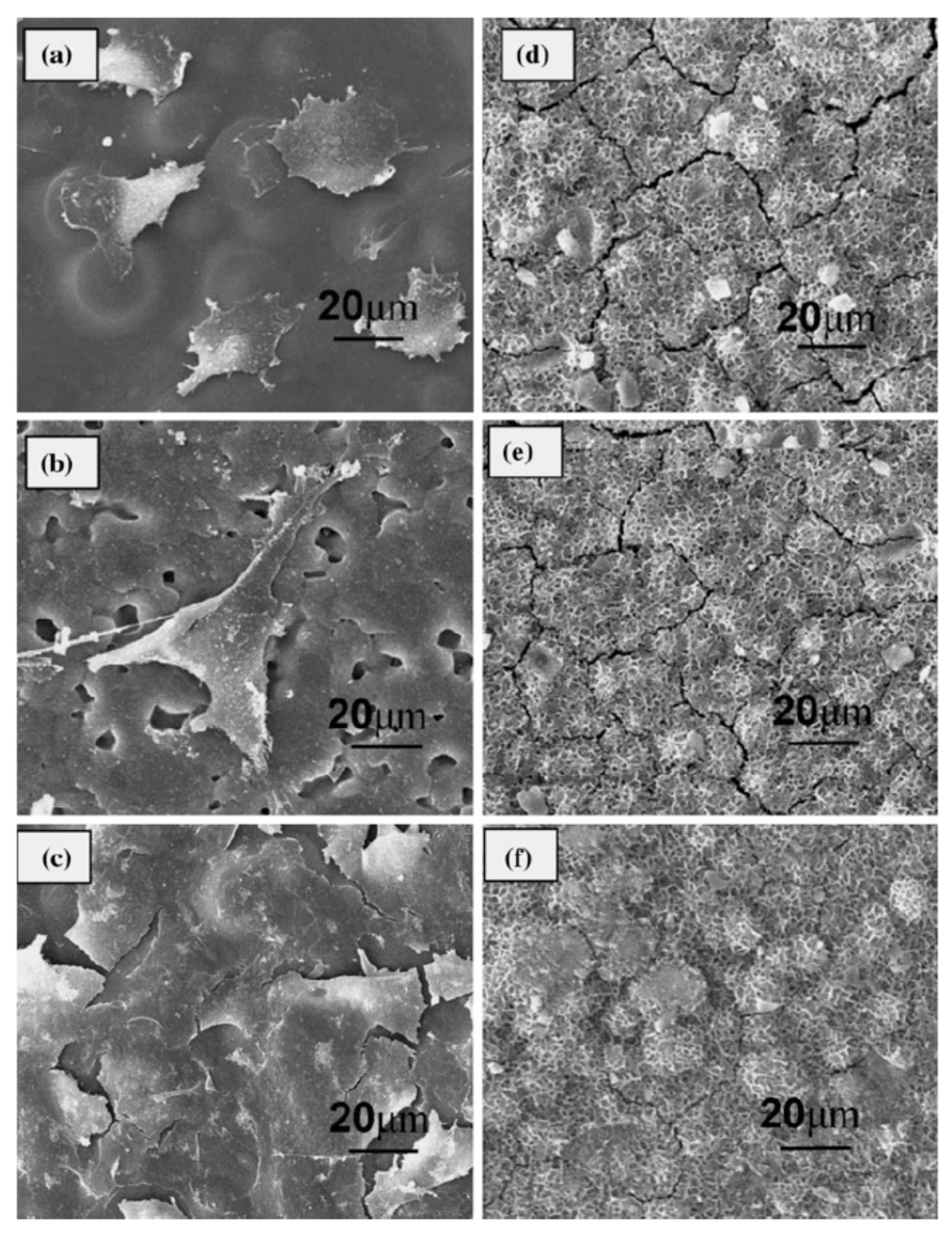

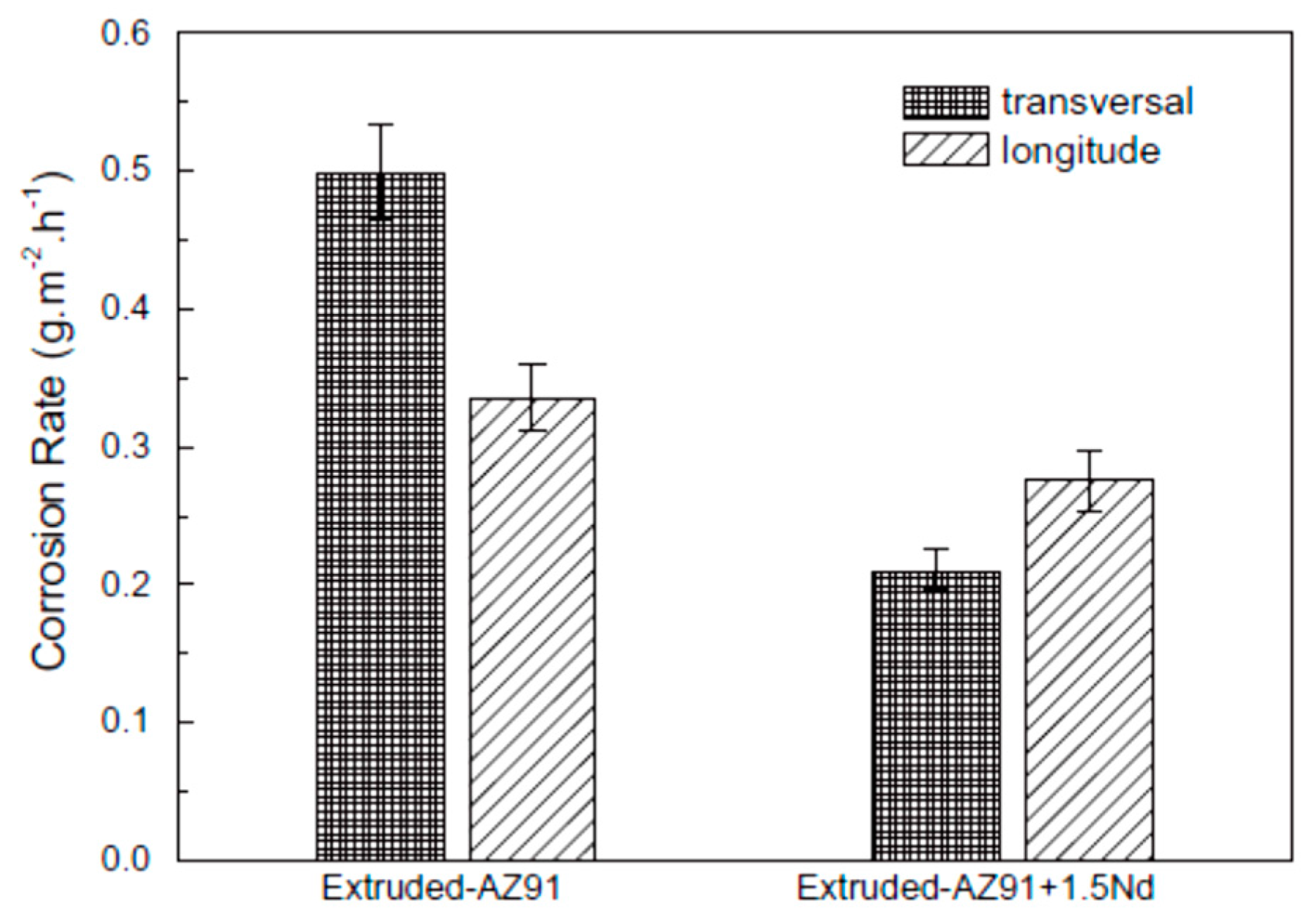

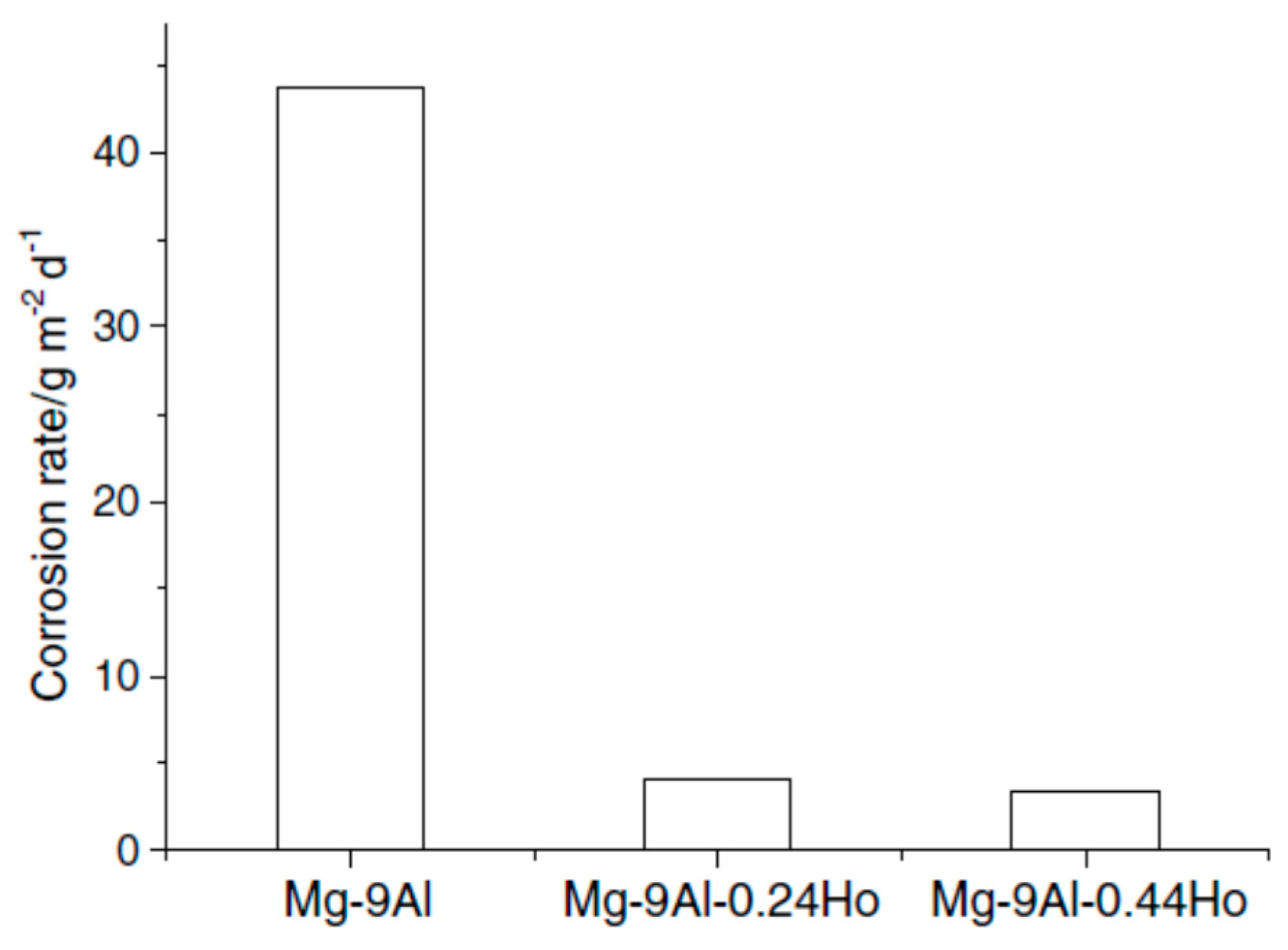

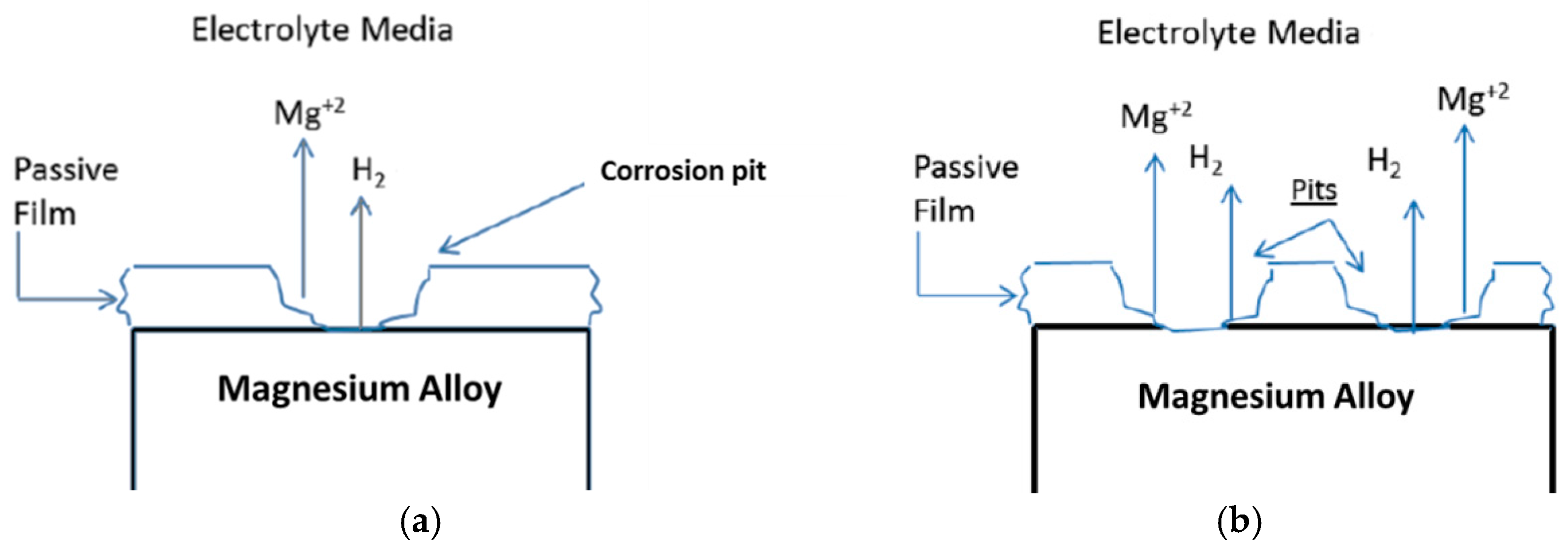

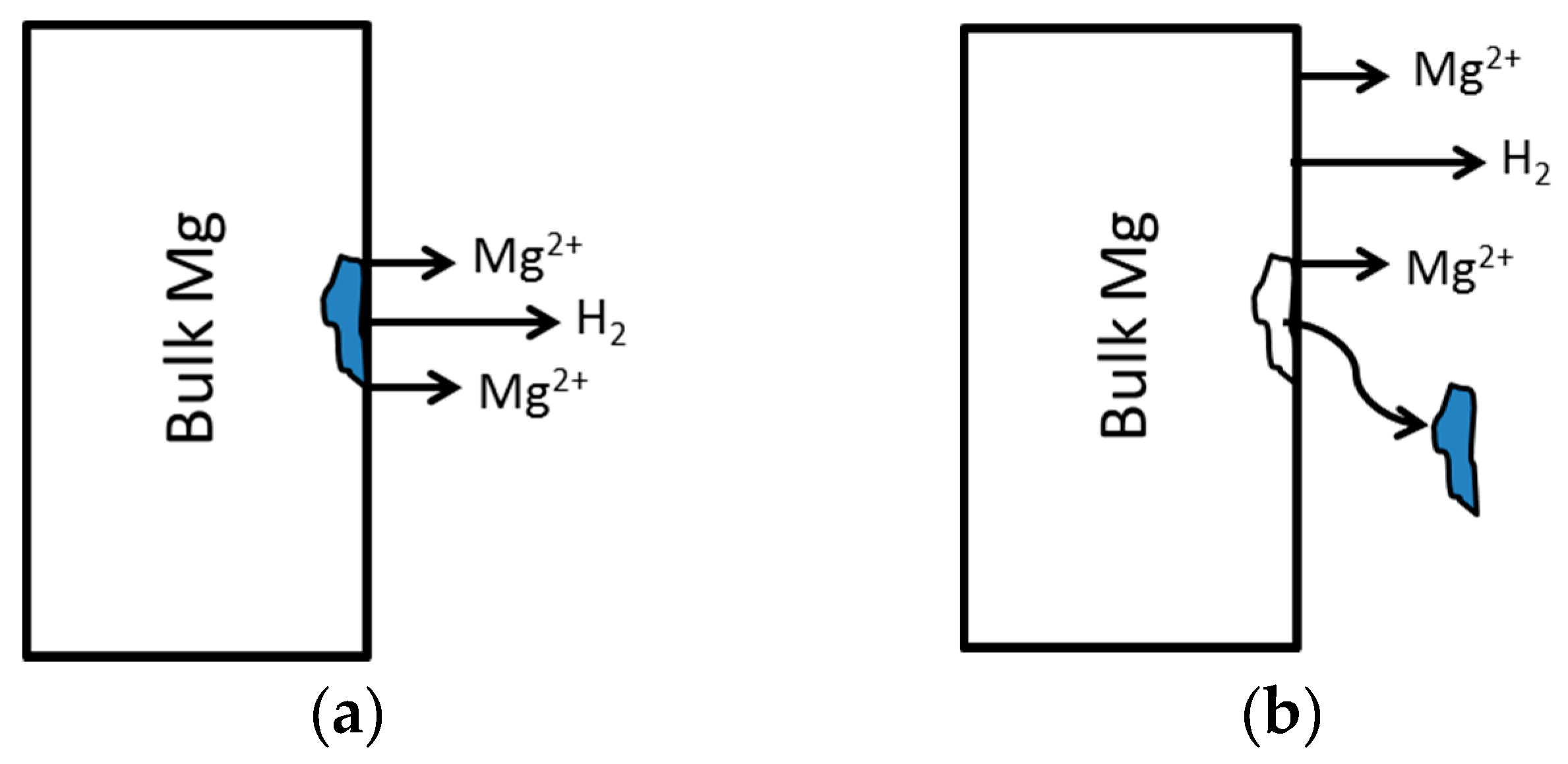

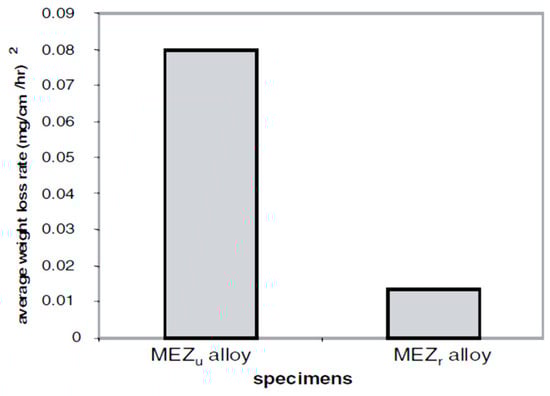

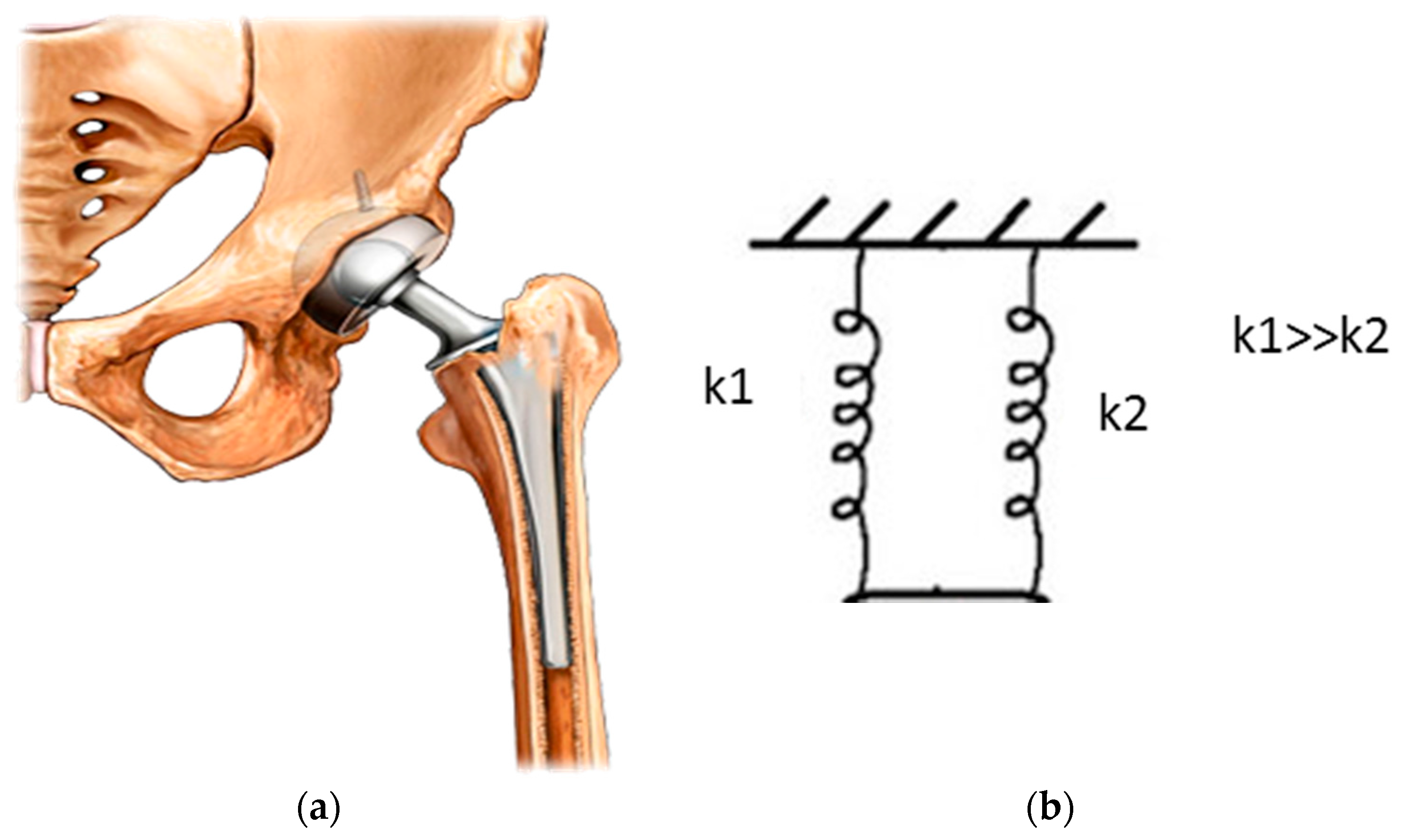

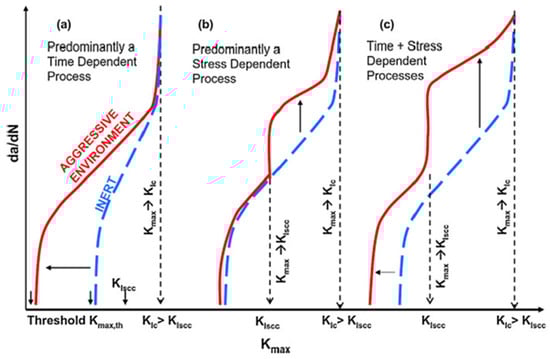

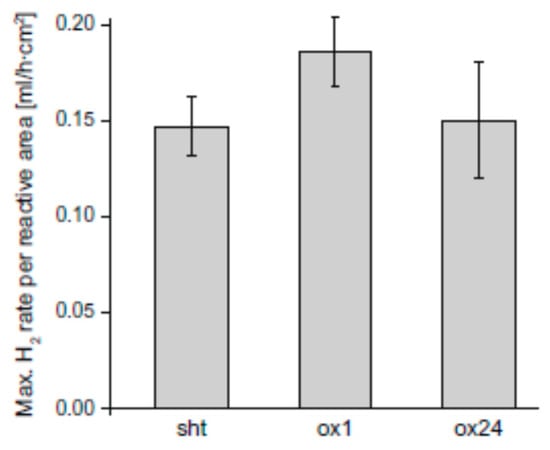

Figures

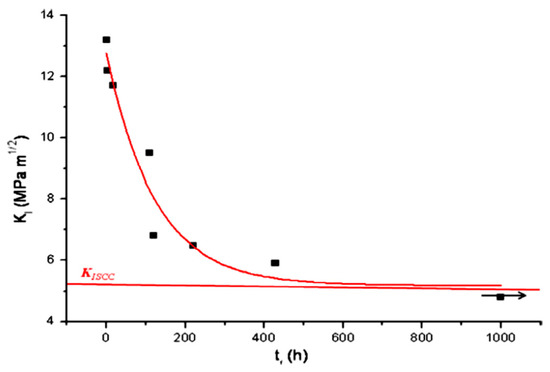

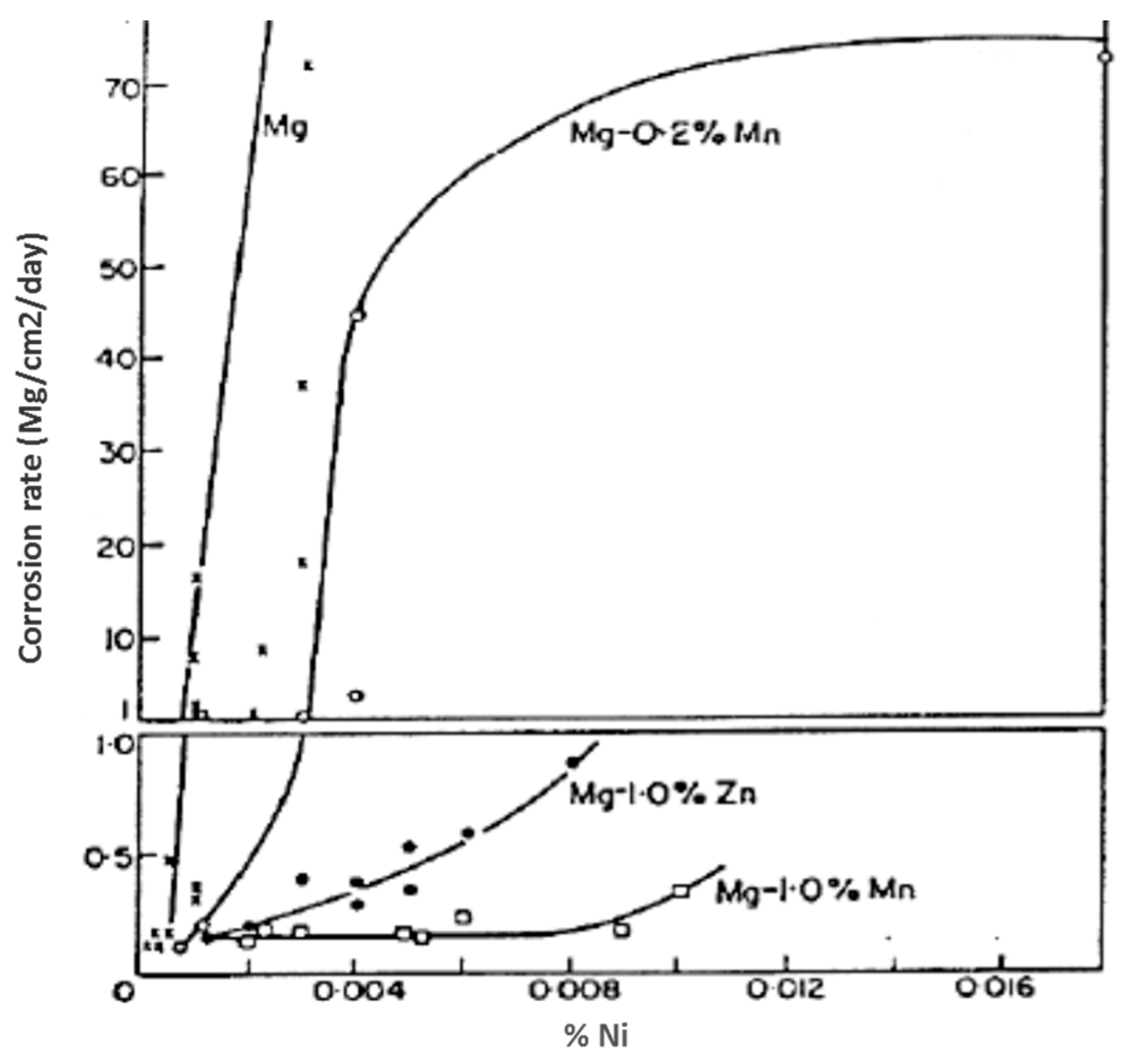

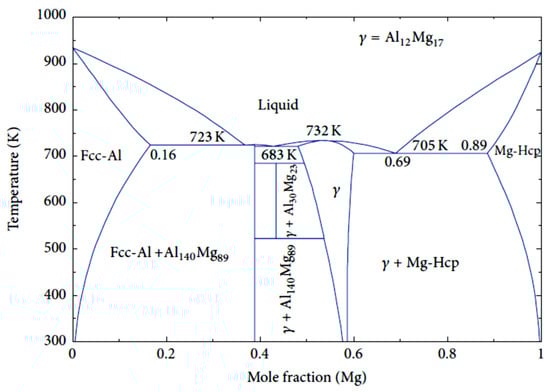

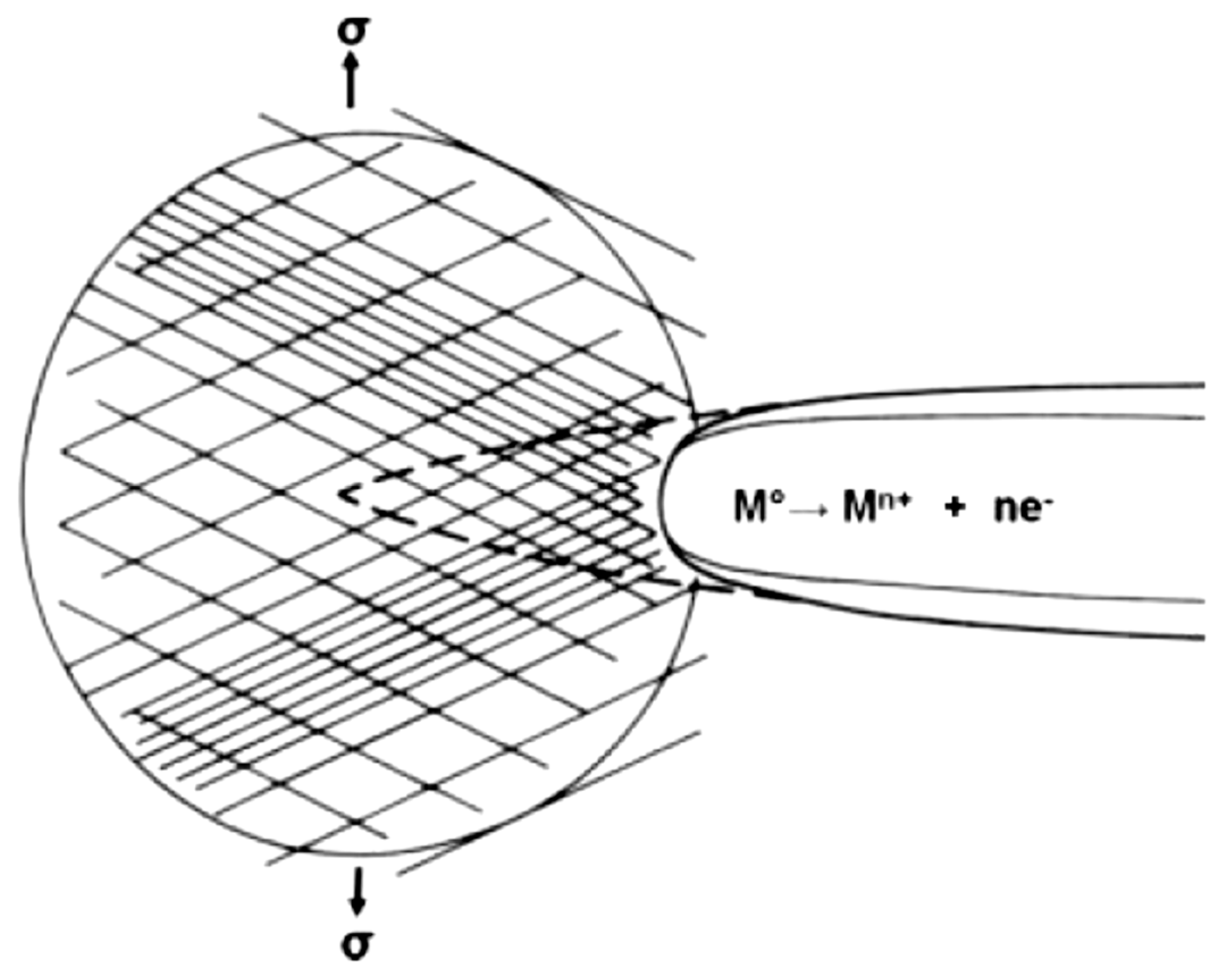

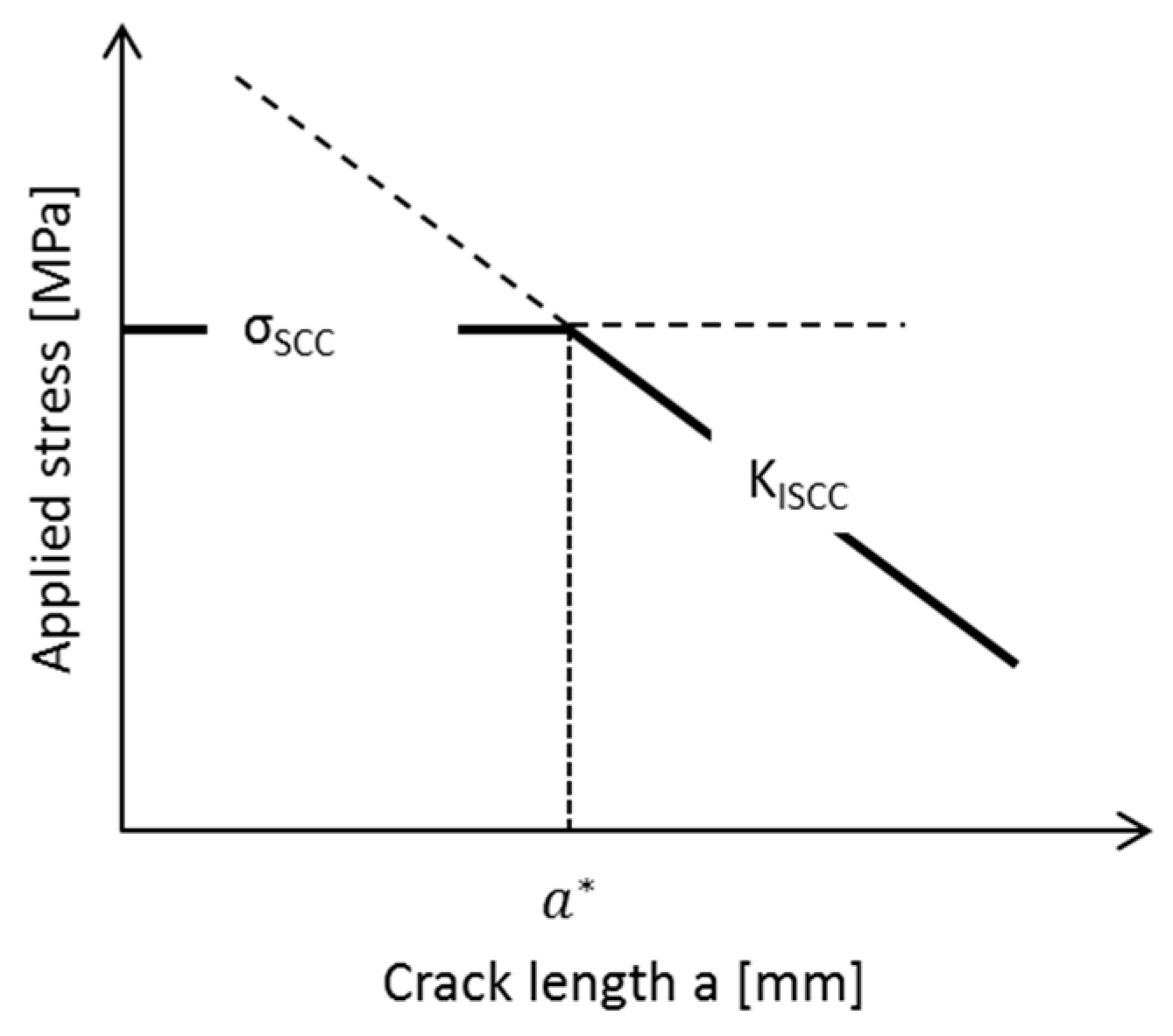

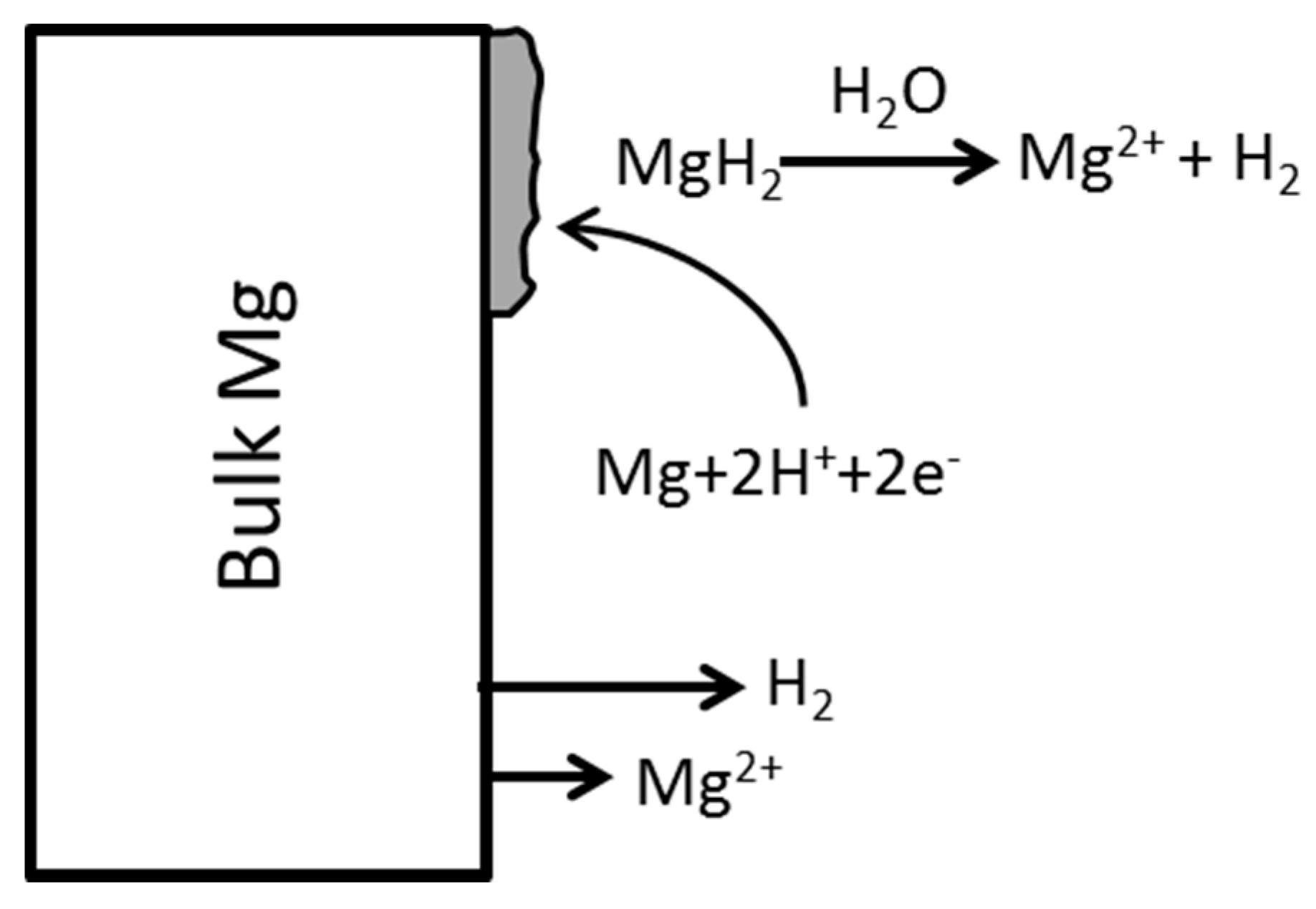

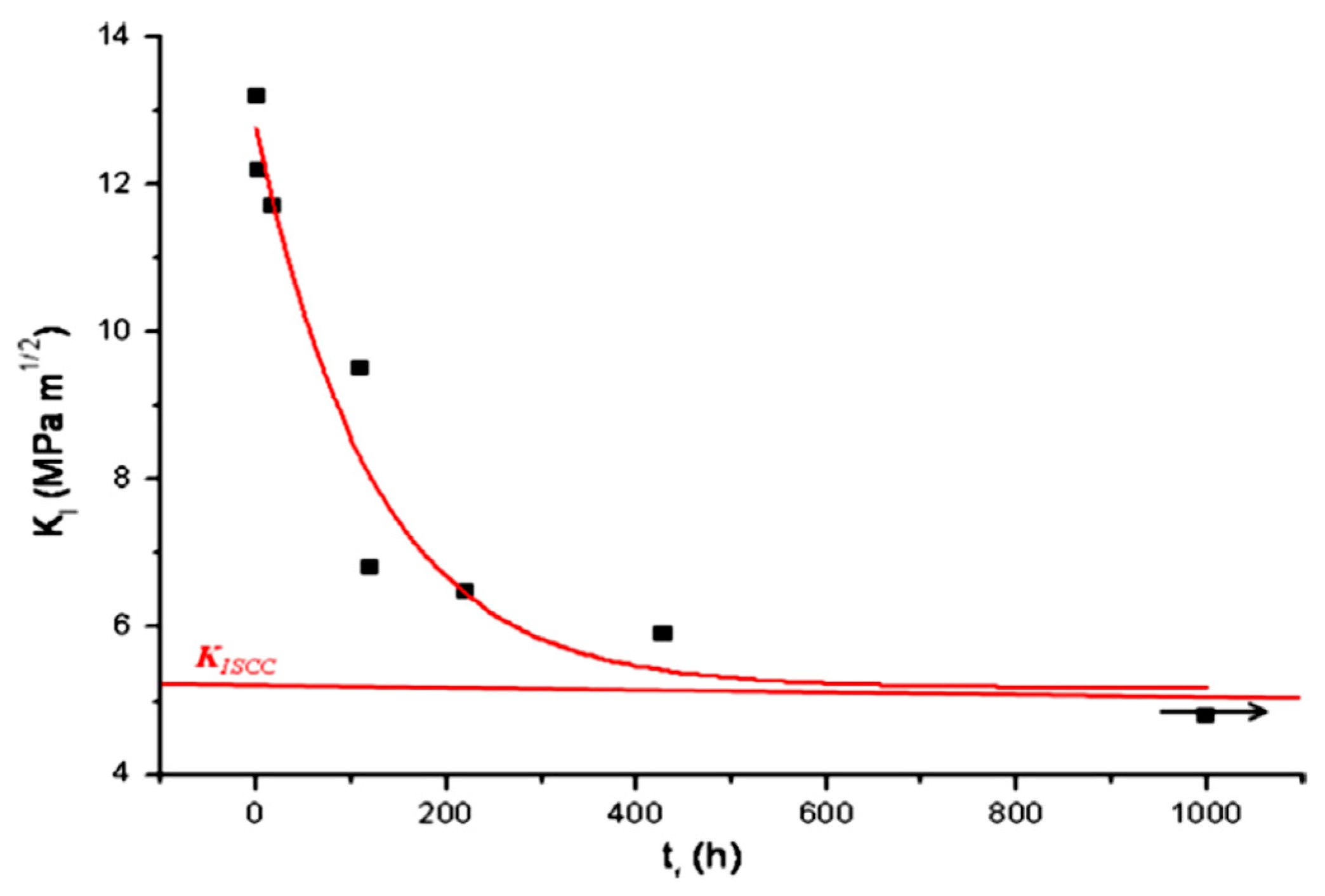

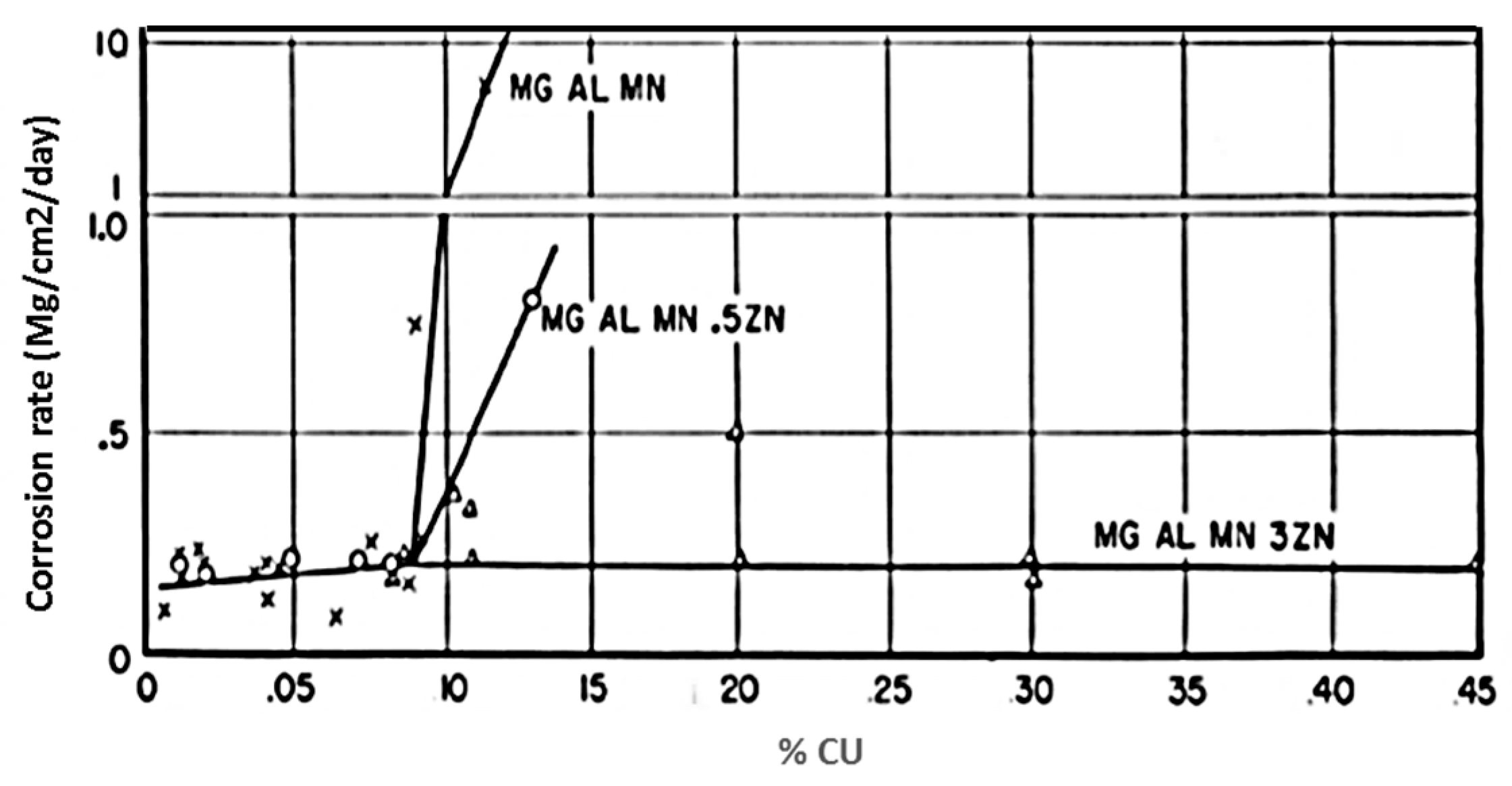

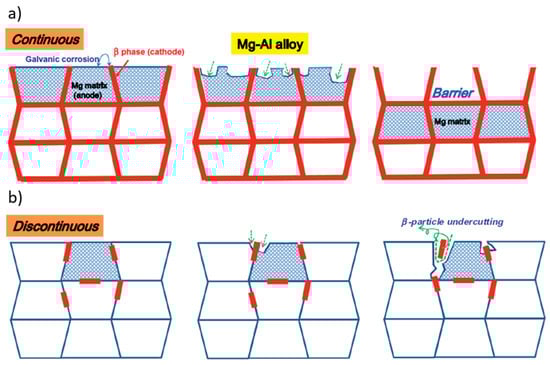

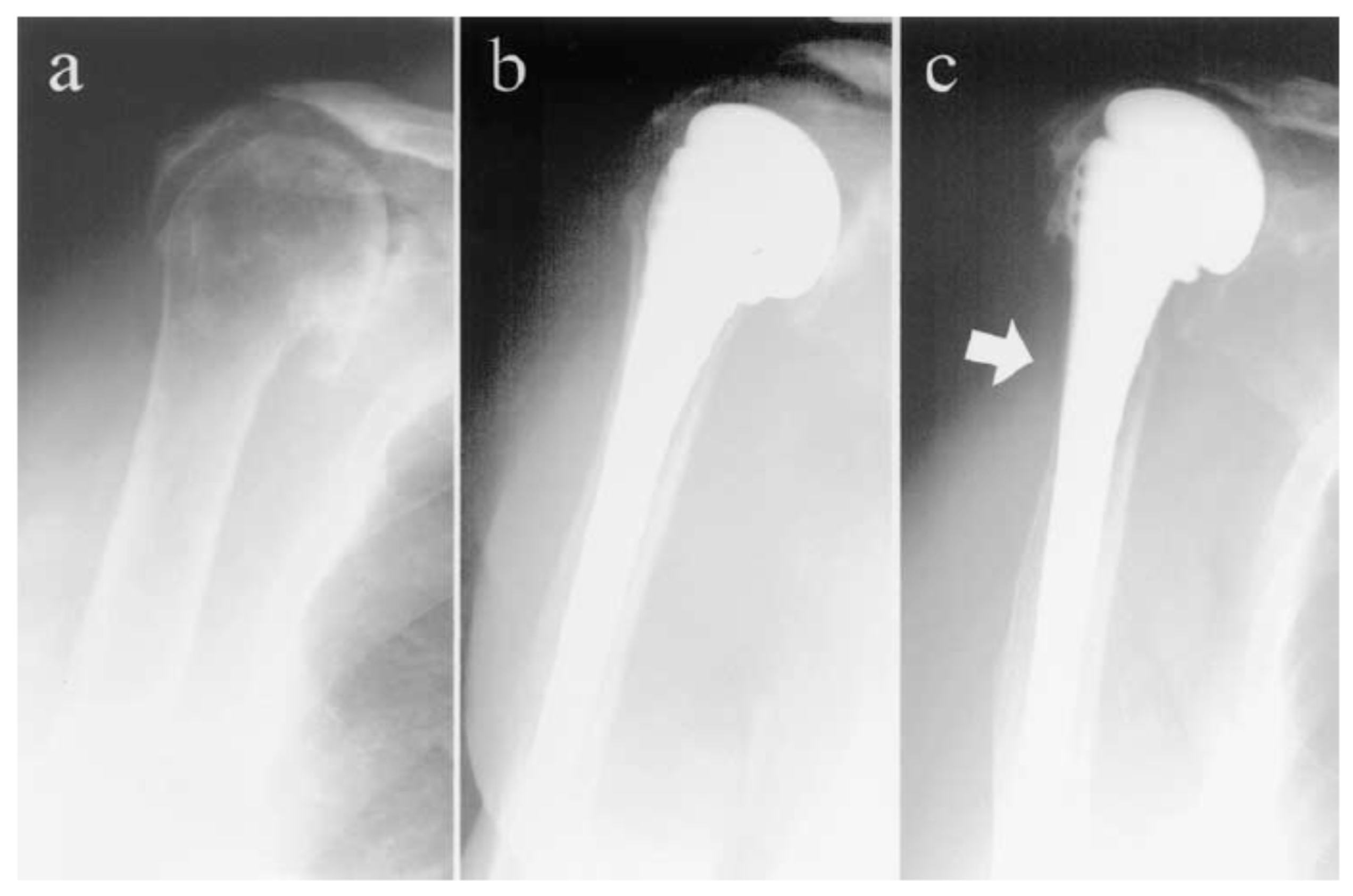

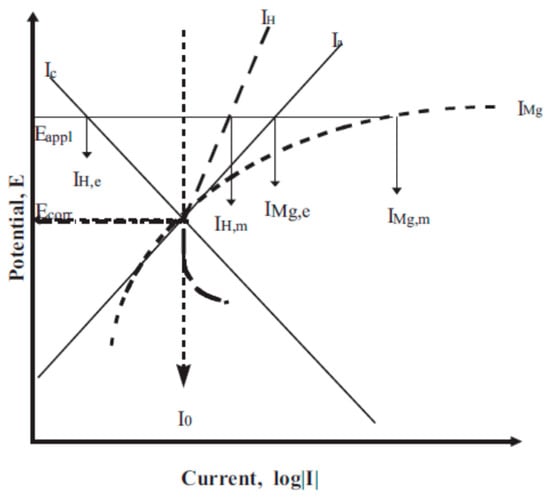

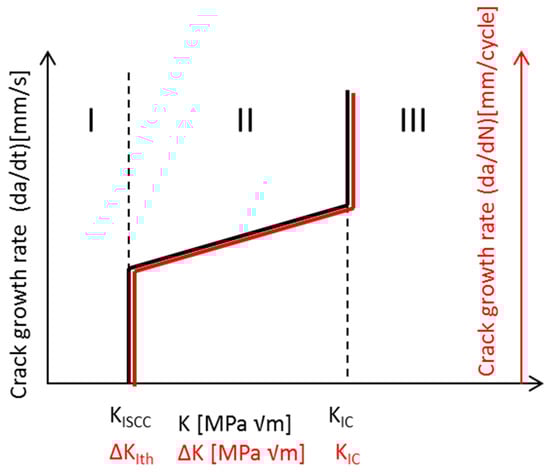

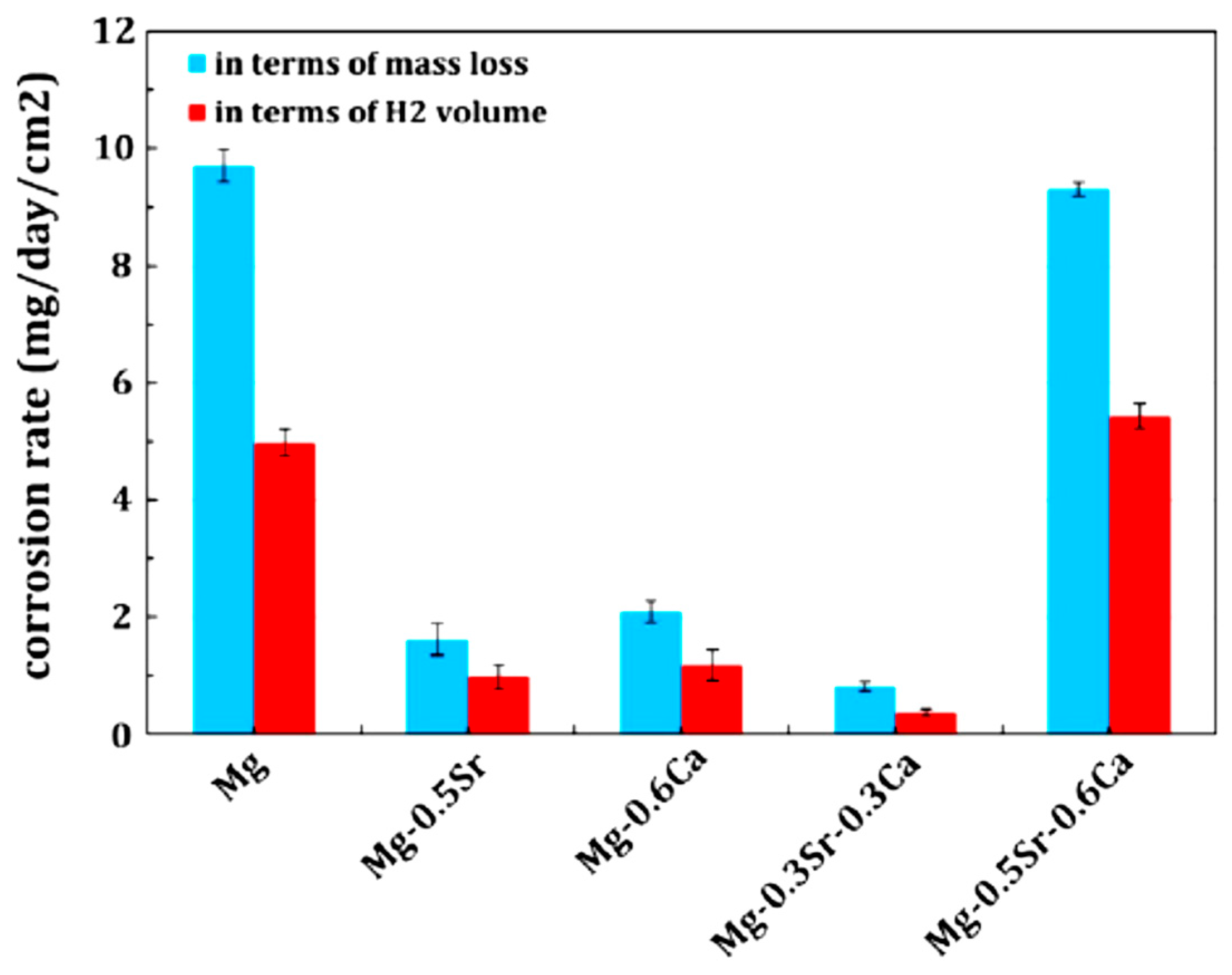

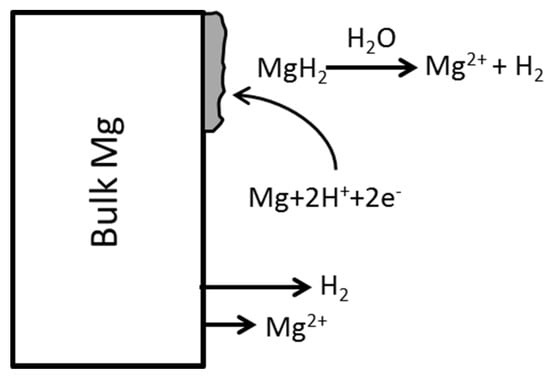

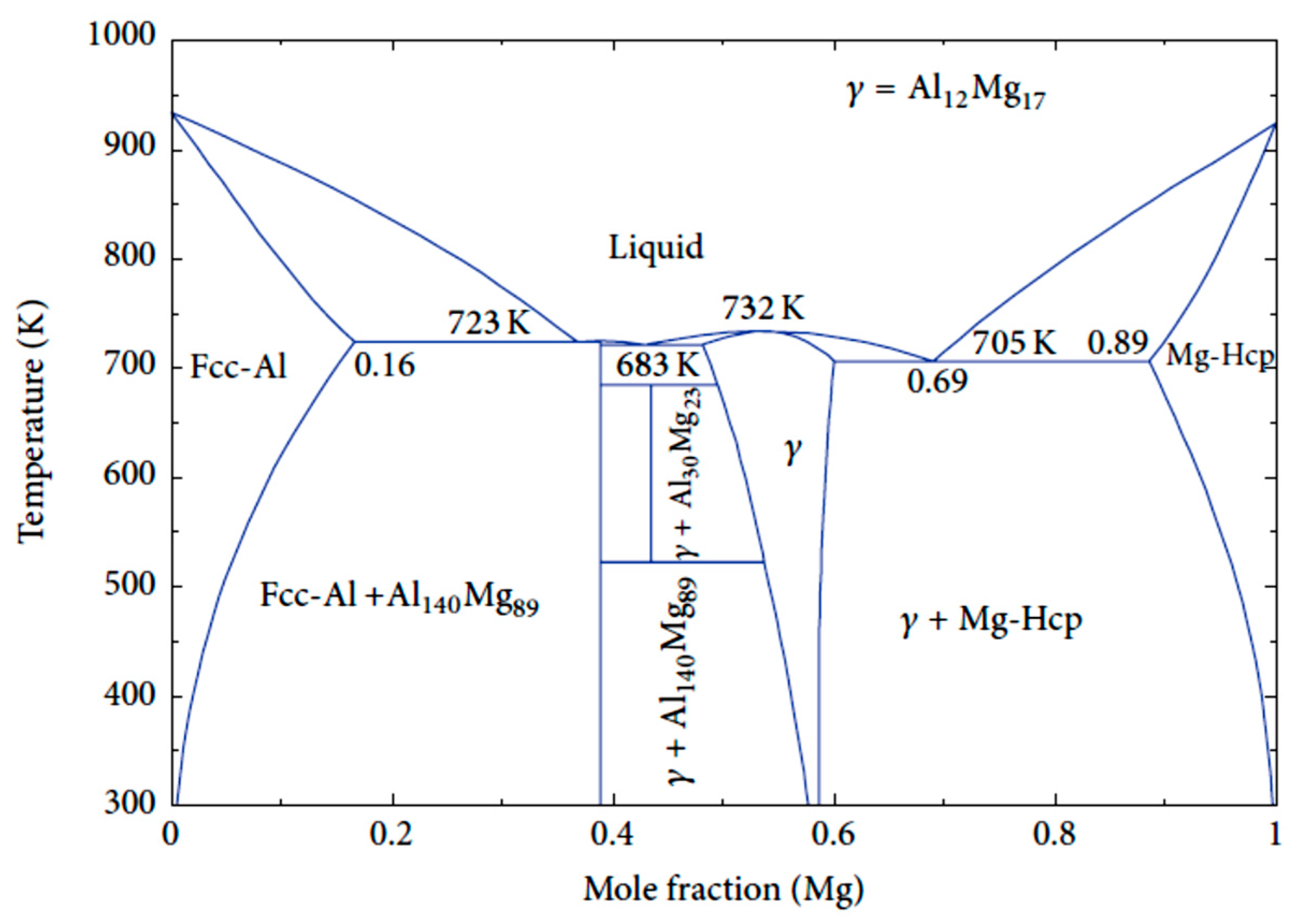

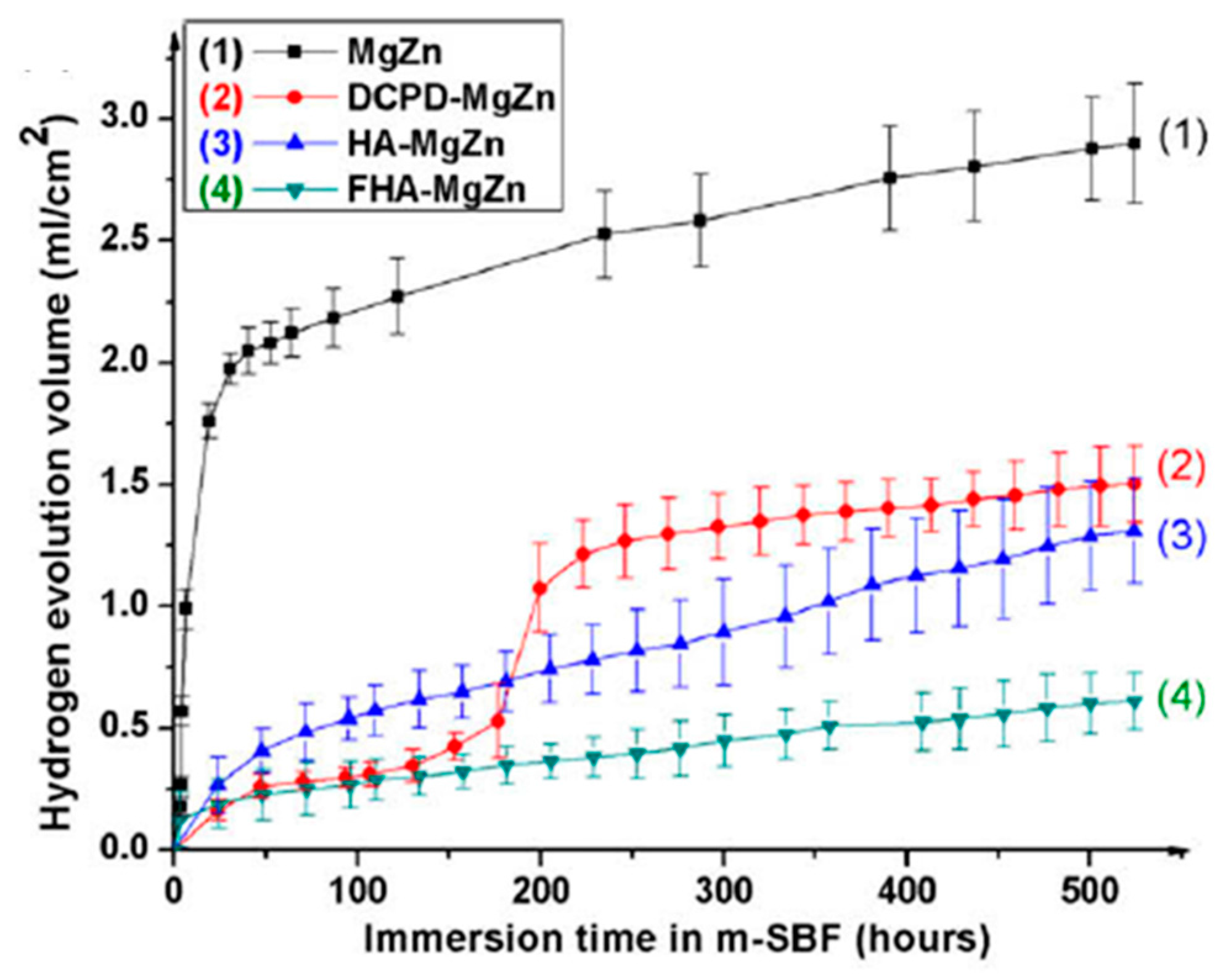

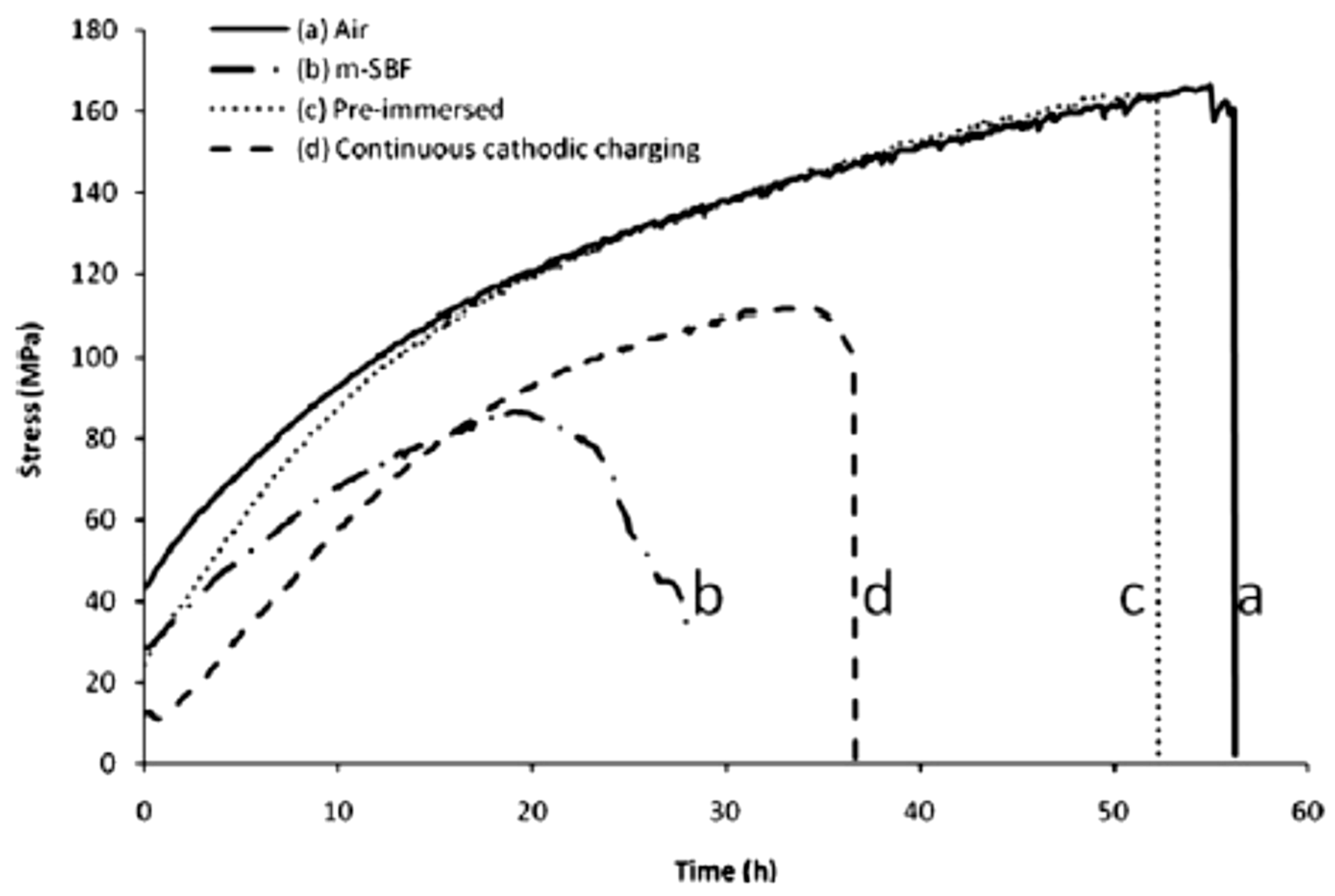

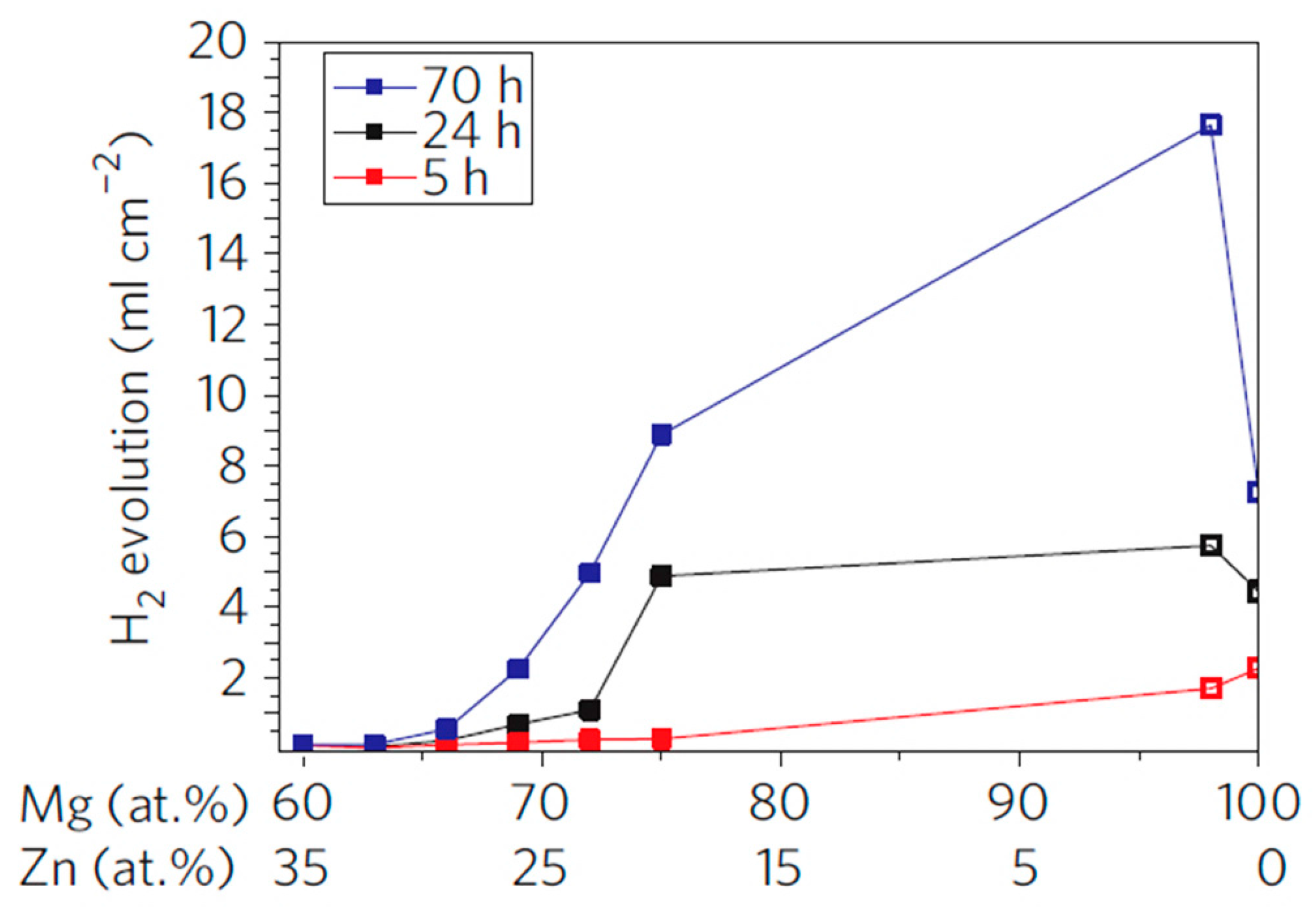

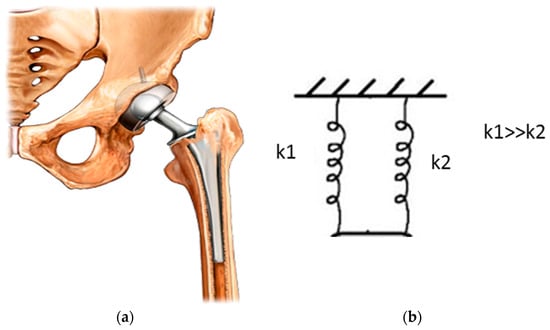

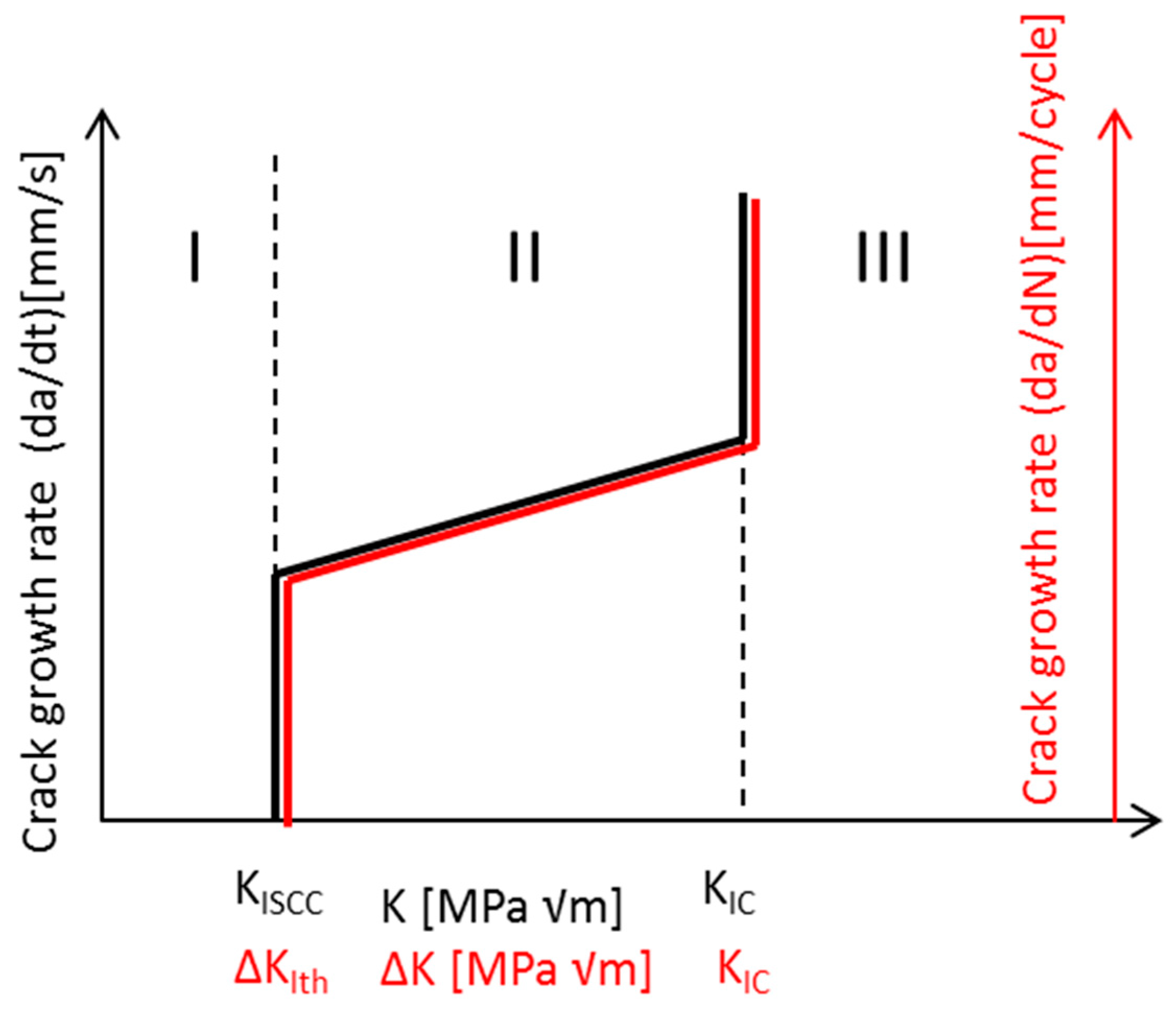

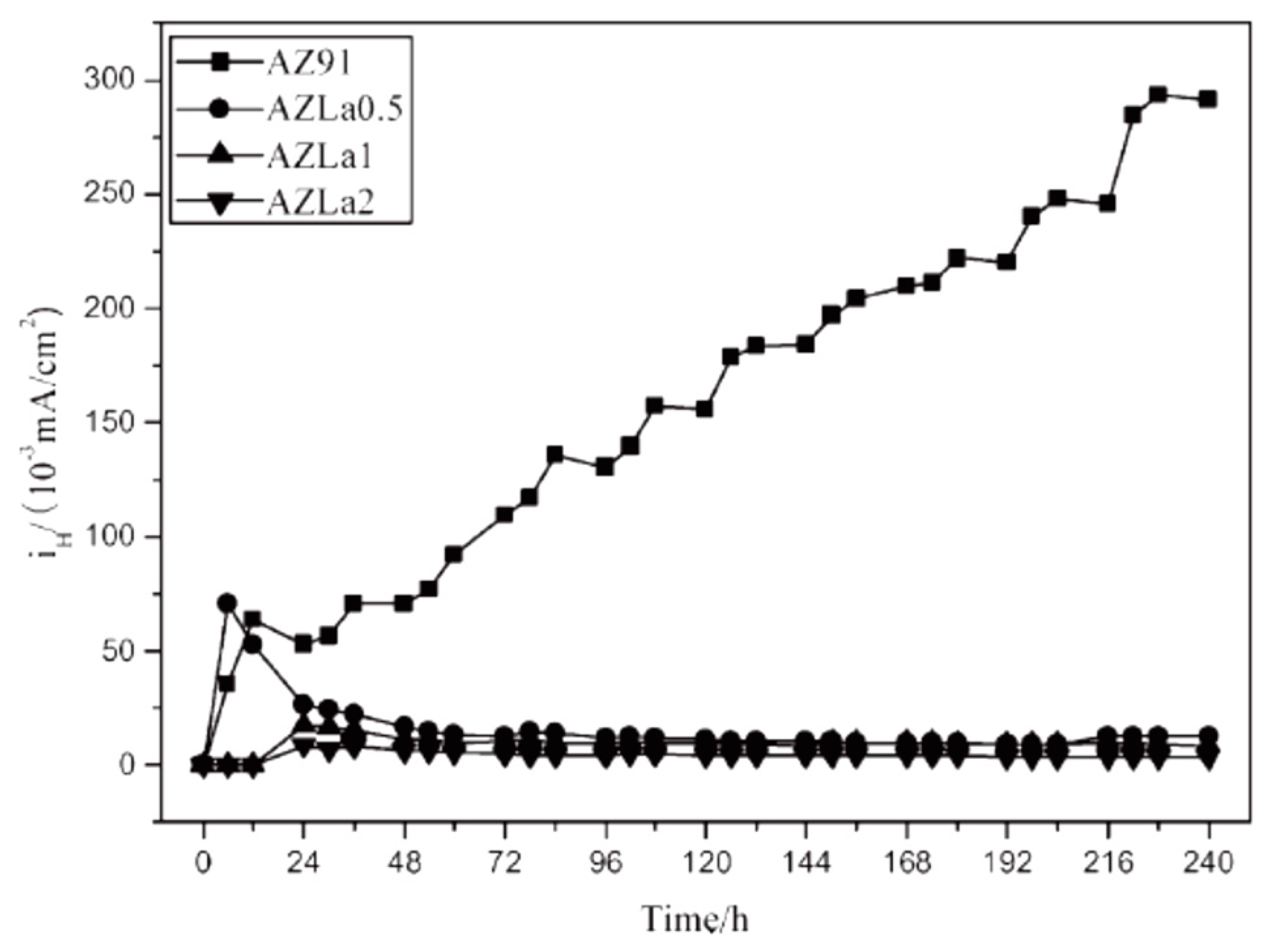

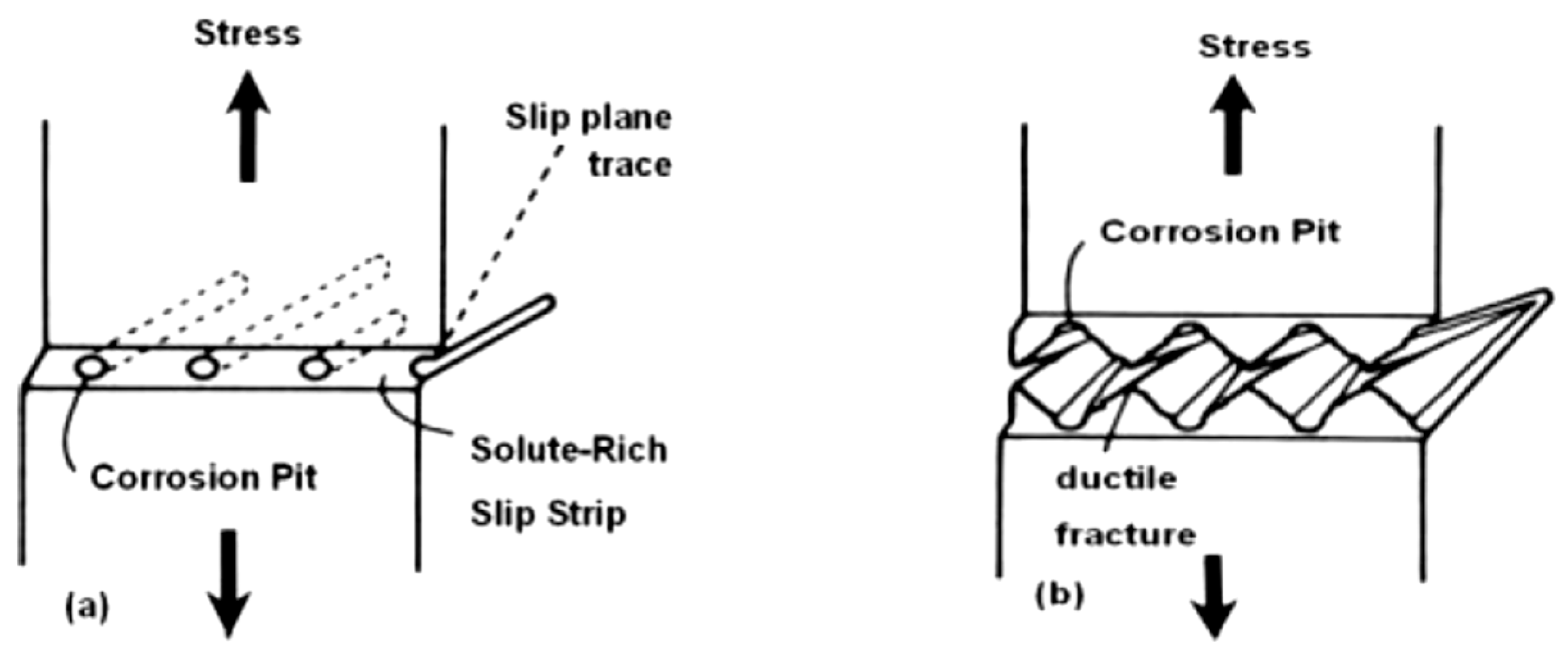

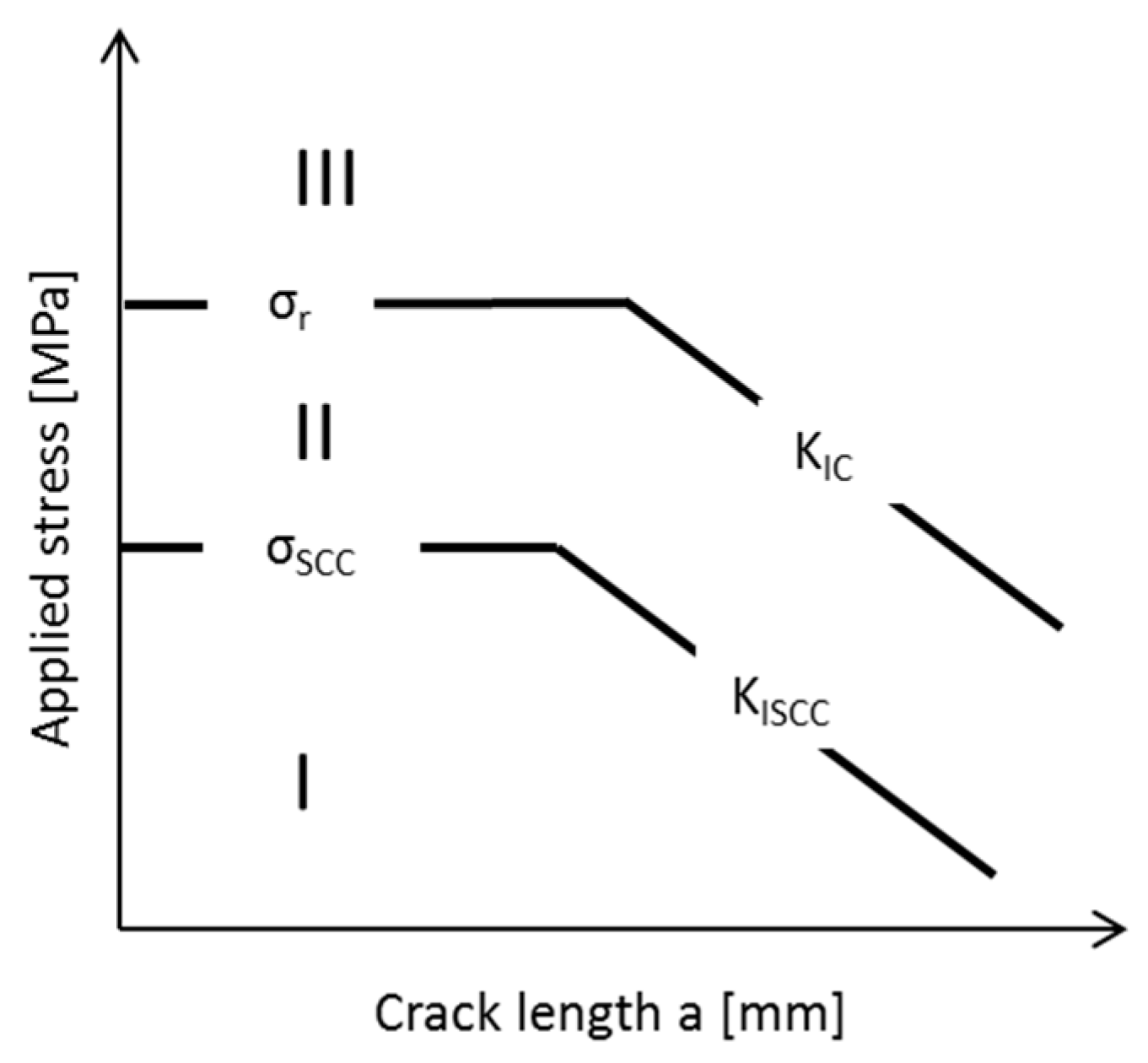

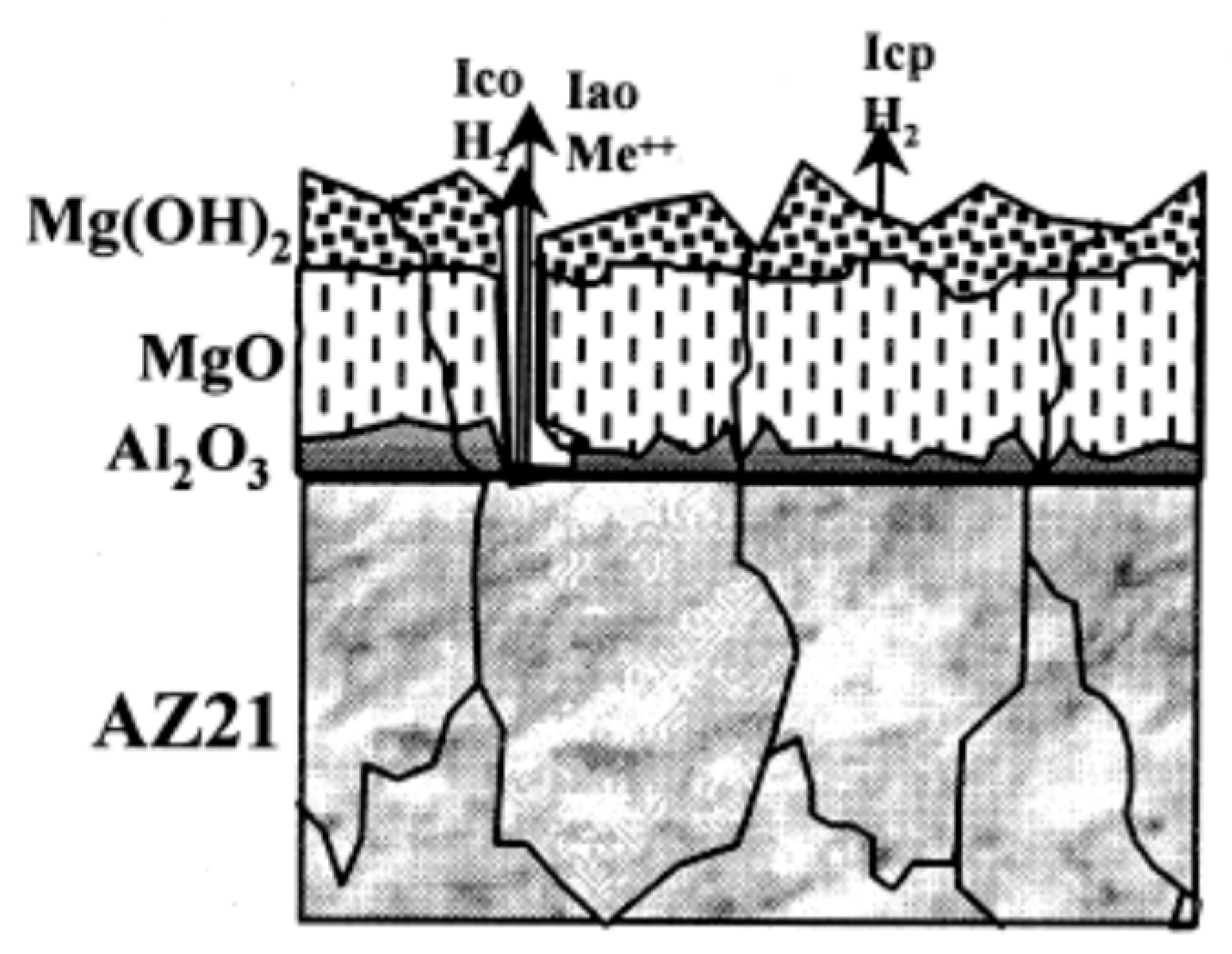

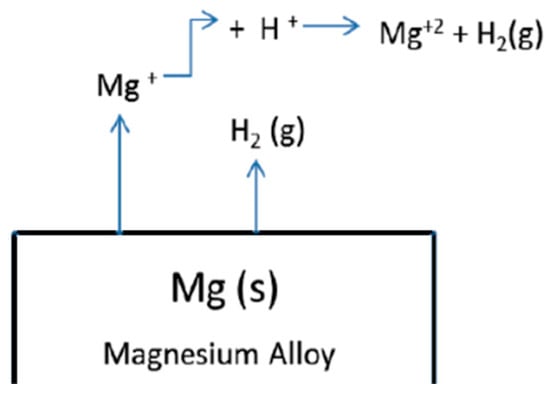

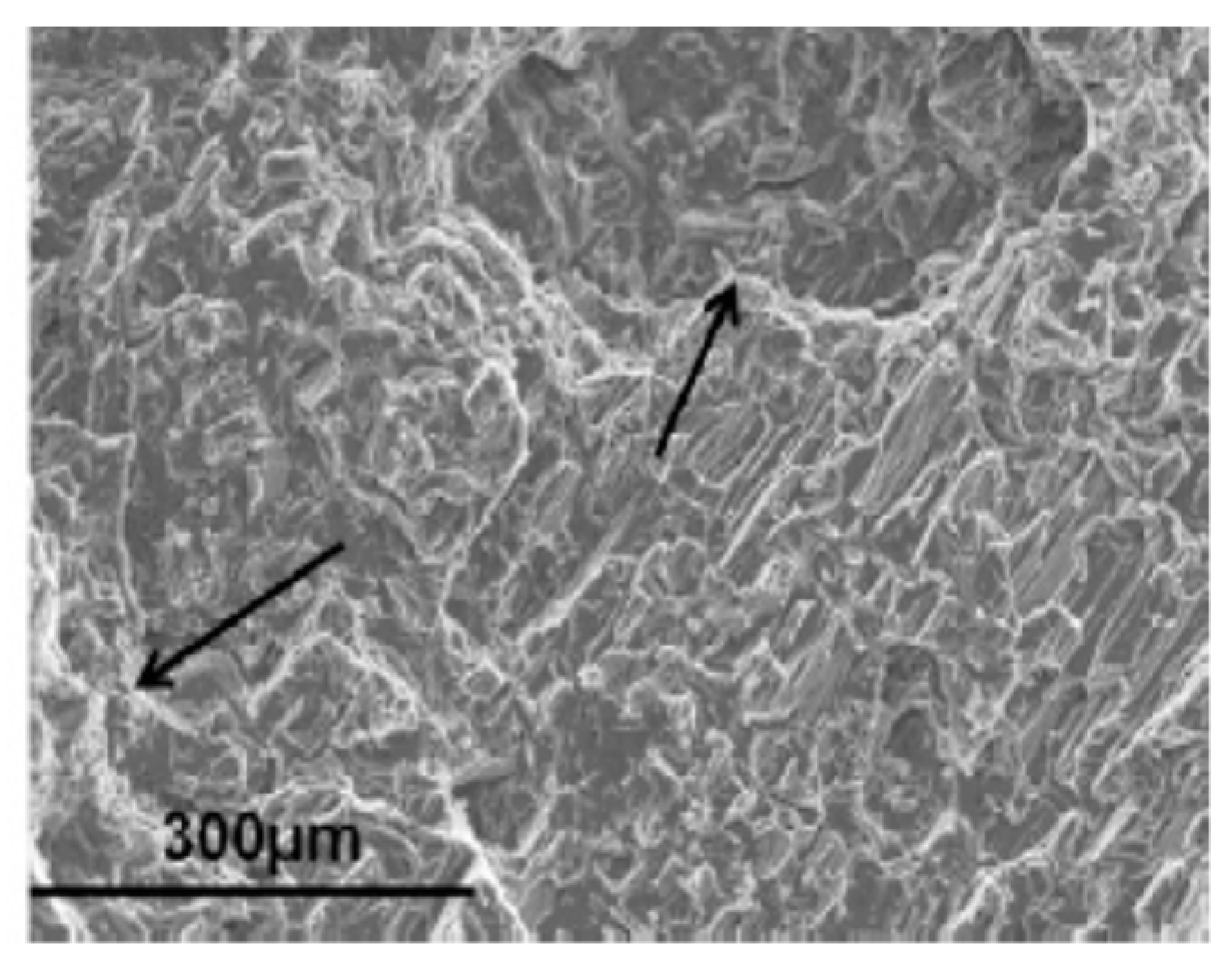

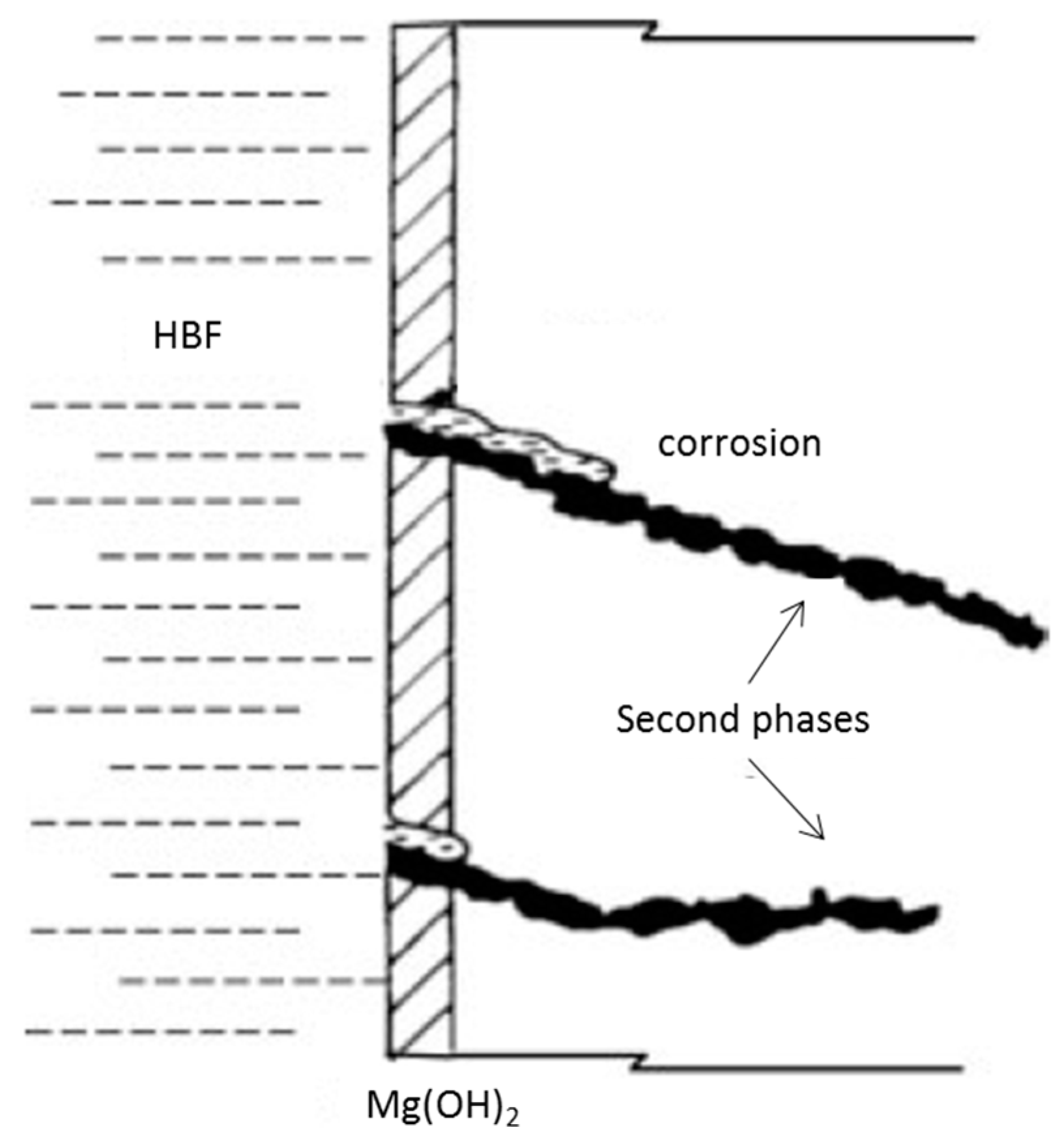

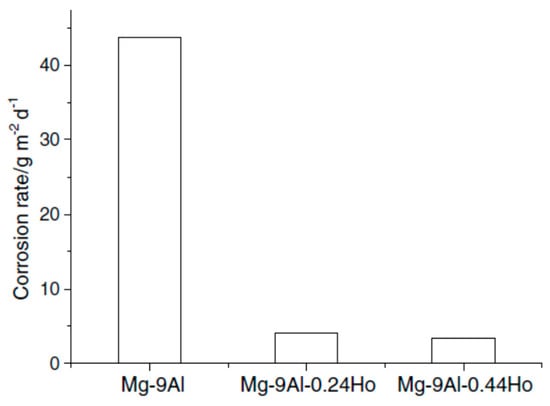

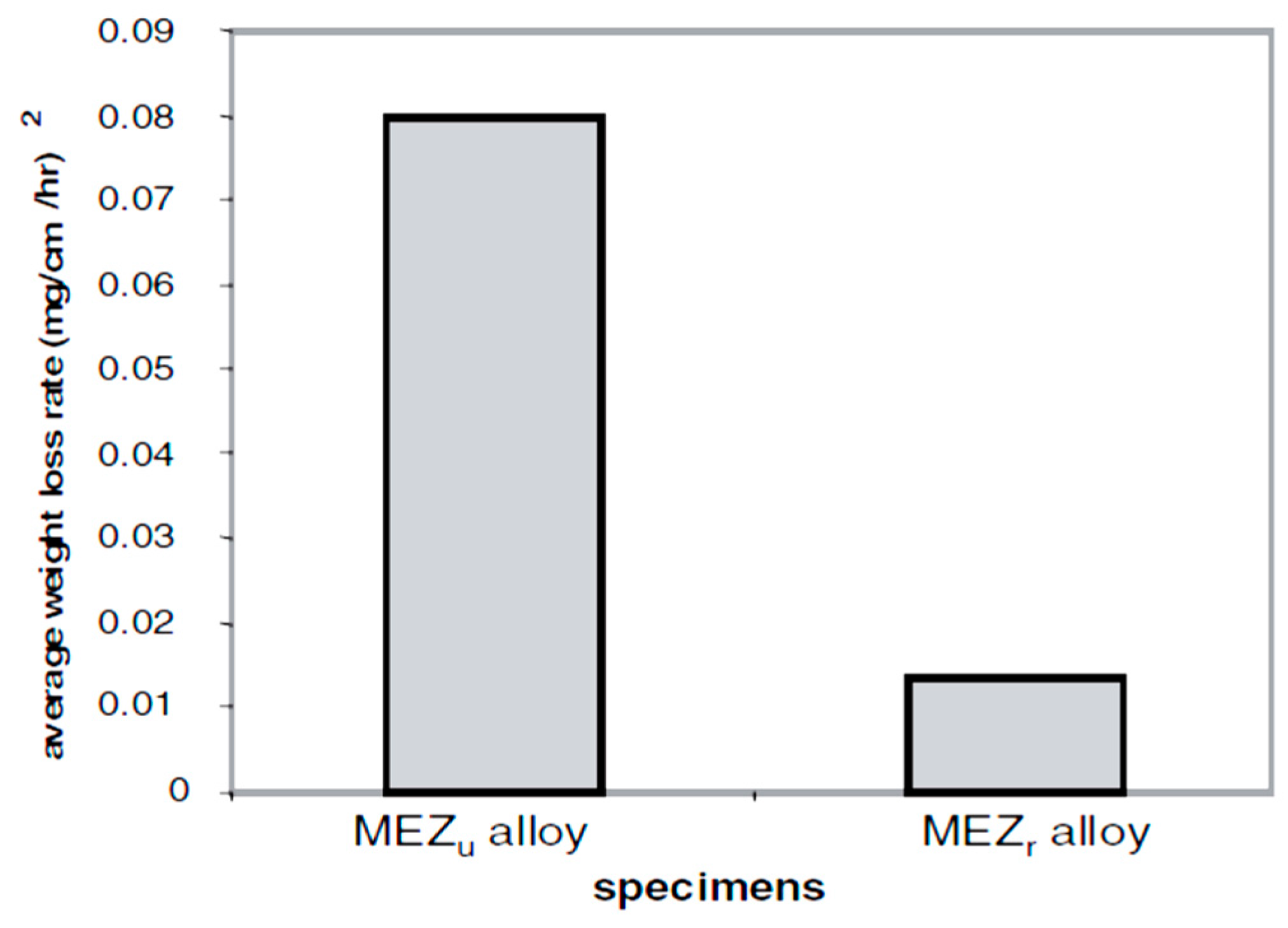

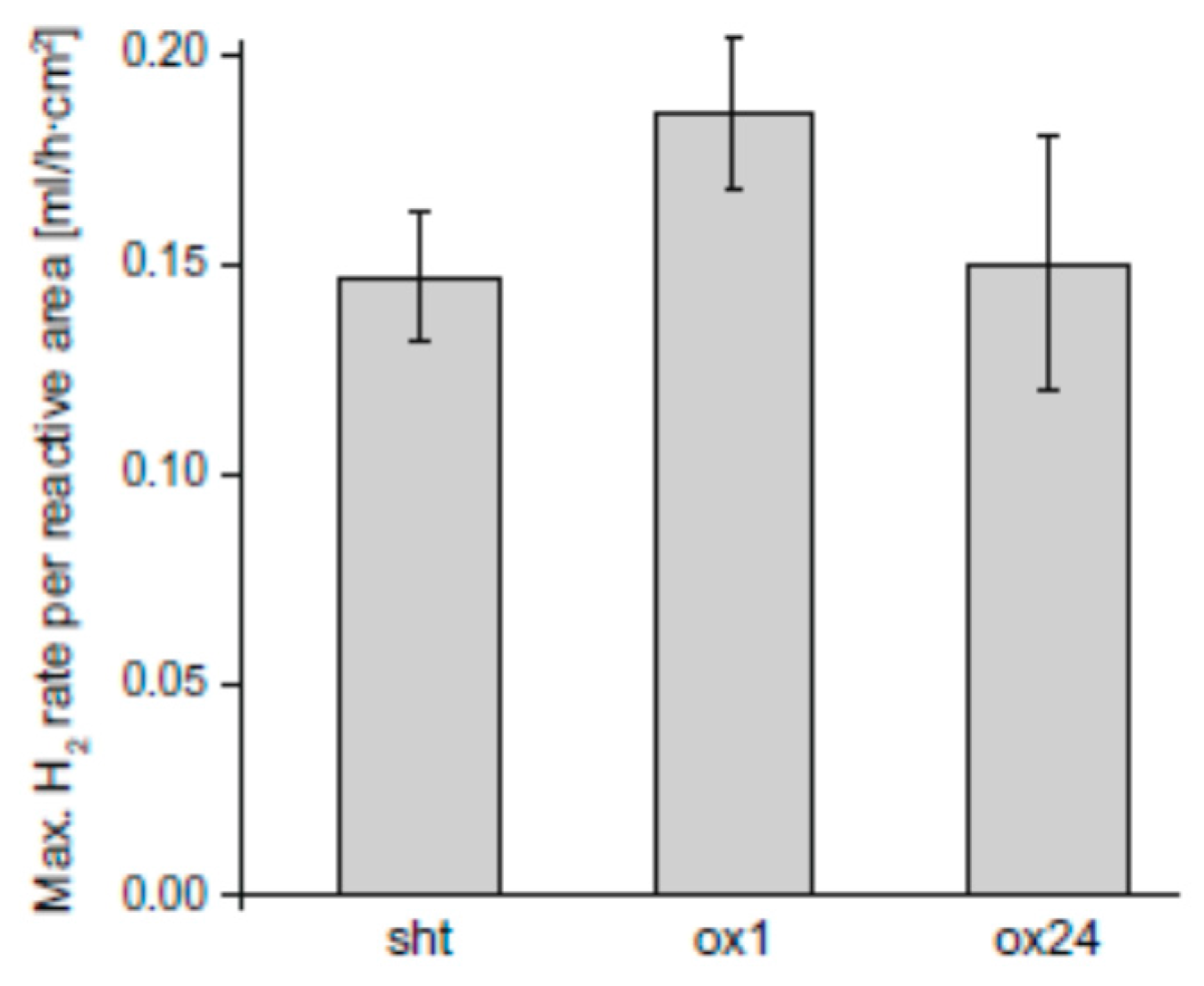

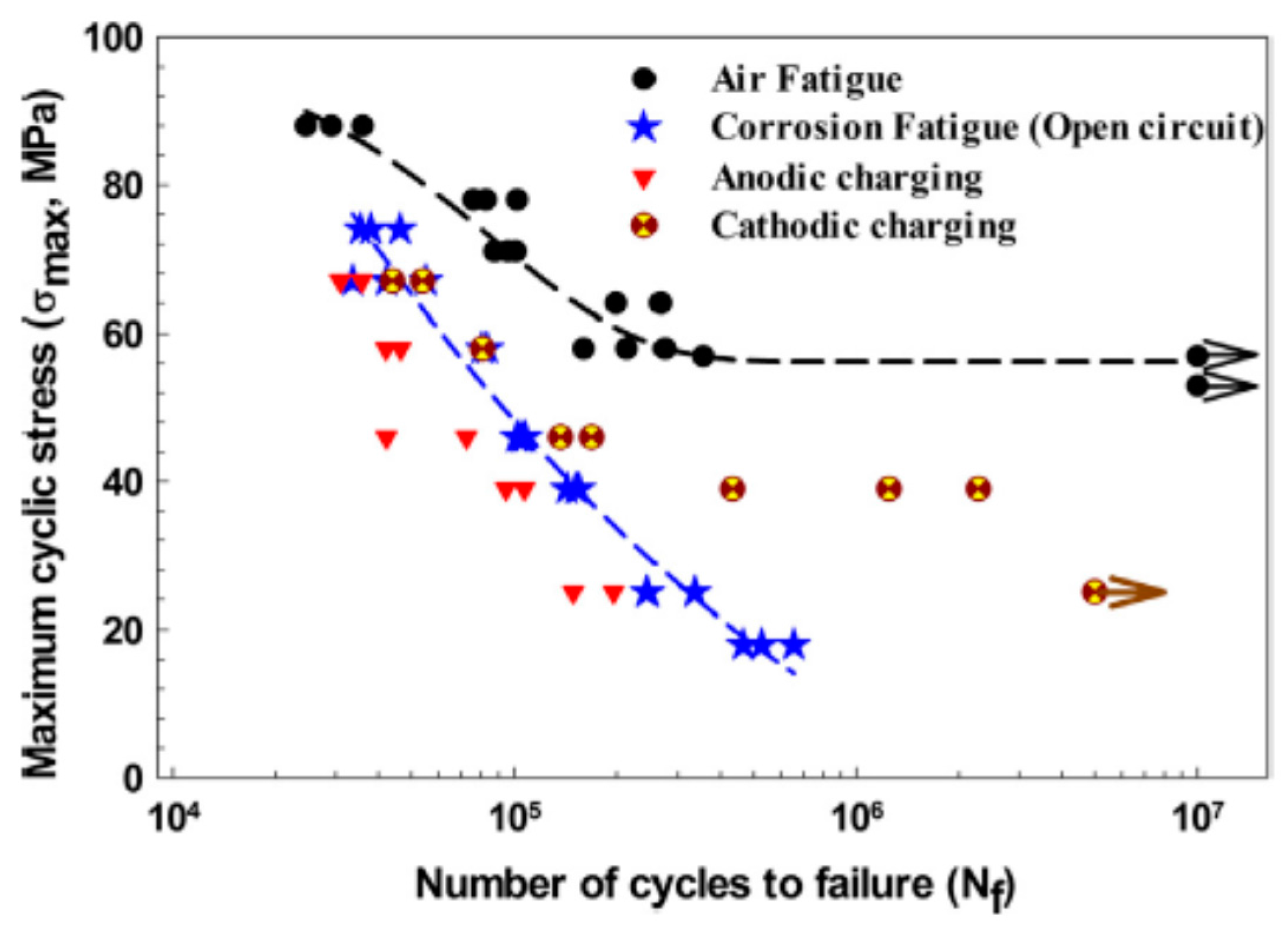

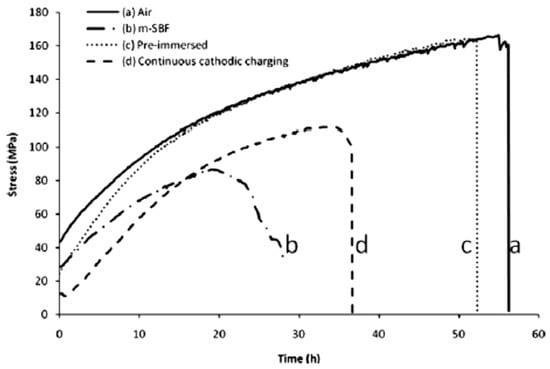

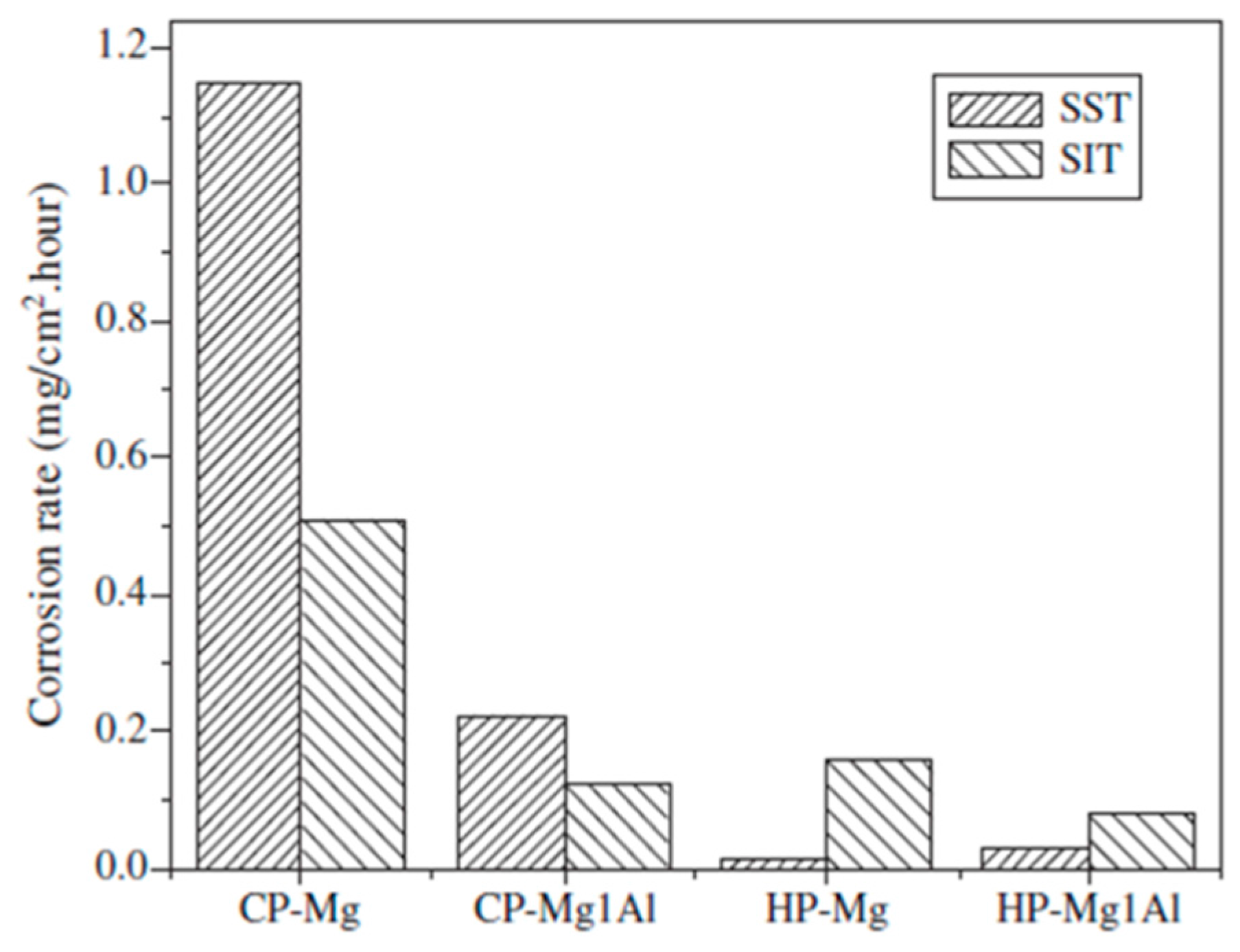

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Peron, M.; Torgersen, J.; Berto, F. Mg and Its Alloys for Biomedical Applications: Exploring Corrosion and Its Interplay with Mechanical Failure. Metals 2017, 7, 252.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
