Metals 2017, 7(5), 174; doi:10.3390/met7050174

Leaching Process of Rare Earth Elements, Gallium and Niobium in a Coal-Bearing Strata-Hosted Rare Metal Deposit—A Case Study from the Late Permian Tuff in the Zhongliangshan Mine, Chongqing

1
College of Geosciences and Survey Engineering, China University of Mining and Technology (Beijing), Beijing 100083, China
2
Chongqing Key Laboratory of Exogenic Mineralization and Mine Environment, Chongqing Institute of Geology and Mineral Resources, Chongqing 400042, China
*
Author to whom correspondence should be addressed.
Academic Editor: Houshang Alamdari
Received: 15 February 2017 / Revised: 7 May 2017 / Accepted: 11 May 2017 / Published: 15 May 2017
View Full-Text   |   Download PDF [887 KB, uploaded 15 May 2017]   |

Abstract

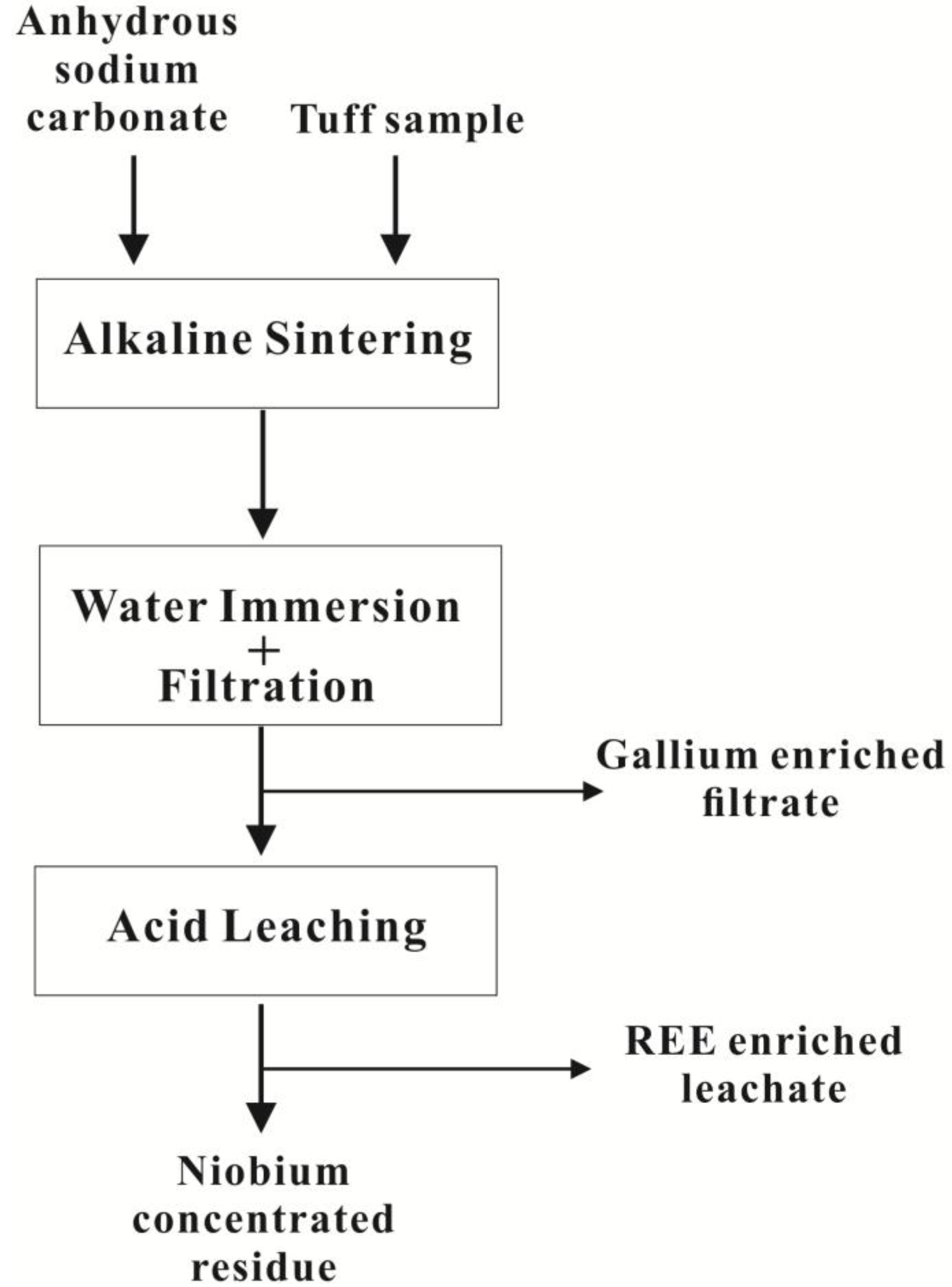

The tuff, a part of coal-bearing strata, in the Zhongliangshan coal mine, Chongqing, southwestern China, hosts a rare metal deposit enriched in rare earth elements (REE), Ga and Nb. However, the extraction techniques directly related to the recovery of rare metals in coal-bearing strata have been little-studied in the literature. The purpose of this paper is to investigate the extractability of REE, Ga and Nb in the tuff in the Zhongliangshan mine using the alkaline sintering-water immersion-acid leaching (ASWIAL) method. The results show that ASWIAL can separate and extract REE, Ga and Nb effectively under the optimized conditions of calcining at 860 °C for 0.5 h with a sample to sintering agent ratio of 1:1.5, immersing at 90 °C for 2 h with 150 mL hot water dosage, and leaching using 4 mol/L HCl at 40 °C for 2 h with a liquid-solid ratio of 20:1 (mL:g). The final leaching efficiencies of REE and Ga are up to 85.81% and 93.37%, respectively, whereas the leaching efficiency of Nb is less than 1%, suggesting the high concentration of Nb in the leaching residue, which needs further extraction. View Full-Text
Keywords: extractability; alkaline sintering-water immersion-acid leaching; tuff; Chongqing extractability; alkaline sintering-water immersion-acid leaching; tuff; Chongqing
Figures

Figure 1
