Metals 2017, 7(3), 77; doi:10.3390/met7030077

Investigation of the Weld Properties of Dissimilar S32205 Duplex Stainless Steel with AISI 304 Steel Joints Produced by Arc Stud Welding

1
Faculty of Engineering, Metallurgical and Material Engineering Department, Kırıkkale University, 71450 Kırıkkale, Turkey
2
Faculty of Technology, Metallurgical and Material Engineering Department, Gazi University, 06500 Ankara, Turkey
*
Author to whom correspondence should be addressed.
Academic Editors: Adem Kurt, Necip Fazil Yilmaz and Halil Ibrahim Kurt
Received: 28 November 2016 / Revised: 22 February 2017 / Accepted: 23 February 2017 / Published: 1 March 2017
(This article belongs to the Special Issue Selected Papers from ICWET16)
View Full-Text   |   Download PDF [6526 KB, uploaded 1 March 2017]   |

Abstract

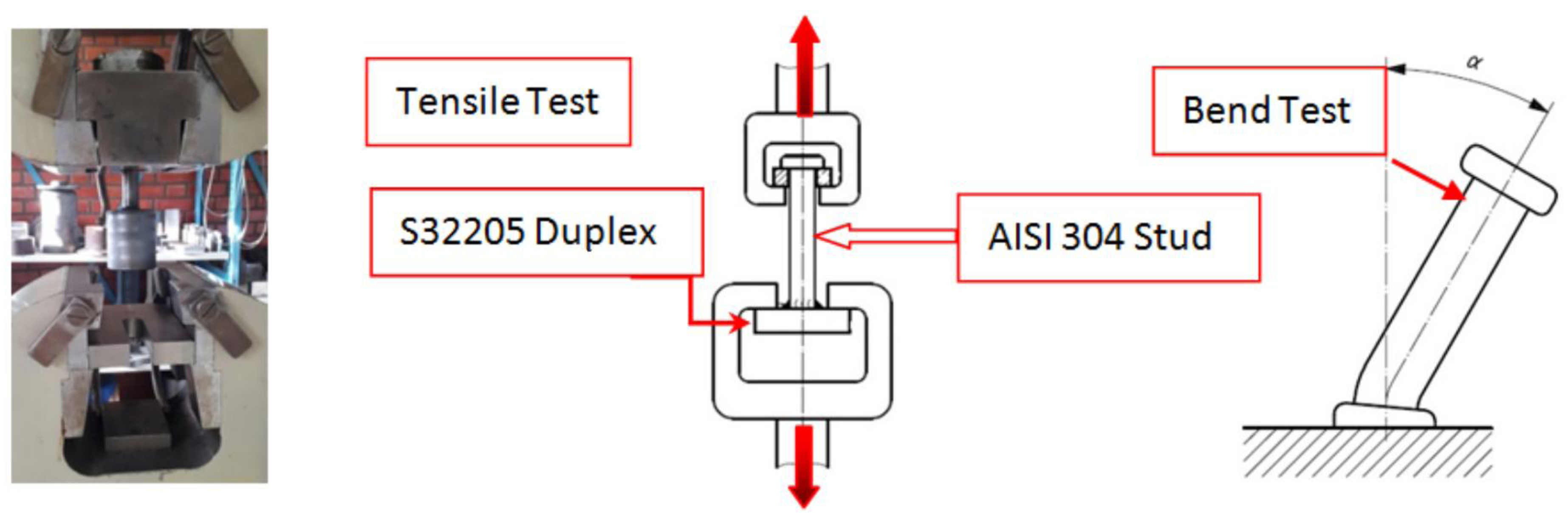

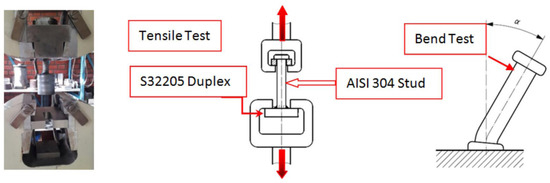

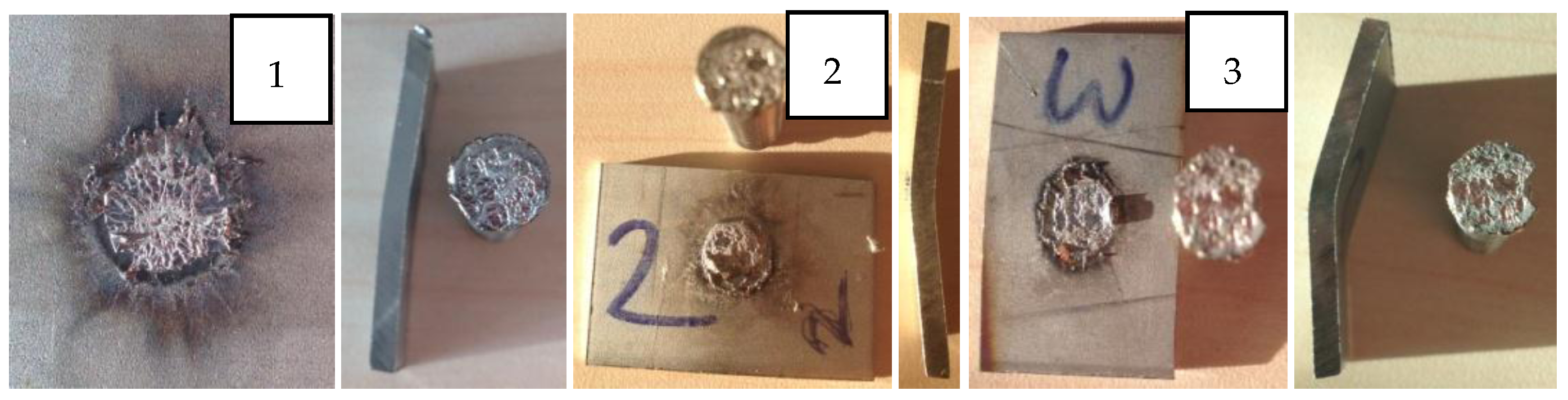

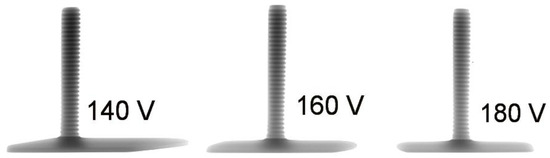

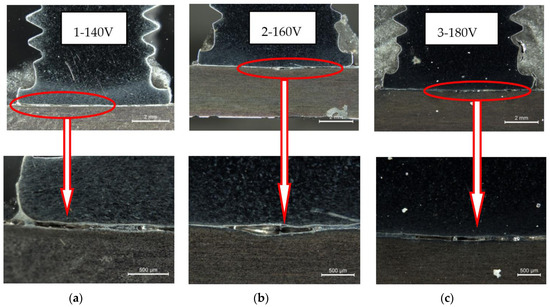

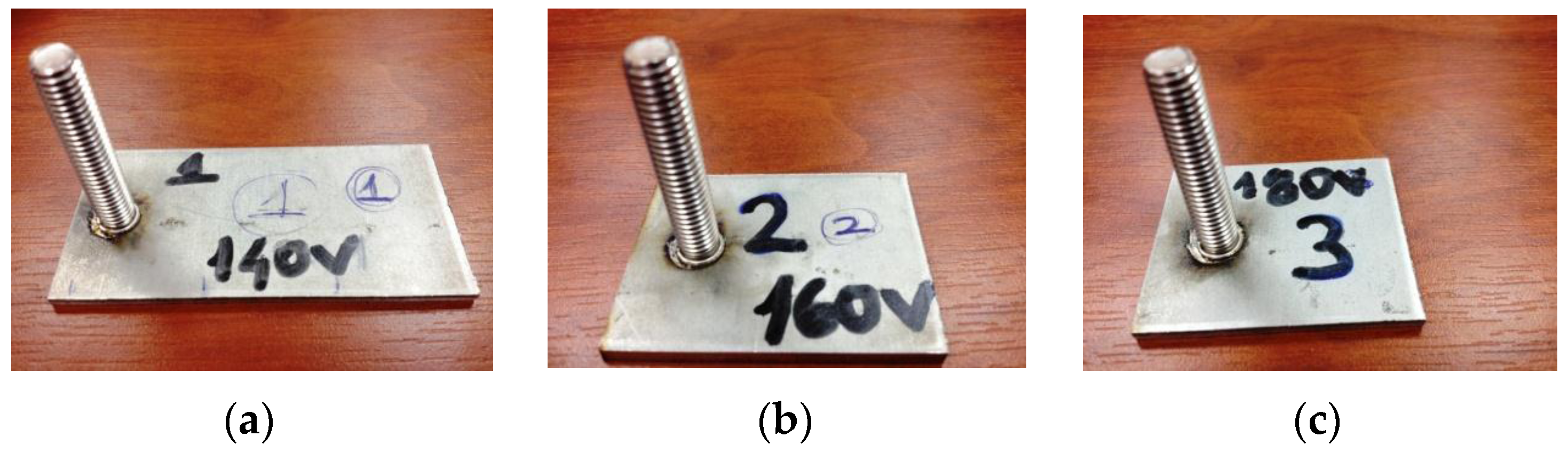

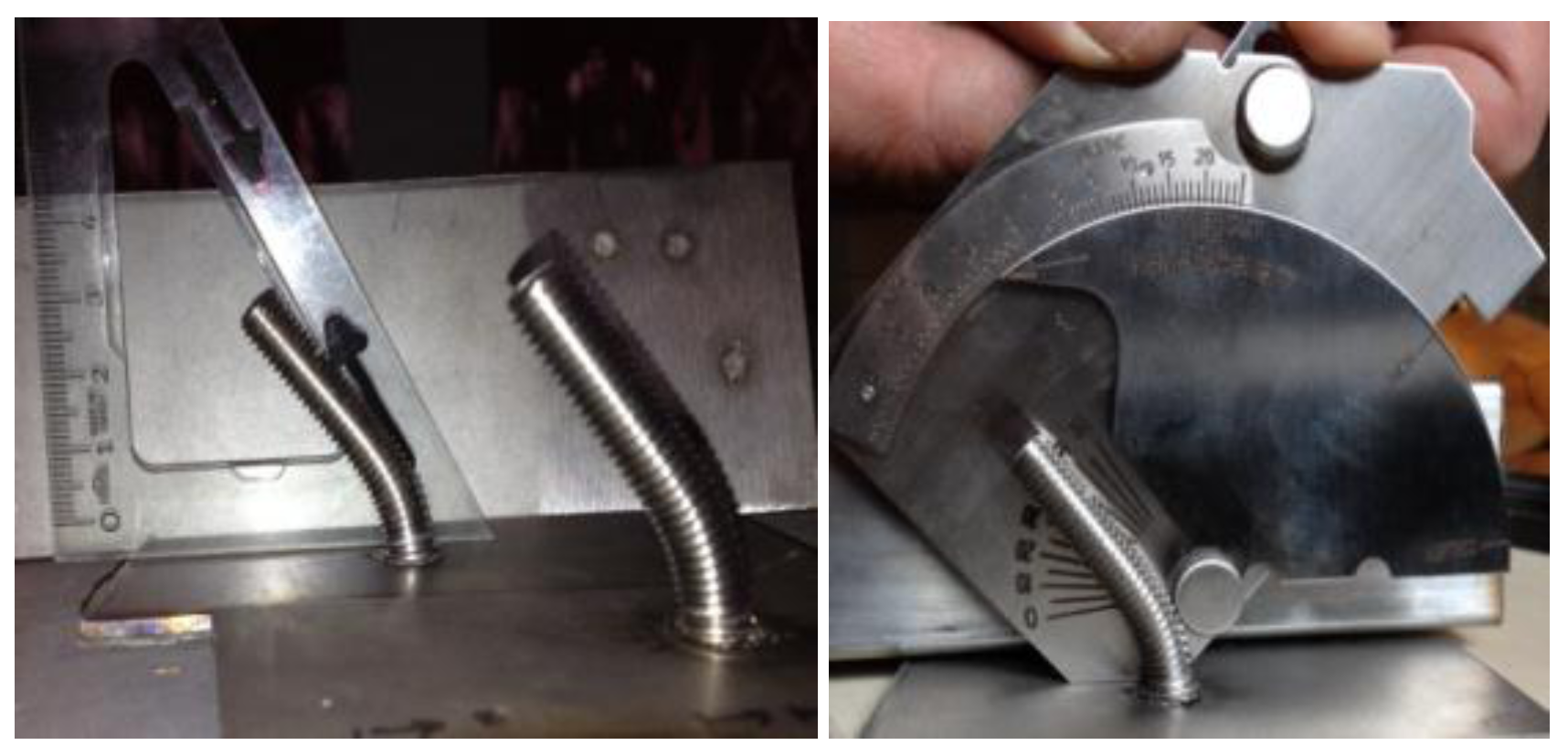

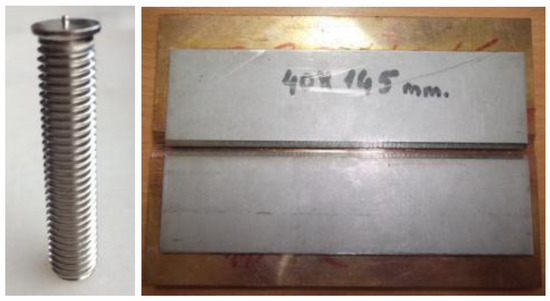

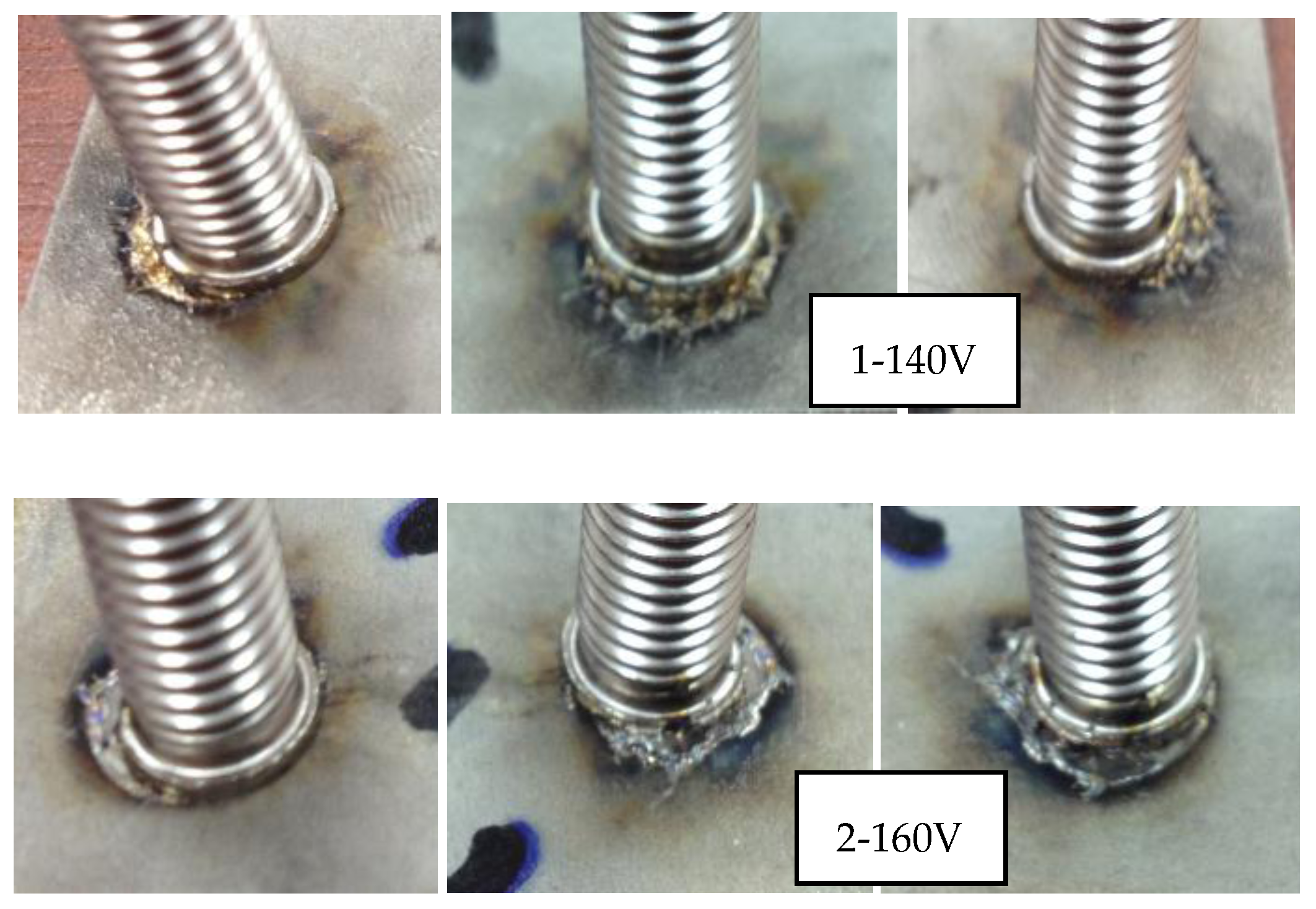

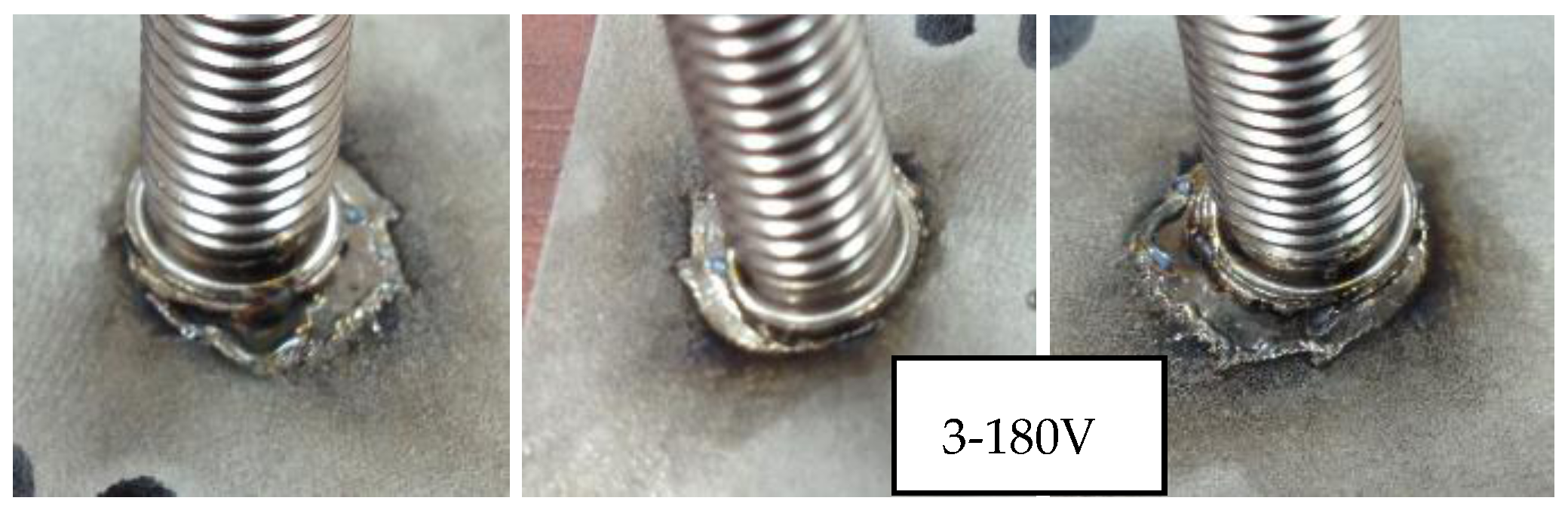

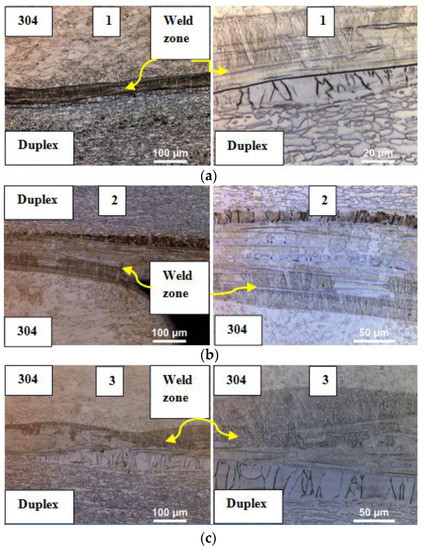

UNS S32205 duplex stainless steel plates with a thickness of 3 mm are arc stud welded by M8 × 40 mm AISI 304 austenitic stainless steel studs with constant stud lifts in order to investigate the effects of welding arc voltages on mechanical and microstructural behaviors of the joints. As the welding arc voltage increases starting from 140 V, the tensile strength of the weldment also increases but the higher arc values results in more spatters around the weld seam up to 180 V. Conversely, the lower arc voltages causes poor tensile strength values to weldments. Tensile tests proved that all of the samples are split from each other in the welding zone but deformation occurs in duplex plates during the tensile testing of weldments so that the elongation values are not practically notable. The satisfactory tensile strength and bending values are determined by applying 180 volts of welding arc voltage according to ISO 14555 standard. Peak values of micro hardness occurred in weld metal most probably as a consequence of increasing heat input decreasing the delta ferrite ratios. As the arc voltage increases, the width of the heat affected zone increases. Coarsening of delta-ferrite and austenite grains was observed in the weld metal peak temperature zone but it especially becomes visible closer to the duplex side in all samples. The large voids and unwelded zones up to approximately 1 mm by length are observed by macro-structure inspections. Besides visual tests and micro-structural surveys; bending and microhardness tests with radiographic inspection were applied to samples for maintaining the correct welding parameters in obtaining well-qualified weldments of these two distinct groups of stainless steel materials. View Full-Text
Keywords: arc stud welding; duplex stainless steels; austenitic stainless steels arc stud welding; duplex stainless steels; austenitic stainless steels
