Metals 2016, 6(9), 202; doi:10.3390/met6090202

Influences of Laser Spot Welding on Magnetic Property of a Sintered NdFeB Magnet

1
State Key Laboratory of Tribology, Department of Mechanical Engineering, Tsinghua University, Beijing 100084, China
2
Taiyuan Tuolituo Technology Co. Ltd., Taiyuan 030032, China
*
Author to whom correspondence should be addressed.
Academic Editor: Giuseppe Casalino
Received: 11 May 2016 / Revised: 20 August 2016 / Accepted: 22 August 2016 / Published: 26 August 2016
View Full-Text   |   Download PDF [4910 KB, uploaded 26 August 2016]   |

Abstract

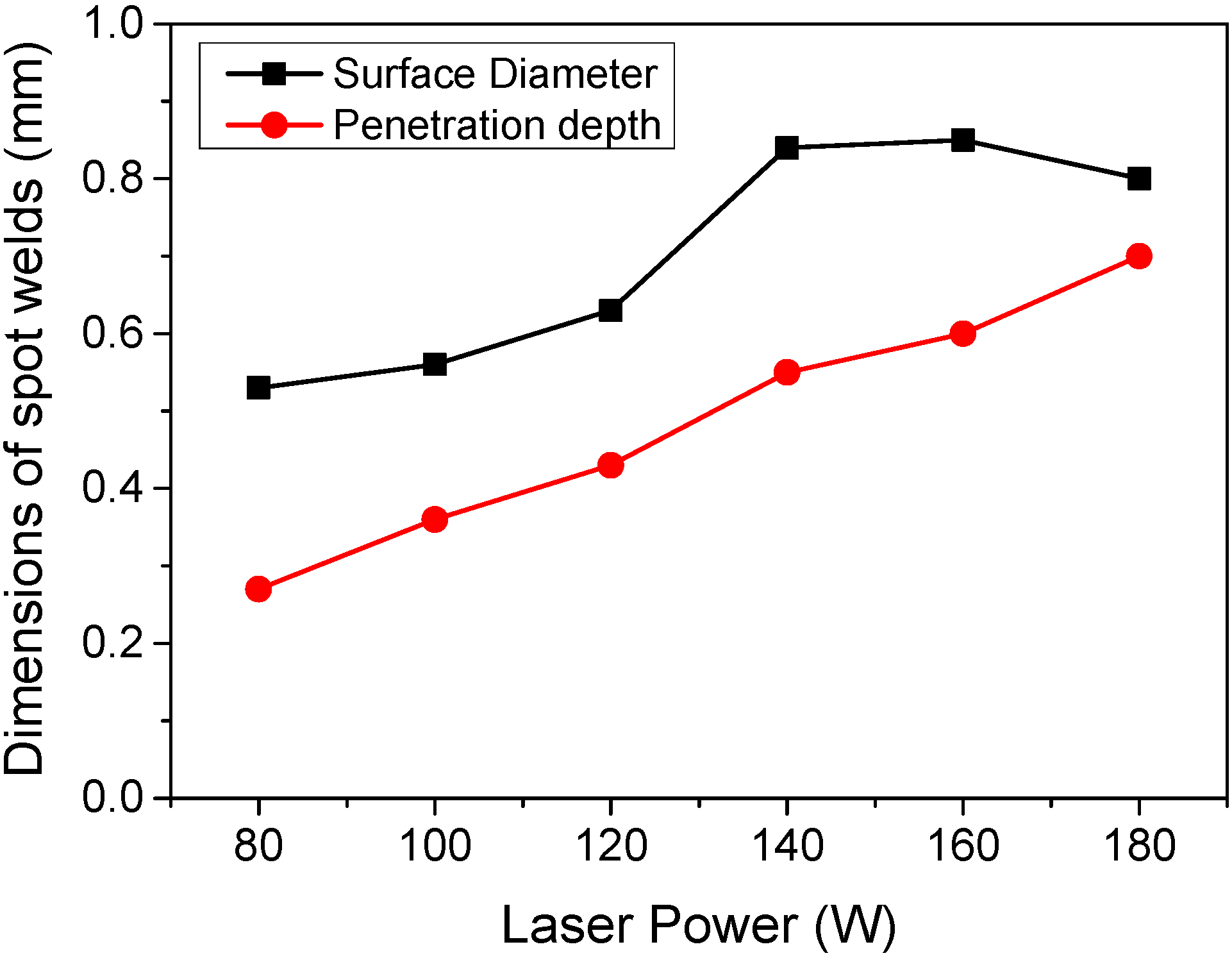

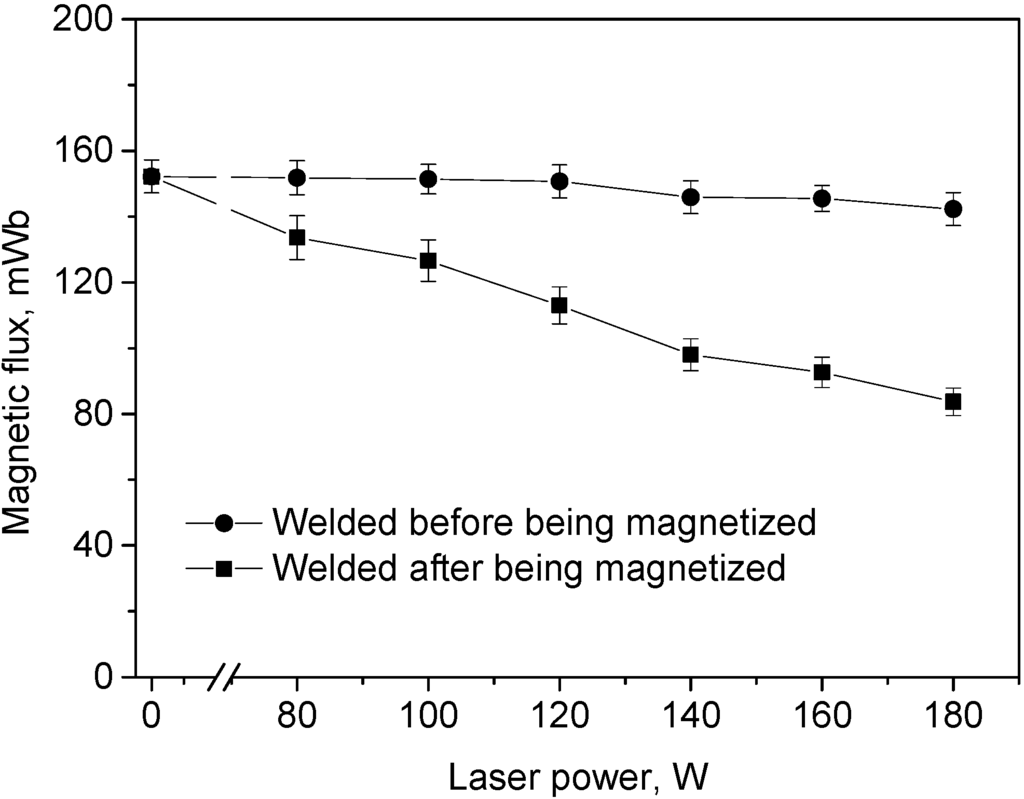

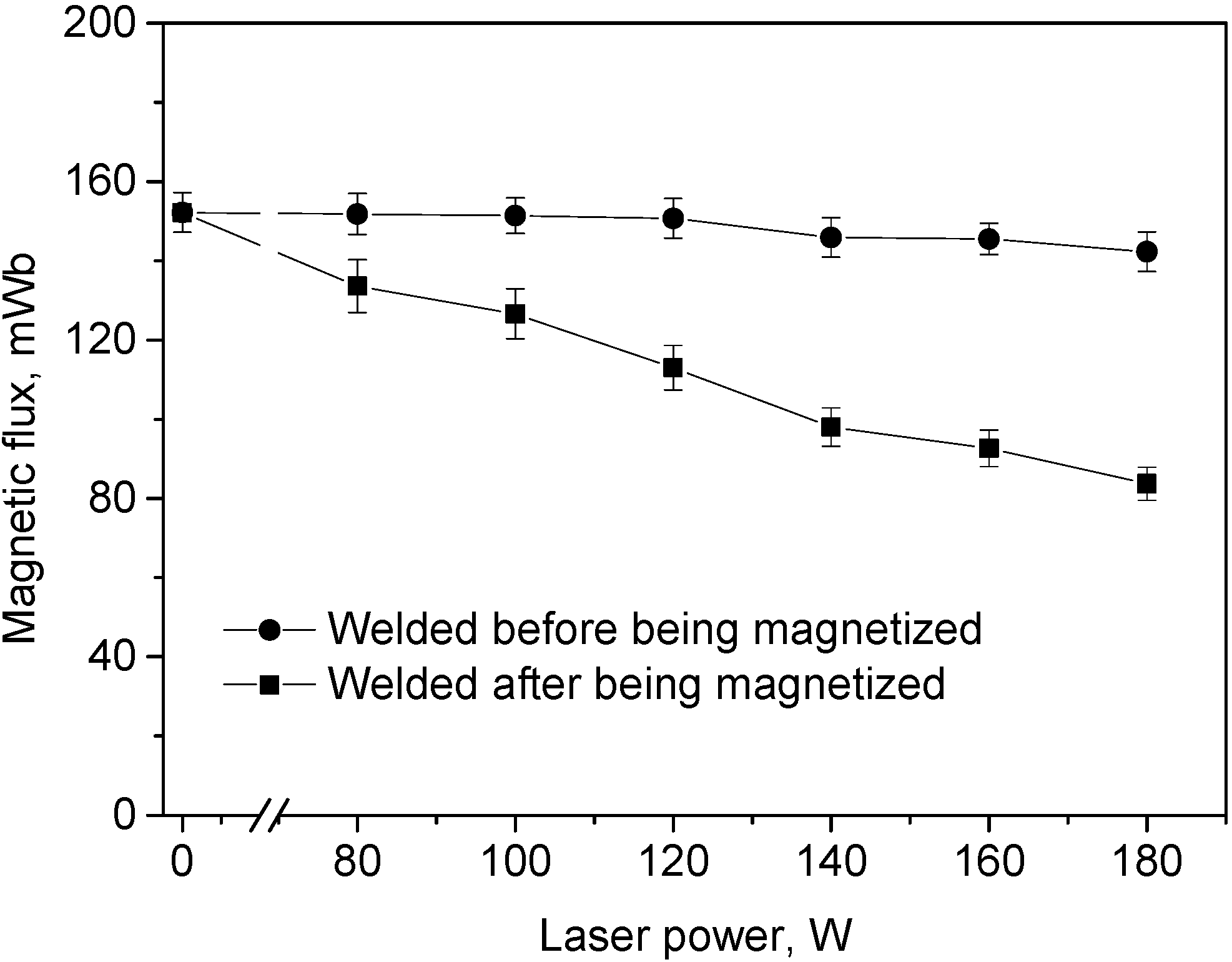

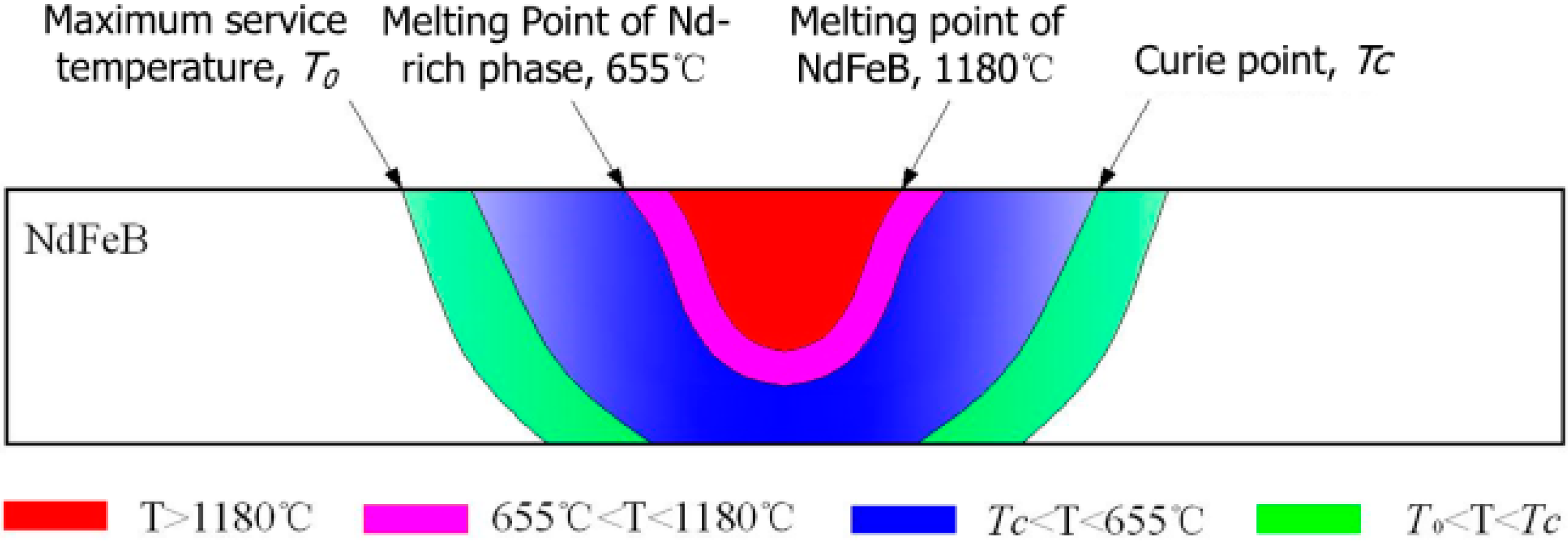

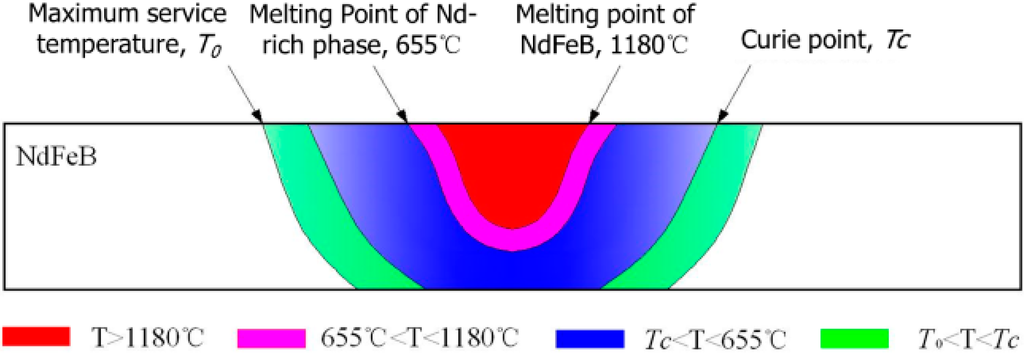

Laser welding has been considered as a promising method to join sintered NdFeB permanent magnets thanks to its high precision and productivity. However, the influences of laser welding on the magnetic property of NdFeB are still not clear. In the present paper, the effects of laser power on the remanence (Br) were experimentally investigated in laser spot welding of a NdFeB magnet (N48H). Results show that the Br decreased with the increase of laser power. For the same welding parameters, the Br of magnets, that were magnetized before welding, were much lower than that of magnets that were magnetized after welding. The decrease in Br of magnets after laser welding resulted from the changes in microstructures and, in turn, the deterioration of magnetic properties in the nugget and the heat affected zone (HAZ) in a laser weld. It is recommended that the dimensions of nuggets and HAZ in laser welds of a NdFeB permanent magnet should be as small as possible, and the magnets should be welded before being magnetized in order to achieve a better magnetic performance in practical engineering applications. View Full-Text
Keywords: laser welding; NdFeB magnet; magnetic property; process parameters laser welding; NdFeB magnet; magnetic property; process parameters
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Chang, B.; Du, D.; Yi, C.; Xing, B.; Li, Y. Influences of Laser Spot Welding on Magnetic Property of a Sintered NdFeB Magnet. Metals 2016, 6, 202.
