One-Step Extraction of Antimony in Low Temperature from Stibnite Concentrate Using Iron Oxide as Sulfur-Fixing Agent

Abstract

A new process for one-step extraction of antimony in low temperature from stibnite concentrate by reductive sulfur-fixation smelting in sodium molten salt, using iron oxide as sulfur-fixing agent, was presented. The influences of molten salt addition and composition, ferric oxide dosage, smelting temperature and duration on extraction efficiency of antimony were investigated in details, respectively. The optimum conditions were determined as follows: 1.0 time stoichiometric requirement (α) of mixed sodium salt (α_salt = 1.0), W_NaCl:W_salt = 40%, α_Fe2O3 = 1.0, W_coke:W_stibnite = 40%, where W represents weight, smelting at 850 °C (1123 K) for 60 min. Under the optimum conditions, the direct recovery rate of antimony can reach 91.48%, and crude antimony with a purity of 96.00% has been achieved. 95.31% of sulfur is fixed in form of FeS in the presence of iron oxide. Meanwhile, precious metals contained in stibnite concentrate are enriched and recovered comprehensively in crude antimony. In comparison to traditional antimony pyrometallurgical process, the smelting temperature of present process is reduced from 1150–1200 °C (1423–1473 K) to 850–900 °C (1123–1173 K). Sulfur obtained in stibnite is fixed in FeS which avoids SO₂ emission owing to the sulfur-fixing agent. Sodium salt can be regenerated and recycled in smelting system when the molten slag is operated to filter solid residue. The solid residue is subjected to mineral dressing operation to obtain iron sulfide concentrate which can be sold directly or roasted to regenerate into iron oxide.

1. Introduction

China has abundant reserves of antimony resource and it’s also the largest producer of antimony in the world. Generally, the technologies for producing antimony mainly comprise pyrometallurgy and hydrometallurgy [1,2]. Pyrometallurgy routes for extraction of antimony typically contain roasting-volatilizing-reducing process, bath smelting-continuous fuming process [3] and direct smelting process [4,5]. While hydrometallurgy technologies for antimony separation can be classified into alkaline extraction procedure and acidic extraction process according to property of solvents. Alkaline extraction procedure primarily adopts Na₂S leaching followed by membrane electrowinning [6]. Acidic extraction process mainly includes FeCl₃ leaching-electrowinning and chlorination-distillation procedure [1]. At present, due to the lengthy flow, poor efficiency, high running cost and large amount of wastewater treatment during hydrometallurgical separation process [7] of antimony, most of antimony smelteries in China use traditional volatilization smelting process in blast furnace to volatilize the resultant antimony trioxide, and then reduce the trioxide with carbon to metallic antimony in reverberatory furnace. However, this process has its obvious drawbacks, such as serious environmental pollution and large energy consumption, which restrict its popularization and application, especially under the background of increasing stringent environmental standard. Therefore, renovation and innovation in traditional antimony metallurgy technology are imperative [8,9,10].

Our research group has done a great deal of investigations [11,12,13,14] and tried to modify and innovate the traditional antimony metallurgy. Some promising achievements have been acquired. Tang et al. [11] were based on the alkaline smelting presented by scholars [15] of the former Soviet Union and then used and developed this technique to smelt low-melting point nonferrous metals in NaOH-Na₂CO₃-Na₂SO₄-Na₂S system, such as antimony, lead, bismuth and tin etc. They found that as long as the smelting temperature was adequately higher than corresponding metals’ melting point, the extractive reaction would occur efficiently [11]. Yang et al. [12] separated 97.07% antimony (96.45% purity) from stibnite concentrate in NaOH-Na₂CO₃ system at 880 °C (1153 K). Ye et al. [14] extracted 92.88% antimony (purity 93.17%) in Na₂CO₃-NaCl system at 850 °C (1123 K). However, the sulfur-fixing agent they used was ZnO. Sulfur contained in stibnite concentrate was fixed in form of ZnS. In this study, we developed a kind of alternative sulfur-fixing agent iron oxides.

Iron oxide-rich slags are produced in great deal in China [16,17], in particular pyrites cinder [18] generated in acid-making procedure. These residues generally store up in slag dumps and leave untreated. Considerable accumulation of these tailings not only occupies a large amount of land but causes contamination of the environment and constitutes an ecological threat to the surrounding life due to wind erosion and scattering in the regions. However, these kinds of residues are valuable secondary resource of iron. In addition, some precious metals, such as Au and Ag, frequently exist in pyrites cinder in China. The treatment of these massive quantities of residues is not only extraordinarily important but extremely necessary from both environmental and economic perspectives.

In this paper, the renovate process [12] (as shown in Figure 1) for antimony extraction from stibnite concentrate is proposed to overcome the problems in traditional two-step antimony metallurgy, meanwhile, to co-treat iron oxide-rich slags. This process is characterized by low temperature, elimination of SO₂ emission and short flow. It consists of the following steps: feeding stibnite-containing feed, mixed sodium salt, sulfur-fixing agent and powdery coal or coke into a furnace with a temperature of less than 900 °C (1173 K). As a result, crude antimony metal, ferrous sulfide, gangue, and regenerated molten salt, mainly containing sodium carbonate, are obtained. The regenerated molten salt is fed into the smelting furnace to reuse as the reaction flux again after filtering operation while it is melting state. The ferrous sulfide can be sold as ferrous sulfide concentrate or roasted to regenerate into iron oxide and used as sulfur-fixing agent again. The studies in this article were focus on the process illustrated in the frame in Figure 1.

2. Materials and Methods

2.1. Materials

Stibnite concentrate used in this study obtained from Chenzhou Mining Group Co., LTD., Huaihua, Hunan, China. Powdered Fe₂O₃, Na₂CO₃ and NaCl with >99.99% purity were purchased from Aladdin Industrial Corporation. Reductant, metallurgical coke, was provided by Xiangtan Iron and Steel Co., LTD. of Hunan Valin. Chemical compositions of stibnite concentrate were analysed by Inductively Coupled Plasma-atomic Emission Spectrometry (Perkin Elmer, Optima 3000 ICP-AES, Norwalk, CT, USA). The prior decomposition of stibnite concentrate was carried out in aqua regia (nitrohydrochloric acid, a 3:1 mixture of concentrated HCl and HNO₃ aqueous solution) while shielded the influence of silica by hydrofluoric acid HF and perchloric acid HClO₄. The results were presented in

Table 1. Chemical compositions of stibnite concentrate and coke used in experiments (mass fraction, %).

Materials/%	Sb	S	Fe	Pb	Cu	As	Bi	Au *	SiO2	CaO
Stibnite concentrate	48.08	25.13	5.14	0.28	0.04	0.5	$<$0.01	101.05	12.14	0.90
Reductant	Industrial analysis			Chemical composition of the ash					LOI
	FCd	Vd	Ad	Fetotal	MgO	SiO2	CaO	Al2O3
	81.27	3.3	15.43	25.23	0.53	41.23	6.60	25.24	82.79

* means unit of Au content is g/t.

.

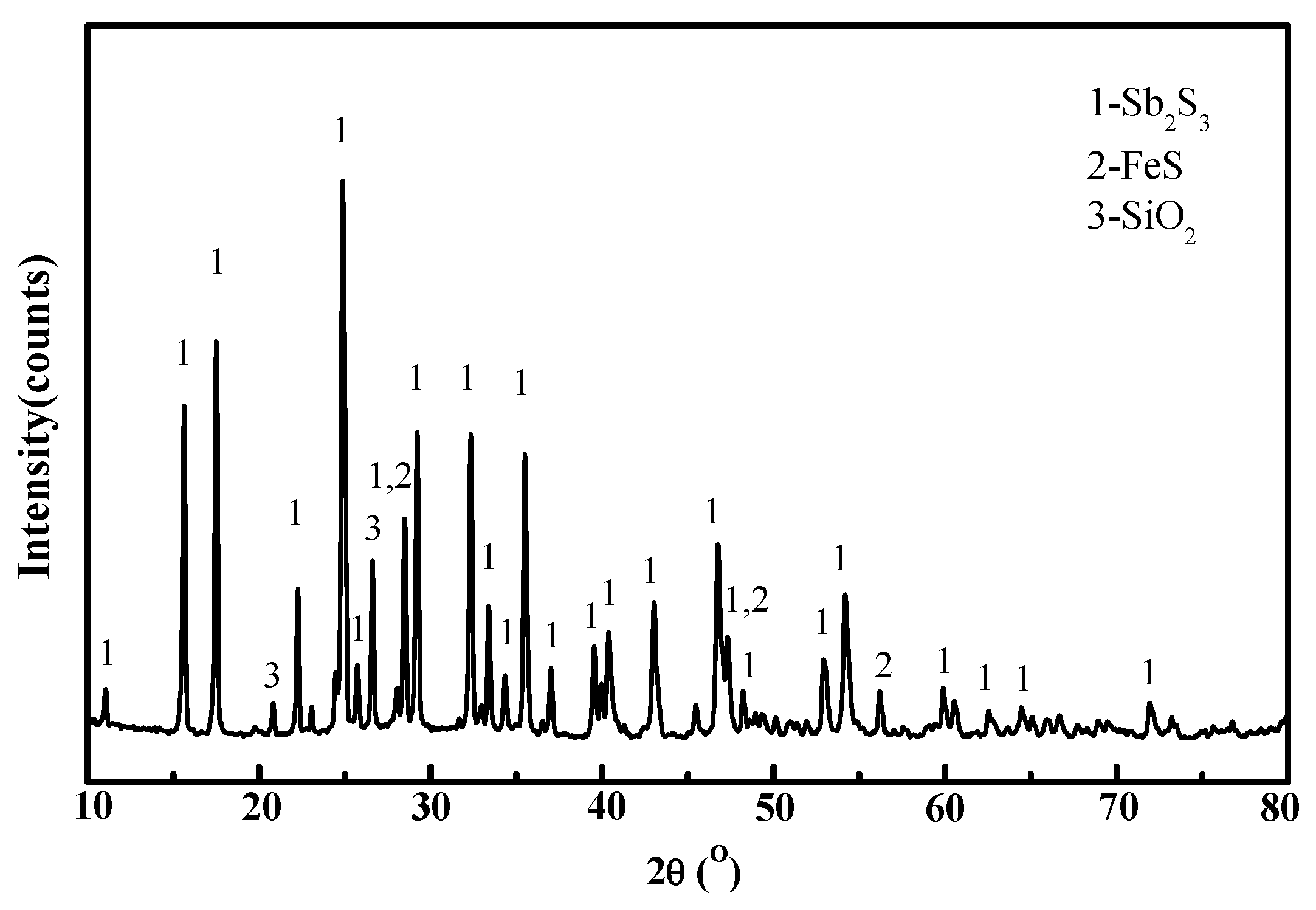

Phase compositions of stibnite concentrate were analysed by X-ray Diffraction (XRD, Rigaku 3014, Rigaku Corporation, Tokyo, Japan, Cu-Kα-radiation, λ = 1.54 Å) (as shown in Figure 2). It can be known that stibnite concentrate primarily comprises Sb 48.08%, S 25.13%, Fe 5.14% and 101.05 g/t Au, which attach a significant economic value to recover. Main phase compositions in stibnite concentrate are Sb₂S₃, FeS and SiO₂.

2.2. Methods

As an experimental procedure, 100 g stibnite concentrate were mixed evenly with the given amount of coke, sodium carbonate and sodium chloride, sulfur-fixing agent Fe₂O₃ in every tests, and then the mixture were put into a weighed 100 mL corundum crucible. The crucible was placed in the constant temperature zone of furnace when the furnace temperature was raised to the desired value and held for preset time. After the smelting duration required, the crucible was taken out from furnace and cooled quickly. The product was put into a pre-prepared water (50–85 °C (323–358 K), L/S = (3–5):1) for leaching 2–3 h to separate crude antimony and molten salt slag. Then the lixivium, leaching residue and crude antimony were measured and weighed carefully and sampled. Each of samples was crushed and well-prepared for analysis. The crude antimony solid samples were dissolved in dilute nitric acid. The leaching residue samples were dissolved in aqua regia while shielded the influence of silica. After dissolving the samples, the solid residue in the leaching solution was filtered using filter paper, and the obtained solution was subjected to ICP-AES (Perkin Elmer, Norwalk, CT, USA) analysis. Metals’ recoveries were calculated based on the mass balance principle. In addition, the phase compositions of the molten salt slag before and after leaching were characterized by XRD respectively.

2.3. Thermodynamic Considerations

Antimony in stibnite concentrate generally exists in form of Sb₂S₃. The melting point of metallic antimony is about 630.5 °C (904 K), and the melting point of the binary eutectic molten salt Na₂CO₃-NaCl [13] is around 632–645 °C (905–918 K). Under the smelting temperature, Sb₂S₃ can react with Fe₂O₃ and Na₂CO₃ respectively, and produces metallic antimony, FeS and Na₂S. Na₂S then will continually react with Fe₂O₃ to regenerate Na₂CO₃. Sulfur is fixed in FeS ultimately. NaCl is not involved in any chemical reaction and just plays a role of inert reaction medium. The purpose of adding the chlorite into sodium carbonate is to form a lower-temperature mixed molten salt. The reaction mechanism can be briefly represented as follows (see

Table 2. Main reactions occurred during reductive sulfur-fixing smelting of stibnite concentrate.

Reaction	$∆G_T^{\theta }-T$(kJ/mol) [19]	Equation
Sb2S3 + 1.5Fe2O3 + 4.5C = 2Sb + 3FeS + 4.5CO (g)	$∆{\mathrm{G}}_{\mathrm{T}}^{\mathsf{\theta }}=-0.792\mathrm{T}+386.62$	(1)
Sb2S3 + 1.5Fe2O3 + 4.5CO (g) = 2Sb + 3FeS + 4.5CO2 (g)	$∆{\mathrm{G}}_{\mathrm{T}}^{\mathsf{\theta }}=-0.0007\mathrm{T}-169.82$	(2)
Sb2S3 + 3Na2CO3 + 6C = 2Sb + 3Na2S + 9CO (g)	$∆{\mathrm{G}}_{\mathrm{T}}^{\mathsf{\theta }}=-1.428\mathrm{T}+1056.2$	(3)
Sb2S3 + 3Na2CO3 + 3CO (g) = 2Sb + 3Na2S + 6CO2 (g)	$∆{\mathrm{G}}_{\mathrm{T}}^{\mathsf{\theta }}=-0.369\mathrm{T}+313.32$	(4)
Fe2O3 + 2Na2S + 1.5CO2 (g) + 0.5C = 2FeS + 2Na2CO3	$∆{\mathrm{G}}_{\mathrm{T}}^{\mathsf{\theta }}=0.146\mathrm{T}-249.96$	(5)

):

The Gibbs free energy $∆{\mathrm{G}}_{\mathrm{T}}^{\mathsf{\theta }}$ of reactions (1)–(5) were calculated under one atmospheric pressure. Figure 3 showed $∆{\mathrm{G}}_{\mathrm{T}}^{\mathsf{\theta }}$ and T diagram of it. It illustrats antimony reduction in the presence of ferrous oxide or sodium carbonate becomes thermodynamically favorable at range of smelting temperature 700–900 °C (973–1173 K). Increasing temperature will promote the reactions (1) and (3) and (4) while decrease the positive trend of the reactions (2) and (5). Sb₂S₃ is more likely to react with sulfur-fixing agent FeO instead of Na₂CO₃ to produce metallic antimony. Na₂CO₃ can regenerate and recycle through reaction (5). As a result, Na₂CO₃ will not be consumed during whole smelting system and act as a role of intermediate reactant. Ultimately, the mixed molten slat Na₂CO₃-NaCl can be recycled together after filtering away the slag. However, the presence of Na₂CO₃ and NaCl in smelting system significantly decreases temperature of reductive sulfur-fixing reactions.

3. Results and Discussion

3.1. Molten Salt Dosage

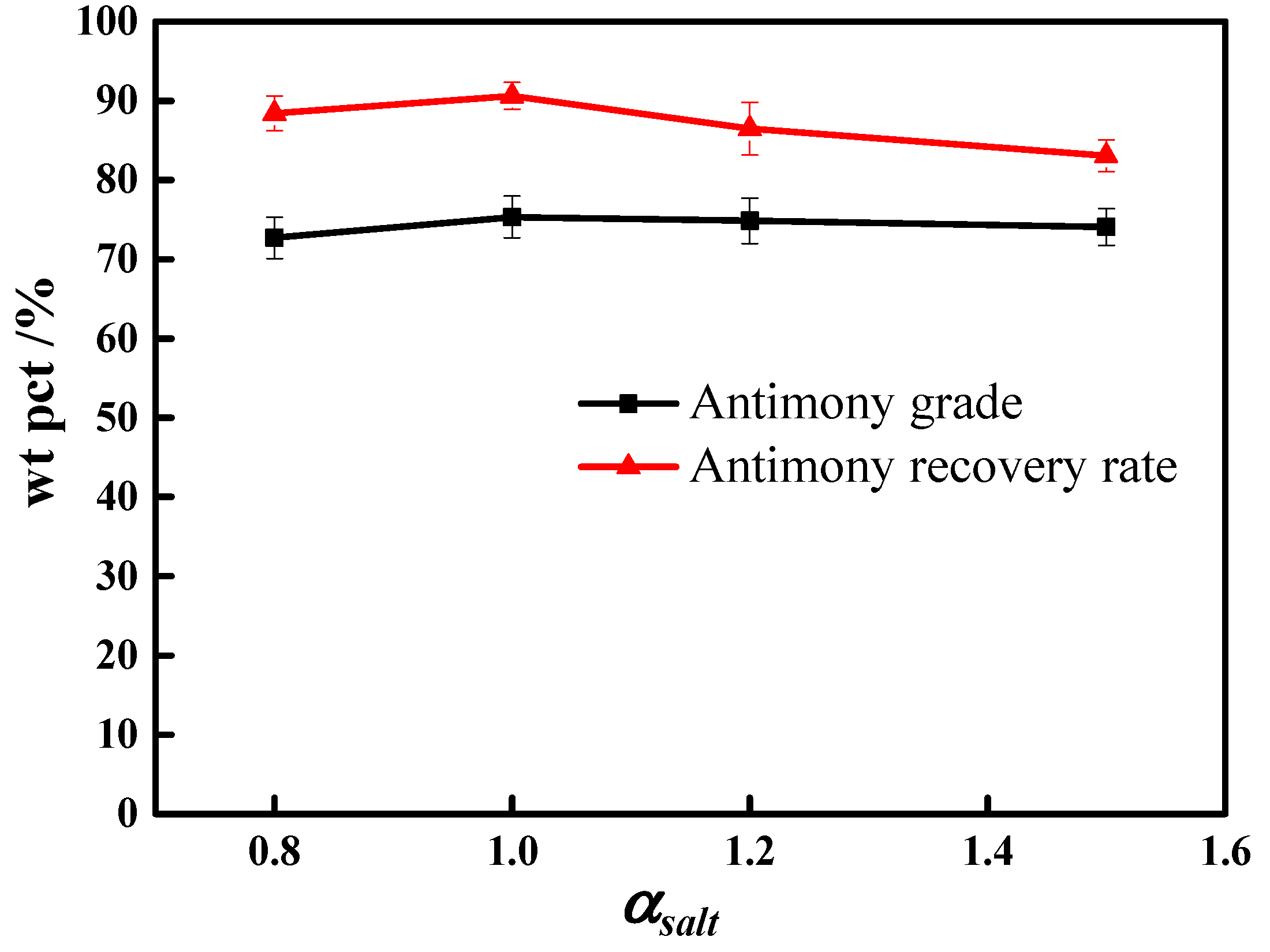

The results of the influence of molten salt dosage on antimony recovery and resultant crude antimony grade are presented in Figure 4. All experiments were carried out under a temperature of 900 °C (1173 K) for 180 min, the charging composition of 100 g stibnite, 30 wt. % coke of stibnite, 1.0 time stoichiometric requirement of sulfur-fixing agent Fe₂O₃ (${\mathsf{\alpha }}_{{\text{Fe}}_2{\mathrm{O}}_3}$ = 1.0), calculated according to sulfur content in stibnite. The molten salt composition, which is the ratio of weight of sodium chloride to that of mixture of sodium carbonate and sodium chloride (W_NaCl:W_salt), is 10%. The stoichiometric requirement of molten salt (α_salt) was calculated by Equation (3).

Experimental results indicated that antimony recovery improved firstly and then decreased steadily as α_salt increased from 0.8 to 1.5. Insufficient dosage of molten salt (α_salt = 0.8) results in a poor fluidity of reaction melt in low temperature. As a result, the settling and accumulating of antimony particles is also inefficiency. Antimony recovery reached maximum value at α_salt = 1. Continued increase in the dosage of molten salt was unnecessary. On the contrary, a higher addition of salt will dilute the concentrate of the reactant and increase the total dissolved loss of antimony in molten salt, which results in reducing of crude antimony productivity ultimately [14]. Therefore, the appropriate molten salt dosage is α_salt = 1.

3.2. Molten Salt Composition

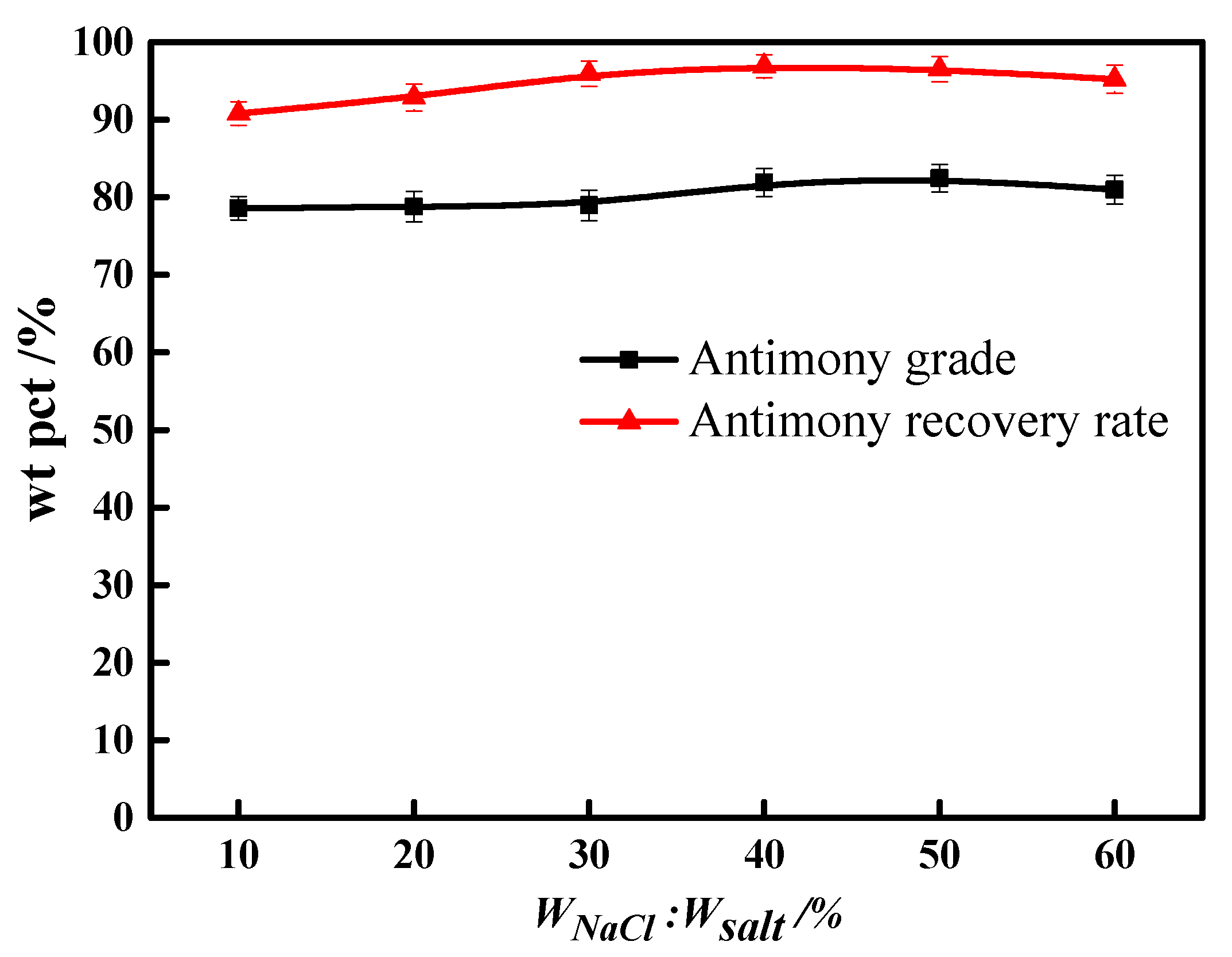

All experiments were carried out under the following conditions: 100 g stibnite concentrate, 30 wt. % coke, α_salt = 1.0, ${\mathsf{\alpha }}_{{\text{Fe}}_2{\mathrm{O}}_3}$ = 1.0, a temperature of 900 °C (1173 K), a smelting duration of 180 min. The molten salt composition W_NaCl:W_salt increases from 10% to 60%. Figure 5 showed the results of the influence of molten salt composition on direct recovery of antimony and on resultant crude antimony grade.

The results implied that direct recovery of antimony raised from 90.78% to 96.87% when W_NaCl:W_salt increasd from 10% to 40%. In addition, crude antimony grade ascended from 78.59% to 82.45% gradually. Further increase of W_NaCl:W_salt showed no positive effect on crude antimony grade improvement, even deceased the recovery of antimony. It’s because addition of NaCl is beneficial to decrease melting point of molten salt and increase its fluidity, which causes reductive sulfur-fixing reaction to occur more easily and improves settling efficiency of antimony particles. However, contents of NaCl in molten salt went beyond 50%, which, on the one hand, intensified the volatilization of molten salt, on the other hand, was more than the eutectic composition of in Na₂CO₃-NaCl binary system [13], as a result, melting point of binary system ascended, and the fluidity of molten salt decreased evidently. Thus further caused the settling and separation efficiency of antimony particles to be deteriorated. Meanwhile, excessive addition of NaCl will result in shorten of service life of furnace lining and body. Therefore, in this study, W_NaCl:W_salt = 40% was selected as the optimized molten salt composition.

3.3. Ferric Oxide Dosage

The curves of effect of addition of sulfur-fixing agent Fe₂O₃ on direct recovery of antimony and crude antimony grade were showed in Figure 6. All experiments were carried out under the following conditions: 100 g stibnite concentrate, α_salt = 1.0, W_NaCl:W_salt = 40%, 30 wt. % coke, a temperature of 900 °C (1173 K), a smelting duration of 180 min. ${\mathsf{\alpha }}_{{\text{Fe}}_2{\mathrm{O}}_3}$ increases from 0.8 to 1.3. The results indicated that the direct recovery of antimony basically remained constant at above 95% and crude antimony grade descended from 81.75% to 56.76% as increasing of Fe₂O₃ addition. That’s because some Fe₂O₃ were reduced to metallic Fe and transferred to crude antimony. Results on the influence of dosage of ferric oxide implied that ${\mathsf{\alpha }}_{{\text{Fe}}_2{\mathrm{O}}_3}$ = 1.0 is adequate for efficient extraction of antimony.

3.4. Smelting Temperature

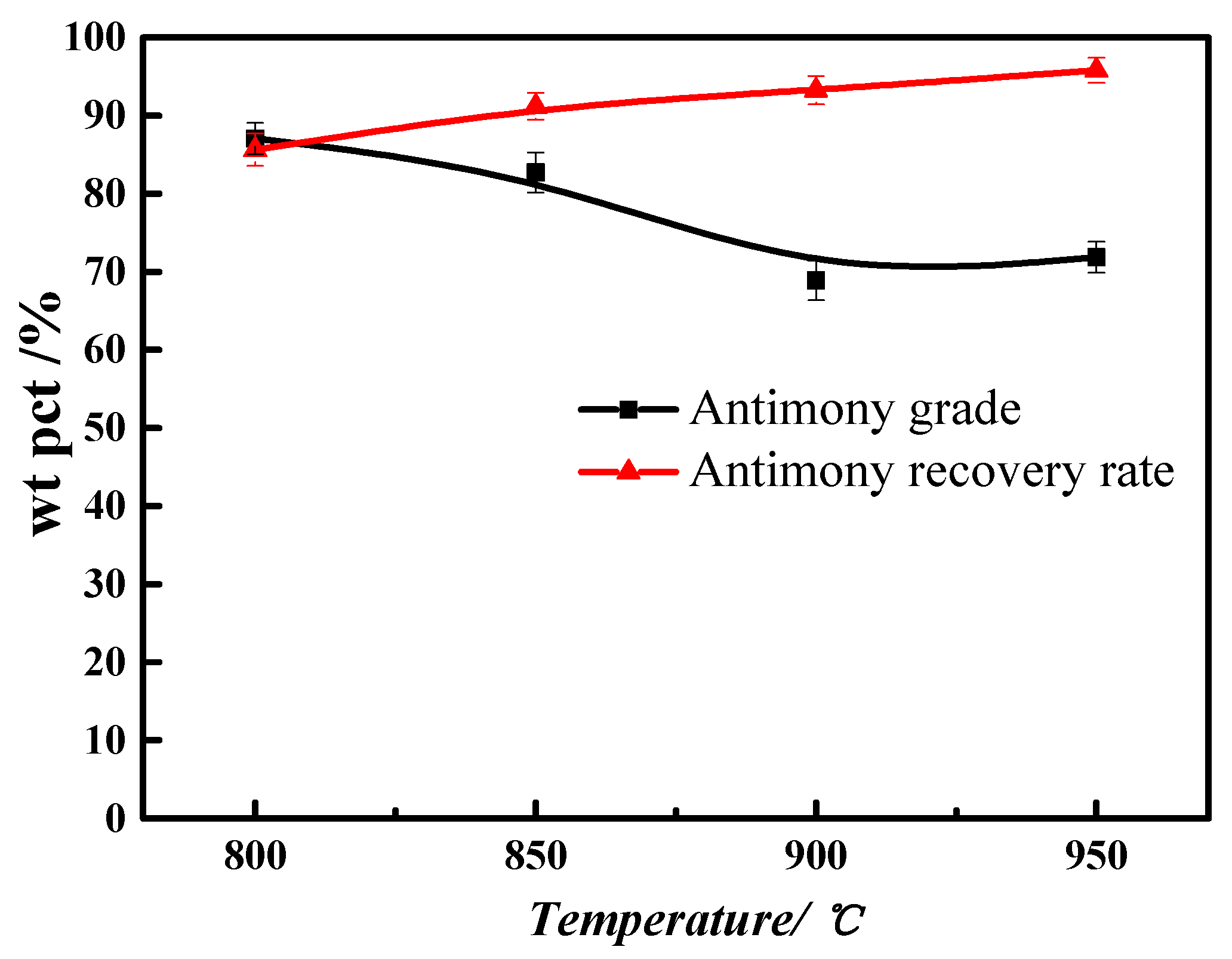

Figure 7 illustrated the influence of temperature on crude antimony grade and direct antimony recovery rate. All experiments were operated under following conditions: 100 g stibnite concentrate, α_salt = 1.0, W_NaCl:W_salt = 40%, ${\mathsf{\alpha }}_{{\text{Fe}}_2{\mathrm{O}}_3}$ = 1.0, 30 wt. % coke, a smelting duration of 180 min. It was observed that antimony recovery rate increased steadily from 85.62% to 95.80%, while crude antimony grade decreased from 87.01% to 71.86% with temperature ascending from 800 °C (1073 K) to 950 °C (1223 K). Excessively low temperature cannot ensure reductive sulfur-fixing reaction is thoroughly positive and resultant metallic antimony particles were difficult to settle as well. However, excessively high temperature will lead to volatilization loss of reactants and rise of energy consumption. Therefore, 850 °C (1123 K) is selected as the optimum smelting temperature.

3.5. Smelting Duration

The influence of the smelting duration on antimony recovery rate and crude antimony was illustrated in Figure 8. All experiments were carried out under a charging of 100 g stibnite concentrate and 30 wt. % coke and α_salt = 1.0, of which W_NaCl:W_salt = 40%, ${\mathsf{\alpha }}_{{\text{Fe}}_2{\mathrm{O}}_3}$ = 1.0, smelting at 850 °C (1123 K). Smelting duration increased from 60 min to 240 min. The results implied that the direct recovery of antimony decreased steadily from 92.48% to 80.15% and crude antimony grade dropped from 93.1% to 74.99% respectively as smelting duration increased from 60 min to 240 min. It indicated that the reductive sulfur-fixing reaction had sufficiently carried out after 60 min. Continued extension in smelting duration was unnecessary, On the contrary, a prolonged smelting time will caused volatilization loss of antimony and molten salt to increase. In addition, iron oxide will be increasingly reduced into metallic Fe and dilute the crude antimony grade. Accordingly, 60 min is selected as the optimum smelting duration.

3.6. Reductive Agent Dosage

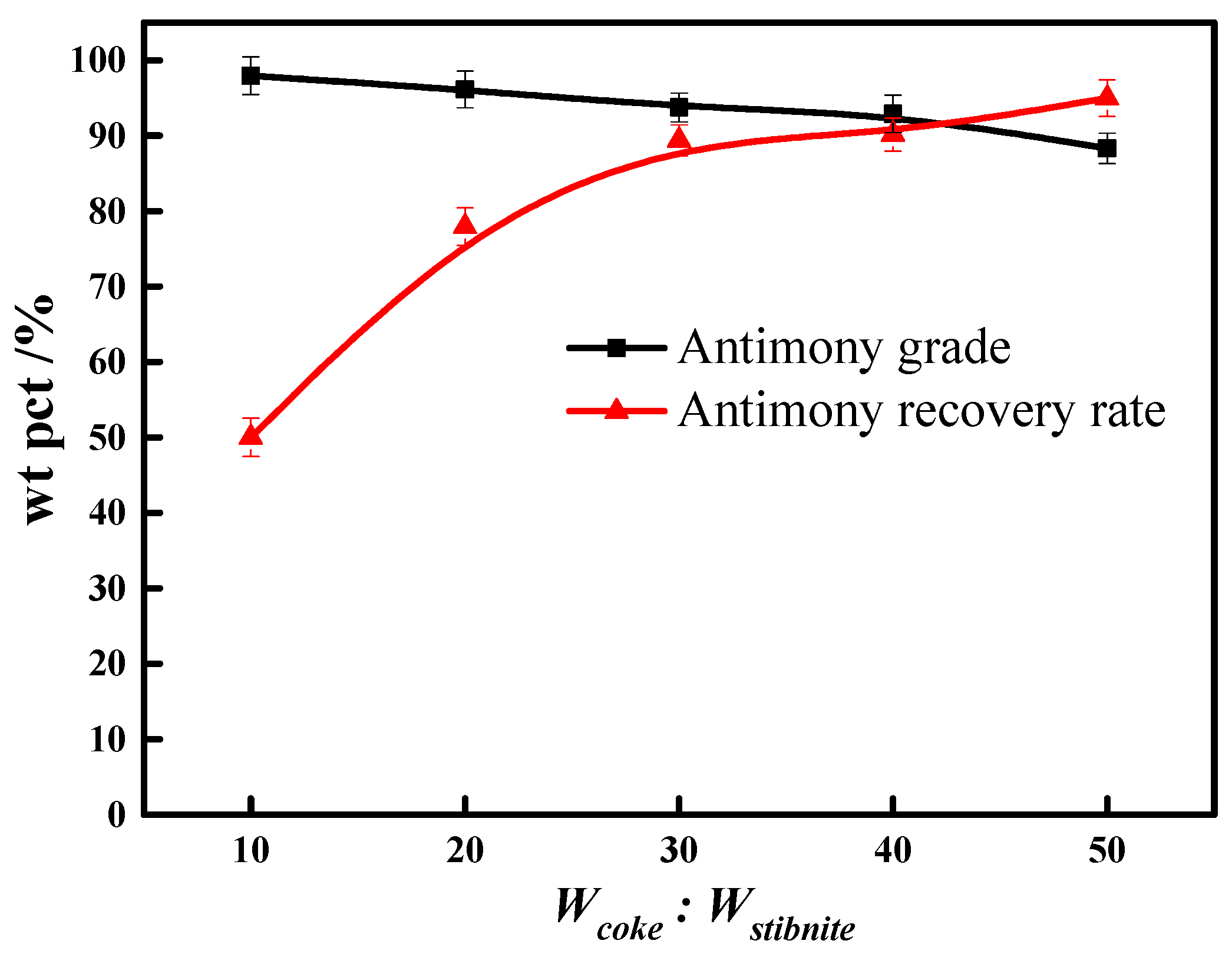

The results of effect of reductive agent dosage on crude antimony grade and direct antimony recovery rate were illustrated in Figure 9. All experiments were carried out under the following conditions: 100g stibnite, α_salt = 1.0, W_NaCl:W_salt = 40%, ${\mathsf{\alpha }}_{{\text{Fe}}_2{\mathrm{O}}_3}$ = 1.0, smelting at 850 °C (1123 K) for 60 min. The curves showed that resultant crude antimony grade descending from 97.94% to 88.32%, and direct antimony recovery rate ascended from 50% to 94.99% respectively as coke addition increased from 10% to 50%. Under weak reductive atmosphere, the produce of crude antimony is small because forward reductive sulfur-fixing reaction is not thorough, so that antimony cannot be enriched and recovered completely. Strong reductive atmosphere is beneficial to increase the recovery of antimony. However, the contents of metallic Fe in crude antimony will increase simultaneously. Therefore, 40% coke dosage was the optimum addition for antimony extraction.

3.7. Confirmation Experiments

According to results of above tests, the optimum conditions for one-step extraction of antimony in low temperature from stibnite concentrate, using iron oxide as sulfur-fixing agent, were obtained as follow: a smelting temperature of 850 °C (1123 K), 60 min smelting duration, 1.0 time stoichiometric requirement (α_salt = 1.0) of mixed sodium salt (Na₂CO₃ and NaCl), molten salt composition W_NaCl:W_salt = 40%, 1.0 time stoichiometric requirement of ferric oxide (${\mathsf{\alpha }}_{{\text{Fe}}_2{\mathrm{O}}_3}$ = 1.0), W_coke:W_stibnite = 40%. These optimum conditions were applied in confirmation experiments to extract antimony from 1000 g stibnite concentrate. The resultant smelting slag was leached in 50 °C (323 K) water, L/S = 5:1, for 3 h. The results of ICP analysis of resultants crude antimony, lixivium and leaching slag were given in

Table 3. Chemical compositions of resultants in confirmation experiments.

No.	Chemical Compositions
	Crude Antimony/%				Slag/%					Lixivium/mg∙L−1
	Sb	Fe	Pb	Au	Sb	Fe	Pb	ST	Na	Sb	Fe	Pb	ST	Na
1#	96.7	2.29	0.55	0.03	5.46	33.67	0.09	18.5	9.26	726	8.44	0.72	4642	>14000
2#	95.8	2.65	0.54	0.02	5.52	34.18	0.06	19.4	8.21	715	8.80	0.67	4824	>14000
3#	95.4	3.62	0.52	0.02	4.26	35.83	0.08	18.95	8.44	731	8.17	0.89	5012	>14000
AVG	96	2.85	0.54	0.02	5.08	34.56	0.08	18.95	8.64	724	8.47	0.76	4826	>14000

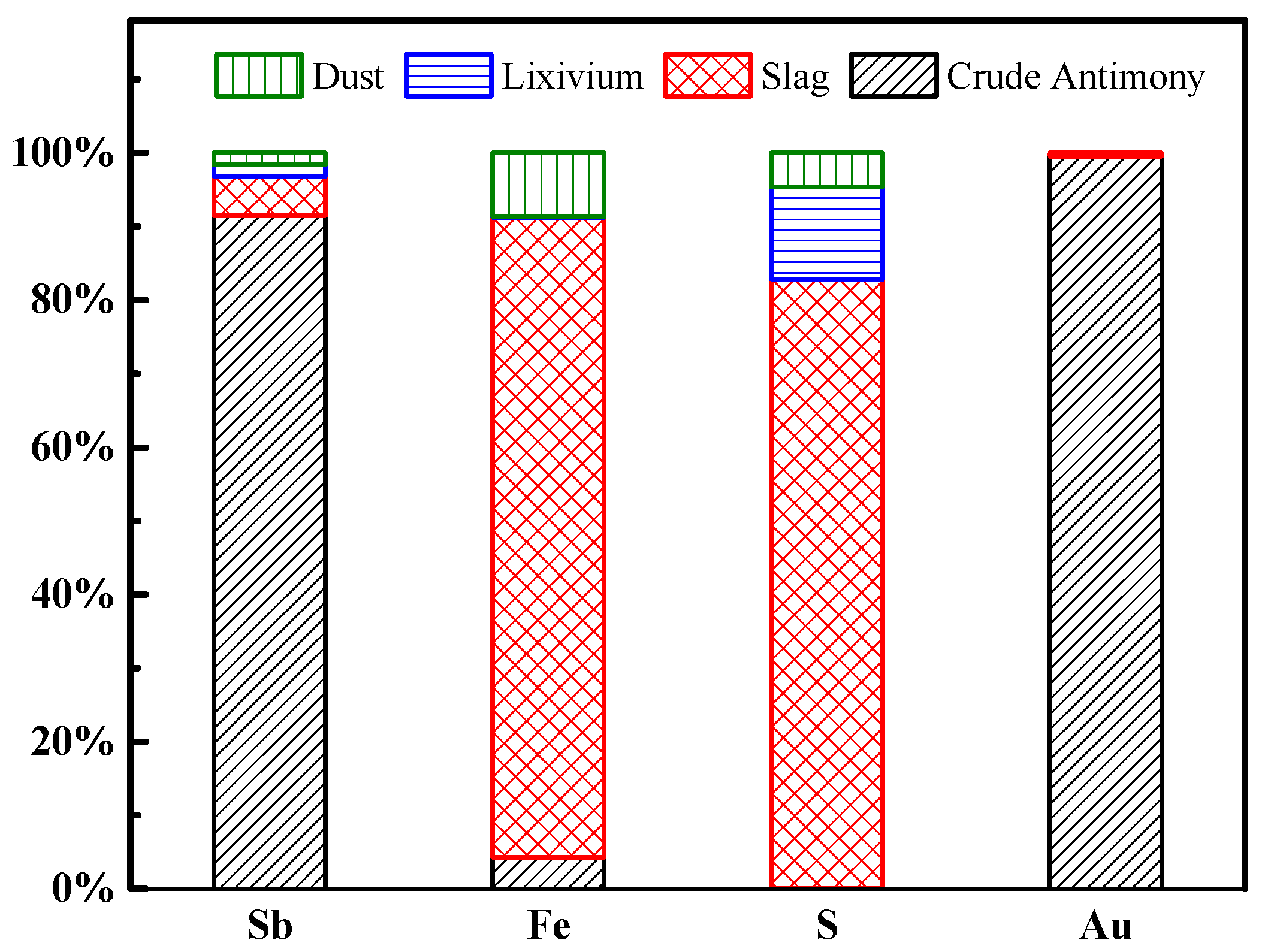

. Figure 10 illustrated the distribution behaviors of main elements in confirmation experiments.

It was observed that 91.48% antimony was directly recovered in crude antimony under the optimum condition. Meanwhile, crude antimony grade could reach 96.00%. Overall, antimony direct recovery attained in confirmation experiments showed a slight decrease around 1%–3% compared to the preliminary test results, but still higher than 91%. The crude antimony purity had an increase of about 1%–10% compared to those obtained during preliminary experiments. The impurities in crude antimony were primarily 2.85% metallic Fe and 0.54% Pb which could be removed easily in following refining process. In addition, 99.55% Au contained in stibnite concentrate enriched in the crude antimony simultaneously. Sulfur contained in stibnite concentrate was nearly fixed (95.31%) in the slag. Furthermore, phase compositions of slag and leaching residue were characterized by XRD. The results were showed in Figure 11.

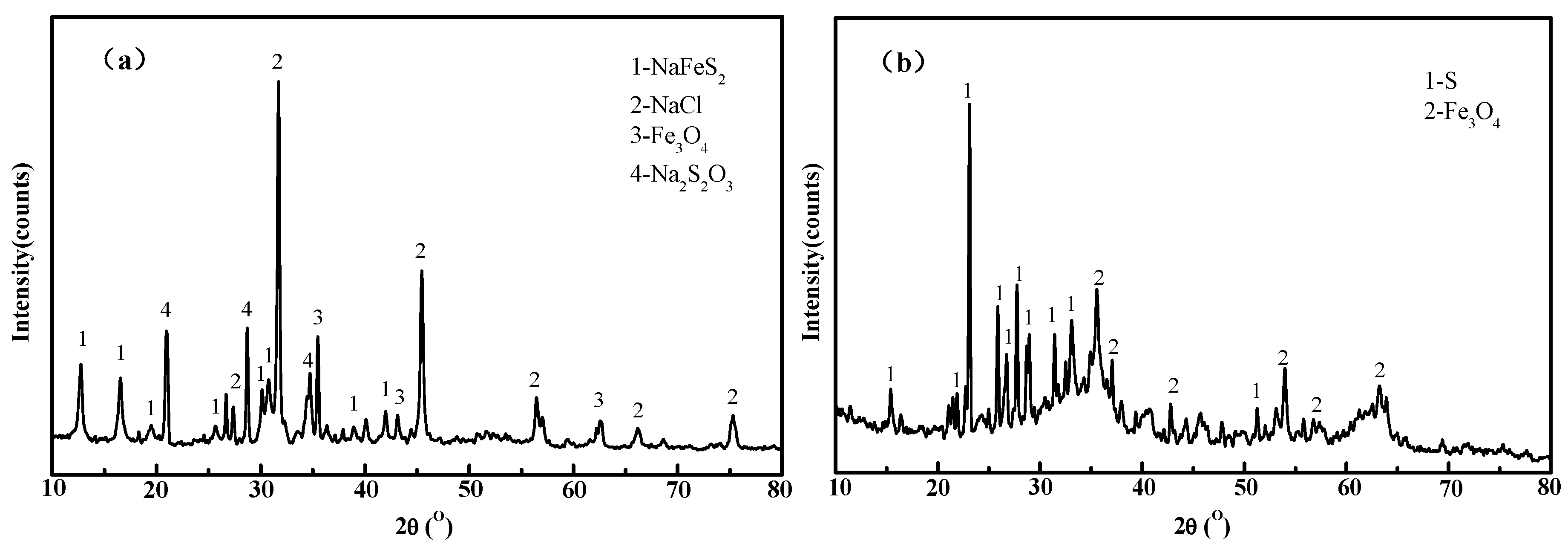

It was observed that molten slag primarily comprised NaFeS₂, NaCl, Na₂S₂O₃ and Fe₃O₄. That indicated fraction of Na₂CO₃ were involved in sulfur-fixing reaction and generated Na₂S. The residues after leaching of molten slag mainly contained elemental sulfur (S) and Fe₃O₄. It was found that FeS reacted with H₂O and generated S. The reaction equation [20] was shown as follow:

FeS + 2H₂O = FeOOH + 1.5H₂ (g) + S

(6)

Resultant FeOOH would dehydrate and continually be oxidized into Fe₃O₄ during drying operation.

4. Conclusions

In this study it can be concluded that iron oxides are a kind of high-efficiency alternative sulfur-fixing agent. Thermodynamic analysis and laboratory experimental results also verified the reliability and feasibility of the proposed renovate process. The optimum reductive-sulfur-fixing smelting conditions for one-step extraction of antimony from stibnite concentrate were determined. Under the optimum conditions, the direct recovery rate of antimony can reach 91.48%. Crude antimony with a purity of 96.00% has been achieved. 95.31% of sulfur is fixed in form of FeS in the presence of iron oxide, resulting in a process that is free to atmospheric pollution. Furthermore, precious metals contained in stibnite concentrate are enriched and recovered comprehensively in crude antimony. The reaction flux, binary molten slat Na₂CO₃-NaCl, can be regenerated and reused. What’s more, the iron-containing secondary materials can be recycled environmentally friendly with economic value through this process.
