Next Article in Journal
Microstructure and Mechanical Properties of Friction Stir Welded Dissimilar Titanium Alloys: TIMET-54M and ATI-425
Next Article in Special Issue
Previous Article in Journal
Effect of Mg17Al12 Fraction on Mechanical Properties of Mg-9%Al-1%Zn Cast Alloy
Previous Article in Special Issue
Effect of Welding Parameters on Microstructure and Mechanical Properties of Cast Fe-40Al Alloy
Article Menu

Export Article

Open AccessFeature PaperArticle
Metals 2016, 6(10), 253;

Tribocorrosion Study of Ordinary and Laser-Melted Ti6Al4V Alloy

Instituto Politécnico, Universidade do Estado do Rio de Janeiro, Rua Bonfim, 25, Nova Friburgo, Rio de Janeiro 8.265-570, Brazil
Laboratorio de Ensayos, Corrosión y Protección, Departamento de Ciencia de los Materiales, Ingeniería Metalúrgicay Química Inorgánica, Escuela Superior de Ingeniería, Universidad de Cádiz, Avenida de La Universidad de Cádiz, Puerto Real, Cádiz 11519, Spain
Author to whom correspondence should be addressed.
Academic Editor: Ana Sofia Ramos
Received: 7 August 2016 / Revised: 13 October 2016 / Accepted: 18 October 2016 / Published: 24 October 2016
(This article belongs to the Special Issue Intermetallics 2016)
View Full-Text   |   Download PDF [8617 KB, uploaded 24 October 2016]   |

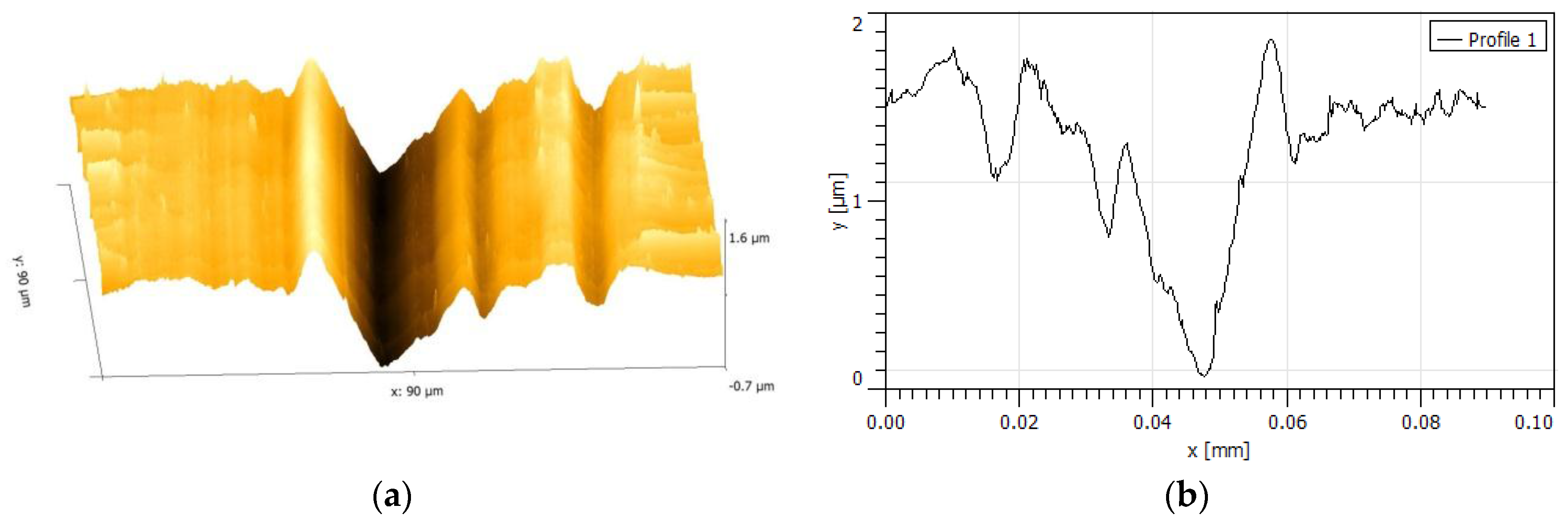

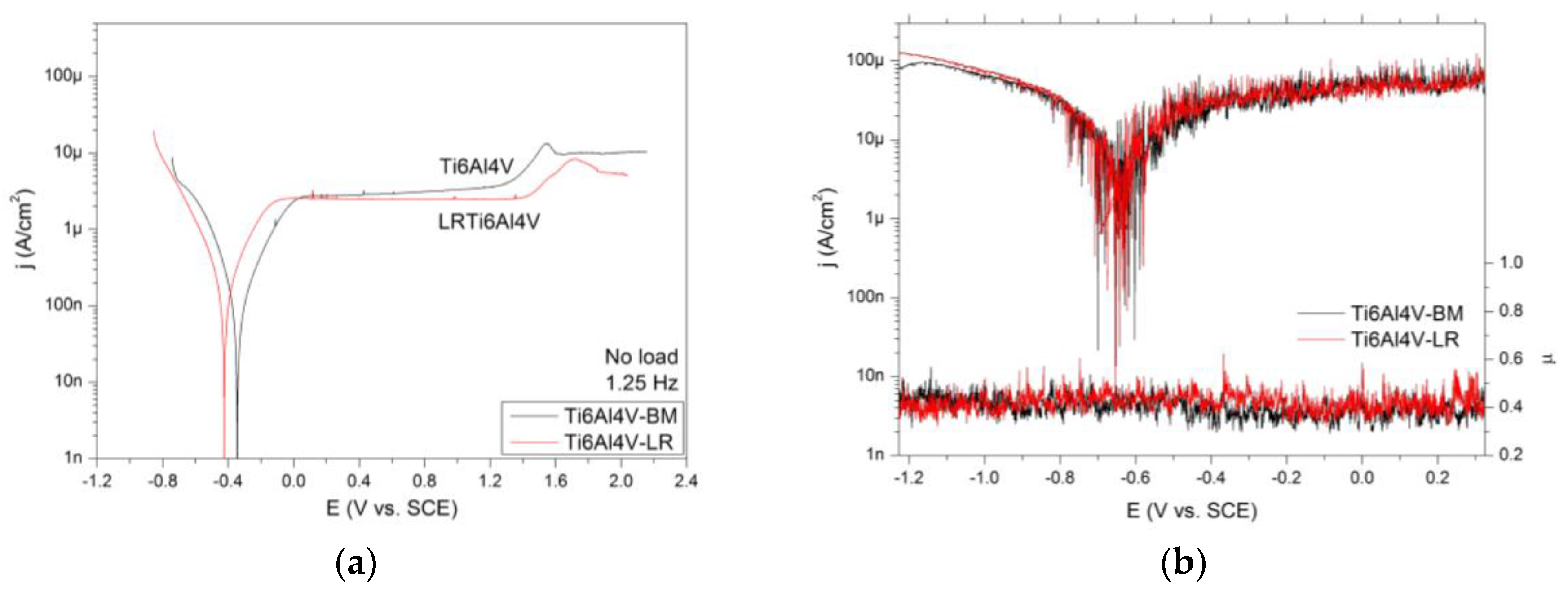

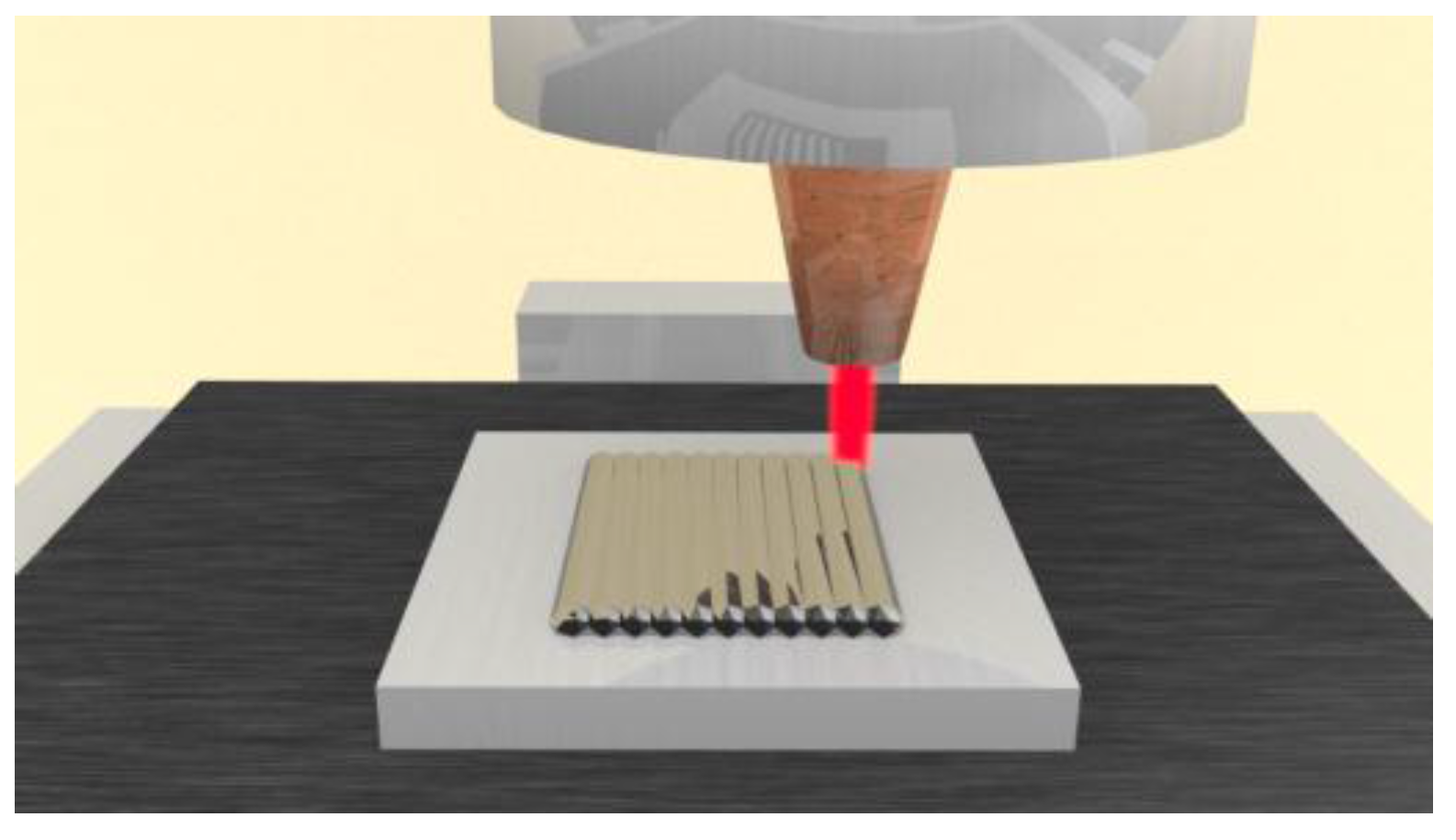

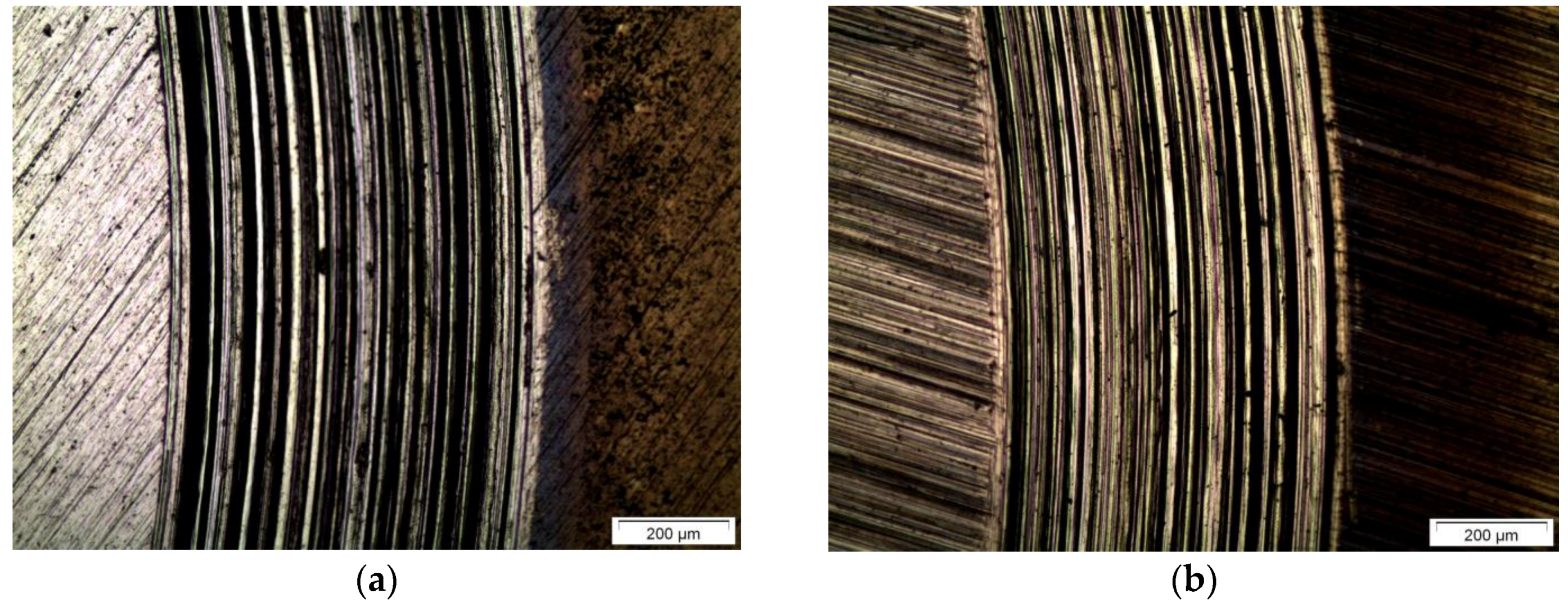

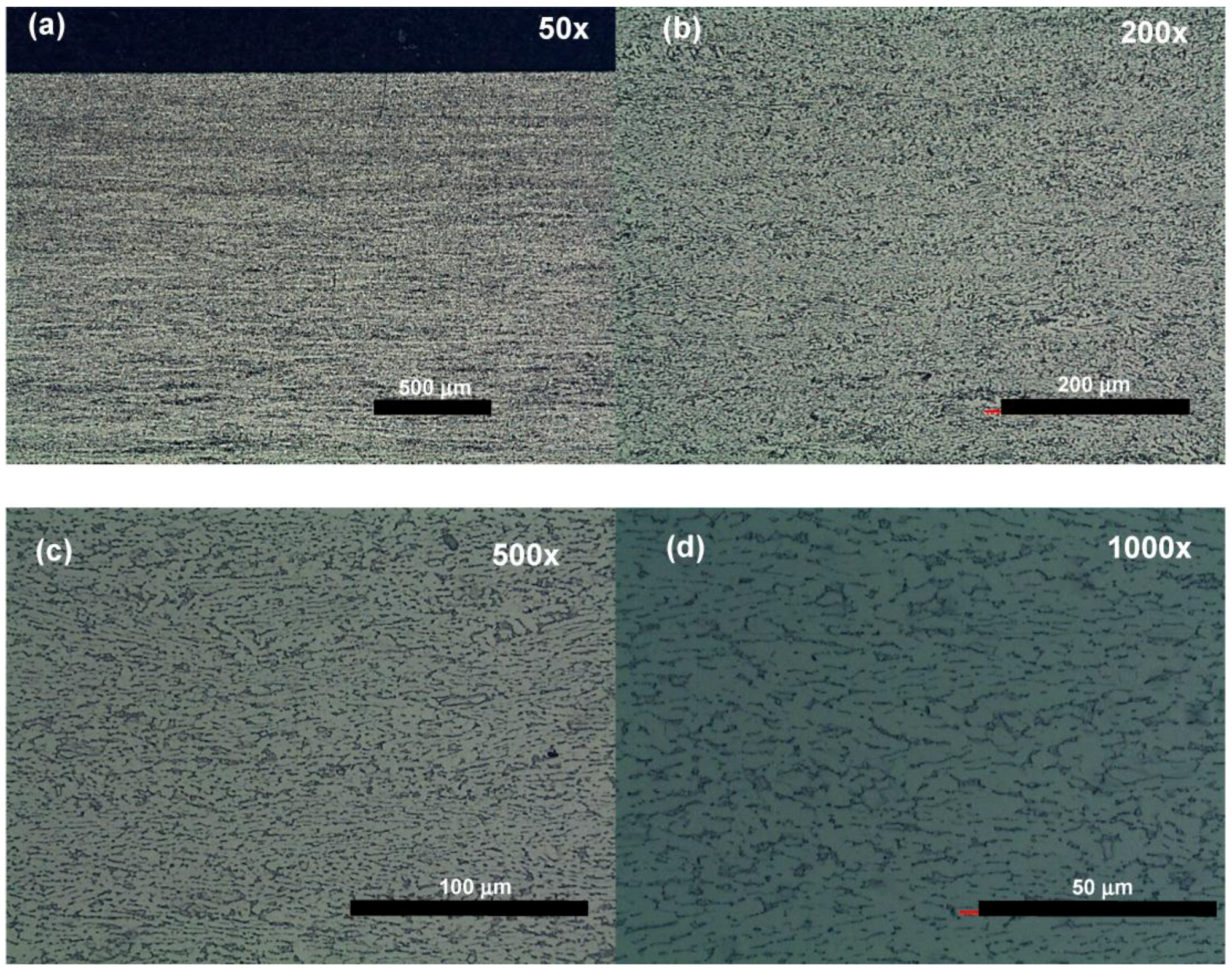

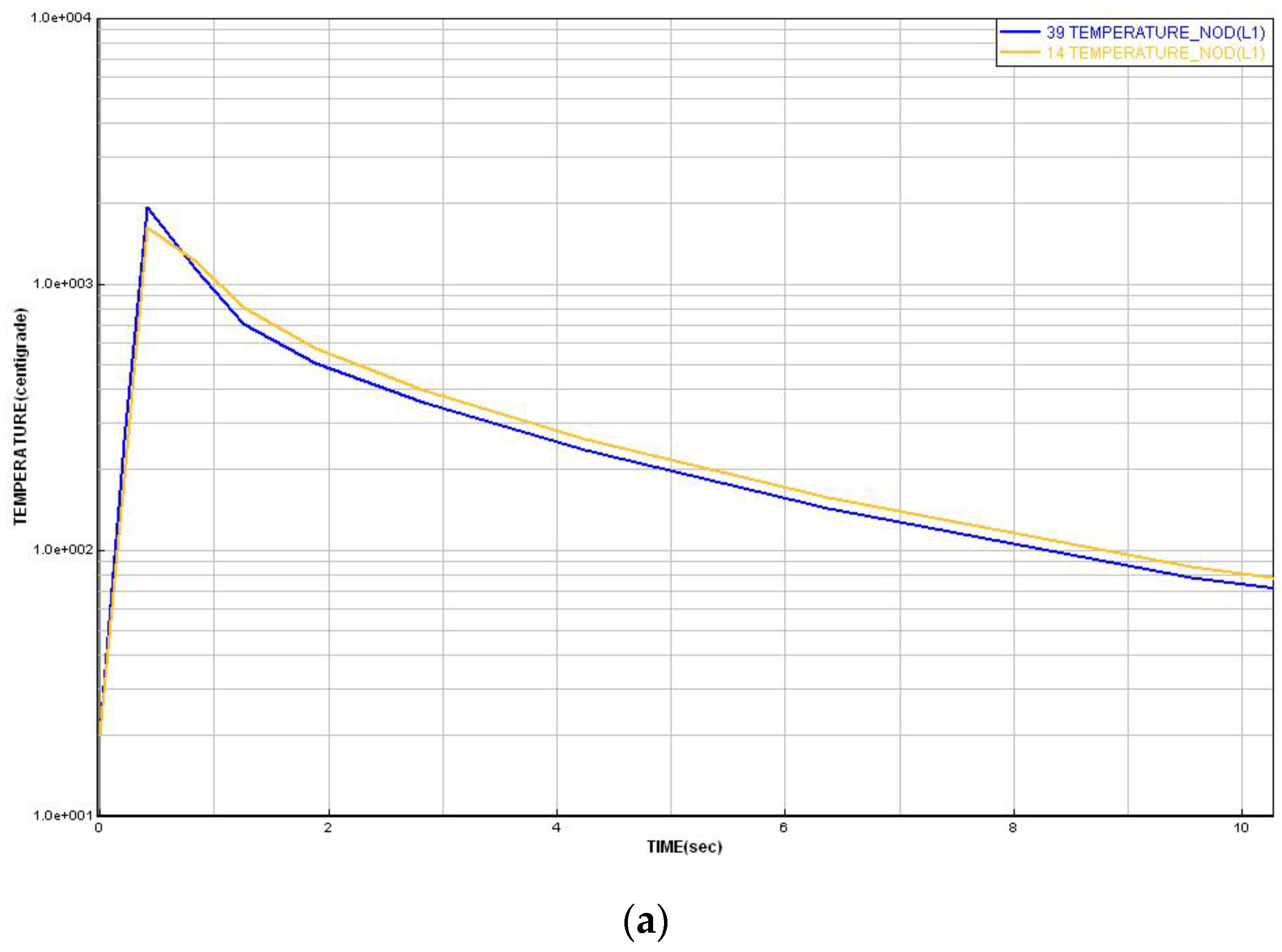

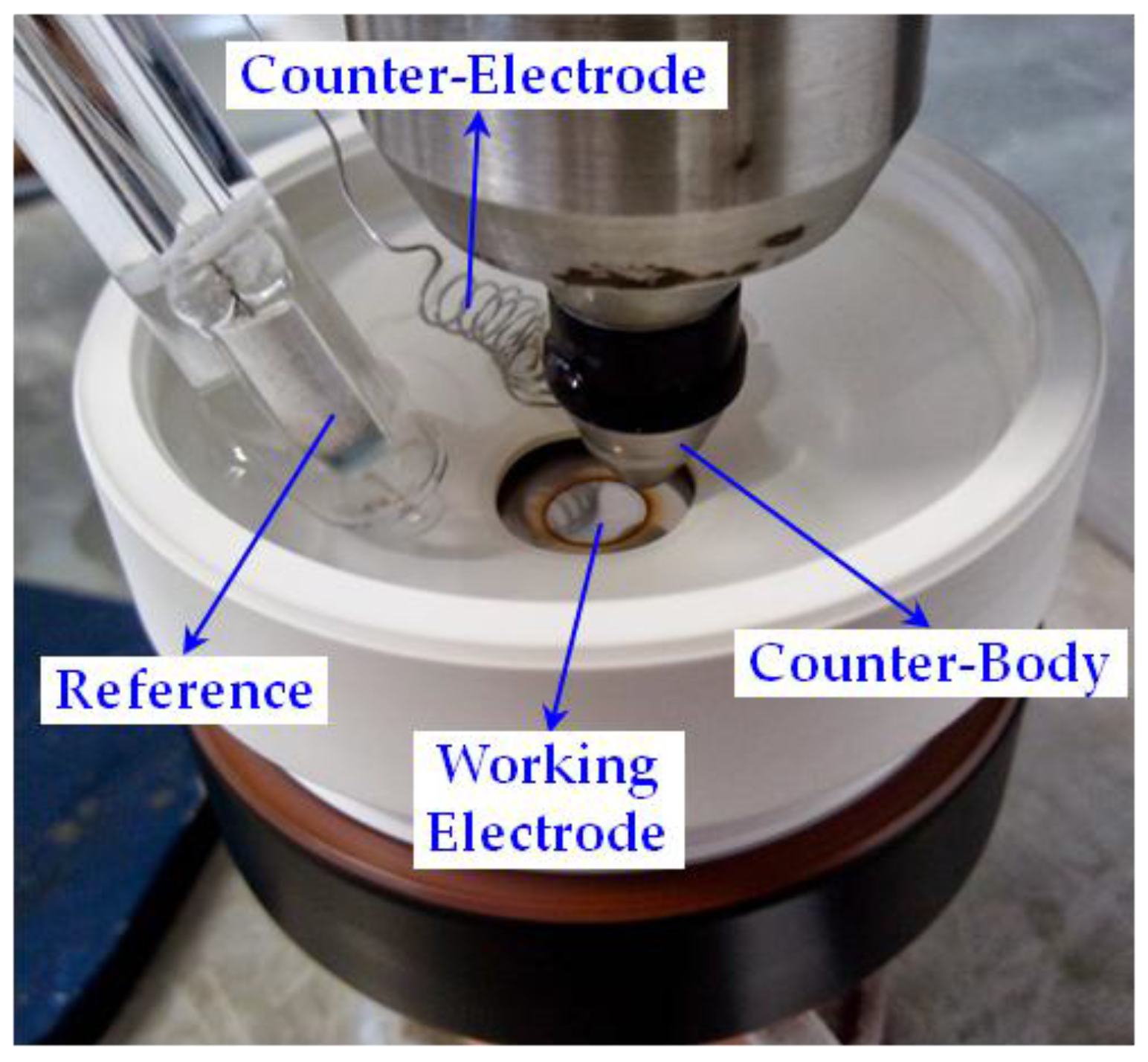

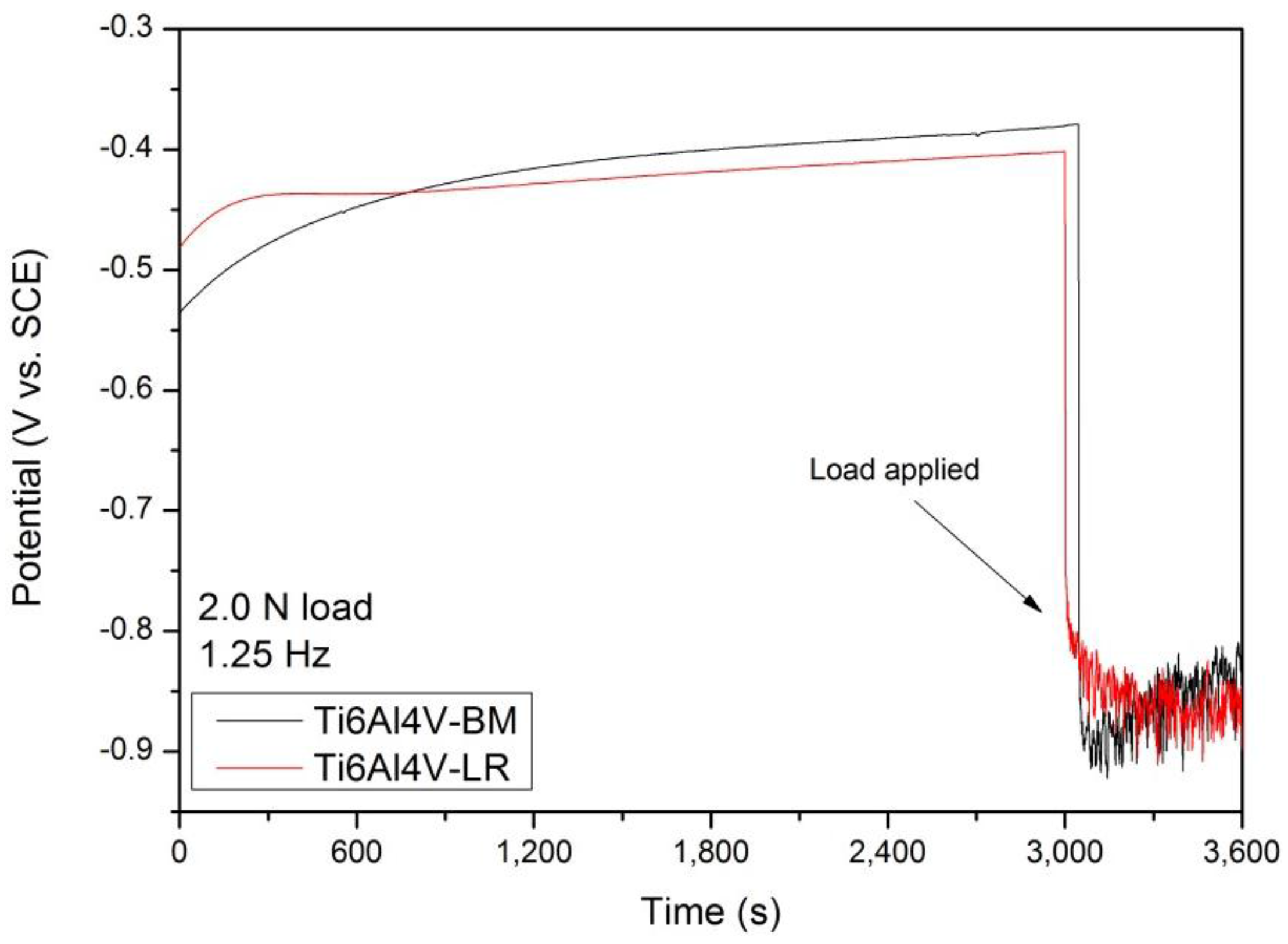

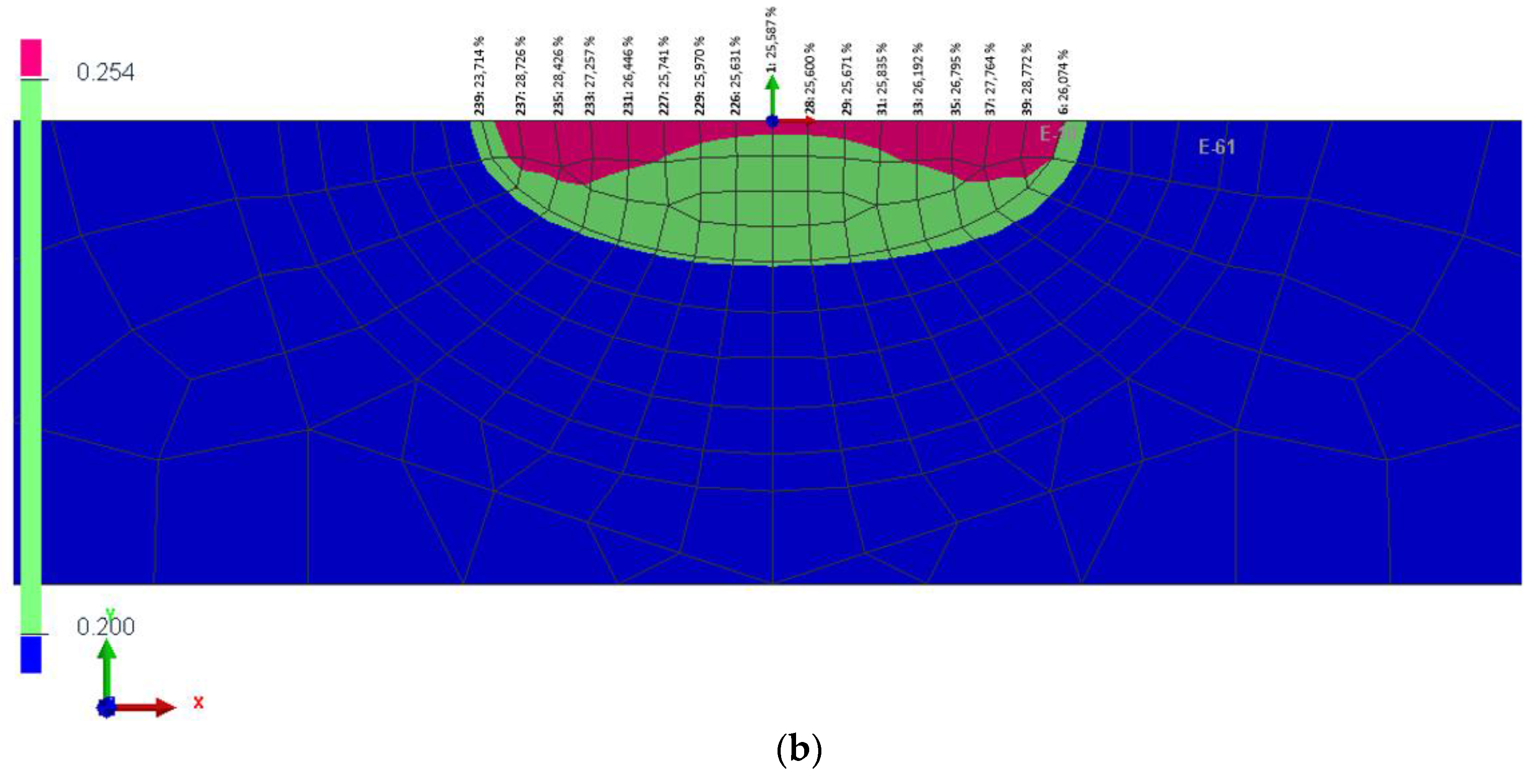

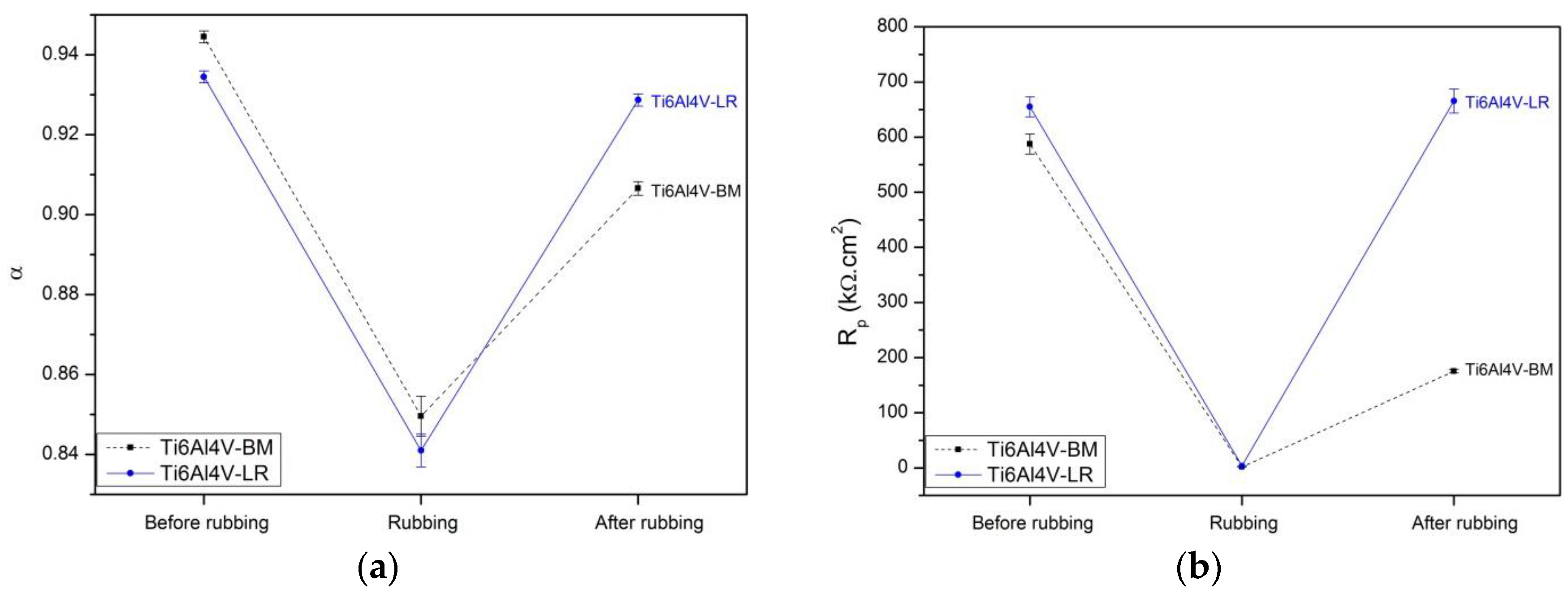

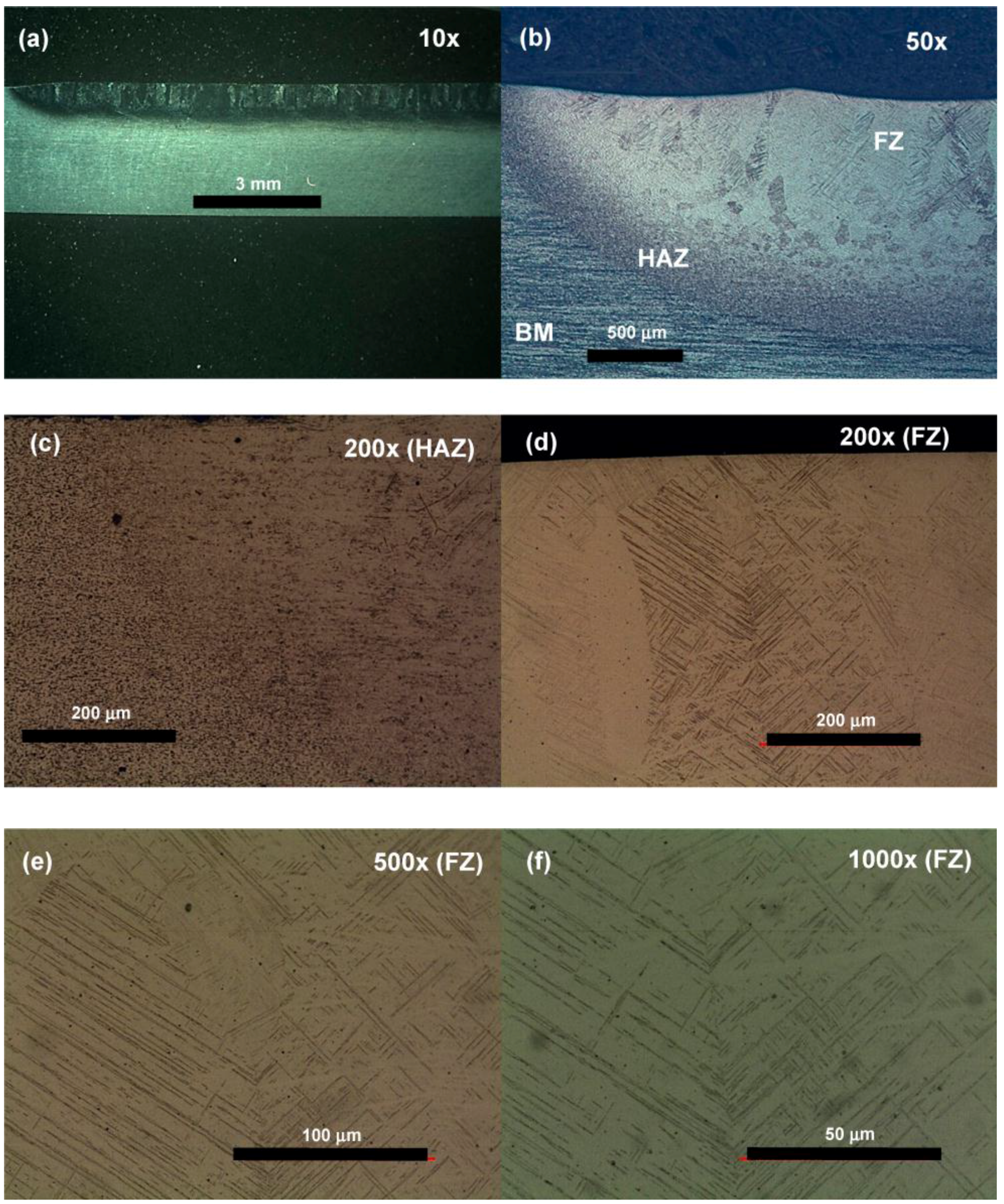

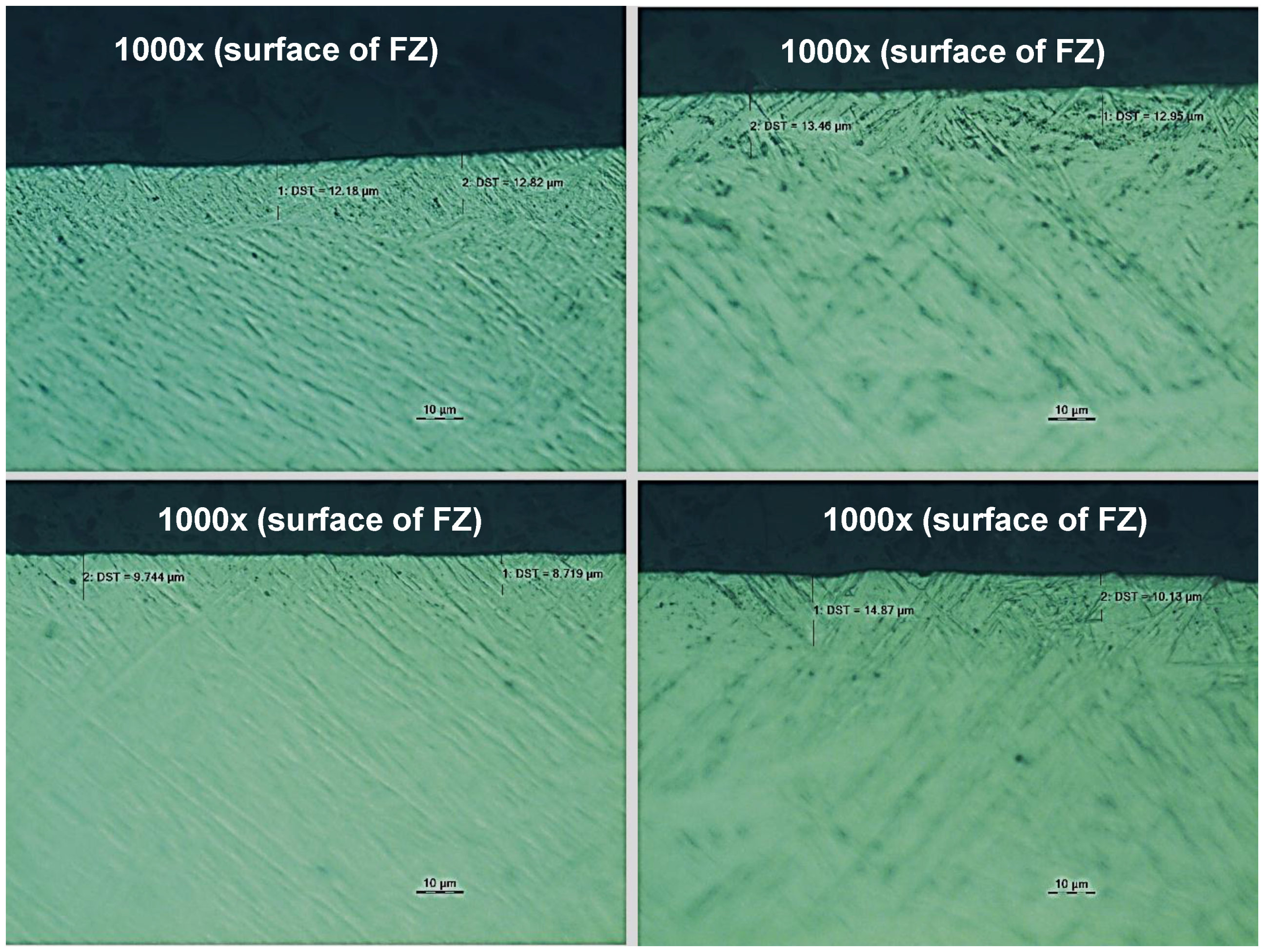

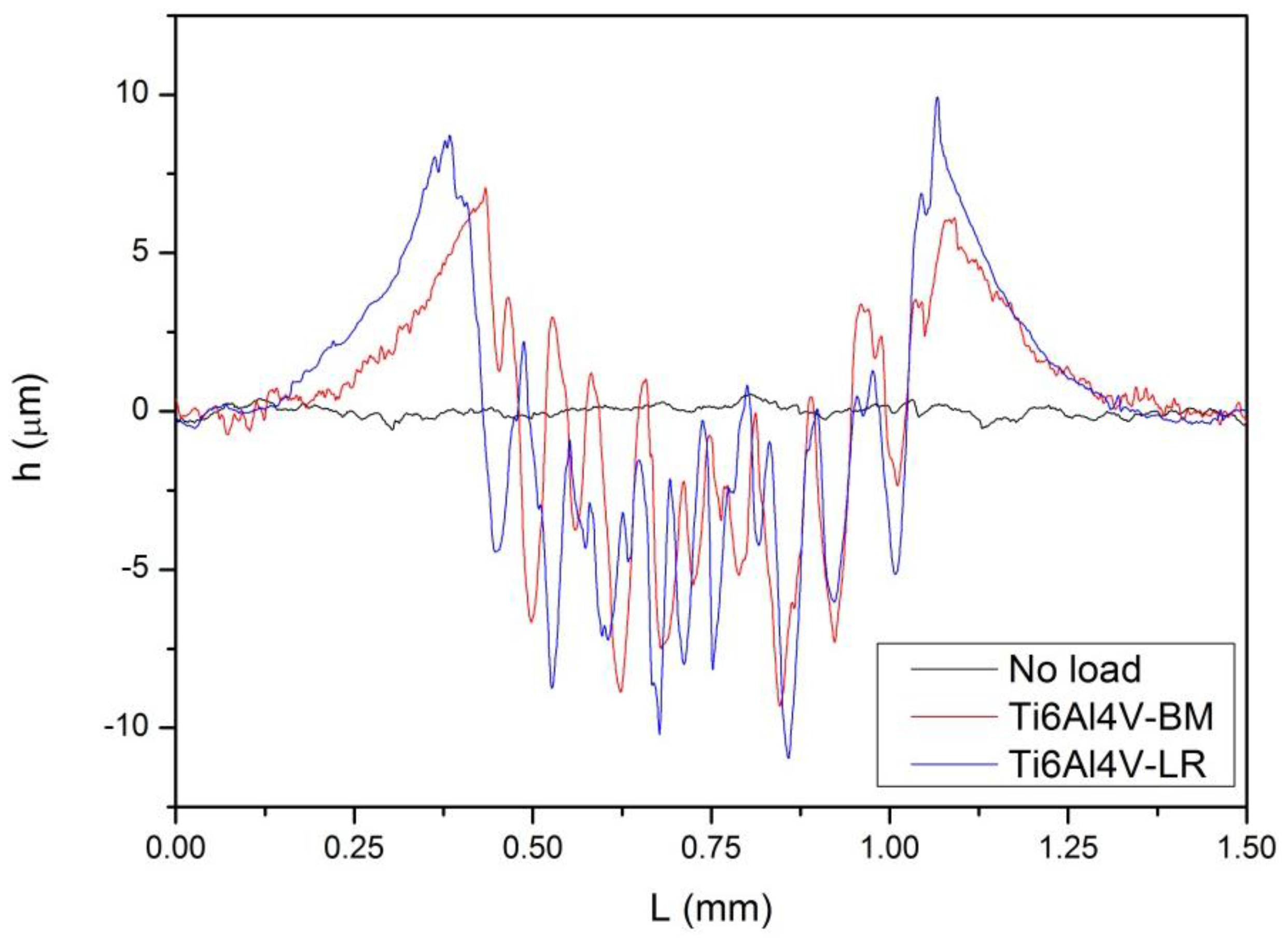

Titanium alloys are used in biomedical implants, as well as in other applications, due to the excellent combination of corrosion resistance and mechanical properties. However, the tribocorrosion resistance of titanium alloy is normally not satisfactory. Therefore, surface modification is a way to improve this specific performance. In the present paper, laser surface-modified samples were tested in corrosion and pin-on-disk tribocorrosion testing in 0.90% NaCl under an average Hertzian pressure of 410 MPa against an alumina sphere. Laser-modified samples of Ti6Al4V were compared with ordinary Ti6Al4V alloy. Electrochemical impedance showed higher modulus for laser-treated samples than for ordinary Ti6Al4V ones. Moreover, atomic force microscopy revealed that laser-treated surfaces presented less wear than ordinary alloy for the initial exposure. For a further exposure to wear, i.e., when the wear depth is beyond the initial laser-affected layer, both materials showed similar corrosion behavior. Microstructure analysis and finite element method simulations revealed that the different behavior between the initial and the extensive rubbing was related to a fine martensite-rich external layer developed on the irradiated surface of the fusion zone. View Full-Text
Keywords: tribocorrosion; Ti6Al4V; laser-treated titanium alloy tribocorrosion; Ti6Al4V; laser-treated titanium alloy

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Silva, D.P.; Churiaque, C.; Bastos, I.N.; Sánchez-Amaya, J.M. Tribocorrosion Study of Ordinary and Laser-Melted Ti6Al4V Alloy. Metals 2016, 6, 253.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
