Next Article in Journal
Residual Stress Distribution and Microstructure at a Laser Spot of AISI 304 Stainless Steel Subjected to Different Laser Shock Peening Impacts
Next Article in Special Issue
Formation and Dissolution of γ’ Precipitates in IN792 Superalloy at Elevated Temperatures
Previous Article in Journal
Biodegradable Behaviors of Ultrafine-Grained ZE41A Magnesium Alloy in DMEM Solution
Previous Article in Special Issue
Continuous Casting of Incoloy800H Superalloy Billet under an Alternating Electromagnetic Field
Article Menu

Export Article

Open AccessArticle
Metals 2016, 6(1), 5;

Evolution of the Annealing Twin Density during δ-Supersolvus Grain Growth in the Nickel-Based Superalloy Inconel™ 718

MINES ParisTech, PSL—Research University, CEMEF—Centre de mise en forme des matériaux, CNRS UMR 7635, CS 10207 rue Claude Daunesse, Sophia Antipolis Cedex 06904, France
Department of Materials Science and Engineering, Carnegie Mellon University, 5000 Forbes Avenue, Pittsburgh, PA 15213, USA
Authors to whom correspondence should be addressed.
Academic Editor: Johan Moverare
Received: 1 November 2015 / Revised: 14 December 2015 / Accepted: 17 December 2015 / Published: 24 December 2015
(This article belongs to the Special Issue Superalloys)
View Full-Text   |   Download PDF [5422 KB, uploaded 28 December 2015]   |

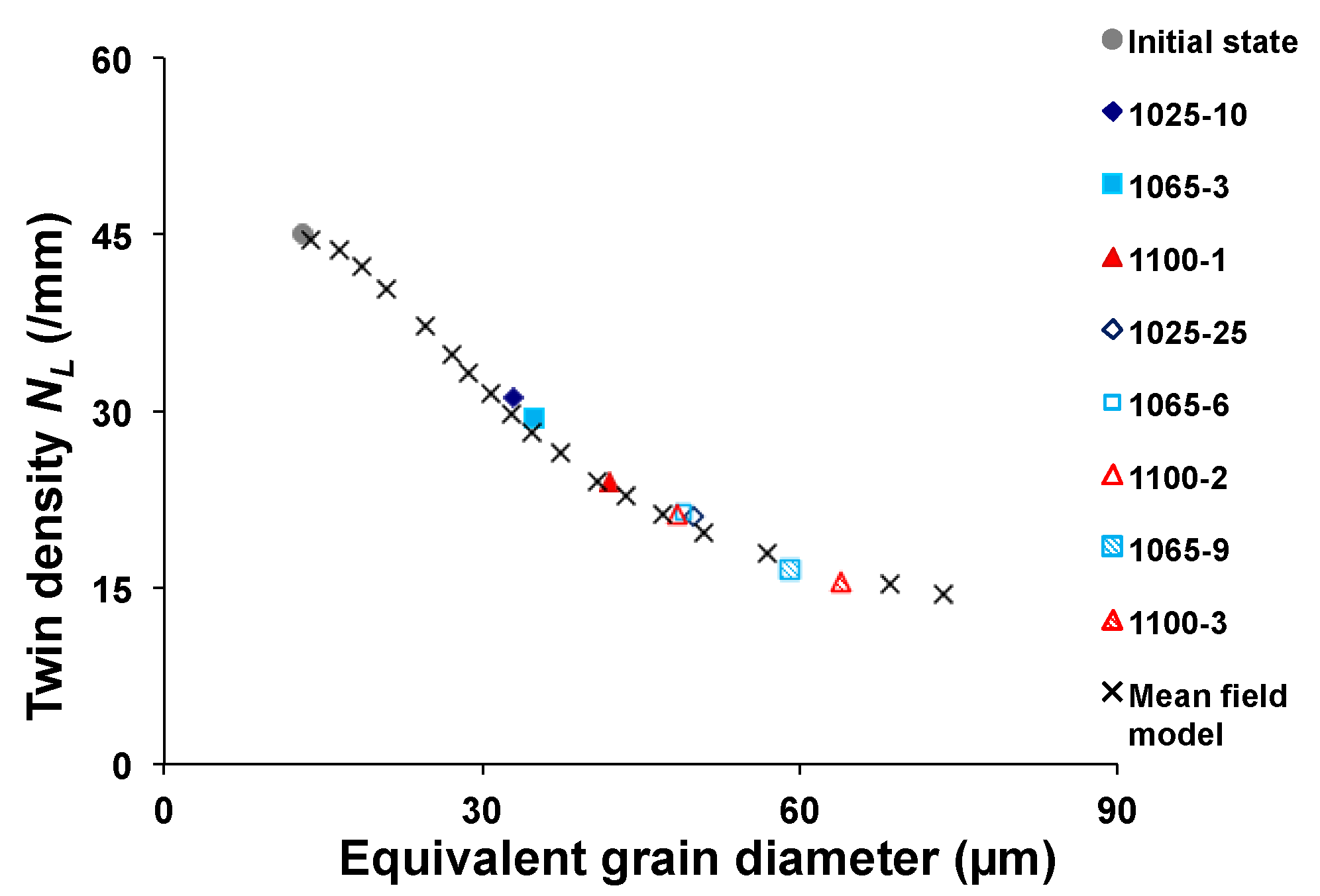

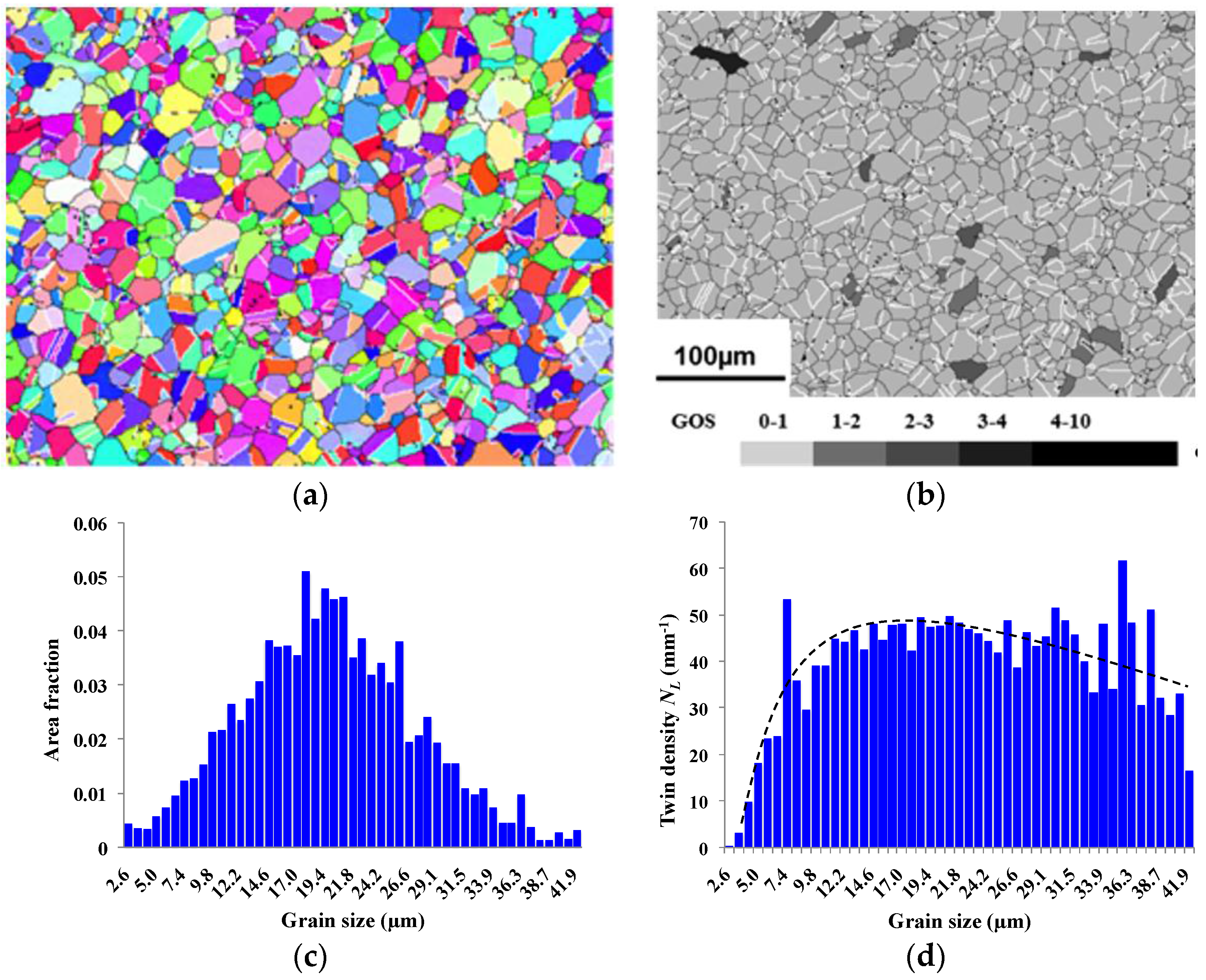

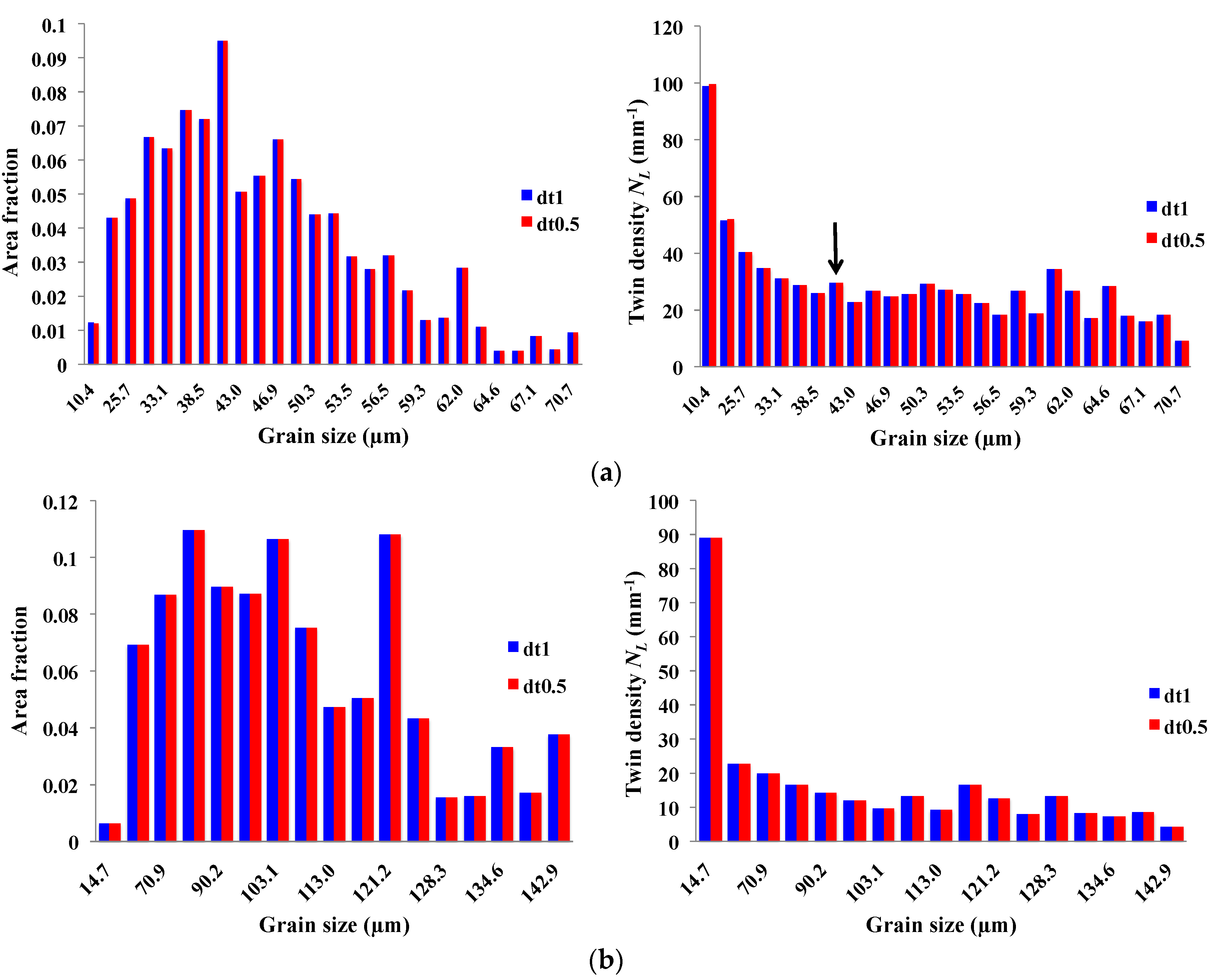

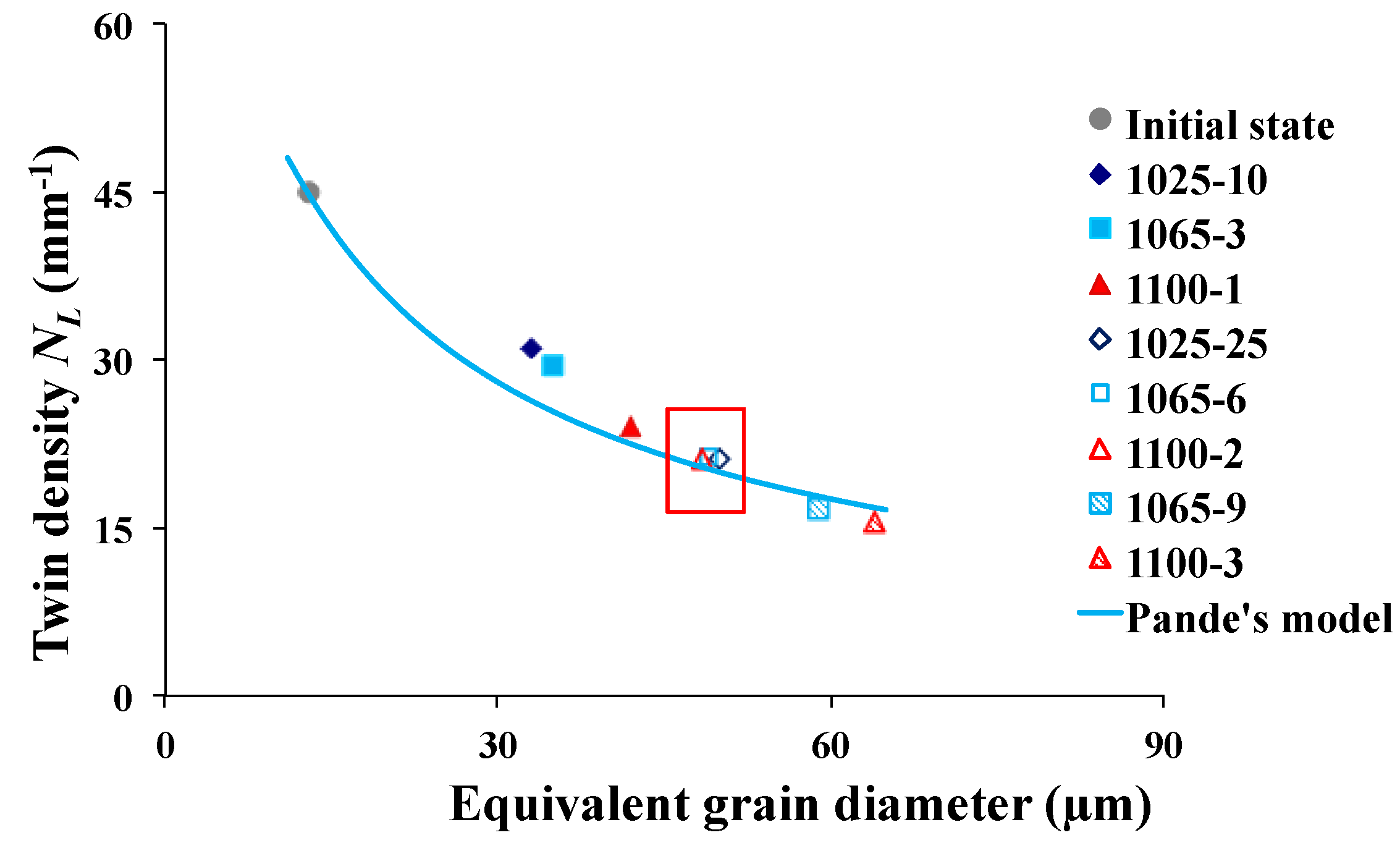

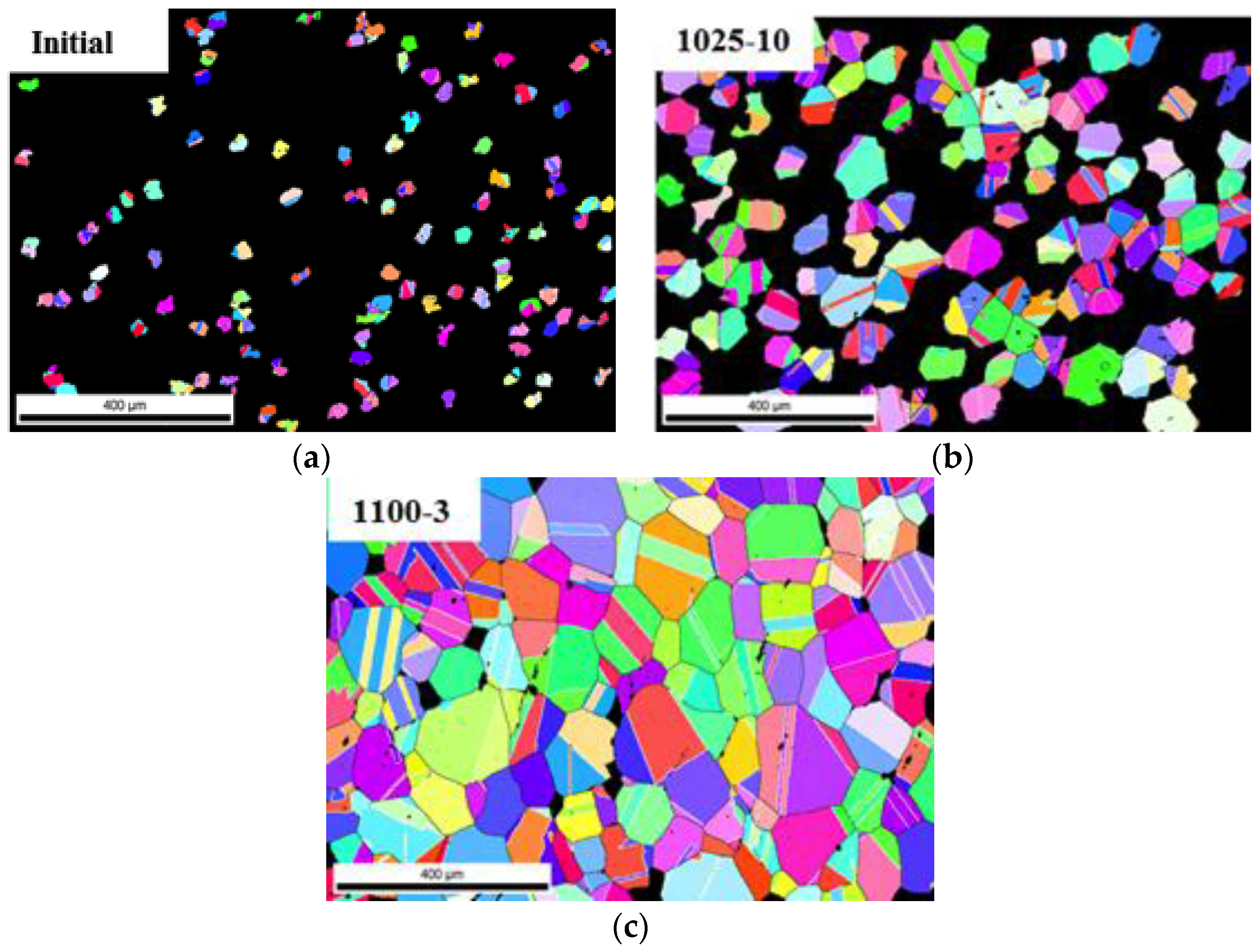

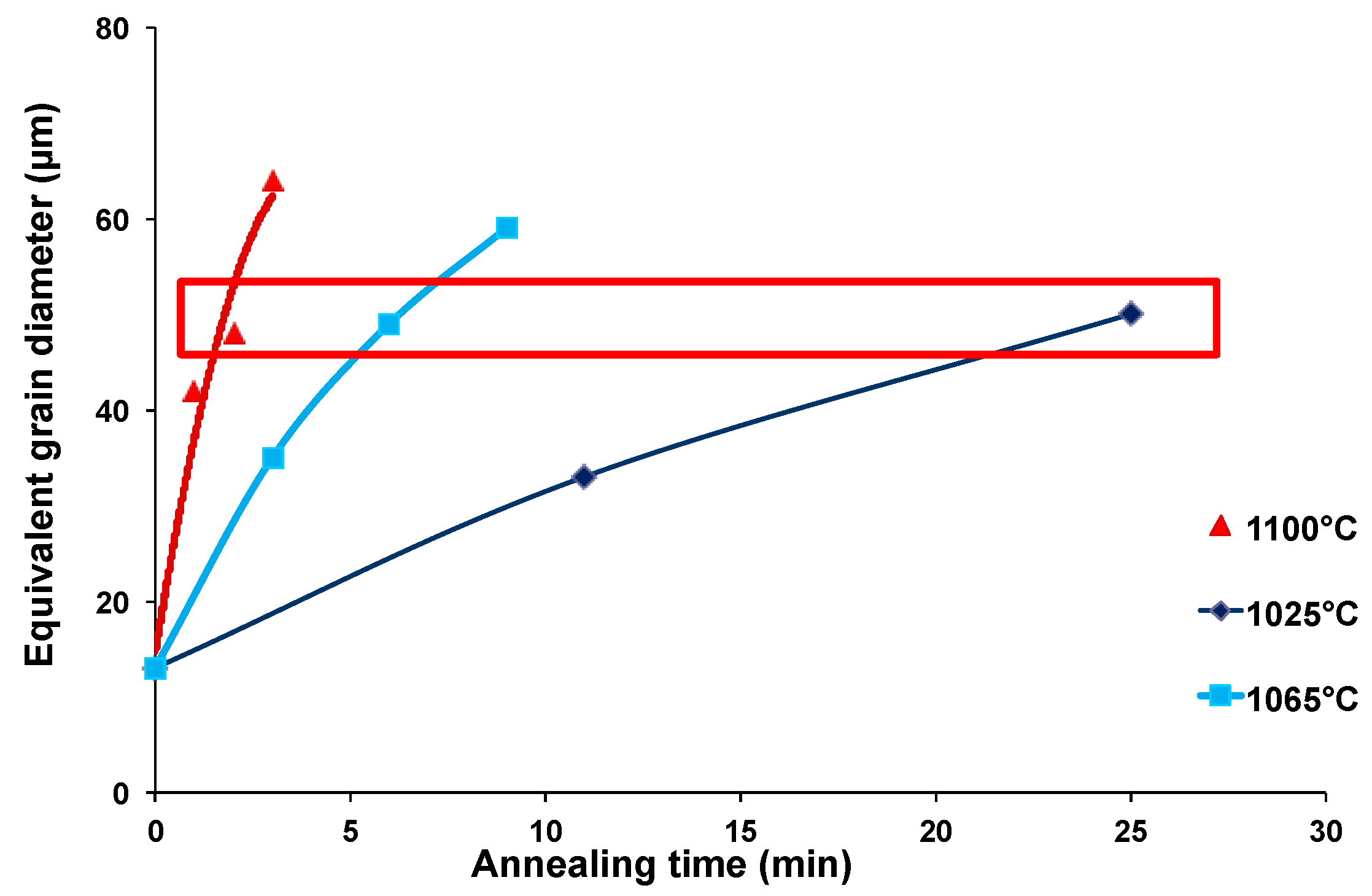

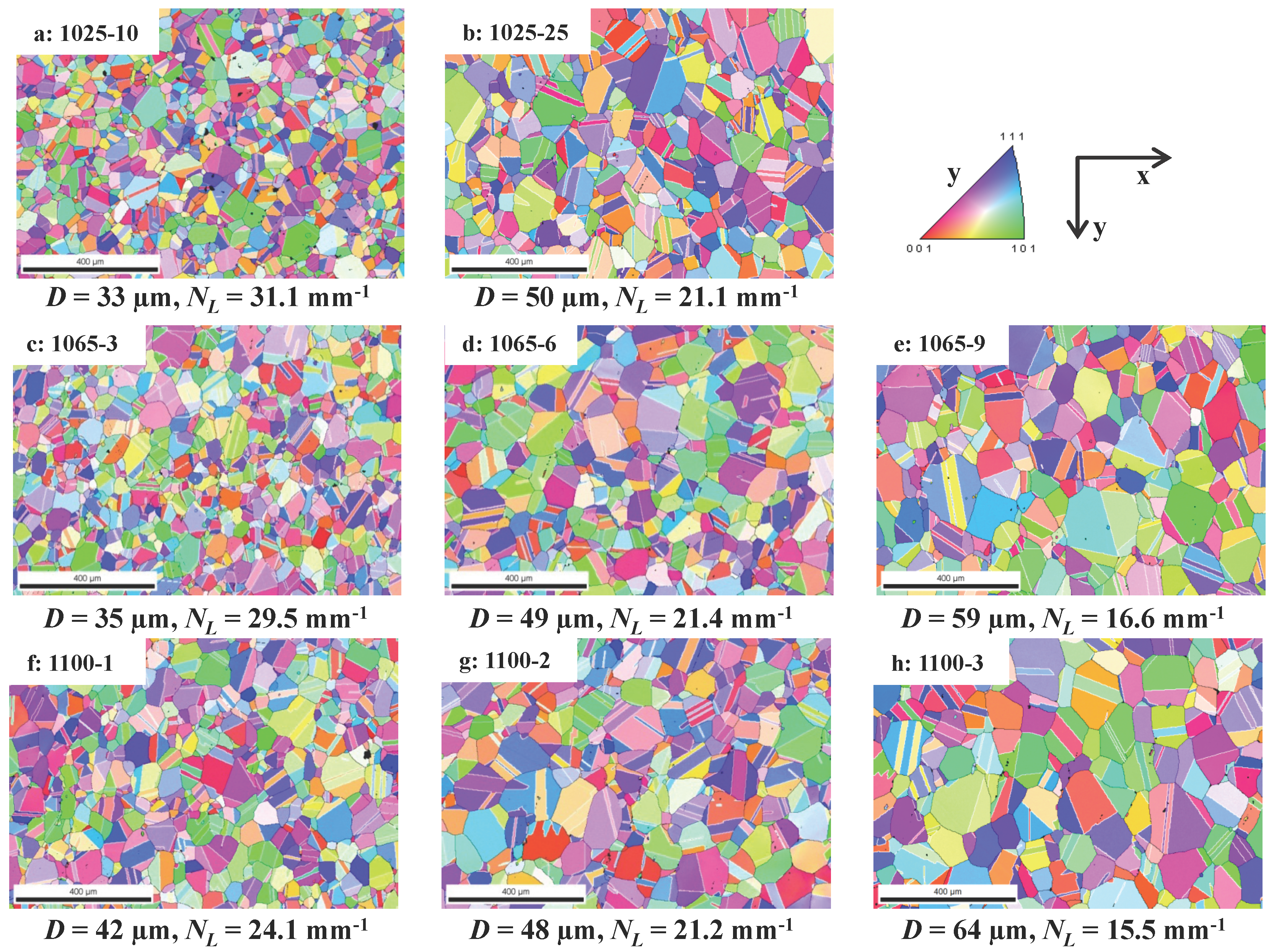

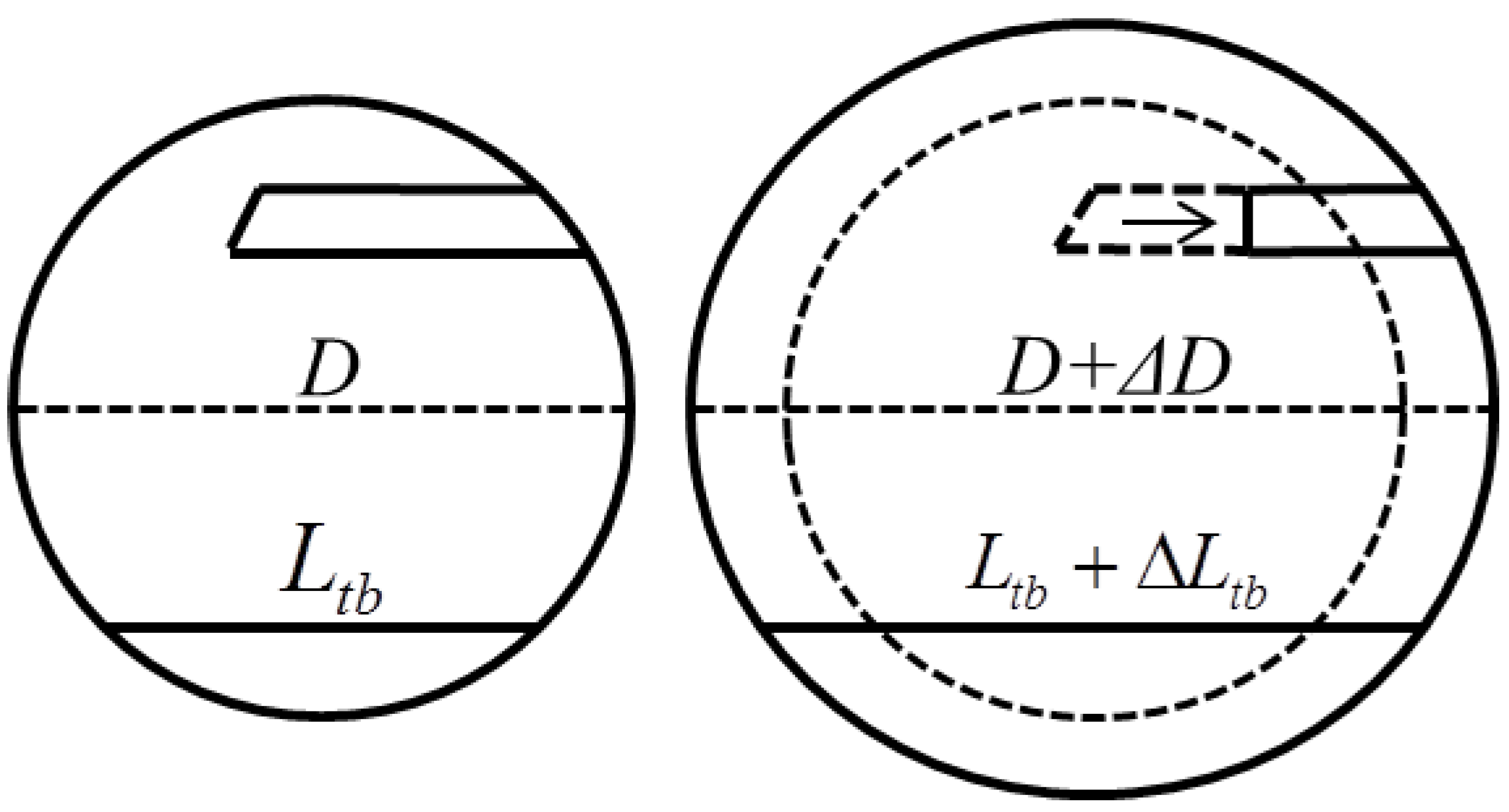

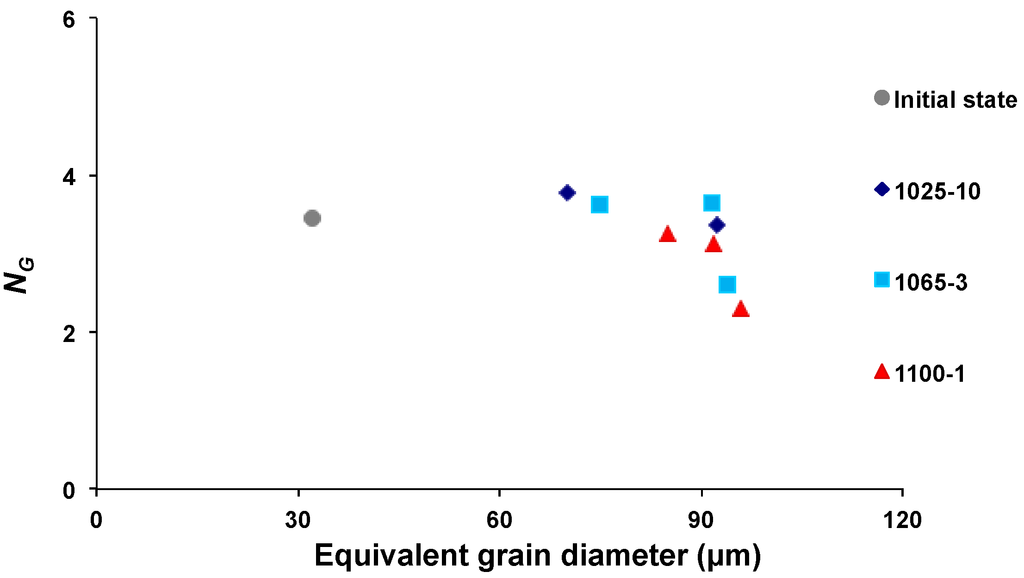

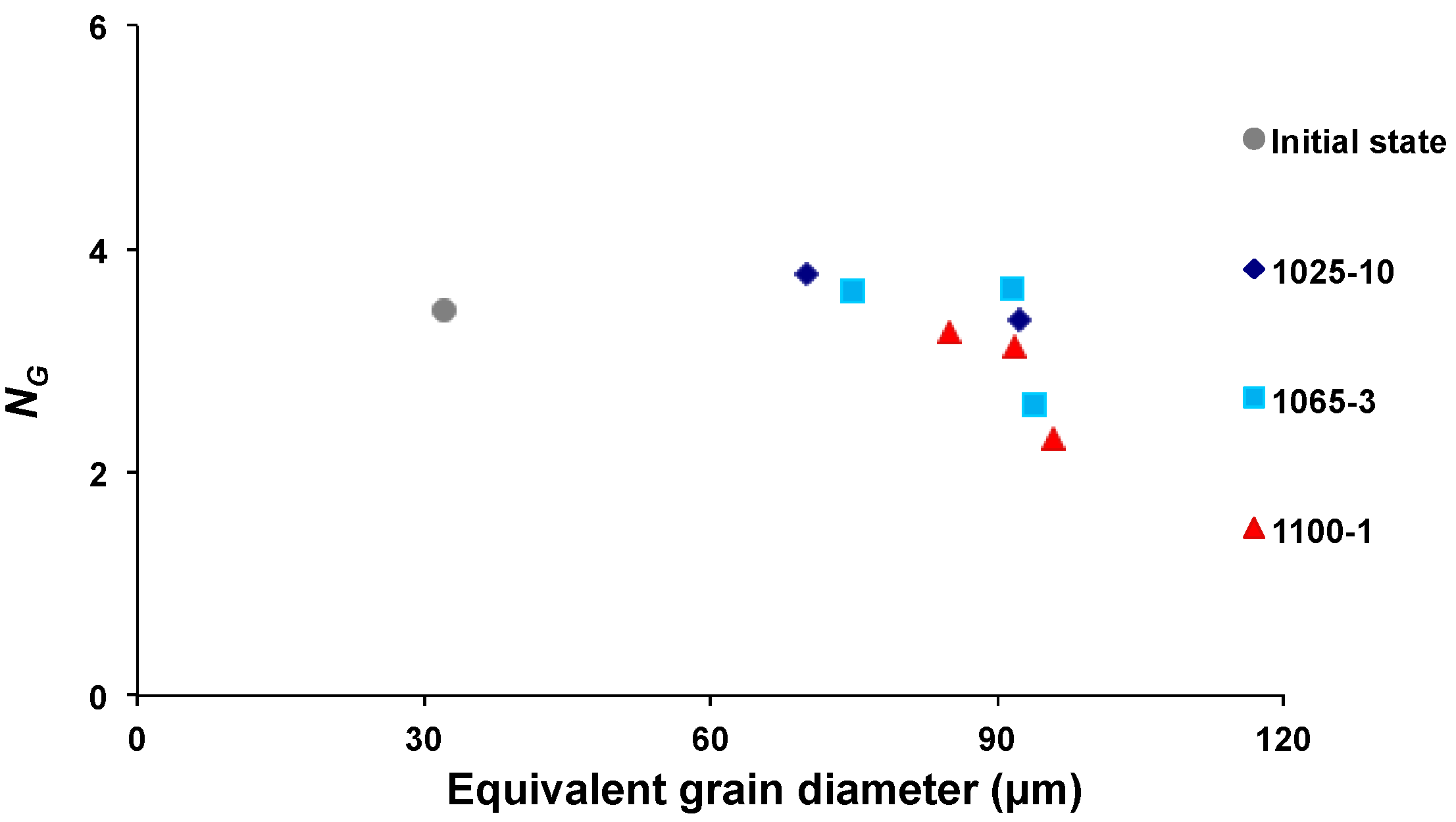

Grain growth experiments were performed on Inconel™ 718 to investigate the possible correlation of the annealing twin density with grain size and with annealing temperature. Those experiments were conducted at different temperatures in the δ supersolvus domain and under such conditions that only capillarity forces were involved in the grain boundary migration process. In the investigated range, there is a strong inverse correlation of the twin density with the average grain size. On the other hand, the twin density at a given average grain size is not sensitive to annealing temperature. Consistent with previous results for pure nickel, the twin density evolution in Inconel™ 718 is likely to be mainly controlled by the propagation of the pre-existing twins of the growing grains; i.e., the largest ones of the initial microstructure. Almost no new twin boundaries are created during the grain growth process itself. Therefore, the twin density at a given average grain size is mainly dependent on the twin density in the largest grains of the initial microstructure and independent of the temperature at which grains grow. Based on the observations, a mean field model is proposed to predict annealing twin density as a function of grain size during grain growth. View Full-Text
Keywords: annealing twin; grain growth; EBSD; mean field model annealing twin; grain growth; EBSD; mean field model

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Jin, Y.; Bernacki, M.; Agnoli, A.; Lin, B.; Rohrer, G.S.; Rollett, A.D.; Bozzolo, N. Evolution of the Annealing Twin Density during δ-Supersolvus Grain Growth in the Nickel-Based Superalloy Inconel™ 718. Metals 2016, 6, 5.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
