Article

Structural Irreversibility and Enhanced Brittleness under Fatigue in Zr-Based Amorphous Solids

1
Department of Physics, University of Virginia, VA 22904, USA
2
Key Laboratory of Materials Physics, Institute of Solid State Physics, Chinese Academy of Sciences, Hefei 230031, China
3
Department of Materials Science and Engineering, The University of Tennessee, Knoxville, TN 37831, USA
4
Institute of Materials Research, Tohoku University, Sendai 980-8577, Japan
5
Los Alamos National Laboratory, Lujan Neutron Scattering Center, Los Alamos, NM 87545, USA
6
Materials and Structures Laboratory, Tokyo Institute of Technology, 4259-R3-8 Nagatsuta-cho, Midori-ku, Yokohama 226-8503, Japan
7
NIST Center for Neutron Research, Gaithersburg, MD 20899, USA and Department of Materials Science and Engineering, University of Maryland, College Park, MD 20742, USA
8
Department of Materials Science and Engineering, Rensselaer Polytechnic Institute, Troy, NY 12180, USA
*
Author to whom correspondence should be addressed.
Metals 2012, 2(4), 529-539; https://doi.org/10.3390/met2040529
Submission received: 16 August 2012 / Revised: 9 November 2012 / Accepted: 11 December 2012 / Published: 19 December 2012
(This article belongs to the Special Issue Amorphous Alloys)

Abstract

:
The effect of fatigue on ZrCuAl amorphous metals induced by mechanical cyclic loading is investigated using inelastic neutron scattering and the pair density function analysis of neutron diffraction data. With cooling, the local atomic structure undergoes reorganization under fatigue that is directly related to the number of fatigue cycles. Also under fatigue, suppression in the atomic dynamics is observed as well. A structural restructuring occurs within a 4 Å radius and intensifies with increasing the compression cycles, whereas the vibrational density of states is attenuated as the intensity shifts towards the elastic, zero-energy transfer peak. The combined static and dynamic structural effects are a signature of the microscopic changes brought about by fatigue, and together may be the onset for subsequent behaviors following extended cyclic loading such as fracture. Even after the load is removed, the structural changes described here remain and increase with repeated cyclic loading which is an indication that the lattice deforms even before shear bands are formed.

1. Introduction

Amorphous metals are solids devoid of periodicity, prepared by the very fast cooling of a viscous liquid to avoid crystallization. Trapped in this supercooled state with an atomic topology that resembles that of the liquid [1], amorphous alloys exhibit uniquely different metallurgy from crystals, and have widespread industrial implications. With strengths that can surpass those found in crystalline counterparts, how they mechanically respond and deform under applied stresses is central to their functionality. Typically, metallic glasses have undesirably low ductility, though, and most commonly plastically deform through shear bands [2,3,4,5]. The structure, which is usually perceived as short-ranged in nature, and how it deforms under stress is clearly important in controlling plastic flow [6]. However its role and that of its dynamics are still poorly understood.
In spite of their high strengths [7] glassy metals are often brittle [8] like ceramics, instead of crystalline metals that are ductile, and permanently deform by forming shear bands under stresses. In the present work, we investigate the relation between the vibrational properties in the glassy state and the atomic properties leading to plastic flows [9] under mechanical testing such as compression fatigue. The system used for the purpose of addressing this question is a strong glass former, ZrCuAl [10,11,12]. The impact from fatigue on the nature of static disorder and low temperature dynamics are investigated via neutron scattering.
Amorphous matter exhibits unusual low temperature characteristics [13] that are distinctly different from any crystalline equivalent. One anomaly is the observation of excess vibrational density of states manifested in the so-called boson peak, and observed by techniques such as neutron [14] and Raman scattering [15]. This is also manifested in an unusual low temperature behavior of the heat capacity, CP, as well, in which CP deviates from the T3 Debye law expected of a typical metallic solid with cooling. The boson peak is a universal attribute in glassy systems. Its origin has been linked to transverse vibrational modes associated with defective structures [16], to local vibrational modes of clusters [17], and to crossover dynamics of local and acoustic modes [18]. More recently it was proposed that the boson peak is analogous to the acoustic van Hove singularity in crystals [19,20,21]. The excess vibrational density of states, as determined both from the neutron inelastic scattering and CP measurements displays a maximum of a few milli-electron Volts (meV) (of the order of 10−12 s). The intensity of the boson peak has in turn been directly related to other concepts such as fragility [1,22] and to the local free volume [16], which has been well characterized in molecular glasses [23]. However, little is known regarding the nature of the boson peak in metallic glasses with isotropic structures and even less so under the influence of mechanical deformation. With only a few of the alloys discovered thus far exhibiting good mechanical properties [24,25], it would be important to investigate the relation of static disorder and atomic dynamics to the mechanical deformation brought upon by fatigue.
Fatigue is critical in applications such as springs, in some sensors, actuators, and microelectrochemical systems that require lifetimes of 1012 cycles if not more [26]. However, fatigue damage can occur in metallic glasses at very low stresses, sometimes as low as 10% of the yield stress [27], limiting their use in structural applications [26,27]. Understanding the relation of the atomic structure to the mechanical deformation behavior brought upon by a static load is a challenging issue. That is because bulk metallic glasses can deform both homogeneously and inhomogeneously. At low temperatures, the deformation is inhomogeneous where plastic flow concentrates on shear bands, accompanied by a decrease of the viscosity and an increase of the free volume leading to strain softening [28]. Shear bands are observed under fatigue conditions due to fatigue softening [29]. It has been suggested that the formation of shear bands and fatigue softening are linked to the fracture of bulk metallic glasses during the fatigue process [30].
In this paper, we show that under high-cycle fatigue, the ternary ZrCuAl glass changes in part due to an atomic restructuring that suppresses fluctuations. A local reorganization of the atom packing is observed, where the changes intensify as the number of compression cycles increases. This is best observed by cooling the system down to low enough temperatures that reduces the smearing induced by thermal vibrations. Associated with these changes in the static structure is a softening of the lattice dynamics. The attenuation implies an increase in the sound velocity, suggesting that the glass becomes stiffer and more likely brittle under fatigue.

2. Results and Discussion

2.1. Specific Heat

The Zr based ternary glass is a model system with exceptional glass forming ability. The low-temperature CP anomaly associated with the presence of an excess vibrational low frequency contribution is shown in Figure 1a for Zr60Cu30Al10 and Zr50Cu40Al10. Plotted in the figure is CP with the electronic contribution, γT, subtracted and then normalized by T3 [27]. Such normalization should have rendered a temperature independent curve for a solid that follows the Debye model of CP, but instead a bump is observed that reaches a peak around 10 K. This behavior has been previously observed in metallic and other types of glassy systems and is associated with strong glasses [27,31]. While the bump is present in both compositions, it is distinctly more intense in Zr60Cu30Al10 that in turn may indicate that the amplitude of excess vibrational density of states is higher in this alloy. To reproduce the bump, the CP is typically fit by two terms, one originating from the Debye model of the CP and an Einstein term of a single oscillator with an Einstein temperature, θE~56 K for Zr60Cu30Al10E~63 K for Zr50Cu40Al10). By combining both terms, the resulting curve reasonably reproduces the bump at low temperatures as seen in Figure 1a. An Einstein oscillator represents a localized vibrational mode, and although rare in closed-packed structures, is ubiquitous in compounds with large voids or cage structures [32,33]. It has been suggested that atoms occupying these voids in metallic glasses are loosely bound and are thus free to rattle almost independently, giving rise to single oscillator modes. Also shown in Figure 1b is the CP for the same sample after fatigue. Very small differences can be discerned between the dashed (post-fatigue) and solid (pre-fatigue) lines. The CP temperature dependence of the Zr50Cu40Al10 alloy shows a very small enhancement but no visible differences can be seen in Zr60Cu30Al10.

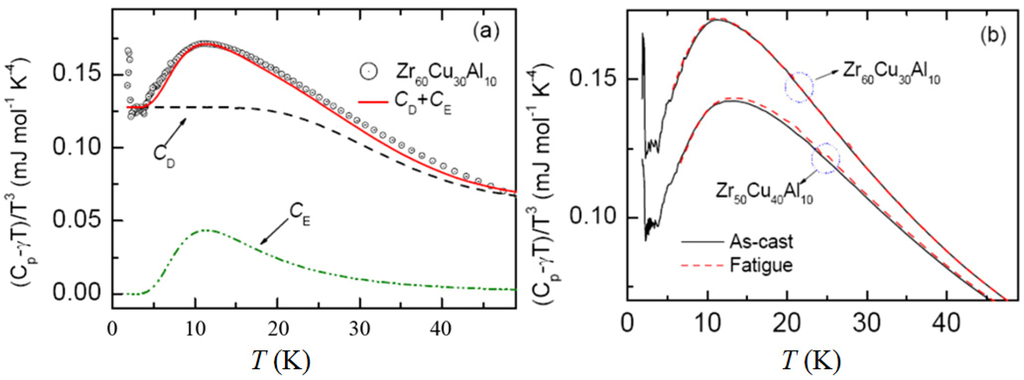

Figure 1. (a) The heat capacity at constant pressure, CP, with γT subtracted and normalized by T3 is plotted as a function of temperature for the two compositions. γ is the Sommerfeld constant; (b) The Debye, CD and Einstein, CE, terms are estimated. They are compared to the experimental CP.
Figure 1. (a) The heat capacity at constant pressure, CP, with γT subtracted and normalized by T3 is plotted as a function of temperature for the two compositions. γ is the Sommerfeld constant; (b) The Debye, CD and Einstein, CE, terms are estimated. They are compared to the experimental CP.
Metals 02 00529 g001

2.2. Inelastic Neutron Scattering

Shown in Figure 2a is the S(Q) from data collected at 300 K for Zr60Cu30Al10 and obtained from a diffraction experiment (solid line). The broad peaks are a signature of the static disorder present in the glass. This S(Q) is used in the PDF analysis that will be discussed further below. Also shown in the same figure is the structure function obtained from the inelastic experiment but with the data integrated over the elastic peak from −2 meV to 2 meV (red symbols). The structure function obtained from the diffraction experiment extends to very high momentum transfer, Q, while the one obtained from the inelastic experiment is limited in Q, but the main features are reproduced as in the diffraction measurement.
Shown in Figure 2b is the energy, EQ map collected at T = 300 K for Zr60Cu30Al10 at the DCS. The red bar corresponds to the elastic scattering that has the brightest intensity. The intensity integrated in energy from −2 to 2 meV, the breadth of the elastic peak, yields the elastic S(Q) shown in Figure 2a. Beyond the elastic peak, an inelastic continuum is observed below 2 Å−1 in addition to two strong localized modes. The experimental setup is such that most of the information we obtain will be in the neutron energy gain side (−meV) and this is what is shown in the figure. The neutron energy loss side (+meV) extends up about 10 meV. However, the elastic line is asymmetric, with the asymmetry appearing on the right side of the peak and most like due to the sample alignment. Because of this, the analysis was focused on the neutron gain side. Of the two modes, the rather narrow one is centered at Q~2.5 Å−1and E1~5 meV and appears at the same median Q-position as the strongest peak in the static S(Q). Thus clearly the correlations associated with the tallest peak in the S(Q) have the corresponding fluctuations in energy. Similarly, the broader excitation extends beyond Q~4 Å−1 with an E2~15 meV and appears in the same Q-region as for the second broad peak in the S(Q) of Figure 2a. By integrating the data over all accessible momentum transfers, the dynamic structure function, S(ħω), shown in Figure 2c is obtained. The S(ħω) is normalized by the Bose factor appropriate for the neutron energy gain side, [n(ω) + 1]. The integration overall all Q incorporates all excitations seen in Figure 2b and shown in this figure is their temperature dependence. It has been previously suggested that such collective excitations result from acoustic, phonon-like modes arising from a pseudo-Brillouin zone due to some dynamic periodicity [34,35]. Below 50 K, the peaks are not discernible because of the low population occupancy, while their intensity increases following Bose-Einstein statistics. At 50 K, the E1 peak at ~5 K is quite pronounced while E2~15 meV is suppressed. Above 50 K, E1 gains in intensity and by 300 K, it appears to be almost as intense as E1. Shown in Figure 2d is the integration of the data in three different Q-slices corresponding to the three different regions in the E–Q contour map: from 0 to 2 Å1 (low-Q), from 2 to 4 Å−1 (intermediate-Q) and from 4 to 7 Å−1 (high-Q) for the two compositions studied. In all the curves, the intensity for Zr50Cu40Al10 is slightly lower than that for Zr60Cu30Al10. Typically the phonon energy spectrum is normalized by the √M (the total mass) and hence as expected, the spectrum for the Zr60Cu30Al10 is shifted closer to the elastic line. With temperature, E1 remains essentially constant for both compositions, while E2 shifts to lower energies by cooling from 150 K, indicating some kind of softening associated with these fluctuations.

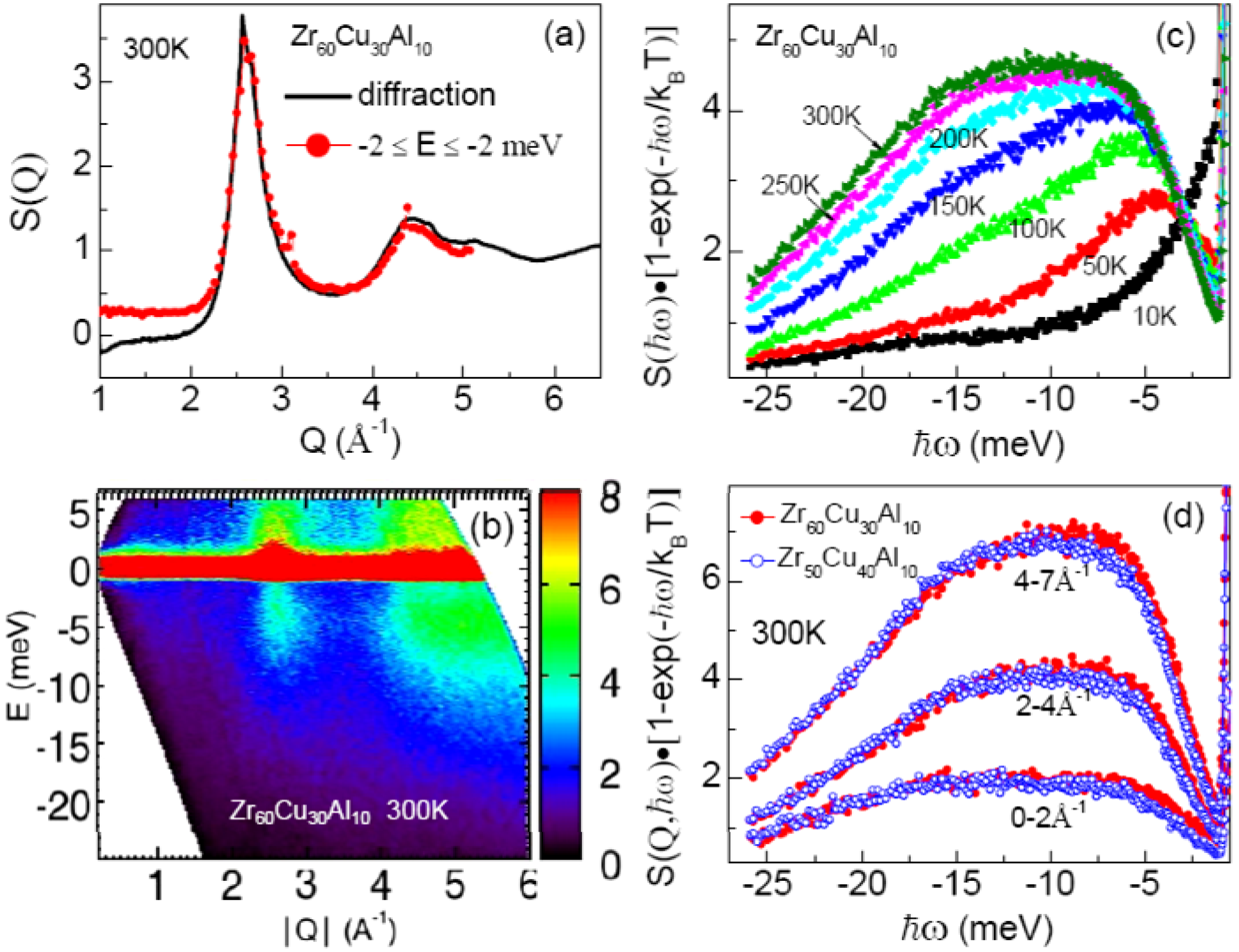

Figure 2. (a) The static S(Q) determined from diffraction compares well to the elastic S(Q) determined from the inelastic measurement. The small peaks observed in the elastic S(Q) are from Al; (b) The energy versus momentum transfer map shows the presence of the two excitations. A broad continuum is also observed at very low Q; (c) The total S(ћω) as a function of temperature for Zr60Cu30Al10; (d)The S(Q,ω) determined at three regions of momentum space, low-Q, intermediate-Q and high-Q and compared between the two compositions studied.
Figure 2. (a) The static S(Q) determined from diffraction compares well to the elastic S(Q) determined from the inelastic measurement. The small peaks observed in the elastic S(Q) are from Al; (b) The energy versus momentum transfer map shows the presence of the two excitations. A broad continuum is also observed at very low Q; (c) The total S(ћω) as a function of temperature for Zr60Cu30Al10; (d)The S(Q,ω) determined at three regions of momentum space, low-Q, intermediate-Q and high-Q and compared between the two compositions studied.
Metals 02 00529 g002

2.3. Vibrational Density of States under Fatigue

What happens to the vibrational density of states (VDOS) intensity under fatigue? Shown in Figure 3a is the VDOS/E² for the two Zr50Cu40Al10 alloys, one as-cast and the after fatigue. The VDOS function is given by Z(ω) = ((S(Q,ω)ω)/(Q2[n(ω) + 1])). An applied maximum stress of 1600 MPa was used at 105 compression cycles. Data were collected at two temperatures, 300 and 150 K. The amount of sample used for each experiment was different (50 g of the as-cast sample versus 10 g of the fatigue sample). Hence the data for each set of samples were normalized by the integrated intensity of the elastic peak and the high energy spectrum end was used to normalize the background. At constant temperature, the inelastic intensity is suppressed after fatigue while the intensity shifts towards the elastic line. The as-cast alloy consistently shows a higher intensity at both temperatures than the alloy after mechanical testing. Fatigue decreases the number of vibrational modes contributing to these excitations, in an analogous way to freezing of these modes as they become static. Shown in Figure 3b is the VDOS/E² at 300 K only and selectively integrated in the three Q regions defined earlier. In the low-Q and intermediate-Q regions, the intensity is clearly reduced after fatigue, and shifts to the elastic peak. However, in the high-Q region from 2 to 4 Å−1, the intensity appears to change little with fatigue. This trend may indicate that the fluctuations mostly affected by fatigue involve long wavelength cluster correlations pertaining to shear bands.

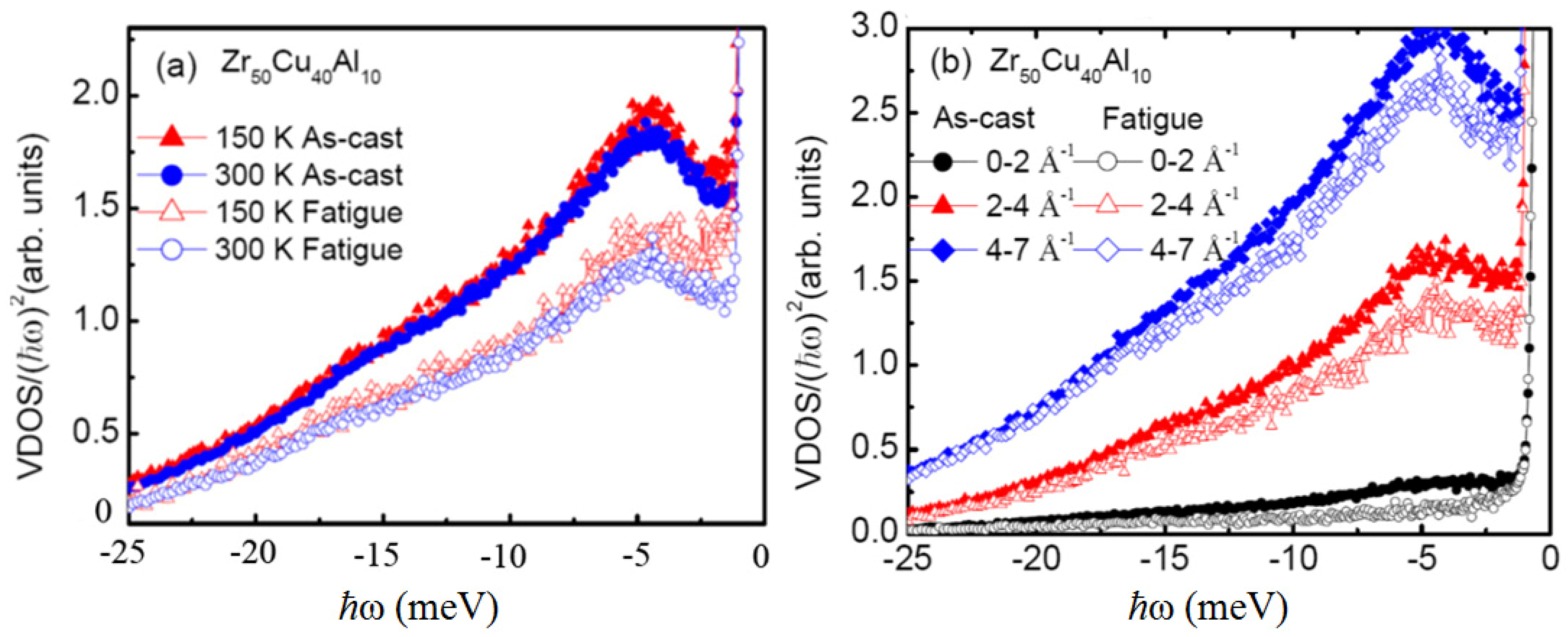

Figure 3. (a) The VDOS/E² for Zr50Cu40Al10is shown for the data collected for an as-cast alloy and one that has undergone 105 compression cycles. The inelastic intensity is suppressed at both temperatures shown. (b) The S(Q,ω) is determined at three regions of momentum space, low-Q, intermediate-Q and high-Q and the comparison is for data collected before and after fatigue.
Figure 3. (a) The VDOS/E² for Zr50Cu40Al10is shown for the data collected for an as-cast alloy and one that has undergone 105 compression cycles. The inelastic intensity is suppressed at both temperatures shown. (b) The S(Q,ω) is determined at three regions of momentum space, low-Q, intermediate-Q and high-Q and the comparison is for data collected before and after fatigue.
Metals 02 00529 g003

2.4. Local Structure under Fatigue

The suppression of these excitations, similarly to the suppression of the boson peak [36] by external stimuli, may be linked to the structural re-organization that we observed in the local structure. Following a well established procedure of Fourier transforming the static S(Q) from the reciprocal space into a real space representation, the pair density function (PDF) [37] is obtained and the results are shown in Figure 4. The PDF involves the integration over a finite energy window (~10 meV) and represents a time-averaged local structure, in the absence of an underlying periodicity. The neutron diffraction experiments were performed from 300 down to 10 K on as-cast alloys and under varying compression-compression fatigue cycles on the two compositions. The PDF up to 6 Å as a function of fatigue cycles is shown in Figure 4a for Zr60Cu30Al10 at a constant temperature of 10 K. With increasing the number of cycles, the height of the first peak rises while its width becomes narrow and its shape changes. A similar observation is made by cooling the structure from 300 to 10 K of the alloy subjected to 105 cycles (Figure 4b). Given that the area under the PDF peaks is conserved, it is not unusual for the peaks to become narrower and taller with cooling because cooling reduces the atomic thermal vibrations that contribute to the peak broadening. However, it is unusual for the peaks to change shape, as seen in both Figure 4a,b. It is even more unusual for the intensity to change at a constant temperature as seen in the PDF’s of Figure 4a as a function of fatigue. Also shown in this figure are three partial functions, corresponding to the Zr-Zr, Zr-Cu and Cu-Cu atom correlations that contribute the most to the total PDF, and calculated from an embedded atom potential model [38,39]. The increase in the peak sharpness corresponds to the structure becoming more compact as the peak width narrows, and signals the reduction of free volume that may in turn be linked to brittleness.

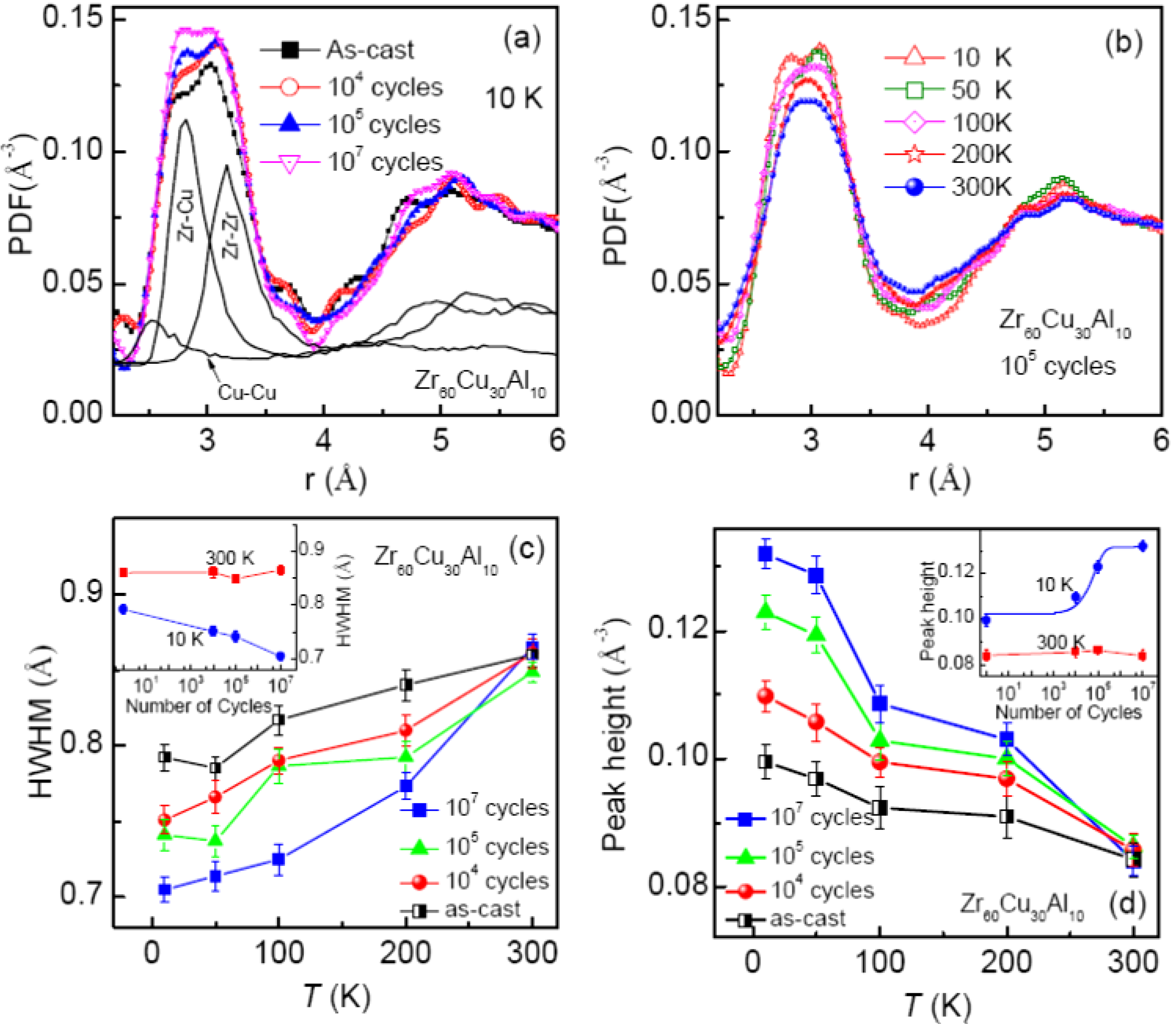

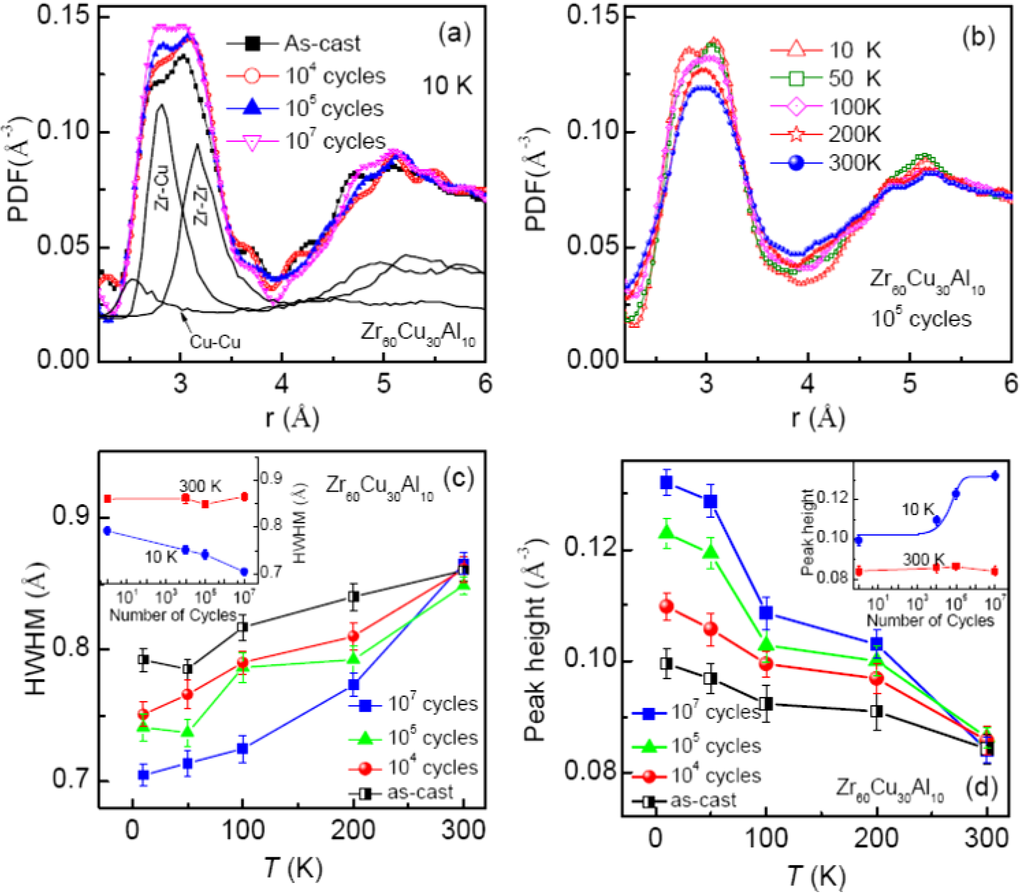

Figure 4. (a) The PDF corresponding to the local atomic structure of Zr60Cu30Al10under different fatigue cycles at 10 K. Also shown are partial PDF’s for select pairs obtained from molecular dynamics.(b) The local atomic structure as a function of temperature for the alloy at 105 cycles.(c) The HWHM of the first PDF peak as a function of temperature for 4 different fatigue cycles. The inset shows the HWHM at two temperatures.(d) The change of the first PDF peak height with temperature at four fatigue cycles. The inset shows the change of the peak height at two temperatures.
Figure 4. (a) The PDF corresponding to the local atomic structure of Zr60Cu30Al10under different fatigue cycles at 10 K. Also shown are partial PDF’s for select pairs obtained from molecular dynamics.(b) The local atomic structure as a function of temperature for the alloy at 105 cycles.(c) The HWHM of the first PDF peak as a function of temperature for 4 different fatigue cycles. The inset shows the HWHM at two temperatures.(d) The change of the first PDF peak height with temperature at four fatigue cycles. The inset shows the change of the peak height at two temperatures.
Metals 02 00529 g004
The reduction of the half-width-half-max (HWHM) of the first peak, shown in Figure 4c, indicates that the first coordination sphere contracts upon fatigue loading. The changes are most noticeable at low temperatures than at room temperature (see inset of this figure) because of the reduction of thermal vibration, while a clear correlation is observed between the reduction of HWHM and fatigue cycles. A hysteresis is observed on warming where the system returns to its original state around 100 K (not shown). If we consider the temperature dependence of the as-cast sample as the baseline (black symbols), it is clear that the effects from fatigue are above this baseline. The change in the peak height of the first PDF peak at this maximum 1600 MPa stress level is most dramatic as the load cycles increase as shown in Figure 4d. In the inset of this figure, the data points at 10 K can be fit by an exponential function although there are only 4 points. But in comparison to the constant behavior observed at 300 K, the rapid peak height change at 10 K is clear. Thus permanent changes are observed in the local atomic structure in response to the presence of residual stresses even after the load is removed. On the other hand, at 300 K, the response remains almost constant where the effects are masked by the thermal vibration of atoms.

3. Experimental Section

The alloys of Zr50Cu40Al10 and Zr60Cu30Al10 (in atomic percent) were prepared using a ladle-hearth type arc-melt tilt-casting technique. The ingots were cut into 6.0 mm × 6.0 mm cylindrical specimens for compression-compression fatigue measurements. The two end sides of each alloy were polished using a 1200 SiC grit-surface finish perpendicular to the longitudinal axis of the specimens using a polishing fixture to ensure that the sides were parallel to one another. A computer-controlled Material Test System (MTS) servohydraulic-testing machine was employed for fatigue studies. The sample was tested with a load ratio, R, of 10 where R = σminmax (where σmin and σmax are the applied minimum and maximum stresses, respectively) under a load-control mode, using a sinusoidal waveform at a frequency of 10 Hz. The neutron powder diffraction measurements were carried out at the Los Alamos National Laboratory using the high intensity powder diffractometer (HIPD). Data were collected in a closed-cycle refrigeration system as a function of temperature. The structure function, S(Q), obtained from the neutron powder diffraction data was Fourier transformed to obtain the pair density function (PDF) analysis. The inelastic data were collected using the Disk Chopper Spectrometer (DCS) at the NIST Center for Neutron Research (NCNR) as a function of temperature. Two incident energies were used, λi = 2.2 and 3.6 Å while data before and after fatigue were collected for the Zr50Cu40Al10 composition only.

4. Conclusions

From the above results, the following conclusion can be drawn regarding the effects of mechanical fatigue on the atomic properties. A connection is present between the changes observed in the local structure and the dynamics in the solid state. The consequence of the increase of the first PDF peak height with cooling above the expected increase from thermal contraction is twofold: it signals a local restructuring due to microscopic changes as well as reduction of the VDOS. The local restructuring occurs because the lattice changes irreversibly, even after the load is removed. With repeated loading and unloading the glass eventually breaks, thus such lattice irreversibility is a precursory effect to failure. The decrease in the intensity of the vibrational spectrum and its shift towards the elastic channel follow the local restructuring. The local structure reorganization that we observe with modifications in the pair correlations amplitudes will have a direct effect on the normal modes and can explain the reduction of the amplitude of fluctuations with fatigue. It is the case that the system becomes brittle after fatigue and thus, brittleness is correlated to the suppression of the vibrational spectrum.

Acknowledgments

The work at the University of Virginia is supported by the National Science Foundation, under contract DMR-0804801, at the University of Tennessee under contracts DMR-0909037, CMMI-0900271 and 1100080, and at NIST, DCS is supported under contract DMR-0944772. The Los Alamos National Laboratory is operated by Los Alamos National Security LLC under DOE contract DE-AC52-06NA25396.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Debenedetti, P.G.; Stillinger, F.H. Supercooled liquids and the glass transition. Nature 2001, 410, 259–267. [Google Scholar] [CrossRef]
  2. Spaepen, F. A microscopic mechanism for steady state inhomogeneous flow in metallic glasses. Acta Mater. 1977, 25, 407–415. [Google Scholar] [CrossRef]
  3. Argon, A.S. Plastic deformation in metallic glasses. Acta Mater. 1979, 27, 47–58. [Google Scholar] [CrossRef]
  4. Masumoto, T.; Maddin, R. Structural stability and mechanical properties of amorphous metals. Mater. Sci. Eng. 1975, 19, 1–24. [Google Scholar] [CrossRef]
  5. Greer, A.L.; Ma, E. Bulk metallic glasses: At the cutting edge of metals research. MRS Bull. 2007, 32, 611–615. [Google Scholar] [CrossRef]
  6. Chen, M.; Inoue, A.; Zhang, W.; Sakurai, T. Extraordinary plasticity of ductile bulk metallic glasses. Phys. Rev. Lett. 2006, 96, 245502:1–245502:4. [Google Scholar]
  7. Scopigno, T.; Ruocco, G.; Sette, F.; Monaco, G. Is the fragility of a liquid embedded in the properties of its glass? Science 2003, 302, 849–852. [Google Scholar] [CrossRef]
  8. Das, J.; Tang, M.B.; Kim, K.B.; Theissmann, R.; Baier, F.; Wang, W.H.; Eckert, J. “Work-hardenable” ductile bulk metallic glass. Phys. Rev. Lett. 2005, 94, 205501:1–205501:4. [Google Scholar]
  9. Greer, A.L. Metallic glasses. Science 1995, 267, 1947–1953. [Google Scholar]
  10. Freels, M.; Wang, G.Y.; Zhang, W.; Liaw, P.K.; Inoue, A. Cyclic compression behavior of a Cu-Zr-Al-Ag bulk metallic glass. Intermetallics 2011, 19, 1174–1183. [Google Scholar] [CrossRef]
  11. Wang, G.Y.; Liaw, P.K.; Jin, X.Q.; Yokoyama, Y.; Huang, E.W.; Jiang, F.; Keer, L.M.; Inoue, A. Fatigue initiation and propagation behavior in bulk metallic glasses under a bending load. J. Appl. Phys. 2010, 108, 113512:1–113512:7. [Google Scholar]
  12. Wang, G.Y.; Qiao, D.C.; Yokoyama, Y.; Freels, M.; Inoue, A.; Liaw, P.K. Effects of loading modes on the fatigue behavior of Zr-based bulk metallic glasses. J. Alloys Comp. 2009, 483, 143–145. [Google Scholar] [CrossRef]
  13. Buchenau, U.; Nucker, N.; Dianoux, A.J. Neutron scattering study of the low-frequency vibrations in vitreous Silica. Phys. Rev. Lett. 1984, 53, 2316:1–2316:4. [Google Scholar]
  14. Sette, F.; Krisch, M.H.; Masciovecchio, C.; Ruocco, G.; Monaco, G. Dynamics of glasses and glass-forming liquids studies by inelastic x-ray scattering. Science 1998, 280, 1550–1555. [Google Scholar] [CrossRef]
  15. Shintani, H.; Tanaka, H. Universal link between the boson peak and transverse phonons in glass. Nature Mat. 2008, 7, 870–877. [Google Scholar] [CrossRef]
  16. Sokolov, A.P.; Calemczuk, R.; Salce, B.; Kisliuk, A.; Quitmann, D.; Duval, E. Low temperature anomalies in strong and fragile glass formers. Phys. Rev. Lett. 1997, 78, 2405:1–2405:1. [Google Scholar]
  17. Duval, E.; Boukenter, A.; Achibat, T. Vibrational dynamics and the structure of glasses. J. Phys. Condens. Matter. 1990, 2, 10227–10234. [Google Scholar] [CrossRef]
  18. Klinger, M.I.; Kosevich, A.M. Soft-mode-dynamics model of acoustic-like high-frequency excitations in boson-peak spectra of glasses. Phys. Lett. A 2001, 280, 365–370. [Google Scholar] [CrossRef]
  19. Chumakov, A.I.; Monaco, G.; Monaco, A.; Crichton, W.A.; Bosak, A.; Rüffer, R.; Meyer, A.; Kargl, F.; Comez, L.; Fioretto, D.; et al. Equivalence of the Boson peak in glasses to the transverse acoustic van hove singularity in crystals. Phys. Rev. Lett. 2011, 106, 225501:1–225501:4. [Google Scholar]
  20. Schirmacher, W.; Diezemann, G.; Ganter, C. Harmonic vibrational excitations in disordered solids and the “Boson peak”. Phys. Rev. Lett. 1998, 81, 136:1–136:4. [Google Scholar]
  21. Taraskin, S.N.; Loh, Y.L.; Natarajan, G.; Elliott, S.R. Origin of the Boson peak in systems with lattice disorder. Phys. Rev. Lett. 2001, 86, 1255:1–1255:4. [Google Scholar]
  22. Novikov, V.N.; Sokolov, A.P. Poisson’s ratio and the fragility of glass-forming liquids. Nature 2004, 431, 961–963. [Google Scholar] [CrossRef]
  23. Johnson, W.L. Bulk Glass-Forming Metallic Alloys: Science and Technology. In Bulk Metallic Glasses, Proceedings of Materials Research Society Symposium, Boston, MA, USA, December 1–3, 1998; Johnson, W.L., Inoue, A., Liu, C.T., Eds.; Materials Research Society: Warrendale, PA, USA, 1999; 554, pp. 191–196. [Google Scholar]
  24. Inoue, A. Bulk Amorphous Alloys: Practical Characteristics and Applications; Trans Tech Publications: Zurich, Switzerland, 1999. [Google Scholar]
  25. Pacard, C.E.; Homer, E.R.; Al-Aqeeli, N.; Schuh, C.A. Cyclic hardening of metallic glasses under Hertzian contacts: Experiments and STZ dynamics simulations. Philos. Mag. 2010, 90, 1373–1390. [Google Scholar] [CrossRef]
  26. Packard, C.E.; Witmer, L.M.; Schuh, C.A. Hardening of a metallic glass during cyclic loading in elastic range. Appl. Phys. Lett. 2008, 92, 171911:1–171911:3. [Google Scholar]
  27. Li, Y.; Bai, H.Y.; Wang, W.H.; Samwer, K. Low-temperature specific heat anomalies associated with the boson peak in CuZr-based bulk metallic glasses. Phys. Rev. B 2006, 74, 052201:1–052201:4. [Google Scholar]
  28. Inoue, A. Stabilization of metallic supercooled liquid and bulk amorphous alloys. Acta Mater. 2000, 48, 279–306. [Google Scholar] [CrossRef]
  29. Wang, G.Y.; Liaw, P.K.; Peter, W.H.; Yang, B.; Yokoyama, Y.; Benson, M.L.; Green, B.A.; Kirkham, M.J.; White, S.A.; Saleh, T.A.; et al. Fatigue behavior of bulk metallic glasses. Intermetallics 2004, 12, 885–892. [Google Scholar] [CrossRef]
  30. Qiao, D.C.; Huang, L.; Jiang, W.; Fan, C.; Liaw, P.K. Fatigue softening of (Zr58Ni13.6Cu18Al10.4)99Nb1 bulk metallic glass. Metall. Mat. Trans. A 2010, 41, 1787–1791. [Google Scholar] [CrossRef]
  31. Tang, M.B.; Bai, H.Y.; Pan, M.X.; Zhao, D.Q.; Wang, W.H. Einstein oscillator in highly-random-packed bulk metallic glass. Appl. Phys. Lett. 2005, 86, 021910:1–021910:3. [Google Scholar]
  32. Keppens, V.; Mandrus, D.; Sales, B.C.; Chakoumakos, B.C.; Dai, P.; Coldea, R.; Maple, M.B.; Gajewski, D.A.; Freeman, E.J.; Bennington, S. Localized vibrational modes in metallic solids. Nature 1998, 395, 876–878. [Google Scholar]
  33. Hermann, R.P. Einstein oscillators in thallium filled antimony skutterudites. Phys. Rev. Lett. 2003, 90, 135505:1–135505:1. [Google Scholar]
  34. Grigera, T.S.; Martin-Mayor, V.; Parisi, G.; Verrocchio, P. Phonon interpretation of the “Boson peak” in supercooled liquids. Nature 2003, 422, 289–292. [Google Scholar]
  35. Malinovsky, V.K.; Sokolov, A.P. The nature of boson peak in Raman spectra in glasses. Solid State Comm. 1986, 57, 757–761. [Google Scholar] [CrossRef]
  36. Yannopoulos, S.N.; Andrikopoulos, K.S.; Ruocco, G. On the analysis of the vibrational Boson peak and low-energy excitations in glasses. J. Non-Cryst. Solids 2006, 352, 4541–4551. [Google Scholar] [CrossRef]
  37. Kazimirov, V.Y.; Louca, D.; Widom, M.; Gu, X.-J.; Poon, S.J.; Shiflet, G.J. Local organization and atomic clustering in multicomponent amorphous steels. Phys. Rev. B 2008, 78, 054112:1–054112:5. [Google Scholar]
  38. Daw, M.S.; Baskes, M.I. Semiempirical, quantum mechanical calculation of hydrogen embrittlement in metals. Phys. Rev. Lett. 1983, 50, 1285:1–1285:4. [Google Scholar]
  39. Cheng, Y.Q.; Ma, E.; Sheng, H.W. Atomic level structure in multicomponent bulk metallic glass. Phys. Rev. Lett. 2009, 102, 245501:1–245501:4. [Google Scholar]
