Metals 2012, 2(3), 274-291; doi:10.3390/met2030274

Article
Influence of Micron-Ti and Nano-Cu Additions on the Microstructure and Mechanical Properties of Pure Magnesium
Sankaranarayanan Seetharaman 1,*, Jayalakshmi Subramanian 1, Manoj Gupta 1 and Abdelmagid S. Hamouda 2
1
Department of Mechanical Engineering, National University of Singapore (NUS), 9 Engineering Drive 1, Singapore 117576, Singapore; Email: mpejs@nus.edu.sg (J.S.); mpegm@nus.edu.sg (M.G.)
2
Mechanical and Industrial Engineering Department, Qatar University, P.O. Box No. 2713, Doha, Qatar; Email: hamouda@qu.edu.qa
*
Author to whom correspondence should be addressed; Email: seetharaman.s@nus.edu.sg; Tel.: + 65-93510324 .
Received: 26 April 2012; in revised form: 6 August 2012 / Accepted: 10 August 2012 /
Published: 17 August 2012

Abstract

: In this study, metallic elements that have limited/negligible solubility in pure magnesium (Mg) were incorporated in Mg using the disintegrated melt deposition technique. The metallic elements added include: (i) micron sized titanium (Ti) particulates with negligible solubility; (ii) nano sized copper (Cu) particulates with limited solubility; and (iii) the combination of micro-Ti and nano-Cu. The combined metallic addition (Ti + Cu) was carried out with and without preprocessing by ball-milling. The microstructure and mechanical properties of the developed Mg-materials were investigated. Microstructure observation revealed grain refinement due to the individual and combined presence of hard metallic particulates. The mechanical properties evaluation revealed a significant improvement in microhardness, tensile and compressive strengths. Individual additions of Ti and Cu resulted in Mg-Ti composite and Mg-Cu alloy respectively, and their mechanical properties were influenced by the inherent properties of the particulates and the resulting second phases, if any. In the case of combined addition, the significant improvement in properties were observed in Mg-(Ti + Cu)BM composite containing ball milled (Ti + Cu) particulates, when compared to direct addition of Ti and Cu particulates. The change in particle morphology, formation of Ti3Cu intermetallic and good interfacial bonding with the matrix achieved due to preprocessing, contributed to its superior strength and ductility, in case of Mg-(Ti + Cu)BM composite. The best combination of hardness, tensile and compressive behavior was exhibited by Mg-(Ti + Cu)BM composite formulation.
Keywords:
magnesium composites; metallic additions; mechanical alloying; microstructure; mechanical properties; Scanning Electron Microscopy (SEM)

1. Introduction

The growing demand for reduced fuel consumption and fuel energy savings in automobile and aerospace applications is constantly driving the materials community towards the development of new light-weight metallic materials [1,2]. Magnesium with density ~1.74 g/cc, has the highest strength-to-weight [σ/ρ] ratio among the available metals for structural applications. It is ~35% lighter than aluminium [ρ = 2.7 g/cm3] and ~65% lighter than titanium [ρ = 4.51 g/cm3] [2,3,4]. Hence, Mg-based materials are receiving increased attention for weight critical applications [4,5]. Further, the advantages of Mg materials include superior damping capacity, high specific stiffness, good dimensional stability, machinability and castability. Despite these advantages, the extended wide spectrum of applications of Mg materials is constrained by the low ductility and inferior fracture toughness, which is due to the hexagonal closed packed crystal structure of Mg [1,2,3,4,5,6]. Most of these limitations can be circumvented through the judicious addition of selective alloying elements such as Al, Zr, Zn and RE metals. Mg alloys containing Al (AZ, AM alloys) are used commonly in the transportation sector and the other alloys such as ZK, ZC alloys with excellent creep resistant properties are used in critical applications [6,7,8,9,10]. However most of the commercially available alloys exhibit poor thermal stability. However, the addition of ceramic reinforcements such as Al2O3 and SiC improves the strength, wear resistance and also, the thermal stability of Mg and Mg alloys [11,12,13]. However, the ductility/formability is often compromised due to the inherent brittleness of the ceramic reinforcements [11,12,13]. Various researchers have observed the simultaneous improvement in strength and ductility in Mg and its alloys through the addition of insoluble metallic elements like Ti, Mo and nano-sized ceramic particulates (Al2O3, Y2O3). Similar results were also obtained by Eugene et al. through the addition of nano-sized Cu particulates having limited solubility in Mg [14,15,16,17,18,19,20]. Recently, the high strength, high modulus, hard intermetallic phases (such as Al3Ti and TiB2, etc.) were also being used as reinforcements [21,22,23].

In this work, an attempt is made to synthesize the Ti–Cu based intermetallic phases through the mechanical alloying (M.A) process and to use the M.A composite powder as a reinforcement to improve the mechanical response of Mg. The influence of individual Ti and nano-Cu elements and their combination (hybrid metallic additions) on the microstructure and mechanical properties of Mg are studied. The effects of prior ball-milling of hybrid metallic additions on the particle morphology and on the properties of Mg materials are also discussed.

2. Results and Discussion

2.1. Synthesis

Synthesis of pure Mg and the Mg-based materials required for the study was successfully carried out by the disintegrated melt deposition (DMD) technique followed by hot extrusion. The surface of both the as-cast billets and extruded rods were smooth and free from any visible defects. The absence of any macro-defects in the as-cast and extruded samples indicates the suitability of processing methodology and parameters used in this study [12,23].

2.2. Density and Porosity

The density and porosity values of the developed Mg-materials are shown in Table 1. An increase in the experimental density and porosity values was observed due to the addition of metallic elements. However, the obtained experimental values are relatively low in comparison to similar works and this confirms the successful synthesis of near-dense materials with minimal porosity (≤0.16%) through DMD technique followed by hot extrusion [12,13,14,15].

Table Table 1. Results of density and porosity measurements

Click here to display table

Table 1. Results of density and porosity measurements
S. No.MaterialDensity Measurements
Theoretical DensityExperimental DensityPorosity
(g/cc)(g/cc)(%)
1Pure Mg1.74001.7397 ± 0.00150.02
2Mg-Ti1.80191.8002 ± 0.00170.09
3Mg-Cu1.96851.9681 ± 0.00100.04
4Mg-Ti-Cu2.11062.1089 ± 0.00190.16
5Mg-(Ti + Cu)BM2.11062.1096 ± 0.00160.09

2.3. X-ray Diffraction

The x-ray diffractograms of the developed Mg-based materials are shown in Figure 1. In Mg-Ti, only peaks corresponding to pure Mg and Ti are observed which indicates the absence of any intermetallic formation between Mg and Ti [21,22,23,24]. Based on Mg-Cu phase diagram, the reaction between Mg and Cu would result in Mg2Cu intermetallic formation, as observed in the XRD pattern. In Mg-(Ti + Cu)BM, in addition to Mg, Ti, Cu and Mg2Cu phases, low intensity peaks corresponding to Ti-Cu intermetallic phase can be seen; in contrast, in the un-ball milled, directly added Mg-Ti-Cu these peaks are not prominent. Considering that the formation enthalpies of various Ti-Cu intermetallics phases such as TiCu, TiCu4, TiCu2, Ti2Cu3, Ti3Cu4, Ti2Cu, Ti3Cu and TiCu3 are close to each other, the reaction between Ti and Cu can result in any of these intermetallics phases [24,25,26,27,28]. On comparing the experimental diffraction peaks with the standard powder diffraction data, it can be associated to either Ti2Cu3 or Ti3Cu phase. However, as the Ti2Cu3 intermetallic phase formation occurs only at ~780 °C to 860 °C and also at a much slower cooling rate, the observed Ti-Cu intermetallics peaks can hence be identified as Ti3Cu [25].

Metals 02 00274 g001 1024

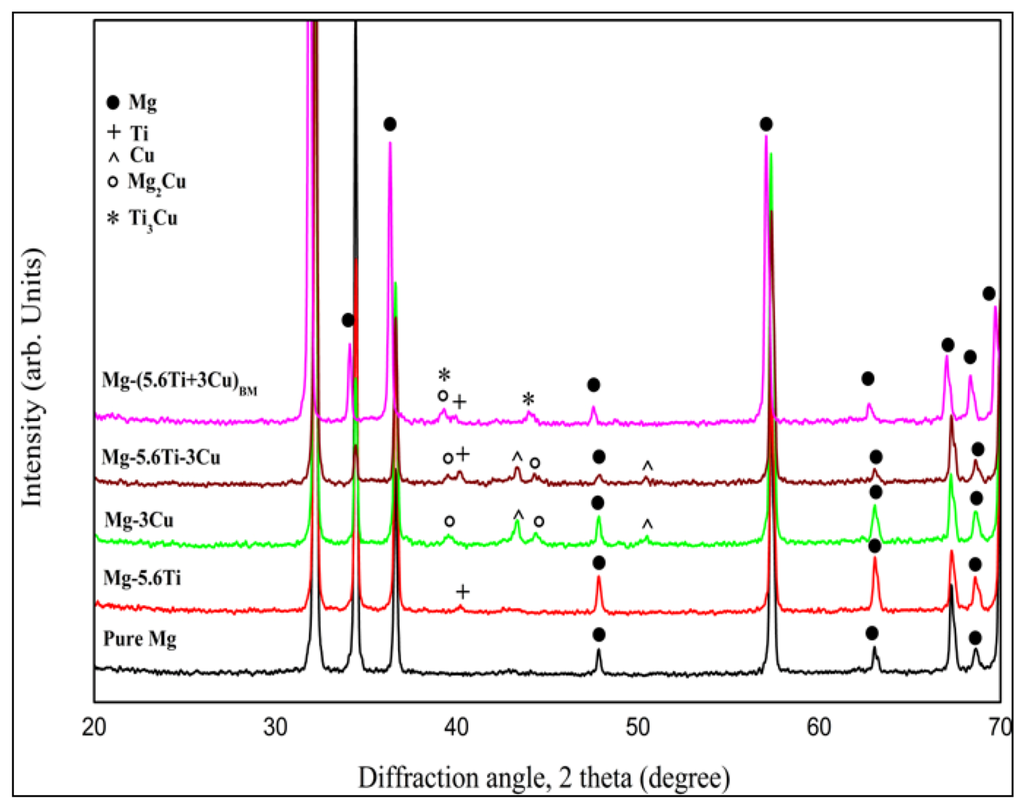

Figure 1. X-ray diffractograms of developed Mg based materials.

Click here to enlarge figure

Figure 1. X-ray diffractograms of developed Mg based materials.
Metals 02 00274 g001 1024

2.4. Microstructure

The microstructural observation (Figure 2a–d) reveals the distribution of the metallic particles and the intermetallic/secondary phases formed due to metallic additions. It can be seen from Figure 2a that the Ti particulates are found to be distributed uniformly in Mg-Ti without any interfacial products. Although no phase formation could occur, effective interfacial bonding with Mg is facilitated by the good wettability of Ti by molten Mg [22,29]. Hence the addition of the negligibly soluble Ti particulates acts as metallic reinforcement in Mg, i.e., Mg-Ti composite, which is composed of (Mg + Ti). In Mg-Cu (Figure 2b), the reaction between Mg and Cu above 725 °C results in Mg + Cu/Mg2Cu eutectic mixture as observed from the x-ray diffraction analysis results (Figure 1). Hence the addition of nano-Cu to Mg forms Mg-Cu alloy with primary Mg and secondary Mg2Cu eutectic phases evenly distributed along the grain boundaries. In both these cases, the presence of either Ti-particles or Mg2Cu intermetallics inhibits the grain growth and acts as sites for grain nucleation [19,30], thus resulting in significant grain refinement as observed from the image analysis results in Table 2 and optical micrographs in Figure 3a–c. However, in comparison (Table 2), the grain refinement due to nano-Cu addition is more prominent than that due to micron-Ti addition.

Metals 02 00274 g002 1024
Figure 2. SEM micrographs showing the distribution of (a) Ti particulates in Mg-Ti composite; (b) Cu/Mg2Cu intermetallic particulates in Mg-Cu alloy; (c) Ti and Cu/Mg2Cu intermetallic particulates in Mg-Ti-Cu composite and (d) Ti, Cu/Mg2Cu and Ti3Cu intermetallic particulates in Mg-(Ti + Cu)BM composite.

Click here to enlarge figure

Figure 2. SEM micrographs showing the distribution of (a) Ti particulates in Mg-Ti composite; (b) Cu/Mg2Cu intermetallic particulates in Mg-Cu alloy; (c) Ti and Cu/Mg2Cu intermetallic particulates in Mg-Ti-Cu composite and (d) Ti, Cu/Mg2Cu and Ti3Cu intermetallic particulates in Mg-(Ti + Cu)BM composite.
Metals 02 00274 g002 1024
Table Table 2. Results of microstructure studies a.

Click here to display table

Table 2. Results of microstructure studies a.
S. No.MaterialGrain size (µm)Aspect ratio (µm)
1Pure Mg21 ± 31.63 ± 0.44
2Mg-Ti15 ± 41.58 ± 0.40
3Mg-Cu11 ± 21.66 ± 0.24
4Mg-Ti-Cu9 ± 31.60 ± 0.52
5Mg-(Ti + Cu)BM7 ± 31.56 ± 0.50

a Based on approximately 100 grains.

Metals 02 00274 g003 1024
Figure 3. Optical micrographs showing the grain morphology and characteristics of (a) Pure Mg; (b) Mg-Ti; (c) Mg-Cu; (d) Mg-Ti-Cu and (e) Mg-(Ti + Cu)BM.

Click here to enlarge figure

Figure 3. Optical micrographs showing the grain morphology and characteristics of (a) Pure Mg; (b) Mg-Ti; (c) Mg-Cu; (d) Mg-Ti-Cu and (e) Mg-(Ti + Cu)BM.
Metals 02 00274 g003 1024

For the Mg-materials developed by the combination of micron-sized Ti and nano-sized Cu (i.e., Mg-Ti-Cu, Figure 2c and Mg-(Ti + Cu)BM, Figure 2d respectively), significant grain refinement due to grain boundary pinning is observed, which is due to the presence of Ti particulates and Cu/Mg2Cu grain boundary precipitates [19,30,31]. As observed from XRD results (Figure 1), no interfacial reaction products form at the Mg/Ti interface of Mg-Ti-Cu (Figure 2c), whereas in the case of Mg-(Ti + Cu)BM, Ti3Cu/Mg2Cu intermetallics will form at the Ti/Mg interface (Figure 2d). While good wettability between Mg/Ti ensures good interfacial bonding [29], the presence of Ti3Cu in Mg-(Ti + Cu)BM not only improves the Ti/Mg-matrix interfacial bonding but is also expected to increase the strength at the interface [29,32]. The microstructure of the as-received Ti particulates and the ball milled (Ti + Cu)BM particulates indicates that the sharp corners of as-received Ti-particulates (Figure 4a) were rounded off when subjected to ball milling (Figure 4b) [21,22]. The combined metallic additions (micron-Ti and nano-Cu) also lead to the reduction in grain size in both the cases, with ball milling or without ball milling, Figure 3d,e. But the grain refinement effect is more pronounced in Mg-(Ti + Cu)BM, wherein the metallic elements were added after ball milling. Amongst all the materials developed, Mg-(Ti + Cu)BM shows the least grains size value with an average grain size of ~7 µm (Table 2). The grain refinement attributes to the presence of large number of small-sized Ti-particulates obtained due to ball-milling, since the ball milling operation involves repeated flattening, cold-welding and fracture of the particulates which act as sites for grain nucleation to occur [33,34].

Metals 02 00274 g004 1024
Figure 4. SEM micrographs showing the morphology of (a) as-received Ti particulates and (b) ball milled (Ti + Cu)BM powder.

Click here to enlarge figure

Figure 4. SEM micrographs showing the morphology of (a) as-received Ti particulates and (b) ball milled (Ti + Cu)BM powder.
Metals 02 00274 g004 1024

2.5. Mechanical Properties

The results of microhardness measurements (Table 3) indicate that the addition of metallic elements to pure Mg results in the increase the hardness values. Relatively higher hardness values are obtained when the metallic elements are added in combination (hybrid metallic elements) compared to those added individually. Among the hybrid addition, Mg-(Ti + Cu)BM incorporated with elements after prior ball milling shows the highest mean microhardness value, i.e., ~90% increase in comparison to pure Mg.

Table Table 3. Results of microhardness measurements

Click here to display table

Table 3. Results of microhardness measurements
S. No.MaterialMicrohardness [Hv]
1Pure Mg48 ± 1
2Mg-Ti71 ± 2
3Mg-Cu82 ± 4
4Mg-Ti-Cu86 ± 2
5Mg-(Ti + Cu)BM91 ± 3

The mechanical properties evaluation of Mg incorporated with individual Ti and nano-Cu particulates (Mg-Ti composite and Mg-Cu alloy) indicates an improvement in strength properties under both tension and compression as observed from Table 4 and Figure 5a, b; yet the increment in strength values in the case of Mg-Cu due to nano-Cu addition is more significant in comparison with micron-sized Ti addition in Mg-Ti. In both the cases, while the improvement in strength properties under tensile loading occurs with a corresponding increment in tensile ductility, under compressive loading, strength improvement occurred with reduction in compressive ductility. When both the micron-Ti and nano-Cu particulates were directly added (Mg-Ti-Cu), the tensile strength properties showed an improvement when compared to those with individual elements, but however exhibited low fracture strain values. In contrast, when both the metallic elements were added after ball-milling, Mg-(Ti + Cu)BM, the significant improvement in strength values was accompanied by a marginal improvement in failure strain values compared to Mg (Table 4). Under compressive loads, the combined addition of micron-Ti and nano-Cu particulates either with or without pre-processing by ball milling had improved the yield strengths, however the compressive strength and the ductility has been adversely affected. Even though, both the composites with combined metallic addition exhibited lower ductility when compared to individual nano-Cu addition, the addition of Ti and nano-Cu particulates after ball milling i.e., Mg-(Ti + Cu)BM, revealed higher compressive ductility when compared to the values obtained due to either direct addition (Mg-Ti-Cu) or individual Ti addition (Mg-Ti).

Table Table 4. Results of room temperature tensile and compression tests

Click here to display table

Table 4. Results of room temperature tensile and compression tests
S. No.MaterialTensile propertiesCompressive properties
0.2 YS [MPa]UTS [MPa]Failure Strain [%]0.2 CYS [MPa]UCS [MPa]Failure Strain [%]
1Mg125 ± 9169 ± 116.2 ± 0.774 ± 3273 ± 1122.7 ± 4.9
2Mg-Ti158 ± 6226 ± 68.0 ± 1.585 ± 3360 ± 513.6 ± 1.2
3Mg-Cu182 ± 4220 ± 48.9 ± 0.9102 ± 8386 ± 421.1± 1.7
4Mg-Ti-Cu196 ± 9227 ± 45.7 ± 1.6116 ± 5342 ± 316.1 ± 1.4
5Mg-(Ti + Cu)BM201 ± 7265 ± 117.5 ± 0.8126 ± 8380 ± 619.1 ± 2.9
Metals 02 00274 g005 1024
Figure 5. Engineering stress-Strain curves showing the mechanical behavior of developed Mg materials under (a) tension and (b) compression loading.

Click here to enlarge figure

Figure 5. Engineering stress-Strain curves showing the mechanical behavior of developed Mg materials under (a) tension and (b) compression loading.
Metals 02 00274 g005 1024

The fracture surfaces of all the test materials under tensile and compressive loading are shown in Figure 6a–e and Figure 7a–e, respectively. The fractographs of the test materials supplement the test results. In case of pure Mg, predominant cleavage mode of fracture is observed under tensile loading as in Figure 6a. While the tensile fracture surface of Mg-Ti indicates Ti-particle interface debonding as seen in Figure 6b, mixed mode fracture with predominant cleavage type fracture Figure 6c is observed in Mg-Cu. In case of combined addition, dominant cleavage mode fracture with Ti particle interface debonding (Figure 6d) is observed in the case of Mg-Ti-Cu composites whereas mixed mode fracture with good interface bonding and ductile features of plastic deformation (Figure 6e) is observed in Mg-(Ti + Cu)BM composite. The fracture under compressive loading occurred at ~45° angle with respect to the compression test axis in all the test samples. Under compression, pure Mg exhibited dominant shear failure and showed more shear bands when compared to the developed Mg-based materials. These materials on other hand, exhibited rough fracture surfaces with mixed mode of shear and brittle features, as evident from the fractographic evidences shown in Figure 7a–e.

Metals 02 00274 g006 1024
Figure 6. Fractographs of Mg-based materials after tensile loading showing: (a) Dominant cleavage fracture in pure Mg; (b) particle debonding in Mg-Ti; (c) cleavage fracture with ductile features in Mg-Cu; (d) dominant particle debonding features in Mg-Ti-Cu and (e) mixed fracture mode with good interface bonding with plastic deformation in Mg-(Ti + Cu)BM.

Click here to enlarge figure

Figure 6. Fractographs of Mg-based materials after tensile loading showing: (a) Dominant cleavage fracture in pure Mg; (b) particle debonding in Mg-Ti; (c) cleavage fracture with ductile features in Mg-Cu; (d) dominant particle debonding features in Mg-Ti-Cu and (e) mixed fracture mode with good interface bonding with plastic deformation in Mg-(Ti + Cu)BM.
Metals 02 00274 g006 1024

2.5.1. Influence of Individual Ti Addition

The mechanical properties improvement in Mg-Ti composite compared to pure Mg (Table 3 and Table 4) can be ascribed to the microstructural observations, the inherent properties of Ti particulates and the following strengthening effects: (i) thermal residual stress arising from the mismatch between the thermal expansion coefficients of Mg and Ti; (ii) grain refinement; (iii) the increased stress concentration at the pointed corners of Ti-particles [35]; and (iv) increase in the load carrying capacity due to higher hardness of Ti [31,36,37]. In addition, as reported by various researchers, the difference in CTE values (between the matrix and reinforcements) and the sharp corners of particulate reinforcements contribute to the matrix strengthening through the increased dislocation density at the matrix-reinforcement interface [35,36,37,38,39,40]. The inherent higher tensile and lower compression fracture strain values of Ti have resulted in the increased tensile and poor compressive ductility of Mg–Ti composite [38,40]. The fracture surface of Mg–Ti composite under tensile loading indicates mixed mode fracture (ductile + cleavage) (Figure 6b). The hard Ti particulates resist matrix crack propagation, which results in the delay in failure of the composite. Thus the presence of Ti particulates has efficiently improved the load bearing capacity and also the ductility [16]. In the absence of chemical bonding (no phase formation between Ti and Mg due to negligible solubility), the good wettability between Ti and Mg only governs the mechanical bonding [32]. Hence debonding of Ti particulates occurs once the peak load is reached, rather than Ti-particle fracture. The fracture surface of Mg–Ti composite under compressive loads shows relatively rough surface attributing to the dominant shear (shear + brittle) mode fracture (Figure 7a,b).

Metals 02 00274 g007 1024
Figure 7. Fractographs of Mg-based materials under compression showing dominant shear failure. (a) Pure Mg; (b) Mg-Ti; (c)Mg-Cu; (d) Mg-Ti-Cu and (e) Mg-(Ti + Cu)BM.

Click here to enlarge figure

Figure 7. Fractographs of Mg-based materials under compression showing dominant shear failure. (a) Pure Mg; (b) Mg-Ti; (c)Mg-Cu; (d) Mg-Ti-Cu and (e) Mg-(Ti + Cu)BM.
Metals 02 00274 g007 1024

2.5.2. Influence of Individual Nano-Cu Addition

The combined effects from: (i) thermal mismatch between the matrix (Mg) and the second phases (Cu/Mg2Cu); (ii) grain refinement; (iii) matrix work hardening/strain misfit due to the presence of second phase particulates; and (iv) non-basal slip system activation contribute to the mechanical properties enhancement, as reported elsewhere [40,41,42,43]. In addition, (v) the presence of harder Mg2Cu/Cu agglomerates and (vi) the efficiency of Mg2Cu/Cu in effective load transfer between Mg matrix [31], contribute to an appreciable improvement in strength properties. The tensile fracture surface of Mg-Cu alloy confirms the mixed mode fracture with dominant cleavage fracture with the evidences of ductile features attributing to the plastic deformation (Figure 6c) when compared to the fracture surface of pure Mg, which shows fracture by cleavage (Figure 6a). The well-bonded second phases (Cu/Mg2Cu agglomerates) attribute to efficient load transfer, which results in mixed mode fracture interspersed with cleavage steps and ductile features as shown in Figure 6c. Compressive fracture surfaces of both pure Mg and Mg-Cu alloy shows failure by shear band formation (Figure 7a,c). Thus the combined effects of grain refinement, uniform distribution of nano-sized particulates without agglomeration and slip on extra non-basal slip system attributes to the improvement/little adverse effect in ductility under tension and compression respectively [42].

2.5.3. Influence of Direct addition of Hybrid (Ti and nano-Cu) Metallic Particulates

The mechanical properties evaluation indicates a higher value of microhardness and strengths in the case of Mg-Ti-Cu involving the direct addition of hybrid (micro-Ti and nano-Cu) metallic addition than that of pure Mg, and individual metallic addition (Table 3 and Table 4). However, the strength improvement under tension and compression occurred with the drastic reduction in ductility (Table 4). The strength properties increment follows similar effects observed with the individual addition of metallic elements (Ti/nano-Cu), as explained earlier. But the overall increase in second phases and their clustering near the sharp cornered Ti particulates as seen in Figure 4a have resulted in the large reduction in fracture strain as observed from Table 4 [44]. During solidification and subsequent extrusion, these sharp corners of Ti particulates would act as favorable sites for the second phase agglomeration to occur (Cu/Mg2Cu formation), due to the high energy and stress concentration associated with irregularly-shaped particulates [32]. Hence, matrix cracking along with Ti-particle debonding would occur preferentially at the sites with intermetallic phases and thus results in the poor ductility [21,22,35]. Figure 6d shows the image of fracture surface seen in Mg-Ti-Cu indicating the brittle fracture with prominent cracking under tension and dominant shear failure under compression as shown in Figure 7d.

2.5.4. Influence of Prior Ball-milling of Hybrid (Ti and nano-Cu) Metallic Particulates

The improvement in the microhardness and strength properties is more significant in Mg-(Ti + Cu)BM as it exhibits the highest values amongst the developed materials. The yield strength under tension and compression has improved by ~60% and ~70% respectively when compared to pure Mg. While the strength improvement under tensile loading is accompanied by corresponding increment in tensile ductility by ~20%, a slight reduction in ductility (~16%) is seen under compression due to combined metallic addition (Table 4). The increment in strength properties in Mg-(Ti + Cu)BM composite is due to the presence of relatively hard metallic particulates (Ti) and intermetallic phases (Mg2Cu, Ti3Cu), which in turn gives rise to one or more of the strengthening effects arising from individual Ti or nano-Cu and effective load transfer due to good interfacial bonding [21,22,36,37,41]. Unlike Mg-Ti-Cu, wherein the sharp and angular particles contribute to stress concentration and resulting in lower ductility (Table 4), the improved ductility under tension in Mg-(Ti + Cu)BM is due to the change in morphology and size of the micron-sized Ti-particles. Hence, the substitution of particles with blunted and rounded edges aid in the retention in tensile ductility without affecting the strengthening effect. These results are similar to those observed by various researchers [22,35]. Further, the presence of blunt-edged particles would also minimize the preferential agglomeration of nano-Cu in Ti-particle corners, as observed in directly added Mg-Ti-Cu. Also, as the presence of Ti3Cu intermetallic improves the interfacial bonding at the Mg/particle interface, it would also improve the shear strength at the interface, thereby increasing the load bearing capacity [44] However, the relatively lower ductility under compression of Mg-(Ti + Cu)BM when compared to pure Mg (although higher than Mg-Ti-Cu) is attributed to the presence of inherent properties of harder Ti-particles and Mg2Cu/Cu, Ti3Cu intermetallics. The tensile fracture surface of Mg-(Ti + Cu)BM is thus characterized by mixed mode fracture with significant plastic deformation respectively as shown in Figure 6e, while the compression fractographs indicates shear mode fracture with rough surfaces as observed in Figure 7e.

To summarize, the incorporation of metallic elements to pure Mg improved the mechanical properties significantly. While the addition of insoluble micron-sized element (Ti) acted as a metallic reinforcement and formed the Mg-Ti composite, the addition of metallic element with limited solubility (Cu) formed the Mg-Cu alloy. Both these additions resulted in the enhancement of strength and ductility. When a combination of soluble and insoluble elements was incorporated in Mg, the resulting microstructure and mechanical properties depended on their mode of addition. The direct addition of elements to pure Mg resulted in properties that were similar to or lower than that of Mg-Ti and Mg-Cu. On the other hand, the prior ball milling of the soluble and insoluble elements not only changed their morphology but also resulted in solid-state reaction forming in-situ Ti3Cu intermetallic phase, thus markedly improving the strength properties of the composite. Hence, depending on the final application, the metallic alloying/reinforcing elements and their combination should be judiciously selected.

3. Experimental Procedure

3.1. Materials

Mg turnings of >99.9% purity (ACROS Organics, New Jersey, NJ, USA), was used as the matrix material. The metallic additions were: (i) insoluble micron sized Ti particulates, Mg-Ti; (ii) addition of nano sized Cu particulates with limited solubility, Mg-Cu; (iii) addition of a combination of Ti and nano-Cu particulates by (a) incorporation after pre-processing, Mg-(Ti + Cu)BM and (b) direct addition without any pre-processing, Mg-Ti-Cu. Elemental Ti particulates of particle size <140 μm (purity 98%) supplied by Merck, and nano-Cu particulates of average particle size ~50 nm (purity 99%) supplied by Nanostructure and Amorphous were used. The compositions of the Ti and nano-Cu were identified as 5.6 wt % and 3 wt % respectively based on previous investigations [20,21].

3.2. Processing

3.2.1. Pre-processing of Metallic Additions

The pre-processing of the metallic additions was carried out using ball-milling, which is a solid-state processing technique. Retsch PM-400 mechanical alloying machine was used for ball-milling the metallic elements (Ti and nano-Cu), herein referred to as (Ti + Cu)BM. Prior to ball milling, the elemental Ti and nano-Cu particulates were blended for 1 hour (with 0.3 wt % stearic acid as process control agent) so as to ensure uniform mixing of Ti and nano-Cu particulates. After blending, hardened stainless steel balls of diameter 15 mm were added and the blended mixture was ball-milled for 2 hours. Ball-milling was carried out so as to allow the metallic particles to react with each other and to get the nano-sized Cu particles effectively embedded in the micron size Ti-particles [22,23]. The ball to powder weight ratio was kept at 20:1 and the speed of the milling machine was set at 200 rpm during the blending and ball milling processes [21,22,23].

3.2.2. Melting and Casting

The Mg-based materials were prepared using the DMD technique [12,13]. The Mg turnings together with the metallic additions were heated in a graphite crucible to 750 °C in an electrical resistance furnace, under inert argon gas protective atmosphere. The superheated molten slurry was stirred for 5 min at 460 rpm using a twin blade (pitch 45°) mild steel impeller. This facilitates uniform distribution of the incorporated metallic elements in the Mg-matrix. The impeller was coated with Zirtex 25 (86%ZrO2, 8.8%Y2O3, 3.6%SiO2, 1.2%K2O and Na2O, and 0.3% trace inorganic) to avoid iron contamination of the molten metal. The melt was then released through a 10 mm diameter orifice at the base of the crucible and it was disintegrated by two jets of argon gas (at a flow rate of ~25 L/min), which was located at a distance 265 mm from the melt pouring point and oriented normal to the melt stream. The disintegrated melt slurry was subsequently deposited onto a metallic substrate located 500 mm from the disintegration point. An ingot of 40 mm diameter was obtained following the deposition stage. The synthesis of pure Mg was carried out in a similar fashion, except that no alloying elements were added.

3.2.3. Hot Extrusion

The pure Mg and the Mg-based materials obtained were machined to a diameter of 36 mm and soaked at 400 °C for 60 min. Hot extrusion was then carried out using a 150 T hydraulic press at 350 °C with an extrusion ratio of 20.25:1 to obtain rods of 8 mm in diameter. Samples from the extruded rods were used for further characterization as detailed in the next section.

3.3. Materials Characterization

3.3.1. Density Measurements

The experimental mass densities of pure Mg and the Mg-based materials developed were determined using Archimedes’ principle. This involved weighing the sample in air and then in distilled water using an A&D ER-182A electronic balance with an accuracy of ±0.0001 g. The theoretical densities of composites were calculated using the rule of mixtures [10].

3.3.2. X-ray Diffraction Studies

X-ray diffraction (XRD) analysis was carried out on the polished samples of developed Mg-materials using an automated Shimadzu LAB X XRD-6000 diffractometer. The samples were exposed to Cu Kα radiation (λ = 1.54056 A°) at a scanning speed of 2°/min. The Bragg angles and the values of interplanar spacing, d, obtained were matched with standard values for Mg, Ti, Cu and other related phases.

3.3.3. Microstructural Characterization

The grain morphology and distribution of second phases/particulates in Mg matrix were studied on the as-polished samples. A Hitachi S-4300 field emission scanning electron microscope (FESEM) equipped with energy dispersive X-ray spectroscopy (EDS), a Jeol JSM-5800 LV scanning electron microscope (SEM), an Olympus metallographic optical microscope and Scion image analysis software were used for this purpose. The microstructure of the as-received Ti and ball milled (Ti + Cu)BM powders were also investigated using SEM for determining the average particle size and particle morphology.

3.3.4. Mechanical Properties Measurements

The microhardness measurements were carried out on the as-polished samples of pure Mg and other Mg-based materials using Matsuzawa MXT 50 automatic digital Microhardness tester. Vickers indenter under a test load of 25 gf and a dwell time of 15 s was used to perform the micro hardness tests in accordance with the ASTM standard E3 84–99. The tests were conducted on three samples for each composition for 10–15 repeatable readings.

A fully automated servo-hydraulic mechanical testing machine, Model-MTS 810 was used to determine the tensile properties of the Mg-based materials, in accordance with ASTM test method E8M-96. The crosshead speed was set at 0.254 mm/min. Specimens with 5 mm diameter and 25 mm gauge length was used. Instron 2630-100 series clip-on type extensometer was used to measure the failure strain. For each composition, a minimum of 5 tests were conducted to obtain repeatable values. The compressive properties of the developed Mg-based materials along with pure Mg were determined in accordance with ASTM test method E9-89a using MTS 810 testing machine with a crosshead speed set at 0.04 mm/min. Compressive test specimens of 8 mm diameter with length to diameter ratio, l/d~1, were used. For each composition, a minimum of 5 tests were conducted to obtain repeatable values. The fracture surface analyses of all the Mg-materials, tested under tension and compression, were studied using Jeol JSM-5800 LV SEM and Hitachi S-4300 FESEM.

4. Conclusions

The following are the conclusions that could be drawn from the present study:

  • (1) The addition of micron sized (Ti) particulates with negligible solubility and nano-sized Cu particulates with limited solubility in Mg, resulted in the formation of Mg-Ti composite and Mg-Cu alloy, respectively.

  • (2) While the inherent properties of Ti such as hardness, ductility and the good wettability of Ti and Mg enhanced the strength and ductility of the Mg-Ti composite, the Mg2Cu eutectic phase formation refined the grain size and significantly improved the mechanical properties in Mg-Cu alloy.

  • (3) The effects of the combined addition of (micro-Ti and nano-Cu) metallic elements on the properties of Mg primarily depend on their method of addition.

  • (4) In Mg-Ti-Cu, involving direct addition of micro-Ti and nano-Cu, strength properties improvement with an adverse effect on ductility occurred and the reduction in ductility is attributed to the overall higher volume fraction of the metallic particulates and intermetallics, morphology of micron-sized Ti-particle, formation and agglomeration of Mg2Cu/Cu.

  • (5) The best strength properties were obtained in Mg-(Ti + Cu)BM, through the combined addition of micron-sized Ti particles and nano-sized Cu particles after prior ball-milling. The elimination of sharp corners of Ti particulates and Ti3Cu intermetallic formation during ball milling attributes to the simultaneous improvement in strength and ductility when compared to Mg-5.6Ti-3Cu.

Conflict of Interest

The authors declare no conflict of interest.

Acknowledgements

The authors gratefully acknowledge the financial support from Qatar National Research Foundation through research grant # NPRP08-424-2-171 (R-265-000-346-597). One of the authors, Sankaranarayanan, sincerely thanks the NUS research scholarship for its support for his graduate study.
