Metals 2012, 2(2), 95-112; doi:10.3390/met2020095

Article
The Role of Foaming Agent and Processing Route in the Mechanical Performance of Fabricated Aluminum Foams
Alexandra Byakova 1,*, Svyatoslav Gnyloskurenko 2 and Takashi Nakamura 3
1
Institute for Problems of Materials Science, National Academy of Sciences of Ukraine, 3 Krzhyzhanovsky Street, Kiev 03142, Ukraine
2
Physical-Technological Institute of Metals and Alloys, National Academy of Sciences of Ukraine, Kiev 04004, Ukraine; Email: slava.vgn@gmail.com
3
Institute of Multidisciplinary Research for Advanced Materials, Tohoku University, Sendai 980-8577, Japan; Email: ntakashi@tagen.tohoku.ac.jp
*
Author to whom correspondence should be addressed; Email: byakova@mail.ru; Tel./Fax: +38-044-423-82-53.
Received: 30 March 2012; in revised form: 30 April 2012 / Accepted: 9 May 2012 /
Published: 23 May 2012

Abstract

: The results of the present study highlight the role of foaming agent and processing route in influencing the contamination of cell wall material by side products, which, in turn, affect the macroscopic mechanical response of closed-cell Al-foams. Several kinds of Al-foams have been produced with pure Al by the Alporas melt process and powder metallurgical technique, all performed either with conventional TiH2 foaming agent or CaCO3 as an alternative. Mechanical characteristics of contaminating products induced by processing additives, all of which were presented in one or another kind of Al-foam, have been determined in indentation experiments. Damage behavior of these contaminations affects the micro-mechanism of deformation and favors either plastic buckling or brittle failure of the cell walls. It is justified that there is no discrepancy between experimental values of compressive strengths for Al-foams comprising ductile Al + Al4Ca eutectic domains and those prescribed by theoretical models for closed-cell structure. However, the presence of low ductile Al + Al3Ti + Al4Ca eutectic domains and brittle particles/layers of Al3Ti, fine CaCO3/CaO particles, Al2O3 oxide network, and, especially, residues of partially reacted TiH2, results in reducing the compressive strength to values close to or even below those of open-cell foams of the same relative density.
Keywords:
Al-based foams; foaming agents; processing; cell wall constituents; mechanical properties

1. Introduction

The unique combination of low specific weight and novel mechanical and physical properties of aluminum foams offer significant performance gains and have generated a growing interest in the development of light, stiff structures for different engineering applications. In particular, closed cell Al-foams show a capacity to undergo large strains (up to 60–70%) under almost constant stress, ensuring their remarkable ability to absorb impact energy, making them attractive for different applications where effective utilization of impact energy is required. For instance, in aluminum foam sandwich (AFS) structures composed of metal/ceramic coversheets and Al-foam core, the last one can act as an efficient impact energy absorber that limits accelerations in crash accidents, providing crash protection for terrestrial and marine vehicles [1,2]. That is why there has been extensive interest recently in the production [3,4,5,6,7,8,9,10] and mechanical performance of Al-foams [11,12,13,14,15,16,17,18,19], as well as composite layered structures, incorporating a Al-foam core [3,20,21].

Several models [3,22,23,24], based on an idealized representation of cellular structure, have been developed for interpreting the mechanical behavior of foams. However, the actual profile of mechanical properties for real Al-foams is far removed from theoretical predictions based on idealized representations of defect-free cellular materials [11,23]. It is commonly considered that disagreements between experimental results and theoretical predictions arise due to different imperfections existing in real metallic foams. Usually, cell morphology [17,23,25,26], micro-pores, and their spatial distribution in cell walls [16], as well as non-homogeneous density distribution [24,25], are considered to be the key factors in control of mechanical behavior of aluminum foams. However, it is difficult to quantify the precise significance of these factors because of microscopic features such as foreign particles, precipitates, and solute elements present in the cell wall material, currently thought to be of great importance, resulting in the non-homogeneous stress/strain distribution. Nevertheless, microstructural aspects are still largely ignored in most studies, despite the known crucial role of microstructure performance characteristics of the corresponding bulk material. This problem becomes increasingly pronounced when the processing of additives, usually resulting in unconventional alloys [8,11,12,13,19], is taken into consideration. Great number of various intermetallic compounds and other foreign particles formed in the course of the foaming process substantially affect the micromechanism of deformation, degrading the mechanical response of foams [12,13,16,18,19]. Unfortunately, evidence concerning the mechanical response of Al-based intermetallic compounds and other particles, typical for the cell wall material of aluminum foams, are few in number [19,27].

The intent of the present paper is to elucidate the role of foaming agent and processing route in influencing the mechanical performance of Al-foams. Attention is primarily concentrated on the correlation between the macroscopic compressive behavior of Al-foam and characteristic features for mechanical response of the cell wall constituents induced by processing additives.

2. Results and Discussion

2.1. Material Characterization

All kinds of Al-foams (F1 and F2) fabricated by the melt processing Alporas route exhibit typical closed-cells of spherical shape, although another outcome was true for Al-foams (F3 and F4) performed by the powder metallurgical (PM) route using powder compact precursor. Cells created from powder compacts displayed an elliptic-like shape with the major axis arranged along the extrusion direction. Anisotropy of the cell shape for PM Al-foams was found to be dependent on extrusion conditions and, especially, on the reduced coefficient, ke [12,18]. In the present study, PM Al-foams (F3 and F4) composed of cells with aspect ratios 1.1 (F3) and 1.4 (F4) were produced and chosen for further experimentation. An additional difference concerns the fact that the mean cell size of carbonate foams (F2 and F4) was found to be smaller at least by a factor of 2 compared to that of hydride foams (F1 and F3). All kinds of Al-foams demonstrate non-homogeneous cell wall material microstructure, as shown in Figure 1.

Metals 02 00095 g001 200
Figure 1. SEM images of the cell walls for Al-foams produced with pure Al by (a,b) Alporas melt process and (c,d) powder metallurgical technique, all performed either with (a,c) TiH2 foaming agent or (b,d) CaCO3 foaming agent.

Click here to enlarge figure

Figure 1. SEM images of the cell walls for Al-foams produced with pure Al by (a,b) Alporas melt process and (c,d) powder metallurgical technique, all performed either with (a,c) TiH2 foaming agent or (b,d) CaCO3 foaming agent.
Metals 02 00095 g001 1024

Nevertheless, cell wall constituents revealed in hydride and carbonate kinds of Al-foams are rather different and dependent on the processing technique and processing additives, as listed in Table 1. As originally reported in [12,14,18,19], the cell wall material of Al-foams (F1 and F2) processed via the Alporas route comprises coarse Al dendrites rounded by a network of eutectic domains with composition dependent on the kind of foaming agent, TiH2 or CaCO3. As can be seen in Figure 1(a,b), the hydride kind of Al-foam (F1) contains Al + Al4Ca + Al3Ti eutectic domains (light grey), whereas Al + Al4Ca eutectic domains (light grey) are indicative of a carbonate kind of Al-foam (F2). In addition, incorporated Al-Ca-Ti particles (white) are found in the cell wall material of the hydride kind of Al-foam (F1), making the fraction volume of foreign constituents greater compared to that of CaCO3-foam. Moreover, increased content (roughly about 0.26 at.%) of dissolved Ti is detected by energy dispersive spectroscopy in the Al matrix of the hydride kind of Al-foam (F1).

As can be seen in Figure 1(c,d), huge numbers of foreign particles of partly converted foaming agents and/or their reaction products are randomly scattered in the cell walls of the Al-foams (F3 and F4) performed by the PM route. Small Al3Ti particles (light grey) and Ti-rich particles (white) rounded by Al3Ti layers (light grey) are indicative of a hydride kind of Al-foam (F3), as shown in Figure 1c. In addition, trace amount of Al + Al3Ti eutectic domains (light grey) are revealed within the cell walls of this kind of Al-foam. Network of Al2O3 (light grey) being a side product of a broken oxide layer, which always covers the Al powder particles, is also contained by the cell wall material, as can be seen in Figure 1d. Compared to the hydride kind of Al-foam (F3), CaO particles (white) entrapped by Al2O3 network are found in the cell wall material of the carbonate kind of Al-foam (F4), as shown in Figure 1d. Actually, few partly decomposed CaCO3 particles (dark grey) are also expected within the cell wall material. These particles can survive in the cell wall material because of the slow kinetics of CaCO3 decomposition [7,10]. As a general conclusion, it could be assumed that pronounced differences in the cell wall microstructure results from the difference in processing route and processing additives, as evidenced from Table 1.

Table Table 1. Characteristic features of the cell wall material created in Al-foams.

Click here to display table

Table 1. Characteristic features of the cell wall material created in Al-foams.
CodeProcessCell wall constituents
F1Alporas routeAl + (Al + Al3Ti + Al4Ca) domains + Al-Ca-Ti particles
F2Alporas routeAl + (Al + Al4Ca) domains
F3PM techniqueAl + particles: Al3Ti, TiH2/Al3Ti, Al2O3
F4PM techniqueAl + particles: CaO, CaCO3, Al2O3

2.2. Mechanical Properties and Damage Behavior of Cell Wall Constituents

The set of mechanical characteristics determined for the materials studied compositionally corresponded to the cell wall constituents that have been revealed in the hydride and carbonate kinds of Al-foams, and are listed in Table 2.

Several aspects should be mentioned here by comparison with the data listed in Table 2. First of all it could be concluded that the presence of solute Ti in the Al matrix of the cell walls for hydride kinds of Al-foams (F1 and F3) causes Young’s modulus, E, and nanohardness, Hh, to rise. Titanium hydride, TiH1.92, and Al4Ca intermetallic compound give the values of Young’s modulus, E, and yield strength, σys, smaller than those for Al matrix, despite the fact that hardness numbers, Hh and HV, are much higher. Another fact is true for the other cell wall constituents and solid materials, i.e., all of them exhibit much higher values of strength parameters such as E, Hh, HV, and σys, compared to those indicative of Al matrix alloy. The second aspect concerns the difference in plasticity behavior of the cell wall constituents and other solid materials being formed in the cell walls under the influence of different processing additives. Only Al + Al4Ca eutectic domains demonstrate quite high plasticity close to the Al matrix (δH ≥ 0.9), suggesting ductile behavior of material under conventional tests under tensile and bending forces [28]. The opposite is true for Al + Al4Ca + Al3Ti domains and other solid materials, for which plasticity characteristics are smaller than the critical value, i.e., δА/δH < 0.9, suggesting their low ductility and tendency to failure by ductile and/or brittle fracture. Figure 2 shows representative SEM images of the brittle microcracks within and around the microindentations placed on Al3Ti and Al4Ca.

Table Table 2. Mechanical characteristics of the cell wall constituents and solid materials.

Click here to display table

Table 2. Mechanical characteristics of the cell wall constituents and solid materials.
Material/Foam CodeE ,Нh ,HV ,δА/δHσys ,K1c,
GPaGPa GPaGPaMPa × m1/2
α-AlTi/F1, F397.0 ± 101.05 ± 0.180.400.94/0.96
α-Al/F2, F474.0 ± 30.54 ± 0.00.25 ± 0.010.96/0.970.40 *
(Al + Al4Ca + Al3Ti)/F2, F3116 ± 175.51 ± 1.270.72/–
(Al + Al4Ca)/F179 ± 71.32 ± 0.150.90/–
Al3Ti/F1, F3220.0 ± 78.9 ± 0.95.3 ± 0.30.72/0.780.901.71 ± 0.18
Al4Ca/ F239.4 ± 1.42.2 ± 0.11.7 ± 0.060.64/0.630.280.78 ± 0.09
TiH1.92 /F1, F340.5 ± 0.21.82 ± 0.161.32 ± 0.050.72/0.780.210.71 ± 0.01
CaCO3/F479.0 ± 12.2 ± 0.11.60 ± 0.050.77/0.790.790.52 ± 0.20
CaО/F4181 **6.05 **–/0.67
Al2O3/F3, F4403.9 **25–/0.474.0 ± 0.15
Technical Glass615.25 ± 0.03–/0.291.17 ± 0.09

Note: E, Hh, HV, σys, and K1c, are Young’s modulus, nanohardness, Vickers hardness, yield strength, and fracture toughness criterion, respectively; dimensionless parameters such as δH and δА, are plasticity characteristics that define ductility of materials determined by indentation experiments, i.e., δH represents the part of plastic deformation in total deformation under microindentation, whereas δА represents the part of plastic deformation work in total deformation work during load-displacement experiments; * data are adopted over [4]; ** data are adopted over [29].

Metals 02 00095 g002 200
Figure 2. SEM images of indentations placed on (a) Al4Ca and (b) Al3Ti under indentation loads such as (a) F = 1.0 N and (b) F = 1.5 N by using trihedral indenter with the angle at the tip 55°.

Click here to enlarge figure

Figure 2. SEM images of indentations placed on (a) Al4Ca and (b) Al3Ti under indentation loads such as (a) F = 1.0 N and (b) F = 1.5 N by using trihedral indenter with the angle at the tip 55°.
Metals 02 00095 g002 1024

In addition, several systems for dislocation gliding inclined one towards the other are revealed around microindentations placed on the Al3Ti intermetallic compound. Slight slip bands indicative of dislocation activity are also visible around microindentations placed on the Al4Ca intermetallic compound.

Nanoindentation data give additional information on the damage behavior of low ductile solid materials. Unlike titanium hydride TiH1.92, for which nanoindentation diagrams are mostly typical of regular elastoplastic materials, a huge number of displacement discontinuities (pop-ins), indicative of localized deformation in share bands, are revealed in the load-displacement curves for Al3Ti intermetallic compound and marble, CaCO3, as shown in Figure 3.

It is commonly considered that strong localized deformation is accompanied by extrusion and intrusion processes, finally resulting in crack nucleation. The result of these processes is clearly visible in Figure 2a.

Metals 02 00095 g003 200

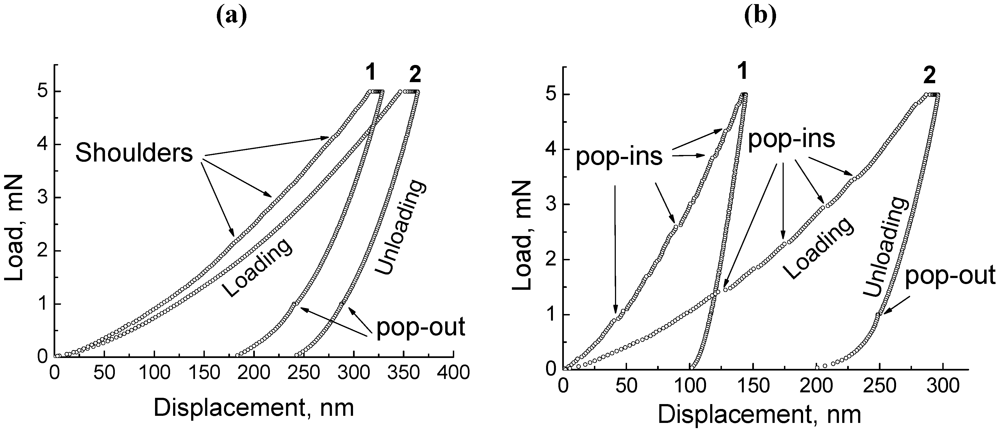

Figure 3. Load displacement curves recorded in nanoindentation experiments for (a) Al4Ca (1) and TiH1.92 (2); as well as for (b) Al3Ti (1) and CaCO3 (2).

Click here to enlarge figure

Figure 3. Load displacement curves recorded in nanoindentation experiments for (a) Al4Ca (1) and TiH1.92 (2); as well as for (b) Al3Ti (1) and CaCO3 (2).
Metals 02 00095 g003 1024

Compared to Al3Ti compound, the loading part of the load-displacement curve for Al4Ca intermetallic compound given in Figure 3a is fairly featureless. Nonetheless, shoulders, which are very small to be readily seen, could be recognized in the load-displacement curve for Al4Ca intermetallic compound. The same as pop-ins, these small shoulders are usually ascribed either to microcracking within indentation or to dislocation activity [30]. The latter is indicative of Al4Ca intermetallic compound, as can be seen in Figure 2b.

Thus, both kinds of intermetallic compounds (Al4Ca, Al3Ti), which are of tremendous importance in foaming processes, show a significant tendency to failure due to mechanical damage. The difference is that the mechanical damage of Al3Ti intermetallic compound is dominated by ductile cleavage, superimposed by brittle fracture, while mechanical damage of Al4Ca intermetallic compound is primarily caused by brittle fracture that is accompanied by confined plastic flow in order to partially accommodate high strains in the surrounding material.

In addition, nanoindentation data for marble, CaCO3, titanium hydride TiH1.92, and Al4Ca intermetallic compound display a small discontinuity (“pop-out”) on pressure release by 80%, which is commonly interpreted as an event of crack nucleation within an indentation of brittle material in response to the accommodation of acting indentation residual stress.

The results obtained in indentation experiments specify that crack nucleation is found to be common for all of solid materials for which plasticity characteristics are smaller than the critical value δA/δA << 0.9. In addition, under the condition above, these solid materials usually demonstrate low resistance to crack propagation. Actually, the results listed in Table 2 show that fracture toughness KIc of the solid materials is too small and indicative for ceramics, particularly, Al2O3. Moreover, the KIc criterion for solid materials such as Al4Ca, CaCO3, and titanium hydride, TiH1.92 is even less than that for technical glass. This suggests that the presence of low ductile and/or brittle cell constituents can lead to impairing damage resistance of the cell walls, facilitating their premature failure under load.

2.3. Compressive Response of Al-Foams

Figure 4 shows representative results of compression tests for different kinds of Al-foams. All of the foams exhibit deformation patterns typical for those reported for closed-cell foams [3,11,13,22].

Metals 02 00095 g004 200

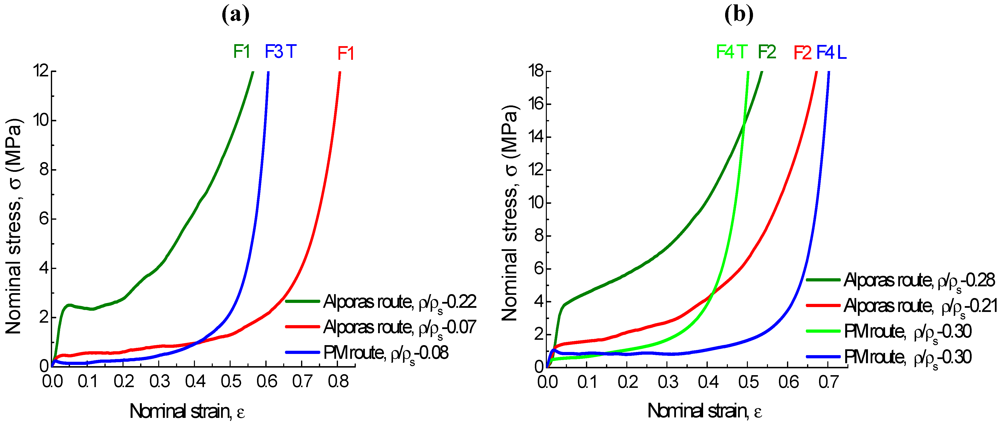

Figure 4. Compressive stress-strain curves for (a) hydride (F1 and F3) and (b) carbonate (F2 and F4) kinds of Al-foams. Symbols L and T correspond to longitudinal and transverse tests, respectively.

Click here to enlarge figure

Figure 4. Compressive stress-strain curves for (a) hydride (F1 and F3) and (b) carbonate (F2 and F4) kinds of Al-foams. Symbols L and T correspond to longitudinal and transverse tests, respectively.
Metals 02 00095 g004 1024

Generally, all kinds of Al-foams display an initial linear elasticity regime before general yielding (yield stress, σy), followed by a relatively long and well-defined “plateau” regime, which is typically associated with cell collapse, accompanied by densification of the cell wall material. The “plateau” regime continuous up to large strains (densification strain, εD) beyond which cellular structure commences to condense completely and the stress rises steeply. Typically for closed-cell foams, tensile membrane stress causes nominal stress to rise up gradually within the “plateau” regime. Additional to geometrical hardening by collapse of cells, a microscopic hardening of cell wall material by plastic deformation promotes an increase of “plateau” stress. Moreover, compressive stress decreases as relative density decreases, as depicted in Figure 4.

As a characteristic feature related to the effect of the cell shape imperfection, anisotropy of compression response is displayed by foam F4 under longitudinal/transverse tests that is typical for Al-foams created from powder compacts [4], as can be seen in Figure 4b. A stress-strain pattern characterized by a fast hardening rate within the “plateau” regime is shown under transverse compression of foam F4 in contrast to its response under longitudinal compression at which stress-strain curve demonstrates peak stress corresponding to the onset of global collapse and followed by a load softening region to the long and almost flat “plateau”.

Although all kinds of foams display a macroscopic response rather similar to elastic/plastic behavior, attention is concentrated on the differences in microscopic deformation events, as can be seen in Figure 4. A carbonate kind of Al-foam F2 with ductile eutectic domains in the cell wall material deforms smoothly throughout the entire strain range that is usually associated with plastic buckling [22]. In contrast, slight oscillations are superimposed upon an increasing “plateau” stress level in deformation patterns of all the other kinds of Al-foams (F1, F3, and F4), which cell walls contain low ductile and/or brittle constituents. These stress oscillations commonly interpreted as hardening/softening sequences are typically associated with local brittle failure of the cell walls [22]. Thus, comparative analysis of compressive response for different kinds of Al-foams elucidate the fact that microstructure and mechanical damage of cell wall constituents have a dramatic effect on the microscopic mechanism of local deformation and failure, which in turn is thought to have an influence on the macroscopic mechanical response of Al-foams.

2.4. Comparison of Al-foam Compressive Strength with Theoretical Models

There are several models based on the idealized representation of a defect-free cellular structure. Among them, the most famous scaling laws applied for describing mechanical properties are summarized in [11]. For open-cell foams made of elastic-plastic materials, dimensional arguments give the plastic collapse stress, σpl, relative to the yield strength of the solid cell edge material, σys, as:

Metals 02 00095 i001

where the constant C3 is related to the cell geometry. For a wide range of foams the constant above, C3, is roughly about 3.

For closed-cell foams, yielding of the stretched cell faces contribute to their strength so that the additional term on right hand side appears in the relation for the plastic collapse stress:

Metals 02 00095 i002

Finite element analysis of a tetrakaidecahedral unit with flat faces gives a slightly different relation [23].

Metals 02 00095 i003

Generally, compressive strength is usually defined in slightly different ways in different studies, i.e., it is either “plateau” stress, relative to the yield strength, or compressive strength at 20% strain [11]. Yield stress, σy, at the general yielding, and plateau stress up, to densification, σpl, at which cellular structure commences to condense completely and the stress rises steeply [12], are used in the present study to define collapse stress and therefore estimate the role of cell wall microstructure in terms of its effect on compressive response of Al-foams.

The values of compressive strength, σy and σpl, for the kinds of Al-foams (F1, F2, F3, and F4) studied have been normalized by the values of yield strength, σys, for the solid alloys, the compositions for which correspond approximately to the cell wall materials. Approximate values of yield strength, σys, for solid materials determined by conventional mechanical tests in tensile are listed in Table 3.

Table Table 3. Composition and yield strength, σys, of solid materials.

Click here to display table

Table 3. Composition and yield strength, σys, of solid materials.
Kind of Al-foamComposition of solid materialYield strength, σys (MPa)
F1Al + (Al + Al3Ti + Al4Ca) domains42.80 ± 4.89
F2Al + (Al + Al4Ca) domains43.50 ± 7.1
F3Al + (Al + Al3Ti) domain traces41.00 ± 5.4
F4Al + CaCO3/CaO particles43.30 ± 3.35

Data for the relative compressive strength, σy/σys and σpl/σys, for different kinds of Al-foams (F1, F2, F3, and F4) are plotted in Figure 5 along the lines, which represent Equations (1) and (2) for open- and closed-cell foams, respectively.

Metals 02 00095 g005 200

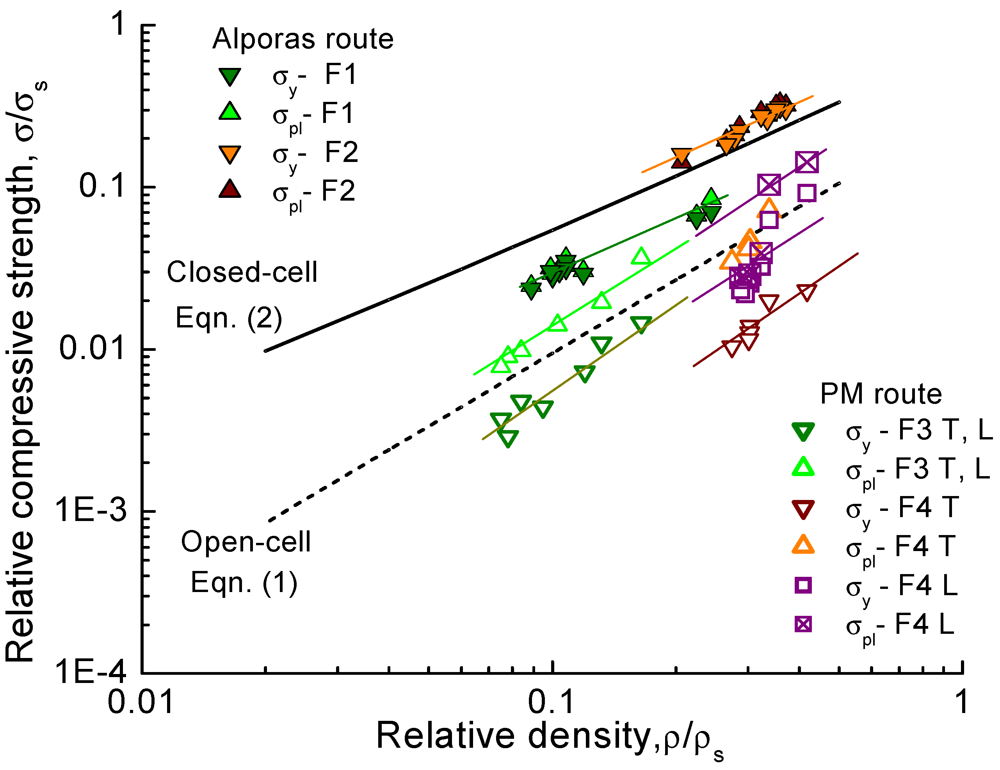

Figure 5. Relative compressive strength plotted against relative density for different kinds of Al-foams. Symbols L and T correspond respectively to longitudinal and transverse tests.

Click here to enlarge figure

Figure 5. Relative compressive strength plotted against relative density for different kinds of Al-foams. Symbols L and T correspond respectively to longitudinal and transverse tests.
Metals 02 00095 g005 1024

Data for the carbonate kind of Al-foam F2 performed by the Alporas route lie close to Equation (2), as prescribed by the theory for closed-cell foams. However, behavior of the hydride kind of Al-foam F1 produced by the same manner is rather different. Data for Al-foam F1 lie below Equation 2 and shift to Equation 3, suggesting the decreased contribution of plastic bending to the failure.

Considerable deflection of the experimental results from theoretical predictions is revealed for Al-foams produced via the PM route. Data for the hydride kind of Al-foam F3 lie well below Equation (2) and much close to Equation (1). In addition, data for plateau stress lie just above the line representing strength for open-cell foam whereas those for the yield stress lie below Equation (1). The discrepancy between Equation (2) and the data for Al-foam F4 composed of elongated cells is the mostly pronounced and dependent on loading conditions, i.e., transverse or longitudinal compression. Data for yield stress under transverse compression are found well below Equation (1), as can be seen in Figure 5. The presence of highly elliptical cells induces bending in the neighboring cell walls, initiating premature collapse of the deformation band [11,31]. However, the data for plateau stress shift essentially above the data for yield stress and lie along the line representing open-cell foam. This is because the hardening rate within the “plateau” regime under transverse compression of Al-foam F4 with highly elliptical cells is much faster compared to that under longitudinal compression, resulting in a pronounced difference between the values of compressive strength, σy and σpl, as evidenced from Figure 4b. Again, data for yield and plateau stresses recorded under longitudinal tests are found below Equation (1). It is noticeable that the data for compressive strength derived under the longitudinal test shift upwards when relative density increases up to ρ > 0.35, which in turn is associated with a greater thickness of the cell walls.

Generally, one or another scaling low could be adjusted to approximate compressive strength of the each kind of Al foams (F1, F2, F3, and F4). The results of approximations are listed in Table 4.

Table Table 4. Scaling lows for approximation of the compressive strength for Al-foams.

Click here to display table

Table 4. Scaling lows for approximation of the compressive strength for Al-foams.
Foam CodeApproximation Metals 02 00095 i004 Metals 02 00095 i005
F1 (σy/σys andσpl/σys)Equation (2)/Equation (3)0.35 /0.330.15 /0.25
F2 (σy/σys andσpl/σys)Equation (2)/Equation (3)0.25/0.330.65 /0.65
F3 (σy /σys)Equation (3)0.33 0.02
F3 (σpl/σys)Equation (3)0.33 0.1
F4 (σy /σys) (1)Equation (2)0.150
F4 (σpl/σys) (1)Equation (2)0.300
F4 (σy /σys and σpl/σys) (2)Equation (2)0.150
F4 (σy/σys) (3)Equation (2)0.300.10
F4 (σpl/σys) (3)Equation (2)0.330.10

Note: (1): transverse compression of Al-foam with ρ/ρs < 0.35; (2): longitudinal compression of Al-foam with ρ/ρs < 0.35; (3): longitudinal compression of Al-foam with ρ/ρs > 0.35.

The compressive strength of two kinds of Al-foams (F1, F2), performed by the Alporas route, complies with relations prescribed by Equations (2) and (3) for closed-cell structures. It is noticeable that the value of the numerical coefficient Metals 02 00095 i005 for the hydride kind of Al-foam F1 is reduced to 23% (Equation (2)) or 38% (Equation (3)) of the value Metals 02 00095 i005 for the carbonate kind of Al-foam F2, which in turn is associated with a contribution of fracture mode in the collapse of deformation bands. The latter suggestion is thought to be true for other kinds of Al‑foams (F3, F4) fabricated via the PM route. For these kinds of Al-foams, strength degradation caused by reducing the numerical coefficient Metals 02 00095 i005 down to absolute disappearance is found, as can be seen in Table 4.

Thus, a different micromechanism for the collapse of deformation bands could be assumed by considering the characteristic features of microstructure and, especially, mechanical damage of the cell wall constituents contained by the cell walls of different kinds of Al-foams (F1, F2, F3, and F4), which have been given in the previous subsection 2.2.

2.5. Correlation of Al-foam Compressive Response and Damage Behavior of Cell Wall Constituents

Plastic collapse of deformation bands indicative of carbonate kind of Al-foam F2 is reasonably expected because Al + Al4Ca eutectic domains contained by the cell walls give the value of plasticity characteristic, δA = 0.90, quite sufficient for material plastic behavior, the same as for the ductile Al-matrix, for which δA = 0.96, as can be seen in Table 2. The contribution of fracture mode in the collapse of deformation bands is indicative of a hydride kind of Al-foam F2, in which cell walls contain brittle Al + Al4Ca + Al3Ti eutectic domains for which parameter δA is about 0.72 (see Table 2). Small deflections in the cell walls lead to formation of cracks which propagate through the Al + Al4Ca + Al3Ti eutectic domains, finally cause the crushing of the cells under compression, as shown in Figure 6a. Slight oscillations superimposed upon “plateau” stress reflect local fracture of the deformation bands, as shown in Figure 4.

In Al-foams (F3 and F4) fabricated via the PM route, brittle cell wall constituents such as either Ti-rich particles rounded by a Al3Ti layer and smaller Al3Ti particles, or CaCO3/CaO particles, act as likely sites for the initiation of cracks, the propagation of which generates stress concentration in adjacent areas, intervening the Al-matrix. the final failure of the cell walls apparently occurs by crushing the brittle cell constituents and their bridging across intact ligaments, as can be seen in Figure 6b. Again, local fracture of the deformation bands causes oscillations of “plateau” stress, as shown in Figure 4.

Metals 02 00095 g006 200
Figure 6. SEM images of cracks in the cell walls of Al-foams (a) F1 and (b) F3.

Click here to enlarge figure

Figure 6. SEM images of cracks in the cell walls of Al-foams (a) F1 and (b) F3.
Metals 02 00095 g006 1024

It could be assumed that the presence of brittle constituents in the cell wall of closed-cell Al-foams (F3 and F4) induces the collapse of deformation bands by crushing, thus reducing their strength properties to values close or even below those of open-cell foams of the same relative density, as shown in Figure 5. The dramatic degradation of the mechanical behavior of Al-foams fabricated via the PM route results from the increased fraction volume of brittle particles in the cell wall material, e.g., for the hydride kind of Al-foam F3 yield strength, σy, is 20% and plateau stress, σpl, is 43% of those for the hydride kind of Al-foam F1 of the same relative density. about ρ/ρs ≈ 0.9.

Differences in micro-mechanisms of deformation discussed above hold the key to a greater understanding of the role of cell wall constituents in terms of their effect on the macroscopic response of Al-foams. Collapse stress, which Al-foams can undergo up to densification, is proved to be actually very sensitive to small defects induced by crushed brittle constituents in the cell wall microstructure. That is why the experimental data reported in literature for strength properties of closed-cell foams, whose cell walls contain brittle constituents, are found to be systematically lower than those predicted by theoretical models [11]. Attention should be drawn to the fact that the effect of brittle constituents in the cell wall material on degradation of strength properties is much stronger and comparable with that implemented by decreasing the relative density of intact Al-foam that is free of defects, as can be seen in Figure 5.

As applied for engineering practice, the carbonate kind of Al-foam F2 fabricated via the Alporas route shows indisputable advantages in virtually all aspects of its application. Besides economical advantages provided by using inexpensive CaCO3 as an alternative foaming agent, the design of structural elements comprising this kind of Al-foam becomes easier because of reliable calculations of strength. In addition, uniform collapse of this Al-foam over the entire range of loading conditions is preferable in practical applications where an effective utilization of impact energy combined with damage tolerance is required.

3. Experimental

3.1. Materials and Experimental Procedure

Several kinds of closed-cell foams denoted as F1, F2, F3, and F4 and used in experimentation are listed in Table 5.

Table Table 5. Characteristics for different kinds of Al-foams.

Click here to display table

Table 5. Characteristics for different kinds of Al-foams.
CodeProcessProcessing additivesRelative density (ρ/ρs) (1)
F1Alporas route1 wt.%Ca + 1 wt.%TiH20.371–0.207
F2Alporas route1wt.% Ca + 2 wt.% CaCO30.244–0.089
F3PM technique2 wt.%TiH20.165–0.075
F4PM technique2 wt.% CaCO30.418–0.274

Note (1): ρ and ρs correspond the density of foam and solid, respectively.

Two kinds of Al-foams (F1 and F2) were produced with pure Al (purity 99.95%) via an Alporas-like route [32] in which calcium (1 wt.%) was firstly introduced into molten Al to enhance its viscosity and, then, either powdered titanium hydride, TiH2, (1 wt.%) or powdered calcium carbonate, CaCO3, (2 wt.%), as an alternative foaming agent [8,9,10,33] were added by vigorous stirring to produce the foams (respectively, F1, F2 and F2, F3). Prior adding of CaCO3 powder was coated with CaF2 by the ion-exchange method [9,10] to facilitate its dispersion within the melt. The other two foams (F3 and F4) were made by a powder metallurgical (PM) route [9,10,12,18] in which water atomized Al-powder (oxygen content 0.3 wt.%) with particle size 160 μm and less was firstly mixed either with TiH2 (2 wt.%) or CaCO3 (2 wt.%) and then pre-compacted, extruded into precursor, and finally foamed by heating. Powdered titanium hydride TiH2 with a mean particle size of 60 μm and powdered calcium carbonate CaCO3 with a mean particle size of 8 μm were employed in the Alporas process and PM route.

Several solid materials compositionally corresponding to the cell wall constituents listed in Table 1 were used to quantify their mechanical response. Calcium carbonate, CaCO3, was produced by marble plate, while intermetallic compounds, such as Al3Ti and Al4Ca, were produced by an arc-melting technique. Dense bulk titanium hydride was fabricated via powder compact route. Powdered titanium hydride with a composition TiH1.92 , and particle size about 60 µm, was firstly pre-compacted, and then subjected to hydrostatic compression under high pressure of about 6 GPa.

In addition, several solid materials compositionally corresponded to those formed in the cell wall materials of the studied kinds of Al-foams were fabricated either via casting or PM routes, as listed in Table 6. Approximated values of yield strength for these solid materials were determined by conventional mechanical tests in tensile to use them as input data in theoretical models for interpreting the behavior of foam under compression.

Table Table 6. Characteristics of solid materials.

Click here to display table

Table 6. Characteristics of solid materials.
NoRaw materialsProcess
1Al + 1 wt.% Ca + 1wt.%TiCasting
2Al + 1 wt.% CaCasting
3Al alloy powder doped with 2 wt.% TiHot extrusion
4Powdered mixture of Al + 2 wt.% CaCO3 Hot extrusion

3.2. Structural Characterization

All of the Al-foams were characterized by their relative density ρ/ρs (where ρ and ρs correspond to the density of foam and solid, respectively), cell morphology and cell microstructure. Relative density, ρ/ρs, was measured by weighing a sample of known volume. Cell morphology, including cell size and shape, was studied by using scanned images of more than 150 cells. Microstructure examination was performed using X-Ray diffraction (XRD) analysis and scanning electron microscopy (SEM) in both secondary and back-scattered modes. Elementary composition was studied using energy dispersive X-Ray spectroscopy (EDS) and electron probe microanalysis (EPMA).

3.3. Mechanical Testing

Deformation behavior of Al-foams was examined under uniaxial compressive tests performed on prismatic specimens with a ratio of height to thickness that exceeds 1.5. The minimum dimension of the specimen in the each of three directions was seven times more than the cell size to avoid size effect. The compression tests were performed on a servo-hydraulic testing machine under displacement control and static strain rate of 1.5 × 10−3 s−1.

3.4. Indentation Experiments

Mechanical response of the cell wall constituents and solid materials was examined by indentation technique. In experiments with foams, a maximum indentation depth was set to be at least 10 times at the least than the typical cell wall thickness. A Nano Indenter II® tester, equipped with a trihedral Berkovich pyramid with a tip angle γ1 = 65° as well as a conventional microhardness machine equipped with tetrahedral Vickers pyramid with a tip angle γ1 = 68° were used in indentation experiments. In addition, a set of nine trihedral diamond pyramids with tip angles γ1 ranging from 45° to 85° was used in experimentation with the conventional microhardness machine.

Vickers hardness HV was determined under loads higher than critical value F Fc to avoid uncertainty in measurements caused by size effect [34]. Overall, indentation loads used for measuring Vickers hardness were not less than 0.1 N. Moreover, the final Vickers hardness value was averaged over the data determined by measuring not less than 10 indentations under each indentation load. The plasticity characteristic δH, a dimensionless parameter, that can vary between 0 (“pure” elastic contact) to 1 (“pure” plastic contact) was derived by calculations through microhardness measurement results and Young’s modulus, E, according to the test method procedure proposed originally by Milman et al. [28]. Young’s modulus, E , and nanohardness, Hh , were derived from load-displacement data recorded in nanoindentation experiments using the technique originally proposed by Oliver and Pharr [35]. In addition, the plasticity characteristic δA, which is physically close to that denoted by δH, was derived from loading and unloading data according to the demands of International standard ISO 14577-1:2002 (E) according to the test method procedure published in [36].

Yield stress, σys, was extracted from the ‘stress-strain’ curve constructed by using microhardness measurement results determined by a set of trihedral pyramids with different tip angles γ1 (ranging from 45° to 85°) according to the test method procedure [37]. As was found previously, the angle at the pyramid tip, γ1 , mainly defines the strain over indentation (average strain on the contact area of the indenter with indented solid in the loading direction), i.e., Metals 02 00095 i006 [30,38]. Fracture toughness KIc of the solid materials was determined by using radial indentation cracks [38,39].

Atomic forced microscopy (AFM) was used to recognize characteristic features of mechanical damage within and around indentations placed on tested materials.

4. Conclusions

Distinguishing characteristics of the microstructure for several kinds of closed-cell Al-foams produced with pure Al by the Alporas melt process (F1, F2) and powder metallurgical (PM) technique (F3, F4), all performed either with titanium hydride, TiH2, (F1, F3) or with calcium carbonate, CaCO3, (F2, F4) as an alternative foaming agent, were studied and classified. When the Alporas route is used the cell walls of the hydride kind of Al-foam F1 contain a network of Al + Al4Ca + Al3Ti eutectic domains and incorporate Al-Ca-Ti particles, whereas those of the carbonate kind of Al-foam F2 comprise Al + Al4Ca eutectic domains. A fine Al2O3 network being left by broken oxide skin presented around Al powder particles are typically presented in the cell walls of both kinds of Al-foams (F3, F4) produced by the PM route. Besides trace amounts of Al + Al3Ti eutectic domains, a lot of particles/layers of Al3Ti intermetallic compound, as well as large particles of partially reacted TiH2 are embedded in the cell walls of the hydride kind of Al-foam F3 while CaO/CaCO3 particles survive in the cell wall material of carbonate kind of Al-foam F4.

A set of mechanical characteristics for materials, compositionally corresponding to the cell wall constituents of different kinds of Al-foams, was tested and exhaustively specified. Young’s modulus, E, Vickers hardness, HV, nanohardness Hh, plasticity characteristics δH and δA, as well as fracture toughness KIc , were determined in indentation experiments. The plasticity characteristic, δA , for Al + Al4Ca eutectic domains was found to be of critical value 0.90, suggesting the ductile behavior of the material. The opposite is true for Al + Al4Ca + Al3Ti eutectic domains and the other compounds such as Al3Ti, Al4Ca, TiH2, CaO, CaCO3, Al2O3 , for which the plasticity characteristic, δA , was found to be much smaller than critical value, δA = 0.72, implying their low ductility and tendency to fracture. Actually, fracture toughness KIc for all of the latter compounds was found to be very small and typical for ceramics. In addition, strong localized deformation in shear bands of Al3Ti and CaCO3 compounds contribute directly in their mechanical damage, facilitating the crack nucleation by ductile cleavage.

Differences in the macroscopic compressive response of different kinds of Al-foams were studied and clarified vs. mechanical damage of the cell wall constituents. The latter substantially affects the micro-mechanism of deformation. Homogeneous plastic collapse of deformation bands over the entire range of loading conditions is ensured by ductility of Al + Al4Ca eutectic domains contained by the cell walls of the carbonate kind of Al-foam F2, whereas the contribution of fracture mode is favored by low ductile Al + Al3Ti + Al4Ca eutectic domains contained by the cell walls of Al-foam F1 as well as by brittle particles/layers such as Al3Ti, TiH2, CaO/CaCO3, and the fine Al2O3 network presented in the cell walls of PM Al-foams F3 and F4. These low ductile and/or brittle constituents act as likely sites for crack nucleation, the propagation of which leads to local fracture of the deformation band, thus resulting in oscillations of “plateau” stress.

Considerable deflection of the experimental results from theoretical predictions based on an idealized representation of cellular structure was revealed in the presence of low ductile and/or brittle constituents contained by the cell walls of Al-foams (F1, F3, and F4). The collapse of deformation bands by crushing leads to a reduction of their strength properties to values close or even below to those for open-cell foams of the same relative density. A degradation of strength properties becomes especially pronounced with increases in the fraction volume of brittle constituents in the cell wall microstructure of Al-foams (F3 and F4) performed by the PM route. Moreover, the presence of elliptical cells leads to an additional reduction of the strength of Al-foam F4 under a transverse compressive test.

Correlations of relative compressive strength, σ/σys, versus relative density ρ/ρs, were obtained in the form prescribed by theoretical models for closed-cell foams. Discrepancies between experimental results and theoretical predictions were compensated by variations in the values of numerical coefficients Metals 02 00095 i004 and Metals 02 00095 i005 placed at the terms related respectively to the influence of relative density and yielding of the stretched cell faces. Reducing the numerical coefficient Metals 02 00095 i005 down to a negligible value was found by increasing the fraction volume of brittle constituents in the cell walls of Al-foams (F3 and F4) performed by the PM route.

The results of the present study hold the key to a greater understanding of the interplay between processing conditions, cell wall microstructure, damage behavior of the cell wall constituents, and mechanical response of Al-foams.

Acknowledgements

The research was partly supported by the National Academy of Sciences of Ukraine, Project No. III-3-10. The authors are thankful to Y. Milman for fruitful discussions as well as to S. Dub for nanoindentation experiments and to D. Verbilo for help with compression tests.

References

  1. Markaki, A.E.; Clyne, T.V. Characterization of impact response of metallic foam/ceramic laminates. Mater. Sci. Technol. 2000, 16, 785–791.
  2. Crupi, V.; Epasto, G.; Guglielmino, E. Impact response of aluminum sandviches for light-weight ship structures. Metals 2011, 1, 98–112.
  3. Ashby, M.F.; Evans, A.G.; Fleck, N.A.; Gibson, L.J. Metal Foams: A Design Guide; Butterworth-Heinemann Press: Waltham, MA, USA, 2000.
  4. Banhart, J. Manufacture, characterisation and application of cellular metals and metal foams. Prog. Mater. Sci. 2001, 46, 559–632.
  5. Neugebauer, R.; Hipke, J.; Hohlfeld, T.; Thummler, R. Highly damped machine tools with metal foam. In Proceedings of the International Conference Advanced metallic materials, Smolenice Castle, Slovakia, 5–7 November 2003; Jerz, J., Ed.; Institute of Materials and Machine Mechanics: Smolenice, Slovakia, 2003; pp. 214–218.
  6. Nakamura, T.; Gnyloskurenko, S.V.; Sakamoto, K.; Byakova, A.V.; Ishikava, R. Development of new foaming agent for metal foam. Mater. Trans. 2002, 43, 1191–1196.
  7. Gergely, V.; Curran, D.C.; Clyne, T.W. The FOAMCARP process: Foaming of aluminum MMCs by the chalk-aluminum reaction in precursor. Compos. Sci. Technol. 2003, 63, 2301–2310, doi:10.1016/S0266-3538(03)00263-X.
  8. Byakova, A.V.; Gnyloskurenko, S.V.; Maeda, M.; Nakamura, T.; Sakamoto, K.; Podrezov, Y.N.; Ishikawa, R. Development of lightweight Al alloy and technique. Can. Metall. Q. 2005, 44, 7–12.
  9. Byakova, A.V.; Sirko, A.I.; Mykhalenkov, K.V.; Milman, Y.V.; Gnyloskurenko, S.V.; Nakamura, T. Progress in aluminum foam technique: Application of the carbonate foaming agent for Alporas and powder compact routes. In Porous Metals and Metal Foaming Technology; Nakajima, H., Kanetake, N., Eds.; JIM Press: Tokyo, Japan, 2005; pp. 273–278.
  10. Byakova, A.V.; Sirko, A.I.; Mykhalenkov, K.V.; Milman, Y.V.; Gnyloskurenko, S.V.; Nakamura, T. Improvements in stabilisation and cellular structure of Al based foams with novel carbonate foaming agent. High Temp. Mater. Processes. 2007, 26, 239–245, doi:10.1515/HTMP.2007.26.4.239.
  11. Gibson, L.J. Mechanical behavior of metallic foams. Annu. Rev. Mater. Sci. 2000, 30, 191–227.
  12. Milman, Y.; Byakova, A.; Podrezov, Y.; Verbilo, D.; Nakamura, T. The effect of processing route on the energy management of foamed Al alloys. In Porous Metals and Metal Foaming Technology; Nakajima H. Kanetake, N., Ed.; JIM Press: Tokyo, Japan, 2005; pp. 503–508.
  13. Markaki, A.E.; Clyne, T.W. The effect of cell wall microstructure on the deformation and fracture of aluminum-based foams. Acta mater. 2001, 49, 1677–1686.
  14. Milman, Y.; Byakova, A.; Sirko, A.; Gnyloskurenko, S.; Nakamura, T. Improvement of structure and deformation behavior of high-strength Al-Zn-Mg foams. Mater. Sci. Forum 2006, 519-521, 573-578.
  15. Miyoshi, T.; Mukai, T.; Hihashi, K. Energy absorption in closed-cell Al-Zn-Mg-Ca-Ti foam. Mater. Trans. 2002, 43, 1778–1781.
  16. Toda, H.; Kuroda, N.; Ohgaki, T. Image-based mechanical analysis of dynamic deformation and damage behaviors in an aluminum foam using synchrotron X-ray microtomography. In Porous Metals and Metal Foaming Technology; Nakajima H. Kanetake, N., Ed.; JIM Press: Tokyo, Japan, 2005; pp. 409–414.
  17. Sugimura, Y.; Meyer, J.; He, M.Y. On mechanical performance of closed cell Al alloy foams. Acta Mater. 1997, 45, 5245–5259.
  18. Byakova, A.; Gnyloskurenko, S.; Sirko, A.; Milman, Y.; Nakamura, T. The role of foaming agent in structure and mechanical performance of Al based foams. Mater. Trans. 2006, 47, 2131–2136.
  19. Gnyloskurenko, S.V.; Byakova, A.V.; Sirko, A.I.; Dudnyk, A.O.; Milman, Y.V.; Nakamura, T. Advanced structure and deformation pattern of Al based alloys foamed with calcium carbonate agent. In Metals and Melt Foaming Technology, Proceedings of 5th International Conference Porous Metals and Metallic Foams, Montreal, PQ, Canada, 5-7 September 2007; DEStech Publications, Inc.: Lancaster, USA, 2007; pp. 399–402.
  20. Markaki, A.E.; Clyne, T.V. Characterization of impact response of metallic foam/ceramic laminates. Mater. Sci. Technol. 2000, 16, 785–791.
  21. Crupi, V.; Epasto, G.; Guglielmino, E. Low velocity impact strength of sandwich materials. J. Sandw. Struct. Mater. 2011, 17, 32–41.
  22. Gibson, L.G.; Ashby, M.F. Cellular Solids: Structure and Properties; Pergamon Press: New York, NY, USA, 1988.
  23. Simone, A.E.; Gibsons, L.J. The effect of cell face and corrugations on the stiffness and strength of metallic foams. Acta Mater. 1998, 46, 3929–3935.
  24. Kriszt, B.; Foroughi, B.; Faure, K.; Degisher, H.P. Behavior of aluminum foam under uniaxial compression. Mater. Sci. Technol. 2000, 16, 792–796.
  25. Harders, H.; Huper, K.; Rosler, J. Influence of cell wall shape and density on mechanical behavior of 2d foam structures. Acta Mater. 2005, 53, 1335–1345, doi:10.1016/j.actamat.2004.11.025.
  26. Jeon, I.; Asahina, T. The effect of structural defects on the compressive behavior of closed-cell Al foam. Acta Mater. 2005, 53, 3415–342.
  27. Milman, Y.V.; Miracle, D.B.; Chugunova, S.I.; Voskoboinik, I.V.; Korzhova, N.P.; Legkayaa, T.N.; Podrezova, Y.N. Mechanical behavior of Al3Ti intermetallic and L12 phases on its basis. Intermetallics 2001, 9, 839–845.
  28. Milman, Y.V.; Galanov, B.A.; Chugunova, S.I. Plasticity characteristic obtained through hardness measurement. Acta Metall. Mater. 1993, 41, 2523–2532, doi:10.1016/0956-7151(93)90122-9.
  29. Wu, C.C.; Rice, R.W. Porosity dependence of wear and other mechanical properties of fine-grain Al2O3 and B4C. Ceram. Eng. Sci. Proc. 1985, 6, 977–994.
  30. Hainsworth, V.; Whitehead, A.J.; Page, T.F. The nanoindentation response of silicon and related isostructural materials. In Plastic Deformation of Ceramics; Bradt, R.C., Brookes, C.A., Routbort, J.L., Eds.; Plenum Press: New York, NY, USA, 1995.
  31. Bart-Smith, H.; Bastawros, A.F.; Mumm, D.R.; Evans, A.G.; Sypeck, D.J.; Wadley, H.N.G. Compressive deformation and yielding mechanisms in cellular Al alloys determined using X-ray tomography and surface strain mapping. Acta Mater. 1998, 46, 3583–3592.
  32. Akiyama, S.; Ueno, H.; Imagawa, K.; Kitahara, A.; Nagata, S.; Morimoto, K.; Nishikawa, T.; Itoh, M. Foamed Metal and Method of Producing Same. U.S. Patent 4,713,277, 15 December 1987.
  33. Nakamura, T.; Gnyloskurenko, S.V.; Sakamoto, K.; Byakova, A.V.; Ishikawa, R. Development of new foaming agent for metal foam. Mater. Trans. 2002, 43, 1191–1196.
  34. Byakova, A.V.; Milman, Yu.V.; Vlasov, A.A. Application of plasticity characteristic determined by indentation technique for evaluation of mechanical properties of coatings: I. specific features of test method procedure. Sci. Sinter. 2004, 36, 27–41, doi:10.2298/SOS0401027B.
  35. Oliver, W.C.; Pharr, G.M. An improved technique for determining hardness and elastic modulus using load and displacement sencing indentation experiments. J. Mater. Res. 1992, 7, 1564–1583, doi:10.1557/JMR.1992.1564.
  36. Milman, Y.V.; Dub, S.; Golubenko, A. Plasticity characteristic obtained trough instrumental indentation. Mater. Res. Soc. Symp. Proc. 1049, 123–128.
  37. Galanov, B.A.; Milman, Y.V.; Chugunova, S.I.; Goncharova, I.V. Investigation of mechanical properties high hardness materials by indentation. Superhard Mater. 1999, 21, 23–39.
  38. Evans, A.G.; Charles, E.A. Fracture toughness determinations by indentation. J. Ame. Ceram. Soc. 1976, 59, 371–372.
  39. Niihara, K.; Morena, R.; Hasselman, D.P. Evaluation of stress intensity factor of brittle solids by the indentation method with low crack-to-indent rations. J. Mater. Sci. Lett. 1982, 1, 13–16, doi:10.1007/BF00724706.
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
