Development of an Automatic Welding System for the Boiler Tube Walls Weld Overlay

Abstract

Tube walls are an essential part of the thermal power plant boiler. During the operation of the boiler, the heating surface of the tube walls are exposed to furnace particles, intense heat, and chemical components resulting from the combustion reaction. These cause corrosion and wear, which permanently collapse the tubes, and affect the reliability and performance of the boiler. Therefore, a protection layer of heat and corrosion-resistant material is typically welded on the surface of the tube walls. In this study, a dedicated weld overlay automatic system is proposed. The downward welding technique with the pulse gas metal arc welding (GMAW) process is used to accomplish the proposed approach. The system generates and plans beads sequence based on the analysis of the tube walls geometry. The inverse kinematic theory was used to calculate the coordinates and transformations of the welding torch. Then, a mathematical model for the welding torch trajectory was established. A SIMOTION controller was adapted for motion control. A weld-tracking system based on the adaptive neuro-fuzzy inference system (ANFIS) was used to solve the welding distortion and the assembly error. The experiment results show that the proposed design is efficient and reliable compared to previous methods. The degree of automation and the weld overlay quality of the boiler tube walls have been notably improved.

1. Introduction

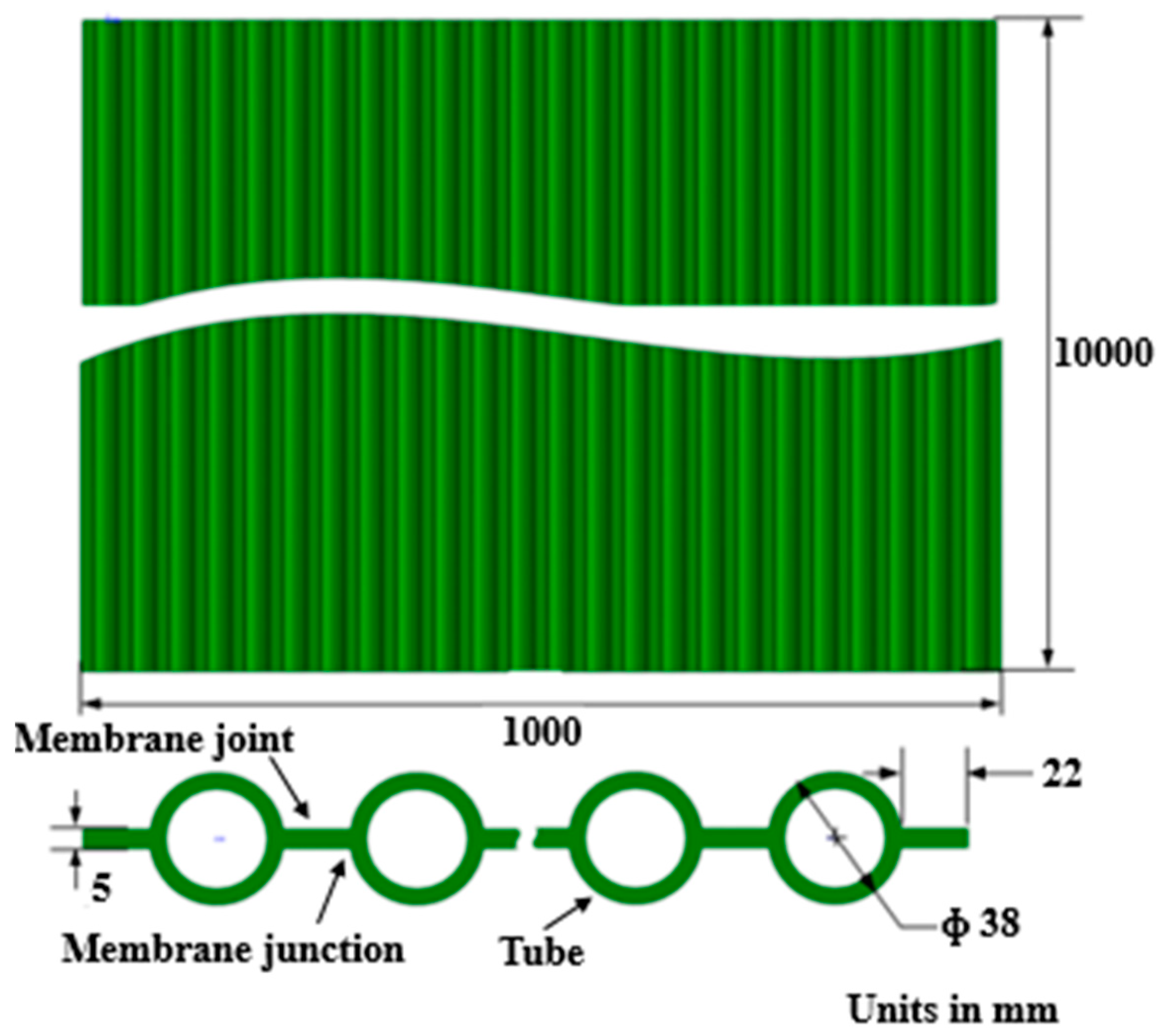

In recent years, researchers have been interested in studying the design of tube walls because, in the boiler, tube walls play a vital role. It has a structure formed by several steel tubes welded together and separated with a membrane joint, as shown in Figure 1. The tube walls are mounted on the furnace of the boiler, which can simplify the structure and reduce its weight. During boiler operations, the heating surface of the tube wall is exposed to intense heat and chemical components (including furnace particles related to the combustion reaction). These lead to corrosion and wear, which permanently damage the tubes and affect the working life and performance of the tube walls [1,2,3,4,5]. When the corrosion and wear occur, the tube walls’ thickness is affected, and there is a need to recover the lost thickness. The lost thickness recovery falls in three ways. The first is to take out the worn tube walls and replace them with new ones. Meanwhile, this leads to a boiler stoppage and affects its working time and productivity. The second way is achieved by reducing the operating temperature of the steam, but this will affect the production efficiency of the plant [6]. The other way, which is the optimal solution, is to overlay the surface of the tube walls with a more corrosion-resistant alloy [7]. The overlay can be used on other parts such as pipes, vessels, valves, and tubes. It is utilized for repairing damaged parts to improve the reliability of the overlaid components [8]. Different overlay methods are employed to provide a protective layer such as thermal spraying, shielding manual arc welding, and gas metal welding. Each of these processes comes with some merits and shortfalls [9]. Nowadays, pulse gas metal arc welding (GMAW) is considered as the most commonly used technique in the industry to weld overlay a protection layer for the tube walls with different alloys such as ER309L stainless steel, Inconel 617 alloy [10], and Inconel 625 [11]. This is due to the easy automation, high productivity, flexibility (working for most welding positions and material), low heat input, and high deposition rate [12]. The alloy Inconel 625 is widely used as an overlay material for tube walls due to its corrosive resistant properties [13]. N. Kumar et al. [14] introduced some studies on nickel-based Inconel 625 hard overlays on AISI 316L plate by gas metal arc-welding-based hardfacing process. The weaving technique was adopted using robotic gas metal arc welding (GMAW) process to reduce the dilution percentage and contact angle.

Manual welding requires high labor strength and leads to low quality due to human error. The quality and productivity improved if the weld overlay process was executed automatically. Furthermore, the better features of the surface finish are achieved with the smallest dilution rate of the added material [15]. The automation of weld overlaying for huge dimensions and complex geometry of the tube walls constitute a major challenge, as shown in Figure 1. Recently, a few studies have been developed in the automatic welding field to solve such issues. Huilin Z et al. [16] developed an automatic welding system for a long-distance X-80 pipeline. The design included welding carrier, and the guide rail and self-shielded flux-cored wires technique. The equipment was designed without a tracking system. In another work, Li A et al. [17] designed an automatic welding machine based on programmable logic control (PLC). The design included a manipulator, positioner, and CO₂ gas welding techniques. This design is most suitable for a revolving workpiece. In a related study, Kim Y-B et al. [18] produced an automatic multilayer welding system for large containerships; the design included a touch sensor and welding sequence plan. The design is suitable for heavy metal plates. While Dinham M et al. [19] implemented an automatic weld seam tracking with an optical system charged-coupled device (CCD camera) for steel pipe V groove, only suitable for plate butt joint. K. Xue et al. [20] proposed a robotic seam tracking system based on vision sensing and human–machine interaction for multipass metal active gas arc welding (MAG). In the design, the industrial camera was placed in front of the welding torch to monitor the welding area from the upper-left view, which distorts the welding images in the monitoring interface. Z. Fang et al. [21] introduced a vision-based robotic laser welding system for insulated mugs with fuzzy seam tracking control. During the welding process, a seam tracking system with fuzzy logic control method is presented to keep the torch precisely on the seam. J. Fan et al. [22] proposed a precise seam-tracking method for narrow butt seams based on a structured light vision sensor. The seam tracking includes a structured light vision sensor with optical filters, an extra LED light, laser stripe, and narrow butt. Besides, an image processing method for the vision sensor is designed to obtain welding torch deviations of narrow butt seams both in the horizontal and vertical directions.

Bug-o Systems [23] designed a portable automatic welding carriage with an adaptable welding manipulator. Three degrees of freedom (DOF) and pendular motion were implemented in this design. The carriage was fixed to the tube walls by two horizontal rails. The limitations of the study were the short stroke of the guide rails, which makes it difficult to overlay the membrane junction area between the tube surface and the membrane joint. The manipulator needs to reposition manually according to the desired beads. Furthermore, there is an absence of the weld path and the appropriate program for overlaying the tube walls of a known length. Dutra JC et al. [15] developed a computer numeric control (CNC) robot with four DOF to weld overlay the desired area of the tube walls via the GMAW technique using ER309L stainless steel. The limitations of the study are that the welding torch was perpendicular to the welded surface during the welding process. Furthermore, the absence of the weld-tracking system leads to the need to readjust the torch manually for the welding distortion and assembly error. Moreover, the robot was unsuitable for large workpieces and mass production. The movement of the welding carriage along the tube walls also can affect the surface finish of the tube walls.

Based on the literature review described above, there is no dedicated solution that has been proposed to weld overlay on both sections (membrane joint and tube surface). Therefore, the present research focuses on a dedicated design for the proposed automatic weld overlay system. To exploit the high welding speed and low deposition rates with less penetration, the vertical downward weld overlay approach via the pulse GMAW technique is used. Thus, a spray metal transfer with less spatters needs to be obtained. The system reduces the overlapping of each adjacent beads during the welding process by planning beads sequences. That is due to the large amplitudes oscillated by the welding torch. Thus, the sequence produces a better shape of beads. When the torch oscillates, three axes (X-motor, Y-motor, and rotation motor) move simultaneously. The distance between the nozzle end and the tube wall’s surface is permanently unchanged. Moreover, the proposed system is flexible and programmable; it also allows the correction of welding trajectories.

The remainder of this paper is structured as follows: Section 2 presents a brief description of the mechanical system model adopted on our framework. Section 3 demonstrates the proposed methodology. Section 4 analyzes the mathematical model of automatic welding mechanisms. Section 5 explains the designed weld-tracking system. The control system design is presented in Section 6, while Section 7 presents the results and discussion. Finally, the main conclusions based on the obtained findings of our design and future work are described in Section 8.

2. Mechanical Design and Working Principle

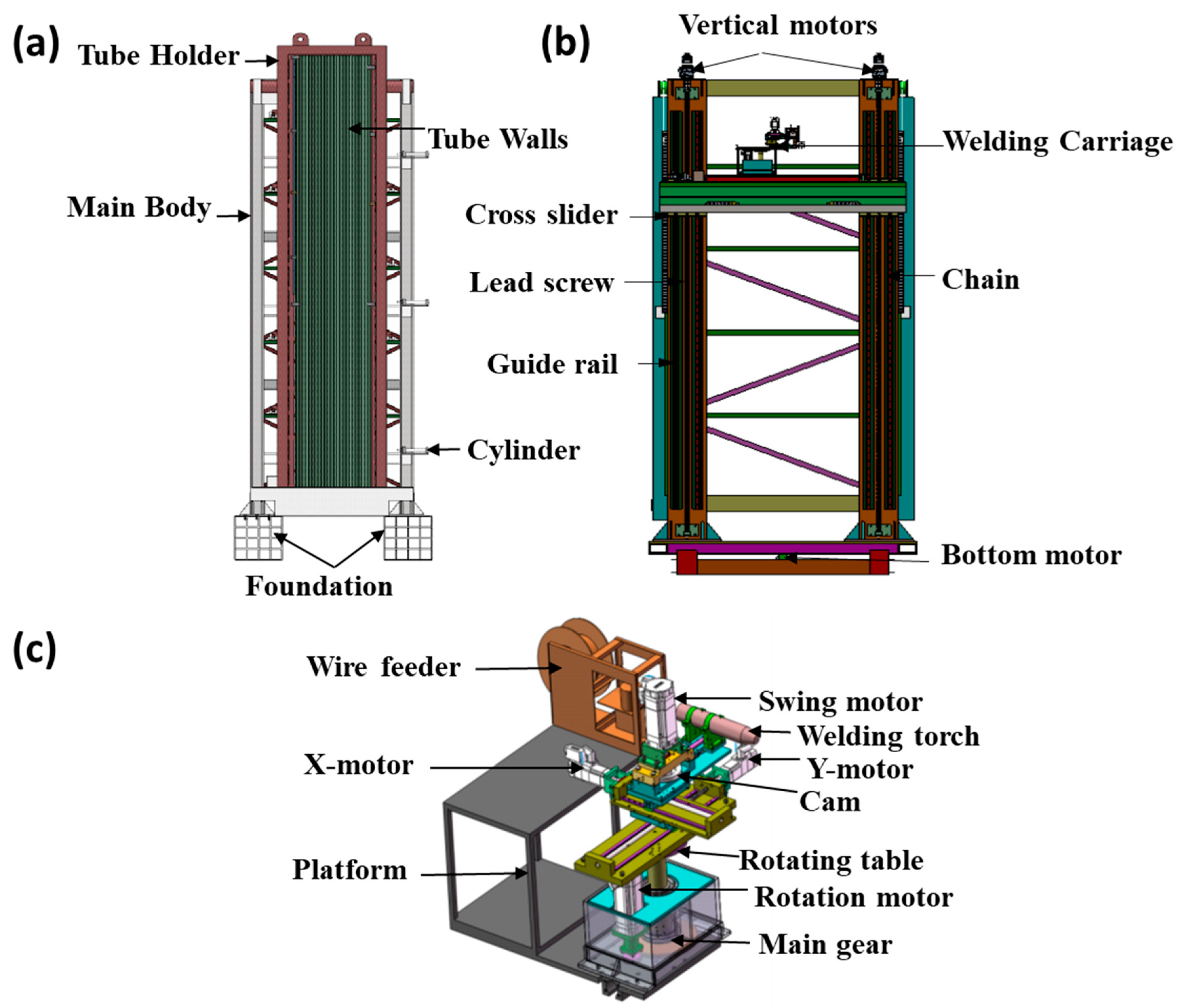

The proposed mechanical structure of weld overlaying equipment includes the headframe, the gantry crane system, welding carriage, and contact-tracking sensor. To fit the requirements of the arc welding and the dimensions of the boiler tube walls, the model of the proposed automatic welding system design and analysis is performed using the three-dimensional software SolidWorks (Dassault Systèmes, Vélizy-Villacoublay, France). The headframe structure was designed for the installation and vertical placement of the boiler tube walls to keep it stable during the welding process. The structure of the headframe was designed as a lattice component. It is supported by square tubes, which generally increase the rigidity of the structure. The tube walls were placed vertically on the tube holder, which was hoisted by cylinders, and installed on the headframe. The foundations filled with reinforced concrete are used to improve the stability of the head frame, as shown in Figure 2a.

The gantry lattice structures were designed for realizing the multiaxis movement of the welding carriage. The main components of the gantry part are the cross slider, guide rail, chain, platform, wire feeder mechanism, and the welding carriage. The welding carriage includes the torch posture, position, and oscillation mechanisms, which adjust the torch movement, as shown in Figure 2b. The gantry and its components are driven by motors to realize up and down, front and back, and left and right rotation of the welding torch. Eight motors are used in the gantry mechanism to realize an automatic weld overlay. Two vertical motors were placed at the top of the gantry. These synchronously drive the cross-slider and welding mechanism up and down.

The cross-slider motor drives the lead screw to move the welding carriage left and right. Therefore, the welding carriage is located near the surface of the overlaying workpiece. The whole gantry is driven forward and backward by the motor that is placed at the bottom gantry. The workpiece surface is composed of the plane and circular arc surface. During the welding process, the torch seems to be perpendicular to the welded surface (from the top view) and is rotated to adjust the posture by rotation motor. The swing motor oscillates the welding torch. Finally, two adjustments motors are used to regulate the welding torch position relative to the boiler tube’s wall in two axes, as depicted in Figure 2c.

The dimensions of the entire system are described as length × width × height. The headframe has dimensions of 3100 mm × 3100 mm × 10,425 mm. The gantry dimensions are 4040 mm × 3500 mm × 8070 mm, while the welding carriage has dimensions of 500 mm × 933 mm × 769 mm.

3. Weld Overlay Methodology

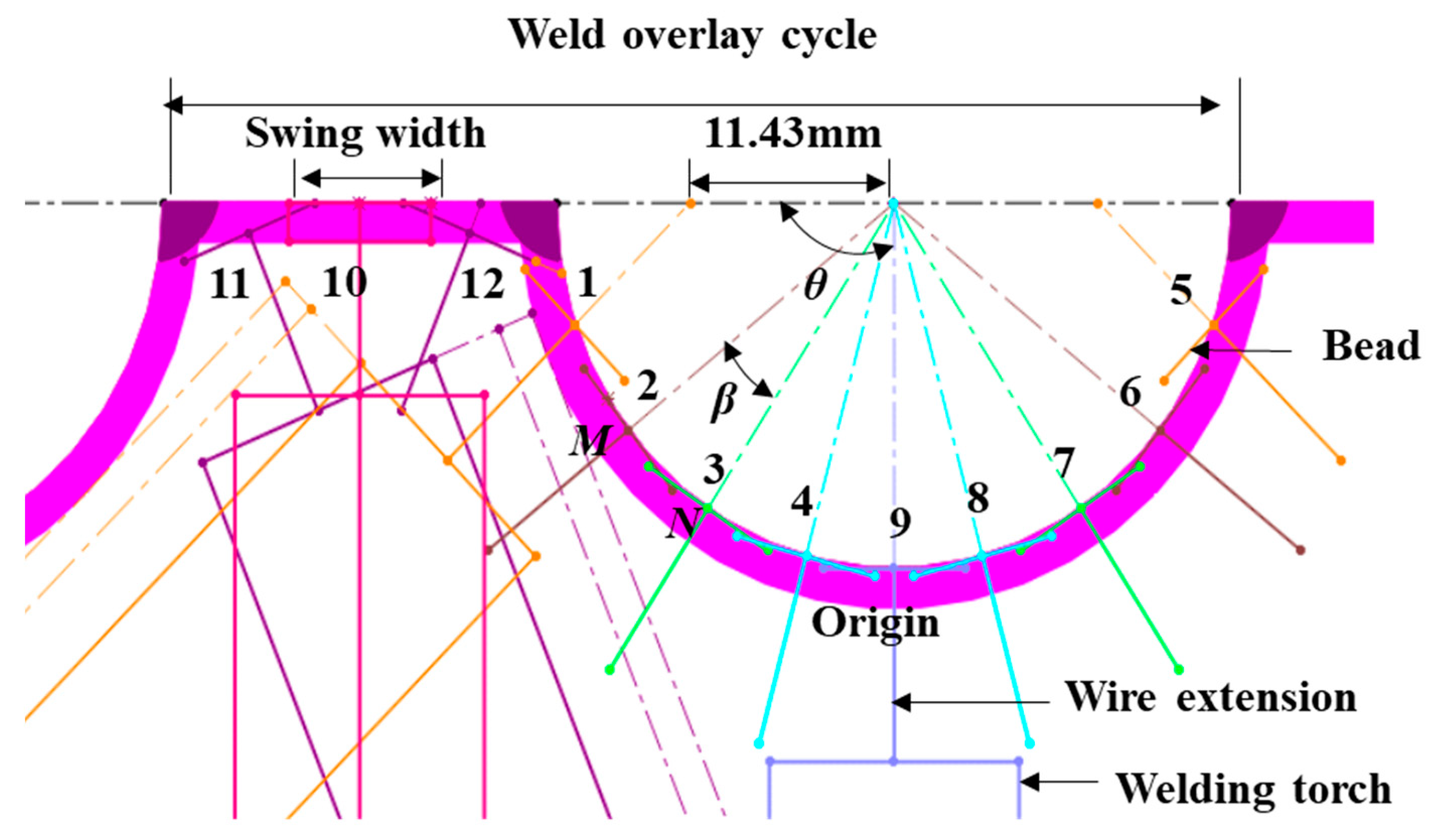

To realize the automatic weld overlaying and keep the proper overlapping between each two adjacent beads, it is necessary to plan the welding sequence. The geometry of the workpiece, the nozzle, overlapping between the adjacent beads, the angle between the wire, and the welded surface are the main influencing factors for automatic welding via pulse GMAW. The geometry of the boiler tube walls is considered as membrane joint, membrane junction, and tube surface. The required distance of one weld overlay cycle is 60 mm. The dimensions of the common nozzle are 20 mm in diameter and 75 mm in length. When the welding torch oscillates at the amplitude (swing width) of 8 mm, the nozzle will interfere with the tube walls. To overcome the interference, the dimensions of the nozzle were reduced to 14 mm in diameter and 100 mm in length. The proposed overlapping width of the beads located in the membrane joint and membrane junction is 1.5 mm; similarly, it is 2 mm for the tube surface beads.

The proposed beads distributed on the geometry of the tube walls were planned as one bead for the membrane joint (10), two beads for the membrane junctions (11, 12), and nine beads for the tube surfaces (1–9). The welding sequence is planned as (1–4), (5–8), 9, 10, (11–12), as illustrated in Figure 3. The distance between the wire end and the workpiece is 10 mm, and the angle between the welding wire and the membrane joint is 67.38 degree in the 11 beads. To make the welding torch oscillate smoothly, the wire does not pass through the center of the tube. The intersection point between the torch axis and membrane joint plane is 11.47 mm away from the tube center. Besides, the angle between the welding torch and membrane joint plane is 44.47 degree in the first bead. The beads 1 and 5 are symmetrical, with the same welding requirements.

For beads 2, 3, 4, 6, 7, 8, and 9, it is not necessary to consider the interference between the nozzle and the overlays. The welding torch axis passes through the circular center of the tube.

Table 1. The angles between the beads and membrane joint.

Bead No.	1,5	2,6	3,7	4,8	9,10	11,12
Angle (degree)	44.47	38.34	56.61	74.88	0	67.38

shows the angles between the beads and the membrane joint. The angle β represents the rotation angle of the welding torch between two-weld beads, while θ is the angle between the welding torch and the membrane joint, as illustrated in Figure 3.

4. Mathematical Analysis of the Automatic Welding Mechanisms

The welding carriage includes weld tracking, posture change mechanisms. These components are physically connected and run according to the weld trajectory to achieve the weld overlay throughout the tube walls. According to the weld overlaying requirements, the strokes of x- and y-axes are analyzed and calculated. The coordinates and transformations of the welding torch were computed using the inverse kinematic theory [24].

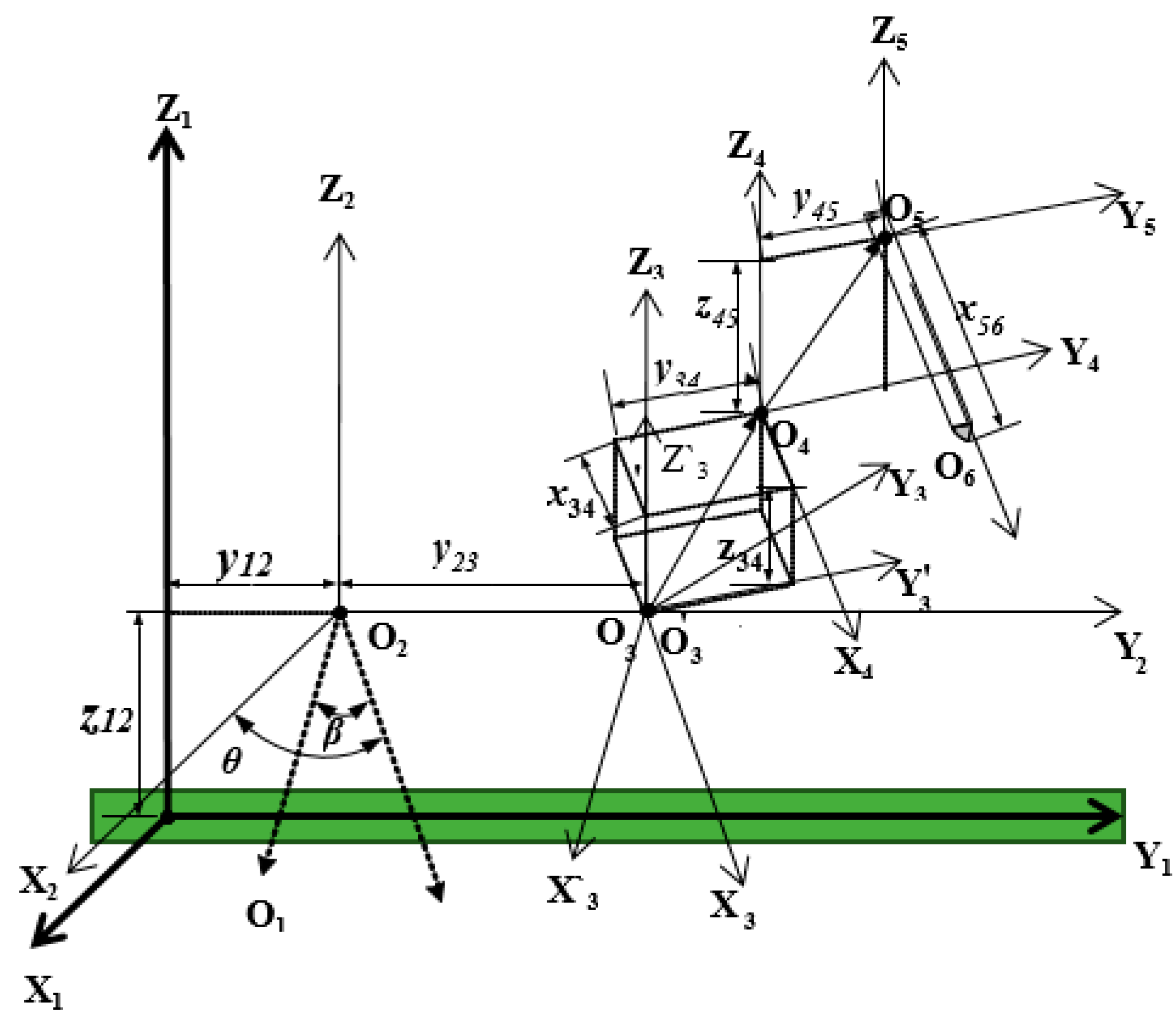

When the welding torch posture and position are adjusted, the cross slider is stationary. Thus, a rectangular coordinate system was built on the cross slider. The coordinate system {O₁} is established with the centerline of the cross-slider lead screw in the horizontal plane. Y₁ indicates the movement direction of the welding carriage, and X₁ represents the direction from the gantry to the head frame. The lead screw center at the left limit of the cross-slider acts as the origin of coordinates {O₁}. Z₁ is the vertical axis through the origin and is consistent with the right-hand rule, as shown in Figure 4. The center of the main gear is established as the coordinate system {O₂}. The directions of the coordinate {O₂} is parallel to the {O₁} due to the reason that the center of the rotating table {O₂} is z₁₂ away from the center of the cross slider {O₁} in the Z direction.

The distance between Z₁ and Z₂ is y₁₂, which is the same as the distance with {O₁} and the center of the main gear in the direction of Y₁. During the weld overlaying process, the welding carriage moves along the cross-slider axis from left to right in the full cycle with y₂₃. Thus, the main gear center acts as the origin of the coordinate system {O₃}. X₃ and Y₃ in the coordinate system {O₃} were considered as the X₂ and Y₂ rotating around the Z₂ axis by angle θ. The translation distance along the Y₂ axis is y₂₃. The coordinate system {O₄} is established as the intersection of the cam center and the X motor shaft axes. X₄ represents the X-motor axis; y₄ is parallel to the Y motor axis. In contrast, the Z₄ direction follows the right-hand rule. The distances between {O₄} and {O₃} origins in X₃, Y₃, and Z₃ direction are x₃₄, y₃₄, and z₃₄, respectively. The x₃₄ and y₃₄ are the displacement of {O₄} origin in the X₃ and Y₃ directions when the welding torch moved from the original position to the M bead, as depicted in Figure 4. Z₃₄ is the distance between the X motor axis and the main gear. At the origin, {O₄} coordinate values in {O₃} are (0, 0, 183) ^T.

Thereafter, the intersection point of the welding torch center and Y₄Z₄ plane creates the coordinate system {O₅}. X₅ indicates the centerline of the welding torch; the Y₅ axis is parallel to axis Y₄. During the movement of the welding carriage, the X₅ axis in the coordinate {O₅} is parallel to the X-motor shaft axis.

The origin values of {O₅} are (0, y₄₅, z₄₅) ^T in {O₄}. The y₄₅ and z₄₅ are the fixed distances between {O₄} and {O₅} in Y₄ and Z₄ directions, respectively. The fixed distance between the welding torch end {O₆} and {O₅} in the X₅ direction is X₅₆.

Table 2. The relative position parameters of the origin of each coordinate system (mm).

Parameter	y12	z12	z34	y45	z45	x56
Value(mm)	385.00	185.0	183.0	209.7	170.0	338.5

shows the relative position parameters of the origin of each coordinate system.

Considering that, the original position of the welding torch is located in bead number 9. The torch moves from position 1 to position 12 in turn according to the beads sequence trajectory. The displacement of the torch end {O₆} is ΔX₁, ΔY₁ in the direction of X₁, Y₁ with respect to the coordinate system {O₁};

Table 3. The position change table of the welding torch end {O₆} in {O₁}.

Bead	ΔX1(mm)	ΔY1(mm)	θ(Degree)	β(Degree)
origin→1	15.67	25.05	0	−45.53
1→2	−4.66	−2.31	−45.53	−6.13
2→3	−6.22	−6.79	−51.66	18.27
3→4	−3.78	−8.40	−33.39	18.27
4→5	14.66	−32.62	−15.12	60.65
5→6	−4.66	2.31	45.53	6.13
6→7	−6.22	6.79	51.66	−18.27
7→8	−3.78	8.40	33.39	−18.27
8→9	−1.00	7.56	15.12	−15.12
9→10	19.00	30.00	0	0
10→11	−0.77	2.34	0	22.62
11→12	0	−4.69	22.62	−45.24
12→origin	−18.23	−27.66	−22.62	22.62

shows the data values of the angle β, θ, Δ X₁, and Δ Y₁. When the welding torch is adjusted from the former bead M to the next bead N, as shown in Figure 4, the coordinate value of the welding torch end {O₆} in {O₁} is expressed by Equations (1) and (2). The X and Y motors drive the welding torch to move with displacements x_34’ and y_34’. Equations (3) and (4) are obtained from Equations (1) and (2).

$$\Delta {}^{O_1}P=\left(\begin{array}{c}\begin{array}{l}\left[c\left(\theta +\beta \right)-c\theta \right]\left(x_{34}+x_{56}\right)+\\ c\left(\theta +\beta \right){x^{\prime }}_{34}-s\left(\theta +\beta \right){y^{\prime }}_{34}-\\ \left[s\left(\theta +\beta \right)-s\theta \right]\left(y_{34}+y_{45}\right)\end{array}\\ \begin{array}{c}\\ \left[s\left(\theta +\beta \right)-s\theta \right]\left(x_{34}+x_{56}\right)+\\ s\left(\theta +\beta \right){x^{\prime }}_{34}+c\left(\theta +\beta \right){y^{\prime }}_{34}+\\ \left[c\left(\theta +\beta \right)-c\theta \right]\left(y_{34}+y_{45}\right)\end{array}\\ \begin{array}{l}\\ 0\end{array}\end{array}\right)$$

(1)

Hint:

$$\begin{gathered} \begin{array}{l}c\theta =\cos \theta ,s\theta =\sin \theta \\ c\left(\theta +\beta \right)=\cos \left(\theta +\beta \right),s\left(\theta +\beta \right)=\sin \left(\theta +\beta \right)\end{array} \\ \Delta {}^{O1}P=\left(\begin{array}{c}\Delta {}^{1}P_x\\ \Delta {}^{1}P_y\\ \Delta {}^{1}P_z\end{array}\right)=\left(\begin{array}{c}\Delta X_1\\ \Delta Y_1\\ 0\end{array}\right) \end{gathered}$$

(2)

The related data in Table 1 and Table 2 are substituted into Equations (3) and (4), and the adjusted data of X, Y motors are obtained, as shown in

Table 4. The adjusted data of X, Y, and rotating motors.

Weld Bead	x34′(m)	y34′(mm)	Angle β(Degree)	X Displacement (mm)	Y Displacement (mm)
Origin→1	−257.93	207.49	−45.53	−257.93	207.49
1→2	−46.09	1.13	−6.13	−304.02	208.62
2→3	127.95	−40.99	18.27	−176.07	167.63
3→4	108.65	−79.04	18.27	−67.42	88.59
4→5	108.79	−421.69	45.53	41.38	−333.11
5→6	−16.43	−34.77	6.13	24.95	−367.88
6→7	29.80	131.01	−18.27	54.76	−236.87
7→8	−12.77	133.75	−18.27	41.99	−103.13
8→9	−41.98	103.12	−15.12	0.01	−0.01
9→10	19.00	30.00	0	19.01	29.99
10→11	64.88	−153.49	22.62	83.89	−123.50
11→12	−184.39	270.09	−45.24	−100.49	146.59
12→origin	100.50	−146.61	22.62	0.01	−0.02

. Thus, the displacement ranges that X and Y motor move through the lead screw in X and Y directions are −304.02 to 83.89 mm and −367.88 to 208.62 mm, respectively.

$$x_{34}{}^{\prime }=c\left(\theta +\beta \right)\Delta X_1+s\left(\theta +\beta \right)\Delta Y_1-\left(1-c\beta \right)\left(x_{34}+x_{56}\right)+s\beta \left(y_{34}+y_{45}\right)$$

(3)

$$y_{34}{}^{\prime }=c\left(\theta +\beta \right)\Delta Y_1-s\left(\theta +\beta \right)\Delta X_1-s\beta \left(x_{34}+x_{56}\right)-\left(1-c\beta \right)\left(y_{34}+y_{45}\right)$$

(4)

5. Weld-Tracking System

The weld-tracking system includes the sensor and control algorithm. The sensor detects the deformation of the tube walls. The sensed deformations are tracked by the control algorithm to keep the distance between the welding torch and the tube walls unchanged. The weld-tracking system details are discussed in the following sections.

5.1. Sensor Structure

Concerning the geometry of tube walls, the deviation of the welding torch and workpiece are certainly sensed. The beads trajectory is tracked to assure a fixed distance between the torch and tube walls. By collecting and processing the deformation data, the direction and size of the deviation of the tube walls were calculated. The motors make the corresponding response according to the sensed data and adjust the distance between the tube walls and the welding torch. Figure 5a shows the scheme design of the displacement sensor.

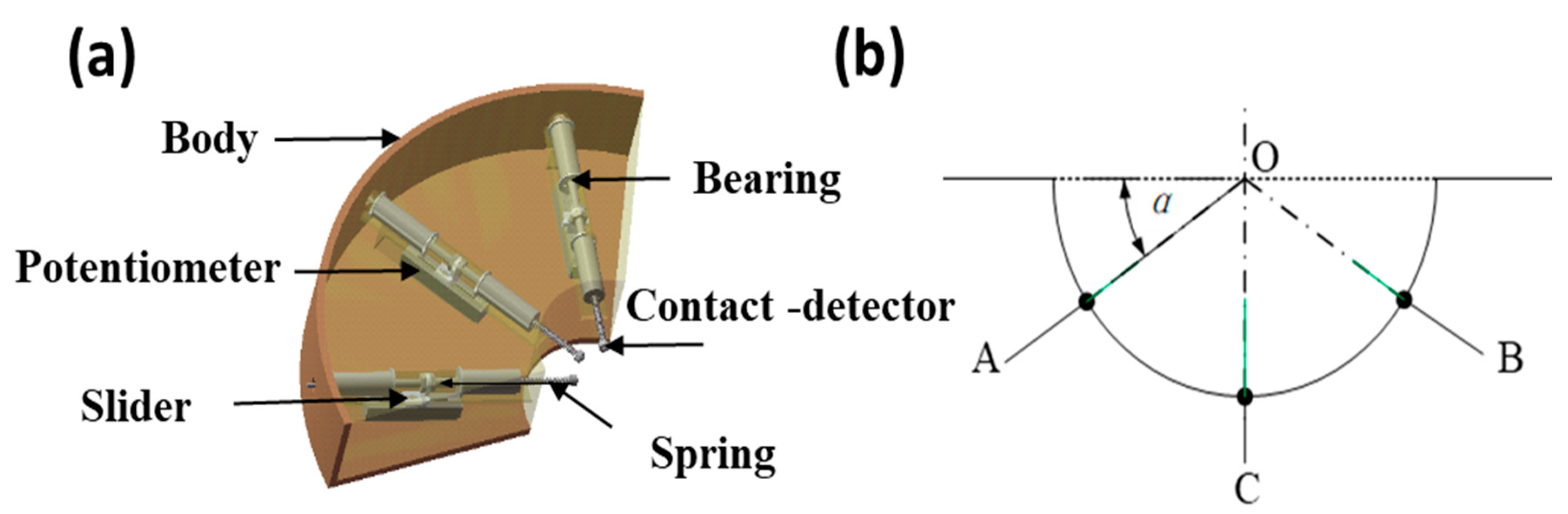

As Figure 5b shows, A, B, and C are the three detectors of the displacement sensor. The detectors touch the tube. The three detectors move through the center of the tube, OC is perpendicular to the membrane joint. OA and OB are symmetrical to OC. However, the angle between the OA and membrane joint is α. To prevent the interference between A or B and the adjacent tube, the angle α value is chosen to be 45 degree.

5.2. Working Principle of the Sensor

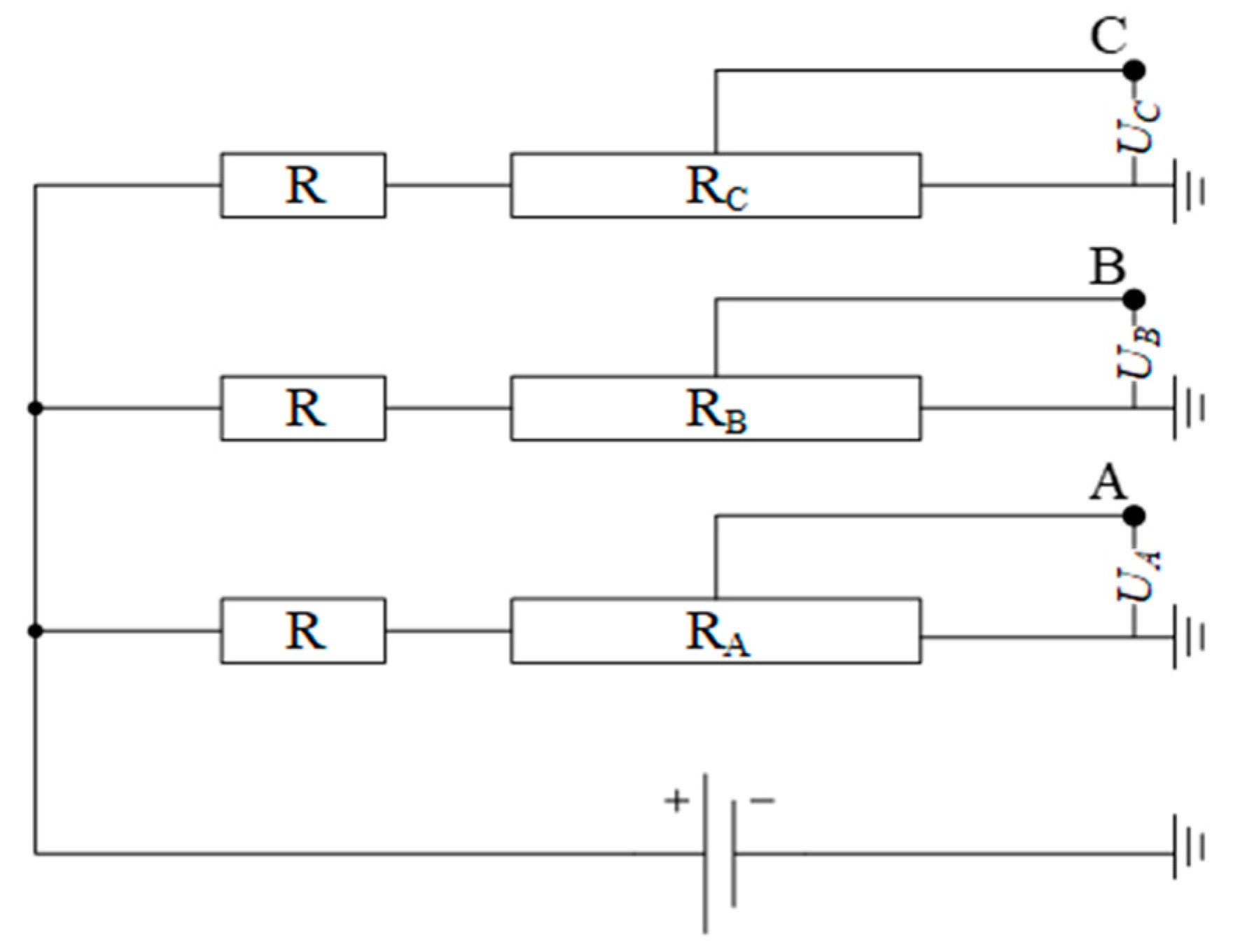

The equivalent circuit of the sensor is illustrated in Figure 6. When the tube offset value changes, the tracking mechanism regulates the distance between the welding torch and the tube. Therefore, the welding torch keeps track of the tube with the correct welding location. The sensor is made up of slider potentiometers linked to the sensor’s detector. The spring is used to keep the detector’s contact on the tube surface. When the detector of the sensor moves upward and downward along the tubes, the output voltages $U_A$, $U_B$ and $U_C$ across the potentiometers change.

The voltage differences are then compared with a set threshold voltage. The differences are interpreted as deformations since the sign and magnitude of the voltage difference are proportional to the direction and value of the detector displacement. The association between the coordinate values (a, b) of the tube center after deformation and the displacements (ΔL_a, ΔL_b, ΔL_c) of the detectors (1, 2, and 3) can be developed by making computable analysis. For the starting points of the sensor, the center of the tube is set to be the origin of the coordinate system, the X-axis is parallel to the membrane wall, and the Y-axis is perpendicular to the tube walls. Therefore, depending on the dimensions of the tube, the detectors will come into contact with the tube at initial coordinates (A, C, B): (−13.433, −13.433), (0, −19), (13.433, −13.433). Figure 7 illustrates the sensor schematic diagram with the initial contact position of the detectors.

5.3. The Tube Walls Deviation

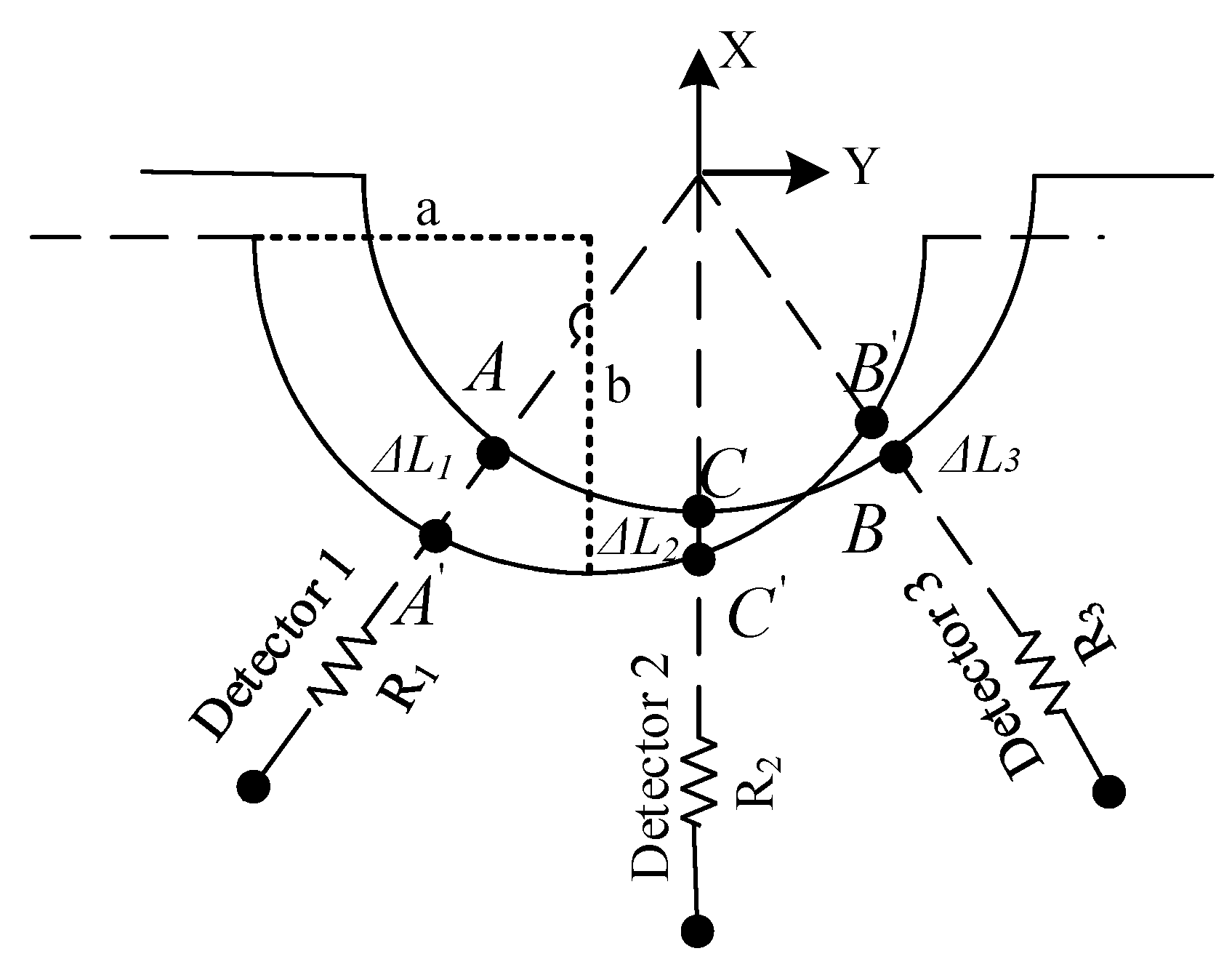

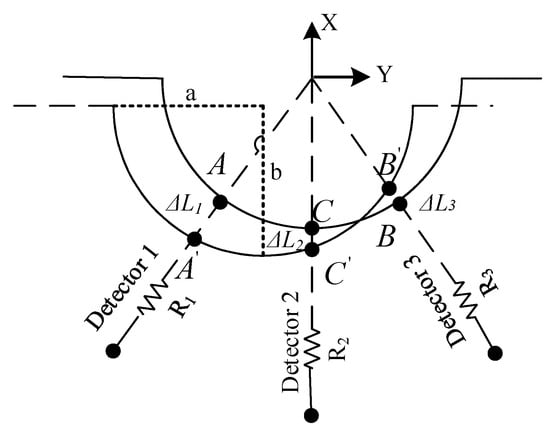

The presence of deformations in the tube walls changes the relative position of the tube center. As can be seen in Figure 7, the tube position might be reformed from $AB\mathrm{to}A{}^{\prime }B{}^{\prime }$ and the displacements of the detectors from their initial points will be Δl₁, Δl₂, and Δl₃ accordingly. The displacements have positive and negative values, depending on the detector’s moving direction, with or against the detector direction. The coordinates of the corresponding three contacts points after deformation (A’, C’, B’) are as follows:

$$\begin{gathered} (-13.433+\Delta l_1\cos 45°,-13.433+\Delta l_1\sin 45°),\left(0,-19+\Delta l_2\right), \\ \left(13.433-\Delta l_3\cos 45°,-13.433+\Delta l_3\sin 45°\right) \end{gathered}$$

Here ° indicates degree; therefore, the following Equations can be developed as

$${\left(-19\cos 45°+\Delta l_1\cos 45°-a\right)}^2+{\left(-19\sin 45°+\Delta l_1\sin 45°-b\right)}^2={19}^2$$

(5)

$$a^2+{\left(-19+\Delta l_2-b\right)}^2={19}^2$$

(6)

$${\left(-19\cos 45°+\Delta l_3\cos 45°-a\right)}^2+{\left(-19\sin 45°+\Delta l_3\sin 45°-b\right)}^2={19}^2.$$

(7)

Equations (5)–(7) are the three contact points of the detectors after deviation in x- and y-direction. The variables a and b are the values of the tube center after the deformation with respect to x- and y-axes. The following results were obtained by solving these Equations:

$$a=\frac{[\Delta l_3{}^2-\Delta l_2{}^2-38(\Delta l_3-\Delta l_2)]\sqrt{2}(38-(\Delta l_3+\Delta l_1)]-\sqrt{2}(\Delta l_3-\Delta l_1)[\Delta l_1{}^2-\Delta l_3{}^2-38(\Delta l_1-\Delta l_3)]}{[2(\Delta l_3-19)(\Delta l_3-\Delta l)-(19\sqrt{2}-38+2\Delta l_2-2\Delta l_3)\sqrt{2}(38-(\Delta l_1+\Delta l_3)]}$$

(8)

$$b=\frac{[\Delta l_3{}^2-\Delta l_2{}^2-38(\Delta l_3-\Delta l_2)][\sqrt{2}(38-(\Delta l_3+\Delta l_1)]-[\Delta l_1{}^2-\Delta l_3{}^2-38(\Delta l_1-\Delta l_3)]\sqrt{2}(\Delta l_3-19)]}{[2(\Delta l_3-19)(\Delta l_3-\Delta l)-\sqrt{2}(38-(\Delta l_3+\Delta l_1)][19\sqrt{2}-38+2\Delta l_2-\sqrt{2}\Delta l_3]}$$

(9)

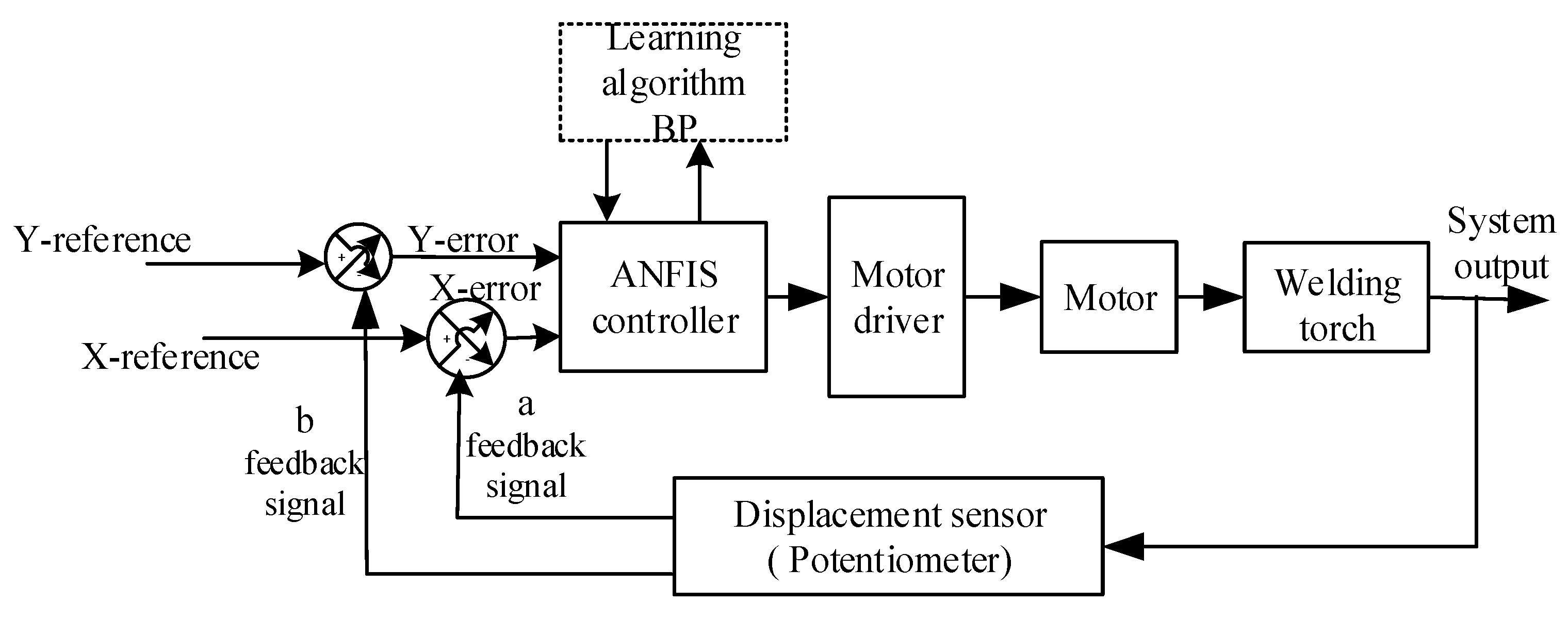

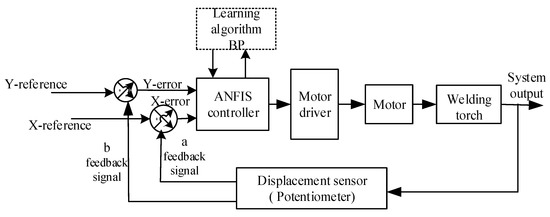

5.4. Control Algorithm (ANFIS)

The fuzzy logic is one of the most effective concepts in control engineering and is widely used in real-time control systems. Fuzzy logic coupled with neural networks yields substantial results. The resulting technique inherits the ability of neural networks in learning capability with fuzzy logic for knowledge representation to create a new technique well known as neuro-fuzzy networks. This hybrid technique enhances the controller’s reliability and performance in terms of cost [25,26]. The proposed close loop of the control system combines three parts—namely, adaptive neuro-fuzzy inference system (ANFIS) as the controller, the sensor in the feedback, and the motor driver connected to the output of the ANFIS controller. In the ANFIS design, the neural network is matched with a suitable rule base logic, which is realized using backpropagation (BP). The signals come from the sensor according to the real status of the deformed place in the tube walls; these signals are then compared with the threshold value according to the welding accuracy. The input error signals (a) and (b), and x and y displacements are the output for the ANFIS controller. Figure 8 shows the close loop control for the proposed system.

6. Control System Design

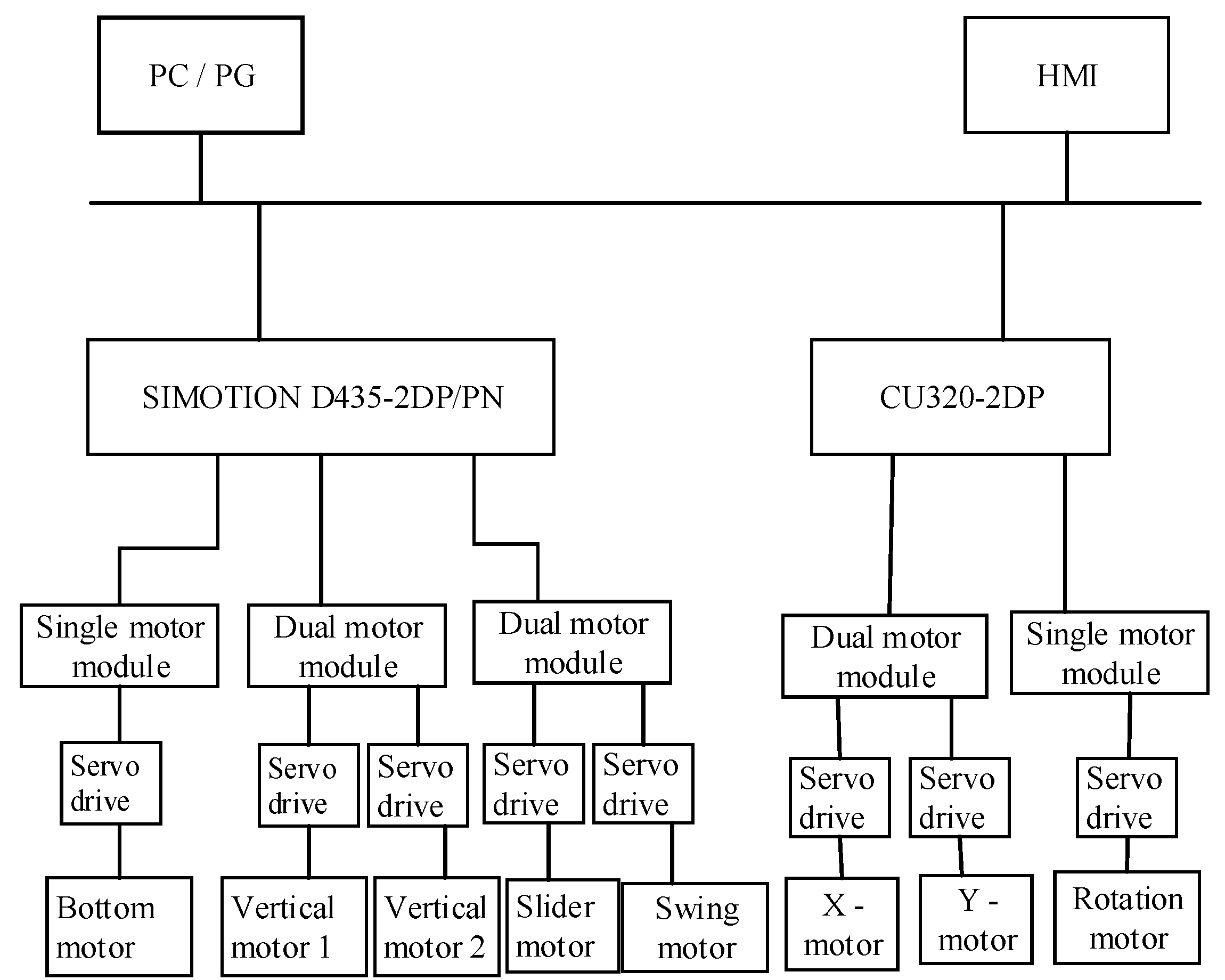

The driving and control systems need to be configured to realize the multiaxis movement of the welding torch via AC drivers. The SIMOTION controller (CU320-2DP and D435-2DP/PN, Munich, Germany), which is made by Siemens Ltd., was selected to control the multiaxis movement of the motors. To prevent the interference of the welding torch with the tube walls, the X, Y, and rotation motor can be moved by interpolation. The two vertical motors placed on top of the gantry should be moved synchronically to prevent the inclination of the cross slider. The cross slider, swing, and gantry bottom motors are controlled separately. The load on the controller is eased by using a dual-controller architecture. The human–machine interface (HMI) is used as the interface to control the welding parameters and greatly improve its practicality. The position, orientation, and sequence of the beads are calculated and then sent to the controller. The controller plans the required trajectory then guides the welding torch. The controller communicates with the welding power via industrial Ethernet to achieve real-time control of the welding power parameters. Figure 9 shows the structure of the control system. During the weld overlay process, five motors were realized. When the two vertical motors run, the welding carriage moves from the up to down position at the appropriate welding speed. The swing motor makes the torch oscillate at the required frequency according to the required bead width. The ANFIS algorithm, according to the data acquired from the sensor, would adjust X and Y motors as the tracking axes. After finishing the weld overlay over the whole tube walls, the bottom motor should run to move the gantry back with a suitable space, so a new workpiece is then installed.

7. Results and Discussion

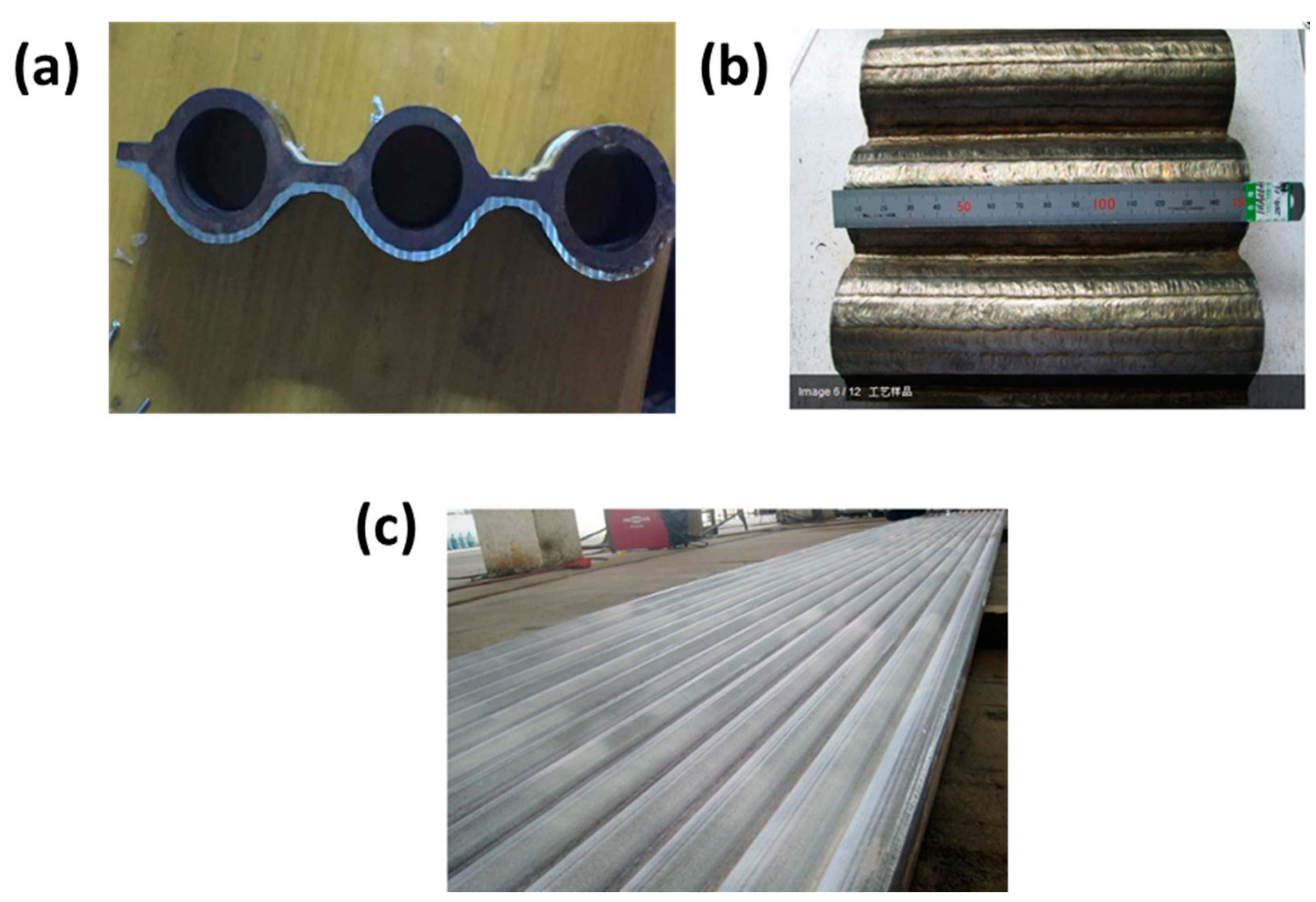

To verify the validity of the proposed system’s aforementioned kinematics and methodology, several tube walls with dissimilar height were overlaid in the workshop, as shown in Figure 1. The vertical downward automatic weld overlay was applied for the tube walls via pulse GMAW technique. An Inconel 625 alloy wire of diameter 1.2 mm was used. The shielding gas is 99.9% Argon. The welding torch was inclined upward, and the included angle of the welding torch axis with the vertically downward direction is about 75–80 degrees. The arc force always blows the droplet to the molten pool. A spray metal transfer with less spatters was obtained.

In the vertical downward welding position, as the deposited material is liquid, the arc acts on the molten pool surface and the lowest penetration can be obtained in comparison with other welding positions (such as downhead welding, horizontal position welding, etc.), the low dilution rate will be achieved. The molten pool is acted by gravity, surface tension, and arc force, which is significantly influenced by the geometry of the weld beads. The surface tension of the molten pool has a reverse relationship with the temperature. Once the welding current is high, the temperature of the molten pool is high and the surface tension is low. Consequently, the molten pool is easy to drop. At the same time, when the arc force—which is the plasma force—becomes large, the penetration and the dilution are increased. However, when the welding current is low, the molten pool will not drop, and small dilution can be obtained with low efficiency. Therefore, when the welding speed is high, the forward and backward welds will not be smoothly continuous, there will also be a gap between the two adjacent welds. However, once the welding speed is low, there will be much overlap between the two welds, and there will be much heat, which distorts the workpiece.

Moreover, the welding torch oscillates to form an enlarged uniform bead. Once the oscillation frequency is high, the weld unit length receives less heat energy and the penetration is low. Consequently, the good fusion cannot be achieved; while, when the oscillation frequency is low, the weld unit length receives much heat energy, so the molten pool will drop and the dilution is high.

The range of the welding parameters used in the experiment is as follows: welding current is in the range of 120–160 A, welding voltage is in the range of 22–25 V, welding frequency is between 10–12 Hz, and the welding speed is around 0.6–0.8 m/min. The pulsed GMAW process was applied at the aforementioned parameters to provide a better arc welding stability. The weld overlay of the vertical tube walls followed the sequence of carrying out the weld beads, starting from the tube, then directly heading to the membrane joint, and finally, on the membrane junction.

Thus, all beads have a width of 8–10 mm and an overlay layer thickness measured in the range of 2–2.2 mm, which saves lots of expensive overlay material. The overlapping width of the membrane joint and membrane junction beads is 1.5 mm; likewise, it is 2 mm for the tube beads, which can fit the proposed beads analyses. To calculate the quality of the weld overlay, the penetration is measured in the range of 0.1–0.6 mm, and the dilution is calculated in the range of 2–4%. The surface of the weld overlay structure has a good finish. The weld overlay results on the tube walls, as depicted in Figure 10, properly fit the weld overlay requirements for the boiler tube walls.

Table 5. A comparison of the proposed design with some previously published work.

Ref.	Welding Process	Geometry	Parameters
			Welding Speed (m/s)	Frequency (Hz)	Welding Current (A)	Dilution %	Material
The proposed design	pulse GMAW	Boiler tube walls	36–48	10–12	130–140	2–4	Inconel 625
J. Dutra et al. [15]	pulse GMAW	Boiler tube walls	21–25.2	3.8	127	28	ER309L stainless steel
N. Kumar et al. [14]	GMAW	Thick plate	15	2	120	25.51	Inconel 625

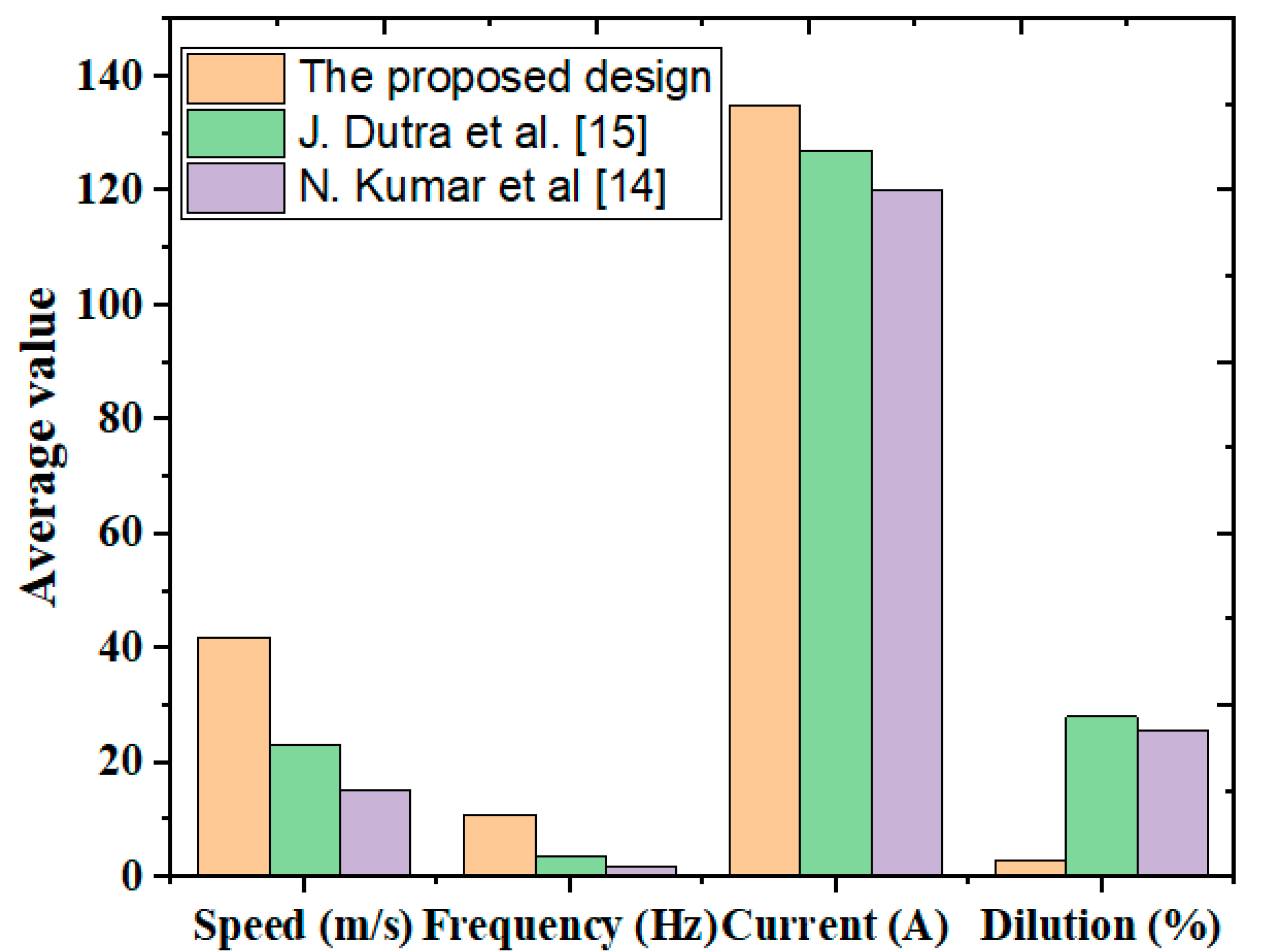

shows a comparison between our proposed design and previous related designs. Our design offers a much-improved functionality. It can be seen that the proposed design achieves a higher welding speed in the range of 36 m/s to 48 m/s, frequency ranging between 10 Hz and 12 Hz, and dilution rate in the range of 2% to 4%. However, the Dutra design achieves a lower welding speed ranging from 21 m/s to 25.2 m/s, frequency up to 3.8 Hz, and dilution rate up to 28%. Based on the obtained results, it is noted that the proposed design outperforms the Dutra design in terms of welding speed, frequency, and dilution rate. This is attributed to the fact that the welding torch in our design is horizontally perpendicular to the welding surface, with a rotation degree of up to 80 degree. Besides, we exploited the weld-tracking system to control the welding distortion and assembly error using the ANFIS algorithm, and the DOF adapted by our design is 6. However, in Dutra design, the welding torch is vertically perpendicular to the welding surface. This, in turn, limits the welding speed and frequency, and increases the dilution rate. In addition, the DOF used by Dutra is 4.

Similarly, the main results have been compared with the study by P. Kumar et al. [14]. Based on Table 5, it can be seen that the P. Kumar design achieves a welding speed up to 15 m/s, frequency up to 2 Hz, welding current up to 120 A, and dilution up to 25.51%. It should be noted that Figure 11 shows the average of the parameters illustrated in Table 5.

Moreover, our design is more advantageous due to the fact that it is suitable for mass production, while Dutra is limited to small workpieces. Besides, we exploited the weld-tracking system to control the welding distortion and assembly error using the ANFIS control algorithm. Furthermore, the proposed design improves the degree of automation and increases the productivity significantly. Consequently, the system provides advantages such as reducing labor costs and improving the quality of the welded surface finish, achieving a better arc welding stability and reducing the dilution, which saves lots of expensive overlay material. Finally, this research provides further development for the automatic welding systems than others.

8. Conclusions

A dedicated automatic weld overlay system is presented to provide an effective protection layer to reduce the corrosion and wear of the boiler tube walls. The proposed design is comprised of the headframe, gantry, and welding carriage. The vertical downward weld overlay was applied via the pulse GMAW technique. Some conclusions are drawn as follows:

• A weld overlay methodology is developed based on the geometry of the tube walls, the number and sequence of the beads were planned. The SIMOTION controller was employed to control the welding torch movement according to the weld overlay method and to run the two vertical motors synchronously, while the X, Y, and rotation motors run by interpolation.
• A weld-tracking system that consists of a contact displacement sensor based on the potentiometer principle and the ANFIS controller based on the BP algorithm solve the problem of weld distortions, assembly errors, and the deformation of the tube walls, and correct the offset between the welding torch and workpiece.
• The experiment results show that the proposed design properly fits the boiler tube wall’s weld overlay requirements with low dilution in the range of 2–4%, and with good surface finish. Furthermore, it improves the degree of automation and increases productivity significantly. Consequently, the system provides advantages such as reducing labor costs and improving the quality of the welded surface.
• For future work, we plan to employ the Kalman filter and the laser vision system in designing the automatic weld-tracking system.
