Literature Review and Thermodynamic Modelling of Roasting Processes for Lithium Extraction from Spodumene
Abstract
:1. Introduction
2. Decrepitation of Spodumene Ore
3. Roasting of Spodumene Ore
3.1. Sulfation Processing of Spodumene
3.2. Alkaline Process
3.3. Chlorination Process
3.4. Other Processes to Spodumene Treatment

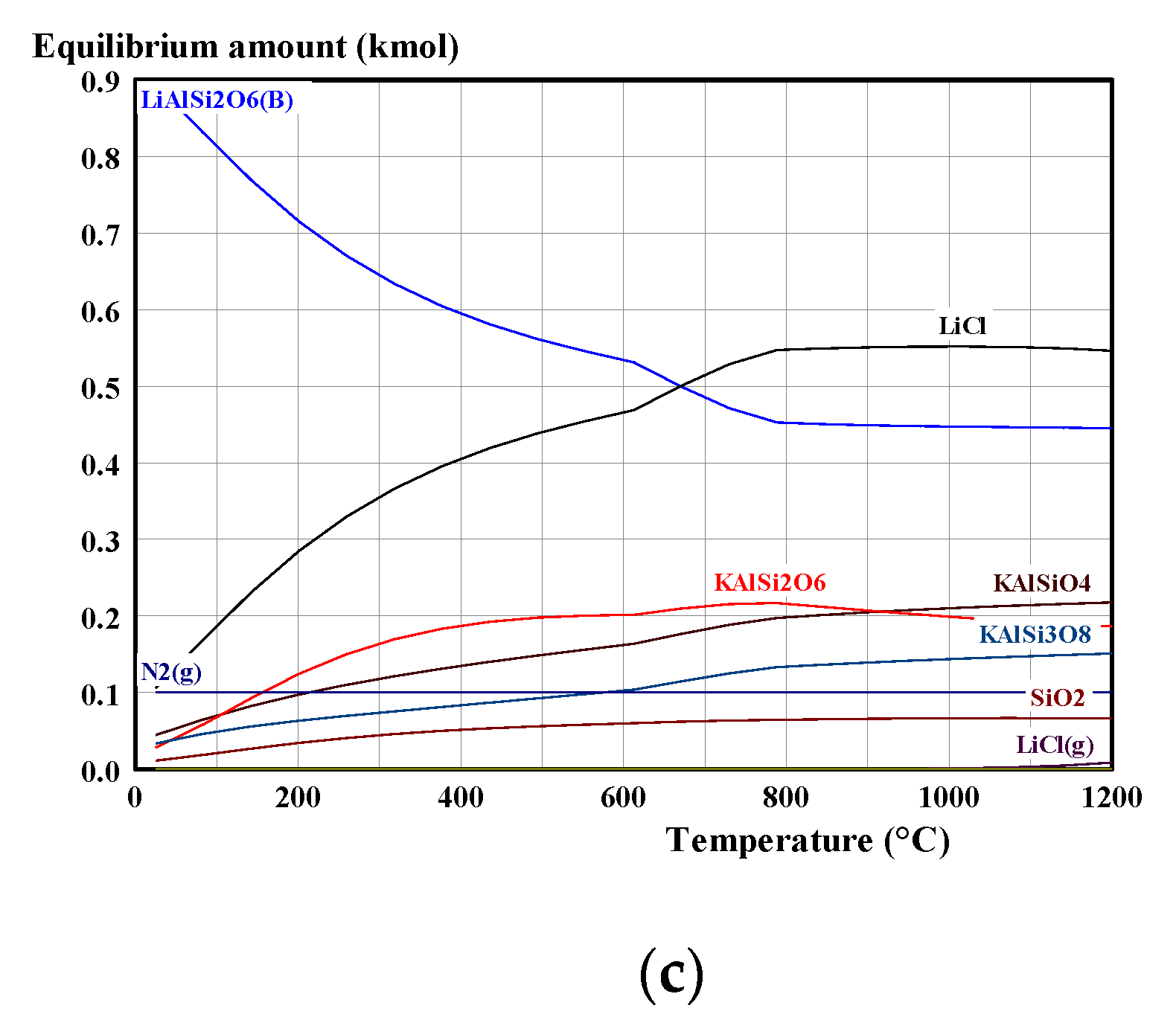

4. Chemical Thermodynamics of Spodumene Processing
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Christmann, P.; Gloaguen, E.; Labbé, J.-F.; Melleton, J.; Piantone, P. Global Lithium Resources and Sustainability Issues. In Lithium Process Chemistry; Elsevier: Amsterdam, The Netherlands, 2015; pp. 1–40. ISBN 9780128014172. [Google Scholar]
- Meng, F.; McNeice, J.; Zadeh, S.S.; Ghahreman, A. Review of Lithium Production and Recovery from Minerals, Brines, and Lithium-Ion Batteries. Miner. Process. Extr. Metall. Rev. 2019, 1–19. [Google Scholar] [CrossRef]
- Pillot, C. The Rechargeable Battery Market and Main Trends 2015–2025. In Avicenne Energy, Proceedings of the 18th International Meeting on Lithium Batteries; Chicago, IL, USA, 19–24 June 2016, ENSAM: Paris, France, 2016. [Google Scholar]
- Salakjani, N.K.; Singh, P.; Nikoloski, A.N. Mineralogical transformations of spodumene concentrate from Greenbushes, Western Australia. Part 1: Conventional heating. Miner. Eng. 2016, 98, 71–79. [Google Scholar] [CrossRef]
- Salakjani, N.K.; Nikoloski, A.N.; Singh, P. Mineralogical transformations of spodumene concentrate from Greenbushes, Western Australia. Part 2: Microwave heating. Miner. Eng. 2017, 100, 191–199. [Google Scholar] [CrossRef]
- Zelikman, A.N.; Belyaevskaya, L.V.; Samsonov, G.V.; Krein, O.E. Metallurgy of Rare Metals; Program for Scientific Translations: Jerusalem, Israel, 1966. [Google Scholar]
- Claffy, E.W. Composition, tenebrescence and luminescence of spodumene minerals. Am. Mineral. 1953, 38, 919–931. [Google Scholar]
- Gabriel, A.; Slavin, M.; Carl, H.F. Minor constituents in spodumene. Econ. Geol. 1942, 37, 116–125. [Google Scholar] [CrossRef]
- Salakjani, N.K.; Singh, P.; Nikoloski, A.N. Production of Lithium–A Literature Review Part 1: Pretreatment of Spodumene. Miner. Process. Extr. Metall. Rev. 2020, 41, 335–348. [Google Scholar] [CrossRef]
- Peltosaari, O.; Tanskanen, P.; Heikkinen, E.-P.; Fabritius, T. α→ γ→ β -phase transformation of spodumene with hybrid microwave and conventional furnaces. Miner. Eng. 2015, 82, 54–60. [Google Scholar] [CrossRef]
- Abdullah, A.A.; Oskierski, H.C.; Altarawneh, M.; Senanayake, G.; Lumpkin, G.; Dlugogorski, B.Z. Phase transformation mechanism of spodumene during its calcination. Miner. Eng. 2019, 140, 105883. [Google Scholar] [CrossRef]
- Fraas, F.; Ralston, O.C.; States., U.; Mines., B. Beneficiation of Spodumene by Decrepitation; U.S. Deptartment of the Interior; Bureau of Mines: Washington, WA, USA, 1937.
- Dessemond, C.; Lajoie-Leroux, F.; Soucy, G.; Laroche, N.; Magnan, J.-F. Spodumene: The Lithium Market, Resources and Processes. Minerals 2019, 9, 334. [Google Scholar] [CrossRef] [Green Version]
- White, G.D.; McVay, T.N. Some Aspects of the Recovery of Lithium from Spodumene; Oak Ridge National Laboratory: Oak Ridge, TN, USA, 1958. [Google Scholar]
- Guo, H.; Kuang, G.; Wang, H.; Yu, H.; Zhao, X. Investigation of Enhanced Leaching of Lithium from α-Spodumene Using Hydrofluoric and Sulfuric Acid. Minerals 2017, 7, 205. [Google Scholar] [CrossRef] [Green Version]
- Moore, R.L.; Mann, J.P.; Montoya, A.; Haynes, B.S. In situ synchrotron XRD analysis of the kinetics of spodumene phase transitions. Phys. Chem. Chem. Phys. 2018, 20, 10753–10761. [Google Scholar] [CrossRef] [PubMed]
- Dwyer, T.E. Recovery of Lithium from Spodumene Ores. U.S. Patent No. 2801153A, 30 July 1957. [Google Scholar]
- Gasalla, H.; Pereira, E. Activation-deactivation mechanisms in spodumene samples. Solid State Ion. 1990, 42, 1–6. [Google Scholar] [CrossRef]
- Salakjani, N.K.; Singh, P.; Nikoloski, A.N. Acid roasting of spodumene: Microwave vs. conventional heating. Miner. Eng. 2019, 138, 161–167. [Google Scholar] [CrossRef]
- Choubey, P.K.; Kim, M.; Srivastava, R.R.; Lee, J.; Lee, J.-Y. Advance review on the exploitation of the prominent energy-storage element: Lithium. Part I: From mineral and brine resources. Miner. Eng. 2016, 89, 119–137. [Google Scholar] [CrossRef]
- Meshram, P.; Pandey, B.D.; Mankhand, T.R. Extraction of lithium from primary and secondary sources by pre-treatment, leaching and separation: A comprehensive review. Hydrometallurgy 2014, 150, 192–208. [Google Scholar] [CrossRef]
- Yan, Q.; Li, X.; Wang, Z.; Wu, X.; Guo, H.; Hu, Q.; Peng, W.; Wang, J. Extraction of valuable metals from lepidolite. Hydrometallurgy 2012, 117–118, 116–118. [Google Scholar] [CrossRef]
- Luong, V.T.; Kang, D.J.; An, J.W.; Kim, M.J.; Tran, T. Factors affecting the extraction of lithium from lepidolite. Hydrometallurgy 2013, 134–135, 54–61. [Google Scholar] [CrossRef]
- Luong, V.T.; Kang, D.J.; An, J.W.; Dao, D.A.; Kim, M.J.; Tran, T. Iron sulphate roasting for extraction of lithium from lepidolite. Hydrometallurgy 2014, 141, 8–16. [Google Scholar] [CrossRef]
- Siame, E.; Pascoe, R.D. Extraction of lithium from micaceous waste from china clay production. Miner. Eng. 2011, 24, 1595–1602. [Google Scholar] [CrossRef]
- Sitando, O.; Crouse, P.L. Processing of a Zimbabwean petalite to obtain lithium carbonate. Int. J. Miner. Process. 2012, 102, 45–50. [Google Scholar] [CrossRef] [Green Version]
- Amer, A.M. The hydrometallurgical extraction of lithium from egyptian montmorillonite-type clay. JOM 2008, 60, 55–57. [Google Scholar] [CrossRef]
- Kuang, G.; Liu, Y.; Li, H.; Xing, S.; Li, F.; Guo, H. Extraction of lithium from β-spodumene using sodium sulfate solution. Hydrometallurgy 2018, 177, 49–56. [Google Scholar] [CrossRef]
- Lajoie-Leroux, F.; Dessemond, C.; Soucy, G.; Laroche, N.; Magnan, J.-F. Impact of the impurities on lithium extraction from β-spodumene in the sulfuric acid process. Miner. Eng. 2018, 129, 1–8. [Google Scholar] [CrossRef]
- Tian, Q.; Chen, B.; Chen, Y.; Ma, L.; Shi, X. Roasting and leaching behavior of spodumene in sulphuric acid process. Chin. J. Rare Met. 2011, 35, 118–123. [Google Scholar] [CrossRef]
- Ellestad, R.B.; Milne, L. Method of extracting lithium values from spodumene ores. U.S. Patent No. 2,516,109, 25 July 1950. [Google Scholar]
- Maurice, A.; Macewan, J.U.; Olivier, C.A. Method of producing lithium carbonate from spodumene. U.S. Patent No. 3,017,243, 16 January 1962. [Google Scholar]
- Jandová, J.; Dvořák, P.; Vu, H.N. Processing of zinnwaldite waste to obtain Li2CO3. Hydrometallurgy 2010, 103, 12–18. [Google Scholar] [CrossRef]
- Mcintosh, N. Production of lithium compounds. U.S. Patent No. 2,413,644, 31 December 1946. [Google Scholar]
- Jandová, J.; Vu, H.N.; Kondas, J.; Dvořák, P. Lithium recovery from wastes after mining of Sn-W ore. In Proceedings of the European Metallurgical Conference, EMC 2007, Düsseldorf, Germany, 11–14 June 2007; pp. 667–677. [Google Scholar]
- Jandova, J.; Vu, H.N. Processing of zinnwaldite wastes to obtain lithium and rubidium compounds. In Proceedings of the 2008 Global Symposium on Recycling, Waste Treatment and Clean Technology, REWAS 2008, Cancun, Mexico, 12–15 October, 2008. [Google Scholar]
- Jandová, J.; Vu, H.N.; Beloková, T.; DvořÁk, P.; Kondás, J. Obtaining Li2CO3 from Zinnwaldite wastes. Ceram. Silik. 2009, 53, 108–112. [Google Scholar]
- Kanari, N.; Allain, E.; Joussemet, R.; Mochón, J.; Ruiz-Bustinza, I.; Gaballah, I. An overview study of chlorination reactions applied to the primary extraction and recycling of metals and to the synthesis of new reagents. Thermochim. Acta 2009, 495, 42–50. [Google Scholar] [CrossRef]
- Kanari, N.; Mishra, D.; Mochón, J.; Verdeja, L.F.; Diot, F.; Allain, E. Some kinetics aspects of chlorine-solids reactions. Rev. Metal. 2010, 46, 22–36. [Google Scholar] [CrossRef] [Green Version]
- Gaballah, J.; Kanari, N.; Djona, M. Use of chlorine for mineral processing, metal extraction and recycling via synthesis of new reagent. Chloride Metall. 2002, 1, 203–225. [Google Scholar]
- Peterson, J.A.; Glioss, G.H. Lithium Values Recovery Process. U.S. Patent No. 2,893,828, 7 July 1959. [Google Scholar]
- Yan, Q.; Li, X.; Wang, Z.; Wang, J.; Guo, H.; Hu, Q.; Peng, W.; Wu, X. Extraction of lithium from lepidolite using chlorination roasting–water leaching process. Trans. Nonferrous Met. Soc. China 2012, 22, 1753–1759. [Google Scholar] [CrossRef]
- Barbosa, L.I.; Valente, G.; Orosco, R.P.; González, J.A. Lithium extraction from β-spodumene through chlorination with chlorine gas. Miner. Eng. 2014, 56, 29–34. [Google Scholar] [CrossRef]
- Barbosa, L.I.; González, J.A.; del Carmen Ruiz, M. Extraction of lithium from β-spodumene using chlorination roasting with calcium chloride. Thermochim. Acta 2015, 605, 63–67. [Google Scholar] [CrossRef]
- Dang, H.; Li, N.; Chang, Z.; Wang, B.; Zhan, Y.; Wu, X.; Liu, W.; Ali, S.; Li, H.; Guo, J.; et al. Lithium leaching via calcium chloride roasting from simulated pyrometallurgical slag of spent lithium ion battery. Sep. Purif. Technol. 2020, 233, 116025. [Google Scholar] [CrossRef]
- Erasmus, H.D. Method of Treating Lithiferous Ores to Recover Lithium as Lithium Chloride. U.S. Patent No. 2,561,439, 24 July 1951. [Google Scholar]
- Maurice, A.; Olivier, C.A. Carbonatizing Roast of Lithium Bearing Ores. U.S. Patent No. 3,380,802, 30 April 1968. [Google Scholar]
- Chen, Y.; Tian, Q.; Chen, B.; Shi, X.; Liao, T. Preparation of lithium carbonate from spodumene by a sodium carbonate autoclave process. Hydrometallurgy 2011, 109, 43–46. [Google Scholar] [CrossRef]
- Dos Santos, L.L.; do Nascimento, R.M.; Pergher, S.B.C. Beta-spodumene: Na2CO3: NaCl system calcination: A kinetic study of the conversion to lithium salt. Chem. Eng. Res. Des. 2019, 147, 338–345. [Google Scholar] [CrossRef]
- Rosales, G.D.; Resentera, A.C.J.; Gonzalez, J.A.; Wuilloud, R.G.; Rodriguez, M.H. Efficient extraction of lithium from β-spodumene by direct roasting with NaF and leaching. Chem. Eng. Res. Des. 2019, 150, 320–326. [Google Scholar] [CrossRef]
- Rosales, G.D.; Ruiz, M.D.C.; Rodriguez, M.H. Novel process for the extraction of lithium from β-spodumene by leaching with HF. Hydrometallurgy 2014, 147–148, 1–6. [Google Scholar] [CrossRef]
- Robinson, G.P. Recovery of Lithium from Ore. U.S. Patent No. 2,983,576, 9 May 1961. [Google Scholar]
- Hayes, E.T.; Williams, F.P.; Sternberg, W. Production of Lithium Chloride from Spodumene. U.S. Patent No. 2,533,246, 12 December 1950. [Google Scholar]
- Sharratt, H.J. The Extraction of Lithium from Spodumene. Master’s Thesis, McGill University, Montreal, QC, Canada, 1955. [Google Scholar]
- Salakjani, N.K.; Singh, P.; Nikoloski, A.N. Production of Lithium–A Literature Review. Part 2. Extraction from Spodumene. Miner. Process. Extr. Metall. Rev. 2019, 1–16. [Google Scholar] [CrossRef]
Mineral | Cr2O3 | MgO | MnO | Li2O | SO3 | Fe2O3 | K2O | Na2O | TiO2 | P2O5 | SiO2 | Al2O3 | CaO |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
% | 0.03 | 1.30 | 0.32 | 2.14 | 0.15 | 4.29 | 1.26 | 1.14 | 0.10 | 0.33 | 61.31 | 20.79 | 1.72 |
Process | Experimental Conditions | Product | Recovery/% | Reference | |||||
---|---|---|---|---|---|---|---|---|---|
Roasting | Leaching | ||||||||
Reagent | Temp./ | Time/min. | Time/hr | Temp./ | Lixiviant | ||||
Sulfating | Conc.·H2SO4 | 200–300 | 30–60 | - | - | H2O | Li2SO4 | 85 | [52] |
Na2SO4 + CaO | - | - | 3 | 230 | Na2SO4 + CaO | Li2SO4 | 93.30 | [28] | |
Na2SO4 + NaOH | 200–300 | - | 3 | 230 | Na2SO4 + NaOH | Li2SO4 | 90.70 | [28] | |
(NH4)2SO4 | 150–370 | - | - | - | NH3 (aq) | Li2SO4 | - | [17] | |
CaSO4 + CaCO3 | 1000–1150 | 120–180 | - | - | H2O | Li2SO4 | 85–90 | [53] * | |
Conc. H2SO4 | 250–300 | - | 1 | - | H2O | Li2SO4 | 86 | [31] | |
H2O+O2 + SO3 | 350–425 | 10-40 | - | - | H2O | Li2SO4 | 97 | [32] | |
Alkaline | CaO + H2O | 100–205 | 60 | H2O | LiOH | ~97 | [34] | ||
CaO + H2O | 1000–1230 | 100 | H2O | LiOH | 80 | [34] * | |||
Chlorination | KCl, NaCl | 1000–1050 | 15–60 | - | 85 | H2O/HCl | LiCl | 85–97.50 | [41] |
Cl2 | 1100 | 150 | - | - | - | LiCl | - | [43] | |
CaCl2 | 900 | 120 | - | 60 | H2O | LiCl | 90.2 | [44] | |
CaCl2 | 800–1200 | - | - | - | Alcohol | LiCl | 9.5–98.5 | [46] | |
Carbonizing | Na2CO3 | 525–675 | 10–120 | - | - | H2O, NH4+ (aq) | Li2CO3 | 75–97 | [47] |
Na2CO3 | 150–250 | 10–120 | -- | - | H2O | Li2CO3 | ~94 | [48] | |
Na2CO3 + NaCl | ~923 | 120 | - | - | H2O | Li2CO3 | 70 | [49] | |
Fluorination | NaF | 600 | 120 | 0.5 | 25 | HF | LiF | 90 | [50] |
