Influence of the Nonequilibrium Material State on Wear Resistance

Abstract

The influence of the nonequilibrium state of a material on its wear resistance is investigated in this study. Using methods of non-equilibrium thermodynamics and the theory of self-organization, a non-equilibrium material is shown to possess an overall lower wear rate than a material in an equilibrium state. This was experimentally demonstrated to be the case in different materials and tribosystems, such as Babbit operating in complete lubrication conditions, copper in the current collector and a cutting tool with a coating applied on it.

1. Introduction

Previous works concerning nonequilibrium thermodynamics and self-organization, characterize friction as a nonequilibrium process [1,2,3,4,5].

In [6,7,8,9,10] it is stated that materials enter a nonequilibrium state during friction due to the formation of secondary structures on the surface. In [2] the analyzed tribosystem deviated significantly from the equilibrium state. State analysis was based on the concept of reserved energy, the entropy of the system and entropy production. If energy delivered to the system has insufficient time to be dissipated by channels such as thermal conductivity, heterogeneous secondary structures that affect the state of the contacting surfaces are expected to manifest and grow in sliding bodies. Therefore, entropy might decrease, and the system will shift to a non-equilibrium state. According to [6], once secondary structures are formed, friction energy gets unevenly distributed within the rubbing body and becomes mostly concentrated in secondary structures.

As a consequence, the secondary structures perform protective functions, limiting the spread of interactions inside the rubbing bodies and reducing their intensity. Their appearance, therefore, corresponds to the Le Chatelier principle [11]. All other conditions being equal, increasing the degree of uneven distribution of energy within the rubbing body leads to a decrease in its entropy [12].

In a rubbing body, the friction energy is distributed according to a monotonically decreasing function with distance from the friction zone [6]. Conversely, the distribution of friction energy becomes abrupt as secondary structures form. Most of the friction energy is concentrated within the secondary structures, sharply decreasing at their boundary. This energy distribution has a greater degree of non-equilibrium compared to the case of a rubbing body where secondary structures are not present. Under equal friction energies, the entropy of a friction body with secondary structures will be less than the entropy of a friction body without them. Thus, as the material reacts to friction, it will enter a non-equilibrium state. There are processes which strive to reduce entropy within the rubbing material, i.e., through negative entropy production. The material reacts to friction by dissociating from the equilibrium state, which leads to a decrease in the wear rate [13]. In this context, it becomes necessary to investigate the wear rate behavior of materials initially present in a state of non-equilibrium.

Theory

From [5,11], it follows that the wear rate decreases along with entropy production. In [11,13], it is noted that the production of entropy markedly decreases under tougher friction conditions due to self-organization and the formation of dissipative structures in the friction zone. Dissipative structures are characterized by processes with increased free energy and negative entropy production. The latter contributes to a decrease in the total entropy production of a friction body compared to its state under the same conditions without self-organization.

The entropy production of a rubbing body without self-organization is given in expression (1):

$$\frac{d_i{S}_1}{dt}={\displaystyle \sum }\frac{d_i{S}_f}{dt}$$

(1)

where ${\displaystyle \sum }\frac{d_i{S}_f}{dt}$ is the sum of entropy production processes occurring in the rubbing body as a result of friction without self-organization. It should be noted that ${\displaystyle \sum }\frac{d_i{S}_f}{dt}>0$.

The production of entropy after self-organization is given in (2):

$$\frac{d_i{S}_2}{dt}={\displaystyle \sum }\frac{d_i{S}_f}{dt}-\left|{\displaystyle \sum }\frac{d_i{S}_s}{dt}\right|$$

(2)

where: $\frac{d_i{S}_2}{dt}$ is the production of the entropy in the rubbing body following self-organization; ${\displaystyle \sum }\frac{d_i{S}_s}{dt}$ is the sum of entropy production processes contributed by dissipative structures.

The second term on the right-hand side of (2) is expressed in terms of absolute value with a negative sign to emphasize the negative entropy production of dissipative structure processes.

Comparing (1) and (2) it can be concluded that:

$$\frac{d_i{S}_1}{dt}>\frac{d_i{S}_2}{dt}$$

(3)

Thus, according to [11], all other conditions being equal, the wear rate of the rubbing body during the course of self-organization is less than that of the rubbing body where self organization is absent.

From the point of view of thermodynamics, the nonequilibrium state of a material is characterized by the relatively high value of internal energy and the relatively low value of entropy. Examples of such materials include hardened alloys as compared to quenched and annealed materials, alloys with a high value of internal stresses as compared to annealed materials and others. Relaxation processes occur in these materials during heating, which bring it closer to the equilibrium state. In quenched materials, such processes can be the decomposition of a supersaturated solid solution, a decrease of the density of vacancies or recrystallization, whereas in materials that have increased internal stresses, these processes include the movement of dislocations with increasing uniformity of distribution by volume. Different relaxation processes can proceed through various mechanisms. Increasing entropy and decreasing internal energy are common features of these processes. Relaxation processes are accompanied by positive entropy production.

During the course of relaxation processes under friction, the entropy production of the rubbing body will increase in both cases with (4) and without self-organization (5):

$$\frac{d_i{S}_1}{dt}={\displaystyle \sum }\frac{d_i{S}_f}{dt}+{\displaystyle \sum }\frac{d_i{S}_r}{dt}-\left|{\displaystyle \sum }\frac{d_i{S}_s}{dt}\right|$$

(4)

$$\frac{d_i{S}_1}{dt}={\displaystyle \sum }\frac{d_i{S}_f}{dt}+{\displaystyle \sum }\frac{d_i{S}_r}{dt}$$

(5)

where: $\frac{d_i{S}_r}{dt}$ are the entropy production relaxation processes.

Comparing (5) and (4) with (1) and (2) respectively, it can be concluded that entropy production increases during the passage of the relaxation processes. Therefore, an increase in the wear rate is anticipated.

However, it was noted in [14] that the probability of self-organization rises along with the increasing complexity of the system. In [15,16], the probability of self-organization and the formation of dissipative structures with regard to friction processes on the surface of a rubbing body is estimated depending on the number of thermodynamic flows interacting with the rubbing body. In (6), the probability of thermodynamic stability loss of a rubbing body is given, which is a prerequisite for the initiation of self-organization:

$$P=1-\frac{1}{2n}$$

(6)

where: P isthe probability of loss of thermodynamic stability, n is the number of thermodynamic fluxes.

From (6) it follows that the probability of thermodynamic stability loss increases alongside the number of flows. Consequently, the probability of self-organization also increases.

During friction of relatively non-equilibrium materials, thermodynamic flows of matter, energy, dislocations and accompanying relaxation processes are added to the thermodynamic flows caused by friction. According to (6), this increases the probability of self-organization

In non-equilibrium materials, self-organization will take place under less severe friction conditions than in equilibrium materials. Given the same friction conditions, self-organization is unlikely to commence in equilibrium materials but may take place in non-equilibrium ones. Self-organization in non-equilibrium materials will reduce the wear rate several times compared to relatively equilibrium materials without self-organization [13].

It should be noted that all previous arguments only apply if the properties of equilibrium and non-equilibrium materials are similar.

2. Materials and Methods

Three different tribosystems operating under different conditions were taken into consideration.

The first tribosystem simulated the friction process of a journal bearing and a steel shaft. Babbitt was chosen as the antifriction material (i.e., materials that have low friction coefficient, low ability for seizure), which are used in sliding bearings. Composition of Babbit is shown in

Table 1. Composition of Babbitt shoe.

Elements Composition, % Weight
Pb	Sn	Na	Ca	Mg
balance	2.01	0.3	0.14	0.033

. This material is capable of natural aging at a temperature of 20 °C. Determination of properties and tribological tests of Babbit were carried out after aging for one day, one month, six months and one year. Hardness, tensile strength, friction coefficient, score resistance and wear rate were evaluated.

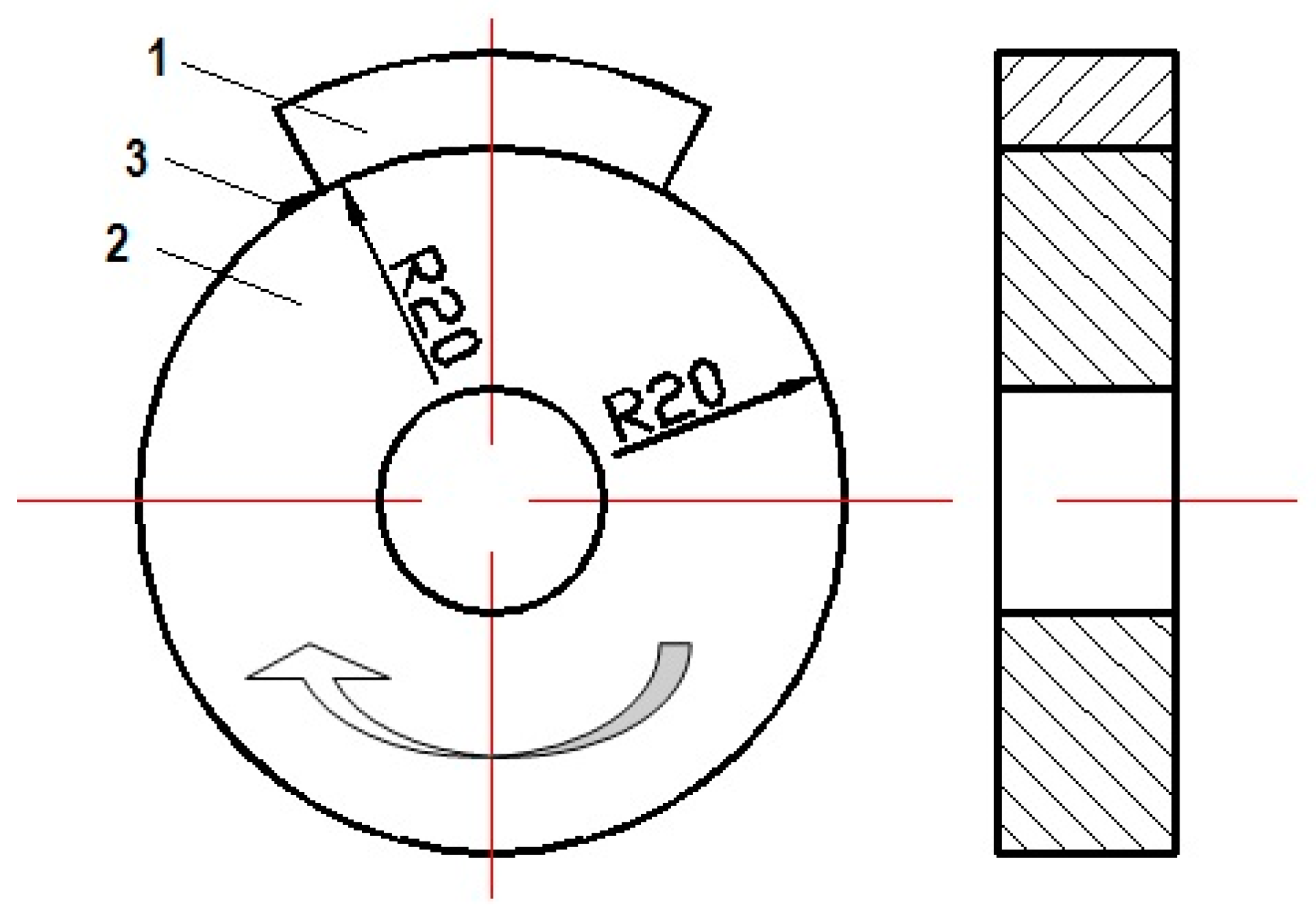

The tribological tests were performed on the rotating steel roller–fixed shoe made of antifriction alloy (Figure 1). The analog of nickel-chromium steel SNC28 (Hakuro Group, Kasai, Japan) was used for roller production (

Table 2. Composition of steel role.

Elements Composition, % Weight
Main Components							Impurities
Ni	Cr	Mn	Si	C	Mo	Fe	Cu	S	Al	V	Nb
2.81	0.681	0.625	0.295	0.35	0.477	94.42	0.087	0.011	0.018	0.185	0.013

). The radius of roller and shoe was 20 mm, and the width was 10 mm.

The steel roller rotated at a speed of 500 r/min. An API CB group oil was used as a lubricant.

To evaluate the score resistance, the load increased step by step every 10 min by 50 N until a sharp (by several times) increase in the friction coefficient was reached. The wear of the steel roller and the Babbit shoe were determined by the difference in mass before and after testing for 40 h under a load of 8 MPa.

Sliding electrical contacts are another tribosystem observed in this study. The test circuit was similar to that shown in Figure 1. The tests were performed in dry friction conditions. A lateral reciprocating movement of the shoe with a frequency of 200 displacements/min, and an amplitude of 10 mm was added to the rotation of the roller. The load was 245 N. An electric current of 40 A passed between the contacts. The roller was made of copper produced in a vacuum furnace. The cast billet was hot rolled. The copper was quenched in water at temperatures of 800, 850, and 900 °C. Quenched specimens were cold rolled with a degree of compression of 60%. The material properties of copper samples are shown in

Table 3. Mechanical properties of copper specimens.

Quenching Temperature, °C	Hardness, HB	Tensile Strength, MPa	Electrical Conductivity, % IACS
800	111	358	97.8
850	112	361	97.3
900	112	362	97.0

.

The current collection material (shoe) was a sintered mixture of iron and copper powders. The sintered material was permeated with Pb-Sn alloys. The composition and properties of the alloys are provided in

Table 4. Composition of the current collection material.

Elements Composition, % weight
Cu	Pb	Sn	Fe
8.4	17.2	1.1	balance

and

Table 5. Properties of the current collection material.

Hardness, HB	Electrical Resistivity, µΩ·m	Density, g/cm3
160	0.28	7.3

respectively.

Finally, behavior of the wear-resistant (TiAl)N coating on the cutting tool was studied. A conventional method of physical vapor deposition was used to coat the tool. The coating was also applied to the cutting tool by filtered arc deposition (FAD), which enabled finer coating grains to be obtained. A detailed description of the technologies and properties of the coatings deposited using the traditional equilibrium coating (PVD) method and FAD technology are given in [6,17]. The properties of the coatings are shown in

Table 6. Properties of (TiAl)N coatings.

Coating	Chemical Composition, % Atom	Grain Size, nm	Coating Thickness, µm	Microhardness, GPa	Friction Coefficient
(TiAl)N PVD	Ti22Al22N56	50	3	33	0.986
(TiAl)N FAD	Ti22Al22N56	25	3	32	0.857

. The milling speed was 240–450 m/min, cutting depth—0.5 mm. Steel 1040 was used as the workpiece.

3. Results and Discussion

Table 7. Mechanical and tribological properties of Babbit depending on the aging period.

Properties	Aging Period
	One Day	One Month	Six Months	One Year
Hardness, HB	20.4	25.0	26.7	28.7
Tensile strength, MPa	-	44.0	52.2	63.4
Friction coefficient	-	0.01	0.036	0.08
Scoring load, MPa	-	13.0	11.8	10.2
Wear rate, mg/40 h	-	0.0011	0.0025	0.0047

shows the mechanical and tribological properties of Babbit depending on the aging period.

Table 8. Wear rates of copper rollers depending on quenching temperature.

Property	Quenching Temperature, °C
	800	850	900
Wear Rate, mg/h	38.1	32.6	25.9

shows wear rates of copper rollers quenched at different temperatures following friction with the current collector.

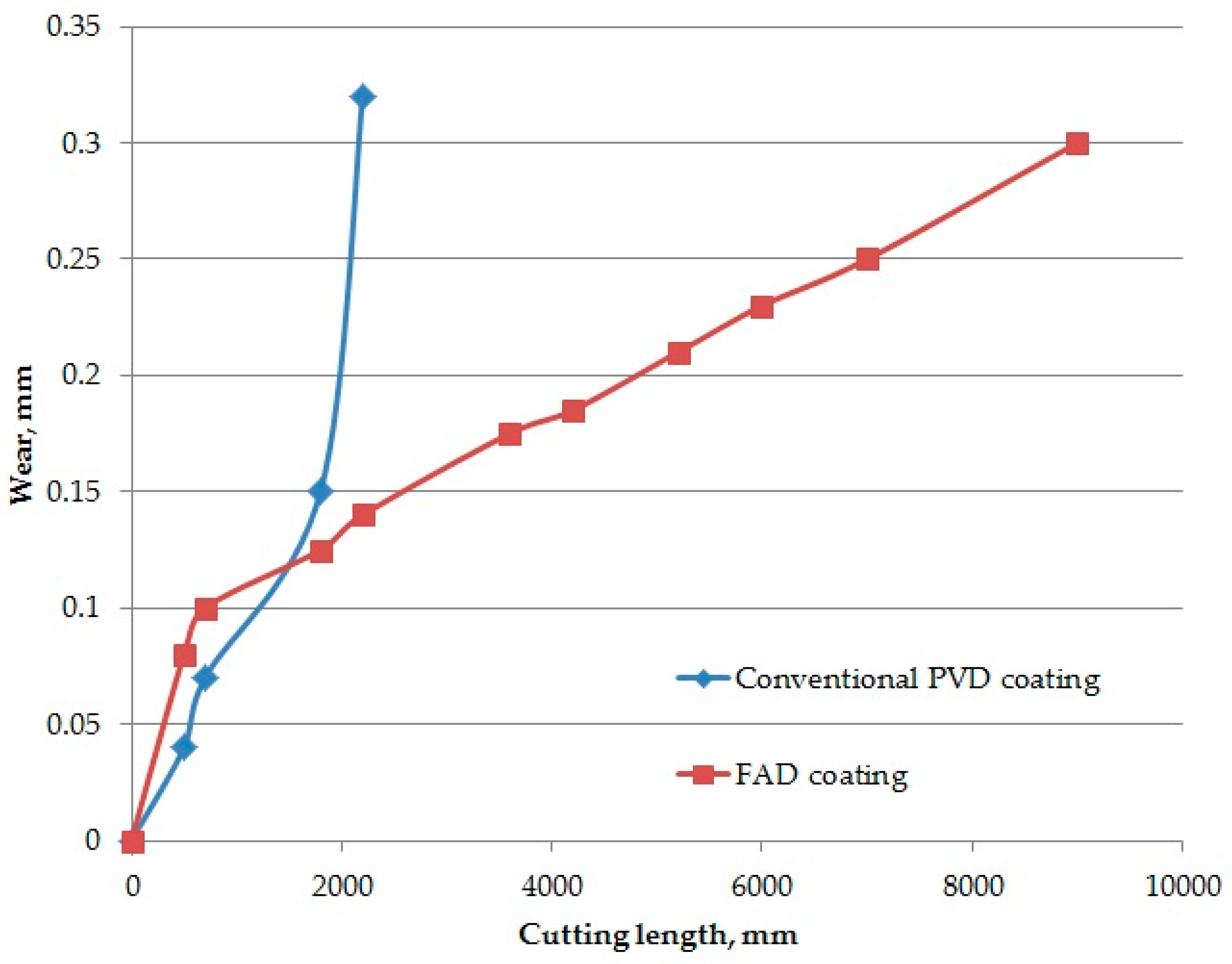

Figure 2 demonstrates the dependence of coating wear on cutting length.

Table 2 shows that the properties of copper specimens quenched at different temperatures were similar. Moreover, Table 5 shows that coatings obtained by different technologies had the same microhardness. Thus, the materials hda almost the same properties irrespective of the degree of non-equilibrium.

As can be seen in Table 6, Babbitt hardness and tensile strength increased with aging time. As a result, as the degree of nonequilibrium in the Babbitt grew, its hardness and tensile strength decreased.

Thus, the properties of the studied materials either did not change or improve as they approached the equilibrium state.

Table 2 shows that as the copper specimens moved away from the equilibrium state (increasing quenching temperature), electrical conductivity decreased. Consequently, thermal conductivity decreased as well. This is because increasing the quenching temperature lead to a corresponding increase in the content of vacancies. Point defects have the greatest effect on the electrical and thermal conductivity of metallic materials [18].

From Table 6, it follows that as the coating layer moved away from the equilibrium state (with the application of FAD technology), the grain size decreased and the number of crystal lattice defects grew. Just as in the copper samples, the thermal conductivity of the material decreased with distance from the equilibrium state. In addition, the friction coefficient diminished as the coating layer moved further from the equilibrium state.

From Table 7 it follows that hardness and wear rate decreased along with distance from the equilibrium state (reduction of the aging time), whereas tensile strength and scoring load become greater. A supersaturated lead-based solid solution decomposed during the aging of Babbit. Magnesium, sodium, and calcium were released from the solid solution as a result of aging. Calcium in particular, formed an intermetallic compound CaPb₃. Depletion of the solid solution lead to an increase in the thermal conductivity of the alloy.

Table 7 and Table 8 and Figure 2 show that for all materials, the wear rate decreased with distance from the equilibrium state. From Figure 2 it follows that in a nonequilibrium coating (FAD), self-organization took place during friction at a point when wear rate showed a sharp decrease [13]. Following self-organization, the wear rate of the nonequilibrium coating (FAD) became less than that of the equilibrium coating (PVD). The opposite situation prevails prior to self-organization.

It was noted earlier that the production of entropy in non-equilibrium materials was greater than the production of entropy in relatively equilibrium ones under friction. Therefore, the wear rate of non-equilibrium materials must be greater than the wear rate of relatively equilibrium materials [11]. The wear rate of non-equilibrium materials may decrease due to self-organization. According to (6), an increase in the number of energy flows within a rubbing body increases the probability of self-organization. Consequently, relaxation processes increase the likelihood that self-organization will initiate.

Self-organization can take place only after the system loses its thermodynamic stability. Thermodynamic stability is determined by the sign of excess entropy production [14]. The entropy production of a rubbing body under friction according to [19] is the following:

$$\frac{d{s}_i}{dt}=X_h{I}_h=\frac{{\left(kpv\right)}^2}{\lambda T^2}$$

(7)

where: $I_h=-\lambda gradT=kpv$—heat flow; $X_h=\frac{-gradT}{T^2}$—thermodynamic force, inducing heat flow (k—friction coefficient, p—pressure, λ—heat conductivity coefficient, T—temperature, v—sliding speed).

According to [20], the system can lose its thermodynamic stability if the excess entropy production is negative:

$${\displaystyle \sum }\delta X_h\delta I_h\le 0$$

(8)

The sum on the left-hand side of (8) is known as the excess entropy production. The values δX_h and δI_h are the respective deviations of the thermodynamic forces and flows from the steady state.

Let’s presume that the degree of nonequilibrium in the friction material will affect its thermal conductivity and friction coefficient. To do this, we introduce the value ψ, which characterizes the deviation of the material from the equilibrium. In view of (7), the excess entropy production will be:

$${\displaystyle \sum }\delta X_h\delta I_h=\delta \left(kpv\right)\delta \left(\frac{kpv}{\lambda T^2}\right)=\frac{{\left(pv\right)}^2}{T^2}$$

(9)

The right side of (9) can become negative if the second factor is negative. The condition for it is the following:

$$\frac{\partial k}{\partial \psi }\frac{\partial \lambda }{\partial \psi }>0$$

(10)

Condition (9) can be met if both the friction coefficient and thermal conductivity simultaneously increase or decrease when the friction material deviates from the equilibrium state.

As follows from the above data, a deviation from equilibrium leads to a simultaneous decrease in the friction coefficient and in thermal conductivity in all three materials studied. Therefore, non-equilibrium materials will have a lower wear rate compared to relatively equilibrium materials that are subject to condition (10). The comparative decrease in the wear rate of non-equilibrium materials is associated with the increased probability of self-organization when deviating from a state of equilibrium.

4. Conclusions

This study investigated three different materials (a sliding electrical contact (copper), a journal bearing (Babbitt) and a cutting tool coated with TiAlN) in nonequilibrium states of three different tribosystems. Results demonstrate that the wear rate of non-equilibrium materials was less than that of equilibrium materials. The decrease in wear rate was associated with the greater likelihood of self-organization during friction in non-equilibrium materials.
