Article

Elaboration of Ionic Liquids on the Anti-Wear Performance of the Reinforced Steel-Steel Contact Surface

by
Hua Jiang
1,2,
Xianjun Hou
1,2,*,
Yuxin Ma
1,2,
Weiwei Guan
1,2,
Haijun Liu
1,2 and
Yucong Qian
1,2
1
Hubei Key Laboratory of Advanced Technology for Automotive Components, Wuhan University of Technology, Wuhan 430070, China
2
Hubei Collaborative Innovation Center for Automotive Components Technology, Wuhan University of Technology, Wuhan 430070, China
*
Author to whom correspondence should be addressed.
Lubricants 2022, 10(10), 260; https://doi.org/10.3390/lubricants10100260
Submission received: 9 September 2022 / Revised: 6 October 2022 / Accepted: 11 October 2022 / Published: 14 October 2022
(This article belongs to the Special Issue New Developments and Future Trends of Ionic Liquids as Lubricants)
Browse Figures
Versions Notes

Abstract

:
This study conducted a tribological investigation of base oil (PAO6 and 5W 40) and ionic liquids (IL)-modified lubricants through a four-ball tribometer for 30 min. The lubricants were fabricated via a two-step method using stirring magnetic and ultrasonic dispersion. IL, base oil, and lubricants were, respectively, characterized by XRD and FTIR analysis. In addition, multiple characterizations such as EDS, 3D morphology, and SEM were carried out to evaluate the wear and friction performance of steel balls. Ultimately, the results showed that the coefficient of friction (COF) and wear scar diameter (WSD) of wear scar lubricated by IL-modified lubricants were greatly decreased than that by base oil. IL can well improve the tribological properties of PAO 6 oil and 5W-40 oil due to the tribo-film appearance on the friction surface of wear scar by the effective role of IL. Fascinatingly, this investigation comprehensively and elaborately put a new sight into the lubrication mechanism of how IL reacted with a base oil and enhanced the tribological characteristics.

1. Introduction

Most mechanical components have two movable parts, which exist in planes, cars, and trains, so the friction and wear phenomenon happen all the time. Friction and wear are inevitable phenomena in the operation of mechanical parts in industrial production, especially in the automobile engine system, where the friction and wear between the piston ring and cylinder liner are the most serious. Proper friction is normal and beneficial to the development of industry, but excessive and severe wear will place a burden on mechanical components such as the increasing friction heat and reduced total mechanical power, which will weaken the power performance, fuel economy, and so on. Therefore, the optimization of friction between components has become a very important issue. The quality of lubricants is of great significance for mechanical components and needs to be efficiently enhanced [1]. There are many kinds of lubricants including solid lubricants, lubricating oils, and greases, among which lubricating oil is the most widely used one with good properties as it tends to generate the stable tribo-film between contact surfaces, thus preventing and delaying the earlier contact of steel–steel parts. Suitable lubricants can play a positive role in the tribological performance of mechanical components while it will be undermined if using ineffective lubricants. In addition, brilliant lubricants should not only have good thermal stability, thermal conductivity, anti-friction and wear properties, but also be compatible with the friction pair material, especially the corrosion phenomenon between lubricants and friction pair should be well avoided. Multiple researchers indicated that base oil exhibited inferior tribological performance than those containing additives. Several approaches were used to optimize the tribological performance of base liquids, among which the additives employment was the widely popular one.
In recent years, the direct use of IL as base oil additives is becoming more popular because of their excellent thermal stability, thermal conductivity, and tribological peculiarities. ILs were regarded as potentially remarkable additives of base liquids as the research gradually deepened [2,3,4,5,6,7,8,9,10,11,12,13,14]. IL is a salt compound entirely consisting of anions and cations that are liquid at room temperature. The cations are mainly imidazole cations, and the anions are predominately halogen ions and other inorganic acid ions. The thermochemical and tribological properties of ILs dispersing into different base liquids including PAO oil, 5W 40, 5W 30, 10W 40 and PEG are widely investigated. Li et al. [15] compared the tribological characteristics of three kinds of ILs (LL108, LB108, LP108) using 10W 40 and PEG400 as base liquids. Ultimately, the results suggested that the addition of IL into base liquids well improves the tribological performance due to the formation of a chemical film on the surface of the friction contact point via XPS characterization. Battez et al. [16] investigated the rheological and tribological performance of mineral oil, respectively. The worn scar surfaces were characterized by SEM and EDS, which asserted that the COF and WSD values were reduced owing to the use of ILs under the optimal concentration and further facilitated the anti-wear effects. Jiang et al. [17] conducted an experiment concerning the rheological properties and thermal stability of hybrid nanoparticles modified with IL, the results suggest the synergetic role between the IL and nanoparticles generates a complex reaction and finally enhances the thermal properties of base oil. Syahir et al. [18] investigated the tribological behavior of two kinds of base oil (PAO8 and bio-based oil) adding different ILs with various concentrations. They ultimately found that not all Ils can improve the tribological characteristics and only suitable ionic liquids can achieve the best anti-wear and anti-friction properties at the best concentration. In summary, these studies all indicated that IL can play a positive role in improving the tribological peculiarities of the contact surface, which also provides us with potential ideas [19,20,21] for our following research. In addition, some convincing mechanisms for reducing the wear and friction of IL were proposed by some experts [22,23,24,25]. Previous reviews of the effect of IL on tribological properties were listed in Table 1.
To verify the effect of IL as additives dispersing into base oils on the tribological performance, this study used two kinds of base oils (PAO6 and 5W 40) and IL (1-vinyl-3-ethyliMidazoliumtetrafluoroborate) via a four-ball tribometer for 30 min duration. Then, a series of characterizations such as FESEM, 3D profiler, and EDS were employed to evaluate the wear scar conditions. Currently, in spite of the fact that there are multiple studies of ILs as additives dispersing water-based and oil-based fluids, the direct addition of IL into PAO 6 and 5W 40 oil are far fewer, which is also the reason rendering us to carry out some correlated investigation. In this article, we aim to explore the effect of IL modification on the base oil properties including rheological and tribological performance. The underlying mechanism of ionic liquids to increase viscosity and improve friction performance is analyzed theoretically, and a convincing analysis is provided. In addition, many directly use pure ionic liquids as lubricants for the mechanical components, which are too expensive to achieve industrial use. For the consideration of economic effect, this paper uses two kinds of base oils modified with ionic liquid, which improves the friction and lubrication performance, and at the same time meets the economic and practicality and has the potential to be applied in the industrial field.

2. Experimental Section

2.1. Materials

5W 40 oil and PAO 6 oil, as synthetic oil and crude oil, respectively, with potentially great physiochemical characteristics especially higher viscosity and viscosity index, were used as the base oil in this study. According to previous investigations and engineering practice, the lubricating effect of base oil alone seems not to be satisfied. Hence, IL was opted as a modifier to enhance the potential properties of base oil. The IL used in this study was obtained from the Shanghai Aladdin Biochemical Technology Co., Ltd., Shanghai, China. The label of lubricants was shown in Table 2.The key physicochemical parameters of IL were separately listed in Table 3.

2.2. Preparation Details of Lubricants

Miscibility between base oil and IL as an important indicator should be considered preferentially since some significant physicochemical properties such as thermal stability, rheological properties, and friction properties may be affected unless the IL is well soluble with the base oil and then a stratified (unstable) state was formed. In this study, the fabrication method for lubricants similar to the two-step method was employed. Some proportional IL was preliminarily added into base oil via a 20-min magnetic stirring and then a 30 min ultrasonic dispersion. In the end, ultrasonic bath was used to stabilize the lubricants. The use of ultrasonic aims to further render IL wrap tightly with base oil due to the cavitation formation caused by ultrasonic waves. Magnetic agitation alone may be visually complete fusion between IL and base oils, but in essence, the interior will soon layer. Hence, the combination between magnetic stir and ultrasonic dispersion can achieve the optimal dispersion status. In this step, keeping the temperature not fluctuating is of key significance because the Brown motion tends to be influenced by temperature, leading to the agglomerations occurrence between nanoparticles in the fluids. Therefore, thermostatic water baths are used to control the temperature for each sample.

2.3. Tribological Test Condition

In the process of lubrication, a four-ball tribometer in Figure 1 was employed in this study. The material of the steel balls (including three lower balls and one upper ball) is Gcr15. The two important indicators, COF and WSD value, can be calculated from the software of tribometer. The testing working conditions are under a load of 392 N, 75 °C temperature, and 1200 RPM rotating speed, an industrial standard. The friction duration is 30 min.

2.4. Experiment Devices Utilized

In the lubricant’s preparation stage, we use an electric balance (METTLER TOLEDO ME204, Greifensee, Switzerland) to accurately weigh the mass of each material used. Meanwhile, magnetic stir equipment (JOANLABHS, Huzhou, China) and ultrasonic disperser (DW-SD20-1200, Dowell Ultrasonic Technology Co., Ltd., Hangzhou, China) were applied to effectively blend lubricants. Thermostatic water bath was used to control the temperature in case of overheating. In the materials characterization process, XRD (D8 Advance, BRUKER AXSG MBH, Karlsruhe, Germany) was used to seize the crystal structure and FTIR (NEXUS, Thermo Nicolet, Waltham, MA, USA) was utilized to detect the formation and change in the chemical bonds. In rheological investigation, a viscometer (Brookfield DV-II+Pro, Middleboro, MA, USA) was employed to explore the viscosity of lubricants and the type of fluids. In tribological test procedure, a four-ball tribometer (MS-10A, Xiamen Tenkey Automation Co., LTD, Xiamen, China) was used to evaluate the friction and wear situation. In micro-morphology investigation of wear scar, we take advantage of FE-SEM (Zeiss Ultra Plus, Oberkochen, Germany) to find the detail of micro-morphology and use 3D profiler (Countour GT-X, Karlsruhe, Germany)) to detect the surface roughness, depth curve as well as 3D profile of wear scar. Finally, for the purpose of detecting the microelement composition of wear scars, the EDS was employed.

3. Results and Discussion

3.1. Characterization of Base Oil and IL

The XRD and FTIR characterizations were used to detect the crystal structure and chemical bond change in IL and base oil. The XRD investigation of base oil and IL was shown in Figure 2, where the peaks occurred at the 20.1° and 20.9°of 2 theta value for PAO6 and 5W 40 oil while 24.1° for IL, which may indicate that many organic matters exist in the base oil and IL. Since they have a non-crystal phase structure, there are few peaks that can be detected by XRD. Figure 3a,b, respectively, showed the FTIR analysis of base oil, IL, and corresponding lubricants. The FTIR spectrum of 5W 40 and PAO6 oil was greatly similar due to their similar organic composition, and take PAO 6 for example, it is exhibited that two distinct peaks noted at approximately 2923.5 cm−1 and 2855.5 cm−1 for PAO6 oil were corresponding to the C–H bond vibrations of the fat carbon chain, and two other peaks at 1466.24 cm−1 and 1380.24 cm−1, which were attributed to the C–H bond deformation of the methyl. While there were a large number of peaks for IL, the characteristic peaks located at about 851.46 cm−1 are ascribed to the vibration from the P–F chemical bond. O–H bond formation resulted in symmetrical peaks situated at 3159.1 cm−1 and 3565.39 cm−1. The peak occurred at 1061.1 cm−1 owing to the BF4- vibration. In addition, C=C bond and C=N were found at the peaks of about 1575.48 cm−1 and 1658.25 cm−1. C–H bond was detected at the band of approximately 1382.8 cm−1. In addition, the new peaks from IL occurred for WIL and PIL (at about 3630.1 cm−1, 3428.5 cm−1, 1048.1 cm−1, and 1660.8 cm−1) compared with base oils, which strongly confirmed the base oils were successfully functionalized by IL.

3.2. The Rheological Behavior of Lubricants

Figure 4 displayed the natural pictures of each lubricant, among which Figure 4a showed the visual photo of PAO6 and PIL with different concentrations while Figure 4b exhibited the 5W 40 and WIL with diverse concentrations. The phenomenon that all lubricants can keep stable within several weeks can be visually observed. Furthermore, viscosity as the physical parameters is of great significance for lubricants as it can affect multiple physicochemical characteristics such as dispersion stability, heat transfer, thermal stability, and tribological performance. Figure 5 showed the viscosities of each sample. The influence of different shear rates (21.16–58.08 s−1) on the dynamic viscosity of PAO6, PIL (Figure 5a), 5w 40, and WIL (Figure 5b) was elaborately investigated under a temperature of 75 °C via a viscometer, where it can be noted that the viscosity of PAO 6 oil is lower than the 5W 40 due to their natural properties. With the modification of IL on PAO 6 oil, the viscosity of 2 wt% PIL was enhanced. Identically, the dynamic viscosity of 5W 40 oil-based lubricants modified by IL was improved compared with 5W 40 oil alone. Furthermore, with the improvement of shear rates, the dynamic viscosity of each sample was changed, which means that regardless of base oil or IL-modified lubricants (PIL and WIL), all behaved as the non-Newtonian fluids, that is, the shear thinning behavior was detected under the boundary lubrication status. Hence, IL plays a positive role in improving the viscosity of PAO6 oil and 5W 40 oil, which can be attributed to the fact that the entanglement and wrapping role caused by the introduction of IL. Viscosity value can affect the dispersion stability, heat transfer, and thermal stability of lubricants, thereby influencing the tribological properties indirectly. Hence, lubricants with higher viscosity may not be beneficial for the reducing friction characteristics.

3.3. Tribology Characteristics

3.3.1. The COF and WSD Measurement

The wear as well as friction characteristics for pure PAO 6 oil, 5W 40 oil, PIL, and WIL with different concentrations, respectively, were evaluated via a four-ball tribometer under a testing condition of 392 N, 1200 RPM, 75 °C. Figure 6 showed the COF–time curve of wear scar lubricated by PAO 6 oil, 5W 40 oil, 1 wt%, 2 wt%, and 5 wt% (PIL and WIL). In Figure 6a, the COF curve of PAO 6 oil is situated the highest and the value kept the largest compared with the other samples. The lowest COF curve was found when lubricated by 2 wt% PIL, followed by 1 wt% PIL and 5 wt% PIL. When the friction time of PAO 6 oil and 5 wt% PIL reached approximately 200 s and 80 s, the COF curve shows a short abrupt change and quickly returns to normal value, which may be due to external interference and does not affect the overall friction performance. While in Figure 6b, there is also a clear difference in the COF curve like what happened in Figure 6a between the 5w 40 oil and WIL with different concentrations. The COF curve of 5W 40 oil is located at the top position among all specimens. Those lubricated by IL-modified lubricants exhibited a lower COF curve, especially for the concentration at 2 wt%. Unlike the PIL, there is no significant difference between the curves of WIL and base oil before the friction duration of about 360 s. After the friction duration of approximately 360 s, the COF curves of WIL show a significant decrease. Additionally, the COF curve of 2 wt% WIL was located in the lowest position. However, the difference between the effect of WIL on the COF curve in the concentration is less obvious than that of PIL. Figure 7 showed the morphology of the wear scar of the lower balls captured by microscopic in the tribometer system, which agreed well with the COF results.
Figure 8 displayed the average COF and WSD values of wear scar lubricated by base oil, PIL, and WIL. It can be clearly noted from Figure 8a that the COF values of wear scar lubricated by 1 wt% and 2 wt% PIL were apparently decreased by approximately 21.2% and 32.2% than PAO 6 base oil while 5 wt% PIL showed higher COF value than those at 1 wt% and 2 wt% PIL. Additionally, the WSD values of 1 wt% and 2 wt% PIL displayed a lower value of about 0.6855 and 0.6325 mm, which is better than the PAO 6 oil of 0.707 mm. The 5 wt% PIL exhibited the highest WSD values among all samples. Comparatively, in Figure 8b, although the difference between samples is not as obvious as in Figure 8a, the pattern is similar, that is, 2 wt% WIL shows the smallest COF and WSD values. The COF and WSD values of 2 wt% PIL were decreased by 41.7% and 10.5% compared with PAO 6 oil while 14.5% and 2.8% for 2 wt% WIL compared with 5W 40 oil. In addition, the COF value of 2 wt% PIL is 0.06636 and the 2 wt% WIL is 0.09939, while the WSD value of 2 wt% PIL is 0.6325 mm and the 2 wt% WIL is 0.418 mm, indicating that the PAO6 oil-based lubricant has better anti-friction performance, and the 5W 40 oil-based lubricant has better anti-wear performance. Moreover, the excessive increase in IL concentration is not conducive to the improvement of friction properties. In summary, in spite of the fact that IL improves the frictional properties of both base oils, the improvement effect on PAO6 is more obvious, which is related to the physicochemical properties of the base oils, such as viscosity because the annual value of 5W 40 is much higher than that of PAO 6. After IL modification, the viscosity increase amplitude of 5W 40 is also larger than that of PAO6. Figure 9 seized the pictures of the wear scar on the upper balls. Different with the lower balls, the wear scar of the upper balls is a circle arc but a spot so the microscope can only pick up part of the arc. The wear evaluation index becomes the width of the arc rather than the WSD value of the lower ball. Similar to the lower balls, there is a lowest arc width for the 2 wt% PIL and WIL. An amount of 5 wt% PIL and WIL are not conversely beneficial for the tribological properties, which agreed well with the results of Figure 6, Figure 7 and Figure 8. Through Figure 6, Figure 7, Figure 8 and Figure 9, a preliminary finding can be detected that for the single base oil, regardless of PAO 6 oil and 5W 40 oil, the addition of IL can effectively reduce the COF value within the suitable concentration. Nevertheless, excess concentration of IL will in turn undermine the tribological properties. This phenomenon should be explained more deeply in the following investigation.
In addition, Figure 10a–d, and a’–h’, respectively, showed the 3D profile and depth curve of the wear scars lubricated by PAO6, 2 wt% PIL, 5W-40, and 2 wt% WIL. In Figure 10, it is apparent that the wear scar lubricated by base oil (PAO and 5W-40) is larger than that lubricated by 2 wt% PIL and WIL. Moreover, the average depth of wear scar with PAO 6 and 5W-40 lubrication is 13.2 μm and 5.02 μm while 9.12 μm and 4.35 μm with 2 wt% PIL and WIL lubrication in Figure 10b1,d1,f1,h1, and the corresponding decrease rates are 30.9% and 13.3%, which agreed well with the morphology investigation and tribological test results.

3.3.2. The Micro Morphology Characterization of Wear Scar

In addition, Figure 11 depicts the FE−SEM analysis of wear scars with various lubricants lubrication. It was connoted in Figure 11a,b that the wear scar lubricated by PAO 6 oil has severe furrows, pits, and scratches compared with that lubricated by PIL. There is a smooth friction surface when lubricated by PIL, which can be attributed to the effective role of IL on PAO 6 oil. While Figure 11c showed the severe scratches, deep furrows as well as the pits, and the relatively slight furrows can be observed in Figure 11d. Additionally, the pits and scratches of wear scar lubricated by WIL have a significant improvement to the lubrication by 5W 40 oil alone. In spite of the fact that IL additions have both improved the smooth degree of contact interface lubricated by PAO 6 and 5W 40, the effect of IL on the modification of PAO6 oil is superior to that of 5W 40 oil in improving the microstructure of friction pairs, which may be related to the original properties of base oil and the chemical changes during the modification of base oil by IL. The micromorphology as part of the independent investigation should also be compared with the friction test results (COF and WSD) for comprehensive analysis. It can be precisely detected in Figure 12a,c that Fe, Cr, Si, C, and O were found when lubricated by PAO 6 while the Fe, Cr, Si, C, O, P, S, Ca, and Zn were detected for 5W 40 oil. The extra B, F, and N elements were captured in Figure 12b,d, in addition to the detected element before, and after the lubrication of PIL and WIL, confirming the IL not only works but exerts a significantly key role in the tribological lubrication procedure. The IL attached to the surface of the base oil to improve the physicochemical properties of the base oil and the tribo-film containing the oxidation product such as FeF3, and B2O3 [16] was formed via a chemical reaction process. The tribo-film preventing the direct contact of steel-steel surface and alleviating the wear degree during the friction process was ascribed to the modification of IL on base oil. Base oils have few polar functional groups while IL is polar liquid. For lubricants modified with ionic liquids, anions and cations can be adsorbed to the friction surface through the Coulomb force between molecules. The interaction between ions and long alkyl chains in base oils makes the innermost layer closer, thus enhancing the lubrication performance [14].

3.3.3. Lubrication Mechanism

As seen in Figure 13, where it was vividly described the lubrication mechanism scheme of base oil and IL-modified lubricants and it is suggested that when the lubrication process proceeds, the lubricating oil modified by the IL begins to work. Moreover, the IL is wrapped on the lubricating oil surface and enters into the friction pair. Under high temperatures, an oxidation reaction occurs on the friction surface, and a dense tribological film due to the chemical reaction interacting with the oxides on the friction surface is generated, which prevented direct contact between the steel–steel contact surface and further improved the tribological properties. The tribological properties are well improved by the IL additions under boundary lubrication conditions. In addition, the physical absorption of IL on the surface of oils molecule is also responsible for the lubricating mechanism. This positive tribological behavior caused by ILs can be ascribed to the polar characteristics of IL itself, making them chemically adsorb to the substrate surface. Meanwhile, friction-resistant protective chemical films were formed during friction [25].

4. Conclusions

This study investigated the rheological and tribological properties of two base oils modified by IL at different concentrations. Multiple characterizations were elaborately conducted. Based on the results and discussion, the important conclusions can be drawn as follows:
  • The COF and WSD values of 2 wt% PIL were decreased by 41.7% and 10.5% while 14.5% and 2.8% for 2 wt% WIL compared with their corresponding base oils.
  • IL addition is conducive to the viscosity enhancement of base oil, especially the 5W 40 oil. In addition, all lubricants behave like non-Newtonian fluids.
  • The COF and WSD values of base oil can be greatly reduced by the modification of IL (within suitable concentration), especially the PAO6 oil. In this study, 2 wt% PIL and WIL showed the best tribological performance. An amount of 5 wt% PIL and WIL will in turn undermine the anti-friction properties due to the rising viscosity.
  • Although IL can also improve the friction properties of 5W 40, the improvement effect of WIL is not as significant as that of PIL, which can be attributed to the higher viscosity of 5W 40, especially after being modified by IL.
  • EDS characterization has confirmed that the key elements such as F, B, and N from IL in the surface of the wear scar were detected, strongly indicating the IL does work in the process of friction lubrication and is responsible for the generation of tribo-film in the contact surface due to the polar effect of IL.

Author Contributions

Conceptualization, X.H. methodology, H.J., Y.Q. and H.L.; validation, W.G.; investigation, H.J., Y.M. and Y.Q.; resources, Y.M.; data curation, Y.M. and Y.Q.; writing—original draft, H.J.; writing—review and editing, H.J.; supervision, X.H.; project administration, X.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 51875423.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to express their deep appreciation to the National Natural Science Foundation of China (Grant No. 51875423) for the research work. The authors also express their sincere appreciation to those reviewers for their constructive and favorable advice.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ali, M.K.A.; Hou, X. Exploring the lubrication mechanism of CeO2 nanoparticles dispersed in engine oil by bis(2-ethylhexyl) phosphate as a novel antiwear additive. Tribol. Int. 2021, 165, 107321. [Google Scholar] [CrossRef]
  2. Jia, J.; Yang, G.; Zhang, C.; Zhang, S.; Zhang, Y.; Zhang, P. Effects of magnetic ionic liquid as a lubricant on the friction and wear behavior of a steel-steel sliding contact under elevated temperatures. Friction 2019, 9, 61–74. [Google Scholar] [CrossRef] [Green Version]
  3. Guo, H.; Iglesias, P. Tribological behavior of ammonium-based protic ionic liquid as lubricant additive. Friction 2020, 9, 169–178. [Google Scholar] [CrossRef]
  4. Otero, I.; López, E.R.; Reichelt, M.; Fernández, J. Friction and anti-wear properties of two tris(pentafluoroethyl)trifluorophosphate ionic liquids as neat lubricants. Tribol. Int. 2014, 70, 104–111. [Google Scholar] [CrossRef]
  5. Blanco, D.; González, R.; Viesca, J.L.; Fernández-González, A.; Bartolomé, M.; Battez, A.H. Antifriction and Antiwear Properties of an Ionic Liquid with Fluorine-Containing Anion Used as Lubricant Additive. Tribol. Lett. 2017, 65, 1–10. [Google Scholar] [CrossRef]
  6. Battez, A.H.; Fernandes, C.M.; Martins, R.C.; Bartolomé, M.; González, R.; Seabra, J.H. Two phosphonium cation-based ionic liquids used as lubricant additive: Part I: Film thickness and friction characteristics. Tribol. Int. 2017, 107, 233–239. [Google Scholar] [CrossRef]
  7. Grace, J.; Vysochanska, S.; Lodge, J.; Iglesias, P. Ionic Liquids as Additives of Coffee Bean Oil in Steel-Steel Contacts. Lubricants 2015, 3, 637. [Google Scholar] [CrossRef]
  8. Ploss, M.; Tian, Y.; Yoshikawa, S.; Westbroek, R.; Leckner, J.; Glavatskih, S. Tribological Performance of Non-halogenated Phosphonium Ionic Liquids as Additives to Polypropylene and Lithium-Complex Greases. Tribol. Lett. 2019, 68, 3. [Google Scholar] [CrossRef] [Green Version]
  9. Bermúdez, M.D.; Jiménez, A.E.; Sanes, J.; Carrión, F.J. Ionic liquids as advanced lubricant fluids. Molecules 2009, 14, 2888–2908. [Google Scholar] [CrossRef]
  10. Rivera, N.; Blanco, D.; Viesca, J.L.; Fernández-González, A.; González, R.; Battez, A.H. Tribological performance of three fatty acid anion-based ionic liquids (FAILs) used as lubricant additive. J. Mol. Liq. 2019, 296, 111881. [Google Scholar] [CrossRef]
  11. Weng, L.; Liu, X.; Liang, Y.; Xue, Q. Effect of tetraalkylphosphonium based ionic liquids as lubricants on the tribological performance of a steel-on-steel system. Tribol. Lett. 2007, 26, 11–17. [Google Scholar] [CrossRef]
  12. Yu, B.; Liu, Z.; Zhou, F.; Liu, W.; Liang, Y. A novel lubricant additive based on carbon nanotubes for ionic liquids. Mater. Lett. 2008, 62, 2967–2969. [Google Scholar] [CrossRef]
  13. Pejakovic, V.; Kronberger, M.; Mahrova, M.; Vilas, M.; Tojo, E.; Kalin, M. Pyrrolidinium sulfate and ammonium sulfate ionic liquids as lubricant additives for steel/steel contact lubrication. Proc. Inst. Mech. Eng. Part J J. Eng. Tribol. 2012, 226, 923–932. [Google Scholar] [CrossRef]
  14. Huang, G.; Yu, Q.; Ma, Z.; Cai, M. Probing the lubricating mechanism of oil-soluble ionic liquids additives. Tribol. Int. 2017, 107, 152–162. [Google Scholar] [CrossRef]
  15. Li, S.; Chen, H.; Luo, T.; Wang, F.; Xiao, G.; Chen, Z.; Yi, M.; Sheng, C.; Xu, C. Tribological properties of 1-octyl–3-methylimidazolium lactate ionic liquid as a lubricant additive. J. Mol. Liq. 2021, 332, 115828. [Google Scholar] [CrossRef]
  16. Batteza, A.H.; González, R.; Viesca, J.L.; Blanco, D.; Asedegbega, E.; Osorio, A. Tribological behaviour of two imidazolium ionic liquids as lubricant additives for steel/steel contacts. Wear 2009, 266, 1224–1228. [Google Scholar] [CrossRef]
  17. Jiang, H.; Hou, X.; Dearn, K.D.; Su, D.; Ali, M.K.A. Thermal stability enhancement mechanism of engine oil using hybrid MoS2/h-BN nano-additives with ionic liquid modification. Adv. Powder Technol. 2021, 32, 4658–4669. [Google Scholar] [CrossRef]
  18. Syahir, A.Z.; Zulkifli, N.W.M.; Masjuki, H.H.; Kalam, M.A.; Harith, M.H.; Yusoff, M.N.A.M.; Zulfattah, Z.M.; Jamshaid, M. Tribological Improvement Using Ionic Liquids as Additives in Synthetic and Bio-Based Lubricants for Steel–Steel Contacts. Tribol. Trans. 2020, 63, 235–250. [Google Scholar] [CrossRef]
  19. Peng, R.; He, X.; Tang, X.; Tong, J.; Zhao, L.; Peng, X. An investigation into the synergistic strengthening mechanism of ionic liquid and nanoparticles as a hybrid nanofluid in friction interface. Tribol. Int. 2022, 165, 107298. [Google Scholar] [CrossRef]
  20. Rohlmann, P.; Munavirov, B.; Furó, I.; Antzutkin, O.; Rutland, M.W.; Glavatskih, S. Non-halogenated Ionic Liquid Dramatically Enhances Tribological Performance of Biodegradable Oils. Front. Chem. 2019, 7, 98. [Google Scholar] [CrossRef]
  21. Rahman, M.H.; Khajeh, A.; Panwar, P.; Patel, M.; Martini, A.; Menezes, P.L. Recent progress on phosphonium-based room temperature ionic liquids: Synthesis, properties, tribological performances and applications. Tribol. Int. 2022, 167, 107331. [Google Scholar] [CrossRef]
  22. Faes, J.; González, R.; Blanco, D.; Fernández-González, A.; Hernández-Battez, A.; Iglesias, P.; Viesca, J.L. Methyltrioctylammonium Octadecanoate as Lubricant Additive to Different Base Oils. Lubricants 2022, 10, 128. [Google Scholar] [CrossRef]
  23. Huang, X.; Wu, J.; Lu, X.; Feng, X.; Shi, Y. Tribological Properties of Porous PEEK Composites Containing Ionic Liquid under Dry Friction Condition. Lubricants 2017, 5, 19. [Google Scholar] [CrossRef] [Green Version]
  24. Somers, A.E.; Howlett, P.C.; Macfarlane, D.R.; Forsyth, M. A Review of Ionic Liquid Lubricants. Lubricants 2013, 1, 3. [Google Scholar] [CrossRef] [Green Version]
  25. Palacio, M.; Bhushan, B. A review of ionic liquids for green molecular lubrication in nanotechnology. Tribol. Lett. 2010, 40, 247–268. [Google Scholar] [CrossRef]
  26. Reeves, C.J.; Siddaiah, A.; Menezes, P.L. Tribological study of imidazolium and phosphonium ionic liquid-based lubricants as additives in carboxylic acid-based natural oil: Advancements in environmentally friendly lubricants. J. Clean. Prod. 2018, 176, 241–250. [Google Scholar] [CrossRef]
  27. Pejakovic, V.; Totolin, V.; Ristic, A.; Gabler, C.; Kalin, M.; Dörr, N. Tribological performance and degradation of 1-n-butyl-1-methylpyrrolidinium methylsulfate ionic liquid in glycerol as lubricant for steel-steel sliding contacts. Lubr. Sci. 2019, 31, 137–149. [Google Scholar] [CrossRef]
  28. Sani, A.S.A.; Rahim, E.A.; Samion, S. Tribological performance of modified jatropha oil containing oil-miscible ionic liquid for machining applications. J. Mech. Sci. Technol. 2017, 31, 5675–5685. [Google Scholar] [CrossRef]
  29. Qu, M.; Yang, Z.; Zhang, C.; Yu, Q.; Cai, M.; Zhou, F. Significantly enhancing lubricity and anti-wear performances of glycerol lubricant with urea-functionalized imidazolium-organophosphate ionic liquid as additive. Tribol. Int. 2021, 153, 106602. [Google Scholar] [CrossRef]
  30. Viesca, J.; Mallada, M.; Blanco, D.; Fernández-González, A.; Espina-Casado, J.; González, R.; Battez, A.H. Lubrication performance of an ammonium cation-based ionic liquid used as an additive in a polar oil. Tribol. Int. 2017, 116, 422–430. [Google Scholar] [CrossRef]
  31. González, R.; Ramos, D.; Blanco, D.; Fernández-González, A.; Viesca, J.L.; Hadfield, M.; Battez, A.H. Tribological performance of tributylmethylammonium bis(trifluoromethylsulfonyl)amide as neat lubricant and as an additive in a polar oil. Friction 2018, 7, 282–288. [Google Scholar] [CrossRef] [Green Version]
  32. Khemchandani, B.; Somers, A.; Howlett, P.; Jaiswal, A.; Sayanna, E.; Forsyth, M. A biocompatible ionic liquid as an antiwear additive for biodegradable lubricants. Tribol. Int. 2014, 77, 171–177. [Google Scholar] [CrossRef]
  33. Zheng, Z.; Yu, H.; Chen, H.; Liu, X.; Wang, H.; Feng, D.; Qiao, D. Guanidine-phosphate ionic liquids as antiwear additives in two basic oils: Different lubrication mechanisms. Tribol. Int. 2021, 160, 106942. [Google Scholar] [CrossRef]
  34. Wang, Y.; Yang, P.; Guo, B.; Jiang, N.; Chu, J.; Liu, J.; Liang, Y.; Yu, Q.; Yang, S.; Guo, F.; et al. Functionalized phosphate ionic liquids as additives in PEG with excellent tribo-logical properties for boundary/mixed/elastohydrodynamic lubrication. Tribol. Int. 2021, 164, 107242. [Google Scholar] [CrossRef]
  35. Guo, H.; Pang, J.; Adukure, A.R.; Iglesias, P. Influence of Hydrogen Bonding and Ionicity of Protic Ionic Liquids on Lubricating Steel–Steel and Steel–Aluminum Contacts: Potential Ecofriendly Lubricants and Additives. Tribol. Lett. 2020, 68, 1–10. [Google Scholar] [CrossRef]
  36. Blanco, D.; Battez, A.H.; Viesca, J.L.; González, R.; Fernández-González, A. Lubrication of CrN coating with ethyl-dimethyl-2-methoxyethylammonium tris (pentafluoroethyl) trifluorophosphate ionic liquid as additive to PAO 6. Tribol. Lett. 2011, 41, 295–302. [Google Scholar] [CrossRef]
  37. Jiménez, A.E.; Bermúdez, M.D.; Iglesias, P.; Carrión, F.J.; Martínez-Nicolás, G. 1-N-alkyl-3-methylimidazolium ionic liquids as neat lubricants and lubricant additives in steel–aluminium con-tacts. Wear 2006, 260, 766–782. [Google Scholar] [CrossRef]
  38. Liu, W.; Ye, C.; Chen, Y.; Ou, Z.; Sun, D.C. Tribological behavior of sialon ceramics sliding against steel lubricated by fluorine-containing oils. Tribol. Int. 2002, 35, 503–509. [Google Scholar] [CrossRef]
Lubricants 10 00260 g001 550
Figure 1. The real images of four-ball tribometer used.
Figure 1. The real images of four-ball tribometer used.
Lubricants 10 00260 g001
Lubricants 10 00260 g002 550

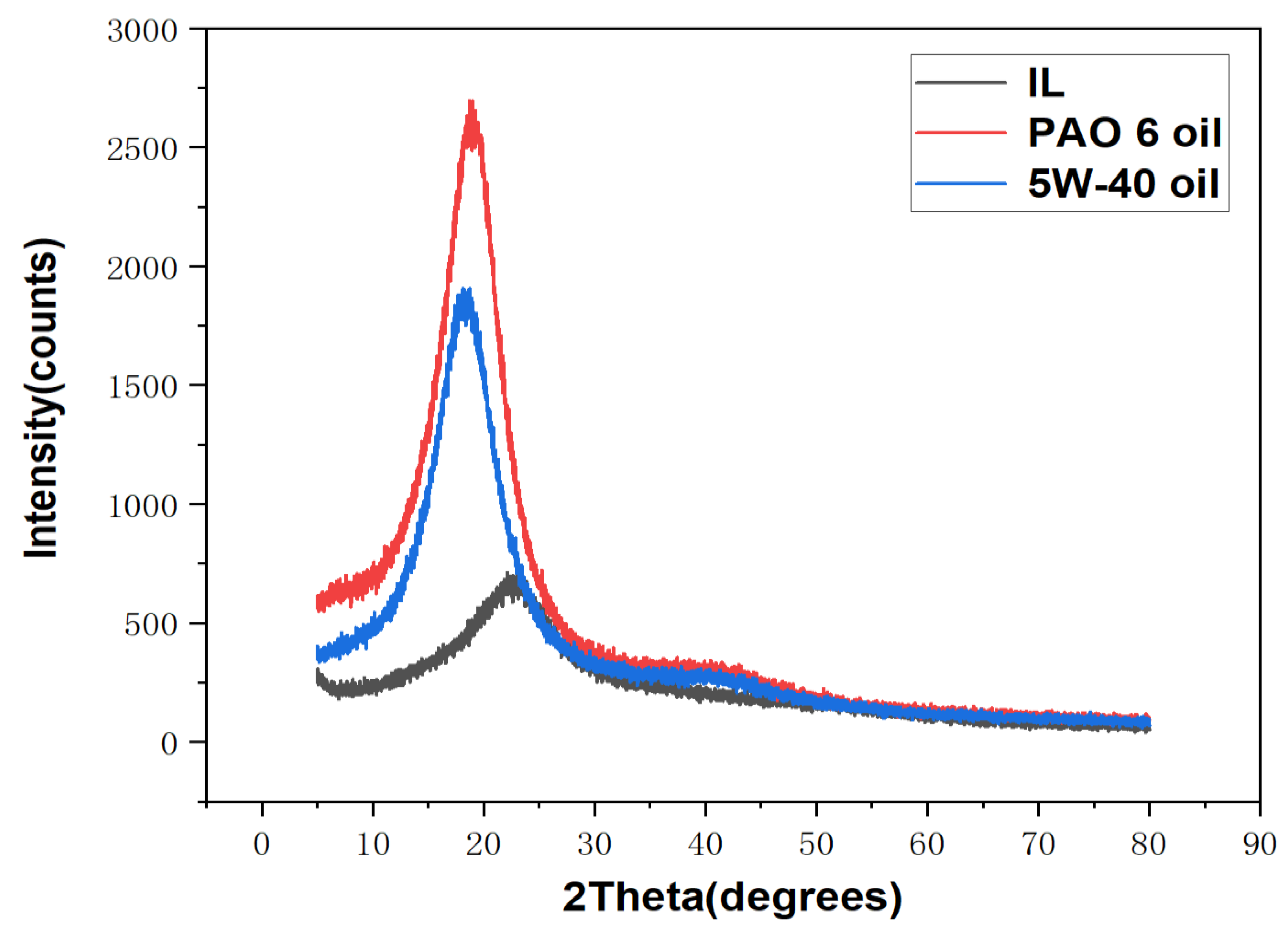

Figure 2. The XRD characterization of IL, PAO oil and 5W 40 oil.
Figure 2. The XRD characterization of IL, PAO oil and 5W 40 oil.
Lubricants 10 00260 g002
Lubricants 10 00260 g003 550
Figure 3. The FTIR characterization of (a) IL, PAO oil, and PIL, (b) IL, 5W 40 oil, and WIL.
Figure 3. The FTIR characterization of (a) IL, PAO oil, and PIL, (b) IL, 5W 40 oil, and WIL.
Lubricants 10 00260 g003
Lubricants 10 00260 g004 550

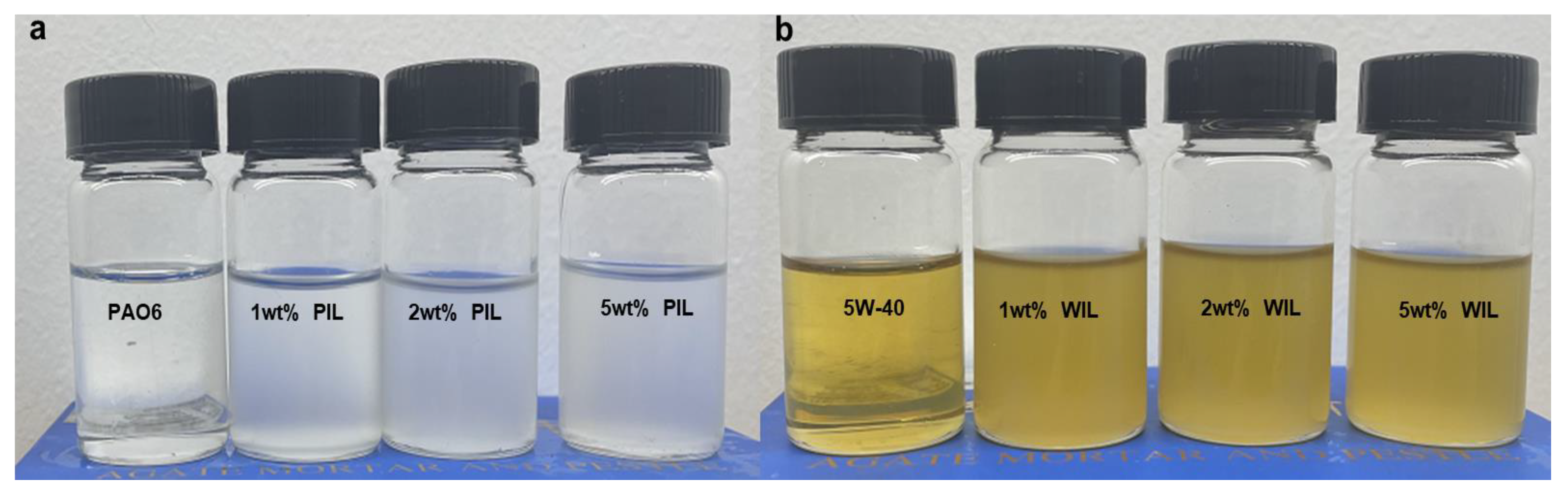

Figure 4. The real image of base oils and lubricants. (a), PAO 6, 1 wt%, 2 wt%, 5 wt% PIL, (b), 5W 40, 1 wt%, 2 wt%, 5 wt% WIL.
Figure 4. The real image of base oils and lubricants. (a), PAO 6, 1 wt%, 2 wt%, 5 wt% PIL, (b), 5W 40, 1 wt%, 2 wt%, 5 wt% WIL.
Lubricants 10 00260 g004
Lubricants 10 00260 g005 550
Figure 5. Shear rates/dynamic viscosity correlation for (a) PAO6, 1 wt%, 2 wt%, and 5 wt% PIL (b) 5W 40, 1 wt%, 2 wt%, and 5 wt% WIL under 75 °C.
Figure 5. Shear rates/dynamic viscosity correlation for (a) PAO6, 1 wt%, 2 wt%, and 5 wt% PIL (b) 5W 40, 1 wt%, 2 wt%, and 5 wt% WIL under 75 °C.
Lubricants 10 00260 g005
Lubricants 10 00260 g006 550

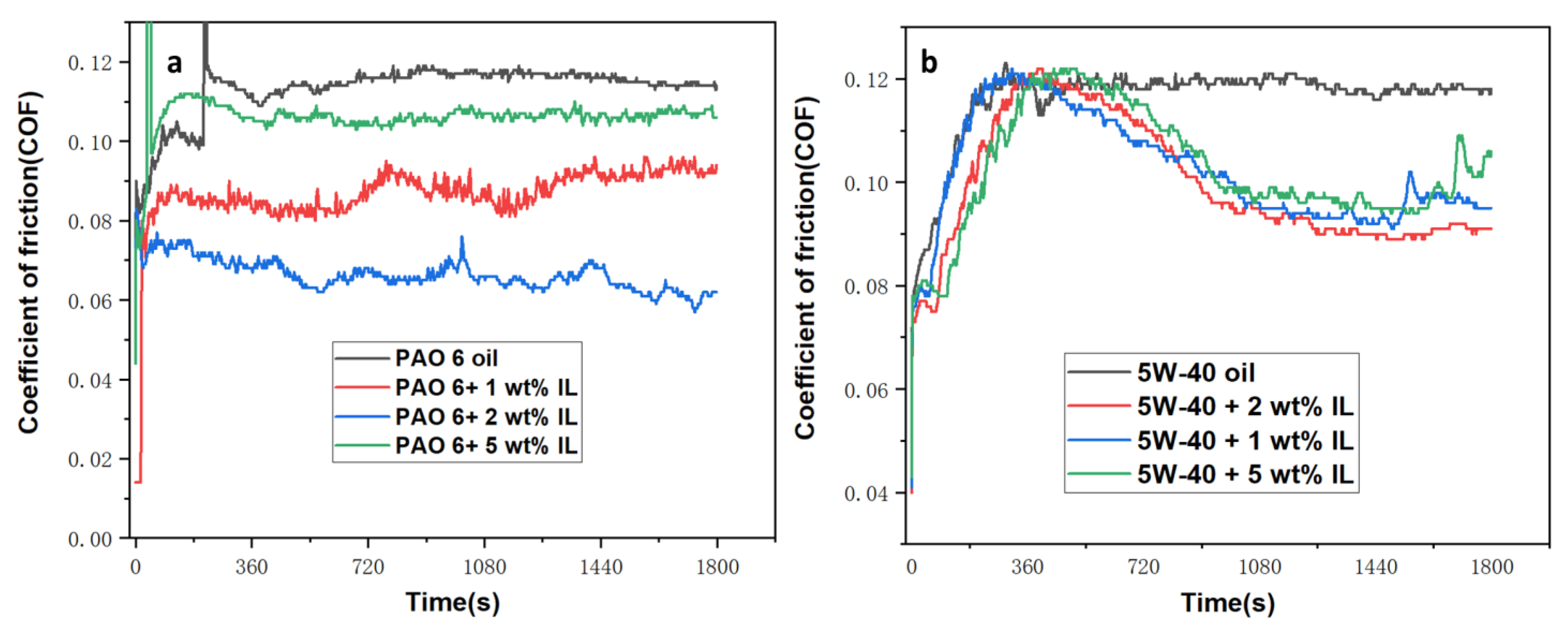

Figure 6. The coefficient of friction (COF)–time curve of diverse specimens. (a) PAO 6 oil, 1 wt%, 2 wt%, and 5 wt% PIL, (b) 5W 40 oil, 1 wt%, 2 wt%, and 5% WIL.
Figure 6. The coefficient of friction (COF)–time curve of diverse specimens. (a) PAO 6 oil, 1 wt%, 2 wt%, and 5 wt% PIL, (b) 5W 40 oil, 1 wt%, 2 wt%, and 5% WIL.
Lubricants 10 00260 g006
Lubricants 10 00260 g007 550
Figure 7. The wear morphology of the lower steel balls lubricated by (a) PAO 6 oil, (b–d) 1 wt%, 2 wt%, and 5 wt% PIL. (e) 5W 40 oil, (f–h) 1 wt%, 2 wt%, and 5 wt% WIL.
Figure 7. The wear morphology of the lower steel balls lubricated by (a) PAO 6 oil, (b–d) 1 wt%, 2 wt%, and 5 wt% PIL. (e) 5W 40 oil, (f–h) 1 wt%, 2 wt%, and 5 wt% WIL.
Lubricants 10 00260 g007
Lubricants 10 00260 g008 550

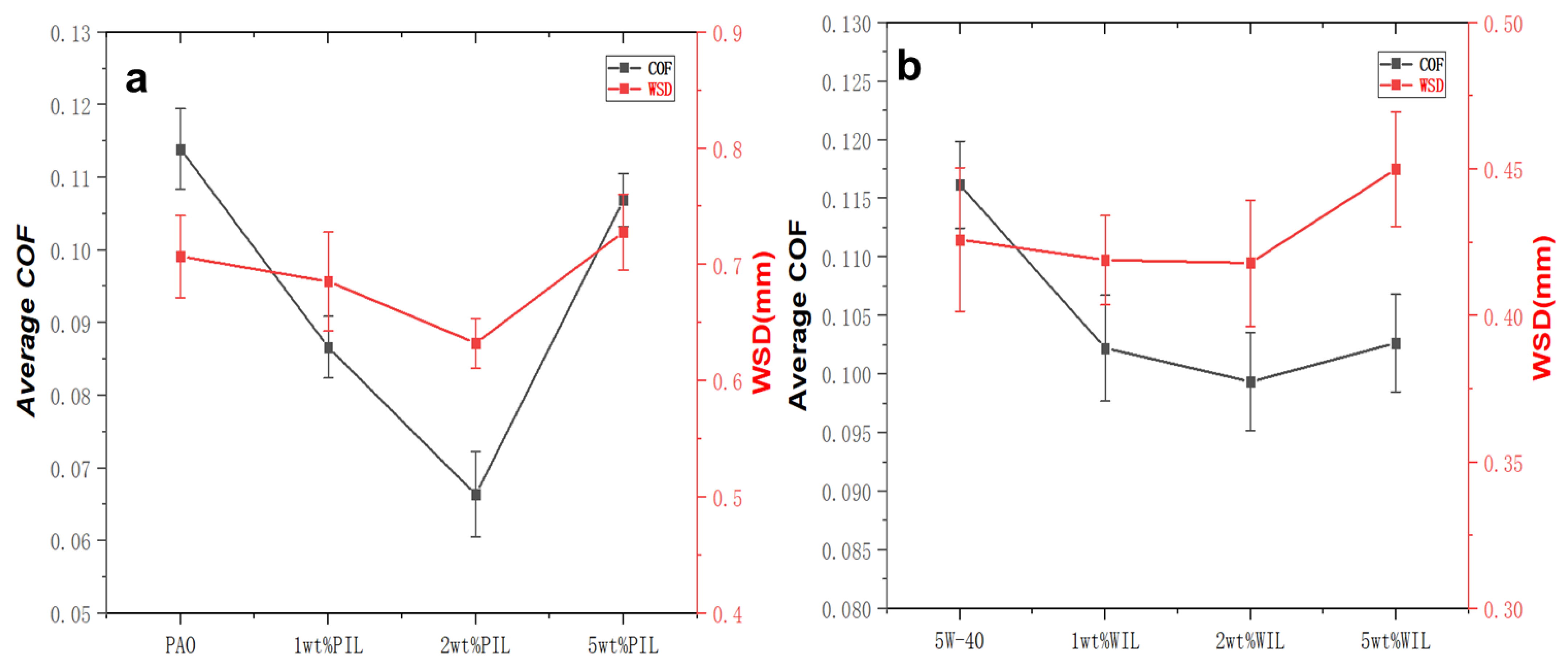

Figure 8. The average COF and WSD values of wear scar lubricated by (a) PAO 6 oil, 1 wt%, 2 wt%, and 5 wt% PIL, (b) 5W 40 oil, 1 wt%, 2 wt%, and 5 wt% WIL.
Figure 8. The average COF and WSD values of wear scar lubricated by (a) PAO 6 oil, 1 wt%, 2 wt%, and 5 wt% PIL, (b) 5W 40 oil, 1 wt%, 2 wt%, and 5 wt% WIL.
Lubricants 10 00260 g008
Lubricants 10 00260 g009 550

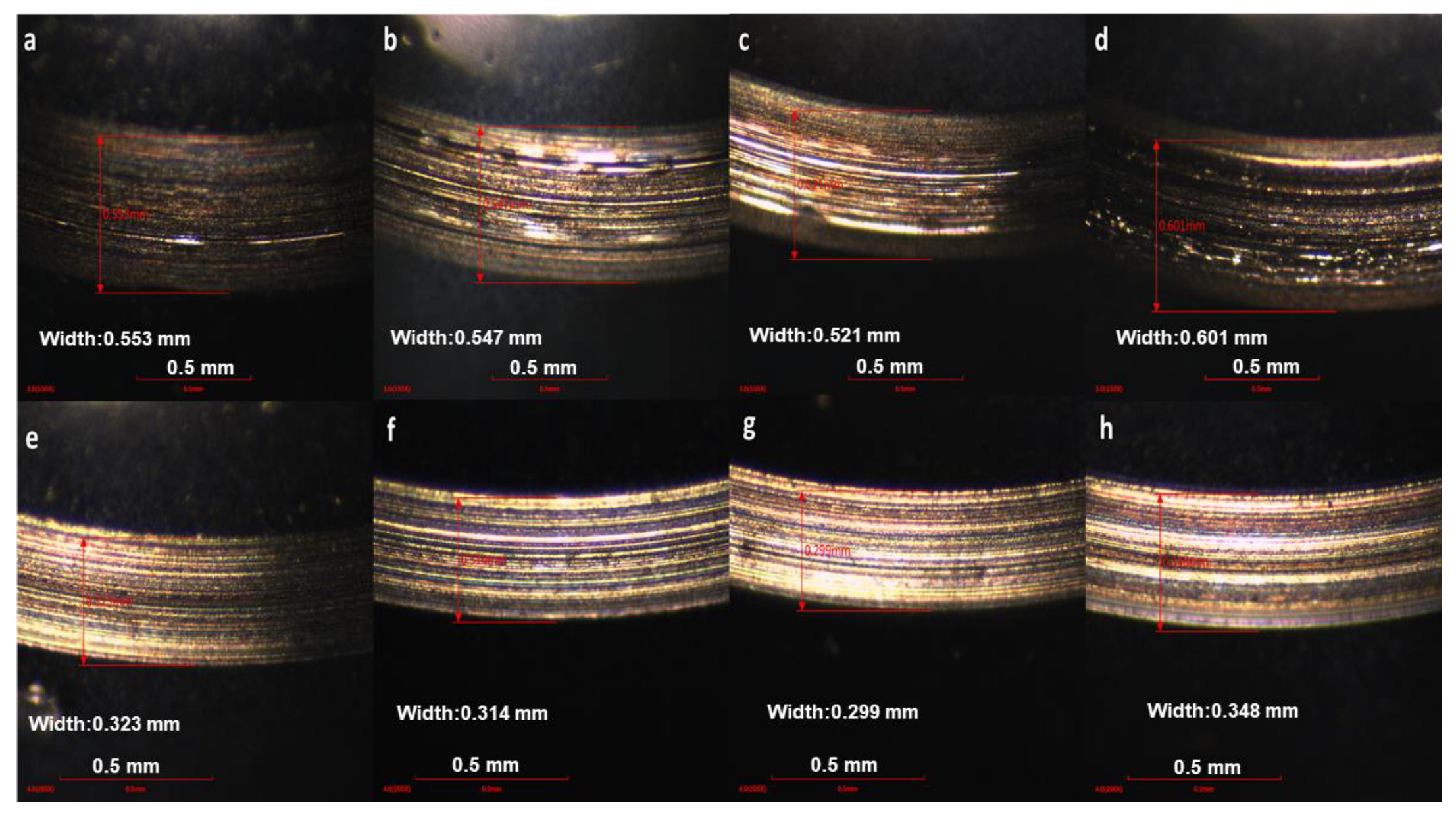

Figure 9. The wear morphology of the upper steel balls lubricated by (a) PAO 6 oil, (b–d) 1 wt%, 2 wt%, and 5 wt% PIL.(e) 5W 40 oil, (f–h) 1 wt%, 2 wt%, and 5 wt% WIL.
Figure 9. The wear morphology of the upper steel balls lubricated by (a) PAO 6 oil, (b–d) 1 wt%, 2 wt%, and 5 wt% PIL.(e) 5W 40 oil, (f–h) 1 wt%, 2 wt%, and 5 wt% WIL.
Lubricants 10 00260 g009
Lubricants 10 00260 g010 550

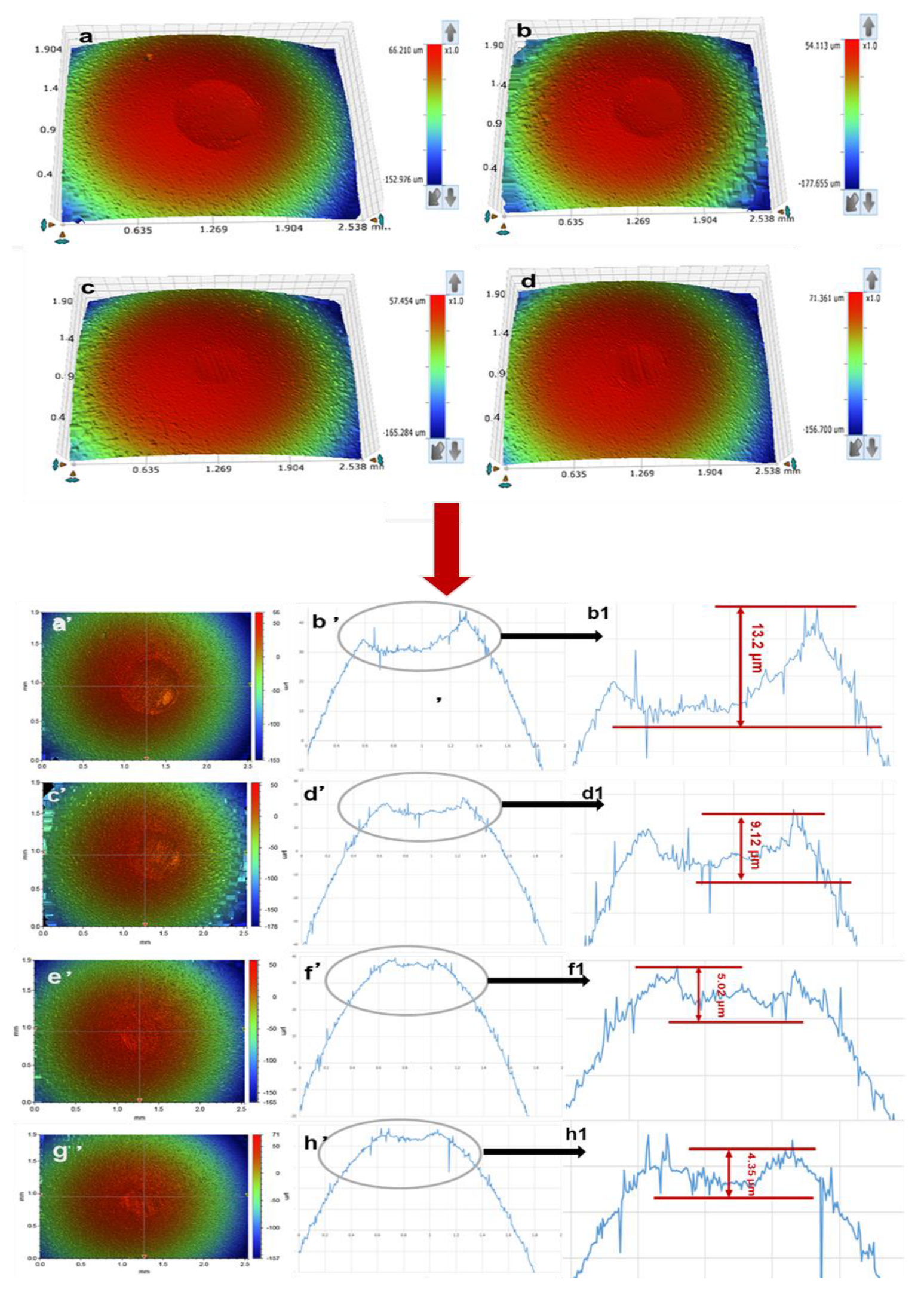

Figure 10. The 3D profile morphology of lower steel balls lubricated by (a) PAO 6 oil, (b) 2 wt% PIL, (c) 5W40, (d) 2 wt% WIL and the depth curve of the (a’,b’) PAO 6 oil, (c’,d’) 2 wt% PIL, (e’,f’) 5W 40, (g’,h’) 2 wt% WIL.
Figure 10. The 3D profile morphology of lower steel balls lubricated by (a) PAO 6 oil, (b) 2 wt% PIL, (c) 5W40, (d) 2 wt% WIL and the depth curve of the (a’,b’) PAO 6 oil, (c’,d’) 2 wt% PIL, (e’,f’) 5W 40, (g’,h’) 2 wt% WIL.
Lubricants 10 00260 g010
Lubricants 10 00260 g011 550

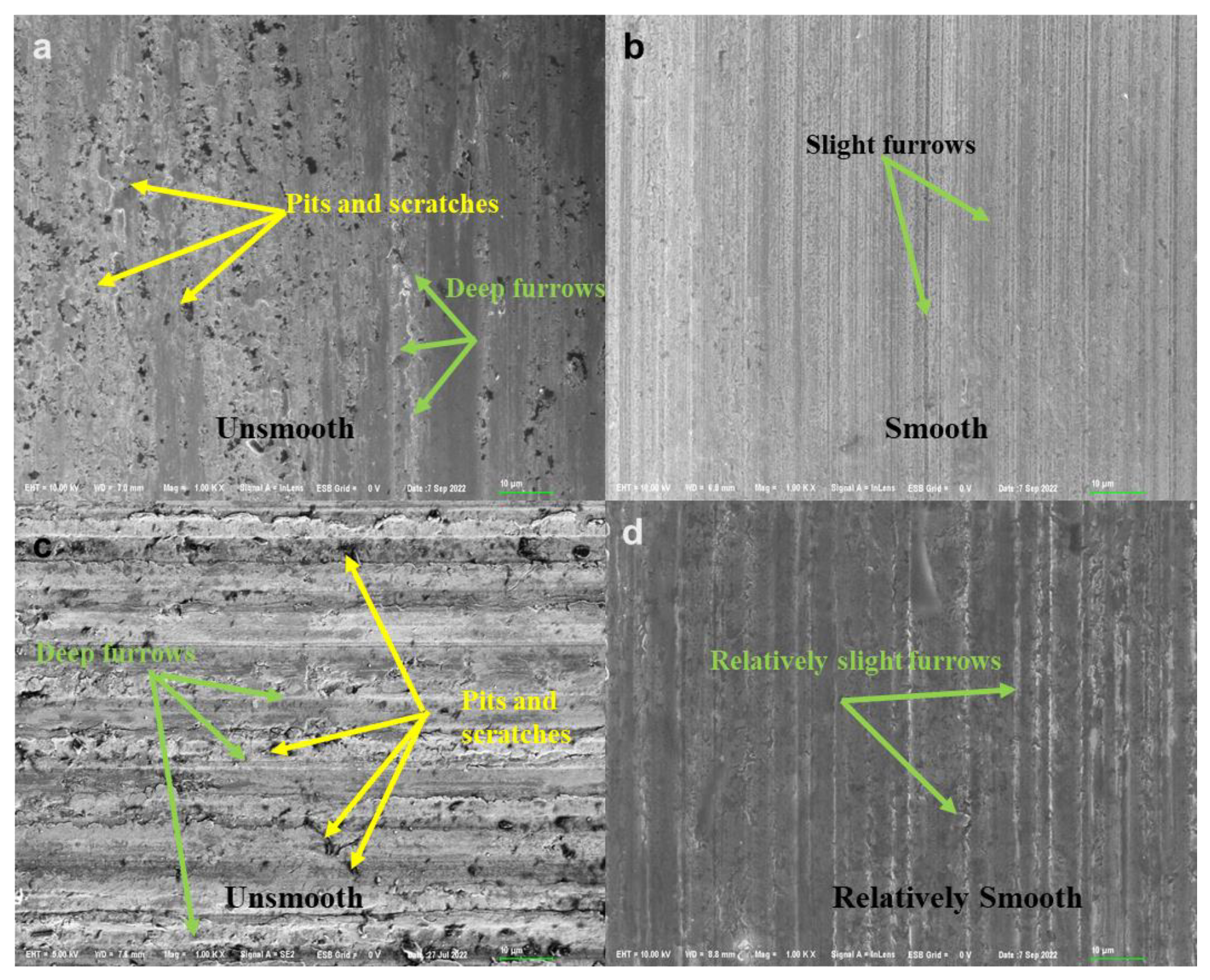

Figure 11. The FESEM characterization of wear scar lubricated by (a) PAO 6 oil, (b) 2 wt% PIL, (c) 5W 40 oil, (d) 2 wt% WIL, under the magnification of 1000×.
Figure 11. The FESEM characterization of wear scar lubricated by (a) PAO 6 oil, (b) 2 wt% PIL, (c) 5W 40 oil, (d) 2 wt% WIL, under the magnification of 1000×.
Lubricants 10 00260 g011
Lubricants 10 00260 g012 550
Figure 12. EDS characterization of wear scar lubricated by (a) PAO6, (b) 2 wt% PIL, (c) 5W 40 and (d) 2 wt% WIL.
Figure 12. EDS characterization of wear scar lubricated by (a) PAO6, (b) 2 wt% PIL, (c) 5W 40 and (d) 2 wt% WIL.
Lubricants 10 00260 g012
Lubricants 10 00260 g013 550

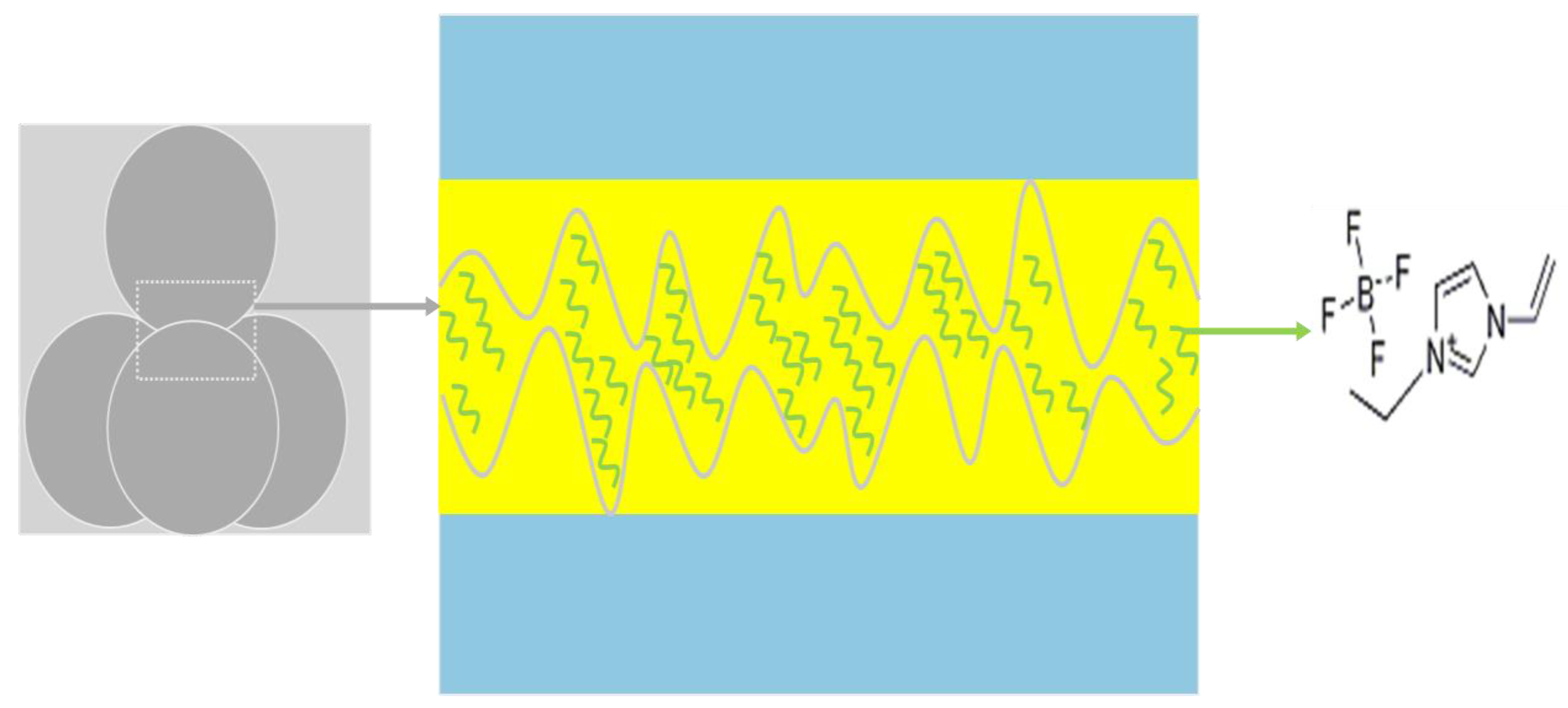

Figure 13. The anti-wear mechanism scheme of IL-modified oil.
Figure 13. The anti-wear mechanism scheme of IL-modified oil.
Lubricants 10 00260 g013
Table
Table 1. Previous reviews of the effect of IL on tribological properties.
Table 1. Previous reviews of the effect of IL on tribological properties.
Lubricants Information Conditions Reduction Friction Pair
Ref./YearBase OilIonic LiquidsWt%SpeedTemperature (°C)Load (N)COF(%)
[2]/2019MF (DIOS-Fe3O4)MIL ([C6mim]5[Dy(SCN)8])1.22 g/cm3\25–150100–200ReducedBall on disk
[3]/2020Mineral oilDCi10.05 m/s25–100229–35.5Ball on flat
[5]/2017Priolube 1936(A2)[P66614][NTf2]0.25–1\25801.37Ball on plate
[6]/2017Yubase4/Group III[P66614]
[(iC8)2PO2], [P66614][BEHP]		0.5–10.01–3 m/s40–100\ReducedBall on disc
[7]/2015Coffee bean oil[THTDP][Deca], [THTDP][NTf2]1–5\252ReducedBlock on flat
[8]/2020PP and LiX greases[P66614][BOB], [P66614][BMB], [P66614][BMPP],
[P66614][DCA]		2–100.2 m/s25–130\60Pin on disk
[10]/2019Priolube 3970 (BO)[N8881][C8:0], ([N8881][C12:0], ([N8881][C16:0]0.5–210–2500 mm/s25–10030–504Ball on disc
[13]/2012GlycerolBuMepyr-MeSO4, Et3MeN-MeSO40.625–80.1 m/s10010ReducedBall on flat
[15]/2021SAE 10W-40, PEG400L-L108, L-P108, L-B1080.5–4200 rpm2556–24.3Ball on disk
[18]/2020PAO8, TMPTO[P14,6,6,6][TMPP], [P14,6,6,6][Deca], [BMIM][BF4]0.5–1.5\7510028Four ball
[20]/2019OPAG, Estisol 240(ME)P-BMB0–200.2 m/s902110Ball on plate
[26]/2018Avocado oilP66614Tf2N, C10mimTf2N0–10036 mm/s231011.24–68.88Pin on disk
[27]/2019Glycerol1-n-butyl-1-methylpyrrolidinium methylsulfate0.6–80.1 m/s25–1001020–56Ball on disc
[28]/2017Jatropha Trimethylolpropane ester
(MJO)		Methyltrioctylammonium bis(trifluoromethylsulfonyl)imide
(AIL)		1–101200 rpm7539248Four ball
[29]/2021GlycerolM-16-EDHPA0.3–1.5\25100ReducedBall on disk
[30]/2017Priolube 1936(A2)[N1888][NTf2]1.25–5\Room temperature40–1201.45Ball on disk
[31]/2019diester oil(A1)[N4441][NTf2]1.5\25–10030–70ReducedBall on disk
[32]/2014Safflower oil (SO)P1444DPP0.005 mol/kg0.1 m/s5050-350ReducedPin on disc
[33]/2021DOP, PEG200TMG-DMP,
TMG-DEP,
TMG-DPP,
TMG-DBP		0.5–5\25, 100300ReducedBall on disc
[34]/2021PEG400NP44, NP880.5–37–3200 mm/s25–10020ReducedBall on disc
[35]/2020Mineral oilEet, Met, Det10.03 m/s25363.3Ball on flat
[36]/2011PAO6ethyl-dimethyl-2-methoxyethylammonium tris(pentafluoroethyl)trifluorophosphate10.02 m/sRoom temperature20–40\Ball on plate
[37]/2006Mineral oil1-n-alkyl-3-methylimidazolium1\\2.4570Pin on disc
[38]/2002\PEPE, X1P, L108\0.1 m/s200.5–400\Dy–sialon disc
Table
Table 2. The label of lubricants used.
Table 2. The label of lubricants used.
Base OilViscosity IndexIL ConcentrationSample Label
PAO61381, 2, 5 wt%PIL
5W-401741, 2, 5 wt%WIL
Table
Table 3. The physicochemical details of IL used.
Table 3. The physicochemical details of IL used.
IL UsedMolecular WeightMolecular FormulaCAS NumberMelting PointDensity
(1-vinyl-3-ethyliMidazoliumtetrafluoroborate)209.9C7H11BF4N2936030-51-2−3.71.25 (50 °C)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Jiang, H.; Hou, X.; Ma, Y.; Guan, W.; Liu, H.; Qian, Y. Elaboration of Ionic Liquids on the Anti-Wear Performance of the Reinforced Steel-Steel Contact Surface. Lubricants 2022, 10, 260. https://doi.org/10.3390/lubricants10100260

AMA Style

Jiang H, Hou X, Ma Y, Guan W, Liu H, Qian Y. Elaboration of Ionic Liquids on the Anti-Wear Performance of the Reinforced Steel-Steel Contact Surface. Lubricants. 2022; 10(10):260. https://doi.org/10.3390/lubricants10100260

Chicago/Turabian Style

Jiang, Hua, Xianjun Hou, Yuxin Ma, Weiwei Guan, Haijun Liu, and Yucong Qian. 2022. "Elaboration of Ionic Liquids on the Anti-Wear Performance of the Reinforced Steel-Steel Contact Surface" Lubricants 10, no. 10: 260. https://doi.org/10.3390/lubricants10100260

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
