Essential Oils from Selected Mediterranean Aromatic Plants—Characterization and Biological Activity as Aphid Biopesticides

by
José Luis Casas
*,
Aitor Sagarduy-Cabrera
,
María López Santos-Olmo
and
Mª Ángeles Marcos-García
Research Institute CIBIO (Centro Iberoamericano de la Biodiversidad), Scientific Park, University of Alicante, Ctra. San Vicente del Raspeig s/n, E-03690 San Vicente del Raspeig, Alicante, Spain
*
Author to whom correspondence should be addressed.
Life 2023, 13(8), 1621; https://doi.org/10.3390/life13081621
Submission received: 22 June 2023 / Revised: 19 July 2023 / Accepted: 21 July 2023 / Published: 25 July 2023
(This article belongs to the Special Issue Exploiting the Biochemical Properties of Essential Oils for Healthy Products)
Browse Figures
Versions Notes

Abstract

:
The need for alternatives to synthetic pesticides is a priority today, especially when these pesticides are directed against aphids, one of the more challenging pests facing modern agriculture. Essential oils may be one of these alternatives. We assayed the insecticidal potential of essential oils from Thymus vulgaris, Rosmarinus officinalis var. ‘prostratus’ and Lavandula dentata. Essential oil extraction was carried out by hydrodistillation in a Clevenger-type apparatus for 3 h and their respective composition was elucidated by gas chromatography-mass spectrometry. The essential oil fraction from T. vulgaris contained 81.20% monoterpenoids and 12.85% sesquiterpenoids; R. officinalis var. ‘prostratus’ contained 91.98% monoterpenoids and 1.93% sesquiterpenoids, while L. dentata contained 69.60% monoterpenoids and 8.05% sesquiterpenoids. The major components found were 1,8-cineole (18.11%), camphor (11.18) and borneol (10.32%) in T. vulgaris; α-pinene (18.72%), verbenone (13.42%) and 1,8-cineole (10.32%) in R. officinalis; and 1,8-cineole (34.65%), camphor (7.58%) and β-pinene (6.39%) in L. dentata. The insecticidal activity of the essential oils was evaluated by contact toxicity bioassays against the bird cherry oat aphid, Rhopalosiphum padi L. We observed a mortality rate of 78.3% ± 23.9 at 15 μL/mL with T. vulgaris, 54.7% ± 25.8 with L. dentata (although at a lower concentration, 10 μL/mL), and 56.7% ± 25.6 at 15 μL/mL with R. officinalis. Our results suggest that thyme essential oil may be particularly promising for integrated aphid management provided that specific conditions of use and dosages are observed.

1. Introduction

Aphid control in an agricultural environment is particularly difficult as a result of two main factors. The first is the nature of the pest itself. Aphids are a species-rich group of insects included in Aphidoidea (Hemiptera), a superfamily comprising Adelgidae, Phylloxeridae and Aphididae, which are parthenogenetically viviparous [1]. This mode of reproduction converts these r-strategists into a very serious threat to crops as they are capable of attaining very high population densities in relatively short times [2]. The second reason derives from the peculiar feeding habit of these insects. Aphids feed on phloem sap using specially adapted mouthparts, the stylets, to penetrate plant tissues in search of sieve elements and incorporate nutrients in the form of photoassimilates without inflicting serious damage to host plant [3]. Furthermore, during the feeding process, aphids release different kinds of saliva with different compositions and functions. This saliva may contain viruses that can be thus easily transferred to the host plant. Aphids are, therefore, organisms that can acquire and inoculate any viral taxon within plants, whatever their tissue specificity [4]. Although in general terms, it is very difficult to give a precise assessment of the potential economic loss due to aphids, many of the 275 viruses transmitted by aphids cause diseases of major economic importance [5].
Plant protection against aphid pests is dominated by synthetic insecticides, particularly those derived from active substances of the following classes: pyrethroids, neonicotinoids, carbamates, and insect growth regulators [6]. Chemical insecticides entered their golden age in the 1930s with the development of a system of synthesis and screening that allowed a biological function to be assigned to the many compounds of unknown biological activity that industry had already isolated, and this system, of course, also enabled the search for new synthetic products functioning as insecticides [7]. The extensive use of synthetic pesticides for decades uncovered a third problem arising from aphid physiology: the emergence of insecticide resistance. At least seven independent mechanisms of resistance have been described in the peach potato aphid (Myzus persicae (Sulzer, 1776)) [8].
In view of the above arguments, the need to look for nature-based solutions or more sustainable alternatives to chemical insecticides is much more justified. The EU has promoted the registration of low-risk substances for pest control through Directive 2009/128/EC, under which member states must ensure the rational use of plant protection products integrated with other practices and control measures, including general principles of integrated pest management (IPM) [9]. Our group has been developing solutions based on IPM for the control of aphids in Mediterranean crops cultivated in greenhouses. Thus, the predatory syrphid Sphaerophoria rueppellii (Wiedermann, 1820) (Diptera: Syrphidae) has been shown to be a very effective biological control agent against greenhouse aphid pests as well as an effective pollinator [10,11]. In addition to biological control, the development of control solutions based on essential oils that can enhance the effects of biological control, and thus be compatible with IPM, has become a necessity. Essential oils (EOs) are highly volatile compounds obtained from raw plant material by hydrodistillation, steam distillation, dry distillation, or mechanical cold pressing, in this latter case, for citrus fruits [12,13,14]. Chemically, EO are complex mixtures of substances classified into two main chemical groups: terpenoids, mainly monoterpenes and sesquiterpenes; and phenylpropanoids [15]. EOs are particularly abundant in conifers, such as Rutaceae, Umbelliferae, Myrtaceae, Lamiaceae, and Lauraceae [16]. And why are EOs interesting in the field of biopesticides? Many studies have shown the insecticidal effects of EOs, and an increasing number of other studies support the view that there is significant EO tolerance among specific nontarget organisms [6,17]. Also, due to their low mammalian toxicity, EO are generally recognized as safe (GRAS) by the US Food and Drug Administration [18]. In addition, the complex mixtures of substances contained in EOs showing different action mechanisms and potential synergisms may be effective in preventing the development of resistances in pest populations [15].
Thus, the interest in EO as biopesticides is not surprising, despite the difficulties in developing commercially cost-effective biopesticides based on EOs. The main difficulties have been identified elsewhere [15,19,20]. These include strict legislation, resource availability, short persistence of the compounds in the environment and a much higher than expected variability in the final EOs. Effectively, the production of a standardized product, which is important for regulatory and marketing purposes, is still challenging. In addition to the recognition of well-established chemotypes, a given chemotype growing in populations subject to specific environmental conditions may render great differences, not only in minority but also in majority components, thus substantially impacting the biological activity of these EOs [12]. Moreover, the variability of an EO composition is also impacted by the method of extraction employed [16]. However, despite these drawbacks, the search of highly effective EO is very relevant as a first step to identify those mixtures that may ensure a final cost-effective formulation and, therefore, be commercially exploited. This work is aimed at the characterisation of the essential oils of three aromatic species growing in southeastern Spain (Thymus vulgaris L. (thyme), Rosmarinus officinalis L. var. ‘prostratus’ and Lavandula dentata L.) and the evaluation of their insecticidal activity against aphid (Rhopalosiphum padi (Linnaeus, 1758)) pests.

2. Materials and Methods

2.1. Plant Material and Essential Oil Extraction

The plants used in this study were collected from Torretes Biological Station located (38°38′10.91″ N, 0°32′14.35″ W) in Ibi (Alicante, Spain) between March and April 2022. Three species belonging to the Lamiaceae family were selected: Thymus vulgaris L.; Rosmarinus officinalis L. var. ‘prostratus’ and Lavandula dentata L. The aerial parts of the species collected were air-dried for 6 days inside the laboratory. Then, the leaves were separated from stems and other materials and crushed in an electrical grinder. Around 50 g of ground leaves were subjected to hydrodistillation in a Clevenger-type apparatus for 3 h with distilled water at a ratio of 10 mL per gram of plant dry matter. The resulting oil fraction was recovered, dehydrated with anhydrous sodium sulphate, and stored at 4 °C in amber glass vials until utilization. The oil yield was calculated and expressed as a volume percent (v/w) calculated relative to 100 g of dry material.

2.2. GC-MS Characterization

The essential oils were analysed by GC-MS using an Agilent 7890A gas chromatograph coupled to an Agilent 5975C mass spectrometer. Separation was carried out in a HP-5MS capillary column (30 m length, 0.25 mm inner diameter, and 0.25 mm film thickness, Agilent). The GC oven temperature ramp initiated at 80 °C for 3 min; then the temperature was raised until 220 °C at 4 °C/min. The final temperature was maintained for 10 min. The temperature of the injector was kept at 280 °C operating in split mode (1:100 ratio). The carrier gas was helium at a rate of 1 mL/min. The mass spectrometer was equipped with an electron impact (EI) ionization mode working at 70 eV. Full-scan mass spectra were recorded in the range m/z 30 to 550 amu. The identification of the individual compounds was based on the comparisons of the obtained spectra with those of reference compounds available in the NIST (National Institute of Standard and Technology) v11 library by selecting a matching score above 75%. The relative abundance of components, expressed in percentage, was calculated from the peak areas of each chromatogram without calculating a response factor. The assignation of the identified compounds to lipid families was made according to Brite Hierarchy (KEGG) “https://www.genome.jp/kegg-bin/show_brite?htext=br08002%2ekeg&selected=none&extend=B61 (accessed on 22 May 2023)”. The data presented in tables are the average of the two injections ± standard deviation.

2.3. Insect Rearing

Bird cherry oat aphids (Rhopalosiphum padi L.) were supplied by Bionostrum Pest Control, S.A. (Alicante, Spain). The aphid colonies were maintained on barley (Hordeum vulgare L.) plants in a growth chamber at 24 ± 2 °C, 60% RH and a 14 L:10 D photoperiod provided by white LED lamps. Trays with aphid-bearing plants were covered with mesh cages (30 × 60 × 40 cm) to prevent their escape.

2.4. Insecticidal Activity of EO

To demonstrate the insecticidal activity of the EO, contact toxicity bioassays were performed. For this, a barley leaf was placed in a 70 mm diameter Petri dish with a pair of moistened filter paper disks at the bottom. Then, 10 apterous adults of Rhopalosiphum padi were placed on the leaf, left to settle for 10 min, and then the EO to be tested was sprayed over the aphids. For the bioassays, all the EO were prepared at three doses: 4, 10 and 15 μL/mL in acetone. A total volume of 1 mL was prepared for each EO and completely sprayed over the aphids with the aid of 2 mL glass spraying devices with an atomizer. Similar treatments with only acetone were used as controls. Once treatments were completed, the Petri dishes were placed into a growth chamber at 24 ± 2 °C and 60% RH. Mortality was recorded after 24 h. Contact toxicity bioassays were replicated three times. Each replicate consisted of ten Petri dishes with 10 aphids each. The data presented in tables are the average of three replicates ± standard deviation. LC50 was calculated by Probit analysis [21] using a Probit analysis spreadsheet calculator [22].

2.5. Statistical Analysis

Statistical significance was revealed by one-way ANOVA and Tukey test HSD at p ≤ 0.05, using R software ver. 4.2.3 [23].

3. Results

3.1. Characterization of the Essential Oils (EO)

The characterization of each EO studied was carried out by GC-MS. Figure 1 shows an example of the chromatograms obtained for each EO.
Essential oil extraction by hydrodistillation with the aid of a Clevenger-type apparatus for 3 h gave a yield of essential oil of 1.86% for T. vulgaris, 0.64% for R. officinalis and 2.10% for L. dentata (Table 1). The GC-MS analysis of the hydrodistilled fraction from each species revealed, in all cases, the absolute predominance of monoterpenoids, followed by sesquiterpenoids and, at far lower levels, representatives of up to 26 other chemical families, according to the species (Table 1).
Monoterpenoids comprised 81.2% of the identified compounds in T. vulgaris, 91.98% in R. officinalis, and 69.74% in L. dentata, (Table 1). T. vulgaris EO contained almost equal amounts of menthane and bicyclic monoterpenoids, these two being the most abundant monoterpenoid classes found in this species (Figure 2). In R. officinalis, bicyclic monoterpenoids were, however, the major fraction, while in L. dentata, menthane monoterpenoids predominated (Figure 2).
Sesquiterpenoids were the second most abundant fraction in the EO of the three species (Table 1), again with large variations in their respective profiles (Figure 2). Thus, the EO of R. officinalis presented a less abundant (1.93%, Table 1) and chemically diverse sesquiterpenoid fraction, with only three classes represented: caryophyllene sesquiterpenoids, cedrane and isocedrane sesquiterpenoids, and humulane sesquiterpenoids (Figure 2). The EO of L. dentata consisted of 8.05% sesquiterpenoids (Table 1) distributed into seven classes, the most abundant being eudesmane sesquiterpenoids (Figure 3). Finally, T. vulgaris EO contained the highest (12.85%, Table 1) and most chemically diverse sesquiterpenoid profile, consisting of 13 classes, with caryophyllane and eudesmane sesquiterpenoids being the most abundant classes (Figure 3).
Together, monoterpenoids and sesquiterpenoids accounted for 94% of the identified compounds in T. vulgaris. The rest belonged to 10 different chemical classes, and except for dimethoxybenzenes, all were above 1% (Table 1). In R. officinalis, monoterpenoids and sesquiterpenoids also accounted for almost 94% (93.91%) of the total, but the rest of the components belonged to 17 different chemical classes. In L. dentata, significantly fewer compounds (80.20%) were identified, of which 77.79% were monoterpenoids and sesquiterpenoids, and the rest also represented 17 different chemical classes, although not exactly the same as rosemary (Table 1).
A total of 84–88 compounds were identified in the EO of T. vulgaris, 61–66 in R. officinalis, and 72–78 in L. dentata. The ten most abundant compounds of each species are presented in Table 2, while the complete profile is available in the Supplementary Material.

3.2. Insecticidal Activity of EO

The insecticidal activity of the EOs was tested by contact toxicity bioassays, as described in the Materials and Methods section. The results indicate that T. vulgaris and R. officinalis EOs had a significant insecticidal effect on bird cherry oat aphid Rhopalosiphum padi in a dose-dependent manner (Table 3). T. vulgaris EO showed the highest insecticidal activity, reaching 78.3% mortality at the higher dose tested (15 μL/mL), while R. officinalis EO reached 56.7% aphid mortality at the same dose. The EOs of the two species showed an LD50 of 8.86 and 11.72 μL/mL, respectively. In the case of L. dentata, a non-linear response was found for all three doses tested (Table 3). The mortality was 54.7% at 10 μL/mL but decreased to 48% at the highest dose tested. The unavailability of additional amounts of this EO prevented us from calculating the LD50 for this species in this experiment.
Different combinations of EOs were also tested to see if blends improved the results obtained with the individual oils. For this, binary combinations of EO were prepared at 10 μL/mL each and the resulting mortality rates are presented in Table 4.

4. Discussion

The Eos of three Lamiaceae species, Thymus vulgaris, Rosmarinus officinalis var. ‘prostratus’, and Lavandula dentata, were characterized and tested for their potential utilization as biopesticides against aphids. T. vulgaris L. is probably the most commercially used species among the 215 accepted species of genus Thymus [24]. Three subspecies, vulgaris, aestivus and palearensis, are recognized within this genus, mainly based on the chromosome number, but the frequent presence of hybrids adds further complexity to this group [24]. In the present work, the menthane monoterpenoid 1,8-cineole (17.8%) was reported as the major compound present in T. vulgaris EO, followed by two bicyclic monoterpenoids, camphor (11.1%) and borneol (10.3%), heading a list of more than 80 identified compounds (see Supplemental Material). This chemotype with 1,8-cineole as the majority component is considered endemic to the Iberian Peninsula [25]. In a study monitoring variations in the EO composition with phenological stages of Spanish thyme, the authors found 1,8-cineole (36.42%) followed by terpenyl acetate (18.17%) and borneol (4.77%) to be the major components, with the former two changing significantly during the whole vegetative cycle of the plant [25]. Chemical variation in essential oil composition also comes from cultural practices. Thus, volatile components of Thymus vulgaris L. from wild-growing and cultivated plants in Jordan were found to vary not only in oil yield but also in the relative abundance of major EO components according to the population location in the case of plants growing wild, but also with respect to cultivated plants. Carvacrol (85.2–86.1%) was the most abundant component in two wild populations, while thymol was the majority (63.8%) in the third wild population studied, clearly corresponding to carvacrol and thymol-type chemotypes. Interestingly, in the cultivated thyme, thymol and carvacrol were present in substantial quantities (30.7% and 50.6%, respectively) [26]. Undoubtedly, this extreme variation in individual components of essential oils according to phenological stage, cultural practice, or environmental conditions, hinders the roadmap towards the industrial exploitation of essential oils.
As shown in Table 3, T. vulgaris EO showed increasing aphid mortality with dose in contact toxicity bioassays, reaching a maximum toxicity of 78.3% and LD50 of 6.47 μL/mL (6.47 mL/L). This response allows us to consider this thyme EO as promising for its further development as a botanical insecticide against aphids and supports the widely alleged insecticidal properties of thyme EO. For instance, 3 mL of T. vulgaris EO provoked 85% mortality after 24 h in toxicity bioassays against two stored grain pest species, the rice weevil Sitophylus oryzae (Linnaeus, 1763) (Coleoptera: Curculionidae) and the lesser grain borer Rhysopertha dominica (Fabricius, 1792) (Coleoptera: Bostrichidae,), and this mortality rate increased up to 100% after 48 h of treatment [27]. In this case, the T. vulgaris EO was characterized by the following major components: carvacrol (27.31%), thymol (21.51%), and γ-terpinene (19.17%) [27]. A T. vulgaris EO with thymol (47.19%), p-cymene (28.37%) and γ-terpinene (8.06%) as major components showed fumigant activity against the green stink bug Nezara viridula Linnaeus, 1758 (Hemiptera: Pentatomidae) with an LC50 of 8.9 mg/mL for nymphs and 219.2 mg/mL for adults [28]. With very similar results regarding the major components of their T. vulgaris EO, LC50 values of 57.48 and 75.80 mg/L after 72 h of treatment were reported against the planthopper Pochazia shantungensis (Hemiptera, Ricaniidae) nymphs and adults, respectively [29]. EOs from T. vulgaris have been successfully used as preservatives against postharvest fungal infestation of food commodities [30], although the authors gave no characterization of the components of the extracted EO. Focusing on the specific fight against aphids, we have not found previous reports on the effects of T. vulgaris EO on aphids. However, a maximum mortality of 99.1% of Foeniculum vulgare Mill. seeds EO was reported against Myzus persicae [31]. Two EO preparations from two Mentha pulegium L. chemotypes gave 86.2% and 88% mortality, respectively, against the cotton aphid Aphis gossypii Glover, 1877, but 40–48% against Aphis spiraecola Patch,1914, although in this last case, the dosage applied was half that used with A. gossypii [32]. In line with the results obtained in the present work, LC50 values of 6.62 mL/L and 2.04 mL/L in contact toxicity bioassays with Aphis gossypii were reported using EO from yarrow (Achillea wilhelmsii K.Koch) and sweet asafetida (Ferula assa-foetida L.), respectively [33].
Rosemary (Rosmarinus officinalis L.) EO has also been frequently used in traditional medicine, mainly in the Mediterranean basin, where it is native. The reported biological effects of rosemary EO include antioxidative, anti-inflammatory, anticarcinogenic, spasmolytic, antibacterial, and antifungal activities, as well as many others [34,35]. As in the case of thyme, rosemary EO shows high intraspecific chemical variability according to geographical origin, environmental and/or agronomic conditions, harvest time or extraction method [36], and different chemotypes defined according to the major component of rosemary EO have also been proposed [37]. In this work, the variety ‘prostratus’ of Rosmarinus officinalis, long recognised in gardening but much less known from a phytochemical and biological activity point of view, was tested. This cultivar is appreciated for its fast establishment and soil coverage, features which keep weeds under control and thus reduce the use of chemicals in Mediterranean urban landscapes [38]. R. officinalis var. ‘prostratus’ EO was characterized by the bicyclic monoterpenoids α-pinene (18.74%) and verbenone (13.42%) and by the menthane monoterpenoid 1,8-cineole (10.32%) (Table 2). Ref. [39] studied the EO composition and yield of a natural population of R. officinalis in Sardinia (Italy) with an extended flowering period (from September to May). They also identified α-pinene as the major component, although at a much higher percentage (48.03–75.4%), followed by 1,8-cineole (7.30–15.65%), caryophyllene (1.80–12.59%), borneol (1.00–5.16%), camphene (2.02–4.27%) and verbenone (1.04–5.84%), the intervals representing the range of each compound through the entire year. In addition to factors such as genetic background or environmental conditions, the EO extraction process itself influences the composition of the EO. Thus, comparing the extraction of rosemary oil by steam distillation and hydrodistillation revealed important differences: Hydrodistillation gave a component profile in which 1,8-cineole (31.9%), camphor (19.7%), α-terpineol (12.8%), and borneol (12.1%) were the most abundant components, while 1,8-cineole (52.4%), camphor (12.6%), β-pinene (5.7%) and α-pinene (5.2%) were the majority compounds with steam distillation [40].
The mortality rate achieved using R. officinalis var. ‘prostratus’ EO reached 56.7% with 15 μL/mL (LD50 11.72 μL/mL) (Table 3). This is a significantly lower mortality rate than that obtained with thyme EO, but also suggests it as a promising potential biopesticide. Similar mortality rates were reported by [41], whose analysis of R. officinalis EO, among other plant species, revealed 1,8-cineole (35.27%), α-pinene (15.87%), and camphor (10.43%) as the most abundant components. They found 60% mortality at 24 h against Myzus persicae in contact toxicity assays. EO from R. officinalis has also been tested against other pests. For instance, LC50 was achieved with 10.0 mL/L of rosemary EO against adult females of the red spider mite Tetranychus urticae C.L. Koch, 1836 reared on bean plants, and with 13.0 mL/L for those reared on tomato plants [42]. The major components of this rosemary oil were 1,8-cineole (31.5%), camphor (20.0%) and α-pinene (17.5%), and complete mortality of mites was obtained with 20 mL/L of the oil on bean plants and 40 mL/L on tomato plants [42]. Mortalities of 95–100% of Tetranychus urticae were reported by a rosemary EO characterized by 1,8-cineole (26.7%), α-pinene (18.5%) and camphor (17.5%) [43]. Another R. officinalis EO characterized by camphor (31.16%), β-caryophyllene (18.55%) and 3,4-dimethyl-2,4-hexadiene (9.08%) as the most abundant components showed biological activity against the flour beetle Tribolium confusum Jacquelin du Val, 1863 (Coleoptera: Tenebrionidae), finding complete mortality with 0.12 μL/mL [44].
Lavandula is a genus comprising 39 species and around 400 registered cultivars [45]. Lavandula dentata L., the species used in the present work, has also been widely employed in traditional medicine and has shown biological activity, including antifungal, antioxidant, antibacterial and antiparasitic activities [46]. In our case, L. dentata EO was characterized by 1,8-cineole (34.65%), camphor (7.58%) and β-pinene (6.39%) as major components giving a maximum mortality of 54.7% at 10 μL/mL on Rhopalosiphum padi. It was reported by [47] that the EO of L. dentata was composed mainly of 1,8-cineole (34.33%), fenchone (17.78%) and camphor (15.75%). This EO showed good insecticidal activity in assays carried out without insect food against three pest insects: the maize weevil Sitophilus zeamais (Motschulsky, 1855) (Coleoptera: Curculionidae) (LC50 26.9 μL/L air), the red flour beetle Tribolium castaneum (Herbst, 1797) (Coleoptera: Tenebrionidae) (LC50 11.3 μL/L air), and Epicauta atomaria (Germar, 1821) (Coleoptera: Meloidae) (LC50 26.9 μL/L air). For S. zeamais and T. castaneum, the authors found significantly higher LC50 (42.7, and 29.3 μL/L air, respectively) when the assays were conducted with food. L. dentata flowering tops collected from northern Tunisia were characterized by β-eudesmol (21.18%), myrtenol (13.02%), and sabinol (11.02%) as major compounds. In addition to antifungal and antibacterial activities, this EO showed strong fumigant, repellent, and contact properties against Rhyzopertha dominica Fabricius, 1792 (Coleoptera: Bostrichidae) and Sitophilus oryzae (Linnaeus, 1764) (Coleoptera: Curculionidae) [48].
Collectively considered, the results presented in this paper show promising activity against aphids (Rhopalosiphum padii) of the EO from three Lamiaceae species, particularly T. vulgaris, evaluated in terms of mortality in toxicity bioassays. The EOs from the three species caused over 50% mortality in aphids at any of the doses used, and with T. vulgaris EO, this mortality was close to 80%. Interestingly, in two of the species studied, T. vulgaris and L. dentata, 1,8-cineole was found to be the major compound in their respective EO, but nevertheless, the mortality results were very different. This supports the view that the bioactivity of an EO is not strictly related to its majority components, but to some kind of synergy between the majority and minority components [49]. This is also evident from the results with the EO combinations (Table 4). Although only one dose (10 mL/L) of binary EO combinations was tested, those mixtures that included T. vulgaris EO performed worse than this EO alone. Conversely, L. dentata EO increased mortality when applied in mixtures, compared with the same dose of the single oil.
In conclusion, the EO composition of three Lamiaceae species were characterized as a first step in their possible utilization in biopesticide formulations. Comparing the three species and according to the data obtained, Thymus vulgaris EO proved to be the most effective against aphids.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/life13081621/s1.

Author Contributions

Conceptualization, J.L.C. and M.Á.M.-G.; methodology, J.L.C. and M.Á.M.-G.; investigation, J.L.C., A.S.-C., M.L.S.-O. and M.Á.M.-G.; data curation, A.S.-C. and M.L.S.-O.; writing—original draft preparation, J.L.C.; writing—review and editing, J.L.C., A.S.-C., M.L.S.-O. and M.Á.M.-G.; project administration, J.L.C. and M.Á.M.-G.; funding acquisition, J.L.C. and M.Á.M.-G. All authors have read and agreed to the published version of the manuscript.

Funding

This study forms part of the AGROALNEXT programme (AGROALNEXT/2022/052-BIOPESTNEW) a programme supported by MCIN with funding from European Union NextGenerationEU (PRTR-C17.I1) and by Generalitat Valenciana.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data supporting the present article is contained in supplementary material.

Acknowledgments

The authors wish to thank to Segundo Ríos and Roberto Poyatos from the Torretes Biological Station (Ibi, Alicante, Spain) for their assistance in selection and identification of the plant species included in the present study.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Sorensen, J.T. Aphids. In Encyclopedia of Insects, 2nd ed.; Resh, V.H., Cardé, R.T., Eds.; Academic Press: Cambridge, MA, USA, 2009; pp. 27–31. [Google Scholar]
  2. Nalam, V.; Louis, J.; Shah, J. Plant defense against aphids, the pest extraordinaire. Plant Sci. 2019, 279, 96–107. [Google Scholar] [CrossRef]
  3. Sun, M.; Voorrips, R.E.; Steenhis-Broers, G.; Van’t Westende, W.; Vosman, B. Reduced phloem uptake of Myzus persicae on an aphid resistant pepper accession. BMC Plant Biol. 2018, 18, 138. [Google Scholar] [CrossRef] [Green Version]
  4. Brault, V.; Uzest, M.; Monsion, B.; Jacquot, E.; Blanc, E. Aphids as transport devices for plant viruses. Comptes Rendus Biol. 2010, 333, 524–538. [Google Scholar] [CrossRef]
  5. Dedryver, C.A.; Le Ralec, A.; Fabre, F. The conflicting relationships between aphids and men: A review of aphid damage and control strategies. Comptes Rendus Biol. 2010, 333, 539–553. [Google Scholar] [CrossRef]
  6. Ikbal, C.; Pavela, R. Essential oils as active ingredients of botanical insecticides against aphids. J. Pest Sci. 2019, 92, 971–986. [Google Scholar] [CrossRef]
  7. Casida, J.E.; Quistad, G.B. Golden Age of insecticide research. Annu. Rev. Entomol. 1998, 43, 1–16. [Google Scholar] [CrossRef] [Green Version]
  8. Bass, C.; Puinean, A.M.; Zimmer, C.T.; Denholm, I.; Field, L.M.; Foster, S.P.; Gutbrod, O.; Nauen, R.; Slater, R.; Williamson, M.S. The evolution of insecticide resistance in the peach potato aphid Myzus persicae. Insect Biochem. Mol. Biol. 2014, 51, 41–51. [Google Scholar] [CrossRef] [Green Version]
  9. Villaverde, J.J.; Sevilla-Morán, B.; Sandín-España, P.; López-Goti, C.; Alonso-Prados, J.L. Biopesticides in the framework of the European Pesticide Regulation (EC) No. 1107/2009. Pest Manag. Sci. 2013, 70, 2–5. [Google Scholar] [CrossRef]
  10. Amorós-Jiménez, R.; Pineda, A.; Fereres, A.; Marcos-García, M.Á. Prey availability and abiotic requirements of immature stages of the aphid predator Sphaerophoria rueppellii. Biol. Control 2012, 63, 17–24. [Google Scholar] [CrossRef] [Green Version]
  11. Pekas, A.; De Craecker, I.; Boonen, S.; Wäckers, F.L.; Moerkens, R. One stone; two birds: Concurrent pest control and pollination services provided by aphidophagous hoverflies. Biol. Control 2020, 149, 104328. [Google Scholar] [CrossRef]
  12. Regnault-Roger, C.; Vincent, C.; Arnason, J.T. Essential oils in insect control: Low-risk products in a high-stakes world. Annu. Rev. Entomol. 2012, 57, 405–424. [Google Scholar] [CrossRef]
  13. Zuzarte, M.; Salgueiro, L. Essential oils chemistry. In Bioactive Essential Oils and Cancer; de Sousa, D.P., Ed.; Springer International Publishing: Cham, Switzerland, 2015; pp. 19–61. [Google Scholar]
  14. Arigó, A.; Rigano, F.; Micalizi, G.; Dugo, P.; Mondello, L. Oxygen heterocyclic compound screening in Citrus essential oils by linear retention index approach applied to liquid chromatography coupled to photodiode array detector. Flav. Frag. J. 2019, 34, 349–364. [Google Scholar] [CrossRef]
  15. Pavela, R.; Benelli, G. Essential oils as eco-friendly biopesticides? Challenges and constraints. Trends Plant Sci. 2016, 21, 1000–1007. [Google Scholar] [CrossRef]
  16. Renault-Roger, C. Essential oils in insect control. In Natural Products: Phytochemistry, Botany and Metabolism of Alkaloids, Phenolics and Terpenes; Ramawat, K.G., Mérillon, J.M., Eds.; Springer: Berlin/Heidelberg, Germany, 2013; pp. 4087–4107. [Google Scholar]
  17. Isman, M.B. Plant essential oils for pest and disease management. Crop Prot. 2000, 19, 603–608. [Google Scholar] [CrossRef]
  18. Walia, S.; Saha, S.; Tripathi, V.; Sharma, K.K. Phytochemical biopesticides: Some recent developments. Phytochem. Rev. 2017, 16, 989–1007. [Google Scholar] [CrossRef]
  19. Isman, M.B. Neem and other botanical insecticides: Barriers to commercialization. Phytoparasitica 1997, 25, 339–344. [Google Scholar] [CrossRef]
  20. Isman, M.B.; Grieneisen, M.L. Botanical insecticide research: Many publications, limited useful data. Trends Plant Sci. 2014, 19, 140–145. [Google Scholar] [CrossRef]
  21. Finney, D.J. Probit Analysis, 3rd ed.; Cambridge University Press: Cambridge, UK, 1971. [Google Scholar]
  22. Mekapogu, A.R. Finney’s Probit Analysis Spreadsheet Calculator (Version 2021). Available online: https://probitanalysis.wordpress.com/ (accessed on 24 May 2023).
  23. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2022; Available online: https://www.R-project.org/ (accessed on 27 March 2023).
  24. Vouillamoz, J.F.; Christ, B. Thymus vulgaris L.: Thyme. In Medicinal Aromatic and Stimulant Plants; Novak, J., Blüthner, W.D., Eds.; Springer International Publishing: Cham, Switzerland, 2020; pp. 547–557. [Google Scholar]
  25. Jordán, M.J.; Martínez, R.M.; Goodner, K.L.; Baldwin, E.; Sotomayor, J.A. Seasonal variation of Thymus hyemalis Lange and Spanish Thymus vulgaris L. essential oil composition. Ind. Crop Prod. 2006, 24, 253–263. [Google Scholar] [CrossRef]
  26. Hudaib, M.; Aburjai, T. Volatile components of Thymus vulgaris L. from wild-growing and cultivated plants in Jordan. Flav. Frag. J. 2007, 22, 322–327. [Google Scholar] [CrossRef]
  27. Labiad, M.H.; Belmaghraoui, W.; Ghanimi, A.; El-Guezzane, C.; Chahboun, N.; Harhar, H.; Egea-Gilabert, C.; Zarrouk, A.; Tabyaoui, M. Biological properties and chemical profiling of essential oils of Thymus (vulgaris, algeriensis and broussonettii) grown in Morocco. Chem. Data Coll. 2022, 37, 100797. [Google Scholar] [CrossRef]
  28. Werdin González, J.O.; Gutiérrez, M.M.; Murray, A.P.; Ferrero, A.A. Composition and biological activity of essential oils from Labiatae against Nezara viridula (Hemiptera: Pentatomidae) soybean pest. Pest Manag. Sci. 2011, 67, 948–955. [Google Scholar] [CrossRef]
  29. Park, J.H.; Jeon, Y.J.; Lee, C.H.; Chung, N.; Lee, H.S. Insecticidal toxicities of carvacrol and thymol derived from Thymus vulgaris Lin. against Pochazia shantungensis Chou & Lu., newly recorded pest. Sci. Rep. 2017, 7, 40902. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Kumar, A.; Shukla, R.; Singh, L.; Prasad, C.S.; Dubey, N.K. Assessment of Thymus vulgaris L. essential oil as a safe botanical preservative against postharvest fungal infestation of food commodities. Innov. Food Sci. Emerg. Technol. 2008, 9, 575–580. [Google Scholar] [CrossRef]
  31. Pavela, R. Essential oils from Foeniculum vulgare Miller as a safe environmental insecticide against the aphid Myzus persicae Sulzer. Environ. Sci. Pollut. Res. 2018, 25, 10904–10910. [Google Scholar] [CrossRef]
  32. Papadimitriou, D.M.; Petrakis, E.A.; Arvaniti, K.A.; Kimbaris, A.C.; Polissiou, M.G.; Perdikis, D.C. Comparative bioactivity of essential oils from two Mentha pulegium (Lamiaceae) chemotypes against Aphis gossypii, Aphis spiraecola, Tetranychus urticae and the generalist predator Nesidiocoris tenuis. Phytoparasitica 2019, 47, 683–692. [Google Scholar] [CrossRef]
  33. Koorki, Z.; Shahidi-Noghabi, S.; Smagghe, G.; Mahdian, K. Insecticidal activity of the essential oils from yarrow (Achillea wilhelmsii L.) and sweet asafetida (Ferula assa-foetida L.) against Aphis gossypii Glover (Hemiptera: Aphididae) under controlled laboratory conditions. Int. J. Trop. Insect Sci. 2022, 42, 2827–2833. [Google Scholar] [CrossRef]
  34. Lesnik, S.; Furlan, V.; Bren, U. Rosemary (Rosmarinus officinalis L.) extraction techniques, analytical methods and health-promoting biological effects. Phytochem. Rev. 2021, 20, 1273–1328. [Google Scholar] [CrossRef]
  35. Ribeiro-Santos, R.; Carvalho-Costa, D.; Cavaleiro, C.; Costa, H.S.; Albuquerque, T.G.; Castilho, M.C.; Ramos, F.; Melo, N.R.; Sanchez-Silva, A. A novel insight on an ancient aromatic plant: The rosemary (Rosmarinus officinalis L.). Trends Food Sci. Technol. 2015, 45, 355–368. [Google Scholar] [CrossRef]
  36. Melero-Bravo, E.; Ortiz de Elguea-Culebras, G.; Sánchez-Vioque, R.; Fernández-Sestelo, M.; Herraiz-Peñalver, D.; Sánchez-Vioque, R. Variability of essential oil in cultivated populations of Rosmarinus officinalis L. in Spain. Euphytica 2022, 218, 65. [Google Scholar] [CrossRef]
  37. Satyal, P.; Jones, T.H.; Lopez, E.M.; McFeeters, R.L.; Ali, N.A.A.; Mansi, I.; Al-kaf, A.G.; Setzer, W.N. Chemotypic characterization and biological activity of Rosmarinus officinalis. Foods 2017, 6, 20. [Google Scholar] [CrossRef] [Green Version]
  38. Ruggeri, R.; Provenzano, M.E.; Rossini, F. Effect of mulch on initial coverage of four groundcover species for low input landscaping in a Mediterranean climate. Urban For. Urban Green. 2016, 19, 176–183. [Google Scholar] [CrossRef]
  39. Serralutzu, F.; Stangoni, A.P.; Amadou, B.; Tijan, D.; Re, G.A.; Marceddu, S.; Dore, A.; Bullitta, S. Essential oil composition and yield of Rosmarinus officinalis L. natural population with an extended flowering season in a coastal Mediterranean environment and perspectives for exploitations. Genet. Resour. Crop Evol. 2020, 67, 1777–1793. [Google Scholar] [CrossRef]
  40. Boutekedjiret, C.; Bentahar, F.; Belabbes, R.; Bessiere, J.M. Extraction of rosemary essential oil by steam distillation and hydrodistillation. Flav. Frag. J. 2003, 18, 481–484. [Google Scholar] [CrossRef]
  41. Ahmed, Q.; Agarwal, M.; Al-Obaidi, R.; Wang, P.; Ren, Y. Evaluation of aphicidal effect of essential oils and their synergistic effect against Myzus persicae (Sulzer) (Hemiptera: Aphididae). Molecules 2021, 26, 3055. [Google Scholar] [CrossRef]
  42. Miresmailli, S.; Bradbury, R.; Isman, M.B. Comparative toxicity of Rosmarinus officinalis L. essential oil and blends of its major constituents against Tetranychus urticae Koch (Acari: Tetranychidae) on two different host plants. Pest Manag. Sci. 2006, 62, 366–371. [Google Scholar] [CrossRef]
  43. Laborda, R.; Manzano, I.; Gamón, M.; Gavidia, I.; Pérez-Bermúdez, P.; Boluda, R. Effects of Rosmarinus officinalis and Salvia officinalis essential oils on Tetranychus urticae Koch (Acari: Tetranychidae). Ind. Crops Prod. 2013, 48, 106–110. [Google Scholar] [CrossRef]
  44. Ainane, A.; Khammour, F.; Charaf, S.; Elabboubi, M.; Talbi, M.; Benhima, R.; Cherroud, S.; Ainane, T. Chemical composition and insecticidal activity of five essential oils: Cedrus atlantica, Citrus limonum, Rosmarinus officinalis, Syzygium aromaticum and Eucalyptus globules. Mater. Today. Proc. 2019, 13, 474–485. [Google Scholar] [CrossRef]
  45. Aprotosoaie, A.C.; Gille, E.; Trifan, A.; Luca, V.S.; Miron, A. Essential oils of Lavanda genus: A systematic review of their chemistry. Phytochem. Rev. 2017, 16, 761–799. [Google Scholar] [CrossRef]
  46. Bouyahya, A.; Chamkhi, I.; El Menyiy, N.; El Moudden, H.; Harhar, H.; El Idrissi, Z.L.; Khouchlaa, A.; Jouadi, I.; El Baaboua, A.; Taha, D.; et al. Traditional use, phytochemistry, toxicology, and pharmacological properties of Lavandula dentata L.: A comprehensive review. S. Afr. J. Bot. 2023, 154, 67–87. [Google Scholar] [CrossRef]
  47. Wagner, L.S.; Sequin, C.J.; Foti, N.; Campos-Soldini, M.P. Insecticidal, fungicidal, phytotoxic activity and chemical composition of Lavandula dentata essential oil. Biocatal. Agric. Biotechnol. 2021, 35, 102092. [Google Scholar] [CrossRef]
  48. Imen, D.; Soumaya, H.-H.; Imed, C.; Jouda, M.B.J.; Ahmed, L.; Rym, C. Essential oil from flowering tops of Lavandula dentata (L): Chemical composition, antimicrobial, antioxidant and insecticidal activities. J. Essent. Oil Bear. Plants 2021, 24, 632–647. [Google Scholar] [CrossRef]
  49. Isman, M.B.; Miresmailli, S.; Machial, C. Commercial opportunities for pesticides based on plant essential oils in agriculture, industry and consumer products. Phytochem. Rev. 2011, 10, 197–204. [Google Scholar] [CrossRef]
Life 13 01621 g001 550
Figure 1. Examples of the chromatograms obtained for each of the three species studied. The three most abundant components are annotated in: (A) Thymus vulgaris; (B) Rosmarinus officinalis var. ‘prostratus’; and (C) Lavandula dentata.
Figure 1. Examples of the chromatograms obtained for each of the three species studied. The three most abundant components are annotated in: (A) Thymus vulgaris; (B) Rosmarinus officinalis var. ‘prostratus’; and (C) Lavandula dentata.
Life 13 01621 g001
Life 13 01621 g002 550

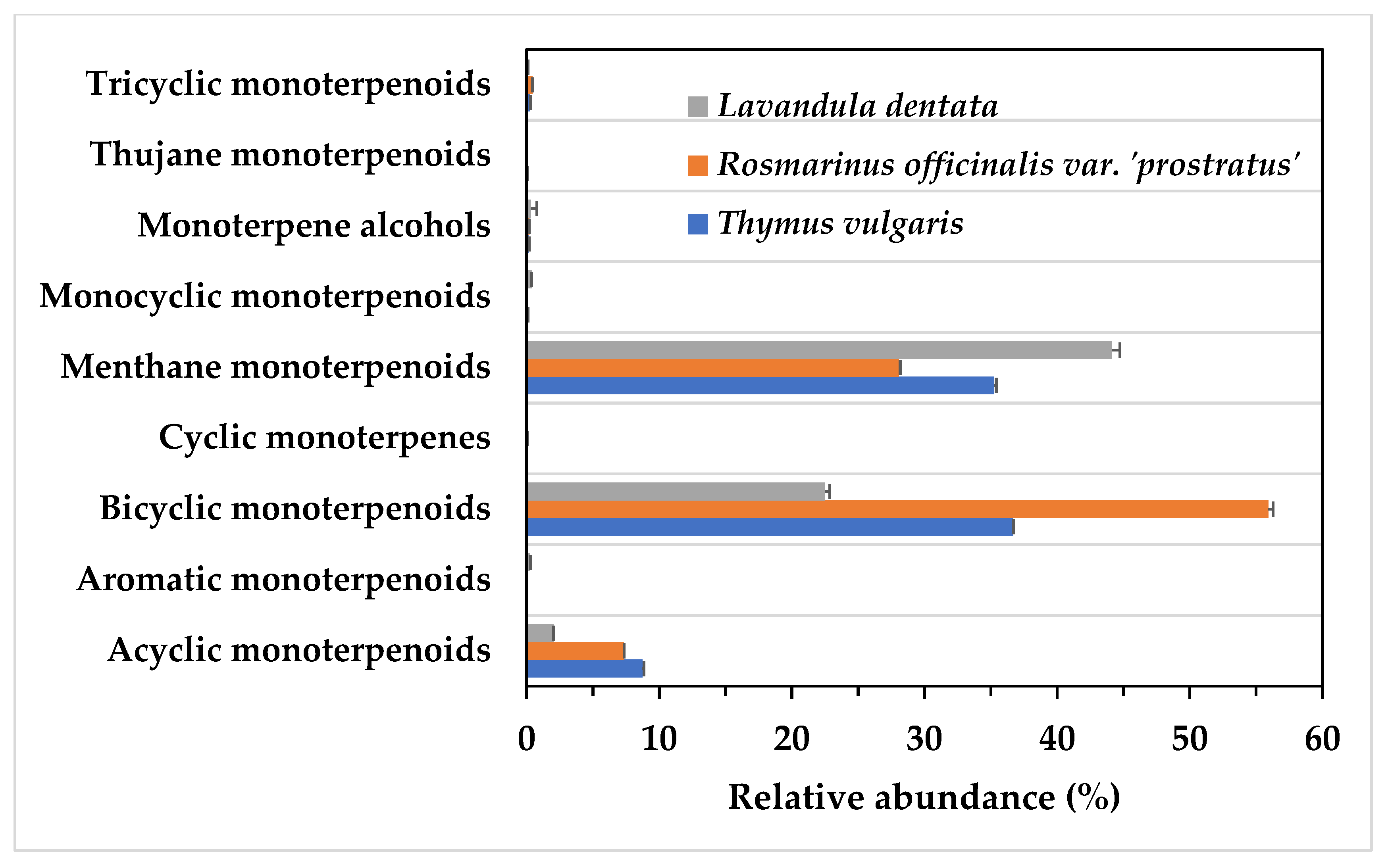

Figure 2. Monoterpenoid profile of the three species studied.
Figure 2. Monoterpenoid profile of the three species studied.
Life 13 01621 g002
Life 13 01621 g003 550

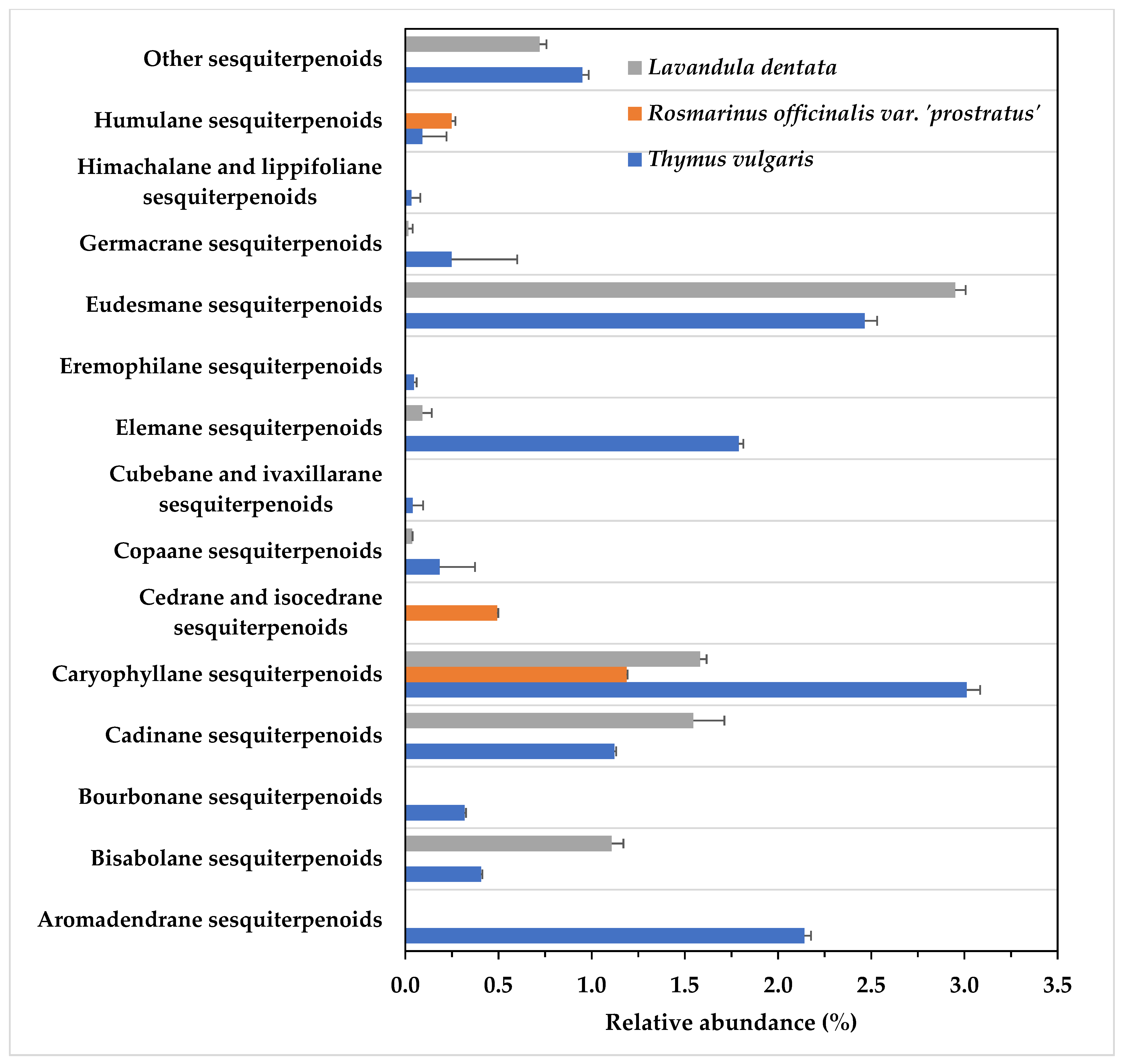

Figure 3. Sesquiterpenoid profile of sesquiterpenoid of the three species selected.
Figure 3. Sesquiterpenoid profile of sesquiterpenoid of the three species selected.
Life 13 01621 g003
Table
Table 1. Characterization of the essential oils of the three species selected.
Table 1. Characterization of the essential oils of the three species selected.
Compound FamilyT. vulgarisR. officinalis var. ‘Prostratus’L. dentata
Monoterpenoids81.20 ± 0.2391.98 ± 0.2369.74 ± 0.50
Sesquiterpenoids12.85 ± 0.211.93 ± 0.038.05 ± 0.33
Acetophenones 0.06 ± 0.002
Alcohols 0.02 ± 0.03
Aldehydes 0.23 ± 0.030.08 ± 0.09
Anisols0.05 ± 0.000030.01 ± 0.0001
Aromatic hydrocarbons 0.01 ± 0.00050.03 ± 0.04
Benzoic acid esters 0.06 ± 0.04
Benzoyl derivatives 0.01 ± 0.00040.03 ± 0.002
Branched unsaturated hydrocarbons0.13 ± 0.180.04 ± 0.030.02 ± 0.02
Cetones 0.34 ± 0.02
Cycloalkenes 0.02 ± 0.03
Cyclodienes 0.12 ± 0.17
Dimethoxybenzenes1.00 ± 0.010.11 ± 0.0010.10 ± 0.02
Diterpenoids 0.07 ± 0.020.40 ± 0.01
Enones 0.06 ± 0.002
Esters0.23 ± 0.0010.01 ± 0.020.35 ± 0.03
Fatty alcohols0.03 ± 0.0004 0.02 ± 0.0002
Fatty esters0.09 ± 0.0010.02 ± 0.010.40 ± 0.01
Jasmonate esters 0.02 ± 0.0004
Medium-chain aldehydes0.07 ± 0.00040.05 ± 0.0010.01 ± 0.01
Naphthalene 0.05 ± 0.07
Octadecanoids 0.32 ± 0.002
Phenols 0.13 ± 0.001
Phenylacetaldehydes 0.06 ± 0.00010.20 ± 0.003
Phenylpropanoids0.18 ± 0.0030.02 ± 0.001
Polycyclic hydrocarbons0.04 ± 0.06
Tertiary alcohols0.14 ± 0.20
Unclassified3.97 ± 0.164.97 ± 0.3619.8 ± 0.22
Total identified (%)96.03 ± 0.1695.03 ± 0.3680.20 ± 0.23
Yield (mL EO 100 g dw−1)1.86 ± 0.510.65 ± 0.172.10 ± 0.75
Table
Table 2. Ten most abundant compounds of the essential oils of the three species analysed.
Table 2. Ten most abundant compounds of the essential oils of the three species analysed.
CompoundR.I. aRelative Abundance (%)
Thymus vulgaris
1,8-Cineole103518.11 ± 0.46
Camphor114811.18 ± 0.05
endo-Borneol116810.32 ± 0.02
Camphene9535.81 ± 0.04
Linalool11025.46 ± 0.04
α-Terpineol11944.54 ± 0.03
α-Pinene9403.74 ± 0.04
o-Cymene10273.55 ± 0.04
4-Terpineol11792.73 ± 0.01
β-Pinene9822.66 ± 0.03
Rosmarinus officinalis var. ‘prostratus’
α-Pinene94018.72 ± 0.15
Verbenone121613.42 ± 0.03
1,8-Cineole103510.32 ± 0.002
Camphor11487.14 ± 0.03
Bornyl acetate12865.17 ± 0.01
Limonene10314.83 ± 0.05
Camphene9534.41 ± 0.04
β-Myrcene9923.47 ± 0.05
Linalool11023.02 ± 0.01
α-Terpineol11943.01 ± 0.02
Lavandula dentata
1,8-Cineole103534.65 ± 0.95
Camphor11487.58 ± 0.07
β-Pinene9826.39 ± 0.09
Myrtenal11973.16 ± 0.01
α-Pinene9402.56 ± 0.03
α-Terpineol11941.91 ± 0.01
Linalool11021.86 ± 0.002
β-Eudesmol16511.76 ± 0.03
p-Thymol13031.50 ± 0.02
Pinocarvone11641.43 ± 0.001
a Linear retention index (R.I.) experimentally calculated using standard C7–C40 alkanes.
Table
Table 3. Mortality of Rhopalosiphum padi in contact toxicity bioassays with the selected EO.
Table 3. Mortality of Rhopalosiphum padi in contact toxicity bioassays with the selected EO.
Essential OilDose
(μL/mL)		Mortality (%)
Mean ± SD *		LD50
(μL/mL) (95% CI) +
Thymus vulgaris434.3 ± 23.3 a6.47 (4.01–10.42)
1054.3 ± 22.9 a
1578.0 ± 24.6 b
Rosmarinus officinalis var. ‘prostratus’438.6 ± 21.7 a9.94 (2.85–34.60)
1041.7 ± 25.3 a
1556.7 ± 25.6 b
Lavandula dentata446.9 ± 25.4 a-
1053.7 ± 24.8 b
1531.2 ± 21.6 c
Control 14.2 ± 11.4
* Means with different letters indicate significant differences for each essential oil (p ≤ 0.05); + Lethal dose (LD50) (Confidence Interval (CI)).
Table
Table 4. Mortality of Rhopalosiphum padi in contact toxicity bioassays with mixtures of EOs.
Table 4. Mortality of Rhopalosiphum padi in contact toxicity bioassays with mixtures of EOs.
Essential Oil Binary Mixture 1Mortality (%)
Mean ± SD *
T. vulgaris + R. officinalis var. ‘prostratus’41.2 ± 21.4 a
R. officinalis var. ‘prostratus’ + L. dentata62.7 ± 28.5 b
T. vulgaris + L. dentata61.5 ± 26.3 b
1 All EO were used at 10 μL/mL. * Means with different letters indicate significant differences between mixtures (p ≤ 0.05).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Casas, J.L.; Sagarduy-Cabrera, A.; López Santos-Olmo, M.; Marcos-García, M.Á. Essential Oils from Selected Mediterranean Aromatic Plants—Characterization and Biological Activity as Aphid Biopesticides. Life 2023, 13, 1621. https://doi.org/10.3390/life13081621

AMA Style

Casas JL, Sagarduy-Cabrera A, López Santos-Olmo M, Marcos-García MÁ. Essential Oils from Selected Mediterranean Aromatic Plants—Characterization and Biological Activity as Aphid Biopesticides. Life. 2023; 13(8):1621. https://doi.org/10.3390/life13081621

Chicago/Turabian Style

Casas, José Luis, Aitor Sagarduy-Cabrera, María López Santos-Olmo, and Mª Ángeles Marcos-García. 2023. "Essential Oils from Selected Mediterranean Aromatic Plants—Characterization and Biological Activity as Aphid Biopesticides" Life 13, no. 8: 1621. https://doi.org/10.3390/life13081621

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
