Article

Expression Profile of Hydroxysteroid Dehydrogenase-like 2 in Polychaete Perinereis aibuhitensis in Response to BPA

1
Key Laboratory of Marine Bio-Resources Restoration and Habitat Reparation in Liaoning Province, Dalian Ocean University, Dalian 116023, China
2
Key Laboratory of Marine Eco-Environmental Science and Technology, First Institute of Oceanography, Ministry of Natural Resources of the People’s Republic of China, Qingdao 266061, China
*
Author to whom correspondence should be addressed.
Life 2023, 13(1), 10; https://doi.org/10.3390/life13010010
Submission received: 2 November 2022 / Revised: 7 December 2022 / Accepted: 16 December 2022 / Published: 20 December 2022
(This article belongs to the Special Issue Marine Pollutants: Biological and Abiotic Degradation Mechanisms)

Abstract

:
Hydroxysteroid dehydrogenases (HSDs) play an important role in the metabolism of steroids and xenobiotics. However, the function of HSDs in invertebrates is unclear. In this study, we cloned the hydroxysteroid dehydrogenase-like 2 (HSDL2) gene in Perinereis aibuhitensis, which is 1652 bp in length, encoding 400 amino acids. This sequence contains conserved short-chain dehydrogenase and sterol carrier protein-2 domain, and the alignment analysis showed its close relationship with other invertebrate HSDL2. Further, the tissue distribution analysis of the HSDL2 gene showed it is expressed strongly in the intestine. The expression level of HSDL2 after inducement with bisphenol A (BPA) was also detected both at transcriptional and translational levels. The results inferred that BPA exposure can induce HSDL2 expression, and the inductive effect was obvious in the high-concentration BPA group (100 μg/L). In summary, our results showed the detoxification function of HSDL2 in polychaetes.

1. Introduction

Bisphenol A (BPA), an important intermediate in the production of polycarbonate plastics, is a typical endocrine-disrupting chemical (EDC) [1]. It can be easily released into the environment through exposure to changes in temperature and pH and, hence, is widely distributed in the environment, with the concentration ranging from dozens of nanograms to hundreds of nanograms in water and sediment [2,3,4]. BPA has been shown to interfere with a variety of hormonal effects, and also induce immunotoxicity, mutagenicity, and carcinogenicity, and the adverse physiological effects of BPA have gained a lot of interest among researchers [5]. The adverse effects of BPA on reproduction and development are well documented not only in humans but also in many aquatic organisms [6]. Studies in zebrafish have demonstrated the endocrine disorders of BPA, such as infertility and precocious puberty [7,8]. In aquatic invertebrates, BPA has been reported to affect the embryonic development in sea urchin Echinometra lucunter L. and the molting in Daphnia magna Straus as well as in aquatic insects [9,10,11,12].
BPA can interact with estrogen receptors and act as a hormonal agonist due to its phenolic structure, which is similar to that of estrogen. It interferes with hydroxysteroid dehydrogenases (HSDs), which catalyze the interconversion between hydroxysteroids and oxysteroids [13]. HSDs belong to short-chain dehydrogenases (SDRs) or aldo-ketoreductases (AKRs), which play an important role in the metabolism of steroids, alcohols, fatty acid, prostaglandins, and xenobiotics [14]. There are many different types of HSDs, and each isoform varies in terms of tissue distribution, subcellular localization, cofactor preference, and pre-dominant catalytic direction [15,16]. Among these types, 3β-HSD and 17β-HSD are widely studied, and some research on the effect of BPA on 3β-HSD and 17β-HSD function in mammals and fishes has been carried out [7,17]. Ye et al. [17] found that BPA can influence the expression of HSD in mammals; 7.9 μM and 26.5 μM BPA, respectively, inhibited the expression of human testicular 3β-HSD and rat 3β-HSD. Mu et al. [7] reported that the HSD17b1 gene is significantly upregulated on exposure to BPA in zebrafish. However, it is unknown whether HSDs’ function in aquatic invertebrates is similar to that in vertebrates. With the development of genome sequencing, HSDs in mollusks have been studied, and some studies illuminated the reproductive function of HSDs such as HSD17b8 in Chlamys farreri (K. H. Jones & Preston, 1904) and HSD17b11 in Haliotis diversicolor Reeve [18,19]. However, the function of HSDs in other aquatic invertebrates such as polychaetes is still insufficiently understood.
Marine polychaetes are important invertebrates in the marine ecosystem with a wide geographical distribution, and they play an important role in aquatic food webs [20]. The characteristic of deposit feeding allows them to easily accumulate pollutants by ingestion or absorption through the body wall [21,22]. These characteristics have resulted in increasing use of polychaetes as biological indicators in ecotoxicological studies [20,23]. Perinereis aibuhitensis Grude is widely distributed along Asian coasts and estuaries. Its responses to heavy metal and organic pollutant exposure have been widely studied [24,25,26,27,28]. In our previous studies, we found that BPA exposure can promote the growth and development of oocytes in P. aibuhitensis and induce the expression of the G protein alpha subunit gene [29,30]. In order to further investigate the function of HSDs in P. aibuhitensis and the effect of BPA on HSDs, we cloned a novel P. aibuhitensis cDNA of SDR-hydroxysteroid dehydrogenase-like 2 (HSDL2) and expressed the recombinant protein in this study. Furthermore, the effect of BPA exposure on HSDL2 expression profiles was evaluated. The aim of this study was to identify the expression pattern of HSDL2 in response to BPA exposure and provide evidence for further investigation on the function of HSDs in P. aibuhitensis.

2. Materials and Methods

2.1. Polychaetes

P. aibuhitensis (1.5–2.5 g wet weight) was collected from Liaodong Bay in Panjing in China (121°35′ E, 40°45′ N), a relatively unpolluted site with a low ecological risk of BPA [31]. The animals were transferred to the laboratory and acclimated for a week before we initiated the experiment. Water was changed daily (temperature 17–18 °C, salinity 30–32, pH ±8.25). During acclimatization, the worms were fed with a commercial, formulated diet (13.0% moisture, 44.7% crude protein, 26.1% crude lipid, and 10.8% ash).

2.2. Cloning of HSDL2 Full-Length cDNA

2.2.1. Extraction of Total RNA

A 0.1 mg amount of body wall of P. aibuhitensis was ground into a powder, and total RNA was extracted using TRIzol (TaKaRa, Dalian, China). The quality of RNA was examined using 1% agarose electrophoresis, the concentration of RNA was analyzed using an ultramicro spectrophotometer (529 ng/μL), and the ratio of OD260/OD280 was 1.91 (Thermal, CA, USA).

2.2.2. Rapid Amplification of cDNA Ends of HSDL2 in P. aibuhitensis

A 1 μg amount of RNA was reverse transcribed into cDNA for the rapid amplification of cDNA ends (RACE) using a Clontech SMART RACE cDNA amplification kit (Clontech, CA, USA). The primers for HSDL2 were designed using Primer Premier 5.0 software according to the partial sequence of HSDL2 obtained from the transcriptome data which was constructed in our laboratory (BioProject accession number PRJNA841694) (Table 1).
The 3′- and 5′-RACE were conducted following the manufacturer’s protocols. The 3′-RACE reaction protocol was performed with a nested polymerase chain reaction (PCR). The outer PCR reaction conditions were as follows: denaturation at 94 °C for 1 min, followed by 30 cycles of denaturation at 94 °C for 10 s, annealing at 55 °C for 15 s, and extension at 68 °C for 1 min. Next, 1.0 μL of the outer product of 3′-RACE was used as the template for the inner PCR. The reaction conditions of the inner PCR were the same as that of the outer PCR. The 5′-RACE amplification was also conducted using nested PCR. The 5′-RACE reaction protocol was as follows: denaturation at 94 °C for 1 min, followed by 30 cycles of denaturation at 94 °C for 10 s, annealing at 56 °C for 30 s, and extension at 72 °C for 3 min. The outer PCR product of 5′-RACE was used as the template for the inner PCR. The reaction conditions of the inner PCR were also the same as that of the outer PCR. The PCR products were analyzed by electrophoresis on 1% agarose gel and then purified with an agarose gel DNA purification kit (TaKaRa, Dalian, China). The purified PCR products were sequenced by TaKaRa Biotechnology Co., Ltd. (Dalian, China).

2.2.3. Bioinformatic Analysis of HSDL2

The similarity of this sequence to other known sequences was analyzed using the BLAST program (http://www.ncbi.nlm.nih.gov/BLAST/, accessed on 30 September 2021). The deduced amino acid sequence was obtained through the Expert Protein Analysis System (http://www.expasy.org/tools, accessed on 19 September 2021). The functional motif prediction in this sequence was performed using Motif Scan (http://www.hits.isbsib.ch/cgi-bin/PESCAN, accessed on 19 September 2021). The three-dimensional structure was analyzed using SWISS-MODEL (http://swissmodel.expasy.org/interactive, accessed on 27 May 2022). The sequence alignment was performed using ClustalW software (http://www.ebi.ac.uk/clustalW, accessed on 27 May 2022), and the phylogenetic analysis was conducted via Mega 5.0 software using the neighbor-joining algorithm. The tree topology was evaluated by 1000 replication bootstraps.

2.3. Tissue Distribution of HSDL2 Gene

The body wall, intestines, head, and parapodium of untreated polychaetes were sampled to detect the tissue-specific expression pattern of HSDL2. The specific primers in Table 1 were designed according to the full length of HSDL2 cDNA. In accordance with previous studies, β-actin was chosen as the reference gene [29,32]. PCR efficiency was determined for each primer by constructing a standard curve using a series of diluted samples (Table 1). The PCR reaction was conducted in a 20 μL reaction mixture containing 10 μL of SYBR Premix Ex Taq II (TaKaRa, Dalian, China), 0.8 µL of each primer (10 mM), 0.4 μL of Rox Reference Dye (TaKaRa, Dalian, China), 2.0 μL of cDNA, and 6 μL of diluted water. The PCR was performed by the two-step method, and the reaction conditions were as follows: 40 cycles of 95 °C for 30 s, 95 °C for 5 s, and 60 °C for 34 s. The melting curve was analyzed after real-time quantitative analysis, and the PCR product was sent for sequencing to confirm accuracy.

2.4. Expression, Purification of Recombinant Protein, and Antibody Preparation

The conserved domain (1203 bp) of HSDL2 in P. aibuhitensis was amplified by PCR. The PCR product was purified with a MiniBEST Agarose Gel DNA Extraction Kit (TakaRa, Dalian, China) and digested with BamHI and SacI to generate fragments with overhanging ends that could be ligated in the multiple cloning sites in the expression vector pET-28a (TaKaRa, Dalian, China). The recombinant plasmids were prepared and transformed into Escherichia coli (E. coli) BL 21 (DE3) cells (TransGen, Beijing, China), and the positive clones were selected by the plate coating separation method with 50 μg/mL kanamycin (Kan) (TransGen, Beijing, China) and 34 μg/mL chloramphenicol (Cm) (TransGen, Beijing, China) in Luria-Bertani (LB) solid medium (Sangon, Shanghai, China) and sent to TaKaRa Biotechnology Co., Ltd. for sequence analysis. The expression of HSDL2 was induced with 1 mM isopropyl-beta-D-thiogalactopyranoside (IPTG) (Solarbio, Beijing, China) at 37 °C for 4 h. The cells were suspended in phosphate-buffered saline (PBS) (TaKaRa, Dalian, China) and lysed by sonication on ice until they were no longer viscous and then centrifuged at 12,000× g rpm for 5 min. The protein expressed in the crude E. coli lysates, supernatant, and precipitation were detected by sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE), revealing that the protein expressed was mainly soluble protein. The protein in the supernatant was purified using Trap Talon crude (GE, Tokyo, Japan), and the concentration of purified protein (0.4 mg/mL) was measured with BCA Protein Assay Kits (Sangon, Shanghai, China).
The purified protein was sent to GenScript (Nanjing, China) to prepare antibodies with the concentration of 500 μg/mL, and the anti-HSDL2 rabbit serum was separated from New Zealand rabbits intraperitoneally injected with mixture of purified protein and Freund’s adjuvant. In order to detect the specificity of antibody, the protein was extracted from the body wall of untreated P. aibuhitensis and then transferred onto polyvinylidene fluoride (PVDF) membrane at 42 mA for 80 min. The membrane was blocked with 1.5% bovine serum albumin (BSA) in blocking buffer at 4 °C overnight. The membrane was probed with polyclonal anti-HSDL2 (1:2000) for 1 h at 37 °C. The membranes were washed three times for 5 min each time and AffiniPure Goat Anti-Rabbit IgG (H + L) (1:4000, Proteintech, IL, USA) conjugated to horseradish peroxidase (HRP) for 1 h at 37 °C. After three washes with TBST, the immunoreactive bands were visualized using diaminobezidin (DAB) substrate solution (OriGene, Wuxi, China).

2.5. The Expression Pattern of HSDL2 under BPA Exposure

2.5.1. BPA Exposure

According to the preliminary experiment [30], three concentration groups of BPA (Sigma, Shanghai, China) (1, 10, and 100 μg/L) were set up for the experiment with three repetitions for each concentration. Meanwhile, a dimethyl sulfoxide (DMSO) (Sinopharm, Shanghai, China) solvent group (100 μL/L) and a seawater blank control group were set up. A total of 10 worms with similar weight were put into a 2 L glass beaker in each repetition and exposed to different concentrations of BPA. The worms were not fed during the experiment. The exposure experiment lasted 14 days with a water temperature of 18.0 ± 0.5 °C. The seawater in each treatment was renewed daily. The worms were sampled on day 4, 7, and 14, and the body wall of each sample was dissected and stored for quantitative PCR analysis.

2.5.2. Real-Time Fluorescence Quantitative PCR for Gene Expression

Real-time PCR was used to detect the gene expression pattern under BPA exposure in P. aibuhitensis. The cDNA of samples in different treatments was synthesized following the instruction of PrimeScriptTM RT Reagent Kit With gDNA Eraser (TaKaRa, Dalian, China). β-actin was also used as the reference gene, and the specific primers for HSDL2 and β-actin are shown in Table 1. The reaction condition was the same as that in Section 2.3.

2.5.3. Indirect Enzyme-Linked Immunosorbent Assay

The protein expression of HSDL2 was detected by indirect enzyme-linked immunosorbent assay (ELISA). The protein was extracted using Western blotting and immunoprecipitation (IP) lysis buffer (Beyotime, Shanghai, China) from 0.2 mg body wall of P. aibuhitensis. The concentration of total protein was measured by a BCA Protein Assay Kit (Beyotime, Shanghai, China). Then, 100 μL of sample protein was added to the hole in a 96-well microtiter plate for coating overnight and blocked with 3% (w/v) BSA in phosphate-buffered saline (PBS) for 2 h at 37 °C. After incubation, the plates were washed with PBST three times for 5 min each. Further, 100 μL of anti-HSDL2 antibody (1:2000) was added to each well and incubated at 37 °C for 1 h. After incubation, the plates were washed with PBST three times for 5 min each. A 100 μL amount of HRP AffiniPure Goat Anti-Rabbit IgG (H + L) (1:4000) was added to each well. After incubation at 37 °C for 1 h, 100 μL of tetramethylbenzidine (TMB) substrate solution (Solarbio, Beijing, China) was added to each well. The plates were incubated at room temperature for 10 min in the dark. The reaction was stopped by adding 50 μL of ELISA terminator (Solarbio, Beijing, China). The absorbance values at 450 nm were measured.

2.6. Statistical Analysis

The relative gene expression of HSDL2 was analyzed by the 2−ΔΔCt method. All data are expressed as the mean ± standard error of mean (SEM). The gene and protein expression differences among BPA concentrations within sampling times were determined using one-way analysis of variance followed by Tukey’s test using SPSS19.0 software. A p-value < 0.05 indicated a statistically significant difference.

3. Results

3.1. Gene Sequence Analysis of P. aibuhitensis HSDL2

The total length of HSDL2 is 1652 bp, including a 251 bp 5′ untranslated region (UTR), 198 bp 3′ UTR, and 1203 bp open reading frame encoding 400 amino acids (Figure 1). The molecular weight of the deduced amino acid protein is 43,056 Da, with an estimated pI of 7.99. The sequence was submitted to the National Center for Biotechnology Information (NCBI) with GenBank number MH119076. This sequence consists of an N-terminal SDR domain of HSDL2 (4–246 aa), a C-terminal sterol carrier protein-2 (SCP2) domain (306–393 aa), the glycine-rich motif TGxxxGxG (TGASRGIG) (12–19 aa) necessary for cofactor binding, and the catalytic site YxxxK (YTMAK) (164–168 aa). Furthermore, arginine (R) at position 16 and lysine (K) at position 38 in this sequence indicate the binding for nicotinamide adenine dinucleotide phosphate NADP(H). The three-dimensional structure of the SDR domain displays a typical Rossmann fold with a central β sheet flanked by α helices (Figure 2) [15,33].

3.2. Comparison of the Peptide Sequence of HSDL2

The HSDL2 protein sequences of 12 invertebrate species were selected to be aligned with P. aibuhitensis HSDL2. This protein sequence shared the highest similarity with scallop Pecten maximus L. (67.7%), and it shared 59.8–67.0% sequence similarity with other invertebrates and fishes (Figure 3). The N-terminal SDR domain of HSDL2 in different species is highly conserved compared to the high diversity of C-terminal.
Based on the alignment of the amino acid sequence, a phylogenetic tree was constructed. The result shows that the deduced amino acid sequence of P. aibuhitensis clustered mainly with invertebrates and was separated from vertebrates (Figure 4). The P. aibuhitensis HSDL2 was firstly grouped with polychaete D. gyrociliatus and Owenia fusiformis Delle Chiaje, and P. aibuhitensis HSDL2 was located closer to the Mollusca blade than to the Cnidaria blade. The HSDL2 homologs in Arthropoda were located closer to vertebrates than to other invertebrates.

3.3. Tissue Distribution of HSDL2

The gene expression of HSDL2 in different tissues of P. aibuhitensis was determined. Figure 5 shows that HSDL2 was expressed in all tissues with different levels. The expression level in the intestine was the highest, followed by that in the body wall and parapodium, and expression level in the head was the lowest.

3.4. Protein Purification of HSDL2 and Antibody Specificity

The recombinant protein was expressed successfully as a His fusion protein with an expected molecular mass of 44 kDa, and it was expressed at a relatively higher level when the cells were incubated at 37 °C for 4 h with 1 mM IPTG. The results of SDS-PAGE showed a strong band in crude lysates and supernatant of recombinant protein (lane 4 and 5 in Figure 6A); it indicates that the majority of expressed protein existed in the supernatant. The specificity of the anti-HSDL2 antibody was detected using Western blotting, and only one brand was found (lane 1 and 2 in Figure 6B).

3.5. Gene Expression of HSDL2 under BPA Exposure

The gene expression of HSDL2 under BPA exposure is shown in Figure 7. No significant difference was found between the blank control and solvent groups, indicating that the HSDL2 gene expression change in this study was mainly influenced by BPA exposure. The gene expression of HSDL2 in all concentration groups gradually increased with the exposure time. On day 4, the expression level of the HSDL2 gene in the 1 μg/L BPA group was slightly lower than that in the blank control group (p > 0.05), while the mRNA expression level of HSDL2 in the 10 and 100 μg/L BPA concentration groups was 2.81 and 2.76 times higher than that in the blank control group, respectively, with a significant difference (p < 0.05). On day 7, the mRNA expression level of HSDL2 was significantly higher in the BPA group than in the control group except for the 1 μg/L group (p < 0.05), which was 1.60, 3.08, and 3.17 times, respectively, that in the control group. On day 14, the mRNA expression of HSDL2 in each concentration group reached the maximum, being 2.95, 5.45, and 4.72 times higher than that in the control group, respectively (p < 0.05).

3.6. HSDL2 Protein Expression in P. aibuhitensis under BPA Exposure

Figure 8 shows the protein expression changes in the HSDL2 induced by BPA. The results showed no significant difference between the blank control and DMSO solvent groups, which was similar to the gene expression results. The protein expression in the 1 μg/L BPA group firstly increased, then decreased, and finally increased, while the protein expression in other two groups, especially in the 100 μg/L BPA group, increased over time. On day 4, the expression in all concentration groups was higher than that in the control group (p < 0.05). The protein expression in the 1 μg/L, 10 μg/L, and 100 μg/L concentration groups was 48.04, 33.35, and 41.04 ng/mL, respectively. On day 7, the protein expression in the other two exposure groups, except the 1 μg/L group, was higher than that on day 4. The protein expression levels in the 1 μg/L, 10 μg/L, and 100 μg/L concentration groups were 36.00, 36.63, and 57.6 ng/mL, respectively (p < 0.05). On day 14, the protein expression in all exposure groups reached the maximum, with a value of 53.59, 42.99, and 120.96 ng/mL, respectively. The expression in the 100 μg/L group was significantly upregulated (p < 0.01).

4. Discussion

The SDR superfamily consists of a wide variety of NADP(H)-dependent oxidoreductases found in all three domains of life [15,33]. It is composed of 250–350 amino acids and is usually divided into two main types (classical and extended type) [34,35]. Although the variability in the structural and functional details are noted in this superfamily, with 15–30% sequence identity in pairwise comparisons, the most conserved feature in the N-terminal part is similar in each type. The N-terminal part contains a classical Rossman fold motif, which is critical for the structural integrity for SDRs, and this motif plays an important role in the binding of the nucleotide cofactor [34]. Furthermore, some other conserved motifs, such as the cofactor-binding motif and the active center motif, are also typical for SDRs [33,36]. The amino acid analysis and three-dimensional structure prediction in this study showed that this deduced amino acid sequence in P. aibuhitensis contains the conserved cofactor-binding motif TGASRGIG (12–19 aa) and YTMAK (164–168 aa). Additionally, a Rossman fold scaffold with a central β sheet flanked by α helices was noted, which indicates that this protein sequence belongs to the SDR subfamily (Figure 1 and Figure 2). The multiple sequence alignment and phylogenetic analysis showed that this protein sequence is closely related to the HSDL2 of other invertebrates and fishes. Therefore, we predicted that this sequence codes for HSDL2. A SCP2 domain in the C-terminal part was also observed in this sequence. The SCP2 domain, which is involved in binding sterols, has been found in SCP2 protein as well as the C-terminal of 17β-dehydrogenase. Burgardt et al. [37] analyzed the structure of SCP2 and found two or three subsets of residues (F, L, V, I, and M) in the structural core positions of SCP2. These highly frequent residues are of a bulky, hydrophobic character. In this sequence, the residues L and M were found in the SCP2 domain. The SCP2 domain of human HSDL2 contains a peroxisomal targeting signal (PTS) and is responsible for peroxisomal oxidation of fatty acids [38]. However, the peroxisome target sequence (ARL) was not found in this sequence, and the function of P. aibuhitensis HSDL2 in fatty acid metabolism needs further study.
HSDL2, a characterized SDR gene, was first identified in the human fetal brain cDNA library [39]. HSDL2 is highly expressed in the human liver, kidney, prostate, testes, and ovaries. However, little information is available about HSDL2 function in invertebrates compared with in humans. In this study, the gene expression of HSDL2 was higher in the intestine than in other tissues. The relatively high expression in the intestine could be related to the contaminant accumulation via ingestion due to the characteristic of deposit feeding of P. aibuhitensis. In addition, the absorption via ingestion of P. aibuhitensis also absorbs xenobiotics via dermal contact, so the expression levels of HSDL2 in the body wall and parapodium are relatively higher than in the head. In order to confirm the sufficient exposure to BPA, P. aibuhitensis was not feed during the exposure period, and dermal contact might be an important way to absorb xenobiotics. So, the body wall was selected as the target tissue in the further exposure study.
We expressed this gene in the bacterial expression system, and a soluble recombinant protein with expected molecular weight was obtained. Using purified HSDL2 as an antigen, a polyclonal antibody named anti-HSDL2 was prepared. As shown in Figure 6B, the anti-HSDL2 antibody reacted with crude protein from untreated worms, and only one band was observed, indicating the specificity of the polyclonal antibody.
BPA is relatively stable with a half-life of 38 days in water and 340 days in sediment [40], and Morales et al. [41] also reported that the nominal concentrations of BPA in the test medium remained constant during the exposure period in laboratory conditions. Based on these reports, we inferred that the concentrations of BPA in this experiment should be constant. In order to investigate the function of HSDL2 in P. aibuhitensis, the expression pattern under BPA exposure was measured both at transcriptional and translational levels. The protein expression showed a similar response to exposure concentration as gene expression, and both mRNA expression and protein contents were induced in a dose-dependent manner. It inferred that HSDL2 in P. aibuhitensis might play a role in the metabolism of BPA. Zhang et al. [42] reported the upregulation of the HSDL2 gene in mantis shrimp Oratosquilla oratoria de Haan under lipopolysaccharide (LPS) challenge, which indicates a response to the LPS challenge. Our results showed a similar upregulation tendency as the results of Zhang et al. [42], indicating that invertebrate HSDL2 might positively respond to different substances. The gene expression of two kinds of 17β-HSD in Mytilus galloprovincialis Lamarck was downregulated in the digestive gland under BPA exposure both in female and male mussels, and the males seemed more susceptible to BPA exposure [43]. The change of 17β-HSD in mussels was different than the change in our results, and the difference in species and development stage might be one reason. Zhang et al. [43] used mature mussels for BPA treatments, and the worms used in our study were not in the breeding stage. Another reason might be related to the function of 17β-HSDs and HSDL2. It is noteworthy that 17β-HSDs display an important role in metabolism of sex steroids [13]. The function of HSDL2 in cholesterol metabolism and fatty acid metabolism has been inferred in mammals [33].
In O. oratoria, the author speculated that HSDL2 might function as a regulatory factor in the fatty acid metabolism, which is related to the SCP2 domain in the C-terminal part of HSDL2. Kowalik et al. [33] first analyzed the substrate specificity of human HSDL2; it showed no catalytic activity with several steroids and retinoids, but the peroxisomal localization of human HSDL2 suggests a possible involvement in fatty acid metabolism. Dai et al. [39] cloned an HSDL2 gene in mice and found upregulating gene expression after inducement with cholesterol-containing food. Therefore, recent studies have paid more attention to the lipid metabolism of HSDL2 in various cancers [38,44,45,46]. However, all these studies focused on mammals, and the variability in gene structure among species makes functional differentiation possible. Some researchers reported the change of HSDL2 in the gonad maturation and sex hormone stimulation in aquatic organisms. The exposure of male rainbow trout Oncorhynchus mykiss Walbaum to 0.87 and 10 ng/L ethinylestradiol (EE2) induced HSDL2 gene expression in a dose-dependent manner [47]. Xiao et al. [48] also found the existence of HSDL2 in orange-spotted grouper (Epinephelus coioides Hamilton), and the expression of this gene was relatively high in the brain and gonad during sex reversal, which indicates the function of HSDL2 in the synthesis and metabolism of sex steroid hormones. Thongbuakaew et al. [49] identified HSDL2 as a steroidogenesis-related gene in sea cucumber Holothuria scabra Jaeger. BPA is one kind of EDC. It is noteworthy that BPA can interact with estrogen receptors, and our previous study found that 10, 50, and 100 μg/L BPA could promote the growth and development of oocytes in immature P. aibuhitensis [30]. In this study the worms were not in the breeding stage, and BPA exposure induced the expression of HSDL2 in 10 and 100 μg/L BPA treatments both at a transcriptional and translational level. According to the reproductive toxicity of BPA on polychaetes, we supposed that HSDL2 might function as a steroidogenesis-related enzyme in the metabolism regulation of EDCs in P. aibuhitensis. Further study of the expression of HSDL2 during the development and reproduction stage of P. aibuhitensis should be conducted to verify this speculation.
It is well accepted that the metabolism of chemicals by organisms has an influence on bioaccumulation. The bioaccumulation of BPA in the tissues of fishes, mollusks, and other aquatic species has been detected [40]. It is reported that the BPA bioconcentration factors (BCFs) for fish range from 1.7 to 182, and the value is also low for mollusks, ranging from 4.5 to 144. The limited tendency to bioconcentrate in fishes might be due to the fast elimination of BPA by the metabolism. BPA can be rapidly converted to BPA glucuronic acid, as well as BPA sulfate, which is excreted in bile through the intestine in rainbow trout and zebrafish [40,50]. Species-specific difference in metabolism could cause the variety of BCF among species, and the characterization of the accumulation of BPA in P. aibuhitensis in further research could give more insights about the metabolism regulation of BPA.

5. Conclusions

In conclusion, the cDNA of HSDL2 was cloned from marine polychaete P. aibuhitensis, and the functional motifs of HSDL2 were endowed with high conservation and an evolutionary relationship with their counterparts in other species. These characteristics indicate that this putative HSDL2 is a potential member of the HSD subfamily. This gene is expressed relatively high in the intestine of P. aibuhitensis. Transcript and protein levels of HSDL2 under BPA exposure were also analyzed to characterize its response to BPA exposure. The induction of HSDL2 by BPA exposure indicated that HSDL2 might be related to steroid biosynthesis in P. aibuhitensis. However, this work is preliminary, and the exact role of HSDL2 in P. aibuhitensis, as well as the connection between HSDL2 expression and the environment, needs to be further clarified.

Author Contributions

Conceptualization, H.Z.; Data curation, Y.L.; Formal analysis, Y.H.; Funding acquisition, H.Z. and M.P.; Investigation, B.Z.; Methodology, Y.H.; Validation, B.Z.; Writing—original draft, Y.L.; Writing—review and editing, M.P., D.Y. and Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the National Key R&D program of China (grant number 2019YFD0900701), National Science Foundation of Liaoning province of China (2021-MS-305), the Natural Science Foundation of Shandong Province, China (ZR2021MD014), and the National Natural Science Foundation of China (41306138).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

We express our gratitude to the staff of TaKaRa and GenScript Co., Ltd. for their technical assistance.

Conflicts of Interest

The authors declare that they have no known competing interest.

References

  1. Michałowicz, J. Bisphenol A, sources, toxicity and biotransformation. Environ. Toxicol. Pharmacol. 2014, 37, 738–758. [Google Scholar] [CrossRef]
  2. Zhu, Z.; Zuo, Y. Bisphenol A and other alkylphenols in the environment occurrence, fate, health effects and analytical techniques. Adv. Environ. Res. 2013, 2, 179–202. [Google Scholar] [CrossRef] [Green Version]
  3. Jahromi, F.A.; Moore, F.; Keshavarzi, B.; Mohebbi-Nozar, S.L.; Mohammadi, Z.; Sorooshian, A.; Abbasi, S. Bisphenol A (BPA) and polycyclic aromatic hydrocarbons (PAHs) in the surface sediment and bivalves from Hormozgan Province coastline in the Northern Persian Gulf: A focus on source apportionment. Mar. Pollut. Bull. 2020, 152, 110941. [Google Scholar] [CrossRef]
  4. Liu, J.; Zhang, L.; Lu, G.; Jiang, R.; Yan, Z.; Li, Y. Occurrence, toxicity and ecological risk of Bisphenol A analogues in aquatic environment—A review. Ecotoxicol. Environ. Saf. 2021, 208, 111481. [Google Scholar] [CrossRef]
  5. Zhang, Y.; Mi, K.; Xue, W.; Wei, W.; Yang, H. Acute BPA exposure-induced oxidative stress, depressed immune genes expression and damage of hepatopancreas in red swamp crayfish Procambarus clarkii. Fish Shellfish. Immunol. 2020, 103, 95–102. [Google Scholar] [CrossRef]
  6. Mortazavi, S.; Riyahi Bakhtiari, A.; Sari, A.E.; Bahramifar, N.; Rahbarizade, F. Phenolic endocrine disrupting chemicals (EDCs) in Anzali Wetland, Iran: Elevated concentrations of 4-nonylphenol, octhylphenol and bisphenol A. Mar. Pollut. Bull. 2012, 64, 1067–1073. [Google Scholar] [CrossRef]
  7. Mu, X.; Huang, Y.; Li, X.; Lei, Y.; Teng, M.; Li, X.; Wang, C.; Li, Y. Developmental effects and estrogenicity of Bisphenol A alternatives in a zebrafish embryo model. Environ. Sci. Technol. 2018, 52, 3222–3231. [Google Scholar] [CrossRef]
  8. Lee, S.; Kim, C.; Shin, H.; Kho, Y.; Choi, K. Comparison of thyroid hormone disruption potentials by bisphenols A, S, F, and Z in embryo-larval zebrafish. Chemosphere 2019, 221, 115–123. [Google Scholar] [CrossRef]
  9. Planelló, R.; Martínez-Guitarte, J.L.; Morcillo, G. The endocrine disruptor Bisphenol A increases the expression of HSP70 and ecdysone receptor genes in the aquatic larvae of Chironomus riparius. Chemosphere 2008, 71, 1870–1876. [Google Scholar] [CrossRef]
  10. Martínez-Paz, P.; Morales, M.; Martínez-Guitarte, J.L.; Morcillo, G. Genotoxic effects of environmental endocrine disruptors on the aquatic insect Chironomus riparius evaluated using the comet assay. Mutat. Res. Genet. Toxicol. Environ. Mutagen. 2013, 758, 41–47. [Google Scholar] [CrossRef]
  11. da Silva, A.Q.; de Souza Abessa, D.M. Toxicity of three emerging contaminants to non-target marine organisms. Environ. Sci. Pollut. Res. Int. 2019, 26, 18354–18364. [Google Scholar] [CrossRef] [PubMed]
  12. Kim, R.O.; Kim, H.; Lee, Y.M. Evaluation of 4-nonylphenol and bisphenol A toxicity using multiple molecular biomarkers in the water flea Daphnia magna. Ecotoxicology 2019, 28, 167–174. [Google Scholar] [CrossRef] [PubMed]
  13. Ye, L.; Guo, J.; Ge, R.S. Environmental pollutants and hydroxysteroid dehydrogenases. Vitam. Horm. 2014, 94, 349–390. [Google Scholar] [PubMed]
  14. Belyaeva, O.V.; Kedishvili, N.Y. Comparative genomic and phylogenetic analysis of short-chain dehydrogenases/reductases with dual retinol/sterol substrate specificity. Genomics 2006, 88, 820–830. [Google Scholar] [CrossRef] [Green Version]
  15. Persson, B.; Kallberg, Y.; Oppermann, U.; Jörnvall, H. Coenzyme-based functional assignments of short-chain dehydrogenases/reductases (SDRs). Chem. Biol. Interact. 2003, 143–144, 271–278. [Google Scholar] [CrossRef]
  16. Tarrant, A.M.; Reitzel, A.M.; Blomquist, C.H.; Haller, F.; Tokarz, J.; Adamski, J. Steroid metabolism in cnidarians: Insights from Nematostella vectensis. Mol. Cell. Endocrinol. 2009, 301, 27–36. [Google Scholar] [CrossRef] [Green Version]
  17. Ye, L.; Su, Z.J.; Ge, R.S. Inhibitors of testosterone biosynthetic and metabolic activation enzymes. Molecules 2011, 16, 9983–10001. [Google Scholar] [CrossRef]
  18. Liu, J.; Zhang, Z.; Ma, X.; Liang, S.; Yang, D. Characteristics of 17β-hydroxysteroid dehydrogenase 8 and its potential role in gonad of Zhikong scallop Chlamys farreri. J. Steroid Biochem. Mol. Biol. 2014, 141, 77–86. [Google Scholar] [CrossRef]
  19. Zhai, H.; Zhou, J.; Cai, Z. Cloning, characterization, and expression analysis of a putative 17 beta-hydroxysteroid dehydrogenase 11 in the abalone, Haliotis diversicolor supertexta. J. Steroid Biochem. Mol. Biol. 2012, 130, 57–63. [Google Scholar] [CrossRef]
  20. Rhee, J.S.; Won, E.J.; Kim, R.O.; Choi, B.S.; Choi, I.Y.; Park, G.S.; Shin, K.H.; Lee, Y.M.; Lee, J.S. The polychaete, Perinereis nuntia ESTs and its use to uncover potential biomarker genes for molecular ecotoxicological studies. Environ. Res. 2012, 112, 48–57. [Google Scholar] [CrossRef]
  21. Jørgensen, A.; Giessing, A.M.B.; Rasmussen, L.J.; Andersen, O. Biotransformation of polycyclic aromatic hydrocarbons in marine polychaetes. Mar. Environ. Res. 2008, 65, 171–186. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Won, E.J.; Rhee, J.S.; Kim, R.O.; Ra, K.; Kim, K.T.; Shin, K.H.; Lee, J.S. Susceptibility to oxidative stress and modulated expression of antioxidant genes in the copper-exposed polychaete Perinereis nuntia. Comp. Biochem. Physiol. Part C Toxicol. Pharmacol. 2012, 155, 344–351. [Google Scholar] [CrossRef] [PubMed]
  23. Lewis, C.; Watson, G.J. Expanding the ecotoxicological toolbox: The inclusion of polychaete reproductive endpoints. Mar. Environ. Res. 2012, 75, 10–22. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, J.; Zhou, Q.; Zhang, Q.; Zhang, Y. Single and joint effects of petroleum hydrocarbons and cadmium on the polychaete Perinereis aibuhitensis Grube. J. Environ. Sci. 2008, 20, 68–74. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, X.; Zhou, Y.; Yang, D.; Zhao, H.; Wang, L.; Yuan, X. CYP4 mRNA expression in marine polychaete Perinereis aibuhitensis in response to petroleum hydrocarbon and deltamethrin. Mar. Pollut. Bull. 2012, 64, 1782–1788. [Google Scholar] [CrossRef]
  26. Lv, L.; Dong, X.; Lv, F.; Zhao, W.; Yu, Y.; Yang, W. Molecular cloning and characterization of an estrogen receptor gene in the marine polychaete Perinereis aibuhitensis. Comp. Biochem. Physiol. Part B Biochem. Mol. Biol. 2017, 207, 15–21. [Google Scholar] [CrossRef]
  27. Zhang, L.J.; Li, Y.; Chen, P.; Li, X.M.; Chen, Y.G.; Hang, Y.Y.; Gong, W.J. A study of genotoxicity and oxidative stress induced by mercuric chloride in the marine polychaete Perinereis aibuhitensis. Environ. Toxicol. Pharmacol. 2017, 56, 361–365. [Google Scholar] [CrossRef]
  28. Eom, H.J.; Haque, M.N.; Nam, S.E.; Lee, D.H.; Rhee, J.S. Effects of sublethal concentrations of the antifouling biocide Sea-Nine on biochemical parameters of the marine polychaete Perinereis aibuhitensis. Comp. Biochem. Physiol. Part C Toxicol. Pharmacol. 2019, 222, 125–134. [Google Scholar] [CrossRef]
  29. Zhao, H.; Zhou, Y.; Li, Y.; Li, S.; Yang, D. Molecular cloning and expression of the gene for G protein alpha subunit induced by bisphenol A in marine polychaete Perinereis aibuhitensis. Environ. Toxicol. Pharmacol. 2014, 37, 521–528. [Google Scholar] [CrossRef]
  30. Li, X.; Song, Z.; Wang, F.; Qin, Y.; Yang, D.; Zhou, Y. Effects of estrogen on sex proportion, growth and oocyte development of sluge worm Perinereis aibuhitensis. J. Dalian Ocean Univ. 2011, 26, 97–101. (In Chinese) [Google Scholar]
  31. Yuan, X.; Yang, X.; Zhang, A.; Ma, X.; Hui, G.; Na, G.; Zong, H.; Liu, G.; Sun, Y. Distribution, potential sources and ecological risks of two persistent organic pollutants in the intertidal sediment at the Shuangtaizi estuary, Bohai Sea of China. Mar. Pollut. Bull. 2017, 114, 419–427. [Google Scholar] [CrossRef]
  32. Xue, S.L.; Huang, Y.; Sun, J.; Yang, D.Z.; Zhou, Y.B.; Zhao, H. Reference gene selection for quantitative real-time PCR in Perinereis aibuhitensis under BPA exposure. Asian J. Ecotoxicol. 2019, 14, 136–144. (In Chinese) [Google Scholar]
  33. Kowalik, D.; Haller, F.; Adamski, J.; Moeller, G. In search for function of two human orphan SDR enzymes: Hydroxysteroid dehydrogenase like 2 (HSDL2) and short-chain dehydrogenase/reductase-orphan (SDR-O). J. Steroid Biochem. Mol. Biol. 2009, 117, 117–124. [Google Scholar] [CrossRef]
  34. Kavanagh, K.L.; JÖrnvall, H.; Persson, B.; Oppermann, U. Medium-and short-chain dehydrogenase/reductase gene and protein families: The SDR superfamily: Functional and structural diversity within a family of metabolic and regulatory enzymes. Cell. Mol. Life Sci. 2008, 65, 3895–3906. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Liu, C.; Liu, K.; Zhao, C.; Gong, P.; Yu, Y. The characterization of a short chain dehydrogenase/reductase (SDRx) in Comamonas testosterone. Toxicol. Rep. 2020, 7, 460–467. [Google Scholar] [CrossRef] [PubMed]
  36. Oppermann, U.; Filling, C.; Hult, M.; Shafqat, N.; Wu, X.Q.; Lindh, M.; Shafqat, J.; Nordling, E.; Kallberg, Y.; Persson, B.; et al. Short-chain dehydrogenases/reductases (SDR): The 2002 update. Chem. Biol. Interact. 2003, 143–144, 247–253. [Google Scholar] [CrossRef] [PubMed]
  37. Burgardt, N.I.; Gianotti, A.R.; Ferreyra, R.G.; Ermacora, M.R. A structural appraisal of sterol carrier protein 2. BBA-Proteins Proteom. 2017, 1865, 565–577. [Google Scholar] [CrossRef]
  38. Cheng, Z.; Li, Y.; Sui, C.; Sun, X.; Xie, Y. Synthesis, purification and crystallographic studies of the C-terminal sterol carrier protein type 2 (SCP-2) domain of human hydroxysteroid dehydrogenase- like protein 2. Acta Crystallogr. Sect. F Struct. Biol. Commun. 2015, 71, 901–905. [Google Scholar] [CrossRef] [Green Version]
  39. Dai, J.; Li, P.; Ji, C.; Feng, C.; Gui, M.; Sun, Y.; Zhang, J.; Zhu, J.; Dou, C.; Gu, S.; et al. Cloning and characterization of a novel mouse short-chain dehydrogenase/reductases cDNA mHsdl2, encoding a protein with an SDR domain and an SCP2 domain. Mol. Biol. 2005, 39, 696–702. [Google Scholar]
  40. Corrales, J.; Kristofco, L.A.; Steele, W.B.; Yates, B.S.; Breed, C.S.; Williams, E.S.; Brooks, B.W. Global assessment of bisphenol A in the environment: Review and analysis of its occurrence and bioaccumulation. Dose-Response 2015, 13. [Google Scholar] [CrossRef] [Green Version]
  41. Morales, M.; Martínez-Paz, P.; Sánchez-Argüello, P.; Morcillo, G.; Martínez-Guitarte, J.L. Bisphenol A (BPA) modulates the expression of endocrine and stress response genes in the freshwater snail Physa acuta. Ecotoxicol. Environ. Saf. 2018, 152, 132–138. [Google Scholar] [CrossRef] [PubMed]
  42. Zhang, D.; Zhao, P.; Liu, J.; Qi, T.; Liu, Q.; Jiang, S.; Zhang, H.; Wang, Z.; Tang, B.; Ding, G. Transcriptome analysis reveals the tolerance mechanism of mantis shrimp (Oratosquilla oratoria) under a lipopolysaccharide challenge. ACS Omega 2020, 5, 2310–2317. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Zhang, Y.; Wang, Q.; Ji, Y.; Zhang, Q.; Wu, H.; Xie, J.; Zhao, J. Identification and mRNA expression of two 17β-hydroxysteroid dehydrogenase genes in the marine mussel Mytilus galloprovincialis following exposure to endocrine disrupting chemicals. Environ. Toxicol. Pharmacol. 2014, 37, 1243–1255. [Google Scholar] [CrossRef] [PubMed]
  44. Ruokun, C.; Yake, X.; Fengdong, Y.; Xinting, W.; Laijun, S.; Xianzhi, L. Lentivirus-mediated silencing of HSDL2 suppresses cell proliferation in human gliomas. Tumor Biol. 2016, 37, 15065–15077. [Google Scholar] [CrossRef]
  45. Sun, Q.; Zhang, Y.; Su, J.; Li, T.; Jiang, Y. Role of hydroxysteroid dehydrogenase- like 2 (HSDL2) in human ovarian cancer. Med. Sci. Monit. 2018, 24, 3997–4008. [Google Scholar] [CrossRef]
  46. Yang, Y.; Han, A.; Wang, X.; Yin, X.; Cui, M.; Lin, Z. Lipid metabolism regulator human hydroxysteroid dehydrogenase like 2 (HSDL2) modulates cervical cancer cell proliferation and metastasis. J. Cell. Mol. Med. 2021, 25, 4846–4859. [Google Scholar] [CrossRef]
  47. Gunnarsson, L.; Kristiansson, E.; FÖrlin, L.; Nerman, O.; Larsson, D.G.J. Sensitive and robust gene expression changes in fish exposed to estrogen—A microarray approach. BMC Genom. 2007, 8, 149. [Google Scholar] [CrossRef] [Green Version]
  48. Xiao, L.; Guo, Y.; Wang, D.; Zhao, M.; Hou, X.; Li, S.; Lin, H.; Zhang, Y. Beta-Hydroxysteroid Dehydrogenase Genes in Orange-Spotted Grouper (Epinephelus coioides): Genome-Wide Identification and Expression Analysis During Sex Reversal. Front. Genet. 2020, 11, 161. [Google Scholar] [CrossRef] [Green Version]
  49. Thongbuakaew, T.; Suwansard, S.; Chaiyamoon, A.; Cummins, S.F.; Sobhon, P. Sex steroids and steroidogenesis-related genes in the sea cucumber, Holothuria scabra and their potential role in gonad maturation. Sci. Rep. 2021, 11, 2194. [Google Scholar] [CrossRef]
  50. Lindholst, C.; Wynne, P.; Marriott, P.; Pedersen, S.; Bjerregaard, P. Metabolism of bisphenol A in zebrafish (Danio rerio) and rainbow trout (Oncorhynchus mykiss) in relation to estrogenic response. Comp. Biochem. Physiol. Part C Toxicol. Pharmacol. 2003, 135, 169–177. [Google Scholar] [CrossRef]

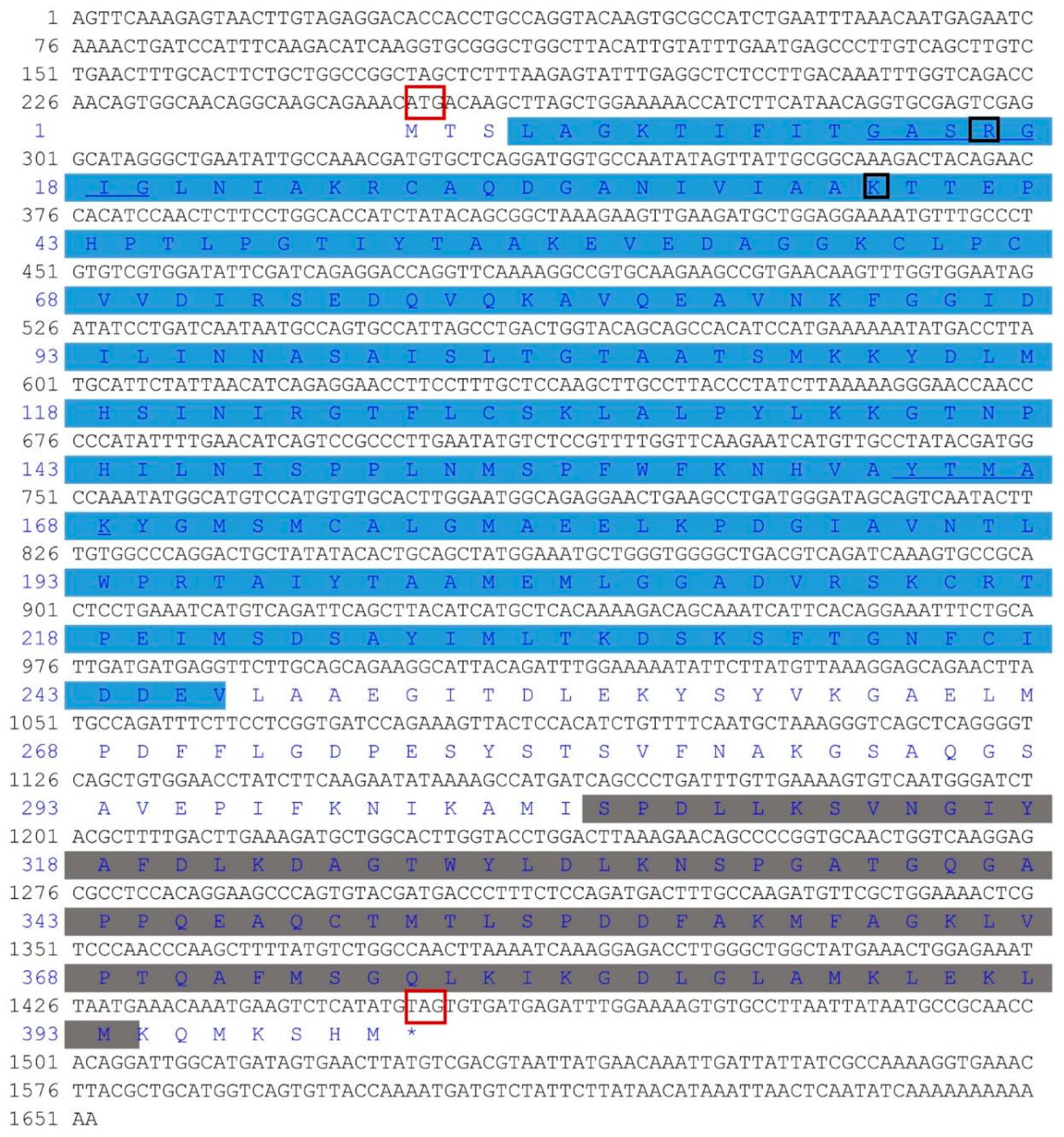

Figure 1. The deduced amino acid sequence of P. aibuhitensis HSDL2. The glycine-rich motif TGxxxGxG (12–19 aa) and the catalytic site YxxxK (164–168 aa) are underlined; the binding site for NADP(H) is highlighted with a black box. The initiation codon and termination codon are highlighted with a red box, * represents the end of codon. The SDR domain of HSDL2 is indicated by a shaded blue box (4–246 aa), and the SCP2-like domain is indicated with a gray box (306–393 aa).
Figure 1. The deduced amino acid sequence of P. aibuhitensis HSDL2. The glycine-rich motif TGxxxGxG (12–19 aa) and the catalytic site YxxxK (164–168 aa) are underlined; the binding site for NADP(H) is highlighted with a black box. The initiation codon and termination codon are highlighted with a red box, * represents the end of codon. The SDR domain of HSDL2 is indicated by a shaded blue box (4–246 aa), and the SCP2-like domain is indicated with a gray box (306–393 aa).
Life 13 00010 g001

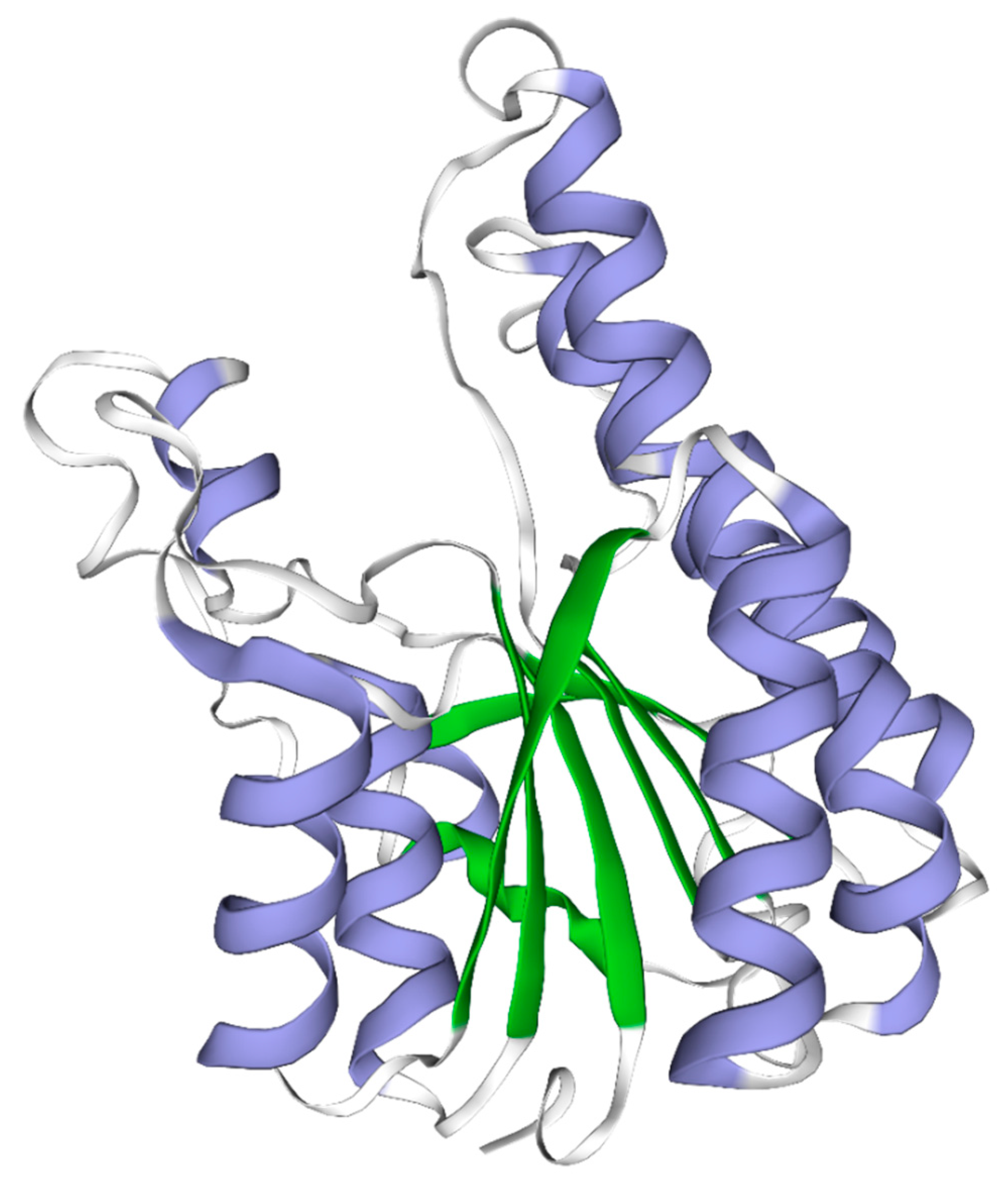

Figure 2. Prediction of the three-dimensional structure of the catalytic domain of P. aibuhitensis HSDL2. The beta strands are shown in green, helices are in blue, and the loop structure is shown in gray. The parallel β sheet is flanked by α helices.
Figure 2. Prediction of the three-dimensional structure of the catalytic domain of P. aibuhitensis HSDL2. The beta strands are shown in green, helices are in blue, and the loop structure is shown in gray. The parallel β sheet is flanked by α helices.
Life 13 00010 g002

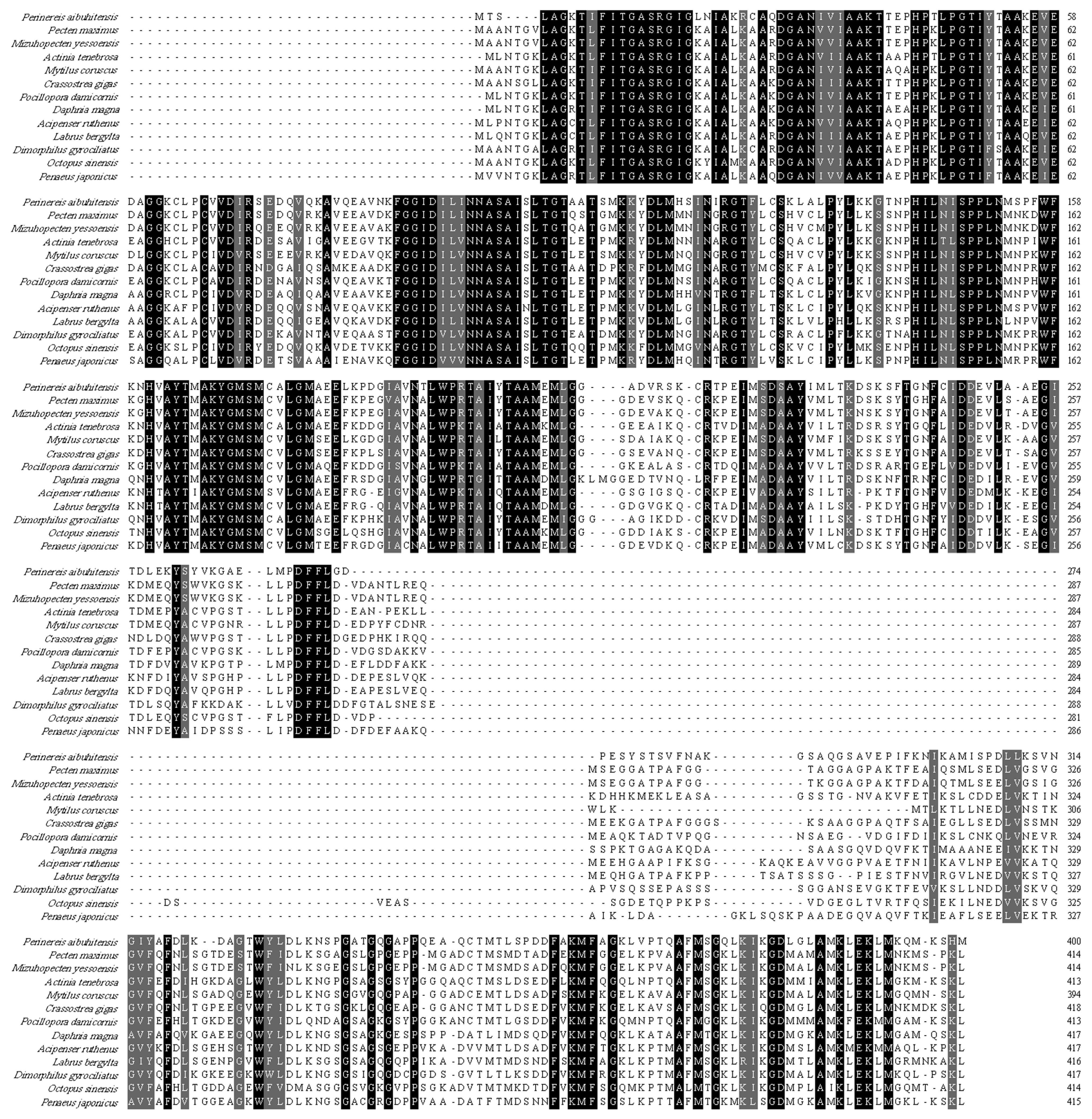

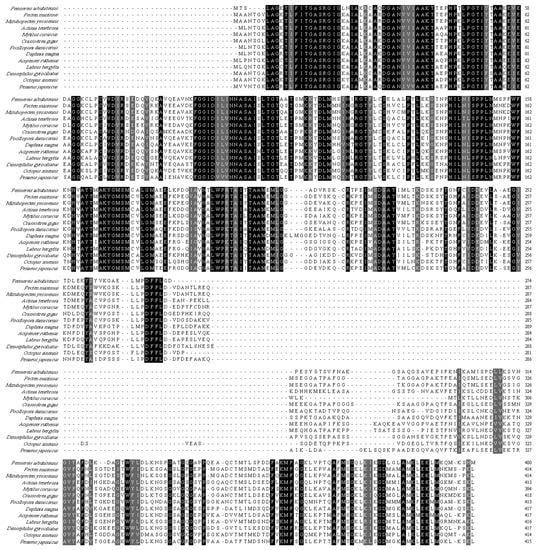

Figure 3. Alignment of HSDL2 protein with other known HSDL2 orthologues. Amino acid residues that are conserved in at least 50% of the sequence are shaded, and similar amino acids are shaded. The conserved motif (TGxxxGxG) and active site motif (YxxxK) are underlined. Accession numbers: Pecten maximus L. (XP_033738569.1), Mizuhopecten yessoensis Jay (XP_021379021.1), Actinia tenebrosa Farquhar (XP_031564327.1), Mytilus coruscus Gould (CAC5414625.1), Crassostrea virginica Gmelin (XP_022314551.1), Pocillopora damicornis L. (XP_027051106.1), Daphnia magna Straus (KZS05818.1), Acipenser ruthenus L. (XP_033891994.2), Labrus bergylta Ascanius (XP_020492596.1), Octopus sinensis d′Orbigny (XP_029649957.1), Penaeus japonicus Spence Bate (XP_042858890.1), Dimorphilus gyrociliatus O. Schmidt (CAD5114323.1).
Figure 3. Alignment of HSDL2 protein with other known HSDL2 orthologues. Amino acid residues that are conserved in at least 50% of the sequence are shaded, and similar amino acids are shaded. The conserved motif (TGxxxGxG) and active site motif (YxxxK) are underlined. Accession numbers: Pecten maximus L. (XP_033738569.1), Mizuhopecten yessoensis Jay (XP_021379021.1), Actinia tenebrosa Farquhar (XP_031564327.1), Mytilus coruscus Gould (CAC5414625.1), Crassostrea virginica Gmelin (XP_022314551.1), Pocillopora damicornis L. (XP_027051106.1), Daphnia magna Straus (KZS05818.1), Acipenser ruthenus L. (XP_033891994.2), Labrus bergylta Ascanius (XP_020492596.1), Octopus sinensis d′Orbigny (XP_029649957.1), Penaeus japonicus Spence Bate (XP_042858890.1), Dimorphilus gyrociliatus O. Schmidt (CAD5114323.1).
Life 13 00010 g003

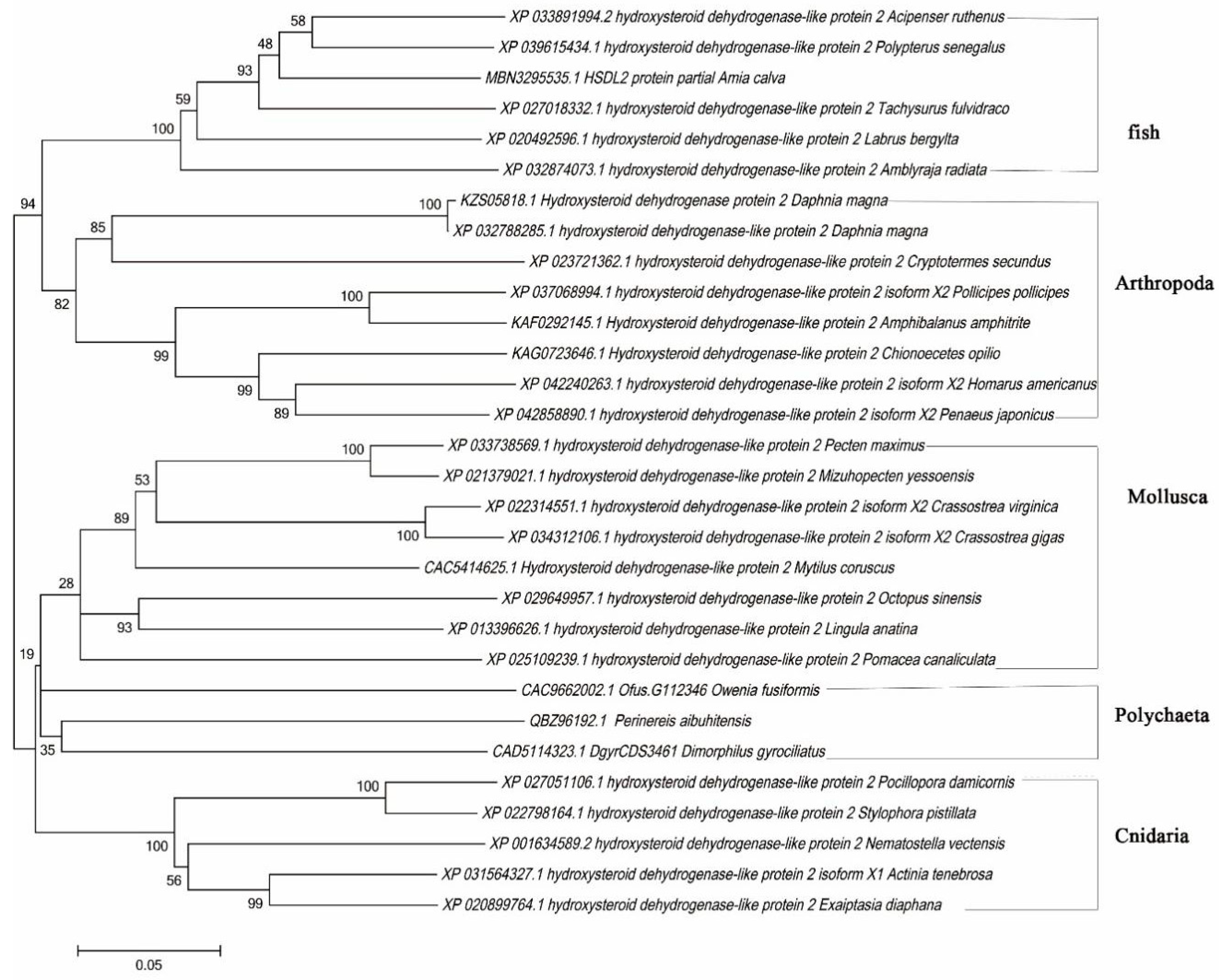

Figure 4. The phylogenetic tree of HSDL2 among various species. The values at the nodes are the percentages of 1000 bootstrap replicates.
Figure 4. The phylogenetic tree of HSDL2 among various species. The values at the nodes are the percentages of 1000 bootstrap replicates.
Life 13 00010 g004

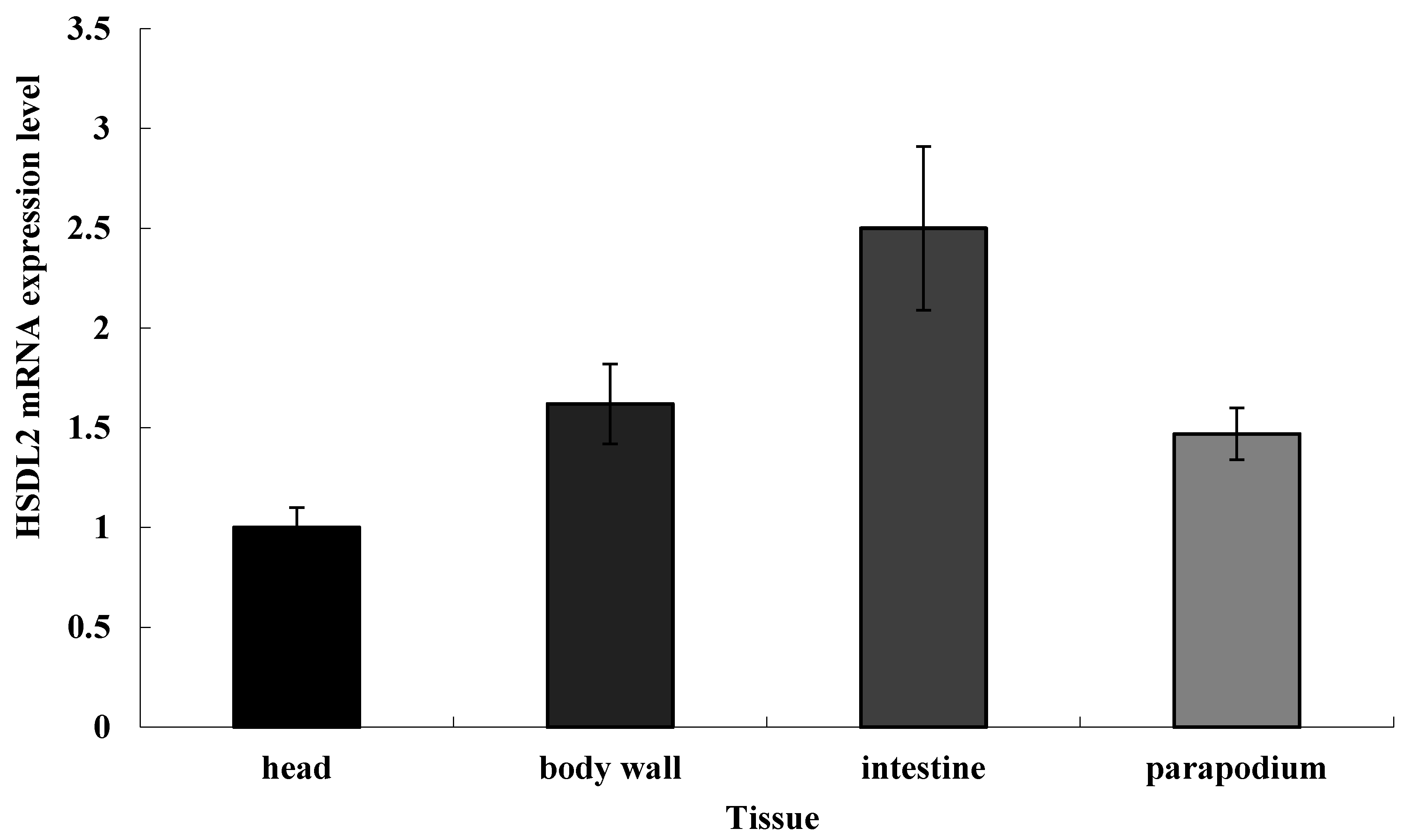

Figure 5. The HSDL2 mRNA expression pattern in different tissues of P. aibuhitensis. The relative expression level represented by mean ± standard error of mean (n = 4–6).
Figure 5. The HSDL2 mRNA expression pattern in different tissues of P. aibuhitensis. The relative expression level represented by mean ± standard error of mean (n = 4–6).
Life 13 00010 g005
Figure 6. (A) SDS-PAGE; M-protein standards, 1—crude lysates of E. coli transfected with pET-28a, 2—lysate supernatant of E. coli transfected with pET-28a, 3—lysate pellet of E. coli transfected with pET-28a, 4—crude lysates of E.coli transfected with pET-28a-HSDL2, 5—lysate supernatant of E. coli with pET-28a-HSDL2, 6—lysate pellet of E. coli transfected with pET-28a-HSDL2; (B) Western blotting using anti-HSDL2 antibody; M—protein standards, 1 and 2—crude protein from untreated P. aibuhitensis.
Figure 6. (A) SDS-PAGE; M-protein standards, 1—crude lysates of E. coli transfected with pET-28a, 2—lysate supernatant of E. coli transfected with pET-28a, 3—lysate pellet of E. coli transfected with pET-28a, 4—crude lysates of E.coli transfected with pET-28a-HSDL2, 5—lysate supernatant of E. coli with pET-28a-HSDL2, 6—lysate pellet of E. coli transfected with pET-28a-HSDL2; (B) Western blotting using anti-HSDL2 antibody; M—protein standards, 1 and 2—crude protein from untreated P. aibuhitensis.
Life 13 00010 g006

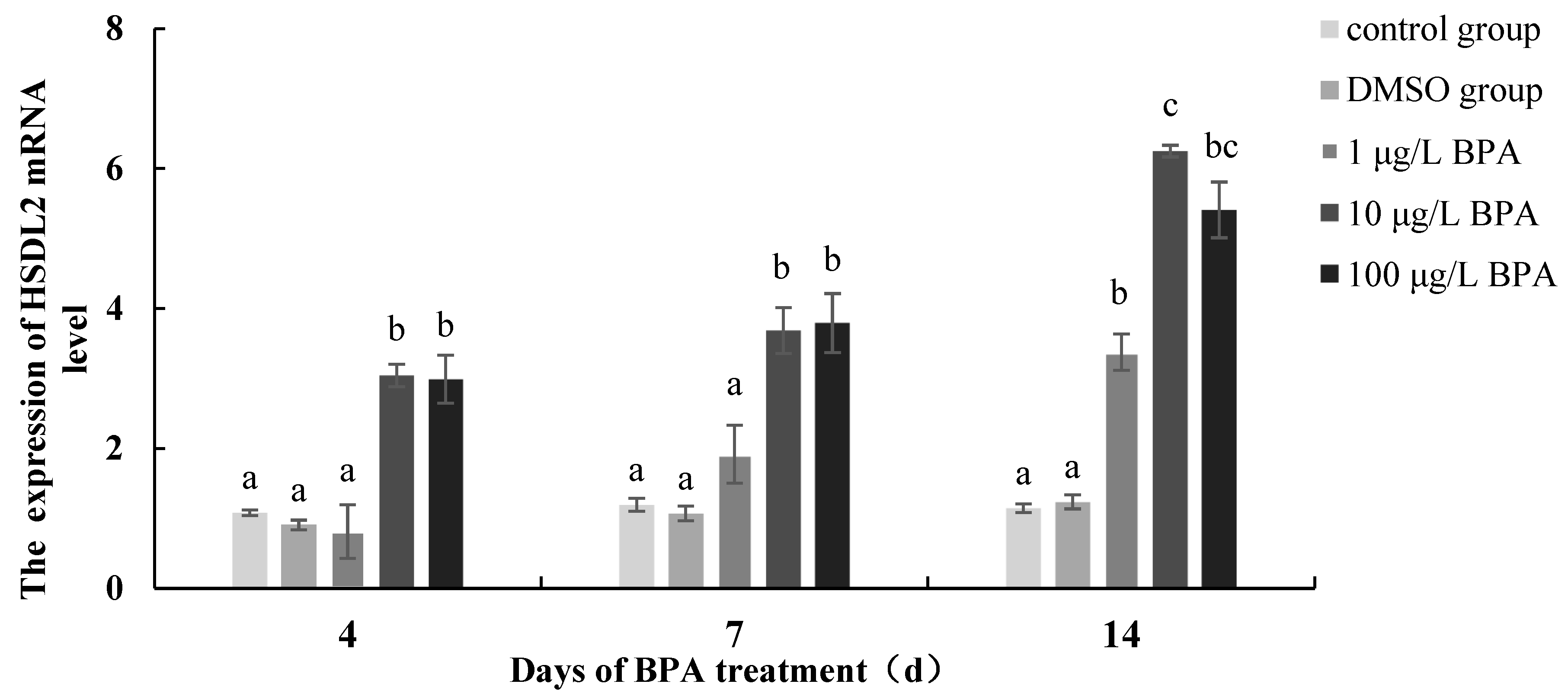

Figure 7. The HSDL2 mRNA expression pattern under BPA treatment in P. aibuhitensis. The relative expression level represented by mean ± standard error of mean (n = 4–6), significant differences in different treatment at each sampling time was indicated by different letter (p < 0.05).
Figure 7. The HSDL2 mRNA expression pattern under BPA treatment in P. aibuhitensis. The relative expression level represented by mean ± standard error of mean (n = 4–6), significant differences in different treatment at each sampling time was indicated by different letter (p < 0.05).
Life 13 00010 g007

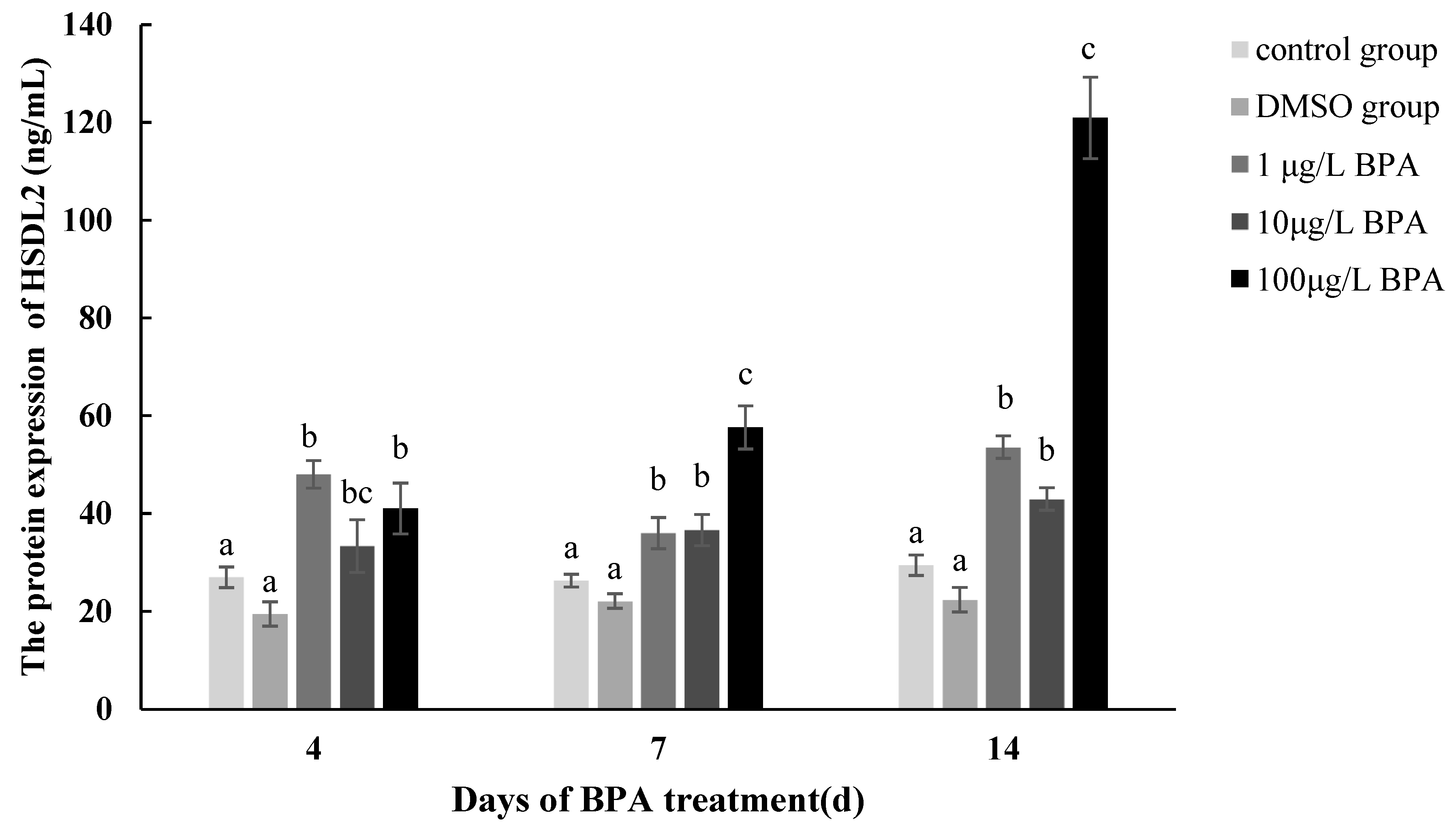

Figure 8. The HSDL2 protein expression pattern under BPA treatment in P. aibuhitensis. The protein expression level is represented by mean ± standard error of mean (n = 4–6); significant differences in different treatment at each sampling time are indicated by different letters (p < 0.05).
Figure 8. The HSDL2 protein expression pattern under BPA treatment in P. aibuhitensis. The protein expression level is represented by mean ± standard error of mean (n = 4–6); significant differences in different treatment at each sampling time are indicated by different letters (p < 0.05).
Life 13 00010 g008
Table 1. The primer information in this experiment.
Table 1. The primer information in this experiment.
Primer NameSequence InformationAmplification Efficiency (%)Sequence (5′–3′)
UPM (universal primer mix) longRACE CTAATACGACTCACTATAGGGCAAGCAGTGGTATCAACGCAGAGT
UPM shortRACE CTAATACGACTCACTATAGGGC
HSDL2-F13′-RACE CTAAAGGGTCAGCTCAGGGGTCA
HSDL2-F23′-RACE GTGTCAATGGGATCTACGCTTTT
HSDL2-R15′-RACE TTTTTCCAAATCTGTAATGCCTT
HSDL2-R25′-RACE AATGATTTGCTGTCTTTTGTGAG
β-actin-FReal-time PCR99.96GGGCTACTCCTTCACCACCA
β-actin-RReal-time PCR CGAAGTCCAGAGCAACATAG
HSDL2-F3Real-time PCR100.59GAACATCAGTCCGCCCTTG
HSDL2-R3Real-time PCR GCTATCCCATCAGGCTTCAGTT
