Article

Optimization of CO2 Supply for the Intensive Cultivation of Chlorella sorokiniana IPPAS C-1 in the Laboratory and Pilot-Scale Flat-Panel Photobioreactors

by
David A. Gabrielyan
*,
Boris V. Gabel
,
Maria A. Sinetova
*,
Alexander K. Gabrielian
,
Alexandra G. Markelova
,
Natalia V. Shcherbakova
and
Dmitry A. Los
K.A. Timiryazev Institute of Plant Physiology, Russian Academy of Sciences, Botanicheskaya Street 35, 127276 Moscow, Russia
*
Authors to whom correspondence should be addressed.
Life 2022, 12(10), 1469; https://doi.org/10.3390/life12101469
Submission received: 30 August 2022 / Revised: 14 September 2022 / Accepted: 19 September 2022 / Published: 21 September 2022

Abstract

:
Microalgae are increasingly being used for capturing carbon dioxide and converting it into valuable metabolites and biologically active compounds on an industrial scale. The efficient production of microalgae biomass requires the optimization of resources, including CO2. Here, we estimated the productivity of Chlorella sorokiniana IPPAS C-1 depending on CO2 concentrations and the ventilation coefficient of the gas-air mixture (GAM) in flat-panel photobioreactors (FP-PBRs) at laboratory (5 L) and pilot (18 L) scales. For the laboratory scale, the PBRs operated at 900 µmol quanta m−2 s−1 and 35.5 ± 0.5 °C; the optimal CO2 flow rate was estimated at 3 mL CO2 per 1 L of suspension per minute, which corresponds to 1.5% CO2 in the GAM and an aeration rate of 0.2 vvm. These parameters, being scaled up within the pilot PBRs, resulted in a high specific growth rate (µ ≈ 0.1 h−1) and high specific productivity (Psp ≈ 1 g dw L−1 d−1). The principles of increasing the efficiency of the intensive cultivation of C. sorokiniana IPPAS C-1 are discussed. These principles are relevant for the development of technological regimes for the industrial production of Chlorella in flat-panel PBRs of various sizes.

1. Introduction

Intensive cultivation of microalgae is a promising method to capture and utilize the excess carbon dioxide [1,2]. As a result, the task of carbon footprint reduction with the simultaneous production of high-value products, theoretically, has been solved [3,4,5] and reflected in a solid number of publications [6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23]. It was demonstrated that, depending on a variety of parameters and cultivation conditions, a high carbon fixation rate (CFR) can be achieved [6,7]. The highest CFR value of 2.632 g L−1 d−1 was demonstrated for Chlorella sp. KR-1 [8]. However, this value was obtained in a small volume of suspension (50 mL) and at a high volumetric flow rate of CO2 (RCO2) of 0.01 vvm (volume of supplied gas per unit volume of growth medium per minute). Obviously, it is relatively easy to reach a high CO2 fixation rate in small-scale cultivation experiments. However, in this case, the biomass yield would be proportionally small, which makes no practical sense.
The CFR value is not much more informative or useful because it is calculated based on the ratio of 1.88 g CO2 per 1 g of dry weight of microalgal biomass [6] (pp. 124–125) and it does not consider the entire amount of CO2 supplied to a system (MCO2). A comparison of fixed amount of CO2 biomass and MCO2 allows for the estimatation of the efficiency of the gas-air mixture (GAM) supply and CO2 loss. An increase in the cultivation volume to obtain a higher biomass yield leads to an increase in the CFR value, while the efficiency of CO2 utilization decreases due to a number of challenges associated with scaling-up, ranging from energy consumption to the design of photobioreactors (PBRs) [7,10,11].
High productivity for most algal species is observed over a wide range of CO2 concentrations, from 0.038 to 10% (v/v), and the recommended values for the aeration rate (RGAM) are in the range of 0.1–1.0 vvm for closed PBRs [6,7]. The optimal values of both parameters vary depending on the algal strain and configuration of the PBRs. The important question is, what should be the combination of CO2 concentration in a GAM and the RGAM in order to effectively convert CO2 into a significant amount of biomass during a relatively short period of cultivation?
An RGAM of 0.025–1.0 vvm, at concentrations of 5% and 10% CO2, is recommended as it is economically justified for intensive cultivation. Specifically, for flat-panel photobioreactors (FP-PBR) of an industrial scale, a value of 0.05 vvm was reported [12]. However, those conclusions were based solely on technical parameters and theoretical calculations for a 250 L PBR without any experimental data. Another report [14] demonstrated that an RGAM below 0.1 vvm with 5% CO2 leads to a significant decrease in mass transfer in a FP-PBR, leading to the slow growth of the algae. It was concluded that the search for optimal conditions for the GAM supply must be carried out based on two parameters: the CO2 utilization efficiency (CUE) and specific productivity of the culture (Psp). The conditions of GAM supply include parameters such as the concentration of CO2 in a GAM; RGAM; GAM supply method; the diameter and trajectory of the bubbles; the geometry of the gas sprayer and the number of holes in it; the presence of baffles in a PBR, etc. [9,10,11,12,13,14,15,16,17,18,19]. All these parameters are important for determining the characteristics of the PBRs of various designs. In addition, the optimization of gas supply remains an urgent task for each individual algal strain.
The optimization of the GAM supply to a suspension of Chlorella had a significant impact on its productivity [15,16,17]. A Psp of 0.4 g L−1 d−1 and a CUE of 28% were obtained for Chlorella vulgaris in an airlift FP-PBR (50 L) [15]. A CUE of 63% was reported for Chlorella sp. NCTU-2 in a porous centric-tube PBR, with a maximum Psp of 0.6 g L−1 d−1 [16]. Moreover, a CUE of 81% was reached for Chlorella sorokiniana TH01 while a Psp of 0.42 g L−1 d−1 was used in an outdoor FP-PBR (100 L) [17]. In the latter report, C. sorokiniana TH01 was defined as a producer of lutein from CO2 (up to 10 mg g−1).
Our previous studies on the cultivation of various strains of microalgae and cyanobacteria in the laboratory system made it possible to determine their technological ranges, which are suitable for the intensive cultivation of a wide range of photosynthetic microorganisms [20]. Those results provided the initial experimental data for the design of scalable flat-panel vertical PBRs with a high biomass yield [24] and allowed for the refinement of the technologies for the cultivation of photosynthetic microorganisms. The design of such PBRs and the applied technical solutions ensure high efficiency when using the light energy from artificial sources and high efficiency of CO2 utilization, excluding the contamination of the suspension and providing the possibility of stabilizing the cultivation parameters over a wide range. [10,11,21,22].
Here we determined the influence of the GAM supply on the specific productivity of C. sorokiniana IPPAS C-1. The strains of Chlorella are characterized by a high growth rate. The strain C. sorokiniana IPPAS C-1 was previously used for investigations into the parameters of industrial photobioreactors [24,25] and algal physiology [26,27]. We also estimated the CUE in newly assembled FP-PBRs. To construct the PBRs presented here, we used materials and products available on the market, which significantly simplified the assembly of these devices. The GAM was supplied to the PBRs with CO2 concentrations ranging from 0.36 to 7.75% and a corresponding RGAM of 0.1 to 0.8 vvm to maintain constant RCO2. The results of the cultivation of C. sorokiniana IPPAS C-1 in the laboratory (5 L) and pilot PBR (18 L) were compared using equalized specific characteristics. The results of the work are relevant to the development of technological regulations for the industrial production of C. sorokiniana IPPAS C-1 in FP-PBRs of various sizes and volumes.

2. Materials and Methods

2.1. Microalgal Strain and Maintenance Conditions

The axenic strain of Chlorella sorokiniana IPPAS C-1 was obtained from the collection of microalgae and cyanobacteria IPPAS (K.A. Timiryazev Institute of Plant Physiology, RAS, Moscow, Russia). The axenic culture was maintained on slants of Tamiya agarized medium [23,24] in glass tubes at 22 °C under continuous illumination with cool white luminescent lamps of 30 μmol photons m−2 s−1. For the experiments, cells of C. sorokiniana were grown for 10–14 days in 300 mL Erlenmeyer flasks with 100 mL of ½ Tamiya modified medium [24] on an orbital shaker at room temperature under average illumination of 50 μmol photons m−2 s−1 from warm white light emitting diodes (LEDs). ½ Tamiya modified medium composition, g L−1: NaNO3—2.1; MgSO4·7H2O—1.25; KH2PO4—0.625; FeSO4·7H2O—0.009; EDTA—0.037; trace element solution (TES) 1 mL L−1; TES composition, g L−1: H3BO3—2.86; MnCl2·4H2O—1.81; ZnSO4·7H2O—0.222, MoO3·2H2O—0.018, NH4VO3—0.023.
All measurements of the irradiation level in the working volume of the PBRs and on the surface of the LED modules were recorded with a quantum meter LI-189 equipped with LI-190SA quantum sensor (LI-COR, Lincoln, NE, USA) in μmol photons m−2 s−1. Spectral composition of the light from LED was measured by LI-180 Spectrometer (LI-COR, Lincoln, NE, USA). Results of measurements were used to calculate the average irradiance on surfaces of PBRs.

2.2. Algal Pre-Culture for PBR Inoculation

The initial culture of C. sorokiniana IPPAS C-1 was grown aseptically in the laboratory system for intensive cultivation as described in [24]: in ½ Tamiya medium at 32 ± 0.6 °C under continuous illumination of 500 μmol photons m−2 s−1 provided by warm white, blue, and red LEDs (description of LED module and spectral composition of the light are presented in the supplementary material in Figure S1). Culture mixing and aeration were achieved by bubbling with sterile GAM that contained 1.5–2% CO2. The resulting culture with a dry biomass concentration (ρ) of 2–5 g dw L−1 was used as inoculum for the next stage.

2.3. Flat-Panel PBRs

2.3.1. Principal Scheme of Experiments

Both FP-PBRs (FP-5 and FP-18) employed similar principal working schemes (Figure 1).

2.3.2. Design of FP-PBR with a Working Volume of 5 L (FP-5)

The PBR, with a working volume of 5 L, consists of a glass aquarium with an internal volume of 361 mm × 40 mm × 460 mm, submersible module with cooling and hot water supply systems, and two LED modules, consisting of 18 rows of LED strips (Figure S1). The average irradiance on the light-receiving surface of the PBR was 900 µmol m−2 s−1. Modules were installed close to the sides of the reactor. Three PBRs (of this construction type) have been used in the current work. Figure 2 presents a photo of the reactors. The operation of PBR FP-5 is demonstrated in Video S1.

2.3.3. Design of FP-PBR with Working Volume of 18 L (FP-18)

The PBR with a working volume of 18 L consists of a demountable container formed by plane-parallel translucent walls and two LED modules (Figure 3). PBR working volume dimensions: 600 mm × 40 mm × 800 mm. The LED modules are adjacent on both sides of the container, directly to the translucent walls, and are equipped with radiators to cool the LEDs. The design of the modules allows to discretely change the number of working LEDs and their distribution over the irradiated area. The operation of PBR FP-18 is demonstrated in Video S2.

2.3.4. Main Parameters of the PBRs

The geometrical and light characteristics of the PBRs used in this study are presented in Table 1. The main difference between FP-5 and FP-18 is their size. FP-18 is 1.74× higher and 1.67× longer than FP-5, but they have an identical light path (40 mm), identical irradiation level on the light receiving surface, and identical gas sprayers at the bottom of the reservoirs.
Starting biomass concentrations in both PBRs were also similar (ρ0 = 0.14 ± 0.04 g dw L−1), with an average pH level of 6.0 ± 0.15. Thereby, the comparative characterization of these PBRs could be accepted as appropriate. Scaling-up the cultivation was performed using combinations of 1.5% or 2% CO2 in a GAM with an of RGAM 0.2–0.23 vvm.
Water for filling the PBRs was purified by six-stage reverse osmosis system AP-800DIR-400 (AquaPro Industrial Co., Ltd., Nanking E. Rd., Taipei, Taiwan). All containers, hoses, filters, and liquids were either sterilized by autoclaving or treated with hot steam and 70% ethanol.

2.3.5. Gas-Air Mixture Supply

The GAM was supplied to the suspension through an aquarium sprayer with 8 holes with a step of 10 mm (∅ 1 mm; Hailea HL-AC04), placed at the bottom of each PBR. In the FP-5, the sprayer length was 300 mm, while for FP-18, it was 500 mm. Pure CO2 from a cylinder was mixed with air by a compressor in a mixing unit. Then, passing through rotameters, CO2 concentration sensors and filters (Millex-FH Filer Syringe Filter Unit, 0.45 μm or 0.2 μm), the mixture eventually passed into the suspension through the sprayers. In PBR FP-5, the volumetric flow rate of the supplied mixture was 0.5, 1, 2, or 4 L min−1; and in PBR FP-18, it was 3.7 or 8.3 L min−1. Concentration of CO2 and the RGAM were controlled by rotameters R1 and R2 (Figure 1). Different aeration ratios define bubbles distribution in the PBRs (Video S3).
The pipes installed on the upper faces of the PBR are designed to remove foam and release the waste GAM, including the oxygen generated during photosynthesis. The design of the GAM release system eliminates the contamination of the suspension by possible contaminating microorganisms.

2.3.6. Temperature Control System

Thin-walled stainless-tube heat exchangers were installed perpendicular to the suspension flow in the PBR. The FP-5 has one tube, while FP-18 has two tubes. Temperature control of the suspension is carried out due to the periodic flow of the coolant through the heat exchanger tube. The automatic regulation of the cultivation temperature is controlled by a signal from a temperature sensor located in the internal volume of each PBR.
The temperature conditions (35.5 ± 0.5 °C) in all experiments were identical. The choice of this temperature is due to the maximum growth rates of C. sorokiniana IPPAS C-1 during the first three days (Table S1) and savings in energy consumption for the cooling.

2.4. Growth Characteristics

Growth characteristics were calculated as described before [24]. The pH level of each sample taken for measurement of optical density of the suspension was estimated with a Mettler Toledo SevenEasy pH meter equipped with an Inlab 413 electrode.
The carbon dioxide utilization efficiency (CUE) was calculated as (%):
C U E = 1.88 ( M P B R M 0 ) / M C O 2
where 1.88 is a coefficient to recalculate an amount of fixed CO2 in a microalgae cell based on the typical microalgal molecular formula, CO0.48H1.83N0.11P0.01 [6]; (MPBRM0)—accumulated weight of dry biomass in the working volume of the PBR, and MCO2 is the mass of CO2 which was supplied through the PBR. MCO2 was calculated as total CO2 volume multiplicated by ρCO2 = 1.82 g L−1 (20 °C, 105 Pa). CUE is the ratio of the total supplied CO2 conversion into biomass that depends not only on the capability of an algal strain, but also on the design parameters of a PBR.

2.5. Biochemical Composition

Samples of 7–15 mg (of the lyophilized biomass from the final drain) were used for dry mass estimation, protein, and starch content measurements. The samples for dry weight estimation were incubated overnight at 80 °C in pre-weighted plastic microtubes and then weighed. The detailed procedures of protein and starch extraction and determination of their concentration are described in [20]. Briefly, the total protein concentration was estimated with BCA assay, and the starch concentration was measured using the phenol-sulphuric method. All measurements were carried out in triplicate.

2.6. Statistics

The graphs of the growth curves represent the mean values for two biological replicates and their mean deviations. The curves without bars represent mean values for technical replicates made in the individual experiments.

3. Results

3.1. Selection of CO2 Concentration in a GAM

The first step of this work was to determine the optimal level of RCO2 at a fixed level of RGAM in the FP-5 photobioreactors. The initial level of GAM flow was 1 L min−1, which corresponds to an RGAM of 0.2 vvm and falls into the range of the optimal values determined for other FP-PBRs [7,12,14]. The experiments were carried out in parallel in three individual PBRs. To study the effect of CO2 supply, we used only the actively growing cultures which were not limited by other factors, e.g., macronutrients. A significant decline in specific growth rate was observed on the 4th day of cultivation, meaning that the experiment duration was 3 days.
Volumetric GAM CO2 concentrations of 1%, 1.5%, 2%, and 4% were tested. Experiments with concentrations of 1%, 1.5%, and 2% were carried out in two biological replications. At the end of the cultivation, the pH of the culture medium was nearly identical (pH = 8.1 ± 0.2) in all variants examined.
In our experimental conditions, the following dependences of the dry biomass concentration of C. sorokiniana IPPAS C-1 on CO2 concentrations in a GAM, were revealed (Figure 4).
Figure 4a shows that the variants with 1.5%, 2%, and 4% CO2 turned out to be almost identical in terms of biomass accumulation, while the variant with 1% CO2 had the worst growth. On the third day of cultivation, the reliable differences in the biomass concentration became visible in the variant with 1.5% CO2. In the culture grown at 1.5% CO2, the CUE (35 ± 2% and Psp of 1.51 ± 0.07 g dw L−1 d−1) was higher than that for other variants (Figure 4b, Table S2). Therefore, for further investigation, we chose the value of RCO2 = 0.003 vvm, which corresponds to 1.5% CO2 at 0.2 vvm.

3.2. Optimization of RGAM and Concentartion of CO2

By fixing the RCO2 in the vicinity of 0.003 vvm, we varied the combinations of the RGAM (vvm) and the GAM CO2 concentration (%): 0.77 vvm and 0.36%; 0.4 vvm and 0.75%; and 0.1 vvm and 3%. The experiments with the first two combinations were carried out for two biological replications. At the end of the cultivation, the pH level was lowest in the variant with 7.9% CO2 (pH = 7.7 ± 0.13) and highest in the variant with 0.36% CO2 (pH = 8.7). In all other variants, the average pH values were in the range of 7.9–8.4.
The obtained dependences for the dry biomass concentration of the GAM supply conditions and CUE values at a fixed RCO2 are presented in Figure 5.
Additionally, the experiments with a higher RCO2 = 0.008 vvm were carried out for one biological replicate (Figure S3). The following combinations of RGAM and GAM CO2 concentration were used: 0.8 vvm and 0.94%; 0.4 vvm and 2%; 0.2 vvm and 4%; and 0.1 vvm and 7.73%. All results are summarized in as comparisons in Table S2.
The results show that, at a fixed RCO2 = 0.003 vvm, the variant with 1.5% CO2 and an RGAM = 0.2 vvm remains preferable compared to the other combinations. A comparison of this variant to the group of experiments performed at N RCO2 = 0.008 vvm shows that the increase in RCO2 does not improve the final biomass concentration and results in 3 times lower values for CUE.
The experiments with an increased RGAM = 0.45 vvm and the same CO2 concentration (of 1.5% (RCO2 = 0.007 vvm)) were carried out for two biological replicates to verify the chosen combination. Table S2 demonstrates that the doubling of RCO2 does not give a noticeable increase in biomass yield, which increased by only 8.6%, while the CUE value decreased two-fold.

3.3. Scaling-Up the Optimal Conditions

The scaling-up of the cultivation was performed using the chosen optimal combination of 1.5% and an RGAM = 0.2 vvm and the combination of 2% CO2 with an RGAM of 0.2 vvm. Figure 6 shows a comparison of the growth characteristics for C. sorokiniana IPPAS C-1 in FP-5 and FP-18. The obtained results confirm a preferable expenditure of 1.5% instead of 2% CO2 in FP-18. In these experiments, the pH level varied in the range of 7.9 to 8.3 units.
Notably, the direct transfer of specific cultivation parameters from a small to a large scale does not ensure a proportional increase in biomass yield. After 3 days of cultivation, the biomass yield for FP-18 was 57 ± 0.4 g dw, while for FP-5, it was 22.6 ± 1 g dw. Thus, a 3.6-fold increase in PBR volume gives only a 2.5-fold increase in biomass yield. The specific productivity of FP-18 turned out to be lower than that of FP-5 (1.1 ± 0.01 vice 1.5 ± 0.07 g dw L−1 d−1).
We tried to proportionally increase the biomass yield and CUE in FP-18, with an increase in RGAM (0.45 vvm) and an RCO2 = 0.0045 vvm and 1% CO2, tested. The results revealed that, on the third day of cultivation, the increase in the RGAM enhanced the biomass yield and CUE (Figure 6, Table S2).

3.4. Effect of CO2 Concentartion and Aeration Rate on Biomass Composition

C. sorokiniana IPPAS C-1 is mainly a source of protein and starch, so the content of these compounds was estimated in the cells grown under different regimes of GAM supply (Table 2). The protein content was in the range of 19–45% for d.w., while the starch content was in the range of 11–54%. The protein and starch contents were inversely related to each other. Direct dependence of biochemical composition on GAM supply conditions was not found. At the same time, the clear dependence of cell biochemistry on biomass concentration can be seen; in the cultures with a higher biomass concentration, the cells had more starch and less protein and vice versa.

4. Discussion

4.1. GAM Supply Conditions

The regime of GAM supply to a suspension of microalgae significantly affects growth and biomass accumulation. This becomes evident when the parameters, such as the concentration of CO2 in the GAM or aeration rate, are compared separately [8,9,12]. In these cases, the changes in the volume flow of the supplied CO2 may be critical for the growth of the culture. In combination with the appropriate irradiation, this parameter determines the maximum level of productivity [10,22]. Limiting the experiments to only one level of irradiation, we deliberately limited the growth potential of an algal culture. For the irradiance level of 900 µmol m−2 s−1 and aeration rate of 0.2 vvm, the saturation level of CO2 concentration for the growth of C. sorokiniana IPPAS C-1 was determined at 1.5%. Any increase in CO2 concentration in the GAM had no significant impact on the biomass yield. The optimal conditions of cultivation provided a reasonable yield of biomass (Psp = 1.51 ± 0.07 g dw L−1 d−1, which is close to the maximum of 1.64 ± 0.02 g dw L−1 d−1) and a relatively high CUE of 35%. Higher CUE values can be reached by reducing the RGAM and, accordingly, supplying smaller volumes of CO2. The latter, however, results in growth retardation and a lower biomass yield at the end of the cultivation cycle. In this way, CUE values of 81% have been achieved in C. sorokiniana TH01 with the highly reduced specific productivity of 0.42 g dw L−1 d−1 [17], which is three times less than those achieved in our work.
The insufficient supply of CO2 (e.g., ≤1% CO2) or absence of proper mixing in the suspension (e.g., ≤0.1 vvm RGAM) leads to foaming and to the formation of a noticeable sediment of algal cells at the bottom part of the PBRs (Figure S3). High values of RGAM (0.4–0.8 vvm) caused the formation of a foam, while a decrease in RGAM (0.1 vvm) caused the sedimentation of the cells. Both phenomena should be avoided during intensive biomass cultivation. The cell sedimentation problem can be solved by choosing the proper mixing conditions.
In the variants with 1.5–2% CO2 and an RGAM in the vicinity of 0.2 vvm, we observed less cell sedimentation with low foaming intensity, when compared to the other variants. Figure S4 shows a photograph of the foam containers with the escaped cells, and the effect of aeration rate on the biomass lost volume in a FP-5. At an RGAM of 0.1 vvm, less than 10 mL of lost biomass volume was accumulated in the foam container, while at an RGAM of 0.8 vvm, 0.5 L (which is 10% of the FP-5 working volume) accumulated by the end of the cultivation cycle. In fact, the “escaped” or lost biomass may comprise a significant portion of the yield that depends on the intensity of the foaming process, which, in turn, may cause a noticeable decrease in the specific growth rate and productivity of an algal culture. The study of the parameters and conditions of active foaming can provide additional information on identifying the optimal conditions for algal cultivation. The foaming ability itself may be of interest to the food industry for the creation of new consumption products based on microalgae [28].

4.2. Enhancing Productivity and Carbon Dioxide Utilization

While maintaining the considered parameters for the GAM supply, it is possible to increase both CUE and productivity. This can be carried out by selecting the size and trajectory of the GAM bubbles, installing baffles or blades for culture mixing [9,19,29,30]. In this way, the yield of the C. pyrenoidosa was increased from 1.6 to 2.9 g dw L−1 [29]. The physics of the gas-liquid mass transfer processes require the use of a complex mathematical model in conjunction with carefully designed experiments [31,32,33]. The application of modern engineering calculation systems allows for the selection of the optimal sprayer shapes and promotes more detailed studies of the influence of the GAM supply on the growth characteristics of microalgae for each specific PBR and algal strain.

4.3. Scaling-Up the Optimal Conditions

The scaling-up of the cultivation parameters from 5 L to 18 L appeared relatively successful. However, in FP-18, the final biomass yield and CUE dropped on average by 30% and 35%, respectively, when compared to FP-5. Earlier comparisons of the performance of similar FP-PBRs, which differed in height or length, demonstrated that the mass transfer between the gaseous phase and the liquid algal suspension is directly proportional to the height and inversely proportional to the length of the PBR [14]. Thus, an increase in the longitudinal dimensions of the reactor may lead to a decrease in mass transfer and in the intensity of the mixing. This observation has been confirmed here, when a doubled RGAM of 0.45 vvm with 1% CO2 was compared to 2% CO2 and an RGAM of 0.23 vvm (Figure 6, FP-18_1%_0.45 vvm curve). The increase in the RGAM, keeping a constant RCO2 value, noticeably enhanced the growth and biomass yield. Finally, scaling up the cultivation parameters requires the application of a transfer coefficient as a certain multiplier.

4.4. The Effect of a GAM Supply on Protein and Carbohydrate Composition of the Biomass

The biomass obtained under various GAM supply regimes (except the last lane in Table 2) had a similar biochemical content. Therefore, we conclude that there was no direct effect of the studied GAM supply on the biochemical composition of the C. sorokiniana IPPAS C-1 cells. The apparent difference might be due to the enhanced aeration rate itself, or due to the influence of the GAM supply on the growth rate. On the third day of cultivation, when the samples were taken, the cultures had different biomass concentrations and were in different growth stages. The highest protein content is usually observed in exponentially growing cells [20], and exponential growth is possible when the cells are not limited in their light and nutrients [34]. Considering that all cultures were grown in the same medium and under the same average irradiance, the cultures with a lower biomass concentration were less limited with light and nutrients and, thus, were enriched in proteins at the expense of starch. The fast-growing culture in the last variant (RGAM = 0.8 vvm; GAM CO2 concentration 0.98%) most probably reached the late linear phase of growth and was limited in its light and nitrogen supply, so the cells started to accumulate starch at the expense of protein.
For practical application, it is necessary to consider the growth phase of the culture, as protein-rich biomass can be used in food and feed production, while cells with a high starch content can be used for further fermentation and biofuel production. To keep a high protein content in fast-growing cultures, it is necessary to increase the amount of nitrogen in the medium. It is important to note that the scaling-up from 5 L to 18 L did not cause any significant effects on the biochemical composition of Chlorella biomass.

5. Conclusions

The regime of GAM supply to a suspension of microalgae significantly affects their growth and biomass accumulation. An insufficient CO2 supply, and too high of an RGAM, lead to foaming, while the absence of the proper mixing of the suspension caused the formation of noticeable sediments of algal cells in the bottom of the PBRs. It is important to avoid these side effects during intensive biomass cultivation. During the cultivation of C. sorokiniana IPPAS C-1 at 900 µmol m−2 s−1 and 35.5 ± 0.5 °C, the optimal GAM supply condition was determined to be 3 mL CO2 per 1 L of suspension per minute, which corresponds to an aeration rate of 0.2 vvm and GAM CO2 concentration of 1.5%. These optimal conditions for cultivation provided a reasonable yield of biomass (Psp = 1.51 ± 0.07 g dw L−1 d−1) and a relatively high CUE of 35%. Any further increase in CO2 concentration in the GAM had no significant impact on the biomass yield.
The scaling-up of the cultivation parameters from 5 L to 18 L appeared to be relatively successful; even the final biomass yield and CUE decreased by ~30% and 35%, respectively, in FP-18. The increase in RGAM, keeping a constant RCO2, promoted growth and increased the biomass yield with rather similar biochemical characteristics.
The principles for increasing the efficiency of the intensive cultivation of C. sorokiniana IPPAS C-1 described above are relevant for the development of technological regimes for the industrial production of Chlorella in flat-panel PBRs of various sizes.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/life12101469/s1, Figure S1: LED parameters and the spectral composition of the light; Figure S2: Biomass concentration (a) and CO2 utilization efficiency (b) of C. sorokiniana IPPAS C-1 in FP-5 under different GAM supply conditions and constant parameters: Iave—900 µmol m−2 s−1; T—35.5 ± 0.5 °C; RCO2—0.008 vvm; Figure S3: Photographs of the foam (a) and the sedimented culture (b) in FP-5 PBR; Figure S4: The effect on cultural volume lost by foaming process: (a)—foam containers with lost biomass under different RGAM (0.1, 0.4, 0.8 vvm) and the same RCO2 of 0.003 vvm; (b)—dependence of lost volume on the aeration rate (RGAM); Table S1: Growth characteristics of C. sorokiniana IPPAS C-1 cultures grown for 3 days at different temperatures in laboratory system for intensive cultivation. RGAM = 1 vvm, GAM CO2 concentration 1.2–1.8%, Iave = 400 µmol m−2 s−1; Table S2: Comparative table of growth characteristics of C. sorokiniana IPPAS C-1 in FP-5 and FP-18 during 3 days of cultivation; Video S1: The operation of PBR FP-5; Video S2: The operation of PBR FP-18; Video S3: Video of bubble flows distributions in dynamic under different aeration rates in PBR FP-5.

Author Contributions

Conceptualization, methodology, D.A.G., B.V.G. and M.A.S.; validation, formal analysis, visualization, supervision, D.A.G. and M.A.S.; investigation, D.A.G., B.V.G., M.A.S., A.K.G., A.G.M. and N.V.S.; writing—original draft preparation, D.A.G., M.A.S. and D.A.L.; writing—review and editing, D.A.L.; project administration, funding acquisition, D.A.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation (RSF grants no. 21-74-30003 to D.A.L., which covered the design, construction, and operation of the PBRs; and no. 20-14-00280 to M.A.S., which covered the biochemical measurements) and partially supported by the Ministry of Science and Higher Education of the Russian Federation (themes nos. 122042700043-9 and 121050500047-5).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
µspecific growth rate
CFRcarbon dioxide fixation rate
CUEcardon dioxide utilization efficiency
g dw gram of dry weight
GAMgas-air mixture
IPP RAS Institute of Plants Physiology of Russian Academy of Sciences
LEDlight emitting diode
ρdry biomass concentration
ρ0starting dry biomass concentration
ρfinfinal dry biomass concentration
MCO2mass of total supplied CO2
M0starting weigh of dry biomass in PBR after inoculation
MPBRweight of dry biomass in the working volume of PBR at the moment
PBRphotobioreactor
PBR FPflat-panel photobioreactor
Pspspecific productivity
RGAMGAM aeration rate
RCO2CO2 aeration rate
Tdblbiomass doubling time
VPBRworking volume of PBR
vvmvolume of sparged gas per unit volume of growth medium per minute

References

  1. Hunt, A.J.; Sin, E.H.K.; Marriott, R.; Clark, J.S. Generation, capture, and utilization of industrial carbon dioxide. ChemSusChem 2010, 3, 306–322. [Google Scholar] [CrossRef] [PubMed]
  2. Verma, R.; Srivastava, A. Carbon dioxide sequestration and its enhanced utilization by photoautotroph microalgae. Environ. Dev. 2018, 27, 95–106. [Google Scholar] [CrossRef]
  3. Khatoon, N.; Pal, R. Microalgae in biotechnological application: A commercial approach. In Plant Biology and Biotechnology; Bahadur, B., Venkat Rajam, M., Sahijram, L., Krishnamurthy, K., Eds.; Springer: New Delhi, India, 2015; pp. 27–47. [Google Scholar] [CrossRef]
  4. Gerotto, C.; Norici, A.; Giordano, M. Toward enhanced fixation of CO2 in aquatic biomass: Focus on microalgae. Front. Energy Res. 2020, 8, 213. [Google Scholar] [CrossRef]
  5. Larkum, A.W.D.; Ross, I.L.; Kruse, O.; Hankamer, B. Selection, breeding and engineering of microalgae for bioenergy and biofuel production. Trends Biotechnol. 2012, 30, 198–205. [Google Scholar] [CrossRef] [PubMed]
  6. Zhao, B.; Su, Y. Process effect of microalgal-carbon dioxide fixation and biomass production: A review. Renew. Sustain. Energy Rev. 2014, 31, 121–132. [Google Scholar] [CrossRef]
  7. Zheng, Q.; Xu, X.; Martin, G.J.O.; Kentish, S.E. Critical review of strategies for CO2 delivery to large-scale microalgae cultures. Chin. J. Chem. Eng. 2018, 26, 2219–2228. [Google Scholar] [CrossRef]
  8. Lee, J.S.; Kim, D.K.; Lee, J.P.; Park, S.C.; Koh, J.H.; Cho, H.S.; Kim, S.W. Effects of SO2 and NO on growth of Chlorella sp. KR-1. Bioresour. Technol. 2002, 82, 1–4. [Google Scholar] [CrossRef]
  9. Degen, J.; Uebele, A.; Retze, A.; Schmid-Staiger, U.; Trosch, W. A novel airlift photobioreactor with baffles for improved light utilization through the flashing light effect. J. Biotechnol. 2001, 92, 89–94. [Google Scholar] [CrossRef]
  10. Sirohi, R.; Pandey, F.K.; Ranganathan, P.; Singh, S.; Udayan, F.; Awasthi, M.K.; Hoang, A.T.; Chilakamarry, C.R.; Kim, S.H.; Sim, S.J. Design and applications of photobioreactors a review. Bioresour. Technol. 2022, 349, 126858. [Google Scholar] [CrossRef]
  11. Benner, P.; Meier, L.; Pfeffer, A.; Krüger, K.; Vargas, J.E.O.; Weuster-Botz, D. Lab-scale photobioreactor systems: Principles, applications, and scalability. Bioprocess Biosyst. Eng. 2022, 45, 791–813. [Google Scholar] [CrossRef]
  12. Sierra, E.; Acién, F.G.; Fernández, J.M.; García, J.L.; González, C.; Molina, E. Characterization of a flat plate photobioreactor for the production of microalgae. Chem. Eng. J. 2008, 138, 136–147. [Google Scholar] [CrossRef]
  13. Zheng, H.; Gao, Z.; Yin, F.; Ji, X.J.; Huang, H. Effect of CO2 supply conditions on lipid production of Chlorella vulgaris from enzymatic hydrolysates of lipid-extracted microalgal biomass residues. Biores. Technol. 2012, 126, 24–30. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, K.; Kurano, N.; Miyachi, S. Optimized aeration by carbon dioxide gas for microalgal production and mass transfer characterization in a vertical flat-plate photobioreactor. Bioprocess Biosyst. Eng. 2002, 25, 97–101. [Google Scholar] [CrossRef] [PubMed]
  15. Guo, X.; Yao, L.; Huang, Q. Aeration and mass transfer optimization in a rectangular airlift loop photobioreactor for the production of microalgae. Bioresour. Technol. 2015, 190, 189–195. [Google Scholar] [CrossRef] [PubMed]
  16. Chiu, S.Y.; Tsai, M.T.; Kao, C.Y.; Ong, S.C.; Lin, C.S. The air-lift photobioreactors with flow patterning for high-density cultures of microalgae and carbon dioxide removal. Eng. Life Sci. 2009, 9, 254–260. [Google Scholar] [CrossRef]
  17. Do, C.V.T.; Dinh, C.T.; Dang, M.T.; Tran, T.D.; Le, T.G. A novel flat-panel photobioreactor for simultaneous production of lutein and carbon sequestration by Chlorella sorokiniana TH01. Bioresour. Technol. 2022, 345, 126552. [Google Scholar] [CrossRef]
  18. Chiu, S.Y.; Kao, C.Y.; Chen, C.H.; Kuan, T.C.; Ong, S.C.; Lin, C.S. Reduction of CO2 by a high-density culture of Chlorella sp. in a semicontinuous photobioreactor. Bioresour. Technol. 2008, 99, 3389–3396. [Google Scholar] [CrossRef]
  19. Ryu, H.J.; Oh, K.K.; Kim, Y.S. Optimization of the influential factors for the improvement of CO2 utilization efficiency and CO2 mass transfer rate. J. Ind. Eng. Chem. 2009, 15, 471–475. [Google Scholar] [CrossRef]
  20. Sinetova, M.A.; Sidorov, R.A.; Starikov, A.Y.; Voronkov, A.S.; Medvedeva, A.S.; Krivova, Z.V.; Pakholkova, M.S.; Bachin, D.V.; Bedbenov, V.S.; Gabrielyan, D.A.; et al. Assessment of the biotechnological potential of cyanobacterial and microalgal strains from IPPAS culture collection. Appl. Biochem. Microbiol. 2020, 56, 794–808. [Google Scholar] [CrossRef]
  21. Zhang, L.; Zhang, B.; Zhu, X.; Chang, H.; Ou, S.; Wang, H. Role of Bioreactors in Microbial Biomass and Energy Conversion. In Bioreactors for Microbial Biomass and Energy Conversion; Liao, Q., Chang, J.S., Herrmann, C., Xia, A., Eds.; Springer: Singapore, 2018; pp. 39–78. [Google Scholar] [CrossRef]
  22. Masojídek, J.; Ranglová, K.; Lakatos, G.E.; Silva Benavides, A.M.; Torzillo, G. Variables Governing Photosynthesis and Growth in Microalgae Mass Cultures. Processes 2021, 9, 820. [Google Scholar] [CrossRef]
  23. Hase, E.; Morimura, Y.; Tamiya, H. Some data on the growth physiology of Chlorella studied by the technique of synchronous culture. Arch. Biochem. Biophys. 1957, 69, 149–165. [Google Scholar] [CrossRef]
  24. Gabrielyan, D.A.; Sinetova, M.A.; Gabel, B.V.; Gabrielian, A.K.; Markelova, A.G.; Rodionova, M.V.; Bedbenov, V.S.; Shcherbakova, N.V.; Los, D.A. Cultivation of Chlorella sorokiniana IPPAS C-1 in flat-panel photobioreactors: From a laboratory to a pilot scale. Life 2022, 12, 1309. [Google Scholar] [CrossRef]
  25. Tsoglin, L.N.; Gabel, B.V. Potential productivity of microalgae in industrial photobioreactors. Russ. J. Plant Physiol. 2000, 47, 668–673. [Google Scholar]
  26. Baránková, B.; Lazár, D.; Nauš, J.; Solovchenko, A.; Gorelova, O.; Baulina, O.; Huber, G.; Nedbal, L. Light absorption and scattering by high light-tolerant, fast-growing Chlorella vulgaris IPPAS C-1 cells. Algal Res. 2020, 49, 101881. [Google Scholar] [CrossRef]
  27. Schreiber, C.; Schiedung, H.; Harrison, L.; Briese, C.; Ackermann, B.; Kant, J.; Schrey, S.D.; Hofmann, D.; Singh, D.; Ebenhöh, O.; et al. Evaluating potential of green alga Chlorella vulgaris to accumulate phosphorus and to fertilize nutrient-poor soil substrates for crop plants. J. Appl. Phycol. 2018, 30, 2827–2836. [Google Scholar] [CrossRef]
  28. Gifuni, I.; Pollio, A.; Safi, C.; Marzocchella, A.; Olivieri, G. Current bottlenecks and challenges of the microalgal biorefinery. Trends Biotechnol. 2019, 37, 242–252. [Google Scholar] [CrossRef]
  29. Huang, Y.; Zhao, S.; Ding, Y.D.; Liao, Q.; Huang, Y.; Zhu, X. Optimizing the gas distributor based on CO2 bubble dynamic behaviors to improve microalgal biomass production in an air-lift photo-bioreactor. Bioresour. Technol. 2017, 233, 84–91. [Google Scholar] [CrossRef]
  30. Xu, J.; Cheng, J.; Lai, X.; Zhang, X.; Yang, W.; Park, J.Y.; Kim, H.; Xu, L. Enhancing microalgal biomass productivity with an optimized flow field generated by double paddlewheels in a flat plate photoreactor with CO2 aeration based on numerical simulation. Bioresour. Technol. 2020, 314, 123762. [Google Scholar] [CrossRef]
  31. Guler, B.A.; Deniz, I.; Demirel, Z.; Oncel, S.S.; Imamoglu, E. Comparison of different photobioreactor configurations and empirical computational fluid dynamics simulation for fucoxanthin production. Algal Res. 2019, 37, 195–204. [Google Scholar] [CrossRef]
  32. Petera, K.; Papácek, Š.; González, C.I.; Fernández-Sevilla, J.M.; Fernández, F.G.A. Advanced computational fluid dynamics study of the dissolved oxygen concentration within a thin-layer cascade reactor for microalgae cultivation. Energies 2021, 14, 7284. [Google Scholar] [CrossRef]
  33. Yang, Z.; del Ninno, M.; Wen, Z.; Hu, H. An experimental investigation on the multiphase flows and turbulent mixing in a flat-panel photobioreactor for algae cultivation. J. Appl. Phycol. 2014, 26, 2097–2107. [Google Scholar] [CrossRef]
  34. Sinetova, M.A.; Červený, J.; Zavřel, T.; Nedbal, L. On the dynamics and constraints of batch culture growth of the cyanobacterium Cyanothece sp. ATCC 51142. J. Biotechnol. 2012, 162, 148–155. [Google Scholar] [CrossRef] [PubMed]

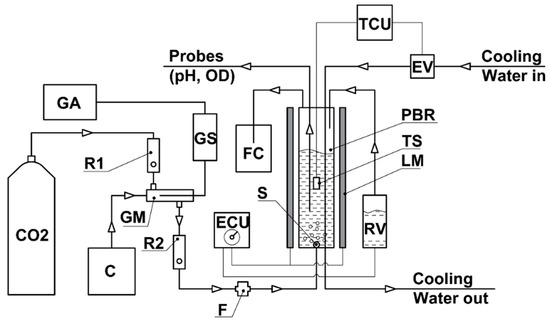

Figure 1. Principal working scheme of the experimental unit. CO2—carbon dioxide cylinder; GA—gas analyzer; C—air compressor; R1—CO2 rotameter; R2—gas-air mixture rotametr; F—filter; GS—gas analyzer sensor; FC—foam container; GM—gas-air mixer; ECU—electric control unit; TCU—temperature control unit; EV—electromagnetic valve; PBR—photobioreactor; S—gas-air mixture sprayer; RV—reserve water (medium) volume; TS—temperature sensor; LM—LED modules; OD—optical density; pH—hydrogen ion exponent.
Figure 1. Principal working scheme of the experimental unit. CO2—carbon dioxide cylinder; GA—gas analyzer; C—air compressor; R1—CO2 rotameter; R2—gas-air mixture rotametr; F—filter; GS—gas analyzer sensor; FC—foam container; GM—gas-air mixer; ECU—electric control unit; TCU—temperature control unit; EV—electromagnetic valve; PBR—photobioreactor; S—gas-air mixture sprayer; RV—reserve water (medium) volume; TS—temperature sensor; LM—LED modules; OD—optical density; pH—hydrogen ion exponent.
Life 12 01469 g001

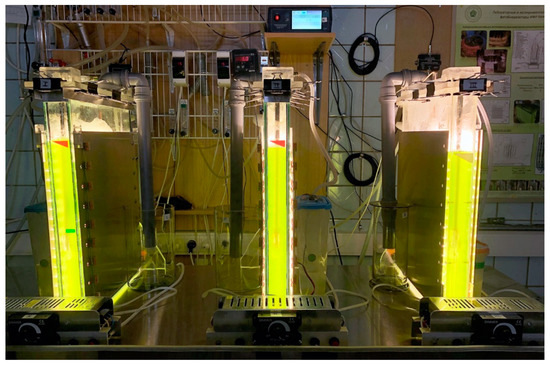

Figure 2. Photograph of the three flat-panel laboratory photobioreactors FP-5 filled with a suspension of Chlorella sorokiniana IPPAS C-1.
Figure 2. Photograph of the three flat-panel laboratory photobioreactors FP-5 filled with a suspension of Chlorella sorokiniana IPPAS C-1.
Life 12 01469 g002

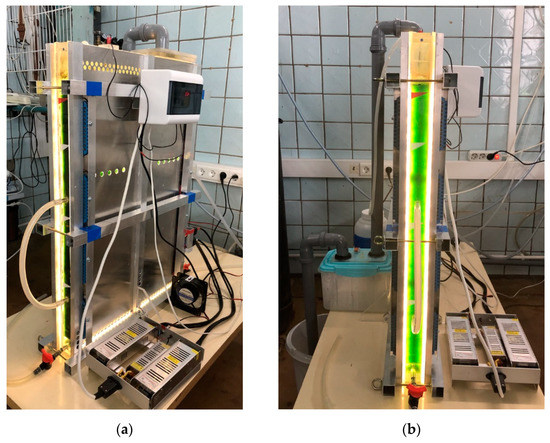

Figure 3. Photograph of the flat-panel pilot photobioreactor FP-18 filled with a suspension of C. sorokiniana IPPAS C-1: (a) general view; (b) reactor’s end face.
Figure 3. Photograph of the flat-panel pilot photobioreactor FP-18 filled with a suspension of C. sorokiniana IPPAS C-1: (a) general view; (b) reactor’s end face.
Life 12 01469 g003

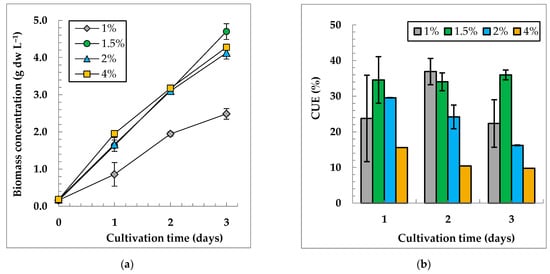

Figure 4. Biomass concentration dynamics (a) and CO2 utilization efficiencies (b) of C. sorokiniana IPPAS C-1 in FP-5 under different GAM CO2 concentrations and a constant RGAM = 0.2 vvm. Iave = 900 µmol m−2 s−1; T= 35.5 ± 0.5 °C.
Figure 4. Biomass concentration dynamics (a) and CO2 utilization efficiencies (b) of C. sorokiniana IPPAS C-1 in FP-5 under different GAM CO2 concentrations and a constant RGAM = 0.2 vvm. Iave = 900 µmol m−2 s−1; T= 35.5 ± 0.5 °C.
Life 12 01469 g004

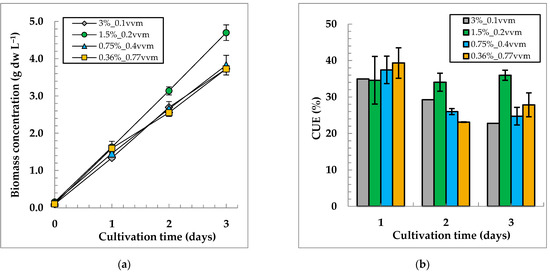

Figure 5. Biomass concentration dynamics (a) and CO2 utilization efficiencies (b) of Chlorella sorokiniana IPPAS C-1 grown in the FP-5 under different GAM supply conditions and a constant RCO2 = 0.003 vvm. Iave = 900 µmol m−2 s−1; T = 35.5 ± 0.5 °C.
Figure 5. Biomass concentration dynamics (a) and CO2 utilization efficiencies (b) of Chlorella sorokiniana IPPAS C-1 grown in the FP-5 under different GAM supply conditions and a constant RCO2 = 0.003 vvm. Iave = 900 µmol m−2 s−1; T = 35.5 ± 0.5 °C.
Life 12 01469 g005

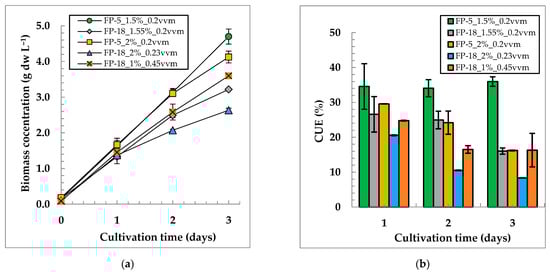

Figure 6. Biomass concentration dynamics (a) and CO2 utilization efficiencies (b) of C. sorokiniana IPPAS C-1 in FP-5 and FP-18 under identical GAM supply conditions. Iave = 900 µmol m−2 s−1; and T = 35.5 ± 0.5 °C.
Figure 6. Biomass concentration dynamics (a) and CO2 utilization efficiencies (b) of C. sorokiniana IPPAS C-1 in FP-5 and FP-18 under identical GAM supply conditions. Iave = 900 µmol m−2 s−1; and T = 35.5 ± 0.5 °C.
Life 12 01469 g006
Table 1. Main parameters of the FP-PBRs used in this study.
Table 1. Main parameters of the FP-PBRs used in this study.
PBRLight Path, mmWorking Volume, LSuspension Level, mm
FP-5405370
FP-184018700
PBRAverage Irradiation
Ee, μmol Photons m−2 s−1
The Ratio of the Illuminated Surface to the Volume SA/V, m2 m−3Specific Power Consumption * Wsp, W L−1
FP-590050.323
FP-1890046.722
*—electric power consumption of the PBRs used for the light system and ventilation of GAM.
Table 2. Starch and protein content in C. sorokiniana IPPAS C-1 cells grown for 3 days under different GAM supply conditions.
Table 2. Starch and protein content in C. sorokiniana IPPAS C-1 cells grown for 3 days under different GAM supply conditions.
VariantStarch, % of d.w. *Protein, % of d.w. *Final Biomass Concentraion, g dw L−1
FP-5
RGAM = 0.1 vvm
GAM CO2 concentration 7.9%
RCO2 = 0.008 vvm
11 ± 2.741 ± 4.3%2.7
FP-18
RGAM = 0.43 vvm
GAM CO2 concentration 1.02%
RCO2 = 0.004 vvm
14 ± 1.945 ± 2.33.5
FP-5
RGAM = 0.2 vvm
GAM CO2 concentration 2.04%
RCO2 = 0.004 vvm
20 ± 0.638 ± 8.64.0
FP-5
RGAM = 0.2 vvm
GAM CO2 concentration 4%
RCO2 = 0.008 vvm
18 ± 1.738 ± 7.84.3
FP-5
RGAM = 0.8 vvm
GAM CO2 concentration 0.98%
RCO2 = 0.008 vvm
54 ± 11.719 ± 2.94.9
* Mean values and their standard deviations are shown.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Gabrielyan, D.A.; Gabel, B.V.; Sinetova, M.A.; Gabrielian, A.K.; Markelova, A.G.; Shcherbakova, N.V.; Los, D.A. Optimization of CO2 Supply for the Intensive Cultivation of Chlorella sorokiniana IPPAS C-1 in the Laboratory and Pilot-Scale Flat-Panel Photobioreactors. Life 2022, 12, 1469. https://doi.org/10.3390/life12101469

AMA Style

Gabrielyan DA, Gabel BV, Sinetova MA, Gabrielian AK, Markelova AG, Shcherbakova NV, Los DA. Optimization of CO2 Supply for the Intensive Cultivation of Chlorella sorokiniana IPPAS C-1 in the Laboratory and Pilot-Scale Flat-Panel Photobioreactors. Life. 2022; 12(10):1469. https://doi.org/10.3390/life12101469

Chicago/Turabian Style

Gabrielyan, David A., Boris V. Gabel, Maria A. Sinetova, Alexander K. Gabrielian, Alexandra G. Markelova, Natalia V. Shcherbakova, and Dmitry A. Los. 2022. "Optimization of CO2 Supply for the Intensive Cultivation of Chlorella sorokiniana IPPAS C-1 in the Laboratory and Pilot-Scale Flat-Panel Photobioreactors" Life 12, no. 10: 1469. https://doi.org/10.3390/life12101469

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
