Article

Inactivation of Three RG(S/T)GR Pentapeptide-Containing Negative Regulators of HetR Results in Lethal Differentiation of Anabaena PCC 7120

by
Ivan Khudyakov
1,*,
Grigory Gladkov
1 and
Jeff Elhai
2
1
All-Russia Research Institute for Agricultural Microbiology, 196608 Saint-Petersburg, Russia
2
Department of Biology, Virginia Commonwealth University, Richmond, VA 23284, USA
*
Author to whom correspondence should be addressed.
Life 2020, 10(12), 326; https://doi.org/10.3390/life10120326
Submission received: 31 October 2020 / Revised: 27 November 2020 / Accepted: 1 December 2020 / Published: 4 December 2020
(This article belongs to the Special Issue Cellular and Molecular Strategies in Cyanobacterial Survival)
Browse Figures
Versions Notes

Abstract

:
The filamentous cyanobacterium Anabaena sp. PCC 7120 produces, during the differentiation of heterocysts, a short peptide PatS and a protein HetN, both containing an RGSGR pentapeptide essential for activity. Both act on the master regulator HetR to guide heterocyst pattern formation by controlling the binding of HetR to DNA and its turnover. A third small protein, PatX, with an RG(S/T)GR motif is present in all HetR-containing cyanobacteria. In a nitrogen-depleted medium, inactivation of patX does not produce a discernible change in phenotype, but its overexpression blocks heterocyst formation. Mutational analysis revealed that PatX is not required for normal intercellular signaling, but it nonetheless is required when PatS is absent to prevent rapid ectopic differentiation. Deprivation of all three negative regulators—PatS, PatX, and HetN—resulted in synchronous differentiation. However, in a nitrogen-containing medium, such deprivation leads to extensive fragmentation, cell lysis, and aberrant differentiation, while either PatX or PatS as the sole HetR regulator can establish and maintain a semiregular heterocyst pattern. These results suggest that tight control over HetR by PatS and PatX is needed to sustain vegetative growth and regulated development. The mutational analysis has been interpreted in light of the opposing roles of negative regulators of HetR and the positive regulator HetL.

1. Introduction

In response to different environmental cues, a subpopulation of vegetative cells from nostocalean cyanobacteria can differentiate into different endpoints: terminally differentiated heterocysts for aerobic nitrogen fixation, suicidal necridia for filament fragmentation to produce motile hormogonia for dissemination, and dormant akinetes for survival in harsh environments [1,2,3,4,5]. The model strain Anabaena/Nostoc sp. PCC 7120 (hereafter Anabaena PCC 7120) does not produce akinetes and hormogonia in laboratory conditions, although it contains all genes known to be necessary for at least hormogonia production (Figure S5 in [6]). It has been widely used to study different aspects of heterocyst differentiation and nitrogen fixation, including the mechanisms governing what is arguably the simplest and most ancient example of a linear semiregular biological pattern that formed by heterocysts along filaments of vegetative cells. It is evident that despite their apparent simplicity, the regulatory networks underlying heterocyst pattern formation are highly complex and multilayered [3,7].
According to a widely accepted model for the initiation of heterocyst differentiation, the accumulation of 2-oxoglutarate (2-OG) in cyanobacteria under nitrogen deprivation [8] is perceived as a nitrogen starvation signal by the global transcriptional regulator NtcA [9]. Activated by its positive effector 2-OG [10,11,12], NtcA can act as either an activator or repressor of numerous genes [13]. 2-OG-activated NtcA activates the transcription of nrrA [14], which, in turn, activates the transcription of hetR [15]. HetR is a master regulator of differentiation specific to filamentous cyanobacteria [16]. The expression of multiple heterocyst-specific genes depends on HetR, but only a few have been shown to be regulated directly, and repression of several promoters in vegetative cells has been reported (see [17] for a recent review).
NtcA and HetR constitute a mutually dependent positive regulatory circuit [18]. Transcriptional regulation of hetR is complex—it is transcribed from multiple promoters that are regulated both temporally and spatially [19]. There is more than transcriptional regulation, however, as replacement of normal transcriptional control of the chromosomal hetR with ectopic expression from a copper-regulated petE promoter resulted in a wild-type-like heterocyst patterning, which depended on post-transcriptional regulation of HetR protein levels [20], of which phosphorylation is a major part [21,22].
Proteins from three distinct genes, a small peptide PatS [23], a small protein PatX [16], and HetN protein [24,25], are known to suppress heterocyst differentiation when overexpressed. The only feature they all have in common is an RGSGR motif (a few PatX alleles, including that in Anabaena PCC 7120, contain RGTGR instead), which was shown to be essential for suppression of heterocyst formation [23,26]. Both PatS and HetN have been shown to block the positive autoregulation of hetR [27,28]. patS and patX expression is induced early (6–8 h after combined nitrogen deprivation) in regularly spaced cells that will become heterocysts [16,23] from DIF1 motif (TCCGGA)-containing, NtcA- and HetR-dependent promoters [29,30]. While patS expression is downregulated in mature heterocysts, expression of hetN first localizes to committed heterocysts [27] and continues also after heterocyst maturation [31,32].
Inactivation of patS leads initially to a phenotype of multiple contiguous heterocysts (Mch) during de novo heterocyst differentiation, but eventually, the normal pattern partially reappears [23,33]. In contrast, inactivation of hetN results in a normal de novo pattern, but Mch formation during successive rounds of differentiation [27]; thus, PatS appears to be responsible for establishing the spatial heterocyst pattern, while HetN is responsible for its maintenance. Addition to the medium of synthetic penta- or hexapeptides (denoted PatS-5 for RGSGR and PatS-6 for ERGSGR) corresponding to the C-terminal (in PatS) or internal (in HetN) motifs inhibits differentiation, but cannot restore a wild-type heterocyst pattern in a patS mutant [23,34]. Analysis of hetN deletion variants suggested that the RGSGR motif is required for both inhibitory and patterning activity, and thus PatS and HetN regulate different stages of heterocyst patterning utilizing the same amino acid motif for intercellular signaling [26,35]. The actions of PatS and HetN are affected by a third protein, PatA [36], evidently a response regulator, without which Anabaena PCC 7120 produces only terminal heterocysts [17,37].
Besides negative regulators, a positively acting factor, HetL, may be involved in HetR regulation. It is a member of a large family of poorly characterized pentapeptide repeat proteins abundant in cyanobacteria [38] and is composed of 40 pentapeptides (A(D/N)LXX). On a multicopy plasmid hetL restored the ability of the PatS-overexpressing strain to differentiate heterocysts, while ectopic overexpression in wild type induced Mch in a nitrate-containing medium [39]. However, inactivation of hetL did not impair heterocyst development and diazotrophic growth [33]. A recent publication [40] sheds light on the interplay between HetL, HetR, PatS, and PatX, and provides evidence that HetR interacts with HetL at the same interface as PatS and PatX, but without inhibiting its DNA binding activity, suppressing inhibition of heterocyst differentiation. HetL competes with PatS and PatX for HetR binding, and thus it acts as a competitive activator of HetR, complicating its regulation.
We showed previously that the hetR gene arose in filamentous cyanobacteria, likely for the regulation of patterned differentiation of specialized cells, long before they learned how to secure nitrogenase in microoxic heterocysts, and it was invariably accompanied by patX and no other RG(S/T)GR-containing regulator protein [16]. It is not alone, however, in Anabaena PCC 7120, one of a small a group with three RG(S/T)GR-containing negative regulators of HetR [16]. It is therefore of interest to determine the role PatX plays along with PatS and HetN in regulating heterocyst differentiation. Here, we present the results of mutational analyses of the three RG(S/T)GR-containing proteins in Anabaena PCC 7120, alone and in combinations, under conditions that promote heterocyst differentiation, and show that unrestrained HetR activity was lethal under different growth conditions. In a nitrogen-depleted medium, PatX had partially overlapping functions with PatS, but all three negative regulators showed different lesions in intercellular signaling. We attribute these apparently contradictory results to interference of RG[S/T]GR-containing negative regulators with a competitive activator HetL due to a rivalry for HetR binding at the same interface. We also show that in a nitrogen-replete medium, PatX was required in the absence of PatS and PatS was required in the absence of PatX for pattern formation, irrespective of the presence or absence of HetN.

2. Materials and Methods

2.1. Strains, Growth Conditions and Microscopy

Anabaena PCC 7120 was grown in nitrate-replete BG-11 (N+) medium or in BG-110 medium free of combined nitrogen (N-) [41] and, when appropriate, free of copper (Cu-; for regulation of the petE promoter), at 30 °C illuminated by cool white fluorescent light at 2000 l× (ca. 28 µmol photons/m2/s). For ammonium-containing medium, NH4Cl (2.5 mM) and MOPS buffer (5 mM, pH 8.0) were added to BG-110. Single and double recombinants and strains carrying replicative plasmids were grown in the presence of appropriate antibiotics at the following final concentrations: neomycin, 25 µg/mL for solid medium and 15 µg/mL for liquid medium; erythromycin, 5 µg/mL; spectinomycin, 5 µg/mL plus streptomycin, 2.5 µg/mL.
To induce heterocyst formation in liquid medium, the filaments from fresh streaks on BG-11 plates were transferred with sterile toothpicks into a 96-well microtiter plate containing liquid BG-110 medium. Cells were routinely examined by bright-field microscopy with an Axiostar plus microscope (Zeiss International, Jena, Germany) equipped with an EOS 1300D(W) digital camera (Canon Inc., Tokyo, Japan), using 40× objective magnification. To visualize the heterocyst-specific envelope polysaccharide layer, a 0.5% Alcian blue solution in 50% ethanol was used for staining cyanobacterial filaments before microscopic examination [42].

2.2. Plasmid and Strain Construction

The strains and plasmids used in this study are listed in Table 1. patX mutant strains RIAM1238 (DR929; patX::Ω; Smr/Spr) and RIAM1239 (DR931; ΔpatX::Ω; Smr/Spr) were constructed as follows. A 2.9 kb SalI-XmnI fragment containing the 3′-end of alr2333, asl2332 (patX), alr2331, asl2329, and the 3′-end of alr2328 from anp03869 was ligated between the SalI and SmaI sites of pK18, producing pRIAM780, and an Ω cassette (a Smr/Spr determinant flanked by transcriptional terminators) was excised with SmaI from pAM684 and inserted into the internal ScaI site of patX in pRIAM780. A construct was selected with the orientation of aadA (Smr/Spr) parallel to patX, producing pRIAM796.
Plasmid pRIAM780 containing the 3′-end of alr2333, asl2332 (patX), alr2331, asl2329 and the 3′-end of alr2328 derived from anp03869 was digested with ScaI and DraI, deleting most of patX and its 3′ UTR, replacing the lost sequence with an Ω cassette excised with SmaI from pAM684. A construct was selected with the orientation of aadA (Smr/Spr) parallel to patX, producing pRIAM917. Plasmid pRIAM860 is a 4.65-kb derivative of anp03226 with the sequence between AfeI and SmaI sites deleted, leaving all of all2333, asl2332 (patX), alr2331, asl2329, and the 3′-end of alr2328. The plasmid was cut with KpnI and partially with BspEI and ligated with pRIAM917 and pRIAM796 digested with KpnI + BspEI, producing pRIAM923 and pRIAM925, respectively. Finally, inserts from pRIAM925 and pRIAM923 were excised with SacI+PstI and placed between the same sites of suicide vector pRL271, producing pRIAM929 and pRIAM931, respectively. All steps of the constructions of pRIAM929 and pRIAM931 are depicted in Supplemental Figure S1.
To delete patS from the Anabaena PCC 7120 chromosome, an insert from pAM1035 was excised with BamH + SalI and moved to pK18, producing pRIAM1159. A C.CE3 Cmr Emr cassette was excised with EcoICRI from pRL1567 and inserted between the EcoRV and ScaI sites of pRIAM1159, replacing a patS-bearing 0.38 kb chromosomal fragment with Cmr Emr genes parallel to excised patS, producing pRIAM1175. The insert from this plasmid was moved as a SacI-PstI fragment between the same sites of suicide vector pRL278, producing pRIAM1177. All steps of the constructions of pRIAM1177 are depicted in Supplemental Figure S2.
The plasmids pRIAM929, pRIAM931, and pRIAM1177 were transformed into E. coli strain AM1359 [23] containing a broad host range plasmid pRL443 with conjugal functions and a pRL623 plasmid to provide both methylation and mobilization functions and then conjugated into Anabaena PCC 7120, its derivative strain PN, and other successive mutant derivatives as indicated in Table 1, using standard protocols [51]. The next day, conjugation plates were underlaid with appropriate antibiotics to select for single recombinants. Subsequent selection for double recombinants using the sacB gene present on the vectors was performed as described by [52]. After multiple rounds of successive cloning, the genotypes of all constructed mutant strains were confirmed by PCR analysis (Supplemental Figure S3).

3. Results

3.1. Mutational Analysis Suggests That in Nitrogen-Depleted Medium, patX is Impaired in Cell–Cell Signaling and Acts Cell-Autonomously

PatX shares the ability of PatS and HetN to suppress heterocyst differentiation when overexpressed [16]. The phenotypes of patS and hetN single and double mutants were previously described in detail. The patS deletion single mutant strain UHM114 [43] and patS replacement mutant [23,33] produce both single heterocysts and Mch in nitrogen-depleted (N-) medium. A conditional PpetE-hetN mutant transferred into copper-free (Cu-) N- medium initially displays the wild-type pattern, but later, Mch starts to appear [27], while a ∆hetN strain CSL7 forms Mch without lag [35]. Unlike the patS and hetN mutants, inactivation of patX did not cause any visibly aberrant phenotype in nitrogen-depleted (N-) medium. The mutant strains RIAM1238 (patX::Ω) and RIAM1239 (∆patX::Ω) mutant strains behaved similarly to each other. Qualitatively, both the time course of differentiation and heterocyst pattern were essentially the same as in the wild-type strain (Figure 1a,b). Since the seemingly normal phenotype of patX mutants growing in N- medium could be caused by a functional redundancy or impaired function of PatX, we attempted to construct and examine the phenotypes of strains with different combinations of patX, patS, and hetN mutations.
It was previously reported that inactivation of hetN results in an unstable Mch phenotype tending to change to a Het− phenotype upon extended subculturing [24]. To avoid the instability, we exploited an approach used previously by [27], who constructed strain 7120PN in which the coding region of hetN was fused to the petE promoter controlled by the level of copper. At the concentration of copper in BG-11 medium (0.3 µM), the ectopic expression of hetN from this promoter is sufficient to completely suppress heterocyst differentiation in Anabaena PCC 7120, while in Cu- medium residual hetN expression is low enough to virtually eliminate the HetN-mediated suppression of HetR activity [27,43]. The phenotype of a ∆patS derivative of 7120PN was described earlier [43].
In order to assess whether the functional role of PatX is masked by PatS and HetN, we made use of the original conditional mutant strain 7120PN (PpetE-hetN) [27] with patX knocked out: RIAM1241 (PpetE-hetN patX::Ω) and RIAM1242 (PpetE-hetN ΔpatX::Ω). In addition, we looked at the phenotypes of two strains similar to the previously reported 7120PN ∆patS mutant UHM100 [43]: RIAM1249 and RIAM1250 (independent isolates of PpetE-hetN ΔpatS::C.CE3). Both ΔpatS mutants showed identical phenotypes, similar to that of UHM100, but different from 7120PN ∆patX.
In N− Cu− medium, RIAM1241 and RIAM1242 behaved exactly like the parental strain, the patX+ hetN conditional mutant 7120PN: one day after induction, a single semiregular heterocyst formed (Supplemental Figure 1c,e), but during consecutive rounds of differentiation, Mch started to appear due to the formation of new heterocysts adjacent to existing single or multiple heterocysts (Figure 1d).
Transfer of RIAM1250 (PpetE-hetN ΔpatS::C.CE3) filaments in liquid N− Cu− medium resulted in a deteriorated heterocyst pattern with production of a Mch pattern at 24 h (Figure 1g) and progressive ectopic differentiation upon further incubation (Figure 1f), so that nearly complete differentiation occurred after 4–5 days. There was no growth and cell sediment bleached. This behavior was essentially the same as described earlier for a strain UHM100, also lacking patS and conditional in hetN expression [43]. In the case of our double and triple mutants, the relative abundance of aberrant heterocysts varied in particular mutants and was most prominent in RIAM1243 (ΔpatS ΔpatX::Ω(pAM1714)) (ca. 20%, by visual inspection), perhaps due to the presence of a functional copy of hetN, which could influence the activity of HetR at late stages and somehow compromise the block of division.
Our initial attempts to construct a ΔpatS ΔpatX::Ω double mutant failed: while single recombinants were easily obtained, positive selection for double recombinants [52] on sucrose plates produced only very rare colonies. All retained the Emr marker of the pRL271 suicide vector, indicating the absence of gene replacement by double recombination. However, after conjugation of a PpetE-patS-containing plasmid pAM1714 marked by Nm resistance [23] into the ΔpatS SR931/pRL271 meridiploid single recombinants (containing both the WT patX and ΔpatX::Ω genes), which is viable and has a ΔpatS phenotype, we obtained many Ems Nmr colonies on sucrose plates, indicating double recombination. A completely segregated conditional double mutant, RIAM1243 (ΔpatS ΔpatX::Ω(pAM1714)), bleached upon transfer to Cu- medium and, apparently, stopped growing, even in nitrate-containing medium. Massive synchronous heterocyst differentiation was visible after 1–2 days in N- medium (Figure 1h), single necridia were rare in some filaments, but formed multiple contiguous necridia in others, and filaments of differentiated cells contained abundant aberrant (pro)heterocysts with mid-cell envelope constrictions and/or division planes.
A triple mutant RIAM1248, defective in patS, in patX, and conditionally in hetN, was constructed, with viability maintained by hetN expression from a copper-regulated promoter. As with the patS patX double mutant (see above), transfer of the triple mutant into N- Cu- medium resulted in synchronous ectopic differentiation at 24 h (Figure 1j). After 48 h, filaments showed little fragmentation and consisted almost exclusively of proheterocysts and heterocysts (Figure 1i). Aberrant (apparently dividing) heterocysts were comparatively rare in the triple mutant.

3.2. In Nitrogen-Replete Medium, Either patS or patX Alone Can Promote Semiregular Pattern Formation

On BG-11 plates, RIAM1239 (defective in patX) did not form heterocysts; however, unlike the wild type, the mutant strain upon transfer from solid to liquid nitrate- or ammonium-containing BG-11 medium produced semiregular heterocysts in many filaments, although at a lower frequency than when transferred from solid BG-11 to liquid N− medium (Figure 2a,b). Differentiation of heterocysts in nitrogen-replete (N+) medium resembles formation of constitutive heterocysts by patS and hetN patS mutants [23,33,36,43].
Upon transfer to N+ Cu− medium, the hetN ∆patX conditional mutant RIAM1242 formed semiregular predominantly single heterocysts (Figure 2c), and the hetN ∆patS conditional mutant RIAM1250 in N+ Cu− medium behaved similarly to RIAM1242—it also formed semiregular single and some double heterocysts (Figure 2d). However, 5–6 days after the transfer, RIAM1250 started to fragment, first at vegetative cell-heterocyst junctions. Further incubation resulted in progressive fragmentation to very short filaments, single vegetative cells, and detached heterocysts (Figure 2e). Evidently, both PatS and PatX are necessary to restrain HetR sufficiently to prevent differentiation in N+ liquid medium, while only one of them is necessary to produce a semiregular pattern of heterocysts.
A double mutant defective in both patS and patX exhibited a more extreme phenotype under N+ conditions. The ΔpatS ΔpatX::Ω(pAM1714) conditional double mutant RIAM1243 grew as filaments of green vegetative cells on BG-11, but upon transfer into N+ Cu− liquid medium, fragmented into chains of bleached enlarged round cells with small cyanophycin-like granules in the cytoplasm as well as single and multiple contiguous necridia (Figure 2f). Most of the enlarged round cells morphologically did not resemble heterocysts, but a few of them had a thicker envelope and polar nodules similar to those located in the neck regions of heterocysts (Figure 2f, indicated by asterisks). Apparently, in N+ medium, the differentiation process is induced by transfer into liquid BG-11, but is disorganized and in most cases ceases soon after the initial and early stages. These stages include disintegration of thylakoids and loss of pigmentation, and deposition of the additional outer polysaccharide layer as indicated by Alcian blue staining (Figure 2g).
The RIAM1248 triple mutant behaved differently from the RIAM1243 double mutant. After transfer to N+ Cu- medium, the induced differentiation process was also disorganized but proceeded more slowly, and during the first two days, many cells retained their shape and size but gradually lost pigmentation, and necridia-like cells appeared. After 4 days, the filaments bleached and fragmented due to massive necridia formation, and some enlarged pale-green round cells with thickened envelopes and division planes were visible but without any sign of envelope constriction. Cells with colorless transparent cytoplasm with large granules were also seen (Figure 2h). Both RIAM1243 and RIAM1248 produced multiple necridia looking like cell ghosts, which increased in number during prolonged incubation (Figure 2f,h).

3.3. Instability of Conditional Mutants Overexpressing patS or hetN

In the course of our experiments with conditional mutants, we observed very high mutation rates of strains overexpressing either patS or hetN. These strains were constructed to conditionally block differentiation and thus avoid lethality or eliminate a detrimental burden of extra heterocyst production during cultivation. Although this approach permitted us to obtain and document the phenotypes of strains with multiple mutations, working with such mutants was tricky and required constant microscopic control and frequent cloning to prevent otherwise rapid changes in mutant phenotypes.
Several passages on BG-11 plates with or without appropriate antibiotics of fully segregated conditional mutants resulted in a rapid accumulation of secondary mutations. For example, Figure 3 shows a double mutant strain RIAM1243 before and after several subcultures on selective BG-11 + Sp, Sm, Nm plates and subsequent transfer and incubation in N− Cu− medium for 2 weeks. While a freshly isolated RIAM1243 clone after prolonged incubation exhibited only rare short stretches of vegetative cells originating from rare single cells that remained undifferentiated (Figure 3a), long filaments of vegetative cells (Het− phenotype), sometimes with terminal single or multiple heterocysts (PatA-like or PatA Mch phenotypes), accumulated in suspensions of fragmented chains of heterocysts (Figure 3b). Similar instability was exhibited by the conditional PpetE-hetN ΔpatS mutant RIAM1250 (Figure 2e) and the triple mutant RIAM1248 (not shown).
There was no growth in both cases, and both cultures contained a light yellowish-grey sediment. We used in experiments only freshly isolated clones with all filaments showing similar phenotypic characteristics.

4. Discussion

PatX is the only RG(S/T)GR protein whose association with HetR is more ancient than the heterocyst-forming cyanobacteria [16]; however, its function remains obscure. Prior to this work, all that was known was that ectopic overexpression of PatX blocked heterocyst differentiation in Anabaena PCC 7120 [16], and so did PatX orthologs from Mastigocladus laminosis [53] (called “alternative PatS”) and from Arthrospira platensis NIES 39 [54] (called “PatS”), a filamentous strain that does not form heterocysts. To clarify the role of PatX in heterocyst regulation, we disrupted the patX gene, but the resulting mutant strain grown in the absence of a nitrogen source showed no heterocyst-related phenotype. This could be a consequence of functional redundancy or a functionality unrelated to heterocyst formation. Loss of PatX also produced no obvious phenotypic change in combination with a conditional hetN mutation. Under conditions in which hetN was not expressed, two mutant strains, one carrying conditional hetN and the other identical but with patX knocked out, displayed a similar delayed Mch phenotype (Figure 1d). Both strains were phenotypically different from the conditional hetN patS double mutant UHM100 described previously [36,43] and from an analogous double mutant RIAM1250 constructed in this work, which showed gradual asynchronous differentiation so that in a few days, almost all cells became heterocysts (Figure 1f). These results demonstrate that the functionality of patX differs from that of patS. PatS is required for de novo pattern formation, but is not sufficient to prevent later formation of contiguous heterocysts (Mch). PatX cannot replace PatS in directing de novo pattern under nitrogen-depleted (N-) conditions, nor can it replace HetN in maintaining a pattern.
A residual functionality of patX becomes obvious on comparison of a ∆patS mutant with a ∆patS ∆patX double mutant RIAM1243, both retaining a wild-type hetN (Figure 1, [23]). The double mutant is inviable unless patS is conditionally suppressed by placing the gene under the control of the copper-regulated petE promoter. Upon removal of copper from the medium, this double mutant behaved essentially as the conditional hetN patX patS triple mutant RIAM1248—both started nearly synchronous differentiation of all vegetative cells into heterocysts when incubated in N− Cu− medium (Figure 1h–j). The intact chromosomal copy of hetN in RIAM1243 could not prevent or slow down the differentiation process. Thus, PatX (along with PatS) is required to prevent rapid synchronous differentiation of all vegetative cells.
These results indicate that upon combined nitrogen deprivation, all three negative regulators are instrumental in promoting regular pattern formation and/or maintenance, but in different ways. The roles of PatS and HetN in pattern initiation and maintenance, respectively, are readily discernible, but the role of PatX is masked by the presence of PatS. Our results are in line with those of Risser and Callahan [20], who observed the formation of concentration gradients of HetR in proximity to heterocysts, dependent on either patS or hetN. When both genes were deleted, no HetR gradients formed, indicating that either patS or hetN is required for establishing HetR concentration gradients after combined nitrogen removal. Their results demonstrate that patX (unknown at the time) is unable to induce HetR gradient formation in the absence of patS and hetN and thus does not participate in cell–cell signaling in the same way as patS and hetN.
A role for PatX in regulating heterocyst differentiation is more easily seen when Anabaena PCC 7120 is grown in nitrogen-replete (N+) medium. Unlike the wild-type strain, the patX mutant RIAM1239 produced morphologically distinct semiregular heterocysts when transferred to liquid nitrate or ammonia-containing media (Figure 2a,b), indicating that its product was needed to prevent unnecessary differentiation. Conditional double mutants RIAM1242 (hetN patX) and RIAM1250 (hetN patS) also formed semiregular heterocysts in copper-free (Cu-) medium (Figure 2c,d), indicating that in N+, either PatS or PatX is sufficient for rapid pattern formation. At the same time, both conditional double mutant RIAM1243 (ΔpatS ΔpatX::Ω(pAM1714)) and conditional triple mutant RIAM1248 (hetN patX patS), after removal of copper, started ectopic aberrant differentiation. With both mutants, all cells differentiated into morphologically distinct heterocysts in N- Cu- medium, but in N+ Cu- medium, differentiation into heterocyst-like cells was rare, and aberrant differentiation led to the appearance of enlarged spherical cells that partially retained pigmentation and of necridia, resulting from cell lysis (Figure 2f,h). Apparently, unrestrained HetR in N+ medium promotes differentiation that is misdirected. The low level in N+ medium of NtcA and/or its activator 2-oxoglutarate [55] could exacerbate the situation.
The interactions between the different signaling molecules discussed here can be visualized through the speculative model shown in Figure 4, one of many possible that fit the data. For some other aspects of signaling, see Flores et al., (2019) [17]. Figure 4A introduces the actors considered in the model and their icons, illustrating that a low N/C ratio increases the level of 2-oxoglutarate, inducing both the activity and transcription of NtcA [55]. NtcA and HetR mutually increase the other’s transcription, forming a positive feedback loop [18], and a high level of HetR (possibly modified, possibly indirectly) increases the transcription of patS [56], hetL [40], patX [29], and eventually hetN [28,29]. Some form of PatS, PatX, and presumably HetN negatively affect the activity of HetR [17,40], while HetL protects HetR from its inhibitors [40]. The model represents the three RG(S/T)GR proteins as five circles, but this is not intended to imply that the pentapeptide is the natural signal within Anabaena PCC 7120 [26,35,40,57,58]. Here we refer to the active signal loosely as PatS, PatX, and HetN. Under N+ conditions (Figure 4B), the level of 2-oxoglutarate is reduced, leading to lower levels and activity of NtcA and HetR. PatS is expressed at a low level under these conditions [29,33], and PatX is as well ([29]; Khudyakov, unpublished).
After nitrogen stepdown (-N), cells within wild-type filaments are represented as experiencing different levels of nitrogen starvation [59,60] (Figure 4C, left). N-deprivation increases the level of HetR from a basal level, but the levels of PatS and PatX, whose transcription increases as a result of this change [16,33], are postulated to be sufficient to bind to HetR and inhibit at least part of its activity [17,40]. The level of HetN does not increase during this early period [28]. HetL expression also increases after N-stepdown, probably in differentiating cells [40], and HetL competes with PatS and PatX for binding to HetR [40]. It should be noted that HetL protein is not required for normally spaced heterocysts [39] and the degree to which HetL competes with RG(S/T)GR signals in vivo is speculative [40]. In time, cells in which HetR has escaped inhibition proceed on to form mature heterocysts, while the rest revert back to vegetative cell status (Figure 4C, right). The model shows the presence of HetN and PatX but not PatS in mature heterocysts, reflecting their known time course and levels of transcription and/or protein levels [28,31,61]. The level of HetN in heterocysts and its resulting appearance in adjacent cells is required to maintain the pattern of heterocysts [27]. The state of a wild-type strain is depicted, but phenotypically, a strain defective in PatX behaves the same way in N- medium.
In the absence of PatS, cells that would otherwise differentiate still did, but HetR in adjacent cells that are only mildly starved escaped inhibition, perhaps because of an insufficient RG(S/T)GR signal, leading to MCH (Figure 4D). The inability of the mutation of patX (in contrast to patS) to affect heterocyst spacing may be due to a difference in the binding to modified HetR in heterocysts of the RGTGR-containing PatX signal relative to RGSGR-containing PatS signal [40]. HetN production restrains more extensive differentiation. In the absence of both PatS and HetN, HetR in cells adjacent to heterocysts is not fully inhibited, and over the course of several days, eventually, nearly all cells differentiate (Figure 4E; [43] and our own observations). In the absence of all three RG(S/T)GR signals (or just PatS and PatX), HetR proteins in both starved and mildly starved cells were not inhibited, and all cells rapidly differentiated (Figure 4F).
In wild-type Anabaena PCC 7120, cells grown in nitrate or ammonia did not reach the threshold level of starvation for differentiation (Figure 4G). Even in random cells that are mildly starved, the level of PatS and PatX signal was high enough to titrate the low level of HetR. The presence or absence of HetN did not materially affect the phenotype in N+ medium. In strains lacking PatX (Figure 4H) or PatS (not shown; [23]), the level of RG(S/T)GR signal was no longer high enough to titrate the low level of HetR, and so heterocyst differentiation proceeded even in the presence of nitrate or ammonia. When both PatS and PatX were absent, no early-acting RG(S/T)GR signal was present to restrain HetR, and so, over time, all cells were affected, either by differentiating to aberrant heterocysts or by lysing (Figure 4I).
The developmental chaos that results from patX patS and hetN patS double mutants produces strong selective pressure for the rapid accumulation of suppressor mutations to escape from lethal terminal differentiation. Similar instability has been seen with strains overexpressing HetR [62] or HetZ and HetP [63] and strains with mutated hetN [25]. In our experiments, we tried to avoid this problem by using conditional mutants and maintaining them in a medium that blocked heterocyst development completely and thus presumably eliminated negative selection pressure on mutants overproducing heterocysts [43,63]. Nevertheless, a high mutation rate was still observed, resulting in the rapid accumulation of Het− and PatA-like mutants producing only terminal heterocysts (Figure 3). We know of no studies concerning growth defects in N+ medium in strains affected in HetR function or expression, but HetR may well participate in protein interactions and/or influence expression of genes that are unrelated to heterocyst formation but important for vegetative growth [17]. Its overexpression or inhibition of expression and activity could impose selective pressure for the appearance of suppressor mutations.
In the presence of combined nitrogen, either PatX or PatS as the sole HetR-regulator could establish and maintain a wild-type semiregular heterocyst pattern (Figure 2c,d), and in terms of current models of heterocyst pattern formation, they are fully proficient in cell–cell signaling, a prerequisite for pattern formation. This basic mechanism rests on interactions between two players, HetR and PatX/PatS derivatives, perhaps as modeled by a Turing-like reaction-diffusion mechanism [3], it works irrespective of nitrogen status and is hidden by additional layers of regulation, but can be revealed by mutational analyses. These additional layers may respond to the availability of combined nitrogen or other environmental cues and a set of downstream regulators (which can vary in different strains and complicate regulation) transmitting the patterning signals and converting them into morphogenetic and metabolic changes. We conjecture that this basic mechanism was initially designed by filamentous cyanobacteria for the purpose of dissemination by nonrandom fragmentation of trichomes through necridia formation, and later modified and adopted for patterned heterocyst differentiation.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-1729/10/12/326/s1, Figure S1: Construction of pRIAM929 and pRIAM931 (ΔpatX), Figure S2: Construction of pRIAM1177 (ΔpatS), Figure S3: Segregation of mutations.

Author Contributions

Conceptualization, I.K.; methodology, I.K.; investigation, I.K. and G.G.; visualization, J.E.; writing—original draft preparation, I.K.; writing—review and editing, I.K. J.E. and G.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by the Russian Science Foundation, grant number 19-16-00097.

Conflicts of Interest

The authors declare no conflict of interests.

References

  1. Meeks, J.C.; Elhai, J. Regulation of cellular differentiation in filamentous cyanobacteria in free-living and plant-associated symbiotic growth states. Microbiol. Mol. Biol. Rev. 2002, 66, 94–121. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Tandeau de Marsac, N. Differentiation of hormogonia and relationships with other biological processes. In The Molecular Biology of Cyanobacteria; Advances in Photosynthesis and Respiration; Bryant, D.A., Ed.; Springer: Dordrecht, The Netherlands, 1994; Volume 1, pp. 825–842. [Google Scholar] [CrossRef]
  3. Herrero, A.; Stavans, J.; Flores, E. The multicellular nature of filamentous heterocyst-forming cyanobacteria. FEMS Microbiol. Rev. 2016, 40, 831–854. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Kaplan-Levy, R.N.; Hadas, O.; Summers, M.L.; Rücker, J.; Sukenik, A. Akinetes: Dormant cells of cyanobacteria. In Dormancy and Resistance in Harsh Environments; Lubzens, E., Cerda, J., Clark, M., Eds.; Springer: Berlin, Germany, 2010; pp. 5–27. [Google Scholar]
  5. Nürnberg, D.J.; Mariscal, V.; Parker, J.; Mastrolanni, G.; Flores, E.; Mullineaux, C.W. Branching and intercellular communication in the Section V cyanobacterium Mastigocladus laminosus, a complex multicellular prokaryote. Molec. Microbiol. 2014, 91, 935–949. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Cho, Y.W.; Gonzales, A.; Harwood, T.V.; Huynh, J.; Hwang, Y.; Park, J.S.; Trieu, A.Q.; Italia, P.; Pallipuram, V.K.; Risser, D.D. Dynamic localization of HmpF regulates type IV pilus activity and directional motility in the filamentous cyanobacterium Nostoc. punctiforme. Mol. Microbiol. 2017, 106, 252–265. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Brenes-Álvarez, M.; Olmedo-Verd, E.; Vioque, A.; Muro-Pastor, A.M. Identification of conserved and potentially regulatory small RNAs in heterocystous cyanobacteria. Front. Microbiol. 2016, 7, 48. [Google Scholar] [CrossRef] [PubMed]
  8. Muro-Pastor, M.I.; Reyes, J.C.; Florencio, F.J. Cyanobacteria perceive nitrogen status by sensing intracellular 2-oxoglutarate levels. J. Biol. Chem. 2001, 276, 38320–38328. [Google Scholar] [CrossRef]
  9. Vázquez-Bermúdez, M.F.; Herrero, A.; Flores, E. 2-Oxoglutarate increases the binding affinity of the NtcA (nitrogen control) transcription factor for the Synechococcus glnA promoter. FEBS Lett. 2002, 512, 71–74. [Google Scholar] [CrossRef] [Green Version]
  10. Valladares, A.; Flores, E.; Herrero, A. Transcription activation by NtcA and 2-oxoglutarate of three genes involved in heterocyst differentiation in the cyanobacterium Anabaena sp. strain PCC 7120. J. Bacteriol. 2008, 190, 6126–6133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Zhao, M.X.; Jiang, Y.L.; He, Y.X.; Chen, Y.F.; Teng, Y.B.; Chen, Y.; Zhang, C.C.; Zhou, C.Z. Structural basis for the allosteric control of the global transcription factor NtcA by the nitrogen starvation signal 2-oxoglutarate. Proc. Natl. Acad. Sci. USA 2010, 107, 12487–12492. [Google Scholar] [CrossRef] [Green Version]
  12. Laurent, S.; Chen, H.; Bédu, S.; Ziarelli, F.; Peng, L.; Zhang, C.-C. Nonmetabolizable analogue of 2-oxoglutarate elicits heterocyst differentiation under repressive conditions in Anabaena sp. PCC 7120. Proc. Natl. Acad. Sci. USA 2005, 102, 9007–9012. [Google Scholar] [CrossRef] [Green Version]
  13. Picossi, S.; Flores, E.; Herrero, A. ChIP analysis unravels an exceptionally wide distribution of DNA binding sites for the NtcA transcription factor in a heterocyst-forming cyanobacterium. BMC Genom. 2014, 15, 22. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Muro-Pastor, A.M.; Olmedo-Verd, E.; Flores, E. All4312, an NtcA-regulated two-component response regulator in Anabaena sp. strain PCC 7120. FEMS Microbiol. Lett. 2006, 256, 171–177. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Ehira, S.; Ohmori, M. NrrA directly regulates expression of hetR during heterocyst differentiation in the cyanobacterium Anabaena sp. strain PCC 7120. J. Bacteriol. 2006, 188, 8520–8525. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Elhai, J.; Khudyakov, I. Ancient association of cyanobacterial multicellularity with the regulator HetR and an RGSGR pentapeptide-containing protein (PatX). Mol. Microbiol. 2018, 110, 931–954. [Google Scholar] [CrossRef]
  17. Flores, E.; Picossi, S.; Valladares, A.; Herrero, A. Transcriptional regulation of development in heterocyst-forming cyanobacteria. Biochim. Biophys. Acta Gene Regul. Mech. 2019, 1862, 673–684. [Google Scholar] [CrossRef]
  18. Muro-Pastor, A.M.; Valladares, A.; Flores, E.; Herrero, A. Mutual dependence of the expression of the cell differentiation regulatory protein HetR and the global nitrogen regulator NtcA during heterocyst development. Mol. Microbiol. 2002, 44, 1377–1385. [Google Scholar] [CrossRef] [Green Version]
  19. Rajagopalan, R.; Callahan, S.M. Temporal and spatial regulation of the four transcription start sites of hetR from Anabaena sp. strain PCC 7120. J. Bacteriol. 2010, 192, 1088–1096. [Google Scholar] [CrossRef] [Green Version]
  20. Risser, D.D.; Callahan, S.M. Genetic and cytological evidence that heterocyst patterning is regulated by inhibitor gradients that promote activator decay. Proc. Natl. Acad. Sci. USA 2009, 106, 19884–19888. [Google Scholar] [CrossRef] [Green Version]
  21. Valladares, A.; Flores, E.; Herrero, A. The heterocyst differentiation transcriptional regulator HetR of the filamentous cyanobacterium Anabaena forms tetramers and can be regulated by phosphorylation. Mol. Microbiol. 2016, 99, 808–819. [Google Scholar] [CrossRef] [Green Version]
  22. Roumezi, B.; Xu, X.; Risoul, V.; Fan, Y.; Lebrun, R.; Latifi, A. The Pkn22 kinase of Nostoc PCC 7120 is required for cell differentiation via the phosphorylation of HetR on a residue highly conserved in genomes of heterocyst-forming cyanobacteria. Front. Microbiol. 2020, 10, 3140. [Google Scholar] [CrossRef]
  23. Yoon, H.S.; Golden, J.W. Heterocyst pattern formation controlled by a diffusible peptide. Science 1998, 282, 935–938. [Google Scholar] [CrossRef] [PubMed]
  24. Black, T.A.; Wolk, C.P. Analysis of a Het- mutation in Anabaena sp. strain PCC 7120 implicates a secondary metabolite in the regulation of heterocyst spacing. J. Bacteriol. 1994, 176, 2282–2292. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Bauer, C.C.; Ramaswamy, K.S.; Endley, S.; Scappino, L.A.; Golden, J.W.; Haselkorn, R. Suppression of heterocyst differentiation in Anabaena PCC 7120 by a cosmid carrying wild-type genes encoding enzymes for fatty acid synthesis. FEMS Microbiol. Lett. 1997, 151, 23–30. [Google Scholar] [CrossRef] [PubMed]
  26. Higa, K.C.; Rajagopalan, R.; Risser, D.D.; Rivers, O.S.; Tom, S.K.; Videau, P.; Callahan, S.M. The RGSGR amino acid motif of the intercellular signalling protein, HetN, is required for patterning of heterocysts in Anabaena sp. strain PCC 7120. Mol. Microbiol. 2012, 83, 682–693. [Google Scholar] [CrossRef]
  27. Callahan, S.M.; Buikema, W.J. The role of HetN in maintenance of the heterocyst pattern in Anabaena sp. PCC 7120. Mol. Microbiol. 2001, 40, 941–950. [Google Scholar] [CrossRef] [Green Version]
  28. Li, B.; Huang, X.; Zhao, J. Expression of hetN during heterocyst differentiation and its inhibition of hetR up-regulation in the cyanobacterium Anabaena sp. PCC 7120. FEBS Lett. 2002, 517, 87–91. [Google Scholar] [CrossRef] [Green Version]
  29. Mitschke, J.; Vioque, A.; Haas, F.; Hess, W.R.; Muro-Pastor, A.M. Dynamics of transcriptional start site selection during nitrogen stress-induced cell differentiation in Anabaena sp. PCC7120. Proc. Natl. Acad. Sci. USA 2011, 108, 20130–20135. [Google Scholar] [CrossRef] [Green Version]
  30. Muro-Pastor, A.M. The heterocyst-specific NsiR1 small RNA is an early marker of cell differentiation in cyanobacterial filaments. mBio 2014, 5, e01079-14. [Google Scholar] [CrossRef] [Green Version]
  31. Videau, P.; Oshiro, R.T.; Cozy, L.M.; Callahan, S.M. Transcriptional dynamics of developmental genes assessed with an FMN-dependent fluorophore in mature heterocysts of Anabaena sp. strain PCC 7120. Microbiology 2014, 160, 1874–1881. [Google Scholar] [CrossRef] [Green Version]
  32. Wang, Y.; Xu, X. Regulation by hetC of genes required for heterocyst differentiation and cell division in Anabaena sp. strain PCC 7120. J. Bacteriol. 2005, 187, 8489–8493. [Google Scholar] [CrossRef] [Green Version]
  33. Yoon, H.S.; Golden, J.W. PatS and products of nitrogen fixation control heterocyst pattern. J. Bacteriol. 2001, 183, 2605–2613. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Wu, X.; Liu, D.; Lee, M.H.; Golden, J.W. patS minigenes inhibit heterocyst development of Anabaena sp. strain PCC 7120. J. Bacteriol. 2004, 186, 6422–6429. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Corrales-Guerrero, L.; Mariscal, V.; Nürnberg, D.J.; Elhai, J.; Mullineaux, C.W.; Flores, E.; Herrero, A. Subcellular localization and clues for the function of the HetN factor influencing heterocyst distribution in Anabaena sp. strain PCC 7120. J. Bacteriol. 2014, 196, 3452–3460. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Orozco, C.C.; Risser, D.D.; Callahan, S.M. Epistasis analysis of four genes from Anabaena sp. strain PCC 7120 suggests a connection between PatA and PatS in heterocyst pattern formation. J. Bacteriol. 2006, 188, 1808–1816. [Google Scholar] [CrossRef] [Green Version]
  37. Liang, J.; Scappino, L.; Haselkorn, R. The patA gene product, which contains a region similar to CheY of Escherichia coli, controls heterocyst pattern formation in the cyanobacterium Anabaena 7120. Proc. Natl. Acad. Sci. USA 1992, 89, 5655–5659. [Google Scholar] [CrossRef] [Green Version]
  38. Zhang, R.; Ni, S.; Kennedy, M.A. Crystal structure of Alr1298, a pentapeptide repeat protein from the cyanobacterium Nostoc sp. PCC 7120, determined at 2.1 Å resolution. Proteins 2020, 88, 1143–1153. [Google Scholar] [CrossRef]
  39. Liu, D.; Golden, J.W. hetL overexpression stimulates heterocyst formation in Anabaena sp. strain PCC 7120. J. Bacteriol. 2002, 184, 6873–6881. [Google Scholar] [CrossRef] [Green Version]
  40. Xu, X.; Risoul, V.; Byrne, D.; Champ, S.; Douzi, B.; Latifi, A. HetL, HetR and PatS form a reaction-diffusion system to control pattern formation in the cyanobacterium Nostoc PCC 7120. Elife 2020, 9, e59190. [Google Scholar] [CrossRef]
  41. Rippka, R.; Deruelles, J.; Waterbury, J.B.; Herdman, M.; Stanier, R.Y. Generic assignments, strain histories and properties of pure cultures of cyanobacteria. J. Gen. Microbiol. 1979, 111, 1–61. [Google Scholar] [CrossRef] [Green Version]
  42. Olmedo-Verd, E.; Flores, E.; Herrero, A.; Muro-Pastor, A.M. HetR-dependent and -independent expression of heterocyst-related genes in an Anabaena strain overproducing the NtcA transcription factor. J. Bacteriol. 2005, 187, 1985–1991. [Google Scholar] [CrossRef] [Green Version]
  43. Borthakur, P.B.; Orozco, C.C.; Young-Robbins, S.S.; Haselkorn, R.; Callahan, S.M. Inactivation of patS and hetN causes lethal levels of heterocyst differentiation in the filamentous cyanobacterium Anabaena sp. PCC 7120. Mol. Microbiol. 2005, 57, 111–123. [Google Scholar] [CrossRef] [PubMed]
  44. Kaneko, T.; Nakamura, Y.; Wolk, C.P.; Kuritz, T.; Sasamoto, S.; Watanabe, A.; Iriguchi, M.; Ishikawa, A.; Kawashima, K.; Kimura, T.; et al. Complete genomic sequence of the filamentous nitrogen-fixing cyanobacterium Anabaena sp. strain PCC 7120. DNA Res. 2001, 8, 205–213. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Wei, T.F.; Ramasubramanian, T.S.; Golden, J.W. Anabaena sp. strain PCC 7120 ntcA gene required for growth on nitrate and heterocyst development. J. Bacteriol. 1994, 176, 4473–4482. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Ramaswamy, K.S.; Carrasco, C.D.; Fatma, T.; Golden, J.W. Cell-type specificity of the Anabaena fdxN-element rearrangement requires xisH and xisI. Mol. Microbiol. 1997, 23, 1241–1249. [Google Scholar] [CrossRef] [PubMed]
  47. Pridmore, R.D. New and versatile cloning vectors with kanamycin-resistance marker. Gene 1987, 56, 309–312. [Google Scholar] [CrossRef]
  48. Black, T.A.; Cai, Y.; Wolk, C.P. Spatial expression and autoregulation of hetR, a gene involved in the control of heterocyst development in Anabaena. Mol. Microbiol. 1993, 9, 77–84. [Google Scholar] [CrossRef]
  49. Khudyakov, I.; Wolk, C.P. Evidence that the hanA gene coding for HU protein is essential for heterocyst differentiation in, and cyanophage A-4(L) sensitivity of, Anabaena sp. strain PCC 7120. J. Bacteriol. 1996, 178, 3572–3577. [Google Scholar] [CrossRef] [Green Version]
  50. Vieira, J.; Messing, J. The pUC plasmids, an M13mp7-derived system for insertion mutagenesis and sequencing with synthetic universal primers. Gene 1982, 19, 259–268. [Google Scholar] [CrossRef]
  51. Elhai, J.; Vepritskiy, A.; Muro-Pastor, A.M.; Flores, E.; Wolk, C.P. Reduction of conjugal transfer efficiency by three restriction activities of Anabaena sp. strain PCC 7120. J. Bacteriol. 1997, 179, 1998–2005. [Google Scholar] [CrossRef] [Green Version]
  52. Cai, Y.P.; Wolk, C.P. Use of a conditionally lethal gene in Anabaena sp. strain PCC 7120 to select for double recombinants and to entrap insertion sequences. J. Bacteriol. 1990, 172, 3138–3145. [Google Scholar] [CrossRef] [Green Version]
  53. Antonaru, L.A.; Nürnberg, D.J. Role of PatS and cell type on the heterocyst spacing pattern in a filamentous branching cyanobacterium. FEMS Microbiol. Lett. 2017, 364, fnx154. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Zhang, J.Y.; Chen, W.L.; Zhang, C.C. hetR and patS, two genes necessary for heterocyst pattern formation, are widespread in filamentous nonheterocyst-forming cyanobacteria. Microbiology 2009, 155, 1418–1426. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Herrero, A.; Flores, E. Genetic responses to carbon and nitrogen availability in Anabaena. Environ. Microbiol. 2019, 21, 1–17. [Google Scholar] [CrossRef] [Green Version]
  56. Huang, X.; Dong, Y.; Zhao, J. HetR homodimer is a DNA-binding protein required for heterocyst differentiation, and the DNA-binding activity is inhibited by PatS. Proc. Natl. Acad. Sci. USA 2004, 101, 4848–4853. [Google Scholar] [CrossRef] [Green Version]
  57. Corrales-Guerrero, L.; Mariscal, V.; Flores, E.; Herrero, A. Functional dissection and evidence for intercellular transfer of the heterocyst-differentiation PatS morphogen. Mol. Microbiol. 2013, 88, 1093–1105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Zhang, L.; Zhou, F.; Wang, S.; Xu, X. Processing of PatS, a morphogen precursor, in cell extracts of Anabaena sp. PCC 7120. FEBS Lett. 2017, 591, 751–759. [Google Scholar] [CrossRef] [Green Version]
  59. Popa, R.; Weber, P.K.; Pett-Ridge, J.; Finzi, J.A.; Fallon, S.J.; Hutcheon, I.D.; Nealson, K.H.; Capone, D.G. Carbon and nitrogen fixation and metabolite exchange in and between individual cells of Anabaena oscillarioides. ISME J. 2007, 1, 354–360. [Google Scholar] [CrossRef] [PubMed]
  60. Brown, A.I.; Rutenberg, A.D. A storage-based model of heterocyst commitment and patterning in cyanobacteria. Phys. Biol. 2014, 11, 16001. [Google Scholar] [CrossRef] [Green Version]
  61. Park, J.-J.; Lechno-Yossef, S.; Wolk, C.P.; Vieille, C. Cell-specific gene expression in Anabaena variabilis grown phototrophically, mixotrophically, and heterotrophically. BMC Genom. 2013, 14, 759. [Google Scholar] [CrossRef] [Green Version]
  62. Buikema, W.J.; Haselkorn, R. Characterization of a gene controlling heterocyst differentiation in the cyanobacterium Anabaena 7120. Genes Dev. 1991, 5, 321–330. [Google Scholar] [CrossRef] [Green Version]
  63. Zhang, H.; Xu, X. Manipulation of pattern of cell differentiation in a hetR mutant of Anabaena sp. PCC 7120 by overexpressing hetZ alone or with hetP. Life 2018, 8, 60. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Life 10 00326 g001 550
Figure 1. Phenotypes of the wild-type and mutant strains after transfer from a BG-11 plate to liquid BG-110 copper-free (Cu-) medium. Strains were either unstained (a,b,d,f,h,i) or stained with Alcian Blue (c,e,g,j) to identify differentiating cells or mature heterocysts. (a) Wild-type Anabaena PCC 7120 and (b) ∆patX::Ω single mutant RIAM1239, 1 day after transfer; (c) mutant strain PN PpetE-hetN, 1 day after transfer; (d,e) PpetE-hetN ∆patX conditional double mutant RIAM1242, (d) 4 days or (e) 1 day after transfer; (f,g) PpetE-hetN ∆patS conditional double mutant RIAM1250, (f) 2 days or (g) 1 day after transfer; (h) ΔpatS ΔpatX::Ω(pAM1714) conditional double mutant RIAM1243, 3 days after transfer; (i,j) hetN patX patS conditional triple mutant RIAM1248, (i) 2 days or (j) 1 day after transfer. Some heterocysts in panels (a) through (d) are indicated by asterisks. Apparently dividing aberrant heterocysts in panels (f) and (h) are indicated by arrows, necridia in (h) by arrowheads. The bar in panel (a) represents 10 μm.
Figure 1. Phenotypes of the wild-type and mutant strains after transfer from a BG-11 plate to liquid BG-110 copper-free (Cu-) medium. Strains were either unstained (a,b,d,f,h,i) or stained with Alcian Blue (c,e,g,j) to identify differentiating cells or mature heterocysts. (a) Wild-type Anabaena PCC 7120 and (b) ∆patX::Ω single mutant RIAM1239, 1 day after transfer; (c) mutant strain PN PpetE-hetN, 1 day after transfer; (d,e) PpetE-hetN ∆patX conditional double mutant RIAM1242, (d) 4 days or (e) 1 day after transfer; (f,g) PpetE-hetN ∆patS conditional double mutant RIAM1250, (f) 2 days or (g) 1 day after transfer; (h) ΔpatS ΔpatX::Ω(pAM1714) conditional double mutant RIAM1243, 3 days after transfer; (i,j) hetN patX patS conditional triple mutant RIAM1248, (i) 2 days or (j) 1 day after transfer. Some heterocysts in panels (a) through (d) are indicated by asterisks. Apparently dividing aberrant heterocysts in panels (f) and (h) are indicated by arrows, necridia in (h) by arrowheads. The bar in panel (a) represents 10 μm.
Life 10 00326 g001
Life 10 00326 g002 550
Figure 2. Phenotypes of mutants after transfer from a BG-11 plate into liquid copper-free (a,c–h) nitrate-containing or (b) ammonium-containing BG-11 medium. Strains were either unstained (a-f,h) or stained with Alcian Blue (g). (a,b) ∆patX::Ω single mutant RIAM1239, 1 day after transfer; (c) PpetE-hetN ∆patX conditional double mutant RIAM1242 and (d) PpetE-hetN ∆patS conditional double mutant RIAM1250, (d) 2 days or (e) 6 days after transfer; (f,g) ΔpatS ΔpatX::Ω(pAM1714) conditional double mutant RIAM1243, 3 days after transfer; (h) hetN patX patS conditional triple mutant RIAM1248, 4 days after transfer. Some cells resembling heterocysts in panels (f,h) are indicated by asterisks and aberrant round cells with division planes in panel (h) by arrows. Some necridia (cell ghosts) are marked in panels (f,h) with arrowheads. The bar in panel (a) represents 10 μm.
Figure 2. Phenotypes of mutants after transfer from a BG-11 plate into liquid copper-free (a,c–h) nitrate-containing or (b) ammonium-containing BG-11 medium. Strains were either unstained (a-f,h) or stained with Alcian Blue (g). (a,b) ∆patX::Ω single mutant RIAM1239, 1 day after transfer; (c) PpetE-hetN ∆patX conditional double mutant RIAM1242 and (d) PpetE-hetN ∆patS conditional double mutant RIAM1250, (d) 2 days or (e) 6 days after transfer; (f,g) ΔpatS ΔpatX::Ω(pAM1714) conditional double mutant RIAM1243, 3 days after transfer; (h) hetN patX patS conditional triple mutant RIAM1248, 4 days after transfer. Some cells resembling heterocysts in panels (f,h) are indicated by asterisks and aberrant round cells with division planes in panel (h) by arrows. Some necridia (cell ghosts) are marked in panels (f,h) with arrowheads. The bar in panel (a) represents 10 μm.
Life 10 00326 g002
Life 10 00326 g003 550
Figure 3. Phenotypes of ΔpatS ΔpatX::Ω(pAM1714) conditional double mutant RIAM1243 after transfer from a BG-11 plate into liquid copper-free nitrate-free (Cu- N-) BG-110 medium and incubation for 14 days. (a) A freshly isolated RIAM1243 clone and (b) the same mutant after several subcultures on BG-11+Sp, Sm, Nm plate. Asterisks in panel (b) indicate terminal heterocysts. The bar in panel (a) represents 10 μm.
Figure 3. Phenotypes of ΔpatS ΔpatX::Ω(pAM1714) conditional double mutant RIAM1243 after transfer from a BG-11 plate into liquid copper-free nitrate-free (Cu- N-) BG-110 medium and incubation for 14 days. (a) A freshly isolated RIAM1243 clone and (b) the same mutant after several subcultures on BG-11+Sp, Sm, Nm plate. Asterisks in panel (b) indicate terminal heterocysts. The bar in panel (a) represents 10 μm.
Life 10 00326 g003
Life 10 00326 g004 550

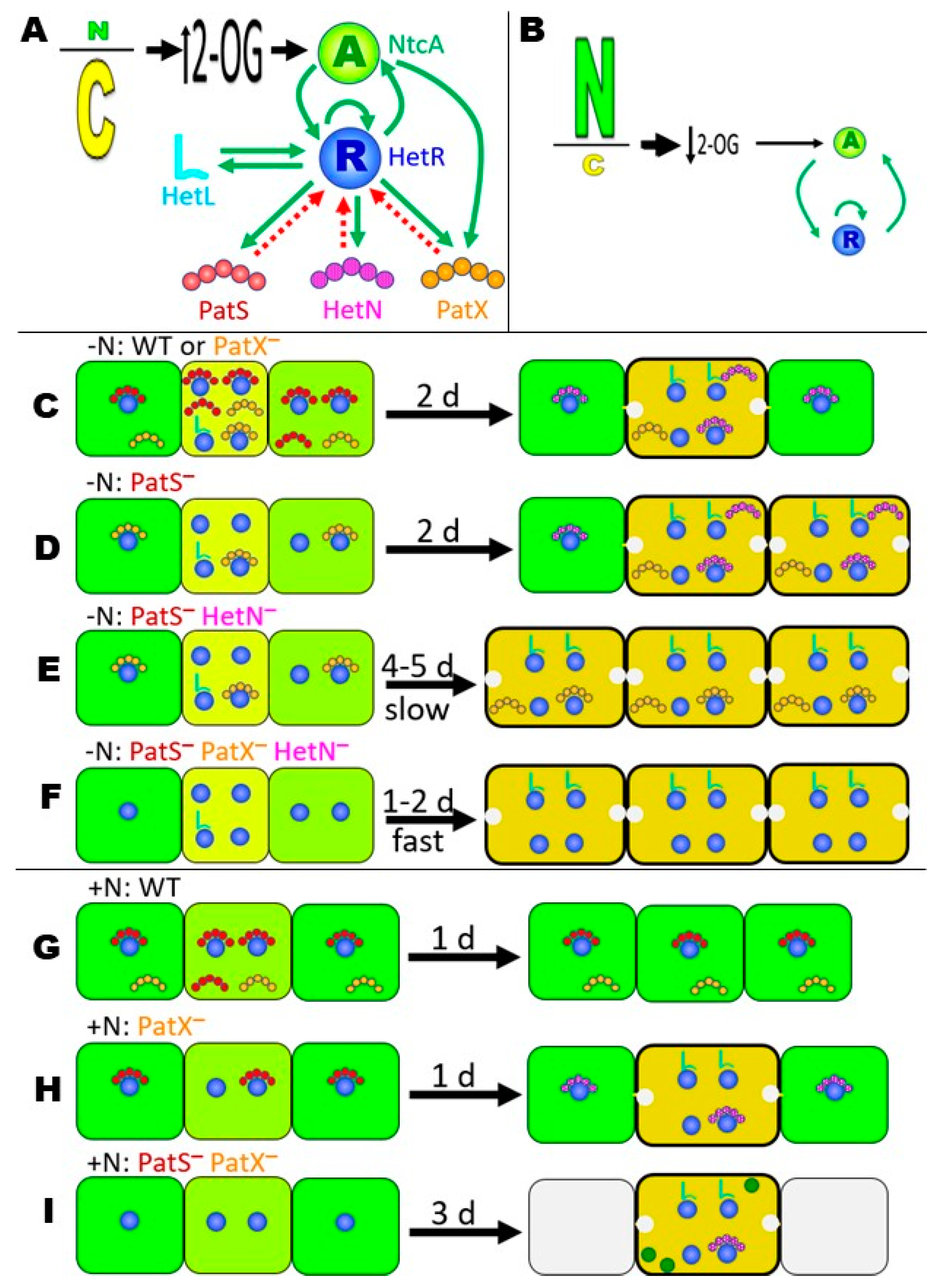

Figure 4. Model integrating roles of different signals in differentiation that are considered in this work. (A,B) Major actors under conditions of low nitrogen (N) and high carbon (C) or the reverse. Green solid arrows indicate an increase in transcription and/or activity, while red dotted arrows indicate repression of either transcription and/or activity. 2-OG represents 2-oxoglutarate. (C–F) The state of three adjacent cells after nitrogen stepdown (-N). Cells that are internally nitrogen-replete are represented as dark green, those that are mildly starved as light green, those that have passed the threshold for differentiation as yellow-green, and differentiated cells as brown with a thick envelope and white polar plugs. The level of HetR is crudely represented by the number of blue spheres, in some cases bound to PatS, HetN, PatX, or HetL (see their icons in panel A). (G–I) The state of three adjacent cells under nitrogen-replete (N+) conditions. The conventions are the same as in panels C–F. In addition, aberrant heterocysts are shown with the green inclusion bodies seen in Figure 2f,h, and necridia are represented as gray cells.
Figure 4. Model integrating roles of different signals in differentiation that are considered in this work. (A,B) Major actors under conditions of low nitrogen (N) and high carbon (C) or the reverse. Green solid arrows indicate an increase in transcription and/or activity, while red dotted arrows indicate repression of either transcription and/or activity. 2-OG represents 2-oxoglutarate. (C–F) The state of three adjacent cells after nitrogen stepdown (-N). Cells that are internally nitrogen-replete are represented as dark green, those that are mildly starved as light green, those that have passed the threshold for differentiation as yellow-green, and differentiated cells as brown with a thick envelope and white polar plugs. The level of HetR is crudely represented by the number of blue spheres, in some cases bound to PatS, HetN, PatX, or HetL (see their icons in panel A). (G–I) The state of three adjacent cells under nitrogen-replete (N+) conditions. The conventions are the same as in panels C–F. In addition, aberrant heterocysts are shown with the green inclusion bodies seen in Figure 2f,h, and necridia are represented as gray cells.
Life 10 00326 g004
Table
Table 1. Strains and plasmids.
Table 1. Strains and plasmids.
Strain or Plasmid
Reference		Derivation and/or Relative CharacteristicsSource or
Anabaena Strains
PCC 7120Wild typeS. Callahan
7120PNPpetE-hetN[27]
RIAM1238DR929; patX::Ω; Smr/SprThis study
RIAM1239DR931; ΔpatX::Ω; Smr/SprThis study
RIAM1241PN DR929; PpetE-hetN patX::Ω; Smr/SprThis study
RIAM1242PN DR931; PpetE-hetN ΔpatX::Ω; Smr/SprThis study
RIAM1243UHM114 DR931 (pAM1714); ΔpatS ΔpatX::Ω(pAM1714); Smr/Spr NmrThis study
RIAM1245PN DR931 DR1177; PpetE-hetN ΔpatX::Ω ΔpatS::C.CE3; Smr/Spr EmrThis study
RIAM1248PN DR931 DR1177; PpetE-hetN ΔpatX::Ω ΔpatS::C.CE3; Smr/Spr EmrThis study
RIAM1249PN DR1177; PpetE-hetN ΔpatS::C.CE3; EmrThis study
RIAM1250PN DR1177; PpetE-hetN ΔpatS::C.CE3; EmrThis study
UHM114 ΔpatS[43]
Plasmids
anp03226A patX (asl2332)-bearing bp 2805907 to 2813409 fragment of Anabaena PCC 7120 chromosome in the BamHI site of pUC18; Apr[44]
anp03869A patX (asl2332)-bearing bp 2803179 to 2811405 fragment of Anabaena PCC 7120 chromosome in the BamHI site of pUC18; Apr[44]
pAM504Shuttle vector for replication in E. coli and Anabaena; Kmr Nmr[45]
pAM684A source of the Spr Smr Ω cassette; Apr Spr/Smr[46]
pAM1035patS on a 3.3 kb chromosomal fragment in pBluescript II KS(-); Apr[23]
pK18pBR322-derived cloning vector; Kmr[47]
pRIAM780A 2.9 kb SalI-XmnI fragment containing 3′-end of alr233, asl2332 (patX), alr2331 and 3′-end of alr2330 from anp03869 ligated in SalI-SmaI sites of pK18; KmrThis study
pRIAM796Ω cassette inserted into internal ScaI site in patX ORF in pRIAM780; Kmr Spr/SmrThis study
pRIAM860anp03226 derivative with an AfeI-SmaI fragment deleted; contains patX on remaining 4.65 kb insert; AprThis study
pRIAM917pRIAM780 with ScaI-DraI fragment containing most of patX ORF and 3′ UTR replaced with Ω cassette; Kmr Spr/SmrThis study
pRIAM923A 4.9 kb chromosomal region (bp 2805907 to 2810809) with ScaI-DraI fragment containing most of patS ORF and 3′ UTR replaced with Ω cassette; reconstructed from pRIAM860 and pRIAM917; Kmr Spr/SmrThis study
pRIAM925Same as pRIAM917, but the Ω cassette inserted into into internal ScaI site in patX ORF; reconstructed from pRIAM860 and pRIAM796; Kmr Spr/SmrThis study
pRIAM929Insert from pRIAM925 moved into suicide vector pRL271; Cmr Emr Spr/SmrThis study
pRIAM931Insert from pRIAM923 moved into suicide vector pRL271; Cmr Emr Spr/SmrThis study
pRIAM1159Insert from pAM1035 moved in pK18 (probably as BamH-SalI fragment); KmrThis study
pRIAM1175C.CE3 Cmr Emr cassette excised with EcoICRI from pRL1567 and inserted into EcoRV-ScaI sites of pRIAM1159, replacing patS-bearing 0.38 kb chromosomal fragment; Kmr Cmr EmrThis study
pRIAM1177Insert from pRIAM1175 moved into SacI-PstI sites of pRL278; Kmr Cmr EmrThis study
pRL271sacB-containing suicide vector; Cmr Emr[48]
pRL278sacB-containing suicide vector; Nmr/Kmr[48]
pRL1567Source of C.CE3 Cmr Emr cassette; Apr Cmr Emr[49]
pUC19pBR322-derived cloning vector; Apr[50]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Khudyakov, I.; Gladkov, G.; Elhai, J. Inactivation of Three RG(S/T)GR Pentapeptide-Containing Negative Regulators of HetR Results in Lethal Differentiation of Anabaena PCC 7120. Life 2020, 10, 326. https://doi.org/10.3390/life10120326

AMA Style

Khudyakov I, Gladkov G, Elhai J. Inactivation of Three RG(S/T)GR Pentapeptide-Containing Negative Regulators of HetR Results in Lethal Differentiation of Anabaena PCC 7120. Life. 2020; 10(12):326. https://doi.org/10.3390/life10120326

Chicago/Turabian Style

Khudyakov, Ivan, Grigory Gladkov, and Jeff Elhai. 2020. "Inactivation of Three RG(S/T)GR Pentapeptide-Containing Negative Regulators of HetR Results in Lethal Differentiation of Anabaena PCC 7120" Life 10, no. 12: 326. https://doi.org/10.3390/life10120326

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
