Thrombin Generation Thresholds for Coagulation Initiation under Flow

Abstract

In veins, clotting initiation displays a threshold response to flow intensity and injury size. Mathematical models can provide insights into the conditions leading to clot growth initiation under flow for specific subjects. However, it is hard to determine the thrombin generation curves that favor coagulation initiation in a fast manner, especially when considering a wide range of conditions related to flow and injury size. In this work, we propose to address this challenge by using a neural network model trained with the numerical simulations of a validated 2D model for clot formation. Our surrogate model approximates the results of the 2D simulations, reaching an accuracy of 94% on the test dataset. We used the trained artificial neural network to determine the threshold for thrombin generation parameters that alter the coagulation initiation response under varying flow speed and injury size conditions. Our model predictions show that increased levels of the endogenous thrombin potential (ETP) and peak thrombin concentration increase the likelihood of coagulation initiation, while an elevated time to peak decreases coagulation. The lag time has a small effect on coagulation initiation, especially when the injury size is small. Our surrogate model can be considered as a proof-of-concept of a tool that can be deployed to estimate the risk of bleeding in specific patients based on their Thrombin Generation Assay results.

1. Introduction

Blood coagulation is a complex process that involves the activation of multiple biochemical pathways leading to the formation of a blood clot. This process is highly regulated and involves the interplay of several factors, including shear stress, flow rate, and the presence of platelets and other clotting factors. Recent studies have shown that the coagulation response displays a threshold-like behavior in response to changes in flow intensity [1] and injury size [2].

In venous conditions, the rate and the extent of clot formation depend on various factors, including the intensity and duration of exposure to blood circulation. Blood flow influences clot initiation and growth in multiple ways. First, it transports the coagulation zymogens to the site of the injury, accelerating the onset of coagulation. At the same time, high shear flow removes activated coagulation factors and limits the development of the clot. The size of the injury can significantly affect the growth of a blood clot [3]. A larger injury size not only increases the likelihood of clot initiation, but typically results in a larger, more robust clot. This is because a larger injury will expose more tissue factor, which can further activate the coagulation cascade and increase the rate of thrombin generation.

Blood coagulability is a crucial factor that affects the process of clot initiation and growth under flow. Along with flow stasis and endothelial injury, hypercoagulability constitutes the three pillars of the Virchow triad [4]. However, measuring the coagulability of blood accurately is a challenging task, as it is usually conducted using in vitro tests that do not mimic the in vivo conditions of clot formation. One widely accepted method for assessing blood coagulability is the Thrombin Generation Assay (TGA) [5]. This in vitro test measures the ability of blood to form clots, and specifically the generation of thrombin, which is a key enzyme involved in the coagulation process. The assay measures the amount of thrombin generated over time in response to a stimulus, such as tissue factor, and provides information on the coagulation status of an individual’s blood. Thus, it can be used to assess the risk of bleeding or thrombosis, monitor anticoagulant therapy, and study the mechanisms of blood clotting disorders.

Ordinary differential equation (ODE) models can be used to describe the kinetics of thrombin generation [6,7,8,9,10]. These coagulation models aim to describe the concentration evolution of various coagulation factors during the clotting process. However, there are concerns regarding the extent to which these models accurately represent the physiological mechanisms underlying blood coagulation, particularly for clinical decision-making. One notable limitation is the simplification of reactions within the coagulation cascade, neglecting several biochemical pathways. For instance, the protein C-independent inhibitory action of protein S, which has been shown to play a crucial role in in vivo experiments [11], is often overlooked. Additionally, existing thrombin generation models exhibit significant variations in the kinetic constants considered, largely due to disparities in the experimental conditions used for their measurement [12]. Despite these limitations, these models can be calibrated to replicate experimentally observed thrombin generation curves, albeit without fully capturing all of the involved mechanisms.

However, the interpretation of the results of the TGA is challenging, as it provides us with a curve quantifying the concentration of generated thrombin over time. This curve can be characterized by four distinct parameters: (i) the lag time, (ii) the peak thrombin concentration, (iii) the time to peak, and (iv) the endogenous thrombin potential (ETP). The lag time refers to the time required for the initial amount of thrombin to generate. The peak thrombin concentration indicates the highest concentration of thrombin generated. The time to peak defines the velocity of thrombin generation. It corresponds to the moment when thrombin generation reaches its peak. The area under the curve, referred to as the endogenous thrombin potential (ETP), represents the net amount of thrombin generated by the test plasma. While a low ETP and peak concentration suggest an elevated risk of bleeding, it is hard to predict the actual hemostatic response using solely these parameters, especially when considering in vivo flow intensity and injury size conditions. Further, the overall experience with the thrombin generation test as a surrogate measure of hemostatic efficacy is still rather limited, and there are no guidelines on the interpretation of the results of these assays.

Various approaches have been employed by mathematical modelers to describe thrombus formation under flow in both normal and pathological conditions. One such method is continuum-based modeling, which is a powerful tool to study thrombus formation in complex geometries and under different flow conditions. These models typically use the Navier–Stokes equations to describe blood flow and rely on partial differential equations to model the distribution of blood components. The coupling between the two is achieved by considering fibrin polymer as an influencing factor for blood viscosity, or by treating the clot as a porous medium whose viscosity is dependent on fibrin density [13,14,15,16,17,18]. Continuum-based models are also suitable for studying thrombus formation in arterial flow and complex geometries such as aneurysms. Mixture theory is used in some continuous models to capture the interplay between platelets, plasma, red blood cells (RBCs), and the clot [19,20,21]. Another widely used class of models for describing thrombus growth under flow is multiscale modeling, which combines continuous and discrete representations of the underlying mechanisms [22,23,24,25,26,27,28]. Multiscale models allow the tracking of individual blood cells and provide a more accurate description of cell-based processes such as platelet deposition, transport, and aggregation, as the mechanisms involved span multiple scales of space and time.

However, numerical simulations come at an expensive computational cost, which limits their potential for the systematic exploration of a complex system such as thrombus formation under flow. Further, using simulations to predict the coagulation response of specific patients under a wide range of flow and injury size conditions would require many hours to a few days, while clinical intervention relies on time-sensitive decision making. On the other hand, a data-driven approach such as machine learning can be used to evaluate the risk of prothrombotic diseases using patient information related to comorbidities and lifestyle [29,30]. While this approach can provide accurate and timely predictions, its output usually lacks interpretability, which poses a challenge to their adoption by healthcare practitioners. Recently, we have developed a method that combines deep learning with a mathematical model to make fast and explainable predictions on the effect of anticoagulants [31], as well as the risk of thrombosis in COVID-19 patients [32].

Identifying the features of thrombin generation curves that prevent coagulation initiation under varying flow and injury conditions is a challenging but highly important problem. Solving it would allow health practitioners to rely on thrombin generation assays results to make clinical decisions [33,34]. In this work, we propose to explore this question using a new approach that combines mathematical modeling with machine learning. In particular, we propose to identify the thrombin generation thresholds that prevent coagulation initiation under varying flow and injury size conditions. We utilized a deep learning model that we trained using numerical simulations of a computational fluid dynamics (CFD) model for coagulation initiation under flow. After validating this CFD model against microfluidics experiments, we took advantage of our high-performance computing resources to conduct 7675 simulations, describing the clotting initiation and growth. In each of these simulations, the model parameters related to coagulability, injury size, and flow pressure difference were randomly sampled, and the thrombin generation parameters were calculated. The obtained dataset was used to train an artificial neural network, which is able to predict the initiation of coagulation based on the thrombin generation parameters in addition to the injury size and flow intensity. We evaluated the accuracy and performance of the surrogate model. We then used the surrogate model for a fast exploration of thrombin generation thresholds that alter coagulation under various flow and injury size conditions. We conclude this paper by discussing how this approach can be further validated and deployed in clinical settings to help health care providers identify and manage patients with coagulation disorders on a case-to-case basis.

2. Determining Thrombin Generation Thresholds under Flow

2.1. Mathemtical Modeling of Clot Formation under Flow

2.1.1. Spatio-Temporal Distribution of Clotting Factors

We incorporate diffusion and transport by flow in the previously introduced model of thrombin generation [13]. This thrombin generation model was derived from a more complete model as shown in Appendix A.1 using fast equilibrium approximations. We describe the spatial distributions of factor Xa (U), thrombin (T), and prothrombin (P) as follows:

$$\frac{\partial U}{\partial t}+\nabla .(\mathbf{u}U-D_t\nabla U)=(K_1+K_{2}T+K_3{T}^2)(U^0-U)-K_{4}U,$$

(1)

$$\frac{\partial T}{\partial t}+\nabla .(\mathbf{u}T-D_t\nabla T)=(K_{5}U+K_{6}T+K_7{T}^2+K_8{T}^3)P-K_{9}T,$$

(2)

$$\frac{\partial P}{\partial t}+\nabla .(\mathbf{u}P-D_t\nabla P)=-(K_{5}U+K_{6}T+K_7{T}^2+K_8{T}^3)P.$$

(3)

Here, the second terms on the left-hand side of the three equations describe the diffusion of these three proteins and their transport by blood plasma. For prothrombin, we set an initial and left boundary condition of $P=P_0$ and a zero-flux condition at the rest of the boundaries. We consider a zero-flux boundary conditions for thrombin and factor Xa everywhere, except for the injury site where we consider the following condition describing the activation of factor X by the complex TF-FVIIa during the initiation stage [14]:

$$\frac{\partial U}{\partial \mathbf{n}}=\frac{K_1(U^0-U)}{D(1+{\beta }_1(U^0-U))}.$$

(4)

Here, $U^0$ represents the concentration of factor X in the bloodstream. Next, we add the equations for fibrin polymerization:

$$\frac{\partial F_g}{\partial t}+\nabla .(\mathbf{u}{F}_g-D_f\nabla F_g)=-K_{11}T{F}_g,$$

(5)

$$\frac{\partial F}{\partial t}+\nabla .(\mathbf{u}F-D_f\nabla F)=K_{11}T{F}_g-K_{12}F,$$

(6)

$$\frac{\partial F_p}{\partial t}=K_{12}F.$$

(7)

Here, $F_g$, F, and $F_p$ describe the concentrations of fibrinogen, fibrin, and fibrin polymer, respectively. Fibrin polymer does not diffuse and is not transported by flow. Therefore, we do not consider diffusion and advection terms in the equation for fibrin polymer. We set the inlet and initial condition of $F_g=F_{g0}$ for fibrinogen. The zero-flux condition is set at the rest of the boundaries. The same condition is applied everywhere for fibrin.

2.1.2. Blood Plasma and Its Interplay with the Clot

To reproduce the microfluidics experiments [1], we model blood plasma as a Newtonian incompressible fluid as follows:

$$\begin{array}{c}\hfill \rho \frac{\partial \mathbf{u}}{\partial t}+\rho (\mathbf{u}.\nabla )\mathbf{u}=-\nabla p+\mu \Delta \mathbf{u}-\frac{\mu }{K_f}\mathbf{u},\nabla .\mathbf{u}=0,\end{array}$$

(8)

where $\mathbf{u}$ is the flow velocity, p is the pressure, $\rho$ is the density of the blood, and $\mu$ is the dynamic viscosity, considered to be a constant since we are dealing with a Newtonian fluid. The influence of the clot is captured through the third term on the right-hand side of the equation, where $K_f$ is the hydraulic permeability of the clot [35]:

$$\frac{1}{K_f}=\frac{16}{{\alpha }^2}{\tilde{F}}_p^{\frac{3}{2}}\left(1+56{\tilde{F}}_p^3\right).$$

(9)

Here, $\widetilde{F_p}=\min \left(\frac{1000}{1400},\frac{F_p}{7000}\right)$ is the normalized concentration of fibrin polymer in the clot, considered to be bounded by value corresponding to the normal permeability of the clot, and $\alpha$ is the radius of the fibers.

We assume that blood plasma is driven by the pressure difference, and we set the pressure $p_{in}$ at the inlet ${\mathsf{\Gamma }}_{in}$ and the pressure $p_{out}$ at the outlet ${\mathsf{\Gamma }}_{out}$. We consider no-slip boundary conditions $\mathbf{u}=\mathbf{0}$ at the other boundaries $\partial \mathsf{\Omega }\setminus \left({\mathsf{\Gamma }}_{in}\cup {\mathsf{\Gamma }}_{out}\right)$. To set the inlet pressure in dependence on shear rate $\dot{\gamma }$, we use the formula $p_{in}=4L\gamma \mu /D$, where L is the length of the vessel, and D is the diameter of the vessel. The outflow pressure is set to zero $p_{out}=0$.

The reaction–diffusion system of the equation is solved numerically with a finite difference method and an upwinding scheme in discretizing convective terms in order to avoid numerical instabilities in the convection-dominated cases. A regular 160 × 20 mesh corresponding to a rectangular domain of a length equal to 8 mm and a height of 1 mm is used in the numerical simulations. Accuracy of the results was controlled by decreasing the time and space steps in previous studies [14]. The model was implemented in C++ using an object-oriented architecture. The CPU time of a simulation corresponding to 1200 s of physical time is 8 min 34 s on a workstation with 16 cores and 64 GB of RAM.

2.2. The Artificial Neural Network for the Fast Prediction of the Coagulation Response

We used a workstation to run 7675 CFD simulations and generate the necessary data to train neural network models. To speed up the process, we ran eight simulations in parallel, where the parameters related to coagulability ($K_2$, $K_3$, $K_4$, $K_5$, $K_6$, $K_7$, $K_8$, $K_9$, $U^0$, and $P^0$), injury size ($\delta$), and flow intensity ($\Delta p$) were randomly sampled from uniform distributions. For each simulation, we considered coagulation to be initiated if the height of the clot exceeds 50% of the vessel height. In this case, it continues growing until the vessel is completely obstructed. It is impossible to achieve a partial occlusion with the current model due to the absence of activated protein C. When coagulation is initiated, the clot first expands horizontally, leading to a decrease in flow velocity because of the constant pressure difference condition [14]. This, in turn, allows the clot to grow vertically and fully occlude the vessel. However, we stopped the simulation at this point to minimize the time of calculation. The areas occupied by the clot correspond to the locations where the fibrin polymer concentration exceeds 1000 nM. We labeled each simulation with a 1 if coagulation was initiated and with a 0 otherwise. We then calculated the lag time, endogenous thrombin potential (ETP), peak concentration, and time to peak by analyzing the thrombin generation curve, obtained by solving the system of factor X, prothrombin, and thrombin without diffusion and advection:

$$\frac{\partial U}{\partial t}=(K_1+K_{2}T+K_3{T}^2)(U^0-U)-K_{4}U,$$

(10)

$$\frac{\partial T}{\partial t}=(K_{5}U+K_{6}T+K_7{T}^2+K_8{T}^3)P-K_{9}T,$$

(11)

$$\frac{\partial P}{\partial t}=-(K_{5}U+K_{6}T+K_7{T}^2+K_8{T}^3)P.$$

(12)

This model describes the dynamics of thrombin generation in in vitro lab conditions, in the absence of flow velocity and diffusion. One important feature of this model is that it can reproduce the thrombin generation curves of real patients [36]. The mean and standard deviation of the ranges from which the parameters were sampled are shown in

Table 1. The mean and standard deviation of the parameters used in the simulations to generate the training dataset. The values of parameters related to coagulability were generated by considering the parameters of a real patient and adding a perturbation sampled from a uniform distribution [36], while we determined the average values of injury size and pressure difference according to the values used in in vitro experiments [1]. The radius of the interval of the uniform distribution used to sample the parameters is equal to 20% of the mean values.

Parameter	Mean	Standard Deviation
$K_2$	1.109932 $\times {10}^{-5}$	6.382294 $\times {10}^{-7}$
$K_3$	2.448583 $\times {10}^{-7}$	1.420816 $\times {10}^{-8}$
$K_4$	0.000479	0.000028
$K_5$	0.000019	0.000001
$K_6$	3.764441 $\times {10}^{-6}$	2.170468 $\times {10}^{-7}$
$K_7$	1.285508 $\times {10}^{-10}$	7.473447 $\times {10}^{-12}$
$K_8$	4.064636 $\times {10}^{-10}$	2.327669 $\times {10}^{-11}$
$K_9$	0.020216	0.001173
$U^0$	135.062467	14.774695
$P^0$	1401.066678	160.943197
$\Delta p$	135.062467	14.774695
$\delta$	1401.066678	160.943197

. The mean of these ranges corresponds to the parameter values of a healthy subject [36,37]. These data were collected in the clinical studies NCT02540187 and NCT02300519, which were approved by the French Ethical Review Board South East I. The subjects were included after having signed an informed consent form in accordance with the ethical principles of the Helsinki declaration. Since we are assuming the same tissue factor concentrations for all simulations, we also used the same $K_1$ for all of our calculations of thrombin generation curves. For each simulation, we only kept the four parameters of coagulability (lag time, ETP, thrombin peak concentration, and time to peak), in addition to the injury size ($\delta$) and the pressure difference ($\Delta p$). We conducted a total of 7675 simulations and used 70% of the obtained dataset for the training of the neural network and 30% for testing its performance. The mean and standard deviation of the four coagulability parameters in the generated virtual patients population is given in

Table 2. The mean and standard deviation of thrombin generation parameters calculated by solving the system (10)–(12) for each coagulability parameter set.

Parameter	Mean	Standard Deviation
lag time (min)	2.44537	0.3893
ETP (nM.min)	779.68770	169.85197
peak concentration (nM)	47.18947	12.6126
time to peak (nM)	26.19182	6.3149

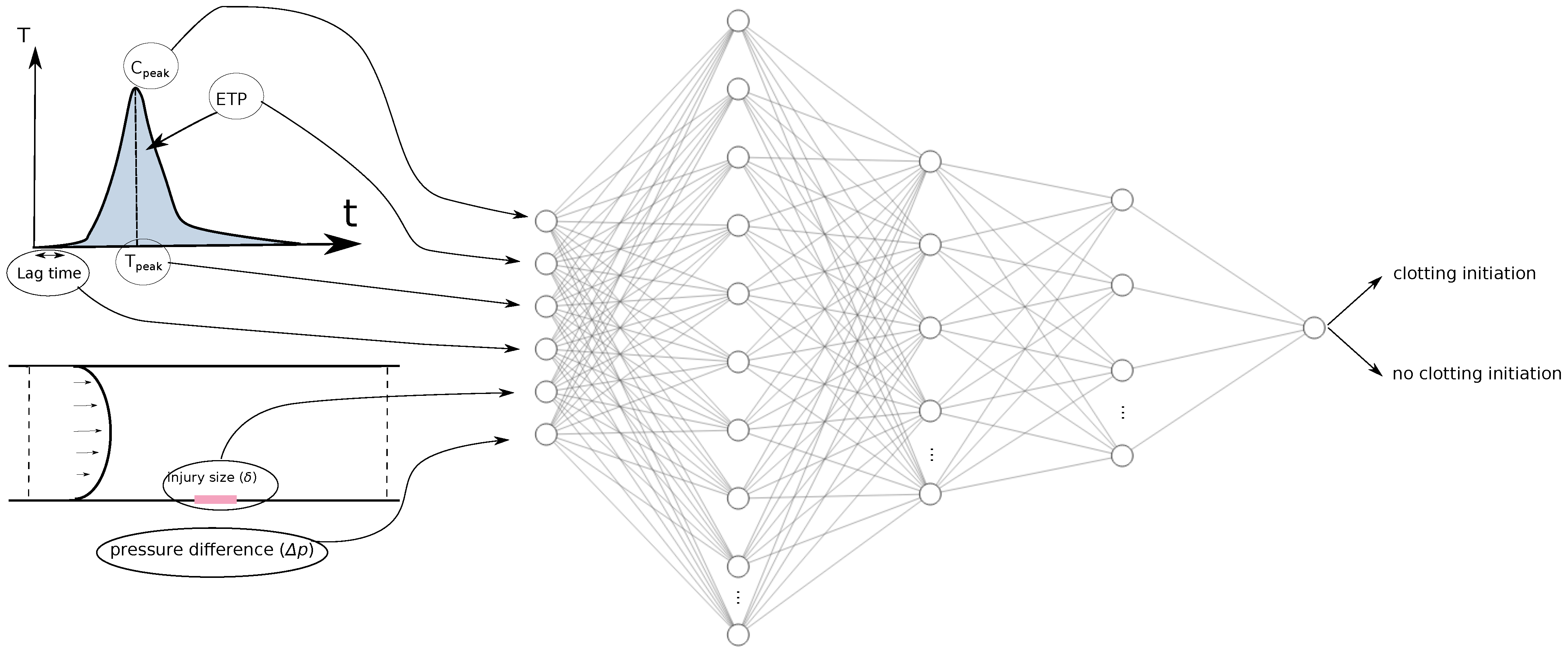

. We used a neural network architecture that consists of three hidden layers of $500\times 250\times 100$ nodes (Figure 1). Initial values of weights were set with the uniform (Xavier) initialization [38]. The Adam learning rate optimization algorithm was used to fit the weights of the ANN [39].

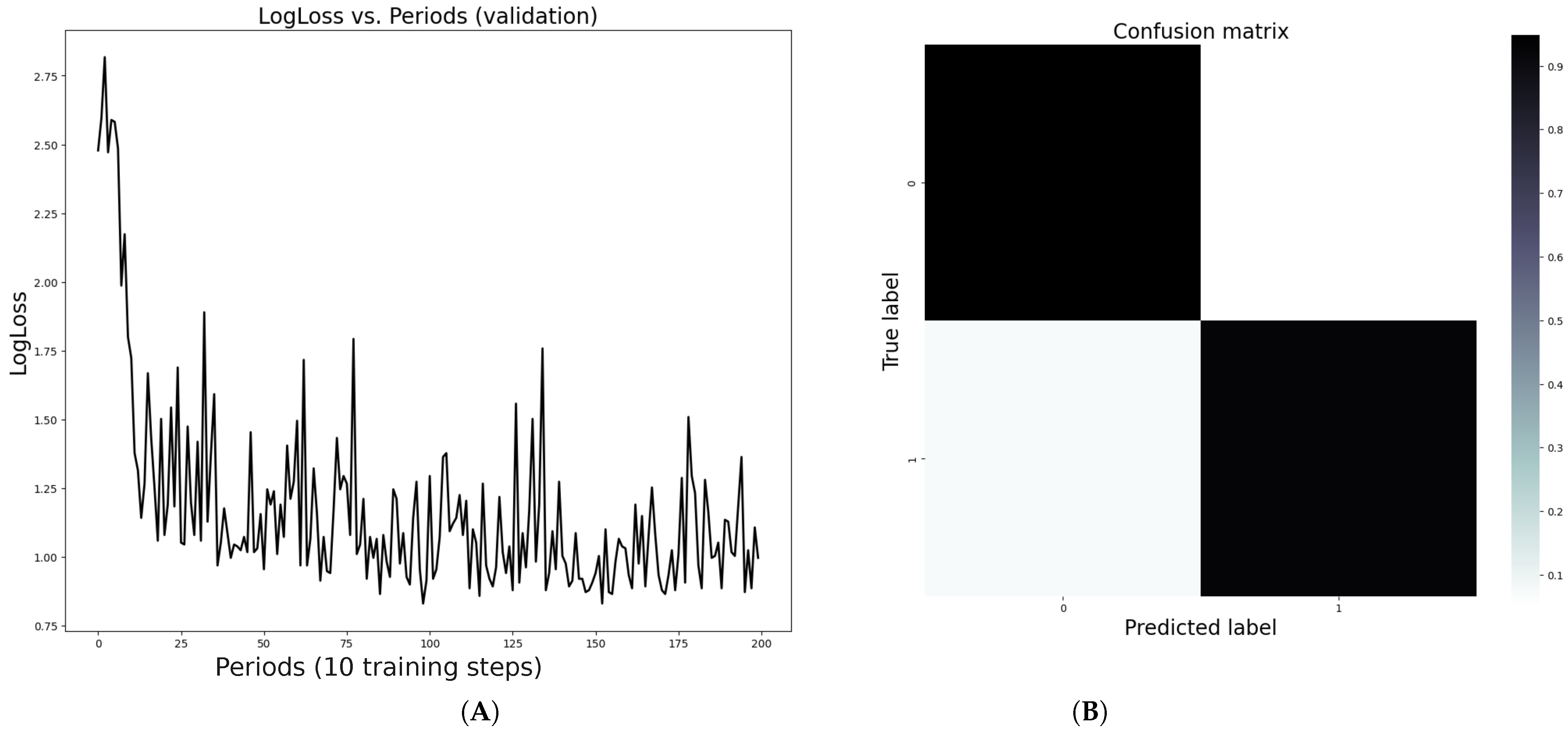

We trained the neural network for 200 periods and evaluated its performance by computing metrics such as the multi-cross entropy in log scale and the confusion matrix (Figure 2). Further, accuracy was evaluated at 94% on the test dataset. The performances of other NN architectures and classification algorithms are provided in Appendix A.2. To implement these algorithms, we used the Python libraries Scikit-learn [40] and tensorflow [41]. The database and the algorithm code are publicly available through the following github repository: https://github.com/MPS7/ML_coag (accessed on 8 August 2023).

Figure 2. (A) Multi-cross entropy in log scale during training. The value of this metric was computed at the end of each period, consisting of 10 training steps. It measures how close the predictions of the model are to the actual test data. As loss decreases, the probability that the model predictions match the target value increases. (B) The confusion matrix measuring the classification precision of the ANN architecture. The confusion matrix represents the percentage of true and false predictions for each label.

Figure 2. (A) Multi-cross entropy in log scale during training. The value of this metric was computed at the end of each period, consisting of 10 training steps. It measures how close the predictions of the model are to the actual test data. As loss decreases, the probability that the model predictions match the target value increases. (B) The confusion matrix measuring the classification precision of the ANN architecture. The confusion matrix represents the percentage of true and false predictions for each label.

3. Results

3.1. Model Calibration and Validation

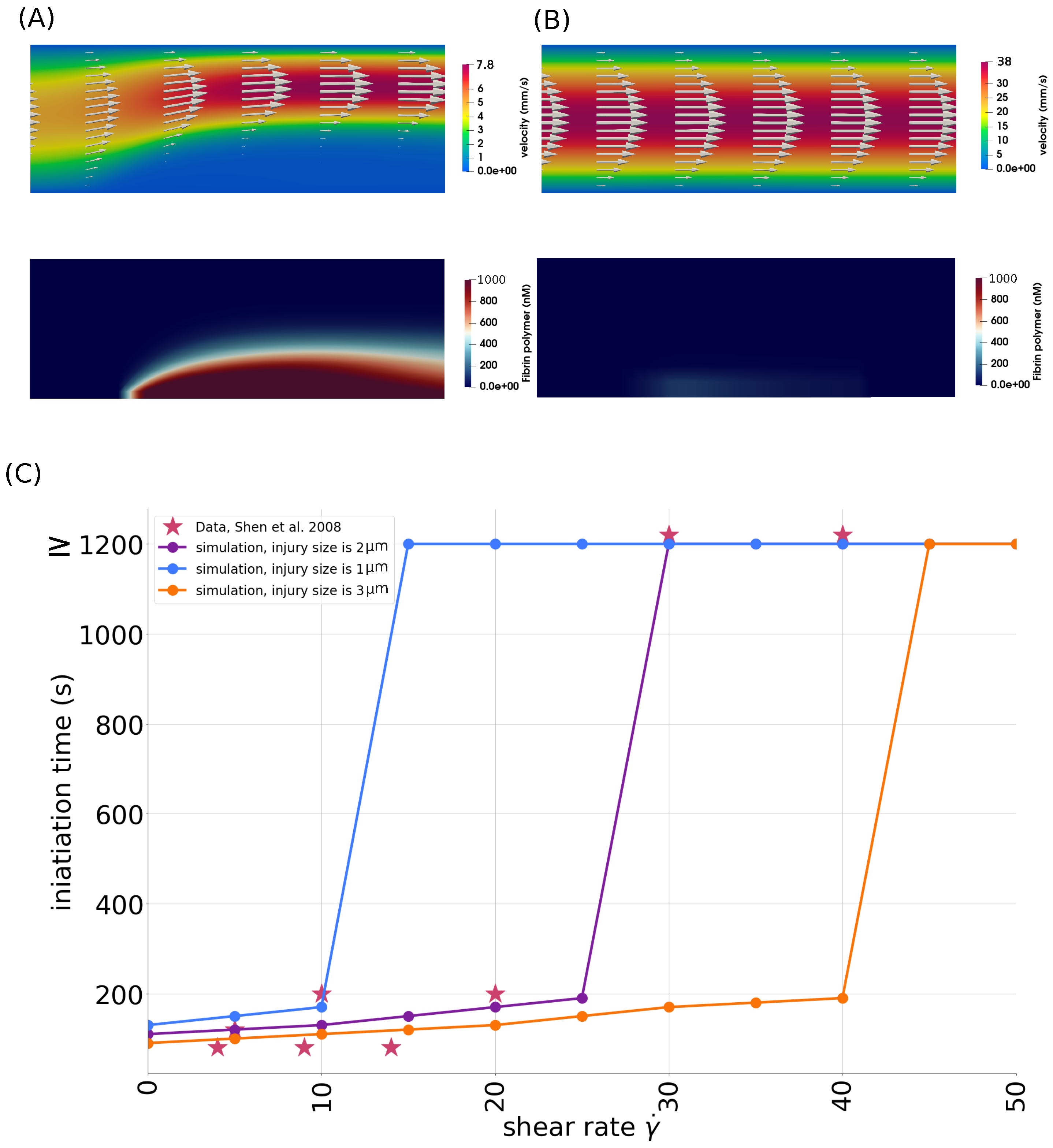

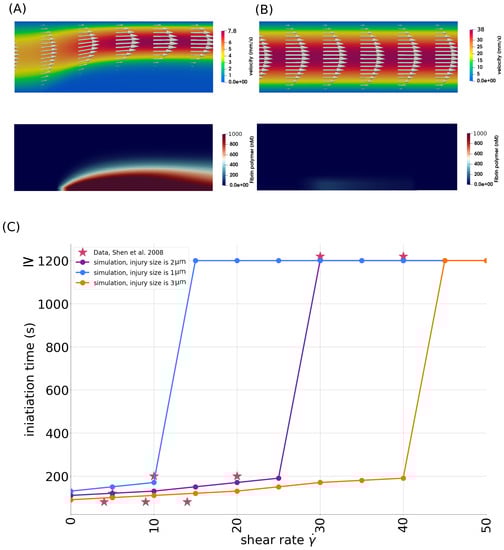

We utilized the CFD thrombus growth model (Section 2.1) to study the initiation of clotting under flow by simulating in vitro experiments [1]. The experiment involved Newtonian flow of normal pooled plasma (NPP) through a tube with rigid walls, driven by a constant pressure drop. We ran numerical simulations for a physical time of 1200 s to determine the initiation time of blood coagulation, which corresponded to the start of the propagation phase where a sudden increase in the maximal value of generated fibrin polymer was observed near the tissue factor (TF) patch. This coincided with the time when the vessel became less permeable and the clot subsequently occluded the vessel. We controlled the initial shear rate by varying the pressure drop, and determined the value of the shear rate that prevented the initiation of coagulation by running consecutive simulations (Figure 3).

The concentration of TF expressed at the activation patch was varied to reproduce the results of experiments. In the default case where the patch size is 0.2 mm, the shear rate threshold which prevents coagulation initiation was estimated at ≈27.5 s⁻¹. We also conducted simulations where the TF patch size was changed. In the case where the patch size is small ($\delta =0.1$ mm), a shear rate equal to 12 s⁻¹ was sufficient to prevent the initiation of coagulation, while a shear rate of $42.5$ s⁻¹ was required to stop clotting initiation when the size of the TF patch is higher ($\delta =0.3$ mm).

3.2. The Threshold of Coagulation Initiation under Flow in Hyper-Coagulable and Normal States

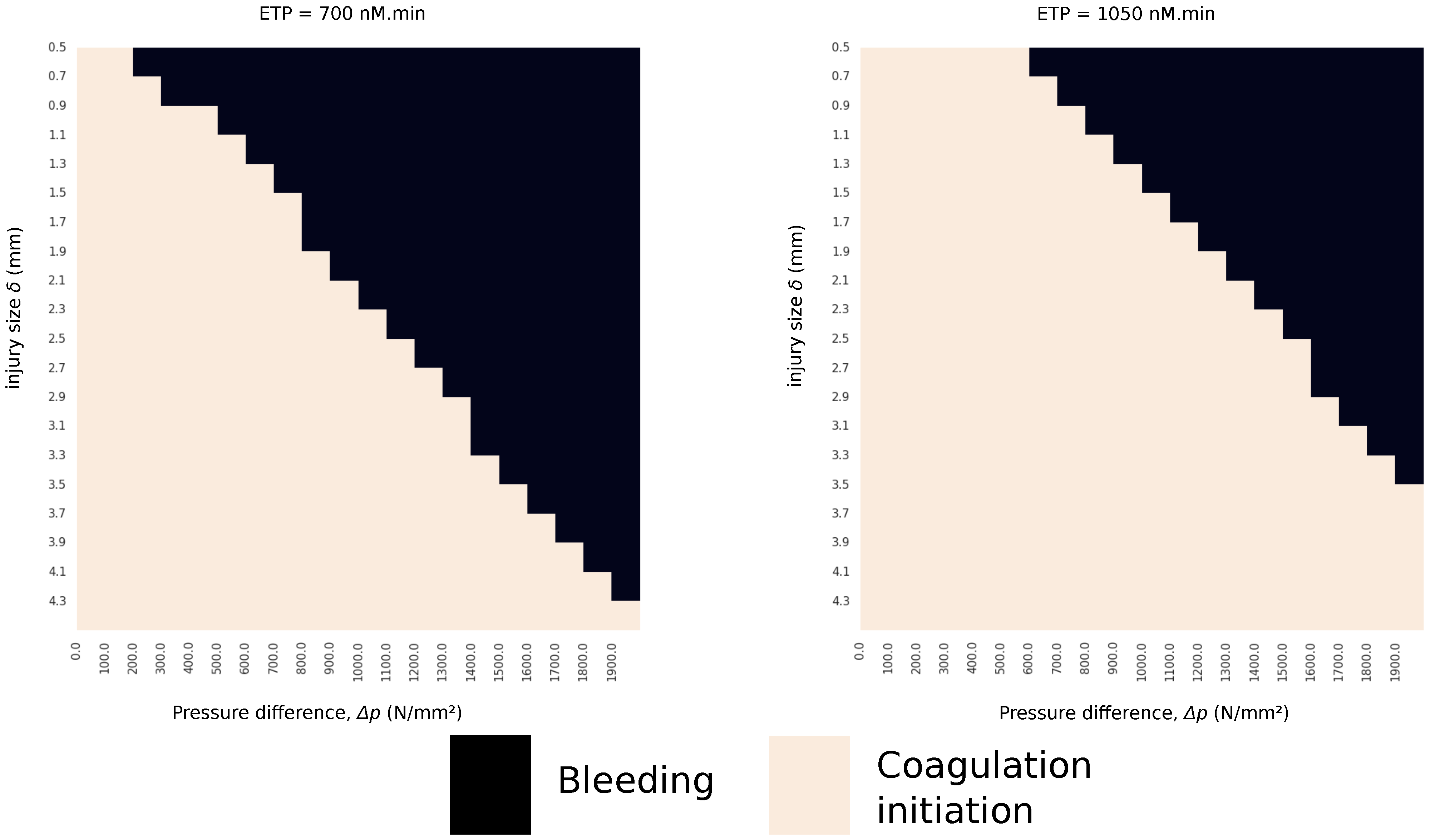

The threshold of coagulation initiation under flow corresponds to the level of shear stress or shear rate required to prevent the initiation of the coagulation cascade and the subsequent formation of a clot in flowing blood. In hypo-coagulable states, such as bleeding disorders or the presence of anticoagulants, it is expected that a lower threshold is necessary to prevent coagulation compared to normal states. This is because there are fewer procoagulant factors available to trigger the coagulation cascade. In contrast, in hyper-coagulable states, the shear rate threshold that prevents coagulation initiation is higher due to the presence of a sufficient amount of procoagulant factors that can readily initiate coagulation upon exposure to tissue factor or other triggers. We estimate this threshold for two cases corresponding to two values of the ETPs (Figure 4). In the case where ETP is normal (700 nM.min), the threshold of flow velocity that prevents coagulation corresponds to a shear rate of approximately $\dot{\gamma }=28$ s⁻¹ if the injury size is equal to 200 μm, while a higher threshold of $\dot{\gamma }=37$ s⁻¹ is required when the ETP corresponds to a hyper-coagulable state, for the same injury size value.

3.3. The Threshold of ETP, Peak Concentration, and Time to Peak That Induces Clot Formation under Varying Flow Conditions

The balance between pro-coagulant and anti-coagulant forces determines thrombin generation. Four parameters, including the lag time, ETP, peak concentration, and time to peak, characterize the result of the TGA. However, it is challenging to evaluate the independent effect of each parameter on coagulation because clotting occurs in the presence of hemodynamic forces and injury size. Further, statistical analysis of thrombin generation parameters does not allow us to determine the effect of each of them, due to the dependencies between them.

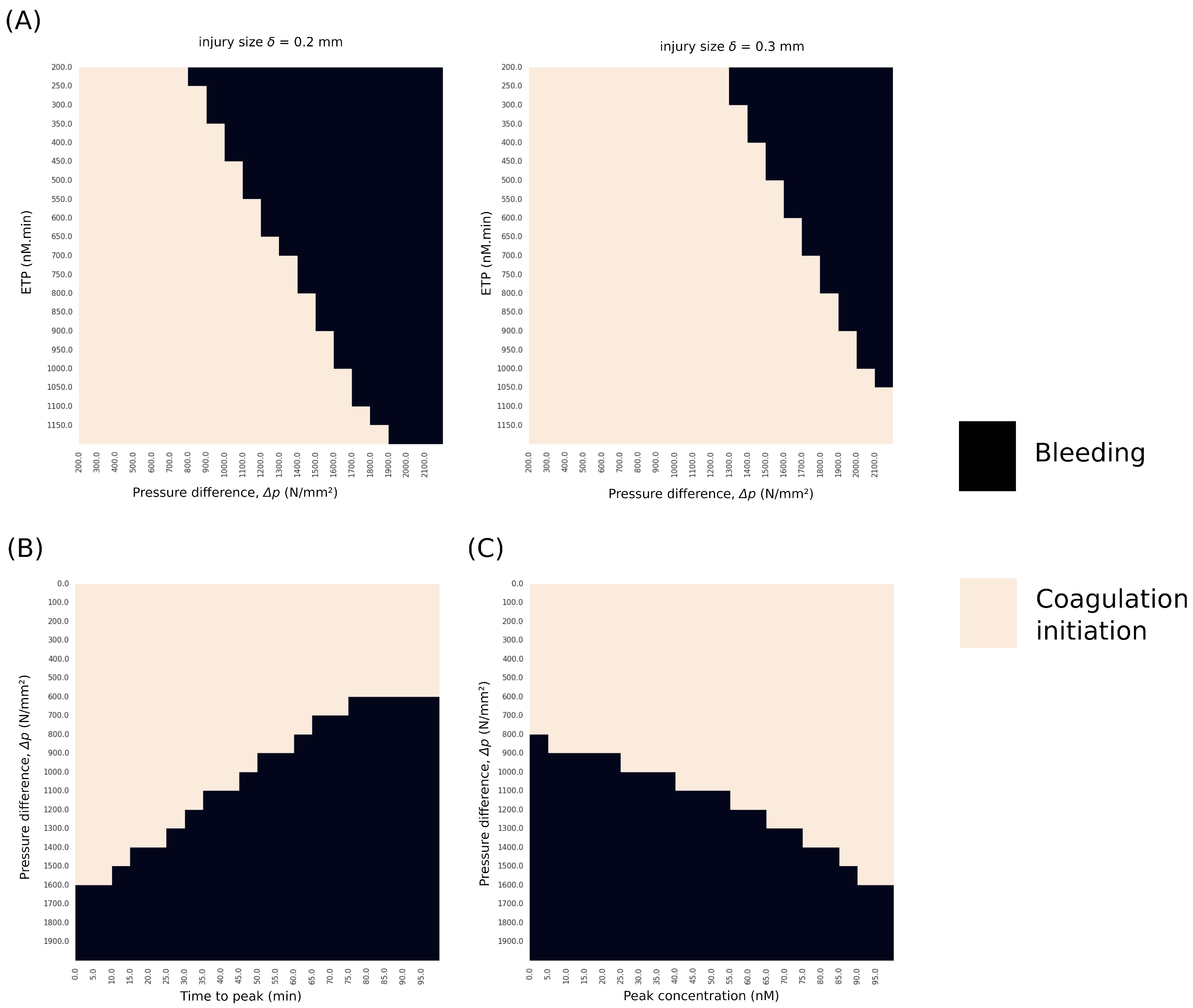

Our surrogate models provide a means to examine the impact of each thrombin generation parameter on coagulation initiation, as depicted in Figure 5. We begin by studying the effect of the ETP parameter. Our estimates indicate that the threshold shear rate required to prevent coagulation initiation increases with an increase in ETP. Additionally, larger injury sizes further increase this threshold. The time to peak parameter describes the speed at which thrombin is generated, and an increase in this parameter causes a delay in thrombin generation dynamics. Our surrogate model suggests that, as the time to peak increases, the threshold shear rate required to prevent clotting decreases. This finding suggests that higher time to peak values correspond to a lower coagulability of the plasma. The peak concentration parameter increases the threshold flow intensity required to prevent coagulation initiation, indicating that elevated peak concentration can be linked to hyper-coagulable states. The lag time has approximately no effect on the shear rate threshold that prevents coagulation, especially for small injury size values.

4. Discussion

This paper presents a new approach to explore the complex interplay between coagulation initiation thresholds in venous flow conditions. We utilized a previously developed CFD model to simulate the initiation of coagulation [13,14]. We calibrated our model to reproduce experimental observations and ran a large number of simulations to investigate the effects of blood coagulability, injury size, and flow intensity on coagulation initiation. We then post-processed the obtained dataset to calculate the thrombin generation parameters for each simulation, including the lag time, the ETP, the peak concentration, and the time to peak, which are crucial in quantifying plasma coagulability. By using an artificial neural network to analyze the post-processed dataset, we were able to predict the initiation of coagulation under varying coagulability, injury size, and flow intensity conditions. After training the model, we achieved a high accuracy of 94% on the test dataset, suggesting that the surrogate model can be used to effectively predict the outcome of simulations without resorting to the computationally intensive CFD model.

We took advantage of the accuracy of the surrogate model and its capacity to predict the outcome of coagulation initiation under a large number of conditions in a few seconds to study thresholds of thrombin generation parameters that alter the coagulation initiation dynamics. In particular, we were able to determine these thresholds for varying conditions of flow intensity and injury size. Our model predictions were in good agreement with the reported experimental findings in the literature. Indeed, it was shown experimentally that elevated ETP and peak concentrations values were associated with hypercoagulable states [42], while an increased time to peak was associated with poor coagulation [43,44]. It was also shown that the lag time has a minimal effect on coagulation, which also agrees with our model findings. These results indicate that ETP, peak concentration, and time to peak are the most reliable indicators of the likelihood of coagulation initiation.

Our study provides a robust and reliable framework for investigating the complex interplay between the components of the Virchow triad in a systemic way, and has the potential to contribute to the development of new strategies for preventing and treating thrombotic disorders. Still, it is important to note that the current implementation of the model relies on a few assumptions. First, the simulations that were used to calibrate the model were performed in in vitro settings. As a result, the application of this approach in clinical settings would require more validation against in vivo data. Second, our study does not consider the effect of platelets on coagulation. Since we are validating our model against experiments that utilize normal-pooled plasma, we decided to exclude platelets in the present study. However, we have studied their effects on the development of coagulation under venous flow in a previous study [13]. Third, the present study does not consider the effect of a complex blood rheology. This is because the experiments that we used for validation were performed with blood plasma, which displays a Newtonian rheology [1]. Finally, it is important to use the surrogate model to make predictions for parameter values within physiologically accepted ranges, although the model can provide predictions for non-physiological cases as well. For instance, it is impossible to have thrombin generation curves with peak concentrations equal to zero and a high endogenous thrombin potential. However, the surrogate model provides predictions for these values, as shown in Figure 5C.

The presented approach can serve as a basis for the development of a digital twin patient to design treatment for disorders of the hemostatic system. To achieve this, the model can be extended by including the effect of activated protein C, which localizes the clot. The effect of anticoagulant therapy can then be included using specific pharmacokinetics–pharmacodynamics models [31,45]. First, we must validate the framework’s utility by comparing its efficacy and safety to other assay methods in randomized clinical trials. In a forthcoming work, we will evaluate the effect of aerobic exercise on the risk of developing blood coagulation disorders using data collected from real subjects [46,47].
