Growth Oscillatory Zoning in Erythrite, Ideally Co3(AsO4)2·8H2O: Structural Variations in Vivianite-Group Minerals
Previous Article in Journal
Fabrication of Single-Crystalline Calcite Needle-Like Particles Using the Aragonite–Calcite Phase Transition
Article Menu
Issue 8 (August) cover image

Export Article

Open AccessArticle
Minerals 2017, 7(8), 135; doi:10.3390/min7080135

Rare Earth Element Behaviour in Apatite from the Olympic Dam Cu–U–Au–Ag Deposit, South Australia

1
School of Physical Sciences, The University of Adelaide, Adelaide, SA 5000, Australia
2
School of Chemical Engineering, The University of Adelaide, Adelaide, SA 5000, Australia
3
BHP Billiton, Olympic Dam, Adelaide, SA 5000, Australia
*
Author to whom correspondence should be addressed.
Received: 4 July 2017 / Revised: 26 July 2017 / Accepted: 29 July 2017 / Published: 2 August 2017
(This article belongs to the Special Issue Fundamentals and Frontiers in Mineralogy)
View Full-Text   |   Download PDF [8483 KB, uploaded 3 August 2017]   |

Abstract

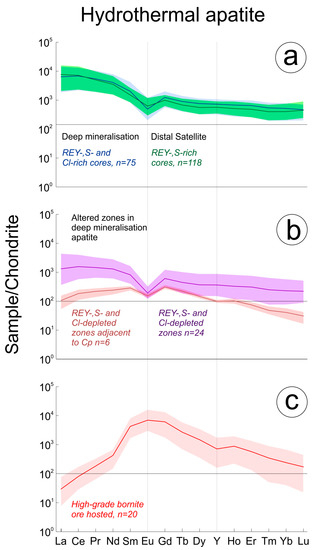

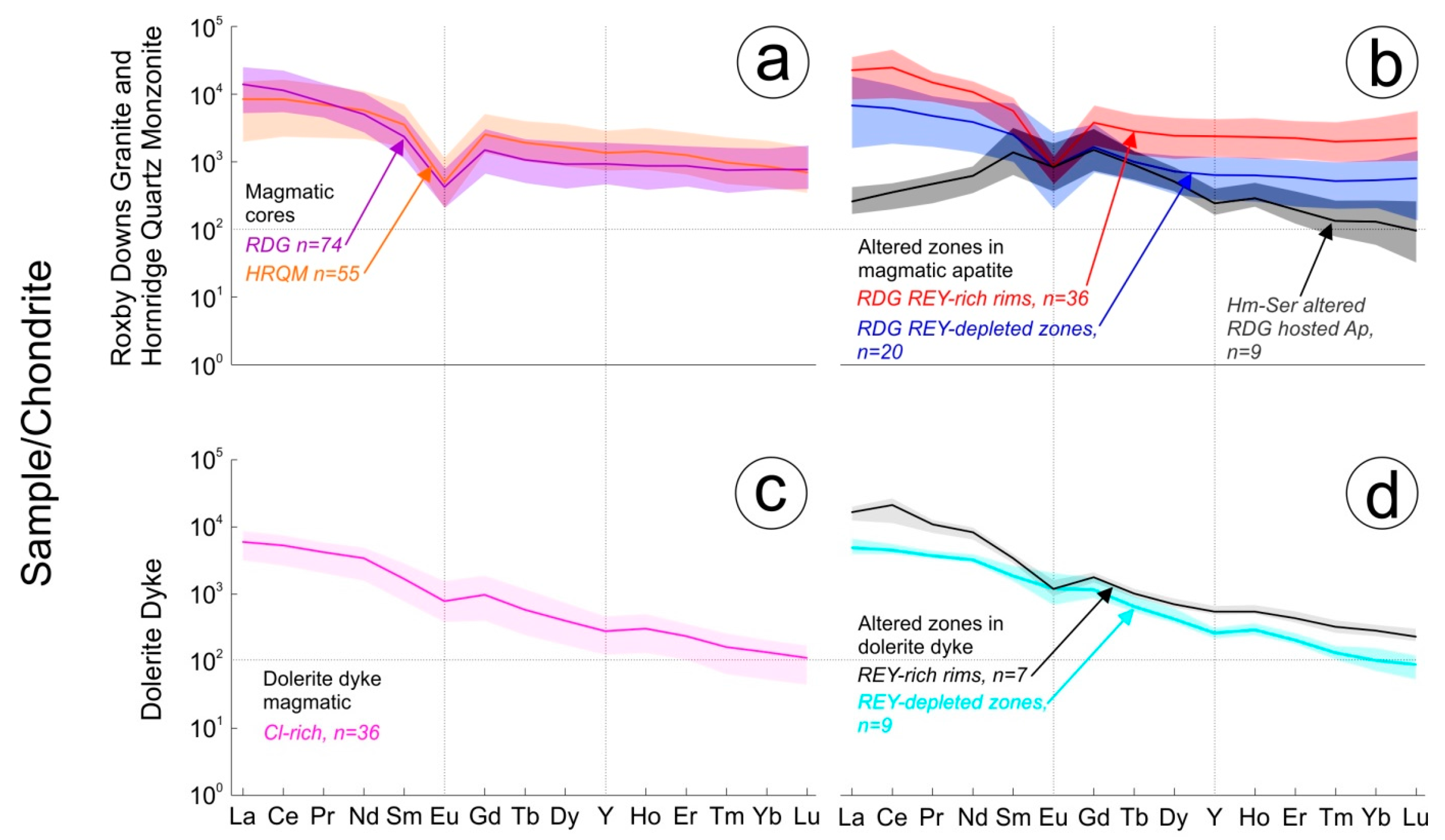

Apatite is a common magmatic accessory in the intrusive rocks hosting the giant ~1590 Ma Olympic Dam (OD) iron-oxide copper gold (IOCG) ore system, South Australia. Moreover, hydrothermal apatite is a locally abundant mineral throughout the altered and mineralized rocks within and enclosing the deposit. Based on compositional data for zoned apatite, we evaluate whether changes in the morphology and the rare earth element and Y (REY) chemistry of apatite can be used to constrain the fluid evolution from early to late hydrothermal stages at OD. The ~1.6 Ga Roxby Downs granite (RDG), host to the OD deposit, contains apatite as a magmatic accessory, locally in the high concentrations associated with mafic enclaves. Magmatic apatite commonly contains REY-poor cores and REY-enriched margins. The cores display a light rare earth element (LREE)-enriched chondrite-normalized fractionation pattern with a strong negative Eu anomaly. In contrast, later hydrothermal apatite, confined to samples where magmatic apatite has been obliterated due to advanced hematite-sericite alteration, displays a conspicuous, convex, middle rare earth element (MREE)-enriched pattern with a weak negative Eu anomaly. Such grains contain abundant inclusions of florencite and sericite. Within high-grade bornite ores from the deposit, apatite displays an extremely highly MREE-enriched chondrite-normalized fractionation trend with a positive Eu anomaly. Concentrations of U and Th in apatite mimic the behaviour of ∑REY and are richest in magmatic apatite hosted by RDG and the hydrothermal rims surrounding them. The shift from characteristic LREE-enriched magmatic and early hydrothermal apatite to later hydrothermal apatite displaying marked MREE-enriched trends (with lower U, Th, Pb and ∑REY concentrations) reflects the magmatic to hydrothermal transition. Additionally, the strong positive Eu anomaly in the MREE-enriched trends of apatite in high-grade bornite ores are attributable to alkaline fluid conditions. View Full-Text
Keywords: apatite; rare earth elements; hydrothermal fluids; Olympic Dam apatite; rare earth elements; hydrothermal fluids; Olympic Dam
Figures

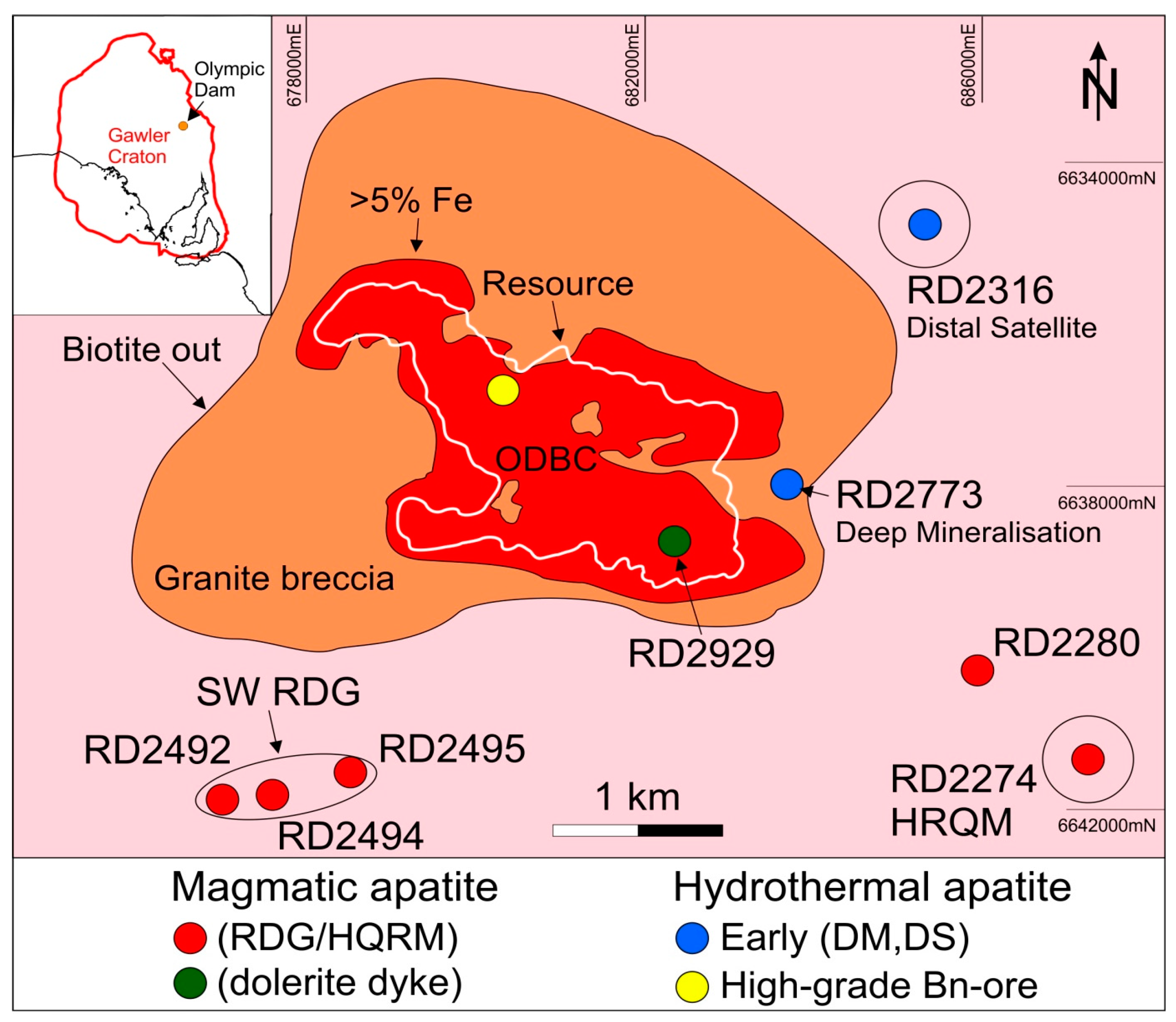

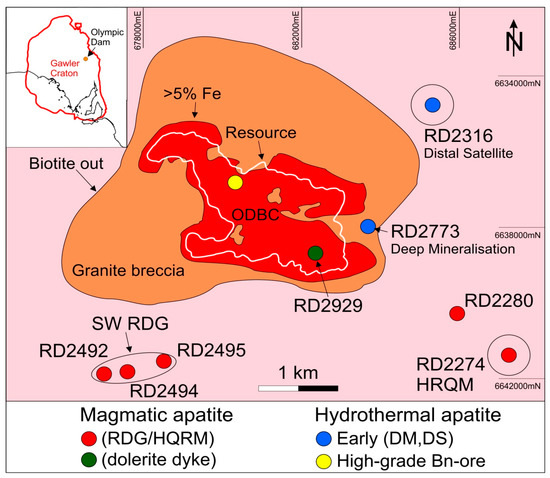

Figure 1
