Mineralogical Study of a Biologically-Based Treatment System That Removes Arsenic, Zinc and Copper from Landfill Leachate
Department of Chemical and Biological Engineering, University of British Columbia, 2360 East Mall, Vancouver, BC V6T 1Z4, Canada
Department of Earth, Ocean and Atmospheric Sciences, University of British Columbia, 2207 Main Mall, Vancouver, BC V6T 1Z4, Canada
* Author to whom correspondence should be addressed.
Received: 20 October 2013; in revised form: 27 November 2013 / Accepted: 5 December 2013 / Published: 16 December 2013

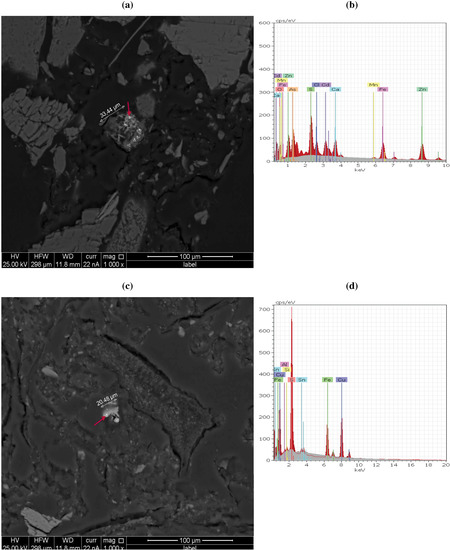

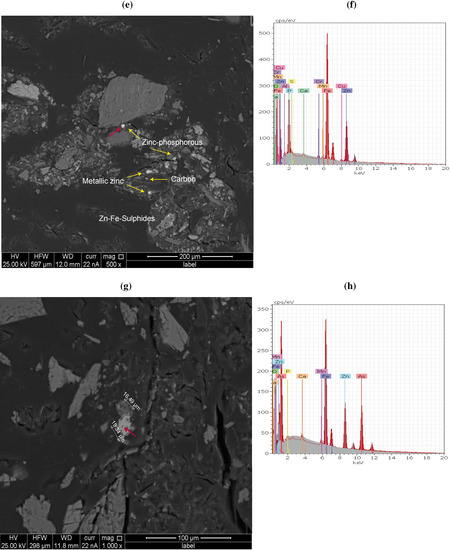

Abstract: Mineralogical characterization by X-ray diffraction (XRD) and a high throughput automated quantitative evaluation of minerals by scanning electron microscopy (QEMSCAN) was conducted on samples from a sulphate-reducing biochemical reactor (BCR) treating high concentrations of metals (As, Zn, Cu) in smelter waste landfill seepage. The samples were also subjected to energy dispersive X-ray (EDX) analysis of specific particles. The bulk analysis results revealed that the samples consisted mainly of silicate and carbonate minerals. More detailed phase analysis indicated four different classes: zinc-arsenic sulphosalts/sulphates, zinc-arsenic oxides, zinc phosphates and zinc-lead sulphosalts/sulphates. This suggests that sulphates and sulphides are the predominant types of Zn and As minerals formed in the BCR. Sphalerite (ZnS) was a common mineral observed in many of the samples. In addition, X-ray point analysis showed evidence of As and Zn coating around feldspar and amphibole particles. The presence of arsenic-zinc-iron, with or without cadmium particles, indicated arsenopyrite minerals. Copper-iron-sulphide particles suggested chalcopyrite (CuFeS2) and tennantite (Cu,Fe)12As4S13. Microbial communities found in each sample were correlated with metal content to describe taxonomic groups associated with high-metal samples. The research results highlight mineral grains that were present or formed at the site that might be the predominant forms of immobilized arsenic, zinc and copper.
Keywords: arsenic; zinc; copper; biochemical reactor; geomicrobiology; biomineralization; QEMSCAN; mining
Article StatisticsClick here to load and display the download statistics.
Notes: Multiple requests from the same IP address are counted as one view.
Cite This Article
MDPI and ACS Style
Khoshnoodi, M.; Dipple, G.; Baldwin, S.A. Mineralogical Study of a Biologically-Based Treatment System That Removes Arsenic, Zinc and Copper from Landfill Leachate. Minerals 2013, 3, 427-449.
Khoshnoodi M, Dipple G, Baldwin SA. Mineralogical Study of a Biologically-Based Treatment System That Removes Arsenic, Zinc and Copper from Landfill Leachate. Minerals. 2013; 3(4):427-449.
Khoshnoodi, Maryam; Dipple, Gregory; Baldwin, Susan A. 2013. "Mineralogical Study of a Biologically-Based Treatment System That Removes Arsenic, Zinc and Copper from Landfill Leachate." Minerals 3, no. 4: 427-449.
