Antibodies 2012, 1(1), 19-38; doi:10.3390/antib1010019
Published: 11 April 2012
Abstract: Bivalent single chain (sc)Fv-Fc antibodies have been used for years as recombinant alternatives of natural immunoglobulins. We have extended this approach to the scFv-Fc-scFv antibody format to obtain tetravalent antigen binding and the possibility to generate bispecific antibodies. We developed a mammalian expression vector system to construct tetravalent scFv-Fc-scFv antibodies with two NcoI+NotI compatible cloning sites flanking the Fc gene fragment. We demonstrated direct cloning from single chain antibody gene libraries and tested various scFv combinations. Transient production of scFv-Fc-scFv antibodies in human embryonic kidney (HEK) 293T cells achieved volumetric yields of up to 10 mg/L. However, expression levels were strongly dependent on the carboxyterminal scFv and the scFv combination. All scFv-Fc-scFv antibodies exclusively formed disulfide-linked homodimers. Antigen binding studies revealed dual specificity for all scFv-Fc-scFv employing different scFv fragments. Comparison of C-reactive protein (CRP) specific monovalent scFv LA13-IIE3, bivalent scFv-Fc and Fc-scFv LA13-IIE3, and tetravalent scFv-Fc-scFv (scFv LA13-IIE3 in combination with scFvs LA13-IIE3, TOB4-B11, or TOB5-D4) revealed an up to 500-fold increased antigen binding. This novel scFv-Fc-scFv antibody expression system allows simple and fast testing of various scFv combinations.
In vitro selection technologies can dramatically increase the throughput of the generation of human recombinant antibodies . These antibodies can be further improved by antibody engineering, for example by in vitro affinity and stability maturation [2,3] or by transferring them into multimeric antibody formats [4,5,6,7]. Moreover, combining two different antibodies into one bispecific molecule allows new applications which benefit from dual antigen binding. These bispecific antibodies (bsAbs) are particularly interesting in the field of antibody therapy, for example to retarget immune cells to tumor cells [8,9,10], to inhibit virus entry into host cells , to simultaneously inhibit different physiological pathways  or to direct cytotoxic agents to target cells . To date, more than 40 different bsAb formats have been described . The first clinically approved bsAb is still generated by quadroma technology , but recombinant bsAbs are already tested in late clinical trials with very promising results . Recombinant immunoglobulin (Ig)G like bsAb formats have the additional advantage of accessing the broad landscape of mammalian production systems, tag free purification systems and secondary detection reagents, which have been established for therapeutic IgGs for many years. CrossMabs  and SEEDbodies  can be designed to be almost indistinguishable from normal IgG, but correct pairing of two different heavy and light chains requires long optimization to obtain high product homogeneity and to avoid non-functional side products. This problem can be overcome by fusing two different scFv fragments to light and heavy chain constant Ig regions [19,20], by fusing one scFv fragment to a functional full IgG [11,21,22], or by fusing two scFvs to the Fc moiety like in single chain diabody (scDb)-Fc , tandem scFv-Fc , and scFv-Fc-scFv antibodies . These tetravalent IgG-like bsAbs can mediate bivalent binding of both antigens which was found to be a thousand fold more effective in directing cytotoxicity of lymphokine-activated killer cells to tumor cells compared to bispecific diabody fragments . Moreover, scFv-Fc-scFv antibodies were successfully used to simultaneously neutralize two different cytokines , to attenuate angiogenesis through two distinct pathways , or to knock down two endothelial transmembrane receptors .
Despite the success of bsAbs, there is no vector platform available that can provide simple cloning procedures, compatibility to antibody gene libraries, efficient production and purification to reduce the tremendous efforts required for combinatory testing of large numbers of different antibody fragments in a bispecific format. In this study, we developed a simple two-step cloning system for generating tetravalent IgG-like bsAbs (Figure 1A) from single chain antibodies which provides compatibility to established antibody gene libraries as well as to IgG production and purification systems.
2. Results and Discussion
2.1. Construction of Mammalian Expression Vectors for the Production of scFv-Fc-scFv Antibodies
The vectors pCMV2.2- and pCMV5.2-hIgG1Fc-XP (Figure 1B) were derived from the previously described plasmid pCMV-hIgG1Fc-XP . Both vectors contain the same NcoI+NotI cloning sites between leader sequence and the gene fragment encoding the human IgG1, including constant hinge, CH2 and CH3 regions. The leader sequence encodes the secretory mouse immunoglobulin heavy chain signal peptide consisting of two exons (E1, E2) and its natural intron (I) for stabilized gene expression. The following NcoI+NotI cloning sites allow single step in frame cloning of single chain Fv gene fragments from the human naïve antibody gene libraries HAL4, 7 and 8  and from several other single chain antibody phage display libraries. Expression of the antibody gene cassette is driven by the human immediate early cytomegalovirus (CMV) promoter and terminated by the bovine growth hormone (BGH) poly A signal sequence (pA). The vectors pCMV2.2- and pCMV5.2-hIgG1Fc-XP differ only at the 3′ terminus of the human IgG1 Fc gene fragment. The vector pCMV2.2-hIgG1Fc-XP contains a strong stop codon resulting in scFv-Fc antibody constructs, whereas in vector pCMV5.2-hIgG1Fc-XP the 3′ end of Fc gene fragment is fused to a sequence encoding a flexible and soluble spacer of eight amino acids (GCGGGTSG) followed by a second cloning cassette formed by two BsmBI class II subtype S restriction sites. A stop codon is inserted between both BsmBI sites. Cutting both BsmBI sites result in NcoI+NotI compatible four nucleotides overhangs which allow single step cloning from the same antibody gene libraries as mentioned above (Figure 1). Since BsmBI sites frequently occur in human antibody genes (one is frequently present in human VH; data not shown) it is usually necessary to start cloning with the 3′ scFv2 gene fragment encoding the carboxyterminal scFv moiety. After ligation, the NcoI+NotI sites flanking the parental scFv gene fragments are destroyed and a new stop codon occurs by frame shift at the 3′ end of the gene construct. The NcoI compatible overhang results in two additional amino acids (namely: MA) between spacer and scFv, whereas the NotI compatible overhang attaches two alanine codons to the carboxyterminus. Moreover, the NcoI+NotI cloning sites at the 5′ end of the Fc fragment can be still used for cloning of the scFv1 gene fragment which will be encoded at the aminoterminus of Fc moiety. Cloning of both scFv gene fragments in this order was efficiently performed, resulting in a large number scFv-Fc-scFv antibodies with various of scFv combinations, including the 2-phenyl-2-oxazoline-5-on (PhOx) specific scFv PhOx(-Yol), the CRP specific scFvs LA13-IIE3, TOB4-B11, TOB5-D4 and LA13-IID4, or a carcinoembryonic antigen (CEA) specific scFv derived from the humanized antibody BW431/26  and a CD33-specific scFv constructed from the humanized antibody HuM195 .
2.2. Production of scFv-Fc-scFvs Depends on the Employed scFv Domains

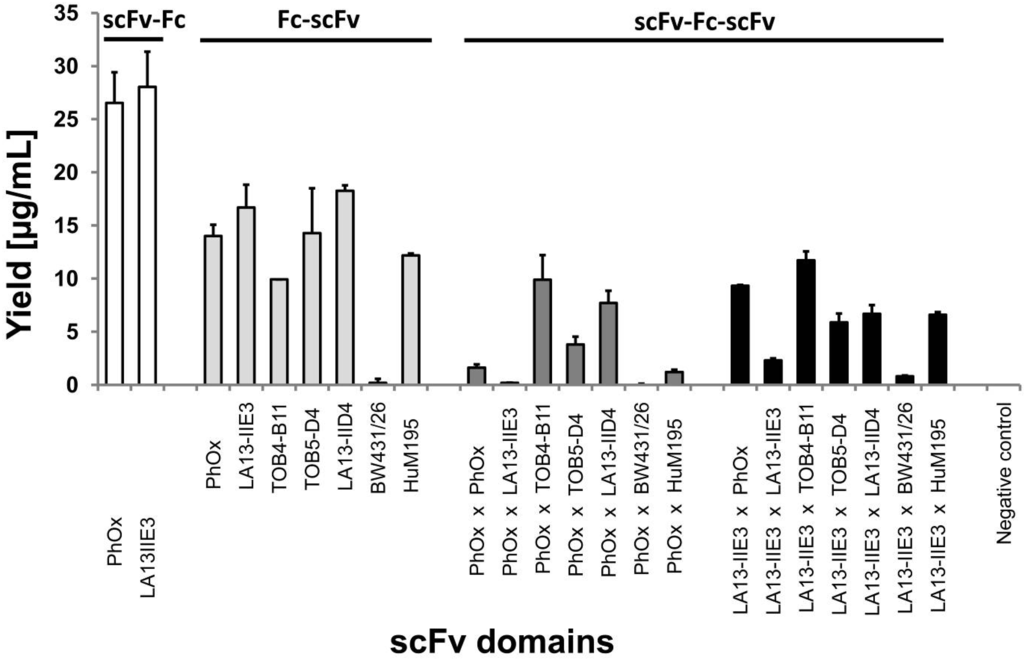

Transient production of scFv-Fc-scFv antibodies was performed in human embryonic kidney (HEK) 293T cells resulting in volumetric yields of several mg/L for most of the constructs (Figure 2). The scFv-Fc antibodies containing only the aminoterminal scFv (PhOx and LA13-IIE3) showed high expression levels of about 25–30 µg/mL. It should be noticed that during transient production the medium had to be harvested and exchanged every day, so that no product accumulation was achieved over several days. The yields can double if supernatants are harvested after two days, but enhanced cell death shortens the overall production time (data not shown). Generally, Fc-scFv and scFv-Fc-scFv antibodies showed lower yields than scFv-Fc antibodies. The volumetric yields of the Fc-scFv antibodies were still about 10–20 µg/mL, except for the construct containing scFv BW431/26. The tetravalent scFv-Fc-scFv antibodies were produced with up to 10 µg/mL volumetric yield. The yield of different scFv-Fc-scFv antibodies was strongly dependent on the scFv fragment fused to the carboxyterminus and relatively independent of the aminoterminal scFv. Nevertheless, constructs with aminoterminal scFv PhOx tended to be produced less than those with the scFv LA13-IIE3 at this position. All antibody constructs containing CEA specific scFv BW431/26 including scFv-Fc (data not shown) were only marginally expressed compared to the other constructs and omitted from further studies. Interestingly, the combination of PhOx or LA13-IIE3 with themselves in scFv-Fc-scFv also resulted only in very low production (1–2 µg/mL). Generally, it can be concluded that the expression levels of scFv-Fc-scFv strongly depended on the employed scFv domains and the scFv combinations. In future studies, the use of suspension adapted production cell lines in combination with optimized media and production processes is expected to yield much higher production levels .
2.3. ScFv, Fc-scFv and scFv-Fc-scFv Antibodies Exclusively form Homodimers
All produced scFv-Fc, Fc-scFv and scFv-Fc-scFv antibodies were purified using protein A magnetic beads or by protein A affinity chromatography. Sodium dodecyl sulfate (SDS) polyacrylamide gelelectrophoresis (PAGE) under reducing conditions revealed single or closely collocated double protein bands according to the expected molar mass (Figure 3A, Table 1). Co-purification of other proteins from the production culture supernatant was not observed. Under non-reducing conditions, all constructs migrated more than twice the molar mass of the single polypeptide chain (Table 1), indicating complete assembly of both chains to disulfide stabilized multimers (Figure 3B). Fc-scFv proteins migrated at about 105–110 kDa (Figure 3B) which is exactly the molar mass of homodimers (Table 1). In contrast, scFv-Fc antibodies revealed under non-reducing conditions in SDS-PAGE apparent molar masses of about 150 kDa (Figure 3B) which is approximately 1.5-fold higher than observed for the Fc-scFv, although these polypeptides share almost the same theoretical molar mass (Table 1). Under non-reducing conditions, the scFv-Fc-scFv antibodies even migrated with apparent molar masses of more than 250 kDa (Figure 3B) which is almost twice as much as the expected 155–165 kDa calculated from the amino acid sequences of their homodimeric forms (Table 1). The different position of the hinge region and its interchain disulfide bonds is the most noticeable difference of the Fc-scFv constructs compared to scFv-Fc and scFv-Fc-scFv. The hinge interchain disulfide bonds of Fc-scFv antibodies is located near the aminoterminus and do not interfere with the formation of a consecutive globular SDS protein complex and regular electrophoretic mobility under non-reducing conditions. In contrast, the interchain disulfide bonds in the centrally located hinge region of scFv-Fc and scFv-Fc-scFv antibodies seem to prevent the formation of a globular shaped consecutive SDS protein complex which results in lower electrophoretic migration and in higher apparent molar mass. Atypical electrophoretic mobility in SDS-PAGE under non-reducing conditions has been observed for full IgGs or single chain IgGs [7,29,30] and for some proteins even under reducing conditions, for example for the bacteriophage coat protein pIII . However, the intensity of this effect can vary upon applied conditions for sample preparation, used buffers as well as SDS and polyacrylamide concentration.
|Table 1. Molar masses of LA13-IIE3 based scFv-Fc, Fc-scFv and scFv-Fc-scFv antibodies calculated from the amino acid sequences (for monomer and homodimer) and from retention volumes (Ve) measured by SEC.|
|Homodimer [kDa]||Molar mass [kDa]|

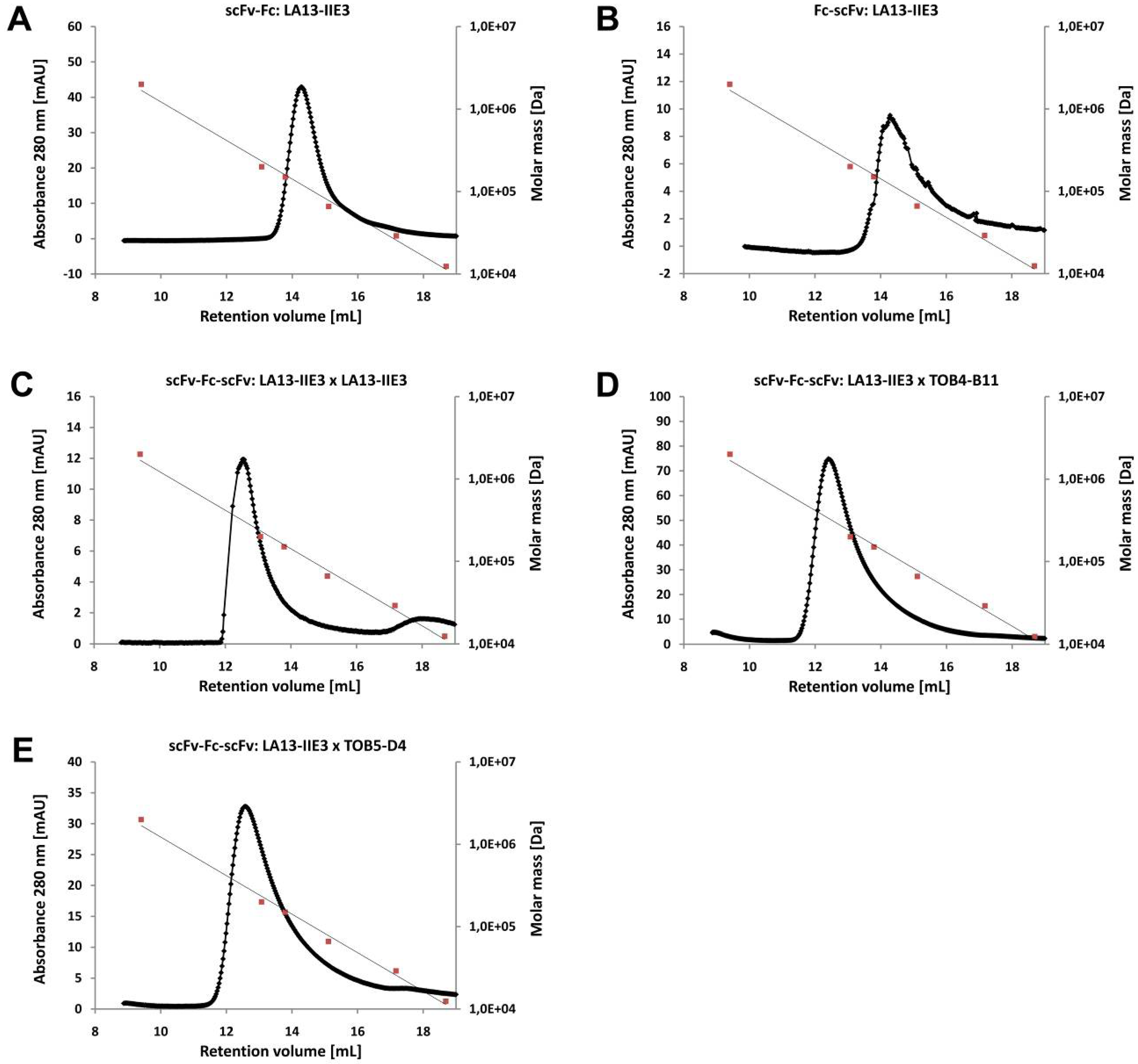

Analytical size exclusion chromatography (SEC) of the scFv-Fc LA13-IIE3, Fc-scFv LA13-IIE3 as well as of the scFv-Fc-scFv antibodies LA13-IIE3 × LA13-IIE3, LA13-IIE3 × TOB4-B11 and LA13-IIE3 × TOB5-D4 confirmed that these antibodies exclusively form homodimers (Figure 4). The single peak of the protein fraction appeared at a retention volume (Ve) corresponding with molar masses of 112 and 115 kDa for the scFv-Fc and Fc-scFv, respectively, and 175–180 kDa for the scFv-Fc-scFv antibodies which corresponds well with their homodimeric form (Table 1). The slightly higher molar masses can be expected from glycosylation in the Fc moiety. Mabry and colleagues  also measured only the homodimeric form of their scFv-Fc-scFv antibody by size-exclusion chromatography, combined with multi-angle light scattering (SEC-MALS). Their scFv-Fc-scFv construct was even less prone to aggregation at high concentrations than the parental scFv fragments.
2.4. ScFv-Fc-scFv Antibodies Provide Dual Antigen Specificity
Specific binding to CRP and the hapten PhOx (PhOx-BSA) was tested for all scFv-Fc, Fc-scFv and scFv-Fc-scFv antibodies using an indirect antigen ELISA (Figure 5). All antibodies containing the scFv PhOx showed binding to PhOx-BSA whereas those which contained at least one of the following scFvs LA13-IIE3, TOB4-B11, TOB5-D4 and LA13-IID4 bound to CRP. ScFv-Fc-scFv antibodies containing scFv PhOx in combination with a CRP specific scFv bound both antigens revealing dual antigen specificity. None of the antibody constructs bound to the negative control antigen BSA. Constructs containing the CRP specific scFv TOB5-D4 showed some tendency for unspecific binding to PhOx-BSA but not to BSA, therefore, TOB5-D4 may not have properly folded at the carboxyterminal position of the Fc moiety in comparison to the other scFvs. Fc-scFv HuM195 and scFv-Fc-scFv LA13-IIE3 x HuM195 bound specifically to CD33+ HL60 cells but not CD33− Karpas 299 cells in flow cytometry (data not shown), but with less efficiency as previously shown with the HuM195 based scFv-Fc antibody . The BW431/26 based construct were not tested for CEA binding due to very low concentration after purification.
2.6. Avidity Effects of Tetravalent Antigen Binding by scFv-Fc-scFv Antibodies

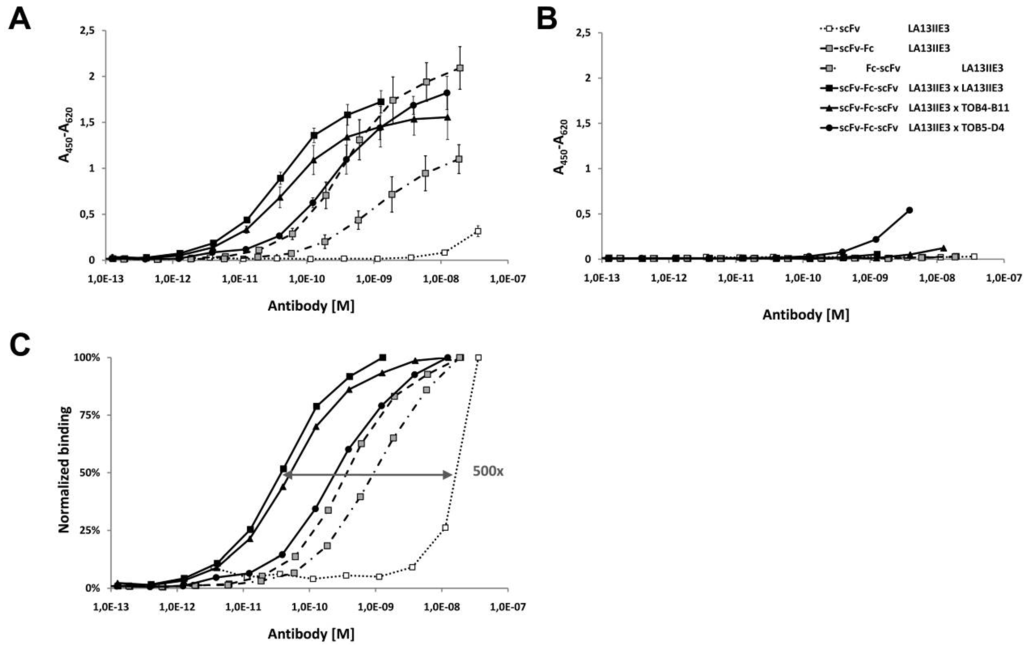

Different antibody formats containing only CRP specific scFv domains including monovalent scFv LA13-IIE3, bivalent scFv-Fc and Fc-scFv LA13-IIE3 as well as tetravalent scFv-Fc-scFv LA13-IIE3 × LA13-IIE3, LA13-IIE3 × TOB4-B11 and LA13-IIE3 × TOB5-D4 were compared regarding their antigen binding in ELISA (Figure 6, Table 2). The scFv bound CRP only at relatively high concentrations of more than 10 nM. The bivalent Fc-scFv containing the scFv LA13-IIE3 domains at the carboxyterminus of the Fc bound 20-fold more efficiently to CRP than the scFv. In contrast, the scFv-Fc antibody with same scFv domain at the aminoterminus of the Fc bound to CRP 2.5-fold more efficiently than the Fc-scFv antibody which has a 50-fold higher antigen binding than that of the monovalent scFv fragment. Presumably, carboxyterminal fusion of the scFv in Fc-scFv reduces the accessibility of its antigen binding domain in comparison to the scFv-Fc format. The scFv-Fc-scFv antibodies LA13-IIE3 × LA13-IIE3 and LA13-IIE3 × TOB4-B11 had a very low 50% effective concentration (EC50) for CRP binding of 40-50 pM which is 400-500 fold lower than that of the monovalent scFv LA13-IIE3 and about 10-fold lower than that of the bivalent scFv-Fc LA13-IIE3. In contrast, scFv-Fc-scFv LA13-IIE3 × TOB4-B11 did not bind more effectively than the scFv-Fc LA13-IIE3, which demonstrates that not all scFv combinations result in higher antigen binding.
The bivalent scFv-Fc LA13-IIE3 achieved the highest overall absorbance in antigen ELISA of all constructs. An obvious explanation for this phenomenon would be the better accessibility of its free Fc carboxyterminus to secondary antibody conjugate used for detection. Unspecific binding to PhOx-BSA only occurred at concentrations or more than 3 nM with the construct scFv-Fc-scFv LA13-IIE3 × TOB5-D4.
|Table 2. Antigen binding of CRP-specific mono-, bi- and tetravalent antibody constructs.|
|Antibody construct||scFv-||Fc||-scFv||EC50 [M] *||Increase of CRP binding (fold) **|
|scFv ***||LA13-IIE3||-||-||2 × 10−8||1|
|scFv-Fc||LA13-IIE3||+||-||4 × 10−10||50|
|Fc-scFv||-||+||LA13-IIE3||1 × 10−9||20|
|scFv-Fc-scFv||LA13-IIE3||+||LA13-IIE3||4 × 10−11||500|
|scFv-Fc-scFv||LA13-IIE3||+||TOB4-B11||5 × 10−11||400|
|scFv-Fc-scFv||LA13-IIE3||+||TOB5-D4||4 × 10−10||50|
* determined by antigen ELISA; ** with respect to EC50 of scFv; *** different detection system, saturation was not reached at the highest tested concentration.
2.7. Tetravalent scFv-Fc-scFv Antibodies Have Slower off-Rates Compared to Bivalent and Monovalent Antibody Formats
In order to eliminate possible interference of the detection system in ELISA, binding was also studied in a label-free antigen binding assay using surface plasmon resonance (SPR). Binding kinetics of CRP-specific bivalent scFv-Fc and different tetravalent scFv-Fc-scFv antibodies (=analytes) to pentameric CRP coupled as ligand to a CM5 sensor chip were measured. Since interaction of multivalent analytes to a multivalent ligand is too complex for standard models, we used the 1:1 Langmuir model only to approximate the apparent dissociation constant (KD) and to allow comparison of monovalent scFv, bivalent scFv-Fc, and tetravalent scFv-Fc-scFv antibodies (Table 3). Generally, all CRP specific tetravalent scFv-Fc-scFv antibodies had slower off-rates than the bivalent scFv-Fc and monovalent scFv LA13-IIE3. The scFv-Fc-scFv LA13-IIE3 × LA13-IIE3 had the lowest apparent KD of 72 pM which is 140-fold lower in comparison to the monovalent scFv fragment and 34-fold lower in comparison to the bivalent scFv-Fc. The apparent KD values of the other two tetravalent constructs still were in the subnanomolar range. However, the high Chi2 values of the 1:1 Langmuir curve fitting of all multivalent antibodies reflect the low quality of this model to approximate the real binding kinetics. We also used the bivalent analyte model for scFv-Fc and scFv-Fc-scFv antibodies which generally resulted in a better fitting and lower Chi2 values (Table 4). The tetravalent scFv-Fc-scFv antibodies again had lower off-rates than the bivalent scFv-Fc.
|Table 3. Binding kinetics measured by SPR and analyzed using the 1:1 Langmuir model.|
|Antibody construct||kon||koff||Rmax||Chi2||KD *|
|scFv-||Fc||-scFv||[1/Ms]||[1/s]||[RU]||[M]||Ratio to scFv||Ratio to scFv-Fc|
|LA13-IIE3 **||-||-||1.6 × 105||1.6 × 10−3||160||16,6||1.0 × 10−8||1.0||-|
|LA13-IIE3||+||-||2.1 × 106||5.1 × 10−3||154||65,1||2.5 × 10−9||4.2||1.0|
|LA13-IIE3||+||LA13-IIE3||4.3 × 106||3.1 × 10−4||216||65,4||7.2 × 10−11||141.9||34.1|
|LA13-IIE3||+||TOB4-B11||1.2 × 106||6.3 × 10−4||131||116,0||5.2 × 10−10||19.8||4.8|
|LA13-IIE3||+||TOB5-D4||1.6 × 106||7.8 × 10−4||157||131||5.0 × 10−10||20.8||5.0|
* For bi- and tetravalent only apparent KD; ** Data from .
|Table 4. Binding kinetics measured by SPR and analyzed using the bivalent analyte model.|
|LA13-IIE3||+||-||9.5 × 105||6.5 × 10−3||178||6.93|
|LA13-IIE3||+||LA13-IIE3||1.2 × 106||2.7 × 10−3||378||12.3|
|LA13-IIE3||+||TOB4-B11||6.3 × 105||1.2 × 10−3||161||22.6|
|LA13-IIE3||+||TOB5-D4||8.0 × 105||1.4 × 10−3||191||36.7|
3. Experimental Section
3.1. Single Chain (sc)Fv Antibody Gene Fragments
The scFv PhOx (PhOx-Yol) is specific for the hapten 2-phenyloxazoline -5-one (phOx) and is described elsewhere . CRP specific scFv antibody fragments LA13-IIE3 and LA13-IID4 were obtained from a semisynthetic scFv antibody gene library by phage display and were described elsewhere . The scFv antibody fragments TOB4-B11 and TOB5-D4 were isolated against CRP from naïve human antibody gene library HAL7  as described below. The scFvs BW431/26 and HuM195 were previously generated from humanized antibodies [27,28].
3.2. Selection of scFvs against Human CRP by Phage Display
CRP specific scFv antibody gene fragments TOB4-B11 and TOB5-D4 were isolated from the naïve human antibody gene library HAL7  by panning in polystyrole microtiter stripes as described . Briefly, Maxisorp microtiter stripe wells (Nunc, Langenselbold, Germany) were coated with 100 µL per well of 1 µg/mL human recombinant CRP (BiosPacific, Emeryville, USA) in phosphate buffered saline (PBS: pH 7.4, 10× stock solution contains 1.37 M NaCl, 26 mM KCl, 80 mM Na2HPO4, 15 mM KH2PO4) overnight at 4 °C. Antigen coated wells were blocked with MPBST consisting of 2% (w/v) skim milk powder (Roth, Karlsruhe, Germany) in PBST (PBS with 0.05% [v/v] Tween-20 [Serva, Heidelberg, Germany]) for 1 h at room temperature (RT), followed by three washing steps with PBST. A total of 1011 to 1012 colony forming units (cfu) phage of the antibody gene libraries were pre-incubated in MPBST blocked wells for 1 h at RT to pre-adsorb unspecific binding phage. Supernatant was transferred into antigen-coated wells and incubated for 2 h at RT. Non-bound antibody phage were removed by ten stringent washing steps with PBST using the ELISA washer Columbus Pro (TECAN, Crailsheim, Germany). In the next panning rounds the numbers of washing steps were increased to 20 and 30, respectively. Bound phage were eluted with 200 µL/well of 10 µg/mL trypsin solution for 30 min at 37 °C and then re-infected into Escherichia coli XL1-Blue MRF’ and produced as described . After three panning rounds, scFv antibody clones were isolated and screened by soluble production in E. coli and antigen ELISA as described [1,36].
3.3. ScFv Production and Purification
ScFv LA13-IIE3 was produced in E. coli XL1-Blue MRF’ using the scFv expression vector pOPE101  and purified by affinity chromatography using immobilized metal affinity chromatography (IMAC) using 0.5 mL Chelating Sepharose Fast Flow (GE Healthcare, Munich, Germany) as previously described .
3.4. Construction of pCMV2.2- and pCMV5.2-hIgG1Fc-XP Vectors and the scFv-Fc, Fc-scFv and scFv-Fc-scFv Antibody Constructs
The mammalian expression vectors pCMV2.2-hIgG1Fc-XP and pCMV4.2-hIgG1Fc-XP are derivatives of pCMV-hIgG1Fc-XP  with a modified 5′ end of the Fc gene fragment. The 5′ lysine codon of the Fc gene fragment is substituted by a serine codon in order to obtain a BamHI fusion cloning site in pCMV4.2-hIgG1Fc-XP. The BamHI site and the following downstream XbaI site were used for cloning a gene fragment generated by a fill-in reaction using the desoxyoligonucleotides TS_pCMV52_BsmB1_f (5′-AACAGGATCC-GGTGGCGGAACTAGTGG-CATGTGAGACG-TAACTAAGAAG-CGTCTC-TGGCCTGAGTGCG-TCTAGAACAA 3′; recognition sites of the restriction enzymes BamHI, BsmBI (NcoI’ overhang), BsmBI(‘NotI overhang), and XbaI are indicated) and TS_pCMV52_BsmB1_r (5′ TTGT-TCTAGA-CGCACTCAG 3′; recognition site of the restriction enzyme XbaI is indicated) and the PhusionTM DNA polymerase (New England Biolabs, NEB, Frankfurt, Germany). High quality plasmid preparation for transfection was done using the NucleoBond Xtra Midi Kit according to the manufacturer’s description (Machery Nagel, Düren, Germany).
Human CRP for ELISA was obtained from Applichem (Darmstadt, Germany). PhOx-BSA was produced by incubating 10 mg/mL bovine serum albumin (BSA; Sigma-Aldrich, Munich, Germany) and 0.67 mg/mL 4-ethoxymethylene-2-phenyl-2-oxazoline-5-on (PhOx; Sigma) corresponding to a molar ratio of 1:20 in 100 mM NaHCO3 (pH 8.5) for 2–4 h at RT. Free hapten was removed by dialysis against PBS at 4 °C.
3.6. Cell Culture
The human embryonic kidney cell line HEK293T/17 was obtained from American type culture collection (ATCC, LGC Standards GmbH, Wesel, Germany: ATCC-No. CRL-11268) and cultured in Dulbecco’s modified Eagle’s medium (DMEM, with high glucose (4.5 g/L) and 2 mM L-glutamine supplemented with 8% (v/v) fetal calf serum (FCS) and with 100 U/mL penicillin and 0.1 mg/mL streptomycin (PAA, Parching, Germany). Cells were detached using trypsin (5.0 mg/mL)/EDTA (Titriplex III, 2.2 mg/mL) (PAA).
3.7. Transient Transfection and Production in HEK293T Cells
Transient production in adherent HEK293T was done as previously described . Briefly, one day before transfection 4–6 × 106 HEK293T cells in 12.5 mL culture medium were seeded into 10 cm plates (Greiner Bio-one, Frickenhausen, Germany) and incubated overnight. Next day, plates were about 70–80% confluent. Transfection was performed with 80 µg polyethyleneimine (PEI, Polysciences, Warrington, PA) and 10 µg plasmid-DNA both separately prediluted in 600 µL DMEM. DNA and PEI solutions were mixed and incubated for 15–30 min at RT and then distributed over the cells. After 24 h medium was completely replaced by DMEM supplemented with 4% (w/v) IgG stripped FCS (PAA) to minimize co-purification of bovine IgG by protein A/G affinity chromatography. The medium was harvested and exchanged every day for up to two weeks.
3.8. Quantification of Antibodies by IgG/Fc Capture ELISA
The antibodies in the production supernatants were quantified by IgG/Fc capture ELISA as described . Briefly, a total of 100 µL/well goat-anti-human immunoglobulin (polyvalent) capture antibody (Sigma, Cat.-No. I1761; diluted 200 ng/mL in PBS) was coated in 96-well Maxisorp microtiter plates (Nunc) for 1 h at 37 °C. After blocking with 30% (v/v) FCS for 1 h at 37 °C, the wells were washed 3 times with PBST (PBS with 0.05% [v/v] tween-20, Sigma) using an Columbus ELISA washer (TECAN, Crailsheim, Germany). Several dilutions of each sample and a half dilution series of the human IgG protein standard (N-protein SL, Dade Behring, now Siemens Healthcare Diagnostics, Eschborn, Germany; starting concentration 50 ng/mL) were prepared in PBST with 1% (v/v) FCS and 100 µL/well incubated for 1 h at 37 °C. After washing, a total of 100 µL/well of 20 ng/mL goat-anti-human-IgG (Fc-specific) antibody horseradish peroxidase (HRP) conjugate (Sigma, Cat.-No. A0170) was incubated for 1 h at 37 °C. After washing, the color reaction was initiated with 100 µL/well 3,3′,5,5′-tetramethylbenzidine (TMB) substrate solution (mix freshly 20 volumes TMB solution A consisting of 30 mM potassium citrate, 0.5 mM citric acid, pH4.1 with 0.5 volumes of TMB solution B consisting of 10 mM TMB solved in 10% [v/v] acetone, 89% [v/v] ethanol, 0.3% [v/v] H2O2) and stopped by addition of 100 µL/well of 0.5 N H2SO4. The absorbance was measured at 450 nm against reference wavelength of 620 nm (A450-A620) using the Sunrise ELISA reader (TECAN).
3.9. Protein Purification with Protein A Magnetic Beads and by Protein A Filtration
Preliminary tests were done by purifying the scFv-Fc, Fc-scFv and scFv-Fc-scFv antibodies from supernatants of transfected HEK293T cells using protein A magnetic beads (New England Biolabs, NEB, Frankfurt, Germany) according to the manufacturer’s description. Briefly, a total of 5 µL protein A magnetic beads were used to bind 1 µg of the scFv, Fc-scFv or scFv-Fc-scFv antibodies in binding buffer (20 mM sodium phosphate, pH 7.0) using a magnetic stand. After three washing steps with binding buffer, antibodies were eluted in 50 µL 200 mM glycine/HCl, pH 2.5 and neutralized with 20 µL 1 M Tris-HCl, pH 9.0. Purification of milligram amounts was done with Sartobind protein A filters (Sartorius, Göttingen, Germany) according to the manufacturer’s protocol. Elution was performed with 100 mM glycin/HCl, pH 2.8. Elution fractions were neutralized with an appropriate amount of Tris-HCl, pH 9.0 and dialyzed against PBS.
3.10. SDS-PAGE and Silver Staining
SDS-PAGE was performed as described . Protein samples were prepared under reducing conditions with sample buffer (containing beta-mercaptoethanol) for 5 min at 95 °C or under non-reducing conditions (sample buffer without reducing agent) for 10 min at 65 °C. Silverstaining was done with little modification after the method of Blum, Beier and Gross . Briefly, polyacrylamide gels were fixed overnight in 50% (v/v) methanol, 12% (v/v) acetic acid and 0.05% (v/v) formaline (37% formaldehyde, Roth) at RT. After three washing steps in 50% (v/v) ethanol for each 20 min, the gel was incubated in sodium thiosulfate solution (0.02% [w/v] Na2S2O3 × 5 H2O). After three washing steps in water for 20 s, gels were incubated in freshly prepared silver solution (2% [w/v] AgNO3 solution, 0.075% [v/v] formaline) for 20 min. After two washing steps in water for 20 s, gels were incubated in freshly prepared developer solution (6% [w/v] Na2CO3, 0.05% µL formaline, 2% [v/v] of sodium thiosulfate solution) for 1 to 10 min until the protein bands appeared. The reaction was stopped by two washing steps in water for 2 min and a final incubation in stop solution (50% [v/v] methanol, 12% [v/v] acetic acid).
3.11. Analytical Size Exclusion Chromatograpy (SEC)
A total of 50 to 100 µg scFv-Fc, Fc-scFv or scFv-Fc-scFv, respectively, were injected onto a Superdex 10/300 GL using the Äkta Purifier fast performance liquid chromatography (FPLC) system (GE Healthcare, Freiburg, Germany) with PBS, pH 7.4 at a flow rate of 0.5 mL/min.
3.12. Antigen ELISA
Antigen ELISAs were performed as previously described. Briefly, a total of 100 ng/well of CRP, PhOx-BSA or BSA, respectively, were coated onto Maxisorp 96-well microtiter plates (Nunc). After washing using an ELISA washer (TECAN) and blocking with 2% M-PBST, 100 µL per well of 100 ng/mL scFv-Fc, Fc-scFv and scFv-Fc-scFv antibody or serial dilutions of these antibody constructs were prepared in blocking buffer and incubated for 1 h at RT. After three washing steps bound scFv-Fc, Fc-scFv and scFv-Fc-scFv were detected by staining with a goat-anti-human IgG (Fc-specific) secondary antibody HRP conjugate (Sigma). The scFv LA13-IIE3 was detected with 100 µL/well mouse α-myc-tag monoclonal antibody Myc1-9E10 (1:1,000; Sigma) and polyclonal goat α-mouse IgG (Fab-specific) antibody HRP conjugate (1:20,000; Sigma). Color reaction was performed using TMB as described above. Absorbances were measured at 450 nm against reference wavelength of 620 nm (A450–A620) using the Sunrise ELISA reader (TECAN).
3.13. Affinity and Kinetics Measurements
Affinity measurements were performed by surface plasmon resonance analysis (SPR) using a CM5 chip on a Biacore2000TM (GE Healthcare). Human CRP and control protein lysozyme were bound as ligands in different channels of the CM5 chip via amine coupling following the manufacturer’s instructions. The flow rate was set to 10 µL/min for association and 25 µL/min for dissociation using 10 mM 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES) buffer (pH 7.4) with 0.15 M NaCl, 3 mM EDTA and 0.005% (v/v) surfactant P20 (25 °C). Chip regeneration was done with 50 mM HCl. Analyte samples of scFv-Fc-LA13-IIE3 and scFv-Fc-scFv (LA13-IIE3 × LA13-IIE3, LA13-IIE3 × TOB4-B11 or LA13-IIE3 × TOB5-D4) were diluted to obtain a concentration series from 100 to 1 nM. Analysis was performed using the BIA evaluation software using the 1:1 Langmuir and bivalent analyte models.
The design of the vector pCMV5.2-hIgG1Fc-XP allows simple two-step cloning of single chain antibody gene fragments into the scFv-Fc-scFv antibody format which can be used to generate monospecific as well as bispecific IgG-like tetravalent antibodies. Transient mammalian production in HEK293T cells allowed yields useful for initial studies for most of the antibody constructs. However, we observed a strong dependency of expression from the employed scFv fragments particularly from those introduced at the carboxyterminus of the Fc. All scFv-Fc-scFv antibodies except those containing the scFv BW431/26 were produced in sufficient yields to be used in further applications. Moreover, we also demonstrated that testing several scFv combinations can also result in scFv-Fc-scFv antibodies which are produced in several mg/L yields. Novel transient mammalian expression systems , as well as efficient stable mammalian production processes can increase the production levels of scFv-Fc-scFv antibodies [12,25]. The scFv-Fc-scFv antibodies exclusively formed disulfide-bound homodimers as previously shown by other research groups even with less tendency to form aggregates than scFv fragments [12,25]. The combination of different antigen specificities in one scFv-Fc-scFv construct resulted in all cases in dual specificity of the molecules as tested by antigen ELISA or flow cytometry. Although simultaneous binding of two different antigens was not tested in this study, the scFv-Fc-scFv antibody format seems to be less prone to mutual interference, since both scFv antibody fragments are located on the different termini of the Fc moiety. Despite the soluble and flexible ten amino acid spacer sequence which we introduced between Fc and carboxyterminal scFv, Fc-scFv antibodies generally bound less efficiently to their antigens than scFv-Fc antibodies with scFv and Fc arranged in reverse order. Antigen binding of the carboxyterminal scFv fragments can probably be improved by using longer linkers but it is still unlikely to completely reconstitute the binding properties of scFvs with a free aminoterminus, because the antigen binding regions of antibodies display towards a free aminoterminus in immunoglobulins. A bias regarding a free aminoterminus can also be expected for recombinant antibodies isolated by phage display because antibody fragments can only be fused to the major phage coat protein pIII in scFv-pIII orientation.
We tested the effect of antibody valency to bind multimeric antigens. The avidity effect of CRP-specific bivalent scFv-Fc and tetravalent scFv-Fc-scFv antibodies resulted in a several hundred fold improved antigen binding compared to the monovalent scFv fragment. Tetravalent scFv-Fc-scFv antibodies showed the lowest EC50 depending on the scFv combination. The scFv-Fc-scFv LA13-IIE3 × LA13-IIE3 and LA13-IIE3 × TOB4-B11 antibodies had EC50 values of only 40 to 50 pM in ELISA with a high concentration of immobilized CRP antigen. SPR studies with a low amount of immobilized CRP revealed an apparent KD of about 70 pM for scFv-Fc-scFv LA13-IIE3 × LA13-IIE3, which indicates more efficient simultaneous binding of three or four scFv arms of this construct to a single CRP pentamer. The other two tested scFv-Fc-scFv antibodies LA13-IIE3 × TOB4-B11 and LA13-IIE3 × TOB5-D4 still bound in the subnanomolar range to CRP which is about five times more efficient than the bivalent scFv-Fc construct. Dual epitope recognition was not further investigated in this study but bsAbs binding to two different sites on the same antigen have been demonstrated superior functions compared to their monospecific parental antibodies. A tetravalent IgG-like bsAbs recognizing two epitopes on CD2 mediated increased mitogenic effects compared to the parental monoclonal antibodies . Another bsAb blocked two alternative docking sites on human deficiency virus (HIV) coreceptor CCR5 and was able to inhibit the entry of CCR5 tropic HIV strains as well as of HIV strains that were already resistant to the parental monoclonal antibodies . Moreover, bispecific scFv-Fc-scFv have been shown to effectively neutralize two different cytokines  or to inhibit two different angiogenic pathways in vitro and in vivo , thus demonstrating that this bsAb format has great potential in different applications.
Taken together, the pCMV5.2-hIgG1Fc-XP expression system allows fast and reliable construction of tetravalent IgG-like mono- and bispecific scFv-Fc-scFv antibodies and production of several milligrams for testing and application. Although still in early stage, our scFv-Fc-scFv expression system can already be linked to our previously described high throughput antibody generation pipeline  to allow rapid candidate testing for tetravalent IgG-like bsAbs.
We gratefully thank Stefan Dübel and Michael Hust (Technische Universität Braunschweig, Germany) for critical discussion and reading the manuscript, and providing the scFv gene fragments and antibody gene libraries. We acknowledge the financial support by EU FP6 supported coordination action funded activities “Proteome Binders” (contract 026008) and the EU FP7 collaborative projects “Affinity Proteome” (contract 222635) and “Affinomics” (contract 241481).
