Genome-Wide Identification and Expression Analysis of the MYB Transcription Factor Family in Salvia nemorosa

by
Huan Yang
1,†,
Chen Chen
2,†,
Limin Han
3,
Xiao Zhang
2 and
Ming Yue
1,*
1
The College of Life Sciences, Northwest University, No. 229 Taibai North Road, Xi’an 710069, China
2
Xi’an Botanical Garden of Shaanxi Province, Institute of Botany of Shaanxi Province, Shaanxi Engineering Research Centre for Conservation and Utilization of Botanical Resources, No. 17 Cuihua South Road, Xi’an 710061, China
3
College of Life Sciences and Food Engineering, Shaanxi Normal University, Shenhe Avenue, Xi’an 710100, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Genes 2024, 15(1), 110; https://doi.org/10.3390/genes15010110
Submission received: 20 December 2023 / Revised: 11 January 2024 / Accepted: 15 January 2024 / Published: 17 January 2024
(This article belongs to the Special Issue Genetic Improvement in Horticultural Plants)
Browse Figures
Review Reports Versions Notes

Abstract

:
The MYB transcription factor gene family is among the most extensive superfamilies of transcription factors in plants and is involved in various essential functions, such as plant growth, defense, and pigment formation. Salvia nemorosa is a perennial herb belonging to the Lamiaceae family, and S. nemorosa has various colors and high ornamental value. However, there is little known about its genome-wide MYB gene family and response to flower color formation. In this study, 142 SnMYB genes (MYB genes of S. nemorosa) were totally identified, and phylogenetic relationships, conserved motifs, gene structures, and expression profiles during flower development stages were analyzed. A phylogenetic analysis indicated that MYB proteins in S. nemorosa could be categorized into 24 subgroups, as supported by the conserved motif compositions and gene structures. Furthermore, according to their similarity with AtMYB genes associated with the control of anthocyanin production, ten SnMYB genes related to anthocyanin biosynthesis were speculated and chosen for further qRT-PCR analyses. The results indicated that five SnMYB genes (SnMYB75, SnMYB90, SnMYB6, SnMYB82, and SnMYB12) were expressed significantly differently in flower development stages. In conclusion, our study establishes the groundwork for understanding the anthocyanin biosynthesis of the SnMYB gene family and has the potential to enhance the breeding of S. nemorosa.

1. Introduction

Salvia represents the largest genus within the Lamiaceae family, encompassing nearly 1000 distinct species of shrubs, herbaceous perennials, and annual plants. This genus has a wide distribution spanning Europe, Asia, Africa, and the Americas [1]. Numerous varieties of Salvia have been employed as traditional medicinal herbs for centuries in the treatment of various ailments. For example, S. miltiorrhiza (red sage), which is native to China, has been used to treat and prevent cardiovascular diseases, including coronary heart disease, myocardial infarction (MI), angina pectoris, and atherosclerosis [2]. Moreover, some members of this genus, such as clary sage (S. sclarea), Spanish sage (S. verbenaca), and Greek sage (S. triloba L.), produce essential oils that are rich in terpenes, including linalool acetate, linalool, caryophyllene, and terpineol, which have antimicrobial, anti-amnesic, antidepressant, and anticancer activities as well as other potential health benefits [3,4,5,6,7,8]. Moreover, some species of Salvia are grown as ornamental plants for their attractive, colorful flowers and foliage, such as common sage (S. officinalis) and scarlet sage (S. splendens) [9,10].
S. nemorosa, commonly known as “Woodland Sage”, is a hardy, herbaceous perennial plant that is indigenous to broad regions of Central Europe and Western Asia [11]. S. nemorosa has dark-purple stems and purple–violet stems borne in long, upright spikes, and its colorful flowers vary from the occasional white to pale pinks, mauves, blues, and purples. Moreover, it blooms from June to October, providing a bounty of sustenance and attracting beneficial insects all summer long. S. nemorosa is an easy survival plant to grow in average, moist, and well-drained soil under conditions ranging from full sunlight to partial shade [12]. It prefers sandy or gravelly soil and even tolerates dry soils. It also works well with other perennial plants in a mixed scheme on the fringes of a forest garden or woodland space. Meanwhile, it can attract pollinators and beneficial insects and ensure good pollination rates for other common garden crops. In summary, as a garden plant, S. nemorosa is tough and versatile, combining well with many other perennials and grasses and requiring little maintenance.
Anthocyanins are hydrophilic pigments present in plants of the flavonoid group, responsible for the red, purple, and blue hues observed in various fruits, vegetables, flowers, and foliage. Anthocyanins have various functions in plants, including attracting pollinators, protecting against UV radiation, and acting as antioxidants. The biosynthesis of anthocyanins is well understood, and the basic pathway involves the conversion of phenylalanine to 4-coumaroyl-CoA and then, through several enzymatic reactions, compounding chalcone synthase (CHS), chalcone isomerase (CHI), flavanone 3-hydroxylase (F3H), dihydroflavonol 4-reductase (DFR), and anthocyanidin synthase (ANS) to form unstable anthocyanidins, cyanidin, pelargonidin, and delphinidin. Ultimately, a series of stable sugar derivatives are produced by flavonoid 3-O-glucosyltransferase (UFGT), which is responsible for adding sugar molecules to anthocyanidins to form anthocyanins. In addition to the basic genes participating in the biosynthesis pathway, many transcription factors also adjust the accumulation of anthocyanins, the most famous of which is the MYB-bHLH-WD40 complex (MBW complex). Substantial evidence which is obtained from model plants and fruits has demonstrated that the MBW complex, especially the bHLH transcription factor, is a potent regulator of anthocyanin production in higher plants [13,14]. In particular, MYBs play an essential part in determining anthocyanin accumulation [15]. For instance, the R2R3-MYB transcription factor PAP1 (Production of Anthocyanin Pigment 1) in Arabidopsis thaliana has been revealed to be able to initiate the expression of CHS, CHI, F3H, DFR, and ANS, contributing to increased anthocyanin accumulation [16]. Similarly, the over-expression of AtMYB124 resulted in an increase in anthocyanin accumulation in Arabidopsis leaves and flowers, while knocking it out reduced anthocyanin levels. Additionally, AtMYB124 could interact with PAP1 and activate it to improve the expression of anthocyanin biosynthesis genes [17]. In strawberry, FaMYB5, a newly identified R2R3-MYB transcription factor, positively regulates the biosynthesis of anthocyanin and proanthocyanidin [18]. Notably, LvMYB5 can combine and activate the promoter of the ANS gene to increase anthocyanin levels, while LvMYB1 inhibits anthocyanin synthesis in lily flowers [19]. Overall, MYBs in plants are multifunctional agents that influence anthocyanins as positive or negative regulators through fine-tuning the expression of target genes.
The MYB gene family, one of the largest families of transcription factors in higher plants, is distinguished by a preserved MYB DNA-binding domain located at the N-terminus [20]. Effectively, it comprises three conserved functional domains: a DNA-binding domain (DBD), a transcriptional activation domain (TAD), and an incompletely defined negative regulatory region (NRD) [21]. According to the number of conserved structural domains, the MYB family can be categorized into four distinct subfamilies, namely, MYB-related (1R-MYB), MYB-R2R3 (2R-MYB), MYB-R1R2R3 (3R-MYB), and MYB-4R [22]. To date, many MYB families have been identified at the genome-wide level, including Arabidopsis thaliana [23], watermelon [24], Solanum lycopersicum [25], rice [26], maize [27], soybean [28], and poplar [29], and the regulation functions of MYBs have been further studied. However, there is limited knowledge regarding the composition of the MYB gene family in S. nemorosa and its involvement in the regulation of flower pigmentation patterns. Based on the above points, we first identified a total of 142 SnMYB genes (MYB genes of S. nemorosa) and characterized 10 candidate genes according to their similarity with AtMYB genes related to the regulation of anthocyanin biosynthesis. Then, the gene structures, chromosome distribution, conserved motifs, cis-elements, and expression profiles of candidate MYB genes were systematically analyzed. This research not only offers a point of reference for further elucidating the roles of MYB genes but also contributes to a deeper understanding of the diverse functions of MYBs in S. nemorosa.

2. Materials and Methods

2.1. Genome-Wide Identification of MYB Transcription Factor Genes of S. nemorosa

The S. nemorosa genome sequences were assembled and annotated, and the database was saved in our lab (unpublished data). We downloaded all known MYB genes of Arabidopsis thaliana from TAIR library (http://www.Arabidopsis.org/, accessed on 10 October 2023) [30]. These sequences were utilized as queries when employing the BLASTP online tool (with an E-value threshold of ≤1 × 10−5) [31] to identify S. nemorosa MYB family members within our S. nemorosa genome database. Meanwhile, the Hidden Markov Model (HMM) profile for MYB was downloaded from Pfam database (http://pfam.sanger.ac.uk/, accessed on 12 October 2023), and an HMM search was performed using a local version of the HMMER program with the default values [32]. Then, the MYB genes were manually identified in Pfam database, and the sequences without complete MYB domains were discarded. Then, the candidate protein sequence containing MYB domains (PF000249) were confirmed again based on the Conserved Domain Database (CDD) of NCBI (https://www.ncbi.nlm.nih.gov/cdd/, accessed on 14 October 2023) [33]. The finalized 142 SnMYB genes were identified and renamed SnMYBs. Moreover, the features of SnMYB proteins were predicted using the ExPaSy Proteomics Server (http://www.expasy.org/sprot/sp-docu.html, accessed on 18 October 2023).

2.2. Phylogenetic Analysis and Functional Prediction of SnMYB Genes

The full protein sequences of SnMYBs and AtMYBs were aligned using the MUSCLE product produced by MEGA 11 (https://www.megasoftware.net/, accessed on 20 October 2023), and conservation regions were analyzed using Esprint (https://espript.ibcp.fr/ESPript/cgi-bin/ESPript.cgi, accessed on 22 October 2023). A phylogeny tree was constructed via the neighbor-joining (NJ) method with 1000 bootstraps. Then, using the iTOL web browser (https://itol.embl.de/, accessed on 23 October 2023), the visualization of the phylogenetic tree was performed.

2.3. Gene Structure, Chromosomal Distribution, and Conserved Domain Analysis of SnMYB Genes

The DNA and cDNA sequences corresponding to each predicted MYB gene were obtained from our genome database. Maps of the intron/exon structures and chromosome locations of MYB genes were made using the TBtools 1.06876 software product (https://github.com/CJ-Chen/TBtools/releases, accessed on 24 October 2023) [34]. The conserved motifs were predicted using the MEMEs program (https://meme-suite.org/meme/tools/meme, accessed on 25 October 2023). Protein tertiary structure predictions of SnMYBs were performed on the Alphafold website (https://alphafold.ebi.ac.uk/, accessed on 27 October 2023), and domain analyses (http://smart.embl-heidelberg.de/, accessed on 29 October 2023) were performed on all the obtained protein sequences. The distribution of MYB genes in the chromosomes of S. nemorosa was determined using the gff annotation file and gene density file of the genome in the Gene Location Visualize tool in the GTF/GFF function module of TBtools (https://github.com/CJ-Chen/TBtools/releases, accessed on 30 October 2023), and TBtools was also used to analyze the physicochemical properties of proteins.

2.4. Subcellular Localization and cis-Elements of SnMYB Genes

The protein sequences of SnMYBs were used to predict subcellular localization on the WoLF PSORT website (https://wolfpsort.hgc.jp/, accessed on 1 November 2023). Then, we obtained the promoter sequences about 2000 bp upstream from the start codon of each candidate SnMYB gene, and the prediction of the cis-acting elements was performed using PlantCARE website (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 4 November 2023) within these regions.

2.5. Transcriptome Sequencing

To determine the expression patterns of SnMYBs during the four flower development stages (denoted as P1–P4, corresponding to bud stage, initial flowering stage, full-flowering stage, and end-flowering stage, with different degrees of purple coloration) were collected for RNA extraction using the RNAiso kit (TaKaRa, Tokyo, Japan). RNA extraction was conducted based on the manufacturer’s protocol. The Illumina RNA-Seq library was constructed using the Illumina HiSeq 2500 platform produced by Biomark Bioinformatics Co., Ltd. (Beijing, China). The expression profiles of SnMYB genes at P1-P4 flower stages were assessed based on their FPKM (fragments per kilobase of exon model per million mapped fragments) values, and a heat map was constructed using TBtools 1.06876.

2.6. Quantitative Real-Time PCR

The expression patterns of 10 selected SnMYBs genes were further examined using qRT-PCR. The total RNA extracted from samples P1–P4 using the RNAiso kit and was used to carry out reverse transcription using the PrimeScript RT reagent Kit (Takara). Primers were designed using PrimerPermier 3 plus software (http://www.primer3plus.com/cgi-bin/dev/primer3plus.cgi, accessed on 7 November 2023), and Actin was used as reference gene (Table S1). The FastStart Universal SYBR Green kit (Roche, located in Shanghai, China) was used along with a 20 μL reaction system for qRT-PCR analysis via an LightCycler 96 instrument (Roche, located in Shanghai, China). Three biological and technical replicates were used. The 2−ΔΔct method was utilized to calculate the relative expression levels of SnMYB genes.

3. Results

3.1. Identification of Members of SnMYB Family

To identify MYB transcription factor genes in S. nemorosa (SnMYBs), we performed BLAST and HMM searches. A total of 142 SnMYB genes were identified. Furthermore, we calculated the basic physicochemical parameters of SnMYB proteins. The length of the SnMYB protein ranged from 189 to 991 aa, while the molecular weight ranged from 21,454.17 Da to 110,231.84 Da. Their isoelectric points were between 4.46 and 10.21, and the instability index ranged from 34.29 to 81.16 (Table 1). Furthermore, an analysis predicting subcellular location indicated that all of them were situated within the nucleus.

3.2. Phylogenetic Analysis and Classification of the MYB Gene Family

In order to clarify the evolutionary relationships and possible roles of SnMYBs, a neighbor-joining phylogenetic tree was generated by comparing sequences of SnMYBs and AtMYBs (Figure 1). The findings revealed that the SnMYBs could be categorized into 24 distinct clades. (Figure 1). The clustered genes of one clade usually displayed conserved functions in plants [35]. We found that the reported AtMYBs associated with anthocyanin synthesis, such as AtMYB113, AtMYB114, AtMYB90, AtMYB75, AtMYB123, AtMYB12, AtMYB11, and AtMYB111, were clustered with SnMYBs in functional categories [30,36,37]. For example, in clade X, Sne05G053740.1 (SnMYB90), Sne05G053730.1 (SnMYB114), Sne05G053750.1 (SnMYB113b), Sne05G053810.1 (SnMYB75), Sne05G053870.1 (SnMYB1), and Sne05G053820.1 (SnMYB113a) were clustered together with AtMYB113, AtMYB114, AtMYB90, and AtMYB75, which were reported to be the transcriptional regulators of anthocyanin biosynthesis. On the one hand, the overexpression of AtMYB113 or AtMYB114 led to increased pigment production; on the other hand, AtMYB gene expression was down-regulated and anthocyanin was obviously deficient in plants due to harboring RNAi constructs targeting AtMYB113 or AtMYB114, indicating that MYB113 or MYB114 could regulate anthocyanin synthesis [16]. Alternatively, when AtMYB75 and AtMYB90 were co-transfected with any of four R/B-like bHLH proteins, they were found to activate transcription via the DFR promoter in reporter genes. It was observed that the two proteins significantly enhanced the expression of the AtDFR promoter, thereby suggesting their potential role in regulating the expression of genes involved in anthocyanin biosynthesis [38]. Similarly, according to our results, Sne01G015730.1 (SnMYB82), Sne05G076150.1 (SnMYB113a), Sne03G025760.1 (SnMYB111), and Sne05G066770.1 (SnMYB6) were speculated to be associated with anthocyanin regulation. It has been reported that Arabidopsis MYB123 (TT2) is involved in the biosynthesis of proanthocyanin (PA) via combining with TT2 (MYB) and TT8 (bHLH), forming an MYB/bHLH complex, which plays a part in TTG1-dependent regulatory pathways [39]. AtMYB123 is responsible for inducing the expression of the BAN gene, which encodes the essential enzyme for proanthocyanidin biosynthesis in the outer seed coat of A. thaliana, which plays a regulatory role in the metabolism of anthocyanins. To focus on the study of SnMYBs related to anthocyanin regulation, we conducted further analyses on the above 10 candidate SnMYB genes.

3.3. Conserved Sequence Analysis and Conserved Motifs of Candidate MYB Proteins

In order to investigate the preservation of the sequence, an analysis was conducted. A prior investigation revealed that the distinctive feature of the MYB domain was a series of evenly spaced and strongly conserved tryptophan residues (W), consistent with the patterns of R2 [-W-(X19)-W-(X18/19)-W-] and R3 [-F/L-(X18)-W-(X18)-W-] repeats [40]. As we observed, the sequence alignment illustrated that the conserved residues Trp17, Trp37, and Trp57 in the R2 domain and Trp89 and Trp108 in the R3 domain, as well as the peptide chain between them, to form a hydrophobic core (Figure 2). The MYB proteins were characterized by a highly conserved DNA-binding domain, comprising one to four helix–turn–helix (HTH) structures and functioning as tandem repeats referred to as R0R1R2R3 within an MYB protein [41]. Meanwhile, the R2 and R3 regions were made up of well-defined α-helices and β-turns further constituting a helix–turn–helix (HTH) structure [42]. To better understand the features of the DNA-binding regions of candidate SnMYB genes, we utilized AlphaFold to forecast the three-dimensional shapes of the proteins produced by 10 candidate genes (Figure 3). These structures were in accordance with the reported characteristics of typical plant R2R3-MYB proteins [43].
Furthermore, a set of 10 motifs was chosen from the potential S. nemorosa R2R3-MYB sequences. Analysis of the motifs indicated that the majority of the R2R3-MYBs harbored motifs 1, 2, 4, 5, and 6, underscoring the highly conserved nature of the R2R3-MYB structures, as depicted in Figure 4A. Among them, the motif compositions of SnMYB82 and SnMYB12 were quite different, and this may be related to their special functions.

3.4. Analysis of Gene Structure, Chromosome Distribution, and cis-Element of Candidate MYB Genes

The gene structure results indicated that the 10 candidate SnMYBs contained two introns and more than four CDS sequences (Figure 4B). Among them, only SnMYB114, SnMYB90, SnMYB6, and SnMYB111 contained URT sequences, and SnMYB113a, SnMYB113b, SnMYB1, SnMYB75, SnMYB82, and SnMYB12 had relatively similar gene structures: they all had six CDS sequences separated by two introns.
In addition, the distribution of the candidate MYBs in chromosomes was detected (Figure 5). Ten SnMYBs were distributed unevenly across six S. nemorosa chromosomes; among them, Chr5 had the greatest length, more than 100 Mb, while Chr6 was the shortest, not exceeding 60 Mb in S. nemorosa. The majority of the SnMYB genes were clustered at both ends of their respective chromosomes, with a smaller number of genes located in the central region of the chromosome, wherein SnMYB82 was distributed across Chr1, SnMYB111 was distributed across Chr3, and SnMYB113a, SnMYB6, SnMYB90, SnMYB114, SnMYB113b, SnMYB75, SnMYB1, and SnMYB113a were distributed across Chr5.
Moreover, in order to identify the regulatory components of the SnMYBs, we examined the 2000-base-pair (bp) upstream sequences of the coding region of the SnMYB genes, which were utilized for the prediction of their cis-acting elements. (Figure 6). A total of 31 cis-regulatory elements of SnMYB genes were predicted; among them, six were related to cellular development, including root-specific, the differentiation of the palisade mesophyll cells, seed-specific regulation, endosperm expression, and flavonoid biosynthetic genes regulation. Seven hormone-related cis-regulatory elements were also identified, including MeJA-responsiveness, gibberellin-responsive, abscisic acid, and auxin. Similarly, thirteen cis-elements associated with stress were also found, including light-responsive elements, drought inducibility, low-temperature responsiveness, anaerobic induction, defense, and stress responsiveness. Most of the SnMYB promoters contained various hormone-responsive elements and stress-responsive elements, including MeJA responsiveness, light-responsive elements, and abscisic acid responsiveness, which were present in all the SnMYB promoters, demonstrating that the three elements had indispensable roles, and the genes may take part in responses to multiple hormones and stress [44]. Only SnMYB82 contained the elements of circadian control, differentiation of the palisade mesophyll cells, and seed-specific regulation, indicating that MYB82 might influence the growth and development of S. nemorosa. In addition, a root-specific element, an endosperm expression element, a flavonoid biosynthetic gene regulation element, and anoxic specific inducibility only existed in MYB90, MYB111, MYB1, and MYB6, respectively. These results reveal that the differences in the transcriptional regulation of SnMYBs indicate the diversity of SnMYB functions.

3.5. Expression Pattern of Candidate SnMYBs

Based on the S. nemorosa transcriptome data, the expression pattern of the MYB gene family was evaluated. The results manifested that five SnMYBs, namely, SnMYB6, SnMYB90, SnMYB114, SnMYB111, and SnMYB12, presented certain expression differences (Figure 7A). Among them, SnMYB6 had the highest expression in P1, P2, and P3, while SnMYB90 had the highest expression in P4. However, the expression levels of SnMYB113a, SnMYB113b, SnMYB75, SnMYB1, and SnMYB82 were very low (Figure 7A, Table S2).
Subsequently, the expression levels of SnMYB genes were measured using qRT-PCR (Figure 7B) at four different stages of flower development. As can be seen from Figure 7B, there were no prominent expression transformations of SnMYB1, SnMYB113a, SnMYB113b, and SnMYB114 at four stages. On the contrary, SnMYB6, SnMYB12, SnMYB75, SnMYB82, SnMYB90, and SnMYB111 had higher expression levels. In the different stages of flower development, the expression level of SnMYB6, SnMYB12, and SnMYB90 increased and reached a peak at the P4 stage. But as for SnMYB82 and SnMYB111, the expression level decreased throughout flower growth. The gene expression level of SnMYB75 remained relatively high in all four stages.

4. Discussion

In plants, ample studies have been conducted, indicating that the MYB-bHLH-WD40 constitutes an “MBW” complex which regulates the anthocyanin metabolic biosynthesis pathway [45]. A previous study on Malus pumila Mill. indicated that the MdMYB3 gene not only regulates the accumulation of anthocyanin in peels but also participates in the regulation of flower development, particularly pistil development [46]. In Arabidopsis, AtMYB113 and AtMYB114 positively regulated anthocyanin biosynthesis [47]; on the contrary, AtMYB4 and AtMYBL2 take part in the suppression of flavonoid accumulation [48]. In petunia, AN2, AN4, DEEP PURPLE (DPL), and PURPLE HAZE (PHZ) were thought to be the members of the “MBW” complex which could influence anthocyanin accumulation [49]. However, the role of MYB genes in S. nemorosa how to regulate anthocyanin biosynthetic pathways is currently unknown. Therefore, to provide comprehensive insights into the fundamental characteristics of the MYB gene family in S. nemorosa, we conducted an analysis that involved the identification of 142 MYB gene family members from the S. nemorosa genome. This analysis encompassed an examination of their gene structures, phylogenetic relationships, chromosomal localization, cis-acting elements, and expression patterns, providing relevant information for future research efforts focused on understanding the processes involved in the creation and control of anthocyanins during the flower development stages in S. nemorosa.
Phylogenetic analysis is a reliable method for identifying the functions of genes, as homologous proteins that cluster in the same clade possess similar or identical functions due to their similar structures, and vice versa [50]. In Arabidopsis, a mass of MYB genes or proteins had been functionally characterized. For example, AtMYB33 and AtMYB65 redundantly facilitated anther development, but this developmental decision was greatly influenced by environmental factors [51]. AtMYB112 can accelerate anthocyanin accumulation during subjection to salinity and high light stress, constituting a regulator that promotes anthocyanin cumulation in abiotic stress situations [52]. AtMYB115 and AtMYB118 could regulate the genes in the evolution of a novel BZ-GLS (benzoyloxy glucosinolate) pathway in A. thaliana, which might be negative regulators in GLS biosynthesis [53]. Thus, it provided the opportunity to predict the functions of SnMYB genes through phylogenetic analysis and sequence comparisons with their Arabidopsis homologous sequence. In this study, there were ten genes clustered into the corresponding clade that had been reported to regulate anthocyanin synthesis in Arabidopsis, demonstrating that they might work in a similar way to regulate anthocyanin synthesis. Thus, we chose to conduct a comprehensive bioinformatics analysis on the ten candidate genes, with the aim of offering valuable insights for future investigations into the regulation of anthocyanin MYB genes.
To evaluate the expression patterns of the 10 candidate genes during flower development, RNA-seq and qRT-PCR were employed. As a result, the expression level analysis demonstrated that SnMYB6, SnMYB12, SnMYB90, and SnMYB111 were related to anthocyanin biosynthesis, and SnMYB6, SnMYB12, and SnMYB90 had high levels of expression in late flower growth (P4). This result is consistent with the deepest purple coloration of the petals during the P4 stage. Numerous pieces of evidence suggest a correlation between the expression level of the MYB gene and the accumulation of anthocyanin content, indicating its regulatory function in anthocyanin synthesis. It has been reported that MYB12 could be involved in controlling the expression of early biosynthetic genes (EGBs), while the regulation of the late biosynthetic genes (LGBs) demands the participation of MYB90, and MYB6, resulting in the improvement of anthocyanin and proanthocyanidin accumulation [54,55]. But the expression level of the SnMYB111 gene was highest in early flower development (P1) and decreased throughout flower growth, leading to speculation that it may play a negative regulatory role in the accumulation of anthocyanins. Furthermore, in Arabidopsis, MYB113 could bind directly to the promoter sequence of CHS, F3H, and FLS1, demonstrating that MYB111 plays a positive role in flavonoid biosynthesis regulation, and the overexpression of MYB111 could improve tolerance to salt stress [56]. These two instances demonstrate that MYB111 displays species-specific characteristics in various plants and may fulfill distinct functions. Overall, our results indicate that SnMYB6, SnMYB12, and SnMYB90 play a positive role, in contrast, SnMYB111 might play a negative role in the control of anthocyanin accumulation in S. nemorosa flowers. It is noteworthy that there were contrasting findings regarding the expression patterns of SnMYB75 and SnMYB82 as observed. While these genes exhibited high expression levels as determined via qRT-PCR, they were found to be almost undetectable in the RNA-seq data. This disparity may be attributed to potential preferential amplification interference during the sequencing process, which could impact the accuracy of gene expression results. Consequently, alternative methods will be employed to validate the expression levels of these two genes. Moreover, this study is constrained by its exclusive assessment of the expression pattern of the MYB gene through qRT-PCR without experimental confirmation of its gene function. As a result, our future investigations will involve analyzing the selected genes, including SnMYB90, SnMYB6, and SnMYB75, through stable overexpression, gene-editing, and silencing experiments. Additionally, transient expression system, yeast one-hybrid, and EMSA experiments will be utilized to evaluate the transcriptional regulatory function of the MYB transcription factor for downstream anthocyanin biosynthetic enzyme genes [57,58].
Moreover, cis-regulatory elements, acting as momentous molecular switches, were involved in the regulation of gene transcription when encountering external stimuli [59]. To illuminate the functions of SnMYB genes, six cellular-development-related cis-regulatory elements, seven hormone-related cis-regulatory elements, and thirteen stress-related cis-elements were identified in SnMYB promoter regions by analyzing cis-regulatory elements in the promoter regions. The ten SnMYB genes contained diverse types and vast quantities of cis-acting regulatory elements in each promoter region, such as elements involved in the MeJA-response, the salicylic acid response, the gibberellin response, the low-temperature response, and light response, as well as a drought-induced MYB-binding site, which have been reported to be involved in the processes of growth metabolism and environmental stress response [60,61].

5. Conclusions

In the current study, we recognized 142 high-confidence S. nemorosa MYB genes through a genome-wide survey and executed bioinformatics analyses to divulge their physiochemical properties and phylogenetic relationships. Moreover, the transcriptional expression levels of 10 R2R3-type SnMYB genes at four flower development stages were analyzed, and the association with the anthocyanin expression levels of the SnMYB6, SnMYB12, SnMYB90, SnMYB75, and SnMYB82 genes was considered for further functional characterization. In conclusion, this study provides important candidate genes for anthocyanidin biosynthesis research on S. nemorosa and makes a contribution to improving the potential application of S. nemorosa in breeding.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/genes15010110/s1. Table S1: Primer sequences that were used in this study; Table S2: The FPKM values of 10 candidate SnMYB genes; File S1: Promoter sequences of 10 SnMYB genes; File S2: The nucleotide sequences of 142 SnMYB genes; File S3: The protein sequences of 10 candidate SnMYBs; File S4: The nucleotide sequences of 10 candidate SnMYB genes.

Author Contributions

Conceptualization, H.Y. and C.C.; methodology, C.C.; software, H.Y. and X.Z.; validation, C.C., L.H. and X.Z.; formal analysis, L.H.; investigation, C.C.; resources, L.H.; data curation, H.Y.; writing-original draft preparation, H.Y. and C.C.; writing-review and editing, H.Y., C.C. and X.Z.; visualization, L.H. and X.Z.; supervision, C.C. and X.Z.; project administration, M.Y.; funding acquisition, M.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by the Science and Technology Program of the Shaanxi Academy of Sciences (no. 2021k-15, 2023k-46), the Western Young Scholars Program of Chinese Academy of Science (no. XAB2021YW02), the Innovation Capability Support Program of Shaanxi (no. 2022KJXX-27), and the Natural Science Basic Research Program of Shaanxi (no. 2023-JC-QN-0220).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Hu, G.X.; Takano, A.; Drew, B.T.; Liu, E.D.; Soltis, D.E.; Soltis, P.S.; Peng, H.; Xiang, C.L. Phylogeny and staminal evolution of Salvia (Lamiaceae, Nepetoideae) in East Asia. Ann. Bot. 2018, 122, 649–668. [Google Scholar] [CrossRef]
  2. Li, Z.M.; Xu, S.W.; Liu, P.Q. Salvia miltiorrhiza Burge (Danshen): A golden herbal medicine in cardiovascular therapeutics. Acta Pharmacol. Sin. 2018, 39, 802–824. [Google Scholar] [CrossRef] [PubMed]
  3. Cui, H.; Zhang, X.; Zhou, H.; Zhao, C.; Lin, L. Antimicrobial activity and mechanisms of Salvia sclarea essential oil. Bot. Stud. 2015, 56, 16. [Google Scholar] [CrossRef] [PubMed]
  4. Bagci, E.; Akbaba, E.; Maniu, C.; Ungureanu, E.; Hritcu, L. Evaluation of antiamnesic activity of Salvia multicaulis essential oil on scopolamine-induced amnesia in rats: In Vivo and in silico approaches. Heliyon 2019, 5, e02223. [Google Scholar] [CrossRef] [PubMed]
  5. Lee, K.B.; Cho, E.; Kang, Y.S. Changes in 5-hydroxytryptamine and cortisol plasma levels in menopausal women after inhalation of clary sage oil. Phytother. Res. 2014, 28, 1599–1605. [Google Scholar] [CrossRef] [PubMed]
  6. Kačániová, M.; Vukovic, N.L.; Čmiková, N.; Galovičová, L.; Schwarzová, M.; Šimora, V.; Kowalczewski, P.Ł.; Kluz, M.I.; Puchalski, C.; Bakay, L.; et al. Salvia sclarea essential oil chemical composition and biological activities. Int. J. Mol. Sci. 2023, 24, 5179. [Google Scholar] [CrossRef] [PubMed]
  7. Russo, A.; Cardile, V.; Graziano, A.C.; Formisano, C.; Rigano, D.; Canzoneri, M.; Bruno, M.; Senatore, F. Comparison of essential oil components and in vitro anticancer activity in wild and cultivated Salvia verbenaca. Nat. Prod. Res. 2015, 29, 1630–1640. [Google Scholar] [CrossRef]
  8. Kao, Y.H.; Huang, Y.C.; Chung, U.L.; Hsu, W.N.; Tang, Y.T.; Liao, Y.H. Comparisons for Effectiveness of Aromatherapy and Acupressure Massage on Quality of Life in Career Women: A Randomized Controlled Trial. J. Altern. Complement. Med. 2017, 23, 451–460. [Google Scholar] [CrossRef]
  9. Li, C.Y.; Yang, L.; Liu, Y.; Xu, Z.G.; Gao, J.; Huang, Y.B.; Xu, J.J.; Fan, H.; Kong, Y.; Wei, Y.K.; et al. The sage genome provides insight into the evolutionary dynamics of diterpene biosynthesis gene cluster in plants. Cell Rep. 2022, 40, 111236. [Google Scholar] [CrossRef]
  10. Dong, A.X.; Xin, H.B.; Li, Z.J.; Liu, H.; Sun, Y.Q.; Nie, S.; Zhao, Z.N.; Mao, J.F. High-quality assembly of the reference genome for scarlet sage, Salvia splendens, an economically important ornamental plant. GigaScience 2018, 7, giy068. [Google Scholar] [CrossRef]
  11. Nadaf, M.; Nasrabadi, M.; Halimi, M. GC-MS analysis of n-hexane extract from aerial parts of Salvia nemorosa. Middle-East. J. Sci. Res. 2012, 11, 1127–1130. [Google Scholar]
  12. Garibaldi, A.; Gilardi, G.; Bertetti, D.; Gullino, M.L. First Report of Leaf Blight on Woodland Sage Caused by Rhizoctonia solani AG 1 in Italy. Plant Dis. 2010, 94, 1071. [Google Scholar] [CrossRef]
  13. Li, C.; Yu, W.; Xu, J.; Lu, X.; Liu, Y. Anthocyanin Biosynthesis Induced by MYB Transcription Factors in Plants. Int. J. Mol. Sci. 2022, 23, 11701. [Google Scholar] [CrossRef] [PubMed]
  14. Muhammad, N.; Uddin, N.; Khan, M.K.U.; Ali, N.; Ali, K.; Jones, D.A. Diverse role of basic Helix-Loop-Helix (bHLH) transcription factor superfamily genes in the fleshy fruit-bearing plant species. Czech J. Genet. Plant Breed. 2023, 59, 1–13. [Google Scholar] [CrossRef]
  15. Zhou, H.; Peng, Q.; Zhao, J.; Owiti, A.; Ren, F.; Liao, L.; Han, Y. Multiple R2R3-MYB transcription factors involved in the regulation of anthocyanin accumulation in peach flower. Front. Plant Sci. 2016, 7, 1557. [Google Scholar] [CrossRef]
  16. Gonzalez, A.; Zhao, M.; Leavitt, J.M.; Lloyd, A.M. Regulation of the anthocyanin biosynthetic pathway by the TTG1/bHLH/Myb transcriptional complex in Arabidopsis seedlings. Plant J. 2008, 53, 814–827. [Google Scholar] [CrossRef] [PubMed]
  17. Qin, J.; Zhao, C.; Wang, S.; Gao, N.; Wang, X.; Na, X.; Wang, X.; Bi, Y. PIF4-PAP1 interaction affects MYB-bHLH-WD40 complex formation and anthocyanin accumulation in Arabidopsis. J. Plant Physiol. 2022, 268, 153558. [Google Scholar] [CrossRef] [PubMed]
  18. Jiang, L.; Yue, M.; Liu, Y.; Zhang, N.; Lin, Y.; Zhang, Y.; Wang, Y.; Li, M.; Luo, Y.; Zhang, Y.; et al. A novel R2R3-MYB transcription factor FaMYB5 positively regulates anthocyanin and proanthocyanidin biosynthesis in cultivated strawberries (Fragaria × ananassa). Plant Biotechnol. J. 2023, 21, 1140–1158. [Google Scholar] [CrossRef]
  19. Yin, X.; Zhang, Y.; Zhang, L.; Wang, B.; Zhao, Y.; Irfan, M.; Chen, L.; Feng, Y. Regulation of MYB Transcription Factors of Anthocyanin Synthesis in Lily Flowers. Front. Plant Sci. 2021, 12, 761668. [Google Scholar] [CrossRef]
  20. Si, Z.; Wang, L.; Ji, Z.; Zhao, M.; Zhang, K.; Qiao, Y. Comparative analysis of the MYB gene family in seven Ipomoea species. Front. Plant Sci. 2023, 14, 1155018. [Google Scholar] [CrossRef]
  21. Ogata, K.; Tahirov, T.H.; Ishii, S. The C-Myb DNA Binding Domain. In Myb Transcription Factors: Their Role in Growth, Differentiation and Disease, 1st ed.; Frampton, J., Ed.; Kluwer Academic, Birmingham University Medical School: Birmingham, UK, 2004; Volume 2, pp. 223–238. [Google Scholar]
  22. Du, H.; Liang, Z.; Zhao, S.; Nan, M.G.; Tran, L.S.P.; Lu, K.; Huang, Y.B.; Li, J.N. The evolutionary history of R2R3-MYB proteins across 50 eukaryotes: New insights into subfamily classification and expansion. Sci. Rep. 2015, 5, 11037. [Google Scholar] [CrossRef] [PubMed]
  23. Butt, H.I.; Yang, Z.; Gong, Q.; Chen, E.; Wang, X.; Zhao, G.; Ge, X.Y.; Zhang, X.Y.; Li, F.G. GaMYB85, an R2R3 MYB gene, in transgenic Arabidopsis plays an important role in drought tolerance. BMC Plant Biol. 2017, 17, 142. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, J.; Liu, Y.; Chen, X.; Kong, Q. Characterization and divergence analysis of duplicated R2R3-MYB genes in watermelon. J. Amer. Soc. Hort. Sci. 2020, 145, 281–288. [Google Scholar] [CrossRef]
  25. Li, Z.; Peng, R.; Tian, Y.; Han, H.; Xu, J.; Yao, Q. Genome-wide identification and analysis of the MYB transcription factor superfamily in Solanum lycopersicum. Plant Cell Physiol. 2016, 57, 1657–1677. [Google Scholar] [CrossRef] [PubMed]
  26. Katiyar, A.; Smita, S.; Lenka, S.K.; Rajwanshi, R.; Chinnusamy, V.; Bansal, K.C. Genome-wide classification and expression analysis of MYB transcription factor families in rice and Arabidopsis. BMC Genom. 2012, 13, 544. [Google Scholar] [CrossRef]
  27. Du, H.; Feng, B.R.; Yang, S.S.; Huang, Y.B.; Tang, Y.X. The R2R3-MYB transcription factor gene family in maize. PLoS ONE 2012, 7, e37463. [Google Scholar] [CrossRef]
  28. Aoyagi, L.N.; Lopes-Caitar, V.S.; de Carvalho, M.C.; Darben, L.M.; Polizel-Podanosqui, A.; Kuwahara, M.K.; Marcelino-Guimarães, F.C. Genomic and transcriptomic characterization of the transcription factor family R2R3-MYB in soybean and its involvement in the resistance responses to Phakopsora pachyrhizi. Plant Sci. 2014, 229, 32–42. [Google Scholar] [CrossRef]
  29. Zhao, K.; Cheng, Z.; Guo, Q.; Yao, W.; Liu, H.; Zhou, B.; Jiang, T. Characterization of the poplar R2R3-MYB gene family and over-expression of PsnMYB108 confers salt tolerance in transgenic tobacco. Front. Plant Sci. 2020, 11, 571881. [Google Scholar] [CrossRef]
  30. Stracke, R.; Werber, M.; Weisshaar, B. The R2R3-MYB gene family in Arabidopsis thaliana. Curr. Opin. Plant Biol. 2001, 4, 447–456. [Google Scholar] [CrossRef]
  31. Emms, D.M.; Kelly, S. OrthoFinder: Phylogenetic orthology inference for comparative genomics. Genome Biol. 2019, 20, 238. [Google Scholar] [CrossRef]
  32. Ghahramani, Z. An introduction to hidden Markov models and Bayesian networks. Int. J. Pattern Recognit. Artif. Intell. 2001, 15, 9–42. [Google Scholar] [CrossRef]
  33. Marchler-Bauer, A.; Derbyshire, M.K.; Gonzales, N.R.; Lu, S.; Chitsaz, F.; Geer, L.Y. CDD: NCBI’s conserved domain database. Nucleic Acids Res. 2015, 43, D222–D226. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant. 2020, 13, 1194–1202. [Google Scholar] [CrossRef] [PubMed]
  35. Li, Y.M.; Liang, J.; Zeng, X.Z.; Guo, H.; Luo, Y.W.; Kear, P.; Zhang, S.M.; Zhu, G.T. Genome-wide Analysis of MYB Gene Family in Potato Provides Insights into Tissue-specific Regulation of Anthocyanin Biosynthesis. Hortic. Plant J. 2021, 7, 129–141. [Google Scholar] [CrossRef]
  36. Dubos, C.; Stracke, R.; Grotewold, E.; Weisshaar, B.; Martin, C.; Lepiniec, L. MYB transcription factors in Arabidopsis. Trends Plant Sci. 2010, 15, 573–581. [Google Scholar] [CrossRef]
  37. Li, S.; Zachgo, S. TCP 3 interacts with R2R3-MYB proteins, promotes flavonoid biosynthesis and negatively regulates the auxin response in Arabidopsis thaliana. Plant J. 2013, 76, 901–913. [Google Scholar] [CrossRef] [PubMed]
  38. Zimmermann, I.M.; Heim, M.A.; Weisshaar, B.; Uhrig, J.F. Comprehensive identification of Arabidopsis thaliana MYB transcription factors interacting with R/B-like BHLH proteins. Plant J. 2004, 40, 22–34. [Google Scholar] [CrossRef]
  39. Baudry, A.; Heim, M.A.; Dubreucq, B.; Caboche, M.; Weisshaar, B.; Lepiniec, L. TT2, TT8, and TTG1 synergistically specify the expression of BANYULS and proanthocyanidin biosynthesis in Arabidopsis thaliana. Plant J. 2004, 39, 366–380. [Google Scholar] [CrossRef]
  40. Wu, Y.; Wen, J.; Xia, Y.; Zhang, L.; Du, H. Evolution and functional diversification of R2R3-MYB transcription factors in plants. Hortic. Res. 2022, 9, uhac058. [Google Scholar] [CrossRef]
  41. Jiang, C.; Gu, X.; Peterson, T. Identification of conserved gene structures and carboxy-terminal motifs in the Myb gene family of Arabidopsis and Oryza sativa L. ssp. indica. Genome Biol. 2004, 5, R46. [Google Scholar] [CrossRef]
  42. Kulkarni, P.A.; Devarumath, R.M. In Silico 3D-structure prediction of SsMYB2R: A novel MYB transcription factor from Saccharum spontaneum. Indian J. Biotechnol. 2015, 13, 437–447. Available online: http://nopr.niscpr.res.in/handle/123456789/30469 (accessed on 2 January 2024).
  43. Lim, S.W.; Tan, K.J.; Azuraidi, O.M.; Sathiya, M.; Lim, E.C.; Lai, K.S.; Afizan, N.A.R.N.M. Functional and structural analysis of non-synonymous single nucleotide polymorphisms (nsSNPs) in the MYB oncoproteins associated with human cancer. Sci. Rep. 2021, 11, 24206. [Google Scholar] [CrossRef] [PubMed]
  44. Li, Y.; Wang, M.; Guo, T.; Li, S.; Teng, K.; Dong, D.; Han, L. Overexpression of abscisic acid-insensitive gene ABI4 from Medicago truncatula, which could interact with ABA2, improved plant cold tolerance mediated by ABA signaling. Front. Plant Sci. 2000, 13, 982715. [Google Scholar] [CrossRef] [PubMed]
  45. Liu, Y.; Ma, K.; Qi, Y.; Lv, G.; Ren, X.; Liu, Z.; Ma, F. Transcriptional regulation of anthocyanin synthesis by MYB-bHLH-WDR complexes in kiwifruit (Actinidia chinensis). J. Agric. Food Chem. 2021, 69, 3677–3691. [Google Scholar] [CrossRef]
  46. Vimolmangkang, S.; Han, Y.; Wei, G.; Korban, S.S. An apple MYB transcription factor, MdMYB3, is involved in regulation of anthocyanin biosynthesis and flower development. BMC Plant Biol. 2013, 13, 176. [Google Scholar] [CrossRef] [PubMed]
  47. Li, H.; He, K.; Zhang, Z.; Hu, Y. Molecular mechanism of phosphorous signaling inducing anthocyanin accumulation in Arabidopsis. Plant Physiol. Biochem. 2023, 196, 121–129. [Google Scholar] [CrossRef] [PubMed]
  48. Sung, S.Y.; Kim, S.H.; Velusamy, V.; Lee, Y.M.; Ha, B.K.; Kim, J.B.; Kim, D.S. Comparative gene expression analysis in a highly anthocyanin pigmented mutant of colorless chrysanthemum. Mol. Biol. Rep. 2013, 40, 5177–5189. [Google Scholar] [CrossRef] [PubMed]
  49. Zhang, H.; Koes, R.; Shang, H.; Fu, Z.; Wang, L.; Dong, X.; Quattrocchio, F.M. Identification and functional analysis of three new anthocyanin R2R3-MYB genes in Petunia. Plant Direct 2019, 3, e00114. [Google Scholar] [CrossRef]
  50. Balaji, S.; Srinivasan, N. Comparison of sequence-based and structure-based phylogenetic trees of homologous proteins: Inferences on protein evolution. J. Biosci. 2007, 32, 83–96. [Google Scholar] [CrossRef]
  51. Millar, A.A.; Gubler, F. The Arabidopsis GAMYB-like genes, MYB33 and MYB65, are microRNA-regulated genes that redundantly facilitate anther development. Plant Cell 2005, 17, 705–721. [Google Scholar] [CrossRef]
  52. Lotkowska, M.E.; Tohge, T.; Fernie, A.R.; Xue, G.P.; Balazadeh, S.; Mueller-Roeber, B. The Arabidopsis transcription factor MYB112 promotes anthocyanin formation during salinity and under high light stress. Plant Physiol. 2015, 169, 1862–1880. [Google Scholar] [CrossRef] [PubMed]
  53. Zhang, Y.; Li, B.; Huai, D.; Zhou, Y.; Kliebenstein, D.J. The conserved transcription factors, MYB115 and MYB118, control expression of the newly evolved benzoyloxy glucosinolate pathway in Arabidopsis thaliana. Front. Plant Sci. 2015, 6, 343. [Google Scholar] [CrossRef] [PubMed]
  54. Yu, S.; Li, J.; Peng, T.; Ni, S.; Feng, Y.; Wang, Q.; Liu, W. Identification of Chalcone Isomerase Family Genes and Roles of CnCHI4 in Flavonoid Metabolism in Camellia nitidissima. Biomolecules 2023, 13, 41. [Google Scholar] [CrossRef]
  55. Mondal, S.K.; Roy, S. Genome-wide sequential, evolutionary, organizational and expression analyses of phenylpropanoid biosynthesis associated MYB domain transcription factors in Arabidopsis. J. Biomol. Struct. Dyn. 2018, 36, 1577–1601. [Google Scholar] [CrossRef] [PubMed]
  56. Li, B.; Fan, R.; Guo, S.; Wang, P.; Zhu, X.; Fan, Y.; Song, C.P. The Arabidopsis MYB transcription factor, MYB111 modulates salt responses by regulating flavonoid biosynthesis. Environ. Exp. Bot. 2019, 166, 103807. [Google Scholar] [CrossRef]
  57. Song, C.; Ma, H.; Li, R.; Zhao, G.; Niu, T.; Guo, L.; Hou, X. Analysis of the emitted pattern of floral volatiles and cloning and functional analysis of the PsuLIS gene in tree peony cultivar ‘High Noon’. Sci. Hortic. 2024, 326, 112750. [Google Scholar] [CrossRef]
  58. Hu, X.; Liang, Z.; Sun, T.; Huang, L.; Wang, Y.; Chan, Z. The R2R3-MYB Transcriptional Repressor TgMYB4 Negatively Regulates Anthocyanin Biosynthesis in Tulips (Tulipa gesneriana L.). Int. J. Mol. Sci. 2024, 25, 563. [Google Scholar] [CrossRef]
  59. Nakashima, K.; Ito, Y.; Yamaguchi-Shinozaki, K. Transcriptional regulatory networks in response to abiotic stresses in Arabidopsis and grasses. Plant Physiol. 2009, 149, 88–95. [Google Scholar] [CrossRef]
  60. Wang, X.; Niu, Y.; Zheng, Y. Multiple Functions of MYB Transcription Factors in Abiotic Stress Responses. Int. J. Mol. Sci. 2021, 22, 6125. [Google Scholar] [CrossRef]
  61. Wang, Y.; Wu, J.; Li, J.; Liu, B.; Wang, D.; Gao, C. The R2R3-MYB transcription factor ThRAX2 recognized a new element MYB-T (CTTCCA) to enhance cadmium tolerance in Tamarix hispida. Plant Sci. 2023, 329, 111574. [Google Scholar] [CrossRef]
Genes 15 00110 g001

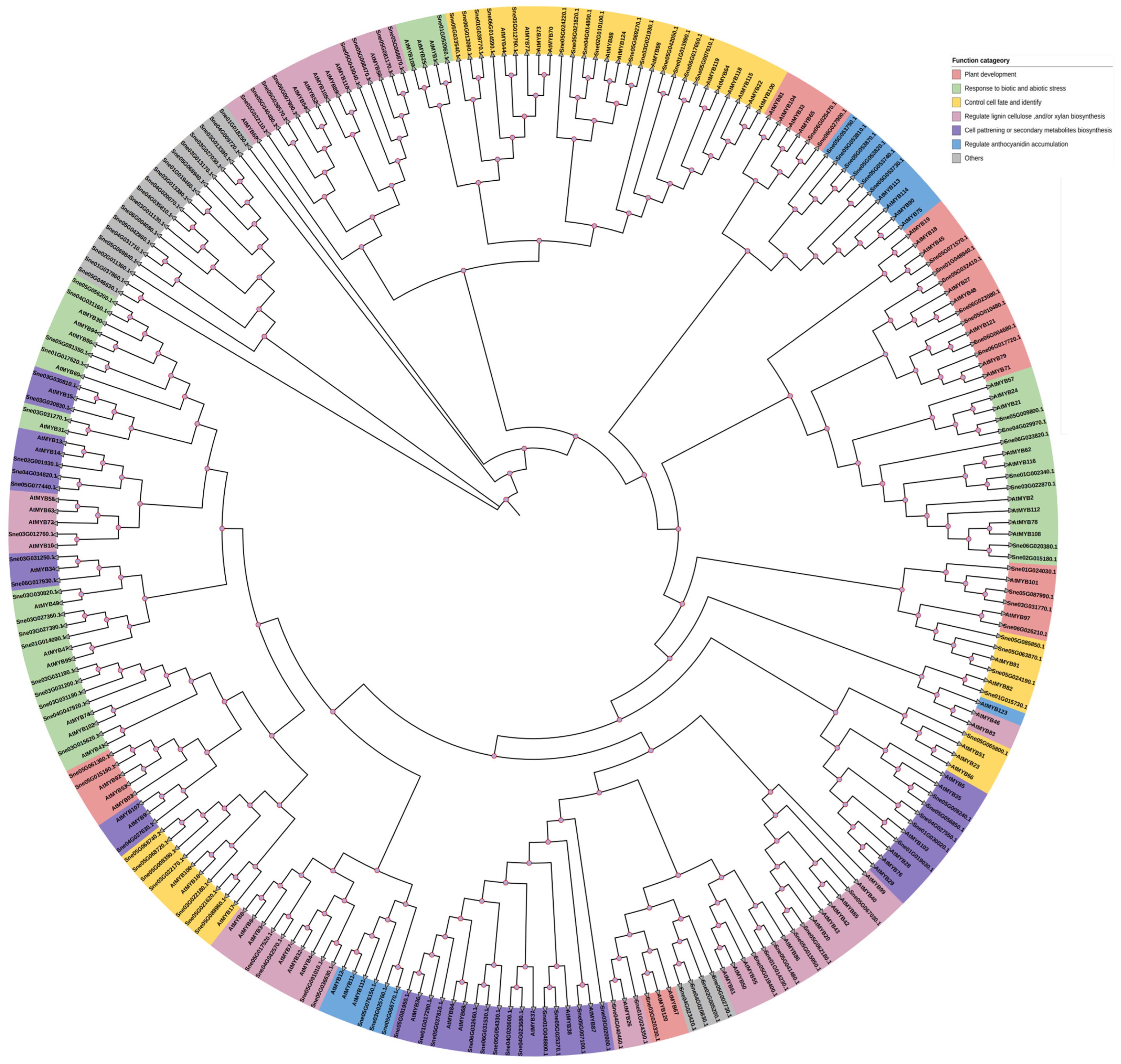

Figure 1. Phylogenetic tree of MYB genes from S. nemorosa and Arabidopsis thaliana. The maximum-likelihood tree was generated using MEGA11 with 1000 bootstrap replicates. The complete nucleotide sequences of 142 MYB genes in S. nemorosa and 119 Arabidopsis thaliana MYB genes were used.
Figure 1. Phylogenetic tree of MYB genes from S. nemorosa and Arabidopsis thaliana. The maximum-likelihood tree was generated using MEGA11 with 1000 bootstrap replicates. The complete nucleotide sequences of 142 MYB genes in S. nemorosa and 119 Arabidopsis thaliana MYB genes were used.
Genes 15 00110 g001
Genes 15 00110 g002

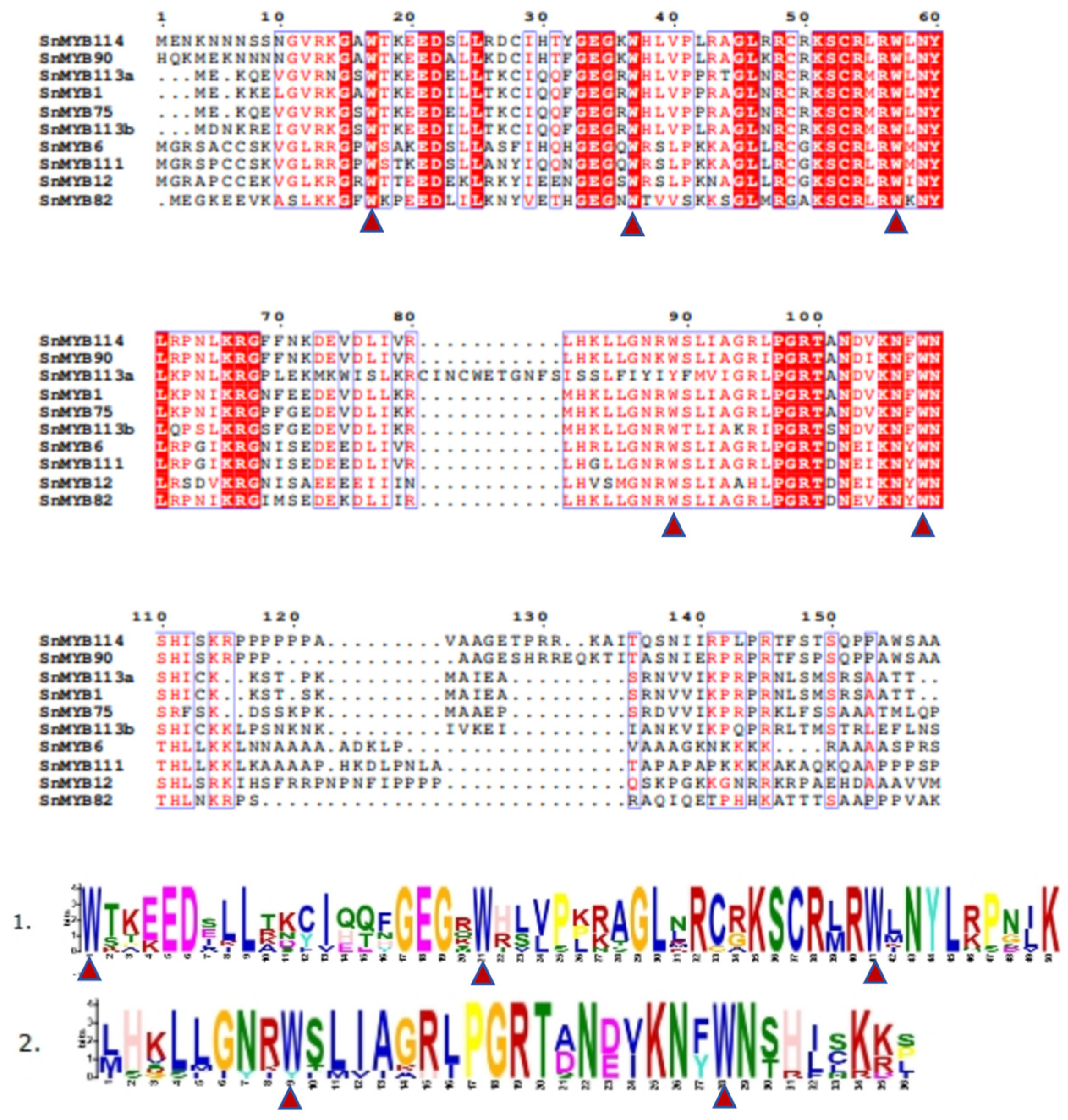

Figure 2. Predicted R2 and R3 domains of candidate S. nemorosa MYB proteins and their sequence logos. The bit score serves as a measure of the information content at each position within the sequence, while the red triangle below denotes the conserved tryptophan residues (Trp, W).
Figure 2. Predicted R2 and R3 domains of candidate S. nemorosa MYB proteins and their sequence logos. The bit score serves as a measure of the information content at each position within the sequence, while the red triangle below denotes the conserved tryptophan residues (Trp, W).
Genes 15 00110 g002
Genes 15 00110 g003

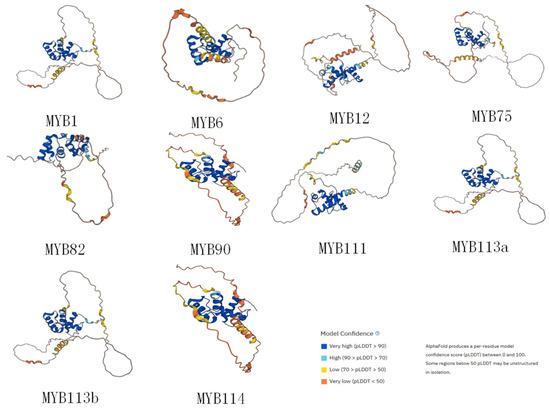

Figure 3. Tertiary structure predictions of the 10 candidate proteins.
Figure 3. Tertiary structure predictions of the 10 candidate proteins.
Genes 15 00110 g003
Genes 15 00110 g004

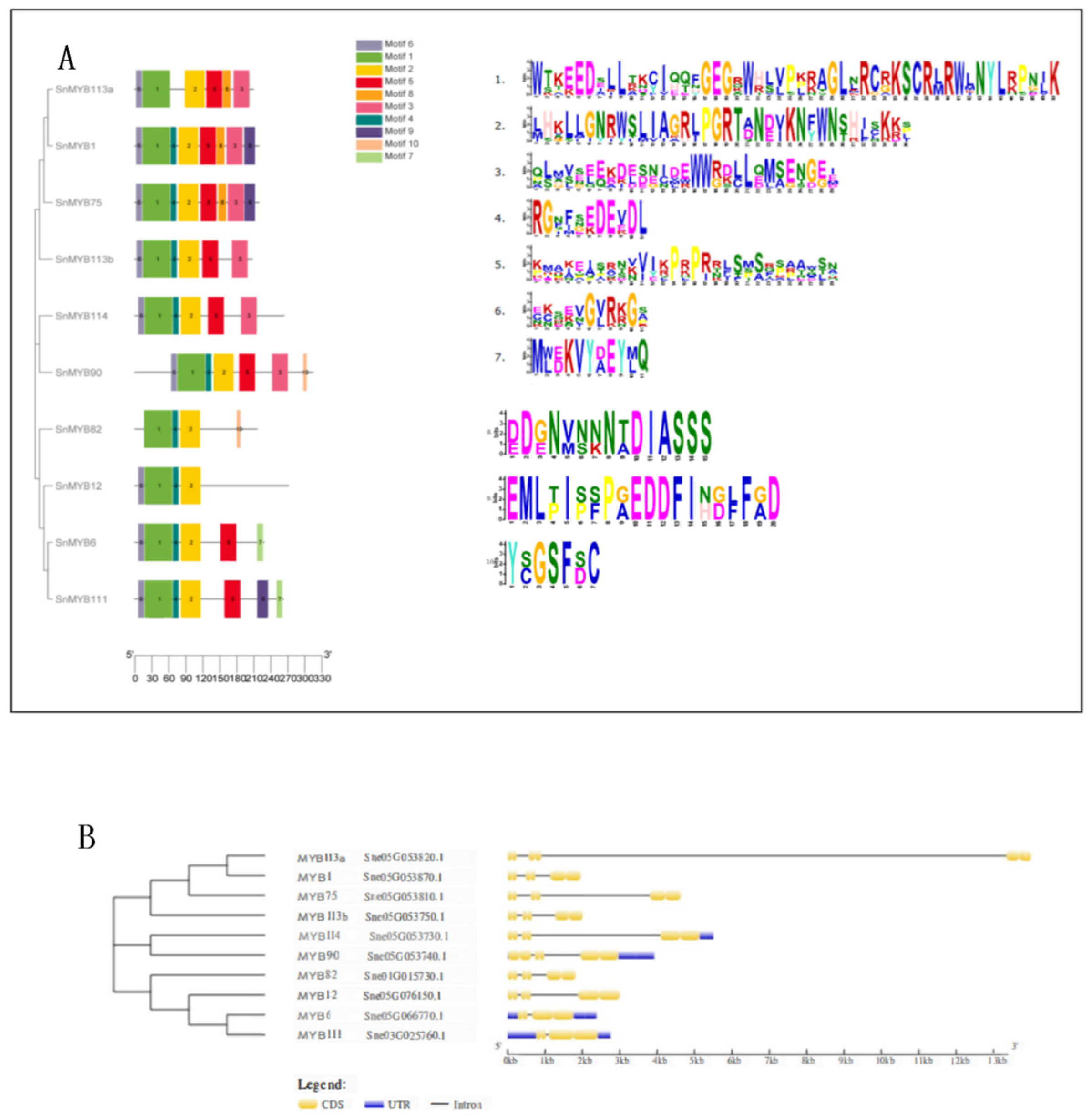

Figure 4. Phylogenetic relationships and gene structures and architectures of the conserved protein motifs and their sequence logos for candidate S. nemorosa MYB genes. (A) Motif composition of 10 S. nemorosa MYB proteins. The motifs numbered 1–10 are displayed in various colored boxes. (B) The gene structures of candidate S. nemorosa MYB genes, blue boxes indicate UTR, yellow boxes stand for CDS, and black lines indicate introns. The number manifests the phases of the relevant intron.
Figure 4. Phylogenetic relationships and gene structures and architectures of the conserved protein motifs and their sequence logos for candidate S. nemorosa MYB genes. (A) Motif composition of 10 S. nemorosa MYB proteins. The motifs numbered 1–10 are displayed in various colored boxes. (B) The gene structures of candidate S. nemorosa MYB genes, blue boxes indicate UTR, yellow boxes stand for CDS, and black lines indicate introns. The number manifests the phases of the relevant intron.
Genes 15 00110 g004
Genes 15 00110 g005

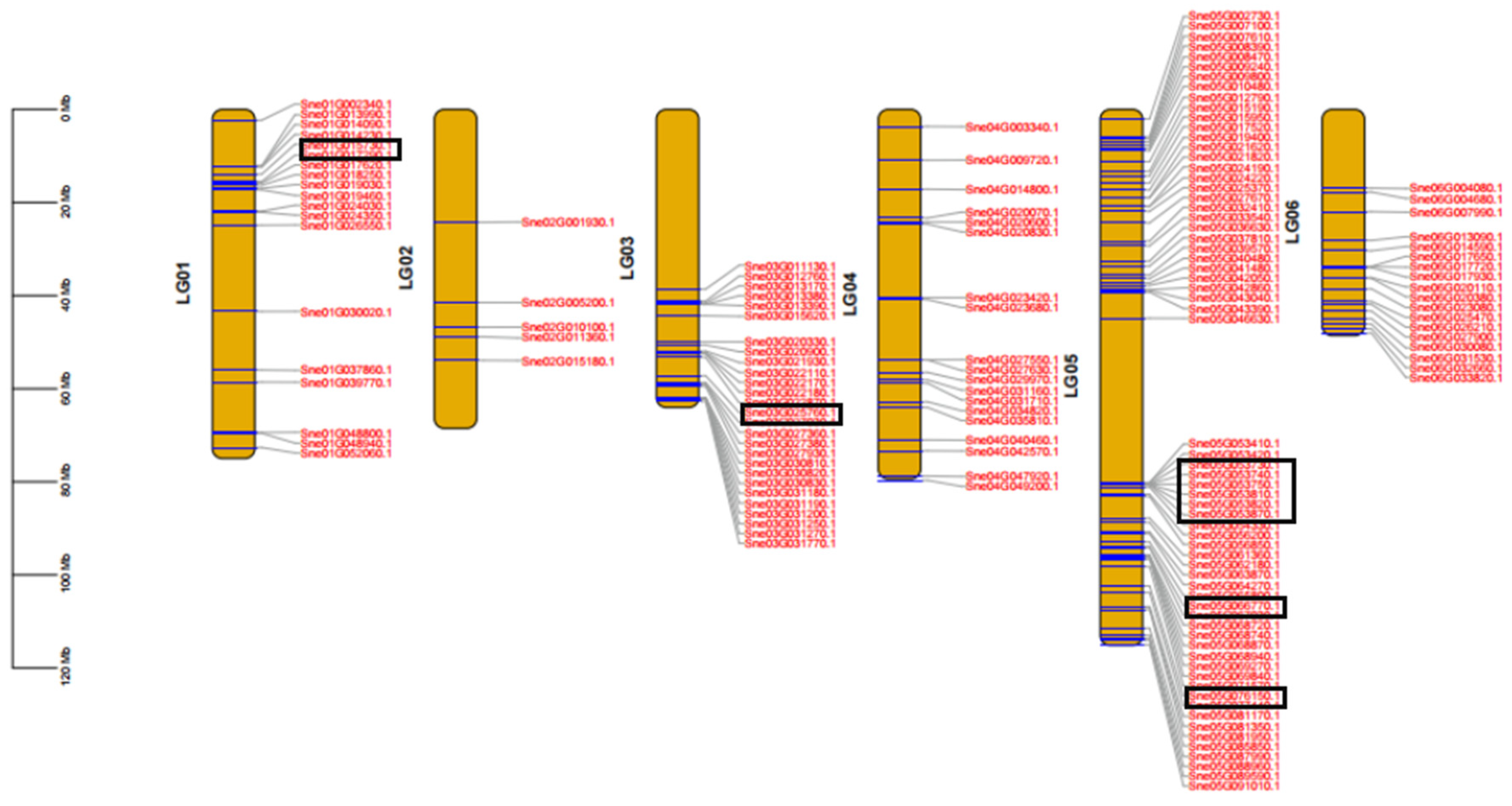

Figure 5. Chromosome localization of the MYB gene family in S. nemorosa. SnMYB genes were distributed unevenly across six S. nemorosa chromosomes, of which the black boxes represented 10 candidate gene sequences.
Figure 5. Chromosome localization of the MYB gene family in S. nemorosa. SnMYB genes were distributed unevenly across six S. nemorosa chromosomes, of which the black boxes represented 10 candidate gene sequences.
Genes 15 00110 g005
Genes 15 00110 g006

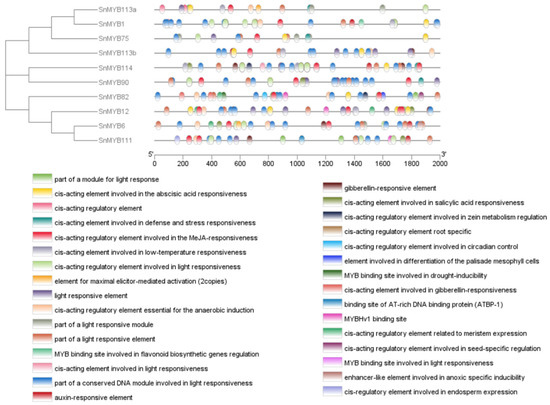

Figure 6. Visualization of promoter cis-acting element prediction of MYB genes in S. nemorosa. Promoter sequences (−2000 bp) of SnMYB genes were analyzed using PlantCARE. Blocks of different colors represent different elements.
Figure 6. Visualization of promoter cis-acting element prediction of MYB genes in S. nemorosa. Promoter sequences (−2000 bp) of SnMYB genes were analyzed using PlantCARE. Blocks of different colors represent different elements.
Genes 15 00110 g006
Genes 15 00110 g007

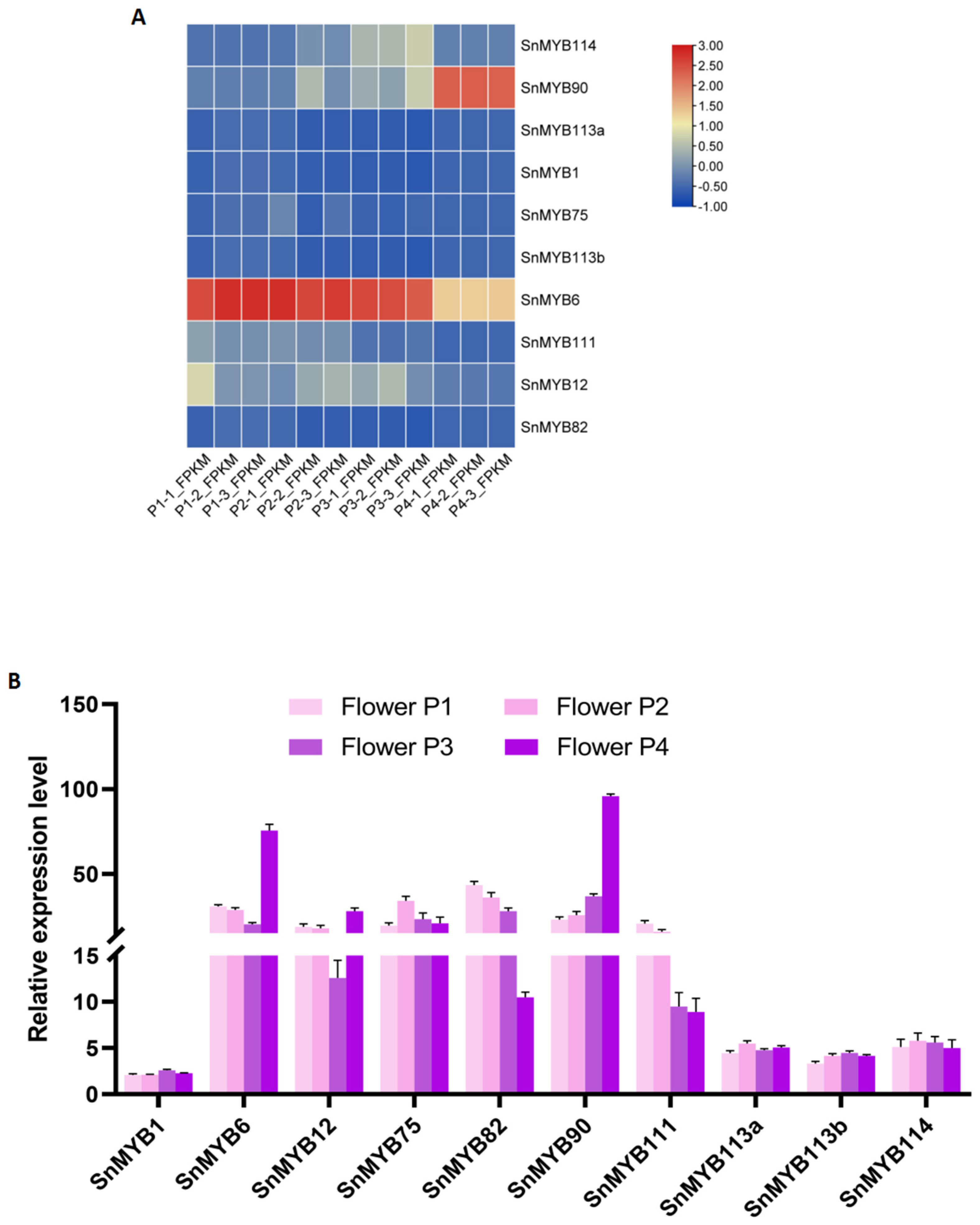

Figure 7. Gene expression patterns of 10 candidate S. nemorosa MYB genes. (A) Heatmap of expression profiles of candidate MYB genes differentially expressed in the petals at four stages of flower development with different degrees of purple coloration (marked as P1–P4) were collected from S. nemorosa. (B) The expression levels of candidate MYB genes in four flower development stages were investigated using qRT-PCR.
Figure 7. Gene expression patterns of 10 candidate S. nemorosa MYB genes. (A) Heatmap of expression profiles of candidate MYB genes differentially expressed in the petals at four stages of flower development with different degrees of purple coloration (marked as P1–P4) were collected from S. nemorosa. (B) The expression levels of candidate MYB genes in four flower development stages were investigated using qRT-PCR.
Genes 15 00110 g007
Table 1. Information on 142 MYB gene family members in Salvia nemorosa.
Table 1. Information on 142 MYB gene family members in Salvia nemorosa.
Sequence IDNumber of Amino AcidsMolecular WeightTheoretical pIInstability IndexAliphatic IndexGrand Average of HydropathicitySubcellular localization
Sne05G042860.127830,211.019.5174.1765.22−0.522Nucleus
Sne03G030830.121224,720.505.6962.6368.07−0.808Nucleus
Sne03G031180.129233,194.905.8251.3575.27−0.695Nucleus
Sne05G061360.127930,929.096.3046.4379.53−0.516Nucleus
Sne03G031250.124928,243.395.7358.8162.73−0.769Nucleus
Sne04G040460.126629,882.207.7568.0083.68−0.414Nucleus
Sne05G063870.130235,080.029.3365.7869.54−0.924Nucleus
Sne01G014230.129233,358.315.7156.7162.81−0.712Nucleus
Sne06G032660.128931,985.978.1054.6166.99−0.558Nucleus
Sne01G019460.128130,878.565.8152.2668.40−0.720Nucleus
Sne03G013380.133136,176.326.0159.3168.94−0.761Nucleus
Sne03G031770.140344,076.925.6655.8165.98−0.597Nucleus
Sne01G013990.177288,384.899.0042.4460.13−0.917Nucleus
Sne04G020600.124226,989.376.3859.5372.64−0.482Nucleus
Sne05G017520.125328,577.148.7458.5360.20−0.874Nucleus
Sne02G010100.1986109,507.465.0058.5162.34−0.689Nucleus
Sne05G054330.123225,779.509.0544.6374.61−0.450Nucleus
Sne06G031530.129832,573.528.1056.8664.97−0.556Nucleus
Sne05G032410.143147,921.074.8959.1184.76−0.283Nucleus
Sne01G030020.122024,994.857.9556.1859.86−0.823Nucleus
Sne03G021930.143248,916.867.5549.6769.10−0.777Nucleus
Sne04G020070.133637,817.368.3247.9955.27−0.907Nucleus
Sne04G042570.127730,510.328.9454.2367.04−0.604Nucleus
Sne05G056200.130533,880.806.6144.8365.97−0.719Nucleus
Sne05G068740.128732,253.598.9956.4674.84−0.640Nucleus
Sne05G053820.120924,201.669.1057.9769.00−0.693Nucleus
Sne05G019400.137942,110.866.5251.6764.17−0.661Nucleus
Sne03G022870.122826,638.967.0166.8367.63−0.811Nucleus
Sne03G015620.127931,737.768.7655.9673.08−0.661Nucleus
Sne05G041480.130434,581.676.3745.2365.46−0.740Nucleus
Sne04G031710.129531,585.689.6160.9472.07−0.358Nucleus
Sne05G002730.133937,751.806.0844.0870.71−0.669Nucleus
Sne05G007610.136241,749.465.9864.5661.16−0.916Nucleus
Sne03G011130.129733,032.678.7054.5650.61−0.980Nucleus
Sne03G022170.127431,367.489.1857.9669.85−0.805Nucleus
Sne05G012790.131635,109.669.0653.4967.06−0.679Nucleus
Sne05G069270.146151,451.445.8751.7365.64−0.754Nucleus
Sne05G068870.130834,738.685.6957.1554.61−0.726Nucleus
Sne06G007990.122426,608.709.5667.6763.57−1.071Nucleus
Sne05G042050.138242,406.416.1155.7366.70−0.659Nucleus
Sne05G071570.119522,629.768.6252.3477.59−0.646Nucleus
Sne03G013170.132936,608.428.7445.4967.33−0.704Nucleus
Sne06G017720.123026,767.918.9762.3170.04−0.965Nucleus
Sne04G027550.139643,802.194.7148.6482.50−0.519Nucleus
Sne03G030820.124828,255.596.4581.1660.60−0.715Nucleus
Sne05G091010.124327,155.769.0353.7567.53−0.750Nucleus
Sne05G007100.125930,019.186.0962.8076.02−0.628Nucleus
Sne02G015180.127130,441.585.9849.6565.68−0.710Nucleus
Sne04G023420.129733,832.756.4657.4164.07−0.757Nucleus
Sne04G035810.133637,778.408.9151.1254.40−0.895Nucleus
Sne01G014090.120623,702.658.8548.8963.40−0.744Nucleus
Sne01G015730.121624,632.997.7852.6775.46−0.665Nucleus
Sne03G020900.121224,644.119.0642.0367.17−0.754Nucleus
Sne01G024030.119922,749.719.2850.0059.90−0.841Nucleus
Sne05G015950.125929,167.765.3646.4176.41−0.585Nucleus
Sne03G027360.120023,032.029.6152.6068.25−0.957Nucleus
Sne06G033820.126931,164.725.8147.4883.75−0.649Nucleus
Sne01G037860.128031,202.139.7255.8362.39−0.739Nucleus
Sne05G021620.130433,834.936.0855.2764.21−0.752Nucleus
Sne05G068940.128532,060.755.5460.2969.47−0.773Nucleus
Sne05G062180.128031,751.714.8464.1275.21−0.627Nucleus
Sne05G046630.178888,406.954.8357.5268.07−1.084Nucleus
Sne04G020830.129733,785.706.6756.1163.10−0.753Nucleus
Sne05G010480.125728,740.636.3468.8249.38−0.981Nucleus
Sne01G048940.119222,453.086.1362.0363.07−0.931Nucleus
Sne01G039770.140744,374.735.8945.0369.04−0.509Nucleus
Sne05G015190.123626,827.556.2454.3271.61−0.598Nucleus
Sne05G065800.119021,454.175.5255.7677.63−0.725Nucleus
Sne05G067030.126029,540.095.2655.1669.04−0.790Nucleus
Sne03G031190.130534,465.416.0758.6472.30−0.710Nucleus
Sne05G081950.132035,714.816.2461.9366.25−0.724Nucleus
Sne06G027900.148653,644.725.6352.9662.04−0.654Nucleus
Sne05G053870.121925,053.467.6462.8874.38−0.723Nucleus
Sne04G031160.126729,945.796.8054.3370.97−0.686Nucleus
Sne03G027380.123827,716.888.9034.2961.05−0.886Nucleus
Sne06G026210.152757,194.515.4853.1065.37−0.547Nucleus
Sne01G052060.136939,510.175.0444.4266.94−0.485Nucleus
Sne03G013390.131233,831.936.1540.1573.78−0.605Nucleus
Sne05G081350.134838,947.806.8351.2268.16−0.705Nucleus
Sne01G018250.135040,411.706.0944.1459.97−0.952Nucleus
Sne05G056850.127829,973.275.1167.4761.55−0.517Nucleus
Sne03G022110.118921,711.7410.0569.8063.07−0.687Nucleus
Sne04G029970.120423,701.709.0356.5268.38−0.780Nucleus
Sne06G020380.126530,853.056.2650.1255.32−0.961Nucleus
Sne01G024350.128631,741.888.6468.9464.90−0.450Nucleus
Sne06G025470.154759,646.425.9352.6067.42−0.604Nucleus
Sne02G001930.125429,056.435.2967.7866.02−0.867Nucleus
Sne05G008390.136238,983.176.3952.8064.31−0.638Nucleus
Sne06G023080.123827,171.759.3373.6653.28−0.830Nucleus
Sne03G020330.127931,405.146.5552.9375.56−0.512Nucleus
Sne04G009720.119621,707.754.4662.5458.27−0.615Nucleus
Sne05G053750.120724,226.849.2264.9487.05−0.778Nucleus
Sne06G004680.123227,095.975.5065.0954.27−0.976Nucleus
Sne05G037810.128832,349.538.8346.0472.88−0.694Nucleus
Sne04G034820.122925,644.655.3263.6267.82−0.649Nucleus
Sne01G002340.126730,215.826.7255.8664.72−0.755Nucleus
Sne05G068720.132436,000.759.2053.5276.20−0.577Nucleus
Sne05G043040.127531,851.619.6250.8159.93−0.973Nucleus
Sne06G004080.124627,752.569.7553.6153.50−0.972Nucleus
Sne02G011360.123226,203.0810.2140.6767.28−0.733Nucleus
Sne05G039570.124128,043.307.0565.5565.64−0.925Nucleus
Sne03G022180.127831,708.108.3848.6373.74−0.677Nucleus
Sne05G053730.126329,122.958.7772.6568.37−0.627Nucleus
Sne02G005200.128132,102.156.1067.0561.14−0.658Nucleus
Sne05G040480.124128,134.386.4165.9064.02−0.949Nucleus
Sne01G017620.128331,447.236.2450.7872.12−0.608Nucleus
Sne05G076150.127130,762.606.1458.5864.80−0.866Nucleus
Sne05G036630.121724,355.929.0247.9774.70−0.653Nucleus
Sne06G017650.136742,412.805.8568.1454.25−1.005Nucleus
Sne05G024190.133938,587.929.4571.3570.65−0.898Nucleus
Sne06G014590.120723,365.448.7949.1064.59−0.801Nucleus
Sne05G085850.124326,162.269.3561.8663.83−0.544Nucleus
Sne03G025760.126228,967.259.4362.7679.47−0.569Nucleus
Sne05G021820.136741,827.118.8266.2274.96−0.774Nucleus
Sne01G017290.126029,530.358.1148.2576.19−0.667Nucleus
Sne05G024220.151857,840.018.6053.9470.60−0.717Nucleus
Sne05G009240.130333,979.275.3562.5063.99−0.598Nucleus
Sne01G048800.129232,345.118.6042.9665.86−0.634Nucleus
Sne04G014800.1991110,231.845.0558.9559.55−0.792Nucleus
Sne06G017930.122425,609.836.6755.5768.79−0.682Nucleus
Sne03G031200.131735,418.665.8246.0078.52−0.594Nucleus
Sne04G027630.132836,868.695.2140.2179.09−0.518Nucleus
Sne05G088960.127530,674.526.6756.9867.85−0.663Nucleus
Sne03G031270.124728,395.565.7843.9962.43−0.713Nucleus
Sne06G013090.120222,682.289.2452.8365.25−0.786Nucleus
Sne05G053810.121925,088.386.2253.6269.91−0.771Nucleus
Sne01G019030.129832,877.906.5946.2566.21−0.647Nucleus
Sne05G087990.133236,951.568.3856.6372.38−0.575Nucleus
Sne05G009800.119322,104.766.9658.4664.72−0.869Nucleus
Sne05G033540.127329,792.276.4654.7974.10−0.603Nucleus
Sne05G053740.131435,248.928.9272.3063.76−0.703Nucleus
Sne04G047920.133137,432.905.8952.3181.03−0.663Nucleus
Sne05G069840.131834,559.649.6577.7264.09−0.657Nucleus
Sne03G030810.124327,784.206.5466.5466.30−0.759Nucleus
Sne03G027030.130032,807.286.7156.0576.77−0.472Nucleus
Sne03G012760.122925,337.306.1248.6373.28−0.645Nucleus
Sne05G077440.123226,379.495.4054.6467.24−0.683Nucleus
Sne05G025370.132736,610.326.8557.2072.57−0.458Nucleus
Sne05G008470.129933,662.266.3154.2152.68−0.902Nucleus
Sne05G066770.122825,325.949.7260.8276.75−0.591Nucleus
Sne04G023680.125027,757.216.4456.2474.24−0.450Nucleus
Sne05G081170.130534,466.527.7354.6461.84−0.775Nucleus
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yang, H.; Chen, C.; Han, L.; Zhang, X.; Yue, M. Genome-Wide Identification and Expression Analysis of the MYB Transcription Factor Family in Salvia nemorosa. Genes 2024, 15, 110. https://doi.org/10.3390/genes15010110

AMA Style

Yang H, Chen C, Han L, Zhang X, Yue M. Genome-Wide Identification and Expression Analysis of the MYB Transcription Factor Family in Salvia nemorosa. Genes. 2024; 15(1):110. https://doi.org/10.3390/genes15010110

Chicago/Turabian Style

Yang, Huan, Chen Chen, Limin Han, Xiao Zhang, and Ming Yue. 2024. "Genome-Wide Identification and Expression Analysis of the MYB Transcription Factor Family in Salvia nemorosa" Genes 15, no. 1: 110. https://doi.org/10.3390/genes15010110

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
